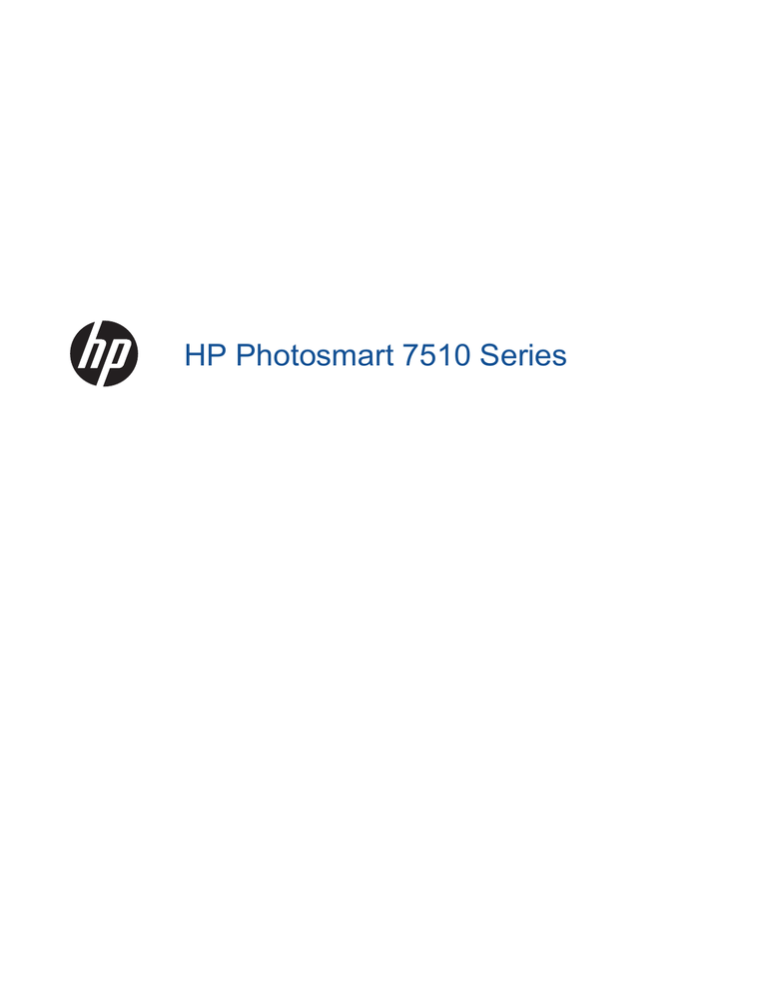

HP Photosmart 7510 Series
Contents
1
HP Photosmart 7510 Series Help......................................................................................................................................3
2
Get to Know the HP Photosmart
Printer parts..........................................................................................................................................................................5
Control panel features..........................................................................................................................................................6
Tips for getting to know the printer.......................................................................................................................................7
3
How do I?............................................................................................................................................................................9
4
Print
Print photos from a memory card.......................................................................................................................................11
Select Print Media..............................................................................................................................................................13
Load media.........................................................................................................................................................................13
Recommended papers for photo printing ..........................................................................................................................15
Recommended papers for printing and copying.................................................................................................................16
Tips for print success..........................................................................................................................................................17
5
Copy and scan
Scan to a computer or memory card..................................................................................................................................19
Copy text or mixed documents...........................................................................................................................................20
Tips for copy and scan success.........................................................................................................................................22
6
Use Web Services
Print with HP ePrint............................................................................................................................................................23
Use Print Apps....................................................................................................................................................................24
Visit the HP ePrintCenter website......................................................................................................................................24
7
Send and receive faxes with eFax
Set up the printer for faxing (required)...............................................................................................................................25
Send a fax..........................................................................................................................................................................26
Receive a fax......................................................................................................................................................................26
Fax Settings........................................................................................................................................................................26
Fax Issues and Questions..................................................................................................................................................26
8
Work with cartridges
Check the estimated ink levels...........................................................................................................................................27
Clean printhead automatically............................................................................................................................................27
Clean ink smear..................................................................................................................................................................27
Replace the cartridges.......................................................................................................................................................28
Order ink supplies..............................................................................................................................................................30
Cartridge warranty information...........................................................................................................................................30
Tips for working with ink.....................................................................................................................................................31
9
Solve a problem
Get more help.....................................................................................................................................................................33
Register the product...........................................................................................................................................................33
Clear the paper jam from the two-sided printing accessory...............................................................................................33
Clear the paper jam from the automatic document feeder.................................................................................................34
Clear carriage jam..............................................................................................................................................................34
Solve print problem............................................................................................................................................................35
Solve copy and scan problem............................................................................................................................................35
Solve networking problem..................................................................................................................................................35
HP support by phone..........................................................................................................................................................35
Additional warranty options................................................................................................................................................36
Cartridge supply upgrade...................................................................................................................................................36
Prepare printer...................................................................................................................................................................37
1
Check cartridge access door..............................................................................................................................................37
Printhead failure.................................................................................................................................................................37
Printer failure......................................................................................................................................................................37
Ink cartridge problem..........................................................................................................................................................37
SETUP cartridges...............................................................................................................................................................39
10 Connectivity
Add the HP Photosmart to a network.................................................................................................................................41
Change from a USB connection to a wireless network......................................................................................................42
Connect a new printer........................................................................................................................................................43
Change network settings....................................................................................................................................................43
Tips for setting up and using a networked printer..............................................................................................................43
Advanced printer management tools (for networked printers)...........................................................................................44
11 Technical information
Notice.................................................................................................................................................................................45
Cartridge chip information..................................................................................................................................................45
Specifications.....................................................................................................................................................................46
Environmental product stewardship program.....................................................................................................................48
Regulatory notices..............................................................................................................................................................53
Regulatory wireless statements.........................................................................................................................................56
Index........................................................................................................................................................................................59
2
1
HP Photosmart 7510 Series Help
Click the links below for information about the HP Photosmart:
•
•
•
•
•
•
•
•
•
Get to Know the HP Photosmart
How do I?
Print
Copy and scan
Work with cartridges
Send and receive faxes with eFax
Connectivity
Technical information
Solve a problem
HP Photosmart 7510 Series Help
3
Chapter 1
4
HP Photosmart 7510 Series Help
2
Get to Know the HP Photosmart
•
•
•
Printer parts
Control panel features
Tips for getting to know the printer
Printer parts
•
•
Front view of the printer
1
Lid
2
Lid Backing
3
Glass
4
Color graphics display (also referred to as the display)
5
Photo tray
6
Paper-width guide for the photo tray
7
Paper tray extender (also referred to as the tray extender)
8
Paper-width guide for the main tray
9
Main tray (also referred to as the input tray)
10
Output tray
11
Cartridge door
12
On button
13
Wireless LED
14
Memory Card slots
15
Memory Card slots LED
16
Automatic document feeder
17
Automatic document feeder tray
Top and rear views of the printer
Get to Know the HP Photosmart
5
Chapter 2
•
17
Cartridge access area
18
Printhead assembly
19
Model number location
20
Rear USB port
21
Power connection (Use only with the power adapter supplied by HP).
22
Two-sided printing accessory
View the animation for this topic. Some screens that appear in the animation may not reflect your product.
Control panel features
The touch screen display shows menus, photos, and messages. You can touch and drag your finger horizontally to
scroll through photos and vertically through menu options.
NOTE: eFax may not be available in all countries/regions.
6
Get to Know the HP Photosmart
1
Display: The touch screen display shows menus, photos, and messages. You can flick horizontally through photos and
vertically through list menus.
2
Home: Returns to the Home screen (the default screen when you turn on the product.
3
Web Services: Opens the Web Services menu, which displays status details. You can also change settings and, if Web
Services is enabled, print out a report..
4
Wireless Settings: Opens the Wireless menu where you can see wireless properties and change wireless settings.
5
Apps Manager: Opens the Manage My Favorites menu where you can rearrange and remove Apps.
6
Ink Levels: Opens the Ink Levels menu showing estimated ink levels.
7
Settings: Opens the Settings menu where you can change product settings and perform maintenance functions.
8
Help: From the Help screen, lists the topics for which help is available. From other screens, provides help applicable to
the current screen.
9
Apps: Provide quick and easy way to access and print information from the Apps, such as maps, coupons, coloring pages,
and puzzles.
10
Back: Returns to the previous screen on the display.
11
Photo: Opens the Photo menu where you can view, edit, print, and save your photos.
12
Copy: Opens the Copy menu where you can preview your copy, edit for size and darkness, select black or color, and
select the number of copies. You can also change settings to make 2-sided copies, or select size, quality, and paper type.
13
Scan: Opens the Choose Scan Destination menu, where you can select a destination for your scan.
14
eFax: Opens the eFax internet fax service. Send and receive faxes without fax hardware or a phone line. Internet connection
and Web Services required.
15
Cancel: Stops the current operation.
View the animation for this topic. Some screens that appear in the animation may not reflect your product.
Tips for getting to know the printer
Use the following tips to get to know the printer:
•
Learn how to manage print apps for printing recipes, coupons, and other content from the web. Click here to go
online for more information.
Tips for getting to know the printer
7
Chapter 2
8
Get to Know the HP Photosmart
3
How do I?
This section contains links to commonly performed tasks, such as printing photos, scanning, and making copies.
•
Scan to a computer or memory card
•
Replace the cartridges
•
Copy text or mixed documents
•
Load media
•
Clear the paper jam from the two-sided printing accessory.
•
Use Web Services
How do I?
9
Chapter 3
10
How do I?
4
Print
Print photos from a memory card
Related topics
• Load media
Tips for print success
Print photos from a memory card
Do one of the following:
Print photo on small-size paper
1. Load paper.
▲ Load up to 10 x 15 cm (4 x 6 inch) photo paper print side down in photo tray.
Load photo paper in the photo tray
2. Insert memory device.
Memory cards and slots
1
Memory Stick Duo or Pro Duo, Memory Stick Pro-HG Duo, or Memory Stick Micro (adapter required)
2
MultiMedia Card (MMC), MMC Plus, Secure MultiMedia Card, MMC Mobile (RS-MMC; adapter required), Secure Digital
(SD), Secure Digital Mini, Secure Digital High Capacity (SDHC), Secure Digital Extended Capacity (SDXC), or
TransFlash MicroSD Card (adapter required)
Print
11
Chapter 4
3. Select photo.
a. Touch Photo on the Home screen.
b. Touch View & Print.
c. Flick left or right to scroll through the photos.
d. Touch photo you want to print.
e. Touch up arrow to increase number of copies.
4. Print photo.
a. Touch Print to preview print job.
b. Touch Print.
Print photo on full-size paper
1. Load paper.
▲ Load full-size photo paper print side down in the main input tray.
Load paper
2. Insert memory device.
Memory cards and slots
1
Memory Stick Duo or Pro Duo, Memory Stick Pro-HG Duo, or Memory Stick Micro (adapter required)
2
MultiMedia Card (MMC), MMC Plus, Secure MultiMedia Card, MMC Mobile (RS-MMC; adapter required), Secure Digital
(SD), Secure Digital Mini, Secure Digital High Capacity (SDHC), Secure Digital Extended Capacity (SDXC), or
TransFlash MicroSD Card (adapter required)
3. Select photo.
a. Touch Photo on the Home screen.
b. Touch View & Print.
c. Flick left or right to scroll through the photos.
d. Touch photo you want to print.
e. Touch up arrow to increase number of copies.
12
Print
4. Change page layout.
a. Touch Print to preview print job.
b. Touch Print Settings to change print settings.
c. Touch Layout.
d. Touch 8.5x11.
5. Print photo.
▲ Touch Print.
Select Print Media
The printer is designed to work well with most types of office media. Use HP media for optimum print quality. Visit
the HP Web site at www.hp.com for more information about HP media.
HP recommends plain papers with the ColorLok logo for printing and copying of everyday documents. All papers
with the ColorLok logo are independently tested to meet high standards of reliability and print quality, and produce
documents with crisp, vivid color, bolder blacks and dry faster than ordinary plain papers. Look for papers with the
ColorLok logo in a variety of weights and sizes from major paper manufacturers.
To purchase HP papers, go to Shop for Products and Services and select ink, toner and paper.
Load media
1. Do one of the following:
Load 10 x 15 cm (4 x 6 inch) paper
a. Raise photo tray lid.
Raise photo tray lid and slide paper-width guide outwards.
b. Load paper.
Insert stack of photo paper into photo tray with short edge forward and print side down.
Slide stack of paper forward until it stops.
NOTE: If the photo paper you are using has perforated tabs, load photo paper so that tabs are
closest to you.
Slide paper-width guide inward until it stops at edge of paper.
c. Lower photo tray lid.
Load media
13
Chapter 4
Load A4 or 8.5 x 11 inch paper
a. Raise the photo tray.
Slide paper-width guide outwards.
Remove all paper from the main input tray.
b. Load paper.
Insert stack of paper into main input tray with short edge forward and print side down.
Slide stack of paper forward until it stops.
Slide paper-width guide inward until it stops at edge of paper.
Lower the photo tray.
Load envelopes
a. Raise the photo tray.
Slide paper-width guide outwards.
14
Print
Remove all paper from the main input tray.
b. Load envelopes.
Insert one or more envelopes into far-right side of main input tray, with envelope flaps on left and facing
up.
Slide stack of envelopes forward until it stops.
Slide paper-width guide inward against stack of envelopes until it stops.
Lower the photo tray.
2. View the animation for this topic. Some screens that appear in the animation may not reflect your product.
Related topics
• Tips for print success
Recommended papers for photo printing
If you want the best print quality, HP recommends using HP papers that are specifically designed for the type of
project you are printing. Depending on your country/region, some of these papers might not be available.
Paper
Description
HP Premium Plus Photo Paper
HP’s best photo paper is heavyweight for producing
professional-quality photos. Features an instant-dry finish for
easy handling without smudging. It resists water, smears,
fingerprints, and humidity. It is available in several sizes,
including A4, 8.5 x 11 inch, 10 x 15 cm (4 x 6 inch), 13 x 18 cm
Recommended papers for photo printing
15
Chapter 4
(continued)
Paper
Description
(5 x 7 inch) and two finishes – high gloss or soft gloss (satin
matte). It is acid-free for longer lasting documents.
HP Advanced Photo Paper
This thick photo paper features an instant-dry finish for easy
handling without smudging. It resists water, smears,
fingerprints, and humidity. Your prints have a look and feel
comparable to a store processed photo. It is available in
several sizes, including A4, 8.5 x 11 inch, 10 x 15 cm (4 x 6
inch), 13 x 18 cm (5 x 7 inch) and two finishes – glossy or soft
gloss (satin matte). It is acid-free for longer lasting documents.
HP Everyday Photo Paper
Print colorful, everyday snapshots at a low cost, using paper
designed for casual photo printing. This affordable, photo
paper dries quickly for easy handling. Get sharp, crisp images
when you use this paper with any inkjet printer. Available in
glossy finish in 8.5 x 11 inch, A4, 4 x 6 inch and 10 x 15 cm. It
is acid-free for longer lasting documents.
HP Photo Value Packs
HP Photo Value Packs conveniently package Original HP ink
cartridges and HP Advanced Photo Paper to save you time and
take the guesswork out of printing affordable Lab-quality
photos with your HP printer. Original HP inks and HP Advanced
Photo Paper have been designed to work together so your
photos are long lasting and vivid, print after print. Great for
printing out an entire vacation’s worth of photos or multiple
prints to share.
Recommended papers for printing and copying
Depending on your country/region, some of these papers might not be available.
16
Print
Paper
Description
HP Brochure Paper and HP Professional Paper 180gsm
These papers are glossy-coated or matte-coated on both sides
for two-sided use. They are the best choice for producing
professional-quality marketing materials such as brochures
and mailers as well as business graphics for report covers and
calendars.
HP Premium Presentation120gsm Paper and HP
Professional Paper 120gsm
These papers are heavy two-sided matte papers perfect for
presentation, proposals, reports and newsletters. They are a
professional weight for an impressive look and feel.
HP Bright White Inkjet Paper
HP Bright White Inkjet Paper delivers high-contrast colors and
sharp text. It is opaque enough for two-sided color usage with
no showthrough, which makes it ideal for newsletters, reports,
and flyers. It features ColorLok Technology for less smearing,
bolder blacks and vivid colors.
HP Printing Paper
HP Printing Paper is a high-quality multifunction paper. It
produces documents that look and feel more substantial than
documents printed on standard multipurpose or copy paper. It
features ColorLok Technology for less smearing, bolder blacks
and vivid colors.
HP Office Paper
HP Office Paper is a high-quality multifunction paper. It is
suitable for copies, drafts, memos and other everyday
documents. It features ColorLok Technology for less smearing,
bolder blacks and vivid colors.
HP Office Recycled Paper
HP Office Recycled Paper is a high-quality multifunction paper
made with 30% recycled fiber. It features ColorLok Technology
for less smearing, bolder blacks and vivid colors.
HP Iron-On Transfers
HP Iron-on Transfers (for color fabrics or for light or white
fabrics) are the ideal solution for creating custom T-shirts from
your digital photos.
NOTE: Learn more about paper types that support 2-sided printing on your printer. Click here to go online for
more information.
Tips for print success
Use the following tips to print successfully.
Print tips
• Use genuine HP cartridges. Genuine HP cartridges are designed for and tested with HP printers to help you
produce great results, time after time.
• Make sure the cartridges have sufficient ink. To check the estimated ink levels, touch the Ink Levels icon on the
printer display.
• Load a stack of paper, not just one page. Use clean and flat paper of the same size. Make sure only one type
of paper is loaded at a time.
• Adjust the paper-width guide in the input tray to fit snugly against all paper. Make sure the paper-width guide
does not bend the paper in the input tray.
• Set the print quality and paper size settings according to the type and size of paper loaded in the input tray.
• Use print preview to check margins. Do not let the margin settings for the document exceed the printable area
of the printer.
• Learn how to share your photos online and order prints. Click here to go online for more information.
• Learn how to print documents from computer. Click here to go online for more information.
• Learn how to print photos saved on your computer. Learn about print resolution and how to set the maximum
DPI. Click here to go online for more information.
• Learn how to print envelopes from computer. Click here to go online for more information.
• Learn more about managing apps for printing recipes, coupons, and other content on the HP ePrintCenter
website. Click here to go online for more information.
• Learn how to print from anywhere by sending an email and attachments to your printer. Click here to go online
for more information.
Tips for print success
17
Chapter 4
18
Print
5
Copy and scan
•
•
•
Scan to a computer or memory card
Copy text or mixed documents
Tips for copy and scan success
Scan to a computer or memory card
To scan to a computer or memory card from the printer display
1. Load original.
a. Lift lid on the product.
b. Load original print side down on the right front corner of glass.
c. Close lid.
2. To scan to a memory card, insert a memory card in the memory card slot.
If you want to scan to a computer, make sure the printer is connected to your computer on a wireless network
or through a USB cable.
3. Start scan.
a. From the Home screen, touch Scan.
b. Select the destination by touching either Computer or Memory Card.
To scan to a computer, select the computer, and then select a scan type to start the scan. If your computer
is not listed, touch Not listed for further information.
4. View the animation for this topic. Some screens that appear in the animation may not reflect your product.
Copy and scan
19
Chapter 5
Related topics
• Tips for copy and scan success
Copy text or mixed documents
1. Do one of the following:
1-sided copy
a. Load paper.
Load full-size paper in the main input tray.
b. Load original.
Lift lid on product.
Load original print side down on right front corner of glass.
Close lid.
20
Copy and scan
c. Specify number of copies.
Touch Copy on Home screen.
The Copy preview appears.
Touch the screen to set the number of copies.
d. Start copy.
Touch B&W or Color.
2-sided copy
a. Load paper.
Load full-size paper in the main input tray.
b. Load original.
Lift lid on product.
Load original print side down on right front corner of glass.
Close lid.
Copy text or mixed documents
21
Chapter 5
c. Specify 2-sided option.
Touch Copy on Home screen.
The Copy preview appears.
Touch Print Settings.
The Copy Settings menu appears.
Touch 2-Sided.
Touch On.
d. Specify number of copies.
Use the touch screen to set the number of copies.
e. Start copy.
Touch B&W or Color.
f. Copy the second original.
Load second page on the glass and touch OK.
2. View the animation for this topic. Some screens that appear in the animation may not reflect your product.
Related topics
• Tips for copy and scan success
Learn more about using the automatic document feeder to scan your documents. Click here to go online for
more information.
Tips for copy and scan success
Use the following tips to copy and scan successfully:
•
•
•
•
•
•
•
22
Keep the glass and the back of the lid clean. The scanner may interpret anything it detects on the glass as part
of the image.
Load your original, print side down, on the right front corner of the glass.
If you have a wireless connection and you have confirmed that the connection is working, you will need to enable
wireless scanning in the software to scan from the printer display. Open the Printer Software to select Scanner
Actions and then select Manage Scan to Computer.
To make a large copy of a small original, scan the original into the computer, resize the image in the scanning
software, and then print a copy of the enlarged image.
To avoid incorrect or missing scanned text, make sure the brightness is set appropriately in the software.
If the document to be scanned has a complex layout, select framed text as the scan document setting in the
software. With this setting, the text layout and formatting are retained.
If the scanned image is incorrectly cropped, turn off the autocropping feature in the software and crop the
scanned image manually.
Copy and scan
6
Use Web Services
•
•
•
Print with HP ePrint
Use Print Apps
Visit the HP ePrintCenter website
Print with HP ePrint
HP’s free ePrint service provides an easy way to print from email. Just email a document or photo to the email
address assigned to your printer when you enable Web Services, and both the email message and recognized
attachments will print.
•
•
•
Your printer needs to have a wireless network connection to the Internet. You won't be able to use ePrint via a
USB connection to a computer.
Attachments might print differently from the way they appear in the software program that created them,
depending on the original fonts and layout options used.
Free product updates are provided with ePrint. Some updates might be required to enable certain functionality.
Related topics
• Your printer is protected
How to get started with ePrint
Your printer is protected
To help prevent unauthorized email, HP assigns a random email address to your printer, never publicizes this
address, and by default does not respond to any sender. ePrint also provides industry-standard spam filtering and
transforms email and attachments to a print-only format to reduce the threat of virus or other harmful content.
However, the ePrint service does not filter email based on content, so it cannot prevent objectionable or copyrighted
material from being printed.
Go to the HP ePrintCenter website for more information and specific terms and conditions: www.hp.com/go/
ePrintCenter.
How to get started with ePrint
To use ePrint, you first need to connect your printer wirelessly to a network and enable Web Services. You also
need to create an ePrintCenter account if you do not already have one.
To get started with ePrint
1. Turn on wireless radio to connect wirelessly to a network.
a. Touch the Wireless button on the control panel to check the wireless status. If It shows Connected, and
details like IP address and network name appears, the printer has connected wirelessly to the network.
b. If it shows Wireless Off, touch Turn On, and then the printer will try to connect wirelessly to a network.
If you haven't set up the wireless network connection before, follow the prompts on the screen to set up
wireless network connection.
2. Enable Web services.
a. Touch ePrint on the home screen to display Web Services Settings.
b. If the Web services are not already enabled, touch Enable Web Services.
If the No Internet Connection screen is prompted, touch Retry or Enter Proxy to configure Web proxy
settings.
3. On the Web Services Settings menu, touch Turn ePrint On.
4. Touch ePrint on the control panel. On the Web Services Summary screen, get your printer's email address.
Use Web Services
23
Chapter 6
5. Compose and send email to your printer's email address from your computer or mobile device, anywhere and
anytime. Both the email message and recognized attachments will print.
6. View the animation for this topic. Some screens that appear in the animation may not reflect your product.
Use Print Apps
The enhanced HP Touchsmart display makes it easy to browse and print your favorite web content without a PC.
Choose from a wide variety of Apps or create your own.
Learn how to use Print Apps at the HP ePrintCenter.
Manage apps
Print pages from the web, without using a computer, by setting up Print Apps, a free service from HP. You can print
coloring pages, calendars, puzzles, recipes, maps, and more, depending on the apps available in your country/
region.
Touch the Get More icon on the Print Apps screen to connect to the Internet and add more apps. You need to
have web services enabled in order to use apps.
Go to the HP ePrintCenter website for more information and specific terms and conditions: www.hp.com/go/
ePrintCenter.
NOTE: Apps are offered on an availability basis to HP Photosmart 7510 Series series owners. HP and its third
party content providers may, from time to time, make additional apps available, enhance, modify, or eliminate
existing apps in accordance with our Terms of Use (www.hp.com/go/ePrintCenter).
To manage apps
1. Add apps
a. Touch Print Apps on the Home screen, and then touch the Get More icon.
b. Touch an app icon that you want to add.
c. Touch Add to confirm your adding.
2. Remove apps
a. Touch Print Apps on the Home screen, and then touch the Get More icon.
b. Touch one or more apps icons to select the apps that you want to remove.
c. Touch Yes to confirm your removing.
Removing an app from your Favorites Bar only removes it from your Home screen. You can add it again by
touching Get More.
3. View the animation for this topic. Some screens that appear in the animation may not reflect your product.
Visit the HP ePrintCenter website
Use HP’s free ePrintCenter website to set up increased security for ePrint and specify the email addresses that are
allowed to send email to your printer. You can also get Product Updates, more Print Apps, and other free services.
Go to the HP ePrintCenter website for more information and specific terms and conditions: www.hp.com/go/
ePrintCenter.
24
Use Web Services
7
Send and receive faxes with eFax
The HP Photosmart 7510 Series printer faxes without a phone line. The printer sends and receives faxes using
eFax®, a web-based faxing service. This service is free when you send up to 20 pages and receive up to 20 pages
per month.
If you want to send or receive more pages per month, you can upgrade to the eFax Plus® service, and your account
is charged a monthly fee.
When you use eFax®, your document is scanned by the printer, sent wirelessly to the eFax® server, and then on
to the receiving fax number.
To use the eFax® brand service, the printer must have an Internet connection and Web Services must be enabled
so the printer can communicate with eFax's® server.
Before you can use eFax® with your printer, you must perform the simple setup procedures described below. This
one-time setup allows the printer to communicate with eFax's® server using your eFax® account information
whenever you send and receive faxes.
Click here for more information about eFax®.
NOTE: eFax may not be available in all countries/regions.
Set up the printer for faxing (required)
Register with eFax®
1. Touch eFax on the printer Home screen to display the eFax® home screen.
2. Touch Register, then touch the Web Services checkbox to enable Web Services.
3. Create an account by following the onscreen instructions.
4. Touch Terms and Conditions to read the eFax® brand services agreement, then touch the I agree checkbox
and click OK.
5. After connecting with the eFax® server, you are assigned the eFax® number that appears on the screen.
6. Touch Continue, and the eFax® home screen displays your eFax® number and a number entry keypad for
sending faxes.
NOTE: Although the area code may not be local to you, you do not incur any long-distance charges when
sending and receiving faxes with this number.
Set up your printer with an existing eFax® number
1. Touch eFax on the printer Home screen to display the eFax® home screen. Enter your existing eFax® number
in the area indicated below Already have an eFax® number?
2. Enter the personal identification number (PIN) code for this account.
NOTE: If you’ve forgotten your PIN, touch the indicated area to have it sent to the email address associated
with your eFax® number.
3. Touch Enable to continue. Your eFax® number and PIN code is sent to eFax® for verification. After they are
verified, your existing eFax® number is displayed on the eFax® home screen and you are ready for faxing.
NOTE: If eFax® cannot verify the eFax® number and PIN you entered, log in to your eFax brand account
at www.efax.com and review your account information. You cannot fax using this number until the eFax®
account information is verified on the printer.
4. After connecting with the eFax® server, you are assigned the eFax® number that appears on the screen.
5. Touch OK, and the eFax® home screen displays your eFax® number and a number entry keypad for sending
faxes.
Send and receive faxes with eFax
25
Chapter 7
Send a fax
Send a Fax
1. Touch eFax on the printer Home screen to display the eFax® home screen.
2. Lift the printer’s lid and place the first page of your original document print side down on the scanner glass,
aligning it with the right front corner.
3. If you are sending the fax inside your own country, proceed to the next step. If you are sending the fax outside
of your country, touch this option on the screen. This ensures that the appropriate international dialing codes
are used.
4. Enter the fax number on the keypad and touch Start. Your document is scanned. When scanning is complete,
you are asked if you have more pages to fax.
5. If you have more pages to fax, touch Yes, remove your first original from the scanner glass and replace it with
the next one.
OR
If you do not have more pages to fax, touch No. Your fax is sent. Once it has been successfully sent to eFax's®
server, you are notified with a message. Touch OK to acknowledge the message and continue.
OR
To cancel your fax, touch Back.
Print a confirmation report of faxes you have sent
1. Touch Sent Faxes on the bottom of the screen.
2. Touch the checkbox next to the fax(es) you want included in the report.
3. Touch Print Confirmation.
Receive a fax
Provide your eFax® number to anyone who needs to send you a fax.
When a fax is received, it is printed automatically.
Fax Settings
Touch Settings at the bottom of the eFax® home screen to display the Fax Settings.
Fax Issues and Questions
•
•
•
26
For questions and answers about the eFax® brand service, touch Settings/FAQs on the eFax® home screen
For other information about the eFax® brand service go to www.efax.com.
eFax® is a registered trademark of j2 Global Communications, Inc. in the U.S. and internationally.
Send and receive faxes with eFax
8
Work with cartridges
•
•
•
•
•
•
•
Check the estimated ink levels
Clean printhead automatically
Clean ink smear
Replace the cartridges
Order ink supplies
Cartridge warranty information
Tips for working with ink
Check the estimated ink levels
You can easily check the ink supply level to determine how soon you might need to replace a cartridge. The ink
supply level shows an estimate of the amount of ink remaining in the cartridges.
NOTE: 1 If you have installed a refilled or remanufactured cartridge, or a cartridge that has been used in another
printer, the ink level indicator might be inaccurate or unavailable.
NOTE: 2 Ink level warnings and indicators provide estimates for planning purposes only. When you receive a
low-ink warning message, consider having a replacement cartridge available to avoid possible printing delays.
You do not have to replace the cartridges until the print quality is unacceptable.
NOTE: 3 Ink from the cartridges is used in the printing process in a number of different ways, including in the
initialization process, which prepares the product and cartridges for printing, and in printhead servicing, which
keeps print nozzles clear and ink flowing smoothly. In addition, some residual ink is left in the cartridge after it
is used. For more information, see www.hp.com/go/inkusage.
To check the ink levels from the printer display
▲ From the Home screen, press the Ink Levels icon. The estimated ink levels are displayed.
Related topics
• Order ink supplies
Tips for working with ink
Clean printhead automatically
If print quality is unacceptable, and the problem is not low ink levels or non-HP ink, try a printhead cleaning.
To clean the printhead from the printer display
1. From the Home screen, press the Settings button. The Setup Menu is displayed.
2. In the Setup Menu, touch the screen to highlight Tools. Press OK.
3. Touch the screen to highlight Clean Printhead. Press OK.
Related topics
• Order ink supplies
Tips for working with ink
Clean ink smear
If printouts shows smears of ink, try cleaning ink smear from the printer display. This process takes several minutes
to complete. Full-size plain paper needs to be loaded and will be moved back and forth during the cleaning.
Mechanical noises are normal at this time.
Work with cartridges
27
Chapter 8
To clean ink smear from the printer display
1. From the Home screen, touch the Settings icon, and then touch Tools.
2. On the Tools menu, touch the down arrow to scroll through the options, and then touch Clean Ink Smear.
Related topics
• Order ink supplies
Tips for working with ink
Replace the cartridges
To replace the cartridges
1. Check that power is on.
2. Remove cartridge.
a. Open cartridge access door.
Wait for print carriage to move to center of product.
b. Press tab on cartridge, then remove it from slot.
3. Insert new cartridge.
a. Remove cartridge from packaging.
28
Work with cartridges
b. Twist orange cap to snap it off. A forceful twist may be required to remove cap.
c. Match color icons, then slide cartridge into slot until it clicks into place.
d. Close cartridge door.
Replace the cartridges
29
Chapter 8
4. View the animation for this topic. Some screens that appear in the animation may not reflect your product.
Related topics
• Order ink supplies
Tips for working with ink
Order ink supplies
To learn which HP supplies work with your product, order supplies online, or create a printable shopping list, open
HP Solution Center, and select the online shopping feature.
Cartridge information and links to online shopping also appear on ink alert messages. In addition, you can find
cartridge information and order online by visiting www.hp.com/buy/supplies.
NOTE: Ordering cartridges online is not supported in all countries/regions. If it is not supported in your country/
region, contact a local HP reseller for information about purchasing cartridges.
Cartridge warranty information
The HP cartridge warranty is applicable when the product is used in its designated HP printing device. This warranty
does not cover HP ink products that have been refilled, remanufactured, refurbished, misused, or tampered with.
During the warranty period the product is covered as long as the HP ink is not depleted and the end of warranty
date has not been reached. The end of warranty date, in YYYY/MM format, may be found on the product as indicated:
For a copy of the HP Limited Warranty Statement, see the printed documentation that came with the product.
30
Work with cartridges
Tips for working with ink
Use the following tips to work with ink cartridges:
•
•
•
•
Use the correct ink cartridges for your printer. For a list of compatible ink cartridges, see the printed
documentation that came with the printer.
Insert the ink cartridges into the correct slots. Match the color and icon of each cartridge to the color and icon
for each slot. Make sure all cartridges snap down into place.
Use genuine HP ink cartridges. Genuine HP ink cartridges are designed for and tested with HP printers to help
you produce great results, time after time.
Consider getting replacement ink cartridges when you receive an ink alert message. This avoids possible printing
delays. You do not need to replace the ink cartridges until print quality becomes unacceptable.
Tips for working with ink
31
Chapter 8
32
Work with cartridges
9
Solve a problem
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Get more help
Register the product
Clear the paper jam from the two-sided printing accessory.
Clear the paper jam from the automatic document feeder
Clear carriage jam
Solve print problem
Solve copy and scan problem
Solve networking problem
HP support by phone
Additional warranty options
Cartridge supply upgrade
Prepare printer
Check cartridge access door
Printhead failure
Printer failure
Ink cartridge problem
SETUP cartridges
Get more help
You can find more information and help about your HP Photosmart by entering a keyword in the Search field in the
top left of the help viewer. Titles of related topics -- for both local and online topics -- will be listed.
To contact HP Support, click here to go online.
Register the product
By taking just a few quick minutes to register, you can enjoy quicker service, more efficient support, and product
support alerts. If you did not register your printer while installing the software, you can register now at http://
www.register.hp.com.
Clear the paper jam from the two-sided printing accessory.
To clear a paper jam from the two-sided printing accessory.
1. Turn product off.
2. Remove the two-sided printing accessory.
3. Remove jammed paper.
4. Replace two-sided printing accessory.
Solve a problem
33
Chapter 9
5. Turn on product.
6. Try printing again.
7. View the animation for this topic. Some screens that appear in the animation may not reflect your product.
If the above solutions do not resolve the problem, click here for more online troubleshooting.
Clear the paper jam from the automatic document feeder
To clear a paper jam from the automatic document feeder
1. Turn product off.
2. Lift automatic document feeder mechanism.
3.
4.
5.
6.
Remove jammed paper.
Close automatic document feeder.
Turn on product.
View the animation for this topic.
If the above solutions do not resolve the problem, click here for more online troubleshooting.
Clear carriage jam
Remove any objects, such as paper, that are blocking the print carriage.
NOTE: Do not use any tools or other devices to remove jammed paper. Always use caution when removing
jammed paper from inside the printer.
To get help from the print display, touch Help from the Home screen. Touch directional key to navigate through help
topics, touch Troubleshoot and Support, and then touch Clear Carriage Jam.
34
Solve a problem
Click here to go online for more information.
Solve print problem
Make sure that the printer is turned on and that there is paper in the paper tray. If you are still unable to print, HP
provides a Print Diagnostic Utility (Windows only) that can help solve many common “Unable to Print” issues. From
the Start menu on your computer, click All Programs, and then click HP. Under HP Photosmart 7510 Series, click
HP Photosmart 7510 Series, double-click Print Actions, and then double-click HP Print Diagnostic Utility.
Click here to go online for more information.
If print quality is not acceptable, try the following to improve print quality.
•
Use printer status and print quality report to diagnose printer and print quality issues. From the Home screen,
touch the Settings button, and then touch Tools. Scroll through options, and then touch Printer Status
Report or Print Quality Report. Click here to go online for more information
Solve copy and scan problem
HP provides a Scan Diagnostic Utility (Windows only) that can help solve many common “Unable to scan” issues.
From the Start menu on your computer, click All Programs, and then click HP. Under HP Photosmart 7510
Series, click HP Photosmart 7510 Series, double-click Scanner Actions, and then double-click HP Scan
Diagnostic Utility.
Learn more about how to solve scan issues. Click here to go online for more information
Learn how to solve copy issues. Click here to go online for more information.
Solve networking problem
Check network configuration or print wireless test report to assist in diagnosing network connection issues.
To check network configuration or print wireless test report
1. From the Home screen, touch the Wireless icon.
2. Do one of the following.
To check network configuration
a. From the Wireless screen, touch Settings and then Network.
b. Touch View Network Settings.
To print wireless test report
▲ From the Wireless screen, touch Print Report.
Click the links below to find more online information to solve networking issues.
•
•
•
•
Learn more about wireless printing. Click here to go online for more information.
Learn how to find your network security settings. Click here to go online for more information.
Learn about the Network Diagnostic Utility (Windows only) and other troubleshooting tips. Click here to go online
for more information.
Learn how to work with your firewall and anti-virus programs during printer setup. Click here to go online for
more information.
HP support by phone
Phone support options and availability vary by product, country/region, and language.
HP support by phone
35
Chapter 9
This section contains the following topics:
•
•
•
Phone support period
Placing a call
After the phone support period
Phone support period
One year of phone support is available in North America, Asia Pacific, and Latin America (including Mexico). To
determine the duration of phone support in Europe, the Middle East, and Africa, go to www.hp.com/support.
Standard phone company charges apply.
Placing a call
Call HP support while you are in front of the computer and the product. Be prepared to provide the following
information:
•
•
•
•
Product name (HP Photosmart 7510 Series)
Serial number (located on the back or bottom of the product)
Messages that appear when the situation occurs
Answers to these questions:
◦ Has this situation happened before?
◦ Can you re-create it?
◦ Did you add any new hardware or software to your computer at about the time that this situation began?
◦ Did anything else occur prior to this situation (such as a thunderstorm, product was moved, etc.)?
For the list of support phone numbers, visit www.hp.com/support.
After the phone support period
After the phone support period, help is available from HP at an additional cost. Help may also be available at the
HP online support Web site: www.hp.com/support. Contact your HP dealer or call the support phone number for
your country/region to learn more about support options.
Additional warranty options
Extended service plans are available for the HP Photosmart at additional costs. Go to www.hp.com/support, select
your country/region and language, then explore the services and warranty area for information about the extended
service plans.
Cartridge supply upgrade
If the supply upgrade is not successful, try getting your printer to recognize the supply upgrade cartridge.
To get the printer to recognize the supply upgrade cartridge:
1. Remove the supply upgrade cartridge.
2. Insert the original cartridge in the carriage.
3. Close the cartridge access door, then wait until the carriage stops moving.
4. Remove the original cartridge, then replace with the supply upgrade cartridge.
5. Close the cartridge access door, then wait until the carriage stops moving.
If you still receive a supply upgrade problem error message, contact HP support for help.
Click here to go online for more information.
36
Solve a problem
Prepare printer
If you are not satisfied with the print quality, try cleaning the cartridges from the control panel. See Clean printhead
automatically for more information.
Check cartridge access door
The cartridge access door should be closed for printing.
Click here to go online for more information.
Printhead failure
The printhead in this product has failed. Contact HP support for help.
Click here to go online for more information.
Printer failure
If you have already turned the printer off and then on, and this does not solve your problem, contact HP support for
help.
Click here to go online for more information.
Ink cartridge problem
To solve ink cartridge problem
1. Try removing and reinserting the cartridges. Make sure the cartridges are in the correct slots.
2. If reinserting the cartridges does not work, try cleaning cartridge contacts.
To clean cartridge contacts
CAUTION: The cleaning procedure should take only a few minutes. Make sure that the ink cartridges are
reinstalled in the product as soon as possible. It is not recommended to leave the ink cartridges outside of
the product longer than 30 minutes. This could result in damage to both the printhead and the ink cartridges.
a. Check that power is on.
b. Open the cartridge access door.
Ink cartridge problem
37
Chapter 9
Wait for the print carriage to move to the ink label part of the product.
c. Press tab on the cartridge indicated in the error message, then remove it from slot.
d. Hold the ink cartridge by its sides with the bottom pointing up and locate the electrical contacts on the ink
cartridge.
The electrical contacts are four small rectangles of copper or gold-colored metal on the bottom of the ink
cartridge.
1
Ink window
2
Electrical contacts
e. Wipe only the contacts with a dry swab or lint-free cloth.
CAUTION: Be careful to touch only the contacts, and do not smear any of the ink or other debris
elsewhere on the cartridge.
f.
38
On the inside of the product, locate the contacts in the printhead. The contacts look like a set of four copper
or gold-colored pins positioned to meet the contacts on the ink cartridge.
Solve a problem
g. Use a dry swab or lint-free cloth to wipe the contacts.
h. Reinstall the ink cartridge.
i. Close the access door, and check if the error message has gone away.
j. If you still receive the error message, turn the product off, and then on again.
3. If your problem is still not resolved, try replacing cartridges. See Replace the cartridges for more information.
Click here to go online for more information.
SETUP cartridges
When you first set up the printer, you must install the cartridges that shipped in the box with the printer. These
cartridges are labeled SETUP, and they calibrate your printer before the first print job. Failure to install the SETUP
cartridges during the initial product setup causes an error.
If you installed a set of regular cartridges, remove them and install the SETUP cartridges to complete printer setup.
After printer setup is complete, the printer can use regular cartridges.
WARNING! You must replace the orange caps on the regular cartridges you remove, or they will quickly dry
out. Some ink will still evaporate, but less than if the cartridges are uncapped. You can use the orange caps
from the SETUP cartridges if necessary.
If you still receive the error message, contact HP support for help.
Click here to go online for more information.
Older generation cartridges
You will need to use a newer version of this cartridge. To identify a newer version of the cartridge, look at the exterior
of the cartridge package and find the Warranty Ends date.
If it says ‘v1’ several spaces to the right of the date, then the cartridge is the updated newer version. If it is an older
generation cartridge, contact HP support for help or replacement.
Click here to go online for more information.
Older generation cartridges
39
Chapter 9
40
Solve a problem
10 Connectivity
•
•
•
•
•
•
Add the HP Photosmart to a network
Change from a USB connection to a wireless network
Connect a new printer
Change network settings
Tips for setting up and using a networked printer
Advanced printer management tools (for networked printers)
Add the HP Photosmart to a network
•
•
WiFi Protected Setup (WPS)
Wireless with a router (infrastructure network)
WiFi Protected Setup (WPS)
These instructions are for customers who have already setup and installed the printer software. For first time
installation refer to the setup instructions that came with the printer.
To connect the HP Photosmart to a wireless network using Wi-Fi Protected Setup (WPS), you will need the following:
A wireless 802.11b/g/n network that includes a WPS-enabled wireless router or access point.
NOTE: 802.11n will only support 2.4Ghz
A desktop computer or laptop with either wireless networking support, or a network interface card (NIC). The
computer must be connected to the wireless network that you intend to install the HP Photosmart on.
NOTE: If you have a Wi-Fi Protected Setup (WPS) router with a WPS push button, follow the Push Button
method. If you are not certain your router has a push button, follow the Wireless Settings Menu method.
Push Button (PBC) method
1. Press the Wi-Fi Protected Setup (WPS) button on your router.
2. Press and hold the Wireless button on the printer until the wireless light starts blinking. Press and hold for 3
seconds to start WPS push button mode .
NOTE: The product begins a timer for approximately two minutes while a wireless connection is established.
Wireless Settings Menu method
1. Touch the Wireless button on the printer display to see the Wireless menu. If the printer is printing, in an error
state, or performing a critical task, wait until the task has been completed or the error cleared before pressing
the Wireless button.
2. Select Wireless Settings from the printer display.
3. Select Wi-Fi Protected Setup from the printer display.
4. If you have a Wi-Fi Protected Setup (WPS) router with a WPS push button, select Push Button, and then follow
the onscreen instructions. If your router does not have a push button or you are not certain if your router has a
push button, select PIN, and then follow the onscreen instructions.
NOTE: The product begins a timer for approximately two minutes during which the corresponding button on
the networking device needs to be pressed or the router PIN needs to be entered on the router’s configuration
page.
Connectivity
41
Chapter 10
Wireless with a router (infrastructure network)
To connect the HP Photosmart to an integrated wireless WLAN 802.11 network, you will need the following:
A wireless 802.11b/g/n network that includes a wireless router or access point.
NOTE: 802.11n will only support 2.4Ghz.
A desktop computer or laptop with either wireless networking support, or a network interface card (NIC). The
computer must be connected to the wireless network that you intend to install the HP Photosmart on.
Broadband Internet access (recommended) such as cable or DSL.
If you connect the HP Photosmart on a wireless network that has Internet access, HP recommends that you use
a wireless router (access point or base station) that uses Dynamic Host Configuration Protocol (DHCP).
Network name (SSID).
WEP key or WPA Passphrase (if needed).
To connect the product with the Wireless Setup Wizard
1. Write down your network name (SSID) and WEP key or WPA passphrase.
2. Start Wireless Setup Wizard.
a. From the Home screen on the printer display, touch the Wireless icon.
b. On the Wireless menu, touch Settingsand then touch Wireless Setup Wizard.
3. Connect to wireless network.
▲ Select your network from the list of detected networks.
4. Follow prompts.
5. Install software.
▲ Insert the product Software CD in the computer CD-ROM drive.
▲ Follow the instructions on the screen.
When you are prompted, connect the product to the computer using a USB setup cable (not included with
the printer). Follow the onscreen prompts to enter your wireless network settings. The product will attempt
to connect to the network. If the connection fails, follow the prompts to correct the problem, and then try
again.
▲ When the setup is finished, you will be prompted to disconnect the USB cable and test the wireless network
connection. Once the product connects successfully to the network, install the software on each computer
that will use the product over the network.
Related topics
• Tips for setting up and using a networked printer
Change from a USB connection to a wireless network
If you first setup your printer and installed the software with a USB cable, directly connecting the printer to your
computer, you can easily change to a wireless network connection. You will need a wireless 802.11b/g/n network
that includes a wireless router or access point.
NOTE: 802.11n will only support 2.4Ghz
42
Connectivity
To change from a USB connection to a wireless network
Do one of the following according to your operating system.
1. On Windows:
a. From the Start menu on your computer, click All Programs, and then click HP.
b. Click HP Photosmart 7510 Series, click Printer Setup & Software Selection, and then click Convert a
USB connected printer to wireless.
c. Follow the instructions on the screen.
2. On Mac:
a. Touch the Wireless icon, and then touch Wireless Setup Wizard.
b. Follow the instructions on the screen to connect the printer.
c. Use HP Setup Assistant in Applications/Hewlett-Packard/Device Utilities to change the software connection
to this printer to wireless.
Connect a new printer
To connect a new printer from the printer software
If you have not finished connecting the printer to your computer, you need to connect it from the printer software. If
you want to connect another new printer of the same model to your computer, you don't need to install the printer
software once again. Do one of following according to your operating system:
1. On Windows:
a. From the Start menu on your computer, click All Programs, and then click HP.
b. Click HP Photosmart 7510 Series, click Printer Setup and Software, and then click Connect a new
printer
c. Follow the instructions on the screen.
2. On Mac:
▲ Use HP Setup Assistant in Applications/Hewlett-Packard/Device Utilities to change the software connection
to this printer to wireless.
Change network settings
If you want to change the wireless settings that you previously configured to a network, you need to run the Wireless
Setup Wizard from the printer display.
To run Wireless Setup Wizard to change network settings
1. From the Home screen on the printer display, touch the Wireless icon.
2. On the Wireless menu, touch Settingsand then touch Wireless Setup Wizard.
3. Follow the instructions on the screen to change the network settings.
Tips for setting up and using a networked printer
Use the following tips to set up and use a networked printer:
•
•
•
•
When setting up the wireless networked printer, make sure your wireless router or access point is powered on.
The printer searches for wireless routers, then lists the detected network names on the display.
To verify the wireless connection, check the wireless icon at the top of the Home screen. If the icon is colored,
the wireless connection is on. Touch the icon to display the Wireless status dashboard. Touch Settings to display
the Network menu, with options for setting up a wireless connection or turning on the wireless connection, if
already set up.
If your computer is connected to a Virtual Private Network (VPN), you need to disconnect from the VPN before
you can access any other device on your network., including the printer.
Learn how to find your network security settings. Click here to go online for more information.
Tips for setting up and using a networked printer
43
Chapter 10
•
•
•
Learn about the Network Diagnostic Utility and other troubleshooting tips. Click here to go online for more
information.
Learn how to change from a USB to wireless connection. Click here to go online for more information.
Learn how to work with your firewall and anti-virus programs during printer setup. Click here to go online for
more information.
Advanced printer management tools (for networked
printers)
When the printer is connected to a network, you can use the embedded Web server to view status information,
change settings, and manage the printer from your computer.
NOTE: To view or change some settings, you might need a password.
You can open and use the embedded Web server without being connected to the Internet. However, some
features are not available.
•
•
To open the embedded Web server
About cookies
To open the embedded Web server
NOTE: The printer must be on a network and must have an IP address. The IP address for the printer can be
found by touching the Wireless button on the control panel or by printing a network configuration page.
In a supported Web browser on your computer, type the IP address or hostname that has been assigned to the
printer.
For example, if the IP address is 192.168.0.12, type the following address into a Web browser such as Internet
Explorer: http://192.168.0.12.
To access the embedded Web server your computer and your printer need to be on the same network.
About cookies
The embedded Web server (EWS) places very small text files (cookies) on your hard drive when you are browsing.
These files let the EWS recognize your computer the next time you visit. For example, if you have configured the
EWS language, a cookie helps remember which language you have selected so that the next time you access the
EWS, the pages are displayed in that language. Though some cookies are cleared at the end of each session (such
as the cookie that stores the selected language), others (such as the cookie that stores customer-specific
preferences) are stored on the computer until you clear them manually.
You can configure your browser to accept all cookies, or you can configure it to alert you every time a cookie is
offered, which allows you to decide which cookies to accept or refuse. You can also use your browser to remove
unwanted cookies.
NOTE: Depending on your printer, if you disable cookies, you also disable one or more of the following features:
•
•
•
Starting where you left the application (especially useful when using setup wizards).
Remembering the EWS browser language setting.
Personalizing the EWS Home page.
For information about how to change your privacy and cookie settings and how to view or delete cookies, see the
documentation available with your Web browser.
44
Connectivity
11 Technical information
The technical specifications and international regulatory information for the HP Photosmart are provided in this
section.
For additional specifications, see the printed documentation that came with the HP Photosmart.
This section contains the following topics:
•
•
•
•
•
•
Notice
Cartridge chip information
Specifications
Environmental product stewardship program
Regulatory notices
Regulatory wireless statements
Notice
Cartridge chip information
The HP cartridges used with this product contain a memory chip that assists in the operation of the product. In
addition, this memory chip collects a limited set of information about the usage of the product, which might include
the following: the date when the cartridge was first installed, the date when the cartridge was last used, the number
of pages printed using the cartridge, the page coverage, the printing modes used, any printing errors that might
have occurred, and the product model. This information helps HP design future products to meet our customers
printing needs.
The data collected from the cartridge memory chip does not contain information that can be used to identify a
customer or user of the cartridge or their product.
HP collects a sampling of the memory chips from cartridges returned to HP's free return and recycling program (HP
Planet Partners: www.hp.com/hpinfo/globalcitizenship/environment/recycle/). The memory chips from this sampling
are read and studied in order to improve future HP products. HP partners who assist in recycling this cartridge might
have access to this data, as well.
Any third party possessing the cartridge might have access to the anonymous information on the memory chip. If
you prefer to not allow access to this information, you can render the chip inoperable. However, after you render
the memory chip inoperable, the cartridge cannot be used in an HP product.
If you are concerned about providing this anonymous information, you can make this information inaccessible by
turning off the memory chip's ability to collect the product's usage information.
To disable the usage information function
1. Touch Setup.
Technical information
45
Chapter 11
2. Touch Preferences.
3. Touch Cartridge Chip Info, and then touch OK.
NOTE: To re-enable the usage information function, restore the factory defaults.
NOTE: You can continue to use the cartridge in the HP product if you turn off the memory chip's ability to collect
the product's usage information.
Specifications
Technical specifications for the HP Photosmart are provided in this section. For complete product specifications,
see the Product Data Sheet at www.hp.com/support.
System requirements
Software and system requirements are located in the Readme file.
For information about future operating system releases and support, visit the HP online support Web site at
www.hp.com/support.
Environmental specifications
• Allowable operating temperature range: Main printer: 5 to 40 degrees C (41 to 104 degrees F) Removable
display: -10 to 40 degrees C (14 to 104 degrees F)
• Allowable operating temperature range: 5 ºC to 40 ºC (41 ºF to 104 ºF)
• Humidity: 15% to 80% RH non-condensing; 28 ºC maximum dewpoint
• Non-operating (Storage) temperature range: -20 to 60 degrees C (-4 to 140 degrees F)
• In the presence of high electromagnetic fields, it is possible the output from the HP Photosmart may be slightly
distorted
• HP recommends using a USB cable less than or equal to 3 m (10 feet) in length to minimize injected noise due
to potential high electromagnetic fields
Print resolution
To learn more about the printer resolution, see the printer software.
Paper specifications
Type
Paper weight
Input tray*
Output tray†
Photo tray*
Plain paper
16 to 24 lb. (60 to 90 gsm)
Up to 125 (20 lb. paper)
50 (20 lb. paper)
n/a
Legal paper
16 to 24 lb. (60 to 90 gsm)
Up to 125 (20 lb. paper)
10 (20 lb. paper)
n/a
Cards
Up to 75 lb. (281 gsm)
Up to 60
25
Up to 20
Envelopes
20 to 24 lb. (75 to 90 gsm)
Up to 15
15
n/a
Transparency film
n/a
Up to 40
25
n/a
Labels
n/a
Up to 40
25
n/a
5 x 7 inch (13 x 18 cm) Photo
paper
Up to 75 lb (281 gsm)
Up to 40
25
Up to 20
4 x 6 inch (10 x 15 cm) Photo
paper
Up to 75 lb. (281 gsm)
Up to 40
25
Up to 20
46
Technical information
(236 gsm)
(236 gsm)
(continued)
Type
Paper weight
Input tray*
Output tray†
Photo tray*
8.5 x 11 inch (216 x 279 mm)
Photo paper
Up to 75 lb. (281 gsm)
Up to 40
25
n/a
*
†
Maximum capacity.
Output tray capacity is affected by the type of paper and the amount of ink you are using. HP recommends emptying the output
tray frequently. FAST DRAFT print quality mode requiresthe extender tray to be extended and the end tray rotated up. Without
the end tray rotated up, both letter and legal-sized paper will fall on the first sheet.
*
NOTE: For a complete list of supported media sizes, see the printer driver.
Two-sided printing accessory paper specifications - all regions except Japan
Type
Size
Weight
Paper
Letter: 8.5 x 11 inches
16 to 24 lb. (60 to 90 gsm)
Executive: 7.25 x 10.5 inches
A4: 210 x 297 mm
B5 (ISO): 176 x 250 mm B5 (JIS): 182 x
257 mm
Brochure paper
Letter: 8.5 x 11 inches
Up to 48 lb. (180 gsm)
A4: 210 x 297 mm
Two-sided printing accessory paper specifications - Japan only
Type
Size
Weight
Paper
Letter: 8.5 x 11 inches
60 to 90 g/m2 (16 to 24 lb.)
Executive: 7.25 x 10.5 inches
A4: 210 x 297 mm
A5: 148 x 210 mm
B5 (ISO): 176 x 250 mm B5 (JIS): 182 x
257 mm
Brochure paper
Letter: 8.5 x 11 inches
Up to 180 g/m2 (48 lb. bond)
A4: 210 x 297 mm
Cards and photos
4 x 6 inches
Up to 200 g/m2 (110 lb. index)
5 x 8 inches
10 x 15 cm
A6: 105 x 148.5 mm
Hagaki: 100 x 148 mm
Alignment skew
• .006 mm/mm on plain paper (2nd side)
NOTE: Media type availability varies by country/region.
Print specifications
• Print speeds vary according to the complexity of the document
• Panorama-size printing
• Method: drop-on-demand thermal inkjet
• Language: PCL3 GUI
Copy specifications
• Digital image processing
• Maximum number of copies varies by model
Specifications
47
Chapter 11
•
•
•
Copy speeds vary according to the complexity of the document and model
Maximum copy enlargement ranging from 200-400% (depends on model)
Maximum copy reduction ranging from 25-50% (depends on model)
Ink cartridge yield
Visit www.hp.com/go/learnaboutsupplies for more information on estimated cartridge yields.
Scan specifications
• Image editor included
• Resolution: up to 1200 x 2400 ppi optical (depends on model); 19200 ppi enhanced (software)
For more information about ppi resolution, see the scanner software.
• Color: 48-bit color, 8-bit grayscale (256 levels of gray)
• Maximum scan size from glass: 21.6 x 29.7 cm (8.5 x 11.7 inches)
Environmental product stewardship program
Hewlett-Packard is committed to providing quality products in an environmentally sound manner. Design for
recycling has been incorporated into this product. The number of materials has been kept to a minimum while
ensuring proper functionality and reliability. Dissimilar materials have been designed to separate easily. Fasteners
and other connections are easy to locate, access, and remove using common tools. High priority parts have been
designed to access quickly for efficient disassembly and repair.
For more information, visit HP’s Commitment to the Environment Web site at:
www.hp.com/hpinfo/globalcitizenship/environment/index.html
This section contains the following topics:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Eco-Tips
Paper use
Plastics
Material safety data sheets
Recycling program
HP inkjet supplies recycling program
Auto Power-Off
Set the Energy Save Mode
Power consumption
Disposal of waste equipment by users in private households in the European Union
Chemical Substances
Toxic and hazardous substance table
Battery disposal in the Netherlands
Battery disposal in Taiwan
Attention California users
EU battery directive
Eco-Tips
HP is committed to helping customers reduce their environmental footprint. HP has provided the Eco-Tips below to
help you focus on ways to assess and reduce the impact of your printing choices. In addition to specific features in
this product, please visit the HP Eco Solutions web site for more information on HP’s environmental initiatives.
www.hp.com/hpinfo/globalcitizenship/environment/
Your product's Eco features
• Energy Savings information: To determine the ENERGY STAR® qualification status for this product, see
Power consumption.
• Recycled Materials: For more information regarding recycling of HP products, please visit:
www.hp.com/hpinfo/globalcitizenship/environment/recycle/
48
Technical information
Paper use
This product is suited for the use of recycled paper according to DIN 19309 and EN 12281:2002.
Plastics
Plastic parts over 25 grams are marked according to international standards that enhance the ability to identify
plastics for recycling purposes at the end of product life.
Material safety data sheets
Material safety data sheets (MSDS) can be obtained from the HP Web site at:
www.hp.com/go/msds
Recycling program
HP offers an increasing number of product return and recycling programs in many countries/regions, and partners
with some of the largest electronic recycling centers throughout the world. HP conserves resources by reselling
some of its most popular products. For more information regarding recycling of HP products, please visit:
www.hp.com/hpinfo/globalcitizenship/environment/recycle/
HP inkjet supplies recycling program
HP is committed to protecting the environment. The HP Inkjet Supplies Recycling Program is available in many
countries/regions, and lets you recycle used print cartridges and ink cartridges free of charge. For more information,
go to the following Web site:
www.hp.com/hpinfo/globalcitizenship/environment/recycle/
Auto Power-Off
Auto Power-Off is automatically enabled by default when you turn on the printer. When Auto Power-Off is enabled,
the printer will automatically turn off after two hours of inactivity to help reduce energy use. Auto Power-Off is
automatically disabled when the printer establishes a wireless connection with a network router or with a mobile
device for Wireless Direct printing, or when you enable alarms or calendar reminders. You can change the Auto
Power-Off setting from the control panel. Once you change the setting , the printer will maintain the setting that you
choose. Auto Power-Off turns the printer off completely, so you must use the power button to turn the printer
back on.
To enable or disable Auto Power-Off
1. From the Home screen, touch Setup.
2.
3.
4.
5.
Touch Preferences.
Scroll through the options, and then touch Set Auto-off.
Touch On or Off.
Touch Yes to confirm your selection or No to keep your current setting.
TIP: If you are printing through a wireless connection over a network, Auto Power-Off should be disabled to
ensure that print jobs do not get lost. Even when Auto Power-Off is disabled, the user-adjustable Energy Saver
Mode helps reduce energy use.
Set the Energy Save Mode
The HP Photosmart Energy Save Mode reduces energy use by entering a sleep mode after 5 minutes of inactivity.
The time to sleep mode can be extended to 10 or 15 minutes.
NOTE: This feature is on by default and cannot be turned off.
Environmental product stewardship program
49
Chapter 11
To set Energy Save Mode
1. Touch the Setup icon.
2. Touch Preferences.
3. Scroll through the options and touch Energy Save Mode.
4. Touch the desired time interval (5, 10 or 15 minutes).
Power consumption
Hewlett-Packard printing and imaging equipment marked with the ENERGY STAR® logo is qualified to the U.S.
Environmental Protection Agency’s ENERGY STAR specifications for imaging equipment. The following mark will
appear on ENERGY STAR qualified imaging products:
Additional ENERGY STAR qualified imaging product model information is listed at: www.hp.com/go/energystar
50
Technical information
Disposal of waste equipment by users in private households in the European Union
Chemical Substances
HP is committed to providing our customers with information about the chemical substances in our products as
needed to comply with legal requirements such as REACH (Regulation EC No 1907/2006 of the European
Parliament and the Council). A chemical information report for this product can be found at: www.hp.com/go/
reach.
Environmental product stewardship program
51
Chapter 11
Toxic and hazardous substance table
Battery disposal in the Netherlands
Battery disposal in Taiwan
Attention California users
The battery supplied with this product may contain perchlorate material. Special handling may apply. For more
information, go to the following Web site:
www.dtsc.ca.gov/hazardouswaste/perchlorate
52
Technical information
EU battery directive
Regulatory notices
The HP Photosmart meets product requirements from regulatory agencies in your country/region.
Regulatory notices
53
Chapter 11
This section contains the following topics:
•
•
•
•
•
•
•
•
Regulatory model identification number
FCC statement
VCCI (Class B) compliance statement for users in Japan
Notice to users in Japan about the power cord
Notice to users in Korea
Notice to users in Germany
Noise emission statement for Germany
European Union Regulatory Notice
Regulatory model identification number
For regulatory identification purposes, your product is assigned a Regulatory Model Number. The Regulatory Model
Number for your product is SDGOB-1021. This regulatory number should not be confused with the marketing name
(HP Photosmart 7510 Series, etc.) or product numbers (CD734A, etc.).
FCC statement
VCCI (Class B) compliance statement for users in Japan
54
Technical information
Notice to users in Japan about the power cord
Notice to users in Korea
Notice to users in Germany
Noise emission statement for Germany
European Union Regulatory Notice
Products bearing the CE marking comply with the following EU Directives:
•
•
•
Low Voltage Directive 2006/95/EC
EMC Directive 2004/108/EC
Ecodesign Directive 2009/125/EC, where applicable
CE compliance of this product is valid only if powered with the correct CE-marked AC adapter provided by HP.
If this product has telecommunications functionality, it also complies with the essential requirements of the following
EU Directive:
•
R&TTE Directive 1999/5/EC
Compliance with these directives implies conformity to applicable harmonized European standards (European
Norms) that are listed in the EU Declaration of Conformity issued by HP for this product or product family and
available (in English only) either within the product documentation or at the following web site: www.hp.com/go/
certificates (type the product number in the search field).
Regulatory notices
55
Chapter 11
The compliance is indicated by one of the following conformity markings placed on the product:
For non-telecommunications products and for EU
harmonized telecommunications products, such
as Bluetooth® within power class below 10mW.
For EU non-harmonized telecommunications
products (If applicable, a 4-digit notified body
number is inserted between CE and !).
Please refer to the regulatory label provided on the product.
The telecommunications functionality of this product may be used in the following EU and EFTA countries: Austria,
Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovak Republic, Slovenia, Spain, Sweden, Switzerland, and United Kingdom.
The telephone connector (not available for all products) is intended for connection to analogue telephone networks.
Products with wireless LAN devices
• Some countries may have specific obligations or special requirements about the operation of Wireless LAN
networks such as indoor use only or restrictions of the channels available. Please make sure that the country
settings of the wireless network are correct.
France
• For 2.4-GHz Wireless LAN operation of this product, certain restrictions apply: This product may be used indoors
for the entire 2400-MHz to 2483.5-MHz frequency band (channels 1 to 13). For outdoor use, only the 2400-MHz
to 2454-MHz frequency band (channels 1 to 7) may be used. For the latest requirements, see www.arcep.fr.
The point of contact for regulatory matters is:
Hewlett-Packard GmbH, Dept./MS: HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, GERMANY
Regulatory wireless statements
This section contains the following regulatory information pertaining to wireless products:
•
•
•
•
Exposure to radio frequency radiation
Notice to users in Brazil
Notice to users in Canada
Notice to users in Taiwan
Exposure to radio frequency radiation
56
Technical information
Notice to users in Brazil
Notice to users in Canada
Notice to users in Taiwan
Regulatory wireless statements
57
Chapter 11
58
Technical information
Index
Symbols/Numerics
10 x 15 cm photo paper
specifications 46
A
after the support period 36
regulatory notices
regulatory model identification
number 54
wireless statements 56
S
buttons, control panel 6
scan
scan specifications 48
system requirements 46
C
T
B
control panel
buttons 6
features 6
copy
specifications 47
customer support
warranty 36
E
envelopes
specifications 46
environment
Environmental product stewardship
program 48
environmental specifications 46
technical information
copy specifications 47
environmental specifications
paper specifications 46
print specifications 47
scan specifications 48
system requirements 46
transparencies
specifications 46
46
W
warranty 36
I
interface card 41, 42
L
labels
specifications 46
legal paper
specifications 46
letter paper
specifications 46
N
network
interface card 41, 42
P
paper
specifications 46
phone support 35
phone support period
period for support 36
photo paper
specifications 46
print
specifications 47
R
recycle
ink cartridges
49
59
60
Download PDF

advertising
