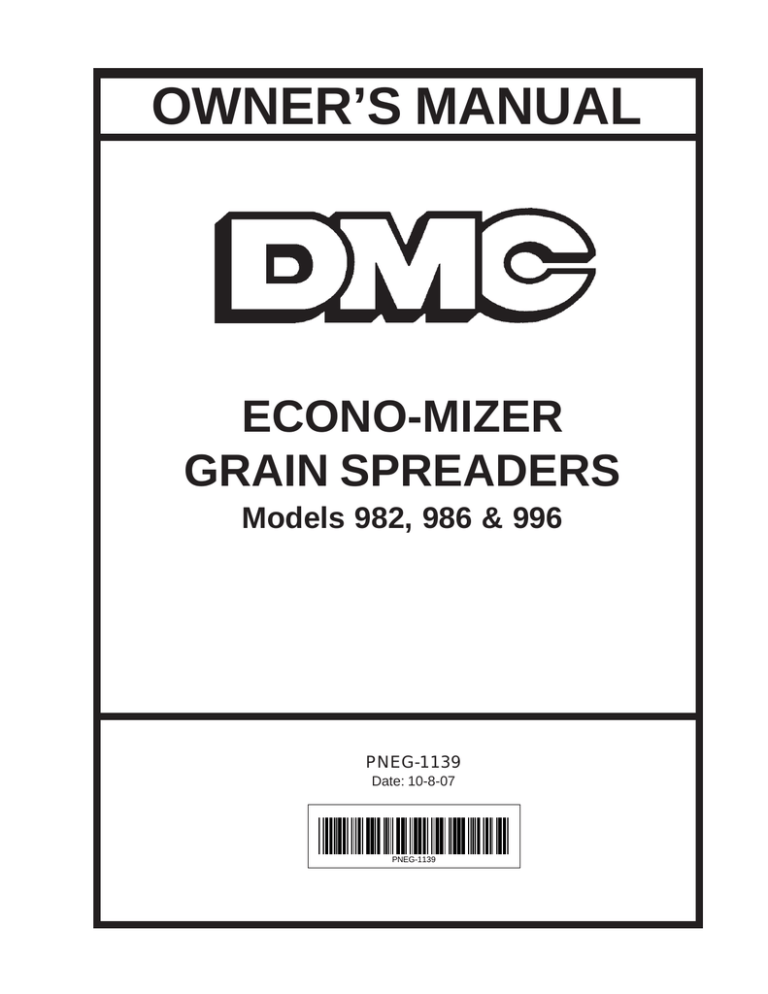

OWNER’S MANUAL
ECONO-MIZER
GRAIN SPREADERS
Models 982, 986 & 996
PNEG-1139
Date: 10-8-07
PNEG-1139
Safety
Econo-Mizer
SAFETY GUIDELINES
This manual contains information that is important for you, the owner/operator, to know and
understand. This information relates to protecting personal safety and preventing
equipment problems. It is the responsibility of the owner/operator to inform anyone
operating or working in the area of this equipment of these safety guidlines.To help you
recognize this information, we use the symbols that are defined below.
Please read the manual and pay attention to these sections. Failure to read this manual
and it’s safety instructions is a misuse of the equipment and may lead to serious injury or death.
This is the safety alert symbol. It is used to alert you
to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
DANGER indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
CAUTION used without the safety alert symbol indicates a potentially
hazardous situation which, if not avoided, may result in property
damage.
NOTE indicates information about the equipment that you should pay
special attention to.
3
Econo-Mizer
1.
Disconnect all power before servicing or adjusting. Have bin properly grounded.
2.
Do not enter a bin while the unit is operating without proper eye protection.
3.
Do not attempt to service or adjust the unit from a ladder unless the ladder is
secured to another piece of equipment or to the bin. The grain spreader can
swing and will not support a ladder. Be sure electrical power is disconnected.
4.
Power cords, plug and receptacles should be the grounded type to prevent injury.
5.
All wiring should be done according to the National Electric Code and by a
qualified electrician.
6.
Read and understand the operator’s manual.
WARNING:
Failure to follow these instructions may result in personal injury or property damage.
SPREADING CAPACITIES
Econo-Mizer
982
986
996
Heavy Grain
18'-30' 31'-48' 31'-48'
2500 BPH
3500 BPH
Heavy Grain
18'-27' 28'-42' 28'-42'
3500 BPH
5000 BPH
Light Grain
18'-24' 25'-36' 25'-36'
3500 BPH
5000 BPH
4
Installation and Operation
Econo-Mizer
Installation
Figure 1: Hanger Brackets and Chains
The hanger brackets should be positioned
equally spaced around the outer fill hole lip of
the bin. Do not tighten the bracket hardware
until the spreader has been installed and
leveled. Hang the spreader from these brackets by hooking the two chains that are attached to each of the spreader support arms
to two adjacent hanger brackets. When
properly hung, each set of chains will form a
“V” and will restrict random movement of the
spreader.
The spreader can be installed at various
heights in the bin depending on the bin diameter and roof angle. The spreader should be
installed as level as possible by checking with
a level and adjusting the position of the hanger
brackets and/or the lengths of the chains.
Fig. 3
Fig. 1
Fig. 4
Fig. 2
Finish the installation by securely tightening
the hanger brackets.
Wiring: Refer to the Wiring Diagram and Tables A & B on the next page.
ADJUSTMENT & OPERATION
Figure 2: Slide Gate Adjustment
The slide gates are provided in the pan to allow grain to be spread in the center of the bin. These are
usually to be open wider for smaller diameter bins.
Figure 3: Center Cone Adjustment
It is important that the incoming grain be directed onto the center of the baffle cone in order to disperse the grain evenly in the hopper. This cone functions as a flow control and can be adjusted by
lifting it from the spreader and placing the hairpin clip in one of the holes in the baffle post. The cone
needs to be adjusted higher above the spreader pan for greater capacities and lower for lesser
rates. Best spreading results are obtained when the cone is adjusted to maintain a cushion of grain
in the hopper.
Item 4: Slinger Adjustment
982, 986 & 996 Econo-Mizers have slingers that can be adjusted to accommodate various sizes of
bins and grain densities. The slingers will throw grain farther when in the most advanced position
(hole #1) and will not throw as far when in the swept back position (hole #3). A guide line to use for
adjusting is to use the third hole for 18 foot diameter bins, the middle hole for 24 - 30 foot bins and
the first hole for 33 foot and larger bins.
5
Installation and Operation
Econo-Mizer
INSTALLATION
Use Tables A & B to determine the proper size of fuse protection and the length and size
of wiring required. Portable extension cords, if used, should be as short as possible to
minimize voltage drop. Cords that are too long, or cords that are made of inadequate wire
gauge, can cause the motor to fail.
TABLE A
MOTOR
982 (1/3 hp-115V)
986 (1 HP-230V)
996 (1-1/2 hp-220V)
25 FT
#18 GA
#14 GA
#14 GA
TABLE B
MOTOR
982 (1/3 hp-115V)
986 (1 HP-230V)
996 (1-1/2 hp-220V)
6
(WIRE SIZE)
DISTANCE
50 FT
100 FT
#16 GA
#12 GA
#14 GA
#12 GA
#14 GA
#12 GA
200 FT
#10 GA
#10 GA
#10 GA
(FUSE SIZE)
TYPE OF FUSE
NON-TIME DELAY
DUAL ELEMENT TIME DELAY
15
12
15
12
20
15
Installation and Operation
Econo-Mizer
ADJUSTMENT & OPERATION OF
CONE HOPPER BAFFLE
The cone hopper baffle is used to restrict the entering grain and slow it down
enough to ensure that the cone will always be full and overflowing with grain. The
cone baffle should be adjusted high enough above the spreading pan to allow the
overflowing grain to flow between the hopper and the cone baffle and to not flow
over the sides of the main hopper. Entering grain should be directed onto the
expanded metal restrictor on top of the cone baffle.
305B007 (982, 986)
306B1001 (996)
CONE BAFFLE
ECONO-MIZER
7
Parts
Econo-Mizer
Models 982, 986, & 996 Econ-Mizer Grain Spreaders
8
Parts
Econo-Mizer
MODELS 982, 986 & 996 ECONO-MIZER
GRAIN SPREADERS PARTS LIST
Models 982, 986, & 996 Econo-Mizer Grain Spreader Part Lists
Ref.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
Part No.
982
301A0110
301A0122
301B0220
301B0221
302A0304
302A0311
304A0002
304A0005
304A0015
304B0001
304B0006
304N0004
---305B007
PT0106
PT0202
PT0401
PT0415
1EL0530
3EL5055
------S-4198
S-4663
---S-396
---S-3611
S-7186
S-6369
S-8072
S-7105
---S-7744
2FH0988
S-6606
3FH0769
S-2041
S-1147
S-1430
S-1937
S-7409
---S-6371
----
Part No.
986
301A0110
302A0313
301B0220
301B0221
302A0304
302A0311
305A002
305A005
305A012
304B0001
305B004
---305N005
305B007
PT0109
PT0215
PT0401
---1EL0530
------3EL5082
S-4198
---S-4663
S-396
S-4663
S-3611
S-7186
S-6369
S-8072
---S-7521
S-7744
2FH0988
S-6606
3FH0769
S-2041
S-1147
S-1430
S-1937
---S-1054
---S-8426
Part No.
996
301A0110
302A0313
301B0220
301B0221
302A0304
302A0311
305A002
305A005
305A012
3061010
305B004
---305N005
3061001
PT0109
PT0215
PT0401
---1EL0530
---3EL 5088
---S-4198
S-4663
---S-396
S-4663
S-3611
S-7186
S-6369
S-8072
---S-7521
S-7744
2FH0988
S-6606
3FH0769
S-2041
S-1147
S-1430
S-1937
---S-1054
---S-8426
982
2
1
3
3
1
1
1
1
1
1
6
1
1
1
1
1
1
2
1
2
3
10
6
2
2
4
2
1
5
3
1
2
10
6
5
2
1
-
No. Req.
986
996
1
1
1
1
3
3
3
3
1
1
1
1
1
1
1
1
2
2
1
1
6
6
1
1
1
1
2
2
2
2
2
2
2
2
1
1
1
1
1
1
10
10
2
2
6
6
2
2
1
1
4
4
2
2
1
1
7
7
3
3
1
1
1
1
10
10
5
5
7
7
2
2
1
2
Description
Slide Gate
Rubber Drive wheel
Hanger Bracket
Hanger U-Bolt Hook
Motor Mount Plate
Torsion Spring
Hopper Base & Braces
Pan with Slingers
Adjustable Slinger
Hopper
Support Chain
115V Power Cord with Loose Clips
220V Power Cord with Loose Clips
Hopper Baffle
1" Bearing with Cast Housing
1" Bearing with Locking Collar
1" Locking Collar
Bearing Housing-2 Hole
Flag Quick Disconnect Clip
1/3 HP 115V
1-1/2 HP 230V TENV Motor
1HP TENV Motor
1/4" Wingnut
3/8" Hex Lock Nut
3/8" Hex Lock Nut
5/16" Hex Nut
3/8" Hex Nut
5/16" Hex Flange Lock Nut
1/4" x 1/4" Socket Hd Set Screw
1/4" x 3/4" Carraige Bolt
5/16" x 3/4" Hex Hd Bolt
3/8" x 3/4" Hex Hd Bolt
3/8" x 1" Hex Hd Bolt
3/8" x 5-1/2" Hex Hd Bolt
5/16" x 1/2" Hex Flange Whiz Lock Screw
5/16" x 3/4" Hex
.08" x 1-5/8" Hair Pin
1/4" Lockwasher
5/16" Lockwasher
1/4" Lockwasher
5/16" SAE Flat Washer
3/8" SAE Flat Washer
3/8" Lock Washer
1/8" x 1" Square Key
1" x 3/16" Square Key
9
Trouble Shooting Guide
Econo-Mizer
TROUBLE SHOOTING
PROBLEM
Grain is high on
one side of bin.
CORRECTION
a. Spreader is not hung level.
b. Grain is not hitting the center of the baffle
c. The baffle is too high causing the grain to slide off one side.
d. The flow of grain is not adequate to fill the center hopper,
see instructions for cone baffle hopper.
Grain is high at the
center of bin.
a. Slide gate is open too far.
b. Check to make sure spreader is running.
c. Grain is overflowing the main hopper - raise center baffle
or slow grain flow rate.
Grain is low at the
center of bin.
a. Slide gate is not open enough.
b. Slingers on pan are set too far out.
Grain forms “donut”
a few feet from wall.
a. Slingers on pan are set too far out (grain is hitting the wall
and bouncing back).
b. Open slide gate to fill center of bin.
c. Spreader model is not adequate for bin size.
Grain not getting
all the way to wall.
a. Spreader pan is turning the wrong direction: Pan should
turn clockwise when viewed from the top.
b. Rubber drive wheel is slipping - replace if badly worn.
c. Spreader is hanging too high in the center of the bin.
d. Spreader model is not adequate for bin size.
Spreader swings
when starting.
a. Hanging chains are not installed correctly - they should
be equally spaced and positioned as in Figure 2 of
installation instructions.
Spreader does
not run.
a. Rubber drive wheel may be slipping due to excessive
moisture or broken motor mount spring.
b. Motor overload may have tripped. It will reset automatically after the motor has cooled.
c. Blown fuse or circuit breaker.
d. Too much voltage drop. See Table A for proper wiring
size.
Spreader pan slows
down when loaded.
10
a. Spreader pan is turning the wrong direction: Pan should
turn clockwise when viewed from the top.
The GSI Group, Inc. Warranty
THE GSI GROUP, INC. (“GSI”) WARRANTS ALL PRODUCTS WHICH IT MANUFACTURES TO
BE FREE OF DEFECTS IN MATERIAL AND WORKMANSHIP UNDER NORMAL USAGE AND
CONDITIONS FOR A PERIOD OF 12 MONTHS AFTER RETAIL SALE TO THE ORIGINAL END
USER. THE PURCHASER’S SOLE REMEDY AND GSI’S ONLY OBLIGATION SHALL BE TO
REPAIR OR REPLACE, AT GSI’S OPTION AND EXPENSE, PRODUCTS THAT, IN GSI’S SOLE
JUDGMENT, CONTAIN A MATERIAL DEFECT DUE TO MATERIALS OR WORKMANSHIP.
ALL DELIVERY AND SHIPMENT CHARGES TO AND FROM GSI’S FACTORY WILL BE
PURCHASER’S RESPONSIBILITY. EXPENSES INCURRED BY OR ON BEHALF OF THE
PURCHASER WITHOUT PRIOR WRITTEN AUTHORIZATION FROM AN AUTHORIZED
EMPLOYEE OF GSI SHALL BE THE SOLE RESPONSIBILITY OF THE PURCHASER.
EXCEPT FOR THE LIMITED WARRANTY EXPRESSED ABOVE, GSI MAKES NO FURTHER
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR
USE IN CONNECTION WITH (I) PRODUCT MANUFACTURED OR SOLD BY GSI OR (ii) ANY
ADVICE, INSTRUCTION, RECOMMENDATION OR SUGGESTION PROVIDED BY AN AGENT,
REPRESENTATIVE OR EMPLOYEE OF GSI REGARDING OR RELATED TO THE
CONFIGURATION, INSTALLATION, LAYOUT, SUITABILITY FOR A PARTICULAR PURPOSE,
OR DESIGN OF SUCH PRODUCTS.
GSI SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF ANTICIPATED
PROFITS OR BENEFITS. PURCHASER’S SOLE AND EXCLUSIVE REMEDY IS AS SET FORTH
IN THE LIMITED WARRANTY EXPRESSED ABOVE, WHICH SHALL NOT EXCEED THE
AMOUNT PAID FOR THE PRODUCT PURCHASED. THIS WARRANTY IS NOT
TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER. GSI SHALL HAVE
NO OBLIGATION OR RESPONSIBILITY FOR ANY REPRESENTATIONS OR WARRANTIES
MADE BY OR ON BEHALF OF ANY DEALER, AGENT OR DISTRIBUTOR OF GSI.
GSI ASSUMES NO RESPONSIBILITY FOR CLAIMS RESULTING FROM ERECTION DEFECTS
OR UNAUTHORIZED MODIFICATIONS TO PRODUCTS WHICH IT MANUFACTURED.
MODIFICATIONS TO PRODUCTS NOT SPECIFICALLY DELINEATED IN THE MANUAL
ACCOMPANYING THE EQUIPMENT AT INITIAL SALE WILL NULLIFY THE PRODUCT
WARRANTY THAT MIGHT HAVE BEEN OTHERWISE AVAILABLE.
THE FOREGOING WARRANTY SHALL NOT EXTEND TO PRODUCTS OR PARTS WHICH
HAVE BEEN DAMAGED BY NEGLIGENT USE, MISUSE, ALTERATION OR ACCIDENT. THIS
WARRANTY EXTENDS SOLELY TO ONLY PRODUCTS MANUFACTURED BY GSI. THIS
WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR
IMPLIED. GSI RESERVES THE RIGHT TO MAKE DESIGN OR SPECIFICATION CHANGES AT
ANY TIME.
PRIOR TO INSTALLATION, PURCHASER HAS THE RESPONSIBILITY TO COMPLY WITH
ALL FEDERAL, STATE AND LOCAL CODES WHICH MAY APPLY TO THE LOCATION AND
INSTALLATION OF PRODUCTS MANUFACTURED OR SOLD BY GSI.
PHLEGAL: #1832020 v1 (139LG01!.DOC)
(revised December 2005)
This Equipment shall be installed in accordance
with the current installation codes and applicable
regulations which should be carefully followed in
all cases. Authorities having jurisdiction should be
consulted before installation occurs.
For more information, contact the DMC Distribution Center closest to you.
Illiana Distribution Center
1004 E. Illinois St.
Assumption, Illinois 62510
Phone: 217-226-5100
FAX:
217-226-5070
Clear Lake Distribution Center
5205 4th Ave South
Clear Lake, Iowa 50428
Phone: 641-357-3386
FAX:
641-357-1928
internet: http://www.dmc-davidmanufacturing.com
Copyright © 1999 by The GSI Group
Printed in the USA
Download PDF

advertising
