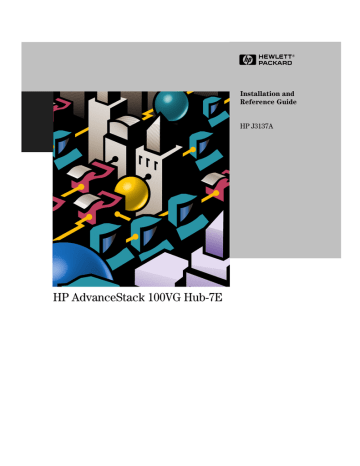

Installation and
Reference Guide
HP J3137A
HP AdvanceStack 100VG Hub-7E
HP AdvanceStack 100VG Hub-7E
Installation and Reference Guide
©Copyright Hewlett-Packard Company 1996.
All Rights Reserved.
Reproduction, adaptation, or translation without
prior written permission is prohibited, except as
allowed under the copyright laws.
Publication Number
J3137-90001
Edition 1
February 1996
Applicable Product
HP J3137A
Trademark Credits
MS-DOS® and Microsoft® are U.S. registered
trademarks of Microsoft Corporation.
Ethernet is a registered trademark of Xerox
Corporation.
Disclaimer
The information contained in this document is
subject to change without notice.
HEWLETT-PACKARD COMPANY MAKES NO
WARRANTY OF ANY KIND WITH REGARD TO
THIS MATERIAL, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. Hewlett-Packard shall
not be liable for errors contained herein or for
incidental or consequential damages in
connection with the furnishing, performance, or
use of this material.
Hewlett-Packard assumes no responsibility for
the use or reliability of its software on
equipment that is not furnished by
Hewlett-Packard.
Warranty
See the warranty statement and the registration
form included with the product.
A copy of the specific warranty terms applicable
to your Hewlett-Packard product and
replacement parts can be obtained from your
HP Sales and Service Office or authorized dealer.
Hewlett-Packard Companh
8000 Foothills Boulevard - Mailstop 5551
Roseville, California 95747-5551
http://www.hp.com/go/network_city
Contents
HP AdvanceStack 100VG Hub-7E . . . . . . . . . . . . . . . . . . . .
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
At A Glance
Installation Summary
. . . . . . . . . . . . . . . . . . . . . . . . . .
1. Verify Included Parts
2
. . . . . . . . . . . . . . . . . . . . . . .
2
2. Verify that the Hub Works . . . . . . . . . . . . . . . . . . . . .
3
3. Mount the Hub . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
4. Complete Network Connections to the Hub . . . . . . . . . . .
6
Troubleshooting
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
Customer Support Services . . . . . . . . . . . . . . . . . . . . . . .
13
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
Safety and Regulatory Statements . . . . . . . . . . . . . . . . . . .
15
Recommended Cables . . . . . . . . . . . . . . . . . . . . . . . . . .
20
Console connector and cable pin-outs . . . . . . . . . . . . . . . . .
20
Twisted-Pair Cable/Connector Pin-Outs . . . . . . . . . . . . . . . .
21
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
iii
At A Glance
HP AdvanceStack 100VG Hub-7E
At A Glance
The HP J3137A AdvanceStack 100VG Hub-7E is a high-speed multiport
repeater. With this hub, you can connect computers and other devices together in an unshielded twisted-pair cable network. This hub can be used to
upgrade your 10 Mbit/s Ethernet/IEEE 802.3 network that uses unshielded
twisted-pair cables to a 100 Mbit/s network.
Throughout this manual, this hub will be called the Hub-7E. The following
illustration shows the Hub-7E.
twisted-pair port LEDs
Hub status LEDs
Uplink port for
hub to hub
connections
Twisted-pair
ports
Frame switch
Features
Network Connections
Six RJ-45 (twisted-pair) ports to connect to end nodes or other devices.
An Uplink port to cascade to another 100VG hub such as the following hubs:
HP J2413A AdvanceStack 100VG Hub-7M
HP J2410A AdvanceStack 100VG Hub-15
HP J2415A AdvanceStack 100VG Hub-14
Ethernet and Token Ring Support
Support for both Ethernet and Token Ring framing. If you have 100VG LAN
adapters with 100VG Token Ring drivers, you can select the Token Ring position.
Remote Management
An RS-232 port to connect an ASCII console for monitoring and troubleshooting
the hub and network.
Modular, Easy-to-Use Design
LEDs showing power, activity, cascade, fault, and port status provide quick,
easy-to-read hub status information and troubleshooting assistance.
A small footprint that allows you to install the hub in a variety of ways, including
on a desk, under a desk, or on a wall.
Standards-Based Compatibility
Compatible with the IEEE 802.12 standard.
1
Installation Summary
Installation Summary
The basic hardware installation procedure for the Hub-7E is as follows:
1.
2.
3.
4.
Verify included parts
Verify that the hub works
Mount the hub
Complete network connections to the hub
1. Verify Included Parts
Each Hub-7E has the following components shipped with it:
HP AdvanceStack 100VG Hub-7E Installation and Reference
Guide—this manual (J3133-90001)
An AC power cord, one of the following:
Australia/New Zealand
(8120-1369)
Denmark
(8120-2956)
Europe
(8120-1689)
Japan
(8120-4753)
Switzerland
(8120-4753)
United Kingdom/Hong Kong
(8120-1351)
U.S./Canada
(8120-1378)
power supply (0950-3058)
serial cable (5182-4794)
HP 100VG AnyLAN Technology Guide
mounting hardware:
• two number 10 by half-inch pan head wood screws
• four 4-40 machine screws
• mounting bracket
2
2. Verify that the Hub Works
2. Verify that the Hub Works
Your hub uses power from an external DC power supply. To provide power
to the hub, follow these steps:
1. Plug the DC power supply into the hub’s Power connector.
Note
If your installation requires a different power cord than the one supplied
with the hub, contact your HP-authorized LAN dealer or your local
HP sales office.
2. Plug the power cord into the power supply.
3. Plug the power cord into an AC power source. When installing the
Hub-7E, note that the AC outlet must be located near the equipment
and should be easily accessible.
Power receptacle
on the back of the
hub.
DC Power cable from external
power supply
Note
The hub does not have a power switch; it is powered on when the power
cord is plugged in.
3
3. Mount the Hub
4. Check the LEDs on the hub’s front panel.
When the hub is powered on, it performs a self-diagnostic test.
During the test, watch the LEDs on the front of the hub for the
following to occur:
At Power On
All LEDs turn on.
During Self-Test
Self-test requires about 3 seconds. While the hub is tested,
half of the LEDs are momentarily turned on and off. Then the
remaining LEDs are momentarily turned on and off.
After Self-Test
All LEDs are off except:
Power LED is on,
Twisted-Pair ports reflect their normal operating state.
If the Fault LED stays on, the hub has failed its self-test. See page 7
for information about diagnosing your hub.
5. After the hub has passed its self-test, you are ready to mount the hub.
Before mounting the hub, unplug it.
3. Mount the Hub
The Hub-7E can be placed on a desk or mounted on any vertical or horizontal surface, for example a wall or under a desk.
Equipment Required
To mount the hub on a wall or under a desk, you will need the mounting
hardware listed on page 2, and a Phillips screwdriver.
Mounting
Precautions
Before mounting the hub, follow these mounting precautions:
Plan the hub’s location and orientation relative to other devices and
equipment. Also consider the cabling that will be attached to the hub
and ports that will be used. In the front of the hub, leave 3 inches
(7 cm) of space for twisted-pair cables. In the back of the hub, leave
3 inches (7 cm) of space for the AC power cord.
Ensure that the HP AdvanceStack hub(s) do not overload the power
circuits, wiring, and over-current protection. To determine the
possibility of overloading the supply circuits, add together the
amperage ratings from the nameplates of all your hubs (and other
equipment) installed on the same circuits and compare the total with
the rating limits for the supply circuits.
4
3. Mount the Hub
Do not install the HP AdvanceStack hub in an environment where
the operating ambient temperature might exceed 55°C (131°F).
Make sure the air flow around the sides of the hub is not restricted.
Mounting the Hub
Important
A hub should be mounted only to a wall or wood surface that is at least
1/2-inch (12.7 mm) plywood or its equivalent.
The following illustration shows you how to mount the Hub-7E
under a table.
4-40 screws
table
mounting bracket
number 10 pan head
wood screw
number 10 pan head
wood screw
When you select the mounting location, make sure you allow enough room
to make the cable connections to the hub and to be able to access the cables
if they have to be moved.
When drilling into the table or other horizontal or vertical surface, you may
need to first pre-drill the surface with a 3/32-inch bit.
5
4. Complete Network Connections to the Hub
Installing the Hub
4. Complete Network Connections to the Hub
Reconnect the hub to the power source and then make the network
connections to the hub. With the hub mounted, you are now ready to
connect the hub to your network. Typical hub connections are:
Hub-to-device connections. Connecting to network devices such
as computers and printers.
Hub-to-hub connections. Connecting to another HP AdvanceStack
100VG Hub.
This section describes the different ways you can connect your hub to your
network.
Connecting Devices to the Hub
You can connect up to six devices to the downlink ports numbered 1 through
6 for each hub. To connect a device to the hub, push the RJ-45 plug into the
RJ-45 jack until the tab on the plug clicks into place.
RJ-45 plug
Unbundled 4-pair unshielded twisted-pair
LAN cable
Maximum: 100 meters
to a computer, printer, or server
If you have obtained 100VG Token Ring drivers for your 100VG LAN adapters in the network that the Hub-7E will be installed, move the switch to the
Token Ring position. You need to move the Frame Type switch before
connecting cables or training will fail.
If you have used all six downlink ports and need to add more users, see the
next page.
6
4. Complete Network Connections to the Hub
Connecting Additional Hubs (“Cascading”)
To add additional 100VG network ports, HP AdvanceStack 100VG hubs can
be “cascaded” together. To cascade HP 100VG hubs, connect a LAN downlink port (ports 1 through 6) on the upper-level hub to the “Uplink” port on
the lower-level hub.
For a twisted-pair connection, use a standard four-pair unbundled
LAN port cable.
You can use any or all 100VG LAN downlink ports on the upper-level
hub to cascade to an uplink port on a 100VG lower-level hub. Downlink ports on the Hub-7E are numbered 1 through 6.
Try to minimize the number of levels of cascaded hubs. We
recommend that you use no more than three levels of cascading (see
the 100VG AnyLAN Technology Guide for more information on
topology rules).
For more information on cable lengths, see the HP 100VG AnyLAN
Technology Guide.
In the following illustration, two hubs are connected together to add more
users to the existing 100VG network. This illustration also shows that an
example of two level cascading.
Upper-Level Hub
Level 1
Unbundled 4-Pair LAN Cable
Maximum: 100 meters for Category 3
Lower-Level Hub
Standard LAN Port (“Downlink”)
Level 2
Uplink Port
7
Troubleshooting
Troubleshooting
Most problem are caused by the following errors:
Incorrect position of the Frame Type switch. The Hub-7E is
Token Ring ready. The Hub-7E operates with 100VG LAN adapters
with 100VG Token Ring drivers running Token Ring frames. If you
do not have these drivers, keep the Frame Type switch in the Ethernet position. Also note that the HP J2410A AdvanceStack 100VG
Hub-15 does not support Token Ring and cannot be connected to the
Hub-7E in Token Ring mode.
Wrong type of cable. Use only Category 3, 4, or 5 four-pair, unshielded twisted-pair cable rated at 100 ohms. If your cable contains
four twisted pairs and supports the IEEE 802.3 Type 10Base-T standards, it will generally work. You can verify the cable is compatible
with these standards by using the HP J3263A Cable Test Set. (The
older HP 28687A Wire Test Instrument can also be used.) HP also
offers a wire testing service. Contact your HP-authorized LAN
dealer or your local HP sales office for more information.
Bad cable. Try a different cable.
Bundled cable. Bundled cables are not supported. Use unbundled
cables only.
Exceeding the maximum allowable cable lengths. Use up to 100
meters between two nodes for Category 3 and 4 and use up to 200
meters for Category 5.
If the above problems do not exist, try the following:
Try resetting the hub by removing the power cord and re-inserting
the power cord. (Alternatively, you can reset the hub by using the
reset command in the ASCII console as described on page 11.)
Use the troubleshooting table on the next page to check the LEDs.
You may not have a valid topology. A common topology fault is
excessive cable length. If you have trouble after recent changes to a
network, switch back to the previous topology. If you no longer
have any trouble, the new topology is probably at fault. Refer to the
100VG AnyLAN Technology Guide included with this hub, for
topology and configuration guidelines.
8
Troubleshooting
Troubleshooting with the LEDs
If you have followed the above criteria, use the LEDs to troubleshoot your
hub:
LED patterns indicating problems
Power Activity Cascade
OFF
*
*
Diagnostic Tips
Fault
LAN Port
Port
Uplink
Port
*
*
*
Verify that the AC power cord is plugged into an
active power source and to the hub. Make sure
these connections are snug. Try power cycling the
hub by unplugging and plugging the hub back in.
If the Power LED is still not on, verify the AC source
works by plugging another device into the outlet.
Or try plugging the hub into a different outlet. If this
condition persists, the hub, AC power supply, or
AC power cord has failed. Call your HP-authorized
LAN dealer or HP representative for assistance.
ON
*
*
*
OFF
OFF
Check cabling on the indicated port all the way out
to the device attached to that port. Faulty wiring or
a bad connection could exist somewhere in that
connection.
The end node or hub attached to the port is off.
ON
*
*
ON
*
ON
*
*
*
*
ON
*
*
*
Flashing
*
The hub has failed its self-test. Power-cycle the
hub. If this condition persists, the hub has failed.
Call your HP-authorized LAN dealer or
HP representative for assistance.
OFF or Check cabling on the indicated port.
Flashing
when the Check the port status in the ASCII console to
port is in determine whether:
- link training failed because of a
use
cabling or configuration error.
- the port on the upper hub was disabled.
- The Uplink cable was disconnected.
The Uplink port will flash if someone removes a
cable connected to this port. Reconnect the cable.
*
Link training has failed on the indicated port most
likely because of a faulty or improperly wired
cable. Check cabling on the port and check the
port status in the ASCII console.
* This LED is not important for diagnosis.
9
Troubleshooting
Diagnosing the Hub through the ASCII Console
The ASCII console provides tests and indicators that can be used to monitor
the hub and its network connections. For more details about these tests and
indicators.
Each hub contains a 9-pin serial (RS-232-C) port that is used to connect the
PC. The hub can be controlled from a PC running an ASCII terminal such as
the Windows Terminal program.
PC running
Windows Terminal
Serial cable included with
the hub
To connect a PC directly to the RS-232 port, proceed as follows:
1. Attach the console cable supplied with the hub to the RS-232 port on
the back of the hub.
2. Attach the other end of the serial cable to an available 9-pin serial
port on the personal computer.
If only a 25-pin serial port is available, use a 9-pin-to-25-pin port
adapter (not supplied).
10
Troubleshooting
3. Set the baud rate of your modem to 9600 or 19,200 bps. Press [Return]
several times at your terminal emulator program. The following
screen appears:
100VG 7 port hub
ROM Version A.01.00
HELP
RESET
RESET n
STATUS
- Show this message.
- Reset the hub.
- Reset port n. (n = 1-6, UPLINK, ALL, or COUNTERS)
- Show hub status.
The console is easy to use; just type in one of the commands such as
reset, status, or help. (As a shortcut, you can enter only the first two
letters of the command, e.g., re for reset or st for status.) The status
command provides information to help you troubleshoot your network. After you type status, the following information is displayed:
=>status
Frame Count port 1
port 2
port 3
port 4
port 5
port 6
Uplink
Readable
Errored
IPM
Oversized
Broadcast
Multicast
Null addr
High Pri
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Link Active No
In Training No
Repeater
No
Promiscuous No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
Address
000000000000
00000000000
000000000000
000000000000
000000000000
0
0
0
0
0
0
0
0
000000000000
Framing type: Ethernet
Time since reset: 0 days 0:06:45
The counters can provide indications of unusual network activity.
The table on the next page explains the frame counters.
11
Troubleshooting
Counter
Definition
Readable
The count of valid frames received by the port. A valid frame is defined as a data frame which is
not counted by any of the error counters.
Errored
The count of frames received with any of the following errors: FCS, bad symbol, symbol balance,
undersize, or bad end-of-packet marker.
IPM
The count of frames received with an invalid packet marker.
Oversized
The total number of frames received that were larger than the maximum valid frame size for the
VG network frame type (Ethernet or Token Ring).
Broadcast
Broadcast frames are frames that all devices in a network must receive.
Multicast
Multicast frames are received by a group of devices.
Null Address
Frames received by this port that have an address with all zeros. Such frames may be needed
during the 802.12 port training process to verify link operability.
High-Priority
The count of high priority frames received on the port. The count includes both valid and invalid
high priority frames as well as high priority training frames, but does not include normal priority
frames that were priority promoted.
Link Active
Specifies if the link has trained successfully.
In Training
Specifies if this port has trained successfully. This counter does not apply to the Uplink port.
Repeater
Specifies if this port is connected to a hub. This counter does not apply to the Uplink port.
Promiscuous
Specifies if this port has trained in promiscuous mode. This counter does not apply to the Uplink
port.
Address
Specifies the address of the connected device.
12
Customer Support Services
Customer Support Services
Hewlett-Packard offers a range of customer support services including the
World Wide Web, fax, and Network Phone-In Support.
World Wide Web
http://www.hp.com/go/network_city
Do you have questions about designing your expanding network? From this
web site, you can also download the Designing HP AdvanceStack
Workgroup Networks Guide which addresses capacity planning or dial
1-800-752-0900 to receive a copy by mail.
HP FIRST Fax Retrieval Service
HP FIRST is an automated fax retrieval service that is available 24 hours a
day, seven days a week. HP FIRST provides information on the following
topics:
Product information
Troubleshooting instructions
Technical reviews and articles
Configuration information
To access HP FIRST, dial one of the following phone numbers:
Location
Phone Number
U.S. and Canada Only
Dial 1 (800) 333-1917 with
your fax machine or touchtone phone and press 1.
Outside the U.S. and
Canada
Dial 1 (208) 344-4809 from
your fax machine and
press 9.
To receive a list of currently available documents, enter document number
19941. The information you requested will be sent to you by return fax.
HP Network Phone-In Support (NPS)
Call your HP Authorized Dealer or the nearest HP Sales and Support Office.
In addition, the HP Network Phone-In Support (NPS) service provides
expert technical assistance for U.S. customers through an NPS contract or at
an hourly rate (1-800-790-5544) Monday through Friday, 5 am to 6 pm, PST.
13
Specifications
Specifications
Physical
Width:
21.6 cm (8.4 in)
Height:
4.8 cm (1.9 in)
Depth:
19.0 cm (7.5 in)
Weight:
1.4 kg (3.0 lb)
Electrical
AC voltage:
100–250 volts
Maximum current:
0.7 A max
Frequency range:
50/60 Hz
Environmental
Operating
Non-Operating
Temperature:
0°C to 55°C
(32°F to 131°F)
-40°C to 70°C
(-40°F to 158°F)
Relative humidity:
(non-condensing)
15% to 95%
at 40°C (104°F)
95%
at 65°C (149°F)
Maximum altitude:
4.6 km (15,000 ft)
4.6 km (15,000 ft)
Connectors
The RJ-45 twisted-pair ports are compatible with the IEEE 802.12
100VG-AnyLAN standard.
The RS-232-C console port conforms to V.22 bis.
Safety
Complies with:
IEC 950: (1991)+A1,A2/.EN60950 I(1992)+A1,A2
UL1950
CSA 950
NOM-019-SCFI-1993
NOM-001-SCFI-1993
(Specifications continued on next page)
14
Safety and Regulatory Statements
Electromagnetic
Complies with Canadian EMC Class A requirements.
Emissions
FCC part 15 Class A
EN 55022/ CISPR-22 Class A
VCCI Level I
Immunity
See the Declaration of Conformity for details at the end of the Regulatory Statements.
Acoustic Noise
5.5 Bels
Safety and Regulatory Statements
Safety Information
These are safety class I products and have protective earthing terminals. There must be an uninterruptible safety earth ground from the main power source to the product’s input wiring terminals, power cord, or supplied power cord set. Whenever it is likely that the protection has been
impaired, disconnect the power cord until the ground has been restored.
For LAN cable grounding:
If your LAN covers an area served by more than one power distribution system, be
sure their safety grounds are securely interconnected.
LAN cables may occasionally be subject to hazardous transient voltages (such as lightning or disturbances in the electrical utilities power grid). Handle exposed metal components of the network with caution.
There are no user-serviceable parts inside these products. Any servicing, adjustment,
maintenance, or repair must be performed only by service-trained personnel.
These products do not have a power switch; they are powered on when the power cord is
plugged in.
15
Safety and Regulatory Statements
Informations concernant la sécurité
Cet appareil est un produit de classe I et possède une borne de mise à la terre. La source d’alimentation principale doit être munie d’une prise de terre de sécurité installée aux bornes du
câblage d’entrée, sur le cordon d’alimentation ou le cordon de raccordement fourni avec le produit. Lorsque cette protection semble avoir été endommagée, débrancher le cordon d’alimentation jusqu’à ce que la mise à la terre ait été réparée.
Mise à la terre du câble de réseau local:
si votre réseau local s’étend sur une zone desservie par plus d’un système de distribution de puissance, assurez-vous que les prises de terre de sécurité soient convenablement interconnectées.
Les câbles de réseaux locaux peuvent occasionnellement être soumis à des surtensions transitoires dangereuses (telles que la foudre ou des perturbations dans le
réseau d’alimentation public). Manipulez les composants métalliques du réseau avec
précautions.
Aucune pièce contenue à l’intérieur de ce produit ne peut être réparée par l’utilisateur. Tout
dépannage, réglage, entretien ou réparation devra être confié exclusivement à un personnel
qualifié.
Cet appareil ne comporte pas de commutateur principal ; la mise sous tension est effectuée par
branchement du cordon d’alimentation.
Hinweise zur Sicherheit
Dies ist ein Gerät der Sicherheitsklasse I und verfügt über einen schützenden Erdungsterminal.
Der Betrieb des Geräts erfordert eine ununterbrochene Sicherheitserdung von der
Hauptstromquelle zu den Geräteingabeterminals, den Netzkabeln oder dem mit Strom belieferten Netzkabelsatz voraus. Sobald Grund zur Annahme besteht, daß der Schutz beeinträchtigt
worden ist, das Netzkabel aus der Wandsteckdose herausziehen, bis die Erdung wiederhergestellt ist.
Für LAN-Kabelerdung:
Wenn Ihr LAN ein Gebiet umfaßt, das von mehr als einem Stromverteilungssystem beliefert wird, müssen Sie sich vergewissern, daß die Sicherheitserdungen fest untereinander verbunden sind.
LAN-Kabel können gelegentlich gefährlichen Übergangsspannungen ausgesetzt werden (beispielsweise durch Blitz oder Störungen in dem Starkstromnetz des Elektrizitätswerks). Bei der Handhabung exponierter Metallbestandteile des Netzwerkes Vorsicht
walten lassen.
Dieses Gerät enthält innen keine durch den Benutzer zu wartenden Teile. Wartungs-,
Anpassungs-, Instandhaltungs- oder Reparaturarbeiten dürfen nur von geschultem
Bedienungspersonal durchgeführt werden.
Dieses Gerät hat keinen Netzschalter; es wird beim Anschließen des Netzkabels eingeschaltet.
16
Safety and Regulatory Statements
Considerazioni sulla sicurezza
Questo prodotto è omologato nella classe di sicurezza I ed ha un terminale protettivo di collegamento a terra. Dev’essere installato un collegamento a terra di sicurezza, non interrompibile
che vada dalla fonte d’alimentazione principale ai terminali d’entrata, al cavo d’alimentazione oppure al set cavo d’alimentazione fornito con il prodotto. Ogniqualvolta vi sia probabilità di danneggiamento della protezione, disinserite il cavo d’alimentazione fino a quando il collegamento a
terra non sia stato ripristinato.
Per la messa a terra dei cavi LAN:
se la vostra LAN copre un’area servita da più di un sistema di distribuzione elettrica,
accertatevi che i collegamenti a terra di sicurezza siano ben collegati fra loro;
i cavi LAN possono occasionalmente andare soggetti a pericolose tensioni transitorie
(ad esempio, provocate da lampi o disturbi nella griglia d’alimentazione della società elettrica); siate cauti nel toccare parti esposte in metallo della rete.
Nessun componente di questo prodotto può essere riparato dall’utente. Qualsiasi lavoro di riparazione, messa a punto, manutenzione o assistenza va effettuato esclusivamente da personale
specializzato.
Questo apparato non possiede un commutatore principale; si mette scotto tensione all’inserirsi
il cavo d’alimentazione.
Consideraciones sobre seguridad
Este aparato se enmarca dentro de la clase I de seguridad y se encuentra protegido por una
borna de puesta a tierra. Es preciso que exista una puesta a tierra continua desde la toma de alimentación eléctrica hasta las bornas de los cables de entrada del aparato, el cable de alimentación o el juego de cable de alimentación suministrado. Si existe la probabilidad de que la
protección a tierra haya sufrido desperfectos, desenchufar el cable de alimentación hasta
haberse subsanado el problema.
Puesta a tierra del cable de la red local (LAN):
Si la LAN abarca un área cuyo suministro eléctrico proviene de más de una red de distribución de electricidad, cerciorarse de que las puestas a tierra estén conectadas entre sí de modo seguro.
Es posible que los cables de la LAN se vean sometidos de vez en cuando a voltajes momentáneos que entrañen peligro (rayos o alteraciones en la red de energía eléctrica).
Manejar con precaución los componentes de metal de la LAN que estén al descubierto.
Este aparato no contiene pieza alguna susceptible de reparación por parte del usuario. Todas las
reparaciones, ajustes o servicio de mantenimiento debe realizarlos solamente el técnico.
Este producto no tiene interruptor de potencia; se activa cuando se enchufa el cable de alimentación.
17
Safety and Regulatory Statements
Safety Information (Japanese)
Regulatory Statements
FCC Statement (For U.S.A. Only)
Federal Communications Commission Radio Frequency Interference
Statement
Warning: This equipment generates, uses, and can radiate radio frequency energy. If it is not
installed and used in accordance with the instruction manual, it may cause interference to radio
communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this
equipment in a residential area is likely to cause interference, in which case the user at his own
expense will be required to take whatever measures may be required to correct the interference.
If this equipment causes interference to radio reception (which can be determined by unplugging the power cord from the equipment) try these measures: Re-orient the receiving antenna.
Relocate the equipment with respect to the receiver. Plug the equipment and receiver into different branch circuits. Consult your dealer or an experienced technician for additional suggestions.
Note
18
This is a class A product. In a domestic environment, this product may
cause radio interference, in which case the user may be required to take
adequate measures.
Safety and Regulatory Statements
VCCI Class 1 (For Japan Only)
Declaration of Conformity
The following Declaration of Conformity for the HP AdvanceStack 100VG
Hub-7E comlies with ISO/IEC Guide 22 and EN 45014. The declaration
identifies the product, the manufacturer’s name and address, and the
applicable specifications that are recognized in the European community.
19
Recommended Cables
Recommended Cables
This page cables that have been tested and verified for use with the
HP AdvanceStack 100VG hubs. It also includes minimum pin-out information so, if you wish to use an unlisted cable, you can verify that the cables
used in your installation are correctly wired.
Note
Incorrectly wired cabling is the most common cause of problems for
LAN communications. HP recommends that you work with a qualified
LAN cable installer for assistance with your cabling requirements.
These topics are discussed:
Recommended HP cables
Twisted-pair cable/connector pin-outs
Console connector and cable pin-outs
Cable Function
Port Type on PC,
or Modem
Cable Type
HP Product Number
Connecting devices and networks to the hub:
Connecting twistedpair LAN ports
—
Unshielded twistedpair cable
92268A, B, C, D, or N (4-pair)
.
Connecting a PC to the hub’s RS-232 console port:
9-pin male
RS-232-C 9-pin female RS-232-C cable provided with the hub
to 9-pin female null
(HP p/n 5182-4794)
modem or “crossover”
cable
25-pin male
RS-232-C 9-pin female HP 24542H
to 25-pin female null
modem or “crossover”
cable
Connecting a PC to
the hub’s RS-232 port
You can contact your HP-authorized dealer or call HP at 1-800-538-8787 to
order these parts.
20
Twisted-Pair Cable/Connector Pin-Outs
Twisted-Pair Cable/Connector Pin-Outs
Twisted-Pair Cable for 100VG LAN Ports
To connect PCs and other devices to the 100VG LAN ports, use a “straightthrough” 4-pair twisted-pair cable. The twisted-pair wires must be twisted
through the entire length of the cable.
The illustration below shows the RJ-45 pin connections, color code, and pair
configuration for an 100VG LAN cable (unbundled) that conforms to the
EIA/TIA 568B wiring standard for a straight-through cable.
Straight-through cable
white/brown
Pair 4
brown/white
blue/white
Pair 1
white/blue
white/orange
Pair 2
orange/white
white/green
Pair 3
green/white
21
Index
A
H
ac power
plugging into the wall ... 3
ac power cord
plugging into the hub ... 3
ASCII console
troubleshooting with ... 10
Hourly support
calling for ... 13
HP FIRST FAX Retrieval Service
using ... 13
hub operation
verifying ... 3
C
I
cables
LAN cable requirements ... 21
serial port ... 20
connections
network ... 6 – 7
connector specifications ... 14
console port
cables ... 20
counters
definitions of ... 12
countries
ac power cords for ... 2
included parts ... 2
installing the hub
mounting procedures ... 4 – 5
network connections ... 6 – 7
verifying hub operation ... 3
wall mounting ... 5
D
Declaration of Conformity ... 19
E
electrical specifications ... 14
electromagnetic specifications ... 15
environmental specifications ... 14
external power supply ... 2
F
L
LEDs
verifying hub operation ... 4
list
included parts ... 2
M
mounting the hub ... 4 – 5
precautions ... 4
wall mounting ... 5
N
network
cable requirements ... 21
network connections
port connections ... 6
fax
using to get HP product information ... 13
frame type switch
troubleshooting ... 8
using ... 6
23
Index
P
T
parts list ... 2
physical specifications of hubs ... 14
ports
connection procedures ... 6
precautions for mounting the hub ... 4
procedures
network connections to the hub ... 6 – 7
network port connections ... 6
wall mounting the hub ... 5
troubleshooting ... 8 – 12
twisted-pair cable
100VG LAN cables ... 21
R
wall mounting the hub ... 5
Regulatory statements ... 18
RJ-45 connectors
wiring diagram ... 21
S
screws
description ... 2
specifications
connectors ... 14
electrical ... 14
electromagnetic ... 15
environmental ... 14
physical ... 14
status command
using ... 11
24
V
verifying hub operation ... 3
W
Technical information in this
document is subject to change
without notice.
© Copyright 1996
Hewlett-Packard Company
Printed in U.S.A. 2/96
Manual Part Number
J3137-90001
*J3137-90001*
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Languages
