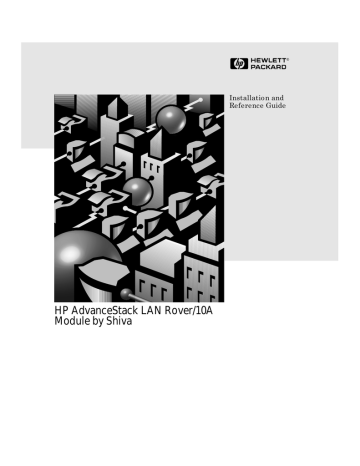

Installation and
Reference Guide
HP AdvanceStack LAN Rover/10A
Module by Shiva
HP Customer Support Services
How to get the latest software/agent firmware
You can download a compressed file containing the latest version of the module
software for the LanRover/10A by Shiva: j3230a.exe
from the World Wide Web, HP FTP Library Service, CompuServe, and HP BBS. After
you download the file, extract the file by typing: filename /x. For example, j3230a.exe /x.
World Wide Web
http://www.hp.com/go/network_city
Select the “Support” section.
From this web site you can also download information on the HP networking products.
If you have a growing network, download the Designing HP AdvanceStack Workgroup
Networks Guide or call 1-800-752-0900 to receive a copy through the mail.
HP FTP Library Service
1. FTP to Internet IP Address — ftp ftp.hp.com.
2. Log in as anonymous and press [Return] at the password prompt.
3. Enter bin to set the transfer type.
4. Enter cd /pub/networking/software.
5. Enter get filename to transfer the file to your computer, then quit.
CompuServe
1. Login to CompuServe.
2. Go to the “hp” service.
3. Select “HP Systems, Disks, Tapes, etc.”
4. Select “Networking Products” library.
5. Download filename then quit.
HP BBS
Set your modem to no parity, eight bits, 1 stop bit, set speed up to 14400 bps, and with
your telecommunication program (e.g., Windows Terminal) dial (208) 344-1691 in the
U.S. to get the latest software for your HP networking product. For other countries,
see http://www.hp.com/cposupport/eschome.htm to get local BBS numbers.
(over for more services)
✂
Obtain the latest firmware (j3230a.exe) from
World Wide Web: http://www.hp.com/go/network_city
HP FTP Library:
ftp ftp.hp.com
HP BBS:
(208) 344-1691
(over)
Perforate
HP FIRST Fax Retrieval Service
HP FIRST is an automated fax retrieval service that is available 24 hours a day, seven
days a week. HP FIRST provides information on the following topics:
■
Product information
■
Troubleshooting instructions
■
Technical reviews and articles
■
Configuration information
To access HP FIRST, dial one of the following phone numbers:
Location
Phone Number
U.S. and Canada Only
Dial 1 (800) 333-1917 with your fax machine or touch-tone phone
and press 1.
Outside the U.S. and Canada
Dial 1 (208) 344-4809 from your fax machine and press 9.To
receive a list of currently available documents, enter document
number 19941. The information you requested will be sent to you
by return fax. For other countries, see http://www.hp.com/
cposupport/eschome.htm to get local fax numbers.
Additional HP Support Services
In addition to the above services, you can purchase various HP telephone support
services which provide you expert HP technical assistance:
■
Network Phone-In Support provides you support at an hourly rate. In the USA,
call 1-800-790-5544. In other countries, please contact your local HP Response
Center to see if this service is available in your country.
■
HP SupportPack Comprehensive Network Support provides complete problem resolution for medium to large interconnected local and wide area
networks. Contact your HP Authorized Reseller or the nearest HP Sales and
Support Office for more information.
HP offers other hardware support services. Please contact your reseller for more
information.
✂
CompuServe:
Go the “hp” service.
Select HP systems, etc.
Select Networking Products.
Download the file.
Network Phone-In 1-800-790-5544
Support (hourly):
Perforate
HP AdvanceStack LanRover/10A
Module by Shiva
Installation and Reference Guide
© Copyright 1997, Hewlett-Packard Company
All Rights Reserved.
Reproduction, adaptation, or translation without
prior permission is prohibited, except as allowed
under the copyright laws.
Publication Number
J3230-90001
Edition 1
January 1997
Disclaimer
The information contained in this document is
subject to change without notice.
HEWLETT-PACKARD COMPANY MAKES NO
WARRANTY OF ANY KIND WITH REGARD TO
THIS MATERIAL, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. Hewlett-Packard shall
not be liable for errors contained herein or for
incidental or consequential damages in connection
with the furnishing, performance, or use of this
material.
Applicable Product
HP J3230A AdvanceStack LanRover/10 Module by
Shiva
Hewlett-Packard assumes no responsibility for the
use or reliability of its software on equipment that
is not furnished by Hewlett-Packard.
HP J3200A Switching Hub-12R
HP J3202A Switching Hub-24R
HP J3204A Switching Hub-24T
Warranty
HP AdvanceStack Switch 208
HP AdvanceStack Switch 224
Hewlett-Packard Company
8000 Foothills Boulevard, m/s 5551
Roseville, California 95747-5551
http://www.hp.com/go/network_city
A copy of the specific warranty terms applicable to
your Hewlett-Packard products and replacement
parts can be obtained from your HP Sales and
Service Office or authorized dealer.
Contents
Verifying Included Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installing a LanRover/10A by Shiva Module into a Slot . . . . . . . . . . . . . 3
(Remote 2C Only) Connect Cables From the Remote 2C To the Office
LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Description of LanRover/10A Module by Shiva LEDs . . . . . . . . . . . . . . 8
Where to Go From Here . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Removing A LanRover/10A by Shiva Module . . . . . . . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Regulatory Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
iii
iv
HP AdvanceStack LanRover/10A Module by Shiva
Installation and Reference Guide
The HP J3230A AdvanceStack LanRover/10A Module by Shiva is a module that can be inserted into
the following products:
■
HP AdvanceStack Switching Hub-12R, 24R, and 24T
■
HP AdvanceStack Remote 2C
■
HP AdvanceStack Switch 208 and 224
The features of the HP J3230A AdvanceStack LanRover/10A Module by Shiva are:
■
Ten asynchronous ports (RS-232, RS-423, to 112 Kbps)
■
Quick Setup Wizard for only a 15-minute configuration of the LanRover/10A by Shiva
■
Single-user, multiprotocol, dial-in remote access for PCs running DOS, Windows,
Windows 95, and Windows NT (TCP/IP, IPX, NetBEUI, 802.2/LLC protocols); Macintosh
computers (AppleTalk and TCP/IP protocols); and UNIX computers (TCP/IP and SLIP
protocols)
■
Shared dial-out (modem pooling) for PCs running DOS, Windows, and Windows 95 (TCP/IP
and IPX protocols)
■
Support for external terminal adapters with analog interface allows the use of an ISDN line
as supported by the external terminal adapter
■
Support for Microsoft IPCP extensions for automatic name server configuration (DNS
address, WINS address) of IP stacks, Microsoft TCP/IP-32 and FTP PC/TCP & OnNet
■
Support for dial-in channel aggregation over internal ISDN adapters (IBM WaveRunner and
ISDN*tek) using Multilink Protocol and external ISDN terminal adapters
■
LAN to LAN routing for IP and IPX protocols
■
Connection features, including:
•
Idle detect
•
Persistency
HP AdvanceStack LanRover/10A Module by Shiva Installation and Reference Guide
1
•
Backup phone numbers
•
Dialback
•
Timed connections
•
Virtual connections (RIP, Telnet, and SAP)
•
Channel aggregation
■
Virtual connections for TCP/IP and IPX (Windows only)
■
BOOTP
■
Security (Authentication method can be combined with an authorization method):
■
•
User Authentication: Internal User List, Novell, Shiva User List Server, TACACS,
TACACS+, and Radius
•
Third Party Authentication: SecurID and Digital Pathways Security Server
Authorization
•
HP user list; single database can be downloaded simultaneously to multiple HP products
•
HP user list server; single HP product can act as a centralized server for other HP devices,
providing many features, including full HP permissions, change password, etc.
•
NetWare Bindery available for all protocols, including ARA.
This guide shows you how to install your remote access module into the HP AdvanceStack products
such as the Remote 2C, Switching Hubs, and Switch 208/224.
Verifying Included Parts
The LanRover/10A by Shiva has the following components shipped with it:
■
This manual: HP AdvanceStack LanRover/10A Module by Shiva Installation and Reference
Guide (J3230-90001)
■
Warranty booklet
■
An LED overlay slide-in label to be placed on the front of the device in which it is inserted
■
Two cables:
•
8-port Octopus cable for up to eight modems (5064-2020)
•
2-port Y cable for up to two modems (5064-2021)
■
CD-ROM with software manuals
■
Floppy disks with a backup copy of the LanRover software
2
HP AdvanceStack LanRover/10A Module by Shiva Installation and Reference Guide
Installing a LanRover/10A by Shiva Module into a Slot
To install the module into the Remote 2C, HP Switching Hub, or HP Switch, follow these steps:
1.
If you are installing the module into the Remote 2C, you do not need to remove power. For other
products, such as the HP Switching Hub or HP Switch, verify that the power cord has been
removed.
2.
Remove the cover plate on a slot:
Loosen these screws
or
Loosen these screws
Back of
Remote 2C
3.
Insert the LanRover/10A by Shiva into a slot. Note that the module has matching color handles
with the color swatch on the back of the unit the module inserts in.
Color swatch on
Remote 2C
Color swatch on
extractor handles
extractor handles
4.
Push the extractor handles down.
5.
Tighten the two screws that hold the module in place. Be careful not to overtighten the screws.
HP AdvanceStack LanRover/10A Module by Shiva Installation and Reference Guide
3
6.
On the front of the switch, hub or Remote 2C, remove the blank label from the appropriate slot:
Pull the label out of the appropriate slot.
Remote 2C
7.
Insert the module’s slide-in label:
Slide the Module label in until each number is legible:
Remote 2C
4
HP AdvanceStack LanRover/10A Module by Shiva Installation and Reference Guide
8.
Connect the cables. The module allows for up to ten modems to be connected to the
LanRover/10A Module by Shiva. The cable that inserts into the right connector supports up to
two modems and the cable that inserts into the left connector supports up to eight modems.
Determine how many modems you are connecting and then select one or both cables. Both
cables do not need to be connected in order for the LanRover/10A by Shiva to operate correctly.
LanRover/10A by
Shiva
8-port
Octopus cable
installs on left
side.
Eight cables for up to eight external modems
9.
2-port
Y cable installs
on right side.
Two cables for up to two external modems
After you connect the cable(s) to the LanRover/10A by Shiva, connect the other end of each
cable to an external modem. Verify that your external modems have power connected to them.
HP AdvanceStack LanRover/10A Module by Shiva Installation and Reference Guide
5
(Remote 2C Only) Connect Cables From the Remote 2C To the Office LAN
The Remote 2C has two RJ-45 ports on the front of the box for connecting each module to your LAN.
Follow the illustrations below to connect the Remote 2C to your LAN:
Example 1: Remote 2C connected to an Ethernet Switching Hub-12R
Remote 2C
LED should light if power is
connected to both the Remote 2C and hub.
Category 3, 4, or 5 unshielded twisted-pair cable, 100 meters maximum
Ethernet Hub-12R
Example 2: Remote 2C connected to an Ethernet Switching Hub-12R and a 100VG Hub-14
Remote 2C
Ethernet Hub-12R
Category 3, 4, or 5 unshielded twisted
pair. 100 meters maximum
100VG Hub-14
LED should light if power is
connected to the Remote 2C and a hub.
6
HP AdvanceStack LanRover/10A Module by Shiva Installation and Reference Guide
Self Test
10. Plug the power cord into the power cord receptacle and into an AC power source. Plug the
power cord into the power cord receptacle for each modem. Self test lasts up to 60 seconds.
Check the LEDs:
During self test:
Power ON
RPS ON if Redundant
Power Supply connected
After self-test, the following LEDs are on:
Power ON
RPS ON (if Redundant
Power Supply connected) Dial-In
Dial-Out (if being used)
Hardware Status
HP AdvanceStack LanRover/10A Module by Shiva Installation and Reference Guide
7
Description of LanRover/10A Module by Shiva LEDs
The LanRover/10A by Shiva has the following LEDs:
LED
State
Meaning
Hardware Status
(green)
ON
The module is inserted correctly and is operating normally.
The module failed self test.
Flashing
The module is not installed.
OFF
Dial-In WAN Activity
(green)
ON
Indicates that at least one user has dialed in successfully.
Flickering
The amount of flickering indicates the level of traffic transmitted between the
device (e.g., hub, switch, or Remote 2C) and the module.
Dial-Out WAN Activity
(green)
ON
Indicates that at least one user has dialed out successfully.
Flashing
Indicates the amount of traffic transmitted between the user(s) and the device
the module is inserted into (e.g., hub, switch, or Remote 2C).
OFF
(Normal operation) The software on the module has passed its self test.
Flashing
The software failed. See HP Support Services at the front of this guide to get
replacement software.
Software Status
(green)
8
HP AdvanceStack LanRover/10A Module by Shiva Installation and Reference Guide
Where to Go From Here
You are now finished installing the module and connecting cables. You need to configure the
LanRover/10A using the included software, Quick Setup Wizard which will take you approximately
15 minutes.
When you run the Quick Setup Wizard, it asks you to connect your modems and connect to an
Ethernet or 100VG network. The Wizard automatically determines if you are running an IP or IPX
network, it discovers all of your modems connected and their manufacture type. Then the Wizard
run tests from modem to modem after you provide phone numbers. The Wizard provides two tests
for the modems: a short test and a long test.
The short test will dial-out from one port and back into another. Every port will be tested for both
dial-in and dial-out and the results presented. The long test will require you to select two ports to
test. The Wizard will then attempt to bring up a connection between the two ports and continually
transfer a file between the two until you stop the test. While the test is running the Wizard will display
the connection speed, the number of bytes transmitted and received, and the number of CRC errors.
HP AdvanceStack LanRover/10A Module by Shiva Installation and Reference Guide
9
Removing A LanRover/10A by Shiva Module
The module is removed from the hub, switch or Remote 2C by reversing the installation steps
described earlier in this guide. To remove the module, follow these steps:
1.
Remove power from the Switching Hub or Switch 208/224 by unplugging the power cord. (If
you are removing the module from a Remote 2C, you do not need to remove power.)
1.
Disconnect the two cables from the module.
2.
Unscrew the two captured screws holding the module.
3.
Pull the extractor handles up.
4.
Pull the module out of the slot.
Warning: Replace the Expansion Slot cover plate over the slot using the two screws that hold it in
place. Be careful not to overtighten the screws. When using the hub without the Switch Module, the
cover plate must always be installed. This is required not only for safety, but also to ensure proper
hub cooling.
10
HP AdvanceStack LanRover/10A Module by Shiva Installation and Reference Guide
Troubleshooting
Use the following table to determine the problem with your LanRover/10A Module by Shiva. Also
consult the LED table on page 8.
Problem
Solution
EITHER:
- All LEDs are lit for the LanRover/10A Module by
Shiva and remain lit.
- The Fault LED is on for the module.
One of the modems doesn’t seem to be working.
Verify that the LanRover/10A by Shiva is fully inserted, extractor
handles down, screws tightened.
For the Remote 2C, try another slot. If you have the Switch 208, 224,
any of the Switching Hubs, move the LanRover/10A into one of
those empty slots and try again.
Verify that all modem connections are secure and the screws for
each cable are tightened. Verify that power is on for the modems.
Reset the modem.
I have the LanRover/10A installed in a Switching Hub In the ASCII console or HP AdvanceStack Assistant, verify that the
yet I can’t access the module.
slot is enabled.
When the user tries to dial in, the user does not hear EITHER:
any dialing or seem to make any modem connection -The phone line may be digital instead of analog; install an adapter
at all.
or change the telephone lines.
-The wrong serial COM port is selected; select the correct serial
port.
-Bad modem or telephone cable; replace the defective cable.
Busy signal, even though the line is not busy
You might have dialed the wrong telephone number or typed in the
wrong prefix. Modify the telephone number, including any string
prefixes needed to reach an outside line, access codes, and the
destination area code (if calling long distance).
The telephone line seems dead.
Perhaps the telephone line is not in service? Attach a standard
analog telephone to verify whether you get a dial tone. If that
works, try calling the dial-in number to the LanRover/10A Module
by Shiva and see if you hear modem sounds.
If you are still having problems with the LanRover/10A by Shiva, see the Customer Support page at
the beginning of this manual for information on how to contact HP.
HP AdvanceStack LanRover/10A Module by Shiva Installation and Reference Guide
11
Specifications
Physical
Width
15.24 cm (6.00 in)
Depth
15.24 cm (6.00 in)
Height
4 cm (1.63 in)
Weight of LanRover/10A:
0.44 kg (0.88 lb)
Weight of 2-port and 8-port
cables together:
0.92 kg (2.02 lb)
Environmental
Operating Temperature
Non-Operating
Temperature
Temperature
+0°C to +55°C
(32°F to 131°F)
-40°C to 70°C
(-40°F to 158°F)
Relative humidity
(non-condensing)
15% to 95%at 40°C (104°F)
15% to 90%
at 65°C (149°F)
Maximum altitude
4.6 km (15,000 ft)
4.6 km (15,000 ft)
Acoustic Noise
Not applicable
Cable Pin-Out Assignments
Note that both the 2-port cable and 8-port cables share the following properties:
■
Overall cable length: 1.0 m.
■
Cable should be shielded (braid and foil), 28AWG.
■
Cable should have full 360° shielding at the connector shells.
12
HP AdvanceStack LanRover/10A Module by Shiva Installation and Reference Guide
2-Port Cable Pin-Out Assignments
DB25-Female End Signal
Port 1 DB25-Male
2
TXD-A
2
Port 2 DB25-Male
3
RXD-A
3
4
RTS-A
4
6
DSR-A
6
8
DCD-A
8
20
DTR-A
20
22
RI-A
22
14
TXD-B
2
16
RXD-B
3
19
RTS-B
4
13
CTS-B
5
18
DSR-B
6
12
DCD-B
8
11
DTR-B
20
25
RI-B
22
7
SIGNAL GND 7
7
1
SHELL GND
1
1
8-Port Cable Pin-Out Assignments
At SCSI End
At DB25 End (“Port 3”)
At SCSI End
1 (shield)
At DB25 End (“Port 4”)
1 (shield)
2
2 (txd)
10
2 (txd)
3
3 (rxd)
11
3 (rxd)
4
4 (rts)
12
4 (rts)
5
5 (cts)
13
5 (cts)
6
6 (dsr)
14
6 (dsr)
7
8 (dcd)
15
8 (dcd)
8
20 (dtr)
16
20 (dtr)
9
22 (ri)
17
22 (ri)
1
7 (gnd)
1
7 (gnd)
(continued on next page)
HP AdvanceStack LanRover/10A Module by Shiva Installation and Reference Guide
13
8-Port Cable Pin-Out Assignments (continued)
At SCSI End
At DB25 End (“Port 5”)
At SCSI End
1 (shield)
At DB25 End (“Port 6”)
1 (shield)
18
2 (txd)
26
2 (txd)
19
3 (rxd)
27
3 (rxd)
20
4 (rts)
28
4 (rts)
21
5 (cts)
29
5 (cts)
22
6 (dsr)
30
6 (dsr)
23
8 (dcd)
31
8 (dcd)
24
20 (dtr)
32
20 (dtr)
25
22 (ri)
33
22 (ri)
34
7 (gnd)
34
7 (gnd)
At SCSI End
At DB25 End (“Port 7”)
At SCSI End
At DB25 End (“Port 8”)
1 (shield)
1 (shield)
36
2 (txd)
44
2 (txd)
37
3 (rxd)
45
3 (rxd)
38
4 (rts)
46
4 (rts)
39
5 (cts)
47
5 (cts)
40
6 (dsr)
48
6 (dsr)
41
8 (dcd)
49
8 (dcd)
42
20 (dtr)
50
20 (dtr)
43
22 (ri)
51
22 (ri)
35
7 (gnd)
35
7 (gnd)
(continued on next page)
14
HP AdvanceStack LanRover/10A Module by Shiva Installation and Reference Guide
8-Port Cable Pin-Out Assignments (continued)
At SCSI End
At DB25 End (“Port 9”)
At SCSI End
1 (shield)
At DB25 End (“Port 10”)
1 (shield)
52
2 (txd)
60
2 (txd)
53
3 (rxd)
61
3 (rxd)
54
4 (rts)
62
4 (rts)
55
5 (cts)
63
5 (cts)
56
6 (dsr)
64
6 (dsr)
57
8 (dcd)
65
8 (dcd)
58
20 (dtr)
66
20 (dtr)
59
22 (ri)
67
22 (ri)
68
7 (gnd)
68
7 (gnd)
Note: Pins 1, 34, 35, and 68 on the SCSI connector connect to ALL pin 7’s on the DB25 ends (e.g.,
“Port 3” and “Port 4” DB25 connectors pins 7 (gnd) connect to SCSI connector pin 1, “Port 5” and
“Port 6” pins 7 connect to 34, etc.)
Regulatory Statements
FCC Class A Statement (for U.S.A. Only):
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area may cause harmful interference in which case the
user will be required to correct the interference at their own expense.
VCCI Class 1 (For Japan Only)
HP AdvanceStack LanRover/10A Module by Shiva Installation and Reference Guide
15
European Community
This equipment complies with ISO/IEC Guide 22 and EN55022 Class A.
This is a Class A product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
Canada
This product complies with Class A Canadian EMC requirements.
16
HP AdvanceStack LanRover/10A Module by Shiva Installation and Reference Guide
Technical information in this
document is subject to change
without notice.
© Copyright 1997
Hewlett-Packard Company
Printed in Singapore 1/97
Manual Part Number
J3230-90001
*J3230-90001*
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
