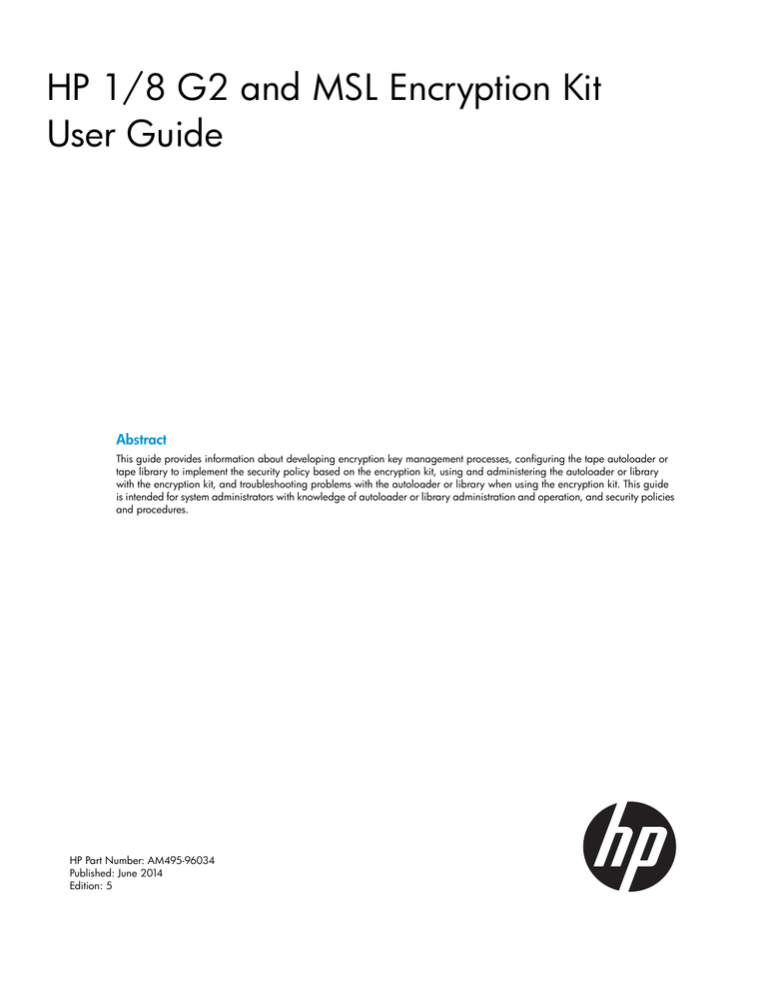

HP AG321A User manual
HP 1/8 G2 and MSL Encryption Kit
User Guide
Abstract
This guide provides information about developing encryption key management processes, configuring the tape autoloader or
tape library to implement the security policy based on the encryption kit, using and administering the autoloader or library
with the encryption kit, and troubleshooting problems with the autoloader or library when using the encryption kit. This guide
is intended for system administrators with knowledge of autoloader or library administration and operation, and security policies
and procedures.
HP Part Number: AM495-96034
Published: June 2014
Edition: 5
© Copyright 2010, 2014 Hewlett-Packard Development Company, L.P.
Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with FAR 12.211 and 12.212, Commercial
Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under
vendor's standard commercial license.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions contained herein.
Intel, Itanium, Pentium, Intel Inside, and the Intel Inside logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the
United States and other countries.
Microsoft, Windows, Windows XP, and Windows NT are U.S. registered trademarks of Microsoft Corporation.
Adobe and Acrobat are trademarks of Adobe Systems Incorporated.
Contents
1 Features and overview................................................................................5
Considerations for using the encryption kit...................................................................................5
LTO-4 and later generation tape drives and encryption..................................................................6
Requirements for using the encryption kit.....................................................................................6
Autoloader or library firmware requirements............................................................................7
Tape drive and drive firmware requirements.............................................................................7
Access to the USB port.........................................................................................................8
The key server token LED...........................................................................................................8
The keys on the key server token.................................................................................................9
The token data backup and restore processes.............................................................................11
Scenario 1........................................................................................................................12
Scenario 2........................................................................................................................12
Scenario 3........................................................................................................................12
2 Creating your key management processes...................................................14
When to create a new encryption key.......................................................................................14
Enabling automatic generation of new keys...........................................................................14
Backing up the key server token data........................................................................................14
Managing the token password (PIN).........................................................................................16
Naming key server tokens........................................................................................................16
Maintaining encryption capability in the event of a power loss.....................................................17
3 Installing and configuring the encryption kit.................................................18
Identifying product components................................................................................................18
Preparing the autoloader or library...........................................................................................18
Log in to the remote management interface...........................................................................18
Verify your autoloader or library firmware version..................................................................18
Locate the USB port............................................................................................................19
Preparing the key server tokens.................................................................................................19
Configuring encryption for the MSL6480...................................................................................20
Insert the key server token...................................................................................................21
Enter the PIN.....................................................................................................................21
Configure the encryption mode and features..........................................................................21
Backing up the initial key....................................................................................................28
Optional: Change the security user password........................................................................25
Configuring encryption for the autoloader and other libraries.......................................................25
Insert the key server token...................................................................................................25
Enter the PIN.....................................................................................................................26
Configure the encryption mode and features..........................................................................26
Backing up the initial key....................................................................................................28
4 Using the encryption kit.............................................................................30
Entering the PIN.....................................................................................................................30
After a power cycle.................................................................................................................31
Changing the PIN...................................................................................................................31
Generating a new encryption key.............................................................................................32
Enabling or disabling encryption..............................................................................................33
Backing up the token data.......................................................................................................34
Restoring the token data..........................................................................................................36
Restoring encrypted data.........................................................................................................38
Combining keys from multiple key server tokens..........................................................................39
When to obtain a new key server token.....................................................................................40
Seeding the new key server token.............................................................................................40
Contents
3
Restoring encrypted data during disaster recovery.......................................................................41
Using the encryption kit with partitions or logical libraries............................................................41
Restoring the encryption configuration after a chassis or library controller replacement....................41
5 Troubleshooting........................................................................................43
Installation problems...............................................................................................................43
The library does not have a USB port...................................................................................43
Operation problems................................................................................................................43
Encryption token LED..........................................................................................................43
Troubleshooting table.........................................................................................................44
MSL6480 event codes.............................................................................................................46
Autoloader and other library event codes..................................................................................47
6 Support and other resources......................................................................49
Contacting HP........................................................................................................................49
Before you contact HP........................................................................................................49
HP contact information.......................................................................................................49
Subscription service............................................................................................................49
Documentation feedback....................................................................................................49
Related information.................................................................................................................49
Documents........................................................................................................................49
Websites..........................................................................................................................49
Document conventions and symbols..........................................................................................50
Customer self repair................................................................................................................50
Index.........................................................................................................51
4
Contents
1 Features and overview
IMPORTANT: The encryption kit provides secure encryption of your data using key server tokens
and passwords. A thorough understanding and proper use of the encryption kit operation will
maintain the security of your data and ensure that only qualified persons have access to the data.
Managing your key server tokens and passwords is critical for preventing unauthorized data access
and for avoiding the inability of qualified personnel to access data from tapes. Read and understand
this encryption kit user guide before enabling encryption.
The encryption kit provides secure generation and storage of encryption keys. The encryption kit
may be used with any HP StoreEver 1/8 G2 Tape Autoloader or the MSL2024, MSL4048,
MSL6480, MSL8048 and MSL8096 Tape Library with at least one LTO-4 or later generation tape
drive. The encryption kit is incompatible with the MSL6000.
The encryption kit includes two USB key server tokens. One key server token is available for use
as a backup for the other.
To use the encryption kit, a key server token is inserted in the USB port on the back of the used
with an autoloader or library, and encryption is enabled and configured from the remote
management interface (RMI).
The encryption kit supports your manual security policies and procedures by providing secure
storage for encryption keys. Access to the key server tokens and their backup files is protected with
user-specified passwords. You will need to create processes to protect the tokens and secure the
passwords.
The encryption kit requires support from the autoloader or library firmware and the tape drive
firmware. See “Autoloader or library firmware requirements” (page 7) and “Tape drive and drive
firmware requirements” (page 7). You can download autoloader or library firmware files from
the HP Support website at http://www.hp.com/support.
IMPORTANT: When encryption is enabled with the encryption kit, the autoloader or library will
not use encryption keys from other sources, such as a key management system or application
software. Disable encryption in applications writing to the autoloader or library when encryption
is enabled with the encryption kit. Applications that attempt to control encryption while encryption
is enabled with the encryption kit will not be able to do so, which can cause backups or other
write operations to fail.
Considerations for using the encryption kit
The purpose of encryption is to protect data from unauthorized access and use. For LTO-4 and
later generation tape drives, the encryption algorithm is based on encryption keys. With the
encryption kit, the encryption keys are stored on the key server token and access to the keys is
protected by a password.
To enable, disable, and configure encryption on the MSL6480 library, you must be logged into
the library RMI as the security user. For the autoloader or other libraries, you must be logged into
the autoloader or library RMI using the administrator password.
To write encrypted data, you must have the key server token and the password for the key server
token. Only one encryption key is used on a tape cartridge. If the tape cartridge contains
previously-encrypted data, a key server token with the key for the tape must be in the autoloader
or library.
Considerations for using the encryption kit
5
To read encrypted data, you must have a key server token with the key for the tape and the
password for the key server token. The association between the encryption key and the tape is not
stored on either the key server token or the tape.
CAUTION: If you lose the key server tokens and token backup files associated with a tape, neither
you nor HP will be able to recover the encryption keys that were stored on the tokens. HP
recommends that a backup of the encryption keys be stored off site in a secure location.
If you lose the password to the key server token, neither you nor HP will be able to recover or reset
the password to access the encryption keys. Without the password you will not be able to recover
the data from tapes using the encryption keys on the token. HP recommends that you keep the
password in a secure location, and that at least one copy of the password be kept off site in a
secure location.
If the key server token is removed or becomes dislodged from the USB port on the back of the
autoloader or library, the tape drive will not be able to read or write encrypted data. This could
cause your backup or other data operation to fail.
Reading encrypted data from a tape cartridge requires the tape cartridge, a key server token with
the encryption key for the tape, the password for the key server token, and the security password
for the MSL6480 library or the administrator password for the autoloader or libraries. To prevent
unauthorized access to your data, HP recommends keeping these items in safe and secure locations.
LTO-4 and later generation tape drives and encryption
The LTO-4 and later generation tape drives include hardware capable of encrypting data while
writing data, and decrypting data when reading. Hardware encryption can be used with or without
compression while maintaining the full speed and capacity of the tape drive and media.
NOTE: An LTO-4 or later generation tape drive will not write encrypted data to an LTO-3 or
earlier generation tape. For additional compatibility information, see Media compatibility (page 7).
Encryption is the process of changing data into a form that cannot be read until it is deciphered
with key used to encrypt the data, protecting the data from unauthorized access and use. LTO-4
and later generation tape drives use the 256-bit version of the industry-standard AES encrypting
algorithm to protect your data.
Your company policy will determine when and how to use encryption. For example, encryption
may be mandatory for company confidential and financial data, but not for personal data. Company
policy will also define how encryption keys should be generated and managed, how frequently
they should be changed, and how passwords are managed.
Encryption is primarily designed to protect the media once it is offline and to prevent it from being
accessed by unauthorized users. You will be able to read and append the encrypted media as
long as a key server token containing the correct key is installed and the appropriate passwords
are available.
For more information about AES encryption, encryption keys, and using hardware encryption with
your HP Ultrium tape drive, see the White Papers at http://h18006.www1.hp.com/storage/
tapewhitepapers.html.
NOTE: Some earlier LTO-4 tape drive firmware revisions might not support the encryption kit
functionality. Before enabling encryption, verify that the tape drive has firmware that supports the
encryption kit. See “Tape drive and drive firmware requirements” (page 7) and update the
firmware if necessary.
Requirements for using the encryption kit
Using the encryption kit requires support from the autoloader or library firmware and the tape
drive firmware, as well as access to the USB port on the back of the autoloader or library.
6
Features and overview
Autoloader or library firmware requirements
MSL6480
All versions of MSL6480 library firmware support the encryption kit.
Autoloader and other libraries
To see whether your autoloader or library firmware supports the encryption kit, log into the RMI
for your product. If the RMI has a Status > Security tab, the firmware supports the encryption kit.
Figure 1 Autoloader and other libraries Configuration > Security tab
If your autoloader or library does not have the Status > Security tab, you must download and install
the current autoloader or library firmware. You can download autoloader or library firmware files
from the HP Support website at http://www.hp.com/support.
Tape drive and drive firmware requirements
The autoloader or library must have at least one LTO-4 or later generation tape drive. Earlier
generation tape drives do not support native encryption and cannot be used to encrypt or decrypt
data with the encryption kit. When encryption is enabled, only LTO-4 tapes can be written in LTO-4
tape drives.
Table 1 Media compatibility
LTO-4 drive
LTO-5 drive
LTO-6 drive
LTO-1 media
Incompatible
Incompatible
Incompatible
LTO-2 media
Read only
Incompatible
Incompatible
LTO-3 media
Read/Write (no encryption) Read only
Incompatible
LTO-4 media — unencrypted
Read/Write
Read/Write
Read only
LTO-4 media — encrypted
Read/Write with
encryption key
Read/Write with
encryption key
Read only with encryption
key
LTO-5 media — unencrypted
Incompatible
Read/Write
Read/Write
LTO-5 media — encrypted
Incompatible
Read/Write with
encryption key
Read/Write with encryption
key
LTO-5 media — unencrypted
Incompatible
Read/Write
Read/Write
LTO-5 media — encrypted
Incompatible
Read/Write with
encryption key
Read/Write with encryption
key
LTO-6 media — unencrypted
Incompatible
Incompatible
Read/Write
LTO-6 media — encrypted
Incompatible
Incompatible
Read/Write with encryption
key
NOTE: Verify that the tape drive has the correct firmware before enabling encryption. All LTO-5
and later generation tape drives have firmware that supports the encryption kit. If you enable
encryption with earlier versions of LTO-4 tape drive firmware, the autoloader or library will disable
the tape drive port.
Requirements for using the encryption kit
7
The LTO-4 tape drive must have the following or later versions of tape drive firmware:
Parallel SCSI
SAS
Fibre Channel
Ultrium 1760
W22W
U26W
Not Applicable
Ultrium 1840
B45W
Not Applicable
H44W
To find the version of firmware on your tape drive, see “Verify your autoloader or library firmware
version” (page 18).
NOTE: With the above LTO-4 tape drive firmware revisions, the autoloader or library will NOT
allow LTO-3 media in LTO-4 tape drives when encryption is enabled with the encryption kit. Always
ensure that your tape drive has the most recent firmware version. You can download tape drive
firmware files from the HP Support website at http://www.hp.com/support.
Access to the USB port
To use the key server tokens included in the encryption kit, the USB port on the back of the
autoloader or library must be accessible. Only the rear USB port on the MSL6480 may be used
for the key server token. On some MSL2024 and MSL4048 libraries you might need to remove
the silver tape covering the USB port.
Figure 2 MSL6480 rear USB port location
Figure 3 Autoloader and other library USB port location
The key server token LED
The key server token has a green status LED, which is visible through the token label.
8
Features and overview
Figure 4 Key server token LED
Table 2 Token status
LED behavior
Token status
On
The token is ready to be used by the autoloader or library.
Off
The token is not receiving power and must be fully inserted into the autoloader or library USB
port.
Flashing
The device with the USB port does not have software to communicate with the key server
token. If this occurs when the key server token is plugged into the autoloader or library, update
the autoloader or library firmware to the current version. See “Encryption token LED” (page 43)
for additional information about the key server token LED.
NOTE: The key server token is not a USB flash drive and its contents cannot be read by devices
other than the autoloader or library.
The keys on the key server token
The encryption kit key server token generates, stores, and retrieves keys used both to encrypt data
and to decrypt data. The same key is used as both the encryption key and the decryption key for
a tape, but different tapes may use different keys.
Only one key is used at a time for encrypting data on new or formatted tapes in the autoloader
or library. This key is called the current key. In most cases, the current key is the most recently
created key. You can see the current key and key creation dates in the RMI Status > Security screen.
On the MSL6480, click Gather Key Information to see the keys on the token.
When you manually create a new key or when the automatic key generation policy creates a new
key, the previous current key will no longer be used to encrypt new or formatted tapes. All of the
keys on the token, including the current key, are always available for decryption.
The keys on the key server token
9
Figure 5 MSL6480 Status > Security screen showing the keys on the token and their dates of creation
10
Features and overview
Figure 6 Autoloader and other libraries RMI Status > Security screen showing the Current key and
key creation dates
The token can hold up to 100 keys. Any tape that was written using one of the keys on the token
can be read using that token.
If an attempt is made to read an encrypted tape and the key is not on the installed token, an error
message will be displayed when the tape drive attempts to read the tape. If your application
supports appending data to a previously written tape, the original key used to write the tape must
be available on the installed token to append data to the tape. Only one key is used to encrypt
all of the data on a tape.
The status of each individual key in the Keys on Key Server Token section might inform you that a
key has not had a backup operation performed on it. When you start the process to back up the
token contents to a file, this status will be cleared. Also note that the backup status of the token
might appear in the Key Server Token Status line in the upper portion of the screen. This status
means that a backup is required, even if no individual keys in the Keys on Key Server Token section
have this status. This situation usually occurs when a token has keys restored to it that were not on
the original token. In this case, the autoloader or library has information that there are keys that
have not been backed up, but cannot uniquely identify them. Always create a backup of the token
whenever the Key Server Token Status indicates a backup is required.
The token data backup and restore processes
The encryption kit includes a process to back up the key server token data to a password-protected
file and a process to restore the token backup file to a token. After the restore process, the receiving
token contains a copy of each key from the backup file along with the keys it had before restore
process. The receiving token will keep the same current key for writing encrypted tapes.
NOTE: After the second and subsequent restore operations to a token, the two tokens will never
have the same current write key. If you need two tokens with the same write key, restore a backup
of one token onto a new token.
In the following example, consider the tokens named Blue, Yellow, and Green:
The Blue token has current key D, with decryption keys A, B, C, and D.
Blue token
D = current key
C
B
A
The token data backup and restore processes
11
The Yellow token has been initialized with a name “Yellow” but does not have any keys.
Yellow token
The Green token has current key F, with decryption keys F, A, and E. Key A is the same key A on
the Blue token from a previous save/restore operation.
Green token
F = current key
E
A
Scenario 1
In this scenario, a backup file from the Blue token is restored to the Yellow token. Because the
Yellow token does not have any keys, after the restore operation the Yellow token has all of the
keys from the Blue token, with D as the current key.
Restoring to a token without keys is the only way for two tokens to have the same current key.
Yellow token (after restore)
D = current key
C
B
A
Scenario 2
In this scenario, a backup file from the Blue token is restored to the Green token. After the restore
operation, the Green token contains all of the keys from both tokens. It only has one key A, which
was on both tokens. It retains F as its current key.
Any tapes written with the Green token after the restore will be encrypted with a different key (F)
than tapes written with the Blue token installed (D).
Green token (after restore)
F = current key
E
D
C
B
A
Scenario 3
In this scenario, a backup file from the Green token (after the restore in Scenario 2) is restored to
the Blue token. After the restore operation, the both tokens have an identical set of keys, but do
not have the same current key used to encrypt new and formatted tapes. The only way to create
12
Features and overview
two tokens with the same current key is to restore a backup onto a token that does not have any
keys, as in Scenario 1.
Blue token (after restore)
F
E
D = current key
C
B
A
The token data backup and restore processes
13
2 Creating your key management processes
The encryption kit provides encryption key generation and secure storage of the keys, and is
intended to be used within a key management process. Processes should be developed to manage
your encryption keys, tokens, and passwords before configuring encryption on the autoloader or
library.
The key management processes may be based on your company's security and audit policies.
Following are recommendations if your company does not have security policies or the security
policies do not address areas needed for the key management processes. If you have highly
sensitive data or are unsure about using encryption, HP recommends that you consult with a security
expert to develop policies appropriate to your situation.
When to create a new encryption key
HP recommends that a new encryption key be created at least annually and at most weekly when
using the encryption kit. The token can hold up to 100 keys. Once the key server token is full,
additional key server tokens must be purchased. Keys can never be deleted from a key server
token.
Your organization's backup and audit policies may specify when and how often to create a new
key. If your organization's policies do not address creating new keys but include a frequency for
replacing or archiving tapes, that policy could be basis for determining when and how often to
create a new key.
NOTE: When initializing a token, you must create the first key manually. See “Generating a new
encryption key” (page 32).
Enabling automatic generation of new keys
You can enable the autoloader or library to periodically generate a new encryption key and specify
the number of weeks to use each key, as well as the day and time for generating new keys.
If you advance the autoloader or library time past a time when a new key would have been
generated, the new key will not be generated. For example, if the automatic key generation policy
is to generate a new key on Monday mornings and on Sunday the autoloader or library time is
updated to a time on Tuesday, a new key will not be generated. When advancing the autoloader
or library time, check the automatic key generation policy and manually generate a new key if
necessary.
If the autoloader or library is powered off during a time when the automatic key generation policy
would have generated a new key, a new key will be generated when the autoloader or library is
powered on and the PIN is entered. Only one new key is generated, even if the autoloader or
library was powered off for a time when multiple keys would have been generated had the
autoloader or library been left on.
NOTE: Automatic key generation will not occur if media is loaded in any drive. When using
automatic key generation, ensure that media is unloaded from the drives when keys are generated.
Backing up the key server token data
HP recommends that you back up the key server token data after a new key is created and before
the new key is used to write tapes. The key server token data can be backed up to a
password-protected file from the RMI. The backup process will save all of the keys, but not the
token name or PIN.
The encryption kit includes two key server tokens. One token is intended to be installed in the
autoloader or library to encrypt and decrypt tapes. If the first token is lost or damaged, the second
token can be used in its place. The second token can also be used to read tapes with encrypted
14
Creating your key management processes
data at a different location. If the second token contains a backup of the first token's data, it should
be stored in a secure location, such as a fireproof safe in a different building.
The token data backup file and the second token support several approaches to backing up the
keys so that tapes can continue to be written and read if the first token is lost or destroyed. Choose
an approach that best meets your organization's needs and capabilities.
Table 3 Example token data backup processes
Backup process
Restore process
Benefits
Requirements
Back up the token
backup file and
store the
uninitialized second
token in a secure
location.
Retrieve the token backup • Avoids having to retrieve
file from your
physical media containing the
organization's file backup
token data from an off-site
program and restore it
location to create a new token
onto the unused second
data backup.
token.
• The token in use does not
need to be removed from the
autoloader or library during
the token data backup
process.
• Highly-reliable file backup and
restore processes that store
backup data off site.
Back up the token
data to removable
media, such as a
USB flash drive or
CD, and store it in
a secure location.
Retrieve the backup media • The token in use does not
and second token from the
need to be removed from the
secure location and
autoloader or library during
restore the token data
the token backup process.
onto the second token.
• The token backup file can be
restored onto any token.
• New backup media must be
created when a new key is
generated.
NOTE: If your file backup
process writes encrypted data to
an autoloader or a library using
the encryption kit, be sure to back
up the token data file to a different
removable media, as in the next
case. If the first token is lost or
• The token backup file can be damaged, you will need the token
backup file to restore onto a token
restored onto any token.
and you will not be able to restore
• The second token does not
the token backup file from the
need to be stored in a secure encrypted tape without a token
location.
with a key for the tape.
• By using a new token for the
restore process, the second
token will have the same
current key to encrypt tapes
as the original token.
• Token data backup files on
removable media must be
stored in a secure location.
• The second token does not
need to be stored in a secure
location.
• If your file backup process
uses an autoloader or a
library with the encryption kit,
you will be able to restore the
token backup file to a new
token if the token in use is lost
or damaged.
Back up the token
data on the first
token to the second
token and keep the
second token in a
secure location.
Retrieve the second token • The second token may be
• The second token must be
from the secure location
used immediately.
retrieved from the secure
and insert into any
location to back up new keys
supported autoloader or • The token is easy to store in a
created on the installed token.
secure
location.
library.
• The second token must be
retrieved from the secure
location if the first token is lost
or damaged.
• You must understand that the
second token may not have the
same current key used to
encrypt tapes.
Backing up the key server token data
15
Managing the token password (PIN)
The token password, called a PIN, protects access to the data on the key server token.
IMPORTANT: The PIN is required to write and restore encrypted data. Neither you nor HP can
recover, restore, or reset the PIN if it is lost or forgotten.
The PIN is set and can be changed from the RMI. Setting the PIN the first time also requires the
appropriate RMI password. Changing the PIN requires both the current PIN and the appropriate
RMI password.
•
MSL6480 — Log into the RMI as the security user, which requires the security password.
•
Autoloader and other libraries — Log into the RMI as the administrator, which requires the
administrator password.
You must enter the PIN when:
•
The autoloader or library powers on, cycles power, or is rebooted.
•
The first time a token is inserted since the autoloader was powered on.
•
When a token is inserted after another is removed.
You must enter the PIN each time the autoloader or library cycles power, the first time a token is
inserted since the autoloader or library was powered on, and when a token is inserted after another
is removed. The PIN does not need to be entered again if a token is removed and replaced without
inserting a different token.
HP recommends that you create PIN management policies to ensure that the PIN is stored in a
secure location and that it is only available to authorized personnel. The PIN management policies
should consider:
•
Ensuring that the PIN can be accessed by authorized personnel when necessary, even if the
security officer or administrator is unavailable.
•
Ensuring that the PIN is not accessible by unauthorized personnel.
•
Ensuring that the PIN is not lost, damaged, or destroyed.
•
Enabling, disabling, and configuring encryption requires both the appropriate RMI password
and the token PIN. For increased security, the RMI password and token PIN can be known
by different people, requiring two people to make these critical changes.
Naming key server tokens
The name of the key server token can have up to 126 characters. This is enough space to use a
descriptive name, which can be helpful in determining which token has the encryption key for a
particular tape if the documentation mapping the tokens and tapes is lost. For example, the name
could include dates when the token was used, or the facility or department whose tapes are
encrypted with keys on the token.
You can see the name of the token currently in the autoloader or library in the RMI without the PIN
or a password. For the MSL6480 the token name is displayed on the main screen. For the autoloader
and other libraries you can see the token name on the RMI Status > Security screen.
You can modify the name of the token currently in the autoloader or library from the RMI.
16
•
MSL6480 — Log into the RMI as the security user, navigate to the Configuration > Encryption
> USB — MSL Encryption Kit screen, and then enter the PIN to modify the token name in the
Pin Management section. You will need the security user password.
•
Autoloader and other libraries — Log into the RMI as the administrator user, navigate to the
Configuration > Security screen, and then enter the PIN to modify the token name. You will
need the administrator user password.
Creating your key management processes
Maintaining encryption capability in the event of a power loss
For increased security, the key server token's PIN is stored in volatile memory in the autoloader or
library. Each time the autoloader or library cycles power the PIN must be entered. The autoloader
or library will display a warning message on the OCP and RMI, and send periodic SNMP and
email events, if those options are enabled, until the PIN is entered. The autoloader or library will
not write encrypted data when encryption is enabled until the PIN is entered.
CAUTION: If it is critical that the autoloader or library maintain encryption capability in the event
of a power loss, HP recommends that you plug the autoloader power cable or library power cable
into an uninterruptible power supply.
Maintaining encryption capability in the event of a power loss
17
3 Installing and configuring the encryption kit
Identifying product components
Verify that you received all of the product components.
Figure 7 Encryption kit components
1. Two key server tokens
2. Accessory bag of token id cards and holders
3. Product documentation
Preparing the autoloader or library
Log in to the remote management interface
The key server token and autoloader or library encryption capabilities can only be configured from
the RMI.
•
MSL6480 — Log into the RMI as the security user. You will need the security user password.
The default password is security.
•
Autoloader and other libraries — Log into the RMI as the administrator user. You will need
the administrator user password.
If you have not used the RMI on this autoloader or library in the past, you may need to configure
the network on the autoloader or library before continuing.
See the getting started guide or user guide for your autoloader or library for instructions on
configuring the network and using the RMI. You can find these documents on the HP website at
http://www.hp.com/support/manuals.
Verify your autoloader or library firmware version
All MSL6480 firmware versions support the encryption kit.
For the autoloader or other libraries, verify that your autoloader or library firmware version supports
the encryption kit. If you see the Status > Security tab in the RMI, the firmware supports the encryption
kit. If this tab is missing, update the autoloader or library firmware to the current version. Neither
the administrator password nor token PIN are required to see the Status > Security tab.
18
Installing and configuring the encryption kit
Figure 8 RMI Configuration > Security tab
You can download autoloader or library firmware files from the HP Support website at http >//
www.hp.com/support.
Locate the USB port
Locate the USB port on the back panel of the autoloader or library.
Figure 9 MSL6480 rear USB port location
NOTE: Only the rear USB port on the MSL6480 is used for the encryption kit token. The front
port cannot be used for the token.
Figure 10 Autoloader and other library USB port location
If the USB port is covered with silver tape, remove the tape.
Preparing the key server tokens
As part of your security process, you will need to track each key server token, along with information
associated with the token, as required by your security policy. If you do not have a security policy
that specifies this information see “Creating your key management processes” (page 14) for
Preparing the key server tokens
19
information about creating your encryption key management processes. HP recommends that you
track at least:
•
Token name
•
Whether this token is a backup of another token
•
Dates used for writing data
•
The tape cartridges written with keys stored on the token. When possible, record the barcode
label associated with the tape cartridge.
•
Token backup file filename and password.
The encryption kit includes two methods of tracking the tokens. Choose the approach that works
best for your security policy and organization. HP recommends that you use both approaches.
•
Attached tag — The encryption kit includes a card and holder, which can be used to attach
information to the token.
•
Serial number — Each key server token has a unique serial number. You can use the serial
number to identify the key server token and correlate the tape cartridges written with keys on
the token.
TIP: The serial number is on the bottom of the token when the token is in the autoloader or
library, making it difficult to see. You can also find the token serial number and firmware
version on the RMI Status > Security screen.
IMPORTANT: HP recommends that you maintain a record of the tape cartridges that are written
with encryption keys on the key server token. When restoring the data from an encrypted tape,
you will need to use a key server token containing the encryption key for that tape. The name of
the key server token is not stored on the tape and the name of the tape is not stored on the key
server token. If you do not know which token contains the key for a tape, you may need to try all
of your key server tokens when restoring data from an encrypted tape. Each key server token can
contain a maximum of 100 keys.
NOTE: If you are using encryption kits with multiple autoloaders or libraries, you will need to
track the autoloader or library used with each token as this information is not recorded on the
token.
To use the attached tags to identify the tokens:
1. Write the token identification information on the paper cards.
2. Insert each card into a holder.
3. Attach the holders to the tokens.
4. Track the tape cartridges that are written with keys stored on the token and keep a copy of
this record in a secure location.
To use the serial numbers to identify the tokens:
• Record the token identification information and tape cartridges that are written with keys stored
on the token, and keep a copy of the record in a secure location.
TIP: The serial number is on the bottom of the token when the token is in the autoloader or library,
making it difficult to see. You can find the token serial number and firmware version from the RMI.
Configuring encryption for the MSL6480
In this section, you will configure the name and personal information number (PIN) for the key
server token, and configure encryption for the MSL6480 library.
20
Installing and configuring the encryption kit
Insert the key server token
Insert the key server token in the USB port on the back panel of the library base module.
Figure 11 Inserting the key server token into the rear MSL6480 USB port
Enter the PIN
When a key server token is inserted for the first time in any autoloader or library, the autoloader
or library will recognize it as a new token and display a dialog on the RMI requesting that you
enter a PIN. The new PIN must be between eight and 16 characters long and contain at least one
capitol letter, at least one lower case letter, and at least two digits. Follow the directions in the
dialog to enter your PIN.
Store a copy of the PIN in a secure location.
CAUTION: The key server token protects the encryption keys with a PIN. If you lose the PIN, you
will not be able to restore data from your encrypted tapes using that token. Neither you nor HP
can recover a lost PIN. Keep a copy of the PIN in a safe place.
Configure the encryption mode and features
From the Configuration > Encryption > USB — MSL Encryption Kit screen you can enter the name
of the token, save or restore token data to a file, or enable or disable encryption for the library. If
your library is configured in multiple partitions, you can enable or disable encryption independently
for each partition containing an LTO-4 or later generation tape drive. Only one encryption key is
used at a time to write tape cartridges and the same encryption key is used by all tape drives in
the library.
NOTE: If your application appends data to existing tapes, the key originally used to write the
tape is used to append additional data to the tape; a key server token holding that key must be
installed in the autoloader or library.
To configure the encryption mode and features:
1. Ensure that all tape drives are idle and do not contain media. The library will not change the
encryption configuration if any drive in the library contains a tape.
2. Navigate to the Configuration > Encryption screen, select USB — MSL Encryption Kit, and then
click Submit.
Configuring encryption for the MSL6480
21
NOTE: This option is only selectable when a token is inserted in the rear USB port of the
base module. Click Refresh to update the displayed key manager options.
3.
4.
Navigate to the Configuration > Encryption > USB - MSL Encryption Kit screen. If requested,
enter the Token PIN, and then click Submit.
Click Enable in the Enable/Disable Encryption area to enable encryption for one or more
partitions. Partitions that do not contain an LTO-4 or later generation tape drive will not appear
on the configuration screen.
Figure 12 Enable/Disable Encryption area
5.
Enter the name of the token in the Token Name field. The name can have up to 126 characters.
TIP: Using a descriptive name, including the dates when the keys on the token were used,
could be helpful if your log of tapes written with keys on the token is lost.
6.
7.
22
Click Submit to apply your selections.
Generate the first key. By default, you must manually request the key server token to generate
a new key. Click Apply in the Key Management area to generate the first key.
Installing and configuring the encryption kit
Figure 13 Key Management area
8.
Optional: Enable and configure automatic key generation. When automatic key generation
is enabled, the library will automatically request the key server token to generate a new key
periodically, according the policy you configure.
a. Expand the Key Management section.
b. Set the policy for the new key generation frequency, and the date and time this will occur.
Be aware that when new keys are created automatically they are not backed up until you
do so manually. To avoid only having one copy of the new key, set the automatic key
generation policy for a time when you can back up the new key before tapes are written
using the new key.
c. Click Submit to apply your selections.
NOTE: A key is not generated when the library time is advanced past a time when a new
key would have been generated. If you advance the library time, check the automatic key
generation policy to see whether a new key is needed, and if so, manually generate it.
One new key is generated if the library is off at a time when a new key would have been
automatically generated. To prevent a new key from being generated in this case, disable
automatic key generation before powering off the library.
NOTE: Automatic key generation will not occur if media is loaded in any drive. When using
automatic key generation, ensure that media is unloaded from the drives when keys are
generated.
Configuring encryption for the MSL6480
23
NOTE: The library uses the same write encryption key (the Current key) for all partitions with
encryption enabled. If the library is writing an encrypted tape when you change the security
configuration, the new configuration will take effect for the next tape loaded into an LTO-4 or later
generation tape drive.
Backing up the initial key
The key server token contains the keys used to encrypt and decrypt your tapes. HP strongly
recommends that you back up the keys on the token to allow you to access your data if a token is
lost or damaged. When backing up the key server token data, the token data is saved to a
password-protected file. You can then back up that file with a file backup process, archive it on
other media, such as a USB flash drive or CD, and restore it to the second key server token. For
more information about creating a process for backing up the key server token data, see “Backing
up the key server token data” (page 14)
CAUTION: When a new key is created, HP recommends that you always back up the token data
and store the backup in a safe place. You will not be able to restore data from your encrypted
tapes without a token containing the encryption key used to write the tape and the token PIN.
Neither you nor HP can recover the key used to write a tape without a token containing the key
and the token PIN.
If the token data is saved to a file, you can create a token from the file at any time if you know the
file password, even if the original token is not available.
To back up the information on the key server token to a file:
1. Verify that the token to be backed up is in the USB port on the back of the autoloader or
library.
2. Navigate to the Configuration > Encryption > USB — MSL Encryption Kit screen Key
Management area.
3. Enter a new password to be used to protect access to the contents of the backup file in the
Enter Token Backup File Password and Repeat Token Backup File Password fields. For increased
security, do not use the token PIN.
The backup file password must be between eight and 16 characters, containing at least one
capital letter, one lower case letter, and at least two digits.
NOTE: Some firmware versions limit the backup file password to 15 characters. For optimal
interoperability, limit the length of the backup file password to 15 characters.
4.
Click Save and follow the instructions as they appear on the screen to specify a location for
the token backup file.
NOTE: If your browser has a pop-up blocker enabled, the file dialog box may not appear.
Turn off your pop-up blocker before clicking Save.
5.
Save the token backup file to removable media or a location where it will be backed up by
your file backup process, if applicable. Store the removable media with the token backup file
in a secure location.
NOTE: If your file backup process backs up encrypted files to an autoloader or a library
using the encryption kit, keep another copy of the file on removable media, such as a USB
flash drive or CD, or on the second token. If the first token is lost or damaged you will not be
able to restore the token backup file from an encrypted tape to create a replacement token.
If your token data backup policy is to back up the token data on the second token, to do so:
1. Insert the second token into the USB port on the back of the autoloader or library.
2. Set the PIN and token name, as you did for the first token.
24
Installing and configuring the encryption kit
3.
4.
5.
6.
Navigate to the Configuration > Encryption > USB — MSL Encryption Kit screen.
In the Restore Token Backup from File pane, enter the Token Restore File Password. (The Token
Restore File Password is the Token Backup File Password used when the token backup file was
created.)
Click Submit Token Restore File Password.
Enter the location of the token backup file. (The Browse button will be active after the token
restore file password is submitted.)
NOTE: Each key server token can hold up to a maximum of 100 keys. If the token backup
file and the token receiving the restore contain over 100 unique keys, the restore process will
not be initiated. You will receive warnings when the key server token is over 90% full. You
should purchase new tokens and transition to using a new token when these warnings appear.
Keys can never be deleted from the key server token.
7.
8.
9.
Click Restore.
After the backup process is complete, return the first key server token to the rear USB port of
the library.
Store the second key server token in a secure location.
CAUTION: The token must be in the USB port of the library to read or write encrypted data. If
the token is dislodged or removed, your backups could fail. If the token is lost, you will not be able
to restore the data from your encrypted tapes unless you have a token with the keys used to write
the tapes.
Optional: Change the security user password
The library is shipped with a default password for the security user. For increased security, change
the password for the security user.
From the Configuration > User Accounts screen, select the security user, enter the new password
twice, and then click Submit. The password must contain eight to 16 characters, which can include
upper and lower case letters, numbers, and special characters.
Figure 14 Changing the security user password in the Configuration > User Accounts screen
Configuring encryption for the autoloader and other libraries
In this section, you will configure the name and personal information number (PIN) for the key
server token, and configure encryption on the autoloader or library.
Insert the key server token
Insert the key server token in the USB port on the back panel of the autoloader or library.
Configuring encryption for the autoloader and other libraries
25
Figure 15 Inserting the key server token
Enter the PIN
When a key server token is inserted for the first time in any autoloader or library, the autoloader
or library will recognize it as a new token and display a dialog on the RMI requesting that you
enter a PIN. The new PIN must be between eight and 16 characters long and contain at least one
capitol letter, at least one lower case letter, and at least two digits. Follow the directions in the
dialog to enter your PIN.
NOTE: Some older versions of autoloader and MSL2024, MSL4048, and MSL8096 library
firmware versions limit the PIN length to 15 characters. For optimal interoperability limit the length
of the PIN to 15 characters or ensure that the most current firmware is installed on your devices.
Store a copy of the PIN in a secure location.
CAUTION: The key server token protects the encryption keys with a PIN. If you lose the PIN, you
will not be able to restore data from your encrypted tapes using that token. Neither you nor HP
can recover a lost PIN. Keep a copy of the PIN in a safe place.
Configure the encryption mode and features
From the Configuration > Security screen you can enter the name of the token, enable or disable
encryption for the autoloader or library, and enable the autoloader or library to automatically
generate a new key. If your library is configured in multiple logical libraries, you can enable or
disable encryption independently for each logical library containing an LTO-4 or later generation
tape drive. Only one encryption key is used at a time to write tape cartridges and the same
encryption key is used by all tape drives in the library.
NOTE: If your application appends data to existing tapes, the key originally used to write the
tape is used to append additional data to the tape; a key server token holding that key must be
installed in the autoloader or library.
To configure the encryption mode and features:
26
Installing and configuring the encryption kit
1.
Click the Encryption enabled box to enable encryption for the autoloader or library, or for
one or more logical libraries that contain an LTO-4 or later generation tape drive. Logical
libraries that do not contain an LTO-4 or later generation tape drive will not appear on the
configuration screen.
Figure 16 Security Configuration pane of the Configuration > Security screen
2.
Enter the name of the token in the Token Name field. The name can have up to 126 characters.
TIP: Using a descriptive name, including the dates when the keys on the token were used,
could be helpful if your log of tapes written with keys on the token is lost. This descriptive
name will appear on the RMI whenever the token is installed. You do not need to enter the
name for authentication.
3.
4.
Click Submit in the Security Configuration pane to apply your selections.
Generate the first key. By default, you must manually request the key server token to generate
a new key. Click Apply in the Generate a new write key pane to generate the first key.
Figure 17 Generate a new write key pane of the Configuration > Security screen
5.
Optional: Enable and configure automatic key generation. When automatic key generation
is enabled, the autoloader or library will automatically request the key server token to generate
a new key periodically, according the policy you configure. Set the policy for the new key
generation frequency, and the day and time this will occur. Be aware that when new keys
are created automatically they are not backed up until you do so manually. To avoid only
having one copy of the new key, set the automatic key generation policy for a time when you
can back up the new key before tapes are written using the new key.
Click Submit in the Security Configuration pane to apply your selections.
NOTE: A key is not generated when the autoloader or library time is advanced past a time
when a new key would have been generated. If you advance the autoloader or library time,
check the automatic key generation policy to see whether a new key is needed, and if so,
manually generate it.
One new key is generated if the autoloader or library is off at a time when a new key would
have been automatically generated. To prevent a new key from being generated in this case,
disable automatic key generation before powering off the autoloader or library.
NOTE: Automatic key generation will not occur if media is loaded in any drive. When using
automatic key generation, ensure that media is unloaded from the drives when keys are
generated.
Configuring encryption for the autoloader and other libraries
27
NOTE: The autoloader or library uses the same write encryption key (the Current key) for all
logical libraries with encryption enabled. If the autoloader or library is writing an encrypted tape
when you change the security configuration, the new configuration will take effect for the next tape
loaded into an LTO-4 or later generation tape drive.
Backing up the initial key
The key server token contains the keys used to encrypt and decrypt your tapes. HP strongly
recommends that you back up the keys on the token to allow you to access your data if a token is
lost or damaged. When backing up the key server token data, the token data is saved to a
password-protected file. You can then back up that file with a file backup process, archive it on
other media, such as a USB flash drive or CD, and restore it to the second key server token. For
more information about creating a process for backing up the key server token data, see “Backing
up the key server token data” (page 14)
CAUTION: When a new key is created, HP recommends that you always back up the token data
and store the backup in a safe place. You will not be able to restore data from your encrypted
tapes without a token containing the encryption key used to write the tape and the token PIN.
Neither you nor HP can recover the key used to write a tape without a token containing the key
and the token PIN.
If the token data is saved to a file, you can create a token from the file at any time if you know the
file password, even if the original token is not available.
To back up the information on the key server token to a file:
1. Verify that the token to be backed up is in the USB port on the back of the autoloader or
library.
2. Navigate to the Configuration > Security screen Back up Token to File pane.
3. Enter a new password to be used to protect access to the contents of the backup file in the
Enter Token Backup File Password and Repeat Token Backup File Password fields. For increased
security, do not use the token PIN.
The backup file password must be between eight and 16 characters, containing at least one
capital letter, one lower case letter, and at least two digits.
NOTE: Some firmware versions limit the backup file password to 15 characters. For optimal
interoperability, limit the length of the backup file password to 15 characters.
4.
5.
Click Submit Token Backup File Password.
Click Save and follow the instructions as they appear on the screen to specify a location for
the token backup file.
NOTE: If your browser has a pop-up blocker enabled, the file dialog box may not appear.
Turn off your pop-up blocker before clicking Save.
6.
Save the token backup file to removable media or a location where it will be backed up by
your file backup process, if applicable. Store the removable media with the token backup file
in a secure location.
NOTE: If your file backup process backs up encrypted files to an autoloader or a library
using the encryption kit, keep another copy of the file on removable media, such as a USB
flash drive or CD, or on the second token. If the first token is lost or damaged you will not be
able to restore the token backup file from an encrypted tape to create a replacement token.
If your token data backup policy is to back up the token data on the second token, to do so:
1. Insert the second token into the USB port on the back of the autoloader or library.
2. Set the PIN and token name, as you did for the first token.
28
Installing and configuring the encryption kit
3.
4.
5.
6.
Navigate to the Configuration > Security screen.
In the Restore Token Backup from File pane, enter the Token Restore File Password. (The Token
Restore File Password is the Token Backup File Password used when the token backup file was
created.)
Click Submit Token Restore File Password.
Enter the location of the token backup file. (The Browse button will be active after the token
restore file password is submitted.)
Figure 18 Restore Token from File pane of the Configuration > Security screen
NOTE: Each key server token can hold up to a maximum of 100 keys. If the token backup
file and the token receiving the restore contain over 100 unique keys, the restore process will
not be initiated. You will receive warnings when the key server token is over 90% full. You
should purchase new tokens and transition to using a new token when these warnings appear.
Keys can never be deleted from the key server token.
7.
8.
9.
Click Restore.
After the backup process is complete, return the first key server token in the USB port of the
autoloader or library.
Store the second key server token in a secure location.
CAUTION: The token must be in the USB port of the autoloader or library to read or write
encrypted data. If the token is dislodged or removed, your backups could fail. If the token is lost,
you will not be able to restore the data from your encrypted tapes unless you have a token with
the keys used to write the tapes.
Configuring encryption for the autoloader and other libraries
29
4 Using the encryption kit
You can access encryption kit features from the RMI. Accessing the RMI encryption kit configuration
screen requires a password.
Table 4 RMI encryption kit configuration screen, user, and password
Device
RMI screen
User
Password
MSL6480
Configuration > Encryption > USB – MSL Encryption Kit
Security
Security user
password
Autoloader and
other libraries
Configuration > Security
Administrator
Administrator user
password
NOTE: Some RMI options may not be available until the autoloader or library has completed its
power on cycle. Buttons that are grayed out might become available when the power on cycle is
completed.
Entering the PIN
The PIN is a password that protects access to the data on the key server token. When you insert
a different key server token or power on the autoloader or library, you must enter the key server
token password (PIN) from the RMI before the autoloader or library will read or write encrypted
data using keys from the token.
Figure 19 MSL6480 — Entering the PIN in the encryption kit configuration screen
Figure 20 Autoloader and other libraries — Entering the PIN in the encryption kit configuration
screen
After entering the PIN you will be able to configure the encryption kit for the duration of the RMI
session. The RMI session will end automatically after about five minutes without RMI user interaction.
You can click Logout in the upper right corner of the RMI screen banner to end the RMI session
immediately.
30
Using the encryption kit
NOTE: After the RMI session ends, the PIN will still be available to the autoloader or library to
access the keys on the token for writing and reading tapes. For encryption operation, the PIN only
needs to be entered once when the autoloader or library is powered on or a different token is
installed in the autoloader or library.
Figure 21 MSL6480 RMI Logout link
Figure 22 Autoloader and other library RMI Logout link
After a power cycle
For increased security, the key server token's PIN is stored in volatile memory in the autoloader or
library. Each time the autoloader or library is powered on, the PIN must be entered. The autoloader
or library will display a warning message on the OCP and RMI, and send periodic SNMP and
email events, if those options are enabled, until the PIN is entered. The autoloader or library will
not write encrypted data until the PIN is entered.
CAUTION: If it is critical that the autoloader or library maintain encryption capability in the event
of a power loss, it is recommended that you plug the autoloader power cable or the library power
cable into an uninterruptable power supply (UPS).
Changing the PIN
You can change the PIN from the RMI encryption kit configuration screen with the required
password. The PIN must be between eight and 16 characters, containing at least one capital letter,
one lower case letter, and at least two digits.
NOTE: Some firmware versions limit the PIN to 15 characters. For optimal interoperability, limit
the length of the backup file password to 15 characters.
After a power cycle
31
Figure 23 MSL6480 — Changing the PIN in the encryption kit configuration screen
Figure 24 Autoloader and other libraries — Changing the PIN in the encryption kit configuration
screen
Generating a new encryption key
You can generate a new encryption key from the RMI encryption kit configuration screen with the
required password.
32
Using the encryption kit
Figure 25 MSL6480 — Generating a new encryption key in the encryption kit configuration screen
To generate a new encryption key, click Apply in the Key Management pane. The library will take
a few seconds to generate the new key.
Figure 26 Autoloader and other libraries — Generating a new encryption key in the encryption kit
configuration screen
To generate a new encryption key, click Apply in the Generate a new write key pane. The
autoloader or library will take a few seconds to generate the new key.
The new key will be used starting with the next new or formatted tape written. Only one key is
used to write all of the data on a tape.
NOTE:
The key server token holds a maximum of 100 keys.
Enabling or disabling encryption
You can enable or disable encryption from the RMI encryption kit configuration screen with the
required password.
Enabling or disabling encryption
33
Figure 27 MSL6480 — Enabling encryption in the encryption kit configuration screen
Click Enable to enable encryption for the partition. Click Disable to disable encryption for the
partition.
Figure 28 Autoloader and other libraries — Enabling encryption in the encryption kit configuration
screen
Click in the Encryption enabled box to enable or disable encryption. The green check mark shows
that encryption is enabled.
Enabling encryption will enable encryption for all LTO-4 or later generation tape drives in the
library.
Enabling or disabling encryption will take effect on the next tape unload for each tape drive. The
encryption mode for a tape will not change while the tape is being written. Once a tape drive has
started the decryption process for a tape, that tape's data will continue to be decrypted until the
tape is unloaded.
Backing up the token data
You can back up the token data from the RMI encryption kit configuration screen with the required
password.
34
Using the encryption kit
Figure 29 MSL6480 — Backing up the token data from the encryption kit configuration screen
Figure 30 Autoloader and other libraries — Backing up the token from the Back up Token to File
pane of the encryption kit configuration screen
During the token backup process, the autoloader or library will write the token information to a
file, which will be saved on the computer from which you are running the browser with the RMI.
After the file is written, the information can be restored to a different token.
During the restore process, the encryption keys from the file will be merged with the keys on the
token. If the number of unique keys from the two sources is greater than 100, the restore process
will not be initiated.
Backing up the token data
35
TIP: If you want two tokens to both have all of the keys, perform the backup and restore procedures
twice, starting each time with a different token. Each token will retain its current key used to write
new or formatted tapes, but both tokens can be used to decrypt tapes written with keys from either
token.
To back up the information on a token to a file:
1. Log into the RMI encryption kit screen. To do so, you will need to log into the RMI and supply
the PIN for the token in the autoloader or library.
2.
•
MSL6480 — Log into the RMI as the security user and navigate to the Configuration >
Encryption > USB — MSL Encryption Kit screen. You will need the security user password.
•
Autoloader and other libraries — Log into the RMI as the administrator user and navigate
to the Configuration > Security screen. You will need the administrator user password.
In the Back up Token to File pane, enter a password, which will be used to secure the data
file on the computer, in both fields. The second one ensures that the password was typed
correctly.
The backup file password must be between eight and 16 characters, containing at least one
capital letter, one lower case letter, and at least two digits.
NOTE: Some firmware versions limit the backup file password to 15 characters. For optimal
interoperability, limit the length of the backup file password to 15 characters.
3.
4.
Autoloader and other libraries — Click Submit Token Backup File Password.
Click Save. The RMI will prompt you for the location to save the file. Follow the instructions in
RMI.
Restoring the token data
You can restore the token data from the RMI encryption kit configuration screen with the required
password.
36
Using the encryption kit
Figure 31 MSL6480 — Restoring the token data from the Restore Token from File area of the
encryption kit configuration screen
Figure 32 Autoloader and other libraries — restoring token data from the Restore Token from File
pane of the encryption kit configuration screen
During the restore process, the encryption keys from the file will be merged with the keys on the
token. If the number of unique keys from the two sources is greater than 100, the restore process
will not be initiated. To ensure that all of the keys are on both tokens, perform the backup and
restore procedures twice, starting each time with a different key.
The write key after the restore will be the one from the token receiving the restore, unless the token
receiving the restore does not have any keys. For more information about backing up and restoring
the token data, along with examples of how these operations affect the write key, see “The token
data backup and restore processes” (page 11).
To restore a token backup file to a token:
Restoring the token data
37
1.
2.
3.
4.
5.
6.
If you are restoring the token backup file to a different token than the one installed in the
autoloader or library, pause all write operations to LTO-4 or later generation tape drives with
encryption enabled.
Log into the RMI.
•
MSL6480 — Log into the RMI as the security user. You will need the security user
password.
•
Autoloader and other libraries — Log into the RMI as the administrator user. You will
need the administrator user password.
Insert the token that will receive the data from the token backup file into the USB port of the
autoloader or library if necessary.
Access the RMI encryption kit configuration screen for your device. Enter the PIN if requested.
If this is a new token, follow the instructions on the RMI to create a PIN.
If this is a new token, enter the name in the Token Name field and click Submit in that pane.
Enter the password used to create the token backup file. Click Submit Token Restore File
Password.
Figure 33 Restore Token from File pane of the RMI Configuration > Security screen
7.
Browse to the location of the token backup file. Click Restore. (The Browse button will be active
after the token restore file password is submitted.)
NOTE: The key server token holds up to 100 keys. If more than 100 unique keys are found
on the receiving token and in the backup file, the restore process will not be initiated. You
will receive warnings when a key server token is over 90% full. You should purchase new
tokens and transition to using a new token when these warnings appear. Keys can never be
deleted from a key server token.
8.
9.
Return the original token to the USB port of the autoloader or library if necessary.
If you paused write operations at the beginning of the procedure, you can resume them.
Restoring encrypted data
When you restore encrypted data from a tape cartridge, the autoloader or library will verify that
the encryption key for the tape exists on the key server token installed in the USB port of the
autoloader or library. If the token is not installed in the USB port of the autoloader or library, or
the key is not found on the token, the OCP and RMI will display an error message.
The key server token containing the key for the tape to be restored must be installed in the autoloader
or library USB port before the tape is read. You will need to enter the PIN for the token when the
token is inserted into the autoloader or library.
A library with multiple LTO-4 or later generation tape drives will continue writing other tapes with
the newest encryption key on the token installed in the library while restoring the encrypted data.
IMPORTANT: Pause all write operations when restoring data using a different token than the one
used for writing new or formatted tapes. Not doing so can result in data written with an encryption
key different than the one on the original token.
NOTE: If the token is removed while a tape drive is reading or writing a tape, the tape drive will
continue reading or writing encrypted data until the tape is removed or the tape drive is reset.
38
Using the encryption kit
Combining keys from multiple key server tokens
You may want to combine the encryption keys from two or more key servers to read tapes encrypted
in multiple autoloaders or libraries that use the encryption kit, for example, when you install the
HP MSL Library Extender with two libraries that are using the encryption kit or combine the functions
of two or more autoloaders or libraries into a larger library.
To combine the keys from multiple key server tokens:
1. Select the destination token for the encryption keys and set it aside. This token needs to have
enough remaining capacity for all of the keys that will be copied onto it. In most cases, this
will be a new token or one with only a few keys.
NOTE: The current encryption key is the one used to encrypt data when writing tapes. The
current encryption key from this token will remain the current encryption key after the keys are
combined. If this a new token, the current encryption key from the first set of keys put on the
token will be the current encryption key.
Figure 34 The first five keys were on the original token; keys 6 and 7 were added from another
token
2.
3.
Verify that no backup operations are in progress.
Log into the RMI and supply the PIN for the token in the autoloader or library.
•
MSL6480 — Log into the RMI as the security user, navigate to Configuration > Encryption
> USB — MSL Encryption Kit screen and then enter the PIN in the Pin Management section.
•
Autoloader and other libraries — Log into the RMI as the administrator user and enter
the PIN in the Configuration > Security screen.
4.
For each of the tokens other than the destination token:
a. Insert the token into the USB port on the back of the autoloader or library.
b. If the Number of Keys to Backup option is not visible or active, you must back up all keys
on the token. Once all of the keys are backed up, you will be able to select the number
of keys to back up.
c. In the Back up Token to File pane, enter a password which will be used to secure the data
file on the computer in both fields. The second one ensures that the password was typed
correctly.
d. Click Submit Token Backup File Password.
e. If the Number of Keys to Backup option is active, select the number of keys to copy onto
the new token. The highest numbered keys will be copied to the file. For example, if the
token contains seven keys and you select three, keys five, six, and seven will be copied.
f. Click Save. The RMI will prompt you for the location to save the file. Follow the instructions
in RMI.
5.
Insert the destination token into the USB port of the autoloader or library.
Combining keys from multiple key server tokens
39
6.
For each of the token backup files created from the other tokens:
a. Enter the password used to create the token backup file.
Click Submit Token Restore File Password.
b.
Browse to the location of the token backup file. Click Restore. (The Browse button will be
active after the token restore file password is submitted.)
NOTE: The key server token holds up to 100 keys. If more than 100 unique keys are
found on the receiving token and in the backup file, the restore process will not be initiated.
You will receive warnings when a key server token is over 90% full. You should purchase
new tokens and transition to using a new token when these warnings appear. Keys can
never be deleted from a key server token.
7.
If you paused tape write operations at the beginning of the procedure, you can resume them.
When to obtain a new key server token
The autoloader or library will issue warnings when the key server token is 90% full. When the
token reaches 90% capacity, purchase additional key server tokens.
When the token is 100% full, keep it in a secure location to use when restoring data from tapes
encrypted with keys on the token.
Seeding the new key server token
When transitioning from a full token to a new token, you can copy the highest numbered keys from
the full token to the new token to enable read operations from tapes written with keys on the full
token. The highest numbered keys are normally the most recent.
To seed a new token:
1. Verify that no backup operations are in progress.
2. Log into the RMI.
3.
4.
5.
6.
7.
8.
40
•
MSL6480 — Log into the RMI as the security user. You will need the security user
password.
•
Autoloader and other libraries — Log into the RMI as the administrator user. You will
need the administrator user password.
Insert the full token into the USB port on the back of the autoloader or library, and enter the
PIN.
If the Number of Keys to Backup option is not visible, you must back up all keys on the token
before creating a file with just some of the keys.
a. In the Back up Token to File pane, enter a password which will be used to secure the data
file on the computer in both fields. The second one ensures that the password was typed
correctly.
b. Click Submit Token Backup File Password.
c. Click Save. The RMI will prompt you for the location to save the file. Follow the instructions
in RMI.
d. Continue with step 5 to create a file with a subset of the keys.
In the Back up Token to File pane, enter a password which will be used to secure the data file
on the computer in both fields.
Click Submit Token Backup File Password.
In the Number of Keys to Backup field, select the number of keys to copy onto the new token.
The highest-numbered keys, which are normally the most recent, will be copied. For example,
if the token has 100 keys and you select 3, keys 98, 99, and 100 will be copied.
Click Save. The RMI will prompt you for the location to save the file. Follow the instructions in
RMI.
Using the encryption kit
9. Insert the new token into the USB port of the autoloader or library.
10. Follow the RMI instructions to create a PIN for the new token.
11. Enter the password used to create the token backup file. Click Submit Token Restore File
Password.
12. Browse to the location of the token backup file containing the seed keys. Click Restore. (The
Browse button will be active after the token restore file password is submitted.)
13. If you paused write operations at the beginning of the procedure, you can resume them.
Restoring encrypted data during disaster recovery
When restoring encrypted data after a disaster, you will need:
•
The tape cartridges containing the encrypted data.
•
Depending on your token data backup process, you will need one of the following:
◦
A token data backup file, with the password for the file, and a token with room for the
keys on the data backup file. If the token has been initialized, you will need its PIN.
◦
A token containing the encryption keys used to write the tapes and the PIN for the token.
If new keys were restored to the second token as the keys were made, the second token
will contain all of the keys and can be used to restore the data.
•
An HP StoreEver 1/8 G2 Tape Autoloader or MSL2024, MSL4048, MSL6480, MSL8048,
or MSL8096 Tape Library supported by your backup application with at least one LTO-4 or
later generation tape drive.
•
The security password for the MSL6480 library or the administrator password for the autoloader
or other library.
The key server tokens work with any HP StoreEver 1/8 G2 Tape Autoloader or MSL2024,
MSL4048,MSL6480, MSL8048, or MSL8096 Tape Library with at least one LTO-4 or later
generation tape drive. If you have an autoloader or a library with an older generation tape drive,
you can upgrade to an LTO-4 or later generation tape drive for the recovery operation. You may
need to update the firmware in the autoloader or library and tape drive to support the encryption
kit. You will need the security password for the MSL6480 library or the administrator password
for the autoloader or other library.
For examples of token data backup and restore processes, see “Backing up the key server token
data” (page 14).
Using the encryption kit with partitions or logical libraries
When a library with multiple LTO-4 or later generation tape drives is partitioned into multiple
logical libraries, encryption can be enabled or disabled for each partition or logical library
containing an LTO-4 or later generation tape drive, but all other encryption settings apply to the
entire library.
Only one write key is used for all new or formatted tapes in all of the LTO-4 or later generation
tape drives in the tape library.
Restoring the encryption configuration after a chassis or library controller
replacement
The encryption configuration is saved when you save the autoloader or library configuration
database to a file or USB flash drive. The saved configuration database will make it easier to
recover the autoloader or library configuration, including the encryption configuration, if you need
to replace the chassis or library controller.
Restoring encrypted data during disaster recovery
41
Use the RMI screen for your device to save the configuration database to a file or restore it from
a file. You will need the administrator user password.
•
MSL6480 — Configuration > System Save/Restore Configuration screen
•
Autoloader and other libraries — Configuration > Save/Restore screen
Figure 35 MSL6480 Configuration > System Save/Restore Configuration screen
Figure 36 Autoloader and other libraries — Configuration > Save/Restore tab
NOTE: You cannot restore a saved configuration or the factory defaults while encryption is
enabled. This restriction ensures that encryption cannot be disabled without a token and its PIN.
Disable encryption before restoring a saved configuration or the factory defaults.
42
Using the encryption kit
5 Troubleshooting
Installation problems
The library does not have a USB port
Some MSL2024 and MSL4048 Tape Libraries have silver tape covering the USB port. Remove the
tape to locate the USB port in the location shown in Figure 37 (page 43).
Figure 37 USB port location
Operation problems
Encryption token LED
The LED on the encryption token should be lit when the token is plugged into the back of the
autoloader or library when the autoloader or library is powered on.
If the LED is not lit, the token is not receiving power through the USB port. To determine whether
the problem is with the token or the autoloader or library:
1. Remove and then insert the token in the autoloader or library USB port.
2.
3.
•
If the LED flashes for five to ten seconds and then does not light, the token may be
defective. Contact your HP Service representative.
•
If the LED does not flash or light, continue to step 2.
Insert a good USB flash drive in the autoloader or library USB port.
•
If the good flash drive receives power, the problem could be with the token.
•
If the good flash drive does not receive power, the problem could be with the autoloader
or library.
Insert the key server token into the USB port of a computer. The token LED will flash when the
token receives power but the computer will not be able to read the contents of the token.
•
If the token LED lights or flashes, the problem could be with the autoloader or library.
•
If the token LED remains unlit, the problem could be with the token.
If the LED flashes continuously, the device into which the key server token is plugged cannot
communicate with the key server token. If the key server token is plugged into the autoloader or
library, verify that the autoloader or library firmware supports the encryption kit. See “Requirements
for using the encryption kit” (page 6).
Installation problems
43
Troubleshooting table
You can access encryption kit features from the RMI. Accessing the RMI encryption kit screen
requires a password.
Table 5 RMI encryption kit screen location, user, and password
Device
RMI screen
User
MSL6480
Configuration > Encryption > USB — MSL Encryption Security
Kit
Security user
password
Autoloader and other
libraries
Configuration > Security
Administrator
user
password
Administrator
Password
Table 6 Troubleshooting table
Problem
Cause
Solution
Both backup to and restore from an
LTO-4 or later generation tape drive
are not working.
The tape drive ports are disabled
because encryption is enabled and
the tape drive firmware does not
support the encryption kit.
Use the RMI or USB flash drive to
update the drive firmware to the latest
version. Enable encryption after the
firmware is updated. See “Tape drive
and drive firmware requirements”
(page 7) for minimum drive firmware
revisions that support the encryption kit.
The token does not have a key.
Create an encryption key from the RMI
encryption kit screen.
The token has not been initialized.
Set the PIN and generate a key from
the RMI encryption kit screen.
The PIN has not been entered.
Enter the PIN from the RMI encryption
kit screen.
An LTO-3 tape cartridge is being used.
When encryption is enabled, an LTO-4
or later generation tape drive will
neither read from nor write to an
LTO-3 tape cartridge.
Use the same generation tape cartridge
to write data with an LTO-4 or later
generation tape drive. Disable
encryption to read data from an LTO-3
tape cartridge.
The tape and/or the tape drive are
not LTO-4 or later generation.
Both the tape and tape drive must be
LTO-4 or a later generation to write
encrypted data. When encryption is
enabled, an LTO-4 or later generation
tape drive will not write an LTO-3 tape.
Cannot write encrypted data to a
tape.
Cannot append encrypted data to an Direct append operations are not
LTO-4 tape.
supported by the application.
Cannot restore encrypted data from
an LTO-4 or later generation tape.
44
Troubleshooting
The application or script writing the
data must read the tape header before
appending data.
The token currently installed in the
autoloader or library does not have
the key used to write the tape.
Insert the token with the correct write
key for the tape in the autoloader or
library. Suspend other write operations
while the other token is installed to
avoid writing new or formatted tapes
with the wrong write key.
The tape has unencrypted data on it.
Replace the tape or disable encryption
while the tape is being written. The
autoloader or library will not write both
encrypted and unencrypted data on the
same tape.
The token currently installed in the
autoloader or library does not have
the key used to write the tape.
Insert the token with the write key for
the tape in the autoloader or library.
Suspend other write operations while
the other token is installed to avoid
Table 6 Troubleshooting table (continued)
Problem
Cause
Solution
writing new or formatted tapes with the
wrong write key.
Token does not recognize the PIN.
You entered the incorrect PIN.
Find the correct PIN and enter it.
A different token has been installed in Check the RMI encryption kit screen to
the autoloader or library.
verify that the correct token is installed
in the autoloader or library. Either
replace the token with the correct token
or enter the PIN for the
currently-installed token.
Token requests a new PIN.
A new token has been installed in the Either replace the token with the correct
autoloader or library.
token or initialize the new token from
the RMI encryption kit screen.
Lost password to the token backup file. The person who knew the password
has forgotten it or is unavailable.
Back up the token to a different file or
restore the keys from a different recent
backup file with a known password.
The autoloader or library will not
restore the token backup file to a
token.
The number of unique keys in the
token backup file and the token is
greater than 100.
Check the RMI encryption kit screen to
verify that the correct token is installed
in the autoloader or library. Either
replace the token with the correct token
or restore the token backup file to a
new token. Keys can never be deleted
from a token.
The receiving token has not been
initialized.
Use the RMI to set the PIN.
A token backup file created on an
MSL6480 cannot be restored on an
autoloader or other library, or a token
backup file created on an autoloader
or other library cannot be restored on
an MSL6480.
MSL6480 firmware versions 4.20 and
earlier saved the token backup file
with a different format the autoloader
and other libraries.
MSL6480 firmware versions 4.30 and
newer use the same file format as the
autoloader and other libraries.
If your token backup file has .tkn file
suffix, only restore it on an MSL6480.
The token PIN has been lost.
The person who knew the PIN has
forgotten it or is unavailable.
Restore the latest token backup file to
a new token and be sure not to lose the
PIN for the new token.
One or more logical libraries is not
shown in the RMI encryption kit
screen.
The logical library does not have an
LTO-4 or later generation tape drive
or the tape drive firmware does not
support the encryption kit.
Configure the logical libraries and tape
drives so the logical libraries that need
encryption have at least one LTO-4 or
later generation tape drive. Verify that
the LTO-4 tape drives have a firmware
revision that supports the encryption kit.
See “Tape drive and drive firmware
requirements” (page 7) for minimum
drive firmware revisions that support
the encryption kit.
IMPORTANT: Restoring a .tkn token
backup file created on the MSL6480
to the HP 1/8 G2 autoloader or
MSL2024, MSL4048, MSL8048, or
MSL8096 library will cause the target
device to become unresponsive. If this
happens, power cycle the target device.
The autoloader or library is unable to The backup application disabled
apply encryption settings.
encryption on the tape drive.
Disable the backup application, power
cycle the autoloader or library, and
then try enabling encryption again in
the RMI.
Operation problems
45
Table 6 Troubleshooting table (continued)
Problem
Cause
Solution
A PIN or backup file password longer Some earlier versions of the RMI
than 15 or 16 characters is not
allowed longer passwords to be
accepted.
entered, but the firmware only stored
the first 15 or 16 characters when
encrypting the PIN or password.
Try entering just the first 15 or first 16
characters of the PIN or backup file
password.
Automatic key generation is enabled
but a key was not generated at the
specified time.
Update either the backup schedules or
key generation schedule to so that all
tape drives will be empty when the key
is scheduled to be generated.
The autoloader or library will only
generate a new key if the device is
powered on, the token is logged in
with the token password, and all tape
drives are empty.
If necessary, downgrade the firmware
to an earlier version and then change
the PIN to 15 or fewer characters. Back
up the token data to a file, using a
password with 15 or fewer characters.
Upgrade the firmware to the newest
version.
Ensure that the device is powered on
and that the token is logged in when
the key is scheduled to be generated.
Generate a new key manually when
one was not generated automatically.
An autoloader or MSL2024,
MSL4048, MSL8048, or MSL8096
tape library becomes unresponsive
when restoring a token backup file.
MSL6480 firmware 4.20 and earlier
firmware versions saved the token
backup file with a different format the
autoloader and other libraries. When
this file is restored onto an autoloader
or MSL2024, MSL4048, MSL8048,
or MSL8096 tape library, the device
will become unresponsive.
MSL6480 firmware versions 4.30 and
newer use the same file format as the
autoloader and other libraries.
If your token backup file has .tkn file
suffix, only restore it on an MSL6480.
IMPORTANT: Restoring a .tkn token
backup file created on the MSL6480
to the HP 1/8 G2 autoloader or
MSL2024, MSL4048, MSL8048, or
MSL8096 library will cause the target
device to become unresponsive. If this
happens, power cycle the target device.
MSL6480 event codes
Table 7 Warning events
Event code
Message and description
4051
A new encryption key could not be created because media is loaded in one or more drives. Unload the
media from all drives and then retry the manual key creation again.
4052
A new encryption key could not be created because media is loaded in one or more drives. Unload the
media from all drives and then automatic key generation will occur during the next scheduled time frame,
or generate a new token key manually.
Table 8 Informational events
46
Event code
Message
9017
MSL Encryption Kit password has changed.
9018
MSL Encryption Kit password has been requested.
9019
MSL Encryption Kit password has been created.
9020
MSL Encryption Kit password has been set.
9021
MSL Encryption Kit token has been initialized.
9022
MSL Encryption Kit backup has been done.
Troubleshooting
Table 8 Informational events (continued)
Event code
Message
9023
MSL Encryption Kit restore has been done.
9030
An invalid MSL Encryption Token was inserted.
9039
Token key creation attempt failed due to media being loaded in one or more drives.
Autoloader and other library event codes
Table 9 Error codes
Error code
Message
Cause
Solution
E1
Key server token backup not
A key server token restore
successful — not enough space is process was attempted but the
available on the token.
receiving token did not have
enough room for the keys in the
token backup file.
Restore the token backup file to a
token with enough space for the
keys on the token and the keys in
the token backup file.
E3
Error during key server token
backup; the backup process was
not successful.
• Retry the restore process with a
different token.
• Make a new token backup file
and retry the restore process
with the new backup file.
• Contact HP Service.
E4
Drive firmware does not support
encryption.
An attempt was made to enable
encryption with a version of tape
drive firmware that does not
support native encryption.
Verify that you have the correct
tape drive firmware version
installed. See “Tape drive and
drive firmware requirements”
(page 7) for minimum drive
firmware revisions that support the
encryption kit.
E5
Drive generation does not support An attempt was made to enable Only enable encryption on LTO-4
encryption.
encryption with a tape drive that or later generation tape drives.
does not support native
encryption.
Table 10 Warning events and messages
Code
Message
Cause
Solution
51
Incompatible medium
The LTO-4 or later generation
tape drive is trying to read or
write an LTO-3 or earlier
generation tape while encryption
is enabled.
Only use the same generation tape
in an LTO-4 or later generation
tape drive when encryption is
enabled. An LTO-4 or later
generation tape drive will not read
or write LTO-3 tape cartridges
when encryption is enabled.
56
No decryption key available on
token
The key needed to restore a
decrypted tape is not available
on the token currently installed in
the autoloader or library.
Insert the token with the key used
to encrypt the key into the
autoloader or library and retry the
restore operation.
57
Key server token PIN required
The autoloader or library needs Enter the PIN from the RMI
the PIN to access the data on the Configuration > Security screen.
token.
5A
Unable to downgrade firmware
while encryption enabled.
An attempt was made to load
Either upgrade the tape drive
tape drive firmware that does not firmware to a version that supports
support the encryption kit on an the encryption kit or disable
encryption. Do not enable
Autoloader and other library event codes
47
Table 10 Warning events and messages (continued)
Code
Message
Cause
Solution
LTO-4 tape drive while encryption encryption until tape drive has
is enabled.
firmware that supports the
encryption kit. See “Tape drive
and drive firmware requirements”
(page 7).
48
Troubleshooting
6 Support and other resources
Contacting HP
Before you contact HP
Be sure to have the following information available before you contact HP:
•
Product model names and numbers
•
Technical support registration number (if applicable)
•
Product serial numbers
•
Error messages
•
Operating system type and revision level
•
Detailed questions
HP contact information
For worldwide technical support information, see the HP support website:
http://www.hp.com/support
Subscription service
HP recommends that you register your product at the Subscriber's Choice for Business website:
http://www.hp.com/go/e-updates
After registering, you will receive e-mail notification of product enhancements, new driver versions,
firmware updates, and other product resources.
Documentation feedback
HP welcomes your feedback.
To make comments and suggestions about product documentation, please send a message to
[email protected] All submissions become the property of HP.
Related information
Documents
•
HP StoreEver 1/8 G2 Tape Autoloader User and Service Guide
•
HP StoreEver MSL2024, MSL4048, MSL8048, and MSL8096 Tape Libraries User and Service
Guide
•
HP StoreEver MSL6480 Tape Library User and Service Guide
You can find these documents from the Manuals page of the HP Business Support Center website:
http://www.hp.com/support/manuals
In the Storage section, click Tape Storage and Media and then select your product.
Websites
•
http://www.hp.com
•
http://www.hp.com/go/storage
•
http://www.hp.com/support/manuals
Contacting HP
49
•
http://www.hp.com/support/downloads
•
http://www.hp.com/support/mslg3stree — Troubleshooting tree
•
http://www.hp.com/go/tapetools — HP Library and Tape Tools
Document conventions and symbols
Table 11 Document conventions
Convention
Element
Blue text: Table 11 (page 50)
Cross-reference links and e-mail addresses
Blue, underlined text: http://www.hp.com
Website addresses
Bold text
• Keys that are pressed
• Text typed into a GUI element, such as a box
• GUI elements that are clicked or selected, such as menu
and list items, buttons, tabs, and check boxes
Italic text
Text emphasis
Monospace text
• File and directory names
• System output
• Code
• Commands, their arguments, and argument values
Monospace, italic text
• Code variables
• Command variables
Monospace, bold text
WARNING!
CAUTION:
IMPORTANT:
NOTE:
TIP:
Emphasized monospace text
Indicates that failure to follow directions could result in bodily harm or death.
Indicates that failure to follow directions could result in damage to equipment or data.
Provides clarifying information or specific instructions.
Provides additional information.
Provides helpful hints and shortcuts.
Customer self repair
HP CSR programs allow you to repair your storage product. If a CSR part needs replacing, HP
ships the part directly to you so that you can install it at your convenience. Some parts do not
qualify for CSR. Your HP-authorized service provider will determine whether a repair can be
accomplished by CSR.
For more information about CSR, contact your local service provider, or see the CSR website:
http://www.hp.com/go/selfrepair
This product has no customer replaceable components.
50
Support and other resources
Index
A
automatic key generation, 14
logical libraries, 41
P
backing up the token data, 34
backup process
token data, 14
PIN, 16
changing, 31
entering, 30
power cycle, 31
power loss, 17
C
R
conventions
document, 50
text symbols, 50
current key, 9
customer self repair, 50
related documentation, 49
restoring encrypted data, 38
restoring the encryption configuration, 41
restoring the token data, 36
RMI
encryption kit screen, 44
B
D
disaster recovery, 41
document
conventions, 50
related documentation, 49
documentation
HP website, 49
providing feedback, 49
S
Subscriber's Choice, HP, 49
symbols in text, 50
T
help
obtaining, 49
HP
technical support, 49
technical support
HP, 49
service locator website, 49
text symbols, 50
token data backup process, 14
token naming, 16
troubleshooting
error codes
autoloader and other libraries, 47
event codes
autoloader and other libraries, 47
MSL6480, 46
informational events
MSL6480, 47
LED, 43
no USB port, 43
troubleshooting table, 44
warning events
autoloader and other libraries, 48
MSL6480, 46
I
U
installation
backing up the initial key, 28
configuring encryption
autoloader and other libraries, 25
MSL6480, 20
identifying product components, 18
preparing key server tokens, 19
preparing the autoloader or library, 18
USB port, 8
E
encryption
enabling or disabling, 33
F
firmware requirements
autoloader or library, 7
tape drive, 7
G
generating a new encryption key, 32
H
W
websites
customer self repair, 50
HP , 49
HP Subscriber's Choice for Business, 49
product manuals, 49
L
LED, 8
troubleshooting, 43
51
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
