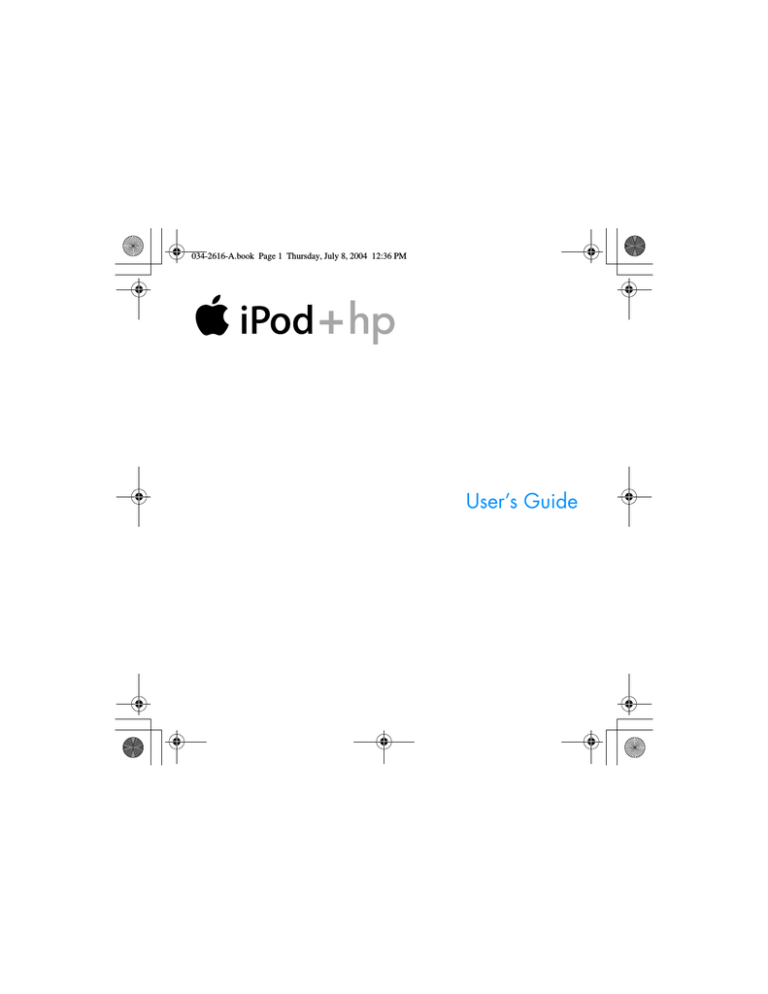

User’s Guide
034-2616-A.book Page 2 Thursday, July 8, 2004 12:36 PM
The information in this document is subject to change without notice.
Hewlett-Packard ® Company makes no warranty of any kind with regard to this material, including, but
not limited to, the implied warranties of merchantability and fitness for a particular purpose.
Neither HP or Apple shall be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this material.
THE WARRANTY TERMS CONTAINED IN THIS STATEMENT, EXCEPT TO THE EXTENT LAWFULLY
PERMITTED, DO NOT EXCLUDE, RESTRICT OR MODIFY AND ARE IN ADDITION TO ANY
MANDATORY STATUTORY RIGHTS APPLICABLE TO THE SALE OF THIS PRODUCT OR SERVICE TO
YOU.
HP assumes no responsibility for the use or reliability of its software on equipment that is not furnished
by HP.
This document contains proprietary information that is protected by copyright. All rights are reserved.
No part of this document may be photocopied, reproduced, or translated to another language without
the prior written consent of HP.
Hewlett-Packard Company
P.O. Box 4010
Cupertino, CA 95015-4010
USA
© 2004 Hewlett-Packard Development Company, L.P. All rights reserved.
Apple, the Apple logo, FireWire, iPod, and iTunes are trademarks of Apple Computer, Inc., registered
in the U.S. and other countries. For legal or rightholder-authorized copying only. Don’t steal music.
HP supports lawful use of technology and does not endorse or encourage the use of our products for
purposes other than those permitted by copyright law.
034-2616-A.book Page iii Thursday, July 8, 2004 12:36 PM
1
Table of Contents
Quick Start ............................................................... 1
What You Need to Get Started ................................................................ 3
Setting Up iPod to Play Music................................................................... 5
Using iPod.............................................................. 11
Using iPod Controls .............................................................................. 11
Connecting and Disconnecting iPod ........................................................ 18
Organizing and Transferring Your Music ................................................. 23
Adjusting iPod Settings .......................................................................... 31
Using the Extra Features of Your iPod ...................................................... 35
Charging the iPod Battery ...................................................................... 42
iPod Accessories................................................................................... 45
Tips and Troubleshooting........................................ 47
Learning More, Service, and Support ...................... 53
Safety and Cleaning ............................................... 55
Index ..................................................................... 63
iii
034-2616-A.book Page iv Thursday, July 8, 2004 12:36 PM
iv
034-2616-A.book Page 1 Thursday, July 8, 2004 12:36 PM
1
Quick Start
Congratulations on purchasing your Apple iPod
from HP. Read this section to get started using
iPod quickly.
iPod works with the iTunes music software included on the iPod CD. Use iTunes to
import songs from your CD or digital music collection to your PC, or use the
iTunes Music Store (available in some countries/regions only) to purchase songs
and download them to your PC. Then organize the songs and transfer them to
iPod. iPod can be used with either desktop or laptop PCs.
1
034-2616-A.book Page 2 Thursday, July 8, 2004 12:36 PM
Learning to Use iPod
Read this chapter to set up iPod and get started playing music quickly. To learn
more about playing music on iPod and using some of its other features, see
“Using iPod” on page 11.
iPod Tutorial
For an in-depth tutorial on transferring music to and playing music on iPod, see
the iPod Tutorial on the iPod CD.
iPod Features
iPod is a music player and much more. With iPod, you can:
• Store thousands of songs from your CD or digital music collection, for listening
on the go
• Listen to audiobooks purchased from the iTunes Music Store (available in some
countries/regions only) or Audible.com
• Arrange your music in On-The-Go playlists
• Store files and other data, using iPod as an external hard disk
• Change equalizer settings to make music sound better
• Store and synchronize contact and calendar information from your PC
• Store text notes
• Set an alarm
• Record voice memos (using an optional microphone)
• Store digital photos (using an optional photo card reader)
• Play games, and more
To purchase a microphone, photo card reader, and other iPod accessories, go to
http://www.hpshopping.com/musicaccessories
2
Quick Start
034-2616-A.book Page 3 Thursday, July 8, 2004 12:36 PM
What You Need to Get Started
To use iPod with a PC, you must have:
• A PC with 500 MHz or higher processor speed
• Microsoft® Windows® 2000 with Service Pack 4 or later, or Windows XP Home
or Professional
• iTunes 4.6 or later (iTunes is included on the iPod CD)
To be sure you have the latest version of iTunes, go to
http://www.hp.com/go/music/itunes
• iPod software (included on the iPod CD)
• Built-in FireWire® or a FireWire card installed, or built-in high-power USB 2.0 or
a high-power USB 2.0 card installed
High-power USB 2.0 port
6-pin FireWire 400 port
4-pin FireWire 400 port
(IEEE 1394)
(with optional adapter, not included)
For more information about compatible FireWire and USB cards, go to
http://www.hpshopping.com/musicaccessories
Quick Start
3
034-2616-A.book Page 4 Thursday, July 8, 2004 12:36 PM
Your iPod includes the following components:
iPod
iPod Dock Connector to FireWire Cable
iPod Power Adapter
4
Quick Start
iPod Dock (with some models)
iPod Dock Connector to USB 2.0 Cable
Earphones
034-2616-A.book Page 5 Thursday, July 8, 2004 12:36 PM
Setting Up iPod to Play Music
To set up iPod, you charge the battery, install software from the iPod CD, and
import songs from your music CD collection to your PC. Then you transfer the
songs to iPod and start listening to music.
Step 1: Charge the Battery
Connect iPod to the iPod Power Adapter using the iPod Dock Connector to
FireWire Cable. The built-in battery is 80 percent charged in about two hours,
and fully charged in about four hours.
iPod Dock Connector to FireWire Cable
Quick Start
5
034-2616-A.book Page 6 Thursday, July 8, 2004 12:36 PM
Step 2: Install the Software
Insert the iPod CD into your PC and install iTunes and the iPod software.
Step 3: Import Music to Your PC
Complete this step if you haven’t already transferred music to your PC. You can
import music from your audio CDs, or if you have an Internet connection, you can
buy music online and download it to your PC using the iTunes Music Store. You
can browse hundreds of thousands of songs and listen to a 30-second preview of
any song. The iTunes Music Store is available in some countries/regions only.
To import music to your PC from an audio CD:
1 Insert a CD into your PC. iTunes opens automatically and the CD is selected in the
iTunes Source list.
2 Uncheck songs you don’t want to transfer, then click Import.
3 Repeat for any other CDs with songs you’d like to import.
To buy music online:
1 Open iTunes and click Music Store in the Source list.
2 Click the Account button and follow the onscreen instructions to set up an account
or enter your existing Apple Account or America Online (AOL) account
information.
For an in-depth tutorial on transferring music to and playing music on iPod, see
the iPod Tutorial on the iPod CD.
6
Quick Start
034-2616-A.book Page 7 Thursday, July 8, 2004 12:36 PM
Step 4: Connect iPod and Transfer Music
Connect iPod to your PC using the iPod Dock Connector to USB 2.0 Cable. Be
sure the connectors on both ends of the cable are oriented correctly. They can
only be inserted one way.
Note: If you have a PC with a 6-pin FireWire 400 port, you can use the iPod
Dock Connector to FireWire Cable.
Note: USB 1.1 is not supported.
You can also use the optional iPod Dock (see page 21).
Use the iPod Dock Connector to USB 2.0 Cable
to connect to a high-power USB 2.0 port.
Quick Start
7
034-2616-A.book Page 8 Thursday, July 8, 2004 12:36 PM
When you connect iPod to your PC, iTunes opens automatically and transfers the
songs and playlists in your music library to iPod.
Note: If you’re connecting using USB 2.0, be sure to connect iPod to a highpower USB 2.0 port directly on your PC, or to a powered USB 2.0 hub that’s
connected to your PC. iPod won’t work if it’s connected to a low-power USB 2.0
port, such as those sometimes found on keyboards or other peripherals.
While songs or files are transferred using USB 2.0, the iPod loses charge.
Transferring songs or files when iPod isn’t sufficiently charged can cause
incomplete transfer, loss of the information being transferred, and may require a
restore (see page 52). It’s best to charge iPod before transferring songs or files.
You can charge the iPod by connecting it to your PC without transferring files or
by using the iPod Power Adapter.
Note: If you’re using a portable or laptop PC with a high-power USB 2.0 port,
connect the PC to a power outlet before connecting iPod for best results.
If your PC doesn’t have a 6-pin FireWire 400 (IEEE 1394) port or a high-power
USB 2.0 port, here are other ways you can connect iPod:
• Purchase a FireWire card or USB 2.0 card, and install it.
• Or, if your PC has a 4-pin FireWire port, you can use an optional
6-pin–to–4-pin FireWire adapter.
Note: You can’t charge iPod through your PC using a 4-pin FireWire port.
For more information on cables and compatible FireWire and USB cards, go to
http://www.hpshopping.com/musicaccessories
8
Quick Start
034-2616-A.book Page 9 Thursday, July 8, 2004 12:36 PM
Step 5: Play Music
When the song transfer is complete, a message on the iPod screen says “OK to
disconnect.” Squeeze both sides of the Dock connector to disconnect the cable
from iPod.
Then use the Click Wheel and Select button to browse for a song. Press the Play
or Select button and enjoy!
To Learn More
Read the next chapter to learn more about using the Click Wheel and the other
iPod controls, transferring music to and managing music on iPod, using other
features of iPod, charging the battery, and using iPod accessories.
Quick Start
9
034-2616-A.book Page 10 Thursday, July 8, 2004 12:36 PM
10
Quick Start
034-2616-A.book Page 11 Thursday, July 8, 2004 12:36 PM
1
Using iPod
Read this section to learn about using iPod
controls, transferring music, charging the battery,
and using the extra features of your iPod.
Using iPod Controls
Press any button to turn on iPod. The main menu appears.
Use the Click Wheel and Select button to navigate through onscreen menus, play
songs, change settings, and view information. Move your thumb lightly around
the Click Wheel to highlight a menu item. Press the Select button to select the
item. Press Menu on the Click Wheel to go back to the previous menu.
11
034-2616-A.book Page 12 Thursday, July 8, 2004 12:36 PM
iPod Remote port
Menu button
Previous/Rewind
button
Click Wheel
Earphones
12
Using iPod
Headphones port
Hold switch
Select button
Next/Fast-forward
button
Play/Pause button
Dock connector
port
034-2616-A.book Page 13 Thursday, July 8, 2004 12:36 PM
iPod Controls
Reset iPod
(For use during troubleshooting)
Toggle the Hold switch (set it to Hold, then turn
it off again). Then press the Menu and Select
buttons simultaneously for about 6 seconds, until
the Apple logo appears.
Turn on iPod
Press any button.
Turn off iPod
Press and hold Play/Pause.
Turn the backlight on or off
Press and hold Menu or select Backlight from
the main menu.
Select a menu item
Scroll to the item and press the Select button.
Go back to the previous menu
Press Menu.
Browse for a song
Select Music from the main menu.
Play a song
Highlight the song and press the Select or
Play/Pause button. iPod must be disconnected
from your PC to play songs.
Play all the songs in a list
Highlight the list title (an album title, or the
title of a playlist, for example) and press
Play/Pause.
Change the volume
From the Now Playing screen, use the
Click Wheel. You can also use the optional
iPod Remote (available at
http://www.hpshopping.com/musicaccessories)
from any screen.
Pause a song
Press Play/Pause when no song or list is
highlighted.
Using iPod
13
034-2616-A.book Page 14 Thursday, July 8, 2004 12:36 PM
iPod Controls
14
Disable the iPod buttons
(So you don’t press them accidentally)
Set the Hold switch to Hold
(an orange bar appears).
Skip to any point in a song
From the Now Playing screen, press the Select
button to show the scrubber bar. Then scroll to
any point in the song.
Skip to the next song
Press Next/Fast-forward.
Start a song over
Press Previous/Rewind.
Play the previous song
Press Previous/Rewind twice.
Fast-forward
Press and hold Next/Fast-forward.
Rewind
Press and hold Previous/Rewind.
Using iPod
034-2616-A.book Page 15 Thursday, July 8, 2004 12:36 PM
Disabling iPod Buttons Using the Hold Switch
If you’re carrying iPod in your pocket and you don’t want to press the buttons or
turn it on accidentally, you can make the buttons inactive.
• Set the Hold switch to Hold.
Slide the switch toward
the center (so you can
see the orange bar) to
disable the controls.
Using iPod
15
034-2616-A.book Page 16 Thursday, July 8, 2004 12:36 PM
Making Playlists on iPod
You can set iPod to play the songs you want in the order you want. When you
create a list of songs on your iPod, the songs appear in an On-The-Go playlist.
To create an On-The-Go playlist:
1 Highlight a song and press and hold the Select button until the song title flashes.
2 Repeat step 1 for other songs you want to add.
3 Select Music > Playlists > On-The-Go to view your list of songs.
You can also queue entire lists of songs at once. For example, to queue an album,
highlight the album title and press and hold the Select button until the album title
flashes.
16
To play songs in the On-The-Go playlist:
Select Music > Playlists > On-The-Go and select a song.
To remove a song from the On-The-Go playlist:
Highlight a song in the playlist, and hold down the Select button until the song
title flashes.
To clear the entire On-The-Go playlist:
Select Music > Playlists > On-The-Go > Clear Playlist.
Using iPod
034-2616-A.book Page 17 Thursday, July 8, 2004 12:36 PM
To save On-The-Go playlists on your iPod:
Select Music > Playlists > On-The-Go > Save Playlist > Save Playlist.
The first playlist is saved as “New Playlist 1” in the Playlists menu. The On-The-Go
playlist is cleared. You can save as many On-The-Go playlists as you like.
To transfer On-The-Go playlists to your PC:
If iPod is set to transfer songs automatically (see page 27), and you create an
On-The-Go playlist, the playlist automatically transfers to iTunes when you connect
iPod. You see the new On-The-Go playlist in the iTunes Source list.
Rating Songs
You can assign a rating to a song (from 1 to 5 stars) to indicate how much you
like it. You can use song ratings to help you create playlists automatically in
iTunes (see “About Smart Playlists” on page 26).
To rate a song:
1 Start playing the song.
2 From the Now Playing screen, press the Select button twice.
3 Use the Click Wheel to select a rating.
Using iPod
17
034-2616-A.book Page 18 Thursday, July 8, 2004 12:36 PM
Connecting and Disconnecting iPod
You connect iPod to your PC to transfer and manage music, and, in most cases, to
charge the battery.
To connect iPod to your PC:
Connect iPod to your PC using the iPod Dock Connector to USB 2.0 Cable. Be
sure the connectors on both ends of the cable are oriented correctly. They can
only be inserted one way.
Note: If you have a PC with a 6-pin FireWire 400 port, you can use the iPod
Dock Connector to FireWire Cable.
Note: USB 1.1 is not supported.
Or, if you have an iPod Dock (see page 21), connect the appropriate cable to a
FireWire or high-power USB 2.0 port on your PC and connect the other end to
the Dock. Then put iPod in the Dock.
By default, iPod imports songs automatically when you connect it to your PC.
When this automatic transfer is done, you can disconnect iPod.
18
Using iPod
034-2616-A.book Page 19 Thursday, July 8, 2004 12:36 PM
Disconnecting iPod
You shouldn’t disconnect iPod while music is being transferred. You can easily see
if it’s OK to disconnect iPod by looking at the screen.
If you see the main menu or a large
battery icon, you can disconnect
iPod from your PC.
If you see this message, you must
eject iPod before disconnecting it
from your PC.
If you set iPod to transfer songs manually (see page 28) or enable iPod for use as
a hard disk (see page 35), you must eject iPod before disconnecting it.
Using iPod
19
034-2616-A.book Page 20 Thursday, July 8, 2004 12:36 PM
To eject iPod:
Select iPod in the iTunes Source list and click the Eject button.
Eject button
You can eject iPod by clicking the Safely Remove Hardware icon in the Windows
system tray and selecting your iPod.
To disconnect iPod:
If iPod is connected to an iPod cable, squeeze both sides of the Dock connector
to disconnect the cable from iPod.
If iPod is in the Dock, simply remove it.
Important: Don’t disconnect iPod if you see the “Do not disconnect” message.
You could damage files on iPod. If you see this message, you must eject iPod
before disconnecting it.
20
Using iPod
034-2616-A.book Page 21 Thursday, July 8, 2004 12:36 PM
Connecting iPod Using the iPod Dock
(Included With Some Models)
The iPod Dock holds iPod upright as it charges or transfers music. Connect the
Dock to your PC using the same cable you use with iPod, or connect it to a power
outlet using the FireWire cable and power adapter. Then put iPod in the Dock.
Note: Be sure the connectors on the cable are oriented correctly. Each
connector can only be inserted one way.
Using iPod
21
034-2616-A.book Page 22 Thursday, July 8, 2004 12:36 PM
Using the iPod Dock, you can play music from iPod over external powered
speakers or a home stereo. You need an audio cable with a standard
3.5 millimeter stereo miniplug (many external speakers have this type of
cable attached).
To play music from iPod using the Dock:
1 Place iPod in the Dock.
2 Connect the speakers or stereo to the Dock Line Out port using an audio cable
with a 3.5 millimeter stereo miniplug.
iPod connector
Line Out port
3 Use the iPod controls to play a song.
When the Dock is connected to an external audio source, use the volume controls
on the external source to change the volume.
22
Using iPod
034-2616-A.book Page 23 Thursday, July 8, 2004 12:36 PM
Organizing and Transferring Your Music
For instructions for getting started playing music on iPod, see “Setting Up iPod to
Play Music” on page 5. Read on for more information about organizing and
transferring your music.
About iTunes
iTunes is the software application you use to manage the music on your PC
and transfer music to iPod. When you connect iPod to your PC, iTunes opens
automatically.
Here are some of the things you can do with iTunes:
• Purchase and download songs and audiobooks from the iTunes Music Store
(available in some countries/regions only)
• Listen to CDs and digital music
• Add music from CDs to your music library, so you don’t need to have the CD
in the drive to play music
• Make your own CDs (if your PC has a CD burner)
• Publish your playlists to the iTunes Music Store (available in some countries/
regions only)
• Create dynamic “Party Shuffle” playlists
• Listen to Internet radio stations
This guide explains how to transfer songs to iPod using iTunes and manage songs
on iPod. For information about using the other features of iTunes, open iTunes and
choose Help > iTunes and Music Store Help.
Using iPod
23
034-2616-A.book Page 24 Thursday, July 8, 2004 12:36 PM
About the iTunes Music Store
Using iTunes, you can preview, purchase, and download your favorite songs from
the iTunes Music Store (available in some countries/regions only). There are
hundreds of thousands of songs available for purchase. You can use an Apple
Account to purchase songs from the music store, or if you have an America
Online (AOL) account, you can use that.
To browse for and purchase music:
1 Open iTunes and click Music Store in the Source list.
2 Click the Account button and follow the onscreen instructions to set up an account
or enter your existing Apple Account or AOL account information.
You can only have music from five different Music Store accounts on one iPod.
For more information about the iTunes Music Store, open iTunes and choose
Help > iTunes and Music Store Help.
Audio File Formats Supported by iPod
• AAC (M4A, M4B, M4P) (up to 320 Kbps)
• Apple Lossless (a high-quality compressed format, available using iTunes 4.5
or later)
• MP3 (up to 320 Kbps)
• MP3 Variable Bit Rate (VBR)
• WAV
• AA (Audible.com spoken word, formats 2, 3, and 4)
• AIFF
24
Using iPod
034-2616-A.book Page 25 Thursday, July 8, 2004 12:36 PM
When you import music from a CD using iTunes, it is converted to AAC format by
default.
If you are using iTunes 4.5 or later on a PC, you can convert nonprotected
WMA files to AAC or MP3 format. This can be useful if you have a library of
music encoded in WMA format. For more information, open iTunes and choose
Help > iTunes and Music Store Help.
iPod does not support WMA, MPEG Layer 1, MPEG Layer 2 audio files, or
Audible.com format 1.
About Playlists
Using iTunes, you can organize songs into playlists. For example, you can
create a playlist with songs to listen to while exercising or with songs for a
particular mood.
You can create as many playlists as you like using any of the songs in your PC’s
music library. Putting a song in a playlist doesn’t remove it from the library.
When you connect and update iPod, the playlists are transferred to iPod.
To browse through playlists, select Music > Playlists on iPod.
Using iPod
25
034-2616-A.book Page 26 Thursday, July 8, 2004 12:36 PM
About Smart Playlists
Using iTunes, you can automatically create customized Smart Playlists from the
songs in your library. You can create a Smart Playlist that includes only certain
genres of music, songs by certain artists, or songs that match particular criteria.
For example, you could create a playlist that’s no more than 3 gigabytes (GB) in
size and includes only songs you have rated 3 stars or higher (see “Rating
Songs” on page 17).
After you create a Smart Playlist, any songs on iPod that meet the Smart Playlist’s
criteria are automatically added to the Smart Playlist.
Creating Playlists on Your PC
26
To create a playlist:
In iTunes, click the Add (+) button and type a name for the playlist, then drag
songs from the library or another playlist to the new playlist.
To create a Smart Playlist:
In iTunes, choose File > New Smart Playlist and choose the criteria for your
playlist. Any songs from your library that match the criteria you choose are
automatically added to the playlist.
Using iPod
034-2616-A.book Page 27 Thursday, July 8, 2004 12:36 PM
Transferring Songs and Playlists to iPod
Automatically
By default, iPod updates automatically when you connect it to your PC. iTunes
updates the iPod music library to match the songs and playlists in your PC’s music
library, transferring new songs to iPod and deleting songs from iPod that aren’t in
your music library.
You can set iPod to transfer only certain songs in your iTunes music library. This is
useful if you have more music on your PC than will fit on your iPod.
To update iPod with only certain songs:
1 In iTunes, check the boxes next to songs you want to transfer (by default, all songs
are checked).
2 Select iPod in the iTunes Source list and click the Options button.
Options button
3 Select “Only update checked songs.”
To set iPod to update only selected playlists:
1 In iTunes, select iPod in the Source list and click the Options button.
2 Select “Automatically update selected playlists only.”
Using iPod
27
034-2616-A.book Page 28 Thursday, July 8, 2004 12:36 PM
Transferring Songs and Playlists to iPod Manually
You can set iPod to transfer songs manually, so you can transfer individual songs
and playlists.
When iPod is set to transfer songs manually, iTunes won’t update it automatically
when you connect it to your PC.
To set iPod to transfer songs manually:
1 In iTunes, select iPod in the Source list and click the Options button.
Options button
2 Select “Manually manage songs and playlists.”
28
To transfer a song or playlist to iPod manually:
In iTunes, drag a song or playlist to iPod in the Source list.
Using iPod
034-2616-A.book Page 29 Thursday, July 8, 2004 12:36 PM
Deleting Songs and Playlists From iPod Manually
If you have set iPod to transfer songs manually (see above), you can delete songs
and playlists from iPod individually. Songs deleted from iPod manually are not
deleted from the iTunes library.
To delete a song or playlist from iPod:
1 Select iPod in the iTunes Source list.
2 Select a song or playlist and press the Delete key on the keyboard.
If you delete a playlist, the songs in the playlist remain on iPod.
Modifying Playlists on iPod Manually
If you have set iPod to transfer songs manually (see above), you can create
new playlists on iPod, and add songs to or delete songs from playlists already
on iPod.
To create a new playlist on iPod:
1 Select iPod in the iTunes Source list and click the Add (+) button.
2 Drag songs to the new playlist.
To modify a playlist on iPod:
Drag a song to a playlist on iPod to add the song. Select a song in a playlist and
press the Delete key on your keyboard to delete the song.
Using iPod
29
034-2616-A.book Page 30 Thursday, July 8, 2004 12:36 PM
Listening to Spoken Word Audio
You can purchase and download spoken word audiobooks from the iTunes Music
Store (available in some countries/regions only) or from Audible.com and listen
to them on your iPod.
You can use iTunes to transfer audiobooks to your iPod the same way you transfer
songs.
If you stop listening to an audiobook on iPod and go back to it later, the
audiobook begins playing from where you left off.
Unless you’re playing songs from within playlists, iPod skips audiobooks when set
to shuffle.
Setting the Reading Speed
You can play audiobooks at speeds faster or slower than normal.
To set the playing speed of an audiobook:
Select Settings > Audiobooks.
Setting the reading speed only affects audiobooks purchased from the
iTunes Music Store or Audible.com.
Seeing How Many Songs Are on iPod
To see how many songs are stored on iPod, how much disk space is left, and
other information, select Settings > About in the iPod main menu.
30
Using iPod
034-2616-A.book Page 31 Thursday, July 8, 2004 12:36 PM
Adjusting iPod Settings
You can change settings directly on iPod in the Settings menu.
Setting iPod to Shuffle Songs
You can set iPod to shuffle (play songs or albums in random order). iPod shuffles
songs within the list (album or playlist, for example) from which the songs are
playing.
You can shuffle or reshuffle songs you are already playing, or you can set iPod to
shuffle songs or albums every time you play a song.
To shuffle or reshuffle songs you are already playing:
Select Shuffle Songs from the iPod main menu.
If you select Shuffle Songs when no songs are playing, iPod begins playing songs
from your entire music library in random order.
To set iPod to shuffle songs or albums every time you play a song:
1 Select Settings from the iPod main menu.
2 Set Shuffle to Songs or to Albums.
When you set iPod to shuffle albums, it plays all the songs on an album in order,
then randomly selects another album and plays through it in order.
Unless you’re playing songs from within playlists, iPod skips audiobooks when set
to shuffle.
Using iPod
31
034-2616-A.book Page 32 Thursday, July 8, 2004 12:36 PM
Setting iPod to Repeat Songs
You can set iPod to repeat a song over and over, or to repeat a sequence of
songs. iPod repeats songs within the list from which the songs are playing.
To set iPod to repeat songs:
Select Settings from the iPod main menu.
• To repeat all songs in the list, set Repeat to All.
• To repeat one song over and over, set Repeat to One.
Setting the Click Wheel Sound
When you scroll through menu items, you can hear a clicking sound through the
iPod internal speaker to let you know the Click Wheel is working. You can set the
Click Wheel sound to play through the headphones instead, or you can turn it off.
To set how iPod plays the Click Wheel sound:
Select Settings from the iPod main menu.
• To set the Click Wheel sound to play through the headphones, set Clicker to
Headphones.
• To turn off the Click Wheel sound, set Clicker to Off.
• To set the Click Wheel sound to play through the iPod internal speaker, set
Clicker to Speaker.
• To set the Click Wheel sound to play through both the iPod internal speaker and
the headphones, set Clicker to Both.
Setting Songs to Play at the Same Relative
Volume Level
iTunes can automatically adjust the volume of songs, so they play at the same
relative volume level. You can set iPod to use the iTunes volume settings.
32
Using iPod
034-2616-A.book Page 33 Thursday, July 8, 2004 12:36 PM
To set iTunes to adjust all songs to play at the same relative
sound level:
1 In iTunes, choose Edit > Preferences.
2 Click Effects and select Sound Check.
To set iPod to use the iTunes volume settings:
Select Settings > Sound Check.
If you have not activated Sound Check in iTunes, setting it on iPod has no effect.
Using the iPod Equalizer
You can use equalizer presets to change iPod sound to suit a particular music
genre or style. For example, to make rock music sound better, set the equalizer
to Rock.
Select Settings > EQ and select an equalizer preset.
If you have assigned an equalizer preset to a song in iTunes and the iPod
equalizer is set to Off, then the song plays using the iTunes setting. See iTunes
and Music Store Help for more information.
Setting the Backlight Timer
You can set the backlight to turn on for a certain amount of time when you press a
button or use the Click Wheel.
Select Settings > Backlight Timer and select the time you want.
Even if you don’t set the backlight timer, you can turn on the backlight at any time
by pressing and holding the Menu button on iPod or selecting Backlight from the
main menu. After a few seconds, the backlight turns off.
Using iPod
33
034-2616-A.book Page 34 Thursday, July 8, 2004 12:36 PM
Adding or Removing Items From the Main Menu
You can add often-used items to the iPod main menu. For example, you can add
a “Songs” item to the main menu, so you don’t have to select Music before you
select Songs.
To add or remove items from the main menu:
Select Settings > Main Menu.
Setting and Viewing Date and Time
To set the date and time:
Select Settings > Date & Time.
To view the date and time:
Select Extras > Clock.
To set iPod to display the time in the title bar:
Select Settings > Date & Time.
If you set iPod to display the time in the title bar, you can see the time from any
iPod menu screen.
Setting the Language
34
iPod can be set to use different languages.
Select Settings > Language and select a language.
Using iPod
034-2616-A.book Page 35 Thursday, July 8, 2004 12:36 PM
Using the Extra Features of Your iPod
Using iPod as an External Hard Disk
You can use iPod as a hard disk, to store and transfer data files.
To enable iPod as a hard disk:
1 In iTunes, select iPod in the Source list and click the Options button.
Options button
2 Select “Enable disk use.”
When you use iPod as a hard disk, the iPod disk icon appears as the next
available drive letter in Windows Explorer on a PC.
Note: Selecting “Manually manage songs and playlists” in the Options window
also enables iPod to be used as a hard disk.
Note: To transfer music files to iPod, you must use iTunes. Songs transferred via
iTunes do not appear on iPod in Windows Explorer. Likewise, if you copy music
files to iPod in Windows Explorer, you won’t be able to play them on iPod.
Using iPod
35
034-2616-A.book Page 36 Thursday, July 8, 2004 12:36 PM
Preventing iTunes From Opening Automatically
If you use iPod primarily as a hard disk, you may want to keep iTunes from
opening automatically when you connect iPod to your PC.
To prevent iTunes from opening automatically when you connect
iPod to your PC:
1 In iTunes, select iPod in the Source list.
2 Click the Options button and deselect “Open iTunes when attached.”
Options button
Setting the Sleep Timer
You can set iPod to turn off automatically after a specific period of time.
Select Extras > Clock > Sleep Timer and select the time you want.
When you set the sleep timer, a clock icon and the number of minutes left until
iPod turns off appear in the Now Playing screen on iPod.
36
Using iPod
034-2616-A.book Page 37 Thursday, July 8, 2004 12:36 PM
Setting the Alarm
You can use iPod as an alarm clock.
To set an alarm:
1 Select Extras > Clock > Alarm Clock.
2 Set Alarm to On.
3 Select a sound.
If you select Beep, the alarm will be audible through the internal speaker. If you
select a playlist, you’ll need to connect iPod to speakers or headphones to hear
the alarm.
Importing Addresses, Phone Numbers, and
Calendar Events
Your iPod can store contacts and calendar events.
You can transfer information to iPod manually. iPod must be enabled as a hard
disk (see “Using iPod as an External Hard Disk” on page 35).
To import contact information manually:
1 Connect iPod and open your favorite e-mail or contacts application. Importing
contacts works with Palm Desktop, Microsoft Outlook, Microsoft Entourage, and
Eudora, among others.
2 Drag contacts from the application’s address book to the iPod Contacts folder.
Using iPod
37
034-2616-A.book Page 38 Thursday, July 8, 2004 12:36 PM
To import appointments and other calendar events manually:
1 Export calendar events from any calendar application that uses the standard vCal
format (filenames end in .vcs).
2 Drag the files to the Calendars folder on iPod.
To view contacts on iPod:
Select Extras > Contacts.
To view calendar events:
Select Extras > Calendar.
Storing and Reading Notes and Other Information
You can store and read text notes on iPod. iPod must be enabled as a hard disk
(see page 35).
1 Save a document in any word-processing application as a text (.txt) file.
2 Place the file in the Notes folder on iPod.
38
To view notes:
Select Extras > Notes.
Using iPod
034-2616-A.book Page 39 Thursday, July 8, 2004 12:36 PM
Recording Voice Memos
You can record voice memos using an optional iPod-compatible microphone
(available for purchase at http//www.hpshopping.com/musicaccessories). You
can store voice memos on your iPod and transfer them to your PC.
To record a voice memo:
1 Connect a microphone to the Headphones port on your iPod and select Record to
begin recording.
2 Hold the microphone a few inches from your mouth and speak. To pause
recording, select Pause.
3 When you’re finished recording, select Stop and Save. Your recording is saved
and listed by date and time recorded.
To play a recording:
Select Extras > Voice Memos and select the recording.
Note: The Voice Memos menu item doesn’t appear until you connect a
microphone.
To transfer voice memos to your PC:
Voice memos are saved in a Recordings folder on iPod in the WAV file format.
If you enable iPod for disk use, you can drag voice memos from the folder to
copy them.
If iPod is set to transfer songs automatically (see page 27) and you record voice
memos, the voice memos are automatically transferred to a playlist in iTunes when
you connect iPod. You see the new Voice Memos playlist in the iTunes Source list.
Using iPod
39
034-2616-A.book Page 40 Thursday, July 8, 2004 12:36 PM
Storing Digital Photos
Using an optional iPod-compatible photo card reader (available for purchase at
http://www.hpshopping.com/musicaccessories) and a standard digital camera
and photo card, you can store photos on iPod, then delete them from the photo
card and take more pictures. Then later you can transfer the photos from iPod to
your PC using a standard digital photo application.
To store photos on iPod:
1 Insert a photo card into the photo card reader and connect the photo card reader
to the Dock connector port on iPod.
2 Select Import.
Photos are listed on iPod by roll number.
Note: Some digital photo storage devices may work differently. Consult the
instructions that came with the device.
To view information about photos stored on iPod:
Select Extras > Photo Import and select the roll number.
The type of media, number of photos, and size of the roll are displayed. You can’t
view the photos on iPod.
Note: The Photo Import menu item doesn’t appear unless you connect a photo
card reader.
40
Using iPod
034-2616-A.book Page 41 Thursday, July 8, 2004 12:36 PM
To erase photos from a photo card:
1 Import photos from the card (see above).
2 Select Erase Card. All photos are deleted from the photo card.
To transfer photos to your PC:
Connect iPod to your PC and open the application you use to transfer photos from
your digital camera. See the documentation that came with the application for
more information.
Note: Photos are stored in a DCIM (digital camera images) folder on iPod. You
can also transfer images to your PC by opening this folder and dragging the
image files to the desktop. iPod must be enabled for use as a hard disk.
For more information about using an iPod-compatible photo card reader, see the
instructions that came with the reader.
Playing Games
iPod has a number of games.
To play a game:
Select Extras > Games and select a game.
Using iPod
41
034-2616-A.book Page 42 Thursday, July 8, 2004 12:36 PM
Charging the iPod Battery
iPod has an internal, nonremovable battery. If iPod isn’t used for a while, the
battery may need to be charged.
The iPod battery is 80-percent charged in about two hours, and fully charged in
about four hours. If you charge iPod by connecting it to your PC, it may take
longer to charge, especially if you are transferring files or playing music.
You can charge the iPod battery in two ways:
In most cases you can charge iPod by connecting it to your PC.
You can also charge iPod by connecting it to the power adapter and a working
electrical outlet.
To charge the battery using your PC:
Connect iPod to a 6-pin FireWire port or high-power USB 2.0 port on your PC
using the appropriate cable. The PC must be turned on and not in sleep mode.
If the battery icon in the upper-right corner of the iPod screen shows a lightning
bolt, the battery is charging.
If you don’t see the lightning bolt, you must charge the battery using the iPod
Power Adapter.
42
Using iPod
034-2616-A.book Page 43 Thursday, July 8, 2004 12:36 PM
To charge the battery using the iPod Power Adapter:
1 Connect the AC plug adapter to the power adapter (this may already be
assembled).
2 Connect the iPod Dock Connector to FireWire Cable included with iPod to the
power adapter, and plug the other end of the cable into iPod.
3 Plug the power adapter into a working electrical outlet.
AC plug adapter
iPod Dock Connector
to FireWire Cable
Power adapter
Warning Make sure the power adapter is fully assembled before plugging it
into an electrical outlet.
Using iPod
43
034-2616-A.book Page 44 Thursday, July 8, 2004 12:36 PM
Battery States
When iPod is not connected to a power source, a battery icon in the top right
corner of the iPod screen shows about how much charge is left.
Battery about
halfway charged
If iPod is connected to a power source, the battery icon animates to show that the
battery is charging.
Battery charging
If you connect iPod to a power source and the battery icon does not animate, the
battery is fully charged.
Battery fully charged
(if not animated)
You can disconnect and use iPod before it is fully charged.
Note: Rechargeable batteries have a limited number of charge cycles and may
eventually need to be replaced. Battery life and number of charge cycles vary by
use and settings. For more information, go to
http://www.hp.com/go/music/battery
44
Using iPod
034-2616-A.book Page 45 Thursday, July 8, 2004 12:36 PM
iPod Accessories
iPod comes with some accessories, and many other accessories are available at
http://www.hpshopping.com/musicaccessories
iPod Remote (Available Separately)
To use the iPod Remote, connect it to the iPod Remote port, then connect the
Earphones (or another set of headphones) to the remote. Use the buttons on the
remote just as you would use the iPod buttons.
When a song is playing on iPod, adjust the volume using the volume control on
the remote.
Use the remote’s Hold switch to disable the remote’s buttons. The iPod Hold switch
and the iPod Remote Hold switch do not affect one another.
Using iPod
45
034-2616-A.book Page 46 Thursday, July 8, 2004 12:36 PM
Earphones
iPod comes with a pair of high-quality earbud headphones.
To use the earbud headphones:
Plug them in to the Headphones port, then place the earbud in your ear
as shown.
Warning Listening to music at high volume over extended periods of time can
damage your hearing.
46
Using iPod
034-2616-A.book Page 47 Thursday, July 8, 2004 12:36 PM
1
Tips and Troubleshooting
Most problems with iPod can be solved quickly
by following the advice in this chapter.
Resetting iPod
Most problems with iPod can be solved by resetting it.
To reset iPod:
1 Connect iPod to a power outlet using the iPod Power Adapter.
2 Toggle the Hold switch on and off (set it to Hold, then turn it off again).
3 Press and hold the Select and Menu buttons for at least 6 seconds, until the
Apple logo appears.
If Your iPod Won’t Turn On or Respond
• Make sure the Hold switch is off.
• If you’re using the iPod Remote, make sure the remote’s Hold switch is off.
• If that doesn’t work, connect iPod to the iPod Power Adapter and connect the
adapter to a working electrical outlet. Your iPod battery may need to be
recharged.
• If that doesn’t work, your iPod may need to be reset (see above).
• If that doesn’t work, you may need to restore iPod software. See “iPod Software
Update and Restore” on page 51.
47
034-2616-A.book Page 48 Thursday, July 8, 2004 12:36 PM
If You Want to Disconnect iPod, but the Screen Says
“Do Not Disconnect”
• If iPod is transferring music, wait for the transfer to complete.
• Select iPod in the iTunes Source list and click the Eject button.
• If iPod disappears from the iTunes Source list, but you still see the “Do Not
Disconnect” message on the iPod screen, go ahead and disconnect iPod.
• If iPod doesn’t disappear from the iTunes Source list, click the Safely Remove
Hardware icon in the system tray and select your iPod. If you still see the “Do
Not Disconnect” message, restart your PC and eject iPod again.
If Your iPod Isn’t Playing Music
• Make sure the Hold switch is off.
• If you’re using the iPod Remote, make sure the remote’s Hold switch is off.
• Make sure the headphones connector is pushed in all the way.
• Make sure the volume is adjusted properly.
• If that doesn’t work, push the Play/Pause button. Your iPod may be paused.
• If you’re using the iPod Dock, be sure the iPod is seated firmly in the Dock and
make sure all cables are connected properly.
• If you are using the Dock Line Out port, make sure your external speakers or
stereo are turned on and working properly.
48
Tips and Troubleshooting
034-2616-A.book Page 49 Thursday, July 8, 2004 12:36 PM
If You Connect iPod to Your PC and Nothing Happens
• Make sure you have installed the software from the iPod CD.
• Make sure you have the required PC and software. See “What You Need to
Get Started” on page 3.
• Your iPod may need to be reset (see page 47).
• Check the cable connections. Unplug the cable at both ends and make sure no
foreign objects are in the FireWire or USB ports. Then plug the cable back in
securely. Use only iPod cables. Be sure the connectors on the cables are
oriented correctly. They can only be inserted one way.
• If you’re connecting iPod to a portable or laptop PC using the iPod Dock
Connector to USB 2.0 Cable, connect the PC to a power outlet before
connecting iPod.
• If that doesn’t work, restart your PC.
• If that doesn’t work, you may need to restore iPod software. See “iPod Software
Update and Restore” on page 51.
Tips and Troubleshooting
49
034-2616-A.book Page 50 Thursday, July 8, 2004 12:36 PM
If You Connect iPod to a USB Port and It Doesn’t
Work Correctly
• You must use a FireWire port or a USB 2.0 port to connect iPod. USB 1.1 is
not supported and is significantly slower than FireWire and USB 2.0. If your
PC doesn’t have a FireWire port or USB 2.0 port, you can purchase a
Windows-certified FireWire card or USB 2.0 card and install it. For more
information, go to http://www.hpshopping.com/musicaccessories
• If you’re connecting iPod to a portable or laptop PC using the iPod Dock
Connector to USB 2.0 Cable, connect the PC to a power outlet before
connecting iPod.
• If you’re using a PC with a 6-pin FireWire port, connect iPod to a FireWire port
using the FireWire cable that came with iPod.
If the Screen is Too Light or Too Dark
1 Select Settings > Contrast.
2 Use the Click Wheel to adjust the contrast.
If you accidentally set the screen contrast too light or too dark, you can reset it to
the default by pressing and holding the Menu button for about 4 seconds.
If You Accidentally Set iPod to Use a Language You
Don’t Understand
You can reset the language.
1 Push Menu repeatedly until the main menu appears.
2 Select the fourth menu item (Settings).
3 Select the last menu item (Reset All Settings).
4 Select the second menu item (Reset) and select a language.
50
Tips and Troubleshooting
034-2616-A.book Page 51 Thursday, July 8, 2004 12:36 PM
Other iPod settings, such as song repeat, are also reset.
Note: If you have added or removed items from the iPod main menu (see
page 34), the Settings menu may be in a different place.
If Your iPod Remote Isn’t Working
• Make sure the remote’s Hold switch is off.
• Make sure the remote is plugged firmly into iPod, and that the headphones are
plugged firmly into the remote.
The iPod Remote is included with some models of iPod, and can be purchased
separately at http://www.hpshopping.com/musicaccessories
If You Want to Use Your iPod with a PC and a Mac
If you are using your iPod with a PC and you want to use it with a Mac (or vice
versa), you must restore the iPod software for use with the other computer using
iPod Software Update (see “iPod Software Update and Restore” below). Restoring
the iPod software erases all data from iPod, including all songs.
You cannot switch from using iPod with a PC to using it with a Mac (or vice versa)
without erasing all data on iPod.
iPod Software Update and Restore
Apple periodically updates iPod software to improve performance or add
features. It is recommended that you update your iPod to use the latest software.
You can choose either to update or to restore the iPod software.
• If you choose to update, the software is updated, but your settings and songs
are not affected.
Tips and Troubleshooting
51
034-2616-A.book Page 52 Thursday, July 8, 2004 12:36 PM
• If you choose to restore, all data is erased from your iPod, including songs,
files, contacts, photos, calendar information, and any other data. All iPod
settings are restored to their original state.
To update or restore iPod with the latest software:
1 Go to http://www.hp.com/go/music/update and download the latest
iPod Update.
2 Double-click the software install file and follow the onscreen instructions to install
the iPod Update.
3 Connect iPod to your PC and open iTunes. If the iPod Update application
doesn’t open automatically, you can find the updater by clicking
Start > All Programs > iPod.
4 Follow the onscreen instructions to update or restore iPod software.
If you use the iPod Update application and it doesn’t see that iPod is connected
to your PC, reset iPod (see page 47).
If you want to restore iPod software and you don’t have an Internet connection,
you can use the iPod Update that was installed on your PC when you installed the
software from the iPod CD.
52
To restore iPod software using the updater that came on
your iPod CD:
You can find the updater by clicking Start > All Programs > iPod.
Tips and Troubleshooting
034-2616-A.book Page 53 Thursday, July 8, 2004 12:36 PM
1
Learning More,
Service, and Support
There is more information about using iPod on the
iPod CD, in onscreen help, and on the Web.
iPod Tutorial
For an in-depth tutorial on transferring music to and playing music on iPod, see
the iPod Tutorial on the iPod CD.
Onscreen Help
• To learn more about using iPod and iTunes, open iTunes and choose
Help > iTunes and Music Store Help.
53
034-2616-A.book Page 54 Thursday, July 8, 2004 12:36 PM
Online Resources
For the latest information on iPod, go to http://www.hp.com/music
For iPod service and support information go to http://www.hp.com/support
To register iPod (if you didn’t do it when you installed software from the iPod CD),
go to http://register.hp.com. Please be sure to have your product number, model
number, and serial number handy.
For an online iTunes tutorial (available in some areas only), go to
http://www.apple.com/support/itunes
Obtaining Warranty Service
If the product appears to be damaged or does not function properly, please
follow the advice in this booklet, the onscreen help, and the online resources.
If the unit still does not function, go to your Warranty and Support Guide for
instructions on how to obtain warranty service.
Finding the Serial Number of Your iPod
The serial number is printed on the back of your iPod. You can also find it by
selecting Settings > About.
54
Learning More, Service, and Support
034-2616-A.book Page 55 Thursday, July 8, 2004 12:36 PM
1
Safety and Cleaning
Read on to learn about using iPod safely and
cleaning iPod.
Important Safety Instructions
When setting up and using your iPod, remember the following:
• Read all the installation instructions carefully before you plug your iPod Power
Adapter into a power outlet.
• Keep these instructions handy for reference by you and others.
• Follow all instructions and warnings dealing with your iPod.
Warning Electrical equipment may be hazardous if misused. Operation of this
product, or similar products, must always be supervised by an adult. Do not
allow children access to the interior of any electrical product and do not permit
them to handle any cables.
55
034-2616-A.book Page 56 Thursday, July 8, 2004 12:36 PM
Avoid Hearing Damage
Warning Permanent hearing loss may occur if earbuds or headphones are
used at high volume. You can adapt over time to a higher volume of sound,
which may sound normal but can be damaging to your hearing. Set your iPod
volume to a safe level before that happens. If you experience ringing in your
ears, reduce the volume or discontinue use of your iPod.
Do Not Use While Driving
Important: Use of headphones while operating a vehicle is not recommended
and is illegal in some areas. Be careful and attentive while driving. Stop listening
to your iPod if you find it disruptive or distracting while operating any type of
vehicle or performing any other activity that requires your full attention.
Connectors and Ports
Never force a connector into a port. If the connector and port do not join with
reasonable ease, they probably don’t match. Make sure that the connector
matches the port and that you have positioned the connector correctly in relation
to the port.
Battery
Do not attempt to remove the iPod battery. iPod must be disposed of according to
local environmental regulations.
56
Safety and Cleaning
034-2616-A.book Page 57 Thursday, July 8, 2004 12:36 PM
Using the Power Adapter
• Use only the power adapter that came with your iPod. Adapters for other
electronic devices may look similar, but they may damage your iPod.
• The only way to shut off power to your power adapter completely is to
disconnect it from the power source.
• Always leave space around your power adapter. Do not use this equipment in a
location where airflow around the power adapter is confined, such as a
bookcase.
• When connecting or disconnecting your power adapter, always hold the power
adapter by its sides. Keep fingers away from the metal part of the plug.
• Before connecting the FireWire cable to the power adapter, make sure there are
no foreign objects inside the power adapter’s FireWire port.
• The power adapter for your iPod is a high-voltage component and should not
be opened for any reason, even when the iPod is off. If the power adapter
needs service, see “Learning More, Service, and Support” on page 53.
• Never force a connector into the power adapter FireWire port. If the connector
and port do not join with reasonable ease, they probably don’t match. Make
sure that the connector matches the port and that you have positioned the
connector correctly in relation to the port.
Safety and Cleaning
57
034-2616-A.book Page 58 Thursday, July 8, 2004 12:36 PM
About Operating and Storage Temperatures
• Operate your iPod in a place where the temperature is always between 0º and
35º C (32º to 95º F).
• Store your iPod in a place where the temperature is always between –20º and
45º C (–4º to 113º F). Don’t leave iPod in your car, since temperatures in
parked cars can exceed this range.
• iPod play time may temporarily shorten in low-temperature conditions.
• When you’re using your iPod or charging the battery, it is normal for the bottom
of the case to get warm. The bottom of the iPod case functions as a cooling
surface that transfers heat from inside the unit to the cooler air outside.
Avoid Wet Locations
Warning To reduce the chance of shock or injury, do not use your iPod in or
near water or wet locations.
• Keep your iPod and power adapter away from sources of liquids, such as
drinks, washbasins, bathtubs, shower stalls, and so on.
• Protect your iPod and the power adapter from direct sunlight and rain or other
moisture.
• Take care not to spill any food or liquid on iPod or its power adapter. If you do,
unplug iPod before cleaning up the spill.
In case of a spill, you may have to send your equipment to HP for service. See
“Learning More, Service, and Support” on page 53.
58
Safety and Cleaning
034-2616-A.book Page 59 Thursday, July 8, 2004 12:36 PM
Do Not Make Repairs Yourself
Warning Do not attempt to open your iPod or power adapter, disassemble it,
or remove the battery. You run the risk of electric shock and voiding the limited
warranty. No user-serviceable parts are inside.
For service, see “Learning More, Service, and Support” on page 53.
Cleaning
Follow these general rules when cleaning the outside of your iPod and its
components:
• Make sure your iPod is unplugged.
• Use a damp, soft, lint-free cloth. Avoid getting moisture in openings.
• Don’t use aerosol sprays, solvents, alcohol, or abrasives.
About Handling
Your iPod may be damaged by improper storage or handling. Be careful not to
drop your iPod when playing or transporting the device.
Safety and Cleaning
59
034-2616-A.book Page 60 Thursday, July 8, 2004 12:36 PM
Communications
Regulation Information
FCC Compliance Statement
This device complies with part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference,
and (2) this device must accept any
interference received, including
interference that may cause undesired
operation. See instructions if interference
to radio or television reception is
suspected.
Radio and Television Interference
This PC equipment generates, uses, and
can radiate radio-frequency energy. If it is
not installed and used properly — that is,
in strict accordance with HP’s instructions
— it may cause interference with radio
and television reception.
This equipment has been tested and found
to comply with the limits for a Class B
digital device in accordance with the
specifications in Part 15 of FCC rules.
These specifications are designed to
provide reasonable protection against
such interference in a residential
installation. However, there is no
guarantee that interference will not
occur in a particular installation.
60
Safety and Cleaning
You can determine whether your PC
system is causing interference by turning
it off. If the interference stops, it was
probably caused by the PC or one of the
peripheral devices.
If your PC system does cause interference
to radio or television reception, try to
correct the interference by using one or
more of the following measures:
• Turn the television or radio antenna until
the interference stops.
• Move the PC to one side or the other of
the television or radio.
• Move the PC farther away from the
television or radio.
• Plug the PC into an outlet that is on a
different circuit from the television or
radio. (That is, make certain the PC and
the television or radio are on circuits
controlled by different circuit breakers or
fuses.)
If necessary, consult an HP-authorized
service provider or HP. See the service
and support information that came
with your HP product. Or, consult an
experienced radio/television technician
for additional suggestions.
Important: Changes or modifications
to this product not authorized by the
Hewlett-Packard Company could void the
EMC compliance and negate your
authority to operate the product.
034-2616-A.book Page 61 Thursday, July 8, 2004 12:36 PM
This product was tested for EMC
compliance under conditions that included
the use of HP peripheral devices and HP
shielded cables and connectors between
system components. It is important that
you use HP peripheral devices and
shielded cables and connectors between
system components to reduce the
possibility of causing interference to
radios, television sets, and other electronic
devices. You can obtain HP peripheral
devices and the proper shielded cables
and connectors through an HP Authorized
Reseller. For non-HP peripheral devices,
contact the manufacturer or dealer for
assistance. Responsible party (contact for
FCC matters only): Hewlett-Packard
Company, P.O. Box 4010, Cupertino,
CA 95015-4010, USA
VCCI Class B Statement
European Community
Complies with European Directives
72/23/EEC and 89/336/EEC.
Industry Canada Statement
This Class B digital apparatus complies
with Canadian ICES-003.
Cet appareil numériqué de la classe B est
conformé à la norme NMB-003 du
Canada.
Safety and Cleaning
61
034-2616-A.book Page 62 Thursday, July 8, 2004 12:36 PM
62
Safety and Cleaning
034-2616-A.book Page 63 Thursday, July 8, 2004 12:36 PM
1
Index
A
B
AA file format 24
AAC file format 24
accessories 45
addresses 37
AIFF file format 24
alarm 37
Apple Lossless file format 24
audio file format
AA 24
AAC 24
AIFF 24
Apple Lossless 24
converting 25
MP3 24
supported 24
WAV 24
backlight 33
turning off 13
turning on 13
battery 56
about 42
charging 5, 42
charging with iPod Power
Adapter 43
icons 42
states 44
browsing for music 9
C
calendar events 37
cleaning 59
communications regulation
information 60
connecting iPod 18
63
034-2616-A.book Page 64 Thursday, July 8, 2004 12:36 PM
D
G
date
games, playing 41
getting started 1
setting 34
viewing 34
digital photos
erasing 41
photo card reader 41
storing 40
transferring 41
viewing information 40
disabling buttons 14, 15
disconnecting cable 9
disconnecting iPod 18, 19, 20
messages 19
Dock Line Out port 22
E
earphones 46
ejecting iPod 20
equalizer 33
external hard disk 35
F
fast-forwarding 14
FireWire adapter
6-pin-to-4-pin 8
FireWire card 3
FireWire ports
4-pin 8
64
Index
H
handling 59
hearing damage, avoiding 56
Help 53
Hold switch 15, 45
I
importing
addresses 37
calendar events 37
installing software 6
iPod
accessories 45
backlight timer 33
disconnecting 9
equalizer 33
features 2
not responding 47
remote 45
resetting 47
tutorials 2
using as external hard disk 35
using speakers 22
using with a Mac 51
034-2616-A.book Page 65 Thursday, July 8, 2004 12:36 PM
iPod Dock, using 21
iTunes
about 23
preventing automatically
opening 36
using, see tutorials
version 3
iTunes Music Store
browsing for music 24
purchasing music 24
L
language 34
changing 50
Line Out port 22
M
menu
adding items 34
removing items 34
selecting 11
MP3 file format 24
music
not playing 48
organizing 23
transferring 23
Index
N
notes
reading 38
storing 38
O
online resources 54
On-The-Go playlists
clearing 16
playing songs 16
removing songs 16
saving on iPod 17
transferring to the PC 17
P
pausing 13
phone numbers 37
photo card reader 41
photos, see digital photos
playing songs 9
playing songs in a list 13
65
034-2616-A.book Page 66 Thursday, July 8, 2004 12:36 PM
playlists
about 25
about Smart Playlists 26
creating 26
creating new on iPod 29
creating Smart Playlists 26
deleting 29
modifying on iPod manually 29
On-The-Go, see On-The-Go
playlists 16
transferring automatically 27
transferring manually 28
updating selected 27
plug adapter 43
power adapter 43, 57
purchasing music 6
R
rating songs 17
registering 54
remote 45
repairing 59
repeating songs 32
resetting iPod 13, 47
rewinding 14
66
Index
S
safety information 55
serial number 54
service 54
setting Click Wheel sound 32
shuffling albums 31
shuffling songs 31
sleep timer 36
software
installing 6
restoring 51
updating 51
songs
deleting 29
number of stored 30
playing previous 14
queueing 16
rating 17
repeating 32
selecting 9
shuffling 31
skipping 14
starting over 14
transferring automatically 27
transferring manually 28
transferring selected 27
034-2616-A.book Page 67 Thursday, July 8, 2004 12:36 PM
speakers 22
connecting 22
Dock Line Out port 22
spoken word audio 30
setting reading rate 30
stored songs 30
support 54
supported file formats 24
T
temperature
operating 58
storage 58
time
setting 34
viewing 34
tips 47
transferring music 6, 27
from a CD to iTunes 6
purchased songs 6
to iPod 7, 18
troubleshooting 47
turning off 13
turning on 13
tutorials 2, 53
Index
U
USB
2.0 card 3
2.0 port 8
V
voice memos
playing 39
recording 39
transferring 39
volume
control 22
level 13, 32
remote control 45
settings 33
W
warranty service 54
WAV file format 24
67
034-2616-A.book Page 68 Thursday, July 8, 2004 12:36 PM
http://www.hp.com/music
http://www.hp.com/support
Printed in China
034-2616-A
Download PDF

advertising
