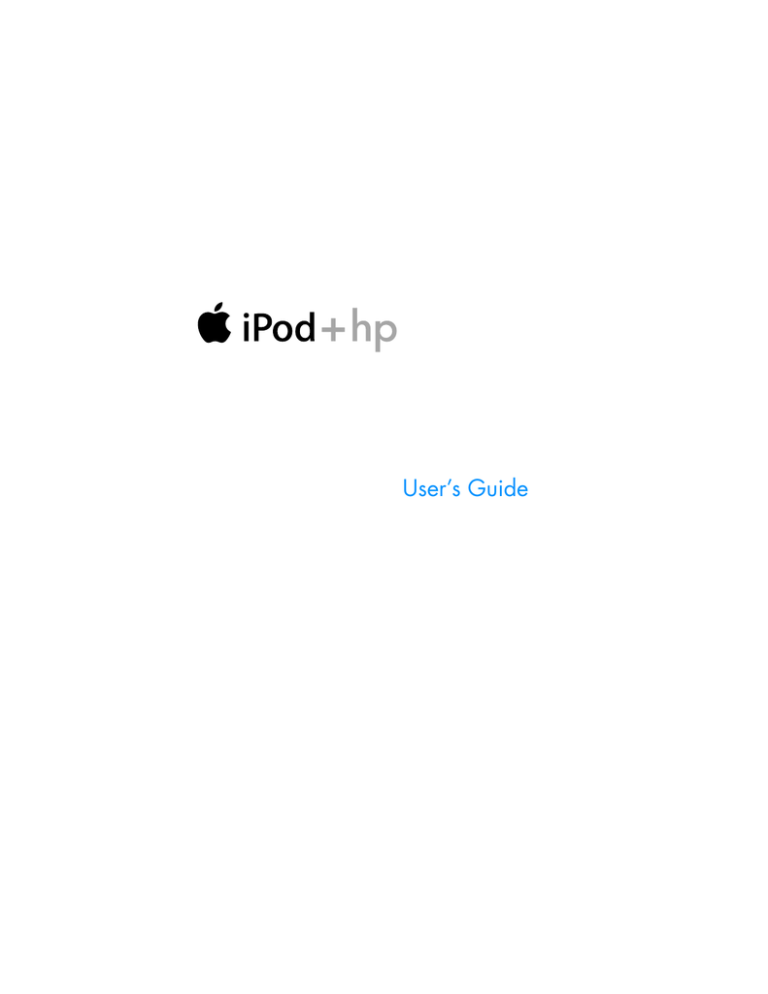

User’s Guide
The information in this document is subject to change without notice.
Neither Hewlett-Packard ® Company nor Apple Computer, Inc. make any warranties of any kind with
regard to this material, including, but not limited to, the implied warranties of merchantability and
fitness for a particular purpose.
Neither HP or Apple shall be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this material.
THE WARRANTY TERMS CONTAINED IN THIS STATEMENT, EXCEPT TO THE EXTENT LAWFULLY
PERMITTED, DO NOT EXCLUDE, RESTRICT OR MODIFY AND ARE IN ADDITION TO ANY
MANDATORY STATUTORY RIGHTS APPLICABLE TO THE SALE OF THIS PRODUCT OR SERVICE
TO YOU.
HP assumes no responsibility for the use or reliability of its software on equipment that is not furnished
by HP.
This document contains proprietary information that is protected by copyright. All rights are reserved.
No part of this document may be photocopied, reproduced, or translated to another language without
the prior written consent of HP.
Hewlett-Packard Company
P.O. Box 4010
Cupertino, CA 95015-4010
USA
© 2005 Hewlett-Packard Development Company, L.P. All rights reserved.
Apple, the Apple logo, FireWire, iPod, iTunes, Mac, Macintosh, and Mac OS are trademarks of Apple
Computer, Inc., registered in the U.S. and other countries/regions. iTunes Music Store is a service mark
of Apple Computer, Inc., registered in the U.S. and other countries/regions. For legal or rightholderauthorized copying only. Don’t steal music.
HP supports lawful use of technology and does not endorse or encourage the use of our products for
purposes other than those permitted by copyright law.
Contents
5
7
Quick Start
What You Need to Get Started
9
Setting Up iPod to Play Music
13 Using iPod
13 Using iPod Controls
20 Connecting and Disconnecting iPod
25 Organizing and Transferring Your Music
33 Transferring and Viewing Digital Photos
44 Adjusting iPod Settings
49 Using the Extra Features of Your iPod
52 Charging the iPod Battery
57 Tips and Troubleshooting
3
67 Learning More, Service, and Support
69 Safety and Cleaning
77 Index
4
Contents
1
Quick Start
Congratulations on purchasing your Apple iPod
from HP. Read this section to get started using
iPod quickly.
iPod works with your PC. Import and organize songs and photos on your PC,
then transfer them to iPod for listening and viewing on the go.
5
Learning to Use iPod
Read this chapter to set up iPod and get started playing music quickly. To learn
more about playing music on iPod and using some of its other features, see
“Using iPod” on page 13.
iPod Features
iPod is a music player and much more. With iPod, you can:
• Store thousands of songs from your music collection, for listening on the go
• Store thousands of digital photos, for backing up or viewing on the go
• Import photos directly from most digital cameras (using the optional iPod
Camera Connector)
• View photos as a slideshow with music on a television, using the optional
iPod AV Cable
• Listen to audiobooks purchased from the iTunes Music Store or audible.com
• Arrange your music in On-The-Go playlists
• Store or back up files and other data, using iPod as an external hard disk
• Change equalizer settings to make music sound better
• Store and synchronize contact and calendar information from your PC
• Record voice memos, using an optional microphone
• Play games, store text notes, set an alarm, and more
To purchase iPod accessories, go to
http://www.hpshopping.com/musicaccessories
6
Quick Start
What You Need to Get Started
To use iPod with a PC, you must have:
• A PC with:
• Built-in high-power USB 2.0 (or a high-power USB 2.0 card installed)
• Or built-in FireWire® (or a FireWire card installed) and the optional iPod Dock
Connector to FireWire Cable
High-power USB 2.0 port
6-pin FireWire 400 port
(IEEE 1394)
Note: To check to see what USB port type your PC has, see “Identifying Your
PC USB Port Type” on page 58
Note: For more information about compatible FireWire and USB cards,
go to http://www.hpshopping.com/musicaccessories. The iPod Dock
Connector to FireWire Cable is available for purchase at
http://www.hpshopping.com/musicaccessories
• Microsoft® Windows® 2000 with Service Pack 4 or later, or Windows XP Home
or Professional with Service Pack 2 or later
• iTunes 4.7 or later (iTunes is included on the iPod CD)
To be sure you have the latest version of iTunes, go to
http://www.hp.com/go/music/itunes
• iPod software (included on the iPod CD)
Quick Start
7
Your iPod includes the following components:
iPod
iPod USB Power Adapter
iPod Dock Connector to USB 2.0 Cable
Earphones
8
Quick Start
Setting Up iPod to Play Music
To set up iPod, you charge the battery, install software from the iPod CD, and
import songs from your music CD collection or from the iTunes Music Store
(available in some countries/regions only) into iTunes. Then you transfer the songs
from iTunes to iPod for listening on the go.
To import and view photos on iPod, follow the instructions in this chapter to set up
iPod, then see “Transferring and Viewing Digital Photos” on page 33.
Step 1: Charge the Battery
Connect iPod to the iPod Power Adapter using the iPod Dock Connector to
USB 2.0 Cable. The built-in battery is 80-percent charged in about three hours,
and fully charged in about five hours.
iPod Dock Connector to USB 2.0 Cable
Quick Start
9
Step 2: Install the Software
Insert the iPod CD into your PC to install iTunes and the iPod software.
Step 3: Import Music to Your PC
Complete this step if you haven’t already transferred music to your PC. You can
import music from your audio CDs, or if you have an Internet connection, you can
buy music online and download it to your PC using the iTunes Music Store.
To import music to your PC from an audio CD:
1 Insert a CD into your PC. iTunes opens automatically and the CD is selected in the
iTunes Source list.
2 Uncheck songs you don’t want to transfer, then click Import.
To buy music online (available in some countries/regions only):
1 Open iTunes and click Music Store in the Source list.
2 Click the Account button and follow the onscreen instructions to set up an account
or enter your existing Apple Account or America Online (AOL) account
information.
10
Quick Start
Step 4: Connect iPod and Transfer Music
Connect iPod to your PC using the included iPod Dock Connector to USB 2.0
Cable.
To transfer songs to iPod:
When you connect iPod to your PC, iTunes opens. Follow the simple onscreen
instructions to transfer songs and playlists to iPod.
Note: Be sure you have charged the battery using the iPod Power Adapter
before you transfer songs to iPod. See “Charging the iPod Battery” on page 52
for more information.
If your PC doesn’t have a high-power USB 2.0 port or a 6-pin FireWire 400
(IEEE 1394) port, you can purchase and install a USB 2.0 card or a
FireWire card.
For more information on cables and compatible USB and FireWire cards, go to
http://www.hpshopping.com/musicaccessories
Quick Start
11
Step 5: Play Music
When the song transfer is complete, the main menu or a large battery icon
appears. Squeeze both sides of the Dock connector to disconnect the cable
from iPod.
Then use the Click Wheel and Select button to browse for a song. Press the Play
or Select button and enjoy!
To learn how to import photos to your PC, transfer them to iPod, and view them
on iPod or on a television, see “Transferring and Viewing Digital Photos” on
page 33.
12
Quick Start
1
Using iPod
Read this section to learn about using iPod
controls, transferring music, transferring and
viewing photos, charging the battery, and using
the extra features of your iPod.
Using iPod Controls
Press any button to turn on iPod. The main menu appears.
13
Use the Click Wheel and Select button to navigate through onscreen menus, play
songs, change settings, and view information. Move your thumb lightly around
the Click Wheel to highlight a menu item. Press the Select button to select the
item. Press Menu on the Click Wheel to go back to the previous menu.
iPod Remote port
Menu button
Previous/Rewind
button
Click Wheel
Earphones
14
Using iPod
Headphones and AV port
Hold switch
Select button
Next/Fast-forward
button
Play/Pause button
Dock connector
port
To do this...
Do this
Reset iPod
(For use during troubleshooting)
Toggle the Hold switch (set it to Hold, then turn
it off again). Then press the Menu and Select
buttons simultaneously for about 6 seconds,
until the Apple logo appears.
Turn on iPod
Press any button.
Turn off iPod
Press and hold Play/Pause.
Turn the backlight on or off
Press and hold Menu or select Backlight from
the main menu.
Select a menu item
Scroll to the item by moving your thumb lightly
around the Click Wheel, then press the Select
button.
Go back to the previous menu
Press Menu.
Browse for a song
Select Music from the main menu.
Play a song
Highlight the song and press the Select or
Play/Pause button. iPod must be ejected from
your PC to play songs.
Play all the songs in a list
Highlight the list title (an album title, or the
title of a playlist, for example) and press
Play/Pause.
Change the volume
From the Now Playing screen, use the
Click Wheel.
Pause a song
Press Play/Pause when no song or list is
highlighted.
Disable the iPod buttons
(So you don’t press them accidentally)
Set the Hold switch to Hold (an orange bar
appears).
Using iPod
15
16
To do this...
Do this
Skip to any point in a song
From the Now Playing screen, press the Select
button to show the scrubber bar (if you see
album artwork, press it again). Then scroll to
any point in the song.
Skip to the next song
Press Next/Fast-forward.
Start a song over
Press Previous/Rewind.
Play the previous song
Press Previous/Rewind twice.
Fast-forward a song
Press and hold Next/Fast-forward.
Rewind a song
Press and hold Previous/Rewind.
Add a song to the On-The-Go
playlist
Highlight a song, then press and hold the
Select button until the song title flashes.
Scroll through photos
From any photo-viewing screen, use the Click
Wheel to scroll back and forth through photos.
Skip to the next or previous screen
of photos
From any photo-viewing screen, press
Next/Fast-forward or Previous/Rewind.
Start a photo slideshow
Select any photo or album and press Play. Or
select any full-screen photo and press the
Select button. For more information see
page 30.
Skip to the next or previous photo
in a slideshow
Press Next/Fast-forward or Previous/Rewind.
Using iPod
Disabling iPod Buttons Using the Hold Switch
■
If you’re carrying iPod in your pocket and you don’t want to press the buttons or
turn it on accidentally, you can make the buttons inactive.
Set the Hold switch to Hold.
Slide the switch toward
the center (so you can
see the orange bar) to
disable the controls.
Using iPod
17
Making Playlists on iPod
You can set iPod to play the songs you want in the order you want. When you
create a list of songs on your iPod, the songs appear in an On-The-Go playlist.
To create an On-The-Go playlist:
1 Highlight a song and press and hold the Select button until the song title flashes.
2 Repeat step 1 for other songs you want to add.
3 Select Music > Playlists > On-The-Go to view your list of songs.
You can also queue entire lists of songs at once. For example, to queue an album,
highlight the album title and press and hold the Select button until the album title
flashes.
■
■
■
■
To play songs in the On-The-Go playlist:
Select Music > Playlists > On-The-Go and select a song.
To remove a song from the On-The-Go playlist:
Highlight a song in the playlist, and hold down the Select button until the song
title flashes.
To clear the entire On-The-Go playlist:
Select Music > Playlists > On-The-Go > Clear Playlist.
To save On-The-Go playlists on your iPod:
Select Music > Playlists > On-The-Go > Save Playlist > Save Playlist.
The first playlist is saved as “New Playlist 1” in the Playlists menu. The On-The-Go
playlist is cleared. You can save as many On-The-Go playlists as you like.
18
Using iPod
■
To transfer On-The-Go playlists to your PC:
If iPod is set to transfer songs automatically (see page 29), and you create an
On-The-Go playlist, the playlist automatically transfers to iTunes when you connect
iPod. You see the new On-The-Go playlist in the iTunes Source list. You can
rename or delete the new playlist, just as you would any other playlist in iTunes.
Rating Songs
You can assign a rating to a song (from 1 to 5 stars) to indicate how much you
like it. You can use song ratings to help you create playlists automatically in
iTunes (see “About Smart Playlists” on page 28).
To rate a song:
1 Start playing the song.
2 From the Now Playing screen, press the Select button two or three times, until you
see the rating screen (showing either bullet points, stars, or a combination of both).
3 Use the Click Wheel to select a rating.
Viewing Album Artwork on iPod
You can set iTunes to allow iPod to display album art, then view the album
artwork on iPod.
To set iTunes to allow iPod to display album artwork:
1 Select iPod in the iTunes Source list and click the Options button.
Options button
2 Choose “Display album artwork on your iPod.”
Using iPod
19
To see album artwork on your iPod:
1 Play a song that has album artwork.
2 From the Now Playing screen, press the Select button. If you don’t see artwork,
either that song doesn’t have album artwork, or you need to set iTunes to allow
iPod to display album artwork (see above).
For more information about album artwork, open iTunes and choose
Help > iTunes Help.
Connecting and Disconnecting iPod
You connect iPod to your PC to transfer music and photos, and, in most cases, to
charge the battery.
■
■
To connect iPod to your PC:
Plug the included iPod Dock Connector to USB 2.0 Cable in to a high-power
USB 2.0 port on your PC, then connect the other end to iPod.
Or, if you have an iPod Dock (see page 23), connect the cable to a high-power
USB 2.0 port on your PC and connect the other end to the Dock. Then put iPod in
the Dock.
Note: If your PC doesn’t have a USB 2.0 port but has a FireWire 400
(IEEE 1394) port, you can use an iPod Dock Connector to FireWire Cable
(available for purchase at http://www.hpshopping.com/musicaccessories).
20
Using iPod
By default, iPod imports songs automatically when you connect it to your PC.
When this automatic transfer is done, you can disconnect iPod.
If you connect iPod to a different PC and it is set to transfer songs automatically,
iTunes prompts you before transferring any music. Clicking No, maintains the
songs you currently have on your iPod.
Disconnecting iPod
You shouldn’t disconnect iPod while music is being transferred. You can easily see
if it’s OK to disconnect iPod by looking at the screen.
If you see the main
menu or a large battery
icon, you can
disconnect iPod from
your PC.
If you see this
message, you must
eject iPod before
disconnecting it from
your PC.
If you set iPod to transfer songs manually (see page 30) or enable iPod for disk
use (see page 49), you must eject iPod before disconnecting it.
Using iPod
21
■
To eject iPod:
Click the Eject button (
) next to iPod in the iTunes Source list.
You can eject iPod by clicking the Safely Remove Hardware icon in the Windows
system tray and selecting your iPod.
To disconnect iPod:
• If iPod is connected to an iPod cable, squeeze both sides of the Dock connector
to disconnect the cable from iPod.
• If iPod is in the Dock, simply remove it.
Important: Don’t disconnect iPod if you see the “Do not disconnect” message.
You could damage files on iPod. If you see this message, you must eject iPod
before disconnecting it.
22
Using iPod
Connecting iPod Using the iPod Dock
(Available Separately)
The iPod Dock holds iPod upright as it charges or transfers music. Connect the
Dock to your PC using the iPod Dock Connector to USB 2.0 Cable, then put iPod
in the Dock.
The optional iPod Dock (for iPod with color display) is available for purchase at
http://www.hpshopping.com/musicaccessories
Using iPod
23
Dock connector port
iPod connector
Line Out port
S-video Out port
Port
Use
Dock connector
port
Connect the Dock to your PC or the power adapter using the
included USB 2.0 cable.
iPod connector
Place iPod into the Dock to charge iPod, transfer songs, view
photos, and listen to music.
Line Out port
Connect speakers using an audio cable with a standard
3.5 millimeter stereo miniplug (see page 25). Or connect
the optional iPod AV Cable to view photos on a television
(see page 33).
S-video Out port
Connect an S-video cable to view photos with enhanced clarity on
an S-video-equipped television or video device (see page 33). You
must use an additional audio cable to hear sound with a slideshow.
Using the optional iPod Dock, you can play music from iPod over external
powered speakers or a home stereo. You need an audio cable with a standard
3.5 millimeter stereo miniplug (many external speakers have this type of cable
attached).
24
Using iPod
To play music from iPod using the Dock:
1 Place iPod in the Dock.
2 Connect the speakers or stereo to the Dock Line Out port using an audio cable
with a 3.5 millimeter stereo miniplug.
3 Use the iPod controls to play a song.
When the Dock is connected to an external audio source, use the volume controls
on the external source to change the volume.
Organizing and Transferring Your Music
For instructions for getting started playing music on iPod, see “Setting Up iPod to
Play Music” on page 9. Read on for more information about organizing and
transferring your music.
About iTunes
iTunes is the software application you use to manage the music on your PC and
transfer music to iPod. When you connect iPod to your PC, iTunes opens
automatically.
Here are some of the things you can do with iTunes:
• Purchase and download songs and audiobooks from the iTunes Music Store
• Listen to CDs and digital music
Using iPod
25
• Add music from CDs to your music library, so you don’t need to have the CD in
the drive to play music
• Make your own CDs (if your PC has a CD burner)
• Publish your playlists, called “iMixes,” to the iTunes Music Store
• Create dynamic “Party Shuffle” playlists
• Listen to Internet radio stations
This guide explains how to transfer songs to iPod using iTunes and manage songs
on iPod. For information about using the other features of iTunes, open iTunes and
choose Help > iTunes and Music Store Help.
About the iTunes Music Store
Using iTunes, you can preview, purchase, and download your favorite songs from
the iTunes Music Store (available in some countries/regions only). There are over
a million songs available for purchase. You can use an Apple Account to
purchase songs from the music store, or if you have an America Online (AOL)
account, you can use that (this option is available in some countries/regions
only).
To browse for and purchase music:
1 Open iTunes and click Music Store in the Source list.
2 Click the Account button and follow the onscreen instructions to set up an account
or enter your existing Apple Account or AOL account information.
You can only have music from five different Music Store accounts on one iPod.
For more information about the iTunes Music Store, open iTunes and choose
Help > iTunes and Music Store Help.
26
Using iPod
Audio File Formats Supported by iPod
• AAC (M4A, M4B, M4P) (up to 320 Kbps)
• Apple Lossless (a high-quality compressed format)
• MP3 (up to 320 Kbps)
• MP3 Variable Bit Rate (VBR)
• WAV
• AA (audible.com spoken word, formats 2, 3, and 4)
• AIFF
A song encoded using Apple Lossless format has full CD-quality sound, but takes
up only about half the amount of space as a song encoded using AIFF or WAV
format. The same song encoded in AAC or MP3 format takes up even less space.
When you import music from a CD using iTunes, it is converted to AAC format by
default.
You can convert nonprotected WMA files to AAC or MP3 format. This can be
useful if you have a library of music encoded in WMA format. For more
information, open iTunes and choose Help > iTunes and Music Store Help.
iPod does not support WMA, MPEG Layer 1, MPEG Layer 2 audio files, or
audible.com format 1.
About Playlists
Using iTunes, you can organize songs into playlists. For example, you can create
a playlist with songs to listen to while exercising or with songs for a particular
mood.
Using iPod
27
You can create as many playlists as you like using any of the songs in your PC’s
music library. Putting a song in a playlist doesn’t remove it from the library.
When you connect and update iPod, the playlists are transferred to iPod. To
browse through playlists, select Music > Playlists on iPod.
About Smart Playlists
Using iTunes, you can automatically create customized Smart Playlists from the
songs in your library. You can create a Smart Playlist that includes only certain
genres of music, songs by certain artists, or songs that match particular criteria.
For example, you could create a playlist that’s no more than 3 gigabytes (GB) in
size and includes only songs you have rated 3 stars or higher (see “Rating
Songs” on page 19).
After you create a Smart Playlist, any songs on iPod that meet the Smart Playlist’s
criteria are automatically added to the Smart Playlist.
Creating Playlists on Your PC
■
■
28
To create a playlist:
In iTunes, click the Add (+) button and type a name for the playlist, then drag
songs from the library or another playlist to the new playlist.
To create a Smart Playlist:
In iTunes, choose File > New Smart Playlist and choose the criteria for your
playlist. Any songs from your library that match the criteria you choose are
automatically added to the playlist.
Using iPod
Transferring Songs and Playlists to iPod
Automatically
By default, iPod updates automatically when you connect it to your PC.
■
To transfer music to iPod automatically:
Simply connect iPod to your PC using the included USB 2.0 cable.
iPod must be set to transfer music automatically.
To set iPod to transfer music automatically:
1 Select iPod in the iTunes Source list and click the Options button.
Options button
2 Select “Automatically update all songs and playlists.”
iTunes updates the iPod music library to match the songs and playlists in your
PC’s music library, transferring new songs to iPod and deleting songs from iPod
that aren’t in your music library.
You can set iPod to transfer only certain songs in your iTunes music library. This is
useful if you have more music on your PC than will fit on your iPod.
Using iPod
29
To update iPod with only certain songs:
1 In iTunes, check the boxes next to songs you want to transfer (by default, all songs
are checked).
2 Select iPod in the iTunes Source list and click the Options button.
Options button
3 Select “Only update checked songs.”
To set iPod to update only selected playlists:
1 In iTunes, select iPod in the Source list and click the Options button.
2 Select “Automatically update selected playlists only.”
Transferring Songs and Playlists to iPod Manually
You can set iPod to transfer songs manually, so you can transfer individual songs
and playlists. This is especially useful if you want to use iPod with more than
one PC.
When iPod is set to transfer songs manually, iTunes won’t update it automatically
when you connect it to your PC.
30
Using iPod
To set iPod to transfer songs manually:
1 In iTunes, select iPod in the Source list and click the Options button.
Options button
2 Select “Manually manage songs and playlists.”
■
To transfer a song or playlist to iPod manually:
In iTunes, drag a song or playlist to iPod in the Source list.
Deleting Songs and Playlists From iPod Manually
If you have set iPod to transfer songs manually (see above), you can delete songs
and playlists from iPod individually. Songs deleted from iPod manually are not
deleted from the iTunes library.
To delete a song or playlist from iPod:
1 Select iPod in the iTunes Source list.
2 Select a song or playlist and press the Delete key on the keyboard.
If you delete a playlist, the songs in the playlist remain on iPod.
Modifying Playlists on iPod Manually
If you have set iPod to transfer songs manually (see above), you can create
new playlists on iPod, and add songs to or delete songs from playlists already
on iPod.
Using iPod
31
To create a new playlist on iPod:
1 Select iPod in the iTunes Source list and click the Add (+) button.
2 Drag songs to the new playlist.
■
To modify a playlist on iPod:
Drag a song to a playlist on iPod to add the song. Select a song in a playlist and
press the Delete key on your keyboard to delete the song.
Listening to Spoken Word Audio
You can purchase and download spoken word audiobooks from the iTunes Music
Store (available in some countries/regions only) or from audible.com and listen to
them on your iPod.
You can use iTunes to transfer audiobooks to your iPod the same way you transfer
songs.
If you stop listening to an audiobook on iPod and go back to it later, the
audiobook begins playing from where you left off.
Unless you’re playing songs from within playlists, iPod skips audiobooks when set
to shuffle.
Setting the Reading Speed
You can play audiobooks at speeds faster or slower than normal.
■
To set the playing speed of an audiobook:
Select Settings > Audiobooks and select a speed.
Setting the reading speed only affects audiobooks purchased from the
iTunes Music Store or audible.com.
32
Using iPod
Seeing How Many Songs and Photos Are on iPod
To see how many songs and photos are stored on iPod, how much disk space is
left, and other information, select Settings > About in the iPod main menu.
Transferring and Viewing Digital Photos
You can import digital photos from a digital camera to your PC, then transfer
them and view them on iPod. You can connect iPod to a television and view
photos in a slideshow with music.
If you have the optional iPod Camera Connector, you can transfer photos directly
from most USB digital cameras or USB photo card readers to iPod. if you have an
iPod-compatible photo card reader, you can transfer photos using that.
Transferring Photos From a Camera to Your PC
You can import photos from a digital camera or a photo reader.
■
To import photos to a PC:
Follow the instructions that came with your digital camera or photo application.
Transferring Photos From Your PC to iPod
You can transfer photos from a folder on your hard disk. If you have Adobe
Photoshop Album 1.0 or later, or Adobe Photoshop Elements 3.0 or later, you
can transfer photo collections automatically.
The first time you transfer photos to iPod may take some time (possibly over an
hour) depending upon how many photos are in your photo library.
Using iPod
33
To transfer photos from a PC to iPod using Photoshop Album or
Photoshop Elements:
1 Open iTunes and select iPod in the iTunes Source list. Then click the Options
button.
Options button
2 Click Photos and select “Synchronize photos from.” Then choose Photoshop
Album or Photoshop Elements from the pop-up menu.
3 If you want to import all of your photos, select “Copy all photos.” If you only want
to import photos from certain Photoshop Album or Photoshop Elements collections,
select “Copy selected albums only” and select the albums or collections you want.
Note: Some versions of Photoshop Album and Photoshop Elements don’t support
collections. You can still use them to transfer all your photos.
Each time you connect iPod to your PC, photos are transferred automatically.
To transfer photos from a folder on your hard disk to iPod:
1 Drag the images you want into a folder on your PC.
If you want images to appear in separate photo albums on iPod, create folders
inside the main image folder, and drag images into the new folders.
34
Using iPod
2 Open iTunes and select iPod in the iTunes Source list. Then click the Options
button.
Options button
3 Click Photos and select “Synchronize photos from.”
4 Choose “Choose Folder” from the pop-up menu and select the folder containing
your photos.
To transfer full-resolution image files to iPod:
When you transfer photos to iPod, iTunes optimizes the photos for viewing.
Full-resolution image files aren’t transferred by default. Transferring full-resolution
image files is useful if you want to store your images or move them from one PC
to another, but is not necessary to view the images at full quality on iPod.
1 Open iTunes and select iPod in the iTunes Source list. Then click the Options
button.
Options button
2 Click Photos and select “Include full-resolution photos.”
iTunes copies the full-resolution versions of the photos to the Photos folder on
your iPod.
Using iPod
35
Transferring Photos Directly From a Camera or
Photo Card Reader to iPod:
Using the optional iPod Camera Connector or an iPod–compatible photo
card reader (available for purchase at
http://www.hpshopping.com/musicaccessories) and a standard digital camera,
you can store and view photos on iPod, then delete them from the camera or
photo card and take more pictures. Then later you can transfer the photos from
iPod to your PC using a standard digital photo application.
Note: You can’t view slideshows on a television using photos transferred directly
from a camera or photo card reader. To view the photos in a slideshow on a
television, you must transfer them to your PC, then import them back to iPod using
iTunes.
36
Using iPod
To import photos from a USB digital camera or photo card reader
to iPod:
1 Turn on iPod and attach the optional iPod Camera Connector.
2 Turn on your camera (or card reader) and connect it to iPod using the USB cable
that came with your camera.
3 On iPod, select Import.
Using iPod
37
To store photos from an iPod-compatible photo card reader
on iPod:
1 Insert a photo card into the photo card reader and connect the photo card reader
to the Dock connector port on iPod.
2 Select Import.
Photos are listed on iPod by roll number.
Note: Some digital photo storage devices may work differently. Consult the
instructions that came with the device.
To view imported photos on iPod:
1 Select Photos > Photo Import and select the roll number.
The type of media, number of photos, and size of the roll are displayed.
2 Select Browse. Photos may take a moment to appear. Select any photo to view it
full screen.
Note: The Photo Import menu item doesn’t appear unless you transfer photos
directly from a camera or photo card reader.
38
Using iPod
To erase photos from a camera or photo card:
1 Import photos from the camera or card (see above).
2 Select Erase Card. All photos are deleted from the camera or card.
For more information about using an iPod–compatible photo card reader, see the
instructions that came with the reader.
Transferring Photos from iPod to a PC
If you transfer full-resolution photos from your PC to iPod (see page 35) they’re
stored in a Photos folder on iPod. If you transfer photos directly from a camera
or photo card reader to iPod (see page 36), they are stored in a DCIM folder
on iPod. You can transfer these photos to a PC by connecting iPod and enabling
it for disk use (see page 49).
To transfer from iPod to a PC:
1 Connect iPod to the other PC.
2 Drag image files from the Photos folder or DCIM folder on iPod to the desktop or
to a photo editing application on the PC.
Note: You can also use a photo editing application to import photos stored in
the DCIM folder.
Using iPod
39
Viewing Photos
You can view photos on iPod manually or as a slideshow. If you have the optional
iPod AV Cable, you can connect iPod to a television and view photos as a
slideshow with music.
To view photos on iPod:
1 On iPod, select Photos > Photo Library. Or select Photos and choose a photo
album to see only the photos in the album.
Note: Photos may take a moment to appear.
2 Highlight the photo you want and press the Select button to view a full-screen
version.
From any photo-viewing screen, use the Click Wheel to scroll through photos. Use
the Next/Fast-forward and Previous/Rewind buttons to skip to the next or
previous screen of photos.
Viewing Slideshows
You can view a slideshow, with music and transitions if you choose, on iPod. If
you have the optional iPod AV Cable, you can view the slideshow on a television.
■
To set slideshow settings:
Select Photos > Slideshow Settings, then follow the instructions below:
• To set slideshows to display on iPod, set TV Out to Ask or Off.
• To set slideshows to display on television, set TV Out to Ask or On.
If you set TV Out to Ask, iPod gives you the option of showing slideshows on
television or on iPod every time you start a slideshow.
40
Using iPod
• To set the length of time each slide is displayed before advancing, select Time
Per Slide and choose a time.
• To set the music that plays during slideshows, select Music and choose a
playlist. If you’re using iPhoto, you can choose From iPhoto to copy the iPhoto
music setting. Only the songs that you have transferred to iPod play.
• To set slides to repeat, set Repeat to On.
• To set slides to display in random order, set Shuffle Photos to On.
• To set slides to display with transitions, select Transitions and choose a
transitions type.
• To set slides to show on PAL or NTSC televisions, set TV Signal to PAL or NTSC.
Note: PAL and NTSC refer to television broadcast standards. Your television
may use either of these, depending on the country/region where it was
purchased. If you aren’t sure which your television uses, check the
documentation that came with your television.
■
To view a slideshow on iPod:
Select any photo, album, or roll and press Play. Or select any full-screen photo
and press the Select button. To pause the music and the slideshow, press the
Play/Pause button.
If you selected a playlist in Photos > Slideshow Settings > Music, the playlist plays
automatically when you start the slideshow. The photos advance automatically
according to settings in the Slideshow Settings menu. To skip to the next or
previous photo manually, press the Next/Fast-forward or Previous/Rewind button.
Using iPod
41
To connect iPod to a television:
Your television must have RCA video and audio ports, or an S-video port.
1 Connect the optional iPod AV Cable to the Headphones port on iPod.
You can also connect the iPod AV Cable to the Line Out port on the iPod Dock
and put iPod in the Dock. You must use an iPod Dock for iPod with color display.
Other iPod Docks won’t work.
Note: Use the iPod AV Cable made specifically for iPod. Other similar
RCA-type cables won’t work. You can purchase the iPod AV Cable at
http://www.hpshopping.com/musicaccessories
2 Connect the video and audio connectors to the ports on your television, as shown.
Television
or other
video device
Video input port (yellow)
Left sound input port (white)
Television
or other
video device
Right sound input port (red)
iPod AV Cable
(optional)
Headphones and
AV port on iPod
42
Using iPod
Line Out port
on Dock
iPod Dock
(optional)
Connecting iPod using S-video:
For increased visual clarity, you can also connect iPod to a television, video
receiver, or other device that has an S-video port using an S-video cable and the
iPod Dock. You can purchase audio and S-video cables at
http://www.hpshopping.com/musicaccessories
To hear music with the slideshow, you must connect an audio cable to the Line
Out port on the iPod Dock and to an audio input port on the television or
receiver.
Television
or other
video device
Video input port (yellow) is unused
Left sound input port (white)
Right sound input port (red)
iPod Dock
(optional)
S-video input port
S-video-to-S-video cable (optional)
Line Out port
on Dock
Using iPod
S-video Out port
on Dock
3.5 mm stereo miniplug to
dual RCA-type connector
cable (optional)
43
To view a slideshow on a television:
1 Connect iPod to a television as shown above.
2 Turn on your television and set it to display from the input ports to which your
iPod is connected. See the documentation that came with your television for more
information.
3 On iPod, select any photo or album and press Play. Or select any full-screen
photo and press the Select button. To pause the music and the slideshow, press
the Play/Pause button.
If you selected a playlist in Photos > Slideshow Settings > Music, the playlist plays
automatically when you start the slideshow. The photos display on your television
and advance automatically according to settings in the Slideshow Settings menu.
To skip to the next or previous photo manually, press the Next/Fast-forward or
Previous/Rewind button.
Adjusting iPod Settings
You can change settings directly on iPod in the Settings menu.
Setting iPod to Shuffle Songs
You can set iPod to play songs or albums in random order.
■
To shuffle and begin playing all your songs:
Select Shuffle Songs from the iPod main menu.
iPod begins playing songs from your entire music library in random order,
skipping audiobooks.
44
Using iPod
To set iPod to shuffle songs or albums every time you play a song:
1 Select Settings from the iPod main menu.
2 Set Shuffle to Songs or to Albums.
When you set iPod to shuffle songs by selecting Settings > Shuffle, iPod shuffles
songs within the list (album or playlist, for example) from which the songs are
playing.
When you set iPod to shuffle albums, it plays all the songs on an album in order,
then randomly selects another album in the list and plays through it in order.
Setting iPod to Repeat Songs
You can set iPod to repeat a song over and over, or to repeat a sequence of
songs. iPod repeats songs within the list from which the songs are playing.
■
To set iPod to repeat songs:
Select Settings from the iPod main menu.
• To repeat all songs in the list, set Repeat to All.
• To repeat one song over and over, set Repeat to One.
Using iPod
45
Setting the Click Wheel Sound
When you scroll through menu items, you can hear a clicking sound through the
iPod internal speaker to let you know the Click Wheel is working. You can set the
Click Wheel sound to play through the headphones instead, or you can turn it off.
■
To set how iPod plays the Click Wheel sound:
Select Settings from the iPod main menu.
• To set the Click Wheel sound to play through the headphones, set Clicker to
Headphones.
• To turn off the Click Wheel sound, set Clicker to Off.
• To set the Click Wheel sound to play through the iPod internal speaker, set
Clicker to Speaker.
• To set the Click Wheel sound to play through both the iPod internal speaker and
the headphones, set Clicker to Both.
Setting Songs to Play at the Same Relative
Volume Level
iTunes can automatically adjust the volume of songs, so they play at the same
relative volume level. You can set iPod to use the iTunes volume settings.
To set iTunes to adjust all songs to play at the same relative sound
level:
1 In iTunes, choose Edit > Preferences.
2 Click Effects and select Sound Check.
46
Using iPod
■
To set iPod to use the iTunes volume settings:
Select Settings > Sound Check.
If you have not activated Sound Check in iTunes, setting it on iPod has no effect.
Using the Equalizer
■
You can use equalizer presets to change iPod sound to suit a particular music
genre or style. For example, to make rock music sound better, set the equalizer
to Rock.
Select Settings > EQ and select an equalizer preset.
If you have assigned an equalizer preset to a song in iTunes and the iPod
equalizer is set to Off, then the song plays using the iTunes setting. See iTunes
and Music Store Help for more information.
Setting the Backlight Timer
■
You can set the backlight to turn on for a certain amount of time when you press a
button or use the Click Wheel.
Select Settings > Backlight Timer and select the time you want.
Even if you don’t set the backlight timer, you can turn on the backlight at any time
by pressing and holding the Menu button on iPod or selecting Backlight from the
main menu. After a few seconds, the backlight turns off.
Using iPod
47
Adding or Removing Items From the Main Menu
You can add often-used items to the iPod main menu. For example, you can add
a “Songs” item to the main menu, so you don’t have to select Music before you
select Songs.
■
To add or remove items from the main menu:
Select Settings > Main Menu.
Setting and Viewing the Date and Time
■
■
■
To set the date and time:
Select Settings > Date & Time.
To view the date and time:
Select Extras > Clock.
To set iPod to display the time in the title bar:
Select Settings > Date & Time.
If you set iPod to display the time in the title bar, you can see the time from any
iPod menu screen.
Setting the Language
■
48
iPod can be set to use different languages.
Select Settings > Language and select a language.
Using iPod
Using the Extra Features of Your iPod
Using iPod as an External Hard Disk
You can use iPod as a hard disk, to store and transfer data files.
To enable iPod as a hard disk:
1 In iTunes, select iPod in the Source list and click the Options button.
Options button
2 Click General and select “Enable disk use.”
When you use iPod as a hard disk, the iPod disk icon appears as the next
available drive letter in Windows Explorer.
Note: Clicking Music and selecting “Manually manage songs and playlists” in
the Options window also enables iPod to be used as a hard disk.
Note: To transfer music files to iPod, you must use iTunes. Songs transferred via
iTunes do not appear on iPod in Windows Explorer. Likewise, if you copy music
files to iPod in Windows Explorer, you won’t be able to play them on iPod.
Using iPod
49
Preventing iTunes From Opening Automatically
If you use iPod primarily as a hard disk, you may want to keep iTunes from
opening automatically when you connect iPod to your PC.
To prevent iTunes from opening automatically when you connect
iPod to your PC:
1 In iTunes, select iPod in the Source list and click the Options button.
2 Click General and deselect “Open iTunes when attached.”
Options button
Setting the Sleep Timer
■
You can set iPod to turn off automatically after playing music or a slideshow for a
specific period of time.
Select Extras > Clock > Sleep Timer and select the time you want.
When you set the sleep timer, a clock icon and the number of minutes left until
iPod turns off appear in the Now Playing screen on iPod.
50
Using iPod
Setting the Alarm
You can use iPod as an alarm clock.
To set an alarm:
1 Select Extras > Clock > Alarm Clock.
2 Set Alarm to On.
3 Select a sound.
If you select Beep, the alarm is audible through the internal speaker. If you select
a playlist, you’ll need to connect iPod to speakers or headphones to hear the
alarm.
Importing Addresses, Phone Numbers, and Calendar
Events
If your calendar and contact manager software supports dragging and dropping
of vcard and vcal files, you can drag and drop contacts and calendar events into
iPod’s contacts and calendar folders.
Note: Microsoft Outlook does not support this feature. There are third party
applications that allow you to export contact and calendar events to your iPod.
Storing and Reading Notes and Other Information
You can store and read text notes on iPod. iPod must be enabled as a hard disk
(see page 49).
1 Save a document in any word-processing application as a text (.txt) file.
2 Place the file in the Notes folder on iPod.
■
To view notes:
Select Extras > Notes.
Using iPod
51
Recording Voice Memos
You can record voice memos using an optional iPod-compatible microphone
(available for purchase at http://www.hpshopping.com/musicaccessories). You
can store voice memos on your iPod and transfer them to your PC.
Playing Games
iPod has a number of games.
■
To play a game:
Select Extras > Games and select a game.
Charging the iPod Battery
iPod has an internal, non–user–replaceable battery. If iPod isn’t used for a while,
the battery may need to be charged.
The iPod battery is 80-percent charged in about three hours, and fully charged in
about five hours. If you charge iPod while transferring files, playing music or
viewing a slideshow, it may take longer.
You can charge the iPod battery in two ways:
• Connect iPod to your PC.
• Use the iPod USB Power Adapter.
52
Using iPod
To charge the battery using your PC:
Connect iPod to a high-power USB 2.0 port on your PC. The PC must be turned
on and not in sleep mode.
Important: While songs, photos, or files are transferred using USB 2.0, the
iPod battery loses charge. Transferring songs or files when iPod isn’t sufficiently
charged can cause incomplete transfer, loss of the information being transferred,
and may require a restore (see page 65). It’s best to charge iPod using the
iPod Power Adapter before transferring songs or files.
If the battery icon in the upper-right corner of the iPod screen shows a lightning
bolt, the battery is charging. If it shows a plug, the battery is fully charged.
If you don’t see the lightning bolt or the plug, iPod may not be connected to a
high-power USB 2.0 port. Try another USB port on your PC.
If you can’t charge using a USB port on your PC, you can charge the battery
using the iPod USB Power Adapter.
Using iPod
53
To charge the battery using the iPod Power Adapter:
1 Connect the AC plug adapter to the power adapter (they may already be
assembled).
2 Connect the iPod Dock Connector to USB 2.0 Cable to the power adapter, and
plug the other end of the cable in to iPod.
3 Plug the power adapter in to a working electrical outlet.
AC plug adapter
iPod Dock Connector
to USB Cable
iPod USB Power Adapter
Warning Make sure the power adapter is fully assembled before plugging it
in to an electrical outlet.
54
Using iPod
Battery States
When iPod is not connected to a power source, a battery icon in the top-right
corner of the iPod screen shows about how much charge is left.
Battery less than 20% (red)
Battery about halfway charged
If iPod is connected to a power source, the battery icon changes to show that the
battery is charging or fully charged.
Battery charging
Battery fully charged
You can disconnect and use iPod before it is fully charged.
Note: Rechargeable batteries have a limited number of charge cycles and may
eventually need to be replaced. Battery life and number of charge cycles vary by
use and settings. For more information, go to
http://www.hp.com/go/music/battery
Using iPod
55
Earphones
iPod comes with a pair of high-quality earbud headphones with two pairs of
earphone covers. If you like, you can place the earphone covers over the
earphones.
■
To use the earbud headphones:
Plug them in to the Headphones port, then place the earbud in your ear as
shown.
Warning Permanent hearing loss may occur if earbuds or headphones are
used at high volume. You can adapt over time to a higher volume of sound,
which may sound normal but can be damaging to your hearing. Set your iPod
volume to a safe level before that happens. If you experience ringing in your
ears, reduce the volume or discontinue use of your iPod.
56
Using iPod
1
Tips and Troubleshooting
Most problems with iPod can be solved quickly
by following the advice in this chapter.
If Your PC Does Not Complete the Start-up Process
When iPod is Connected With the USB Cable
On some PCs, when iPod is connected with the USB cable, it’s possible that your
PC will not complete the start-up process. If you encounter this, simply disconnect
iPod from the PC. The start-up process will then complete. Once the PC start-up
process is complete, reconnect iPod for normal operation.
If you are experiencing this issue on an HP or Compaq PC, please visit the
HP Support Web site at http://www.hp.com/support and go to your product
support page for the latest BIOS update for your PC. If you are experiencing this
issue on any other brand PC, check your PC manufacturer’s Web site for any
available PC software or BIOS updates.
57
Resetting iPod
Most problems with iPod can be solved by resetting it.
To reset iPod:
1 Connect iPod to a power outlet using the iPod Power Adapter.
2 Toggle the Hold switch on and off (set it to Hold, then turn it off again).
3 Press and hold the Select and Menu buttons for at least 6 seconds, until the Apple
logo appears.
Identifying Your PC USB Port Type
You can check what type of USB port your PC is using.
1 Click Start on the taskbar.
2 Click Control Panel.
3 Click Performance and Maintenance, if it is present.
4 Double-click System. The System Properties window opens.
5 Click the Hardware tab.
6 Click the Device Manager button. A list of device types appears. (If the list does
not display, click View and select the Devices by Type option.)
7 Click the + (plus) box next to the device type name for Universal Serial Bus (USB)
controllers (sometimes known as Human Interface Devices) to view the list of
device names.
8 If the USB type listed says USB Enhanced Host, then your PC has a USB 2.0 port.
USB 2.0 was introduced in 2001. PC models earlier than 2001 probably have
USB 1.1 ports. iPod does not support USB 1.1.
58
Tips and Troubleshooting
If Your iPod Won’t Turn On or Respond
• Make sure the Hold switch is off.
• If that doesn’t work, connect iPod to the iPod Power Adapter and connect the
adapter to a working electrical outlet. Your iPod battery may need to be
recharged.
• If that doesn’t work, your iPod may need to be reset (see above).
• If that doesn’t work, you may need to restore iPod software. See “iPod Software
Update and Restore” on page 65.
If You Want to Disconnect iPod, but the Screen Says
“Do not disconnect”
• If iPod is transferring music, wait for the transfer to complete.
• Select iPod in the iTunes Source list and click the Eject button.
• If iPod disappears from the iTunes Source list, but you still see the “Do not
disconnect” message on the iPod screen, go ahead and disconnect iPod.
• If iPod doesn’t disappear from the iTunes Source list, click the Safely Remove
Hardware icon in the system tray and select your iPod. If you still see the “Do
not disconnect” message, restart your PC and eject iPod again.
Tips and Troubleshooting
59
If Your iPod Isn’t Playing Music
• Make sure the Hold switch is off.
• If you’re using the optional iPod Remote, make sure the remote’s Hold switch
is off.
• Make sure the headphones connector is pushed in all the way.
• Make sure the volume is adjusted properly.
• If that doesn’t work, push the Play/Pause button. Your iPod may be paused.
• Make sure you are using iTunes 4.7 (included on the iPod CD) or later. Songs
purchased from the iTunes Music Store using earlier versions of iTunes won’t
play on iPod until you upgrade iTunes and transfer the songs.
• If you’re using the iPod Dock, be sure the iPod is seated firmly in the Dock and
make sure all cables are connected properly.
• If you are using the Dock Line Out port, make sure your external speakers or
stereo are turned on and working properly.
If You Connect iPod to Your PC and Nothing Happens
• Make sure you have installed the software from the iPod CD.
• Make sure you meet or exceed minimum system requirements. See “What You
Need to Get Started” on page 7.
• Your iPod may need to be reset (see page 58).
• Check the cable connections. Unplug the cable at both ends and make sure no
foreign objects are in the USB or FireWire ports. Then plug the cable back in
securely. Be sure the connectors on the cables are oriented correctly. They can
only be inserted one way.
60
Tips and Troubleshooting
• If you’re connecting iPod to a portable or notebook PC using the iPod Dock
Connector to USB 2.0 Cable, connect the PC to a power outlet before
connecting iPod.
• If that doesn’t work, restart your PC.
• If that doesn’t work, you may need to restore iPod software. See “iPod Software
Update and Restore” on page 65.
If You See a Folder With an Exclamation Point on the
iPod Display
• iPod may need to be reset (see page 58).
• If that doesn’t work, your iPod battery may need to be recharged. Connect iPod
to the iPod Power Adapter and connect the adapter to a working electrical
outlet. If you still see the folder, reset iPod again.
• If that doesn’t work, you may need to update or restore iPod with the latest
software. Be sure you have installed the software from the iPod CD, or go to
http://www.hp.com/go/music/update to get the latest software. Then follow
the instructions on page 65 to update or restore the iPod software.
Tips and Troubleshooting
61
If Songs or Data Transfer More Slowly Over USB 2.0
• If you transfer a large amount of songs or data using USB 2.0 and the iPod
battery is low, iPod goes into a power-saving mode. Transfer speeds slow down
considerably. This is normal.
• If you want to transfer at higher speeds, you can stop the transfer, eject the
iPod, and connect it to a power outlet using the iPod Power Adapter. Let iPod
charge for about an hour, then connect it to your PC again to transfer music.
If You Connect iPod to a USB Port and It Doesn’t
Work Correctly
• You must use a USB 2.0 port or a FireWire port to connect iPod. USB 1.1 is not
supported and is significantly slower than FireWire and USB 2.0. If your PC
doesn’t have a FireWire port or USB 2.0 port, you can purchase and install a
Windows-certified USB 2.0 card and install it. If you’re using a PC that doesn’t
have a high-power USB 2.0 port but has a 6-pin FireWire port, you can
connect iPod to a FireWire port using the optional iPod Dock Connector to
FireWire Cable, available at http://www.hpshopping.com/musicaccessories
• To charge the battery, you must connect iPod to a high-power USB 2.0 port on
your PC. Connecting iPod to a USB port on your keyboard will not charge the
battery.
• If your iPod is exceptionally low on power and you connect it to a USB 2.0
port, it may charge for up to 30 minutes before you can use it. Leave iPod
connected until it charges sufficiently.
• If you’re connecting iPod to a portable or notebook PC using the iPod Dock
Connector to USB 2.0 Cable, connect the PC to a power outlet before
connecting iPod.
62
Tips and Troubleshooting
If You Accidentally Set iPod to Use a Language You
Don’t Understand
You can reset the language.
1 Push Menu repeatedly until the main menu appears.
2 Select the fourth menu item (Settings).
3 Select the last menu item (Reset All Settings).
4 Select the second menu item (Reset) and select a language.
Other iPod settings, such as song repeat, are also reset.
Note: If you have added or removed items from the iPod main menu (see
page 48), the Settings menu may be in a different place.
If You Can’t Transfer Photos Directly From Your
Camera
• Be sure you have the iPod Camera Connector (available at
http://www.hpshopping.com/musicaccessories) and a USB digital camera.
• If your camera didn’t come with a USB cable, you’ll need to purchase one. See
the camera manufacturer’s Web site to find compatible cables.
• If photos aren’t transferring, be sure your camera is turned on and set to the
correct mode for importing photos into iPod. See the instructions provided with
your camera. Also be sure the cable is connected firmly to your camera and to
the camera connector.
Tips and Troubleshooting
63
If You Can’t See Photos on Your Television
• If you transferred photos directly from a camera or card reader to iPod, you
can’t see them in a slideshow on a TV. You must transfer photos from your
camera to your PC, then transfer them to iPod using iTunes.
• Be sure your television is set to display images from the correct input source (see
the documentation that came with your television for more information).
• Be sure all cables are connected correctly (see page 42).
• If you’re using the iPod AV Cable, be sure the yellow end is connected to the
video port on your television.
Note: Use RCA-type cables made specifically for iPod. Other similar cables
won’t work.
• On iPod, go to Photos > Slideshow Settings and set TV Out to On, then try
again.
• If that doesn’t work, on iPod, go to Photos > Slideshow Settings and set TV
Signal to PAL or NTSC, depending on which type of television you have. Try
both settings.
If You Want to Use Your iPod With a PC and a Mac
Once you have installed iPod on a PC, you can also use it on a Mac. Using it on
a Mac, replaces all the content that was loaded from your PC into your iPod with
the content you have on the Mac. The content you had on your PC iTunes
software remains intact. Using the Apple iPod from HP on a Mac is not supported
by HP.
64
Tips and Troubleshooting
iPod Software Update and Restore
iPod software is periodically updated to improve performance or add features. It
is recommended that you update your iPod to use the latest software.
You can choose either to update or to restore the iPod software.
• If you choose to update, the software is updated, but your settings and songs
are not affected.
• If you choose to restore, all data is erased from your iPod, including songs,
files, contacts, photos, calendar information, and any other data. All iPod
settings are restored to their original state.
To update or restore iPod with the latest software:
1 Go to http://www.hp.com/go/music/update and download the latest iPod
Update. The update has the latest software for all models of iPod.
2 Double-click the software install file and follow the onscreen instructions to install
the iPod Update.
3 Connect iPod to your PC and open iTunes. The iPod Updater application opens.
If the iPod Updater application doesn’t open automatically, you can find the
updater by choosing Start > All Programs > iPod.
Tips and Troubleshooting
65
4 Follow the onscreen instructions to update or restore iPod software.
If you use the iPod Updater application and it doesn’t see that iPod is connected
to your PC, reset iPod (see page 58).
If you want to restore iPod software and you don’t have an Internet connection,
you can use the iPod Updater application that was installed on your PC when you
installed the software from the iPod CD.
To restore iPod software using the iPod Updater application that
came on your iPod CD:
• You can find the iPod Updater application by choosing
Start > All Programs > iPod.
66
Tips and Troubleshooting
1
Learning More,
Service, and Support
There is more information about using iPod in
onscreen help and on the Web.
Onscreen Help
• To learn more about using iTunes, open iTunes and choose Help > iTunes and
Music Store Help.
Online Resources
For the latest information on iPod, go to http://www.hp.com/music
For iPod service and support information, go to
http://www.hp.com/support
To register iPod (if you didn’t do it when you installed software from the iPod CD),
go to http://register.hp.com. Please be sure to have your product number, model
number, and serial number handy.
For an online iTunes tutorial (available in some areas only), go to
http://www.apple.com/support/itunes
67
Obtaining Warranty Service
If the product appears to be damaged or does not function properly, please
follow the advice in this User’s Guide, the onscreen help, and the online
resources.
If the unit still does not function, go to your Warranty and Support Guide for
instructions on how to obtain warranty service.
Finding the Serial Number of Your iPod
The serial number is printed on the back of your iPod. You can also find it by
selecting Settings > About.
68
Learning More, Service, and Support
1
Safety and Cleaning
Read on to learn about using iPod safely and
cleaning iPod.
Important Safety Instructions
When setting up and using your iPod, remember the following:
• Read all the installation instructions carefully before you plug your iPod USB
Power Adapter in to a power outlet.
• Keep these instructions handy for reference by you and others.
• Follow all instructions and warnings dealing with your iPod.
Warning Electrical equipment may be hazardous if misused. Operation of this
product, or similar products, must always be supervised by an adult. Do not
allow children access to the interior of any electrical product and do not permit
them to handle any cables.
69
Avoid Hearing Damage
Warning Permanent hearing loss may occur if earbuds or headphones are
used at high volume. You can adapt over time to a higher volume of sound,
which may sound normal but can be damaging to your hearing. Set your iPod
volume to a safe level before that happens. If you experience ringing in your
ears, reduce the volume or discontinue use of your iPod.
Do Not Use Headphones While Driving
Important: Use of headphones while operating a vehicle is not recommended
and is illegal in some areas. Be careful and attentive while driving. Stop listening
to your iPod if you find it disruptive or distracting while operating any type of
vehicle or performing any other activity that requires your full attention.
Connectors and Ports
Never force a connector into a port. If the connector and port do not join with
reasonable ease, they probably don’t match. Make sure that the connector
matches the port and that you have positioned the connector correctly in relation
to the port.
70
Safety and Cleaning
Using the Power Adapter
• Use only the power adapter that came with your iPod. Adapters for other
electronic devices may look similar, but they may damage your iPod.
• The only way to shut off power to your power adapter completely is to
disconnect it from the power source.
• Always leave space around your power adapter. Do not use this equipment in a
location where airflow around the power adapter is confined, such as a
bookcase.
• When connecting or disconnecting your power adapter, always hold the power
adapter by its sides. Keep fingers away from the metal part of the plug.
• Before connecting the USB cable to the power adapter, make sure there are no
foreign objects inside the power adapter’s USB port.
• The power adapter for your iPod is a high-voltage component and should not
be opened for any reason, even when the iPod is off. If the power adapter
needs service, see “Learning More, Service, and Support” on page 67.
• Never force a connector into the power adapter USB port. If the connector and
port do not join with reasonable ease, they probably don’t match. Make sure
that the connector matches the port and that you have positioned the connector
correctly in relation to the port.
Safety and Cleaning
71
About Operating and Storage Temperatures
• Operate your iPod in a place where the temperature is always between
0º and 35º C (32º to 95º F).
• Store your iPod in a place where the temperature is always between
–20º and 45º C (–4º to 113º F). Don’t leave iPod in your car, since
temperatures in parked cars can exceed this range.
• iPod play time may temporarily shorten in low-temperature conditions.
• When you’re using your iPod or charging the battery, it is normal for the bottom
of the case to get warm. The bottom of the iPod case functions as a cooling
surface that transfers heat from inside the unit to the cooler air outside.
Avoid Wet Locations
Warning To reduce the chance of shock or injury, do not use your iPod in or
near water or wet locations.
• Keep your iPod and power adapter away from sources of liquids, such as
drinks, washbasins, bathtubs, shower stalls, and so on.
• Protect your iPod and the power adapter from direct sunlight and rain or other
moisture.
• Take care not to spill any food or liquid on iPod or its power adapter. If you do,
unplug iPod before cleaning up the spill.
In case of a spill, you may have to send your equipment to HP for service. See
“Learning More, Service, and Support” on page 67.
72
Safety and Cleaning
Do Not Make Repairs Yourself
Warning Do not attempt to open your iPod or power adapter, disassemble it,
or remove the battery. You run the risk of electric shock and voiding the limited
warranty. No user-serviceable parts are inside.
For service, see “Learning More, Service, and Support” on page 67.
Cleaning
Follow these general rules when cleaning the outside of your iPod and its
components:
• Make sure your iPod is unplugged.
• Use a damp, soft, lint-free cloth. Avoid getting moisture in openings.
• Don’t use aerosol sprays, solvents, alcohol, or abrasives.
About Handling
Your iPod may be damaged by improper storage or handling. Be careful not to
drop your iPod when playing or transporting the device.
Safety and Cleaning
73
Communications Regulation Information
FCC Compliance Statement
This device complies with part 15 of the FCC
rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation. See instructions if interference to
radio or television reception is suspected.
Radio and Television Interference
This PC equipment generates, uses, and can
radiate radio-frequency energy. If it is not
installed and used properly — that is, in strict
accordance with HP’s instructions — it may
cause interference with radio and television
reception.
This equipment has been tested and found to
comply with the limits for a Class B digital
device in accordance with the specifications
in Part 15 of FCC rules. These specifications
are designed to provide reasonable
protection against such interference in a
residential installation. However, there is no
guarantee that interference will not occur in a
particular installation.
74
You can determine whether your PC system is
causing interference by turning it off. If the
interference stops, it was probably caused by
the PC or one of the peripheral devices.
If your PC system does cause interference to
radio or television reception, try to correct
the interference by using one or more of the
following measures:
• Turn the television or radio antenna until
the interference stops.
• Move the PC to one side or the other of the
television or radio.
• Move the PC farther away from the
television or radio.
• Plug the PC in to an outlet that is on a
different circuit from the television or radio.
(That is, make certain the PC and the
television or radio are on circuits controlled
by different circuit breakers or fuses.)
If necessary, consult an HP-authorized service
provider or HP. See the service and support
information that came with your HP product.
Or, consult an experienced radio/television
technician for additional suggestions.
Important: Changes or modifications to
this product not authorized by
Hewlett-Packard Company could void the
EMC compliance and negate your authority
to operate the product.
This product was tested for EMC compliance
under conditions that included the use of HP
peripheral devices and HP shielded cables
and connectors between system components.
It is important that you use HP peripheral
devices and shielded cables and connectors
between system components to reduce the
possibility of causing interference to radios,
television sets, and other electronic devices.
You can obtain HP peripheral devices and
the proper shielded cables and connectors
through an HP Authorized Reseller. For
non-HP peripheral devices, contact the
manufacturer or dealer for assistance.
Responsible party (contact for FCC matters
only):
Hewlett-Packard Company
P.O. Box 4010
Cupertino, CA 95015-4010, USA
Industry Canada Statement
This Class B device meets all requirements of
the Canadian interference-causing equipment
regulations.
Cet appareil numérique de la classe B
respecte toutes les exigences du Règlement
sur le matériel brouilleur du Canada.
VCCI Class B Statement
European Community
Complies with European Directives
72/23/EEC and 89/336/EEC.
75
Battery
Your iPod contains a battery. Dispose of iPod
according to your local environmental laws
and guidelines.
HP and the Environment
At HP, we recognize our responsibility to
minimize the environmental impacts of our
operations and products.
Taiwan:
For more information, go to
http://www.hp.com
Nederlands: Gebruikte batterijen kunnen
worden ingeleverd bij de chemokar of in een
speciale batterijcontainer voor klein chemisch
afval (kca) worden gedeponeerd.
76
1
Index
Numerics
3.5 mm stereo miniplug to dual RCA-type
connector cable 43
A
AA file format 27
AAC file format 27
AC plug adapter 54
AIFF file format 27
alarm 51
album art
displaying 19
album artwork
viewing 19
Apple Lossless file format 27
audio file format
AA 27
AAC 27
AIFF 27
Apple Lossless 27
converting 27
formats not supported 27
MP3 27
MP3 Variable Bit Rate 27
WAV 27
audiobooks 32
AV Cable 42
AV port 42
B
backlight 47
off 47
on 47
turning off 15
turning on 15
77
battery
charge time 52
charging 9, 52
charging on your PC 53
charging with iPod Power
Adapter 54
disposing 76
icons 53
states 55
browsing for music 26
browsing for songs 12
buying music 10
C
camera 36
charging the battery 9
cleaning 73
click wheel
setting sound 46
clock 48
connecting 20
connecting to a different PC 21
D
78
disabling
buttons 17
disabling buttons 15
disconnecting 20
disconnecting cable 12
disconnecting message 22
displaying album art 19
Dock 23
about 24
connector port 24
iPod connector 24
Line Out port 24, 42, 43
S-video Out port 24
S-video port 43
using 25
volume control 25
downloading songs 10
E
earphones 8, 56
ejecting 22
equalizer 47
external hard disk 49
date
F
setting 48
viewing 48
deleting playlists 31
deleting songs 31
fast-forwarding 16
file format 27
FireWire card 7
Index
G
games 52
getting started 5
H
handling 73
hard disk 49
headphones 56
using 70
hearing damage
avoiding 70
Help 67
hold switch 17
I
importing photos 37
installing software 10
iPod
AV port 42
connecting 20
connecting to a television 42
disconnecting 12, 21
disconnecting cable 22
disconnecting from a dock 22
ejecting 22
features 6
headphone port 42
Index
main menu, adding 48
main menu, removing 48
resetting 15
S-video, connecting 43
turning off 15
turning on 15
using as external hard disk 49
iPod Camera Connector 36
iPod Dock 23
iPod Dock Connector to USB 2.0 Cable 8
iPod USB Power Adapter 8
iTunes
about 25
preventing automatically opening 50
iTunes music store 26
iTunes version 7
L
language, selecting 48
left sound input port 42
Line Out port 42, 43
M
menu
selecting 14, 15
MP3 file format 27
79
N
notes
reading 51
storing 51
NTSC television broadcast 41
O
online resources 67
On-The-Go playlists
adding a song 16
clearing 18
creating 18
playing 18
removing songs 18
saving on iPod 18
transferring 19
P
PAL television broadcast 41
pausing 15
photo card reader 36
photos
erasing 39
importing 37
number of stored 33
scrolling through 16
selected transfer 34
80
Index
skipping 16
starting a slideshow 16
storing 38
transferring 34
from a camera 36
from a folder 34
from a photo card 36
full-resolution image files 35
viewing 38, 40
playing a list 15
playing songs 12
playlists
about 27
about smart playlists 28
creating 28
creating on iPod 32
creating Smart Playlist 28
deleting 31
modifying on iPod 32
On-The-Go, see “On-The-Go
playlists” 18
transferring automatically 29
transferring manually 31
power adapter 54
using 71
purchasing music 10, 26
R
recording
voice memos 52
registering 67
regulation information 74
repairing 73
repeating songs 45
resetting iPod 15, 58
rewinding 16
right sound input port 42
S
safety information 69
serial number 68
setting slideshows 40
shuffling songs 44
sleep timer 50
slideshow
settings 40
skipping 16
starting 16
viewing 41
viewing on a television 44
Smart Playlists 28
software
installing 10
software updates 65
Index
songs
browsing 15
deleting 31
fast-forwarding 16
number of stored 33
pausing 15
playing 15
playing a list 15
playing in random order 44
playing previous 16
queueing 18
rating 19
repeating 45
rewinding 16
selecting 12
shuffling 44
skipping 16
starting over 16
transferring automatically 29
transferring manually 31
volume level, setting 46
speakers
connecting 25
external powered 24
home stereo 24
81
spoken word audio 32
setting the reading speed 32
stored photos 33
stored songs 33
supported file formats 27
S-video
connecting 43
S-video input port 43
S-video Out port 43
T
television
audio ports 42
broadcast standards 41
connecting to an iPod 42
RCA video 42
S-video port 42
viewing a slideshow 44
temperature
operating 72
storing 72
time
displaying 48
setting 48
viewing 48
82
Index
tips 57
transferring music 10, 29
automatically setting 29
from a CD 10
manually setting 31
select songs 30
to iPod 11
transferring photos 34
from a camera 36
from a folder 34
from a photo card 36
full-resolution image files 35
selected 34
to a PC 39
troubleshooting 57
“Do not disconnect” message 59
exclamation point on folder 61
language not recognizable 63
music not playing 60
not responding 59
photos not appearing 64
slow transfer 62
USB port connection 62
turning off 15
turning on 13, 15
U
USB
2.0 card 7
2.0 port 11
V
video input port 42
viewing album art 20
viewing photos 40
voice memos
recording 52
volume
level 15
W
warranty service 68
WAV file format 27
Index
83
http://www.hp.com/music
http://www.hp.com/support
Printed in China
034-3223-A
Download PDF

advertising
