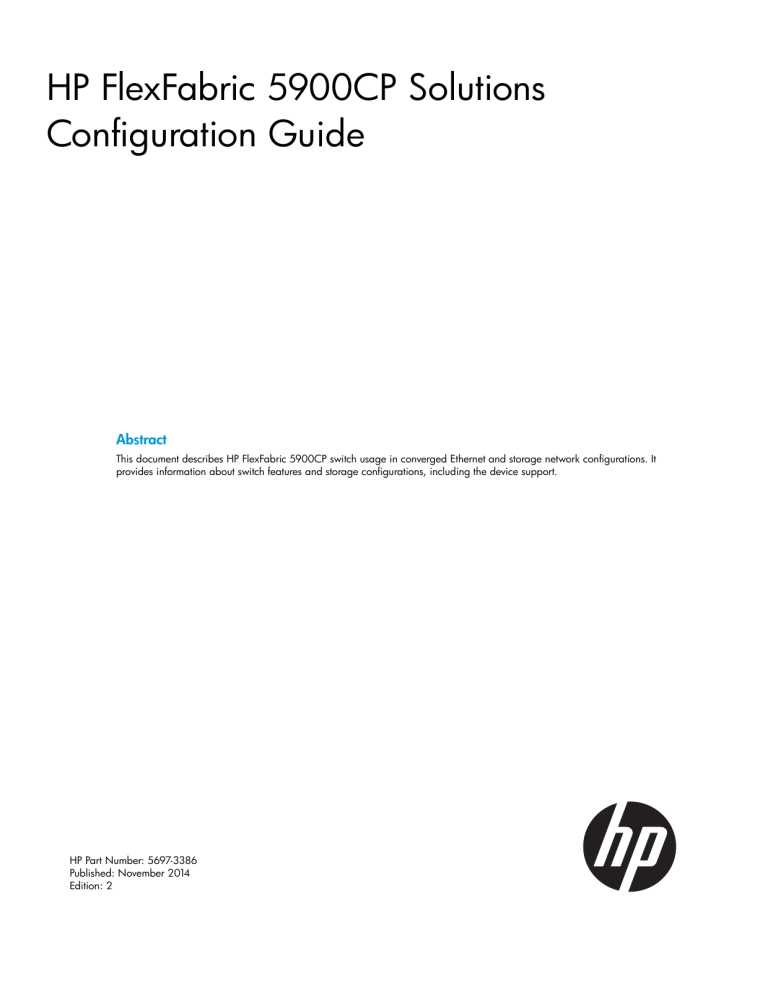

HP FlexFabric 5900CP Solutions

Configuration Guide

Abstract

This document describes HP FlexFabric 5900CP switch usage in converged Ethernet and storage network configurations. It provides information about switch features and storage configurations, including the device support.

HP Part Number: 5697-3386

Published: November 2014

Edition: 2

© Copyright 2014, Hewlett-Packard Development Company, L.P.

Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with FAR 12.211 and 12.212, Commercial

Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under vendor's standard commercial license.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Contents

1 HP FlexFabric 5900CP switch overview.........................................................4

Features and benefits................................................................................................................4

HP FlexFabric 5900CP network architectures................................................................................5

2 Port types and switch modes........................................................................7

Port types................................................................................................................................7

Switch modes...........................................................................................................................7

3 Storage use-cases.......................................................................................9

4 IRF usage with storage..............................................................................20

5 c-Class BladeSystem interconnects...............................................................24

6 HP FlexFabric 5900CP Storage Network Support.........................................25

HP FlexFabric 5900CP Operating System Support with Storage....................................................25

HP FlexFabric 5900CP CNA/HBA Support................................................................................25

HP FlexFabric NPV Switch Support............................................................................................26

HP FlexFabric HP Storage System Support..................................................................................27

7 Software and Firmware update process.......................................................28

8 Management Software..............................................................................29

Using the CLI.........................................................................................................................29

IMC Management software......................................................................................................30

A HP FlexFabric 5900CP system architecture considerations..............................31

B Support information..................................................................................34

C HP FlexFabric 5900CP switch configuration file............................................36

Glossary....................................................................................................43

Contents 3

1 HP FlexFabric 5900CP switch overview

The HP FlexFabric 5900CP switch is a multipurpose converged L2/L3 switch with 48 converged ports and four 40 GbE QSFP+ ports. This switch provides seamless integration of lossless 10GbE networks into server-edge environments and core environments through FCoE, DCB, Fibre Channel, and many other Ethernet network protocols. It is a full featured switch and a software license is not required. When coupled with the HP StoreFabric converged optical transceiver, it provides wire-once capability for 10GbE/FCoE and 8 Gb or 4 Gb Fibre Channel.

Figure 1 HP FlexFabric 5900CP front (port) and rear (power) view

4

The 5900 switch family is supported for use as standard Ethernet switches in HP Networking

Ethernet networks and as DCB Ethernet switches for converged environments with Ethernet/FCoE and iSCSI connectivity. It provides native Fibre Channel and FCoE full-featured connectivity and can be used as a gateway to other HP Fibre Channel switch series fabrics using NPV (N_Port virtulization).

The HP 5900 family series members can be common members of an IRF (Intelligent Resilient

Framework) domain to simplify management by combining multiple physical switches into one virtual switch. An IRF fabric appears as one node or virtual switch and is accessible as a single IP address on the network. You can use this IP address to log in at any member device to manage all the members of the IRF domain.

Features and benefits

The HP FlexFabric 5900CP switch provides the following features:

Ethernet/FCoE support on 10GbE converged ports and 40GbE ports

Fibre Channel 8Gb/4Gb/2Gb support on any of the 48 converged ports

DCB/FCoE-FCF/NPV/TRILL/IPv6 support (QCN ready)

Forty-eight converged ports that can use a single transceiver which supports 10GbE/FCoE or

8Gb/4Gb Fibre Channel

FCoE/FC NPV gateway support

Dual-hop support with Virtual Connect blade switches and the HP 6125-XLG

Multi-hop support using FCoE VE_Port (7 hops) or Fibre Channel E_Port (3 hops) ISLs (inter-switch links)

5900 Series IRF support (up to nine switches per domain with Ethernet, two switches per domain with storage)

• iSCSI support

Front-to-back or back-to-front airflow

Comware OS version 7.1

HP FlexFabric 5900CP switch overview

No additional feature licenses. The following four switch modes are available:

Standard —Configurable DCB switch

FCF —FC/FCoE initiator; target; FlexFabric SAN switch; F, VF, VE, and E port connectivity

(4K zones); FSPF

NPV —Gateway for FC/FCoE multi-vendor connectivity

Transit —FIP-snooping DCB aggregation switch

1.28 Tb/s switching capacity

952.32 Million PPS throughput, integrated 9 MB packet buffer

10GbE cut-through latency < 1.5 µs (64Byte packets)

CLI and iMC/VAN/VFM (Intelligent Management Center) fabric management

HP IIIAS (Intelligent Infrastructure Analyzer Software) support

L2/L3, IPv4/IPv6 dual stack, TRILL, VEPA

Cloud and SDN ready (OpenFlow 1.3.1 support)

Figure 2 (page 5)

describes the major components and the ports of the HP FlexFabric 5900CP switch. The front view shows the 48 converged ports and the four 40GbE ports.

The switch supports two pluggable fan trays and two AC power supplies for redundancy. Two options are available for fan trays, front-to-back airflow or back-to-front airflow.

Figure 2 HP FlexFabric 5900CP components and ports

HP FlexFabric 5900CP network architectures

The HP FlexFabric 5900CP switch can be utilized in the following environments:

A traditional Ethernet network switch for Ethernet data

A converged network switch in environments that support Ethernet and FCoE for storage data

A native Fibre Channel fabric switch for storage data

In a converged environment, the HP FlexFabric 5900CP switch is typically configured as a ToR switch connecting to a LAN and a SAN.

LAN connectivity is made through any of the 48 converged ports configured as 10GbE ports or the 40GbE ports for a total of up to 64 10GbE ports.

SAN connectivity is made through any of the 48 converged ports configured as 10GbE/FCoE ports or configured as 8/4/2 Gb Fibre Channel ports. When configured as FCoE ports, the converged ports support device connectivity (VF_Port) or switch connectivity using inter-switch links

HP FlexFabric 5900CP network architectures 5

(ISLs) (VE_Ports) to other 5900CP or 5900AF switches, the 6125XLG, or via NPV (VNP_Ports) to other HP FCoE switches that support NPIV. When configured as Fibre Channel ports, the converged ports support device connectivity (F_Port) or switch connectivity via inter-switch links (ISLs) (E_Ports) to other 5900CP switches, or via NPV (NP_Ports) to other HP Fibre Channel switches that support

NPIV.

6 HP FlexFabric 5900CP switch overview

2 Port types and switch modes

To support LAN and SAN environments, the HP FlexFabric 5900CP switch utilizes multiple port types and switch modes.

Port types

The HP FlexFabric 5900CP switch supports multiple port types.

Table 1 (page 7)

lists the port types supported.

Table 1 Supported HP FlexFabric 5900CP port types

Ethernet Port Types

Access/Tagged-trunk 10GbE/40GbE ports used for Ethernet data

FCoE Port Types

VF_Port: Virtual F_Port (FCoE switch to FCoE target/initiator)

VE_Port: Virtual E_Port (FCoE switch to FCoE switch)

VNP_Port: FCoE NPV switch port (FCoE switch to FCoE switch as a proxy)

FC Port Types

F_Port: Fabric port (switch to FC target/initiator)

E_Port: Expansion port (switch to switch ISL)

NP_Port: NPV switch port (FC switch to FC switch as a proxy)

Switch modes

The HP FlexFabric 5900CP switch supports four operating modes. Standard mode is the default mode. FCF, NPV, and Transit modes are advanced modes.

1.

Standard (Non-FCoE) Mode —When a switch operates in this mode, it is a standard DCB/

Ethernet switch and does not provide any FCoE/FC capabilities.

Ethernet connectivity

HP FlexFabric 5900CP 10GbE/40GbE ports for Ethernet data (access/tagged-trunk).

2.

FCF (Fibre Channel Forwarder) —When a switch operates in this mode, it is called as an FCF switch. In this mode, the following HP FlexFabric 5900CP converged port connections are available:

Ethernet connectivity

HP FlexFabric 5900CP 10GbE/40GbE ports for Ethernet data (access/tagged-trunk).

Fibre Channel

HP FlexFabric 5900CP F_Port to an N_Port on a node.

HP FlexFabric 5900CP (NPIV) F_Port to an NP_Port on an NPV switch or module.

HP FlexFabric 5900CP E_Port to an E_Port on another HP FlexFabric 5900CP FCF switch.

Port types 7

FCoE

HP FlexFabric 5900CP VF_Port to a VN_Port on a node.

HP FlexFabric 5900CP (NPIV) VF_Port to a VNP_Port on an NPV switch or module.

HP FlexFabric 5900CP VE_Port to the VE_Port on another HP FlexFabric 5900CP, HP

5900AF, HP 6125XLG, or other FCF capable HP Networking switch or switches.

If the primary mode of the HP FlexFabric 5900CP switch is set to FCF, the converged ports can be set to F_Port or E_Port, but cannot be set to NP_Port. For FCoE, the ports can be set to VF_Port or VE_Port, but cannot be set to VNP_Port.

3.

NPV/Gateway Mode —When a switch operates in this mode, it is called as an NPV (N_Port

Virtualizer) switch. In this mode, the following HP FlexFabric 5900CP converged port connections are available:

Ethernet connectivity

HP FlexFabric 5900CP 10GbE/40GbE ports for Ethernet data (access/tagged-trunk).

Fibre Channel

HP FlexFabric 5900CP F_Port to an N_Port on a node.

HP FlexFabric 5900CP NP_Port to an F_Port on an FCF (NPIV) switch.

HP FlexFabric 5900CP (NPIV) F_Port to an NP_Port on an NPV switch or module.

FCoE

HP FlexFabric 5900CP VF_Port to a VN_Port on a node.

HP FlexFabric 5900CP VNP_Port to a VF_Port on an FCF (NPIV) switch.

HP FlexFabric 5900CP (NPIV) VF_Port to a VNP_Port on an NPV switch or module.

If the primary mode of the HP FlexFabric 5900CP switch is set to NPV, the converged ports can be set to F_Port or NP_Port, but cannot be set to E_Port. For FCoE, the ports can be set to VF_Port or VNP_Port, but cannot be set to VE_Port.

4.

Transit Mode —When a switch operates in this mode, it is called as a Transit switch. A switch operating in this mode can restrict its Ethernet interface only to receiving traffic from an eNode or FCF switch. This is achieved by configuring the interface to operate in eNode mode or FCF mode. Fibre Channel is not supported in this mode. When a switch is configured in Transit mode, it always enables FIP snooping. VF_Port traffic is allowed, however, VE_Port traffic is blocked.

NOTE:

After changing to any one of the advanced modes and saving the configuration, you must reboot the switch, then implement the port configurations.

<HP>system-working-mode {advance standard}

<HP>fcoe-mode {fcf npv transit}

[confirmation]

[mode changed]

<HP>save

<HP>reboot

8 Port types and switch modes

3 Storage use-cases

The HP FlexFabric 5900CP switch supports several converged Ethernet/FCoE and Fibre Channel storage configurations. To simplify understanding and implementation of these configurations, a set of use-case topology designs are defined. The use-cases describe recommended ways to use the HP FlexFabric 5900CP switch, switch modes, and port types in different server-storage deployment scenarios. Some of the use-cases show multiple types of connectivity within the same configuration. This is meant to show the different connection options available. Your design might use one or more of these options, but not necessarily all as shown.

HP recommends that all storage configurations implement dual-redundant fabrics for high availability.

All HP FlexFabric 5900CP switch use-cases for storage described here implement dual-redundant fabrics for high availability.

NOTE:

The IRF feature of the HP FlexFabric 5900CP switch can be implemented in dual-redundant fabric designs with storage, but has implications that must be considered. For more information about using IRF in a storage configuration, see

“IRF usage with storage” (page 20)

Figure 3 (page 9)

provides three major, single-tier use-case scenarios, each describing a different implementation based on the hardware being utilized for servers and storage. All use-cases show a single layer or single tier of HP FlexFabric 5900CP switches, also referred as East-West fabric topology, with variations for use-case 2 and use-case 3. Use-case 2 shows dual-hop on the server side and use-case 3 shows additional fabric connectivity on the storage side to other HP Fibre

Channel/FCoE switch series fabrics via 5900CP NPV gateway mode.

Figure 11 (page 16)

through

Figure 14 (page 19)

describe HP FlexFabric 5900CP multi-hop or cascaded switch use-cases. For all multi-hop configurations using the HP FlexFabric 5900CP in

FCF mode, HP supports up to seven hops for FCoE, and up to three hops for Fibre Channel. For

NPV mode, HP supports a total of seven hops between any two devices in the 5900CP fabric and the legacy Fibre Channel fabric connected via NPIV.

Figure 3 HP FlexFabric 5900CP major, single-tier use-case scenarios

Table 2 (page 10)

describes the HP FlexFabric 5900CP use-cases. The items listed in the variant column are links to the figures which describe the variant connectivity options in detail.

9

Table 2 HP FlexFabric 5900CP use-cases

Major SAN Fabric

Use-Case Variant

#1 Single-Tier

Fabric, Rack

Servers

#2 Single-Tier

Fabric, Blade

System

#3 Single-Tier

Fabric, NPV

Gateway

1A: Rack Server, FCoE Storage

1B: Rack Server, FC Storage

2A: BladeSystem Dual-hop, FCoE Storage

2B: BladeSystem FC/FCoE, FC Storage

3A: Rack Server, FC NPV Gateway, FC Storage

Server Connect

Rack/CNA

Rack/CNA/HBA

Blade/VC

Blade/FC

Native FCoE

Native FC

Native FCoE

Native FC

Rack/CNA/HBA FC via B/C/H

FC Switch

3B: BladeSystem, FC NPV Gateway, FC Storage

Blade/VC

3C: Rack/BladeSystem, FCoE NPV Gateway

Storage Connect

Rack/CNA/HBA

Blade/VC/FC

FC/FCoE via

Cisco Nexus

55xx FCoE

Switch

5900CP

Switch Mode

FCF

NPV

Gateway

#4 Multi-hop

Fabric, Rack

Servers

#5 Multi-hop

Fabric, Blade

Servers

#6 Multi-hop

Fabric, NPV

Gateway

Storage Fabric

IRF

Configurations

4A: Rack Server, FCoE Storage

4B: Rack Server, FC Storage

5A: BladeSystem, FCoE Storage

5B: BladeSystem FC/FCoE, FC Storage

For all HP FlexFabric 5900CP NPV mode configurations, HP supports a maximum of seven hops between any two devices in the 5900CP fabric and the legacy Fibre Channel fabric connected via NPV/NPIV.

Applies to all Use-Cases above

Rack/CNA Native FCoE

Rack/CNA/HBA Native FC

Blade/VC

Blade/FC

Rack/CNA/HBA

Blade/VC/FC

Rack/CNA/HBA

Blade/VC/FC

Native FCoE

Native FC

FC via B/C/H

FC Switch

FC/FCoE via

Cisco Nexus

55xx FCoE

Switch

Rack/CNA/HBA

Blade/VC/FC

Native FCoE,

FC

FCF

NPV

Gateway

FCF, NPV

NOTE:

For enhanced availability during incompatible Comware updates, multi-hop configurations should avoid configuring IRF on the last hop 5900 switches when these switches are connected to storage devices.

10 Storage use-cases

Figure 4 HP FlexFabric 5900CP FCF Use-Case 1A

FCoE Storage

LAN

IRF

Expand switches horizontally as required

VF_Port

IRF*

Server/CNA

Figure 5 HP FlexFabric 5900CP FCF Use-Case 1B

VN_Port

VN_Port

VF_Port

5900CP FCF

FCoE

Converged Ethernet/FCoE

Native Ethernet

FCoE

IRF* between 5900CP’s

(optional)

5900CP1A

FC Storage

LAN

IRF

Expand switches horizontally as required

F_Port

IRF*

N_Port

N_Port

F_Port

5900CP FCF

FCoE/FC

Server/CNA Server/HBA

Converged Ethernet/FCoE

Native FC

Native Ethernet

IRF* between 5900CP’s

(optional)

5900CP1b

11

Figure 6 HP FlexFabric 5900CP FCF Use-Case 2A

FCoE Storage

LAN

IRF

Expand switches horizontally as required

VF_Port

IRF*

VN_Port

VN_Port

VF_Port

5900CP FCF

FCoE

Converged Ethernet/FCoE

Native Ethernet

FCoE

IRF* between 5900CP’s or 6125XLGs (optional)

Blade Server/CNA Blade Server/CNA

5900CP2A

Converged Ethernet/FCoE server connection options (Use-case 2A):

Virtual Connect 20/40 F8

Virtual Connect Flex - 10/10D, FCoE

6125XLG, FCoE (NPV)

Virtual Connect FlexFabric 10Gb/24–Port (8Gb FC, 10GbE FCoE/Ethernet)

12 Storage use-cases

Figure 7 HP FlexFabric 5900CP FCF Use-Case 2B

FC Storage

LAN

IRF

Expand switches horizontally as required

F_Port

IRF*

N_Port

N_Port

F_Port

5900CP FCF

FCoE/FC

Converged Ethernet/FCoE

Native FC

Native Ethernet

IRF* between 5900CP’s or 6125XLGs (optional)

Blade Server/CNA Blade Server/CNA or HBA

5900CP2b

Converged or Native FC server connection options (Use-case 2B):

Virtual Connect 20/40 F8

Virtual Connect Flex - 10/10D, FCoE

Virtual Connect FlexFabric 10Gb/24–Port (8Gb FC, -10GbE FCoE/VC)

Virtual Connect 8Gb 24-Port Fibre Channel Module for c-Class BladeSystem (Brocade)

Virtual Connect 8Gb 20-port Fibre Channel Module for c-Class BladeSystem

Blade Switch: HP 6125XLG, Ethernet/FCoE (6125XLG in NPV mode)

Blade Switch: HP 8/24c SAN Switch (Brocade, Access Gateway mode)

Blade Switch: MDS 8Gb 24-port Switch (Cisco, NPV/NPIV enabled)

13

Figure 8 HP FlexFabric 5900CP NPV Use-Case 3A

FC Storage

Expand switches horizontally as required

LAN

IRF

NP_Port

IRF*

Fabric-A

F_Port

Fabric-B

F_Port

NP_Port

5900CP NPV

FCoE/FC

N_Port

N_Port

Fabric-A, Fabric-B

HP 5900CP, HP Brocade,

Cisco, or QLogic FC Switches

Converged Ethernet/FCoE

Native FC

Native Ethernet

IRF* between 5900CP’s

(optional)

5900CP3A

Server/HBA Server/CNA

Figure 9 HP FlexFabric 5900CP NPV Use-Case 3B

FC Storage

LAN

IRF

Expand switches horizontally as required

NP_Port

IRF*

Blade Server/CNA or HBA

Fabric-A

F_Port

Fabric-B

F_Port

NP_Port

5900CP NPV

FCoE/FC

N_Port

N_Port

Fabric-A, Fabric-B

HP 5900CP, HP Brocade,

Cisco, or QLogic FC Switches

Blade Server/CNA

Converged Ethernet/FCoE

Native FC

Native Ethernet

IRF* between 5900CP’s or 6125XLGs (optional)

5900CP3B

14 Storage use-cases

Converged or Native FC server connection options (Use-cases 3A and 3B):

Virtual Connect 20/40 F8

Virtual Connect Flex - 10/10D, FCoE

Virtual Connect FlexFabric 10Gb/24–Port (8Gb FC, -10GbE FCoE/VC)

Virtual Connect 8Gb 24-Port Fibre Channel Module for c-Class BladeSystem (Brocade)

Virtual Connect 8Gb 20-port Fibre Channel Module for c-Class BladeSystem

Blade Switch: HP 6125XLG, Ethernet/FCoE (6125XLG in NPV mode)

Blade Switch: HP 8/24c SAN Switch (Brocade, Access Gateway mode)

Blade Switch: MDS 8Gb 24-port Switch (Cisco, NPV/NPIV enabled)

Figure 10 HP FlexFabric 5900CP NPV Use-Case 3C

FC Storage

LAN

Expand switches horizontally as required

IRF

VNP_Port

IRF*

Cisco Nexus

55xx FCoE/FC

VF_Port

Fabric-A

VF_Port

Fabric-B

N_Port

N_Port

Cisco Nexus

55xx FCoE/FC

VNP_Port

5900CP NPV

FCoE

Converged Ethernet/FCoE

Native FC

Native Ethernet

FCoE

IRF* between 5900CP’s or 6125XLGs (optional)

Blade Server/CNA Blade Server/CNA

Converged Ethernet/FCoE server connection options (Use-case 3C):

Virtual Connect Flex - 10/10D, FCoE

6125XLG, FCoE (6125XLG in NPV mode)

Virtual Connect FlexFabric 10Gb/24–Port (8Gb FC, 10GbE FCoE/Ethernet)

5900CP3D

15

Figure 11 HP FlexFabric 5900CP FCF Maximum FCoE Hop Count Use-Case 4A

FCoE

Storage

7

8

VF_Port

VN_Port

LAN

1

Expand switches horizontally as required.

4

3

2

VE_Port

IRF*

5

6

VE _Ports

VE _Ports

3

4

VN_Port

VF_Port

8

7

6

5

Expand switches vertically as required, up to 8 switches

(7 hops) total: each hop optionally an IRF pair

Rack Server/CNA

1

VE_Port

2

Rack Server/CNA

Converged Ethernet/FCoE

Native Ethernet

FCoE

IRF* between hop pairs

of 5900CP’s

(Optional, Ethernet connection only)

5900CP4A

16 Storage use-cases

Figure 12 HP FlexFabric 5900CP FCF Maximum FC Hop Count Use-Case 4B

LAN

Rack Server/CNA

1

Rack Server/HBA

FC

Storage

Expand switches horizontally as required.

4

3

2

F_Port

E_Ports

E_Port

E_Ports

IRF*

N_Port

N_Port

1

E_Port

5900CP FCF

Native FC

2

3

F_Port

4

Expand switches vertically as required, up to 4 switches

(3 hops) total; each hop optionally an IRF pair

Converged Ethernet/FCoE

Native FC

Native Ethernet

FCoE

IRF* between hop pairs of 5900CP’s

(Optional, Ethernet connection only)

5900CP4B

17

Figure 13 HP FlexFabric 5900CP FCF Maximum FCoE Hop Count Use-Case 5A

FCoE

Storage

VN_Port

8 VN_Port

LAN

VE_Ports

1

2

VE_Port

Expand switches horizontally as required.

5

4

3

Blade Server/CNA

IRF*

VE_Port

2

5900CP FCF

Native FCoE

1

Blade Server/CNA

6

7

VF_Port

VF_Port

VE _Ports

3

VE _Ports

4

8

7

6

5

Expand switches vertically as required, up to 8 switches

(7 hops) total, including

6125XLG or VC Flex-10/10D.

Each hop pair optionally

IRF, except VC-Flex modules.

Converged Ethernet/FCoE

Native Ethernet

FCoE

IRF* between hop pairs of 5900CPs or 6125XLGs

(Optional, Ethernet connection only)

5900CP5A

Converged Ethernet/FCoE server connection options (Use-case 5A):

Virtual Connect 20/40 F8

Virtual Connect Flex - 10/10D, FCoE

6125XLG, FCoE (NPV or FCF)

18 Storage use-cases

Figure 14 HP FlexFabric 5900CP FCF Maximum FC Hop Count Use-Case 5B

LAN

1

E_Port

Expand switches horizontally as required.

4

3

2

F_Port

E_Ports

E_Ports

Blade Server/CNA

IRF*

Blade Server/CNA/HBA

E_Port

1

5900CP FCF

Native FC

2

N_Port

FC

Storage

N_Port

3

F_Port

4

Expand switches vertically as required, up to 4 switches

(3 hops) total; each hop optionally an IRF pair

Converged Ethernet/FCoE

Native FC

Native Ethernet

FCoE

IRF* between 5900CP’s

(Optional, Ethernet connection only)

5900CP5B

Converged or Native FC server connection options (Use-case 5B):

Virtual Connect 20/40 F8

Virtual Connect Flex - 10/10D, FCoE

Virtual Connect FlexFabric 10Gb/24–Port (8Gb FC, -10GbE FCoE/VC)

Virtual Connect 8Gb 24-Port Fibre Channel Module for c-Class BladeSystem (Brocade)

Virtual Connect 8Gb 20-port Fibre Channel Module for c-Class BladeSystem

Blade Switch: HP 6125XLG, Ethernet/FCoE (6125XLG in NPV mode or FCF mode)

Blade Switch: HP 8/24c SAN Switch (Brocade, Access Gateway mode)

Blade Switch: MDS 8Gb 24-port Switch (Cisco, NPV/NPIV enabled)

19

4 IRF usage with storage

The HP FlexFabric 5900CP switch supports IRF for use with Ethernet and storage networks. For

Ethernet networks, you can configure up to nine HP FlexFabric 5900CP switches in a single IRF domain. For storage networks, including FCoE, you can configure up to two switches per fabric in an IRF domain. When using IRF, NIC teaming is supported and is utilized for LAN traffic.

For more information about IRF, see the HP 5900 switch series documentation available on the

HP Networking website at http://h17007.www1.hp.com/us/en/networking/products/switches/

HP_5900_Switch_Series/index.aspx#.UwuBMU2A1aQ

.

For Ethernet/FCoE/FC storage network environments, the following HP FlexFabric 5900CP storage-IRF deployment scenarios are supported:

1.

Dual-redundant fabric SAN with no IRF — Traditional Fibre Channel high availability no-single-point-of-failure (NSPOF) configuration. See

Figure 15 (page 20)

.

Provides physically separate redundant fabrics with failover capabilities for high availability with storage.

Considerations

Highly available, NSPOF configuration

Firmware updates are considered partially disruptive, requiring fabric failover. See

“Software and Firmware update process” (page 28)

Figure 15 Dual-redundant storage fabric configuration, no IRF

FC Storage

Fabric-A Fabric-B

5900CP

Switches

Server/HBA Server/CNA

5900CP4B

2.

Dual-redundant fabric SAN with 2-switch IRF for Ethernet —Implemented with two HP FlexFabric

5900CP switches configured in an IRF domain across both the fabrics, with one switch from each fabric. See

Figure 16 (page 21) .

Provides logically separate redundant fabrics with failover capabilities for high availability with storage

Requires two VSANs to prevent storage traffic across the IRF link

20 IRF usage with storage

Must be specific on device placement to allow desired access such as CNA to storage

Allows Ethernet usage of the IRF links

Considerations

Not considered a NSPOF configuration, IRF spans virtual fabrics

Firmware updates are considered disruptive to both VSANs, requiring scheduled downtime.

Figure 16 Dual-redundant storage fabric configuration, 2-Switch IRF for Ethernet-only

FC and FCoE Storage

Fabric-AB

“Virtual Switch”

VSAN1

IRF

VSAN2

Server/CNA Server/HBA

5900CP5B

3.

Dual-redundant fabric SAN with 4-switch IRF for Ethernet —Implemented with two HP FlexFabric

5900CP switches in each fabric configured in two IRF domains for high availability and

NSPOF. See

Figure 17 (page 22) .

Provides physically separate redundant fabrics with failover capabilities for high availability with storage

Requires four VSANs to prevent storage traffic across the IRF link

Requires two CNAs per server or two HBAs per server

Must be specific on device placement to allow desired access

Allows Ethernet usage of the IRF links

Considerations

Highly available, NSPOF configuration

Firmware updates are considered partially disruptive, requiring fabric failover. See

“Software and Firmware update process” (page 28)

21

Figure 17 Dual-redundant storage fabric configuration, 4-Switch IRF for Ethernet-only

FC and FCoE Storage

VSAN1

Fabric-A

“Virtual Switch”

VSAN2

Fabric-B

“Virtual Switch”

VSAN3 VSAN4

Server/CNA Server/HBA

5900CP7C

4.

Dual-redundant storage fabric configuration with two stacked switches in IRF domains —Implemented with two HP FlexFabric 5900CP switches in each fabric configured in two IRF domains for high availability and NSPOF. See

Figure 18 (page 23) .

Avoid irf-port congestion by using multiple 40G connections

Only one VSAN per IRF domain required

No specific device connectivity to maintain NSPOF

When storage is connected to switches utilizing IRF, add the following command to the configuration file: fspf graceful-restart

Firmware updates are considered partially disruptive, requiring fabric failover. See

“Software and Firmware update process” (page 28)

This configuration leverages IRF as a stacking interconnect with one VSAN per IRF domain and includes FCoE QOS configuration of stacked irf-ports. Enable FCoE priority 3 priority-flow-control on irf-ports.

Examples: irf-port 1/1 port group interface FortyGigE1/0/49 priority-flow-control auto priority-flow-control no-drop dot1p3 irf-port 2/1 port group interface FortyGigE2/0/49 interface FortyGigE2/0/49 priority-flow-control auto priority-flow-control no-drop dot1p3

22 IRF usage with storage

irf-port 1/2 port group interface FortyGigE1/0/50 interface FortyGigE1/0/50 priority-flow-control auto priority-flow-control no-drop dot1p 3 irf-port 2/2 port group interface FortyGigE2/0/50 interface FortyGigE2/0/50 priority-flow-control auto priority-flow-control no-drop dot1p 3

Figure 18 Dual-redundant storage fabric configuration, two stacked switches in IRF domains

FC and FCoE

Storage

VSAN 2

Fabric-A

“Virtual Switch”

VSAN 2

Fabric-B

“Virtual Switch”

VSAN 3 VSAN 3

Server/CNA Server/HBA

5900CP7D

23

5 c-Class BladeSystem interconnects

The HP FlexFabric 5900CP switch supports connectivity to multiple HP server interconnect options including Virtual Connect modules/switches and BladeSystem switches. See

Table 1 (page 7) .

For Virtual Connect modules, Flex-10/10D and FlexFabric 10 Gb/24-port, connectivity is through

FIP Snooping to the HP FlexFabric 5900CP switch in FCF mode.

For BladeSystem switches, connectivity is configured based on the BladeSystem switch used. For an HP 6125XLG dual-hop configuration, set HP 6125XLG mode to NPV and the HP FlexFabric

5900CP switch mode to FCF or NPV. For multi-hop, set 6125XLG mode to FCF and 5900CP switch to FCF mode.

For the HP 8/24c SAN Switch (Brocade), set the switch in Access Gateway mode. For the MDS

8Gb 24-port Switch (Cisco), enable the switch for NPV/NPIV to connect to the HP FlexFabric

5900CP switch in FCF mode using NPIV.

Table 3 (page 24)

describes BladeSystem interconnect support for the HP FlexFabric 5900CP switch. For more information about current HP FlexFabric 5900CP storage support, see the HP

SPOCK website at http://www.hp.com/storage/spock . You must sign up for an HP Passport to enable access.

Table 3 HP FlexFabric 5900CP BladeSystem Interconnect Support

Virtual Connect Modules/Blade Switches

Virtual Connect 20/40 F8

Virtual Connect Flex-10/10D, FCoE (FIP Snooping)

Virtual Connect FlexFabric 10Gb/24-Port (8Gb FC,

10GbE FCoE/VC FIP Snooping)

Virtual Connect 8Gb 24-Port Fibre Channel Module for c-Class BladeSystem (Brocade)

Virtual Connect 8Gb 20-port Fibre Channel Module for c-Class BladeSystem

Blade Switch: HP 6125XLG, Ethernet/FCoE (6125XLG in NPV mode or Transit or FCF mode)

Blade Switch: HP 8/24c SAN Switch (Brocade, Access

Gateway mode)

Blade Switch: MDS 8Gb 24-port Switch (Cisco, NPV/

NPIV enabled)

HP FlexFabric 5900CP Mode

• FCF

• FCF

• FCF

• FCF

• FCF

• FCF, NPV, or Transit

• FCF

• FCF

24 c-Class BladeSystem interconnects

6 HP FlexFabric 5900CP Storage Network Support

The following section describes the operating system and the hardware support for the HP FlexFabric

5900CP switch when used in a storage network configuration. For more information about current

HP FlexFabric 5900CP storage support, see the HP SPOCK website at http://www.hp.com/ storage/spock . You must sign up for an HP Passport to enable access.

HP FlexFabric 5900CP Operating System Support with Storage

Following operating systems are supported:

Windows 2012, 2012 R2 x64, Hyper-V

Windows 2008 SP2 x86/x64, Hyper-V

Windows 2008 R2 SP1 x86/x64, Hyper-V

RHEL 5.0, 6.3, 6.4, 6.5, x86/x64

SUSE Linux SLES 10 SP3, SP4, 11 SP2 x86/x64

VMware ESX 5.1 U2, ESX 5.5

HP FlexFabric 5900CP CNA/HBA Support

HP FlexFabric 5900CP CNA Support

HP StoreFabric CN1200E 10Gb Converged Network Adapter

HP StoreFabric CN1100R Dual Port Converged Network Adapter

HP CN1100E

HP CN1000E

HP CN1000Q

HP FlexFabric 20Gb 2-port 650FLB Adapter

HP FlexFabric 20Gb 2-port 650M Adapter

HP FlexFabric 20Gb 2-port 630FLB Adapter

HP FlexFabric 20Gb 2-port 630M Adapter

HP FlexFabric 10Gb 2-port 556FLR-SFP+ Adapter

HP FlexFabric 10Gb 2P 554FLR-SFP+ Adapter

HP FlexFabric 10Gb 2P 554M Adapter

HP FlexFabric 10Gb 2P 554FLB Adapter

HP BLc NC553m DP FlexFabric Adapter Opt and NC553i

HP BLc NC551m DP FlexFabric Adapter Opt and NC551i

HP FlexFabric 10Gb 2-port 534FLB Adapter

HP FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter

HP FlexFabric 10Gb 2-port 534M Adapter

HP FlexFabric 5900CP HBA Support

HP StoreFabric SN1000Q 16Gb 1-port and 2-port PCIe Fibre Channel Host Bus Adapter

HP StoreFabric SN1000E 16Gb 1-port and 2-port PCIe Fibre Channel Host Bus Adapter

HP FlexFabric 5900CP Operating System Support with Storage 25

HP QMH2572 8Gb FC HBA

HP BLc QLogic QMH2562 8Gb FC HBA Opt

HP 82Q 8Gb Dual Port PCI-e FC HBA

HP PCIe 2-port 8Gb FC SR (QLogic) HBA

HP 81Q PCI-e FC HBA

HP PCIe 1-port 8Gb FC SR (QLogic) HBA

HP LPe1205A 8Gb FC HBA Opt

HP BLc Emulex LPe1205 8Gb FC HBA Opt

82E 8Gb Dual-port PCI-e FC HBA

HP 81E 8Gb SP PCI-e FC HBA

HP FlexFabric NPV Switch Support

Converged Network Switches

Connectivity to the following FCoE switches via HP FlexFabric 5900CP NPV mode is supported:

Cisco Nexus 5548UP/5596UP FCoE Converged Network Switch

Cisco Nexus 5010/5020 FCoE Converged Network Switch

Cisco MDS 9000 10-Gbps 8-Port FCoE Module

NOTE:

Merged FCoE fabric interoperability (VE_Port) is supported only between multiple HP

FlexFabric 5900CP switches or HP FlexFabric 5900CP switches and HP 5900AF or HP 6125XLG

(FCF mode) switches. Merged Fibre Channel fabric interoperability (E_Port) is supported only between HP FlexFabric 5900CP switches.

Fibre Channel Switches

Connectivity to the following Fibre Channel switches via HP FlexFabric 5900CP NPV mode is supported:

HP StoreFabric SN6500B 16Gb 96/96 FC Switch, 96/48 FC Switch, SN6000B, SN3000B

StorageWorks 8/80, 8/24, 8/8 SAN Switch

StorageWorks EVA 4400 embedded switch

StorageWorks 8Gb DC04 SAN Director, 8Gb DC SAN Backbone Director, StorageWorks

8/40 SAN Switch

SN8000B SAN Director

Brocade 8Gb SAN Switch for HP BladeSystem c-Class

C-series HP StorageWorks SN6000C Fabric Switch (Cisco MDS 9148)

Cisco MDS 8Gb Fabric Switch for BladeSystem c-Class

H-series SN6000 Fibre Channel Switch, 8/20q Fibre Channel Switch

For the latest supported switch software versions, see the B-series, C-series and H-series switch documentation.

NOTE:

Merged fabric interoperability (E_Port) is not supported between HP FlexFabric 5900CP switch and other HP Fibre Channel switches (B-series, C-series, or H-series).

26 HP FlexFabric 5900CP Storage Network Support

HP FlexFabric HP Storage System Support

HP FlexFabric HP Storage System Support:

3PAR StoreServ 10400/10800 FCoE/Fibre Channel/iSCSI

3PAR 7200/7400/7450 FCoE/Fibre Channel/iSCSI

3PAR F-Class (F200/F400) Fibre Channel

P6300/P6350/P6500/ P6550 FCoE/Fibre Channel/iSCSI

P9500 FCoE/Fibre Channel

P2000 G3 Fibre Channel

MSA 2040 (G4) Fibre Channel

EVA 4400 (with or without embedded switch) Fibre Channel

EVA 6400/8400 Fibre Channel

StoreVirtual P4330 and 4730 FC

HP FlexFabric HP Storage System Support 27

7 Software and Firmware update process

Firmware Update Process – Non ISSU

The non-ISSU firmware update process is disruptive if you have implemented a single SAN fabric or a dual SAN fabric using logically separate fabrics. See

“IRF usage with storage” (page 20) . If

you have implemented a dual-redundant NSPOF

SAN

, the firmware process is considered partially disruptive, requiring fabric failover. To update the firmware using non-ISSU procedure:

1.

Ensure that the latest firmware is obtained via hp.com

2.

Use the dir command to verify that all IRF member devices have sufficient storage space for the upgrade images, and use the delete or delete/unreserved command to delete unused files. Use the reset recycle-bin command to permanently delete files from flash.

3.

Use the ftp client on the switch to download and the boot-loader command to update flash for each slot.

a.

<HP>

ftp

<IP address>

then login to the server.

b.

<HP>

bin c.

<HP>

get

<firmware filename.ipe>

d.

<HP>

boot-loader file flash:/<firmware file name> slot 1 main

The following message appears:

This command will set the main startup software images. Continue?

[Y/N]:

.

Enter:

Y

and proceed.

NOTE:

In an IRF configuration, step d must be executed for all slots.

e.

<HP>

save

NOTE:

A save must be completed before a reboot to ensure that the current configuration is not lost unless the user wants to revert back to the saved configuration in the .cfg file.

The following message appears:

The current configuration will be written to the device. Are you sure? [Y/N]:

Enter: Y and proceed.

Please input the the filename (*/cfg) [flash:/config87.cfg]

(To leave the existing filename unchanged, press the enter key): flash:/config87.cfg exists, overwrite?[Y/N]:

Enter: Y and proceed.

Validating file. Please wait...

Saved the current configuration to mainboard device successfully.

f.

<HP>

reboot

NOTE:

The reboot command will reboot all switches in the IRF domain.

g.

Verify that the device is running the correct software.

<Sysname> display version

28 Software and Firmware update process

8 Management Software

The primary management interface for the HP FlexFabric 5900CP switch is through the Command

Line Interface (CLI). To access the CLI, see

“Using the CLI” (page 29) . All the management commands

necessary for HP FlexFabric 5900CP switch are available through the CLI. Management support for HP FlexFabric 5900CP switch is also provided with HP IMC (Intelligent Management Center) software. There are three levels of support with IMC – no license is required for level 1, a license is required for level 2 and for the FCoE plug-in module. For more information on IMC features, see

“IMC Management software” (page 30) .

Using the CLI

When accessing the switch for the first time, you must use a console cable to connect a console terminal, such as a PC, to the console port on the switch.

Using the console cable provided with the switch, first plug the DB-9 female connector of the console cable to the serial port of the PC, and then connect the RJ-45 connector to the console port of the switch.

To configure and manage the switch, you must run a terminal emulator program on the console terminal.

The required terminal settings are:

Bits per second: 9,600

Data bits: 8

Parity: None

Stop bits: 1

Flow control: None

Emulation: VT100

By default, login through the console port is enabled and the user role network-admin is assigned.

A username and password is not required for login. After login, configure password or scheme authentication mode to improve device security.

To prevent illegal access to the CLI and control user behaviors, configure login authentication, assign user roles, configure command authorization and command accounting, and use ACLs to filter unauthorized login.

By default, you can log in to the CLI only through the console port. To facilitate device management, log in to the device through the console port and configure other login methods such as Telnet and

SSH.

To log in through the Telnet:

1.

Enable the Telnet server function.

2.

Assign an IP address to a Layer 3 interface and make sure that the interface and the telnet client can establish a connection between them.

3.

Configure an authentication mode for VTY login users.

4.

By default, password authentication is used but no password is configured.

5.

Assign a user role to VTY login users. The default role assigned is network-operator.

To log in through the SSH:

1.

Enable the SSH server function and configure SSH attributes.

2.

Assign an IP address to a Layer 3 interface and make sure the that interface and the SSH client can establish a connection between them.

Using the CLI 29

3.

Configure scheme authentication for VTY login users. The default authentication scheme is password authentication.

4.

Assign a user role to VTY login users. The default role assigned is network-operator.

IMC Management software

IMC management software provides following features:

Level 1–Discovery: Basic standalone IMC support (event logs), no license required

Level 2/3–Access device, read/update configurations: Virtual Application Network (VAN)

Fabric Management (VFM), license required

Optional plug-in module (FCoE add-on license)

VAN Fabric topology–Physical topology of networks (LAN/SAN)

DC management–Logical group of networks, servers, and storage devices

SAN configuration–Fabric/FCoE management, zone configuration, zone sets, devices

LAN configuration–Trill configuration, SPB network, device management, VLANs, AC lists,

EVI config

Statistics–VLAN, I-SID, ECT

Interface–SNMP/MIBs

30 Management Software

A HP FlexFabric 5900CP system architecture considerations

Parameter name/type

Fabric logins per FCF

VSAN's per switch

VFC and FC interfaces per switch

Number of zones per switch

Number of Hard Zones per VSAN

Parameter value

255

16

512

4000

255

Remarks

E-port utilizes one Login, reduce the number by one for each e-port connected switch. FSPF for hop by hop routing, static route support, up to 255 routes. The maximum number of static routes allowed in a VSAN is 256.

Virtual SANs with overlapping address space up to 16. The maximum number of VSANs, including the default VSAN, allowed on a switch is 16.

Virtual FC interfaces up to 512 per switch.

Each soft zone can have as many members as necessary; recommend utilization of I-T zones. You can configure a maximum of 4000 zones for all VSANs on a switch.

Limited by port entry rules, assuming I-T members per zone.

Zone Alias names

Zonesets per switch

Zone member Alias names

Number of NPIV WWNs per NP port

4000

128

4000

127

You can configure a maximum of 4000 zone aliases for all VSANs on a switch.

You can configure a maximum of 128 zone sets for all VSANs on a switch.

You can configure a maximum of 4000 zone member alias names

NPIV support with up to 127 VN_Ports per VF_port.

Number of MAC addresses bound to

VFCs per VF_port

Number of FC port Transmit BB credits

Domain IDs or maximum number of switches per SAN

IRF members irf link-delay interval

Non-overlapping VSANs per IRF domain member switch

127

15

239

NPIV support with up to 127 VN_Ports per VF_port.

Default value set during link initialization.

Similar to an FC switch, each FCF switch is assigned a domain ID. Each

FC SAN supports a maximum number of 239 domain IDs, so an FC SAN cannot have more than 239 switches.

Ethernet only configuration.

9

INTEGER <0-10000>

Specify the time interval in ms for the link layer to report a link-down event.

8

The IRF fabric might run other protocols

, for example, CFD, VRRP, FCoE, and

OSPF, that have a shorter protocol packet lifetime than the delay interval.

For stable protocol running, make sure the delay interval is shorter than the maximum lifetime of these protocol packets. You can adjust either the IRF link down report delay or the maximum lifetime of the protocol packets.

Storage configuration recommends one

VSAN per member switch and no common VSANs for member switches

31

Parameter name/type

Set the maximum number of Selected ports for the aggregation group.

link-aggregation selected-port maximum number 32

Set the minimum number of Selected ports for the aggregation group.

link-aggregation selected-port minimum number

10GbE LR SFP+ lossless (PFC) working distance

10 km - single-mode fiber

10GbE SR SFP+ lossless (PFC) working distance

300 m - OM3

10GbE ER SFP+ lossless (PFC) working distance when extended buffering is configured

40 km - single-mode fiber

10GbE Limited SR SFP+ lossless (PFC) working distance

125 m - OM4

150 m - OM3 190M - OM4 8 Gbps FC SFP+ BB credit working distance

4 Gbps FC SFP+ BB credit working distance

380 m - OM3 400m - OM4

2 Gbps FC SFP+ BB credit working distance

8/4/2Gbps FC SFP+ working distance

500 m - OM3

10 km - single-mode fiber

8Gbps FC SFP+ BB credit working distance

4Gbps FC SFP+ BB credit working distance

40GbE SR QSFP+ lossless (PFC) working distance

190 m - OM4

400 m - OM4

150 m - OM4

100 m - OM3

40GbE LR4 QSFP+lossless (PFC) working distance

40GbE copper QSFP+ PFC working distance

10GbE copper QSFP+ PFC working distance

FSPF graceful restart

10 km - single-mode fiber

5 m

7 m

120 s typical

Fabric Device Management Interface

(FDMI) function, FDMI objects per port

Parameter value

8

32 HP FlexFabric 5900CP system architecture considerations

Remarks to avoid storage traffic flow over IRF links.

By default, the maximum number of selected ports for an aggregation group is 32.

By default, the minimum number of selected ports for the aggregation group is not specified.

HP X130 SFP+ LC LR Transceiver

JD094B 10GbE lossless connectivity on single-mode fiber

HP X130 SFP+ LC SR transceiver

JD092B 10GbE lossless 300m connectivity on multi-mode fiber

HP X130 SFP+ LC ER transceiver

JG234A 10GbE 40 km on single-mode fiber

H6Z42A SFP+ 50um OM4 multi-mode fiber

AJ718A SFP+ multi-mode fiber

AJ718A SFP+ multi-mode fiber

AJ718A SFP+ multi-mode fiber

AW584A SFP+ Link lengths up to 10 km at 8.5/4.25/2.125 GBd with single mode fiber (15 BB credits limited)

H6Z42A SFP+ 50um OM4

H6Z42A SFP+ 50um OM4

HP X140 40G QSFP+ MPO SR4 transceiver JG325B

HP X140 40G QSFP+ LC LR4 SM

CWDM transceiver JG661A

HP X240 40G QSFP+ 5m direct attach copper cable JG328A

HP X240 10G SFP+ 7m direct attach copper cable JC784C

The default setting is 120 seconds. FSPF

GR (Graceful Restart) enables nonstop forwarding of traffic by backing up

FSPF configuration information during a protocol restart, for example, the FSPF process restart triggered by the process command, or active/standby switchover.

An HBA object can have a maximum of eight port objects.

Parameter name/type

Upper limit of concurrent logins using the same user name

Configure password control attributes for the local user.

Parameter value access-limit max-user-number 16 recommended

Depends on environment

Enable broadcast suppression and set the broadcast suppression threshold.

broadcast-suppression { ratio | pps max-pps | kbps max-kbps }

Enable multicast suppression and set the multicast suppression threshold.

Enable unknown unicast suppression and set the unknown unicast suppression threshold.

multicast-suppression { ratio | pps max-pps | kbps max-kbps } unicast-suppression { ratio | pps max-pps | kbps max-kbps }

Set the maximum number of lines to be displayed on a screen.

screen-length screen-length

Remarks

By default, the number of concurrent logins is not limited for the local user.

This command takes effect only when local accounting is configured for the local user. It does not apply to FTP,

SFTP, or SCP users who do not support accounting.

Configure the maximum login attempts and the action to take if there is a login failure: password-control login-attempt login-times [ exceed { lock | lock-time time | unlock } ]

By default, broadcast traffic is allowed to pass through an interface.

By default, multicast traffic is allowed to pass through an interface.

By default, unknown unicast traffic is allowed to pass through an interface.

Set the maximum number of concurrent

Telnet users.

aaa session-limit telnet max-sessions default=16

By default, a screen displays a maximum of 24 lines. A value of 0 disables pausing between screens of output.

Changing this setting does not affect online users. If the current number of online Telnet users is equal to or greater than the new setting, no additional

Telnet users can log in until online users log out.

33

B Support information

The HP FlexFabric 5900CP switch provides various display capabilities. You can use the displays to identify issues by viewing configurations, port status summaries, and more in-depth information about each port.

By default, the switch updates a logfile once a day. You can generate a g-zipped tar file using the display diagnostic CLI command and export this file for review. Two files are required for support:

• the configuration file— startup.cfg

• logfile— logfile.log

These text files are stored in flash:/startup.cfg

and flash:/logfile/logfile.log

.

The name of the configuration file can be different if you have changed it. You must have a backup copy of the configuration file. Ensure that the current configuration is saved to a

.cfg

file before requesting support.

NOTE:

Generate a support file as follows:

[5900cp]display diag

Save or display diagnostic information

(Y=save, N=display)? [Y/N]:y

Input the file name

(*.tar.gz)[flash:/ diag.tar.gz]:

Displayed information not included in the diag file, which can be separately logged: display fc login display fcs data display fc na database display fc domain-list display vsan port-member

Following are some useful CLI commands:

• display current (HotKey

<Ctrl-G>

)

• display version

• display interface brief

• display interface

• display zone status

• display fc login

• display fcs database

• display vsan nnn port-member

• display npv login

• display counters inbound interface

• display counters outbound interface

• display link-aggregation verbose

These CLI commands help you to view the information and identify the issue quickly.

34 Support information

In the following examples, two configuration files are named after the switch number. The config87.cfg

file is the primary file representing how the switch is presently configured.

<HP>dir

Directory of flash:

0 -rw- 8215552 Mar 10 2014 15:51:10 5900_5920-cmw710-boot-r2308p01.bin

1 -rw- 52940800 Mar 10 2014 15:53:08 5900_5920-cmw710-system-r2308p01.bin

2 -rw- 22736 Jul 23 2013 20:46:13 config87-npv.cfg

3 -rw- 32344 Mar 11 2014 23:19:59 config87.cfg

4 -rw- 223240 Mar 11 2014 23:19:59 config87.mdb

5 -rw- 169086 Mar 14 2014 15:27:27 diag.tar.gz

6 drw- - Jan 01 2011 00:00:35 diagfile

7 -rw- 567 Jul 16 2013 22:33:41 dsakey

8 - drw- - Feb 19 2014 18:02:53 fczone

9 -rw- 735 Oct 15 2013 09:26: 3 -rw- 32344 Mar 11 2014

23:19:59 config87.cfg 20 hostkey

10 -rw- 1795 Mar 11 2014 23:19:56 ifindex.dat

11 -rw- 0 Aug 14 2013 20:45:49 lauth.dat

12 drw- - Jan 01 2011 00:00:36 license

13 drw- - Jul 08 2013 23:09:01 logfile

14 -rw- 111321 Aug 08 2008 20:00:00 lsw152qf.vme

15 -rw- 916801 Aug 09 2013 14:04:55 lsws5820x11152_v1.26.btw

16 -rw- 591 Oct 15 2013 09:26:20 serverkey

17- drw- - Aug 12 2013 17:43:59 versionInfo

524288 KB total (330800 KB free)

<HP>dir

Directory of flash:/logfile

0 -rw- 10483710 Mar 14 2014 15:36:30 logfile.log

524288 KB total (330800 KB free)

The flash:/startup.cfg or your

[HP]display logfile summary

Log file: Enabled

Log file size quota: 10 MB

Log file directory: flash:/logfile

Writing frequency: 24 hour 0 min 0 sec

[HP]display diagnostic

Save or display diagnostic information (Y=save, N=display)? [Y/N]:y

Please input the file name(*.tar.gz)[flash:/diag.tar.gz]:

The file already exists, overwrite it? [Y/N]:y

Diagnostic information is outputting to flash:/diag.tar.gz.

Please wait...

Save successfully.

35

C HP FlexFabric 5900CP switch configuration file

This appendix shows some sections from the HP FlexFabric 5900CP switch configuration file.

Use this as a guide for creating the configuration file for your specific implementation.

LLDP must be and STP should be enabled for FCoE functionality

# lldp global enable

# stp global enable

The switch must be in advance mode to operate FCoE/FC functionality

system-working-mode advance

#

Setup Switch Mode [fcf, npv, transit]

fcoe-mode fcf

#For balanced two fabric multi-hop configurations use FSPF graceful restart fspf graceful-restart

#

Define the vsan - valid vsan numbers 1-3839 maximum 16 per switch

Can set the domain ID as a static ID

Zoning information for the vsan is kept here.

To use persistent FCIDs define using wwn <your WWN> area-port-id

<4 digit hex of desired FCID>

vsan 100 domain-id static rscn aggregation enable wwn 21:00:2c:27:d7:53:f5:87 area-port-id 0001 zone-alias name Enc6S1P1 member pwwn 10:00:6c:3b:e5:a4:a2:71 zone-alias name P10K-FC-ports member pwwn 20:52:00:02:ac:00:62:f6 member pwwn 21:52:00:02:ac:00:62:f6 zone name P10K-FC member zone-alias Enc6S1P1 member zone-alias P10K-FC-ports zoneset name 5900CP_vsan100 member P10K-FC zoneset distribute full

36 HP FlexFabric 5900CP switch configuration file

zoneset activate name 5900CP_vsan100

#

# vlan 1

# vlan 1001 description ToLAN

#

There shall be an FCoE enabled VLAN associated with each vsan configured regardless of port-type FC and Ethnernet/FCoE

vlan 4001 description ToSAN-A fcoe enable vsan 100

#

Definition of the FCoE and other queues

qos map-table dot1p-lp import 0 export 0 import 1 export 0 import 2 export 0 import 3 export 1 import 4 export 0 import 5 export 0 import 6 export 0 import 7 export 0

#

acl 4000 for FCoE - acl 3000 for iSCSI use

acl number 4000 name DCBX rule 0 permit type 8906 ffff rule 5 permit type 8914 ffff

#

# acl number 3000 rule 0 permit tcp destination-port eq 3260

##################################################

#

Configure DCBx

traffic classifier DCBX operator or if-match acl 4000 if-match acl 3000

# traffic behavior DCBX

37

remark dot1p 3

# qos policy DCBX classifier DCBX behavior DCBX mode dcbx

#

Configure Console Connectivity

line class aux user-role network-admin

# line class vty user-role network-operator

# line aux 0 1 user-role network-admin idle-timeout 0 0

# line vty 0 15 authentication-mode scheme user-role network-admin

#

# user-role network-operator

# execute set authentication password simple <your_password> and it will put it in the config file similar to below.

set authentication password hash $h$6$/YSmSK0b+l+RSYbX$OaP0ytCZcE8rWgKEx6nQw0rLML

3Mf0+O0g7UZAeh95kEejMhv6RecR4nT06+9LTYESUU ezfhzMchHYC8h4ACcA== idle-timeout 0 0

#

LLDP management address - used for VC connectivity

Each management interface must be in its own subnet

#

# interface Vlan-interface1 ip address 10.10.10.1 255.255.255.0

domain system

#

#

# domain default enable system user-group system

# local-user admin class manage

38 HP FlexFabric 5900CP switch configuration file

execute password simple <your password> and it will put it in the config file similar to below.

password hash

$h$6$im0rLRRRYOJHIwCY$zjEOgLLx7RF5dm5GDg5h4Fc

6zJGeVYkDomKh9VKVnqq3NCW9QmsrGAlOOPWZTy/EUu tU0KLgW9HQismv1+PAOg==

Setup FTP/Telnet/SSH services

service-type ftp service-type ssh telnet terminal authorization-attribute user-role network-admin authorization-attribute user-role network-operator

# ftp server enable

#

#

This is the physical management port. Use YOUR IP address!

interface M-GigabitEthernet0/0/0 ip address 10.X.X.X 255.255.255.0

#

Settings for typical FCoE port

If setting up multiple ports simultaneously use the range command as illustrated:

# interface range Ten-GigabitEthernet 1/0/1 to Ten-GigabitEthernet 1/0/9

#

Configure a HYBRID port when using multiple untagged VLANS

#Use the description to help with defining what the link is used for

interface Ten-GigabitEthernet1/0/1 description R113-S01 port link-mode bridge port link-type hybrid

#vlan numbers have to be what you have defined port hybrid vlan 4001 tagged port hybrid vlan 1 1001 untagged port hybrid pvid vlan 1001 priority-flow-control auto priority-flow-control no-drop dot1p 3

39

stp edged-port lldp tlv-enable dot1-tlv dcbx qos trust dot1p qos wrr be group 1 byte-count 15 qos wrr af1 group 1 byte-count 15 qos wrr af2 group sp qos wrr af3 group sp qos wrr af4 group sp qos wrr ef group sp qos wrr cs6 group sp qos wrr cs7 group sp qos apply policy DCBX outbound

#

Standard FC interface - to change the ethernet port to FC use the port-type fc command. Supported FC port modes [auto, e, f], auto is the default mode.

# interface Fc1/0/11 port access vsan 100 qos trust dot1p

NOTE:

FC port speed default is AUTO and fill-word is idle-arbff. For 4Gbps and 2Gpbs, configure fill-word to idle-idle.

############################################

Configure a Vfc to enable FCoE device login. Supported FCoE port modes [f,e], f is the default mode, there is no auto mode. A ve port must be configured using fc mode e.

interface Vfc1 fc mode f port trunk vsan 100 bind interface Ten-GigabitEthernet1/0/1

#

MAC binding when devices coming from a FIP snooping or standard

DCB device

# interface Vfc200 port trunk vsan 100 bind interface Bridge-Aggregation1 mac 6c3b-e5af-ad09

#

Setup a Vfc to uplink from NPV switch to FCF or NPV switch

# interface vfc1000

40 HP FlexFabric 5900CP switch configuration file

fc mode np port trunk vsan 100 bind interface FortyGigE 1/0/49

#

To create an aggregation group follow these steps:

1.

Create the link-aggregation interface.

a.

interface Bridge-Aggregation X (where X is a number) b.

port link-type trunk c.

port trunk permit vlan 1 102 1001 d.

link-aggregation mode dynamic

2.

Associate each of the member ports.

a.

interface Ten-GigabitEthernet 1/0/1 b.

port link-aggregation group X c.

interface Ten-GigabitEthernet 1/0/2 d.

port link-aggregation group X

3.

Make final settings on the link-aggregation interface.

a.

interface Bridge-Aggregation X b.

port link-type trunk c.

port trunk permit vlan 1 1001 4001 - use the vlans that were defined interface Bridge-Aggregation1 description port link-type trunk port trunk permit vlan 1 4001 port trunk pvid vlan 1001 link-aggregation mode dynamic

# interface Ten-GigabitEthernet 1/0/1 port link-mode bridge port link-type trunk port trunk permit vlan 1 1001 4001 port trunk pvid vlan 1001 priority-flow-control auto priority-flow-control no-drop dot1p 3 lldp tlv-enable dot1-tlv dcbx qos trust dot1p qos wrr be group 1 byte-count 15 qos wrr af1 group 1 byte-count 15 qos wrr af2 group sp qos wrr af3 group sp qos wrr af4 group sp qos wrr ef group sp qos wrr cs6 group sp qos wrr cs7 group sp qos apply policy DCBX outbound port link-aggregation group 1

#

41

interface Ten-GigabitEthernet 1/0/2 port link-mode bridge port link-type trunk port trunk permit vlan 1 1001 4001 port trunk pvid vlan 1001 priority-flow-control auto priority-flow-control no-drop dot1p 3 lldp tlv-enable dot1-tlv dcbx qos trust dot1p qos wrr be group 1 byte-count 15 qos wrr af1 group 1 byte-count 15 qos wrr af2 group sp qos wrr af3 group sp qos wrr af4 group sp qos wrr ef group sp qos wrr cs6 group sp qos wrr cs7 group sp qos apply policy DCBX outbound port link-aggregation group 1

#

42 HP FlexFabric 5900CP switch configuration file

Glossary

This glossary defines acronyms and terms used in this guide. It is not a comprehensive glossary of computer terms.

A

ACL Access Control List. A list of permissions attached to an object. An ACL specifies which users or system processes are granted access to objects, as well as what operations are allowed on given objects. Each entry in a typical ACL specifies a subject and an operation.

B

BB_credit Buffer-to-buffer credits. A method used to determine how many frames can be sent to a recipient when buffer to buffer flow control is in use. The credit is the maximum number of outstanding frames that can be transmitted by an N_Port, NL_Port, or an F_Port without causing a buffer overrun condition at the receiver.

C

C-Class

BladeSystem

A brand name used by HP for blade server chassis form factor for modular servers. Blade servers are a modern form of server technology that have a more efficient design than conventional servers, which cuts down on the excess components that are usually found in regular servers and makes room for the implementation of components that will help with the specified needs. This helps create more efficient use of physical space and energy. Blade servers are packaged as ultra-high density components that can be used for a variety of services. The common uses include servers, storage of data, and communication interfaces. Blades are racked inside blade enclosures, which supply them with power, cooling, and networking.

D

DCB

DCBX

Data Center Bridging. A collection of standards designed to transform Ethernet into a lossless network with efficient Layer 2 multipath forwarding. DCB, formerly called converged enhanced

Ethernet (CEE), depends on a handful of standards developed by three different standards bodies: the American National Standards Institute, the Institute of Electrical and Electronics Engineers, and the Internet Engineering Task Force (IETF). It is also known as Data Center Ethernet (DCE).

To meet SAN requirements for guaranteed packet delivery, Ethernet controllers implement DCB, a set of IEEE industry standards that delivers end-to-end congestion notification and quality of service throughout the network which allows customers to configure traffic classes and priorities to deliver a lossless Ethernet fabric. DCB includes the following protocols: IEEE 802.1Qau (CN),

IEEE 802.1Qaz (ETS and DCBX), and IEEE 802.1Qbb (PFC).

Data Center Bridging Capability eXchange. A discovery and capability exchange protocol that is used for conveying capabilities and configuration of the DCB features between neighbors to ensure consistent configuration across the network. This protocol leverages the functionality provided by IEEE 802.1AB (LLDP). It is included in the 802.1az standard.

E

E_Port

ENode

ETS

Extension port. Fibre Channel switch ports which provide direct switch-to-switch connections within the fabric. The Expansion port within a Fibre Channel switch or a bridge device through an inter-switch link. The data forwarding component of an FC entity that emulates an E-Port and is dynamically instantiated on successful completion of an ELP Exchange.

FCoE Node. A Fibre Channel node with one or more lossless Ethernet MACs, each coupled with an FCoE controller.

Enhanced Transmission Selection. A DCB feature that allows allocation of bandwidth on a NIC to applications based on their DCB priority. The DCB priority is a VLAN header with a 3 bit priority field. The priority field's value differentiates Ethernet packets in the network. DCB uses the priority value, also called the 802.1p priority, to associate traffic with other DCB properties

43

such as PFC configuration and link bandwidth. You can configure DCB to set specific bandwidth to be allocated to packets depending on their priority values.

F

F_ID

F_Port

Fabric Login

Fabric_Name

FC

FC-BB

FCF

FCoE

FCoE_LEP

FIP

Fabric_Identifier. An entity consisting of one or more switches that interconnect various Nx_Ports attached to it, and capable of routing frames using only the D_ID information in an FC-2 frame header. An identifier assigned to each fabric in an inter-fabric routing environment.

Fabric Port. FC switch ports that connect directly to N_Ports.

A process by which a Fibre Channel node establishes a logical connection to a fabric switch.

A Name_Identifier associated with a fabric.

Fibre Channel. A serial I/O interconnect capable of supporting multiple protocols, including access to open system storage (FCP), access to mainframe storage (FICON), and networking

(TCIP/IP).

Fibre Channel Backbone. A standard that defines mappings for transporting Fibre Channel over different network technologies, including operation of Fibre Channel over Ethernet (FCoE).

FCoE forwarder. FCFs are the combination of FCoE termination functions and Fibre Channel stack on Ethernet switches (dual-stack switches) and are equivalent to Fibre Channel switches in native

Fibre Channel networks.

Fibre Channel over Ethernet. A technology that allows a convergence of Ethernet and Fibre

Channel fabrics.

FCoE Link Endpoint. The data forwarding component of an FCoE entity that handles FC frame encapsulation/decapsulation, and transmission/reception of encapsulated frames through a single Virtual Link.

FCoE Initialization Protocol. A protocol utilized to discover and initialize FCoE capable entities connected to an Ethernet cloud, such as the FCF. FIP uses a dedicated Ether type of 0x8914.

0FIP does the discovery by allowing ENodes to discover who to log in with, then enabling a single ENode to communicate with multiple different FC fabrics, and as a result, a one-to-many relationship is built in. FIP maintains links with Link Keep Alive and Clear Virtual Link functions to allow a loss of a physical link or logical connectivity to be detected and for both ends of the virtual link to be notified when this happens. This allows RSCN to function properly and for the distributed name server to remain in sync. FIP also reduces the security concerns when FIP snooping and dynamic ACLs are implemented.

A flexible, virtualization-optimized data center network architecture that requires far fewer devices, interconnections, layers, and discrete appliances.

Fabric Provided MAC Address. A MAC address that is assigned by an FCF and is fabric-wide unique.

FlexFabric

FPMA

H hard zone A zone consisting of zone members that are permitted to communicate with one another through the fabric. Hard zones are enforced by fabric switches that prohibit communication among members not in the same zone on a frame by frame basis, based on the source and destination addressing. Well-known addresses are implicitly included in every zone.

Host bus adapter. A hardware device that connects the host server to the fabric.

HBA

I

IRF iSCSI

44 Glossary

Intelligent Resilient Framework. A software virtualization technology that connects multiple network devices through physical IRF ports and performs necessary configurations. These devices are then virtualized into a distributed device. This virtualization technology realizes the cooperation, unified management, and nonstop maintenance of multiple devices. An IRF virtual device appears as a node on the network. You can log in to it by connecting to any port of any member to manage all members of the IRF virtual device.

Internet Small Computer System Interface. A standard protocol that uses SCSI commands to transfer data over IP networks.

ISSU

L

LACP

LUN

M

MPIO

N

N_Port

NP_Port

NPIV

NPV

In-Service Software Upgrade. A comprehensive transparent software upgrade capability for network switches. IRF assisted ISSU will reboot one unit in the IRF system, wait for it to come back online, then reboot another unit in the IRF system. When a unit is rebooting, it is really down, so any host which is single-wire connected to this unit will be offline. The ISSU process assumes hosts or peer devices are dual-connected to two different IRF members. When one switch reboots, it will be the NIC teaming or Link-Aggregation of the peer device which will perform the failover and use the other link.

When using more than two units in the IRF system, ISSU assumes the peer devices are connected to all switches in the IRF system. For example, if you have a server IRF system with four switches, the server is assumed to be connected to each of the four switches. This is highly unlikely, and therefore in storage configurations, HP recommends two units in the IRF system for any deployment which requires ISSU. When a customer can have a maintenance window and accepts downtime, more than two switches in the IRF can be used. There are 3 versions of ISSU:

Compatible: Two software versions can actively exist in the same IRF system. Procedure can be done with issu

CLI commands.

Incompatible: Only one version can exist in the IRF system. Procedure can be done with issu

CLI commands.

Unknown: Official ISSU update to and from that version is not possible. ISSU-like update is possible with a manual procedure (not through issu

CLI commands), using MAD assistance.

Link Aggregation Control Protocol. A protocol within the IEEE specification that provides a method to control the bundling of several physical ports together to form a single logical channel. LACP allows a network device to negotiate an automatic bundling of links by sending LACP packets to the peer (directly connected device that also implements LACP).

Logical Unit Number. A number used to identify a logical unit, which is a device addressed by the SCSI protocol or protocols that encapsulate SCSI, such as Fibre Channel or iSCSI Channel.

A LUN may be used with any device which supports read/write operations, such as a tape drive, but is most often used to refer to a logical disk as created on a SAN.

Multipath I/O. A facility for a host to direct I/O requests to a storage device on more than one access path. This requires that devices be uniquely identifiable by some means other than bus address.

Node Port. Ports that are located on the server or storage ports. These ports connect directly to

F_Ports.

N_Port Virtulization Port. These ports connect to F_Ports and act as a proxy for other N_Ports located on the NPV-enabled switch. Essentially, the NP_Port is able to present multiple pWWNs to the fabric over a single physical port.

N_Port ID Virtualization. An industry-standard protocol.

N_Port Virtualization. A switch-based technology designed to reduce switch management and overhead in larger SAN deployments. NPV introduces a type of Fibre Channel port, the NP_Port.

The NP_Port connects to an F_Port and acts as a proxy for other N_Ports on the NPV-enabled switch. Essentially, the NP_Port looks like an NPIV-enabled host to the F_Port on the other end.

An NPV-enabled switch will register additional WWPNs (and receive additional N_Port_IDs) through NPIV on behalf of the N_Ports connected to it. The physical N_Ports do not have any knowledge this is occurring and do not need any support for it. It is all handled by the NPV-enabled switch.

45

V vE_Port vF_Port

VFC

VLAN

P

PFC

Q

QoS

QSFP+

S

SFP+ soft zone

T

ToR

Priority flow control. An extension of the 802.3x mechanism and defined in IEEE 802.1Qbb to define a lossless Ethernet connection. The PAUSE frame contains an 8–bit bit mask of the 802.1p

priorities (specifying which traffic classes should be paused) and a timer for each priority specifying how long the traffic in that priority class should be paused. The per-priority PAUSE mechanism allows the storage array to tell the switch that it should stop sending just the FCoE traffic (assuming

FCoE traffic is marked with priority value=3).

Quality of service. A traffic management feature.

Quad Small form-factor pluggable, plus transceiver. A hot-pluggable, high-density transceiver which provides four channels of traffic in each direction (Tx and Rx). QSFP+ supports up to 16

Gb/s per channel for applications such as 40G Ethernet and InfiniBand 4xQDR. Both multimode and single mode versions of the QSFP+ module are available, as well as QSFP-based active optical cables.

Small form-factor pluggable, plus transceiver. A compact, hot-pluggable transceiver which provides one channel of traffic in each direction (Tx and Rx). SFP+ supports up to 16 Gb/s per channel for applications such as 10G Ethernet, 16/8/4 G FC and is used for both telecom and datacom applications.

A fabric name service that allows each device to query the addresses of all other devices. Soft zoning restricts only the fabric name service to show only an allowed subset of devices. Therefore, when a server looks at the content of the fabric, it will only see the devices it is allowed to see.

However, any server can still attempt to contact any device on the network by address. Soft zoning is similar to the computing concept of security through obscurity.

Top of Rack. A design that contains servers connected to one or two converged network switches installed inside the rack. The term top of rack has been coined for this design. However, the actual physical location of the switch does not necessarily need to be at the top of the rack. Other switch locations could be bottom of the rack or middle of rack, however, top of the rack is most common due to easier accessibility and cleaner cable management. This design may also sometimes be referred to as In-Rack. The key characteristic and appeal of the Top of Rack design is that all copper cabling for servers stays within the rack as relatively short patch cables from the server to the rack switch. The switch links from the rack to the data center network using fiber running directly from the rack to a common aggregation area connecting to redundant Distribution or Aggregation high density modular converged switches.

Virtual Extension port. FCoE switch ports that provide direct switch-to-switch connections within the fabric.

Virtual Fabric Port. FCoE switch ports that attach to vN_Ports or vNP ports. The data forwarding component of an FC entity that emulates an F_Port and is dynamically instantiated on successful completion of an FLOGI Exchange. The term virtual indicates the use of a non Fibre Channel link connecting a VF_Port with a VN_Port.

Virtual Fibre Channel. An interface that must be enabled and mapped to and FCoE VSAN, which has an associated VLAN. Each physical switch port that will carry FCoE traffic must have a corresponding VFC interface.

Virtual LAN (ID). A group of end stations with a common set of requirements, independent of physical location. VLANs have the same attributes as a physical LAN but allow you to group end stations even if they are not located physically on the same LAN segment. VLANs are usually associated with IP subnetworks. For example, all the end stations in a particular IP subnet belong

46 Glossary

vN_Port vN_Port MAC address vNP_Port to the same VLAN. Traffic between VLANs must be routed. LAN port VLAN membership is assigned manually on a port-by-port basis.

Virtual Node Port. vN_Ports are CNAs on node ports and FCoE storage ports.

Virtual Node Port MAC address. vN_Port MAC address is the Name_Identifier of a vN_Port.

The MAC address used by an ENode for a particular address identifier during FC operation using FCoE frames. Access Control List (ACL) is a persistent list, commonly composed of Access

Control Entries (ACEs) that enumerate the rights of principals (users and groups of users and/or groups) to access resources.

Virtual N_Port Virtulization Port. vNP_Ports connect to vF_Ports and act as a proxy for other

N_Ports located on the NPV-enabled switch. The data forwarding component of an FC entity that emulates an N_Port and is dynamically instantiated on successful completion of an FLOGI or

FDISC Exchange. The term virtual indicates the use of a non Fibre Channel link connecting a

VN_Port to a VF_Port.

Z zone set zoning

A set of zone definitions for a fabric. Zones in a zone set may overlap. For example, a port may be a member of more than one zone. Fabric management may support switching between zone sets to enforce different access restrictions, for example, at different times of day.

A method of subdividing a storage area network into disjoint zones or subsets of nodes on the network. Storage area network nodes outside a zone, except those with well-known addresses, are invisible to nodes within the zone. Moreover, with switched SANs, traffic within each zone may be physically isolated from traffic outside the zone.

47

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
