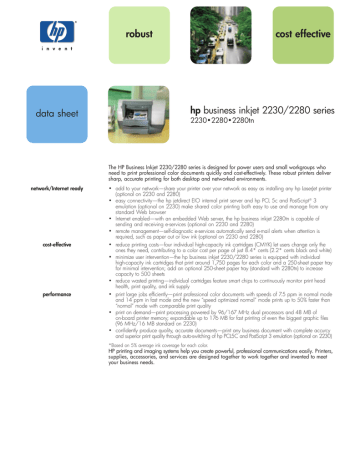

robust
data sheet
cost effective
hp business inkjet 2230/2280 series
2230•2280•2280tn
The HP Business Inkjet 2230/2280 series is designed for power users and small workgroups who
need to print professional color documents quickly and cost-effectively. These robust printers deliver
sharp, accurate printing for both desktop and networked environments.
network/Internet ready
cost-effective
performance
• add to your network—share your printer over your network as easy as installing any hp LaserJet printer
(optional on 2230 and 2280)
• easy connectivity—the hp jetdirect EIO internal print server and hp PCL 5c and PostScript® 3
emulation (optional on 2230) make shared color printing both easy to use and manage from any
standard Web browser
• Internet enabled—with an embedded Web server, the hp business inkjet 2280tn is capable of
sending and receiving e-services (optional on 2230 and 2280)
• remote management—self-diagnostic e-services automatically send e-mail alerts when attention is
required, such as paper out or low ink (optional on 2230 and 2280)
• reduce printing costs—four individual high-capacity ink cartridges (CMYK) let users change only the
ones they need, contributing to a color cost per page of just 8.4* cents (2.2* cents black and white)
• minimize user intervention—the hp business inkjet 2230/2280 series is equipped with individual
high-capacity ink cartridges that print around 1,750 pages for each color and a 250-sheet paper tray
for minimal intervention; add an optional 250-sheet paper tray (standard with 2280tn) to increase
capacity to 500 sheets
• reduce wasted printing—individual cartridges feature smart chips to continuously monitor print head
health, print quality, and ink supply
• print large jobs efficiently—print professional color documents with speeds of 7.5 ppm in normal mode
and 14 ppm in fast mode and the new “speed optimized normal” mode prints up to 50% faster than
“normal” mode with comparable print quality
• print on demand—print processing powered by 96/167 MHz dual processors and 48 MB of
on-board printer memory; expandable up to 176 MB for fast printing of even the biggest graphic files
(96 MHz/16 MB standard on 2230)
• confidently produce quality, accurate documents—print any business document with complete accurcy
and superior print quality through auto-switching of hp PCL5C and PostScript 3 emulation (optional on 2230)
*Based on 5% average ink coverage for each color.
HP printing and imaging systems help you create powerful, professional communications easily. Printers,
supplies, accessories, and services are designed together to work together and invented to meet
your business needs.
hp business inkjet 2230/2280 series
hp business inkjet 2280tn shown
intuitive control features
include LCD menu, job
cancel and resume buttons,
and ink level gauge
connect to PC or Mac® using
parallel and EIO ports
(optional on 2230)
four individual
high-capacity ink
cartridges (CMYK)
•
•
•
•
•
•
500-sheet printing
capacity with
250-sheet input tray
and optional second
250-sheet paper tray
(standard on 2280tn)
hp business inkjet 2230
high speed color for desktop users
• 16 MB RAM
• 96 MHz processor
• 250-sheet paper input tray
optional accessories
• second 250-sheet paper input tray
• hp PCL 5c/PostScript 3 emulation
• hp jetdirect EIO internal print server
• memory upgrade—expand up to 176 MB
with hp 64/128 MB SDRAM module
(note: hp PCL 5c/PostScript 3 emulation
card required to enable memory
upgrade)
high performance
color printing
quality printing in less
time—7.5 ppm color and
11 ppm black (normal
mode), 14 ppm color and
15 ppm black (fast mode)
16 MB RAM (2230),
48MB RAM (2280,
2280tn)—upgradable to
176 MB
high speed printing via
96/167 MHz dual
processors (96 MHz
single processor on 2230)
robust networking with
hp jetdirect EIO card
excellent print quality up
to 1200 x 600 dpi with
hp photoret III
Internet-enabled with
embedded Web server
for sending and receiving
e-services
150-sheet output tray
hp business inkjet 2280
high speed color for small workgroups
• 48 MB RAM
• 96/167 MHz dual processors
• 250-sheet paper input tray
• hp PCL 5c/PostScript 3 emulation
optional accessories
• second 250-sheet paper input tray
• hp jetdirect EIO internal print server
• memory upgrade—expand up to 176 MB
with hp 64/128 MB SDRAM module
hp business inkjet 2280tn
high speed color for networked
environments
• 48 MB RAM
• 96/167 MHz dual processors
• two 250-sheet paper input trays
• hp PCL 5c/PostScript 3 emulation
• hp jetdirect EIO internal print server
optional accessories
• memory upgrade—expand up to 176 MB
with hp 64/128 MB SDRAM module
If you need a powerful, cost-effective color
printer for your desktop or a network printer
for your small office or workgroup, the
HP Business Inkjet 2230/2280 series printers
offers the solution for your business needs
today, and tomorrow. Use any of these
models to deliver fast, vibrant printing for all
your important business communications.
networking now (or later)
All of the HP Business Inkjet 2230/2280 series printers are
built with networking in mind. If you’re looking to network
your small business or workgroup immediately, consider the
HP Business Inkjet 2280tn. This printer comes with a robust
EIO networking HP Jetdirect card and an embedded Web
server to make shared color printing easy to use and manage
from any standard Web browser, in all major network
environments and protocols. The HP Business Inkjet 2280tn
printer is Internet-enabled, capable of sending and receiving
printing e-services such as self-diagnostic services that send
automatic e-mail alerts when attention is required. If networking
capability isn’t an immediate need, purchase either the
HP Business Inkjet Printer 2230 or 2280 with the knowledge
that both printers can be upgraded for full networking ability.
powerful printing
The HP Business Inkjet 2230/2280 series was designed for
users looking for an affordable solution to their demanding
printing needs. Produce professional, effective communications
in less time. For fast printing or drafts, you can print full-color
documents at speeds of 14 ppm in fast mode and 15 ppm in
black and white. When you’re ready to print the final product,
use the normal mode and receive color printouts at 7.5 ppm.
Plus, HP has added a new “Speed-optimized Normal” that
prints documents up to 50% faster than the “Normal” mode
with comparable print quality. Colors appear vibrant and
sharp with HP PhotoREt III color layering technology. Print
accuracy and excellent quality are assured with auto-switching
of HP PCL 5c and PostScript 3 emulation (optional on the 2230).
The HP Business Inkjet 2280 and 2280tn both deliver the
power that comes from 96/167 MHz dual processors
(96 MHz on the 2230) and 48 MB of built-in RAM
memory (16 MB in the 2230). And, all models can expand
to 176 MB of RAM, making this the printer that truly grows
with your business.
affordable, low maintenance printing
HP designed the HP Business Inkjet 2230/2280 series with
you in mind—robust printers that don’t require a lot of
attention and won’t increase your bottom line. By using four
individual high-capacity ink cartridges (black, cyan, magenta,
yellow), these printers create documents more efficiently,
extending printing life. Each ink cartridge features smart chips
to continuously monitor both printhead health and ink supply.
And because you only have to replace the individual color
ink cartridges that are empty, you save money on ink costs.
Printed documents cost only 2.2* cents per page for black
and white and 8.4* cents per page for color. The highcapacity ink cartridges print up to 1,750 pages on each color
thereby lowering your intervention with the printer. To further
lower your intervention rate, consider purchasing an additional
250-sheet paper tray (standard on the 2280tn).
works in your environment
The HP Business Inkjet 2230/2280 series printers support
Microsoft® Windows® and include standard parallel interfaces
for PC environments. The 2280tn model also supports
additional operating systems including Macintosh®, OS2, Linux®,
and UNIX® (optional on the 2230/2280). And by using the
same connectivity system, driver layout, and management
tool support, the HP Business Inkjet 2230/2280 series blends
seamlessly into HP LaserJet printer environments.
maximize your returns with hp services
In an effort to provide customers predictable cost structures
and business efficiency gain, HP offers a comprehensive
set of services, including HP Consulting, HP Outsourcing,
HP Support, HP Education, and HP Finance. To find
more information go to the HP Services Web site at
www.hp.com/hps/
*Based on 5% average ink coverage for each color.
technical specifications
hp business inkjet 2230/2280/2280tn series printers
Memory: 16 MB internal fixed (48 MB internal fixed on 2280/2280tn models)
upgradable to 176 MB
Memory slots: ISO DIMM slot (144 pin, SDRAM, 133 MHz)
Motorolla microprocessor 97 MHz (2230 model), 97 MHz +167 MHz (2280, 2280tn
models)
HP PCL3 with high-performance architecture (HPA); HP PCL 5c and PostScript 3 emulation
(2280, 2280tn models)
print speeds (in pages-per-minute)
letter
fast
normal
best
Black text*
15
11
6.5
Color mixed text/graphics*
14
7.5**
1.5
Full page color*
6
2.5
0.5
*plain paper
**new “Normal-speed Optimized” mode prints up to 50% faster than “Normal” mode with comparable
print quality
resolution
HP PhotoREt III print quality
1200 x 600 dpi
paper handling
Input tray: capacity 250 sheets 16 to 36 lb bond (60 to 135 g/m2)
Optional 2nd tray: capacity 250 sheets (standard on 2280tn) 16 to 36 lb bond (60 to
135 g/m2)
Output tray: capacity 150 sheets
media types and sizes
Copier, bond, recycled, multipurpose, premium inkjet, premium inkjet heavyweight, premium
transparency, premium photo paper, photo paper, professional brochure (matte and
glossy), cards, and envelopes
Media sizes from 4 x 6 in (102 x 152 mm) to 8.5 x 14 in (216 x 356 mm)
control panel
Text-based LCD front panel
Intuitive operations with Resume, Job Cancel, Menu, Item, Value, and Select buttons
Messages can be displayed in 15 languages
operating systems
2230/2280: supports Windows 95/98/ME, Windows NT® 4.0, Windows 2000,
Windows XP
2280tn: supports Windows 95/98/ME, Windows NT 4.0, Windows 2000,
Windows XP, Macintosh OS 8.6 and above (including OS X)
networking operating systems (via optional hp jetdirect print servers)
Novell IntranetWare, NetWare 3.12, 4.x, 5.x, NDS and NDPS; HP-UX 10.20, 11.x;
Solaris 7; IBM OS/2, Warp 4.x, AIX 3.2.5 and later; MPE-iX; Mac OS 8.6 and
later; Red Hat® Linux 6.2; SuSE Linux 6.4; Artisoft LANtastic via HP Jetdirect
printer servers
font capabilities
45 TrueTypeTM and 35 PostScript fonts built-in; all PostScript emulation and HP PCL 5caccessible; Intellifont and TrueType rasterizer built into PCL 5c; built-in support for
Arabic, Cyrillic, Greek, Asian 2-byte and Hebrew symbol sets
environmental ranges
Operating temperature: 41 to 104° F (5 to 40° C)
Recommended operating conditions: 59 to 95° F (15 to 35° C)
Storage temperature: -40 to 140° F (-40 to 60° C)
Relative humidity: 20 to 80% RH non-condensing
acoustics
49 dB(A) sound pressure, 59 dB(A) sound power
power requirements
Source: 100 to 240 VAC (±10%), 2 Amp. max
Frequency: 50 or 60 Hz (±3 Hz)
power consumption
Printing: 65 watts average printing, 68 watts maximum printing
Powersave mode: less than 2 watts when off, 8 watts maximum when non-printing
product certification
Safety Certification: CCIB (China), CSA (Canada), PSB (Singapore), UL (USA),
NOM-1-NYCE (Mexico), TUV-GS (Germany), JUN (Korea)
smart features
E-services with embedded Web server
Ink-level gauge
Auto pen alignment
Transparency sensor
HP Instant Support
connectivity
2230: IEEE 1284-compliant bi-directional parallel, 2 open EIO slots
2280: IEEE 1284-compliant bi-directional parallel, HP PCL 5c/PostScript 3 emulation
upgrade kit, 1 open EIO slot
2280tn: IEEE 1284-compliant bi-directional parallel, HP PCL 5c/PostScript 3 emulation
upgrade kit, HP Jetdirect 615n internal print server for Fast Ethernet 10/100Base-TX
duty cycle
Up to 10,000 pages-per-month
dimensions (w x d x h)
2230: 20.2 x 20.3 x 8.2 in (512 x 514 x 208 mm)
2280: 20.2 x 20.3 x 8.2 in (512 x 514 x 208 mm)
2280tn: 20.2 x 20.4 x 11.5 in (512 x 517 x 291 mm)
weight
2230: 23 lb (10.5 kg)
2280: 23 lb (10.5 kg)
2280tn: 32 lb (14.5 kg)
warranty
One-year HP Express Exchange warranty
what’s in the box
Power cord, reference guide, setup guide, printer software CD-ROM, four printheads and
ink cartridges (one each: black, cyan, magenta, and yellow), 250-sheet input tray (2280tn
model only)
ordering information
number
description
C8119A
HP Business Inkjet 2230 printer
C8120A
HP Business Inkjet 2280 printer
C8121A
HP Business Inkjet 2280tn printer
service and support
H3679E
HP Supportpack, 2-year, express exchange
H3678A/H3678E
HP Supportpack, 3-year, express exchange
H3676E
HP Supportpack, 2-year, next-day onsite
H3675A/H3675E
HP Supportpack, 3-year, next-day onsite
supplies and accessories
C8229A
HP PCL 5c/PostScript 3 emulation upgrade kit
C8230A
250-sheet input tray
hp printheads
C4810A
HP 11 black printhead
C4811A
HP 11 cyan printhead
C4812A
HP 11 magenta printhead
C4813A
HP 11 yellow printhead
hp inkjet print cartridges
C4844A
HP 10 black ink cartridge, (69 ml)
C4836A
HP 11 cyan ink cartridge, (28 ml)
C4837A
HP 11 magenta ink cartridge, (28 ml)
C4838A
HP 11 yellow ink cartridge, (28 ml)
hp multipurpose paper
M1120
U.S letter size, 500 sheets
hp printing paper
HPP1122
U.S. letter size, 500 sheets
CHP210
European A4 size, 500 sheets
hp premium inkjet paper
51634Z
European A4 size, 200 sheets
hp premium inkjet heavyweight paper
C1852A
U.S. letter size, 100 sheets
C1853A
European A4 size, 100 sheets
hp premium photo paper
C6039A
U.S. letter size, 15 sheets
C6979A
U.S. letter size, 50 sheets
C6040A
European A4 size, 15 sheets
C6043A
Asian A4 size, 15 sheets
C7040A
A4 size, 50 sheets
hp photo paper
C1846A
U.S. letter size, 20 sheets
C6982A
U.S. letter size, 60 sheets
C1847A
European A4 size, 20 sheets
hp professional brochure and flyer paper, glossy (2-sided)
C6817A
U.S. letter size, 50 sheets
C6818A
European A4 size, 50 sheets
hp professional brochure and flyer paper, matte (2-sided)
C6955A
U.S. A size, 50 sheets
hp premium transparency film
C3834A
U.S. letter size, 50 sheets
C3828A
U.S. letter size, 20 sheets
C3835A
European A4 size, 50 sheets
C3832A
European A4 size, 20 sheets
hp premium plus transparency film
C7028A
U.S. letter size, 50 sheets
C7030A
U.S. letter size, 20 sheets
C7029A
European A4 size, 50 sheets
C7031A
European A4 size, 20 sheets
memory
C2387A
64 MB SDRAM, PC-100 module
C2388A
128 MB SDRAM, PC-100 module
interface and cables
C2950A
IEEE-1284 compliant A–B parallel cable, 2 m
C2951A
IEEE-1284 compliant A–B parallel cable, 3 m
network
J3263A
HP Jetdirect 300x EIO (10/100 Base-TX)
J3264A
HP Jetdirect 500x EIO (Token Ring)
J3265A
HP Jetdirect 500x EIO (10/100 Base-TX)
J3111A
HP Jetdirect 600n EIO (BNC)
J3110A
HP Jetdirect 600n EIO (10/100 Base-T)
J4167A
HP Jetdirect 610n EIO (Token Ring)
J6057A
HP Jetdirect 615n EIO (10/100 Base-TX)
HP PCs use genuine Windows Operating Systems
www.microsoft.com/piracy/howtotell
For more information on the HP Business Inkjet 2230/2280 series, visit our Web site
at www.hp.com and click on products and services. Here you will find information on
products, supplies, and accessories for all your computing needs. HP printers, personal
computers, supplies, and accessories are available at authorized HP resellers worldwide.
ENERGY STAR is a U.S. registered service mark of the United States Environmental Protection Agency. As an ENERGY
STAR partner, HP has determined that this product meets the guidelines for energy efficiency. Apple and Macintosh
are trademarks of Apple Computer, Inc. registered in the USA, and other countries. Microsoft, Windows, and
Windows NT are registered trademarks of Microsoft Corporation in the USA, and other countries. UNIX is a
registered trademark of the Open Group in the USA, and other countries. All other brand and product names
are trademarks or registered trademarks of their respective companies. The information contained in this document
is subject to change without notice. HP makes no warranty of any kind with respect to this information.
HP specifically disclaims the implied warranty of merchantability and fitness for a particular purpose. HP shall
not be liable for any direct, indirect, incidental, consequential, or other damage alleged in connection with the
furnishing or use of this information.
5980-8749ENE
© Hewlett-Packard Company 2002
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
