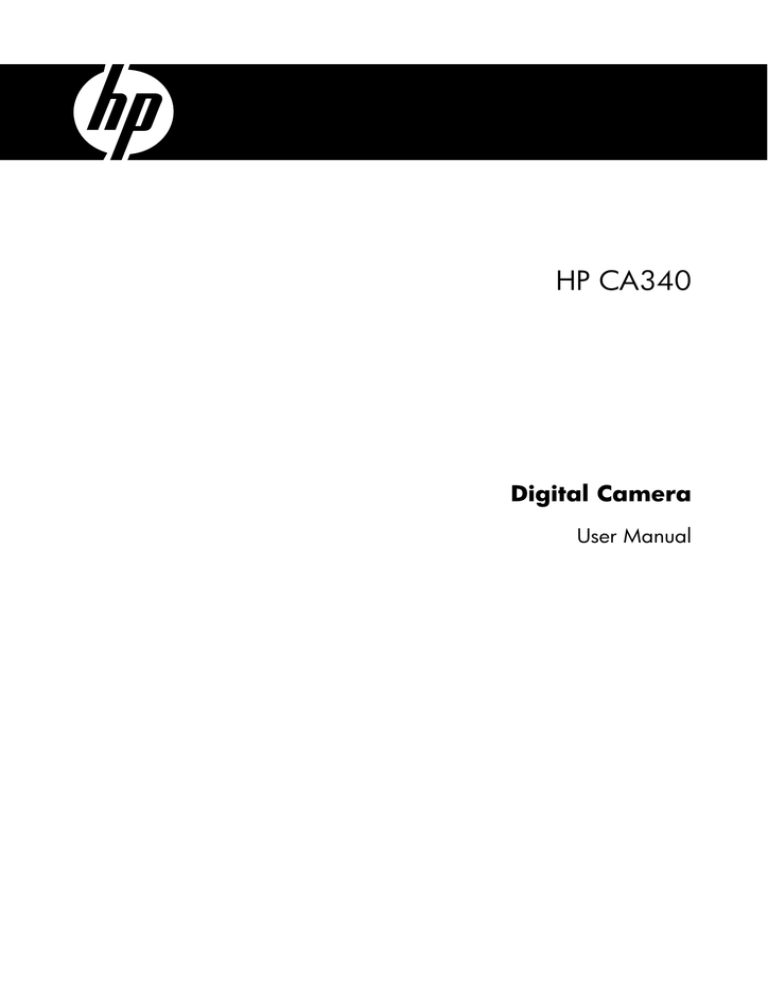

HP | CA340 | User's Manual | HP CA340 Digital Camera User manual

HP CA340
Digital Camera
User Manual
Precautions
y
Before using the camera, please ensure that you read and understand the safety
precautions described below. Always ensure that the camera is operated correctly.
y
Do not aim the camera directly into the sun or other intense light sources which
could damage your eyesight.
y
Do not try to open the case of the camera or attempt to modify this camera in any
way. High-voltage internal components create the risk of electric shock when
exposed. Maintenance and repairs should be carried out only by authorized service
providers.
y
Do not fire the flash too close to the eyes of animals or people, especially for young
children. Eye damage may result. In particular, remain at least one meter away from
infants when using flash.
y
Keep the camera away from water and other liquids. Do not use the camera with
wet hands. Never use the camera in the rain or snow. Moisture creates the danger
of electric shock.
y
Keep the camera and its accessories out of the reach of children and animals to
prevent accidents or damage to the camera.
y
If you notice smoke or a strange odor coming from the camera, turn the power off
immediately. Take the camera to the nearest authorized service center for repair.
Never attempt to repair the camera on your own.
y
Use only the recommended power accessories. Use of power sources not
expressly recommended for this equipment may lead to overheating, distortion of
the equipment, fire, electrical shock or other hazards.
ʳ
„
FCC Compliance and Advisory
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1.) this device may not cause harmful interference, and 2.) this device must accept any interference
received, including interference that may cause unsatisfactory operation.
This equipment has been tested and found to comply with the limits for a Class B peripheral, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communication. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures.
y Reorient or relocate the receiving antenna.
y Increase the separation between the equipment and receiver.
y Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
y Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment. When shielded interface cables have been provided with
the product or when specified additional components or accessories have elsewhere been designated to
be used with the installation of the product, they must be used in order to ensure compliance with FCC
regulations.
i
Contents
PRECAUTIONS
I
GETTING STARTED
1
TO ACTIVATE SMILE CAPTURE
22
USING INTELLIGENT SCENE MODE
23
TO ACTIVATE INTELLIGENT SCENE
23
USING BLINK DETECTION MODE
25
USING THIS MENU
1
TO ACTIVATE BLINK DETECTION
25
UNPACKING
2
USING THE Q MODE
26
PARTS OF THE CAMERA
3
SETTING IMAGE SIZE AND QUALITY
27
INSERTING THE BATTERIES
5
USING THE ZOOM FUNCTION
28
LOW BATTERY INDICATOR
5
USING THE FLASH
29
ABOUT BATTERY TYPE
5
USING THE MACRO
30
INSERTING THE MEMORY CARD
6
USING THE SELF-TIMER & BURST
31
ABOUT CAMERA MEMORY
6
USING THE APERTURE PRIORITY
32
DCF PROTOCOL
6
USING THE SHUTTER PRIORITY
32
USING THE MANUAL EXPOSURE
33
SETTING THE DISPLAY LANGUAGE / DATE
& TIME
SETTING THE DISPLAY LANGUAGE
7
SETTING THE DATE & TIME
7
USING THE LCD MONITOR
REC MODE
CHANGING THE LCD STATUS
11
POWER SAVING FUNCTION
CHANGING THE MODE
RECORDING AUDIO CLIPS
PLAYING BACK AUDIO CLIPS
9
10
TURNING THE POWER ON AND OFF
SETTING THE MOVIE SIZE
9
PLAYBACK MODE
BASIC OPERATION
RECORDING MOVIE CLIPS
7
RECORDING A VOICE MEMO
PLAYING BACK A VOICE MEMO
34
35
35
35
36
36
OTHER RECORDING FUNCTIONS
37
SETTING THE METERING
37
12
SETTING THE WHITE BALANCE
37
12
SETTING THE ISO
38
13
SETTING THE EXPOSURE
38
SETTING THE AEB
38
12
SWITCHING BETWEEN REC MODE AND
PLAYBACK MODE
13
SETTING THE HIGHLIGHT
38
SELECTING THE REC MODE
13
SETTING THE SHARPNESS
39
SELECTING THE ASM MODE
15
SETTING THE PHOTO EDIT
39
16
SETTING DATE STAMP
39
REC MENU
16
SETTING STABILIZER
40
SETUP MENU
18
SETTING FACE TRACKING
40
SETTING PHOTO FRAME
40
PLAYBACK
41
PLAYING BACK IMAGES
41
USING THE MENUS
BASIC RECORDING
21
RECORDING STILL IMAGES
21
USING SMILE CAPTURE MODE
22
ii
PLAYING BACK MOVIE CLIPS
41
MAGNIFYING & TRIMMING STILL IMAGES
42
VIEWING IN THUMBNAIL
43
PLAYING A SLIDE SHOW
43
DELETING FILES
44
DELETING A SINGLE FILE
44
DELETING MULTIPLE FILES
45
DELETING ALL FILES
45
PROTECTING A SINGLE FILE
46
PROTECTING ALL FILES
46
PROTECTING MULTIPLE FILES
47
EDITING IMAGES
48
ROTATING STILL IMAGES
48
CHANGING THE IMAGE SIZE
48
CHANGING THE IMAGE WITH EFFECTS 49
CHOOSING THE IMAGE WITH PHOTO
FRAME
49
COPYING THE FILES
50
SETTING THE DPOF
51
CHOOSING A STARTUP IMAGE
52
MAKING CONNECTIONS
53
CONNECTING THE CAMERA TO A PC
53
USING THE CARD READER
53
CONNECTING THE CAMERA TO A
COMPUTER WITH THE USB CABLE
53
APPENDIX
54
ABOUT THE FOLDER & FILE NAME
54
FOLDER STRUCTURE
54
FILE NAMING
54
TROUBLESHOOTING
55
SPECIFICATIONS
56
FUNCTION AVAILABLE LIST
58
65
PHOTOGRAPHY TERMS
AND DEFINITIONS
iii
Getting Started
Using This Menu
Getting Started
This section contains information you should know before using this camera.
Basic Operation
This section explains all recording features of this camera.
Basic Recording
This section explains how to record still images, movies, and audio files.
Other Recording Functions
This section explains common operations about recording images.
Playback
This section explains playback, delete, and edit functions of still images, movies and
audio files.
Making Connections
This section tells you how to connect this camera to a computer or TV.
Appendix
This section describes the troubleshooting and the camera specification.
The meanings of the symbols used in this user's manual are explained below:
Caution
This indicates cautions that should be read before using these
functions.
Tips
This indicates the useful information when using this camera.
This indicates the reference page.
1
Unpacking
Camera
2 x AA Batteries
USB Cable
Software Installation
CD-ROM
Caution
Actual accessories may be different.
Do not swing the camera around by the strap.
2
Strap
Quick Start Guide
Parts of the Camera
1
2
1. Flash (
page 29)
2. Microphone
3. Lens
4. Self-timer Lamp
4
3
5
6
5. Zoom Button (
page 28)
7
8
Thumbnail (
page 43)
Playback Zoom
(
page 42)
6. Playback Button
(
page 13)
7. Menu Button (
page 16)
8. Operation Lamp
10
11
9
9. Mode Button (
page 13)
10. ASM Button (
page 15)
Delete Button (
Four-way Control
11. LCD Monitor (
page 9)
12. DISP/ OK Button
12
(
page 11)
13. Flash Button (
14. Macro Button (
14
page 44)
13
3
page 29)
page 30)
15. Strap Ring
16. Shutter Button
(
page 21, 34)
17. Power Button (
page 12)
18. Speaker
19. USB/AV Terminal
(
20
page 20, 54)
21
20. Battery Cover (
21. Tripod Hole
4
page 5)
Inserting the Batteries
1
Open the battery cover.
Slide the battery cover in the
direction indicated by the
arrow.
2
Insert the batteries.
Insert two AA-size batteries
with the positive (+) and
negative (-) poles matching
the directions indicated
inside the battery room.
3
Close the battery cover.
Low Battery Indicator
A low battery indicator
appears on the LCD screen when the batteries are nearly
exhausted. Batteries should be replaced promptly when the low battery indicator
appears.
Caution
Risk of explosion if battery is replaced by an incorrect type dispose of used
batteries according to the instructions.
Be sure to turn off the camera power before insert or remove batteries.
It is recommended to use compatible batteries listed on page 20. Use of any
other battery types is NOT supported.
Replace all batteries at the same time. Never mix old and new batteries.
Remove batteries if you do not intend to use the camera for an extended period
of time.
The camera body may feel warm after extended use. This is normal.
The type and power level of the battery may cause the lens to not extend or retract
properly. Ensure you use the correct battery type and adequately charged battery.
About Battery Type
To ensure the camera displays battery level correctly, after batteries are loaded, set the
page 20).
battery type in Setup Menu to match the batteries used. (
5
Inserting the Memory Card
You can use SD/SDHC Card with this digital camera. The memory card slot is located
beneath the battery cover, adjacent to the battery compartment.
1
Open the battery cover.
Slide the battery cover in the
direction indicated by the
arrow.
2
Insert the card.
Insert the card with the label
facing up and the arrow
pointing in.
Tips
To remove the card, gently press the edge of the card to release it.
3
Close the battery cover.
Caution
Do not touch the connection terminals on the back side of the card.
Not all cards may be compatible with your camera. When purchasing a card,
please check the card's specifications and take the camera with you.
About Camera Memory
This camera is equipped with internal memory. If the memory card is not inserted in the
camera, all images and movie clips recorded by the camera will be stored in the internal
memory. If the memory card is inserted, images and movie clips are stored on the
memory card.
DCF Protocol
The DCF protocol defines the format for image file data as well as the directory structure
for the memory card. Images that are taken by a DCF camera can be viewed on
DCF-compatible cameras from other manufacturers.
6
Setting the Display Language / Date & Time
When using the camera for the first time after purchasing, be sure to choose a language
and set the date & time before using the camera.
Setting the Display Language
1
Turn the power on, and set the camera
to the Setup Menu (
2
Select [
Press
page 18).
Language].
or
to select
[LANGUAGE] then press
or the
OK button to launch the submenu.
3
Select a language.
Press
or
to select a language and press
or the OK button to
apply the setting.
4
Press the MENU button to close the menu.
Setting the Date & Time
1
Turn the power on, and set the camera
to the Setup Menu (
2
Select [
Press
page 18).
Date & Time].
or
to select [Date &
Time] then press
or the OK
button to launch the submenu.
3
Set date and time.
Press
or
to change the value of the cursor located. Press
to move the cursor between settings.
Tips
Holding down
or
For date stamp setting (
changes the values continuously.
page 39).
7
or
4
Apply the setting.
After adjusting the settings, press the OK or the MENU button to apply
the setting.
Caution
If the batteries are removed for longer than 48 hours, the Date and Time will need to
be re-set.
8
Using the LCD Monitor
The LCD monitor is used to compose images while recording, adjust settings and replay
images. The following indicators may appear on the LCD monitor while recording or
playing back images.
REC mode
1
Recording mode (
2
Flash (
3
Macro (
4
Self-timer / Burst (
5
Zoom indicator (
6
Shots remaining
7
Battery (
8
13
White balance (
page 37)
14
Shutter speed (
page 21)
15
Shake warning (
page 21)
16
Aperture value (
page 21)
17
Face tracking (
18
Exposure (
19
Focus area (
page 21)
Storage media
20
Date stamp (
page 39)
9
Stabilizer
21
AEB (
10
Metering (
22
Sharpness (
11
ISO (
23
Quality (
12
Histogram
24
Resolution (
page 13)
page 29)
page 30)
page 31)
page 28)
page 5)
page 37)
page 38)
9
page 40 )
page 38)
page 38)
page 39)
page 27)
page 27)
PLAYBACK mode
1
Playback mode (
2
Protect (
3
Voice memo (
4
File number / Total
5
Battery (
6
Storage media
page 13)
page 46)
page 36)
page 5)
7
Recording info (
8
Histogram
9
Captured date & time
10
Voice memo control (
11
DPOF (
12
Resolution (
page 11)
page 36)
page 51)
page 27)
Caution
y
Some information may not display correctly if you display images captured by
other camera model.
10
Changing the LCD Status
Press the DISP/ OK button changes the LCD status as shown below:
REC mode
(A) OSD on
(B) Full OSD
(C)Guide line
(D) OSD off
Tips
Use the “Guide line” to compose images easily before shooting images.
PLAYBACK mode
(A) OSD on
(B) Full OSD
Caution
You cannot change the LCD status in the following situation:
Ζʳ
Manual exposure
Ζʳ
Recording movie clips or audio files
Ζʳ
Playing movie clips or audio files
Ζʳ
Playing the slideshow
Ζʳ
Viewing in thumbnail
Ζʳ
Trimming a still image
11
(D) OSD off
Basic Operation
Turning the Power On and Off
1
Press the POWER button ( ) to turn on
the camera in the REC mode.
The power turns on, the lens extends
and the LED lights in green.
Press the PLAYBACK button ( ) to turn
on the camera in the PLAYBACK mode.
The power turns on, and an image
displays on the LCD monitor ( ).
2
Press the POWER button ( ) again to turn the power off.
The power turns off, the lens retracts and the LED turns off.
Tips
You can turn on the camera without the start-up and operating sound by
pressing and holding the POWER ( ) or the PLAYBACK ( ) button over 1.5
seconds.
Switch between REC mode and PLAYBACK mode (
page 13).
Power Saving Function
For saving the battery power, the LCD monitor automatically turns off 1 minute after the
last control accessed (factory-preset setting). Press any button other than the power
button to turn on the LCD monitor. You can change the power save setting in Setup
menu (
page 19).
After the power saving function has been active for 1 minute, the power will turn off
completely. Press the POWER ( ) or the PLAYBACK ( ) button to restore the power.
The power save feature will not activate in the following situation:
Recording movie clips or audio files
Playing movie clips or audio files
Playing the slideshow
Connecting the camera to a computer or printer with the USB cable
12
Changing the Mode
In REC mode, you can record images and sounds. In PLAYBACK mode, you can replay,
delete, or edit images.
Switching between REC mode and PLAYBACK mode
In REC mode, press the PLAYBACK button
( ) to switch to the PLAY mode.
In PLAY mode, press the PLAYBACK ( )
or the MODE ( ) button to switch to the
REC mode.
Selecting the REC mode
1
2
Set the camera to the REC mode.
Launch the mode palette.
Press the MODE button ( ) to
show the scene mode palette.
3
Select a mode.
Use the four-way control to select
a desired mode and press the OK button to confirm the setting.
Display
Title
Description
Program
The camera makes settings suitable for the shooting conditions.
Movie
Voice REC
Q Mode
For recording movie clips.
For recording audio.
Allows beginners to take pictures easily.
13
Display
Title
Portrait
Landscape
Sunset
Description
Blurring the background to focus on the subject.
Used for the wide scenic views.
Enhance the red hue for recording sunset images.
Backlight
Shooting the image of backlight object by changing metering.
Smile
Capture
Capture the most brilliant smile of characters.
Kids
Night Scene
Fireworks
Take a still image to capture moving kids.
Shooting the subject while keeping the background night scenery.
Slow shutter speed to take fireworks exploding.
Snow
Used for the beach or snow scenes.
Food
Higher saturation makes food more appetizing.
Building
Text
Blink
Detection
Intelligent
Scene
Enhance the edges of the subject.
Enhance the black & white contrast.
This feature detects if the subject blinked an eye when the image
is captured and gives the user an option whether to save it or not.
The camera detects the shooting conditions and automatically
switches to the appropriate scene mode.
14
Selecting the ASM mode
1
Set the camera to the REC mode
(
page 13).
It cannot be switch to ASM mode
while in Movie or Voice REC
mode.
2
Launch the ASM mode.
Press the ASM button ( ) to
toggle switch between Aperture
Priority, Shutter Priority, Manual
Exposure mode.
For detail operation
(
page32).
15
Using the Menus
When a menu is displayed, the four-way control and the OK button are used to make
the desired settings.
REC menu
1
Turn the power on, and set the
camera to the REC mode
(
2
page 13).
Open the REC menu.
Press the MENU button ( )
to display the menu.
3
Select an item.
Press
or
( ) to
select a menu item.
4
Change the setting.
Press
5
or
( ) to change the setting.
Press the MENU ( ) or the OK ( ) button to save the settings and close
the menu.
REC menu list (Still Image)
Menu Item
Available Setting
Resolution
/
/
/
/
Page
/
/
27
Quality
/
/
27
Metering
/
/
37
Auto /
/
White Balance
ISO
/
/
/
/
Auto / ISO100 / ISO200 / ISO400 / ISO800 /
37
38
ISO1600 / ISO 3200 at 3MP
Exposure
Drive Mode
Off /
AEB
Off /
(Auto Exposure Bracketing)
Highlight
38
...
Off /
/
/
/
31
38
/
/
16
38
Sharpness
Effect
/
39
/
Off / B&W / Sepia / Negative / Red / Green / Blue
39
Off / Date / Date & Time
39
Stabilizer
Off / On
40
Face Tracking
Off / On
40
Photo Frame
Off / Frame 1 ~ 10
40
Digital Zoom
Off / On
28
Date Stamp
REC menu list (Movie)
Menu Item
Available Setting
Movie Size
/
Metering
/
White Balance
Auto /
Page
35
/
/
/
37
/
/
/
/
37
Tips
When the camera is set to “Intelligent Scene”, White Balance, ISO, Exposure, AEB,
Highlight, Sharpness, and Photo Frame settings cannot be changed.
17
Setup menu
1
Turn the power on, and set
the camera to the REC or
PLAYBACK mode
(
2
page 13).
Press the MENU button ( )
to open the REC or
PLAYBACK menu.
The menu displays
depends on whether you
are in the REC mode or
the PLAY- BACK mode.
3
Open the Setup menu.
Press four-way control ( ) to select SETUP (
) and then press the OK
( ) button to display the Setup menu.
4
Select an item.
Press
or
( ) to select a menu item and then press
or the OK
( ) button to launch the submenu.
5
Change the setting.
Press
or
( ) to select an option and press
button to apply the setting.
6
Press the MENU ( ) button to close the menu.
18
or the OK ( )
Setup menu list
Menu Item
Functions
[Shutter]: Sets the shutter sound on and off.
[Start-up]: Sets a type of the start-up sound. 3 different sound options
provided.
Sounds
[Beep]:
Sets the operation sound on and off.
[Volume]: Adjusts the volume of the shutter sound, start-up sound, beep
and playback sound.
Auto Review
[Off]:
The captured image will not automatically display after shooing.
[1 sec.]:
The captured image will display for 1 second after shooing.
[3 sec.]:
The captured image will display for 3 seconds after shooing.
[5 sec.]:
The captured image will display for 5 seconds after shooing.
Note: Pressing the shutter button will automatically switch the LCD to live view.
[Off] / [1 min.] / [3 min.] / [5 min.]
For power consumption, the camera
: is turned off automatically for a period of
Power Save
time.
The power save feature will not activate in some situation (
Date & Time
Language
Sets the date & time (
page 12).
page 7).
Select a language for display menus and other information from the following
31 languages: (
page 7)
Use this function if the camera experiences a “Folder cannot be created” error
or if you want to restart numbering, for example, after erasing all files.
[Series]:
Store the latest used file number no matter deleting files or
inserting a new memory card.
[Reset]:
Reset file numbering each time the memory card is changed.
Resetting the file number is useful for avoiding the file name duplication
page 55).
when images are downloaded to a computer (
File No.
You can review images on a television with a supplied AV cable
(
TV Out
page 53). TV Out should be set to either NTSC or PAL
depending on your region.
[NTSC]:
America, Japan and others
[PAL]:
Europe, Oceania and others
19
Menu Item
Functions
[Computer] / [Printer]:
USB
Sets the USB mode to connect the camera with a printer or
computer (
Start-up image
page 54).
Sets a recorded image as the start-up image (
page 52).
To erase all data stored in the memory card if you are using a
card, or all data stored in the internal memory if there is no card
inserted.
Format
A “BUSY...PLEASE WAIT” message displays and the memory
card is starting format.
A “COMPLETED” message displays when finish formatting.
Caution
All contents (Pictures, videos, and sound recordings) will be
deleted including protected files. Be sure to save important
files to your computer before formatting.
[Off] / [On]:
LCD Save
Enable the LCD save function to automatically decrease the LCD
brightness to conserve battery power
When the camera is idle for 5 seconds, the LCD darkens.
To ensure the camera displays battery level correctly, set the type
Battery Type
to match the batteries used.
Alkaline / NiMH / Lithium / Qxyride
Resets the entire menu and button operation settings to initial
default.
The following settings do not change after Reset All:
Reset All
Date & Time setting
Language setting
TV out setting
Battery Type
20
Basic Recording
Recording Still Images
1
Turn the power on, and set the
camera to the REC mode
(
2
page 13).
Compose the subject on the camera
LCD monitor.
Aim the focus area ( ) to the
subject that you want to take.
3
Half press the shutter button to focus the image.
The focus area ( ) becomes green while in focus, then shutter speed ( ),
aperture value ( ) and ISO value ( ) are displayed.
If the shutter speed is slow or the possibility that image may be blurred, the
shake warning icon
may appear on the LCD monitor. To avoid this, use
a tripod to stabilize the camera when recording images.
4
Take a picture.
Press the shutter button fully to
take a picture.
Caution
Make sure that your fingers or
the wrist strap does not block
the lens.
21
Using smile capture Mode
The smile capture model uses smile tracking to automatically capture images. Pressing
the shutter button to start smile detecting. This feature is most useful in capturing different
angles and smiles of moving people. When capturing an image with more than one person,
the camera detects the smile of the closest person on the center of the screen.
To activate smile capture
1
Press Mode button and select
from Mode Pallet.
(
2
page 13).
Focus the camera on the subject
to capture. Camera displays a
white tracking frame when smile
is detected.
3
Press the shutter button to start
smile detecting, and the white
focus frame will turn green to
denote camera activity.
4
When a smile is detected, the camera will automatically take a shot of the
image.
Tips
When capturing an image with several faces, face tracking function may take up
more time tracking faces for the first time.
22
Using Intelligent Scene Mode
With the Intelligent Scene Mode, the camera automatically detects the shooting
conditions and switches to the appropriate scene and settings when aiming on a subject.
This feature is most useful for novice users to capture great images even without basic
knowledge of photography
To activate Intelligent Scene
1
Select
(
2
from Mode Pallet.
page 13).
Focus the camera on the subject
to capture.
3
The camera detects the shooting
conditions and switches to an
appropriate scene mode.
4
Half press the shutter button to focus the subject. The frame turns green
to indicate focus is set.
5
Press the shutter button to take the shot.
The table below shows the modes supported by intelligent scene:
Icon
Intelligent Scene Modes
Portrait
Backlight
Description
This mode is set when a face is detected.
This mode is set when a face is detected with an EV
setting greater than 2.5.
This mode is set when:
Landscape
There is no face detected.
The focus distance is more than 1.5 meters.
The EV setting is greater than 11 or 10.5.
23
Icon
Intelligent Scene Modes
Description
This mode is set when:
Macro
y
y
There is no face detected
The focus distance is within the macro range.
This mode can only be detected when you half press
the shutter button.
This mode is set when:
Night Scene
y
There is no face detected
y
The focus distance is more than 1.5 meters.
y
The EV setting is lower than 5 or 4.5.
Tips
y
After the camera detects the shooting conditions, this icon changes to show the
detected scene mode.
y
Face tracking is automatically enabled.
24
Using Blink Detection Mode
The Blink Detection mode tracks faces and determines captured image that contain
subjects with blinked eyes. After shooting, when the camera detects that the subject
blinked an eye, a menu selection appears to ask the user whether to save the image or
not. This feature saves time in managing photos to be stored or deleted from the
memory.
To activate Blink Detection
1
Select
(
2
from Mode Pallet.
page 13).
Half press the shutter button to
focus the subject. The frame
turns green to indicate focus is
set.
3
Press the shutter button to
capture the image. The image is
automatically saved unless the
camera detects that the subject
blinked an eye.
4
Select Save Image to save or Cancel to disregard.
25
Using the Q mode
The Q mode provides a simplified camera
interface. Larger icons and fewer controls
make it easier to take pictures anytime,
especially for the beginners and elder
users.
You can use only the basic settings in the Q
mode:
Flash: Auto / Red eye / Force on / Slow sync / Force off
Button
Macro: Off / On
DISP/ OK : OSD on / Guide line / OSD off
Resolution: 10M / 3:2 / 16:9 / 8M / 5M / 3M / VGA
Drive Mode: Off / 2 sec. / 10 sec. / Double / Burst
Stabilizer: Off / On
Menu
Face Tracking: Off / On
Photo Frame: 10 frames can be selected
Beep: Off / On
Auto Review: Off / 1 sec. / 3 sec. / 5 sec.
Rest of settings will not be controlled as below:
Fixed setting
(*)
Quality: S.Fine
Highlight: Off
Metering: Multi
Sharpness: Normal
White balance: Auto
Effect: Off
ISO: Auto
Date Stamp: Date & Time
Exposure: Auto
Digital Zoom: Off
AEB: Off
Utility setting
(**)
Shutter sound
File No.
Start-up sound
TV out
Power save
USB
Date & Time
Start-up image
Language
(*)Fixed setting: Settings are fixed in Q mode.
(**)Utility setting: Use the same setting as last mode used.
26
Setting Image Size and Quality
You can select lower image resolution and quality to decrease the image size to capture
more images. Choose a suitable setting according to the desired image quality and
purpose. For details, see page 16.
Resolution Values
Image Size
3648 x 2736
Print Size
Printing larger than A4-size.
Larger
Printing to postcards or attaching to e-mail.
Smaller
3648 x 2432
3648 x 2048
3264 x 2448
2560 x 1920
2048 x 1536
640 x 480
Quality Values
Compression
Purpose
Super Fine
Shoot higher quality images.
Fine
Shoot normal quality images.
Normal
Shoot for more images.
27
Higher Quality
Lower Quality
Using the Zoom Function
Your camera has a combination of optical and digital zoom functions that allows you to
zoom in on far away subjects or zoom out for a wide angle shot.
The optical zoom is achieved by mechanically adjusting the lens of the camera. The
digital zoom enlarges or shrinks the image using a software process.
1
Select the zoom setting, and
point the camera at the subject.
2
Press the zoom button ( ) to
compose the image.
[W]: zoom out for a wide-angle
shot.
[T]: zoom in for a telephoto shot.
When the zoom button is
pressed, the zoom bar appears
on the LCD monitor.
When the optical zoom ( )
factor is at maximum, zooming
stops temporarily. Press the
[T] again, the camera switches
to the digital zoom ( )
automatically and zooming
continues.
The digital zoom ( ) will not
activate in movie recording.
3
Press shutter button to take a
picture.
Tips
Digital zoom works by enlarging the center portion of an image through a
software interpolation process.
The digital zoom is used to achieve magnification levels up to approx. 4 times.
28
Using the Flash
The flash is not only for taking pictures when there is insufficient light, but also when the
subject is in shade or in backlight conditions. Press the flash button to cycle your camera
through the various flash modes. The flash will not activate when continuous shooting or
movie recording.
1
Turn the power on, and set the camera
to the REC mode (
2
page 13).
Press the flash button ( ) to change
the flash mode.
Each time the flash button is
pressed, the flash icon ( ) changes.
Auto flash:
Flash fires automatically when
shooting conditions require extra
lighting.
Red-eye reduction:
Flash strobes to let the subject’s
eyes adjust to the flash, then
fires again to take the actual
image. Your camera will detect
the subject brightness and use
the flash only when required.
Force on:
Flash fires every time you take a photo, regardless of lighting conditions.
Slow sync:
Flash fires with a slow shutter speed.
Force off:
The flash never fires even in dark situation.
3
Press shutter button to take a picture.
Caution
The flash charging time may increase when the battery is low.
The available flash settings are limited depending on the REC mode you selected
(
page 59).
29
Using the Macro
Your camera is equipped with a macro function that allows you to focus on very close
subjects. In macro mode you can focus on subjects 15 cm from the lens when in the
maximum wide angle setting and 40 cm in the maximum telephoto setting.
1
Turn the power on, and set the
camera to the REC mode
(
2
page 13).
Press the macro button ( )
enters the macro mode.
The macro icon ( ) displays in
the LCD monitor.
To leave the macro mode,
press the macro button ( )
again.
Pan Focus:
When Pan Focus is set, the
camera focuses on every
object.
Infinity:
When Infinity is set, the
camera focuses on distant
objects.
3
Press shutter button to take a picture.
Tips
Distances referred to measure the distance between the camera lens surface
and the subject.
The available macro settings are limited depending on the REC mode you
selected. (
page 59).
30
Using the Self-timer & Burst
Use the self-timer to set a delay from the time the shutter button is pressed to the time
the image is shot. Use the burst to record continuous still images shooting.
1
Turn the power on, and set the camera
to the REC mode (
2
page 13).
Open the REC menu (
Use
or
page 16).
button to select
[Drive mode] from the REC menu.
3
Change the setting.
Press
or
to select a drive
mode, then press the OK button.
Off:
Record a single image.
2 sec.:
The shutter release will be delay for 2 seconds.
10 sec.:
The shutter release will be delay for 10 seconds.
Double:
Record two images in a shot after pressing the shutter release button 10
and 12 seconds.
Burst:
Keep pressing the shutter button fully to take continuous shooting.
Release the shutter button to stop shooting.
4
Press shutter button to take a picture.
Tips
When using the self-timer function, be sure to use a tripod or place the digital
camera on a level, stable surface.
31
Using the Aperture Priority
In this mode, you can set an aperture value to match the brightness. A higher aperture
value brings the background out of focus. Selecting a lower aperture value allows you to
soften the background.
1
Turn the power on, and set the
camera to the Aperture Priority
(
2
page 15).
Adjust the aperture value by
pressing
3
or
button.
Press shutter button to take a
picture.
Tips
y
The larger the aperture value the smaller the lens opening, allowing less light to
enter the camera.
Using the Shutter Priority
In this mode, you can set a shutter speed to match the brightness. Faster shutter speeds
allow you to take a sharp picture of a moving subject while slower speeds create a trail
effect and allow you to shoot without a flash in dark areas.
1
Turn the power on, and set the
camera to the Shutter Priority
(
2
page 15).
Adjust the shutter speed by
pressing
3
or
button.
Press shutter button to take a
picture.
32
Using the Manual Exposure
You can manually set the shutter speed and aperture to achieve a particular effect.
1
Turn the power on, and set the
camera to the Manual Exposure
(
22
page 15).
Use the OK button to switch
between aperture value and
shutter speed control.
or
3
Press
to adjust the setting.
Press shutter button to take a
picture.
Press the shutter button halfway,
the difference between the
standard exposure and the
selected exposure appears in
red.
33
Recording Movie Clips
You can record movies with the camera, the available recording time depends on the
capacity of the memory card. Videos can be recorded until the maximum memory
capacity has been reached. However the length of a single video may be limited.
1
Turn the power on, and set the
camera to the Movie mode
(
2
page 13).
Compose the subject on the
camera LCD monitor.
Aim the focus area ( ) to the
subject that you want to take.
The LCD monitor displays the
available recording time ( ).
3
Start recording.
Press the shutter button ( ) to
start recording.
Using the zoom button ( ) to
adjust the image size.
The White Balance is set and
locked to the settings of the first
frame
4
Finish recording.
Press the shutter again to end recording.
The camera will stop recording automatically when the memory capacity
has been reached.
Caution
Sound cannot be recorded while pressing the zoom button.
The digital zoom cannot be used in Movie mode.
When the maximum capacity for a single video has been reached, simple press
the shutter button again to continue recording. The camera will automatically stop
recording when the memory capacity is full.
34
Setting the Movie Size
Movie Size and Frame Rate
Resolution
Frame Rate
720 x 400
Higher Quality
30 frames/sec.
640 x 480
Lower Quality
320 x 240
Recording Audio Clips
1
Turn the power on, and set the camera to the Voice REC mode
(
2
page 13).
Press the shutter button to start recording.
The voices are recorded from the microphone of the camera. Be careful to
avoid touching the microphone while recording.
3
Press the shutter button again to end recording.
The camera will stop recording automatically when the memory capacity
has been reached.
Playing Back Audio Clips
1
Turn the power on, and set the
camera to the PLAYBACK mode
(
2
page 13).
Press
or
button to select the
audio clip that you want to
playback.
3
Start playing back.
Press
to start playing the audio clip.
Press
to stop the audio clip, or press
paused, press
again to resume.
35
to pause it. When audio clip
Recording a Voice Memo
You can add a voice memo to the still images after you record it.
1
Turn the power on, and set the
camera to the PLAYBACK mode
(
2
page 13).
Press
or
to select a still
image that you want to add a voice
memo to.
If the image already has the
voice memo recorded, the
appears on the LCD monitor.
The new recording will replace
the previous one.
3
Open the PLAYBACK menu.
Press the MENU button, using four-way control to select Voice Memo (
and press the OK button.
4
)
Press the OK button to start recording for 30 seconds.
Press the OK button again to end recording.
Caution
The voice memo cannot be added to a movie clip or a protected image.
You cannot delete only the voice memo. When you delete the image, the
attached voice memo is also deleted.
Playing Back a Voice Memo
1
2
3
Turn the power on, and set the camera to the PLAYBACK mode (
Press
or
page 13).
to select the image that has the voice memo recorded.
Start playing back.
Press
to start playing the voice memo.
Press
to stop the voice memo, or press
memo paused, press
again to resume.
36
to pause it. When voice
Other Recording Functions
Setting the Metering
There are 3 different light metering options available on your camera.
Option
Description
Light is measured from the entire shooting screen, but gives
more importance to the values near the center.
Selects an exposure based on readings from multiple points in
the subject area.
Selects an exposure based on a single reading taken from the
center of your picture.
Setting the White Balance
Adjust the white balance to match different light sources such as sunlight, incandescent
(tungsten) lighting or, fluorescent lighting.
Option
Description
Automatically corrects white balance. Ideal for general
photography.
Adjusts for bright sun conditions, or natural light conditions.
Adjusts for cloudy days or twilight conditions.
Adjusts for normal indoor lighting conditions. Corrects the
orange hue of household light bulbs. Ideal for indoor photos
under tungsten or halogen lighting without a flash.
Adjusts for fluorescent lighting. Corrects the green hue of
fluorescent lighting. Ideal for indoor photos under fluorescent
lighting without a flash.
For more accurate adjustment or when the light source cannot
be specified.
Tips
Point the camera at a white piece of paper or similar object under the lighting
conditions for which you want to set the white balance, and then press the
Shutter button.
37
Setting the ISO
With the initial settings, the ISO sensitivity is automatically set according to the
brightness of the subject.
Option
Auto
Description
Sets the ISO sensitivity automatically.
ISO 100
Sets the sensitivity to ISO 100 equivalent.
ISO 200
Sets the sensitivity to ISO 200 equivalent.
ISO 400
Sets the sensitivity to ISO 400 equivalent.
ISO 800
Sets the sensitivity to ISO 800 equivalent.
ISO 1600
Sets the sensitivity to ISO 1600 equivalent.
ISO 3200
Sets the sensitivity to ISO 3200 equivalent. (3M in only)
Tips
Higher ISO speeds increase the image noise. To take clean images, use as low
an ISO speed as possible.
Setting the Exposure
Set the exposure value manually to compensate for unusual lighting conditions such as
indirect indoor lighting, dark backgrounds, and strong backlighting.
Setting the AEB
Sets the auto exposure bracketing (AEB) to shoot 3 continuous images, each with a
different exposure setting: correctly exposed, underexposed, and overexposed.
Setting the Highlight
Make the subject stand out from its surroundings. The subject will be in focus in three
different ranges:
/
/
Tips
The Photo Frame and Face Tracking cannot be selected when using the Highlight
feature.
38
Setting the Sharpness
You can select whether you want the image to have sharp or soft outlines.
Option
Description
The edges of the image are emphasized. The edges will
become sharp, but noise may occur in the recording image.
The edges of the image are sharp. This is suitable for printing.
The edges of the image are softened. This is suitable for editing
images on PC.
Setting the Photo Edit
You can add special effects to your images in Record mode or in Playback mode.
Option
Off
Description
No effect is added to the image.
Red eye removal. (Playback only)
B&W
Convert image to black & white.
Sepia
Recorded image will be stored in a sepia tone.
Negative
Opposite what they were in the original image.
Mosaic
Add mosaic tiles to the images. (Playback only)
Red
The image becomes reddish.
Green
The image becomes greenish.
Blue
The image becomes bluish.
Setting Date Stamp
The Date Stamp function can be used to add a date to your pictures as you take them.
Option
Off
Date
Date & Time
Description
Do not add the recorded date & time to printed images.
Only add the recorded date to printed images.
Add the recorded date & time to printed images.
39
Setting Stabilizer
When using higher sensitivity and faster shutter speed settings this function helps
prevent image blur; caused by hand shake or target movement. This function allows
good pictures to be taken with little effort.
Setting Face tracking
After initializing the face tracking function, the lens will lock the main character in the
picture and follow their movements. Also, the use of auto digital zoom technology allows
the lens to extend and retract.
Tips
Pressing the shutter halfway showing green AF area means focus is complete.
Face tracking is powered by Arcsoft.
Under some environmental influences, face tracking function may be limited.
The Highlight and Photo Frame cannot be used as using the Face Tracking.
Setting Photo Frame
You can add 10 kinds of frames to still images, making them more interesting.
Tips
This feature is only available with still images (except 3:2 and 16:9).
The Highlight and Face Tracking cannot be used when using the Photo Frame.
40
Playback
Playing Back Images
1
Turn the power on, and set
the camera to the PLAYBACK
mode (
page 13).
The latest recorded image
appears on the LCD
monitor.
If there are no images
stored, a message [No
image] appears.
2
Press the four-way control
or
( ).
: displays the previous image.
: displays the next image.
Tips
Holding down
or
scrolls images in a high speed.
Playing Back Movie Clips
1
Turn the power on, and set the camera to the PLAYBACK mode
(
2
3
page 13).
Press
or
button to select a movie clip that you want to playback.
Start playing back.
Press
to start playing the movie clip.
Press
to stop the movie clip, or press
paused, press
to pause it. When the movie
again to resume.
Tips
During movie playing back, press
to fast forward or press
to rewind it.
Press the shutter to capture the still image from the movie clip while it had paused.
41
Magnifying & Trimming Still Images
1
Turn the power on, and set the
camera to the PLAYBACK
mode (
2
page 13).
Select an image.
Press
or
( ) to select
the image that you want to
magnify or trimming.
Only still images can be
magnified and trimmed.
3
Magnify the image.
Press [T] ( ) to magnify the image, and the central portion of the image is
displayed. You can use the arrow button ( ) to view different parts of the
magnified image.
Press the MENU button ( ) to return to the normal size.
4
Trim the image.
Press the OK button ( ) to set the image trimming.
5
Save the image.
Press the OK button ( ) again to trim the selected image and save it as a
new one.
42
Viewing in Thumbnail
1
Turn the power on, and set the
camera to the PLAYBACK mode
(
2
page 13).
Press the zoom button [W], a
thumbnail screen is displayed.
3
Use the four-way control to select the desired image, and press [T] or the
OK button to show the selected image in full screen.
Tips
You can protect or delete multiple images in thumbnail, see page 45, 47.
Playing a Slide Show
1
Turn the power on, and set the
camera to the PLAYBACK mode
(
2
page 13).
Enter the slide show.
Press the MENU button ( ),
use the four-way control ( ) to
select Slide Show (
) and
press the OK button ( ).
3
Change the slide show settings.
Use the four-way control ( ) to set the slideshow interval (
and repeat (
), effect (
).
You can set the interval between 1~10 seconds.
4
Playing the slide show.
Press the OK button ( ) to start the slideshow.
During the slideshow, press the OK button ( ) to pause the slideshow and
press the OK button again to resume.
43
)
Deleting Files
Deleting a Single File
1
Turn the power on, and set the
camera to the PLAYBACK mode
(
2
page 13).
Open the menu.
Press the MENU button ( ),
then use the four-way control
( ) to select Delete (
) and
press the OK button ( ).
3
Press
or
( ) to select [SINGLE], and then press the OK button ( ).
4
Press
or
( ) to select the image you want to delete.
5
Press the OK button (
) to delete the image.
Repeat step 4~5 to delete images.
Tips
To quickly delete the current display image
1.
Select the image you want to delete.
2.
Press the Delete button ( ) to show a confirmation.
3.
Press the OK button ( ) to delete the current display image.
Protected images cannot be deleted with this function.
44
Deleting Multiple Files
1
Turn the power on, and set the camera
to the thumbnail screen (
2
page 43).
Open the menu.
Press the MENU button, then Press
to select to select Delete
or
(
3
) and press the OK button.
Press
or
to select [Select], and then press the OK button.
The frame of the selected image turns green.
4
Select multiple images.
Use the four-way control to select the image.
Press the OK button toggles the
on and off. Repeat this step until all
images that you want to delete are displayed with an icon
5
.
Delete images.
Press the MENU button, then select [Yes] and press the OK button. All
selected images will be deleted.
To cancel delete, press the MENU button in this step.
Deleting All Files
1
Turn the power on, and set the camera
to the PLAYBACK mode (
2
page 13).
Open the menu.
Press the MENU button, then use the
four-way control to select Delete
( )and press the OK button.
You can open the menu in full screen or in thumbnail.
3
Press
4
Press the OK button to delete all unprotected images.
or
to select [ALL], and then press the OK button.
45
Protecting a Single File
1
Turn the power on, and set the camera to the PLAYBACK mode
(
2
page 13).
Open the menu.
Press the MENU button, then use the four-way control to select Protect
(
) and press the OK button.
3
Press
or
to select [SINGLE], and then press the OK button.
4
Press
or
to select the image you want to protect.
5
Press the OK button to protect the image.
When the file is locked, the
displays on the LCD monitor.
Repeat step 4~5 to protect images.
To unlock the file, press the OK button again in step 5. The
disappear and the file is unlocked.
will
Protecting All Files
1
Turn the power on, and set the camera
to the PLAYBACK mode (
2
page 13).
Open the menu.
Press the MENU button, then use
the four-way control to select
Protect (
) and press the OK
button.
You can open the menu in full screen
or in thumbnail.
3
Press
or
to select [Lock all], and then press the OK button.
To unlock all files, select [Unlock all] in this step, then press the OK button.
4
Press the OK button to protect all images.
46
Protecting Multiple Files
1
Turn the power on, and set the
camera to the thumbnail screen
(
2
page 43).
Open the menu.
Press the MENU button, then
Press
or
to select to
select Protect (
) and press
the OK button.
3
Press
or
to select [Select], and then press the OK button.
The frame of the selected image turns green.
4
Select multiple images.
Use the four-way control to select the image.
Press the OK button toggles the
on and off. Repeat this step until all
images that you want to protect are displayed with an icon
5
.
Protect images.
Press the MENU button, then select [Yes] and press the OK button. All
selected images will be protected.
To cancel protect, press the MENU button in this step.
47
Editing Images
Rotating Still Images
1
Turn the power on, and set the
camera to the PLAYBACK
mode (
2
page 13).
or
Press
to select the
image you want to rotate.
3
Open the menu.
Press the MENU button, then use the four-way control to select Rotate
) and press the OK button.
(
4
Press the OK button to rotate the image.
Each press rotates the image 90 degrees in clockwise.
5
Press
or
to select OK, and then press the OK button to finish
rotating.
Changing the Image Size
1
Turn the power on, and set the camera to the PLAYBACK mode
(
page 13).
2
Press
3
Open the menu.
or
to select the image you want to resize.
Press the MENU button, then use the four-way control to select Resize
(
4
Press
) and press the OK button.
or
to select an option, and then press the OK button.
The resized image will be saved as a new file.
Caution
Only a large size image can be resize to a smaller one.
48
Changing the Image with Effects
You may use Red Eye Removal remove the red eye caused by flash from original photo.
Or use color filters to save as a new image.
1
Turn the power on, and set the camera to the PLAYBACK mode
(
page 13).
2
Press
3
Open the menu.
or
to select the image you want to add the effect.
Press the MENU button, then use the four-way control to select Photo Edit
(
4
Press
) and press the OK button.
or
to select an option, and then press the OK button.
The edited image will be saved as a new file.
Choosing the Image with Photo Frame
1
Turn the power on, and set the camera to the PLAYBACK mode
(
2
3
page 13).
Press
or
to select the image you want to add the photo frame.
Open the menu.
Press the MENU button, then use the four-way control to select Photo
Fames (
4
Press
or
) and press the OK button.
to select the image you want, then press the OK button to
apply the choice.
The edited image will be saved as a new file.
49
Copying the Files
You may copy the data from the camera’s internal memory to the memory card for
convenience.
1
Be sure you have inserted a memory
card into your digital camera. Set
the camera to the PLAYBACK mode.
(
2
page 13).
Open the menu.
Press the MENU button, then use
the four-way control to select
Copy to card (
) and press the
OK button.
3
Press
or
to select [Single], then press the OK button.
To copy all images to a memory card, select [All].
4
Press
5
Select [Yes] and then press the OK button to start copy.
or
to select the image you want to copy to a card.
Repeat step 4~5 to copy other images.
Press the MENU button to complete the setting.
50
Setting the DPOF
The Digital Print Order Format (DPOF) setting allows you to select images on the
memory card for printing and specify the number of print copies in advance using the
camera.
This is extremely convenient for sending the images to a photo developing
service or for printing on a direct print function compatible printer.
1
Turn the power on, and set
the camera to the PLAYBACK
mode (
2
page 13).
Open the menu.
Press the MENU button,
then use the four-way
control to select DPOF
(
) and press the OK
button.
s
3
Press
or
to select [Single], then press the OK button.
To set the DPOF setting for all images, select [All] in this step.
To reset all DPOF settings to initial default, select [Reset] in this step.
4
Press
5
Set the number of copies.
Press
or
to select the image you want to print out.
or
to specify the number of copies.
The number of copies can be set from 0 to 99.
To cancel this image DPOF setting, set the number of copies to 0.
6
Print the date stamp out.
Press Mode button to set the date stamp of current image. Press SCN
button again to turn off date stamp.
Repeat step 4~6 to other images for printing.
7
After you finished all image settings, press the OK or MENU button to
apply it.
51
Choosing a Startup Image
1
Turn the power on, and set the camera to the PLAYBACK mode
(
2
page 13).
Open the menu.
Press the MENU button, then use the four-way control to select Start-up
Image (
3
Press
or
) and press the OK button.
to select the image you want, then press the OK button to
apply the choice.
A message “Completed” appears.
4
Set the camera to the Setup Menu (
5
Press
or
page 18).
to select
Start-up .Image (
) then press
or the OK button.
6
Press
or
to select a desired
option and press the OK button to
apply the setting.
Disable the start-up image.
[Off]:
[System]:
Use camera default image.
[My image]: Use the image that you just specified in step 3.
7
Press the MENU button to close the menu.
Caution
The start-up image will not be deleted even if the original image is deleted or
memory formatted.
52
Making Connections
Connecting the Camera to a PC
There are two ways to download files from the camera’s internal memory or memory
card to a computer:
Inserting the memory card into a card reader
Connecting the camera to a computer using the supplied USB cable
Using the Card Reader
1
Eject the memory card from the camera
and insert it in a card reader that is
connected to a computer.
2
Open [My Computer] or [Windows
Explorer] and double-click the removable
drive icon that represents the memory
card.
3
Copy images from the card into a directory of your choice on the
computer’s hard disk.
Connecting the Camera to a Computer with the USB Cable
1
Install the USB software driver included
with the bundled CD-ROM.
2
Connect the supplied USB cable to the
computer’s USB port and turn on the
camera.
The LCD screen turns off when the
connection to the computer has been
successfully completed.
3
Open [My Computer] or [Windows Explorer]. A “Removable Disk” appears
in the drive list.
4
Double-click the “Removable Disk” icon to view its contents.
Files stored on camera are located in the folder name “DCIM”.
53
Appendix
About the Folder & File Name
Your digital camera automatically creates a directory of folders in the internal memory or
memory card that it uses to organize still images, movie clips and other information.
Folder Structure
Folder name begins with a 3-digit number from
100 to 999 and followed by “HPDSC”, each folder
holds up to 9999 files.
If new files are made, a
new folder named in sequence will be made
automatically.
HP CA340 (F:)
DCIM
100HPDSC
HPIM0004.AVI
HPIM0005.WAV
101HPDSC
102HPDSC
MISC
AUTPRINT.MRK
File Naming
File name begins with “HPIM” and are followed by a 4-digit number that increases in
sequence. File numbering starts from 0001 when a new folder is created.
If the highest folder number is 999 and highest file number exceeds 9999, the camera
will display the warning message “Folder cannot be created”. When it appears, try one of
the following ways:
Reset the file number and plug in a new memory card.
The folder number and file number are initialized and renumbered from 100 and
0001 respectively.
Caution
Do not change the folder and file names in the memory card using your
computer. It may be unable to playback the data using the digital camera.
54
Troubleshooting
Problem
Cause
Solution
Power does not turn on.
Battery is inserted in the wrong
Reload battery in the correct
direction.
direction.
Batteries are dead.
Replace or recharge batteries.
The battery compartment door
Make sure the battery compartment
is open.
door is securely closed.
The camera does not
The flash is charging.
Wait for the flash to charge.
take pictures.
Memory is full.
Insert a new memory card.
Memory card is not formatted
The card may be defective, use a
correctly.
new card.
Image is not recorded
The Flash is charge.
Wait for the flash to charge.
when the shutter button
Memory is full.
Insert a new memory card.
The flash does not fire.
Flash is set to OFF.
Set the flash to any mode except off.
Image is blurry or out of
The camera was moving when
Hold the camera steady when
focus.
the image was captured.
shooting picture.
The subject was beyond the
Turn the Macro mode on it the
range within which the camera
subject is within 15 cm or 40 cm.
can focus.
Do not use Macro mode when
is pressed.
shooting distant subjects.
Image is not displayed
A memory card with non-DCIF
This camera cannot display
on the LCD monitor.
images (recorded with other
non-DCIF images.
camera) is loaded.
Recorded images are
The camera was turned off /
If the battery low indicator appears
not saved in memory.
powered down before the
on the LCD monitor, replace the
image was stored in memory.
battery immediately.
USB driver is not installed.
Install the USB driver before you
Cannot transfer images
to a computer after
connect the camera to a computer /
connecting the USB
turn the camera on.
cable.
Card error
The memory card format may
Re-format the memory card to the
not be correct.
FAT format using a card reader in
Windows.
The lens got stuck up.
The type of the battery used
Do not force the lens to go back.
may be incorrect or the battery
Change the battery or charge the
power level is too low.
battery before using the camera.
55
Specifications
Sensor
10 Mega Pixels CCD, Size : 1/2.3 inch
Lens
Focal Length : f = 6.2 ( W ) ~ 18.6 ( T ) mm ,
3X optical zoom, 4X digital zoom
LCD monitor
2.5” LCD monitor
Focus Range
Normal: Wide : 15 cm ~ Infinity / Tele : 40 cm ~ Infinity ,
Macro: (W) 15 cm ~ 1 m / (T) 40 cm~ 1 m
Aperture
F/ 2.8 ( W ), 5.2 ( T )
Shutter
8 ~ 1/2000 sec.
File Format
Still Image: EXIF 2.2 compatible format ( JPEG compression ),
DCF compatible. Support DPOF, ( PictBridge available )
Video: AVI , Audio: WAV
Resolution
Still Image: 3648 x 2736 (10M) / 3648 x 2432 (3:2) / 3648 x 2048
(16:9) / 3264 x 2448 (8M) / 2560 x 1920 (5M) / 2048 x 1536 (3M) /
640 x 480 (VGA),
Video: 720 x 400 / 640 x 480 / 320 x 240
Scene Mode
Program / Movie / Voice REC / Q mode / Portrait / Landscape /
Sunset / Backlight / Smile Capture / Kids / Night Scene / Fireworks /
Snow / Sports / Party / Food / Building / Text / Blink Detection /
Intelligent Scene
Sensitivity
Auto / ISO 100 / ISO 200 / ISO 400 / ISO 800 / ISO 1600 / ISO 3200
(3M in only)
White Balance
Auto / Daylight / Cloudy / Tungsten / Fluorescent (H) / Fluorescent
(L) / Custom
Exposure Control
-2EV to +2EV in 1/3 step
Metering
Center-weighted / Multi / Spot
Burst
Depends on the capacity of the memory. (no limit)
Self-timer
2 sec. / 10 sec. / Double
Flash
Auto / Red eye reduction / Always on / Slow sync / Always off
Photo Effect
Black & White / Sepia / Negative / Mosaic / Red eye removal / Red /
Green / Blue
Storage
32 MB internal memory / SD Card / SDHC Card
TV system
NTSC / PAL
Power Supply
AA alkaline battery X2 (Use alkaline batteries or rechargeable
batteries only)
Ambient
Operating: 0° C to 50° C
temperature
Storage: -20 to 60° C
Microphone
Built-in
56
Speaker
Built-in
Dimension
Camera Body ( W x H x T ) : 89.6 x 60.8 x 29 mm
Weight
Camera Body w/o battery : Approx. 120 (g)
*These specifications are subject to change without notice.
57
Function Available List
Still Capture
Mode
Scene Mode
Intelligent Scene
Function
Shutter & Lens
z
z
z
z
z
z
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
z
²
W:1/30
T: 1/60
²
²
²
²
²
²
W:1/30
T: 1/60
²
²
²
²
²
²
²
²
²
²
1~
1/2000
²
²
²
²
²
²
²
²
²
²
1~
1/2000
1~
1/2000
²
²
²
²
8~
1/2000
²
1~
1~
1/2000 1/2000
z
²
²
W:1/30
T: 1/60
1~
1~
1~
1~
1~
1/2000 1/2000 1/2000 1/2000 1/2000
²
8~
1/2000
²
8~
1/2000
z
²
8~
1/2000
²
²
1~
1/2000
²
²
Flash_Force off
1~
1/2000
²
²
8~
1/2000
²
²
1~
1/2000
z
z
²
²
Flash_Slow sync
²
²
²
²
W:1/30 W:1/30
T: 1/60 T: 1/60
²
W:1/30 W:1/30 W:1/30 W:1/30 W:1/30 W:1/30
T: 1/60 T: 1/60 T: 1/60 T: 1/60 T: 1/60 T: 1/60
W:1/30
T: 1/60
²
8~
1/2000
z
z
²
²
8~
1/2000
²
²
²
W:1/30
T: 1/60
²
z
²
²
W:1/30
T: 1/60
W:1/30 W:1/30
T: 1/60 T: 1/60
²
²
Flash_Force on
W:1/30 W:1/30
T: 1/60 T: 1/60
²
W:1/30 W:1/30
T: 1/60 T: 1/60
²
8~
1/2000
²
8~
1/2000
²
W:1/30
T: 1/60
²
W:1/30
T: 1/60
²
Shutter Speed
Flash_Red eye
z
z
²
²
W:1/30
T: 1/60
²
z
z
²
W:1/30
T: 1/60
²
²
z
²
²
²
²
²
²
²
z
²
²
²
²
z
²
²
W:1/30
T: 1/60
²
z
²
²
²
Flash_Auto
²
z
²
W:1/30
T: 1/60
Infinity Fixed
²
z
²
58
²
Focus
Continuous AF
z
One time AF
2
8~
sec.fi
1/2000
xed
1~
1~
1~
1~
1~
1~
1~
1~
1~
1/2000 1/2000 1/2000 1/2000 1/2000 1/2000 1/2000 1/2000 1/2000
²
²
²
²
²
²
²
²
²
²
z
O
O
O
²
²
²
²
²
²
²
z
²
²
²
O
²
²
²
O
²
²
z
²
²
²
O
²
²
²
O
²
²
²
²
²
O
²
²
²
O
²
²
z
²
²
²
O
²
²
²
O
²
²
z
²
²
²
O
²
²
²
O
²
²
z
²
²
²
z
²
²
²
O
²
²
z
²
²
²
²
z
²
²
O
²
²
²
z
²
²
O
²
²
²
z
²
²
z
²
²
O
z
²
²
²
O
²
²
O
z
O
z
z
²
²
²
O
²
²
²
O
O
z
O
O
O
O
²
²
²
²
²
z
²
²
²
²
z
²
²
²
²
²
z
²
²
²
O
z
²
²
z
²
O
²
²
z
²
²
O
²
²
z
²
²
²
²
²
²
²
O
²
²
z
²
²
²
²
²
z
²
O
²
²
²
²
²
z
²
²
²
²
z
²
²
²
²
²
z
²
²
²
²
z
²
²
z
²
²
²
²
z
O
²
O
²
²
O
O
O
O
O
O
O
O
O
²
²
O
O
O
O
²
O
O
²
z
O
O
O
O
O
O
²
O
O
²
z
²
O
O
O
O
O
²
O
O
O
z
O
²
”
O
O
O
”
O
O
O
O
²
²
Macro
Pan Focus
Infinity
Auto
Red eye
Force on
Slow sync
Force off
Aperture value
Shutter speed
Intelligent Scene
²
z
Button
Scene Mode
Function
Normal
Mode
Still Capture
z
Focus Mode
59
Flash
Up & Down
²
²
²
²
²
²
²
²
²
²
²
²
²
²
O
”
O
²
²
²
O
z
O
O
O
O
²
²
²
O
O
O
²
z
²
O
O
O
O
²
²
²
O
O
O
²
z
²
O
O
O
O
O
²
²
²
O
O
O
²
z
²
O
O
O
O
O
O
²
²
²
O
O
O
²
z
²
O
O
O
O
O
O
O
²
²
²
O
O
O
²
z
²
O
O
O
O
O
O
O
²
²
²
O
O
O
²
z
²
O
O
O
O
O
O
O
²
²
²
O
O
O
O
z
²
O
O
O
O
O
O
O
²
²
²
O
O
O
O
z
²
O
O
O
O
O
O
O
²
²
²
O
O
O
O
z
²
O
O
O
O
O
O
O
²
²
²
O
O
O
O
z
²
O
O
O
O
O
O
O
²
²
²
O
O
O
O
z
²
O
O
O
O
O
O
O
²
²
²
O
O
O
²
z
²
O
O
O
O
O
O
O
²
²
²
O
O
O
O
z
²
O
O
O
O
O
O
O
²
²
²
O
O
O
O
z
²
O
O
O
O
O
O
O
²
²
²
O
O
O
O
z
²
O
O
O
O
O
O
O
²
²
²
O
O
O
O
z
O
O
O
O
O
O
O
O
²
²
²
O
O
O
O
z
²
O
O
O
O
O
O
O
²
²
²
O
O
O
O
z
²
O
O
O
O
O
O
O
²
²
²
O
O
O
O
z
²
O
O
O
O
O
O
O
²
²
²
z
²
²
²
z
²
O
O
O
O
O
O
O
²
²
²
O
O
O
O
O
O
O
O
O
O
O
O
O
²
²
²
O
O
O
O
O
O
O
O
O
O
O
O
O
²
²
²
O
O
O
O
O
O
”
O
O
O
O
O
O
²
²
²
O
”
O
O
”
O
3:2
16:9
8M
5M
3M
VGA
16:9
640
320
S.Fine
Fine
Normal
Center
Multi
Spot
MENU
Function
²
10M
Intelligent Scene
Still Capture
Scene Mode
Mode
²
²
²
²
²
²
²
²
O
O
O
O
O
O
O
O
O
O
60
²
²
z
²
²
²
²
z
²
²
²
²
z
²
²
²
²
z
²
²
²
²
z
²
²
²
²
z
²
²
²
²
z
²
²
²
²
z
²
²
²
²
z
²
²
²
²
z
²
²
²
²
z
²
²
²
²
z
²
²
²
²
z
²
²
²
²
z
²
²
²
z
²
²
O
O
O
O
O
O
²
²
²
z
²
²
²
O
O
O
O
²
O
z
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
”
O
O
O
O
O
O
”
O
O
O
O
O
O
White Balance
61
²
²
²
ISO
²
3200
²
²
²
z
²
²
²
²
²
²
²
z
²
²
²
²
²
²
²
z
²
²
²
²
²
²
²
z
²
²
²
²
²
²
²
z
²
²
²
²
²
²
²
z
²
²
²
400
²
²
²
z
²
²
²
²
²
²
²
²
z
²
²
²
²
²
²
²
²
z
²
²
²
²
²
²
²
²
z
²
²
²
²
²
²
²
²
z
²
²
²
²
²
²
²
²
z
²
²
²
²
1600
²
²
²
²
²
200
z
²
z
100
²
²
²
Auto
²
²
²
Shutter
z
²
²
²
Fluor_L
²
²
²
²
Fluor_H
²
²
²
z
²
z
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
z
²
²
²
²
²
²
²
z
²
²
²
²
²
²
z
²
²
²
²
²
²
²
²
²
²
²
²
O
²
²
²
²
z
O
²
²
z
²
²
O
²
²
²
²
²
O
²
²
²
²
z
²
²
²
²
²
O
²
800
²
²
O
²
²
z
²
O
²
²
²
Tungsten
²
²
²
²
²
Cloudy
²
²
²
Daylight
MENU
Function
²
Auto
Intelligent Scene
Scene Mode
Still Capture
Mode
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
O
O
O
O
z
²
z
²
²
²
O
O
O
O
O
z
²
z
²
²
²
²
O
O
O
O
O
z
²
z
²
²
²
z
²
O
O
O
O
O
z
²
z
²
²
²
²
z
²
O
O
O
O
O
z
²
z
²
²
²
²
z
²
O
O
O
O
O
z
²
z
²
²
²
²
z
²
z
O
O
²
²
z
²
z
²
²
²
²
z
²
O
O
O
O
O
z
²
z
²
²
²
²
z
²
O
O
O
O
O
z
²
z
²
²
²
²
z
²
O
O
O
O
O
z
²
z
²
²
²
²
z
²
O
O
O
O
O
z
²
z
²
²
²
²
z
²
O
O
O
O
O
z
²
z
²
²
²
²
z
²
O
O
O
O
O
z
²
z
²
²
²
O
z
O
O
O
O
O
O
z
²
z
²
²
²
²
z
²
z
²
²
²
²
z
²
z
²
²
²
²
z
²
O
O
O
O
O
z
²
z
²
²
²
²
z
²
O
O
O
O
O
z
²
z
²
²
²
²
z
²
O
O
O
O
O
z
²
z
²
²
²
²
z
²
O
O
O
O
O
z
²
z
²
²
²
²
z
²
O
O
O
O
O
z
²
z
²
²
²
²
²
²
O
O
O
O
O
z
²
O
O
O
O
O
O
O
O
O
O
O
O
z
O
O
O
O
O
O
O
O
O
O
O
O
O
z
O
O
O
O
O
O
”
O
”
O
O
O
O
z
O
”
O
O
O
0EV
-0.3 ~ -2.0
Off
2 sec.
10 sec.
Double
Burst
Off
On
Off
MENU
Function
²
+0.3 ~ +2.0
Intelligent Scene
Scene Mode
Still Capture
Mode
²
²
²
²
²
²
²
²
²
z
²
O
²
z
²
²
z
²
Exposure
Drive Mode
62
AEB
Highlight
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
²
z
²
²
O
O
O
²
O
²
²
O
O
O
O
O
²
z
²
O
O
O
²
O
²
²
O
O
O
z
²
²
z
²
O
O
O
²
O
²
²
O
O
O
O
O
z
²
²
O
O
O
²
O
²
²
O
O
O
O
O
²
z
²
O
O
O
²
O
²
²
O
O
O
O
O
²
z
²
z
O
O
²
O
²
²
O
O
O
O
O
²
z
²
z
O
O
²
O
²
²
O
O
O
O
O
z
²
²
z
O
O
O
O
O
O
O
O
O
O
O
z
²
²
z
O
O
O
O
O
O
O
O
O
O
O
²
z
²
z
O
O
O
O
O
O
O
O
O
O
O
²
z
²
z
O
O
O
O
O
O
O
O
O
O
O
²
z
²
z
O
O
O
O
O
O
O
O
O
z
²
²
z
²
z
O
O
O
O
O
O
O
O
O
z
²
²
²
z
z
O
O
O
O
O
O
O
O
O
O
O
²
z
²
z
O
O
²
O
²
²
O
O
O
O
O
²
z
²
z
O
O
²
O
²
²
O
O
O
O
O
z
²
²
z
O
O
O
O
O
O
O
O
O
O
O
z
²
²
z
O
O
O
O
O
O
O
O
O
O
O
²
z
²
z
O
O
²
O
²
²
O
O
O
O
O
²
z
²
z
²
²
²
²
²
²
²
²
z
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
z
²
O
O
O
O
O
O
O
O
O
O
O
O
O
z
²
O
O
O
O
O
O
O
O
O
O
O
O
O
z
²
O
”
O
”
O
O
O
O
O
O
”
O
O
”
O
Normal
Soft
Off
B&W
Sepia
Negative
Red
Green
Blue
Off
Date
Date &
Time
Off
On
MENU
Function
²
Hard
Intelligent Scene
Scene Mode
Still Capture
Mode
²
63
²
²
²
²
z
z
²
O
O
²
z
z
²
O
O
²
z
z
²
O
O
²
z
z
²
O
O
²
z
z
²
O
O
²
z
z
²
O
O
²
z
z
²
O
O
z
²
O
O
O
O
z
²
O
O
O
O
z
²
O
O
O
O
O
O
O
O
O
O
z
²
O
O
O
O
z
²
O
O
O
O
O
O
O
O
O
O
²
z
z
²
O
O
²
z
z
²
O
O
z
²
O
O
O
O
z
²
O
O
O
O
²
z
z
²
O
O
O
O
O
O
z
²
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
”
O
”
O
”
Face Tracking
64
Off
On
10
Frame 1 ~
Photo Frame
Digital Zoom
: Set to [OFF] after power off.
: Disable function.
: Setting is retained even after mode switch or power off.
± : Not available.
²
” : Factory setting z : Default setting { : Available
²
²
O
²
Off
²
²
Intelligent Scene
²
On
MENU
Scene Mode
Still Capture
²
Off
Function
Mode
²
Photography Terms and Definitions
Terms
Definitions
A simple technique professional photographers use to ensure they properly
auto exposure
expose their pictures, especially in challenging lighting situations. When AEB is
bracketing (AEB):
selected, the camera automatically takes three or more shots with a different
exposure for each frame.
Autofocus refers to a camera lens' ability to adjust its configuration in order to
focus properly on a subject regardless of whether it is near or far from the
autofocus (AF)
camera. Autofocus lenses generally provide vastly superior image quality than
do their fixed focus cousins since they do not have to rely on their depth of field.
Also known as: "AF", "auto-focus"
An end-user created object that is used to logically group data objects according
album
to some user-defined criteria. An album may or may not be a physical folder in a
filesystem.
Analog to Digital
Converter
(A/D or ADC)
A circuit that converts an analog signal, having a continuously varying amplitude,
to a digitally quantized representation using binary output signals.
Usually refer to image aspect ratio or pixel aspect ratio.
Image aspect ratio: The ratio of the image width to the image height.
aspect ratio
Pixel aspect ratio: The ratio of the distance between sampling points in the two
orthogonal sampling directions. If the distances are equal, the pixel aspect ratio
equals 1:1 and is said to be “square.”
auto white balance
(AWB)
Charge Coupled
Device (CCD)
With auto white balance, the camera attempts to determine the color
temperature of the light and automatically adjust for that color temperature. Many
people just leave the camera set to auto white balance all the time.
A type of silicon integrated circuit used to convert light into an electronic signal.
Usually refer to image compression or sound file compression.
Image compression: A process that alters the way digital image data are
compression
encoded in order to reduce the size of an image file.
Sound file compression: A process of altering the sound data coding in order
to reduce the size of a sound file in the electronic still picture camera.
connection
A transport-provided logical or physical persistent mechanism for transferring
data between devices.
A standardized ASCII file created in a digital camera and stored on removable
Digital Print Order
media along with the image files that indicate how many copies of which images
Format (DPOF)
should be printed. It also allows index prints, cropping, and text overlays to be
specified.
65
digital still camera
A camera incorporating an image sensor which outputs a digital signal
(DSC)
representing a still picture, or records a digital signal representing a still picture
on a removable medium, such as a memory card or magnetic disk.
The ratio of the maximum luminance level that appears unclipped to the
dynamic range
minimum luminance level that can be reproduced with an incremental signal to
temporal noise ratio of at least 1, as determined according to ISO 15739.
A compressed file format for digital cameras in which the images are
Exif/JPEG
compressed using the baseline JPEG standard, described in ISO 12234-2, and
metadata and thumbnail images are stored using TIFF tags within an application
segment at the beginning of the JPEG file.
A numerical value that is inversely proportional to the exposure provided to an
exposure index
image sensor to obtain an image. Images obtained from a camera using a range
of exposure index values will normally provide a range of image quality levels.
file system
folder
The software structure which specifies how the data are logically organized on a
given storage medium.
An optional sub-structure in a hierarchical storage area that can contain data
objects.
A numerical value calculated from the exposure provided at the focal plane of an
electronic camera to produce specified camera output signal characteristics
ISO speed
using the methods described in the referenced standard. The ISO speed should
correlate with the highest exposure index value that provides peak image quality
for normal scenes.
JPEG
memory card
PC
protocol
Joint Photographic Experts Group. An image compression method defined in
ISO/IEC 10918-1.
A specific type of memory module with a physical form factor approximating that
of a credit card in outline; approx. 85 mm x 55 mm.
Personal Computer. Any personal computing device, which may employ various
hardware architectures and operating systems.
Defined mechanisms for exchanging data between devices.
A device-specific four byte unsigned integer (UINT32) that represents a unique
StorageID
storage area that may contain data objects. The most significant sixteen bits of a
StorageID represents the PhysicalStorageID, while the least significant sixteen
bits of a StorageID represents the LogicalStorageID.
Universal serial bus, a digital interface for connecting up to 64 devices in a
USB
tiered-star topology.
See http://www.usb.org.
The adjustment of electronic still picture color channel gains or image processing
white balance
so that radiation with relative spectral power distribution equal to that of the
scene illumination source is rendered as a visual neutral.
Source: ISO/WE 12231 Photography– Electronic still-picture cameras –Terminology
66
Getting Help
Should you have a technical support question or your HP Digital Camera require service within
the warranty period, please contact the original point of purchase or an authorized HP reseller
in your country. If service is not available at those locations, please contact an HP Branded Product warranty agent from the support contact list provided below. A service agent will work with
you to troubleshoot your issue and if necessary, issue a Return Material Authorization (RMA)
number in order to replace your HP Branded Product. For warranty claims, you will be required
to provide a copy of your original dated sales receipt as proof of purchase and the issued RMA
number. You will be responsible for shipping charges when shipping the product to the service
center. The service agent will provide you with an address and you will also be responsible for
any shipping charges to the warranty service center. Once your product is received by this
service center, a replacement unit will be shipped back to you typically within 5 business days.
Email Support:
Language
Email Address
Dutch
hollands@hpodd.com
simp.chinese@hpodd.com
Chinese
trad.chinese@hpodd.com
English
english@hpodd.com
Français
francais@hpodd.com
Deutsch
deutsch@hpodd.com
Italiano
italiano@hpodd.com
Japanese
nippon@hpodd.com
Korean
korean@hpodd.com
Portuguese
portugues@hpodd.com
Espanol
espanol@hpodd.com
Svenska
svensk@hpodd.com
Contact/phone Support:
Country
Language
Number
België
Dutch and German
+ 32 2700 1724
FRANCE
French
+ 33 171230454
DEUTSCHLAND
German
+ 49 6950073896
IRELAND
English
+ 353 1850882016
ITALIA
Italian
+ 39 269682189
NETHERLANDS
Dutch
+ 31 202015093
ESPAÑA
Spanish
+ 34 914533458
SWITZERLAND
German/French/Italian
+ 41 18009686
UK
English
+ 44 2073652400
United States
English
1.866.694.7633
Canada
English and French
1.866.694.7633
Europe Region (EMEA)
North America
67
P/N: 7525C00052B
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
