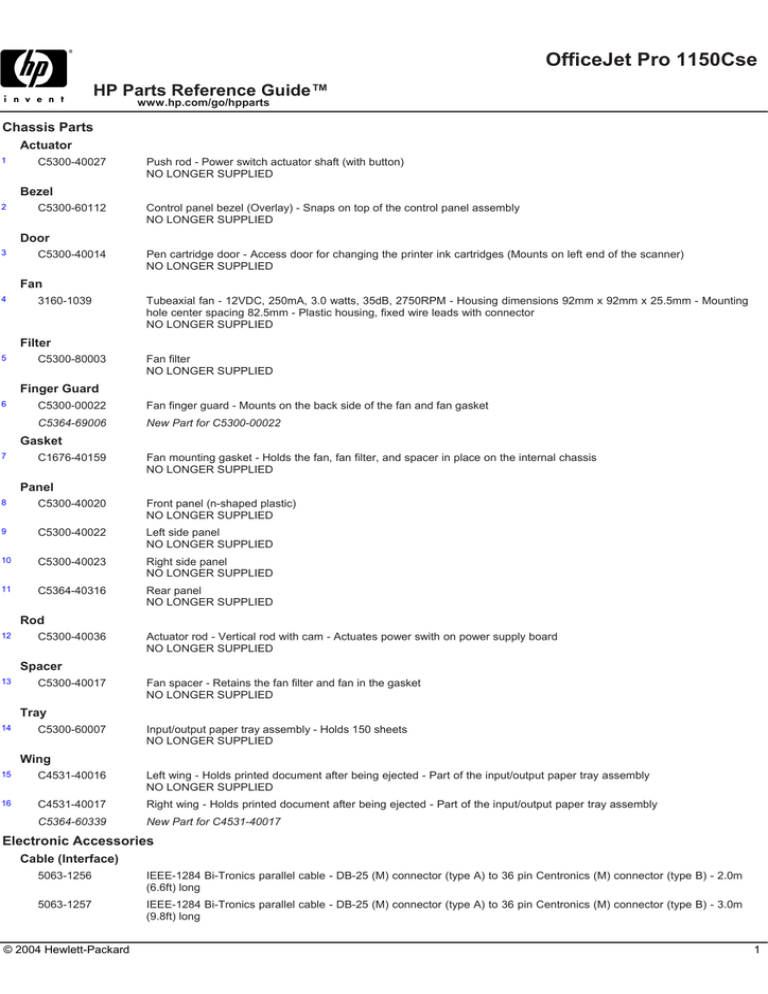

OfficeJet Pro 1150Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Chassis Parts
Actuator
1
C5300-40027
Push rod - Power switch actuator shaft (with button)
NO LONGER SUPPLIED
Bezel
2
C5300-60112
Control panel bezel (Overlay) - Snaps on top of the control panel assembly
NO LONGER SUPPLIED
Door
3
C5300-40014
Pen cartridge door - Access door for changing the printer ink cartridges (Mounts on left end of the scanner)
NO LONGER SUPPLIED
Fan
4
3160-1039
Tubeaxial fan - 12VDC, 250mA, 3.0 watts, 35dB, 2750RPM - Housing dimensions 92mm x 92mm x 25.5mm - Mounting
hole center spacing 82.5mm - Plastic housing, fixed wire leads with connector
NO LONGER SUPPLIED
Filter
5
C5300-80003
Fan filter
NO LONGER SUPPLIED
Finger Guard
6
C5300-00022
Fan finger guard - Mounts on the back side of the fan and fan gasket
C5364-69006
New Part for C5300-00022
Gasket
7
C1676-40159
Fan mounting gasket - Holds the fan, fan filter, and spacer in place on the internal chassis
NO LONGER SUPPLIED
Panel
8
C5300-40020
Front panel (n-shaped plastic)
NO LONGER SUPPLIED
9
C5300-40022
Left side panel
NO LONGER SUPPLIED
10
C5300-40023
Right side panel
NO LONGER SUPPLIED
11
C5364-40316
Rear panel
NO LONGER SUPPLIED
Rod
12
C5300-40036
Actuator rod - Vertical rod with cam - Actuates power swith on power supply board
NO LONGER SUPPLIED
Spacer
13
C5300-40017
Fan spacer - Retains the fan filter and fan in the gasket
NO LONGER SUPPLIED
Tray
14
C5300-60007
Input/output paper tray assembly - Holds 150 sheets
NO LONGER SUPPLIED
Wing
15
C4531-40016
Left wing - Holds printed document after being ejected - Part of the input/output paper tray assembly
NO LONGER SUPPLIED
16
C4531-40017
Right wing - Holds printed document after being ejected - Part of the input/output paper tray assembly
C5364-60339
New Part for C4531-40017
Electronic Accessories
Cable (Interface)
5063-1256
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 2.0m
(6.6ft) long
5063-1257
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m
(9.8ft) long
© 2004 Hewlett-Packard
1
OfficeJet Pro 1150Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Electronic Accessories
Cable (Interface)
C2950A
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 2.0m
(6.6ft) long
5063-1256
New Part for C2950A
C2951A
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m
(9.8ft) long
C2990A
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) (type A) to 36 pin (M) Centronics (type B) - 1.8m (6ft) long
NO LONGER SUPPLIED
C2991A
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) (type A) to 36 pin (M) Centronics (type B) - 3.0m (10ft) long
NO LONGER SUPPLIED
C3801-80073
Centronics parallel interface cable - 25 pin (M) with thumbscrews to 36 pin Centronics (M) - 2m (6.6ft) long
C6680-80003
New Part for C3801-80073
OfficeJet Electronics
Cable
24
C5300-60010
Ribbon cable - 10 pin (F) edge connectors on each end - 60.2cm (23.7 inches) long
NO LONGER SUPPLIED
25
C5300-60012
Cable assembly - Has 9 pin (F) connectors - 6.1cm (2.4 inches) long
Control Panel
26
C5300-60009
Control panel assembly - Mounts to the front panel - Does NOT include the bezel or ribbon cable - Available for trade
sales in Europe - Available for authorized service centers only in USA
NO LONGER SUPPLIED
OfficeJet
C5300-69107
Replacement OfficeJet pro 1150C (not available in Europe) - Does NOT include the control panel bezel
NO LONGER SUPPLIED
PC Board
28
C5300-69100
Main logic board
NO LONGER SUPPLIED
Power Cord
8120-1369
Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (For 240V in Australia, New Zealand,
and China)
8120-1378
Power cord (Jade Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 120V in USA, Canada, Latin
America, Korea, Taiwan, Thailand, Spain, Brazil, and Vietnam)
8120-6329
Power cord (Dove Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 240V in South Africa and India)
8120-6330
Power cord (Dove Gray) - 2.3m (7.5ft) long - Has straight (F) receptacle (For 220V in Denmark)
8120-6331
Power cord (Dove Gray) - 2.3m (7.5ft) long - Has straight (F) receptacle (For 220V in Switzerland)
8120-6809
Power cord (Dove Gray) - 2.3m (7.5ft) long - Has straight (F) receptacle (For 240V operation in the United Kingdom,
Hong Kong, Singapore, Malaysia)
8120-6811
Power cord (Flint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 220V in Europe, Saudi Arabia,
South Africa, India, and Korea)
8120-6870
Power cord (Dove Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Argentina)
8120-6978
Power cord (Dove Gray) - 18 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Chile)
Power Supply
38
C5300-60001
Power supply PC board
NO LONGER SUPPLIED
Other Accessories
CD-ROM (Support)
C6659-10101
© 2004 Hewlett-Packard
Service manual, technical support solutions guide and user's guide CD-ROM for print/scan/copy 370/380, OfficeJet
500/520/570/580/590/600/610/630/635/700/710/720/725, fax 910/920, OfficeJet Pro 1150/1170/1175, color copier
140/150
NO LONGER SUPPLIED
2
OfficeJet Pro 1150Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Other Accessories
Cartridge
51641A
Tri-color ink print cartridge - Prints approximately 360 pages based on 13.5% total density (4.5% for each color) on a 8
inch by 10 inch print area (for USA)
51641AA
Tri-color ink print cartridge - Prints approximately 360 pages based on 13.5% total density (4.5% for each color) on a 8
inch by 10 inch print area (for Asia/Pacific)
51641AC
Tri-color ink print cartridge - Prints approximately 360 pages based on 13.5% total density (4.5% for each color) on a 8
inch by 10 inch print area (for canada)
51641AE
Tri-color ink print cartridge - Prints approximately 360 pages based on 13.5% total density (4.5% for each color) on a 8
inch by 10 inch print area (for europe)
51641AL
Tri-color ink print cartridge - Prints approximately 360 pages based on 13.5% total density (4.5% for each color) on a 8
inch by 10 inch print area (for latin america)
51645A
Black print cartridge (High capacity) - Prints approximately 840 pages based on 5% density on a 8 inch by 10 inch print
area (for USA)
51645AA
Black print cartridge (High capacity) - Prints approximately 840 pages based on 5% density on a 8 inch by 10 inch print
area (for Asia/Pacific)
51645AC
Black print cartridge (high capacity) - Prints approximately 840 pages based on 5% density on a 8 inch by 10 inch print
area (for Canada)
51645AE
Black print cartridge (high capacity) - Prints approximately 840 pages based on 5% density on a 8 inch by 10 inch print
area (for Europe)
51645AL
Black print cartridge (high capacity) - Prints approximately 840 pages based on 5% density on a 8 inch by 10 inch print
area (for Latin America)
51645G
Black print cartridge (economy) - Prints approximately 415 pages based on 5% density on a 8 inch by 10 inch print area
(for USA)
51645GA
Black print cartridge (economy) - Prints approximately 415 pages based on 5% density on a 8 inch by 10 inch print area
(for Asia/Pacific)
51645GC
Black print cartridge (economy) - Prints approximately 415 pages based on 5% density on a 8 inch by 10 inch print area
(for Canada)
51645GE
Black print cartridge (economy) - Prints approximately 415 pages based on 5% density on a 8 inch by 10 inch print area
(for Europe)
51645GL
Black print cartridge (economy) - Prints approximately 415 pages based on 5% density on a 8 inch by 10 inch print area
(for Latin America)
C6613AN
Black print cartridges (High capacity) - (2 pack of 51645A) each prints approximately 840 pages based on 5% density on
a 8 inch (20.3cm) by 10 inch (25.4cm) print area (for USA)
NO LONGER SUPPLIED
Manual
C5300-90004
OfficeJet Pro 1150C user's guide (English)
NO LONGER SUPPLIED
Tape
0460-2555
Scanner ESD tape - 1/2 inch wide by 72 yards long - Adhesive backed polyester film - Used to cover the scanner
aperture after scanner bezel is removed - Keeps dust out of scanner
NO LONGER SUPPLIED
Paper and Other Media
Film (Transparency)
C3832A
Premium InkJet transparency film - A4 size (21.0cm x 29.7cm) - 20 sheets per package
C3835A
Premium InkJet transparency film - A4 size (21.0cm x 29.7cm) - 50 sheets per package
C6053A
Premium InkJet rapid-dry tranparencies - A4 size (21.0cm x 29.7cm) - 50 sheets per package
NO LONGER SUPPLIED
C3828A
Premium InkJet transparency film - A size (8.5 x 11-inches) - 20 sheets per package
C3834A
Premium InkJet transparency film - A size (8.5 x 11-inches) - 50 sheets per package
C6051A
Premium InkJet rapid-dry tranparencies - A size (8.5 x 11-inches) - 50 sheets per package
NO LONGER SUPPLIED
© 2004 Hewlett-Packard
3
OfficeJet Pro 1150Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Paper and Other Media
Greeting Card Kit
C6587AN
Printable Expressions all occasions card kit - Includes 20 greeting cards and envelopes, and a CD-ROM with 24 original
pieces of art
NO LONGER SUPPLIED
Iron-On Transfers
C6049A
Iron-on T-shirt transfers - A size (8.5 x 11-inches) - 10 sheets per package
Paper (Glossy)
C3831A
Premium glossy InkJet paper - A4 size (21.0cm x 29.7cm) - 10 sheets per package
C3837A
Premium glossy InkJet paper - A4 size (21.0cm x 29.7cm) - 50 sheets per package
C3833A
Premium glossy InkJet paper - A size (8.5 x 11-inches) - 10 sheets per package
C3836A
Premium glossy InkJet paper - A size (8.5 x 11-inches) - 50 sheets per package
C6817A
Professional glossy InkJet brochure and flyer paper - Glossy on both sides - A size (8.5 x 11-inches) - 50 sheets per box
Paper (InkJet)
51634Z
InkJet non-glossy LX paper - A4 size (21.0cm x 29.7cm) - 200 sheets per package
C1825A
Bright white InkJet paper - A4 size (21.0cm x 29.7cm) - 500 sheets per package
C1853A
Premium InkJet heavyweight paper - A4 size (21.0cm x 29.7cm) - Coated on both sides - 100 sheets per package
C5977A
Bright white InkJet paper - A4 size (21.0cm x 29.7cm) - 200 sheets per package
C5977B
Bright white InkJet paper - A4 size (21.0cm x 29.7cm) - 250 sheets per package
51634Y
InkJet non-glossy LX paper - A size (8.5 x 11-inches) - 200 sheets per package
C1824A
Bright white InkJet paper - A size (8.5 x 11-inches) - 500 sheets per package
C5973A
Premium glossy paper - A size (8.5 x 11-inches) - 25 sheets per package
NO LONGER SUPPLIED
C5976A
Bright white InkJet paper - A size (8.5 x 11-inches) - 200 sheets per package
C5976B
Bright white InkJet paper - A size (8.5 x 11-inches) - 250 sheets per package
Paper (Matte)
C6955A
Professional and flyer paper (Matte) - A size (8.5 x 11-inches) - 50 sheets
Paper (Photo)
C6040A
Premium glossy photo paper - A4 size (21.0cm x 29.7cm) - 15 sheets per package (Europe, Brazil, and Argentina)
C6043A
Premium glossy photo paper - A4 size (21.0cm x 29.7cm) - 15 sheets per package (Japan)
C6039A
Premium glossy photo paper (Fast dry time) - A size (8.5 x 11-inches) - 15 sheets per package
Stickers
C6822A
Round re-stickable InkJet stickers - HP bright white 6.35cm (2.5in) round stickers with 3M 'Post-it' adhesive - A size (8.5
x 11-inches) - 10 sheets per package with nine stickers per sheet
C6823A
Square re-stickable InkJet stickers - HP bright white 6.35cm (2.5in) square stickers with 3M 'Post-it' adhesive - A size
(8.5 x 11-inches) - 10 sheets per package with nine stickers per sheet
Print Mech Assembly Parts
Belt
87
C2145-40058
Drive belt - For the print mechanism carriage assembly
NO LONGER SUPPLIED
Cable
88
C2145-60032
Carriage assembly flex cable - Overall length is 46.7cm (18.4 inches)
NO LONGER SUPPLIED
Clamp
89
C2145-40047
© 2004 Hewlett-Packard
Flex cable clamp
NO LONGER SUPPLIED
4
OfficeJet Pro 1150Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Print Mech Assembly Parts
Gear
90
C4555-40002
Gear cluster (Dual gear)
NO LONGER SUPPLIED
Guide
91
C2145-40118
Pre guide - For envelopes
NO LONGER SUPPLIED
Idler
92
C4555-60067
Carriage belt idler wheel assembly - Includes: idler mount, pulley, ball bearing and idler axle
NO LONGER SUPPLIED
Motor
94
C2145-60011
Carriage motor assembly
NO LONGER SUPPLIED
C2145-60012
Service station motor
NO LONGER SUPPLIED
C4555-60005
Paper drive motor - Drives media through printer
NO LONGER SUPPLIED
PC Board
96
C5300-69100
Main logic board
NO LONGER SUPPLIED
Print Mechanism
C5300-69076
Replacement print mech assembly - Includes the print mech assembly (with motors) , service station assembly, and
scanner base assemblies
NO LONGER SUPPLIED
Roller
98
C2124-60116
Lower pinch roller
Service Station
99
C5300-60043
Service station assembly - Does NOT include motor, tools, or instructions
NO LONGER SUPPLIED
100
C5300-60077
Service station assembly with tool and instructions - Does NOT include motor
NO LONGER SUPPLIED
Stiffener
101
C2145-00042
Encoder stiffener - Prevents oscillation of encoder strip
NO LONGER SUPPLIED
Strip
102
C2145-80016
Encoder strip - Carriage position sensor reference
NO LONGER SUPPLIED
Turnaround Assembly
103
C4555-60068
Turnaround assembly - Holds belt tension components in place
NO LONGER SUPPLIED
Print Mechanism Parts
Roller
104
C4555-60028
Pivot and feed roller assembly - Includes pivot and shaft
NO LONGER SUPPLIED
Scanner Assembly Parts
Belt
105
C5300-40038
© 2004 Hewlett-Packard
Drive belt - For the scanner carriage assembly
NO LONGER SUPPLIED
5
OfficeJet Pro 1150Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Scanner Assembly Parts
Clip
106
C5300-00003
Scanner rod retaining clip
NO LONGER SUPPLIED
107
C5300-40002
Ribbon cable retaining clip
NO LONGER SUPPLIED
Cover
108
C5300-40009
Screw head cover - Snap on cover which covers the recessed screw heads in front of the scanner copyboard
NO LONGER SUPPLIED
109
C5300-60015
Document cover assembly - Lift-up scanner bed cover - Includes the cover, foam pressure pad, and hinge assembly
NO LONGER SUPPLIED
Glass Assembly
110
C5300-00039
Scanner glass pane - Glass plate that documents to be scanned lay on
NO LONGER SUPPLIED
Knob
111
C5300-40040
Scanner lock knob - Green knob and shaft assembly - Locks the scanner carriage assembly in place for shipping
NO LONGER SUPPLIED
Motor
112
C5300-60029
Scanner motor assembly
NO LONGER SUPPLIED
Panel
113
C5300-40024
Trim panel
NO LONGER SUPPLIED
Rod
114
C5300-20002
Scanner rod - Shaft that the scanner carriage assembly rides on
NO LONGER SUPPLIED
Scanner Assembly
115
C5300-60106
Scanner carriage assembly - Includes lamp
NO LONGER SUPPLIED
Trim
116
C5300-40008
Rear trim strip (border) - At the rear of the copyboard glass
NO LONGER SUPPLIED
117
C5300-60013
Trim strip (border) - At right side of the scanner glass pane
NO LONGER SUPPLIED
118
C5300-60014
Trim strip (border) - In front of the scanner glass pane
NO LONGER SUPPLIED
© 2004 Hewlett-Packard
6
OfficeJet Pro 1150Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Electronics Box and Associated Parts
28, 96
|
/
12
_
25
/
38
© 2004 Hewlett-Packard
7
OfficeJet Pro 1150Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Internal Chassis Parts
6
7
4
5
13
_
_
_
_
_
© 2004 Hewlett-Packard
\
1
8
OfficeJet Pro 1150Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Lower External Chassis Parts and Scanner Assembly
106
_
107
\
11
_
\
115
114
/
_
9
\
8
105
/
112
_
2
\
111
/
24, 26
© 2004 Hewlett-Packard
_
\
113
\
10
9
OfficeJet Pro 1150Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Print Mechanism Assembly
/
88
89
87
_
_
101
/
92
\
102
/
_
87
103
/
91
\
99, 100
_
|
104
98
/
90
98
/
98
/
_
/
94
© 2004 Hewlett-Packard
10
OfficeJet Pro 1150Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
Upper External Chassis Parts and Paper Tray
109
/
110
/
109
/
3
\
/
116
108
\
\
117
/
118
/
14, 15, 16
© 2004 Hewlett-Packard
11
OfficeJet Pro 1150Cse
HP Parts Reference Guide™
www.hp.com/go/hpparts
HP Parts Reference Guide
http://www.hp.com/go/parts
HP PartSurfer
http://partsurfer.hp.com
HP Parts Ordering Information
http://www.hp.com/go/hpparts
HP Parts Questions/Comments
http://partsurfer.hp.com/contactus.htm
© 2004 Hewlett-Packard
12
Download PDF

advertising
