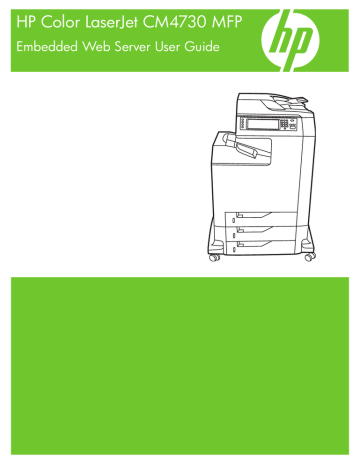

HP Color LaserJet CM4730 MFP
Embedded Web Server User Guide
HP Embedded Web Server
User Guide
Copyright and Warranty
Trademarks and credits
© 2007 Copyright Hewlett-Packard
Development Company, L.P.
Adobe® and PostScript® are trademarks of
Adobe Systems Incorporated.
Reproduction, adaptation or translation
without prior written permission is prohibited,
except as allowed under the copyright laws.
Microsoft® and Windows® are U.S.
registered trademarks of Microsoft Corp.
The information contained herein is subject
to change without notice.
The only warranties for HP products and
services are set forth in the express warranty
statements accompanying such products
and services. Nothing herein should be
construed as constituting an additional
warranty. HP shall not be liable for technical
or editorial errors or omissions contained
herein.
Edition 1, 5/2007
Table of contents
1 Overview
What is an embedded Web server? .................................................................................................... 1
Features .............................................................................................................................. 1
HP Web Jetadmin and the HP Embedded Web Server ...................................................... 2
System requirements ........................................................................................................................... 2
Opening the HP Embedded Web Server ............................................................................................. 2
Login and logoff .................................................................................................................................... 4
To log in as an administrator ............................................................................................... 4
To log off as an administrator ............................................................................................. 4
Navigating through the HP Embedded Web Server ............................................................................. 5
2 Viewing product status from the HP EWS Information screens
Device Status ...................................................................................................................................... 8
Configuration Page ............................................................................................................................. 10
Supplies Status .................................................................................................................................. 13
Event Log ........................................................................................................................................... 15
Usage Page ........................................................................................................................................ 16
Diagnostics Page ............................................................................................................................... 18
Device Information ............................................................................................................................. 20
Control Panel Snapshot ..................................................................................................................... 21
Color Usage Job Log .......................................................................................................................... 22
Print .................................................................................................................................................... 23
Printing a file or updating firmware from the Print screen .................................................. 24
3 Configuring the product from the Settings screens
Configure Device ................................................................................................................................ 25
Using the menus on the Configure Device screen ............................................................ 26
Tray Sizes/Types ................................................................................................................................ 27
E-mail Server ...................................................................................................................................... 28
Configuring outgoing e-mail ............................................................................................... 29
Configuring the return e-mail address ............................................................................... 29
Alerts .................................................................................................................................................. 30
Using the Alerts screen with a product ............................................................................. 32
AutoSend ............................................................................................................................................ 36
To turn on the AutoSend feature ....................................................................................... 37
Security .............................................................................................................................................. 38
Authentication Manager ..................................................................................................................... 40
LDAP Authentication .......................................................................................................................... 42
Kerberos Authentication ..................................................................................................................... 45
ENWW
iii
Kerberos Authentication Tasks .......................................................................................... 47
Initializing Kerberos authentication ................................................................... 48
Configure the Authentication Manager for Kerberos Authentication ................. 49
Configure Address Settings for Kerberos Authentication .................................. 49
Use the MFP control panel for Kerberos Authentication ................................... 50
Device PIN Authentication .................................................................................................................. 51
User PIN Authentication ..................................................................................................................... 52
Add New Users .................................................................................................................. 53
Edit or delete existing users ............................................................................................... 54
Edit Other Links .................................................................................................................................. 55
Adding a link ...................................................................................................................... 56
Removing a link ................................................................................................................. 56
Device Information ............................................................................................................................. 57
Language ........................................................................................................................................... 58
Date & Time ....................................................................................................................................... 60
Date/Time Format .............................................................................................................. 61
Clock Drift Correction ......................................................................................................... 61
Wake Time ......................................................................................................................................... 63
Restrict Color ...................................................................................................................................... 64
Using the Restrict Color screen with a product .................................................................. 65
4 Setting the digital sending options
General Settings ................................................................................................................................. 68
Send to Folder .................................................................................................................................... 70
Adding a predefined folder ................................................................................................. 71
Editing or viewing a predefined folder ................................................................................ 71
Removing a predefined folder ............................................................................................ 72
Removing all folders .......................................................................................................... 72
Testing a predefined folder ................................................................................................ 72
E-mail Settings ................................................................................................................................... 73
Advanced E-mail Settings .................................................................................................. 75
E-mail Address Book .......................................................................................................................... 76
E-mail Address Book tasks ................................................................................................ 76
Fax Settings ....................................................................................................................................... 78
Advanced Fax Settings ..................................................................................................... 80
Fax Address Book .............................................................................................................................. 83
Fax Address Book tasks .................................................................................................... 83
Import/Export ...................................................................................................................................... 85
Import an address book ..................................................................................................... 85
Required data and record limits ........................................................................ 87
Creating an import file using Microsoft Outlook ................................................ 87
Export an address book ..................................................................................................... 88
Clear address books .......................................................................................................... 88
Addressing Settings ........................................................................................................................... 89
Advanced Addressing Settings .......................................................................................... 92
Log ..................................................................................................................................................... 93
Preferences ........................................................................................................................................ 95
Using the HP DSS software ............................................................................................................... 97
5 Managing network operation from the Networking screens
iv
ENWW
Overview ............................................................................................................................................ 98
6 Using the Other Links as a resource
hp instant support ............................................................................................................................ 101
How hp instant support works .......................................................................................... 101
Information you can get from hp instant support ............................................................. 101
Shop for Supplies ............................................................................................................................. 101
Product Support .............................................................................................................................. 102
My Service Provider and My Service Contract ................................................................................. 102
Index ................................................................................................................................................................. 103
ENWW
v
List of tables
Table 1-1
Table 2-1
Table 2-2
Table 2-3
Table 2-4
Table 2-5
Table 2-6
Table 2-7
Table 2-8
Table 3-1
Table 3-2
Table 3-3
Table 3-4
Table 3-5
Table 3-6
Table 3-7
Table 3-8
Table 3-9
Table 3-10
Table 3-11
Table 3-12
Table 3-13
Table 3-14
Table 3-15
Table 4-1
Table 4-2
Table 4-3
Table 4-4
Table 4-5
Table 4-6
Table 4-7
Table 4-8
Table 4-9
Table 4-10
Table 5-1
vi
HP Embedded Web Server ................................................................................................................ 5
Device Status ..................................................................................................................................... 8
Configuration Page .......................................................................................................................... 11
Supplies Status ................................................................................................................................ 14
Event Log ......................................................................................................................................... 15
Usage Page ..................................................................................................................................... 17
Diagnostics Page ............................................................................................................................. 18
Color Usage Job Log ....................................................................................................................... 22
Print page ......................................................................................................................................... 23
Configure Device .............................................................................................................................. 26
Tray Sizes/Types ............................................................................................................................. 27
E-mail Server ................................................................................................................................... 28
Alerts ................................................................................................................................................ 31
AutoSend ......................................................................................................................................... 37
Security ............................................................................................................................................ 38
Authentication Manager ................................................................................................................... 40
LDAP Authentication ........................................................................................................................ 42
Kerberos Authentication ................................................................................................................... 46
Edit Other Links .............................................................................................................................. 55
Language ....................................................................................................................................... 58
Date & Time ................................................................................................................................... 60
Wake Time ..................................................................................................................................... 63
Restrict Color ................................................................................................................................. 65
Restrict Color – COLOR IF ALLOWED .......................................................................................... 66
General Settings .............................................................................................................................. 68
Send to Folder settings .................................................................................................................... 70
E-mail Settings ................................................................................................................................. 73
Advanced E-mail Settings ................................................................................................................ 75
Send to Fax ...................................................................................................................................... 78
Advanced Fax Settings .................................................................................................................... 80
Addressing Settings ......................................................................................................................... 89
Advanced Addressing Settings ........................................................................................................ 92
Log ................................................................................................................................................... 93
Preferences Settings ...................................................................................................................... 96
Network Settings .............................................................................................................................. 98
ENWW
List of figures
Figure 1-1
Figure 1-2
Figure 2-1
Figure 2-2
Figure 2-3
Figure 2-4
Figure 2-5
Figure 2-6
Figure 2-7
Figure 2-8
Figure 2-9
Figure 2-10
Figure 2-11
Figure 2-12
Figure 3-1
Figure 3-2
Figure 3-3
Figure 3-4
Figure 3-5
Figure 3-6
Figure 3-7
Figure 3-8
Figure 3-9
Figure 3-10
Figure 3-11
Figure 3-12
Figure 3-13
Figure 3-14
Figure 3-15
Figure 3-16
Figure 3-17
Figure 3-18
Figure 3-19
Figure 3-20
Figure 3-21
Figure 3-22
Figure 4-1
Figure 4-2
Figure 4-3
Figure 4-4
ENWW
Enter Network Password dialog box ................................................................................................. 4
Sample HP EWS screen ................................................................................................................... 5
Device Status screen ........................................................................................................................ 8
Configuration Page screen – 1 of 2 ................................................................................................ 10
Configuration Page screen – 2 of 2 ................................................................................................ 11
Supplies Status screen ................................................................................................................... 13
Event Log screen ............................................................................................................................ 15
Usage Page screen – 1 of 2 ........................................................................................................... 16
Usage Pagescreen – 2 of 2 ............................................................................................................ 17
Diagnostics Page screen ................................................................................................................ 18
Device Information screen .............................................................................................................. 20
Control Panel Snapshot screen .................................................................................................... 21
Color Usage Job Log screen ........................................................................................................ 22
Print screen ................................................................................................................................... 23
Configure Device screen ................................................................................................................. 25
Tray Sizes/Types screen ................................................................................................................ 27
E-mail Server screen ...................................................................................................................... 28
Alerts screen ................................................................................................................................... 30
Alerts - setup screen ....................................................................................................................... 33
Alerts - test screen .......................................................................................................................... 35
AutoSend screen ............................................................................................................................ 36
Security screen ............................................................................................................................... 38
Authentication Manager screen ...................................................................................................... 40
LDAP Authentication screen ......................................................................................................... 42
Kerberos Authentication screen .................................................................................................... 45
Device PIN Authentication screen ................................................................................................ 51
User PIN Authentication screen .................................................................................................... 53
Edit Other Links screen ................................................................................................................. 55
Device Information screen ............................................................................................................ 57
Language screen .......................................................................................................................... 58
Date & Time screen ...................................................................................................................... 60
Date/Time Format screen ............................................................................................................. 61
Date & Time - clock drift correction screen ................................................................................... 62
Wake Time screen ........................................................................................................................ 63
Restrict Color screen .................................................................................................................... 64
Restrict Color screen - COLOR IF ALLOWED option ................................................................... 66
General Settings screen ................................................................................................................. 68
Send to Folder screen ..................................................................................................................... 70
E-mail Settings screen .................................................................................................................... 73
Advanced E-mail Settings screen ................................................................................................... 75
vii
Figure 4-5
Figure 4-6
Figure 4-7
Figure 4-8
Figure 4-9
Figure 4-10
Figure 4-11
Figure 4-12
Figure 4-13
Figure 4-14
Figure 4-15
Figure 4-16
Figure 4-17
Figure 5-1
Figure 6-1
viii
E-mail Address Book screen ........................................................................................................... 76
Fax Settings screen ........................................................................................................................ 78
Advanced Fax Settings screen ....................................................................................................... 80
Establish PIN Number screen ......................................................................................................... 81
Modem Diagnostics screen ............................................................................................................. 82
Fax Address Book screen ............................................................................................................. 83
Import/Export screen ..................................................................................................................... 85
Addressing Settings screen .......................................................................................................... 89
Advanced Addressing Settings screen ......................................................................................... 92
Log screen .................................................................................................................................... 93
Details screen ............................................................................................................................... 94
Troubleshoot screen ..................................................................................................................... 95
Preferences Settings screen ......................................................................................................... 95
Network Settings screen ................................................................................................................. 98
Device Information screen ............................................................................................................ 100
ENWW
Overview
Overview
1
What is an embedded Web server?
A Web server provides an environment in which Web programs can run, in much the same way that an
operating system, such as Microsoft® Windows®, provides an environment in which programs can run
on your computer. A Web browser, such as Microsoft Internet Explorer, Apple Safari, or Mozilla Firefox,
can show output from a Web server.
An embedded Web server resides on a hardware product (such as a printer) in the firmware, rather than
as software that is loaded on a network server.
The advantage of an embedded Web server is that it provides an interface to the product that anyone
who has a network-connected computer and a standard Web browser can open and use. No special
software needs to be installed or configured.
With the HP Embedded Web Server (HP EWS), you can view device status information, change settings,
and manage the product at your computer.
NOTE In this guide, the terms "product" and "device" are used interchangeably. When products
or devices are discussed in this guide, the information pertains to HP LaserJet printers or
multifunction peripherals (MFPs), or HP Digital Senders. For specific information about the
features that your printer, MFP, or digital sender supports, see the documentation that came with
your product.
Features
You can use the HP EWS to view product and network status and to manage printing functions from
your computer, rather than at the product control panel. With the HP EWS, you can perform these tasks:
ENWW
●
View control-panel messages and product-status information.
●
Determine the remaining life for all supplies and configure specific ordering information for supplies.
●
Gain access to the product's technical support page.
●
Gain access to specific support for recent product events.
●
Add up to five additional links or customize links to other Web sites.
●
View and change product configuration, such as tray configurations.
●
View and change network configuration.
●
View and print information pages, such as the Configuration page.
What is an embedded Web server?
1
Overview
●
Receive alerts about product events, such as when the product is low on supplies, through e-mail.
Set up four different destination lists for each user (administrators and service), with up to 20
recipients on each of the four lists.
●
Select the language in which to display the HP EWS screens.
●
Print to an HP product without having to install the product print driver.
●
Conserve energy by scheduling the product sleep delay so that the product will go into sleep mode
after a period of time of not being used.
●
Schedule wakeup times for each day so that the product has finished initializing and calibrating by
the time it is to be used.
●
Send product configuration and supplies usage information periodically to your service provider.
HP Web Jetadmin and the HP Embedded Web Server
HP Web Jetadmin is a Web-based system management tool that you can use with a Web browser. The
HP EWS and HP Web Jetadmin work together to meet all of your product-management needs. You can
use the software to install and manage networked products effectively. Network administrators can
manage networked products remotely, from practically anywhere.
The HP EWS provides a simple, easy-to-use solution for one-to-one product management in
environments that have a limited number of products. However, in environments that have several
products, you might want to use HP Web Jetadmin to manage groups of products. With HP Web
Jetadmin you can discover, manage, and configure multiple products simultaneously.
HP Web Jetadmin is available from HP online support (HP Web Jetadmin www.hp.com/go/
webjetadmin).
System requirements
In order to use the HP EWS, you must have the following components:
●
A supported Web browser. Browsers that support embedded Web servers include (but are not
limited to) the following:
●
Konqueror 3.5 or later
●
Microsoft Internet Explorer 6.0 or later
●
Mozilla Firefox 1.0 or later
●
Opera 9.0 or later
●
Safari 1.0 or later
●
A transmission control protocol/Internet protocol-based (TCP/IP-based) network connection.
●
An HP Jetdirect print server (embedded or enhanced input/output [EIO]) installed in the product.
Opening the HP Embedded Web Server
Use the following procedure to open the HP EWS.
2
Chapter 1 Overview
ENWW
1.
Open a supported Web browser.
2.
In the Address or Go to field, type the IPv4 or IPv6 TCP/IP address, the host name, or the
configured host name that is assigned to the product. See the following examples.
●
IPv4 TCP/IP address: http://192.168.1.1
●
IPv6 TCP/IP address: http://[2001:0ba0:0000:0000:0000:0000:0000:1234]
●
Host name: npiXXXXXX
Overview
NOTE You cannot view the HP EWS screens from outside of a firewall.
If you do not know the TCP/IP address for the product, you can find it by using the control-panel menu
or by printing a configuration page. For instructions, see the user guide that came with your product.
NOTE The HP EWS for the device supports IPv6 on the Information, Settings, and
Networking tabs. However, the Digital Sending tab supports only IPv4 address configuration.
ENWW
Opening the HP Embedded Web Server
3
Login and logoff
Overview
The HP EWS has screens that can be used to view product information and change configuration
options. The screens that appear, and the settings on them, vary according to how you gain access to
the HP EWS: as a general user, an information technology (IT) administrator, or a service provider.
These passwords can be customized by an IT administrator or a service provider.
In a password-protected HP EWS, only the Information tab is available to users who do not log in by
using the password. If no password has been set (which is the default), all of the tabs are visible.
If a password has been set, you must log on as an IT administrator or a service provider to gain access
to the protected HP EWS tabs (Settings, Digital Sending, and Networking).
NOTE For information about changing passwords as an IT administrator, see Security. If you
are a service provider, see your product service guide.
To log in as an administrator
Use the following procedure to log in to the HP EWS as an administrator.
1.
After you open the EWS, click the Log In link in the upper-right corner of the screen.
The Enter Network Password dialog box appears, as shown in the following illustration. The
appearance of the login screen might vary, depending on your operating system and browser.
Figure 1-1 Enter Network Password dialog box
2.
Type admin for the user name, type your password, and then click OK.
To log off as an administrator
Use the following procedure to log off.
4
1.
Click the Log Off link.
2.
To complete the logoff, close the browser.
Chapter 1 Overview
ENWW
Navigating through the HP Embedded Web Server
To navigate through the HP EWS screens, click one of the tabs (such as Information or Settings), and
then click one of the menus on the navigation bar that is located on the left side of the screen.
The following illustration and table provide information about the HP EWS screens.
NOTE The appearance of the HP EWS screens might differ from the illustrations in this user
guide, depending on the product features and the settings that your IT administrator has
established.
Figure 1-2 Sample HP EWS screen
Table 1-1 HP Embedded Web Server
ENWW
Callout
HP EWS
screen feature
Description
More information
1
Product name
and TCP/IP
address
View the product name and Internet protocol (IP)
address.
Navigating through the HP Embedded Web Server
5
Overview
CAUTION If you do not close the browser, the connection to the product HP EWS continues to
run and could pose security risks.
Table 1-1 HP Embedded Web Server (continued)
Overview
Callout
HP EWS
screen feature
Description
More information
2
Tabs
Information tab
View information about the See Viewing product status from the
HP EWS Information screens.
product. You cannot
configure the product
using the screens on this
tab.
Settings tab
Use the features on this
tab to configure the
product.
See Configuring the product from the
Settings screens.
Digital Sending tab
Use the features on this
tab to configure the digital
sending capabilities.
See Setting the digital sending options.
NOTE If the
Digital Sending
Software
(HP DSS) has
been installed,
the digital
sending options
must be
configured by
using the HP MFP
DSS
Configuration
Utility.
6
Networking tab
View network status and
configure the network
settings.
See Managing network operation from
the Networking screens.
3
Menus
Different on each tab
Click a tab to show the
menus.
4
Other Links
hp instant support
Connect to a set of Web
●
resources that help solve
problems and describe the
●
additional services that
are available for your
●
HP product.
Shop for Supplies
Use the Internet to order
genuine HP supplies for
your HP product.
Product Support
Use product-specific help
from the HP Web site to
solve a problem.
●
See Using the Other Links as a
resource.
See hp instant support .
See Product Support .
See My Service Provider and My
Service Contract.
5
Log In/Log Off
Different for each
type of user
Log in as an IT
administrator or service
provider.
See Login and logoff.
6
Screen
Different for each
menu item
Click a menu item to show
a screen.
●
See Viewing product status from
the HP EWS Information screens.
●
See Configuring the product from
the Settings screens.
●
See Managing network operation
from the Networking screens.
Chapter 1 Overview
ENWW
Viewing product status from the
HP EWS Information screens
Information
2
The screens available from the Information tab are for informational purposes only; you cannot
configure the product from these screens. To configure the product through the HP EWS, see
Configuring the product from the Settings screens.
NOTE Some products do not support all of these screens.
ENWW
7
Device Status
Use the Device Status screen to view the current status of the product. The following illustration and
table describe how to use this screen.
Information
Figure 2-1 Device Status screen
Table 2-1 Device Status
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and
menus
For more information, see Navigating through the HP Embedded Web Server.
2
Status
Shows the device status (the same information that appears on the control-panel
display).
If the device requires user intervention, a Help image appears in this area providing
instructions in a pop-up window.
8
3
Control-panel buttons
Use these control-panel buttons just as you would at the product. To select which
control-panel buttons appear on this screen, go to the Security screen on the
Settings tab.
4
Supplies
Shows the percentage of life remaining for each supply.
5
Supplies Details
Opens the Supplies Status screen, where you can view information about product
supplies.
Chapter 2 Viewing product status from the HP EWS Information screens
ENWW
Table 2-1 Device Status (continued)
Callout
Area on the screen
Information or capability that the area provides
6
Media
Shows the status and configuration information for the input trays and output bins.
The media status is OK until the tray is completely empty. When the tray is empty,
the status is Out.
Change Settings
Takes you to the Settings tab, where you can configure settings for the device.
Information
7
ENWW
Device Status
9
Configuration Page
Use the Configuration Page screen to view current product settings, help troubleshoot problems, and
verify the installation of optional accessories such as dual inline memory modules (DIMMs). The
following illustration and table describe how to use this screen.
Information
Figure 2-2 Configuration Page screen – 1 of 2
10
Chapter 2 Viewing product status from the HP EWS Information screens
ENWW
Information
Figure 2-3 Configuration Page screen – 2 of 2
Table 2-2 Configuration Page
ENWW
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and menus
For more information, see Navigating through the HP Embedded Web
Server.
2
Device Information
Lists the serial number, version numbers, and other information for the
device.
3
Options
Displays information about optional accessories and configurations. The
following information appears:
●
Version and TCP/IP address for all network devices connected to
the product (Jetdirect or internal Jetdirect)
●
All of the printer languages that are installed (such as printer
command language [PCL] and PostScript® [PS])
●
Options that are installed in each DIMM slot and EIO slot
●
USB devices that can be connected to a printer used as a host USB
controller, such as mass storage devices, card swipes, or keypads
Configuration Page
11
Table 2-2 Configuration Page (continued)
Callout
Area on the screen
Information or capability that the area provides
4
Memory
Lists the memory information, PCL Driver Work Space (DWS), and
resource saving information.
5
Security
Lists the status of the control-panel lock, disk write-protect options, and
direct-connect (USB or parallel) ports.
You can change the status of the Direct Connect ports on the Security
screen under the Settings tab by selecting or clearing the Disable
Direct Ports check box.
Information
6
Paper Trays and Options
Lists the size and type of media that is specified for each of the trays in
the product. If a duplexing unit or any paper-handling accessories are
installed on the product, information about those devices is also listed
here.
7
Calibration Information
Lists the last color-plane registration (CPR) page count, the last CPR
page-count date, the last page count (in engine cycles) for DMAX/
DHALF, and the last DMAX/DHALF page-count date.
Color plane registration occurs when new print cartridges are installed
to compensate for any slight variations that might occur in cartridge
circumference.
DMAX is a density calibration of each print cartridge color at 100%
coverage; DHALF is also a density calibration of each print cartridge
color, but as a halftone instead of a full color. During halftone printing,
the dots of toner are spread out, and coverage of the toner is less than
100%.
8
12
Color Density
Lists the cyan, magenta, yellow, and black (CMYK) values for highlights,
midtones, and shadows.
Chapter 2 Viewing product status from the HP EWS Information screens
ENWW
Supplies Status
Information
The Supplies Status screen shows more detailed supplies information and provides part numbers for
genuine HP supplies. (It is helpful to have the part numbers available when ordering supplies.) The
following illustration and table describe how to use this screen.
Figure 2-4 Supplies Status screen
ENWW
Supplies Status
13
Table 2-3 Supplies Status
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and menus
For more information, see Navigating through the HP Embedded Web
Server.
2
Shop for Supplies link
Use this feature to connect to a Web page that facilitates online ordering of
supplies from a reseller of your choice.
3
Print Cartridge Information
If available, this lists the percent of life remaining and the estimated number
of pages remaining before the supply is empty; the total number of pages
that have been processed with the supply; the supply serial number and
HP part number; and an indication of whether or not the supply has reached
the low status.
Information
If the Override at Out option has been enabled at the product control panel,
a message appears, when the supply is exhausted, stating that the
cartridge was used with the override setting.
NOTE If a non-HP supply is used, information about the device
might not be available. In addition, a warning message about the
risks associated with using non-HP supplies could appear on the
screen. No further information about the status of the supply will
be available.
4
14
Long-Life Supplies
Information
If available, this lists the percent of life remaining and the estimated number
of pages remaining with the supply.
Chapter 2 Viewing product status from the HP EWS Information screens
ENWW
Event Log
Information
The Event Log screen shows the most recent product events, including jams, service errors, and other
printer errors. The following illustration and table describe how to use this screen.
Figure 2-5 Event Log screen
Table 2-4 Event Log
ENWW
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and menus
For more information, see Navigating through the HP Embedded Web
Server.
2
Number
Lists the order in which the errors occurred. The last error to occur has the
highest number.
3
Date and Time
Lists the date and time for each event logged.
4
Engine Cycles
Shows the number of engine cycles that the product had completed when the
error occurred. The product completes one engine cycle for every Letter/A4size page side that it prints or copies.
5
Current Engine Cycles
Shows the number of engine cycles that the product has completed to date.
6
Event
Shows the internal event code for each event.
7
Description or Personality
Shows a brief description of some events.
8
Product Support link
Provides access to the HP support Web site for product-specific
troubleshooting information.
Event Log
15
Usage Page
The Usage Page screen gives a page count for each size of media that has passed through the product,
as well as the number of duplexed pages. The total is calculated by multiplying the sum of the print count
values by the Units value.
The information on this screen can be used to determine how much toner or paper to keep on hand.
The following illustration and table describe how to use this screen.
Information
Figure 2-6 Usage Page screen – 1 of 2
16
Chapter 2 Viewing product status from the HP EWS Information screens
ENWW
Information
Figure 2-7 Usage Pagescreen – 2 of 2
Table 2-5 Usage Page
ENWW
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and menus
For more information, see Navigating through the HP Embedded Web
Server.
2
Usage Totals (equivalent)
Indicates the types of pages that have been printed, the number of singlesided pages that have been printed, the number of duplexed pages that
have been printed, and the total number of pages that have been printed.
3
Units
A unit is equal to a standard A4-size (letter-size) page. All other page sizes
are referenced in relation to this standard size. An A4-size (letter-size) page
printed on both sides counts as 2 units.
4
Duplex 1 Image
“Duplex 1 image” refers to pages that are printed as part of a duplexed print
job, but which are blank on the second side.
5
Print Modes & Paper Path Usage
(actual)
Indicates the different print modes that have been used for color and
monochrome (black-and-white) print jobs.
6
Historical Device Coverage
Indicates the average amount of toner that is used on each printed page.
Usage Page
17
Diagnostics Page
The Diagnostics Page screen provides information about calibration, color density, and parameters.
Information
Figure 2-8 Diagnostics Page screen
Table 2-6 Diagnostics Page
18
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and
menus
For more information, see Navigating through the HP Embedded Web Server.
2
Calibration
Information
Lists the last color-plane registration (CPR) page count, the last CPR page-count date,
the last page count (in engine cycles) for DMAX/DHALF, and the last DMAX/DHALF
page-count date.
Chapter 2 Viewing product status from the HP EWS Information screens
ENWW
Table 2-6 Diagnostics Page (continued)
Callout
Area on the screen
Information or capability that the area provides
Color plane registration occurs when new print cartridges are installed to compensate
for any slight variations that might occur in cartridge circumference.
ENWW
3
Color Density
Lists the cyan, magenta, yellow, and black (CMYK) values for highlights, midtones,
and shadows.
4
Parameters
For color devices, specific engine settings related to the printing or
electrophotographic process are critical in identifying device status and function. The
electrophotographic parameters, which are used to detect, diagnose, and track printquality defects, appear in a 272-cell binary array that contains the settings registered
by the device engine. These registers also appear at the bottom of the Diagnostics
Page screen.
Diagnostics Page
19
Information
DMAX is a density calibration of each print cartridge color at 100% coverage; DHALF
is also a density calibration of each print cartridge color, but as a halftone instead of
a full color. During halftone printing, the dots of toner are spread out, and coverage of
the toner is less than 100%.
Device Information
The Device Information screen shows the following information:
Information
●
Device name
●
Device location
●
Asset number
●
Company name
●
Contact person
●
Product name
●
Device model
●
Device serial number
The product name, device model, and device serial number are generated automatically. You can
configure the other information on this screen from the Device Information screen on the Settings tab.
Figure 2-9 Device Information screen
20
Chapter 2 Viewing product status from the HP EWS Information screens
ENWW
Control Panel Snapshot
The Control Panel Snapshot screen shows the product control-panel display as if you were standing
at the product. Because this view shows the product status, it can help you troubleshoot problems with
the product.
Information
NOTE The appearance of the screen might vary, depending on your product.
Figure 2-10 Control Panel Snapshot screen
ENWW
Control Panel Snapshot
21
Color Usage Job Log
Use the Color Usage Job Log to view usage details for the printer. The following illustration and table
describe how to use the Color Usage Job Log screen.
Information
Figure 2-11 Color Usage Job Log screen
Table 2-7 Color Usage Job Log
Callout
Area on the screen
Information or capability that the area
provides
1
Device Information
Lists the serial number and name of the
printer.
2
Usage Totals
Summarizes usage totals for all jobs,
mono sides, color sides, and total
sheets.
3
Job Log
Displays usage data for the selected
page in the log. The Job Log empties
when you turn the product off.
If a hard disk is installed on your product,
the Job Log shows a maximum of 7,400
jobs. If a hard disk is not installed on your
product, the Job Log shows a maximum
of 32 jobs.
Click Previous or Next to move through
the log, or click the number of the page
you wish to see. The displayed data
changes as you move through the log.
22
Chapter 2 Viewing product status from the HP EWS Information screens
ENWW
Print
NOTE The Print screen (and the Print menu on the left) is available only if it has been
configured to appear on the Security screen under the Settings tab. Use the Security screen
to disable the Print screen if you do not want it to appear for security reasons. For more
information, see Security.
Use the Print screen to print print-ready files or to update your product firmware remotely.
You can print print-ready files, such as documents that have been generated by using a "print to file"
driver option. Print-ready files commonly have file name extensions such as .PS (postscript), .PDF
(Adobe Portable Document Format), and .PRN (Windows print-ready File).
This feature is especially useful because you do not have to install additional software in order to update
the product firmware. When updated firmware files are available for your product, you can download
them from your product support Web site:
www.hp.com/support/CLJCM4730mfp
The following illustration and table describe how to use this screen.
Figure 2-12 Print screen
Table 2-8 Print page
ENWW
Callout
Area on screen
Information or capability that the area provides
1
HP EWS tabs and
menus
For more information, see Navigating through the HP Embedded Web Server.
Print
23
Information
You can use the Print screen to print one file at a time from a product that supports the HP EWS. This
feature is especially useful if you are a mobile user, because you do not have to install the product's
print driver in order to print; you can print anywhere at any time.
Table 2-8 Print page (continued)
Callout
Area on screen
Information or capability that the area provides
2
Device Status
Shows the device status (the same information that appears on the Device Status
screen and the control-panel display).
3
Choose File
Prints a print-ready file, such as a .pdf or .txt file, that is located on your laptop,
computer, or a network file server.
Printing a file or updating firmware from the Print screen
Use the following procedure to print a file or update product firmware from the Print screen.
Information
24
1.
Select a file that resides on your machine or on your network by clicking Browse to browse to a
file that you want to print.
2.
Click Apply.
Chapter 2 Viewing product status from the HP EWS Information screens
ENWW
3
Configuring the product from the
Settings screens
Use the screens on the Settings tab to configure the product from your computer.
Configure Device
You can use the Configure Device screen to print device information pages and configure the device
remotely.
The menus on this screen are similar to the menus that are available at your device control panel. Some
of the device control-panel menus are not available from the HP EWS. See the documentation that came
with your device for more information about the different menus that your device supports.
Settings
The following illustration, table, and example procedure describe how to use this screen.
Figure 3-1 Configure Device screen
ENWW
Configure Device
25
Table 3-1 Configure Device
Settings
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and
menus
For more information, see Navigating through the HP Embedded Web Server.
2
Select A Menu
Information menu
Print device information pages, which provide details
about the device and its configuration.
Default Job Options menu
Use this menu to define the default job options for
each function.
Time/Scheduling menu
Use this menu to set options for setting the time and
for setting the device to enter and exit sleep mode.
Management menu
Use this menu to set up global device-management
options.
Initial Setup menu
The Initial Setup menu allows access to setup
screens for Network and I/O, Fax, and E-mail.
Device Behavior menu
Use this menu to determine the language, sounds,
timeout, and error behavior for the device.
Print Quality menu
Use this menu to control the Print Quality settings for
the device.
Troubleshooting menu
Get information about the device that you can use to
troubleshoot problems.
Resets menu
Use this menu to restore settings to the intial setup
values.
3
Plus sign (
)
Click the plus sign next to a menu, or click the menu itself, to see the submenus or
subentries.
Using the menus on the Configure Device screen
The following procedure is provided only as an example. Similar procedures can be used to set other
menu items.
Follow these steps to print a Demonstration Page (example procedure).
1.
Click INFORMATION.
2.
Click Sample Pages/Fonts.
3.
Select the check box for the Demonstration Page, and then click Apply. The page prints at the
device.
NOTE Print drivers and software programs frequently override selections that are made on
the Printing menu and the Paper Handling menu. For more information, see the user guide that
came with your product. Any changes are reflected on the Device Status screen, the
Configuration Page screen, and the Paper Handling menu.
26
Chapter 3 Configuring the product from the Settings screens
ENWW
Tray Sizes/Types
Settings
Use the Tray Sizes/Types screen to assign paper sizes and paper types for each tray on the product.
The following illustration and table describe how to use this screen.
Figure 3-2 Tray Sizes/Types screen
Table 3-2 Tray Sizes/Types
ENWW
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and menus
For more information, see Navigating through the HP Embedded Web Server.
2
Tray Sizes and Tray
Types
Use these menus to select the default paper sizes and types for each tray on the
product.
Tray Sizes/Types
27
E-mail Server
Use the E-mail Server screen to configure e-mail settings for outgoing e-mail. Use the settings on this
screen to send and receive e-mail messages, including product alerts. The following illustration, table,
and procedures describe how to use this screen.
Settings
Figure 3-3 E-mail Server screen
Table 3-3 E-mail Server
28
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and menus
For more information, see Navigating through the HP Embedded
Web Server.
2
Outgoing e-mail
Configure outgoing e-mail if you intend to use the Alerts or
AutoSend features. For more information, see Using the Alerts
screen with a product .
3
Return E-mail Address
This is the device's e-mail address that appears in device alerts.
For more information, see Configuring the return e-mail address
Chapter 3 Configuring the product from the Settings screens
ENWW
Configuring outgoing e-mail
You must configure outgoing e-mail if you intend to use the Alerts or AutoSend features.
1.
Gather the following information. (Your organization's network or e-mail administrator typically
provides the information that is required to configure outgoing mail.)
●
The TCP/IP address of the simple mail transfer protocol (SMTP) mail server on your network.
The EWS uses the SMTP server TCP/IP address to relay e-mail messages to other
computers.
●
The e-mail domain name suffix that is used to address e-mail messages within your
organization.
2.
Select the Enable Outgoing E-mail check box.
3.
Type the SMTP server TCP/IP address in the SMTP Server text box.
4.
Type the domain name in the Domain Name text box.
5.
Click Apply to save the changes.
When you configure the return e-mail address on the E-mail Server page, you are configuring the
identity of the product. For example, if you type anyone in the Username field and
your.company.com in the Domain Name field, all e-mails sent out by the product will come from
[email protected] In this example, [email protected] is the identity of the
product.
ENWW
E-mail Server
29
Settings
Configuring the return e-mail address
Alerts
From the Alerts screen, IT administrators can set up the product to send problem and status alerts to
anyone through e-mail messages. When this function is configured, alerts are automatically triggered
about supplies, paper-path status, and other service and advisory information. More than one individual
can receive alerts, with each person receiving only specific alerts. For example, an administrative
assistant might be responsible for ordering print cartridges or fixing jams, and could receive advanced
warning when toner is low or a jam occurs. Similarly, the long-life supplies might be handled by an
external service provider, who could receive alerts about performing product maintenance, loading the
front or rear stapler, and similar needs.
NOTE A user can create up to four different destination lists, with up to 20 recipients on each
list.
By selecting the Remove Control Panel Supplies Status Messages option (available on the Alerts setup screen that appears when you press the New Destination List button), you can suppress the
Cartridge low or Cartridge out supplies status messages on the control panel. The message is
suppressed at the control panel only if one or both of these alerts has first been selected to be received.
The following illustration, table, and procedures describe how to use this screen to edit, test, and delete
destinations and destination lists.
NOTE In order for alerts to function, outgoing e-mail must be enabled. To enable outgoing mail,
see Configuring outgoing e-mail.
Settings
Figure 3-4 Alerts screen
30
Chapter 3 Configuring the product from the Settings screens
ENWW
Table 3-4 Alerts
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and menus
For more information, see Navigating through the HP Embedded Web Server.
2
Destination list summary
Lists the current selections for each destination.
3
Edit
Click this button to make changes to the destination or destination list.
4
Test
Click this button to send a test alert to the destination or destination list.
5
Delete
Click this button to delete the destination or destination list.
6
New Destination List
Click this button to define the settings for a new destination list for alerts.
Settings
Callout
ENWW
Alerts
31
Using the Alerts screen with a product
You can set up four different lists, with up to 20 recipients on each list.
The Alerts - setup screen that appears when you click either Edit or New Destination List looks similar
to the following illustration.
Settings
32
Chapter 3 Configuring the product from the Settings screens
ENWW
Settings
Figure 3-5 Alerts - setup screen
ENWW
Alerts
33
To configure alerts
1.
Do one of the following:
●
To create a new destination list, click New Destination List.
-Or-
●
To modify an existing destination list, click Edit next to the list that you want to modify.
The Alerts - setup screen appears.
2.
Type a name in the List Name field, such as Service or Supplies.
3.
Type the e-mail addresses for people who you want to receive alerts. In large environments, system
administrators can route e-mail addresses to list servers, URLs, and mobile devices for expanded
alerts. Add multiple destinations by separating each destination with a comma or semicolon.
4.
Select the check box for the alerts that you want to be sent with this destination list. (To see all of
the alerts that are available for the product, click Show All Alerts.)
5.
Where applicable, set the threshold value for the individual alerts.
The threshold value for service alerts and for the paper-path alerts is a user-specified number of
minutes. This is the amount of time that an event will be ignored before an e-mail alert message
is sent. For example, you might want to set the threshold value for the "Tray Open" alert to 10
minutes to allow someone to close the tray after loading the tray or clearing a jam.
Settings
6.
Under Select Control Panel Messages to Suppress, select messages that you do not want to
appear on the product control panel. This step applies only to messages that were selected to be
received as alerts.
NOTE If the browser does not accept JavaScript, then the check box for message
suppression will be always enabled. The check-box selection is validated when you submit
the page by pressing the Apply button. If the alerts corresponding to the alerts selected for
suppression have not been selected, the Alerts - setup screen is reloaded with a warning
message, informing you that you must first select the corresponding alerts in order to
suppress their appearance on the control panel.
7.
Select the attachments that you want to be included with your e-mail alert messages. These
attachments can include the following pages. (Go to the Information tab to see examples of these
pages.)
●
Supplies Status Page
●
Usage Page
●
Configuration Page
●
Event Log Page
●
XML Data
The XML Data option should be selected if one of the destinations you have chosen to receive
alerts is an automated computer system. Each item that you select will be attached to the e-mail.
For example, if you select Usage Page and Event Log Page, you will receive one e-mail message
with two attachments, one for each selection. If you also select the XML Data option, you will
receive one e-mail message with three attachments: one attachment for the Usage Page in HTML,
34
Chapter 3 Configuring the product from the Settings screens
ENWW
one for the Event Log in HTML, and a third consisting of instant support information in a text file
attachment that has an .XML extension.
8.
Click Apply to save the information.
9.
Repeat steps 1 through 7 for each additional list or destination.
Use the following procedure to test the destination list configuration.
To test the configuration of a destination list
1.
Click the Test button next to the destination list that you want to test.
Settings
The following window appears.
Figure 3-6 Alerts - test screen
2.
ENWW
Select the destinations that you want to test.
Alerts
35
3.
The return address is the product's e-mail address. Type your e-mail address in the Return
Address box if you would like to receive messages about any errors that are generated from the
test alert (for example, to be notified of an incorrect destination address).
4.
If applicable, type additional information that you would like to appear at the beginning of the email alert message in the Your Notes (optional) text field.
5.
Click OK.
To delete destinations and destination lists
1.
If you have multiple destinations configured, you can delete a destination or destination list by
clicking the Delete button next to the destination or destination list that you want to delete.
2.
Click OK to confirm the deletion.
AutoSend
Use the AutoSend screen to send product-configuration and supplies-usage information periodically to
e-mail destinations of your choice, such as service providers. This feature establishes a relationship
with Hewlett-Packard Company or another service provider to provide you with services that include,
but are not limited to, print-cartridge replacement, pay-per-page contracts, support agreements, and
usage tracking. A user can add up to twenty AutoSend destinations. The following illustration, table, and
procedure describe how to use this screen.
Settings
Figure 3-7 AutoSend screen
36
Chapter 3 Configuring the product from the Settings screens
ENWW
Table 3-5 AutoSend
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and menus
For more information, see Navigating through the HP Embedded Web Server.
2
Enable AutoSend
Select this check box to turn on the AutoSend feature.
3
Send every [interval]
Select the interval at which you want the product to send the product configuration
and supplies usage information to the destinations that are configured in the
E-Mail destinations field.
4
E-Mail destinations
Save a list of up to 20 e-mail addresses to receive the product-configuration
information. The first e-mail address can be no more than 50 characters long.
5
Send to HP
Select this check box to send device configuration and supplies status information
to HP on a regular basis. The information will be sent to an HP e-mail address
(for example, [email protected]) in a text-based file with an .XML file extension.
This file will be created in English.
To view more information about how HP treats the information that is sent by
AutoSend, click Hewlett-Packard Online Privacy Statement.
6
Test
Click this button to save your settings and to send the information immediately,
so that you can make sure that the recipient receives the messages.
To turn on the AutoSend feature
ENWW
1.
Make outgoing e-mail functions available by following the instructions that are listed in this chapter.
(For more information, see E-mail Server.)
2.
Select the Enable AutoSend check box.
3.
Click an option to specify the interval at which you want the product to send the productconfiguration and supplies-usage information to the e-mail recipients (determined in the next step),
and then type the number of days, weeks, months, or pages printed.
4.
Configure up to 20 destinations using the form that appears on the screen.
5.
To send device configuration and supplies status information to HP, select the Send to HP check
box.
6.
Click Apply.
AutoSend
37
Settings
Use the following procedure to make the AutoSend feature available.
Security
The following illustration and table describe how to use the Security screen.
Settings
Figure 3-8 Security screen
Table 3-6 Security
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and menus
For more information, see Navigating through the HP Embedded Web
Server.
2
Set Password
Set an administrator password to control who can gain access to the EWS
Settings, Digital Sending, and Networking tabs. After the password has
been set, users are prompted to type a password when they click the Log
In link. For more information, see Login and logoff.
To clear a password, remove the characters from the New Password field,
leave the Verify Password field empty, and click the Apply button.
3
4
38
Set Options
Display On Device Status
Page
Use this section to set the following options for the device.
●
Display Color Usage Job Log Page on Information Tab
●
Display Print Page on Information Tab
Select the control-panel buttons that you want to appear on the Device
Status screen (on the Information tab).
Chapter 3 Configuring the product from the Settings screens
ENWW
Table 3-6 Security (continued)
Callout
Area on the screen
Information or capability that the area provides
NOTE The Cancel Job button does not cancel the print job when
the device is printing internal pages.
Direct Ports
Select Disable Direct Ports to block walk-up printing and system access.
When the setting is selected and applied, USB and IEEE 1284 ports are
disabled.
Settings
5
ENWW
Security
39
Authentication Manager
Use the Authentication Manager screen to set the Device Functions that require users to successfully
log in before use. The following illustration and table describe how to use this screen.
Settings
Figure 3-9 Authentication Manager screen
Table 3-7 Authentication Manager
40
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and
menus
For more information, see Navigating through the HP Embedded Web Server.
2
Home Screen Access
Specify a log-in method for users gaining access to the Home screen.
3
Device Functions
Specify a log-in method for users gaining access to the following functions:
●
Copy
●
Color Copy
●
E-mail Setup
●
Send Fax
●
Send to Folder
●
Job Storage
●
Create Stored Job
Chapter 3 Configuring the product from the Settings screens
ENWW
Table 3-7 Authentication Manager (continued)
Callout
Future Installations
Information or capability that the area provides
●
Digital Sending Service (DSS) Secondary E-mail
●
Digital Sending Service (DSS) Workflow
Specify a log-in method for users gaining access to any new features to be installed
in the future.
Settings
4
Area on the screen
ENWW
Authentication Manager
41
LDAP Authentication
Use the LDAP Authentication page to configure a Lightweight Directory Access Protocol (LDAP) server
to authenticate device users. When LDAP authentication is selected as the Log In Method for one or
more Device Functions on the Authentication Manager page, the user at the device must enter valid
credentials (username and password) to gain access to those functions.
Authentication consists of two interdependent parts. First, the device verifies the user's credentials with
the LDAP server. After the device user has supplied valid credentials and has been authenticated, the
device searches for the user's e-mail address and name. If either step fails, the user is denied access
to the functions that have been configured to require LDAP authentication.
Use the LDAP Authentication page to set up the parameters that are used to access the LDAP server
and searches for the user's information. Note that this page only applies when LDAP is selected as a
Log In Method on the Authentication Manager page. The following illustration and table describe how
to use this screen.
Settings
Figure 3-10 LDAP Authentication screen
Table 3-8 LDAP Authentication
42
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and
menus
For more information, see Navigating through the HP Embedded Web Server.
Chapter 3 Configuring the product from the Settings screens
ENWW
Table 3-8 LDAP Authentication (continued)
Callout
Area on the screen
Information or capability that the area provides
2
LDAP Server Bind
Method
The LDAP Server Bind Method setting determines how the device will access the
LDAP server. Contact your LDAP server administrator to determine which method
will work best for you.
●
Simple - The selected LDAP server does not support encryption. Note that the
password, if any, will be sent unencrypted across the network.
●
Simple over SSL - The selected LDAP server supports encryption using the
Secure Sockets Layer (SSL) protocol. All data, including the username and
password, will be encrypted. The LDAP server must be set up to support SSL,
including configuring a certificate that establishes its identity.
Also, the device network interface must be configured with a Certificate Authority
(CA) certificate to validate the LDAP server. The CA certificate is configured on
the Networking tab of the Web interface. In some LDAP server configurations,
a client certificate is also required and is configured on the same Networking
tab.
3
LDAP Server
The LDAP Server setting is the host name or IP address of the LDAP server to be
used to authenticate device users. When using SSL, the name or address typed here
must match the name in the certificate that the server sends.
4
Port
The Port setting refers to the TCP/IP port number on which the server is processing
LDAP requests. Typically, this is port 389 for Simple binds or 636 for Simple over SSL
binds.
5
Use Device User's
Credentials
The Use Device User's Credentials method uses the Bind Prefix, the string that the
user enters at the control panel, and the Bind and Search Root to construct the User
DN. The constructed User DN is used to authenticate the user.
The Bind Prefix setting is the LDAP attribute used to construct the user's
Distinguished Name (DN) for authentication. This prefix is combined with the
username typed at the control panel to form the Relative Distinguished Name (RDN).
Commonly used prefixes are "CN" (for common name) or "UID" (for user identity).
6
Use LDAP
Administrator's
Credentials
Use Administrator’s Credentials attempts to search for the user’s DN instead of trying
to construct it.
The Administrator DN is the DN (Distinguished Name) of a user who has read access
to the LDAP directory. The account entered here does not have to have administrative
access to the directory. Read access is sufficient.
The Administrator Password is the password of the user whose user DN was entered
in the Administrator DN field.
7
Bind and search Root
When the Use Device User’s Credentials method is selected, the Bind and Search
Root value is used during both phases of authentication. During the credential
verification phase, this value is combined with the RDN to construct the full
Distinguished Name (DN) of the user. During the user information searching phase,
this value is the DN of the LDAP entry where the search begins.
When the Use LDAP Administrator's Credentials method is selected, the Bind and
Search Root is only used as a search root. The Search Root of the base of the LDAP
directory can be specified, and the device will search the entire LDAP tree for the user
object corresponding to the username entered at the device.
ENWW
LDAP Authentication
43
Settings
Multiple servers can be included in this field by separating their addresses with a
vertical bar ('|', ASCII 0x7c) character. This feature can be used, for example, to
specify primary and backup servers. The network interface only supports a single
Certificate Authority (CA) certificate, so all the LDAP servers in the list must use the
same CA.
Table 3-8 LDAP Authentication (continued)
Callout
Area on the screen
Information or capability that the area provides
8
Match the name entered
with the LDAP attribute
of
When searching for the device user's information in the LDAP database, the contents
of the attribute specified in this field are compared to the username that was typed
during authentication. This attribute is usually the same as the Bind Prefix.
9
Retrieve the device
user's e-mail address
using attribute of
After the device user has been located in the LDAP database, the user's e-mail
address is retrieved from the database by using the LDAP attribute specified in the
e-mail address using attribute of field.
10
and name using the
attribute of
The user's display name is obtained from the LDAP attribute that is specified in the
name using attribute of field.
11
Test
Use the Test feature to test the validity of your settings before applying them. When
you click this button, you are asked to provide user credentials as if you were logging
in at the device control panel. If the credentials that you provide are authenticated
and the user information is found in the LDAP database, a success message appears.
Otherwise, an error message appears indicating why authentication failed.
Settings
44
Chapter 3 Configuring the product from the Settings screens
ENWW
Kerberos Authentication
Use the Kerberos Authentication page to configure the device (multi-function peripheral or digital sender)
to authenticate users to a Kerberos Realm. When Kerberos authentication is selected as the Log In
Method for one or more Device Functions on the Authentication Manager page, the user at the device
must enter valid credentials (username, password, and realm) to gain access to those functions.
Authentication consists of two interdependent parts. First, the device verifies the user's credentials with
the KDC. After the device user has supplied valid credentials and has been authenticated, the device
searches for the user's e-mail address and name. If either step fails, the user is denied access to the
functions that have been configured to require Kerberos authentication.
Use the Kerberos Authentication page to set up the parameters that are used to access the LDAP server
and searches for the user's information. Note that this page only applies when Kerberos Version 5 is
selected as a Log In Method on the Authentication Manager page.
Settings
The following illustration, table, and procedures describe how to use this screen.
Figure 3-11 Kerberos Authentication screen
ENWW
Kerberos Authentication
45
Table 3-9 Kerberos Authentication
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and menus
For more information, see Navigating through the
HP Embedded Web Server.
2
Kerberos Default Realm
The Kerberos Default Realm is the fully qualified domain
name of the Kerberos realm (domain).
3
Kerberos Server Hostname
The Kerberos Server Hostname can be the same as the
Kerberos Default Realm if a DNS service is available
(Domain Name Service) and correctly configured. The
device will use DNS to look up the first available KDC (Key
Distribution Center) on the network. If DNS is not
available, the IP address of the Kerberos Server may be
used.
4
Kerberos Server Port
The Kerberos Server Port is the default IP port used by
the Kerberos authentication method. Note that the default
is port 88, but this can be different in different network
environments. Please contact your IT administrator to
determine the appropriate port if the default port does not
work.
5
LDAP Server Bind Method
The LDAP Server Bind Method determines how the
device will access the LDAP server.
Settings
●
Anonymous. Select this option to connect to the
LDAP server if the LDAP server does not require
user credentials to access the LDAP database.
●
Simple. Select this option to connect to the LDAP
server if the LDAP server requires user credentials
to use the LDAP database.
When this option is selected, you must enter the
user, password, and domain. Note that the password
will be sent across the network unencrypted.
●
Simple over SSL. Select this option to connect to
the LDAP server if the LDAP server requires user
credentials to use the LDAP database. This option
supports Kerberos v2.
When this option is selected, you must enter the
user, password, and domain.
NOTE This option is not available for all
products.
●
Kerberos.The selected LDAP (Active Directory)
Server requires user credentials. A Kerberos ticket
will be obtained from the Kerberos (Active Directory)
Server and used to authenticate to the LDAP Server.
The Password will be sent across the network
encrypted and will be unreadable to a third party.
In order to use Kerberos as a bind method, you must
first configure Kerberos settings. If using "user's
credentials", make sure that Kerberos
Authentication is required for e-mail.
46
Chapter 3 Configuring the product from the Settings screens
ENWW
Callout
Area on the screen
Information or capability that the area provides
6
Credentials
The Credentials configuration section is used to
determine which credentials will be used to bind
(authenticate) to the LDAP server.
●
When Use Device User's Credentials is selected, the
device users credentials (entered at the control
panel of the device) will be used to access the LDAP
server. This method has the advantage of not having
to store a username and password, which may
expire, in the device.
●
When Use Public Credentials is selected and user
credentials are not available, the Username and
Password entered will be used to access the LDAP
server. This method should be used if for some
reason device users do not have read access to the
LDAP data.
7
LDAP Server
The LDAP Server is typically the same as the Kerberos
Server in the Windows Active Directory Environment.
8
Port
The Port is the IP port used by the LDAP protocol to
communicate with the LDAP server. This is typically port
389 or port 3268.
9
Search Root
The Search Root is the Distinguished Name (DN) of the
entry in the LDAP directory structure where address
searching is to begin. A DN is made up of ' attribute=value
' pairs, separated by commas.
NOTE On some LDAP Servers, the Search
Root can be left blank (in which case its root node
will be assumed). The search root is not case
sensitive.
10
Match the name entered with LDAP
attribute of
When searching for the device user's information in the
LDAP database, the contents of the attribute specified in
this field are compared to the username that was typed
during authentication. In the Windows Active Directory
environment, this attribute is typically sAMAccountName.
11
Retrieve the device user's email address
using attribute of
After the device user has been located in the LDAP
database, the user's e-mail address is retrieved from the
database by using the LDAP attribute specified in the
Retrieve the device user's e-mail address using attribute
of field. In the Windows Active Directory environment, this
attribute is typically mail.
12
and name using the attribute of
The user's display name is obtained from the LDAP
attribute that is specified in the "and name using the
attribute of" field. In the Windows Active Directory
environment, this attribute is typically displayName.
Kerberos Authentication Tasks
Kerberos is a network authentication protocol. It is designed to provide secure authentication for client/
server applications by using secret keys delivered with session tickets.
ENWW
Kerberos Authentication
47
Settings
Table 3-9 Kerberos Authentication (continued)
Before following the steps outlined here, you must have completed the following steps:
1.
Install the Microsoft LDP tool.
2.
Discover the LDAP server.
3.
Set up LDP.
After you have performed these steps, perform the steps in the following section, Initializing Kerberos
authentication.
Initializing Kerberos authentication
Follow these steps to initialize Kerberos Authentication for your product.
NOTE Embedded Kerberos Authentication uses session tickets in the authentication process.
The session tickets are time stamped by both the Key Distribution Center (KDC) and the product.
It is essential that the stamped times are within five minutes of each other. This can be
accomplished by setting identical time on both the KDC and product.
1.
Open the HP EWS in a web browser.
2.
Select the Settings tab, and then Kerberos Authentication.
3.
Under the Accessing the Kerberos Authentication Server section, perform the following steps:
Settings
a.
Type the domain name in the Kerberos Default Realm (Domain) field. The domain name is
case-sensitive and must use only uppercase letters, for example: TECHNICAL.MARKETING.
b.
Type the server IP address in the Enter the Kerberos Server Hostname field, for
example: 15.62.64.203 (IP address)
NOTE The Kerberos Server Port field fills automatically as 88.
4.
Under the Accessing the LDAP Server section, perform the following steps:
a.
Select Kerberos from the LDAP Server Bind Method drop-down menu.
b.
Click to select the Credential method you want to use.
If choosing Use Public Credentials, type in a username and password.
NOTE Remember how you set up the username on the LDP screen. The username
is defined within the device user DN value in the LDP trace and is not in standard
Windows domain account format. The format is often your entire e-mail address,
including the @xx.xx.
5.
48
c.
Type the LDAP server in the LDAP Server field.
d.
Type 389 in the Port field.
Under the Searching the LDAP Database section, perform the following steps:
a.
Paste the Search Prefix into the Search Root field.
b.
Type in the sAMAccountName into the Match the name entered with the LDAP attribute
of field.
Chapter 3 Configuring the product from the Settings screens
ENWW
c.
Find the device user e-mail address in the LDP trace. Copy the attribute defining the e-mail
address, and paste it into the Retrieve the device user’s e-mail address using attribute
of field.
Some Kerberos environments require very specific attributes. For example, the attribute used
here is userPrincipalName instead of mail.
d.
Find the device user name using the attribute of in the LDP trace. Copy the attribute defining
the name, and paste it into the and name using the attribute of field.
NOTE The Kerberos environment requires cn instead of displayName.
e.
Click Apply.
When you have finished these steps, continue with the steps in the next section, Configure the
Authentication Manager for Kerberos Authentication.
Configure the Authentication Manager for Kerberos Authentication
1.
Click Authentication Manager on theSettings tab in the HP EWS.
2.
Perform the following steps:
3.
a.
Under the Home Screen Access section, select Kerberos from the Log In At Walk Up dropdown menu.
b.
Under the Device Functions section, select Kerberos from the drop-down menus of desired
functions to be authenticated.
c.
Optional: Under the Future Installations section, select Kerberos from the Newly Installed
Functions drop-down menu. By selecting this option, Kerberos authentication is automatically
applied to new device functions when they are installed on the product.
Click Apply.
When you have finished these steps, continue with the steps in the next section, Configure Address
Settings for Kerberos Authentication.
Configure Address Settings for Kerberos Authentication
Follow these steps to continue configuring Kerberos Authentication for your product.
ENWW
1.
Click the Addressing on the Digital Sending tab in the HP EWS.
2.
Click to select the Allow device to directly access an LDAP Address Book check box.
Kerberos Authentication
49
Settings
Follow these steps to continue configuring Kerberos Authentication for your product.
3.
Under the Accessing to LDAP Server section, perform the following steps:
a.
Select Kerberos from the LDAP Server Bind Method drop-down menu.
NOTE The LDAP Server Bind Methods on the Addressing Settings and Kerberos
Authentication screens must match for Kerberos authentication to work properly.
b.
4.
Settings
5.
Under Credentials, click to select the Use Public Credentials option.
●
Type in the Username and Password.
●
Type in the Kerberos Default Realm (Domain), for example: TECHNICAL.MARKETING.
●
Type in the Kerberos Server Hostname, for example: myserver.hp.com .
●
Type in the Kerberos Server Port, for example: 88.
c.
Type in the LDAP Server, for example:15.98.10.51.
d.
Type in the Port number, for example: 389.
Under the Searching the Database section, perform the following steps.
a.
Type in the Search Prefix into the Search Root field.
b.
Select an option from the three options on the Device user information retrieval method
drop-down menu. The appropriate choice depends on your network environment.
●
Select Exchange 5.5 Defaults when Exchange 5.5 servers are used in LDAP
addressing.
●
Select Active Directory Defaults for Windows 2000 or later network environments.
●
Select Custom for specialized network environments.
Click Apply.
When you have finished these steps, continue with the steps in the next section, Use the MFP control
panel for Kerberos Authentication.
Use the MFP control panel for Kerberos Authentication
Follow these steps to finish configuring Kerberos Authentication for your product.
1.
At the MFP, touch any option on the main screen of the control panel. The screen displays a request
for authentication.
NOTE Remember the username is defined within the device user DN value in the LDP
trace and is often your entire e-mail address, including the @xx.xx.
2.
50
Use the touch screen keypad on the MFP control panel to input the authentication, and then
touch OK. The chosen option appears, for example, e-mail.
Chapter 3 Configuring the product from the Settings screens
ENWW
Device PIN Authentication
If PIN Authentication is selected for one or more Device Functions on the Authentication Manager
page, the user will be prompted for a PIN before they can access those Device Functions. If the PIN is
entered incorrectly the user will be returned to the previous screen. When a PIN is entered correctly all
functions that use that PIN are then accessible to the user. For example, you could configure Copy for
Group 1 PIN and E-mail and Fax for Group 2 PIN.
Settings
The following illustration shows the Device PIN Authentication screen.
Figure 3-12 Device PIN Authentication screen
ENWW
Device PIN Authentication
51
User PIN Authentication
The User PIN Authentication page enables you to add user PIN records into the device one at a time,
and to edit or delete user PIN records that have already been saved in the device.
You can also use the device Import/Export feature to load a large list of users all at once, rather than
adding them one at a time.
You can set up the device to require each user to provide their PIN when they access the device. To
set up this authentication option, do the following:
●
On Digital Send Advanced devices, go to the EWS Settings tab, select Authentication Manager,
and then select User PIN from the Sign In At Walk Up drop-down list and from the Send to E-mail
drop-down list.
●
On Digital Send Simple devices, as soon as user PIN records are added to the device, device
access is automatically limited to only those persons who have a user account, and the control
panel starts prompting all users for a PIN.
The following illustration shows the User PIN Authentication screen.
Settings
52
Chapter 3 Configuring the product from the Settings screens
ENWW
Settings
Figure 3-13 User PIN Authentication screen
Add New Users
You can add a new user and PIN by clicking Add New User.... This takes you to the Add User page,
which has instructions for completing the task.
Adding a new user
To add a new user and PIN, do the following:
1.
Click Add New User.... The Add User page appears.
2.
Type the person's name in the Name field. The maximum length is 245 characters, or less
depending on the language being used.
3.
Type the person's e-mail address in the E-mail Address field. It must be less than 255 characters.
NOTE If e-mail address validation has been enabled on the device, the e-mail address is
required to have an @ sign.
ENWW
User PIN Authentication
53
4.
Type the user PIN into the User Access PIN field. It must be between 4 and 8 digits long.
5.
If you want to add the new user's e-mail address to the device address book, select the Add user
to e-mail address book automatically check box.
6.
Click Apply to save the new user and PIN to the device.
Edit or delete existing users
You can edit or delete any of the users that have been saved in the device.
Editing a user
To edit an existing user, do the following:
1.
Select the user that you want to edit from the user list. You can type a name into the search field
to find a specific user.
2.
Click Edit User.... The Edit User page appears.
3.
Make the necessary changes in the Name, E-mail Address, and User Access PIN fields.
4.
Click Apply to save your edits.
Deleting a user
To delete an existing entry, do the following:
Settings
1.
Select the user that you want to delete from the user list. You can type a name into the search field
to find a specific user.
2.
Click Delete User.... The Delete User page appears.
NOTE If you want to delete all user PIN records from the device, click Delete All Users....
If you want to make a backup copy of the user records first, you can do this by using the
device Import/Export feature.
3.
54
In the page that displays, you are prompted to confirm the deletion of the selected user. Click OK
to confirm your selection. The user record is deleted.
Chapter 3 Configuring the product from the Settings screens
ENWW
Edit Other Links
Settings
Use the Edit Other Links screen to add or customize up to five links to the Web sites of your choice
(see the following note). These links appear throughout the HP EWS screens in the Other Links box
beneath the left navigational bar. Three permanent links (hp instant support, Shop for Supplies,
and Product Support) have already been established. The following illustration, table, and procedures
describe how to use this screen.
Figure 3-14 Edit Other Links screen
Table 3-10 Edit Other Links
ENWW
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and
menus
For more information, see Navigating through the HP Embedded Web Server.
2
Add Link
Add a user-defined link.
3
User-defined Links
Lists the user-defined links that have been added. Use this area to delete links.
Edit Other Links
55
Table 3-10 Edit Other Links (continued)
Callout
Area on the screen
Information or capability that the area provides
4
Other Links
hp instant support
Connect to Web resources that help you to solve
specific problems and determine what additional
services are available for your product. (Detailed
information, including serial number, error
conditions, and status, is forwarded to
HP Customer Care. Hewlett-Packard Company
treats this information as confidential.)
Shop for Supplies
Connect to a Web page that facilitates online
ordering of supplies from a reseller of your
choice.
Product Support
Gain access to specific product help from the
HP Web site.
My Service Provider
Connect to the home page of your service
provider. This link appears only if the service
provider has configured it.
My Service Contract
Connect to a page that shows the terms and
limits of your service contract. This link appears
only if the service provider has configured it.
Adding a link
Use this procedure to add a link.
Settings
1.
Under Add Link, type the URL and the name of the link as you would like it to appear in the
HP EWS.
2.
Click Add Link.
Removing a link
Use this procedure to remove a link.
56
1.
Under User-defined Links, select the link or links that you would like to remove.
2.
Click Remove Selected Link.
Chapter 3 Configuring the product from the Settings screens
ENWW
Device Information
Settings
Use the Device Information screen to provide a name of your choice for the device, assign an asset
number, and configure the company name, the person to contact about the device, and the physical
location of the device. The device name, device model, and serial number are also available on this
screen.
Figure 3-15 Device Information screen
NOTE If you make any changes on the Device Information screen, click Apply to save the
changes.
The information that is typed here appears on the Device Information screen that can be opened from
the Information tab. It also appears in e-mail messages that are sent from the product. This might be
useful if you need to locate the product to replace supplies or fix a problem.
ENWW
Device Information
57
Language
Use the Language screen to select the language in which the HP EWS screens appear. The following
illustration and table describe how to use this screen.
Settings
Figure 3-16 Language screen
CAUTION Selecting View Pages in Device Language or Select A Language changes the
language for everyone who uses the HP EWS.
Table 3-11 Language
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and menus
For more information, see Navigating through the HP Embedded Web
Server.
2
View Pages in Browser
Language
Use this feature to detect which language is selected for your Web browser.
The HP EWS screens appear in the same language.
(this is the default)
58
3
View Pages in Device
Language
Use this feature to detect which language is selected for the device control
panel. The HP EWS screen appear in the same language.
4
Select A Language
Select the language for the HP EWS screens.
Chapter 3 Configuring the product from the Settings screens
ENWW
Settings
NOTE The default language is the language that the Web browser is currently using. If your
browser and control panel both use a language that is not available for the HP EWS, English is
selected as the default. If you make any changes on the Language screen, click Apply to save
your changes.
ENWW
Language
59
Date & Time
Use the Date & Time screen to update the product time. The following illustration and table describe
how to use this screen.
Settings
Figure 3-17 Date & Time screen
Table 3-12 Date & Time
60
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and menus
For more information, see Navigating through the HP Embedded Web
Server.
2
Current Date and Current Time
Shows the product date and time when the EWS was opened. If either is
incorrect, an IT administrator can change the information at the product
control panel or through this HP EWS page.
3
Date/Time Format
Click this button to open a screen where you can select the date and time
format.
4
Clock Drift Correction
Click this button to configure a network time server. This corrects clock drift
by using a network time server of your choice. For more information, see
Clock Drift Correction.
5
Refresh
Click this button to update the product date and time on the screen. For more
information, see Date/Time Format.
Chapter 3 Configuring the product from the Settings screens
ENWW
Date/Time Format
Settings
Use the Date/Time Format screen to select the formats you prefer for displaying the date (under Date
Format) and time (under Time Format). The following illustration shows the Date/Time Format screen.
Figure 3-18 Date/Time Format screen
Clock Drift Correction
Use the Date & Time - clock drift correction screen to enable clock drift correction. The following
illustration shows the screen.
ENWW
Date & Time
61
Figure 3-19 Date & Time - clock drift correction screen
Settings
To configure a network time server to correct the product clock drift, use the following procedure.
NOTE This process keeps the clock from drifting (losing or gaining time), but does not
synchronize the clock with the network time server clock.
1.
Select the Enable Clock Drift Correction check box.
2.
In the Network Time Server Address field, type the TCP/IP address or the hostname of the clock
which you want to use for correction of the product clock drift.
NOTE Alternatively, you can click the Automatically Find Server button to find a time
server on your network and automatically fill in this field.
3.
In the Local Port to Receive Time from Server field, type the number of the appropriate port.
4.
Click OK.
NOTE Use this screen only to configure the time server for clock drift correction, not to set the
clock. To set the clock, use the main Date & Time screen. For further information, see Date &
Time.
62
Chapter 3 Configuring the product from the Settings screens
ENWW
Wake Time
Settings
An IT administrator can use the Wake Time screen to schedule product wakeups on a daily basis. For
example, the product can be set to wake up at 07:30, so the product has finished initializing and
calibrating and is ready to use by 08:00. The administrator sets only one wakeup setting per day;
however, each day can have a different wakeup setting. Additionally, to save energy, the sleep delay
can be set to turn the product off after a specific period of inactivity.
Figure 3-20 Wake Time screen
Table 3-13 Wake Time
ENWW
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and menus
For more information, see Navigating through the HP Embedded Web Server.
2
Wake Time
Select one or more days on which to use the wakeup setting, and then set the time
the product is turned on each day.
3
Sleep Delay
Set the amount of time the product is idle before it goes into Sleep Mode. When the
product is in Sleep Mode, it uses less energy.
Wake Time
63
Restrict Color
Use the Restrict Color screen to restrict color printing. You can restrict color printing for all users or for
specific users or specific applications. The following illustration and table describe how to use this
screen.
Settings
Figure 3-21 Restrict Color screen
64
Chapter 3 Configuring the product from the Settings screens
ENWW
Callout
Area on the screen
Information or capability that the area
provides
1
HP EWS tabs and menus
For more information, see Navigating
through the HP Embedded Web Server.
2
Color Copying Access
Select this option to cause the Restrict
Color menu to become accessible from
the product control panel.
3
Set the color job printing behavior
Select whether to print all color jobs in
color, print all color jobs in black, or allow
printing in color according to custom
permission settings. To assign custom
permissions settings, you must select
COLOR IF ALLOWED.
4
Default User Permission
Select the default color print setting for
users who are not in the User
Permission list.
5
User Permission List
Assign color printing permissions to
users in the list. To add users to the list,
type the new user name in the System
User Name field on the right and click the
left arrow. To change permissions, select
the system user name, click the right
arrow, and select the permission. To
delete a user from the list, select the
system user name and click Delete.
Avoid spaces in system user names.
6
Default Application Permission
Select the default color printing settings
for applications that are not listed in the
Application Permission list.
7
Application Permission list
Assign color printing permissions to
applications in the list. To add
applications to the list, type the
application's name in the Technical
Application Name field and click the left
arrow. To change permissions for an
application, select the technical
application name, click the right arrow,
and select the permission. To delete an
application from the list, select the
application's name and click Delete.
8
Color Usage Job Log
Click the link to view names of
applications and users that have printed
to this device.
Using the Restrict Color screen with a product
You can restrict color usage for individuals or for specific applications.
Clicking the COLOR IF ALLOWED option on the Restrict Color page enables the User Permission
and Application Permission features of the screen, as shown in the following illustration.
ENWW
Restrict Color
65
Settings
Table 3-14 Restrict Color
Settings
Figure 3-22 Restrict Color screen - COLOR IF ALLOWED option
Table 3-15 Restrict Color – COLOR IF ALLOWED
66
Callout
Area on the screen
Information or capability that the area provides
1
COLOR IF ALLOWED
Select this option to enable the User Permission and Application Permission
features.
2
Default User
Permission
Select the default color setting for users not defined in the User Permission list.
3
System User Name
Type the System User Name in this field.
4
Permission
Select the permission level for color use for the user listed in the System User
Name field.
Chapter 3 Configuring the product from the Settings screens
ENWW
Table 3-15 Restrict Color – COLOR IF ALLOWED (continued)
Callout
Area on the screen
Information or capability that the area provides
5
User Permission List
Select names from this list, then use the command buttons to Add, Edit, Delete,
Save, or Cancel permissions for each user.
6
Color Usage Job Log
Click this link for a list of System User Names that have printed to the product.
7
Application
Permission
Use the controls in this area to set color permissions for the applications on the
system.
8
OK
Click this button to save your changes.
To set System User or Technical Application permissions
1.
Click Add.
2.
Click the System User Name field or the Technical Application Name field and type the user
name or application name.
3.
Select a permission level from the Permission drop-down menu.
4.
Click Save to add the user name or application name to the list.
NOTE To edit or delete a user or application from the list, click the user name or application
name on the list, and then click Edit or Delete.
ENWW
Restrict Color
67
Settings
NOTE Click the Color Usage Job Log link to see a list of users or applications to see a
list of the users and applications that have printed to the product.
4
Setting the digital sending options
Administrators can use the screens available from the Digital Sending tab to control the digital-sending
features that some products offer.
NOTE Some products do not support all of these screens.
General Settings
Use the General Settings screen to set digital-sending administrator information. The following
illustration and table describe how to use this screen.
Digital Sending
Figure 4-1 General Settings screen
Table 4-1 General Settings
68
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and menus
For more information, see Navigating through the HP Embedded Web Server.
2
Name
Type the administrator's name.
3
E-mail address
Type the administrator's e-mail address. The device does not accept e-mail
addresses that are not properly formatted.
Chapter 4 Setting the digital sending options
ENWW
Table 4-1 General Settings (continued)
Area on the screen
Information or capability that the area provides
4
Phone Number (optional)
Type the administrator's phone number (optional).
5
Location (optional)
Type the administrator's location (optional).
6
Help
Click to open a help file that contains information about the screens on the Digital
Sending tab.
Digital Sending
Callout
ENWW
General Settings
69
Send to Folder
Use the Send to Folder screen to send scanned documents to shared folders or FTP sites.
NOTE The shared folders or FTP sites must be operational before using this tool to add them
as destinations.
The following illustration and table describe how to use the Send to Folder screen.
Digital Sending
Figure 4-2 Send to Folder screen
Table 4-2 Send to Folder settings
70
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and menus
For more information, see Navigating through the HP Embedded Web
Server.
2
Help
Click to open a help file that contains information about the screens on the
Digital Sending tab.
3
Enable Send to Folder
Select the Enable Send to Folder check box to turn on Send to Folder
capabilities on the device. Enabling will put a Send to Folder icon on the front
panel of the device. The user can select this icon to use this capability.
4
Add
Click Add to set up a new folder destination.
5
Edit
Click Edit to view or change the settings for the predefined folder.
6
Remove
Click Remove to remove the selected folder from the predefined folder list.
7
Remove all
Click Remove All to remove all the predefined folders from the list.
Chapter 4 Setting the digital sending options
ENWW
Table 4-2 Send to Folder settings (continued)
Callout
Area on the screen
Information or capability that the area provides
8
Test Folder Access
Click Test Folder Access to test that a predefined folder is accessible by the
device.
9
WINS Server
Use the WINS Server setting to specify either the host name or IP address
of the WINS server. This setting is necessary if Windows paths and folders
are used as folder destinations. The WINS server must be specified when
the path to the workstation or server is of the form \\host-name\\share.
NOTE If the hostname for your Shared Folder destinations are all
specified as IP addresses (for example, \\192.000.0.1\Topfolder),
then a WINS server does not need to be provided. In this case, set
the WINS server to be 0.0.0.0.
10
11
NTLM Authentication Setting
TIFF version
Use the NTLM Authentication setting to specify the authentication setting in
use by the server/workstations in your computing environment. The following
are the default settings commonly in use:
●
Windows 95, Windows 98 and Windows Me hosts - Select Send LM
and NTLM encrypted password.
●
Windows NT 4.0 (earlier than service pack 4) - Select Send NTLM
encrypted password.
●
Windows NT 4.0 service pack 4 - Select Use NTLM V2 Authentication
●
Windows 2000 or later operating systems - Select Use NTLM V2
Authentication
●
Mixed environments - Select Send LM and NTLM encrypted password.
Specify the TIFF version here.
Adding a predefined folder
1.
Click Add.... This will allow you to set up and test a folder destination for the user to select at the
device. After clicking Add, you will go to a series of two web pages to first choose the destination
type then set up the predefined folder. On both of these pages, specify the settings then click the
OK button.
2.
After adding and configuring the predefined folder and clicking OK, you will return to this page. The
new predefined folder will appear in the Predefined Folders list. The alias name for each folder will
be shown in the list.
Editing or viewing a predefined folder
Follow these steps to edit or view a predefined folder.
ENWW
1.
Select a folder from the Predefined Folders list by clicking on it.
2.
Click Edit, and you will go to a new web page to view or change the settings for the predefined
folder. Then, click the OK button to return back to this page if you change settings or the Cancel
button if you don’t make changes.
Send to Folder
71
Digital Sending
Follow these steps to add a predefined folder to the list.
Removing a predefined folder
Follow these steps to remove a predefined folder from the device:
1.
Select a folder from the Predefined Folders list by clicking on it.
2.
Click Remove... and click OK to confirm. The selected folder destination will be removed from the
device.
3.
Repeat the above steps to remove additional folders, or use the Remove All button as described
below.
Removing all folders
Follow these steps to remove all folders from the device:
1.
Click Remove All.
2.
Click OK to confirm. All folders will be removed.
Testing a predefined folder
Follow these steps to test that a predefined folder is accessible by the device.
1.
Select a folder from the Predefined Folders list.
2.
Click Test Folder Access. If device user’s credentials are to be used to access the folder, you will
need to provide the user credentials when prompted to complete the test.
When completed, a message box will be displayed in a gray box near the top of the page indicating
the test results.
Digital Sending
72
Chapter 4 Setting the digital sending options
ENWW
E-mail Settings
The product requires a Simple Mail Transfer Protocol (SMTP) gateway server to forward e-mail
messages to a destination. If the SMTP gateway is not responding or has not been configured, the
following message appears on the screen:
0.0.0.0 is not responding or is not a valid SMTP Gateway Server.
Digital Sending
Use the E-mail Settings screen to configure SMTP settings, set the maximum e-mail attachment size,
and set the default e-mail address for the product. You can also set a default subject for all e-mail
messages that the product sends. The following illustration and table describe how to use this screen.
Figure 4-3 E-mail Settings screen
Table 4-3 E-mail Settings
ENWW
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and menus
For more information, see Navigating through the HP Embedded Web Server.
2
Help
Click to open a help file that contains information about the screens on the
Digital Sending tab.
3
Send e-mail
Send e-mail messages to the SMTP Gateway server directly from the product.
4
Device's SMTP Gateway
Type the TCP/IP address or the host name of the SMTP Gateway server that
will manage the e-mail requests from the device. If you do not know the TCP/
E-mail Settings
73
Table 4-3 E-mail Settings (continued)
Callout
Area on the screen
Information or capability that the area provides
IP address or the host name of the SMTP Gateway, click the Find Gateways
button to search the network for a suitable SMTP Gateway server.
NOTE Some devices recognize only TCP/IP addresses. In such
cases, host names will be converted to the equivalent TCP/IP address.
5
Maximum Attachment Size
Select the maximum size of e-mail attachments that the SMTP Gateway server
can transmit. If the product needs to send an e-mail attachment that is larger
than the maximum size that is specified, the attachment is broken into smaller
files, which are sent in multiple e-mail messages.
6
Enable SMTP Authentication
Use this setting to require SMTP authentication for outgoing e-mail.
SMTP authentication is used to provide a username and password to the SMTP
server if required. Most Internet Service Providers (ISP) require these
credentials.
7
Use Device User's
Credentials
You can only use this setting if Authentication is enabled for SMTP and
individual device users have accounts on the SMTP server. In most cases, Use
Public Credentials is the preferred method.
8
Use Public Credentials
Use this setting to set a single name and password for SMTP authentication for
the device to use for all users.
9
Find Gateways
If you do not know the TCP/IP address or the host name of the SMTP Gateway,
click this button to search the network for a suitable SMTP Gateway server.
NOTE If you are using an ISP for e-mail services, this feature might
not function correctly. Please contact your ISP for the name or address
of the SMTP Gateway and for the username and password used to
access the e-mail.
10
Test
Click this button to verify that the specified SMTP Gateway server is valid and
operational.
11
E-mail address
Type the e-mail address of the person who will act as the default sender.
12
Display Name
Type the name that you want to appear in the "From" field for the e-mail
messages that are sent from the product. You can also use this field to include
instructions, such as "Please type your e-mail address here."
Digital Sending
NOTE If a name is not provided, the e-mail address that was typed in
the E-mail Address field will appear in the "From" field of outgoing email messages.
74
13
Prevent Device user from
changing the Default 'From:'
Address
Select this check box to ensure that general users cannot change the e-mail
address that the administrator set.
14
Default Subject
If you want to, type the subject that will appear on all e-mail messages the
product sends. You can also use this field to include instructions, such as
"Please type a subject for your message."
15
Advanced
Click this button to open a new screen that you can use to set message text and
attachment settings for e-mail messages that the product sends. For more
information, see Advanced E-mail Settings.
Chapter 4 Setting the digital sending options
ENWW
Advanced E-mail Settings
The following illustration and table describe how to use the Advanced E-Mail Settings screen.
Figure 4-4 Advanced E-mail Settings screen
ENWW
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and
menus
For more information, see Navigating through the HP Embedded Web Server.
2
Help
Click to open a help file that contains information about the screens on the Digital
Sending tab.
3
Message Text
Modify how the message text will appear in the body of all e-mail messages that are
sent from the product. Select the language for the message text. The languages that
are available are the same languages that are available on the Language screen of
the Settings tab.
4
Editable by User
Select this check box to allow the user to add text to the e-mail message text.
5
Attachment Settings
Select the default settings for attachments sent in e-mail messages that are sent from
the product.
E-mail Settings
75
Digital Sending
Table 4-4 Advanced E-mail Settings
E-mail Address Book
An e-mail address book is a list of e-mail addresses that are stored on the device. The address book
can store frequently-used e-mail addresses so that you can quickly choose the right e-mail address
when sending a document from the front panel of the device. The E-mail Address Book page enables
you to add e-mail addresses into the device one at a time, and to edit e-mail addresses that have already
been saved in the device.
You can also use the device Import/Export feature to load a large list of frequently-used e-mail addresses
on to the device all at once, rather than adding them one at a time.
If you want to add e-mail addresses to more than one device, it is best to add them on one device, make
any edits to the list, and then use the Import/Export feature to transfer the addresses to other devices.
The following illustration and procedures describe how to use this screen.
Digital Sending
Figure 4-5 E-mail Address Book screen
E-mail Address Book tasks
You can add an e-mail address by clicking Add E-mail Address.... This takes you to the Add E-mail
Address page, which has instructions for completing the task.
76
Chapter 4 Setting the digital sending options
ENWW
Adding an e-mail address
To add a new e-mail address, do the following:
1.
Click Add E-mail Address.... The Add E-mail Address page appears.
2.
Type the person's name in the Name field. The name is what appears in the list on the device
control panel when a user is searching for an e-mail address. The maximum length is 245
characters, or less depending on the language being used.
3.
Type the e-mail address in the E-mail Address field. It must be less than 255 characters.
NOTE If e-mail address validation has been enabled on the device, the e-mail address is
required to have an @ sign.
4.
Click Apply to save the new e-mail address to the device.
Editing an e-mail address
To edit an existing entry, do the following:
1.
Select the e-mail address that you want to edit. You can type a name into the search field to find
a specific e-mail address.
2.
Click Edit Entry.... The Edit E-mail Address page appears.
3.
Make the necessary changes in the Name and E-mail Address fields.
4.
Click Apply to save your edits.
Deleting an e-mail address
ENWW
1.
Select the e-mail address that you want to delete. You can type a name into the search field to find
a specific e-mail address.
2.
Click Delete Entry.... The Delete E-mail Address page appears. Note: If you want to delete all email addresses from the device, click Delete All Entries.... If you want to make a backup copy of
the e-mails first, you can do this by using the device Import/Export feature.
3.
In the page that displays you are prompted to confirm the deletion of the selected e-mail address.
There is no way to recover an e-mail entry once it has been deleted. Click OK to confirm your
selection. The e-mail address is deleted.
E-mail Address Book
77
Digital Sending
To delete an existing entry, do the following:
Fax Settings
The product can send scanned documents to a fax number to simulate the sending capabilities of a fax
machine. If the product is equipped with a fax modem, it can also be set up to process incoming faxes.
NOTE The Fax Settings screen (and the Send to Fax menu on the left) is available only if your
product is equipped with a fax modem board.
NOTE Fax settings can also be configured on the Configure Device page available from
the Settings tab.
Use the Fax Settings screen to configure the send-to-fax features for the product. The following
illustration and table describe how to use this screen.
Digital Sending
Figure 4-6 Fax Settings screen
Table 4-5 Send to Fax
78
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and
menus
For more information, see Navigating through the HP Embedded Web Server.
2
Help
Click to open a help file that contains information about the screens on the Digital
Sending tab.
Chapter 4 Setting the digital sending options
ENWW
Table 4-5 Send to Fax (continued)
Callout
Area on the screen
Information or capability that the area provides
3
Send Faxes
directly from the device's
internal modem
via the Digital Sending
service
Send faxes directly from the device. When this
option is selected, you must select or type the
following information:
●
The country/region
●
The company name
●
The phone number to which the internal
modem of the device is connected
●
If applicable, any prefix number that your
phone system requires
Send faxes by using the digital sending software
service.
Device Modem Settings
Type these settings if directly from the MFP's internal modem is selected from
the Send Faxes list.
5
Advanced
Click this button to open a new screen where you can set advanced product modem
settings, such as modem and ringer volume, and send and receive settings. From
this screen, you can also print a fax activity log and gain access to security and
diagnostics settings. For more information, see Advanced Fax Settings .
6
Notification
Set the notification options, such as whether a fax success or failure notification will
be sent, whether the notification will be printed, or whether the sender should
receive a notification report. Select the Include Thumbnail Image check box to
include a scaled-down image of the scanned document in the notification report.
7
Quality
Select the resolution for the outgoing faxes.
8
Billing Code
Type the billing code, if applicable. If you want to, you can select the Editable by
User check box to allow the user to change the code. Use the Minimum Length
field to set the minimum length of the billing code. The billing code can be a value
between 1 and 16.
Digital Sending
4
ENWW
Fax Settings
79
Advanced Fax Settings
The following illustration and table describe how to use the Advanced Fax Settings screen.
Digital Sending
Figure 4-7 Advanced Fax Settings screen
Table 4-6 Advanced Fax Settings
80
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and
menus
For more information, see Navigating through the HP Embedded Web Server.
Chapter 4 Setting the digital sending options
ENWW
Table 4-6 Advanced Fax Settings (continued)
Callout
Area on the screen
Information or capability that the area provides
2
Help
Click to open a help file that contains information about the screens on the Digital
Sending tab.
3
General
Select the general settings, such as modem and ringer volume and whether to turn
JBIG compression and Error Correction on or off.
4
Send
Select the settings for faxes that are sent from the product, such as whether to
check for a dial tone before sending, whether the header should appear at the top
of the fax, or how many times you want the product to retry if the receiving fax line
is busy or does not answer.
5
Receive
Select the settings for received faxes, such as which output bin the faxes are to be
delivered, if you want incoming faxes to be scaled to the size of paper in the input
tray, and the number of another fax product to which incoming faxes can be
forwarded.
6
Print Activity Log
Click this button to print the internal modem's fax activity log. The activity log lists
all incoming and outgoing fax calls since the log was last cleared and is printed to
the product.
7
Clear Activity Log
Click this button to clear all entries in the fax activity log. HP recommends printing
the fax activity log periodically for record-keeping purposes, and then clearing the
fax activity log to keep its size to a minimum.
8
Security
Click this button to set the security features for the internal modem. The first time
you configure the security features, you are asked to type (and confirm) a Security
PIN. Thereafter, you will need that PIN to view and reconfigure the security features.
9
Diagnostics
Click this button to set the diagnostic features of the internal modem.
Digital Sending
When you click the Security button, the Establish PIN Number screen appears. You can use this
screen to establish a user-specific personal identification number (PIN) to control access to the Send
to Fax feature.
Figure 4-8 Establish PIN Number screen
When you click the Diagnostics button on the Advanced Fax Settings screen, the Modem
Diagnostics screen appears, as shown in the following illustration.
ENWW
Fax Settings
81
In the Print T30 Reports field, you can set the frequency with which T30 reports are printed. T30 reports
are detailed reports about the fax communication that occurs during the most recent fax transaction.
The reports are useful when diagnosing failed fax sessions and may be requested by a service
technician should a support call be necessary. The report will be printed at the MFP either on request
or in accordance with the setting you choose.
In the Signal Strength field, you can adjust the fax signal strength used to communicate on the phone
line.
CAUTION The Signal Strength setting should not be adjusted unless you are advised to do
so by a qualified service technician in order to correct malfunctioning fax communications.
Figure 4-9 Modem Diagnostics screen
Digital Sending
82
Chapter 4 Setting the digital sending options
ENWW
Fax Address Book
A fax address book is a list of fax numbers that are stored on the device. The address book can store
frequently-used fax numbers so that you can quickly choose the right destination when faxing a
document from the front panel of the MFP device. The Fax Address Book page enables you to add fax
numbers into the device one at a time, and to edit fax numbers that have already been saved in the
device.
You can also use the device Import/Export feature to load a large list of frequently-used fax numbers
on to the device all at once, rather than adding them one at a time.
If you want to add a fax address book to more than one device, it is best to add the fax numbers on one
device, make any edits to the list, and then use the Import/Export feature to transfer the address book
to other devices.
Digital Sending
The following illustration and procedures describe how to use this screen.
Figure 4-10 Fax Address Book screen
Fax Address Book tasks
You can add a fax number by clicking Add Fax Number.... This takes you to the Add Fax Number page,
which has instructions for completing the task.
ENWW
Fax Address Book
83
Adding a fax number
To add a new fax number, do the following:
1.
Click Add Fax Number.... The Add Fax Number page appears.
2.
Type the person's name in the Name field. The name is what appears in the list on the device
control panel when a user is searching for a fax number. The maximum length is 245 characters,
or less depending on the language being used.
3.
Type the fax number in the Fax number field. The fax number can be formatted with or without
spaces. It must be less than 50 characters long, and it can contain the following punctuation:
comma + - ( ) [ ] *.
4.
Click Apply to save the new fax number to the device.
You can edit or delete any of the fax numbers that have been saved in the device.
Editing a fax number
To edit an existing entry, do the following:
1.
Select the fax number that you want to edit on the Fax Address Book page. You can type a name
into the search field to find a specific fax number.
2.
Click Edit Fax Number.... The Edit Fax Number page appears.
3.
Make the necessary changes in the Name and Fax number fields.
4.
Click Apply to save your edits.
Deleting a fax number
To delete an existing entry, do the following:
Digital Sending
84
1.
Select the fax number that you want to delete on the Fax Address Book page. You can type a name
into the search field to find a specific fax number.
2.
Click Delete Fax Number.... The Delete Fax Number page appears. Note: If you want to delete all
fax numbers from the device, click Delete All Fax Numbers.... If you want to make a backup copy
of the numbers first, you can do this by using the device Import/Export feature.
3.
In the page that displays you are prompted to confirm the deletion of the selected fax number.
There is no way to recover a fax entry once it has been deleted. Click OK to confirm your selection.
The fax number is deleted.
Chapter 4 Setting the digital sending options
ENWW
Import/Export
Use this page to import and export address book and user information to and from the device.
When you import data to the device, you add new e-mail addresses, fax numbers, or user records, so
that they can be accessed on this device. This can help make it easy to create initial lists, or to keep
your HP device current with changes in your organization.
When you export records, you save e-mail, fax, or user records from the device into a file on your
computer. You can then use this file as a data backup, or you can use it to import the records onto
another HP device. For export instructions see Export an address book.
Digital Sending
The following illustration and procedures describe how to use this screen.
Figure 4-11 Import/Export screen
Import an address book
You can import address book information by first creating a file with a comma-separated value (CSV)
format. The CSV format is a common data format that is often used to transfer data between database
ENWW
Import/Export
85
programs or devices. This file can be created using either a spreadsheet program such as Microsoft
Excel, or a text program such as Microsoft Notepad. After creating the file, you must be sure to save or
export it as a .CSV file type. You can also create a data file by exporting contacts from Microsoft Outlook
or another e-mail client and saving it as a .CSV file.
Importing an address book
To import address book or user data, do the following:
1.
Create a data file containing a header row with the columns that are required for your data. The
following columns can be used:
●
name (or "first name" and "last name")
●
address
●
dlname
●
faxnumber
●
speeddial
●
code
●
pin
NOTE The "address" field can also be called "E-mail" or "E-mail Address". The
"faxnumber" field can also be called "Business Fax" or "Home Fax".
The header row is simply the first row of the spreadsheet or file.
2.
After the header row, add rows containing each address book or user record. See the Required
data and record limits section below to find out which columns are required for each type of record.
You can have blank columns. If you are creating a text import file, you just need to insert a comma
for each blank field.
If the data in the field contains a comma, the data in that field must be surrounded by quotes, for
example,
Digital Sending
"Smith, Joe"
If you are using Excel to create your import file, you don't need to enter the quotes. Excel will insert
them automatically when the file is converted to a .CSV file.
3.
Save your import file.
If you are creating it in Excel, choose Save As from the File menu and then select .CSV (comma
delimited)(*.csv) in the Save as type drop-down box.
If you are creating a text file, choose Save As from the File menu and then type .csv in place of
the .txt file extension.
86
4.
To import your source file into the device, click Browse... next to the Address Book File Name field
on the Import/Export page to browse to the source file on your computer.
5.
Click Import to import the data file into the device. The import process will take approximately
1 minute for each 1,000 records, depending on the network speed.
Chapter 4 Setting the digital sending options
ENWW
When the import process is complete, a message appears indicating how many records were
successfully imported and whether there were any import errors.
Required data and record limits
The required data for each type of record is as follows:
Record type
Required data
Maximum field length
Maximum records
E-mail address
name (or "first name" and "last
name")
245 characters2
2,0003
address1
255 characters
name
245 characters2
pin
4-8 digits
address1
255 characters
name
245 characters2
address1
255 characters
dlname
245 characters2
name
245 characters2
faxnumber1
50 characters
faxnumber1
50 characters
speeddial4
31 characters
code4
2 digits
E-mail distribution list
Fax number
Fax speed-dial
1
2
3
4
2,000
2,0003
2,000
100 speed-dials, each with a
maximum of 100 entries
The “address” field can also be called “E-mail” or “E-mail Address”. The “faxnumber” field can also
be called “Business Fax” or “Home Fax”.
The maximum length might be less, depending on the language being used.
The total combined number of e-mail addresses and distribution lists must be 2,000 entries or less.
The "speeddial" field contains the name of the speed-dial, for example "Johnson Janitorial", and the
"code" field contains the speed dial code (a number between 0 and 99), for example 08. Either oneor two-digit numbers are accepted; for example, either 06 or 6 can be used.
Creating an import file using Microsoft Outlook
If you have contacts saved in Microsoft Outlook, you can export them into a .CSV file and then use that
file to import them into the device. Follow these instructions to create a .CSV file using Microsoft Outlook.
ENWW
1.
From the Outlook File menu, choose Import and Export....
2.
In the Import and Export Wizard, choose Export to a file and click Next.
3.
Select Comma Separated Values (DOS) and click Next.
4.
Select the Contacts folder and click Next.
5.
Type in a name for the file, with a .CSV extension. Click Browse to choose a location on your
computer to save the file. Click Next.
Import/Export
87
Digital Sending
User record
6.
Click Finish to finish the wizard and export the file.
7.
To import the .CSV file into the device, follow Steps 4 and 5 of the Import an address book
instructions.
Export an address book
You can also export the address book or user information that has been saved in the device. This data
is exported into a CSV file that has the same format as that described above, with one header row
followed by a row for each user or address book record. To export data, do the following:
1.
Select one or more of the check boxes shown under Step 1.
2.
Under Step 2, type in the name for the export file.
3.
In the dialog box that appears, click Save, and then select the location where you want to save the
file.
4.
If the export process fails, an error message will be displayed. If this happens, wait a few minutes
and try the export again.
You can open the export file in either a spreadsheet program like Microsoft Excel, or in a text program
like Notepad.
Clear address books
By default, clicking the Clear Selected Address Book(s) button clears all address book data (e-mail, fax,
and authorized user data) from the device. You can also specify individual address books to clear,
although e-mail addresses and e-mail distribution lists may not be cleared separately.
You might want to clear all address books before moving the device to a new area within your company,
or before importing address book data from another device.
To clear one or more address books, do the following:
Digital Sending
88
1.
Select one or more of the check boxes shown under Option 3: Clear Address Books.
2.
Click Clear Selected Address Book(s) to erase the data in the selected address books. A warning
dialog box appears, indicating which address books are selected for deletion.
3.
Click OK to confirm this action. Once cleared, the data can not be recovered.
4.
After OK is pressed, the address book data is cleared and you are returned to the original page.
A list of the cleared address books is displayed.
Chapter 4 Setting the digital sending options
ENWW
Addressing Settings
NOTE The LDAP protocol is typically only used in corporate e-mail environments. If you are
using an ISP for e-mail services, HP recommends that you use the E-mail Address Book
function.
In order for the product to send scanned documents, you must provide one or more destination address.
The product addressing feature simplifies this process by accessing the network LDAP server.
Digital Sending
Use the Addressing Settings screen to set features that allow the product to get addresses directly
from the database of a Lightweight Directory Access Protocol (LDAP) server instead of from a replicated
LDAP Address Book. Using the LDAP Address Book directly guarantees that the latest addresses are
used. A message appears on the screen if the LDAP server settings are invalid or cannot be detected
automatically. The following illustration and table describe how to use this screen.
Figure 4-12 Addressing Settings screen
Table 4-7 Addressing Settings
ENWW
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and menus
For more information, see Navigating through the HP Embedded Web
Server.
Addressing Settings
89
Table 4-7 Addressing Settings (continued)
Callout
Area on the screen
Information or capability that the area provides
2
Help
Click to open a help file that contains information about the screens on the
Digital Sending tab.
3
Allow Device to directly access
an LDAP Address Book
Select this check box to provide the device direct access to an LDAP Address
Book.
4
LDAP Server Bind Method
Anonymous
Select this option to connect to the LDAP
server if the LDAP server does not
require user credentials to access the
LDAP database.
Simple
Select this option to connect to the LDAP
server if the LDAP server requires user
credentials to use the LDAP database.
When this option is selected, you must
enter the user, password, and domain.
Note that the password will be sent
across the network unencrypted.
Simple over SSL
Select this option to connect to the LDAP
server if the LDAP server requires user
credentials to use the LDAP database.
This option supports Kerberos v2.
When this option is selected, you must
enter the user, password, and domain.
NOTE This option is not
available for all products.
5
Use Device User's Credentials
You can only use this setting if Authentication is enabled for SMTP and
individual device users have accounts on the SMTP server. In most
cases, Use Public Credentials is the preferred method.
6
Use Public Credentials
Use this setting to set a single name and password for SMTP authentication
for the device to use for all users.
These public credentials are used to connect to the LDAP directly. When
public credentials are entered, these credentials are used by the device to
access the LDAP directory when any user uses the device.
Digital Sending
7
LDAP Server
Type the host name or TCP/IP address of the LDAP server whose database
contains the centralized address book.
NOTE Some products recognize only TCP/IP addresses. In such
cases, host names are converted to the equivalent TCP/IP address.
8
Port
Type the TCP/IP port number on which the server is processing LDAP
requests. This is typically port 3268.
9
Find Server
Click this button to search for available LDAP servers.
10
Find Settings
Click this button to have the product attempt to determine the best settings
for the specified server when searching the LDAP database.
11
Search Root
Type the Distinguished Name (DN) of the entry in the LDAP directory
structure where address searching is to begin. A DN is made up of
"attribute=value" pairs, separated by commas. For example:
ou=departmentname,o=companyname
ou=marketing,o=Hewlett Packard,c=US
90
Chapter 4 Setting the digital sending options
ENWW
Table 4-7 Addressing Settings (continued)
Callout
Area on the screen
Information or capability that the area provides
o=hp.com
ou=engineering,cn=users,dc=hp,dc=com
NOTE For some LDAP servers, the search root can be left blank
(in which case its root node will be assumed).
12
13
14
ENWW
Device user information
retrieval method
Match the name entered with
the LDAP attribute of
Retrieve the recipient's email
address using attribute of
Exchange 5.5 Defaults
Select this option if you are connecting to
a Microsoft Exchange 5.5 server that is
running LDAP. The LDAP attribute
values are automatically set.
Active Directory Defaults
Select this option if you are connecting to
a Microsoft Exchange Server 2000
server that is running LDAP. The LDAP
attribute values are automatically set.
Custom
Select this option if you need to manually
configure the LDAP attribute values.
Type the attribute in the LDAP database that identifies a person in the
address book. The value of this attribute will be compared to the name that
the user types in order to retrieve the person's e-mail address. The following
are a few possible LDAP attributes:
●
uid: User Identifier
●
cn: Common Name
●
sn: Surname (Last Name)
●
givenName: First Name
Type the LDAP attribute that contains the person's e-mail address. The
following are two of the possible LDAP attributes:
●
rfc822Mailbox
●
mail
Advanced
Click this button to open a new screen where you can set advanced LDAP
server features. For more information, see Advanced Addressing Settings.
16
Test
Click this button to test the settings that you specified.
Addressing Settings
Digital Sending
15
91
Advanced Addressing Settings
The following illustration and table describe how to use the Advanced Addressing Settings screen.
Figure 4-13 Advanced Addressing Settings screen
Table 4-8 Advanced Addressing Settings
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and menus
For more information, see Navigating through the HP Embedded Web
Server.
2
Help
Click to open a help file that contains information about the screens on the
Digital Sending tab.
3
Advanced Search Options
Select the advanced LDAP server search settings. The following settings are
available.
Digital Sending
4
92
Find entries in the Database
●
Max LDAP Addresses. Use this control to set the number of matching
e-mail addresses returned by a single search. The smaller the number,
the quicker the search.
●
Max Search Time. Use this control to set the amount of time that the
device will wait for a response from the LDAP server. In environments
where the LDAP server is busy or the network is slow, this timeout
should be increased.
●
LDAP Filter Condition. Use this control to set up an optional LDAP
filter to “filter out” e-mail addresses.
Select whether the LDAP search queries include entries that begin with the
partial name or all entries that contain the partial name anywhere within the
entry's name.
Chapter 4 Setting the digital sending options
ENWW
Log
Use the Log screen to view digital sending job information, including any errors that occur. The following
illustration and table describe how to use this screen.
NOTE If the HP DSS has been installed, digital-sending activities are logged in the HP DSS
instead of in the HP EWS. To view the log, open the HP MFP DSS Configuration Utility, and then
click the Log tab. The entries visible in HP EWS are only those related to activities configured
either at the control panel or through HP EWS screens.
Figure 4-14 Log screen
ENWW
Callout
Area on the screen
Information or capability that the area provides
1
HP EWS tabs and
menus
For more information, see Navigating through the HP Embedded Web Server.
2
Help
Click to open a help file that contains information about the screens on the Digital
Sending tab.
3
Severity
Lists the severity of the error, if applicable, for each log entry.
4
Device
Lists the TCP/IP address of the device.
5
User
Lists the user that initiated the event.
6
Event
Describes if the event was successful or if an error occurred.
7
Time
Shows the time for each log entry.
8
Save
Click this button to save the log information to a file.
9
Details
Select the log entry and then click the Details button to view the log entry details.
Log
93
Digital Sending
Table 4-9 Log
Table 4-9 Log (continued)
Callout
Area on the screen
Information or capability that the area provides
10
Refresh
Click this button to update the view to include the latest log information.
11
Clear
Click this button to clear the information from the log.
NOTE Clicking the Clear button merely clears the log that appears
onscreen. The log entries remain on the product for job-accounting
purposes.
When you click the Details button on the Log screen, the Details screen appears. This screen shows
information about digital sending jobs, such as job ID, the time the job was sent, the sender name, and
other details.
Digital Sending
Figure 4-15 Details screen
For jobs that were not sent successfully, a Troubleshoot button appears at the bottom of the Details
screen. When you click Troubleshoot, the Troubleshoot screen appears. Click the underlined link that
appears below the details (Internal E-mail Error in the example below) to open a screen that can help
you troubleshoot the problem.
94
Chapter 4 Setting the digital sending options
ENWW
Figure 4-16 Troubleshoot screen
Preferences
Digital Sending
Use the Preferences Settings screen to configure general settings for the digital-sending features. The
following illustration and table describe how to use this screen.
Figure 4-17 Preferences Settings screen
ENWW
Preferences
95
Table 4-10 Preferences Settings
Callout
Area on screen
Information or capability that the area provides
1
HP EWS tabs and
menus
For more information, see Navigating through the HP Embedded Web Server.
2
Help
Click to open a help file that contains information about the screens on the Digital
Sending tab.
3
Document Size
Select the default media size that you want the product scanner to use when
scanning a document.
4
Document Type
Select the default media type that you want the product image processor to use
when scanning a document.
●
Text
●
Graphics
●
Mixed
5
2 Sided Document
Select this check box to have the product scan both sides of a document.
6
Auto Settings Reset
Use the time-outs options to reset all digital sending settings that are associated
with a job to the product default settings. You can have the settings reset
immediately after a digital-send operation in which the settings have been changed
by a user, or to delay the reset for any interval from 10 to 300 seconds.
Digital Sending
96
Chapter 4 Setting the digital sending options
ENWW
Using the HP DSS software
The HP Color LaserJet CM4730 MFP includes the Digital Sending Software (HP DSS) which can be
used to carry out its digital-sending tasks. If the HP DSS has been installed, all HP EWS Digital
Sending screens are available for read-only access. However, if you try to apply changes in any of the
HP EWS Digital Sending screens, the following message appears:
The device is being serviced by the Digital Sending Software at <IP address>. Please use
Windows Configuration Utility to configure the device.
Digital Sending
In this case, the digital sending options must be configured by using the HP MFP DSS Configuration
Utility. This centralizes the configuration tasks and helps control security.
ENWW
Using the HP DSS software
97
5
Managing network operation from the
Networking screens
Overview
Use the Networking screens to configure and manage your product on your network. The appearance
and features of the screens available from the Networking tab differ, depending on the model and
version of your HP Jetdirect print server. The following screen is similar to what you might see when
you click Networking. From the left navigational bar, click the Networking menu for the screen that
you want to view.
Figure 5-1 Network Settings screen
Table 5-1 Network Settings
Networking
98
Callout
Area on screen
Information or capability that the area provides
1
HP EWS tabs and
menus
For more information, see Navigating through the HP Embedded Web Server.
Chapter 5 Managing network operation from the Networking screens
ENWW
Table 5-1 Network Settings (continued)
Callout
Area on screen
Information or capability that the area provides
2
Select Language
Select the language for the Networking tab. The list of languages that are available
in the Networking tab is not identical to the list of languages that are available in
the Settings tab.
3
Help
Click ? for more information about the options on the Networking tab.
Depending on your HP Jetdirect print server model and operating version, the following are some tasks
that you can perform from the Networking screens:
●
Change network configuration settings for various types of network connections.
●
Turn on or turn off management protocols.
●
Set up a support contact and support URLs.
●
Set a password to control access to the product and network configuration settings. This password
is synchronized with the password that you set on the Security screen under the Settings tab, so
you may set or reset it from either screen.
●
Configure the security of your product through the use of passwords, access lists, and management
protocols.
●
View general network status information, including network statistics that are stored on the print
server, for network troubleshooting or optimization.
●
View protocol information for all supported network connections.
●
Open the HP Jetdirect Configuration page.
●
Set the frequency at which the HP EWS checks the network status.
For more information about the Networking screens, see the following sources:
●
Help. On each Networking screen, a ? link provides a description of the networking features. Also,
from the Help screen you can gain access to additional help from the HP Web site.
●
HP Jetdirect Administrator's Guide. This guide is normally available on the software CD that
came with your product and can be downloaded from the hp.com support pages for your product
available on the following Web site.
Networking
www.hp.com/support/CLJCM4730mfp
ENWW
Overview
99
Other Links
6
Using the Other Links as a resource
The Other Links box contains three permanent links that provide quick access to product-specific
information, such as interactive troubleshooting and ordering information for genuine HP supplies.
Figure 6-1 Device Information screen
NOTE You can use the Edit Other Links screen on the Settings tab to add up to five
customized links to the Web sites of your choice. These links appear throughout the EWS
screens, in the Other Links box beneath the left navigational bar. For more information, see Edit
Other Links.
The following sections describe each of the links that appear by default in the Other Links box.
100 Chapter 6 Using the Other Links as a resource
ENWW
Hewlett-Packard Company offers hp instant support, an Internet-based support system that collects
diagnostic information from your product and matches it with the HP information database. At hp instant
support, you can find intelligent solutions that help you resolve problems quickly and easily.
How hp instant support works
Information is gathered from your product and securely transmitted to Hewlett-Packard Company when
you click hp instant support. The hp instant support Web site reads the product data to analyze the
product's current status. The Web site creates a customized Web page that appears in the browser
window and contains easy-to-follow text and visual aids. The hp instant support Web site also directs
you to additional services that are available for your product.
Before any of the product data is sent to Hewlett-Packard for analysis, you can view all of the information
(for example, the serial number, error conditions, and product status) that will be forwarded. HewlettPackard treats this information as confidential.
Information you can get from hp instant support
The hp instant support Web site provides these tools for troubleshooting and for maintenance:
●
Firmware and software updates.
●
Troubleshooting for recent events that are listed on the Event Log. For example, the product might
show a jam as the most recent event listed in the event Log. The hp instant support Web site detects
the event and provides troubleshooting information for the jam.
●
Support packs.
●
Product documentation, such as user guides and getting started guides.
Shop for Supplies
The Shop for Supplies link connects you to a Web page that facilitates your online ordering of supplies
from a reseller of your choice. The supplies that you need are preselected. You can change quantities
or select additional items. Your items are added to the shopping cart, ready for checkout, ensuring that
the correct supplies are ordered through your selected reseller.
ENWW
hp instant support 101
Other Links
hp instant support
Other Links
Product Support
The Product Support link connects you to a Web page that brings together a comprehensive menu of
support resources that business people need. From this Web page, you can accomplish these tasks
and more:
●
Find a list of HP products at one site: computers, workstations, servers, storage devices, printer,
scanners, digital imaging, and mobile devices.
●
Obtain technical support. Solve a problem; find information to set up, install, and configure your
product; discover and use a product; maintain your product; upgrade and migrate your product
software and driver; and recycle products or dispose of them correctly.
●
Gain access to self-solve resources such as FAQs, user documentation, features and
specifications, and product-compatibility information.
●
Collaborate with HP and with your peers through discussion groups, e-mail support, and phone
support.
●
Use task-based navigation to identify the task area that you want to work on and quickly discover
related topics and tools.
In addition, you can find these features: hot topics, a subscription center, product rebate offers and other
announcements, and training and education opportunities.
Information about fax features and settings can be found at the following web site.
www.hp.com/go/mfpfaxaccessory300
My Service Provider and My Service Contract
The My Service Provider and the My Service Contract links appear only if they have been created
(and perhaps renamed) by the service provider in the Other Links screen on the Settings tab. The link
can then be clicked by any user to get information about the service provider and the service contract.
The information, which can be up to 50 characters long, is stored in the permanent storage of the product.
102 Chapter 6 Using the Other Links as a resource
ENWW
Index
A
accessing the HP Embedded Web
Server 2
accessories, verifying
installed 10
activity logs
digital sending 93
fax 81
addressing
Kerberos Authentication 49
settings 89
administrators
alerts, setting up 30
Digital Sending settings 68
logging off 4
logging on 4
wake time settings 63
Advanced E-mail Settings
screen 75
Advanced Fax Settings 80
alerts
configuring 32
deleting destination lists 36
e-mail configuration 29
features 30
testing destination lists 35
asset number 20
attachments, e-mail 74, 75
authentication
addressing 90
e-mail 74
Kerberos 45
LDAP 42
settings 40
Authentication Manager
Kerberos configuration 49
settings 40
AutoSend 36
ENWW
B
billing codes, fax 79
browsers
closing after logging off 4
defined 1
supported 2
buttons, control panel 8
C
Cancel Job button 38
cartridges
AutoSend feature 36
ordering 56, 101
status 8, 13
usage information 16
clock drift correction 61
clock settings 60
Configuration Page screen 10
Configure Device screen 25
consumables. See supplies
control panel
buttons 8
Kerberos Authentication 50
language 58
menus 25
viewing 21
Control Panel Snapshot
screen 21
counts, page 16
customer support
instant 56, 101
product 56, 102
D
Date & Time screen 60
Date/Time Format, setting
destination lists
creating 32
deleting 36
testing 35
61
Device Information screen 20,
57
device location 20
Device Status screen 8
devices, defined 1
diagnostics, fax 81
Digital Sending screens
about 68
Addressing 89
Advanced E-mail Settings 75
Advanced Fax Settings 80
General 68
Kerberos Authentication 45
Log 93
Preferences 95
Send to E-mail 73
Send to Fax 78
Send to Folder 70
Digital Sending tab 6
DIMMs, verifying installed 10
E
e-mail
addressing 89
advanced settings 75
alerts 30
attachments, size
settings 74, 75
AutoSend 36
outgoing, configuring 29
return address, configuring 29
server settings 28
SMTP gateway settings 73
support 56, 102
E-mail Server screen 28
Edit Other Links screen 55, 100
embedded Web server
defined 1
features 1
Index 103
error messages
digital sending logs 93
Event Log 15
Event Log 15
Explorer, versions supported
F
FAQs 56, 102
fax settings 78, 80
features 1
Firefox, versions supported
firewalls 2
firmware, updating 23
folders, sending to 70
J
Jetadmin, HP Web 2
Jetdirect print server 99
2
2
G
gateway settings, SMTP 73
General screen, Digital
Sending 68
group product management 2
H
help
instant support 56, 101
product support 56, 102
HP Embedded Web Server
defined 1
features 1
hp instant support 56, 101
HP Jetdirect print server 99
HP Web Jetadmin 2
I
Information menu 26
Information tab
navigating 6
password protection 4
status screens 7
ink cartridge. See print cartridges
Installed Personalities and
Options 11
Internet Explorer, versions
supported 2
IT administrators
alerts, setting up 30
Digital Sending settings 68
logging off 4
logging on 4
wake time settings 63
K
Kerberos Authentication 45
keys, control panel 8
Konqueror, versions supported 2
L
Language screen 58
languages, printer 11
LDAP Authentication screen 42
LDAP servers
addressing settings 89
Kerberos authentication 45
links 55, 100
logging off 4
logging on
Authentication Manager 40
LDAP Authentication 42
password settings 38
procedures 4
logs
digital sending 93
event 15
M
media
status 9
tray settings 12
Usage Page 16
memory, verifying installed 10
menus
control panel 25
HP Embedded Web Server 5
navigating 26
messages, error
digital sending logs 93
Evnet Log 15
Microsoft Internet Explorer,
versions supported 2
mobile devices, printing from 23
model number 20
Mozilla Firefox, versions
supported 2
My Service Contract link 56, 102
My Service Provider link 56, 102
N
navigating
104 Index
5, 26
Netscape Navigator, versions
supported 2
Networking screens 98
Networking tab 6
networks
configuring 98
types supported 2
Web Jetadmin 2
O
ON/OFF schedule 63
online help
instant support 56, 101
product support 56, 102
opening the HP Embedded Web
Server 2
Opera, versions supported 2
ordering supplies 56, 101
Other Links area 55, 100
outgoing mail configuration 29
P
page counts 16
paper
status 9
tray settings 12
Usage Page 16
passwords 4, 38
PDF files, printing 23
personalities 11
phone support 56, 102
plus sign, menus 26
power, setting wake time 63
Preferences, digital sending 95
print cartridges
AutoSend feature 36
ordering 56, 101
status 8, 13
usage information 16
Print screen 23
print server, HP Jetdirect 99
printer languages 11
printing files 23, 24
PRN files 23
product support 56, 102
products, defined 1
PS files, printing 23
R
receiving faxes 81
recycle supplies 56, 102
ENWW
remote configuration 25
remote firmware updates 23
return e-mail address 29
S
Safari, versions supported 2
security
addressing 90
Authentication Manager 40
fax modem 81
Kerberos Authentication 45
LDAP Authentication 42
Send to E-mail 73
settings, general 38
status 12
Security screen 38
Send to E-mail screen 73
Send to Fax screen 78
Send to Folder screen 70
sending faxes 79, 81
serial number 20
server, HP Jetdirect 99
service contracts 56
service providers
alerts, setting up 30
links to 56
logging off 4
logging on as 4
Settings tab 6, 25
Shop for Supplies link 56, 101
shutdown, setting wake time 63
SMTP gateway settings 73
status
alerts 30
device 8
network 98
supplies 8, 13
supplies
AutoSend feature 36
ordering 56, 101
status 8
status page 13
usage information 16
Supplies Status screen 13
support
instant 56, 101
product 56, 102
system requirements 2
ENWW
T
TCP/IP address
e-mail configuration 29
locating 2, 20
TCP/IP-based network 2
technical support
instant 56, 101
product 56, 102
text files, printing 23
time settings 60
toner cartridge. See print cartridges
Tray
Size settings 27
Type settings 27
Tray Sizes/Types screen 27
trays
accessory information 12
media status 9
Usage Page 16
troubleshooting
Configuration Page screen 10
digital sending log 93
Event Log 15
instant support 56, 101
product support 56, 102
Troubleshooting menu 26
U
updating firmware 23
usage information, AutoSend
Usage Page 16
user name 38
36
W
Wake Time screen 63
Web browsers
closing after logging off 4
defined 1
supported 2
Web Jetadmin 2
Web server, embedded
defined 1
features 1
Web sites
firmware updates 23
instant support 56, 101
product support 56, 102
Index 105
