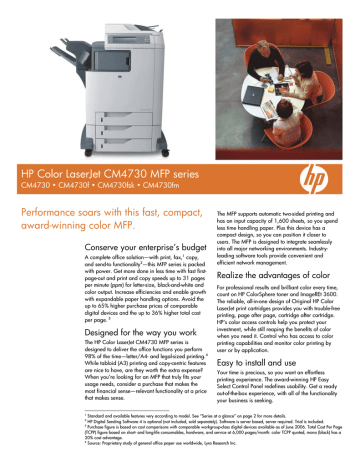

HP Color LaserJet CM4730 MFP series
CM4730 • CM4730f • CM4730fsk • CM4730fm
Performance soars with this fast, compact,
award-winning color MFP.
Conserve your enterprise’s budget
A complete office solution—with print, fax,1 copy,
and send-to functionality2—this MFP series is packed
with power. Get more done in less time with fast firstpage-out and print and copy speeds up to 31 pages
per minute (ppm) for letter-size, black-and-white and
color output. Increase efficiencies and enable growth
with expandable paper handling options. Avoid the
up to 65% higher purchase prices of comparable
digital devices and the up to 36% higher total cost
per page. 3
Designed for the way you work
The HP Color LaserJet CM4730 MFP series is
designed to deliver the office functions you perform
98% of the time—letter/A4- and legal-sized printing.4
While tabloid (A3) printing and copy-centric features
are nice to have, are they worth the extra expense?
When you’re looking for an MFP that truly fits your
usage needs, consider a purchase that makes the
most financial sense—relevant functionality at a price
that makes sense.
1
The MFP supports automatic two-sided printing and
has an input capacity of 1,600 sheets, so you spend
less time handling paper. Plus this device has a
compact design, so you can position it closer to
users. The MFP is designed to integrate seamlessly
into all major networking environments. Industryleading software tools provide convenient and
efficient network management.
Realize the advantages of color
For professional results and brilliant color every time,
count on HP ColorSphere toner and ImageREt 3600.
The reliable, all-in-one design of Original HP Color
LaserJet print cartridges provides you with trouble-free
printing, page after page, cartridge after cartridge.
HP’s color access controls help you protect your
investment, while still reaping the benefits of color
when you need it. Control who has access to color
printing capabilities and monitor color printing by
user or by application.
Easy to install and use
Your time is precious, so you want an effortless
printing experience. The award-winning HP Easy
Select Control Panel redefines usability. Get a ready
out-of-the-box experience, with all of the functionality
your business is seeking.
Standard and available features very according to model. See “Series at a glance” on page 2 for more details.
HP Digital Sending Software 4 is optional (not included, sold separately). Software is server based, server required. Trial is included.
3
Purchase figure is based on cost comparisons with comparable workgroup-class digital devices available as of June 2006. Total Cost Per Page
(TCPP) figure based on short- and long-life consumables, hardware, and service at 6,000 pages/month: color TCPP quoted, mono (black) has a
20% cost advantage.
4
Source: Proprietary study of general office paper use worldwide, Lyra Research Inc.
2
HP Color LaserJet CM4730 MFP series
1
50-sheet ADF scanner processes
two sided documents at full
speed
2
HP Easy Select Control Panel
provides effortless interaction
with the MFP
HP Color LaserJet CM4730fm shown
15
1
3
100-sheet multipurpose tray
handles heavy custom media up
to 58 lb bond (220 g/m2)
2
4
Side door allows convenient
access to four, all-in-one HP print
cartridges
3
5
Full-speed, automatic two-sided
printing
4
6
Three adjustable 500-sheet input
trays support paper up to 32 lb
bond (120 g/m2)
7
8
One open EIO slot to add even
more functionality, including
Apple networking
448 MB total memory quickly
and easily handles complex
print jobs
9
40 GB HP high-performance
embedded hard disk
10
HP Jetdirect Fast Ethernet
embedded print server
11
IEEE-1284 C parallel port
12
RJ-11 fax port
13
Hi-Speed USB 2.0 ports
14
Foreign interface harness for
third-party paper-handling
solutions
15
700-sheet, 3-bin mailbox allows
you to sort by user, print, copy,
or fax jobs
14
13
9
12
5
8
11
7
10
6
Series at a glance
CM4730
CM4730f
CM4730fsk
CM4730fm
100-sheet multipurpose tray
¥
¥
¥
¥
Three 500-sheet input trays
¥
¥
¥
¥
500-sheet output bin
¥
¥
not available
not available
448 MB
448 MB
448 MB
448 MB
HP Jetdirect Fast Ethernet print server
¥
¥
¥
¥
Built-in automatic two-sided printing
¥
¥
¥
¥
40 GB high performance hard drive
¥
¥
¥
¥
HP LaserJet MFP Analog Fax Accessory 300
optional
¥
¥
¥
500-sheet stapler stacker
optional
optional
¥
not available
700-sheet, 3-bin mailbox
optional
optional
not available
¥
Memory
Built on the award-winning HP LaserJet quality you know and trust.
Outstanding Mid-size
Workgroup Color
Multifunction Printer
BBB Editor’s Choice: Laserquality Color Technology for
the Workgroup
Buyers Laboratory, Inc.
Pick of the Year awards
June 19, 2006
Better Buys for Business
2006 Printer Multifunctional
Guide
Editor’s Choice Award
Outstanding Achievement
for the User Interface Design
of its Multifunction Printers
IT Week
June 26, 2006
Buyers Laboratory, Inc
Fall 2006
Best overall print quality
spencerLAB Digital Color
Laboratory
Get the most out of your MFP with
HP accessories, supplies, and services.
Q7521A
Stapler/stacker staples
documents up to 30 pages
and stacks up to 500 sheets
Q7523A
700-sheet 3-bin mailbox may
be assigned to individuals or
device functions (to sort by
print, copy, or fax jobs)
Q3701A
HP LaserJet MFP Analog Fax
Accessory 300 quickly and
securely processes fax
documents1
J7942G
The HP Jetdirect en3700 Fast
Ethernet external print server
boasts full-featured Jetdirect
security, including 802.1x
radius server authentication
(print only, USB 2.0)
TI936AA
HP Digital Sending Software
4 lets you digitally capture,
route, and store paper-based
documentation
Choose from a selection of
HP Brochure and Flyer
papers to create impressive,
professional marketing
materials.
The HP Color LaserJet 4730
MFP series recently received
five awards that demonstrate
its usability, affordability, and
performance advantages.
This MFP improves on the
award-winning foundation of
its predecessor. Your office or
workgroups will enjoy the
same positive, reliable, and
familiar experience that makes
their job—and yours—much
easier.
HP Jetdirect print servers
HP Jetdirect en1700 USB 2.0 Print Server
J7988G
HP Jetdirect en3700 USB 2.0 Print Server (print only)
J7942G
HP Jetdirect ew2400 wireless USB 2.0 Print Server (print only)
J7951G
HP Jetdirect 510x Parallel Print Server (print only)
J7983G
HP Jetdirect 300x Parallel Print Server (print only)
J3263G
HP Jetdirect 635n EIO Print Server
J7961G
HP Jetdirect 630n EIO Print Server
J7997G
Accessories and software
500-sheet stapler/stacker
Q7521A
700-sheet, 3-bin mailbox
Q7523A
HP LaserJet MFP Analog Fax Accessory 300
Q3701A
HP Digital Sending Software 4
T1936AA
HP AutoStore
T1943AA
HP Color LaserJet 4700 family print cartridges5
HP Color LaserJet Black Print Cartridge (12,000 pages)
Q6460A
HP Color LaserJet Cyan Print Cartridge (12,000 pages)
Q6461A
HP Color LaserJet Yellow Print Cartridge (12,000 pages)
Q6462A
HP Color LaserJet Magenta Print Cartridge (12,000 pages)
Q6463A
Memory and storage
128 MB 200-Pin DDR SDRAM DIMM
Q7721A
256 MB 200-Pin DDR SDRAM DIMM
Q7722A
512 MB 200-Pin DDR SDRAM DIMM
Q7723A
Cables
Parallel cable, 3-meter IEEE 1284 (a to c)
C2946A
Parallel cable, 10-meter IEEE 1284 (a to c)
C2947A
Supplies
Staple cartridge (5,000 staples) for stapler/stacker
C8091A
ADF replacement Mylar sheets
Q6496A
ADF maintenance kit
Q5997A
110 volt image fuser
Q7502A
220 volt image fuser
Q7503A
110 volt image transfer kit
Q7504A
Service and support
3 year, warranty service, 4-hour response, standard business hours (9x5)
HC116E
3 year, warranty service, 4-hour response, extended business hours (13x5)
HC119A/E
3 year, next business day response
HC113A/E
Hardware installation service
U2009E
Networked hardware installation and configuration
U2010E
Paper
North America: www.hp.com/go/paper
Europe: www.hp.com/go/supplies
Asia Pacific: www.hp.com/apac/printingsupplies
Latin America: contact HP via phone:
USA: 1-800-477-5010, Europe : +800 7644 7644, Asia: 65-6253-8500, Australia/New
Zealand: 61-2997-2299LAR, Brasil: sac 0800 70 300 70
Solutions
www.hp.com/go/gsc
Put the power of HP Imaging and Printing Services to work to
improve productivity and reduce costs. Select predefined services
or tailor your own to meet your precise needs.
5
All print cartridge page yields are based on five percent page coverage.
HP Color LaserJet CM4730 MFP series
Technical specifications
Print and copy speed6
First page out, printing
Print resolution
Scanning resolution
Features
Scanning
Copying
Faxing
Durability rating
Paper
Handling
Output
Sizes
Types
Connectivity
Interfaces
Languages and fonts
Bidirectional IEEE-1284-C parallel port, Hi-Speed USB 2.0 port, one open EIO slot, foreign interface harness, accessory port, HP Jetdirect Fast Ethernet Embedded Print Server
HP PCL6, HP PCL5c, HP postscript level 3 emulation, direct PDF printing (v 1.4), PML (Printer Management Language)
80 internal TrueType fonts scalable in HP PCL and HP postscript level 3 emulation; additional font solutions available via flash memory
Windows Vista x86, Vista x64, 2000, XP x86, Windows Server 2003 x86, Windows Server 2003 x64, XP x64; Mac OS X v10.2, v10.3, v10.4 or later
Client operating
systems
Network operating
systems10
Network protocols
supported10
Security
Dimensions (w by d by h)
Weight
What’s in the box
Relative humidity
HP Color LaserJet CM4730fm MFP
(CB483A)
100-sheet multipurpose tray; 500-sheet input trays 2, 3, 4; 50-sheet ADF, standard automatic two-sided printing
500-sheet face-down output bin
500-sheet stapler/stacker
700-sheet, 3-bin mailbox
Multipurpose tray: 3 by 5 in (76 by 127 mm) to 8.5 by 14 in (216 by 356 mm); letter, legal, statement, executive, A4, A5, B5 (JIS), executive (JIS), DPostcard (JIS), 16k, envelopes
(No. 10, commercial, C5, DL, B5); 500-sheet input trays: 5.8 by 8.3 in (148 by 210 mm) to 8.5 by 14 in (216 by 356 mm); letter, legal, executive, A4, A5, B5 (JIS); custom sizes
not supported for automatic two-sided printing, optional 3-bin mailbox, and stapling with the optional stapler/stacker
Multipurpose tray: 16 to 60 lb bond (60 to 220 g/m2); Automatic two-sided printing unit, 500-sheet input trays, optional 3-bin mailbox, stapling with the optional stapler/stacker:
16 to 32 lb bond (60 to 120 g/m2)
Paper (plain, preprinted, letterhead, prepunched, bond, recycled, color, light, intermediate, heavy, extra heavy, rough, glossy, heavy glossy, tough), transparencies, labels,
envelopes, card stock
Weights9
Environmental ranges
Temperature
HP Color LaserJet CM4730fsk MFP
(CB482A)
Color flatbed scanner or ADF; scan input modes: copy, e-mail, fax, secondary e-mail, folder, workflow;
Up to 999 copies; reduce or enlarge from 25 to 400% (from scanner glass), 25 to 200% (from ADF)
Optional via HP LaserJet MFP Analog Fax
Fax speed: up to 33.6 kbps; JBIG compression, fax forwarding, fax polling, broadcasting to up to 100 locations, speed dial (up to
Accessory 300
100 numbers), auto fax reduction, and auto redialing supported
Via optional HP Digital Sending Software: secondary e-mail, send-to-folder, send-to-workflow, authentication, digital fax (send-to-LAN, Windows 2000, Internet); up to 30 ppm;
formats: PDF, JPEG, TIFF, MTIFF
533 MHz RISC
448 MB: 384 MB RAM and 64 MB fixed memory; Expandable to 512 MB RAM via 256 DIMMS, two available flash memory slots for font cards or third party solutions;
40 GB HP high-performance embedded hard disk
Recommended monthly volume: 5,000-9,000 pages7
Duty cycle: 175,0008
Processor
Memory/storage
Warranty
HP Color LaserJet CM4730f MFP
(CB481A)
Up to 31 ppm, letter/30 ppm, A4 (color and black-and-white); Up to 30 ppm, legal (black-and-white)
Less than 10 seconds letter/A4, Ready; less than 17.5 seconds letter/A4, PowerSave
Less than 12 seconds letter/A4, Ready; less than 25 seconds letter/A4, PowerSave
600 by 600 dpi with HP ImageREt 3600
Up to 600 by 600 dpi 30 bit (flatbed), up to 600 by 300 dpi 30 bit (ADF)
Digital sending
Also includes
HP Color LaserJet CM4730 MFP
(CB480A)
Microsoft Windows Vista Compatible, Vista Premium, XP, Server 2003, XP, 2003 64-bit, XP 64-bit, 2000 (IPv6 only supported on Windows 2003 and Windows XP; IPsec on IPv4
only on Windows 2003 and Windows XP); Novell 5.1 and later; Mac OS X v10.2, v10.3, v10.4 or later; Red Hat Linux 7.x and later; SuSE Linux 8.x and later; HP-UX 10.20,
11.x, 11.i; Solaris 2.5 and later (SPARC systems only); IBM AIX 3.2.5 and later; MPE-iX; Citrix MetaFrame Server; Windows Terminal Services
IPv6: DHCPv6, HTTP, HTTPS, Port 9100, IP Direct Mode, LPD, IPP, MLDv6, ICMPv6, Apple Bonjour Compatible, FTP, WS-Discovery
IPv4: FTP, IPP2, Auto-IP, Apple Bonjour Compatible, Telnet, SLP, IGMPv2, BOOTP/DHCP, WINS, SNMPv1/v2c/v3, TFTP, HTTP, HTTPS, Port 9100, LPD, IP Direct Mode
Other: IPX/SPX, AppleTalk, NetWare NDS, Bindery, NDPS, iPrint
Password protection, SNMP v3, SSL/TLS (HTTPS), 802.1x authentication (EAP- PEAP, EAP-TLS), LDAP authentication and secure disk erase, central and remote security configuration
through Web Jetadmin, Easy Printer Care, and Jetdirect Security Configuration Wizard
31 by 25.2 by 45.4 in (788 by 639 by 1153 mm)
43.5 by 25.2 by 45.4 in (1106 by 639 by 1153 mm)
273 lb (124 kg)
298 lb (136 kg)
MFP; power cord; IEEE 1284-C parallel cable; software drivers and documentation on CD; in-box documentation: Getting Started Guide; full capacity black, cyan, magenta, and
yellow HP Color LaserJet print cartridges with HP ColorSphere toner
HP LaserJet MFP Analog Fax Accessory
HP LaserJet MFP Analog Fax Accessory
HP LaserJet MFP Analog Fax Accessory
300, phone cord, Fax Install Guide
300, phone cord, Fax Install Guide,
300; phone cord; Fax Install Guide;
500-sheet stapler/stacker
700-sheet, 3-bin mailbox
One-year, next day, on-site limited warranty
Operating: 59 to 86 degrees F (15 to 307 degrees C)
Recommended: 63 to 77 degrees F (17 to 25 degrees C)
Storage: -4 to 104º F (-20 to 40º C)
Operating: 10 to 70 percent
Recommended: 20 to 60 percent
Non-operating: 10 to 90 percent
0 to 8530 ft (0 to 2600 m)
Altitude
Power consumption11
Active: 720 watts (printing)/760 watts (scanning), Ready: 85 watts, Sleep: 26 watts, Off: 0.42 watts
Typical Electricity Consumption (TEC): 7.731 kWh/Week
ENERGY STAR® qualified models; see: http://www.hp.com/go/energystar
Acoustics11
Power: active: 6.8 B(A), copying; 6.3 B(A), printing; ready, inaudible
Pressure (bystander): active 52 dB(A) , copying; 50 dB(A) printing; ready, inaudible
Required input voltage:
110 to 127 VAC (+/- 10%), 50/60 Hz (+/- 2 Hz)
220 to 240 VAC (+/- 10%), 50/60 Hz (+/-2 Hz)
Power certifications
EMC: CISPR 22:2005 / EN 55022:2006 Class A, EN 61000-3-2:2000, EN 61000-3-3:1995, EN
55024:1998, FCC Title 47 CFR, Part 15 Class A / ICES-003, Issue 4 / GB9254-1998, GB17625.1-2003,
EMC Directive 89/336/EEC and the Low Voltage Directive 73/23/EEC and carries the CE-Marking accordingly
Telecom: TBR-21:1998; EG 201 121:1998, FCC Part 68, Industry Canada CS03, NOM-151-SCTI-1999
(Mexico), PTC-200 (New Zealand), AS/ACIF S002:2001 (Australia), IDA PSTN1 (Singapore), TPS002-01
(Malaysia), IG 0005-11 (Taiwan), HKTA 2011 (Hong Kong), YD514, YD/T589, YD703, GB3382 (China)
Safety: Argentina (TÜV S Mark-Rs.92/98/Ds.1009/98), Australia (AS/NZ 3260), Canada (cUL-CAN/CSA
C22.2 No.60950-1-03), China (GB4943), Czech Republic (CSN-IEC 60950-1; IEC 60825-1), Estonia (EEIEN60950-1; IEC 60825-1), EU (CE Mark-Low Voltage Directive 73/23/EEC), Germany (TÜV- EN60950-1; IEC
60825-1), Hungary (MEEI- IEC 60950-1; IEC 60825-1), Lithuania (LS- IEC 60950-1; IEC 60825-1), (Russia
(GOST- R50377), Slovakia (IEC 60950-1; IEC60825-1), Slovenia (SQI- IEC 60950-1; EN60825-1), South Africa
(IEC 60950-1; IEC60825-1), USA (UL-UL 60950-1; FDA-21 CFR Chapter 1 Subchapter J for lasers). Class 1
Laser/LED Product.)
6
Exact speed varies depending on the system configuration, software application, driver, and document complexity.
HP recommends that the number of printed pages per month be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period.
Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers
and MFPs.
9
For optimum results, HP recommends the use of HP media designed for HP Color LaserJet printers between the weights of 75 g/m2 to 120 g/m2. For lighter weight or heavier weight paper (60 g/m2 to 74 g/m2 and 121 to 220 g/m2), paper jam rate
and optimal print quality performance may be impacted. Use the correct driver and tray settings for best results. Test all paper before purchasing large volumes.
10
Not all protocol and operating system combinations are supported. For more information, go to: www.hp.com/support/net_printing. IBM-AIX 3.2.5 and later requires software from the NOS developer.
11
Values subject to change. See www.hp.com/support/cljCM4730 for current information. Power reported is the highest value measured using all standard voltages.
7
8
ENERGY STAR and the ENERGY STAR logo are registered U.S marks. Linux is a U.S. registered trademark of Linus Torvalds. Microsoft, Windows, Windows NT and Windows XP are registered trademarks of Microsoft Corporation. RED HAT READY™
Logo and RED HAT CERTIFIED PARTNER™ Logo are trademarks of Red Hat, Inc. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
© Copyright 2007 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products
and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
For more information visit our website at www.hp.com
0000-0000ENUC, 4/2007
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
