HP Compaq 6715b Notebook PC
Overview
HP recommends Windows Vista®
Business
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.

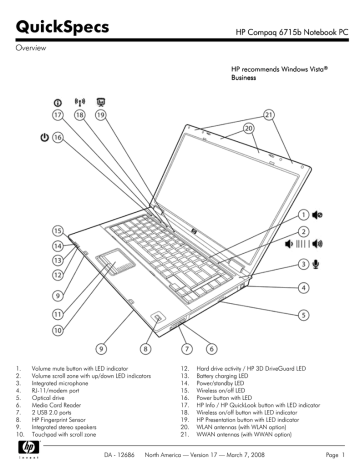

Volume mute button with LED indicator
Volume scroll zone with up/down LED indicators
Integrated microphone
RJ-11/modem port
Optical drive
Media Card Reader
2 USB 2.0 ports
HP Fingerprint Sensor
Integrated stereo speakers
Touchpad with scroll zone
DA - 12686
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
Hard drive activity / HP 3D DriveGuard LED
Battery charging LED
Power/standby LED
Wireless on/off LED
Power button with LED
HP Info / HP QuickLook button with LED indicator
Wireless on/off button with LED indicator
HP Presentation button with LED indicator
WLAN antennas (with WLAN option)
WWAN antennas (with WWAN option)
North America — Version 17 — March 7, 2008
Page 1
QuickSpecs
HP Compaq 6715b Notebook PC
Overview
11.
1.
2.
3.
4.
5.
6.
Touchpad buttons
Power connector
2 USB 2.0 ports
Stereo headphone/line out
Stereo microphone in
1394a port
Type I/II PC Card slot
7.
8.
9.
10.
11.
PC Card eject button
S-Video TV out
VGA/external monitor connector
RJ-45/Ethernet port
Kensington Lock slot
At A Glance
Genuine Windows Vista Business*, Genuine Windows Vista Home,
Genuine Windows XP Professional, or FreeDOS
Widescreen 15.4-inch diagonal display with wide-viewing angle, BrightView and HP Privacy Filter options
Flexible wireless connectivity options:
Integrated HP ev2200 1xEV-DO or HP hs2300 HSDPA Broadband Wireless module
Integrated 802.11 a/b/g/draft-n, a/b/g, or b/g wireless LAN module
Bluetooth®
Designed for common image for corporate environments
AMD Turion™ 64 X2 Dual-Core Mobile Technology processors, or Mobile AMD Sempron™ processors
Thin, lightweight design starting at 5.7 lb/2.59 kg and 1.37 in/34.9 mm thin at front
Security features including Drive Encryption for HP ProtectTools, HP Fingerprint Sensor, TPM 1.2
HP QuickLook on Windows Vista models for instant access to email, calendar, and contact information
Up to 160-GB 5400 rpm or 120-GB 7200 rpm user-removable hard drive with HP 3D DriveGuard protection
Media Card Reader
Touch-sensitive controls for HP Info Center, HP QuickLook, wireless on/off, HP Presentation button, external volume up,
volume down, and mute
Integrated optical drive, including optional DVD+/-RW SuperMulti DL LightScribe Drive
Up to 4 GB of 667-MHz DDR2 SDRAM, dual channel memory support
ATI Radeon X1250 graphics, with up to 831 MB shared system memory (select models)
Broadcom NetLink Gigabit Ethernet Controller
Touchpad with scroll zone
* At initial boot, either 32- or 64-bit can be selected. This is a one time selection and the other version will be deleted.
DA - 12686
North America — Version 17 — March 7, 2008
Page 2
QuickSpecs
HP Compaq 6715b Notebook PC
Standard Features
Processors
AMD Turion 64 X2 Dual-Core Mobile Technology TL-64 (2.2-GHz, 2 x 512-KB L2 cache)
AMD Turion 64 X2 Dual-Core Mobile Technology TL-60 (2.0-GHz, 2 x 512-KB L2 cache)
AMD Turion 64 X2 Dual-Core Mobile Technology TL-58 (1.9-GHz, 2 x 512-KB L2 cache)
Mobile AMD Sempron Processor 3800+ (2.2-GHz, 256-KB L2 cache)
Mobile AMD Sempron Processor 3600+ (2.0-GHz, 256-KB L2 cache)
Mobile AMD Sempron Processor 3500+ (1.8-GHz, 512-KB L2 cache)
NOTE: Processor speed denotes maximum performance mode; processors will run at lower speeds in
battery optimization mode.
Operating System
Preinstalled
Chipset
AMD M690T Chipset
Genuine Windows Vista Business†*
Genuine Windows Vista Home Basic*
Genuine Windows Vista Ultimate
Genuine Windows XP Professional
Genuine Windows Vista downgrade to Genuine Windows XP Professional
installed (factory downgrade)3
FreeDOS
Supported
Genuine Windows Vista Enterprise*
Certified
SuSE Linux Enterprise Desktop 10
† At initial boot, either 32- or 64-bit can be selected. This is a one time selection and the other version
will be deleted.
* Certain Windows Vista product features require advanced or additional hardware. See:
http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and
http://www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista Upgrade
Advisor can help you determine which features of Windows Vista will run on your computer. To
download the tool, visit: http://www.windowsvista.com/upgradeadvisor.
3 End User downgrade rights are exercised by HP on customers behalf and Vista-COA licensed unit is
shipped with XP Professional preinstalled on the disk. HP also provides both XP Professional and Vista
restore media for future upgrade if desired. To qualify for this downgrade an end user must be a
business (including governmental or educational institutions) and is expected to order annually at least
25 customer systems with the same custom image.
DA - 12686
North America — Version 17 — March 7, 2008
Page 3
QuickSpecs
HP Compaq 6715b Notebook PC
Standard Features
Graphics
ATI Radeon X1250
Total System Memory
Reserved Graphics Memory *
Maximum Graphics Memory **
Windows XP
256 MB
32 MB
32 MB
512 or 768 MB
64 MB
64 MB
1024 MB or more
128 MB
128 MB
Windows Vista
512 MB
64 MB
128 MB
768 MB
64 MB
159 MB
1024 MB
128 MB
319 MB
1536 MB
128 MB
575 MB
2048 MB
128 MB
831 MB
* System memory exclusive to graphics.
** Total available graphics memory (HyperMemory), which includes Reserved Graphics Memory
and Shared System Memory.
Microsoft DirectX 9 capable
Display
Internal
External
Memory
15.4-inch diagonal WXGA anti-glare (1280 x 800 resolution)
15.4-inch diagonal WXGA BrightView (1280 x 800 resolution)
15.4-inch diagonal WSXGA+ WVA anti-glare (1680 x 1050 resolution)
HP Privacy Filter support
Up to 32-bit per pixel color depth
VGA port supports resolutions up to 2048 x 1536 at 75 Hz, and lower
resolutions at up to 100 Hz
NOTE: Resolutions are dependent upon monitor capability, and resolution
and color depth settings.
Standard
512-MB, 1024-MB, 2048-MB, or 4096-MB 667-MHz DDR2 SDRAM; two
SODIMM slots supporting dual channel memory
Maximum
Upgradeable to 4096-MB maximum (2048-MB SODIMM in slots 1 and 2)
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same size
and speed in both memory slots.
NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend
HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the
lower memory speed. Full availability of 4 GB of memory requires Windows Vista Business 64-bit or
Linux. With Windows 32-bit operating systems, the amount of usable memory is dependent upon your
configuration, so that above 3 GB all memory may not be available due to system resource
requirements.
DA - 12686
North America — Version 17 — March 7, 2008
Page 4
QuickSpecs
HP Compaq 6715b Notebook PC
Standard Features
Communications
Integrated Broadcom NetLink Gigabit Ethernet Controller (10/100/1000 NIC)*
56K V.92 modem**
* The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for
Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission,
connection to a Gigabit Ethernet server and network infrastructure is required.
** Designed for downloads from 56K modem compliant sources. Maximum achievable download
transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability
is subject to country regulatory approval.
Wireless Devices
Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring
support for the latest industry standards. Broadband Wireless (WWAN) requires Windows Vista Business
or Windows XP Professional and is available in select countries. Integrated Bluetooth is also available
and can be combined with any of the supported wireless LAN and wireless WAN options. All wireless
options are factory configurable only.
Integrated WWAN module connects to the Verizon Wireless
Verizon Wireless
BroadbandAccess (EVDO, BroadbandAccess and NationalAccess networks
Rev A) Module
Supports CDMA 1xEV-DO, 1xRTT connections at 850 and 1900 MHz.
NOTE: Separately purchased Verizon Wireless service is required. For
details, go to http://www.hp.com/go/broadbandwireless.
Two 850/900/1800/1900/2100-MHz antennas integrated in the top of the
display panel support current and future WWAN technologies
AT&T BroadbandConnect Integrated WWAN module that provides connection to GSM, GPRS, EDGE,
(HSDPA) Module
UMTS, and HSDPA mobile networks in many countries. Currently available
for the AT&T Broadbandconnect network in the U.S. (supports international
roaming).
NOTE: Separately purchased mobile network operator service is required.
Two 850/900/1800/1900/2100-MHz antennas integrated in the top of the
display panel support current and future WWAN technologies.
Wi-Fi certified
All 802.11a/b/g
integrated wireless LAN Cisco Compatible Extensions support (Version 4.0) with Microsoft Windows
options
XP
Wired Equivalent Privacy (WEP) support up to 128-bit keys
Wi-Fi Protected Access (WPA) and WPA2 support
802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAP-GTC,
PEAP-MSCHAPv2, and LEAP
Advanced Encryption Standard (AES) support
WiFi certified for WPA2, WMM
Dual antennas integrated in the display enclosure
Integrated support for 802.11a, b, g, and draft-n
Broadcom 4321AGN
802.11a/b/g/draft-n Wi- Up to 300-mbps data rate
Fi Adapter
Integrated support for 802.11 a, b and g
Broadcom 4311AG
802.11a/b/g
Up to 54-mbps data rate
WiFi Adapter
Integrated support for 802.11 b and g
Broadcom 4311BG
802.11b/g
Up to 54-mbps data rate
WiFi Adapter
DA - 12686
North America — Version 17 — March 7, 2008
Page 5
QuickSpecs
HP Compaq 6715b Notebook PC
Standard Features
HP Integrated Module
with Bluetooth Wireless
Technology
Bluetooth Specification v2.0 compliant
Works with a wide range of Bluetooth devices
Keyboard
The 101/102-key compatible keyboard features an industry standard, full-pitch key layout with desktop
keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right
control and alt keys, and 12 function keys. US and International key layouts are available. Other
features include an integrated numeric keypad, hotkeys for instant access to power conservation,
brightness, and other features, 19-mm x 19-mm key pitch (center-to-center spacing), 2.5-mm stroke,
and comfort-dished keycaps.
Touch-sensitive controls
Touch-sensitive controls provide easy access to the following features: HP Info Center, HP QuickLook,
wireless on/off, HP Presentation button, external volume up, volume down, and mute
Pointing device
Touchpad with scroll zone, two pick buttons
Expansion card slots
1 Type I/II PC Card slot Supports 32-bit CardBus and 16-bit PC Cards
or
Optional Integrated Smart Compatible with ISO 7816 compliant Smart Cards
Card Reader (replaces PC PC/SC interface support
Card slot)
Supports SD (Secure Digital), MMC (MultiMedia Card), Memory Stick,
Media Card Reader
Memory Stick Pro, Memory Stick Duo*, xD-Picture card
*NOTE: Memory Stick Duo Adapters are required and sold separately. Inserting a Memory Stick Duo
*NOTE
Card directly into your notebook could damage the memory card and/or notebook.
Storage
Hard drives
80/120/160-GB 5400 rpm SMART SATA
80/120-GB 7200 rpm SMART SATA
NOTE: These hard drives are customer removable and will withstand multiple insertion/removal cycles.
Up to 10 GB is reserved for the system recovery software.
HP 3D DriveGuard
The hard drive is mounted directly to the notebook frame, reducing the
transmission of shock to the hard drive. Uses three-axis digital motion
detection with intelligent sensitivity to help protect the hard drive during
normal use from shock and vibration. The digital accelerometer temporarily
halts all data transfer and parks the hard drive when abrupt motion is
detected.
DVD-ROM Drive
Fixed optical drives
DVD/CD-RW Combo Drive
DVD+/-RW SuperMulti DL Drive
DVD+/-RW SuperMulti DL LightScribe Drive
DA - 12686
North America — Version 17 — March 7, 2008
Page 6
QuickSpecs
HP Compaq 6715b Notebook PC
Standard Features
Interfaces
PC Card slot
External monitor
1394a
Stereo microphone in
Stereo headphone/line
out
Power connector
RJ-11/modem
RJ-45/Ethernet
S-video TV out
USB 2.0
One Type I/II PC Card slot or optional Smart Card Reader
One – VGA
One
One
One
Docking connector
Secondary battery
connector
LED status indicators
One
One
One
One
One
One (Support for NTSC/PAL)
Four
Fifteen
Audio
High Definition Audio support w/24-bit DAC
Integrated stereo speakers
Integrated microphone
Touch-sensitive controls for volume up, volume down, and mute
Stereo headphone/line out
Stereo microphone in
Software
Preinstalled software with PDF Complete
Windows Vista or
HP Backup and Recovery Manager
Windows XP
HP Help and Support Center
HP QuickLook (Windows Vista only)
HP OpenView Radia Management Agent
HP Universal Print Driver
HP ProtectTools Security Manager:
BIOS Configuration for HP ProtectTools
Credential Manager for HP ProtectTools
Device Access Manager for HP ProtectTools*
Drive Encryption for HP ProtectTools
Embedded Security for HP ProtectTools
HP Quick Launch Buttons
HP Wireless Assistant
Microsoft Office Ready with 60-day Office Professional 2007 Trial Edition
(select models)
Roxio Creator 9 (for optional DVD+/-RW and DVD/CDRW drives)
Synaptics Touchpad Driver
Symantec Norton Internet Security with complimentary 60-day live update
Intervideo WinDVD – DVD Player
HP Client Manager
Additional software
available from the web
Java Card Security for HP ProtectTools
* Download available from http://www.hp.com for Windows Vista; preinstalled with Windows XP.
DA - 12686
North America — Version 17 — March 7, 2008
Page 7
QuickSpecs
HP Compaq 6715b Notebook PC
Standard Features
HP Backup and Recovery Each unit is shipped with HP Backup and Recovery Manager. HP Backup and Recovery Manager can
Manager
provide data and system file protection for HP business PCs to enable fast recovery if the system
becomes corrupted or if important information is accidentally deleted. HP Backup and Recovery
Manager can perform scheduled or manual backups of the entire drive or individual files and folders.
Up to 10 GB of the hard drive is reserved for the system recovery software. HP Backup and Recovery
Manager can also create software recovery CDs or DVDs (requires optional hardware).
SMBIOS Version 2.4
System Management BIOS, previously known as DMI BIOS, is used to store system management
information.
HP ProtectTools Security
Manager
HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP
ProtectTools Security Manager is an extensible client security console that delivers enhanced security
capabilities through add-on software modules. Modules currently available are:
BIOS Configuration for HP ProtectTools
Credential Manager for HP ProtectTools
Device Access Manager for HP ProtectTools
Drive Encryption for HP ProtectTools
Embedded Security for HP ProtectTools
Java Card Security for HP ProtectTools
Security
Standard Features
HP ProtectTools Security Manager
HP Fingerprint Sensor
Configuration Control Hardware
Memory Change Alert
Ownership Tag
Setup Password
Power-On Password
TPM 1.2 Embedded Security Chip
TPM Enhanced DriveLock
HP Disk Sanitizer
HP 3D DriveGuard
Kensington Lock Slot
Computrace Agent BIOS support (service must be purchased separately)
Optional Features
Compatible with ISO 7816 compliant Smart
Smart Card Reader
(replaces Type I/II PC
Cards
Card slot)
PC/SC interface support
Narrows viewing area so that screen data is
HP Privacy Filter
visible only to persons directly in front of the
monitor
For more information on HP security solutions refer to http://www.hp.com/go/security.
DA - 12686
North America — Version 17 — March 7, 2008
Page 8
QuickSpecs
HP Compaq 6715b Notebook PC
Standard Features
Power Supply
External 90-watt Smart AC adapter, 6-foot (1.8-meter) power cord included.
Total length including external AC adapter is 12 feet (3.66 meter).
HP Fast Charge*
*HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to 12cell Ultra-Capacity batteries.
Battery
Battery Life
System Standby Time
Primary battery
Optional HP Extended
Life Battery
Optional HP UltraCapacity Battery
6-cell (55 WHr) Lithium-Ion battery
8-cell (52 WHr) high capacity Lithium-Ion battery
12-cell (95 WHr) high capacity Lithium-Ion battery
Primary battery
Up to 4 hours and 30 minutes
Up to 8 hours and 30 minutes
Primary battery and
optional HP Extended Life
Battery
Up to 12 hours
Primary battery and
optional HP UltraCapacity Battery
NOTE: The listed battery life measurements were taken on models running Microsoft Windows XP
Professional. Battery life will vary depending on the product configuration, product model, applications
loaded on the product, power management settings of the product, and the product features used by the
customer. As with all batteries, the maximum capacity of this battery will decrease with time and usage.
Up to 1 week
Power Conservation
ATI PowerPlay technology
Hibernation
Standby
ACPI compliance
Docking and Stands
HP Advanced Docking Station
HP Docking Station
HP Standard Monitor Stand
HP Adjustable Notebook Stand
HP External MultiBay II
HP's shared docking solutions provide simple and convenient port replication and cable management.
Features include Gigabit NIC pass through, modem pass through, legacy parallel and serial ports, Svideo TV out, USB 2.0 ports, integrated security mechanism*, integrated MultiBay II and ExpressCard**
slots. These docking solutions are compatible across multiple Business Notebook platforms enabling a
lower total cost of ownership.
* HP/Kensington Cable Lock required (purchased separately)
** HP 3-in-1 NAS Docking Station and HP Advanced Docking Station only
DA - 12686
North America — Version 17 — March 7, 2008
Page 9
QuickSpecs
HP Compaq 6715b Notebook PC
Standard Features
Service and Support
HP Services offers limited 3- year, 1-year and 90-day warranty options depending on country;
1-year limited warranty on primary battery. On-site service and warranty upgrades are also available.
For HP Care Pack services see http://www.hp.com/go/lookuptool.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp.
Select Model(s)
6715b
RM174UT#ABA
Smart Buy
Processor
Operating System
System Memory
Hard Drive
Display
Graphics
Audio
Communications
Integrated Wireless
Integrated Security
Pointing Device
Optical Drive
Battery
Power
Warranty
DA - 12686
AMD Turion 64 X2 Dual-Core Mobile Technology TL-60 (2.0-GHz, 2x512KB L2 cache)
Genuine Windows Vista® Downgrade to Genuine Windows XP Professional
(note) w/MS Office (Trial)
1024-MB 667-MHz DDR2 SDRAM (2 DIMM)
160-GB 5400 rpm SATA HDD
15.4-inch WSXGA+ WVA
ATI Radeon X1250, up to 512-MB shared system memory
High Definition Audio w/24-bit DAC
line out/headphone and microphone jacks
integrated microphone
56K Modem
Broadcom NetLink Gigabit Ethernet PCI Controller (10/100/1000 NIC)
Broadcom 802.11 a/b/g/draft-n Wi-Fi Adapter
HP Integrated Module with Bluetooth Wireless Technology
TPM 1.2 Embedded Security Chip
HP Fingerprint Sensor
Touchpad with scroll zone, two pick buttons
DVD+/-RW SuperMulti with Double Layer LightScribe Drive
6-cell (55 WHr) Lithium-Ion
External 90-watt Smart AC adapter
3 Year WorldWide Limited Warranty
North America — Version 17 — March 7, 2008
Page 10
QuickSpecs
HP Compaq 6715b Notebook PC
Standard Features
6715b
RM176UT#ABA
Smart Buy
Processor
Operating System
System Memory
Hard Drive
Display
Graphics
Audio
Communications
Integrated Wireless
Integrated Security
Pointing Device
Optical Drive
Battery
Power
Warranty
6715b
RM178UA#ABA
Processor
Operating System
System Memory
Hard Drive
Display
Graphics
Audio
Communications
Integrated Wireless
Integrated Security
Pointing Device
Optical Drive
Battery
Power
Warranty
DA - 12686
AMD Turion 64 X2 Dual-Core Mobile Technology TL-60 (2.0-GHz, 2x512KB L2 cache)
Genuine Windows Vista® Downgrade to Genuine Windows XP Professional
(note) w/MS Office (Trial)
1024-MB 667-MHz DDR2 SDRAM (2 DIMM)
120-GB 5400 rpm SATA HDD
15.4-inch diagonal WXGA
ATI Radeon X1250, up to 512-MB shared system memory
High Definition Audio w/24-bit DAC
line out/headphone and microphone jacks
integrated microphone
56K Modem
Broadcom NetLink Gigabit Ethernet PCI Controller (10/100/1000 NIC)
Broadcom 802.11 a/b/g/draft-n Wi-Fi Adapter
HP Integrated Module with Bluetooth Wireless Technology
HP hs2300 HSDPA Broadband Wireless Module – AT&T
TPM 1.2 Embedded Security Chip
HP Fingerprint Sensor
Touchpad with scroll zone, two pick buttons
DVD+/-RW SuperMulti with Double Layer LightScribe Drive
6-cell (55 WHr) Lithium-Ion
External 90-watt Smart AC adapter
3 Year WorldWide Limited Warranty
AMD Turion 64 X2 Dual-Core Mobile Technology TL-60 (2.0-GHz, 2x512KB L2 cache)
Genuine Windows Vista® Downgrade to Genuine Windows XP Professional
(note) w/MS Office (Trial)
1024-MB 667-MHz DDR2 SDRAM (1 DIMM)
120-GB 5400 rpm SATA HDD
15.4-inch WXGA
ATI Radeon X1250, up to 512-MB shared system memory
High Definition Audio w/24-bit DAC
line out/headphone and microphone jacks
integrated microphone
56K Modem
Broadcom NetLink Gigabit Ethernet PCI Controller (10/100/1000 NIC)
Broadcom 802.11 a/b/g/draft-n Wi-Fi Adapter
HP Integrated Module with Bluetooth Wireless Technology
TPM 1.2 Embedded Security Chip
HP Fingerprint Sensor
Touchpad with scroll zone, two pick buttons
DVD+/-RW SuperMulti with Double Layer LightScribe Drive
6-cell (55 WHr) Lithium-Ion
External 90-watt Smart AC adapter
3 Year WorldWide Limited Warranty
North America — Version 17 — March 7, 2008
Page 11
QuickSpecs
HP Compaq 6715b Notebook PC
Standard Features
6715b
RM179UA#ABA
Processor
Operating System
System Memory
Hard Drive
Display
Graphics
Audio
Communications
Integrated Wireless
Integrated Security
Pointing Device
Optical Drive
Battery
Power
Warranty
6715b
RM181UA#ABA
Processor
Operating System
System Memory
Hard Drive
Display
Graphics
Audio
Communications
Integrated Wireless
Integrated Security
Pointing Device
Optical Drive
Battery
Power
Warranty
DA - 12686
AMD Turion 64 X2 Dual-Core Mobile Technology TL-64 (2.2-GHz, 2x512KB L2 cache)
Genuine Windows Vista® Downgrade to Genuine Windows XP Professional
(note) w/MS Office (Trial)
1024-MB 667-MHz DDR2 SDRAM (1 DIMM)
160-GB 5400 rpm SATA HDD
15.4-inch WSXGA+ WVA
ATI Radeon X1250, up to 512-MB shared system memory
High Definition Audio w/24-bit DAC
line out/headphone and microphone jacks
integrated microphone
56K Modem
Broadcom NetLink Gigabit Ethernet PCI Controller (10/100/1000 NIC)
Broadcom 802.11 a/b/g/draft-n Wi-Fi Adapter
HP Integrated Module with Bluetooth Wireless Technology
TPM 1.2 Embedded Security Chip
HP Fingerprint Sensor
Touchpad with scroll zone, two pick buttons
DVD+/-RW SuperMulti with Double Layer LightScribe Drive
6-cell (55 WHr) Lithium-Ion
External 90-watt Smart AC adapter
3 Year WorldWide Limited Warranty
AMD Turion 64 X2 Dual-Core Mobile Technology TL-64 (2.2-GHz, 2x512KB L2 cache)
Genuine Windows Vista® Downgrade to Genuine Windows XP Professional
(note) w/MS Office (Trial)
2048-MB 667-MHz DDR2 SDRAM (2 DIMM)
120-GB 5400 rpm SATA HDD
15.4-inch WSXGA+ WVA
ATI Radeon X1250, up to 512-MB shared system memory
High Definition Audio w/24-bit DAC
line out/headphone and microphone jacks
integrated microphone
56K Modem
Broadcom NetLink Gigabit Ethernet PCI Controller (10/100/1000 NIC)
Broadcom 802.11 a/b/g/draft-n Wi-Fi Adapter
HP Integrated Module with Bluetooth Wireless Technology
HP hs2300 HSDPA Broadband Wireless Module – AT&T
TPM 1.2 Embedded Security Chip
HP Fingerprint Sensor
Touchpad with scroll zone, two pick buttons
DVD+/-RW SuperMulti with Double Layer LightScribe Drive
6-cell (55 WHr) Lithium-Ion
External 90-watt Smart AC adapter
3 Year WorldWide Limited Warranty
North America — Version 17 — March 7, 2008
Page 12
QuickSpecs
HP Compaq 6715b Notebook PC
Standard Features
6715b
RM350UT#ABA
Smart Buy
Processor
Operating System
System Memory
Hard Drive
Display
Graphics
Audio
Communications
Integrated Wireless
Integrated Security
Pointing Device
Optical Drive
Battery
Power
Warranty
6715b
RM351UT#ABA
Smart Buy
Processor
Operating System
System Memory
Hard Drive
Display
Graphics
Audio
Communications
Integrated Wireless
Integrated Security
Pointing Device
Optical Drive
Battery
Power
Warranty
DA - 12686
AMD Turion 64 X2 Dual-Core Mobile Technology TL-58 (1.9-GHz, 2x512KB L2 cache)
Genuine Windows Vista® Downgrade to Genuine Windows XP Professional
(note) w/MS Office (Trial)
1024-MB 667-MHz DDR2 SDRAM (1 DIMM)
120-GB 5400 rpm SATA HDD
15.4-inch WXGA BrightView
ATI Radeon X1250, up to 512-MB shared system memory
High Definition Audio w/24-bit DAC
line out/headphone and microphone jacks
integrated microphone
56K Modem
Broadcom NetLink Gigabit Ethernet PCI Controller (10/100/1000 NIC)
Broadcom 802.11 a/b/g Wi-Fi Adapter
TPM 1.2 Embedded Security Chip
HP Fingerprint Sensor
Touchpad with scroll zone, two pick buttons
DVD/CD-RW Combo Drive
6-cell (55 WHr) Lithium-Ion
External 90-watt Smart AC adapter
1 Year WorldWide Limited Warranty
AMD Turion 64 X2 Dual-Core Mobile Technology TL-58 (1.9-GHz, 2x512KB L2 cache)
Genuine Windows Vista® Downgrade to Genuine Windows XP Professional
(note) w/MS Office (Trial)
1024-MB 667-MHz DDR2 SDRAM (1 DIMM)
120-GB 5400 rpm SATA HDD
15.4-inch WXGA BrightView
ATI Radeon X1250, up to 512-MB shared system memory
High Definition Audio w/24-bit DAC
line out/headphone and microphone jacks
integrated microphone
56K Modem
Broadcom NetLink Gigabit Ethernet PCI Controller (10/100/1000 NIC)
Broadcom 802.11 a/b/g Wi-Fi Adapter
TPM 1.2 Embedded Security Chip
HP Fingerprint Sensor
Touchpad with scroll zone, two pick buttons
DVD+/-RW SuperMulti with Double Layer LightScribe Drive
6-cell (55 WHr) Lithium-Ion
External 90-watt Smart AC adapter
1 Year WorldWide Limited Warranty
North America — Version 17 — March 7, 2008
Page 13
QuickSpecs
HP Compaq 6715b Notebook PC
Standard Features
6715b
RM352UT#ABA
Smart Buy
Processor
Operating System
System Memory
Hard Drive
Display
Graphics
Audio
Communications
Integrated Wireless
Integrated Security
Pointing Device
Optical Drive
Battery
Power
Warranty
6715b
RM353UA#ABA
Processor
Operating System
System Memory
Hard Drive
Display
Graphics
Audio
Communications
Integrated Wireless
Integrated Security
Pointing Device
Optical Drive
Battery
Power
Warranty
DA - 12686
AMD Turion 64 X2 Dual-Core Mobile Technology TL-58 (1.9-GHz, 2x512KB L2 cache)
Genuine Windows Vista® Downgrade to Genuine Windows XP Professional
(note) w/MS Office (Trial)
1024-MB 667-MHz DDR2 SDRAM (1 DIMM)
120-GB 5400 rpm SATA HDD
15.4-inch WXGA
ATI Radeon X1250, up to 512-MB shared system memory
High Definition Audio w/24-bit DAC
line out/headphone and microphone jacks
integrated microphone
56K Modem
Broadcom NetLink Gigabit Ethernet PCI Controller (10/100/1000 NIC)
Broadcom 802.11 a/b/g/draft-n Wi-Fi Adapter
HP Integrated Module with Bluetooth Wireless Technology
TPM 1.2 Embedded Security Chip
HP Fingerprint Sensor
Touchpad with scroll zone, two pick buttons
DVD+/-RW SuperMulti with Double Layer LightScribe Drive
6-cell (55 WHr) Lithium-Ion
External 90-watt Smart AC adapter
3 Year WorldWide Limited Warranty
AMD Turion 64 X2 Dual-Core Mobile Technology TL-58 (1.9-GHz, 2x512KB L2 cache)
Genuine Windows Vista® Downgrade to Genuine Windows XP Professional
(note) w/MS Office (Trial)
1024-MB 667-MHz DDR2 SDRAM (1 DIMM)
120-GB 5400 rpm SATA HDD
15.4-inch WXGA BrightView
ATI Radeon X1250, up to 512-MB shared system memory
High Definition Audio w/24-bit DAC
line out/headphone and microphone jacks
integrated microphone
56K Modem
Broadcom NetLink Gigabit Ethernet PCI Controller (10/100/1000 NIC)
Broadcom 802.11 a/b/g Wi-Fi Adapter
TPM 1.2 Embedded Security Chip
HP Fingerprint Sensor
Touchpad with scroll zone, two pick buttons
DVD/CD-RW Combo Drive
6-cell (55 WHr) Lithium-Ion
External 90-watt Smart AC adapter
1 Year WorldWide Limited Warranty
North America — Version 17 — March 7, 2008
Page 14
QuickSpecs
HP Compaq 6715b Notebook PC
Standard Features
6715b
RM354UA#ABA
Processor
AMD Turion 64 X2 Dual-Core Mobile Technology TL-58 (1.9-GHz, 2x512KB L2 cache)
Operating System
Genuine Windows Vista® Downgrade to Genuine Windows XP Professional
(note) w/MS Office (Trial)
System Memory
1024-MB 667-MHz DDR2 SDRAM (1 DIMM)
Hard Drive
120-GB 5400 rpm SATA HDD
Display
15.4-inch WXGA
Graphics
ATI Radeon X1250, up to 512-MB shared system memory
Audio
High Definition Audio w/24-bit DAC
line out/headphone and microphone jacks
integrated microphone
Communications
56K Modem
Broadcom NetLink Gigabit Ethernet PCI Controller (10/100/1000 NIC)
Integrated Wireless
Broadcom 802.11 a/b/g Wi-Fi Adapter
HP Integrated Module with Bluetooth Wireless Technology
Integrated Security
TPM 1.2 Embedded Security Chip
HP Fingerprint Sensor
Pointing Device
Touchpad with scroll zone, two pick buttons
Optical Drive
DVD/CD-RW Combo Drive
Battery
6-cell (55 WHr) Lithium-Ion
Power
External 90-watt Smart AC adapter
Warranty
3 Year WorldWide Limited Warranty
* At initial boot, either 32- or 64-bit can be selected. This is a one time selection and the other version will be deleted.
DA - 12686
North America — Version 17 — March 7, 2008
Page 15
QuickSpecs
HP Compaq 6715b Notebook PC
Options
Memory
HP 512-MB (DDR2 667 MHz) SODIMM
HP 1-GB (DDR2 667 MHz) SODIMM
HP 2-GB (DDR2 667 MHz) SODIMM
MultiBay II Storage
(9.5-mm)
NOTE: Requires HP 3-in1 NAS Docking Station,
HP Advanced Docking
Station, or HP External
MultiBay II
HP MultiBay II DVD-ROM Drive
PA849A
HP MultiBay II DVD/CD-RW Combo Drive
PA850A
HP MultiBay II DVD+/-RW SuperMulti DL Drive
PA851A
HP 80-GB 5400rpm MultiBay II Hard Drive
PH357A
Other Storage
HP 80-GB 5400rpm Primary SATA Hard Drive
HP DVD+/-RW SuperMulti DL LightScribe Drive
HP Notebooks USB Diskette Drive
Expansion Solutions
HP Docking Station with Smart Adapter
HP Advanced Docking Station with Smart Adapter
HP 3-in1 NAS Docking Station
HP Standard Monitor Stand
HP Adjustable Notebook Stand
HP External MultiBay II
EN488AA#ABA
EN489AA#ABA
EM537AA#ABA
PA507A
PA508A
PA509A#ABA
Power
HP 2-Bay Battery Charging Station
HP 10-Bay Battery Charging Station
HP Battery Adapter Kit
HP 90W Smart AC Adapter
HP 90W Smart Auto Adapter
HP 65W AC/Auto/Air Combo Smart Adapter
HP 6-Cell Li-Ion Primary Battery
HP 8-cell Extended Life Battery
HP 12-cell Ultra-Capacity Battery
DT533A#ABA
DT534A#ABA
PK402A
ED495AA#ABA
ED493AA
ED993AA#ABA
PB994A
PB993A
EJ092AA
Carrying Cases
HP Value Nylon Case
HP Universal Nylon Case
HP Executive Leather Case
HP Deluxe Nylon Backpack
HP Universal Messenger Bag
HP Deluxe Roller Case
DA - 12686
North America — Version 17 — March 7, 2008
EM993AA
EM994AA
EM995AA
ET354AA
ET353AA
DC361B
RR314AA
RR315AA
RR316AA
RR317AA
GD404AA
GD405AA
Page 16
QuickSpecs
HP Compaq 6715b Notebook PC
Options
Security
HP PC Card Smart Card Reader with Java Card
HP ProtectTools Java Card – 10 units
HP/Kensington MicroSaver Security Lock
Input/Output Devices
HP PS/2 Keyboard & Mouse Bundle
HP USB Keyboard & Mouse Bundle
HP USB/PS2 Optical 2-Button Scroll Mouse
HP USB Optical Travel Mouse
HP Bluetooth PC Card Mouse
DA - 12686
North America — Version 17 — March 7, 2008
EL347AA
EL348AA
PC766A
RC464AA#ABA
RC465AA#ABA
DC369A
RH304AA
RJ316AA
Page 17
QuickSpecs
HP Compaq 6715b Notebook PC
Memory
Support for up to 4096 MB of 667-MHz DDR2 SDRAM
Two DIMM slots
DIMM sizes supported: 512 MB, 1024 MB, and 2048 MB
Standard Memory
Optional Memory
Upgrades
512 MB (512 MB x 1)
1024 MB (1024 MB x 1 or 512 MB x 2)
2048 MB (2048 MB x 1 or 1024 MB x 2)
4096 MB (2048 MB x 2)
Support for up to 4096 MB of memory is available (with the installation of optional DDR2 SDRAM
memory kits). Both memory slots are user accessible. Please refer to the Hardware and Software Guide
for installation procedures. Maximized dual-channel performance requires SODIMMs of the same size
and speed in both memory slots.
Up to
1024 MB
1024 MB
1536 MB
2048 MB
4096 MB
Slot 1
1024 MB
512 MB
1024 MB
1024 MB
2048 MB
Slot 2
Empty
512 MB
512 MB
1024 MB
2048 MB
NOTE: This chart does not represent all possible memory configurations. Due to the non-industry
standard nature of some third-party memory modules, we strongly recommend using only HP branded
memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower
memory speed. Full availability of 4 GB of memory requires Windows Vista Business 64-bit or Linux.
With Windows 32-bit operating systems, the amount of usable memory is dependent upon your
configuration, so that above 3 GB all memory may not be available due to system resource
requirements.
Memory Upgrades
HP 512-MB (DDR2 667 MHz) SODIMM
HP 1024-MB (DDR2 667 MHz) SODIMM
HP 2048-MB (DDR2 667 MHz) SODIMM
DA - 12686
North America — Version 17 — March 7, 2008
EM993AA
EM994AA
EM995AA
Page 18
QuickSpecs
HP Compaq 6715b Notebook PC
Storage
Removable Media Drive Support
DVD-ROM Drive
DVD/CD-RW Combo Drive
DVD+/-RW SuperMulti DL Drive
DVD+/-RW SuperMulti DL
LightScribe Drive
Quantity Supported
One
One
One
One
Drive Bay
Fixed optical drive bay
Fixed optical drive bay
Fixed optical drive bay
Fixed optical drive bay
Quantity Supported
Drive Bay
One
Dedicated hard drive bay
One
Dedicated hard drive bay
One
Dedicated hard drive bay
One
Dedicated hard drive bay
One
Dedicated hard drive bay
Hard Drive Support
Primary Hard Drives
160-GB 5400 rpm SMART SATA
Hard Drive
120-GB 5400 rpm SMART SATA
Hard Drive
80-GB 5400 rpm SMART SATA
Hard Drive
120-GB 7200 rpm SMART SATA
Hard Drive
80-GB 7200 rpm SMART SATA
Hard Drive
DA - 12686
North America — Version 17 — March 7, 2008
Page 19
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
System Unit
Dimensions (HxWxD)
1.37 in (at front) x 14.05 in x 10.43 in
34.9 mm (at front) x 357.0 mm x 265.0 mm
Weight
Starting from 5.7 lb (2.59 kg)
NOTE: Height varies depending upon where on the notebook the measurement is made. Weight varies
by configuration and components. Weight includes 6-cell battery, 80-GB hard drive, and optical drive.
Weight varies by configuration and components.
Nominal Operating
18.5 V
Stand-Alone Power
Requirements (AC Power) Voltage
Average Operating Power 12.5 W
Max Operating Power
< 90 W
Temperature
Operating
Relative Humidity
Non-operating
Operating
Non-operating
Shock
Random Vibration
Altitude
(unpressurized)
Industry Standard
Certifications
DA - 12686
Operating
Non-operating
Operating
Non-operating
Operating
Non-operating
UL
CSA
FCC Compliance
ENERGY STAR® 4.0
ICES
GS
Australia / NZ A-Tick
Compliance
CCC
Japan VCCI Compliance
MIC
BSMI
CE Marking Compliance
BNCI or BELUS
CIT
GOST
Saudi Arabian
Compliance (ICCP)
SABS
UKRSERTCOMPUTER
32° to 95° F (0° to 35° C) (not writing optical)
41° to 95° F (5° to 35° C) (writing optical)
–4° to 140° F (–20° to 60° C)
10% to 90%, non-condensing
5% to 95%, 101.6° F (38.7° C) maximum wet
bulb temperature
125 G, 2 ms, half-sine
200 G, 2 ms, half-sine
0.75 grms
1.50 grms
–50 to 10,000 ft (–15.24 to 3,048 m)
–50 to 40,000 ft (–15.24 to 12,192 m)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
North America — Version 17 — March 7, 2008
Page 20
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
For accessibility information on HP products, please visit http://www.hp.com/accessibility.
HP 90W Smart AC
Adapter
Dimensions
Weight
Input
5.24 x 2.28 x 1.1 in (13.3 x 5.8 x 2.9 cm)
0.86 lb (390 g)
100 to 240 VAC
Input Efficiency
83% min at 115 VAC
Input frequency range
47 to 63 Hz
Input AC current
1.5 A at 90 VAC, 0.75 A at 180 VAC PFC
Version
2.4 A at 90 VAC, 1.2 A at 180 VAC NON PFC
Version
Output power
90W
DC output
18.5V
Hold-up time
5 msec at 115 VAC input
Output current limit
<11A, Over voltage protection- 29V max
automatic shutdown
3 pin/grounded, mates with interchangeable cords
Operating temperature
32° to 104° F (0° to 40° C)
Non-operating (storage) –4° to 149° F (–20° to 65° C)
temperature
Altitude
0 to 10,000 ft (0 to 3,048 m)
Humidity
20% to 80%
Storage Humidity
10% to 90%
CE Mark – full compliance with LVD and EMC directives; Worldwide safety
standards – IEC60950, EN60950, UL60950, Class1, SELV; Agency
approvals – C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B,
CISPR22 Class B, CCC, NOM-1 NYCE; MTBF- over 200,000 hours at
25°C ambient condition.
Output
Connector
Environmental Design
EMI and Safety
Certifications
Optional HP UltraCapacity Battery
Dimensions (H x W x L)
Weight
Cells/Type
Energy
Temperature
Battery Re-Charge Time
Fuel Gauge
DA - 12686
1.3 x 6.0 x 10.6 in (3.33 x 15.25 x 26.88 cm)
1.77 lb (0.803 kg)
12-cell Lithium-Ion
Watt-hour Capacity
95Wh
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging) 14° to 140° F (–10° to 60° C)
Non-operating
–4° to 140° F (–20° to 60° C)
Smart Adapter
3 to 4 hours
System ON
4 to 5 hours (depending on system power
consumption)
When pressed, LEDs light indicating level of charge remaining on battery
North America — Version 17 — March 7, 2008
Page 21
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
Optional HP Extended Life Dimensions (H x W x L)
Battery
Weight
Cells/Type
Energy
Temperature
Battery Re-Charge Time
1.0 x 3.9 x 8.7 in (2.5 x 10.0 x 22.0 cm)
1.00 lb (0.455 kg)
8-cell Lithium-Ion
Watt-hour Capacity
52Wh
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging) 14° to 140° F (–10° to 60° C)
Non-operating
–4° to 140° F (–20° to 60° C)
System in OFF mode or
3 hours
Standby
System ON
3 to 5 hours (depending on system power
consumption)
HP Fast Charge
Charges the battery up to 90% within 90 minutes
when system is OFF
When pressed, LEDs light indicating level of charge remaining on battery
Fuel Gauge
6-Cell (55WHr) LithiumIon battery
Dimensions (H x W x L)
Weight
Cells/Type
Energy
Temperature
Battery Re-Charge Time
15.4-inch WSXGA+
Dimensions (W x H)
wide-viewing angle, anti- Diagonal Size
glare
Surface Treatment
Contrast Ratio
Refresh Rate
Brightness
Pixel Resolution
Backlight
PPI
Viewing Angle
DA - 12686
0.8 x 2.1 x 8.0 in (2.0 x 5.3 x 20.3 cm)
0.737 lb (0.335 kg)
6-cell Lithium-Ion
Watt-hour Capacity
55Wh
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging) 14° to 140° F (–10° to 60° C)
Non-operating
–4° to 140° F (–20° to 60° C)
System in OFF Mode or
2.5 hours
Standby
System ON
3 to 5 hours (depending on system power
consumption)
HP Fast Charge
Charges the battery up to 90% within 90 minutes
when system is OFF
13.0 x 8.1 in (33.1 x 20.7 cm)
15.4 in (39.1 cm)
Anti-glare
300:1 (typical)
60 Hz
200 nit (typical)
0.197 mm
Pitch
1680 x 1050
Format
RGB stripe
Configuration
CCFL
129
±60° Horizontal, ± 50° Vertical (minimum)
North America — Version 17 — March 7, 2008
Page 22
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
15.4-inch WXGA antiglare
Active Area (W x H)
Diagonal Size
Surface Treatment
Contrast Ratio
Refresh Rate
Brightness
Pixel Resolution
Backlight
PPI
Viewing Angle
15.4-inch WXGA
BrightView
Active Area (W x H)
Diagonal Size
Surface Treatment
Contrast Ratio
Refresh Rate
Brightness
Pixel Resolution
Backlight
PPI
Viewing Angle
13.0 x 8.1 in (33.1 x 20.7 cm)
15.4 in (39.1 cm)
Anti-glare
300:1 (typical)
60 Hz
200 nit (typical)
0.259 mm
Pitch
1280 x 800
Format
RGB stripe
Configuration
CCFL
98
±30° Horizontal, ±10° Vertical (minimum)
13.0 x 8.1 in (33.1 x 20.7 cm)
15.4 in (39.1 cm)
BrightView
300:1 (typical)
60 Hz
200 nit (typical)
0.259 mm
Pitch
1280 x 800
Format
RGB stripe
Configuration
CCFL
98
±30° Horizontal, ±10° Vertical (minimum)
Hard Drives
DA - 12686
North America — Version 17 — March 7, 2008
Page 23
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
120-GB 7200 rpm SATA Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
80-GB 7200 rpm SATA
Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
DA - 12686
0.25 lb (113 g)
120 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-7 / SATA 1.0a
Synchronous (maximum)
Single Track
Average
Maximum
7200 rpm
100 MB/s (Drive Capability)
1 ms
10 ms
18 ms
234,441,648
41° to 140° F (5° to 60° C) [case temp]
ATA Security
0.25 lb (113 g)
80 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-7 / SATA 1.0a
Synchronous (maximum) 100 MB/s (Drive Capability)
1 ms
Single Track
10 ms
Average
18 ms
Maximum
7200 rpm
156,301,488
41° to 140° F (5° to 60° C) [case temp]
ATA Security
North America — Version 17 — March 7, 2008
Page 24
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
160-GB 5400 rpm SATA Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
120-GB 5400 rpm SATA Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
DA - 12686
0.22 lb (101 g)
160 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-7 / SATA 1.0a
Synchronous (maximum)
Single Track
Average
Maximum
5400 rpm
100 MB/s (Drive Capability)
3 ms
13ms
24 ms
312,581,808
41° to 140° F (5° to 60° C) [case temp]
ATA Security
0.22 lb (101 g)
120 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-7 / SATA 1.0a
Synchronous (maximum) 100 MB/s (Drive Capability)
3 ms
Single Track
13ms
Average
24 ms
Maximum
5400 rpm
234,441,648
41° to 140° F (5° to 60° C) [case temp]
ATA Security
North America — Version 17 — March 7, 2008
Page 25
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
80-GB 5400 rpm SATA
Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
0.22 lb (101 g)
80 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-7 / SATA 1.0a
Synchronous (maximum)
Single Track
Average
Maximum
5400 rpm
100 MB/s (Drive Capability)
3 ms
13 ms
24 ms
156,301,488
41° to 140° F (5° to 60° C) [case temp]
ATA Security
Removable Storage Drives
DVD-ROM Drive
Access Times
Random
Max Data Transfer Rate
24X CD-ROM
8X-DVD
Multiword DMA Mode 2
EIDE
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD
(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVDROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R,
DVD+RW
None
4.7 GB
Transfer Mode
Interface
Supported Media (read)
Supported Media (write)
Max Media Capacity
(read)
Transport
DA - 12686
<116 ms CD
<125 ms DVD
3,600 KB/s
10,800 KB/s
Tray Loading
North America — Version 17 — March 7, 2008
Page 26
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
DVD/CD-RW Combo
Drive
Access Times
Random
Max Data Transfer Rate
24X CD-ROM
8X DVD
24X CD-R
24X CD-RW
Multiword DMA Mode 2
EIDE
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD
(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVDROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R,
DVD+RW
CD-R, CD-RW
8.5 GB
Transfer Mode
Interface
Supported Media (read)
Supported Media (write)
Max Media Capacity
(read)
Max Media Capacity
(write)
Transport
DVD+/-RW SuperMulti
DL Drive
<110 ms CD
<130 ms DVD
3,600 KB/s
10,800 KB/s
3,600 KB/s
3,600 KB/s
700 MB
Tray loading
Access Times
Random
Max Data Transfer Rate
24X CD-ROM
8X DVD
24X CD-R
16X CD-RW
8X DVD+R
4X DVD+RW
8X DVD-R
4X DVD-RW
2.4X DVD+R(9)
5X DVD-RAM
Multiword DMA Mode
EIDE
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD
(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVDROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R,
DVD+RW, DVD-RAM
CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM
8.5 GB
Transfer Mode
Interface
Supported Media (read)
Supported Media (write)
Max Media Capacity
(read)
Max Media Capacity
(write)
DA - 12686
<175 ms CD
<230 ms DVD
3,600 KB/s
10,800 KB/s
3,600 KB/s
2,400 KB/s
10,800 KB/s
5,400 KB/s
10,800 KB/s
5,400 KB/s
2,700 KB/s
6,750 KB/s
8.5 GB
North America — Version 17 — March 7, 2008
Page 27
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
DVD+/-RW SuperMulti
DL LightScribe Drive
Transport
Tray Loading
Access Times
Random
Max Data Transfer Rate
24X CD-ROM
8X DVD
24X CD-R
16X CD-RW
8X DVD+R
4X DVD+RW
Transfer Mode
Interface
Supported Media (read)
Supported Media (write)
Max Media Capacity
(read)
Max Media Capacity
(write)
Transport
HP Fingerprint Sensor
<175 ms CD
<230 ms DVD
3,600 KB/s
10,800 KB/s
3,600 KB/s
2,400 KB/s
10,800 KB/s
5,400 KB/s
8X DVD-R
10,800 KB/s
4X DVD-RW
5,400 KB/s
2.4X DVD+R(9)
2,700 KB/s
5X DVD-RAM
6,750 KB/s
Multiword DMA Mode
EIDE
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD
(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVDROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R,
DVD+RW, DVD-RAM
CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM,
LightScribe
8.5 GB
8.5 GB
Tray Loading
Mobile Voltage
Operation
Operating Temperature
Current Consumption @
3.3V
3.0V–3.6V Single Supply
32° – 158°F (0° – 70°C)
Less than 70 mA peak imaging and scrolling
Less than 25 mA hardware finger detection
Advanced Power Management
High-Rate Image Capture Up to 240 image frames /sec
ESD Resistance
IEC 61000-4-2 Level 4 (±15KV)
Detection Matrix
192 x 16 Pixels
9.7 mm x 0.81 mm
500 ppi High-Resolution Images
DA - 12686
North America — Version 17 — March 7, 2008
Page 28
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
Audio
Hardware
Audio Output Quality
Integrated Stereo
Speakers
Implementation
Touch-Sensitive Volume
Controls
Full Duplex
Sound Blaster Pro
compatible
Microphone In
Headphone/Line Out
ADI1981HD High Definition CODEC
Volume up, volume down, and mute
Integrated Microphone
Yes
Frequency Response
Signal to Noise Ratio
Total Harmonic Distortion
Noise Floor
Play/Record Sampling
Rate(s)
Rate
DAC
ADC
20 Hz – 20 kHz
>85 dB
0.01%
-110 dB
8 kHz – 48kHz
Power Rating
Impedance
2 Watts
4 Ohms
Yes
Yes
Stereo
Stereo
16, 20 or 24-bit
16 or 20-bit
Communications
Integrated Broadcom
Ethernet Features
NetLink Gigabit Ethernet
Controller (10/100/1000
NIC)
Power Management
Performance Features
DA - 12686
10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 2130)
1000 Mbit/s operation (1000BASE-T; IEEE 802.3z and 802.3ab; IEEE
802.3 clauses 34-42)
Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100
Mbit/s
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
ACPI compliant -- multiple power modes
Situation-sensitive features reduce power consumption
TCP/IP/UDP Checksum Offload (configurable)
North America — Version 17 — March 7, 2008
Page 29
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
Manageability
Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft
Wake-Up Frame); Wake-on-LAN from off (Magic Packet only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x,
clause 30))
Comprehensive diagnostic and configuration software suite
Interface
PCI Express x1
NIC Device Driver Name Broadcom NetLink Gigabit Ethernet
Drivers Available
Microsoft Windows Vista
Microsoft Windows XP
V.92 56K Data/Fax
Modem
Form Factor
Power Management
Support
Approvals/
Certifications
MDC 1.5 Daughtercard
APM Revision 1.2, ACPI
Data Mode Capabilities
Fax Mode Capabilities
Command Set
DA - 12686
UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part
15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE
Mark, Other Countries
V.92 data
V.8bis
V.80
V44, V.42bis, MNP5 (Compression)
V.42 (LAPM, MNP2-4) (Error Correction)
Optional symbol rates:
2800, 3429
Asymmetric Symbol rates
Synchronous primary channel data signaling rates:
3600, 31200
Automatic rate re-negotiation
V.34
V.32bis
V.32
V.23
V.22bis
V.22
V.21
Bell 212A
Bell 103J
TIA/EIA-578-B (Class 1)
T.30, T.4 (Group 3)
V.17
V.29
V.27ter
V.21 Channel 2
V.250 (Partial)
TIA-602
Identification: +GMI, +GMM, +GMR
Port control: +IPR, +ICF, +IFC, +ILRR
North America — Version 17 — March 7, 2008
Page 30
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
Modulation: +MS, +MR, +MA
Error control: +ES, +ER, +EB, +ESR, +ETBM
Data compression: +DS, +DR
V.251
Verizon Wireless
Band and Power Class
BroadbandAccess (EVDO,
Rev A) Module (HP
Wireless Protocol
ev2200 1xEV-DO
Standards
Broadband Wireless
Wireless Parametric
Module)
Standards
Interoperability
0 (North American Cellular) – Class III;
1 (North American PCS) – Class II
CDMA 1x Release 0/A;
IS-95A, IS-95B, IS-2000
Meets or exceeds TIA/EIA IS-98-D
AT&T BroadbandConnect Frequency Bands and
850/1900/2100MHz WCDMA
CDG 22 (TIA/EIA/IS-95-A)
CDG 53(TIA/EIA/IS-95-B)
C.S0031 (TIA/EIA/IS-2000)
CDG 64 (TIA/EIA/IS-2000)
C.S0032 (TIA/EIA/IS-866)
Frequency Band
Dual Band: 850 MHz (Cellular) and 1900 MHz (PCS)
Data Rates (Packet Mode) IS-856 rates up to 2.4 Mbps
IS-2000 data rates up to 307.2 kbps
Maximum Output Power 24dBm (+/-1)
Power Consumption
500mA
(maximum)
1.7mA – 3.5mA
Power Consumption,
Sleep Mode
USB selective suspend
Power Management
CDMA slotted mode sleep and dormant modes
High efficiency dual band antennae with spatial diversity, mounted in the
Antenna Type
display enclosure
PCI-Express MiniCard
Form Factor
0.35 oz (10 g)
Weight
2.01 x 1.18 x 0.18 in (51 x 30 x 4.5 mm)
Dimensions (Length x
Width x Thickness)
3.3v +/- 10%
Voltage, Operating
Temperature, Operating –22° to 140° F (–30° to 60° C) (full RF performance)
(from TIA/EIA/IS-98-D)
–22° to 167° F (–30° to 75° C) (reduced RF performance)
–40° to 185° F (–40° to 85° C)
Temperature, Nonoperating, 96 hours (from
MIL-STD 202 Method
108)
Humidity, Non-operating 85% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)
Verizon Wireless VZAccess Manager
Configuration Utilities
LED Off – Radio Off;
LED Activity
Solid LED On – Radio On
DA - 12686
North America — Version 17 — March 7, 2008
Page 31
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
(HSDPA) Module (HP
hs2300 HSDPA
Broadband Wireless
Module)
Power Class
Power class 3 (+24dBm)
850MHz GSM/GPRS/EDGE
900MHz GSM/GPRS/EDGE,
1800MHz GSM/GPRS/EDGE
1900MHz GSM/GPRS/EDGE
EDGE E2 power
GPRS/EDGE Multislot Class 12
GPRS PCS/DCS power class 1
GSM power class 4
GPRS/EDGE: 3GPP R99 GERAN P1
WCDMA Release 5 (R5)
High-Speed Downlink Packet Access (HSDPA) 3.6Mbps
GSM Phase 2+
Complies with 3GPP specifications
Wireless Protocol
Standards
Wireless Parametric
Standards
Additional Standards
Compliance
Data Rates
(Packet Mode)
Chipset and Module
Maximum Output Power
Power Consumption
(maximum)
Power Consumption,
Sleep Mode
Power Management
Antenna Type
Form Factor
Weight
Dimensions (Length x
Width x Thickness)
Voltage, Operating
Temperature, Operating
FCC parts 15/22/24, CE, Microsoft WHQL, R&TTE directive 1999/5/EC
(health, safety, EMC, spectrum), GCF-CC (Module), European Union
Directive 2002/95/EC (restrictions of the use of certain Hazardous
Substances (RoHS) in electronic equipment), Infrastructure Interoperability
Testing (IOT)
Designed maximum data rate:
EDGE 118 kbps UL / 236 kbps DL
UMTS 384 kbps UL / 384 kbps DL
HSDPA 384 kbps UL / 3.6 Mbps DL
Qualcomm MSM6280 chipset; Sierra Wireless MC8775 module
32 dBm (+/-2) GSM/EDGE GMSK mode
800mA
4 – 8mA
USB Selective Suspend
sleep and standby mode
High efficiency 5- band antennae, mounted in the display enclosure
PCI-Express MiniCard
0.35 oz (10 g)
2.01 x 1.18 x 0.18 in (51 x 30 x 4.5 mm)
3.3v +/- 10%
–22° to 140° F (–30° to 60° C) (full RF performance)
–22° to 167° F (–30° to 75° C) (reduced RF performance)
–40° to 185° F (–40° to 85° C)
Temperature, Nonoperating, 96 hours (from
MIL-STD 202 Method
108)
Humidity, Non-operating 85% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)
LED Off – Radio Off;
LED Activity
Solid LED On – Radio On
DA - 12686
North America — Version 17 — March 7, 2008
Page 32
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
Broadcom 4311AG
802.11a/b/g WiFi
Adapter
Configuration Utilities
Varies per country and mobile network operator
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
Wi-Fi certified
Cisco Compatible Extensions Program compliant with Microsoft Windows
2000 and XP (details at http://www.hp.com/go/notebooks/WLAN)
2.4 GHz and 5 GHz
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Interoperability
Frequency Band
Data Rates
Modulation
Security1
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,
802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAPMSCHAPv2, LEAP, EAP-FAST.
Support for Cisco Security Features (proven compatibility with Cisco Aironet
infrastructure products through the Cisco Compatible Extensions Program
Version 4).
Sub-channels
Multinational support with frequency bands and channels compliant to local
regulations.
Media Access Protocol
CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Ad-hoc (Peer to Peer)
Models
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
2
Output Power (for CKK) 17.5 dBm
Output Power (for OFDM; 15 dBm
power varies by data
rate)2
Transmit: 2.0 W (max)
Power Consumption
Receive: 1.5 W (max)
Idle mode3: 390 mW (nominal)
Sleep mode: 20 mW (max)
ACPI compliant power management
Power Management
802.11 compliant power saving mode
4
54 Mbps: -72 dBm, 11 Mbps: -88 dBm , 1 Mbps: -97 dBm
Receiver Sensitivity
High efficiency dual band antenna with spatial diversity, mounted in the
Antenna type
display enclosure
802.11 a – Typical
600 feet – Outdoor Open Area
Range
(@6 Mbps)
150 feet – Indoor, Office environment
802.11 b – Typical
1200 feet – Outdoor Open Area
(@1 Mbps)
300 feet – Indoor, Office environment
802.11 g – Typical
1200 feet – Outdoor Open Area
(@1 Mbps)
300 feet – Indoor, Office environment
PCI-Express MiniCard
Form Factor
DA - 12686
North America — Version 17 — March 7, 2008
Page 33
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
Weight
Dimensions
Operating Voltage
Temperature
0.026 lb (12 g)
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
3.3v +/- 10%
Operating
32° to 176° F (0° to 80° C)
Non-operating
-40° to 176° F (-40° to 80° C)
Operating
10% to 90% (non-condensing)
Non-operating
5% to 95% (non-condensing)
Operating
0 to 10,000 ft (3,048 m)
Non-operating
0 to 50,000 ft (15,240 m)
Humidity
Altitude
Configuration Utility5
Microsoft Windows 2000 or XP
Choice of Configuration Utility:
Microsoft Windows XP Wireless Network Connection Manager
Broadcom Wireless Configuration Utility (required for Cisco
Compatible Extensions support)
Microsoft Windows Vista
Microsoft Windows Vista Wireless Network Connection Manager
LED Activity
LED Off – Radio OFF; Solid LED On – Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. In Power Save Polling mode.
4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
5. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.
Broadcom 4311BG
Wireless LAN Standards
802.11b/g WiFi Adapter
Interoperability
Frequency Band
Data Rates
Modulation
Security1
Sub-channels
DA - 12686
IEEE 802.11b
IEEE 802.11g
Wi-Fi certified
Cisco Compatible Extensions Program compliant with Microsoft Windows
2000 and XP (details at http://www.hp.com/go/notebooks/WLAN)
2.4 GHz
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,
802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAPMSCHAPv2, LEAP, EAP-FAST.
Support for Cisco Security Features (proven compatibility with Cisco Aironet
infrastructure products through the Cisco Compatible Extensions Program
Version 4).
Multinational support with frequency bands and channels compliant to local
regulations.
North America — Version 17 — March 7, 2008
Page 34
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
Media Access Protocol
Network Architecture
Models
Roaming
Output Power (for CKK)2
Output Power (for OFDM;
power varies by data
rate)2
Power Consumption
CSMA/CA (Collision Avoidance) with ACK
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between access points
17.5 dBm
15 dBm
Power Management
ACPI compliant power management
802.11 compliant power saving mode
54 Mbps: -72 dBm, 11 Mbps: -88 dBm , 1 Mbps: -97 dBm
High efficiency dual band antenna with spatial diversity, mounted in the
display enclosure
802.11 b – Typical
1200 feet – Outdoor Open Area
(@1 Mbps)
300 feet – Indoor, Office environment
802.11 g – Typical
1200 feet – Outdoor Open Area
(@1 Mbps)
300 feet – Indoor, Office environment
PCI-Express MiniCard
0.026 lb (12 g)
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
3.3v +/- 10%
Operating
32° to 176° F (0° to 80° C)
Non-operating
–40° to 176° F (–40° to 80° C)
Operating
10% to 90% (non-condensing)
Non-operating
5% to 95% (non-condensing)
Operating
0 to 10,000 ft (3,048 m)
Non-operating
0 to 50,000 ft (15,240 m)
Receiver Sensitivity4
Antenna type
Range
Form Factor
Weight
Dimensions
Operating Voltage
Temperature
Humidity
Altitude
DA - 12686
Transmit: 2.0 W (max)
Receive: 1.5 W (max)
Idle mode3: 390 mW (nominal)
Sleep mode: 20 mW (max)
North America — Version 17 — March 7, 2008
Page 35
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
Configuration Utility5
Microsoft Windows 2000 or XP
Choice of Configuration Utility:
Microsoft Windows XP Wireless Network Connection Manager
Broadcom Wireless Configuration Utility (required for Cisco
Compatible Extensions support)
Microsoft Windows Vista
Microsoft Windows Vista Wireless Network Connection Manager
LED Activity
LED Off – Radio OFF; Solid LED On – Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. In Power Save Polling mode.
4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
5. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.
Broadcom 4321AGN
Wireless LAN Standards
802.11a/b/g/draft-n WiFi
Adapter
Interoperability
Frequency Band
Data Rates
Frequency Support
Modulation
Security1
Sub-channels
Media Access Protocol
DA - 12686
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (draft)
Wi-Fi certified (802.11abg only)
Cisco Compatible Extensions Program compliant (802.11abg only) with
Microsoft Windows 2000 and XP (details at
http://www.hp.com/go/notebooks/WLAN)
Tested with wireless access points from several major manufacturers
(details at http://www.hp.com/go/notebooks/WLAN/draft-n)
2.4 GHz and 5 GHz
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (draft): 6, 6.5, 9, 12, 13, 13.5, 18, 19.5, 24, 26, 27, 36, 39,
40.5, 48, 52, 54, 58.5, 65, 78, 81, 104, 108, 117, 121.5, 130, 135,
162, 216, 243, 270 Mbps
20 MHz: 2.4 GHz and 5 GHz bands
40 MHz: 5 GHz band only
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,
802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAPMSCHAPv2, LEAP, EAP-FAST.
Support for Cisco Security Features (proven compatibility with Cisco Aironet
infrastructure products through the Cisco Compatible Extensions Program
Version 4) with Microsoft Windows 2000 and XP only.
Multinational support with frequency bands and channels compliant to local
regulations.
CSMA/CA (Collision Avoidance) with ACK
North America — Version 17 — March 7, 2008
Page 36
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
Network Architecture
Models
Roaming
Output Power (for CKK)2
Output Power (for OFDM;
power varies by data
rate)2
Power Consumption
Power Management
Receiver Sensitivity3
Antenna type
Range
Form Factor
Weight
Dimensions
Operating Voltage
Temperature
Humidity
Altitude
DA - 12686
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between access points
17 dBm
15 dBm
Idle associated: 300 mW
Idle unassociated: 150 mW
Transmit/Receive 20 MHz channel: 2.6 W (max)
Transmit/Receive 40 MHz channel: 3.3 W (max)
ACPI compliant power management
802.11 compliant power saving mode
270 Mbps: -66dBm, 162 Mbps: -72 dBm, 54 Mbps: -72 dBm, 11 Mbps: 85 dBm , 1 Mbps: -94 dBm
High efficiency dual band antenna with spatial diversity, mounted in the
display enclosure
802.11 a – Typical
600 feet – Outdoor Open Area
(@6 Mbps)
150 feet – Indoor, Office environment
802.11 b – Typical
1200 feet – Outdoor Open Area
(@1 Mbps)
300 feet – Indoor, Office environment
802.11 g – Typical
1200 feet – Outdoor Open Area
(@1 Mbps)
300 feet – Indoor, Office environment
PCI-Express MiniCard
0.026 lb (12 g)
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
3.3v +/- 10%
Operating
14° to 149° F (–10° to 65° C)
Non-operating
–40° to 176° F (–40° to 80° C)
Operating
10% to 90% (non-condensing)
Non-operating
5% to 95% (non-condensing)
Operating
0 to 10,000 ft (3,048 m)
Non-operating
0 to 50,000 ft (15,240 m)
North America — Version 17 — March 7, 2008
Page 37
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
Configuration Utility4
Microsoft Windows 2000 or XP
Choice of Configuration Utility:
Microsoft Windows XP Wireless Network Connection Manager
Broadcom Wireless Configuration Utility (required for Cisco
Compatible Extensions support)
Microsoft Windows Vista
Microsoft Windows Vista Wireless Network Connection Manager
LED Activity
LED Off – Radio OFF; Solid LED On – Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
4. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.
HP Integrated Module
with Bluetooth Wireless
Technology
Bluetooth Specification
Dimensions
Frequency Band
Number of Available
Channels
Data Rates and
Throughput
Transmit Power
Receiver Sensitivity
Power Consumption
Antenna
Range
Electrical Interface
OS Support
Bluetooth Software
Supported
Link Topology
Security
Power Management
DA - 12686
2.0 Compliant
1.02 x 0.55 x 0.22 in (26 x 14 x 5.7 mm)
2402 to 2480 MHz
79 (1 MHz) available channels
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or
1306.9 kbps symmetric
-6 dBm to 4 dBm (Bluetooth Class II)
Better than -80 dBM at 0.1 % raw bit error rate
Peak (Tx) 264 mW
Peak (Rx) 231 mW
Sleep <1 mW
Internally integrated within module
Up 33 ft (10 m)
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
Genuine Windows Vista
Genuine Windows XP
Genuine Windows 2000
Broadcom Bluetooth for Windows
Microsoft Windows XP Bluetooth Software
Point to Point, Multipoint Pico Nets up to 7 slaves
Full support of Bluetooth Security Provisions
Microsoft Windows ACPI, and USB Bus Support
North America — Version 17 — March 7, 2008
Page 38
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
Certifications
Temperature
Humidity
Self configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Operating
-4° to 158° F (-20° to 70° C)
Non-operating
-40° to 176° F (-40° to 80° C)
Operating
10% to 90%
Non-operating
5% to 95%
Altitude
Operating
15,000 ft (4,572 m)
Non-operating
40,000 ft (12,192 m)
Bluetooth Profiles
(with Bluetooth for Windows 4.0 software)
Supported
Serial Port Profile (SPP)*
Dial-Up Networking (DUN)*
Generic Object Exchange Profile (GOEP)
Object Push Profile (OPP)*
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)*
Personal Area Networking Profile (PAN)*
Human Interface Device Profile (HID)*
FAX Profile (FAX)
Basic Imaging Profile (BIP)
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
* indicates the profile is also supported by Microsoft Windows XP SP2
DA - 12686
North America — Version 17 — March 7, 2008
Page 39
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
Environmental Data
Eco-Label Certifications
System Configuration
Energy Consumption
Normal Operation
Sleep (Energy Star low
power mode)
Off
Heat Dissipation*
Normal Operation
Sleep
Off
This product has received or is in the process of being certified to the
following approvals and may be labeled with one or more of these marks:
ENERGY STAR 4.0
US Federal Energy Management Program (FEMP)
Taiwan Green Mark
China Energy Conservation Program
IT ECO declaration
Korean Eco Label
The configuration used for the Energy Consumption and Declared Noise
Emissions data is based on a “Typically Configured Notebook”
115 VAC
230 VAC
100 VAC
13.76 W
1.16 W
13.24 W
1.38 W
13.65 W
1.15 W
1.2 W
1.4 W
1.2 W
230 VAC
100 VAC
115 VAC
46.949 BTU/hr
45.174 BTU/hr
45.823 BTU/hr
3.957 BTU/hr
4.708 BTU/hr
3.923 BTU/hr
4.094 BTU/hr
4.776 BTU/hr
4.094 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the
service level is attained for one hour.
This product is in compliance with US executive order 13221, WOL (wake
on LAN) disabled.
Declared Noise Emissions
(in accordance with ISO
7779 and ISO 9296)
Idle
Operating mode (HDD)
Batteries
Sound Power
(LWAd, bels)
Sound Pressure
(LpAm, decibels)
3.25
3.2
21.9
23.2
This product complies with ISO standards:
EU Directive 91/ 157/ EEC
EU Directive 93/ 86/ EEC
EU Directive 98/ 101/ EEC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
Lead greater than 4000 ppm by weight.
Additional
information:
DA - 12686
The battery type and chemistry used in the product is:
CR2032 (coin cell), Lithium
6 cell rechargeable Lithium-Ion battery; optional 8 cell Lithium-Ion battery
available
This product is in compliance with the EU Restrictions of Hazardous
Substances (RoHS) Directive – 2002/95/EC.
North America — Version 17 — March 7, 2008
Page 40
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
This HP product is designed to comply with the Waste Electrical and
Electronic Equipment (WEEE) Directive – 2002/96/EC.
Keyboard complies with ISO standard: ISO 9995, EN 29241-4, and
ISO/IEC 15412
Input devices of this product comply with ISO 9241, part 9.
Plastics parts weighing over 25 grams used in the product are marked per
ISO 11469 and ISO1043.
This product contains 0% recycled materials (by wt.)
This product is greater than 95% recyclable when properly disposed of at
end of life.
Packaging Materials
Corrugated / Paper – 2.41 lb (1094 g)
EPE Foam – 0.112 lb (51 g)
LDPE Bag – 0.011 lb (5 g)
The corrugated paper packaging materials contains at least 40%
recycled content.
HP follows these guidelines to decrease the environmental impact of product
packaging:
Material Usage
Eliminate the use of heavy metals such as lead, chromium, mercury
and cadmium in packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging
materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in
packaging materials.
Use readily recyclable packaging materials such as paper and
corrugated materials.
Reduce size and weight of packages to improve transportation fuel
efficiency.
Plastic packaging materials are marked according to ISO 11469 and
DIN 6120 standards.
This product does not contain any of the following substances in excess of
regulatory limits (for reference of these limits please refer to the HP General
Specification of the Environment
(http://www.hp.com/hpinfo/globalcitizenship/
environment/supplychain/gen_specifications.html):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants – may not be used as flame
retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
DA - 12686
North America — Version 17 — March 7, 2008
Page 41
QuickSpecs
HP Compaq 6715b Notebook PC
Technical Specifications
End-of-life Management
and Recycling
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel – finishes must not be used on the external surface designed to
be frequently handled or carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) – except for wires and cables, and certain
retail packaging has been voluntarily removed from most
applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
HP offers our customers several other options for handling their aging
computers while also minimizing the impact on the environment—including
product trade-in and leasing services-in addition to recycling services.
Please go to: http://www.hp.com/recycle
or contact your nearest HP sales office. Products returned to HP will be
recycled, recovered or disposed of in a responsible manner.
Hewlett-Packard
For more information about HP's commitment to the environment:
Corporate Environmental Global Citizenship Report
Information
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Environment website
http://www.hp.com/environment
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/
environment/productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/
environment/operations/envmanagement.html
Copyright © 2008 Hewlett-Packard Development Company, L.P.
All rights reserved. Microsoft, Windows, Windows Vista and Windows XP are registered trademarks or trademarks of Microsoft
Corporation in the U.S. and/or other countries. Turion and Sempron are registered trademarks or trademarks of AMD Corporation in
the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S. and other countries. All other
product names mentioned herein may be trademarks of their respective companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
DA - 12686
North America — Version 17 — March 7, 2008
Page 42
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
