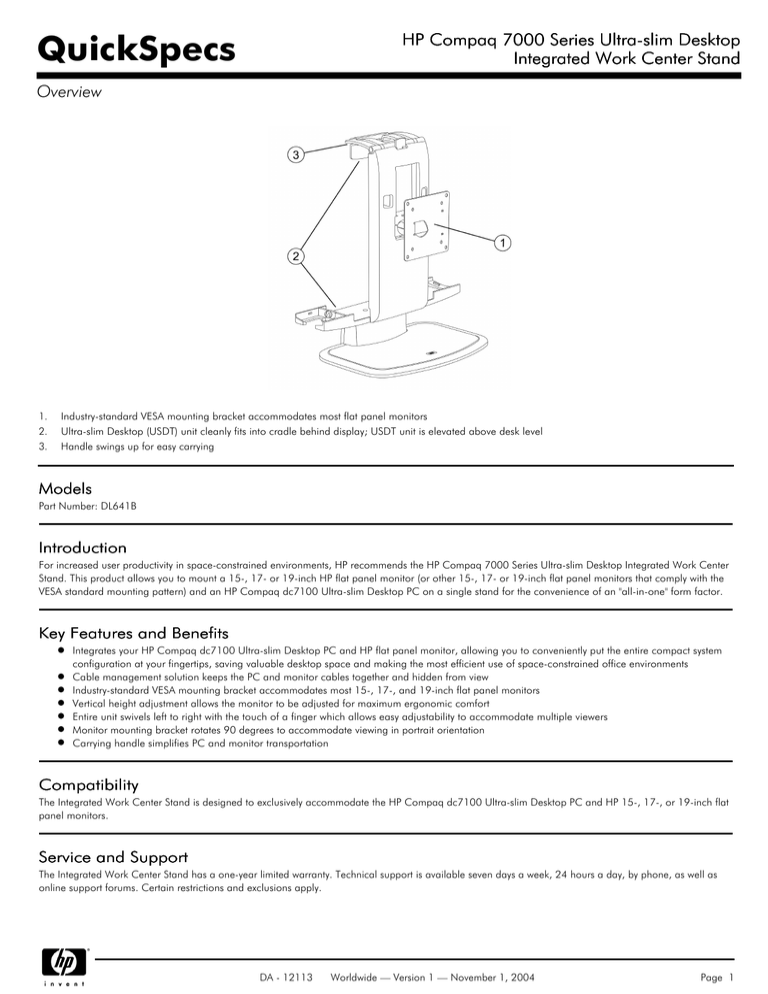

HP Compaq 7000 Series Ultra-slim Desktop
Integrated Work Center Stand
QuickSpecs
Overview
1.
2.
3.
Industry-standard VESA mounting bracket accommodates most flat panel monitors
Ultra-slim Desktop (USDT) unit cleanly fits into cradle behind display; USDT unit is elevated above desk level
Handle swings up for easy carrying
Models
Part Number: DL641B
Introduction
For increased user productivity in space-constrained environments, HP recommends the HP Compaq 7000 Series Ultra-slim Desktop Integrated Work Center
Stand. This product allows you to mount a 15-, 17- or 19-inch HP flat panel monitor (or other 15-, 17- or 19-inch flat panel monitors that comply with the
VESA standard mounting pattern) and an HP Compaq dc7100 Ultra-slim Desktop PC on a single stand for the convenience of an "all-in-one" form factor.
Key Features and Benefits
Integrates your HP Compaq dc7100 Ultra-slim Desktop PC and HP flat panel monitor, allowing you to conveniently put the entire compact system
configuration at your fingertips, saving valuable desktop space and making the most efficient use of space-constrained office environments
Cable management solution keeps the PC and monitor cables together and hidden from view
Industry-standard VESA mounting bracket accommodates most 15-, 17-, and 19-inch flat panel monitors
Vertical height adjustment allows the monitor to be adjusted for maximum ergonomic comfort
Entire unit swivels left to right with the touch of a finger which allows easy adjustability to accommodate multiple viewers
Monitor mounting bracket rotates 90 degrees to accommodate viewing in portrait orientation
Carrying handle simplifies PC and monitor transportation
Compatibility
The Integrated Work Center Stand is designed to exclusively accommodate the HP Compaq dc7100 Ultra-slim Desktop PC and HP 15-, 17-, or 19-inch flat
panel monitors.
Service and Support
The Integrated Work Center Stand has a one-year limited warranty. Technical support is available seven days a week, 24 hours a day, by phone, as well as
online support forums. Certain restrictions and exclusions apply.
DA - 12113
Worldwide — Version 1 — November 1, 2004
Page 1
HP Compaq 7000 Series Ultra-slim Desktop
Integrated Work Center Stand
QuickSpecs
Technical Specifications
Mechanical
Tilt Range
-5° to + 25° vertical tilt
Swivel Range
-170° to + 170°
Height Adjustable
Yes, range: 80 mm
Pivot Rotation
Yes, 90° into portrait orientation
Dimensions (H x W x D)
Unpackaged
16.3 x 14.2 x 8.54 in (41.3 x 36.1 x 21.7 cm)
Packaged
16.5 x 9.65 x 17.72 in (42.0 x 24.5 x 45.0 cm)
Unpackaged
8.8 lb (4 kg)
Packaged
11.5 lb (5.2 kg)
Weight
Other
Option Kit Contents
Accessories Included
VGA cable, HP Compaq dc7100 Ultra-slim Desktop cable cover
User Guide Languages
English, French, German, Spanish, Italian, Dutch, Brazilian Portuguese, Danish, Finnish,
Greek, Japanese, Korean, Latin American Spanish, Norwegian, Polish, Russian, Slovenian,
Turkish, Swedish, Traditional Chinese, and Simplified Chinese
Warranty Languages
English, German, French, Italian, Spanish, and Japanese
Color
Carbonite
VESA External Mounting
Yes (Standard 4-hole pattern, 75 mm and 100 mm)
Kensington Lock-Ready
Yes
Integrated Work Center Stand
Exclusive Integrated Work Center VGA video cable
HP Compaq dc7100 Ultra-slim Desktop cable cover (rear cover)
© Copyright 2004 Hewlett-Packard Development Company, L.P.
Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the U.S. and other countries.
The information contained herein is subject to change without notice. Microsoft and Windows are registered trademarks or trademarks of Microsoft
Corporation in the U.S. and/or other countries. The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical
or editorial errors or omissions contained herein.
DA - 12113
Worldwide — Version 1 — November 1, 2004
Page 2
