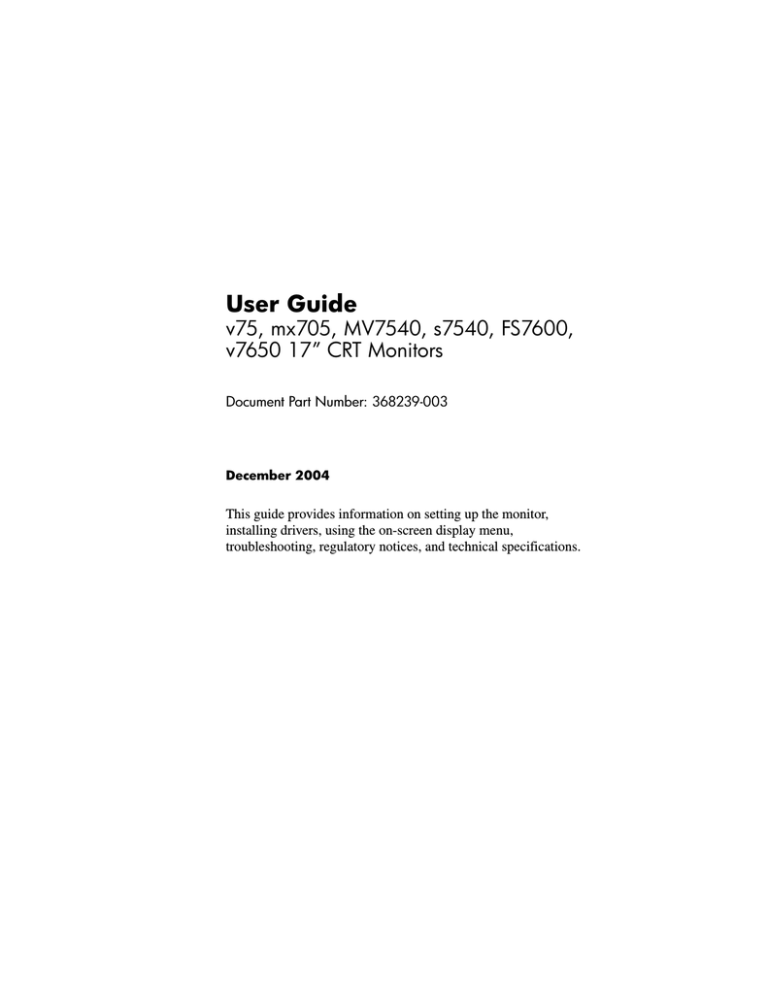

User Guide
v75, mx705, MV7540, s7540, FS7600,
v7650 17” CRT Monitors
Document Part Number: 368239-003
December 2004
This guide provides information on setting up the monitor,
installing drivers, using the on-screen display menu,
troubleshooting, regulatory notices, and technical specifications.
© Copyright 2004 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft, MS-DOS, Windows, and Windows NT are trademarks of
Microsoft Corporation in the U.S. and other countries.
Intel, Pentium, Intel Inside, and Celeron are trademarks of Intel
Corporation in the U.S. and other countries.
Adobe, Acrobat, and Acrobat Reader are trademarks or registered
trademarks of Adobe Systems Incorporated.
The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty.
HP shall not be liable for technical or editorial errors or omissions
contained herein.
This document contains proprietary information that is protected by
copyright. No part of this document may be photocopied, reproduced, or
translated to another language without the prior written consent of
Hewlett-Packard Company.
Å
WARNING: Text set off in this manner indicates that failure to
follow directions could result in bodily harm or loss of life.
Ä
CAUTION: Text set off in this manner indicates that failure to follow
directions could result in damage to equipment or loss of information.
User Guide
v75, mx705, MV7540, s7540, FS7600, v7650 17” CRT Monitors
Third Edition (December 2004)
Document Part Number: 368239-003
Contents
1 Product Features
2 Safety and Maintenance Guidelines
Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . .
Important Safety Information . . . . . . . . . . . . . . . . . .
Maintenance Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . .
2–1
2–1
2–1
2–2
3 Setting Up the Monitor
Attaching the Monitor Base . . . . . . . . . . . . . . . . . . . . . . .
Removing the Monitor Base . . . . . . . . . . . . . . . . . . .
Connecting the Cables . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Speakers (Available with Select Models)
Tall Speakers with Base . . . . . . . . . . . . . . . . . . . . . .
Short Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USB Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Plugging Headphones into the Computer . . . . . . . . . . . .
3–1
3–2
3–2
3–4
3–4
3–6
3–7
3–8
4 Operating the Monitor
Software and Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . .
The Information File . . . . . . . . . . . . . . . . . . . . . . . . .
The Image Color Matching File . . . . . . . . . . . . . . . .
Installing the .INF and .ICM Files . . . . . . . . . . . . . . . . . .
Installing from the CD. . . . . . . . . . . . . . . . . . . . . . . .
Downloading from the Worldwide Web . . . . . . . . . .
Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User Guide
4–1
4–1
4–2
4–2
4–2
4–3
4–4
iii
Contents
On-Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5
On-Screen Display Functions . . . . . . . . . . . . . . . . . . 4–6
Monitor Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8
No Signal Message . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8
Out of Frequency Range Message. . . . . . . . . . . . . . . 4–9
Using the Energy Saver Mode . . . . . . . . . . . . . . . . . . . . 4–10
A Troubleshooting
Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . A–1
Using the Worldwide Web. . . . . . . . . . . . . . . . . . . . . . . . A–4
Preparing to Call Technical Support . . . . . . . . . . . . . . . . A–4
B Technical Specifications
v75, MV7540, s7540 17” curved CRT monitors . . . . . . . B–1
mx705 and FS7600 17” flat CRT monitors . . . . . . . . . . . B–4
v7650 17” flat CRT monitor . . . . . . . . . . . . . . . . . . . . . . B–6
C Agency Regulatory Notices
Federal Communications Commission Notice. . . . . . . . . C–1
Modifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–2
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–2
Declaration of Conformity for Products Marked with FCC
Logo, United States Only. . . . . . . . . . . . . . . . . . . . . . . . . C–2
Canadian Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3
Avis Canadien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3
European Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3
Japanese Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–4
Korean Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–4
EPA Energy Star Compliance . . . . . . . . . . . . . . . . . . . . . C–4
Power Cord Set Requirements . . . . . . . . . . . . . . . . . . . . . C–4
iv
User Guide
1
Product Features
This color monitor is digitally controlled by the
microprocessor-based computer. It provides an easy to use
on-screen display menu technology that allows you to adjust the
monitor to your specific viewing needs.
The 17-inch/43-centimeter CRT monitor features include:
■
16” (41 cm) viewable area display.
■
1024 x 768 @85 Hz recommended resolution.
■
Tilt and swivel base.
■
Monitor AC power cord (available with select models).
■
VGA analog signal cable included.
■
Speakers and power adapter (available with select models).
User Guide
1–1
Product Features
■
Plug and play capability if supported by your system.
■
On-screen display (OSD) adjustments for ease of setup and
screen optimization; allows you to adjust all elements of the
screen image.
■
Energy Saver feature for Energy Star Compliance
■
Compliant with the following regulated specifications:
■
1–2
❏
EPA ENERGY STAR
❏
European Union CE Directive
❏
Swedish MPR II (available with select models)
❏
Swedish TCO ‘03 (available with select models)
User documentation
User Guide
2
Safety and Maintenance
Guidelines
Safety Guidelines
Power Requirements
A power cord is included with your monitor. If another cord is
used, use only a power source and connection appropriate for this
monitor. For information on the correct power cord set to use with
your monitor, refer to the “Power Cord Set Requirements” section
in Appendix C.
Important Safety Information
Å
WARNING: To reduce the risk of electric shock or damage to your
equipment, do not disable the power cord grounding feature. This
equipment is designed to be connected to a grounded (earthed)
power outlet that is easily accessible to the operator. The grounding
plug is an important safety feature.
Å
WARNING: For your safety, be sure that the power outlet you plug
the power cord into is easily accessible and located as close to the
equipment as possible. When you need to disconnect the power to
the equipment, unplug the power cord from the power outlet by
grasping the plug firmly. Never pull on the cord.
User Guide
2–1
Safety and Maintenance Guidelines
Ä
CAUTION: For the protection of your monitor, as well as your
computer, connect all power cords for your computer and its
peripheral devices (such as a monitor, printer, scanner) to some form
of surge protection device such as a power strip or Uninterruptible
Power Supply (UPS). Not all power strips provide surge protection;
the power strips must be specifically labeled as having this ability.
Use a power strip whose manufacturer offers a Damage Replacement
Policy so you can replace your equipment if surge protection fails.
Maintenance Guidelines
To enhance the performance and extend the life of your monitor,
follow these guidelines:
2–2
■
Do not open your monitor cabinet or attempt to service this
product yourself. If your monitor is not operating properly, or
has been dropped or damaged, first unplug from power outlet,
then contact your Hewlett-Packard authorized dealer, reseller,
or service provider.
■
Adjust only those controls that are discussed in the operating
instructions.
■
Place your monitor at least 3 inches (76 mm) away from
walls or other enclosures.
■
Use only a power source and connection appropriate for this
monitor, as indicated on the label/back plate of the monitor.
■
Be sure the total ampere rating of the products connected to
the outlet does not exceed the current rating of the electrical
outlet, and the total ampere rating of the products connected
to the cord does not exceed the rating of the cord. Look on the
power label to determine the ampere rating (AMPS or A) for
each device.
User Guide
Safety and Maintenance Guidelines
Ä
■
Install your monitor near an outlet that you can easily reach.
Disconnect the monitor by grasping the plug firmly and
pulling it from the outlet. Never disconnect the monitor by
pulling the cord.
■
Turn your monitor off when not in use. You can substantially
increase the life of your monitor by using a screen saver
program and turning off the monitor when not in use.
■
Unplug your monitor from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp
cloth for cleaning. If the screen requires additional cleaning,
use an antistatic CRT screen cleaner.
CAUTION: Do not use benzene, thinner, ammonia, or any other
volatile substances to clean your monitor or the screen. These
chemicals may damage the cabinet finish as well as the screen.
■
Slots and openings in the cabinet are provided for ventilation.
These openings must not be blocked or covered. Never push
objects of any kind into cabinet slots or other openings.
■
Do not place plants on top of your monitor. Water or dirt from
the plant may get into the vents.
■
Do not drop your monitor or place it on an unstable surface.
■
Do not allow anything to rest on the power cord. Do not walk
on the cord.
■
Keep your monitor in a well-ventilated area, away from
excessive light, heat or moisture. Keep your monitor away
from high-capacity transformers, electric motors, and other
devices with strong magnetic fields.
■
In a two-monitor system, place your monitors as far apart
from one another as possible to lessen interference between
them.
User Guide
2–3
■
2–4
Do not place the monitor face down. Damage could result to
the front panel controls or the monitor screen.
User Guide
3
Setting Up the Monitor
Attaching the Monitor Base
1. Carefully position the monitor bottom side up.
2. Align the hooks on the base with the sockets on the bottom of
the monitor and attach the base.
3. Push the base toward the front of the monitor until it stops.
User Guide
3–1
Setting Up the Monitor
Removing the Monitor Base
In the event that you need to disassemble the base from the
monitor, position the monitor bottom side up and follow these
instructions:
1. If you must remove the base attachment, release the catch and
slide the base toward the back of the monitor.
2. Lift the base up and away from the monitor.
Connecting the Cables
Before setting up the monitor, place it in a convenient,
well-ventilated location near the computer.
1. Turn off the power to the computer and other peripheral
devices.
2. Connect the power cord 1 to the back of the monitor, then
connect the power cord to a power outlet.
3. Connect the video cable (blue connector) 2 from the back of
the monitor to the blue 15-pin connector on the back of the
computer. Tighten the cable screws to secure the cable to the
connector.
Ä
3–2
CAUTION: To avoid damaging the video cable, ensure that the
cable aligns with the 15-pin connector. Do not force the cable onto
the connector.
User Guide
Setting Up the Monitor
4. Power on the computer and monitor.
the monitor fails to function properly, refer to Appendix A,
✎ If“Troubleshooting.”
5. If necessary, adjust the front panel monitor controls
according to your personal preference. See Chapter 4, “Front
Panel Controls” for detailed information.
The monitor installation is now complete.
User Guide
3–3
Setting Up the Monitor
Connecting the Speakers (Available
with Select Models)
Several speaker models are available with select monitors. Refer
to the steps below for the speaker model included with your
monitor.
Tall Speakers with Base
1. If the speakers and bases are not assembled, attach them by
turning each speaker bottom side up. With the opening in the
base toward the rear of the speaker, align the key slot on the
base with the center tab on the speaker, and then lower the
base onto the speaker.
2. Place the speaker set near the monitor so that the speaker with
the controls is on the right side when you view the monitor
from the front.
3–4
User Guide
Setting Up the Monitor
3. Attach the green connector from the control speaker to the
green port on the back of the computer.
4. Attach the speaker power adapter cable to the connector on
the back of the control speaker, and then plug the AC adapter
into an electrical outlet.
5. Use the control knob A to turn on the speakers and adjust
volume.
6. If you are using a subwoofer, insert the subwoofer audio plug
into the speaker’s subwoofer connector B.
7. As needed, connect headphones to the headphone jack
connector (not shown) on the right control speaker.
User Guide
3–5
Setting Up the Monitor
Short Speakers
1. Place the speaker set near the monitor so that the speaker with
the controls is on the right side when you view the monitor
from the front.
2. Attach the speaker power adapter cable to the black
connector on the back of the control speaker, then connect the
AC adapter into an electrical wall outlet.
3. Attach the green connector from the control speaker to the
green port on the back of the computer.
4. Turn on the speakers and adjust the volume using the knob on
the side of the control speaker.
3–6
User Guide
Setting Up the Monitor
USB Speakers
1. Place the speaker set near the monitor so that the speaker with
the controls is on the right side when you view the monitor
from the front.
2. Plug the USB cable 1 on the control speaker into a USB port
on the computer.
3. If available, plug the green connector (audio connector) 2 on
the control speaker into the green port on the computer.
✎ The audio cable is available with select speaker models.
User Guide
3–7
Setting Up the Monitor
Plugging Headphones into the
Computer
To use headphones, if your speaker does not have a headphone
port, plug them into the connector on the back of the computer
labeled Out, Line Out or Speaker. You may need to disconnect the
speakers to connect the headphones.
3–8
User Guide
4
Operating the Monitor
Software and Utilities
Select monitor models will include a CD that contains two files
you can install on your computer:
■
an .INF (Information) file
■
an .ICM (Image Color Matching) file
Adobe Acrobat Reader is supplied on this CD and can be
installed from the menu.
monitor does not include a CD, the .INF and .ICM files can
✎ Ifbethedownloaded
from the HP monitors support Web site. See
“Downloading from the Worldwide Web” in this chapter.
The Information File
The .INF file enables the computer to communicate with the
monitor and use all the monitor features. The INF file defines
monitor resources used by Microsoft Windows operating systems
to ensure monitor compatibility with the computer’s graphics
adapter.
This monitor is Windows Plug and Play compatible and the
monitor will work correctly without installing the .INF file.
Monitor Plug and Play compatibility requires that the computer’s
graphic card is VESA DDC2 compliant and that the monitor
connects directly to the graphics card. Plug and Play does not
User Guide
4–1
Operating the Monitor
work through separate BNC type connectors or through
distribution buffers/boxes. You may need to install the .INF file if
these conditions are not met.
The Image Color Matching File
The .ICM file provides accurate color representation. The .ICM
files are data files that are used in conjunction with graphics
programs to provide consistent color matching from monitor
screen to printer, or from scanner to monitor screen. The .ICM
file contains a monitor color system profile. This file is activated
from within graphics programs that support this feature.
ICM color profile is written in accordance with the
✎ The
International Color Consortium (ICC) Profile Format
specification.
Installing the .INF and .ICM Files
After you determine that you need to update, you can install the
.INF and .ICM files from the CD or download them.
Installing from the CD
To install the .INF and .ICM files on the computer from the CD:
1. Insert the CD in the computer CD-ROM drive. The CD menu
displays.
2. View the “INF and ICM Readme” file.
3. Select “Install INF and ICM Files.”
4. Follow the on-screen instructions.
5. After the INF software has been installed, restart Windows.
4–2
User Guide
Operating the Monitor
6. Ensure that the proper resolution and refresh rates appear in
the Windows Display control panel.
may need to install the digitally signed monitor .INF and
✎ You
.ICM files manually from the CD in the event of an installation
error. Refer to the INF and ICM Readme file on the CD.
Downloading from the Worldwide Web
To download the latest version of .INF and .ICM files from the
HP monitors support Web site:
1. Refer to http://www.hp.com/support and select your country
region.
2. Follow the links for your monitor to the support page and
download page.
3. Ensure your system meets the requirements.
4. Download the software by following the instructions.
User Guide
4–3
Operating the Monitor
Front Panel Controls
Item
Icon
menu
Name
menu
Launches on-screen displays
and exits the menus and
On-Screen Display.
Left Adjustment
Moves backward through menu
options or decreases adjustment
levels.
Right Adjustment
Moves forward through menu
options or increases adjustment
levels.
select
Selects function and adjustment
levels in the OSD menu
Power/LED
Controls power to the monitor.
The LED on the power button
indicates the state of the
monitor.
1
2
3
4
5
select
Function
✎
4–4
The icon for the
power/LED varies on
select models.
User Guide
Operating the Monitor
On-Screen Display
The On-Screen Display (OSD) adjusts the screen image based on
your viewing preferences. To access the OSD, do the following:
1. If the monitor is not already on, press the power button to
turn on the monitor.
2. Press the menu button to display the On-Screen Display
menu. A screen similar to this one appears. For a description
of the icons that appear on the screen, see “On-Screen
Display Functions” later in this chapter.
3. To move to a function, press the Right-Adjustment or
Left-Adjustment button on the front panel of your monitor
until the function is highlighted.
4. Press the select button on the monitor to choose the function.
User Guide
4–5
Operating the Monitor
5. The adjustment window displays. Press the Right-Adjustment
or Left-Adjustment buttons to increase (Right) or decrease
(Left) the level of adjustment.
6. Press select to save the new adjustment.
7. To exit the On-Screen Display, press the menu button once.
On-Screen Display Functions
Use the Right-Adjustment and Left-Adjustment buttons found on
the front control panel of the monitor to adjust the on-screen
display functions in the following table.
On-Screen Display Icons and Functions
Icon
4–6
Function
Description
Contrast
Right-Adjustment increases the contrast
and Left-Adjustment decreases the
contrast.
Brightness
Right-Adjustment increases the
brightness and Left-Adjustment
decreases the brightness.
Horizontal
Position
Right-Adjustment moves the image to
the right and Left-Adjustment moves the
image to the left.
Horizontal
Size
Right-Adjustment increases the
horizontal size and Left-Adjustment
decreases the horizontal size.
Vertical
Position
Right-Adjustment moves the image up
and Left-Adjustment moves the image
down.
Vertical
Size
Right-Adjustment increases the vertical
size and Left-Adjustment decreases the
vertical size.
User Guide
Operating the Monitor
On-Screen Display Icons and Functions (Continued)
Icon
Function
Description
Pincushion
Right-Adjustment makes the image
sides convex and Left-Adjustment
makes the image concave.
Trapezoid
Right-Adjustment adjusts the image so
the top is larger and Left-Adjustment
adjusts the image so that the bottom is
larger.
Pin Balance
Right-Adjustment moves the top and
bottom of the image to the right and
Left-Adjustment moves the top and
bottom of the image to the left.
Parallelogram
This control corrects the tilted vertical
edges of the image on both sides of the
screen that are in the same direction.
Tilt
(Rotation)
Right-Adjustment tilts the sides of the
image to the right and Left-Adjustment
tilts the sides of the image to the left.
Moire
Right-Adjustment increases the Moire
correction and Left-Adjustment
decreases the Moire correction.
Degauss
This control demagnetizes the screen to
reduce color impurities.
✎
User Guide
It is recommended that you
not degauss more than once
within a 30-minute period of
time.
Color Temp
Right-Adjustment selects the color
temperature to the right and
Left-Adjustment selects the color
temperature to the left.
Reset
This control resets the monitor to factory
default values.
4–7
Operating the Monitor
Monitor Messages
No Signal Message
If a No Signal message displays on the monitor screen, check to
be sure the video cable is properly connected and ensure that the
computer is powered on.
4–8
User Guide
Operating the Monitor
Out of Frequency Range Message
If an Out of Frequency Range message displays on the monitor
screen, the video resolution and/or refresh rate are set higher than
the levels the monitor supports.
To change the video resolution or refresh rate on the monitor:
1. Restart the computer.
2. Enter Safe Mode on the computer. Refer to the computer’s
operating system Help for instructions on entering Safe
Mode.
3. Change the display settings to a supported setting (see
“Technical Specifications”).
4. Restart the computer so that the new settings take effect.
User Guide
4–9
Operating the Monitor
Using the Energy Saver Mode
The monitor is designed to meet strict Environmental Protection
Agency (EPA) Energy Star requirements for reduced power
consumption. Using a combination of hardware and software
functions, this energy-saving feature allows the computer to
control the monitor’s power consumption and reduce the
monitor’s power state when not in use.
Power Management Status
State
LED Color
Power
Consumption
Description
On
Green
< 75 watts
Normal Operation
Sleep
Amber
< 4 watts
Monitor screen is blank. High
voltage is off. Heater voltage is
off. There is a brief warm-up
period before returning to full
power mode.
monitor’s energy saver feature works only when the monitor
✎ The
is connected to a computer that also has energy saver features.
The Energy Saver utility, with its energy saving features, is
available with all Microsoft Windows operating systems. Some
features are also available in DOS. Refer to the computer’s user
guide for instructions on setting energy saver features (also
referred to as power management features).
4–10
User Guide
A
Troubleshooting
Solving Common Problems
The following table lists possible problems, the possible cause of
each problem, and the recommended solutions.
Problem
Screen is blank.
Possible Cause
Solution
Power cord is disconnected.
Connect the power
cord.
Power switch is off.
Turn on power.
Video cable is improperly
connected.
Connect video cable
properly.
Screen blanking utility is
active.
Depress any key on
the keyboard or move
the mouse.
Image appears
blurred, indistinct, or
too dark.
Brightness and contrast are too
low.
Press the menu
button to access the
On-Screen Display.
Select the Brightness
and/or Contrast
icons to adjust as
needed.
Color is abnormal.
A magnetic object may be
nearby.
Move the object
farther away.
User Guide
A–1
Troubleshooting
Problem
Image is too large or
too small.
Image is not centered.
A–2
Possible Cause
Solution
Monitor may have been
moved or inadvertently
bumped.
Press the menu
button to access the
On-Screen Display.
Select Degauss to
activate.
Hewlett-Packard
suggests you not
degauss more than
once within a
30-minute period of
time.
Horizontal width may need
adjustment.
Press the menu
button to access the
On-Screen Display.
Select Horizontal Size
to adjust as needed.
Vertical height may need
adjustment.
Press the menu
button to access the
On-Screen Display.
Select Vertical Size to
adjust as needed.
Horizontal position may need
adjustment.
Press the menu
button to access the
On-Screen Display.
Select Horizontal
Position to adjust as
needed.
Vertical position may need
adjustment.
Press the menu
button to access the
On-Screen Display.
Select Vertical
Position to adjust as
needed.
User Guide
Troubleshooting
Problem
Possible Cause
Solution
“No Signal” is
displayed on screen.
Monitor video cable is
disconnected.
Connect the 15-pin
monitor video cable
to the computer. Be
sure that the
computer power is
on.
“Out of Frequency” is
displayed on screen.
Video resolution and/or
refresh rate are set higher than
what your monitor supports.
Restart your computer
and enter Safe
Mode. Change your
settings to a
supported setting (see
“Technical
Specifications”).
Restart your computer
so that the new
settings take effect.
Monitor is
overheating.
There is not enough air space
to allow proper ventilation.
Leave at least 3
inches (76 mm) of
ventilation space
around the monitor,
and do not place
objects on top of the
monitor.
User Guide
A–3
Using the Worldwide Web
Before contacting customer services, refer to the support Web site
at: http://www.hp.com/support.
Preparing to Call Technical Support
If you cannot solve a problem using the troubleshooting tips in
this section, you may need to call technical support. Have the
following information available when you call:
A–4
■
The monitor
■
Monitor model number
■
Serial number for the monitor
■
Purchase date on invoice
■
Conditions under which the problem occurred
■
Error messages received
■
Hardware configuration
■
Hardware and software you are using
User Guide
B
Technical Specifications
performance specifications are provided by the component
✎ All
manufacturers. Performance specifications represent the highest
specification of all HP’s component manufacturers’ typical level
specifications for performance and actual performance may vary
either higher or lower.
v75, MV7540, s7540 17” curved CRT
monitors
Screen Size
17” (43 cm) visual diagonal
Viewable screen size 16” (41 cm)
Anti-Glare Coating
Dot Pitch
0.28 mm (diagonal)
Display Area Default
234 x 312 (mm) typical
Display Colors
Infinite
User Guide
B–1
Technical Specifications
Display Resolutions
640 x 480
640 x 480
640 x 480
720 x 400
800 x 600
800 x 600
1024 x 768
1024 x 768
1152 x 864
1280 x 1024
Refresh Rates
60 Hz
75 Hz
85 Hz
70 Hz
75 Hz
85 Hz
75 Hz
85 Hz (preferred user resolution)
75 Hz
60 Hz (maximum resolution)
Synchronization
(Horizontal)
30 to 70 KHz
Synchronization (Vertical)
50 to 160 Hz
Max Pixel Clock
110 MHz Max.
Input Signal
Video RGB Analog Sync. TTL Separate
Video Cable
15-pin D-sub connector
Power Input Voltage
Frequency
100 to 240V AC
50 +3 to 60 +3 Hz
Inrush Current
30 amps @ 120V AC
60 amps @ 220V AC
Power Consumption
75 W (Max.)
Dimension (W x H x D)
Unpacked w/attached
base
16.2 x 16.2 x 17 inches (maximum)
410 x 410 x 430 mm (maximum)
Weight
38 lb Max.
17 kg Max.
Operating Temperature
50o F to 95o F
10o C to 35o C
Storage Temperature
-22o F to 140o F
-30o C to 60o C
B–2
User Guide
Technical Specifications
Humidity
20% to 80% (non-condensing)
Altitude
Up to 10,000 ft./3048 meters
TCO Requirements
Select models meet TCO’03
MPRII
Select models meet MPRII
Plug and Play
Yes
User Guide
B–3
Technical Specifications
mx705 and FS7600 17” flat CRT
monitors
Screen Size
17” (43 cm) visual diagonal
Viewable screen size 16” (41 cm)
Dot Pitch
0.25 to 0.28 mm (variable)
Display Area Default
234 x 312 (mm) typical
Display Colors
Infinite
Display Resolutions
640 x 480
640 x 480
640 x 480
720 x 400
800 x 600
800 x 600
1024 x 768
1024 x 768
1152 x 864
1280 x 1024
Refresh Rates
60 Hz
75 Hz
85 Hz
70 Hz
75 Hz
85 Hz
75 Hz
85 Hz (preferred user resolution)
75 Hz
60 Hz (maximum resolution)
Synchronization
(Horizontal)
30 to 70 KHz
Synchronization (Vertical)
50 to 160 Hz
Max Pixel Clock
110 MHz Max.
Input Signal
Video RGB Analog Sync. TTL Separate
Video Cable
15-pin D-sub connector
Power Input Voltage
Frequency
100 to 240V AC
50 +3 to 60 +3 Hz
Inrush Current
30 amps @ 120V AC
60 amps @ 220V AC
Power Consumption
75 W (Max.)
B–4
User Guide
Technical Specifications
Dimension (W x H x D)
Unpacked w/attached
base
16.2 x 16.2 x 17 inches (maximum)
410 x 410 x 430 mm (maximum)
Weight
38 lb Max.
17 kg Max.
Operating Temperature
50o F to 95o F
10o C to 35o C
Storage Temperature
-22o F to 140o F
-30o C to 60o C
Humidity
20% to 80% (non-condensing)
Altitude
Up to 10,000 ft./3048 meters
TCO Requirements
Select models meet TCO’03
MPRII
Select models meet MPRII
Plug and Play
Yes
User Guide
B–5
Technical Specifications
v7650 17” flat CRT monitor
Screen Size
17”(43 cm) visual diagonal
Viewable screen size 16” (40.6 cm)
Anti-Glare Coating
Dot Pitch
0.25 to 0.28 mm (variable)
Display Area Default
234 x 312 (mm) typical
Display Colors
Infinite
Display Resolutions
640 x 480
640 x 480
640 x 480
720 x 400
800 x 600
800 x 600
1024 x 768
1024 x 768
1280 x 1024
1600 x 1200
Refresh Rates
60 Hz
75 Hz
85 Hz
70 Hz
75 Hz
85 Hz
75 Hz
85 Hz (preferred user resolution)
75 Hz
65 Hz (maximum resolution)
Synchronization (Horizontal)
30 to 86 KHz
Synchronization (Vertical)
50 to 160 Hz
Max Pixel Clock
180 MHz Max.
Input Signal
Video RGB Analog Sync. TTL Separate
Video Cable
15-pin D-sub connector
Power Input Voltage
Frequency
100 to 240V AC
50 +3 to 60 +3 Hz
Inrush Current
30 amps @ 120V AC
60 amps @ 220V AC
Power Consumption
75 W (Max.)
Dimension (W x H x D)
Unpacked w/attached base
16.2 x 16.2 x 17 inches (maximum)
410 x 410 x 430 mm (maximum)
B–6
User Guide
Technical Specifications
Weight
38 lb Max.
17 kg Max.
Operating Temperature
50o F to 95o F
10o C to 35o C
Storage Temperature
-22o F to 140o F
-30o C to 60o C
Humidity
20% to 80% (non-condensing)
Altitude
Up to 10,000 ft./3048 meters
TCO Requirements
Select models meet TCO’03
MPRII
Select models meet MPRII
Plug and Play
Yes
User Guide
B–7
C
Agency Regulatory Notices
Federal Communications
Commission Notice
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:
■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and the
receiver.
■ Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
■ Consult the dealer or an experienced radio or television
technician for help.
User Guide
C–1
Agency Regulatory Notices
Modifications
The FCC requires the user to be notified that any changes or
modifications made to this device that are not expressly approved
by Hewlett Packard Company may void the user's authority to
operate the equipment.
Cables
Connections to this device must be made with shielded cables
with metallic RFI/EMI connector hoods to maintain compliance
with FCC Rules and Regulations.
Declaration of Conformity for
Products Marked with FCC Logo,
United States Only
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
For questions regarding your product, contact:
Hewlett Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
Or, call
1-800- 652-6672
For questions regarding this FCC declaration, contact:
Hewlett Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
C–2
User Guide
Agency Regulatory Notices
Or, call
(281) 514-3333
To identify this product, refer to the Part, Series, or Model
number found on the product.
Canadian Notice
This Class B digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les
exigences du Règlement sur le matériel brouilleur du Canada.
European Notice
Products with the CE Marking comply with both the EMC
Directive (89/336/EEC) and the Low Voltage Directive
(73/23/EEC) issued by the Commission of the European
Community.
Compliance with these directives implies conformity to the
following European Norms (in brackets are the equivalent
international standards):
■
EN55022 (CISPR 22) - Electromagnetic Interference
■
EN55024 (IEC61000-4-2,3,4,5,6,8,11) - Electromagnetic
Immunity
■
EN61000-3-2 (IEC61000-3-2) – Power Line Harmonics
■
EN61000-3-3 (IEC61000-3-3) – Power Line Flicker
■
EN60950 (IEC950) - Product Safety
User Guide
C–3
Agency Regulatory Notices
Japanese Notice
Korean Notice
EPA Energy Star Compliance
Monitors that are marked with the Energy Star Logo meet the
requirements of the EPA Energy Star program. As an Energy Star
Partner, Hewlett Packard Company has determined that this
product meets the Energy Star guidelines for energy efficiency.
Specific details on using the Energy Saving features can be found
in the energy saver or power management section of the computer
manual.
Power Cord Set Requirements
The monitor power supply is provided with Automatic Line
Switching (ALS). This feature allows the monitor to operate on
input voltages between 100-120V or 200-240V.
The power cord set (flexible cord or wall plug) received with the
monitor meets the requirements for use in the country where you
purchased the equipment.
C–4
User Guide
Agency Regulatory Notices
If you need to obtain a power cord for a different country, you
should purchase a power cord that is approved for use in that
country.
The power cord must be rated for the product and for the voltage
and current marked on the product's electrical ratings label. The
voltage and current rating of the cord should be greater than the
voltage and current rating marked on the product. In addition, the
cross-sectional area of the wire must be a minimum of 0.75 mm²
or 18AWG, and the length of the cord must be between 6 feet
(1.8 m) and 12 feet (3.6 m). If you have questions about the type
of power cord to use, contact your HP authorized service
provider.
A power cord should be routed so that it is not likely to be walked
on or pinched by items placed upon it or against it. Particular
attention should be paid to the plug, electrical outlet, and the
point where the cord exits from the product.
For use in Japan:
■
Please use the power cord received with the product.
■
The power cord received with this product is not for use with
other products.
User Guide
C–5
Download PDF

advertising
