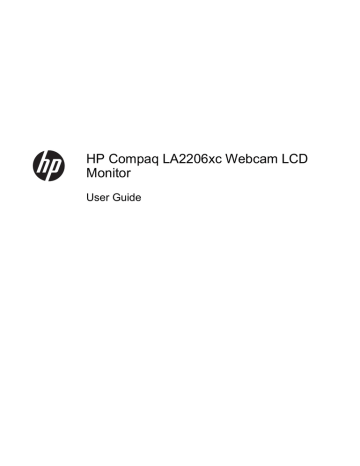

HP Compaq LA2206xc Webcam LCD
Monitor
User Guide
© 2013 Hewlett-Packard Development
Company, L.P.
Microsoft, Windows, and Windows Vista are
either trademarks or registered trademarks
of Microsoft Corporation in the United
States and/or other countries.
The only warranties for HP products and
services are set forth in the express
warranty statements accompanying such
products and services . Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable
for technical or editorial errors or omissions
contained herein.
This document contains proprietary
information that is protected by copyright.
No part of this document may be
photocopied, reproduced, or translated to
another language without the prior written
consent of Hewlett-Packard Company.
Second Edition (April 2013)
Document Part Number: 657475-002
About This Guide
This guide provides information on setting up the monitor, installing drivers, using the on-screen
display menu, troubleshooting and technical specifications.
WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily
harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or loss of information.
NOTE:
ENWW
Text set off in this manner provides important supplemental information.
iii
iv
About This Guide
ENWW
Table of contents
1 Product Features ............................................................................................................................................ 1
HP Compaq LA2206xc Webcam LCD Monitor .................................................................................... 1
2 Safety and Maintenance Guidelines .............................................................................................................. 3
Important Safety Information ................................................................................................................ 3
Maintenance Guidelines ....................................................................................................................... 3
Cleaning the Monitor ............................................................................................................ 4
Shipping the Monitor ............................................................................................................ 4
3 Setting Up the Monitor ................................................................................................................................... 5
Unfolding the Monitor Pedestal Base ................................................................................................... 5
Rear Components ................................................................................................................................ 6
Connecting the Cables ......................................................................................................................... 7
Adjusting the Monitor ............................................................................................................................ 9
Turning on the Monitor ....................................................................................................................... 11
Connecting USB Devices ................................................................................................................... 12
Removing the Monitor Pedestal Base ................................................................................................ 13
Mounting the Monitor ......................................................................................................... 14
Locating the Rating Label ................................................................................................................... 15
Installing a Cable Lock ....................................................................................................................... 15
4 Operating the Monitor .................................................................................................................................. 16
Software and Utilities .......................................................................................................................... 16
The Information File ........................................................................................................... 16
The Image Color Matching File .......................................................................................... 16
Installing the .INF and .ICM Files ....................................................................................................... 17
Installing from the CD ........................................................................................................ 17
Downloading from the Internet ........................................................................................... 17
Using the Auto-Adjustment Function .................................................................................................. 18
Installing Software for the Webcam .................................................................................................... 18
Front Panel Controls .......................................................................................................................... 19
Adjusting the Monitor Settings ............................................................................................................ 20
Using the On-Screen Display Menu .................................................................................. 20
OSD Menu Selections ....................................................................................... 21
Optimizing Image Performance ......................................................................... 25
Using the HP Display Assistant Utility ............................................................................... 26
ENWW
v
Identifying Monitor Conditions ............................................................................................................ 26
Sleep Timer Mode .............................................................................................................................. 27
5 Using the Webcam ........................................................................................................................................ 29
Installing YouCam from the CD .......................................................................................................... 29
Capturing Webcam Video and Snapshots ......................................................................................... 29
Having a Video Chat or Making Conference Calls ............................................................................. 29
6 Using HP MyRoom ........................................................................................................................................ 31
Installing HP MyRoom from the CD ................................................................................................... 31
Downloading HP MyRoom from the Internet ...................................................................................... 31
Creating a HP MyRoom Account ....................................................................................................... 31
Appendix A Troubleshooting .......................................................................................................................... 32
Solving Common Problems ................................................................................................................ 32
Webcam ............................................................................................................................................. 33
Online Technical Support ................................................................................................................... 33
Preparing to Call Technical Support ................................................................................................... 33
Appendix B Technical Specifications ............................................................................................................ 34
LA2206xc ........................................................................................................................................... 34
Recognizing Preset Display Resolutions ............................................................................................ 36
LA2206xc ........................................................................................................................... 36
Entering User Modes .......................................................................................................................... 36
Energy Saver Feature ........................................................................................................................ 37
Appendix C Agency Regulatory Notices ....................................................................................................... 38
Federal Communications Commission Notice ................................................................................... 38
Modifications ...................................................................................................................... 38
Cables ................................................................................................................................ 38
Declaration of Conformity for Products Marked with the FCC Logo (United States Only) ................. 38
Canadian Notice ................................................................................................................................. 39
Avis Canadien .................................................................................................................................... 39
European Union Regulatory Notice .................................................................................................... 39
German Ergonomics Notice ............................................................................................................... 40
Japanese Notice ................................................................................................................................. 40
Korean Notice ..................................................................................................................................... 40
Power Cord Set Requirements ........................................................................................................... 40
Japanese Power Cord Requirements ................................................................................ 40
Product Environmental Notices .......................................................................................................... 41
vi
ENWW
ENERGY STAR® Qualification .......................................................................................... 41
Materials Disposal ............................................................................................................. 41
Disposal of Waste Equipment by Users in Private Household in the European Union ..... 42
HP Recycling Program ...................................................................................................... 42
Chemical Substances ........................................................................................................ 42
Restriction of Hazardous Substances (RoHS) ................................................................... 42
Turkey EEE Regulation ..................................................................................................... 43
Ukraine Restriction of Hazardous Substances .................................................................. 43
Appendix D LCD Monitor Quality and Pixel Policy ....................................................................................... 44
ENWW
vii
viii
ENWW
1
Product Features
HP Compaq LA2206xc Webcam LCD Monitor
The LCD (liquid crystal display) monitor has an active matrix, thin-film transistor (TFT) panel with the
following features:
ENWW
●
54.6 cm (21.5-inch) diagonal viewable area display with 1920 x 1080 resolution, plus full-screen
support for lower resolutions; includes custom scaling for maximum image size while preserving
original aspect ratio
●
Wide viewing angle to allow viewing from a sitting or standing position, or moving side-to-side
●
Integrated 720p HD Webcam with adjustable camera, integrated dual microphone, and speakers
●
Tilt, swivel, and height adjustment capabilities
●
Pivot capability to rotate display to portrait mode
●
Removable stand for flexible monitor panel mounting solutions
●
Video signal input to support VGA analog with VGA signal cable provided
●
Video signal input to support DVI digital with DVI-D signal cable provided
●
Video signal input to support DisplayPort digital (DisplayPort cable not provided)
●
USB 2.0 hub with one upstream port (connects to the computer) and two downstream ports
(connects to USB devices)
●
USB cable provided to connect the monitor's USB hub to the USB connector on the computer
●
Supports an optional HP speaker bar
●
Plug and play capability if supported by the system
●
Privacy filter slots to insert filters (purchased separately) to block side screen viewing
●
Security slot provision on rear of monitor for optional cable lock
●
Cable management feature for placement of cables and cords
●
On-Screen Display (OSD) adjustments in several languages for easy setup and screen
optimization
●
HP Display Assistant for adjusting monitor settings and enabling theft deterrence feature
●
HDCP copy protection on DVI and DisplayPort inputs
●
Software and documentation CD that includes monitor drivers and product documentation
●
CyberLink YouCam software to enhance the use and security of the webcam
●
HP MyRoom software for online face-to-face meeting with colleagues
●
Energy saver feature to meet requirements for reduced power consumption
HP Compaq LA2206xc Webcam LCD Monitor
1
2
●
Intelligent Management AssetControl
●
Compliant with the following regulated specifications:
◦
European Union CE Directives
◦
Swedish TCO Requirements
Chapter 1 Product Features
ENWW
2
Safety and Maintenance Guidelines
Important Safety Information
A power cord is included with the monitor. If another cord is used, use only a power source and
connection appropriate for this monitor. For information on the correct power cord set to use with the
monitor, refer to the Power Cord Set Requirements on page 40.
WARNING! To reduce the risk of electric shock or damage to the equipment:
• Do not disable the power cord grounding feature. The grounding plug is an important safety feature.
• Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.
• Disconnect power from the product by unplugging the power cord from the electrical outlet.
For your safety, do not place anything on power cords or cables. Arrange them so that no one may
accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the
electrical outlet, grasp the cord by the plug.
To reduce the risk of serious injury, read the Safety and Comfort Guide. It describes proper
workstation, setup, posture, and health and work habits for computer users, and provides important
electrical and mechanical safety information. This guide is located on the Web at http://www.hp.com/
ergo and/or on the documentation CD, if one is included with the monitor.
CAUTION: For the protection of the monitor, as well as the computer, connect all power cords for
the computer and its peripheral devices (such as a monitor, printer, scanner) to some form of surge
protection device such as a power strip or Uninterruptible Power Supply (UPS). Not all power strips
provide surge protection; the power strips must be specifically labeled as having this ability. Use a
power strip whose manufacturer offers a Damage Replacement Policy so you can replace the
equipment, if surge protection fails.
Use the appropriate and correctly sized furniture designed to properly support your HP LCD monitor.
WARNING! LCD monitors that are inappropriately situated on dressers, bookcases, shelves, desks,
speakers, chests, or carts may fall over and cause personal injury.
Care should be taken to route all cords and cables connected to the LCD monitor so that they can not
be pulled, grabbed, or tripped over.
Maintenance Guidelines
To enhance the performance and extend the life of the monitor:
ENWW
●
Do not open the monitor cabinet or attempt to service this product yourself. Adjust only those
controls that are covered in the operating instructions. If the monitor is not operating properly or
has been dropped or damaged, contact an authorized HP dealer, reseller, or service provider.
●
Use only a power source and connection appropriate for this monitor, as indicated on the label/
back plate of the monitor.
●
Be sure the total ampere rating of the products connected to the outlet does not exceed the
current rating of the electrical outlet, and the total ampere rating of the products connected to the
cord does not exceed the rating of the cord. Look on the power label to determine the ampere
rating (AMPS or A) for each device.
Important Safety Information
3
●
Install the monitor near an outlet that you can easily reach. Disconnect the monitor by grasping
the plug firmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.
●
Turn the monitor off when not in use. You can substantially increase the life expectancy of the
monitor by using a screen saver program and turning off the monitor when not in use.
NOTE: Monitors with a “burned-in image” are not covered under the HP warranty.
●
Slots and openings in the cabinet are provided for ventilation. These openings must not be
blocked or covered. Never push objects of any kind into cabinet slots or other openings.
●
Do not drop the monitor or place it on an unstable surface.
●
Do not allow anything to rest on the power cord. Do not walk on the cord.
●
Keep the monitor in a well-ventilated area, away from excessive light, heat or moisture.
●
When removing the monitor stand, you must lay the monitor face down on a soft area to prevent
it from getting scratched, defaced, or broken.
Cleaning the Monitor
1.
Turn off the monitor and unplug the power cord from the back of the unit.
2.
Dust the monitor by wiping the screen and the cabinet with a soft, clean antistatic cloth.
3.
For more difficult cleaning situations, use a 50/50 mix of water and Isopropyl alcohol.
CAUTION: Spray the cleaner onto a cloth and use the damp cloth to gently wipe the screen
surface. Never spray the cleaner directly on the screen surface. It may run behind the bezel and
damage the electronics.
CAUTION: Do not use cleaners that contain any petroleum based materials such as benzene,
thinner, or any volatile substance to clean the monitor screen or cabinet. These chemicals may
damage the monitor.
Shipping the Monitor
Keep the original packing box in a storage area. You may need it later if you move or ship the
monitor.
4
Chapter 2 Safety and Maintenance Guidelines
ENWW
3
Setting Up the Monitor
To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other
attached devices, then follow the instructions below.
Unfolding the Monitor Pedestal Base
1.
Lift the monitor from its box and place it face down on a flat surface.
2.
Hold down the monitor base with one hand (1) then grasp the top of the stand with the other
hand and unfold the display head 90 degrees (2).
CAUTION: Do not touch the surface of the LCD panel. Pressure on the panel may cause nonuniformity of color or disorientation of the liquid crystals. If this occurs the screen will not recover to its
normal condition.
Figure 3-1 Unfolding the Monitor Pedestal Base
NOTE: When the monitor is unfolded for the first time, the display head is locked from adjusting to a
full-height position. To adjust the display head to full height, press down on the display head to unlock
it then pull up on the display head to raise it to the full-height position. Refer to step 3 in Adjusting the
Monitor on page 9.
ENWW
Unfolding the Monitor Pedestal Base
5
Rear Components
Figure 3-2 Rear Components
6
Component
Function
1
AC Power Connector
Connects the AC power cord to the monitor.
2
Headphone
Connects a headphone set to the monitor.
3
Audio-In
Connects the audio cable from the computer to the monitor.
4
DisplayPort
Connects the DisplayPort cable (not included) to the
monitor.
5
DVI-D
Connects the DVI-D cable to the monitor.
6
VGA
Connects the VGA cable to the monitor.
7
USB Upstream
Connector
Connects the USB hub cable to the monitor's USB hub
connector and to a host USB port/hub.
8
USB Downstream
Connectors (2)
Connects optional USB devices to the monitor.
Chapter 3 Setting Up the Monitor
ENWW
Connecting the Cables
1.
Place the monitor in a convenient, well-ventilated location near the computer.
2.
Remove the cable management clip from the pedestal by pulling outward on the two sides of the
clip (1) then lifting the clip off the pedestal (2).
Figure 3-3 Removing the Cable Management Clip
3.
Connect a VGA signal cable, DVI-D signal cable, or DisplayPort signal cable.
NOTE: The monitor is capable of supporting either analog or digital input. The video mode is
determined by the video cable used. The monitor will automatically determine which inputs have
valid video signals. The inputs can be selected by pressing the +/source button on the front
panel or through the On-Screen Display (OSD) feature by pressing the Menu button.
ENWW
●
For analog operation, use the VGA signal cable provided. Connect the VGA signal cable to
the VGA connector on the rear of the monitor and the other end to the VGA connector on
the computer.
●
For DVI digital operation, use the DVI-D signal cable provided. Connect the DVI-D signal
cable to the DVI connector on the rear of the monitor and the other end to the DVI
connector on the computer.
●
For DisplayPort digital operation, use a DisplayPort signal cable (not provided). Connect
the DisplayPort signal cable to the DisplayPort connector on the rear of the monitor and the
other end to the DisplayPort connector on the computer.
4.
Connect one end of the provided audio cable to the audio connector on the rear panel of the
computer, and the other end to the Audio-In connector on the monitor.
5.
Connect one end of the provided USB cable to the USB hub connector on the rear panel of the
computer, and the other end to the upstream USB connector on the monitor.
Connecting the Cables
7
6.
Connect one end of the power cord to the AC power connector on the back of the monitor, and
the other end to an electrical wall outlet.
Figure 3-4 Connecting the Cables
WARNING! To reduce the risk of electric shock or damage to the equipment:
Do not disable the power cord grounding plug. The grounding plug is an important safety
feature.
Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all
times.
Disconnect power from the equipment by unplugging the power cord from the electrical outlet.
For your safety, do not place anything on power cords or cables. Arrange them so that no one
may accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from
the electrical outlet, grasp the cord by the plug.
7.
Secure the cables in place with the cable management clip. Press the clip straight down on the
curved neck of the pedestal ensuring that the tabs on the sides of the clip snap into the slots on
the pedestal.
Figure 3-5 Installing the Cable Management Clip
8
Chapter 3 Setting Up the Monitor
ENWW
Adjusting the Monitor
Your monitor model may look different than the model in the following illustrations.
1.
Tilt the monitor's panel forward or backward to set it to a comfortable eye level.
Figure 3-6 Tilting the Monitor
2.
Swivel the monitor to the left or right for the best viewing angle.
Figure 3-7 Swiveling the Monitor
ENWW
Adjusting the Monitor
9
3.
Adjust the monitor’s height to a comfortable position for your individual workstation. The
monitor’s top bezel edge should not exceed a height that is parallel to your eye height. A monitor
that is positioned low and reclined may be more comfortable for users with corrective lenses.
The monitor should be repositioned as you adjust your working posture throughout the work day.
NOTE: When the monitor is unfolded for the first time, the display head is locked from
adjusting to a full-height position. To adjust the display head to full height, press down on the
display head to unlock it then pull up on the display head to raise it to the full-height position.
Figure 3-8 Adjusting the Height
10
Chapter 3 Setting Up the Monitor
ENWW
4.
Pivot the monitor from landscape to portrait orientation viewing to adapt to your application.
a.
Adjust the monitor to full height position and tilt the monitor back to full tilt position (1).
b.
Pivot the monitor clockwise 90° from landscape to portrait orientation (2).
CAUTION: If the monitor is not in full height and full tilt position when pivoting, the bottom
right corner of the monitor panel will come in contact with the base and potentially cause
damage to the monitor.
If you are adding an optional speaker bar to the monitor, install it after pivoting the monitor.
The speaker bar will come in contact with the base when pivoting and potentially cause
damage to the monitor or speaker bar.
Figure 3-9 Pivoting the Monitor
NOTE: To view information on the screen in portrait mode, you can install the HP Display
Assistant software included on the software and documentation CD. The position of the OSD
menu can also be rotated to portrait mode. To rotate the OSD menu, access the OSD menu by
pressing the Menu button on the front panel, select OSD Control from the menu, then select
Rotate OSD.
Turning on the Monitor
1.
Press the power button on the computer to turn it on.
2.
Press the power button on the front of the monitor to turn it on.
CAUTION: Burn-in image damage may occur on monitors that display the same static image on
screen for a prolonged period of time.* To avoid burn-in image damage on the monitor screen, you
should always activate a screen saver application or turn off the monitor when it is not in use for a
prolonged period of time. Image retention is a condition that may occur on all LCD screens. Monitors
with a “burned-in image” are not covered under the HP warranty.
* A prolonged period of time is 12 consecutive hours of non-use.
NOTE: If pressing the power button has no effect, the Power Button Lockout feature may be
enabled. To disable this feature, press and hold the monitor power button for 10 seconds.
ENWW
Turning on the Monitor
11
NOTE: You can disable the power LED in the OSD menu. Press the Menu button on the front of the
monitor, then select Management > Bezel Power LED > Off.
When the monitor is powered on, a Monitor Status message is displayed for five seconds. The
message shows which input (DisplayPort, DVI, or VGA) is the current active signal, the status of the
auto-switch source setting (On or Off; factory default is On), the default source signal (factory default
is DisplayPort), the current preset display resolution, and the recommended preset display resolution.
The monitor automatically scans the signal inputs for an active input and uses that input for the
display. If two or more inputs are active, the monitor will display the default input source. If the default
source is not one of the active inputs, then the monitor will display the highest ranking priority input in
the following order: DisplayPort, DVI, then VGA. You can change the default source in the OSD by
pressing the front panel Menu button and selecting Source Control > Default Source.
Connecting USB Devices
USB connectors are used to connect devices such as a digital camera, USB keyboard, or USB
mouse. Two USB connectors are located on the side panel of the monitor.
NOTE: You must connect the USB hub cable from the monitor to the computer to enable the USB
2.0 ports on the monitor. Refer to Step 4 in Connecting the Cables on page 7.
Figure 3-10 Connecting USB Devices
12
Chapter 3 Setting Up the Monitor
ENWW
Removing the Monitor Pedestal Base
You can remove the monitor panel from the pedestal base to install the panel on a wall, a swing arm,
or other mounting fixture.
CAUTION: Before beginning to disassemble the monitor, be sure the monitor is turned off and the
power and signal cables are disconnected. Also disconnect all USB cables connected to the monitor.
1.
Disconnect and remove the signal, power, and USB cables from the monitor.
2.
Lay the monitor face down on a flat surface covered by a clean, dry cloth.
3.
Pivot the base 45 degrees clockwise and remove the screw from the back of the monitor, then
pivot the base 45 degrees counter-clockwise and remove the other screw from the back of the
monitor.
Figure 3-11 Removing the Pedestal Base Screws
4.
Rotate the base of the monitor up (1) then pull it back (2) to unhinge the tabs on the monitor
stand from the slots in the monitor.
Figure 3-12 Removing the Pedestal Base
ENWW
Removing the Monitor Pedestal Base
13
Mounting the Monitor
The monitor panel can be attached to a wall, swing arm, or other mounting fixture.
NOTE:
1.
This apparatus is intended to be supported by UL or CSA Listed wall mount bracket.
Remove the monitor panel from the pedestal base. Refer to Removing the Monitor Pedestal
Base on page 13.
CAUTION: This monitor supports the VESA industry standard 100 mm mounting holes. To
attach a third-party mounting solution to the monitor, four 4 mm, 0.7 pitch, and 10 mm long
screws are required. Longer screws must not be used because they may damage the monitor. It
is important to verify that the manufacturer’s mounting solution is compliant with the VESA
standard and is rated to support the weight of the monitor display panel. For best performance, it
is important to use the power and video cables provided with the monitor.
2.
To attach the monitor to a swing arm, insert four 10mm screws through the holes on the swing
arm plate and into the mounting holes on the monitor.
Figure 3-13 Mounting the Monitor
To attach the monitor to other mounting fixtures, follow the instructions included with the
mounting fixture to ensure that the monitor is safely attached.
3.
14
Reconnect the cables to the monitor panel.
Chapter 3 Setting Up the Monitor
ENWW
Locating the Rating Label
The rating label on the monitor provides the spare part number, product number, and serial number.
You may need these numbers when contacting HP about the monitor model. The rating label is
located on the rear panel of the monitor display head.
Figure 3-14 Locating the Rating Label
Installing a Cable Lock
You can secure the monitor to a fixed object with an optional cable lock available from HP.
Figure 3-15 Installing a Cable Lock
ENWW
Locating the Rating Label
15
4
Operating the Monitor
Software and Utilities
The CD that comes with the monitor contains files you can install on the computer:
●
an .INF (Information) file
●
an .ICM (Image Color Matching) file
●
auto-adjustment pattern utility
●
additional software for the monitor model
NOTE: If the monitor does not include a CD, the .INF and .ICM files can be downloaded from the
HP monitors support Web site. See Downloading from the Internet on page 17 in this chapter.
The Information File
The .INF file defines monitor resources used by Microsoft Windows operating systems to ensure
monitor compatibility with the computer’s graphics adapter.
This monitor is Microsoft Windows Plug and Play compatible and the monitor will work correctly
without installing the .INF file. Monitor Plug and Play compatibility requires that the computer’s
graphic card is VESA DDC2–compliant and that the monitor connects directly to the graphics card.
Plug and Play does not work through separate BNC type connectors or through distribution buffers/
boxes.
The Image Color Matching File
The .ICM files are data files that are used in conjunction with graphics programs to provide consistent
color matching from monitor screen to printer, or from scanner to monitor screen. This file is activated
from within graphics programs that support this feature.
NOTE: The ICM color profile is written in accordance with the International Color Consortium (ICC)
Profile Format specification.
16
Chapter 4 Operating the Monitor
ENWW
Installing the .INF and .ICM Files
After you determine that you need to update, you can install the .INF and .ICM files from the CD or
download them.
Installing from the CD
To install the .INF and .ICM files on the computer from the CD:
1.
Insert the CD in the computer CD-ROM drive. The CD menu is displayed.
2.
View the Monitor Driver Software Readme file.
3.
Select Install Monitor Driver Software.
4.
Follow the on-screen instructions.
5.
Ensure that the proper resolution and refresh rates appear in the Windows Display control panel.
NOTE: You may need to install the digitally signed monitor .INF and .ICM files manually from the
CD in the event of an installation error. Refer to the Monitor Driver Software Readme file on the CD.
Downloading from the Internet
To download the latest version of .INF and .ICM files from the HP monitors support Web site:
ENWW
1.
Refer to http://www.hp.com/support and select the country region.
2.
Follow the links for the monitor to the support page and download page.
3.
Ensure the system meets the requirements.
4.
Download the software by following the instructions.
Installing the .INF and .ICM Files
17
Using the Auto-Adjustment Function
You can optimize the screen performance for the VGA (analog) input by using the OK/auto button on
the monitor and the auto-adjustment pattern software utility on the CD provided.
Do not use this procedure if the monitor is using a DVI or DisplayPort input. If the monitor is using a
VGA (analog) input, this procedure can correct the following image quality conditions:
●
Fuzzy or unclear focus
●
Ghosting, streaking or shadowing effects
●
Faint vertical bars
●
Thin, horizontal scrolling lines
●
An off-center picture
To use the auto-adjustment feature:
1.
Allow the monitor to warm up for 20 minutes before adjusting.
2.
Press the OK/auto button on the monitor front panel.
●
You can also press the Menu button, then select Image Control > Auto-Adjustment from
the OSD Main Menu. Refer to Adjusting the Monitor Settings on page 20 in this chapter.
●
If the result is not satisfactory, continue with the procedure.
3.
Insert the CD in the disc drive. The CD menu is displayed.
4.
Select Open Auto-Adjustment Software. The setup test pattern is displayed.
5.
Press the OK/auto button on the monitor front panel to produce a stable, centered image.
6.
Press the ESC key or any other key on the keyboard to exit the test pattern.
Installing Software for the Webcam
The CD provided with the monitor includes YouCam software, to enhance the use and security of the
webcam, and HP MyRoom, to use with the webcam for online face-to-face meetings with colleagues.
Refer to Chapters 5 and 6 in this guide to install and use the software and start using your webcam.
18
Chapter 4 Operating the Monitor
ENWW
Front Panel Controls
Figure 4-1 Monitor Front Panel Controls
Table 4-1 Monitor Front Panel Controls
Control
Function
1
Webcam
Active — Blue LED
2
Menu
Opens, selects or exits the OSD menu.
3
Minus/volume
If the OSD menu is on, press to navigate backward through
the OSD menu and decrease adjustment levels.
If the OSD menu is inactive, press to activate the volume
button that adjusts the volume of the monitor's speakers.
4
Plus/source
If the OSD menu is on, press to navigate forward through
the OSD menu and increase adjustment levels.
If the OSD menu is inactive, press to activate the source
button that chooses the video signal input (VGA, DVI, or
DisplayPort)
5
OK/auto
If the OSD menu is on, press to select the highlighted
menu item.
If the OSD menu is inactive, press to activate the auto
adjustment feature to optimize the screen image.
6
Power
Turns the monitor on or off.
7
Power LED
Blue = Fully powered.
Amber = Sleep mode.
Flashing Amber = Sleep Timer mode.
ENWW
Front Panel Controls
19
Adjusting the Monitor Settings
The monitor settings can be adjusted from the On-Screen Display (OSD) menu or from the HP
Display Assistant utility.
NOTE: If there is a problem with the display settings, try resetting the settings to the factory defaults
by opening the OSD and selecting Factory Reset from the OSD menu.
Using the On-Screen Display Menu
Use the On-Screen Display (OSD) to adjust the screen image based on your viewing preferences. To
access the OSD, do the following:
1.
If the monitor is not already on, press the Power button to turn on the monitor.
2.
To access the OSD Menu, press the Menu button on the monitor’s front panel.
3.
To navigate through the OSD Menu, press the + (Plus) button on the monitor’s front panel to
scroll up, or the – (Minus) button to scroll in reverse.
4.
To select an item from the OSD Menu, use the + or – buttons to scroll to and highlight your
selection, then press the OK button to select that function.
5.
Adjust the item using the + or – buttons on the front panel to adjust the scale.
6.
After adjusting the function, select Save and Return, or Cancel if you don’t want to save the
setting, then select Exit from the Main Menu.
NOTE: If the buttons remain untouched for 10 seconds while displaying a menu, the OSD
automatically saves all changes and exits.
20
Chapter 4 Operating the Monitor
ENWW
OSD Menu Selections
The following table lists the On-Screen Display (OSD) menu selections and their functional
descriptions. After changing an OSD menu item, and if the menu screen has these options, you may
choose to:
●
Cancel—to return to the previous menu level.
●
Save and Return—to save all changes and return to the OSD Main Menu screen. This Save
and Return option is only active if you change a menu item.
Table 4-2 OSD Menu
Icon
Main Menu
Submenu
Description
Brightness
Adjustable scale
Adjusts the brightness level of the screen. The
factory default range is 90.
Contrast
Adjustable scale
Adjusts the contrast level of the screen. The factory
default range is 80.
Color
Selects the screen color. The factory default is
6500K or Custom Color, depending on the model.
Warm (5000K)
Changes color to slightly reddish white.
Standard (6500K)
Uses standard colors (default).
Cool (9300K)
Changes color to slightly blueish white.
Custom (RGB)
Selects and adjusts your own color scales:
Image Control
ENWW
●
Red Color - sets your own red color levels
●
Green Color - sets your own green color levels
●
Blue Color - sets your own blue color levels
Adjusts the screen image. (VGA input only)
Auto Adjustment
Automatically adjusts the screen image.
Clock
Minimizes any vertical bars or strips visible on the
screen background. Adjusting the Clock will also
change the horizontal screen image.
Clock Phase
Adjusts the focus of the display. This adjustment
allows you to remove any horizontal noise and clear
or sharpen the image of characters.
Horizontal Position
Adjusts the position of the screen image left and
right.
Vertical Position
Adjusts the position of the screen image up and
down.
Custom Scaling
Selects the method on how displayed information on
the monitor will be formatted. Select:
●
Fill to Screen - image fills the entire screen and
may look distorted or elongated because of
non-proportional scaling of height and width.
●
Fill to Aspect Ratio - image is sized to fit the
screen and maintains proportional image.
Adjusting the Monitor Settings
21
Table 4-2 OSD Menu (continued)
Icon
Main Menu
Submenu
Description
Sharpness
Adjusts the screen image to look sharper or soft.
Dynamic Contrast
Ratio
Turns Dynamic Contrast Ratio On or Off. The factory
default is Off.
OSD Control
Provides a menu for adjusting the on-screen display
(OSD) controls.
Horizontal OSD
Position
Changes the viewing position of the OSD menu to
the left or right area of the screen. The factory default
range is 50.
Vertical OSD Position
Changes the viewing position of the OSD menu to
the top or bottom area of the screen. The factory
default range is 50.
OSD Transparency
Adjust to view the background information through
the OSD.
OSD Timeout
Sets the time duration in seconds that the OSD is
visible after the last button is pressed. The range is 5
– 60 seconds. The factory default is 30 seconds.
Rotate OSD
Rotates the OSD menus and messages to support
the monitor's pivot feature. The choices are
Landscape and Portrait.
Management
Selects the OSD and power management features of
the monitor.
Power Saver
Enables the power saving feature. Select:
●
On
●
Off
The factory default is On.
Power On Recall
Restores power to the monitor following an
unexpected removal of power. Select:
●
On
●
Off
The factory default is On.
Mode Display
Displays the resolution, refresh rate and frequency
information on the screen each time the OSD Main
Menu is accessed. Select:
●
On
●
Off
The factory default is On.
22
Chapter 4 Operating the Monitor
ENWW
Table 4-2 OSD Menu (continued)
Icon
Main Menu
Submenu
Description
Monitor Status
Displays the operating status of the monitor each
time the monitor is powered on. Select the location to
display the status to:
●
Top
●
Middle
●
Bottom
●
Off
The factory default is Top.
DDC/CI Support
Allows the computer to control some OSD menu
features such as brightness, contrast and color
temperature. Set to:
●
On
●
Off
The factory default is On.
ENWW
Bezel Power LED
Turns off the power LED on the front panel of the
monitor. The factory default is On.
Volume
Adjusts the volume of the monitor's speakers
Sleep Timer
Provides the timer adjustment menu options:
●
Set Current Time—sets the current time in
hours and minutes
●
Set Sleep Time—sets the time you want to
place the monitor in sleep mode
●
Set on Time—sets the time you want the
monitor to wake up from sleep mode
●
Timer—sets the Sleep Timer feature On or Off.
The default setting is Off.
●
Sleep Now—immediately sets the monitor to
enter sleep mode
Language
Selects the language in which the OSD menu is
displayed. The factory default is English.
Information
Selects and displays important information about the
monitor.
Current Settings
Provides the current input video mode.
Recommended
Settings
Provides the recommended resolution mode and
refresh rate for the monitor.
Serial Number
Reports the serial number of the monitor. The serial
number is needed if contacting HP technical support.
FW Version
Reports the firmware version of the monitor.
Backlight Hours
Reports the total hours of backlight operation.
Service Support
http://www.hp.com/support
Adjusting the Monitor Settings
23
Table 4-2 OSD Menu (continued)
Icon
Main Menu
Submenu
Description
Factory Reset
Returns all OSD menu settings and DDC/CI controls
to the factory default settings, except the Language.
Source Control
Selects the video input signal. DP (DisplayPort) is
the factory default.
DisplayPort
Selects DisplayPort as the video input signal.
DVI
Selects DVI as the video input signal.
VGA
Selects VGA as the video input signal.
Default Source
Selects the default or primary video input signal
when the monitor is connected to two active and
valid video sources. The monitor will automatically
determine the video format. The choices are:
●
DisplayPort
●
DVI
●
VGA
The factory default is DisplayPort.
Auto-Switch Source
Turns the system's automatic video signal input to
On or Off. The factory default is On.
Source Detection
This option is displayed in the OSD when a
DisplayPort input is selected. You can set Source
Detection to:
●
Always Active
●
Low Power
The factory default is Low Power.
Exit
24
Chapter 4 Operating the Monitor
Exits the OSD menu screen.
ENWW
Optimizing Image Performance
Two controls in the on-screen display can be adjusted to improve image performance: Clock and
Clock Phase.
NOTE: The Clock and Clock Phase controls are adjustable only when using an analog input. These
controls are not adjustable for digital inputs.
The Clock must first be set correctly since the Clock Phase settings are dependent on the main Clock
setting. Use these controls only when the auto-adjustment function does not provide a satisfactory
image.
●
Clock—Increases/decreases the value to minimize any vertical bars or stripes visible on the
screen background.
●
Clock Phase—Increases/decreases the value to minimize video flickering or blurring.
NOTE: When using the controls, you will obtain the best results by using the auto-adjustment
pattern software utility provided on the CD.
When adjusting the Clock and Clock Phase values, if the monitor images become distorted, continue
adjusting the values until the distortion disappears. To restore the factory settings, select Yes from
the Factory Reset menu in the on-screen display.
To eliminate vertical bars (Clock):
1.
Press the Menu button on the monitor's front panel to open the OSD Menu, and then select
Image Control > Clock.
2.
Press the + (Plus) or – (Minus) buttons on the monitor's front panel to eliminate vertical bars.
Press the buttons slowly so that you do not miss the optimum adjustment point.
Figure 4-2 Clock Adjustment
3.
After adjusting the Clock, if blurring, flickering, or bars appear on the screen, proceed to adjust
the Clock Phase.
To remove flickering or blurring (Clock Phase):
1.
Press the Menu button on the monitor's front panel to open the OSD Menu, and then select
Image Control > Clock Phase.
2.
Press the + (Plus) or – (Minus) buttons on the monitor's front panel to eliminate flickering or
blurring. Flicking or blurring may not be eliminated depending on your computer or graphics
controller card installed.
Figure 4-3 Clock Phase Adjustment
ENWW
Adjusting the Monitor Settings
25
To correct screen position (Horizontal Position or Vertical Position):
1.
Press the Menu button on the monitor's front panel to open the OSD Menu, and then select
Image Control > Horizontal Position and/or Vertical Position.
2.
Press the + (Plus) or – (Minus) buttons on the monitor's front panel to properly adjust the
position of the image in the display area of the monitor. The Horizontal Position shifts the image
left or right; the Vertical Position shifts the image up and down.
Figure 4-4 Horizontal or Vertical Position Adjustment
Using the HP Display Assistant Utility
HP Display Assistant, included on the software and documentation CD, is a software utility that
guides you through the tuning process with easy to understand instructions and background patterns
designed for each monitor control. It provides:
●
Accurate screen calibration through the use of step-by-step instruction Wizards to obtain the
best overall image quality.
●
Software control of the monitor image and color settings to eliminate dependence on the
monitor’s front panel buttons and On-Screen Display (OSD) menu.
●
Defined preset display settings for each individual user in a multi-user environment.
●
Multiple preset display settings for a single user based on content and ambient lighting.
●
Asset Management and Power Management capabilities that include remote control for
individual or a group of displays on the domain from a centralized console application.
The HP Display Assistant Utility has two modes of operation: Wizard and OSD mode. The preferred
method of use is Wizard mode, which takes you through a step-by-step process to accurately
calibrate the monitor. This method relies on a sequence of steps that will obtain the best display
results when completed.
NOTE:
Refer to the HP Display Assistant user guide for additional information about the software.
Identifying Monitor Conditions
Special messages will appear on the monitor screen when identifying the following monitor
conditions:
26
●
Monitor Status—When the monitor is powered on or when the input source signal is changed, a
Monitor Status message is displayed for five seconds. The message shows which input is the
current active signal, the status of the auto-switch source setting (On or Off), the default source
signal, the current preset display resolution, and the recommended preset display resolution.
●
Input Signal Out of Range—Change resolution setting to 1920 x 1080 – 60Hz—Indicates
the monitor does not support the input signal because the resolution and/or refresh rate are set
higher than the monitor supports.
●
No Source Signal—Indicates the monitor is not receiving a video signal from the PC on the
monitor video input connector. Check to determine if the PC or input signal source is off or in the
power saving mode.
Chapter 4 Operating the Monitor
ENWW
●
Auto Adjustment in Progress—Indicates the auto-adjustment function is active.
●
Monitor Going to Sleep—Indicates the screen display is entering a sleep mode.
●
Check Video Cable—Indicates the video cable is not properly connected to the computer.
●
OSD Lockout—The OSD can be enabled or disabled by pressing and holding the Menu button
on the front panel for 10 seconds. If the OSD is locked, the warning message OSD Lockout
displays for ten seconds.
●
◦
If the OSD is locked, press and hold the Menu button for 10 seconds to unlock the OSD.
◦
If the OSD is unlocked, press and hold the Menu button for 10 seconds to lock the OSD.
Power Button Lockout—Indicates the power button is locked. If the power button is locked, the
warning message Power Button Lockout displays.
◦
If the power button is locked, press and hold the power button for 10 seconds to unlock the
power button function.
◦
If the power button is unlocked, press and hold the power button for 10 seconds to lock out
the power button function.
●
Dynamic Contrast Ratio On—Indicates that Dynamic Contrast Ratio has been turned on. This
occurs if Dynamic Contrast Ratio is turned on in the Image Control OSD menu.
●
Dynamic Contrast Ratio Off—Indicates that Dynamic Contrast Ratio has been turned off. This
occurs if Dynamic Contrast Ratio is turned off in the Image Control OSD menu.
●
Theft Mode Enabled—Indicates that theft deterrence mode has been activated. Theft
deterrence is an optional feature that can be set up in HP Display Assistant. Theft deterrence
mode is triggered if both the power and display cables have been disconnected from the
monitor, the monitor is reconnected to a different computer, and the theft deterrence PIN number
is not entered within the elapsed time. When the monitor is in theft deterrence mode, all front
panel buttons are disabled other than the power button.
Sleep Timer Mode
The Sleep Timer mode is an energy-saving feature that enables you to set a time for the monitor to
power on and off at the same time every day. This also extends the life of the backlight bulbs in the
monitor. The Sleep Timer has five settings:
●
Set Current Time
●
Set Sleep Time
●
Set On Time
●
Timer: On/Off
●
Sleep Now
To set the timer:
ENWW
1.
Press the Menu button on the monitor front panel to display the OSD Menu.
2.
Scroll down and highlight Management.
3.
Press the OK button to select Management.
Sleep Timer Mode
27
4.
Scroll down and highlight and select Sleep Timer > Set Current Time.
NOTE: You must set the current local time before you reset the time for Sleep Time or On
Time. Note that the time is displayed in a 24–hour clock format. For example, 1:15 p.m. is
displayed as 13 hours 15 minutes.
A power failure or loss of power to the monitor will cause the timer to reset to 00:00. If this
occurs, you will need to reset the sleep timer mode.
5.
Press the OK button once to enter the adjustment mode for hours.
6.
Press the - (Minus) or + (Plus) button to adjust the hour.
7.
Press the OK button again to enter the time for minutes.
8.
Press the - (Minus) or + (Plus) button to adjust the minutes.
9.
Press the OK button to lock in the time chosen.
10. After setting the current time, the highlight automatically skips to Set Sleep Time. Repeat steps
6 through 9 to set Sleep Time.
11. If you do not want to set Sleep Time, press the OK button twice, then select Save and Return
to exit the menu.
12. After setting Sleep Time, the highlight automatically skips to Set On Time. Repeat steps 6
through 9 to set On Time.
13. Set the Timer mode to On to activate the Sleep Timer settings.
14. When you are finished, select Save and Return to exit the menu.
The fifth selection, Sleep Now, turns the monitor backlights off immediately and stays in sleep mode
until the next On Time activates or a monitor button is pressed.
28
Chapter 4 Operating the Monitor
ENWW
5
Using the Webcam
Install CyberLink YouCam software and driver from the CD that came with your monitor.
NOTE:
USB connectivity between the monitor and PC is required for the webcam to operate.
Use your webcam to:
●
Create videos from files on your computer.
●
Create snapshots to view, organize, edit, send, and print.
●
Create video notes for an enhanced visual calendar and to share.
●
Initiate live video chats with Windows Live Messenger or other compatible software program.
●
Import live videos into a movie-making program to save, send, stream on the Web, or record to
disc.
Installing YouCam from the CD
To install YouCam:
1.
Insert the CD that came with your monitor into the computer CD-ROM drive.
2.
Select Install YouCam and run the setup file.
3.
Follow the instructions on the screen.
Capturing Webcam Video and Snapshots
To use CyberLink YouCam after you install it from the provided CD:
1.
Click the Start button.
2.
Click All Programs, CyberLink YouCam, and then click CyberLink YouCam again.
3.
Click Tutorials to view an instructional video.
Having a Video Chat or Making Conference Calls
To set up a video chat, you must have a connection to the Internet, and ISP, and software that
enables you to make video calls over the Internet. As with chat or instant messenger software, you
can use this kind of software to chat with one or more people at a time. This software may require a
separate subscription.
The optimal distance for recording sound with the array microphone is about .5 meters (2 feet) away
from the microphone.
ENWW
Installing YouCam from the CD
29
Before you can set up a video chat:
30
1.
Download an Internet messenger or video phone call program. Make sure the person you are
calling has compatible video-calling software.
2.
Enable your webcam as the default video input. This is usually done through the video setup in
the Tools menu in the software program you are using.
3.
Send your video call by following the instructions for the video-calling software program.
Chapter 5 Using the Webcam
ENWW
6
Using HP MyRoom
HP MyRoom is your online meeting room. Connect with business colleagues “face to face” and
collaborate with useful tools.
Installing HP MyRoom from the CD
To install HP MyRoom:
1.
Insert the CD that came with your monitor into the computer CD-ROM drive.
2.
Select Install MyRoom and run the setup file.
3.
Follow the instructions on the screen.
Downloading HP MyRoom from the Internet
To download HP MyRoom:
1.
Go to https://www.rooms.hp.com/myroom.
2.
Select language of your choice in the upper right-hand corner of the screen. Click Go if
changing language.
3.
Click Download Now.
4.
Click Run to run the file.
5.
Follow the instructions on the screen to complete the software installation.
Creating a HP MyRoom Account
To begin using HP MyRoom after the software installation is complete:
ENWW
1.
Click Create New Account.
2.
Enter your name, e-mail address, and set a password.
3.
Follow the prompt to validate your e-mail address.
4.
Sign in to HP MyRoom.
5.
Begin using HP MyRoom by clicking on the Add Contact button.
6.
Click the question mark button and select Documentation for detailed instructions.
Installing HP MyRoom from the CD
31
A
Troubleshooting
Solving Common Problems
The following table lists possible problems, the possible cause of each problem, and the
recommended solutions.
32
Problem
Possible Cause
Solution
Screen is blank.
Power cord is disconnected.
Connect the power cord.
Power button on front panel of
the monitor is turned off.
Press the front panel power button.
Video cable is improperly
connected.
Connect the video cable properly. Refer to Setting
Up the Monitor on page 5 for more information.
Screen blanking is active.
Press any key on the keyboard or move the mouse
to inactivate the screen blanking utility.
Screen image appears distorted; text
is fuzzy or blurred; image quality is
degraded.
The computer’s graphics card
resolution is set lower or
higher than the monitor’s
native resolution.
Set the computer’s display resolution to the same
mode as the monitor’s recommended native
screen resolution to provide the best picture
quality.
Image appears blurred, indistinct, or
too dark.
Brightness and contrast are
too low.
Press the OK/auto button on the front panel. If this
does not correct the image, press the Menu button
to open the OSD Menu, and adjust the brightness
and contrast scales as needed.
Image is not centered
Position may need
adjustment.
Press the Menu button to access the OSD menu.
Select Image Control/Horizontal Position or
Vertical Position to adjust the horizontal or vertical
position of the image.
Check Video Cable is displayed on
screen.
Monitor video cable is
disconnected.
Connect the appropriate video cable (DisplayPort,
DVI, or VGA) between the computer and monitor.
Be sure that the computer power is off while
connecting the video cable.
Input Signal Out of Range. Change
Settings to 1920 x 1080 @ 60Hz.
Video resolution and/or
refresh rate are set higher
than what the monitor
supports.
Restart the computer and enter Safe Mode.
Change the settings to a supported setting (see
Recognizing Preset Display Resolutions
on page 36). Restart the computer so that the
new settings take effect.
The monitor is off but it did not seem
to enter into a low-power sleep mode.
The monitor's power saving
control is disabled.
In the monitor's OSD menu, select Management >
Power Saver. The control should be set to On to
allow the monitor to enter into low-power modes.
OSD Lockout is displayed.
The monitor's OSD Lockout
function is enabled.
Press and hold the Menu button for 10 seconds to
disable the OSD Lockout function.
Power Button Lockout is displayed.
The monitor's Power Button
Lockout function is enabled.
Press and hold the Power button for 10 seconds to
unlock the power button function.
Appendix A Troubleshooting
NOTE: If pressing the power button has no
effect, press and hold the power button for 10
seconds to disable the power button lockout
feature.
ENWW
Webcam
Problems with the webcam can come from different sources. The problem may come from webcam
drivers or the software that's trying to use the webcam may have a problem. Before contacting HP:
●
Download the latest drivers for your monitor model.
●
Search the HP website for known webcam issues, program updates, and support articles.
Online Technical Support
For the online access to technical support information, self-solve tools, online assistance, community
forums of IT experts, broad multivendor knowledge base, monitoring and diagnostic tools, go to
http://www.hp.com/support.
Preparing to Call Technical Support
If you cannot solve a problem using the troubleshooting tips in this section, you may need to call
technical support. Have the following information available when you call:
ENWW
●
Monitor model number
●
Monitor serial number
●
Purchase date on invoice
●
Conditions under which the problem occurred
●
Error messages received
●
Hardware configuration
●
Name and version of the hardware and software you are using
Webcam
33
B
Technical Specifications
NOTE: All specifications represent the typical specifications provided by HP's component
manufacturers; actual performance may vary either higher or lower.
LA2206xc
Table B-1 LA2206xc Specifications
Display
54.61 cm wide screen
21.5 inches wide screen
Type
TFT LCD
Viewable Image Size
54.61 cm diagonal
Tilt
-5 to 30°
Swivel
-180 to 180°
Maximum Weight (Unpacked)
6.1 kg
13.4 lbs
Height (highest position)
43.9 cm
17.28 inches
Height (lowest position)
33.35 cm
13.13 inches
Depth
22.8 cm
8.94 inches
Width
51.8 cm
20.39 inches
Maximum Graphic Resolution
1920 x 1080 (60 Hz) analog input
21.5–inch diagonal
Dimensions (include base)
1920 x 1080 (60 Hz) digital input
Optimum Graphic Resolution
1920 x 1080 (60 Hz) analog input
1920 x 1080 (60 Hz) digital input
Text Mode
720 x 400
Dot Pitch
0.248 (H) x 0.248 (W) mm
Pixels Per Inch
102 PPI
Horizontal Frequency
24 to 94 kHz
Vertical Refresh Rate
50 to 76 Hz
Environmental Requirements Temperature
34
Operating Temperature
5 to 35° C
41 to 95° F
Storage Temperature
-20 to 60° C
-4 to 140° F
Relative Humidity
20 to 80%
Power Source
100 – 240 VAC 50/60 Hz
Appendix B Technical Specifications
ENWW
Table B-1 LA2206xc Specifications (continued)
Altitude:
Operating
0 to 5000 m
0 to 16,400 feet
Storage
0 to 12192 m
0 to 40,000 feet
Measured Power Consumption:
Full Power
42 watts
Typical Settings
35 watts
Sleep
0.5 watts
Switch Off
0.5 watts
Input Terminal
One VGA connector with cable included;
one DVI connector with cable included;
one DisplayPort connector (cable not
included)
Webcam
720P HD webcam with dual microphone
array
Maximum Resolution
1280 x 720
ENWW
LA2206xc
35
Recognizing Preset Display Resolutions
The display resolutions listed below are the most commonly used modes and are set as factory
defaults. This monitor automatically recognizes these preset modes and they will appear properly
sized and centered on the screen.
LA2206xc
Table B-2 Factory Preset Modes
Preset
Pixel Format
Horz Freq (kHz)
Vert Freq (Hz)
1
640 × 480
31.469
59.940
2
720 × 400
31.469
70.087
3
800 × 600
37.879
60.317
4
1024 × 768
48.363
60.004
5
1280 × 720
45.00
60.00
6
1280 × 1024
63.981
60.02
7
1440 × 900
55.935
59.887
8
1680 × 1050
65.29
59.954
9
1920 × 1080
67.50
60.00
Table B-3 High Definition Video Formats
Preset
Timing Name
Pixel Format
Horz Freq (kHz)
Vert Freq (Hz)
1
480p
720 × 480
31.469
60
2
576p
720 × 576
31.25
50
3
720p50
1280 × 720
37.5
50
4
720p60
1280 × 720
45
60
5
1080p50
1920 × 1080
56.25
50
6
1080p60
1920 × 1080
67.5
60
Entering User Modes
The video controller signal may occasionally call for a mode that is not preset if:
●
You are not using a standard graphics adapter.
●
You are not using a preset mode.
It this occurs, you may need to readjust the parameters of the monitor screen by using the on-screen
display. Your changes can be made to any or all of these modes and saved in memory. The monitor
automatically stores the new setting, then recognizes the new mode just as it does a preset mode. In
addition to the factory preset modes, there are at least 10 user modes that can be entered and
stored.
36
Appendix B Technical Specifications
ENWW
Energy Saver Feature
The monitors support a reduced power state. The reduced power state will be entered into if the
monitor detects the absence of either the horizontal sync signal and/or the vertical sync signal. Upon
detecting the absence of these signals, the monitor screen is blanked, the backlight is turned off, and
the power light is turned amber. When the monitor is in the reduced power state, the monitor will
utilize .5 watts of power. There is a brief warm up period before the monitor will return to its normal
operating mode.
Refer to the computer manual for instructions on setting energy saver features (sometimes called
power management features).
NOTE: The above power saver feature only works when connected to computers that have energy
saver features.
By selecting the settings in the monitor's Energy Saver utility, you can also program the monitor to
enter into the reduced power state at a predetermined time. When the monitor's Energy Saver utility
causes the monitor to enter the reduced power state, the power light blinks amber.
ENWW
Energy Saver Feature
37
C
Agency Regulatory Notices
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
●
Reorient or relocate the receiving antenna.
●
Increase the separation between the equipment and the receiver.
●
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●
Consult the dealer or an experienced radio or television technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this device that
are not expressly approved by Hewlett Packard Company may void the user's authority to operate the
equipment.
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods
to maintain compliance with FCC Rules and Regulations.
Declaration of Conformity for Products Marked with the
FCC Logo (United States Only)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1.
This device may not cause harmful interference.
2.
This device must accept any interference received, including interference that may cause
undesired operation.
For questions regarding the product, contact:
Hewlett Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
Or, call 1-800-HP-INVENT (1-800 474-6836)
38
Appendix C Agency Regulatory Notices
ENWW
For questions regarding this FCC declaration, contact:
Hewlett Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
Or, call (281) 514-3333
To identify this product, refer to the Part, Series, or Model number found on the product.
Canadian Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
European Union Regulatory Notice
Products bearing the CE marking comply with the following EU Directives:
●
Low Voltage Directive 2006/95/EC
●
EMC Directive 2004/108/EC
●
Ecodesign Directive 2009/125/EC, where applicable
CE compliance of this product is valid if powered with the correct CE-marked AC adapter provided by
HP.
Compliance with these directives implies conformity to applicable harmonized European standards
(European Norms) that are listed in the EU Declaration of Conformity issued by HP for this product or
product family and available (in English only) either within the product documentation or at the
following web site: http://www.hp.eu/certificates (type the product number in the search field).
The compliance is indicated by one of the following conformity markings placed on the product:
For non-telecommunications products and for EU
harmonized telecommunications products, such
as Bluetooth® within power class below 10mW.
For EU non-harmonized telecommunications
products (If applicable, a 4-digit notified body
number is inserted between CE and !).
Please refer to the regulatory label provided on the product.
The point of contact for regulatory matters is: Hewlett-Packard GmbH, Dept./MS: HQ-TRE,
Herrenberger Strasse 140, 71034 Boeblingen, GERMANY.
ENWW
Canadian Notice
39
German Ergonomics Notice
HP products which bear the “GS” approval mark, when forming part of a system comprising HP brand
computers, keyboards and monitors that bear the “GS” approval mark, meet the applicable ergonomic
requirements. The installation guides included with the products provide configuration information.
Japanese Notice
Korean Notice
Power Cord Set Requirements
The monitor power supply is provided with Automatic Line Switching (ALS). This feature allows the
monitor to operate on input voltages between 100–120V or 200–240V.
The power cord set (flexible cord or wall plug) received with the monitor meets the requirements for
use in the country where you purchased the equipment.
If you need to obtain a power cord for a different country, you should purchase a power cord that is
approved for use in that country.
The power cord must be rated for the product and for the voltage and current marked on the product's
electrical ratings label. The voltage and current rating of the cord should be greater than the voltage
and current rating marked on the product. In addition, the cross-sectional area of the wire must be a
minimum of 0.75 mm² or 18 AWG, and the length of the cord must be between 6 feet (1.8 m) and 12
feet (3.6 m). If you have questions about the type of power cord to use, contact an authorized HP
service provider.
A power cord should be routed so that it is not likely to be walked on or pinched by items placed upon
it or against it. Particular attention should be paid to the plug, electrical outlet, and the point where the
cord exits from the product.
Japanese Power Cord Requirements
For use in Japan, use only the power cord received with this product.
CAUTION: Do not use the power cord received with this product on any other products.
40
Appendix C Agency Regulatory Notices
ENWW
Product Environmental Notices
ENERGY STAR® Qualification
HP Displays marked with the ENERGY STAR® certification mark meet the requirements of the U.S.
Environmental Protection Agency (EPA) ENERGY STAR® program. The EPA ENERGY STAR®
certification mark does not imply endorsement by the EPA. As an ENERGY STAR® Partner, Hewlett
Packard Company has determined that this product meets the ENERGY STAR® program
requirements for display energy efficiency.
The following ENERGY STAR® certification mark appears on all ENERGY STAR® qualified displays:
The ENERGY STAR® program specifications for displays and computers were created by the EPA to
promote energy efficiency and reduce air pollution through more energy-efficient equipment in
homes, offices, and factories. One way products achieve this goal is by using the Microsoft Windows
power management feature to reduce power consumption when the product is not in use.
The power management feature enables the computer to initiate a low-power or “sleep” mode after a
period of user inactivity. When used with an external ENERGY STAR® qualified display, this feature
also supports similar power management features for the display. To take advantage of these
potential energy savings, users should use the default power management settings that are provided
with ENERGY STAR qualified computers and displays. The default power management settings on
ENERGY STAR® qualified computers are preset to behave in the following ways when the system is
operating on AC power:
●
Turn off an external display after 15 minutes of user inactivity
●
Initiate a low power sleep mode for the computer after 30 minutes of user inactivity
ENERGY STAR® qualified computers exit the low power sleep mode and ENERGY STAR® qualified
displays resume operation when the user resumes use of the computer. Examples include the user
pressing the power/sleep button, receiving an input signal from an input device, receiving an input
signal from a network connection with the Wake On LAN (WOL) feature enabled, etc.
Additional information on the ENERGY STAR® program, its environmental benefits and the potential
energy and financial savings of the power management feature can be found on the EPA ENERGY
STAR® Power Management Web site at http://www.energystar.gov/powermanagement.
Materials Disposal
Some HP LCD monitors contain mercury in the fluorescent lamps that might require special handling
at end-of-life.
Disposal of this material can be regulated because of environmental considerations. For disposal or
recycling information, contact the local authorities or the Electronic Industries Alliance (EIA)
http://www.eiae.org.
ENWW
Product Environmental Notices
41
Disposal of Waste Equipment by Users in Private Household in the
European Union
This symbol on the product or on its packaging indicates that this product must not be disposed of
with your household waste. Instead, it is your responsibility to dispose of your waste equipment by
handing it over to a designated collection point for the recycling or waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment at the time of disposal will
help to conserve natural resources and ensure that it is recycled in a manner that protects human
health and the environment. For more information about where you can drop off your waste
equipment for recycling, please contact the local city office, the household waste disposal service or
the shop where you purchased the product.
HP Recycling Program
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and
rechargeable batteries. For more information about recycling programs, go to http://www.hp.com/
recycle.
Chemical Substances
HP is committed to providing our customers with information about the chemical substances in our
products as needed to comply with legal requirements such as REACH (Regulation EC No
1907/2006 of the European Parliament and Council). A chemical information report for this product
can be found at http://www.hp.com/go/reach.
Restriction of Hazardous Substances (RoHS)
A Japanese regulatory requirement, defined by specification JIS C 0950, 2005, mandates that
manufacturers provide Material Content Declarations for certain categories of electronic products
offered for sale after July 1, 2006. To view the JIS C 0950 material declaration for this product, visit
http://www.hp.com/go/jisc0950.
42
Appendix C Agency Regulatory Notices
ENWW
Turkey EEE Regulation
In Conformity with the EEE Regulation
EEE Yönetmeliğine Uygundur
Ukraine Restriction of Hazardous Substances
Обладнання відповідає вимогам Технічного регламенту щодо обмеження використання деяких
небезпечних речовин в електричному та електронному обладнані, затвердженого постановою
Кабінету Міністрів України від 3 грудня 2008 № 1057.
The equipment complies with requirements of the Technical Regulation, approved by the Resolution
of Cabinet of Ministry of Ukraine as of December 3, 2008, in terms of restrictions for the use of certain
dangerous substances in electrical and electronic equipment.
ENWW
Product Environmental Notices
43
D
LCD Monitor Quality and Pixel Policy
The TFT monitor uses high-precision technology, manufactured according to HP standards, to
guarantee trouble-free performance. Nevertheless, the display may have cosmetic imperfections that
appear as small bright or dark spots. This is common to all LCD displays used in products supplied by
all vendors and is not specific to the HP LCD. These imperfections are caused by one or more
defective pixels or sub-pixels.
●
A pixel consists of one red, one green, and one blue sub-pixel.
●
A defective whole pixel is always turned on (a bright spot on a dark background), or it is always
off (a dark spot on a bright background). The first is the more visible of the two.
●
A defective sub-pixel (dot defect) is less visible than a defective whole pixel and is small and
only visible on a specific background.
To locate defective pixels, the monitor should be viewed under normal operating conditions, in normal
operating mode at a supported resolution and refresh rate, from a distance of approximately 50 cm
(20 in).
HP expects that, over time, the industry will continue to improve its ability to produce LCDs with fewer
cosmetic imperfections and HP will adjust guidelines as improvements are made.
44
Appendix D LCD Monitor Quality and Pixel Policy
ENWW
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
