331734-001.book Page i Monday, July 14, 2003 3:47 PM

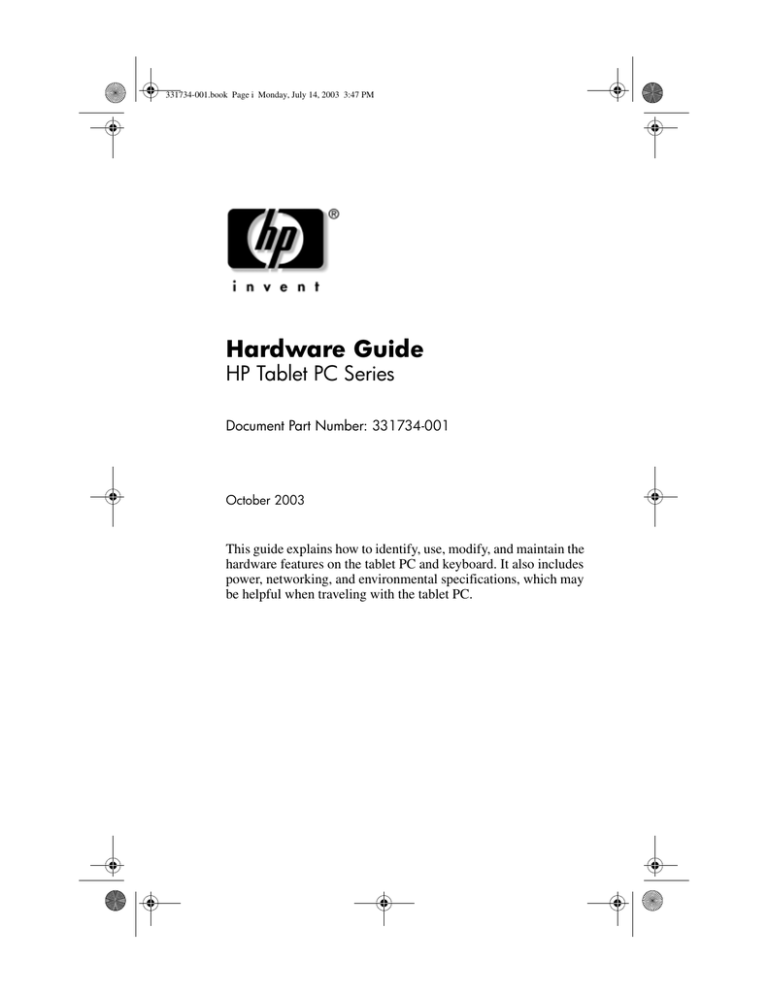

Hardware Guide
HP Tablet PC Series
Document Part Number: 331734-001
October 2003
This guide explains how to identify, use, modify, and maintain the
hardware features on the tablet PC and keyboard. It also includes
power, networking, and environmental specifications, which may
be helpful when traveling with the tablet PC.
331734-001.book Page ii Monday, July 14, 2003 3:47 PM
© 2003 Hewlett-Packard Development Company, L.P.
Microsoft and Windows are trademarks of Microsoft Corporation in the
U.S. and/or other countries. SD Logo is a trademark.
The information contained herein is subject to change without notice. The
only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing
herein should be construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions contained herein.
Hardware Guide
HP Tablet PC Series
First Edition October 2003
Reference Number: TC1100/TR1105
Document Part Number: 331734-001
331734-001.book Page iii Monday, July 14, 2003 3:47 PM
Contents
1 External Components
Pen Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1
Tablet PC Components . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
Front: Lights and Bluetooth. . . . . . . . . . . . . . . . . . . . 1–2
Front: Pen-Activated Buttons . . . . . . . . . . . . . . . . . . 1–3
Right Side: Power Switch and
Power/Standby Light . . . . . . . . . . . . . . . . . . . . . . . . . 1–4
Right Side: Windows Security and
Display Toggle Buttons . . . . . . . . . . . . . . . . . . . . . . . 1–5
Right Side: Esc, Tab and Q Menu Buttons . . . . . . . . 1–6
Right Side: Jog Dial and Antenna . . . . . . . . . . . . . . . 1–7
Lower Side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8
Left Side: Attachment Slots and
Keyboard Connector . . . . . . . . . . . . . . . . . . . . . . . . . 1–9
Left Side: Security Cable Slot, Vent and
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–10
Top: Connectors and Jacks . . . . . . . . . . . . . . . . . . . 1–11
Top: Pen Holder and LAN Connection Lights . . . . 1–12
Top: Card Slots, Buttons and Tether Eyelet . . . . . . 1–13
Back: Attachment Features and
Hard Drive Bay . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–14
Back: Battery Bay . . . . . . . . . . . . . . . . . . . . . . . . . . 1–15
Back: Memory and Mini PCI Compartment . . . . . . 1–16
Back: Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–17
Back: Tilt Feet and Pad Feet . . . . . . . . . . . . . . . . . . 1–18
Hardware Guide
iii
331734-001.book Page iv Monday, July 14, 2003 3:47 PM
Contents
Additional Tablet PC Standard Components . . . . . . . . .
Documentation CDs . . . . . . . . . . . . . . . . . . . . . . . .
Cords and Cables . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adapters and Accessories . . . . . . . . . . . . . . . . . . . .
Tablet PC Keyboard Components . . . . . . . . . . . . . . . . .
Front: Lights and Pointing Device. . . . . . . . . . . . . .
Front: Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front: Positioning and Security Features. . . . . . . . .
Top. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Additional Keyboard Standard Component . . . . . .
1–19
1–20
1–21
1–22
1–23
1–23
1–24
1–25
1–26
1–27
1–28
2 Pen, Command Controls and Keyboards
Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Entering Information with the Pen . . . . . . . . . . . . . . 2–2
Calibrating the Pen . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4
Setting Pen Preferences . . . . . . . . . . . . . . . . . . . . . . . 2–5
Command Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6
Identifying Command Controls . . . . . . . . . . . . . . . . . 2–6
Command Controls Quick Reference . . . . . . . . . . . . 2–7
Using Command Controls . . . . . . . . . . . . . . . . . . . . . 2–8
Setting Command Control Preferences . . . . . . . . . . 2–14
On-Screen Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–17
Tablet PC Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–18
Using the Pointing Device. . . . . . . . . . . . . . . . . . . . 2–19
Using the Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . 2–20
Using F11/F12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–23
iv
Hardware Guide
331734-001.book Page v Monday, July 14, 2003 3:47 PM
Contents
3 Battery Packs
Running the Tablet PC on Battery Power . . . . . . . . . . . . 3–1
Replacing a Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . 3–2
Removing a Battery Pack . . . . . . . . . . . . . . . . . . . . . 3–2
Inserting a Battery Pack. . . . . . . . . . . . . . . . . . . . . . . 3–4
Securing a Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . 3–6
Accessing the Battery Pack Security Screw . . . . . . . 3–6
Inserting a Battery Pack Security Screw . . . . . . . . . . 3–7
Charging a Battery Pack. . . . . . . . . . . . . . . . . . . . . . . . . . 3–8
Charging a New Battery Pack . . . . . . . . . . . . . . . . . . 3–9
Charging an In-Use Battery Pack . . . . . . . . . . . . . . . 3–9
Monitoring the Charge in a Battery Pack. . . . . . . . . . . . 3–10
Obtaining Accurate Charge Information . . . . . . . . . 3–10
Displaying Charge Information on the Screen . . . . 3–10
Displaying Charge Information on a
Battery Pack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–12
Managing Low-Battery Conditions . . . . . . . . . . . . . . . . 3–13
Identifying Low-Battery Conditions . . . . . . . . . . . . 3–13
Resolving Low-Battery Conditions . . . . . . . . . . . . . 3–14
Initiating and Resuming from Standby or
Hibernation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–15
Calibrating a Battery Pack . . . . . . . . . . . . . . . . . . . . . . . 3–16
When to Calibrate . . . . . . . . . . . . . . . . . . . . . . . . . . 3–16
How to Calibrate . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–16
Battery Conservation Procedures and Settings . . . . . . . 3–19
Conserving Power as You Work . . . . . . . . . . . . . . . 3–19
Selecting Power Conservation Settings. . . . . . . . . . 3–19
Storing a Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . 3–20
Disposing of a Used Battery Pack . . . . . . . . . . . . . . . . . 3–21
Finding More Power Information . . . . . . . . . . . . . . . . . 3–21
Hardware Guide
v
331734-001.book Page vi Monday, July 14, 2003 3:47 PM
Contents
4 Drives
Adding a Drive to the System . . . . . . . . . . . . . . . . . . . . . 4–1
Understanding Drive Terms. . . . . . . . . . . . . . . . . . . . . . . 4–2
Terms for Types of Drives. . . . . . . . . . . . . . . . . . . . . 4–2
Terms for Drive Media . . . . . . . . . . . . . . . . . . . . . . . 4–2
Caring for Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3
Inserting or Removing Drive Media . . . . . . . . . . . . . . . . 4–4
Inserting a CD or DVD . . . . . . . . . . . . . . . . . . . . . . . 4–4
Removing a CD or DVD (with Power) . . . . . . . . . . . 4–5
Removing a CD or DVD (Without Power) . . . . . . . . 4–6
Inserting a Diskette . . . . . . . . . . . . . . . . . . . . . . . . . . 4–7
Removing a Diskette . . . . . . . . . . . . . . . . . . . . . . . . . 4–7
Using Drive Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8
Avoiding Standby and Hibernation . . . . . . . . . . . . . . 4–8
Displaying Media Contents . . . . . . . . . . . . . . . . . . . . 4–8
Caring for Drive Media . . . . . . . . . . . . . . . . . . . . . . . 4–9
Finding More Drive Software Information . . . . . . . . . . 4–10
5 Audio
Adjusting Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Volume Control Icon. . . . . . . . . . . . . . . . .
Using the Q Menu . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Internal Speakers . . . . . . . . . . . . . . . . . . . . . . .
Using the Internal Microphone . . . . . . . . . . . . . . . . . . . .
Connecting an Audio Device . . . . . . . . . . . . . . . . . . . . . .
Identifying Audio Jacks. . . . . . . . . . . . . . . . . . . . . . .
Using the Audio-Out Jack . . . . . . . . . . . . . . . . . . . . .
Using the Headset Jack . . . . . . . . . . . . . . . . . . . . . . .
Using the Microphone Jack . . . . . . . . . . . . . . . . . . . .
Finding Audio and Video Software Information . . . . . . .
vi
5–1
5–1
5–2
5–3
5–4
5–5
5–5
5–6
5–6
5–7
5–7
Hardware Guide
331734-001.book Page vii Monday, July 14, 2003 3:47 PM
Contents
6 Internal Modem
Connecting the Modem . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting Connectors . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Modem to an RJ-11 Jack . . . . . . . . .
Connecting the Modem with an Adapter. . . . . . . . . .
Setting Country Preferences. . . . . . . . . . . . . . . . . . . . . . .
Displaying the Current Country Configuration . . . . .
Adding a Country Configuration. . . . . . . . . . . . . . . .
Solving Travel Connection Problems . . . . . . . . . . . .
Accessing Communication Software . . . . . . . . . . . . . . . .
Finding AT Command Information . . . . . . . . . . . . . . . . .
6–2
6–2
6–3
6–4
6–5
6–5
6–5
6–6
6–8
6–8
7 Network Connections
Connecting the Network Cable . . . . . . . . . . . . . . . . . . . .
Turning a Network Connection Off and On . . . . . . . . . .
Using the LAN Connection Lights . . . . . . . . . . . . . . . . .
Accessing the Network at Startup . . . . . . . . . . . . . . . . . .
Enabling a NIC for Startup . . . . . . . . . . . . . . . . . . . .
Responding to a Network Service Boot Prompt . . . .
Finding Wireless LAN Information . . . . . . . . . . . . . . . . .
7–2
7–3
7–3
7–4
7–4
7–5
7–5
8 External Device Connections
Standard Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–1
USB Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–2
Tablet PC Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–3
Attaching the Tablet PC to the Keyboard . . . . . . . . . 8–3
Adjusting the Tablet PC and Keyboard. . . . . . . . . . . 8–5
Closing the Tablet PC and Keyboard . . . . . . . . . . . . 8–6
Transporting the Tablet PC and Keyboard . . . . . . . . 8–7
Detaching the Tablet PC from the Keyboard . . . . . . 8–8
Cable Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–10
Hardware Guide
vii
331734-001.book Page viii Monday, July 14, 2003 3:47 PM
Contents
9 Additional Hardware Options
Obtaining Upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using a PC Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting a PC Card. . . . . . . . . . . . . . . . . . . . . . . . . .
Configuring a PC Card . . . . . . . . . . . . . . . . . . . . . . .
Inserting a PC Card . . . . . . . . . . . . . . . . . . . . . . . . . .
Stopping and Removing a PC Card. . . . . . . . . . . . . .
Using an SD Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuring an SD Card . . . . . . . . . . . . . . . . . . . . . .
Inserting an SD Card . . . . . . . . . . . . . . . . . . . . . . . . .
Stopping and Removing an SD Card. . . . . . . . . . . . .
Increasing Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displaying Memory Information. . . . . . . . . . . . . . . .
Removing or Inserting a Memory Module . . . . . . . .
9–1
9–1
9–2
9–2
9–3
9–3
9–4
9–5
9–5
9–6
9–7
9–7
9–8
10 Maintenance, Shipping and Travel
Maintaining Software. . . . . . . . . . . . . . . . . . . . . . . . . . . 10–1
Protecting Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–2
Using Portfolios. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–3
Attaching a Portfolio . . . . . . . . . . . . . . . . . . . . . . . . 10–3
Detaching a Portfolio. . . . . . . . . . . . . . . . . . . . . . . . 10–5
Cleaning Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–6
Cleaning the Screen . . . . . . . . . . . . . . . . . . . . . . . . . 10–6
Cleaning a Tablet PC Keyboard . . . . . . . . . . . . . . . 10–7
Replacing Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–8
Replacing the System Hard Drive . . . . . . . . . . . . . . 10–8
Replacing a Pointing Stick Cap . . . . . . . . . . . . . . . 10–13
Preparing the Tablet PC for Shipping or Travel . . . . . 10–14
Traveling with the Tablet PC . . . . . . . . . . . . . . . . . . . . 10–15
Checklist for Travelers . . . . . . . . . . . . . . . . . . . . . 10–15
Contacting HP . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–16
viii
Hardware Guide
331734-001.book Page ix Monday, July 14, 2003 3:47 PM
Contents
11 Specifications
Tablet PC and Tablet PC Keyboard Dimensions. . . . . .
Tablet PC Operating Environment. . . . . . . . . . . . . . . . .
Tablet PC Rated Input Power. . . . . . . . . . . . . . . . . . . . .
Modem Specifications . . . . . . . . . . . . . . . . . . . . . . . . . .
Finding More Environmental Information. . . . . . . . . . .
11–1
11–2
11–2
11–3
11–3
Index
Hardware Guide
ix
331734-001.book Page 1 Monday, July 14, 2003 3:47 PM
1
External Components
Pen Components
Component
Description
1
Pen tip
Interacts with the tablet PC whenever
the tip is touching the screen or within
1.27 cm (0.5 inch) of the screen.
When tapped on or held over a
pen-activated button, activates the
button.
2
Pen button
Functions like the right button on an
external mouse.
3
Pen tether eyelet
Used with the tether eyelet on the
tablet PC, enables you to tether the
pen to the tablet PC.
Hardware Guide
1–1
331734-001.book Page 2 Monday, July 14, 2003 3:47 PM
External Components
Tablet PC Components
Front: Lights and Bluetooth
Component
Description
1
AC adapter light
On: AC power is being supplied
through the AC adapter.
2
Battery light
On: A battery pack is charging.
Flashing: A battery pack that is the
only available power source has
reached a low-battery condition.
3
Bluetooth antenna
Sends and receives Bluetooth*
Integrated Wireless signals.†
4
Wireless activity light
On: The wireless mini PCI and/or
Bluetooth are on.
Off: The wireless mini PCI and/ or
Bluetooth are off.
*Bluetooth is not available on all models
optimal performance when using Bluetooth, keep the area around the
antenna free from obstructions.
†For
1–2
Hardware Guide
331734-001.book Page 3 Monday, July 14, 2003 3:47 PM
External Components
Front: Pen-Activated Buttons
Component
Description
1
Tablet PC Input Panel launch
button*
When Windows is running, opens the
Microsoft Tablet PC Input Panel
application, which includes a
handwriting pad and an on-screen
keyboard.
2
Journal launch button*
When Windows is running, opens and
closes the Microsoft Journal
application, which supports
handwriting.
3
Rotate button*
Switches the image between
landscape and portrait orientation.
*This table describes default settings. For information about changing the
functions of the Tablet PC Input Panel launch, Journal launch, and rotate
buttons, see Chapter 2, “Pen, Command Controls and Keyboards.”
Hardware Guide
1–3
331734-001.book Page 4 Monday, July 14, 2003 3:47 PM
External Components
Right Side: Power Switch and
Power/Standby Light
Component
1
Power switch*
Description
When the tablet PC is:
■
■
■
Off: Turns on the tablet PC.
On: Initiates Standby.*
In Standby: Resumes tablet PC
from Standby.
■
In Hibernation: Resumes
tablet PC from Hibernation.*
If the system has stopped responding
and Windows shut down procedures
cannot be used, slide and hold for
4 seconds to turn off the tablet PC.
2
Power/standby light
On: Tablet PC is on.
Flashing: Tablet PC is in Standby.
Off: Tablet PC is off or in Hibernation.
*This table describes default settings. For information about changing the
functions of the power switch and about using Standby and Hibernation,
refer on this CD to the Software Guide, “Power” chapter.
1–4
Hardware Guide
331734-001.book Page 5 Monday, July 14, 2003 3:47 PM
External Components
Right Side: Windows Security and
Display Toggle Buttons
Component
Description
1
When pressed with the pen tip or a small
object like the end of a paper clip while:
2
Windows Security
button*
Display Toggle
button
■
Windows is open, enters the ctrl+alt+delete
command.†
■
The Setup utility is open, enters the reset
command.
When Windows is running, toggles the external
monitor display settings:
■
■
■
Internal only
Internal and External
Extended Desktop
*This table describes default settings. For information about changing the
functions of the Windows Security button, see Chapter 2, “Pen, Command
Controls and Keyboards.”
†To protect your work and the system, the ctrl+alt+delete command cannot
be entered using the Ctrl, Alt, and Del keys on the on-screen keyboard.
Hardware Guide
1–5
331734-001.book Page 6 Monday, July 14, 2003 3:47 PM
External Components
Right Side: Esc, Tab and Q Menu Buttons
Component
Description
1
While the tablet PC is:
Esc button*
■
Starting up and a flashing pointer
is displayed on the screen, opens
the Setup utility.
■
In Windows, functions like esc on
a standard keyboard.
2
Tab button*
When Windows is running, functions
like tab on a standard keyboard.†
3
Q menu button*
When Windows is running, opens or
closes the Q Menu.
*This table describes default settings. For information about changing the
functions of the esc, tab, and Q menu buttons, see Chapter 2, “Pen,
Command Controls and Keyboards.”
†The tab button can also be used, instead of an F12 command, to respond
to a Network Service Boot prompt during startup.
1–6
Hardware Guide
331734-001.book Page 7 Monday, July 14, 2003 3:47 PM
External Components
Right Side: Jog Dial and Antenna
Component
Description
1
Functions like enter and the up and
down arrow keys on a standard
keyboard.
Jog dial*
■
■
■
2
Antennas, not visible from
the outside of the tablet PC
Press inward to enter a command.
Rotate upward to scroll upward.
Rotate downward to scroll
downward.
Sends and receives internal wireless
LAN signals.†
*This table describes default settings. For information about changing the
rotation functions of the jog dial, see Chapter 2, “Pen, Command Controls
and Keyboards.”
†For optimal performance, keep the antennas free from obstructions while
you are using an internal wireless LAN.
Hardware Guide
1–7
331734-001.book Page 8 Monday, July 14, 2003 3:47 PM
External Components
Lower Side
Component
Description
1
Docking alignment slots (2)
Secure the tablet PC to an optional
Tablet PC Docking Station.
2
Speakers (2)
Produce stereo sound.
3
Audio-out jack
Connects optional stereo headphones
or powered stereo speakers.
4
Headset jack
Connects an optional headset, such as
a mobile telephone headset with a
microphone and a monaural ear piece.
5
Microphone jack
Connects an optional monaural or
stereo microphone.
6
Microphone
Inputs monaural sound.*
*If you are using speech recognition or other software that requires optimal
sound quality, you must use an optional external microphone or a headset.
1–8
Hardware Guide
331734-001.book Page 9 Monday, July 14, 2003 3:47 PM
External Components
Left Side: Attachment Slots and
Keyboard Connector
Component
Description
1
Screen protector slots (2)
Secure the screen protector* when it is
attached to the tablet PC.
2
Universal attachment
slots (2)
Secure the portfolio, a screen
protector*, or an attachment, such as a
tablet PC keyboard, to the tablet PC.
3
Keyboard connector
Connects the tablet PC keyboard to
the tablet PC.
4
Alignment key slot
Accepts an alignment key to safeguard
attachment procedures. For example,
matching the alignment key on the
tablet PC keyboard to the alignment
key slot helps you correctly orient the
tablet PC to the keyboard as you
attach the tablet PC to the keyboard.
*A screen protector is included with an optional Tablet PC Docking Station.
Hardware Guide
1–9
331734-001.book Page 10 Monday, July 14, 2003 3:47 PM
External Components
Left Side: Security Cable Slot, Vent and
Antenna
Component
Description
1
IrDA Fast Infrared Port
Transmits and receives infrared
transmissions between the tablet PC
and other infrared devices.
2
Security cable slot
Attaches an optional security cable to
the tablet PC.
3
Vent
Allows airflow to cool internal
components.
Ä
4
Antenna*, not visible from the
outside of the tablet PC
To prevent overheating, do
not obstruct the vent. Do not
allow a hard surface, such as
an adjoining optional printer,
or fabric, such as bedding or
clothing, to block airflow.
Receives internal wireless LAN
signals.†
*The tablet PC has 2 antennas. The other antenna is found on the right side
of the tablet PC.
†For optimal performance, keep the antennas free from obstructions while
you are using an internal wireless LAN.
1–10
Hardware Guide
331734-001.book Page 11 Monday, July 14, 2003 3:47 PM
External Components
Top: Connectors and Jacks
Component
Description
1 USB connector
Connects an optional USB 2.0- or
1.1-compliant device.*
2 External MultiBay
Connects an optional USB 2.0- or
1.1-compliant device.*
connector
3 RJ-11 telephone jack
Connects a modem cable.
4 RJ-45 network jack
Connects an Ethernet network cable.
5 External monitor
Connects an optional VGA external monitor
or projector.
connector
6 AC power connector
Connects an AC adapter or an optional
DC cable, Auto/Air Cable, or Automobile
Power Adapter/Charger.
*If an optional External MultiBay is connected to the USB connector, the
External MultiBay must also be connected to external power. If an External
MultiBay is connected to the External MultiBay connector, it is not
necessary to connect the External MultiBay to external power.
Hardware Guide
1–11
331734-001.book Page 12 Monday, July 14, 2003 3:47 PM
External Components
Top: Pen Holder and LAN Connection Lights
Component
Description
1
Pen holder (shown with
pen 2 inserted)
Secures the pen to the tablet PC.
3
LAN connection lights (2)
Both lights off: The tablet PC is not
connected to a LAN.
Both lights on: The tablet PC is
connected to a LAN with a
100 Mbps link.
Green light on and yellow light off: The
tablet PC is connected to a LAN with a
10 Mbps link.
1–12
Hardware Guide
331734-001.book Page 13 Monday, July 14, 2003 3:47 PM
External Components
Top: Card Slots, Buttons and Tether Eyelet
Component
Description
1
PC Card slot
Supports an optional Type I or Type II
32-bit (CardBus) or 16-bit PC Card.
2
PC Card eject button
Ejects an optional PC Card from the
PC Card slot.
3
Tablet PC tether eyelet
Used with the tether eyelet on the pen,
enables you to tether the pen to the
tablet PC.
4
SD (Secure Digital) Card slot
Supports an optional SD Card.
Hardware Guide
1–13
331734-001.book Page 14 Monday, July 14, 2003 3:47 PM
External Components
Back: Attachment Features and Hard
Drive Bay
Component
Description
1
Docking connector
Connects the tablet PC to an optional
Docking Station.
2
Docking restraint latch
recess
Accepts the docking restraint latch on
an optional Docking Station to secure
the tablet PC to the Docking Station.
3
Attachment release switch
Releases an attachment, such as the
portfolio, a screen protector*, or an
optional tablet PC keyboard, from
the universal attachment slots on the
tablet PC.
4
Hard drive bay
Holds the system hard drive.
5
Hard drive bay retaining
screws (2)
Secure the hard drive bay cover to the
tablet PC.
*A screen protector is included with an optional Tablet PC Docking Station.
1–14
Hardware Guide
331734-001.book Page 15 Monday, July 14, 2003 3:47 PM
External Components
Back: Battery Bay
Component
Description
1
Battery pack release latch
Releases the battery pack from the
battery bay.
2
Battery quick check button on
battery pack*
Activates the battery quick check lights
(see below) which display how much
charge remains in the battery pack.
3
Battery quick check lights (3)
on battery pack*
On: Each light represents a percent of
a full charge. For example, when all
3 lights are on, the battery pack is fully
charged.
Flashing: When one light is flashing,
less than 5 percent of a full charge
remains in the battery pack.
4
Battery bay
Holds the battery pack. Also, contains
one battery pack security screw.*
*This illustration shows the battery pack inserted in the battery bay. The
battery pack is included with the tablet PC, but is not inserted. For insertion
instructions and information about using a battery pack security screw for
protection against theft, see Chapter 3, “Battery Packs.”
Hardware Guide
1–15
331734-001.book Page 16 Monday, July 14, 2003 3:47 PM
External Components
Back: Memory and Mini PCI Compartment
Component
Description
1
Contains one memory slot for a
PC133-compliant memory module.
Also, holds an optional mini PCI board
such as a wireless board. (A mini PCI
board is included with some tablet PC
models.)
Memory and mini PCI
(Peripheral Component
Interconnect)
compartment, not visible
from the outside of the
tablet PC
Ä
2
1–16
Memory and mini PCI
compartment retaining
screws (2)
The FCC does not allow unauthorized
mini PCI devices to be used in the
tablet PC. Installing an unsupported
mini PCI device can prevent your
tablet PC from operating properly and
may result in a warning message. To
resume proper operation, remove the
unauthorized device. Contact your
HP Customer Care Center if a
warning message about your
mini PCI device displays in error.
Secure the memory and mini PCI
compartment cover to the tablet PC.
Hardware Guide
331734-001.book Page 17 Monday, July 14, 2003 3:47 PM
External Components
Back: Labels
Component
Description
1
Microsoft Certificate of
Authenticity label (inside
the battery bay)
Contains the Product Key number.
You may need this number to update or
troubleshoot the operating system.
2
System label
Provides regulatory information about
the tablet PC.
3
Product identification label
Contains the serial number of the
tablet PC and a code describing the
original configuration of the tablet PC.
You will need the serial number if you
call HP Customer Care.
4
Modem approvals label
Lists the countries in which the modem
has been approved for use.*
5
Wireless certification label
(on mini PCI wireless
device)
Lists the countries in which the wireless
device has been approved for use.*
*You may need this information when traveling.
Hardware Guide
1–17
331734-001.book Page 18 Monday, July 14, 2003 3:47 PM
External Components
Back: Tilt Feet and Pad Feet
Component
Description
1
Tilt feet (2)
While the tablet PC is being used in
portrait orientation as a free-standing
tablet, can elevate the top of the
tablet PC to provide a comfortable
writing and viewing angle.
2
Pad feet (2)
Stabilize the tablet PC when the
tablet PC is placed as a free-standing
tablet on a flat surface.
1–18
Hardware Guide
331734-001.book Page 19 Monday, July 14, 2003 3:47 PM
External Components
Additional Tablet PC Standard
Components
The components included with the tablet PC vary by geographical
region and the tablet PC hardware ordered. The following
illustrations and tables identify the standard external components
included with most tablet PC models.
These illustrations do not include supplementary documentation,
supplementary CDs, the portfolio that shipped attached to the
tablet PC or an optional keyboard, or optional devices such as
PC Cards or drives. The system hard drive ships inside the hard
drive bay.
Hardware Guide
1–19
331734-001.book Page 20 Monday, July 14, 2003 3:47 PM
External Components
Documentation CDs
Among the CDs included are:
■
Documentation Library CD, which includes product-specific
documentation for the tablet PC, along with modem,
networking, safety, and regulatory information.
For information about using the Documentation Library CD,
refer to the printed Startup Guide included with the tablet PC.
■
Documentation Library Wireless LAN CD, which includes
documentation on the wireless devices available for the
tablet PC.
■
Documentation Library Bluetooth CD, which includes the
guides and software for Bluetooth wireless connection.
information may vary depending upon the exact
✎ Wireless
configuration of your tablet PC.
1–20
Hardware Guide
331734-001.book Page 21 Monday, July 14, 2003 3:47 PM
External Components
Cords and Cables
Component
Description
1
Power cord*
Connects the AC adapter to an AC electrical
outlet.
2
Modem cable
Connects the modem to an RJ-11 telephone
jack or to a country-specific modem adapter.
✎
3
Network cable
The modem cable has a 6-pin RJ-11
telephone connector at each end.
Connects the tablet PC to an RJ-45 (Ethernet
network) jack. (A network cable is included
with network models only.)
✎
The network cable has an 8-pin RJ-45
network connector at each end.
*Power cords vary in appearance by region.
Hardware Guide
1–21
331734-001.book Page 22 Monday, July 14, 2003 3:47 PM
External Components
Adapters and Accessories
Component
Description
1
AC adapter*
Converts AC power to DC power.
2
Country-specific modem
adapter (included by region
as required with modem
models only)
Adapts the modem cable to a
non-RJ-11 telephone jack.
3
Japan-specific outlet adapter
(Japan only)
Connects the AC adapter to a 2-prong
electrical outlet.
4
Battery pack
Runs the tablet PC when the tablet PC
is not connected to external power.
*AC adapters vary in appearance by region. The only AC adapter that
should be used with the tablet PC is the AC adapter included with the
tablet PC or a replacement AC adapter provided by HP.
1–22
Hardware Guide
331734-001.book Page 23 Monday, July 14, 2003 3:47 PM
External Components
Tablet PC Keyboard Components
This section identifies the hardware components of an optional
tablet PC keyboard.
■
For information about detaching, attaching, and adjusting the
keyboard, see Chapter 8, “External Device Connections.”
■
For information about using the keyboard, see Chapter 2,
“Pen, Command Controls and Keyboards.”
Front: Lights and Pointing Device
Component
Description
1
Num lock light
On: The keypad is on.
2
Caps lock light
On: Caps lock is on.
3
Pointing stick
Moves the pointer and selects and
activates items on the screen.
4
Left and right pointing stick
buttons
Function like the left and right buttons
on an external mouse.
Hardware Guide
1–23
331734-001.book Page 24 Monday, July 14, 2003 3:47 PM
External Components
Front: Keys
Component
Description
1
Perform system and application tasks. For
example, in Windows and many applications,
pressing F1 opens a Help file.
Function keys (11)
■
■
To enter an F11 function, press F11/F12.
To enter an F12 function, press
Fn+F11/F12.
2
Fn
Combines with other keys to perform system
tasks. For example, pressing Fn+num lk turns
on the keypad.
3
Keypad keys (15)*
Can be used like the keys on an external
numeric keypad.
4
Microsoft logo key
Displays the Windows Start menu.
5
Applications key
Displays a shortcut menu for an item beneath
the pointer.
*For more information about using keypad keys, see Chapter 2, “Pen,
Command Controls and Keyboards.”
1–24
Hardware Guide
331734-001.book Page 25 Monday, July 14, 2003 3:47 PM
External Components
Front: Positioning and Security Features
Component
Description
1
Rotation disk
Rotates the tablet PC while it is
attached to the keyboard.
2
Docking alignment
notches (4)
Help guide the tablet PC and keyboard
into an optional Docking Station.
3
Keyboard latch
When the tablet PC and keyboard are
closed, locks the tablet PC to the
keyboard:
Hardware Guide
■
Slide to the right to lock the
tablet PC to the keyboard.
■
Slide to the left to unlock the
tablet PC from the keyboard.
1–25
331734-001.book Page 26 Monday, July 14, 2003 3:47 PM
External Components
Top
Component
Description
1
Alignment key
Inserts into the alignment key slot on
the tablet PC to safeguard attachment
procedures. For example, matching
the alignment key to the alignment key
slot on the tablet PC helps you
correctly orient the tablet PC to the
keyboard as you attach the tablet PC
to the keyboard.
2
Keyboard hooks (2)
Secure the tablet PC to the keyboard.
3
Keyboard connector
Connects the tablet PC to the
keyboard.
4
Tilt adjustment
Tilts the tablet PC upward or
downward while it is connected to the
keyboard.
1–26
Hardware Guide
331734-001.book Page 27 Monday, July 14, 2003 3:47 PM
External Components
Back
Component
Description
1
Screen protector slots (2)
Secure a screen protector* to the
keyboard.
2
Attachment release switch
Releases attachments, such as the
portfolio, a screen protector*, or
the tablet PC, from the keyboard.
3
Docking connector
pass-through
Allows the tablet PC to be connected
to an optional Docking Station while
the tablet PC is attached to the
keyboard.
4
Universal attachment
slots (2)
Secure the portfolio, a screen
protector*, or the tablet PC to the
keyboard.
*A screen protector is included with an optional Tablet PC Docking Station.
Hardware Guide
1–27
331734-001.book Page 28 Monday, July 14, 2003 3:47 PM
External Components
Additional Keyboard Standard Component
Component
Description
Spare pointing stick caps (2)
Replace a worn pointing stick cap.
1–28
Hardware Guide
331734-001.book Page 1 Monday, July 14, 2003 3:47 PM
2
Pen, Command Controls
and Keyboards
You can enter and access information on the tablet PC by voice
(supported in English only), pen, command controls, the
on-screen keyboard, or the tablet PC keyboard or external USB
keyboard. An optional external mouse can be connected to a
USB connector on the tablet PC, an optional Docking Station, or
some external USB keyboards.
This chapter provides information about using the pen, command
controls, the on-screen keyboard, and a tablet PC keyboard.
Pen
You can write with the pen in pen-specific applications such as
Journal and Tablet PC Input Panel, in all Microsoft Office
applications, and in most other Windows applications and
utilities. The information you write on the screen with the pen can
be filed, searched, and shared among most Windows applications.
■
To access basic information about using the pen within the
operating system, refer to the printed Windows XP Tablet PC
Edition Start Here guide included with the tablet PC.
■
To access on-screen tutorials which include more detailed
information about using the pen in the tablet PC system:
1. Open Windows Explorer. To open Windows Explorer
from the Start button, select Start > All Programs >
Accessories > Windows Explorer.
2. In Windows Explorer, select My Computer > Local
Disk (C:) > WINDOWS > Help > latute.hta.
Hardware Guide
2–1
331734-001.book Page 2 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
Entering Information with the Pen
Identifying the Pen Tip and Pen Button
The pen interacts with the tablet PC whenever the tip of the
pen 1 is within 1.27 cm (0.5 inch) from the screen. The pen
button 2 emulates the functions of the right-click button on an
external mouse.
Identifying the pen tip and pen button
Holding the Pen
Hold the pen as if you were writing with a standard pen or pencil.
Position your hand on the pen so that you will not accidentally
press the pen button.
As you monitor the movements of the pen, focus on the pointer,
not on the tip of the pen.
2–2
Hardware Guide
331734-001.book Page 3 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
Performing Mouse Clicks with the Pen
To select an item on the screen as you would with the left button
of an external mouse:
»
Tap the item with the tip of the pen.
To double-click an item on the screen as you would with the left
button of an external mouse:
»
Tap the item twice with the tip of the pen.
To select an item as you would with the right button of an
external mouse:
»
Press and hold down the pen button, then tap the item with
the tip of the pen.
Performing Other Procedures with the Pen
In addition to emulating mouse clicks, the pen can be used for the
following tasks:
■
To display the pointer location, hold the pen tip immediately
over any location on the tablet PC screen without touching
the screen with the pen tip.
■
To display the menu options related to an item on the screen,
tap the screen with the pen tip.
■
To write with the pen, write on the screen with the tip of
the pen.
■
To press a pen-activated button, tap the button with the
tip of the pen.
Pressure-Sensitivity
The tablet PC pen is equipped with a pressure-sensitive feature.
This means that you can manipulate the pen to create lines of
various thickness, depending upon the amount of pressure you
use to write.
Hardware Guide
2–3
331734-001.book Page 4 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
Calibrating the Pen
The pen can function at the default calibration or at a calibration
set by another user. However, HP highly recommends that you
use the pen only while it is calibrated to your personal
handwriting and mouse action motions. Calibration optimizes pen
performance for all users and particularly for left-handed users.
To calibrate the pen:
1. Select Start > Control Panel > Printers and Other Hardware
icon > Tablet and Pen Settings window > Settings tab.
2. Select the Calibrate button.
3. Follow the instructions on the screen.
❏
Tap the pen in the exact center of each of the calibration
markers. The calibration markers are displayed on the
screen as plus signs (+).
❏
Be sure to calibrate the pen for use in both portrait and
landscape orientations.
can display information about any setting in the Tablet and
✎ You
Pen Settings window by selecting the question mark button in
the upper right corner of the window, then selecting a setting.
A definition, explanation, or procedure is displayed.
2–4
Hardware Guide
331734-001.book Page 5 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
Using the Pen Holder
To protect the pen when you are not using it, insert the pen,
tip first, into the pen holder on the tablet PC.
Inserting the pen into the pen holder
Setting Pen Preferences
Pen preferences are set in the Tablet and Pen Settings window of
the operating system. The preferences include settings that
optimize handwriting recognition and the location of on-screen
menus for either right-handed or left-handed users. To access the
pen settings:
»
Select Start > Control Panel > Printers and Other Hardware
icon > Tablet and Pen Settings window > Pen Options tab.
The preferences you set in the Tablet and Pen Settings window
are specific to the pen and the tablet PC.
Pointing device preferences, such as pointer speed, click speed,
and mouse trails, that apply to any pointing device in the system,
are set in the Mouse Properties window. For instructions, see
“Setting Pointing Device Preferences” in the “Tablet PC
Keyboard” section later in this chapter.
Hardware Guide
2–5
331734-001.book Page 6 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
Command Controls
The 9 command controls enable you to enter commands usually
entered with keyboard keys while you are using the tablet PC
without an external keyboard. The command controls can also be
used while you are using the on-screen keyboard or an optional
keyboard.
Identifying Command Controls
1 Tablet PC Input Panel
launch button
4 Display Toggle button
2 Journal launch button
5 Q menu button
3 Rotate button
6 Tab button
7 Windows Security button
8 Esc button
9 Jog dial
Identifying the command controls
2–6
Hardware Guide
331734-001.book Page 7 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
Command Controls Quick Reference
The following table identifies the default setting and activation
procedure for each command control.
■
To activate a pen-activated button, tap the button with the
tip of the pen.
■
To activate a manually activated button, press and release
the button.
Button
Default Function
Activation
Tablet PC
Input Panel
launch button*
Opens and closes the Tablet PC Input
Panel application, which includes a
writing pad and the on-screen
keyboard.
Pen
Journal launch
button*
Opens and closes the Journal
application.
Pen
Rotate button*
Switches the image between
landscape and portrait orientation.
Pen
Display Toggle
button
When Windows is running, toggles
the external monitor display settings:
Manual
■
■
■
Internal only
Internal and External
Extended Desktop
Q menu
button*
Opens and closes the Q Menu.
Manual
Tab button*
Functions like tab on a standard
keyboard.
Manual
(Continued)
Hardware Guide
2–7
331734-001.book Page 8 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
Button
Default Function
Activation
Windows
Security
button*
In Windows, functions like the
ctrl+alt+delete command on a
standard keyboard.
In the Setup utility, functions like the
reset button on some computers.
Manual
Esc button*
During startup, opens the Setup
utility.
In Windows, functions like esc on a
standard keyboard.
Manual
Jog dial*
Enters commands or scrolls the
image upward or downward.
Manual
*These controls are programmable. For instructions, see “Setting
Command Control Preferences,” later in this chapter.
Using Command Controls
Tablet PC Input Panel Launch Button
Tap the Tablet PC Input Panel launch button with the pen tip
when the tablet PC is in Windows to open the Tablet PC Input
Panel application. The Tablet PC Input Panel application displays
a keyboard on the screen and can also display a writing pad,
which supports handwriting.
To protect your work and the system, the ctrl+alt+delete
command cannot be entered using the Ctrl, Alt, and Del keys on
the on-screen keyboard. To enter the ctrl+alt+delete command,
press the Windows Security button on the tablet PC with the
pen tip or a small object like the end of a paper clip.
2–8
Hardware Guide
331734-001.book Page 9 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
For more information about using the Tablet PC Input Panel
application, refer to the Help file within the application, the
“On-Screen Keyboard” section, later in this chapter, or to an
on-screen tutorial. To access the tutorials:
1. Open Windows Explorer. To open Windows Explorer from
the Start button, select Start > All Programs > Accessories >
Windows Explorer.
2. In Windows Explorer, select My Computer > Local
Disk (C:) WINDOWS > Help > latute.hta.
Journal Launch Button
Tap the Journal launch button with the pen tip to open the Journal
application. The Journal application is a handwriting program
unrelated to the Journal feature in Microsoft Outlook.
For more information about using the Journal application, refer to
the Help file within the application or to an on-screen tutorial.
To access the tutorials:
1. Open Windows Explorer. To open Windows Explorer from
the Start button, select Start > All Programs > Accessories >
Windows Explorer.
2. In Windows Explorer, select My Computer > Local
Disk (C:) WINDOWS > Help > latute.hta.
Rotate Button
Tap the rotate button with the pen tip when the tablet PC is in
Windows to rotate the image on the screen 90 degrees. For
example, if the image is in landscape orientation, tap the rotate
button to rotate the image to portrait orientation.
Hardware Guide
2–9
331734-001.book Page 10 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
Display Toggle Button
Press the Display Toggle button to adjust the display settings for
the tablet PC and the optional external monitor.
When Windows is running, the Display Toggle button toggles the
external monitor display settings in the following order:
■
Internal only
■
Internal and External
■
Extended Desktop
Q Menu Button
Press the Q menu button manually when Windows is running to
open or close the Q Menu. The Q Menu provides quick access to
programmable tasks and destinations including:
■
System controls, such as volume and screen brightness.
■
Key simulations such as Capture Screen, which functions like
the print screen key on a standard keyboard.
■
Applications, files, or folders on a drive, a network, or the
Internet.
To select an item from the Q Menu without using the pen or a
keyboard, press the Q menu button to display the Q Menu, rotate
the jog dial upward or downward until your selection is
highlighted, then press the jog dial inward.
For more information about using the Q Menu, refer on this CD
to the Software Guide, “Q Menu and Desktop Video Profiles ”
chapter.
2–10
Hardware Guide
331734-001.book Page 11 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
Tab Button
Press the tab button manually to enter the tab command as you
would by pressing the tab key on a standard keyboard. The tab
button can be used with or without the on-screen keyboard or
an optional keyboard.
The function of the tab command varies by application. For
example, in Microsoft Word the tab command indents and in
Microsoft Excel the tab command moves the pointer to an
adjoining cell.
The tab button can be combined with keystrokes on the on-screen
keyboard or an external keyboard. For example, press the alt key
on either keyboard, then the tab button, to display and select from
among all open applications.
Windows Security Button
Press the Windows Security button with the pen tip or a small
object like the end of a paper clip to enter the ctrl+alt+delete
command while you are in Windows or the reset command while
you are in the Setup utility. The ctrl+alt+delete command cannot
be entered using the Ctrl, Alt, and Del keys on the on-screen
keyboard.
Ctrl+Alt+Delete Command
When the tablet PC is in Windows, the Windows Security button
clears your work from the screen and displays the Windows
Security window in which you can lock, log off, or shut down the
tablet PC, initiate Standby or Hibernation, or open Task Manager.
■
The Shut Down option in the ctrl+alt+delete window enables
you to safely shut down the tablet PC if the system has
become unresponsive.
■
Task Manager displays the status of all open applications and
enables you to close an application that has become
unresponsive.
Hardware Guide
2–11
331734-001.book Page 12 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
If the system remains unresponsive after selecting Shut Down in
the Windows Security window, slide and hold the power switch
for 4 seconds. For additional shut down procedures, refer on this
CD to the Software Guide, “Power” chapter. For information
about using the ctrl+alt+delete command in non-Windows
applications, refer to the application documentation.
Reset Command
When the Setup utility is open, the Windows Security button
simulates the reset button found on some computers. When the
tablet PC is reset, the tablet PC restarts and all unsaved
information is lost.
The reset function can be used to restore functionality when the
system has become unresponsive. For information about the
Setup utility, which is a non-Windows utility, refer on this CD to
the Software Guide, “Setup and Support Utilities” chapter.
Esc Button
Press the esc button manually to open the Setup utility or to use
the esc button like the esc key on a standard keyboard.
Setup Utility Function
While the tablet PC is starting up, the HP logo is displayed and
the cursor flashes in the upper right hand corner of the screen.
During this time, press the esc button to open the Setup utility.
For information about the Setup utility, refer on this CD to the
Software Guide, “Setup and Support Utilities” chapter.
Esc Key Function
When the tablet PC is on, press the esc button to enter the esc
command as you would by pressing the esc key on a standard
keyboard. The esc button can be used with or without the
on-screen keyboard or an external keyboard.
2–12
Hardware Guide
331734-001.book Page 13 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
The function of the esc command varies among applications. Esc
is usually used to exit a mode or routine or to cancel a function.
The esc button can be combined with keystrokes on the
on-screen keyboard or an external keyboard. For example, press
the ctrl key on either keyboard, then the esc button, to display the
Windows Start menu.
Jog Dial
Press or rotate the jog dial manually to enter commands or scroll
vertically:
■
Press inward to simulate the function of the enter key on a
standard keyboard.
■
Rotate upward or downward to scroll toward the top or
bottom of an image.
At the default setting, the jog dial scrolls line by line like the up
and down arrow keys on a standard keyboard. The jog dial can be
set to scroll page by page like the page up and page down keys on
a standard keyboard or three lines at a time like a mouse wheel.
Other settings, in addition to scroll functions, are also available.
For instructions, see “Setting Command Control Preferences,”
next in this chapter.
Hardware Guide
2–13
331734-001.book Page 14 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
Setting Command Control Preferences
All command controls except the Display Toggle button and the
enter function of the jog dial can be customized to launch
applications, simulate key combinations, or perform preset
system functions.
Each programmable command control can be assigned to
4 settings. Each setting applies only to 1 of 4 views:
■
Portrait-Primary
■
Portrait-Secondary
■
Landscape-Primary
■
Landscape-Secondary
Command control preferences are set in the Tablet and Pen
Settings window. You must select a view before setting a
preference. Each view is illustrated in the Button Location pane
of the Tablet and Pen Settings window as you select it.
If you are unfamiliar with the four views, you may want to read
“Selecting a View” next in this section, before setting a command
control preference.
Selecting a View
In the Portrait-Primary and Portrait-Secondary views, the image
is displayed vertically, in portrait orientation. In the LandscapePrimary and Landscape-Secondary views, the image is displayed
horizontally, in landscape orientation.
2–14
■
A portrait view is often optimal when you are using the
tablet PC as a handheld.
■
A landscape view is often optimal when you are displaying
the image on an optional external monitor or projector.
Hardware Guide
331734-001.book Page 15 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
In the primary views (Portrait-Primary and Landscape-Primary),
the image switches clockwise between vertical and horizontal.
In the secondary views (Portrait-Secondary and LandscapeSecondary), the image switches counterclockwise between
vertical and horizontal.
■
Left-handed users may find the secondary views more
convenient.
■
HP recommends that you not use a secondary view
while using the internal wireless. The positions commonly
occupied by the tablet PC, external devices, and users while
the tablet PC is in a secondary view may obstruct the
antennas.
When you are facing the tablet PC screen with the tablet PC
in portrait orientation, the antennas, not visible from the
outside of the tablet PC, are on the right and left sides of the
tablet PC, near the upper corners.
To switch the system among the Portrait-Primary, LandscapePrimary, Portrait-Secondary, and Landscape-Secondary views:
1. Press the Q menu button.
2. Select a view from the Q Menu. (The system switches to the
view you select.)
For more information about using the Q Menu, including
instructions for adding or removing items from the Q Menu,
refer on this CD to the Software Guide, “Q Menu and Desktop
Video Profiles” chapter.
Hardware Guide
2–15
331734-001.book Page 16 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
Assigning or Changing a Preference
To assign or change the function of a programmable command
control:
1. Select Start > Control Panel > Printers and Other Hardware
icon > Tablet and Pen Settings window > Tablet Buttons tab.
2. In the Button Settings For field, select the view in which you
want to use your preference. (The view is illustrated in the
Button Location panel.)
3. In the Tablet Button drop-down list, select the button you
plan to assign.
❏
To assign or change the function of rotating the jog dial
upward, select Up.
❏
To assign or change the function of rotating the jog dial
downward, select Down.
4. Select the Change button. (The Button Action dialog box
opens.)
5. Select your preference in the Button Action dialog box.
To save your preference, select the OK or Apply button.
Returning All Command Controls to Default Settings
To return the settings on all command controls to their default
settings:
1. Select Start > Control Panel > Printers and Other Hardware
icon > Tablet and Pen Settings window > Tablet Buttons tab.
2. In the Button Settings For field, select the view in which you
want to change all command controls to their default settings.
3. Select the Reset button. (All command controls are returned
to their default settings only in the orientation currently
selected.)
4. Select the Apply button, then select OK.
2–16
Hardware Guide
331734-001.book Page 17 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
On-Screen Keyboard
The Tablet PC Input Panel application displays a keyboard on the
screen. This on-screen keyboard simulates the functions of an
optional keyboard.
To open the Tablet PC Input Panel application, tap the Tablet PC
Input Panel launch button 1 with the pen.
■
To type, tap a key.
■
To switch the keys displayed in the top row between number
keys and function keys, tap Func.
■
To enter the ctrl+alt+delete command, press the Windows
Security button 2 on the tablet PC with the pen tip or a small
object like the end of a paper clip. To protect your work and
the system, the ctrl+alt+delete command cannot be entered
using the Ctrl, Alt, and Del keys on the on-screen keyboard.
For more information about using the Tablet PC Input Panel
application, see “Tablet PC Input Panel Launch Button” in the
“Using Command Controls” section, earlier in this chapter.
Identifying the Tablet PC Input Panel launch and Windows
Security buttons
Hardware Guide
2–17
331734-001.book Page 18 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
Tablet PC Keyboard
An optional tablet PC keyboard that is thinner than the tablet PC
but the same length and width is available from your HP
authorized dealer, reseller, or service provider.
When the tablet PC is attached to the keyboard, the tablet PC can
be folded down flush with the keyboard for transport or tilted
upward and used like a notebook display.
This chapter provides information about using the keyboard
pointing device and keypad.
■
For information about identifying other keyboard
components, see Chapter 1,“External Components.”
■
For information about attaching, detaching, and positioning
the keyboard, see Chapter 8, “External Device Connections.”
Using the tablet PC and tablet PC keyboard like a notebook
2–18
Hardware Guide
331734-001.book Page 19 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
Using the Pointing Device
Navigating and Selecting
To move the pointer, press the pointing stick 1 in the direction
you want to move the pointer. To increase or decrease pointer
speed, increase or decrease the directional (not downward)
pressure on the pointing stick. If the pointer continues to move
after you release the pointing stick, wait a few seconds and the
pointer will stop moving.
Use the left 2 and right 3 pointing stick buttons as you would the
left and right buttons on an external mouse.
For information about replacing the pointing stick cap with one of
the two spare pointing stick caps included with the keyboard, see
Chapter 10, “Maintenance, Shipping and Travel.”
Identifying pointing device components
Hardware Guide
2–19
331734-001.book Page 20 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
Setting Pointing Device Preferences
Pointer speed, click speed, mouse trails, and other pointing device
preferences can be set in the Mouse Properties window of the
operating system. To access Mouse Properties, select Start >
Control Panel > Printers and Other Hardware icon > Mouse icon.
To learn more about a setting, select the question mark icon in the
upper right corner of the window, then select the setting. To select
a setting, follow the instructions on the screen, then select the
OK button.
Mouse Properties settings apply to any pointing device in the
system, including the pen, an optional mouse, and the pointing
device on an optional tablet PC keyboard.
Using the Keypad
The tablet PC keyboard includes 15 keys that can be used like
the keys on an external numeric keypad. When the keypad is
turned on, each of these 15 keys performs the functions indicated
by the icon in the upper right corner of the key. The standard
functions of the keypad keys can still be accessed while the
keypad is turned on.
Identifying the keypad keys
2–20
Hardware Guide
331734-001.book Page 21 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
Turning the Keypad On and Off
Press Fn+num lk 1 on the keyboard to turn the keypad on and off.
■
When the keypad is on, press Fn+num lk 1 to turn the
keypad off. The num lock light 2 turns off.
■
When the keypad is off, press Fn+num lk 1 to turn the
keypad on. The num lock light 2 turns on.
Identifying the Fn and num lk keys and the num lock light
Hardware Guide
2–21
331734-001.book Page 22 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
Switching Keypad Keys Between Standard and
Keypad Functions
You can temporarily switch the functions of keypad keys between
their standard keyboard functions and their keypad functions by
using Fn 1 and shift 2.
■
To use a key on the keypad temporarily as a keypad key while
the keypad is off, press and hold Fn as you press the key.
■
To use a keypad key temporarily as a standard key while the
keypad is on:
❏
Press and hold Fn to type in lowercase.
❏
Press and hold Fn+shift to type in uppercase.
When Fn is released, the keypad keys return to their standard
functions if the keypad is off or to their keypad functions if the
keypad is on.
Identifying the Fn and shift keys
2–22
Hardware Guide
331734-001.book Page 23 Monday, July 14, 2003 3:47 PM
Pen, Command Controls and Keyboards
Using F11/F12
F11/F12
provides both F11 and F12 functions.
■
To enter an F11 function, press F11/F12 1.
■
To enter an F12 function, press Fn+F11/F12 2.
Identifying the F11/F12 and Fn keys
Hardware Guide
2–23
331734-001.book Page 1 Monday, July 14, 2003 3:47 PM
3
Battery Packs
Running the Tablet PC on Battery
Power
When the tablet PC is connected to external power, the tablet PC
runs on external power.
When a charged battery pack is in the tablet PC and the tablet PC
is not connected to external power, the tablet PC runs on battery
power.
The tablet PC switches between external power and battery power
according to the availability of an external power source. For
example, if the tablet PC contains a charged battery pack and is
running on external power supplied through the AC adapter, the
tablet PC will switch to battery power if the AC adapter is
disconnected from the tablet PC.
Whether to leave a battery pack in the tablet PC or in
storage depends on how you work. Keeping a battery pack in
the tablet PC enables the battery pack to charge whenever the
tablet PC is connected to external power and also protects your
work in case of a power outage.
On the other hand, a battery pack in the tablet PC slowly
discharges even while the tablet PC is turned off.
If you will not be using the tablet PC for one month or more,
removing the battery pack and storing it as described in “Storing
a Battery Pack,” later in this chapter, will prolong its life. For
more information about leaving your work, refer on this CD to
the Software Guide, “Power” chapter.
Hardware Guide
3–1
331734-001.book Page 2 Monday, July 14, 2003 3:47 PM
Battery Packs
Replacing a Battery Pack
Removing a Battery Pack
Ä
CAUTION: To prevent loss of work when removing a battery pack that is
running the tablet PC, initiate Hibernation or turn off the tablet PC before
removing the battery pack.
■ If you remove a battery pack that is running the tablet PC while
the tablet PC is in Standby, your work is saved in Standby for up to
one minute, then the tablet PC shuts down and your unsaved work
is lost.
■ If you remove a battery pack that is running the tablet PC while the
tablet PC is on, the tablet PC shuts down immediately and your
unsaved work is lost.
To remove a battery pack from the tablet PC:
1. Turn the tablet PC front side down. (If a battery pack security
screw is in place, remove the screw.)
3–2
Hardware Guide
331734-001.book Page 3 Monday, July 14, 2003 3:47 PM
Battery Packs
2. To unlock the battery pack release latch, slide the latch firmly
toward the unlock icon 1. Then hold the latch as you
disengage the 2 tabs on the battery pack from the 2 slots
on the battery bay 2 and lift the battery pack out of the
battery bay 3.
Removing a battery pack
Hardware Guide
3–3
331734-001.book Page 4 Monday, July 14, 2003 3:47 PM
Battery Packs
Inserting a Battery Pack
To insert a battery pack into the tablet PC:
1. Turn the tablet PC front side down.
2. Align the 2 rectangular tabs 1 on the battery pack with
the 2 rectangular alignment slots 2 in the battery bay.
Aligning the battery pack tabs with the battery bay alignment slots
3–4
Hardware Guide
331734-001.book Page 5 Monday, July 14, 2003 3:47 PM
Battery Packs
3. Angle the battery pack toward the alignment slots 1 until
the 2 tabs are inserted into the 2 alignment slots 2.
4. Tilt the battery pack downward until it snaps into place 3.
Inserting a battery pack
5. If you initiated Standby or Hibernation before replacing the
battery pack, slide and release the power switch to resume
from Standby or Hibernation.
Hardware Guide
3–5
331734-001.book Page 6 Monday, July 14, 2003 3:47 PM
Battery Packs
Securing a Battery Pack
Use the battery pack security screw to hold the battery pack in
place, and to provide antitheft protection for the battery pack.
Accessing the Battery Pack Security Screw
A battery pack security screw ships inside the battery bay.
To access the battery pack security screw:
1. Remove the battery pack as instructed in “Removing a
Battery Pack” earlier in this section.
2. Remove the battery pack security screw.
Removing the battery pack security screw
3–6
Hardware Guide
331734-001.book Page 7 Monday, July 14, 2003 3:47 PM
Battery Packs
Inserting a Battery Pack Security Screw
To secure the battery pack in the battery bay with a battery pack
security screw:
1. Insert the battery pack into the battery bay as instructed in
“Inserting a Battery Pack” earlier in this section.
2. Insert a battery pack security screw through the battery pack
case and into the tablet PC.
Inserting a battery pack security screw
Hardware Guide
3–7
331734-001.book Page 8 Monday, July 14, 2003 3:47 PM
Battery Packs
Charging a Battery Pack
The battery pack in the tablet PC charges whenever the tablet PC
is connected to external power.
The battery pack charges whether or not the tablet PC is in use,
but charges faster when the tablet PC is off.
Charging may be delayed if a battery pack is new, has not been
used for 2 weeks or more, or is much warmer or cooler than
room temperature. Charging times vary.
The battery light displays charge status:
■
On: the battery pack is charging.
■
Off: the battery pack is fully charged.
■
Flashing: the battery pack has 5 percent or less of a full
charge.
Identifying the battery light
3–8
Hardware Guide
331734-001.book Page 9 Monday, July 14, 2003 3:47 PM
Battery Packs
Charging a New Battery Pack
Fully charge the battery pack while the tablet PC is connected to
external power through the AC adapter.
A new battery pack that has been partially charged, but not fully
charged, can run the tablet PC, but battery charge displays may be
inaccurate.
Charging an In-Use Battery Pack
To prolong battery life and increase the accuracy of battery
charge displays:
■
Allow the battery pack to discharge to less than 10 percent of
a full charge through normal use before charging it.
■
When you charge the battery pack, charge it fully. An in-use
battery pack can be charged while the tablet PC is connected
to external power through the AC adapter or an optional
Automobile Power Adapter Charger, Docking Station, or
DC cable.
An optional Auto/Air Cable can be used to run the tablet PC, but
cannot be used to charge a battery pack.
Hardware Guide
3–9
331734-001.book Page 10 Monday, July 14, 2003 3:47 PM
Battery Packs
Monitoring the Charge in a
Battery Pack
Obtaining Accurate Charge Information
To increase the accuracy of all battery charge displays:
■
Allow a battery pack to discharge to less than 10 percent of
a full charge through normal use before charging it.
■
When you charge a battery pack, charge it fully.
■
If a battery pack has not been used for one month or more,
calibrate the battery pack instead of simply charging it.
For calibration instructions, see “Calibrating a Battery Pack”
later in this chapter.
Displaying Charge Information on the
Screen
Accessing Charge Displays
To display battery charge information on the screen, use the
operating system Power Meter feature.
To access Power Meter displays, use either of the following
methods:
■
Select Start > Control Panel > Performance and Maintenance
icon > Power Options icon > Power Meter tab.
■
Select the Power Meter icon in the system tray.
To display the Power Meter icon in the system tray:
1. Select Start > Control Panel > Performance and Maintenance
icon > Power Options icon > Advanced tab.
2. Select the Always Show Icon On The Taskbar check box.
3. Select the OK button.
4. If the icon is not displayed, select in the system tray the icon
for Show Hidden Icons.
3–10
Hardware Guide
331734-001.book Page 11 Monday, July 14, 2003 3:47 PM
Battery Packs
Interpreting Charge Displays
Power Meter displays battery charge status in both percent
and time:
■
The percent indicates the amount of charge remaining in the
battery pack.
■
The time indicates the approximate running time remaining
on the battery pack if the battery pack continues to provide
power at the current level. For example, the time remaining
will decrease if you start backing up to an SD Card and will
increase when the backup is complete.
A lightening bolt icon indicates that the battery pack is charging.
Hardware Guide
3–11
331734-001.book Page 12 Monday, July 14, 2003 3:47 PM
Battery Packs
Displaying Charge Information on a
Battery Pack
Charge information about a battery pack can be displayed on the
battery pack with the Quick Check feature, which can be used
whether or not the battery pack is inserted in the battery bay.
To display the percent of a full charge remaining in a battery
pack, press the battery quick check button 1 on the battery pack.
The three battery quick check lights 2 on the battery pack
indicate the charge remaining in the battery pack.
Indication
Percent of a Full Charge Remaining
3 lights on
67 to 100%
2 lights on
34 to 66%
1 light on
6 to 33%
1 light flashing*
0 to 5%
*When the battery pack reaches 5% of a full charge, the battery light on
the tablet PC also flashes.
Identifying the quick check button and lights on a battery pack
inserted in the battery bay
3–12
Hardware Guide
331734-001.book Page 13 Monday, July 14, 2003 3:47 PM
Battery Packs
Managing Low-Battery Conditions
The information in this section describes default alerts and
system responses.
Some low-battery condition alerts and system responses can be
changed in the Power Options Properties window of the operating
system. Preferences set in the Power Options Properties window
do not affect lights.
For information about setting preferences in the Power Options
Properties window, refer on this CD to the Software Guide,
“Power” chapter, “Setting Power Preferences” section.
Identifying Low-Battery Conditions
Low-Battery Condition
When a battery pack that is the sole power source available to the
tablet PC reaches a low-battery condition (5 percent of a full
charge), the battery light flashes.
Critical Low-Battery Condition
If a low-battery condition is not resolved, the tablet PC enters a
critical low-battery condition (1 percent of a full charge).
In a critical low-battery condition:
■
If Hibernation is enabled and the tablet PC is on or in
Standby, the tablet PC initiates Hibernation.
■
If Hibernation is disabled and the tablet PC is on or in
Standby, the tablet PC remains briefly in Standby, then
shuts down and loses your unsaved work.
Hibernation is enabled by default. To verify that Hibernation
is enabled, select Start > Control Panel > Performance and
Maintenance icon > Power Options icon > Hibernate tab. If
Hibernation is enabled, the Enable Hibernation check box is
selected.
Hardware Guide
3–13
331734-001.book Page 14 Monday, July 14, 2003 3:47 PM
Battery Packs
Resolving Low-Battery Conditions
Ä
CAUTION: If the tablet PC has reached a critical low-battery condition
(one percent of a full charge) and has initiated Hibernation, do not slide
the power switch until Hibernation is complete. Hibernation is complete
when the power/standby light turns off.
When a Charged Battery Pack Is Available
To resolve a low-battery condition, select one of the following
options:
Ä
■
Turn off the tablet PC or initiate Hibernation, insert a charged
battery pack while the tablet PC is off or in Hibernation, then
turn on the tablet PC.
■
To replace the battery with minimal disruption to your work,
slide and release the power switch 1 to initiate Standby,
confirm that Standby has been initiated by making sure the
power/standby light is flashing 2, then replace the battery
pack within one minute.
CAUTION: To prevent loss of work, be sure to replace the battery pack
within one minute. The bridge battery runs the tablet PC in Standby for up
to one minute, at which point the tablet PC will shut down and lose
unsaved work if no external power is available.
Do not immediately repeat the Standby procedure for replacing a battery
pack. The bridge battery requires time to recharge between uses.
Identifying the power switch and the power/standby light
3–14
Hardware Guide
331734-001.book Page 15 Monday, July 14, 2003 3:47 PM
Battery Packs
When External Power Is Available
To resolve a low-battery condition, select one of the following
options:
■
Plug the AC adapter cable into the tablet PC, then plug the
power cord into the AC adapter and into an AC electrical
outlet.
■
Plug an optional Automobile Power Adapter/Charger into the
tablet PC and into a vehicle cigarette lighter receptacle.
■
Plug an optional Auto/Air Cable into the tablet PC and into
the in-seat power supply available on some commercial
aircraft. (An optional Auto/Air Cable can run the tablet PC
but cannot charge a battery pack.)
When No Power Source Is Available
To resolve a low-battery condition, initiate Hibernation. Or, save
your work, then shut down the tablet PC.
Initiating and Resuming from Standby or
Hibernation
For more information about Standby and Hibernation, refer on
this CD to the Software Guide, “Power” chapter.
■
To initiate Standby, slide and release the power switch. To
resume from Standby, slide and release the power switch.
■
To initiate Hibernation, select Start >Turn off Computer >
Hibernate. If the Hibernate option is not displayed and an
external keyboard is attached, press and hold shift. (When you
press and hold shift, the Hibernate option replaces the Standby
option in the Shut Down window.) To resume from
Hibernation, slide and release the power switch.
For information about initiating Standby or Hibernation from the
Q Menu, refer on this CD to the Software Guide, “Q Menu and
Desktop Video Profiles” chapter.
Hardware Guide
3–15
331734-001.book Page 16 Monday, July 14, 2003 3:47 PM
Battery Packs
Calibrating a Battery Pack
When to Calibrate
Calibrate an in-use battery pack whenever battery charge displays
seem inaccurate or whenever the battery pack has not been used
for one month or more. It should not be necessary to calibrate any
battery pack, even if it is heavily used, more than once a month. It
is not necessary to calibrate a new battery pack before first use.
How to Calibrate
Calibration requires three steps:
■
“Charging the Battery Pack”
■
“Discharging the Battery Pack”
■
“Recharging the Battery Pack”
To initiate an unattended calibration in an optional Battery
Charger or Multibattery Charger, follow the instructions included
with the charger.
To calibrate a battery pack manually, follow the instructions in
the following sections.
Charging the Battery Pack
You can charge the battery pack while the tablet PC is on or off,
but the battery pack will charge faster while the tablet PC is off.
To charge the battery pack:
1. Insert the battery pack into the tablet PC.
3–16
Hardware Guide
331734-001.book Page 17 Monday, July 14, 2003 3:47 PM
Battery Packs
2. Connect the tablet PC to external power. (The battery light
turns on.) To connect the tablet PC to external power, use any
of the following methods:
❏
Plug the AC adapter cable into the tablet PC, then plug
the power cord into the AC adapter and into an
AC electrical outlet.
❏
Plug an optional Automobile Power Adapter/Charger
into the tablet PC and into a vehicle cigarette lighter
receptacle.
3. Leave the tablet PC connected to external power until the
battery pack is fully charged. (The battery light turns off.)
Discharging the Battery Pack
The tablet PC must remain on while the battery pack is being
discharged. The battery pack can discharge whether or not you
are using the tablet PC, but will discharge faster while the
tablet PC is in use.
■
If you plan to leave the tablet PC unattended during the
discharge, save your work before beginning the discharge
procedure.
■
If you use the tablet PC occasionally during the discharge
procedure and have set energy-saving timeouts, expect the
following performance from your system during the
discharge process:
❏
The monitor will not turn off automatically.
❏
Hard drive speed will not decrease automatically while
the tablet PC is idle.
❏
System-initiated Standby will not occur.
❏
System-initiated Hibernation will not occur until the
battery has discharged to a critical low-battery condition.
Hardware Guide
3–17
331734-001.book Page 18 Monday, July 14, 2003 3:47 PM
Battery Packs
To fully discharge a battery pack:
1. When the battery light turns off indicating that the
battery pack is fully charged, select Start > Control Panel >
Performance and Maintenance icon > Power Options icon >
Power Schemes tab.
2. Record the 2 settings in the Plugged In column and the
2 settings in the Running On Batteries column so that you
can reset them after the calibration.
3. Change the settings in both columns to Never.
4. Select the OK button.
5. Disconnect the tablet PC from the external power source, but
do not turn off the tablet PC.
6. Run the tablet PC on battery power until the battery pack is
fully discharged. (The battery light begins to flash when the
battery pack has discharged to a low-battery condition. When
the battery pack is fully discharged, the tablet PC initiates
Hibernation and the power/standby light turns off.)
Recharging the Battery Pack
1. Connect the tablet PC to external power, then leave the
tablet PC connected to external power until the battery pack
is fully recharged. (The battery light turns off.)
You can use the tablet PC while the battery pack is recharging
but the battery pack will charge faster if the tablet PC is off.
2. If the tablet PC is off, turn it on when the battery pack is fully
charged and the battery light turns off.
3. Select Start > Control Panel > Performance and Maintenance
icon > Power Options icon > Power Schemes tab.
4. Referring to the settings you recorded earlier, reenter your
settings for the 2 options in the Plugged In column and
the 2 options in the Running On Batteries column.
5. Select the OK button.
3–18
Hardware Guide
331734-001.book Page 19 Monday, July 14, 2003 3:47 PM
Battery Packs
Battery Conservation Procedures and
Settings
Using the battery conservation procedures and settings described
in the following sections extends the time that a battery pack can
run the tablet PC from a single charge.
Conserving Power as You Work
To conserve power as you use the tablet PC:
■
Turn off wireless and local area network (LAN) connections
and exit modem applications when you are not using them.
■
Detach, disconnect, stop, or remove unpowered external
devices that you are not using. Such devices include a
PC Card, an SD Card, or a tablet PC keyboard.
■
Use the Brightness item on the Q Menu to lower and raise
screen brightness quickly.
■
Use optional powered speakers instead of the internal
speakers, or use volume controls to mute, restore, raise, and
lower system volume quickly.
■
If you leave your work, initiate Standby or Hibernation or
shut down the tablet PC.
Selecting Power Conservation Settings
To set the tablet PC to conserve power:
■
Select a short wait for the screen saver and select a screen
saver with minimal graphics and motion. To access screen
saver settings, select Start > Control Panel > Appearance and
Themes icon > Display icon > Screen Saver tab.
■
Follow the instructions on this CD in the Software Guide,
“Power” chapter, to select a power scheme with low
power-use settings.
Hardware Guide
3–19
331734-001.book Page 20 Monday, July 14, 2003 3:47 PM
Battery Packs
Storing a Battery Pack
If the tablet PC will be unused and unplugged for more than
one month, remove and store the battery pack.
Ä
CAUTION: To prevent damage to a battery pack, do not expose it to
high temperatures for extended periods of time.
High temperatures accelerate the self-discharge rate of a stored
battery pack. To prolong the charge of a stored battery pack, place
it in a cool, dry place.
Use the following table to estimate how long you can safely store
a battery pack. The storage times provided are based on a battery
pack that contains 50 percent of a full charge. A fully charged
battery pack can be safely stored for longer; a battery pack
containing a low charge can be safely stored for less time.
Calibrate a battery pack that has been stored for one month or
more before using it.
At These Temperatures
3–20
You Can Safely Store a Battery
Pack for This Amount of Time
Temperature
Range °F
Temperature
Range °C
115°–140°
46°–60°
Less than 1 month
79°–113°
26°–45°
No more than 3 months
32°–77°
0°–25°
1 year
Storage Time
Hardware Guide
331734-001.book Page 21 Monday, July 14, 2003 3:47 PM
Battery Packs
Disposing of a Used Battery Pack
Å
WARNING: There is a risk of fire and chemical burn if a battery pack
is handled improperly. Do not disassemble, crush, or puncture a battery
pack or short the contacts on a battery pack. Do not expose a battery
pack to temperatures higher than 60° C (140° F), or dispose of a
battery pack in water or fire.
When a battery pack has reached the end of its useful life, do not
dispose of it in general household waste.
■
In North America, you can dispose of battery packs by using
the HP battery recycling program. This program provides you
with a postage-paid battery pack mailer preaddressed to a
reclamation facility where the metals are recycled. For more
information, call the telephone number listed for your
location in the Worldwide Telephone Numbers booklet,
included in English only with the tablet PC.
■
In Europe, dispose of or recycle battery packs by using the
public collection system or by returning them to HP, your
authorized HP partners, or their agents.
■
In other regions, refer to the Worldwide Telephone Numbers
booklet, included in English only with the tablet PC, to
contact an HP-authorized dealer, reseller, or service provider
and request information about battery pack disposal.
For more information about battery pack precautions and disposal
and the complete text of governmental agency notices, refer on
this CD to the Regulatory and Safety Notices guide.
Finding More Power Information
For more information about using Standby and Hibernation,
conserving power, setting power preferences, and using other
power management features, refer on this CD to the Software
Guide, “Power” chapter. For information about initiating Standby
or Hibernation from the Q Menu, refer in the Software Guide to
the “Q Menu and Desktop Video Profiles” chapter.
Hardware Guide
3–21
331734-001.book Page 1 Monday, July 14, 2003 3:47 PM
4
Drives
Adding a Drive to the System
Drives enable you to store and access data.
A standard removable drive can be added to the system by
inserting the drive into the MultiBay of an optional External
MultiBay or Docking Station. A USB drive can be added by
connecting the drive to a USB connector on the tablet PC or on
the Docking Station. Hard drive functions can also be added with
a PC Card.
For information about connecting a USB drive, see Chapter 8,
“External Device Connections.” For information about PC Cards,
see Chapter 9, “Additional Hardware Options.” For general
information about inserting and removing drives from an External
MultiBay or Docking Station, refer to the documentation
included with the device.
This chapter provides specific information about using drives in
the tablet PC system.
The tablet PC hard drive bay supports only a 9.5-mm system hard
drive. A MultiBay in an External MultiBay or Docking Station
supports an additional 9.5-mm optional hard drive (inserted in
a MultiBay Hard Drive Adapter) and the following 12.7-mm
standard removable drives:
❏
CD-ROM drive
❏
DVD/CD-RW drive
❏
CD-RW drive
❏
Diskette drive
❏
DVD-ROM drive
Hardware Guide
4–1
331734-001.book Page 2 Monday, July 14, 2003 3:47 PM
Drives
Understanding Drive Terms
Terms for Types of Drives
A hard drive is used for the permanent storage of data files and of
software such as system files, applications, and drivers. The hard
drive in the hard drive bay is the system hard drive, sometimes
called the local disk. The system hard drive can be replaced, but
cannot be used in a MultiBay. A hard drive is sometimes called a
hard disk drive or HDD.
Diskette drives are often used to store or transport data. The
tablet PC can read or write to any MultiBay diskette drive. A
diskette drive is sometimes called a floppy disk drive, floppy
drive, or FDD.
Optical drives include CD and DVD drives. Optical drives are
used to store or transport data and to play music and movies.
DVD media have higher capacities than CD media. The
tablet PC can read or write to optical drives as described in the
following table.
Optical Drive
Read
Write
CD-ROM drive
Yes
No
CD-RW drive
Yes
Yes
DVD-ROM drive
Yes
No
DVD/CD-RW drive
Yes
Yes
Terms for Drive Media
A diskette or disc that can be inserted or removed from a drive is
referred to as a drive medium. In this guide a diskette is inserted
in a diskette drive, and a disc is inserted in an optical drive.
4–2
Hardware Guide
331734-001.book Page 3 Monday, July 14, 2003 3:47 PM
Drives
Caring for Drives
Drives are fragile system components that must be handled with
care. Observe the following cautions when handling any drive.
Ä
CAUTION: To prevent damage to the tablet PC or a drive and loss
of work:
■ Do not remove the system hard drive except for repair or
replacement. For instructions, see Chapter 10, “Maintenance,
Shipping and Travel.”
■ Electrostatic discharge can damage electronic components.
To prevent electrostatic damage to the tablet PC or a drive, follow
these 2 precautions: (1) Discharge yourself from static electricity
before handling a drive by touching a grounded metal object and
(2) Avoid touching the connectors on a drive. For more information
about preventing electrostatic damage, refer on this CD to the
Regulatory and Safety Notices guide.
■ Excessive force can damage drive connectors. When you insert a
drive, use only enough force to seat the drive.
■ Handle a drive carefully. Do not drop it.
■ Avoid exposing a hard drive or a diskette to devices with magnetic
fields. Products with magnetic fields include video and audio tape
erasure products, monitors, and speakers. Security devices with
magnetic fields include airport walk-through devices and security
wands. The airport security devices that check carry-on luggage,
usually while it is placed on a conveyor belt, use x-rays instead of
magnetism and will not damage a hard drive or a diskette.
■ Do not spray a drive with cleaners.
■ Avoid exposing a drive to liquids or temperature extremes.
■ If you mail a drive, ship it in packaging that protects it from shock,
vibration, temperature, and humidity. Label the package
“FRAGILE.”
Hardware Guide
4–3
331734-001.book Page 4 Monday, July 14, 2003 3:47 PM
Drives
Inserting or Removing Drive Media
For general information about inserting or removing a drive from
a MultiBay, refer to the documentation included with an optional
External MultiBay or Docking Station. This section provides
information that is not provided with optional drives or
MultiBays and that may be helpful to users unfamiliar with
standard removable drives.
Inserting a CD or DVD
1. Be sure the tablet PC is turned on.
2. Press the media release button 1 on the drive bezel to release
the media tray, then pull the tray outward until it is fully
extended 2.
3. Position a CD or one-sided DVD over the tray label side up.
4. Gently press the disc onto the tray spindle 3 until the disc
snaps into place. Handle the disc by the edges, not the flat
surfaces. (If the media tray is not fully extended, tilt the disc
to position it over the tray spindle, then press it downward
into position.)
5. Close the media tray 4.
Inserting a CD or DVD into an optical drive
4–4
Hardware Guide
331734-001.book Page 5 Monday, July 14, 2003 3:47 PM
Drives
Removing a CD or DVD (with Power)
If power is available:
1. Be sure the tablet PC is on.
✎
Press the media release button 1 on the drive bezel to release the
media tray, then pull the tray outward until it is fully extended 2.
2. Remove the disc from the tray 3 by gently pushing down
on the spindle while pulling up on the outer edges of the disc.
If the media tray is not fully extended, tilt the disc as you
remove it. Handle the disc by the edges, not the flat surfaces.
3. Close the media tray 4.
4. Place the disc in a protective case.
Removing a CD or DVD from an optical drive when power
is available
Hardware Guide
4–5
331734-001.book Page 6 Monday, July 14, 2003 3:47 PM
Drives
Removing a CD or DVD (Without Power)
Ä
CAUTION: To prevent damage to the pen tip, do not insert the pen tip
into the release access.
If the tablet PC is turned off or if no power is available, the media
release button on the drive will not work. To remove a disc from
an optical drive without using the media release button:
1. Insert a small object like the end of a paper clip into the
release access 1 in the front bezel of the drive.
2. Press gently on the paper clip until the media tray is released,
then pull the tray outward until it is fully extended 2.
3. Remove the disc from the tray 3. If the media tray is not fully
extended, tilt the disc as you remove it. Handle the disc by the
edges, not the flat surfaces.
4. Close the media tray 4.
5. Place the disc in a protective case.
Removing a CD or DVD from an optical drive when power is not
available
4–6
Hardware Guide
331734-001.book Page 7 Monday, July 14, 2003 3:47 PM
Drives
Inserting a Diskette
To insert a diskette into a diskette drive, gently push the diskette,
label side up, into the drive until it clicks into place.
The media eject button extends when the diskette is correctly
inserted.
Identifying the media eject button on a diskette drive
Removing a Diskette
To remove a diskette from a diskette drive:
1. Press the media eject button on the drive to eject the diskette.
2. Pull the diskette from the drive.
3. Place the diskette in a protective case.
Hardware Guide
4–7
331734-001.book Page 8 Monday, July 14, 2003 3:47 PM
Drives
Using Drive Media
Avoiding Standby and Hibernation
Standby or Hibernation while playing audio or video
✎ Initiating
drive media may stop the play or diminish the quality of the play.
If Standby or Hibernation is accidentally initiated while a
medium is in use, slide and release the power switch to resume
from Standby or Hibernation, then restart the tablet PC.
For more information about Standby and Hibernation, refer on
this CD to the Software Guide, “Power” chapter.
Displaying Media Contents
When you insert a diskette, CD, or DVD into the system, the
tablet PC can play the medium, display its contents, take no
action, or display a response prompt on the screen. You can set
the responses of the tablet PC to the insertion of various types of
media by using the operating system AutoPlay feature.
Setting AutoPlay Preferences
To set AutoPlay preferences:
1. Select Start > My Computer.
2. Right-click a drive.
3. Select Properties > AutoPlay tab, then follow the instructions
on the screen.
4. To save your settings, select the OK button.
4–8
Hardware Guide
331734-001.book Page 9 Monday, July 14, 2003 3:47 PM
Drives
Displaying Media Contents Without Using AutoPlay
To display the contents of a drive medium when the contents are
not displayed by AutoPlay:
1. Insert the medium into the drive.
2. Select Start > Run, then type:
explorer x:
(where X = the drive designation of the drive containing
the medium).
3. Select the OK button.
designation is a letter of the alphabet that the tablet PC
✎ Ausesdriveto identify
the drive. To display the drive designation of
every drive in the system, select Start > My Computer.
Caring for Drive Media
Ä■
CAUTION: To prevent damage to drive media:
Do not open the metal shutter of a diskette or touch the disk within
the diskette case.
■ Do not expose a diskette to a strong magnetic field, such as the
security field used by a walk-through security device or a handheld
security wand.
■ Clean a CD or DVD only with a disc cleaning kit. Disc cleaning kits
are available from most electronics retailers.
\\
Hardware Guide
4–9
331734-001.book Page 10 Monday, July 14, 2003 3:47 PM
Drives
Finding More Drive Software
Information
All the software you need to play the types of CDs and DVDs
supported by the tablet PC is included with the tablet PC. For
information about this software, refer on this CD to the Software
Guide, “CD and DVD Software” chapter.
In addition, a feature in the Setup utility enables you to set the
tablet PC to start from a specified medium or device. For
instructions, refer on this CD to the Software Guide, “Boot
Order” chapter.
4–10
Hardware Guide
331734-001.book Page 1 Monday, July 14, 2003 3:47 PM
5
Audio
Adjusting Volume
Volume can be adjusted by using the Windows volume control
icon, the Q Menu, or the volume adjustment available within
some applications. Volume can be adjusted on the Q Menu
without using a keyboard or the pen. For information about
application volume features, refer to the application
documentation.
Using the Volume Control Icon
To display the Windows volume control icon in the system tray:
1. Select Start > Control Panel > Sounds, Speech, and Audio
Devices icon > Sounds and Audio Devices icon.
2. Select the Volume tab.
3. Select the check box for Place Volume Icon In The Taskbar.
4. Select the OK button.
5. If the icon is not displayed, select the system tray icon for
Show Hidden Icons.
To adjust, mute, or restore volume using the volume control icon,
select the icon in the system tray. Then:
■
To increase or decrease volume, select the slide bar, then drag
it upward or downward.
■
To mute or restore volume, select or clear the Mute check box.
To close the volume control pop-up window, click anywhere
outside the window.
Hardware Guide
5–1
331734-001.book Page 2 Monday, July 14, 2003 3:47 PM
Audio
Using the Q Menu
To adjust, mute, or restore volume using the Q Menu:
1. To open the Q Menu, press the Q menu button 1.
❏
To display the Windows volume control window, select
the Volume tab.
❏
To mute or restore system volume, select the Mute
On/Off tab. (Selecting the On/Off tab mutes system
volume if it is on or restores system volume if it
is muted.)
2. To close the Q Menu, press the Q menu button, tap anywhere
outside the Q Menu with the pen tip, or click an optional
pointing device.
To select an item on the Q Menu without using a keyboard or the
pen, press the Q menu button, rotate the jog dial 2 upward or
downward to scroll vertically through the items, then press the
jog dial inward to select an item.
For more information about using the Q Menu, refer on this CD
to the Software Guide, “Q Menu and Desktop Video Profiles”
chapter.
Identifying the Q menu button and the jog dial
5–2
Hardware Guide
331734-001.book Page 3 Monday, July 14, 2003 3:47 PM
Audio
Using the Internal Speakers
The internal speakers play sound in stereo from applications,
the operating system, games, drive media, the Internet, and other
sources.
The internal speakers are disabled if:
■
Optional powered speakers or a headphone is connected to
the audio-out jack on the tablet PC or an optional Docking
Station.
■
An optional mobile telephone headset is connected to the
headset jack.
Attaching an optional tablet PC keyboard to the tablet PC or
connecting a line-in device, such as a clock radio or MP3 player,
to the tablet PC or to an optional Docking Station does not affect
the performance of the internal speakers.
Identifying the internal speakers
Hardware Guide
5–3
331734-001.book Page 4 Monday, July 14, 2003 3:47 PM
Audio
Using the Internal Microphone
The internal microphone:
■
Has a standard sensitivity of -45 decibels.
■
Can be used while a screen protector or an optional tablet PC
keyboard is attached. A screen protector is provided with an
optional Docking Station.
■
Is disabled if:
❏
An optional external microphone is connected to the
microphone jack.
❏
An optional headset is connected to the headset jack.
If you are using speech recognition or other software that requires
optimal sound quality, use an optional external microphone or
headset. To access on-screen tutorials that include operating
system speech features:
1. Open Windows Explorer. To open Windows Explorer from
the Start button, select Start > All Programs > Accessories >
Windows Explorer.
2. In Windows Explorer, select My Computer > Local
Disk (C:) > WINDOWS > Help > latute.hta.
Identifying the internal microphone
5–4
Hardware Guide
331734-001.book Page 5 Monday, July 14, 2003 3:47 PM
Audio
Connecting an Audio Device
Identifying Audio Jacks
The tablet PC has 3 audio jacks:
■
The audio-out jack 1 connects stereo headphones or powered
stereo speakers.
■
The headset jack 2 can support a headset, such as a mobile
telephone headset with a microphone and a monaural ear
piece.
■
The microphone jack 3 supports a monaural external
microphone.
Identifying the audio jacks
Hardware Guide
5–5
331734-001.book Page 6 Monday, July 14, 2003 3:47 PM
Audio
Using the Audio-Out Jack
Å
WARNING: To reduce the risk of personal injury, adjust the volume
before putting on headphones.
Ä
CAUTION: To prevent possible damage to an external device, do not
plug a monaural plug into the audio-out jack.
When connecting a device to the audio-out jack:
■
Use only a 3.5-mm stereo plug.
■
For best sound quality, use 24-ohm to 32-ohm headphones.
When optional powered speakers or a headphone is connected
to the audio-out jack on the tablet PC or an optional Docking
Station, the internal speakers are disabled.
Using the Headset Jack
The headset jack can support a headset, such as a mobile
telephone headset, that has a microphone, a monaural ear piece,
and a 2.5-mm plug.
When a headset is connected to the headset jack, the internal
microphone and speakers are disabled.
5–6
Hardware Guide
331734-001.book Page 7 Monday, July 14, 2003 3:47 PM
Audio
Using the Microphone Jack
The microphone jack supports a monaural microphone with a
3.5-mm plug.
A monaural electret condenser microphone is recommended. If
you connect a stereo microphone, left channel sound will record
on both channels.
When an optional headset or external microphone is connected to
the tablet PC, the internal microphone is disabled.
Finding Audio and Video
Software Information
For information about using audio and video software, refer on
this CD to the Software Guide, “CD and DVD Software” chapter.
Hardware Guide
5–7
331734-001.book Page 1 Monday, July 14, 2003 3:47 PM
6
Internal Modem
The tablet PC has an RJ-11 telephone jack and preinstalled
modem drivers.
A modem cable with RJ-11 connectors at each end is included
with models that ship with an internal modem. If you purchased
the tablet PC in a country where RJ-11 telephone jacks are not
standard, a country-specific modem adapter is also included.
The internal modem supports:
■
All applications supported by the operating system.
■
V.34 ITU (International Telecommunications Union) analog
modem recommendations for speeds up to 33.6 Kbps.
■
V.44 data compression algorithm.
■
V.90/V.92 ITU digital/analog modem pair recommendations
for speeds up to 56 Kbps.
✎
Hardware Guide
The digital/analog modem pair rates allow faster
downloads only from compliant digital sources. Maximum
achievable download rates are currently unknown, may not
reach 56 Kbps, and will vary with line conditions. Maximum
achievable upload rates are limited to 48 Kbps, may not
reach 48 Kbps, and will vary with line conditions.
6–1
331734-001.book Page 2 Monday, July 14, 2003 3:47 PM
Internal Modem
Connecting the Modem
Selecting Connectors
The modem must be connected to an analog telephone line.
Å
WARNING: To reduce the risk of electric shock, fire, or damage to the
equipment, do not plug a telephone cable into the RJ-45 network jack.
Ä
CAUTION: Jacks for digital PBX systems may resemble RJ-11 telephone
jacks, but are not compatible with the modem.
Jacks for analog telephone lines and procedures for connecting
the modem vary by country:
6–2
■
If you are connecting the modem in a country where
RJ-11 telephone jacks are standard, follow the instructions
in the “Connecting the Modem to an RJ-11 Jack” section,
next in this chapter.
■
If you are connecting the modem in a country where RJ-11
telephone jacks are not standard, a modem adapter specific to
the country in which you purchased the tablet PC is included
with the tablet PC. Follow the instructions in the “Connecting
the Modem with an Adapter” section, later in this chapter.
■
If you plan to use the modem outside the country in which
you purchased the tablet PC, you can purchase adapters
specific for the countries on your itinerary from most
computer or electronics retailers. For information about
using country-specific software configurations, see the
“Setting Country Preferences” section, later in this chapter.
Hardware Guide
331734-001.book Page 3 Monday, July 14, 2003 3:47 PM
Internal Modem
Connecting the Modem to an RJ-11 Jack
To connect the modem to an analog telephone line that has an
RJ-11 telephone jack:
1. To access the RJ-11 jack 1 on the tablet PC, open the upper
panel of the tablet PC.
2. If the modem cable has noise suppression circuitry 2, which
prevents interference with TV and radio reception, orient the
circuitry end of the cable toward the tablet PC.
3. Plug the cable into the RJ-11 telephone jack 3 (not the
RJ-45 network jack) on the tablet PC.
4. Plug the modem cable into an RJ-11 telephone jack 4 (not
into an RJ-45 network jack or a PBX jack).
Connecting the modem to an RJ-11 telephone wall jack
(Telephone wall jacks vary in appearance by region.)
Å
WARNING: To reduce the risk of electric shock, disconnect the modem
from the telephone network before accessing an internal compartment
of the tablet PC. Internal compartments include the memory and
Mini PCI compartment and the hard drive bay.
Hardware Guide
6–3
331734-001.book Page 4 Monday, July 14, 2003 3:47 PM
Internal Modem
Connecting the Modem with an Adapter
To connect the modem to an analog telephone line that does not
have an RJ-11 telephone jack:
1. To access the RJ-11 jack 1, open the upper panel of the
tablet PC.
2. If the modem cable has noise suppression circuitry 2, which
prevents interference with TV and radio reception, orient the
circuitry end of the cable toward the tablet PC.
3. Plug the modem cable into the RJ-11 telephone jack 3 (not
the RJ-45 network jack) on the tablet PC.
4. Plug the modem cable 4 into the country-specific modem
adapter.
5. Plug the country-specific modem adapter 5 into the
telephone jack.
Connecting the modem with a modem adapter
(Telephone wall jacks vary in appearance by region.)
Å
6–4
WARNING: To reduce the risk of electric shock, disconnect the modem
from the telephone network before accessing an internal compartment
of the tablet PC. Internal compartments include the memory and
Mini PCI compartment and the hard drive bay.
Hardware Guide
331734-001.book Page 5 Monday, July 14, 2003 3:47 PM
Internal Modem
Setting Country Preferences
The internal modem is configured to function in and meet the
operating standards of the country in which you purchased
the tablet PC. To use the internal modem in other countries, you
must add country-specific modem configurations.
Displaying the Current Country
Configuration
To display the current country configuration, select Start >
Control Panel > Date, Time, Language, and Regional Options
category > Regional and Language Options icon > Regional
Options tab. The current country configuration of the modem is
displayed in the Location panel.
Adding a Country Configuration
Ä
CAUTION: To prevent loss of your current country configuration, do not
delete or replace your current country configuration. Additional country
configurations can be added without deleting the current configuration.
Ä
CAUTION: To prevent modem malfunction and violation of
telecommunications regulations and laws, use the modem only with the
country configuration for the country in which you are using the modem.
To add a country configuration:
1. Select Start > Control Panel > Network and Internet
Connections category.
2. From the See Also menu in the left column of the window,
select Phone and Modem Options > Dialing Rules tab.
✎
Hardware Guide
If you do not see the Dialing Rules tab when you select Phone
and Modem Options, complete the fields in the Location
Information wizard. After you save the settings on the
Location Information wizard, the Dialing Rules tab is displayed.
6–5
331734-001.book Page 6 Monday, July 14, 2003 3:47 PM
Internal Modem
3. Select the New button, then type a name for the new location
in the Location Name field.
4. Select a country or region for the new location from the
Country/Region list.
If you select a country or region that is not supported by the
modem, the country configuration defaults to USA or UK.
5. Select the OK button > OK button.
Solving Travel Connection Problems
If you experience connection problems while using the modem
outside the country in which you purchased the tablet PC, the
following suggestions may be helpful.
Before changing any settings, you may want to write down your
current settings so you can quickly replace those settings when
you return home.
Check the Line
The modem requires an analog, not a digital, telephone line.
A line described as a PBX line is usually a digital line. A
telephone line described as a data line, fax machine line, modem
line, or standard telephone line is probably an analog line.
Check the Dialing Mode
Dial a few digits on the telephone, then listen for clicks or tones.
Clicks indicate that the telephone line supports pulse dialing;
tones indicate that the telephone line supports tone dialing. To set
the internal modem to support either pulse or tone dialing:
1. Select Start > Control Panel > Network and Internet
Connections category.
2. From the See Also menu in the left column of the window,
select Phone and Modem Options > Dialing Rules tab.
6–6
Hardware Guide
331734-001.book Page 7 Monday, July 14, 2003 3:47 PM
Internal Modem
3. Select your location, then select the Edit button.
4. Select the Tone or Pulse radio button.
5. Select the OK button > OK button.
Check the Telephone Number
Dial the telephone number on the telephone, verify that the
remote modem is answering, then hang up.
Check the Dial Tone
If the modem receives a dial tone it does not recognize, it will not
dial and will display a No Dial Tone error message.
■
To set the modem to ignore all dial tones before dialing:
1. Select Start > Control Panel > Network and Internet
Connections category.
2. From the See Also menu in the left column of the
window, select Phone and Modem Options >
Modems tab.
3. Select your modem > Properties button > Modem tab.
4. Clear the Wait For Dial Tone Before Dialing check box.
5. Select the OK button > OK button.
■
If you continue to receive the No Dial Tone error message
after clearing the check box:
1. Select Start > Control Panel > Network and Internet
Connections category.
2. From the See Also menu in the left column of the
Network and Internet Connections window, select Phone
and Modem Options > Dialing Rules tab.
3. Select your location, then select the Edit button.
4. Select your location from the Country/Region list.
✎
If you select a country or region that is not supported by the
modem, the country configuration defaults to USA or UK.
5. Select the OK button.
Hardware Guide
6–7
331734-001.book Page 8 Monday, July 14, 2003 3:47 PM
Internal Modem
6. In the Phone and Modem Options window, select the
Modems tab.
7. Select your modem > Properties button > Modem tab.
8. Clear the Wait For Dial Tone Before Dialing check box.
9. Select the OK button > OK button.
Accessing Communication Software
To access preinstalled modem software, including software
for terminal emulation and data transfer, select Start > All
Programs > Accessories > Communications, then select an
application, wizard, or utility.
Finding AT Command Information
It is not necessary to use AT commands with most modem
software. If you prefer to use AT commands, refer on this CD to:
6–8
■
Modem Command Guidelines for information about
accessing Hyperterminal, identifying the modem in your
tablet PC, and using AT commands.
■
The Soft Modem AT Command Reference Manual for the
AT commands supported by your modem. This guide is
provided in English only.
Hardware Guide
331734-001.book Page 1 Monday, July 14, 2003 3:47 PM
7
Network Connections
The tablet PC has an RJ-45 network jack. Network tablet PC
models also have an internal NIC (network interface card),
preinstalled network drivers, and a network cable.
The tablet PC can be connected to a network whether or not the
internal modem is connected to a telephone line.
If your tablet PC is connected to a network, you may want to
confer with your network administrator before changing network
settings.
The tablet PC supports network speeds up to 10 Mbps when
connected to a 10BaseT network and 100 Mbps when connected
to a 100BaseTX network.
Hardware Guide
7–1
331734-001.book Page 2 Monday, July 14, 2003 3:47 PM
Network Connections
Connecting the Network Cable
A network cable has an 8-pin RJ-45 network connector at each
end and may contain noise suppression circuitry, which prevents
interference with TV and radio reception.
1. To access the tablet PC RJ-45 network jack 1, open the upper
panel of the tablet PC.
2. Orient the end of a network cable with noise suppression
circuitry 2 toward the tablet PC.
3. Plug the network cable into the tablet PC RJ-45 network
jack 3.
4. Plug the other end of the cable into the network RJ-45
jack 4.
Connecting a network cable
Å
7–2
WARNING: To reduce the risk of electric shock, disconnect
the network cable before accessing an internal compartment of the
tablet PC. Internal compartments include the memory and mini PCI
compartment and the hard drive bay.
Hardware Guide
331734-001.book Page 3 Monday, July 14, 2003 3:47 PM
Network Connections
Turning a Network Connection Off
and On
To conserve power, turn off a network connection you are not
using.
■
To turn off a network connection, log off the network, then
disconnect the network cable.
■
To turn on a network connection, connect the network cable,
then log on to the network.
Using the LAN Connection Lights
The 2 LAN connection lights indicate the status of a network
connection:
■
Both lights off: The tablet PC is not connected to a LAN.
■
Both lights on: The tablet PC is connected to a LAN with
a 100 Mbps link.
■
Green light on and yellow light off: The tablet PC is
connected to a LAN with a 10 Mbps link.
Identifying the LAN connection lights
Hardware Guide
7–3
331734-001.book Page 4 Monday, July 14, 2003 3:47 PM
Network Connections
Accessing the Network at Startup
To connect to a PXE (Preboot eXecution Environment) or RPL
(Remote Program Load) server during startup, you must respond
to the Network Service Boot prompt each time you want to
connect to the server as the tablet PC starts or restarts.
To set the tablet PC to display the Network Service Boot prompt
each time it is started or restarted, you must enable the internal
NIC for startup.
Enabling a NIC for Startup
An internal NIC is enabled for startup in the Setup utility.
1. To open the Setup utility, turn on or restart the tablet PC.
While the HP logo is displayed and a cursor is flashing in
the upper right corner of the screen, press the esc button
on the tablet PC or press F10 on an optional keyboard.
2. To change the language, select Advanced > Languages.
❏
To navigate and select without using an optional
keyboard, rotate the jog dial to scroll and press the jog
dial inward to select.
❏
To navigate and select using an optional keyboard, use
the arrow and enter keys.
3. Select Advanced menu > I/O Device Configuration, then
enable PXE/Remote Boot.
4. To save your preference and exit the Setup utility, select
File > Save Changes and Exit, then follow the instructions
on the screen.
Your preference is set as you exit the Setup utility and is in effect
when the tablet PC restarts.
7–4
Hardware Guide
331734-001.book Page 5 Monday, July 14, 2003 3:47 PM
Network Connections
Responding to a Network Service Boot
Prompt
After the internal NIC has been enabled for startup, the Network
Service Boot prompt is displayed very briefly in the lower right
corner of the screen each time the tablet PC is started or restarted.
To connect to a network by responding to the prompt, use either
of the following procedures:
■
Press the tab button on the tablet PC.
■
Press F12 on an optional keyboard. To press F12 on the
tablet PC keyboard, press Fn+F11/F12.
Finding Wireless LAN Information
The tablet PC supports wireless LAN provided through a
mini PCI board, a PC Card, or an SD Card. A wireless LAN
PC Card or an SD Card is optional. A wireless mini PCI board
may be preinstalled.
■
Information about using a preinstalled wireless LAN board is
provided on the Documentation Library Wireless LAN CD
included with your tablet PC.
■
Information about the Bluetooth wireless option is provided
on the Documentation Library Bluetooth CD included with
your tablet PC.
■
Information about Microsoft’s Wireless LAN configuration
utility is available in the Help & Support Center, which is
accessible from the Start Menu.
If you purchase a wireless device as an option, documentation
about the device is included with the option.
Hardware Guide
7–5
331734-001.book Page 1 Monday, July 14, 2003 3:47 PM
8
External Device Connections
Standard Device
The jacks and connectors described in this guide support standard
external devices.
■
For information about which jack or connector to use, refer to
the documentation included with the device.
■
For information about installing or loading any software
required by the device, refer to the device documentation, the
operating system Help files, or the device manufacturer’s
Web site.
To connect a standard external device to the tablet PC:
1. If you are connecting a powered device, be sure the device is
turned off.
2. Connect the device to a jack or connector on the tablet PC.
3. If you are connecting a powered device, plug the device
power cord into a grounded electrical outlet.
4. Turn on the device.
properly connected display device does not display an image,
✎ Iftryapressing
the Q menu button > Internal and External item or
External Only item to switch the image to the new device.
To disconnect a standard external device from the tablet PC, turn
off the device (if it is powered), then disconnect the device from
the tablet PC.
Hardware Guide
8–1
331734-001.book Page 2 Monday, July 14, 2003 3:47 PM
External Device Connections
USB Device
USB is a hardware interface that can be used to connect external
devices such as a USB keyboard, mouse, drive, printer, scanner,
or hub to the tablet PC or an optional Docking Station.
A USB device functions in the system in the same way as a
comparable non-USB device. The USB connectors support
USB 2.0- or 1.1-compliant devices.
A USB hub is a connecting device that can be powered or
unpowered. USB hubs can be connected to a USB connector on
the tablet PC or on an optional Docking Station or to other USB
devices. Hubs support varying numbers of USB devices and are
used to increase the number of USB devices in the system.
■
Powered hubs must be connected to external power.
■
Unpowered hubs must be connected either to a USB
connector on the tablet PC or to a port on a powered hub.
Some USB devices may require additional support software,
which is usually included with the device. For software
information about a specific device, refer to the documentation
included with the device.
Identifying the 2 USB connectors on the tablet PC
8–2
Hardware Guide
331734-001.book Page 3 Monday, July 14, 2003 3:47 PM
External Device Connections
Tablet PC Keyboard
A tablet PC keyboard, which includes a numeric keypad, can be
used with the tablet PC.
For information about using the tablet PC keyboard pointing
device, keypad, and F11/F12 key, see the “Pen, Command Controls
and Keyboards” chapter, “Tablet PC Keyboard” section.
The tablet PC can be attached or detached from the keyboard
while it is on, off, in Standby, or in Hibernation.
Attaching the Tablet PC to the Keyboard
To attach the tablet PC to the keyboard:
1. Place the keyboard on a flat surface with the keyboard keys
facing you.
2. Rotate the attachment features on the rotation disk toward the
keyboard.
Rotating the attachment features toward the keyboard
Hardware Guide
8–3
331734-001.book Page 4 Monday, July 14, 2003 3:47 PM
External Device Connections
3. Position the tablet PC horizontally above the keyboard, with
the front of the tablet PC facing the keyboard.
Positioning the tablet PC above the keyboard
4. Align the 4 slots on the tablet PC with the keyboard
connector, alignment key, and 2 keyboard hooks on the
keyboard 1, then press the tablet PC downward until it
snaps into place 2.
Attaching the tablet PC to the keyboard
8–4
Hardware Guide
331734-001.book Page 5 Monday, July 14, 2003 3:47 PM
External Device Connections
Adjusting the Tablet PC and Keyboard
To tilt the tablet PC screen to a comfortable viewing angle, push
gently on the top of the tablet PC.
Tilting the tablet PC on the keyboard
Hardware Guide
8–5
331734-001.book Page 6 Monday, July 14, 2003 3:47 PM
External Device Connections
Closing the Tablet PC and Keyboard
To close the tablet PC and keyboard as you would close the
display on a standard notebook:
1. Rotate the tablet PC clockwise until it snaps into place facing
away from the keyboard.
Rotating the tablet PC toward the back of the keyboard
2. Tilt the tablet PC downward onto the keyboard.
Closing the tablet PC and keyboard
8–6
Hardware Guide
331734-001.book Page 7 Monday, July 14, 2003 3:47 PM
External Device Connections
Transporting the Tablet PC and Keyboard
If you are transporting the tablet PC and keyboard while they are
not attached, be sure the rotation disk is in the default position.
(The attachment features are at the rear of the tablet PC and the
HP logo is right side up when you are facing the keyboard.)
If you are transporting the tablet PC and keyboard while they are
attached, you may want to use the keyboard latch. The keyboard
latch locks the tablet PC to the keyboard while the tablet PC and
keyboard are closed.
■
To lock the tablet PC to the keyboard while the tablet PC is
closed, slide the keyboard latch to the right 1.
■
To release the tablet PC from the closed position, push the
keyboard latch to the left, then slide and hold the latch toward
the left as you open the tablet PC 2.
Using the keyboard latch
Hardware Guide
8–7
331734-001.book Page 8 Monday, July 14, 2003 3:47 PM
External Device Connections
Detaching the Tablet PC from the Keyboard
To detach the tablet PC from the keyboard:
1. If the tablet PC is closed, open the tablet PC, then rotate the
tablet PC so the screen is facing the keyboard in the notebook
position.
If the tablet PC does not open easily from the keyboard, it
may be secured to the keyboard with the keyboard latch. For
release instructions, see the “Transporting the Tablet PC and
Keyboard” section, earlier in this chapter.
Opening the tablet PC to the notebook position
8–8
Hardware Guide
331734-001.book Page 9 Monday, July 14, 2003 3:47 PM
External Device Connections
2. Rotate the tablet PC and keyboard so the back of the
tablet PC and the keyboard are facing you.
Positioning the tablet PC and keyboard to detach the tablet PC
3. To detach the keyboard, slide and hold the attachment release
switch 1 on the tablet PC as you lift the tablet PC away from
the keyboard 2.
Detaching the tablet PC from the tablet PC keyboard
Hardware Guide
8–9
331734-001.book Page 10 Monday, July 14, 2003 3:47 PM
External Device Connections
Cable Lock
Loop the cable around a secure object, then insert the cable
lock key 1 into the security cable lock 2. Then insert the
cable lock into the security cable slot 3 on the tablet PC.
Connecting an optional cable lock
purpose of security solutions is to act as a deterrent. These
✎ The
solutions do not prevent the product from being mishandled or
stolen.
8–10
Hardware Guide
331734-001.book Page 1 Monday, July 14, 2003 3:47 PM
9
Additional Hardware Options
Obtaining Upgrades
To order or learn more about optional hardware upgrades and
accessories, visit the HP Web site at http://www.hp.com. The
hardware upgrade area is English only. Or, refer to the Worldwide
Telephone Numbers booklet, included in English only with the
tablet PC, to contact an HP-authorized dealer, reseller, or service
provider.
For information about obtaining and installing software updates
and upgrades, refer on this CD to the Software Guide.
Using a PC Card
A PC Card is a credit card–sized accessory designed to conform
to the standard specifications of the Personal Computer Memory
Card International Association (PCMCIA). The tablet PC
supports both 32-bit CardBus and 16-bit PC Cards.
A PC Card can be used to add modem, sound card, memory,
storage, wireless communication, or digital camera functions to
the tablet PC. A PC Smart Card Reader or a biometric
identification PC Card can add security.
purpose of security solutions is to act as a deterrent. These
✎ The
solutions do not prevent the product from being mishandled or
stolen.
Hardware Guide
9–1
331734-001.book Page 2 Monday, July 14, 2003 3:47 PM
Additional Hardware Options
Selecting a PC Card
A Type I or Type II PC Card can be used. A Type III PC Card will
not fit into the PC Card slot of the tablet PC. (Types I, II, and III
PC Cards vary by thickness, with Type III being the thickest.)
Zoomed video cards are not supported.
Configuring a PC Card
Ä
9–2
CAUTION: If you install all of the software or any of the enablers
provided by a PC Card manufacturer, you may not be able to use other
PC Cards. If you are instructed by the documentation included with
a PC Card to install device drivers:
■ Install only the device drivers for the Microsoft Windows XP
Tablet PC Edition operating system.
■ Do not install other software, such as card services, socket services,
or enablers, that may also be supplied by the PC Card
manufacturer.
Hardware Guide
331734-001.book Page 3 Monday, July 14, 2003 3:47 PM
Additional Hardware Options
Inserting a PC Card
Ä
CAUTION: To prevent damage to the PC Card connectors, use minimal
force when inserting a PC Card into the PC Card slot.
1. Hold the PC Card label-side up with the connector facing
the tablet PC.
2. Gently push the card into the PC Card slot until the card
is seated.
Inserting a PC Card
Stopping and Removing a PC Card
Ä
CAUTION: To prevent loss of work or an unresponsive system, stop a
PC Card before removing it.
inserted PC Card uses power even when it is not in use. To
✎ An
conserve power, stop a PC Card when you are not using it.
1. Close all applications and complete all activities that are
supported by the PC Card.
2. To stop a PC Card, select the system tray icon for Safely
Remove Hardware, then follow the instructions on the screen.
(To display the Safely Remove Hardware icon, select the
system tray icon for Show Hidden Icons.)
Hardware Guide
9–3
331734-001.book Page 4 Monday, July 14, 2003 3:47 PM
Additional Hardware Options
3. To release the PC Card, press the PC Card eject button 1.
4. Gently pull out the PC Card 2.
Removing a PC Card
Using an SD Card
An SD Card is smaller than a PC Card, but can add similar
functions to the tablet PC system. Most commonly, an SD Card is
used to add backup, storage, wireless network, fax/modem, or
cellular telephone functions.
When using an SD Card, HP recommends that you connect the
system to external power whenever possible. Some SD Cards use
large amounts of power and can quickly drain a battery pack.
Ä■
CAUTION: To prevent loss of work or damage to an SD Card:
■
9–4
Do not save your work to an SD Card unless the tablet PC is
connected to external power or you are certain that the battery
pack has enough charge remaining to complete the operation.
Do not shut down the tablet PC or remove the SD Card until all
activities supported by the card are complete.
Hardware Guide
331734-001.book Page 5 Monday, July 14, 2003 3:47 PM
Additional Hardware Options
Configuring an SD Card
If an SD Card manufacturer instructs you to install card-specific
drivers, be sure to install only the drivers supported by the
Windows XP Tablet PC Edition operating system. If you are
unsure of driver compatibility, contact the SD Card manufacturer.
Inserting an SD Card
Ä
CAUTION: To prevent damage to the SD Card connectors, use minimal
force when inserting an SD Card into the SD Card slot.
1. Hold the SD Card label-side up with the connector facing
the tablet PC.
2. Gently push the card into the SD Card slot until the card is
seated.
Inserting an SD Card
Hardware Guide
9–5
331734-001.book Page 6 Monday, July 14, 2003 3:47 PM
Additional Hardware Options
Stopping and Removing an SD Card
Ä
CAUTION: To prevent loss of work or an unresponsive system, stop an
SD Card before removing it.
inserted SD Card uses power even when it is not in use. To
✎ An
conserve power, stop an SD Card when you are not using it.
1. Close all applications and complete all activities that are
supported by the SD Card.
2. To stop an SD Card, select the system tray icon for Safely
Remove Hardware, then follow the instructions on the screen.
(To display the Safely Remove Hardware icon, select the
system tray icon for Show Hidden Icons.)
3. To release the SD Card, press inward on the SD Card 1.
4. Gently pull out the SD Card 2.
Removing an SD Card
9–6
Hardware Guide
331734-001.book Page 7 Monday, July 14, 2003 3:47 PM
Additional Hardware Options
Increasing Memory
You can increase the amount of RAM (random access memory)
in the tablet PC with an optional PC Card or with an optional
memory module.
The tablet PC has one user-accessible memory slot. The slot
supports a PC133-compliant 128-megabyte, 256-megabyte, or
512-megabyte memory module.
Displaying Memory Information
When the amount of RAM in the system increases, the operating
system increases the hard drive space reserved for the
hibernation file.
If you experience problems with Hibernation after increasing
RAM, verify that your hard drive has enough free space for the
larger hibernation file.
■
To display the amount of RAM in the system:
Select Start > Control Panel > Performance and
Maintenance icon > System icon > General tab.
■
To display both the amount of free space on your hard drive
and the amount of space required by the hibernation file:
Select Start > Control Panel > Performance and
Maintenance icon > Power Options icon > Hibernate tab.
Hardware Guide
9–7
331734-001.book Page 8 Monday, July 14, 2003 3:47 PM
Additional Hardware Options
Removing or Inserting a Memory Module
Å
WARNING: To prevent exposure to electric shock, work only in the
memory and mini PCI compartment during this procedure. The hard
drive bay and the memory and mini PCI compartment are the only
user-accessible internal compartments on the tablet PC. All other areas
that require a tool to access should be opened only by an HP-authorized
service provider.
Å
WARNING: To prevent exposure to electric shock and damage to the
tablet PC, shut down the tablet PC, unplug the power cord, and remove
the battery pack before installing a memory module.
Ä
CAUTION: To prevent electrostatic discharge from damaging electronic
components: Discharge static electricity from yourself by touching a
grounded metal object before beginning this procedure. For more
information about preventing electrostatic damage, refer on this CD to
the Regulatory and Safety Notices guide.
1. Be sure that you have followed the instructions in the
preceding warnings and caution.
If you are not sure whether the tablet PC is off or in
Hibernation, slide and release the power switch. If your
work returns to the screen, save your work, exit all
applications, then shut down the tablet PC.
2. Disconnect all external devices connected to the tablet PC.
3. Disconnect the power cord.
4. Remove the battery pack.
5. If the tablet PC keyboard is attached to the tablet PC, detach
the keyboard.
9–8
Hardware Guide
331734-001.book Page 9 Monday, July 14, 2003 3:47 PM
Additional Hardware Options
6. Turn the tablet PC front side down.
7. Remove the two memory and mini PCI compartment
retaining screws 1.
8. Slide, lift, then remove the memory and mini PCI
compartment cover 2.
Opening the memory compartment
Hardware Guide
9–9
331734-001.book Page 10 Monday, July 14, 2003 3:47 PM
Additional Hardware Options
9. Remove or insert the memory module.
To remove a memory module:
a. Release the retention clips on each side of the memory
module 1. (The memory module tilts upward.)
b. Grasp the edges of the memory module, then gently pull
it out of the memory slot 2.
c. To protect a removed memory module, place it in an
electrostatic-safe container.
Removing a memory module
9–10
Hardware Guide
331734-001.book Page 11 Monday, July 14, 2003 3:47 PM
Additional Hardware Options
To insert a memory module:
a. Align the keyed (notched) edge of the memory module
with the keyed area in the memory slot 1.
b. Press the memory module into the slot from a 45-degree
angle until it is seated 2.
c. Push the memory module downward until the retention
clips snap into place 3.
Inserting a memory module
Hardware Guide
9–11
331734-001.book Page 12 Monday, July 14, 2003 3:47 PM
Additional Hardware Options
10. Align the tabs on the memory compartment cover with the
cover slots on the tablet PC 1, then press downward on
the cover until it is seated.
11. Reinsert the two retaining screws that secure the memory and
mini PCI compartment cover to the tablet PC 2.
Replacing the memory compartment cover
9–12
Hardware Guide
331734-001.book Page 1 Monday, July 14, 2003 3:47 PM
10
Maintenance, Shipping and
Travel
Maintaining Software
HP recommends that you:
■
Install all software updates as they become available. For
instructions, refer on this CD to the Software Guide,
“Software Updates and Restorations” chapter.
■
Install and use virus protection software. Antivirus software
can be purchased from most computer or electronics retailers.
■
Back up your work and system software frequently.
❏
For information about using the operating system backup
utility, select Start > Help and Support > Performance
and Maintenance topic. In the upper left pane of
the Performance and Maintenance window, select the
Backing Up Your Data check box.
❏
For information about selecting optional backup software
or hardware, consult with your authorized HP dealer,
reseller, or service provider.
Hardware Guide
10–1
331734-001.book Page 2 Monday, July 14, 2003 3:47 PM
Maintenance, Shipping and Travel
Protecting Hardware
To protect and prolong the performance of your hardware,
observe the following cautions.
Ä■
CAUTION: To prevent damage to your hardware or loss of work:
Carry and store the tablet PC in the portfolio or an optional
Executive Portfolio.
■ Do not place anything on top of the tablet PC, even when it is in a
portfolio.
■ Use the tablet PC only on solid surfaces and in open areas. Do not
allow a hard surface, such as an adjoining optional printer, or a
soft surface, such as carpet, clothing, or bedding, to block the vent.
■ Protect the tablet PC from liquids and excessive moisture.
■ Do not expose the tablet PC to direct sunlight, extreme
temperatures, or ultraviolet light for extended periods of time.
■ Keep all hard drives and diskettes away from magnetic fields.
Magnetic fields can corrupt data stored on hard drives and
diskettes.
■ If the tablet PC will be unused for one week or more, shut it down.
■ If the tablet PC will be disconnected from external power for more
than one month, shut down the tablet PC and remove the battery
pack. For information about storing the battery pack, see
Chapter 3,“Battery Packs.”
10–2
Hardware Guide
331734-001.book Page 3 Monday, July 14, 2003 3:47 PM
Maintenance, Shipping and Travel
Using Portfolios
To protect the tablet PC screen, HP recommends that you use or
transport the tablet PC with a portfolio attached. A slim portfolio
that protects the tablet PC or the tablet PC attached to an optional
keyboard is included with the tablet PC.
An optional leather Executive Portfolio that provides additional
protection, has slots for business cards, and accommodates
additional items is available in most regions.
To obtain the Executive Slimline or Workstation Portfolio, refer
to the Worldwide Telephone Numbers booklet included in English
only with the tablet PC to contact your authorized HP dealer,
reseller, or service provider.
Attaching a Portfolio
When you are using only the tablet PC, press the 2 tabs on the
portfolio into the 2 universal attachment slots on the tablet PC.
Identifying the universal attachment slots on the tablet PC
Hardware Guide
10–3
331734-001.book Page 4 Monday, July 14, 2003 3:47 PM
Maintenance, Shipping and Travel
When you are using the tablet PC attached to the tablet PC
keyboard, press the 2 tabs on the portfolio into the 2 universal
attachment slots on the keyboard.
Identifying the universal attachment slots on a tablet PC keyboard
10–4
Hardware Guide
331734-001.book Page 5 Monday, July 14, 2003 3:47 PM
Maintenance, Shipping and Travel
Detaching a Portfolio
To release a portfolio from the tablet PC, slide an hold the
attachment release switch on the tablet PC.
Sliding the attachment release switch on the tablet PC
To release a portfolio from the tablet PC keyboard, slide and hold
the attachment release switch on the tablet PC keyboard.
Sliding the attachment release switch on the tablet PC keyboard
Hardware Guide
10–5
331734-001.book Page 6 Monday, July 14, 2003 3:47 PM
Maintenance, Shipping and Travel
Cleaning Hardware
Å
WARNING: To prevent electric shock or damage to components,
do not attempt to clean the tablet PC until you:
■ Shut down the tablet PC.
■ Disconnect the tablet PC from external power.
■ Disconnect all powered external devices from the tablet PC.
Ä
CAUTION: Do not spray liquids on the tablet PC. Household solvents
can permanently damage tablet PC surfaces, and any liquid can
damage the internal components of the tablet PC or an optional
keyboard.
Cleaning the Screen
To remove smudges and lint, clean the screen with a soft, lint-free
cloth dampened with water or a glass cleaning liquid. Antistatic
screen cleaner or premoistened antistatic wipes may also be used.
10–6
Hardware Guide
331734-001.book Page 7 Monday, July 14, 2003 3:47 PM
Maintenance, Shipping and Travel
Cleaning a Tablet PC Keyboard
Dust, lint, and other debris can affect the performance of
an optional tablet PC keyboard. To prevent sticking or
nonfunctioning keys, clean the keyboard frequently using a
can of compressed air with a straw extension. Blow the
compressed air around the base of each key.
To clean the key surfaces, use a soft, damp, lint-free cloth.
a household vacuum cleaner to clean the keyboard may
✎ Using
deposit, rather than remove, debris.
Cleaning a tablet PC keyboard with a can of compressed air
Hardware Guide
10–7
331734-001.book Page 8 Monday, July 14, 2003 3:47 PM
Maintenance, Shipping and Travel
Replacing Hardware
Replacing the System Hard Drive
The system hard drive is the hard drive in the hard drive bay.
Remove the system hard drive only for repair or replacement.
Ä■
CAUTION: To prevent an unresponsive system and loss of work:
Shut down the tablet PC before removing the system hard drive.
Do not remove the system hard drive while the tablet PC is powered
on, in Standby, or in Hibernation.
■ To verify that the tablet PC is off and not in Hibernation, slide and
release the power switch. If your work returns to the screen, save
your work, exit all applications, then shut down the tablet PC.
10–8
Hardware Guide
331734-001.book Page 9 Monday, July 14, 2003 3:47 PM
Maintenance, Shipping and Travel
1. Save your work, then shut down the tablet PC.
2. Turn the tablet PC front side down.
3. Remove the 2 hard drive bay cover retaining screws 1.
4. Slide, lift, then remove the hard drive bay cover 2.
Removing the hard drive bay cover
Ä
CAUTION: The connector pins on the hard drive are designed to
support only the minimal insertions or removals that may be required for
repair or replacement. To prevent damage to the hard drive connectors,
be careful not to bend them while removing the hard drive.
Hardware Guide
10–9
331734-001.book Page 10 Monday, July 14, 2003 3:47 PM
Maintenance, Shipping and Travel
5. To remove the hard drive, gently disengage the drive
connectors 1 by sliding the hard drive toward the lower
edge of the tablet PC.
6. Remove the drive from the bay 2.
Removing a system hard drive from the hard drive bay
10–10
Hardware Guide
331734-001.book Page 11 Monday, July 14, 2003 3:47 PM
Maintenance, Shipping and Travel
7. To insert the replacement hard drive, lower the drive into the
hard drive bay 1, then slide the connectors on the hard drive
toward the connectors in the bay 2 until the connectors
engage and the drive is seated.
Inserting a system hard drive into the hard drive bay
Hardware Guide
10–11
331734-001.book Page 12 Monday, July 14, 2003 3:47 PM
Maintenance, Shipping and Travel
8. Align the tabs on the hard drive bay cover with the cover
slots on the tablet PC 1, then press downward on the
cover until it is seated.
9. Reinsert the 2 retaining screws that secure the cover to the
tablet PC 2.
Replacing the hard drive bay cover
10–12
Hardware Guide
331734-001.book Page 13 Monday, July 14, 2003 3:47 PM
Maintenance, Shipping and Travel
Replacing a Pointing Stick Cap
Two pointing stick replacement caps are included with an
optional tablet PC keyboard. To replace a worn pointing
stick cap:
1. If the keyboard is attached to the tablet PC, shut down the
tablet PC.
2. Gently pull off the used pointing stick cap.
3. Push a replacement cap into place.
Replacing the pointing stick cap
Hardware Guide
10–13
331734-001.book Page 14 Monday, July 14, 2003 3:47 PM
Maintenance, Shipping and Travel
Preparing the Tablet PC for
Shipping or Travel
1. Back up your work.
2. Remove a PC Card or SD Card.
3. Undock the tablet PC from an optional Docking Station.
4. Turn off, then disconnect all optional external devices such as
headphones or an External MultiBay. (It is not necessary to
detach the tablet PC from the tablet PC keyboard.)
5. Shut down the tablet PC.
6. If the tablet PC will be disconnected from an external power
source for more than one month, shut down the tablet PC,
remove the battery pack, and store the battery pack in a cool,
dry place.
7. If you are shipping the tablet PC, insert it into a portfolio,
place it in the original packing box or similar protective
packaging, and label the package “FRAGILE.”
10–14
Hardware Guide
331734-001.book Page 15 Monday, July 14, 2003 3:47 PM
Maintenance, Shipping and Travel
Traveling with the Tablet PC
Checklist for Travelers
■
Take along a backup of your work. Do not pack the backup
with the tablet PC.
■
Carry the tablet PC with you. Do not check it with
your luggage.
■
If you will have access to an optical drive, you may want to
take along the Documentation Library CD. If not, HP
suggests that you print and take with you the “Contacting
HP” section later in this chapter.
■
Do not expose the tablet PC, a hard drive, or a diskette to a
magnetic security detector.
❏
The security device that examines carry-on items placed
on a conveyer belt uses x-rays and is safe for the
tablet PC and all drive media.
❏
The walk-through security device and handheld
security wands are magnetic and may damage the
tablet PC, a hard drive, or a diskette.
■
If you plan to use the tablet PC during a flight, check with the
airline in advance. In-flight tablet PC use is at the discretion
of the airline.
■
If you expect to encounter climatic extremes, see the
“Specifications” chapter, “Tablet PC Operating
Environment” section.
Hardware Guide
10–15
331734-001.book Page 16 Monday, July 14, 2003 3:47 PM
Maintenance, Shipping and Travel
■
Å
If you are traveling internationally:
❏
If you plan to use an internal modem, review Chapter 6,
“Internal Modem” for information about using adapters
and country configurations. You may want to print and
take with you the “Solving Travel Connection Problems”
section of that chapter if you are not bringing the
Documentation Library CD.
❏
Check the computer-related customs regulations for each
country on your itinerary.
❏
Consult with an electronics retailer or an HP authorized
dealer, reseller, or service provider about power cord and
adapter requirements for each location in which you plan
to use the tablet PC. (Voltage, frequency, and plug
configurations vary.) To contact an HP-authorized dealer,
reseller, or service provider near you, refer to the
Worldwide Telephone Numbers booklet included in
English only with the tablet PC.
WARNING: To reduce the risk of electric shock, fire, or damage to the
equipment, do not attempt to run the tablet PC with a voltage converter
kit sold for appliances.
Contacting HP
Getting Help from the Internet
If you have Internet access, you can resolve most problems that
may arise while traveling with the tablet PC by using HP Help
and Support.
HP Help and Support provides links to specific areas of the HP
Web site (http://www.hp.com) where you can:
10–16
■
Obtain all documentation included with your tablet PC as
well as other information about your tablet PC such as
specifications, white papers, and customer advisories.
■
Initiate an online service event with an HP support specialist.
Hardware Guide
331734-001.book Page 17 Monday, July 14, 2003 3:47 PM
Maintenance, Shipping and Travel
■
Download the latest drivers, utilities, and other software
updates for your tablet PC.
■
Subscribe to the HP Support Software CD.
To access these links and descriptions of the options they provide,
select Start > HP Help and Support. The HP Help and Support
menu is displayed in the left panel.
Not all links are available worldwide, and most sites are available
in limited languages.
Getting Help Without Using the Internet
If you need help and cannot access the Internet:
■
■
To obtain troubleshooting information:
❏
Refer on this CD to the Troubleshooting guide.
❏
Refer to the “Solving Problems” chapter in the printed
Startup Guide included with the tablet PC.
To obtain a list of worldwide Technical Support telephone
numbers:
❏
Select Start > Control Panel > Performance and
Maintenance icon > System icon. Then, near the lower
edge of the System Properties window, select the Support
Information button.
Refer to the printed Worldwide Telephone Numbers booklet
included in English only with the tablet PC.
Hardware Guide
10–17
331734-001.book Page 1 Monday, July 14, 2003 3:47 PM
11
Specifications
The information in this chapter may be helpful if you plan to
use or transport the tablet PC internationally or in extreme
environments.
Tablet PC and Tablet PC Keyboard
Dimensions
Dimension
Metric
U.S.
Height
2.1 cm
0.8 in
Width
21.0 cm
8.3 in
Depth
27.1 cm
10.8 in
Hardware Guide
11–1
331734-001.book Page 2 Monday, July 14, 2003 3:47 PM
Specifications
Tablet PC Operating Environment
Factor
Metric
U.S.
Operating
10° to 35° C
50° to 95° F
Nonoperating
-10° to 60° C
14° to 140° F
Temperature
Relative humidity (noncondensing)
Operating
10 to 90%
10 to 90%
Nonoperating
5 to 90%
5 to 90%
Maximum altitude (unpressurized)
Operating
3,048 m
10,000 ft
Nonoperating
9,144 m
30,000 ft
Tablet PC Rated Input Power
The tablet PC operates on DC power, which can be supplied by an
AC or DC power source.
Input Power
Rating
Operating voltage
100–120/220–240 Vrms
Operating current
1.7/0.85 A RMS
Operating frequency range
50 to 60 Hz AC
When powered by a DC source
18.5 V MAX
✎
11–2
This product is designed for IT power systems in Norway with
phase-to-phase voltage not exceeding 240 Vrms.
Hardware Guide
331734-001.book Page 3 Monday, July 14, 2003 3:47 PM
Specifications
Modem Specifications
This tablet PC has been tested and found to comply with the
limits for a Class B digital device.
Factor
Specification
Temperatures
Operating
10° to 40° C (50° to 104° F)
Nonoperating
-20° to 60° C (-4° to 140° F)
Relative Humidity (noncondensing)
Operating
10 to 90%
Nonoperating
5 to 90%
Interfaces
Communications
connector
Standard RJ-11
connector
Host Connector
mini PCI Type III
Power Requirements
+3.3 volts ±5%, +3.3 vaux ±5%
Finding More Environmental
Information
The specifications in this chapter contain information about
exposing the tablet PC to environmental extremes.
For similar information about storing battery packs, see the
“Battery Packs” chapter, “Storing a Battery Pack” section.
For information about exposing the tablet PC to sunlight,
ultraviolet light, x-rays, or magnetic fields, see the “Maintenance,
Shipping and Travel” chapter, “Protecting Hardware” section.
Hardware Guide
11–3
331734-001.book Page 1 Monday, July 14, 2003 3:47 PM
Index
A
AC adapter
AC power connector 1–11
connecting 3–15
disconnecting 3–1
identifying 1–22
light 1–2
AC power connector 1–11
AC power, switching to and from
3–1
adapter
for AC power cord. See AC
adapter
for connecting AC adapter to
electrical outlet (Japan only)
1–22
for modem. See modem adapter
adjustment, tilt 1–26
airport security devices 10–15
alignment
key 1–26
key slot 1–9
notches, docking 1–25
slots, battery bay 3–4
slots, docking 1–8
tabs, battery pack 3–4
altitude specifications 11–2
Hardware Guide
analog telephone lines 6–6
antennas 1–7, 1–10
antivirus software 10–1
applications key 1–24
applications. See software
AT commands 6–8
attachment release switch
on tablet PC 1–14, 8–9
on tablet PC keyboard 1–27
audio devices, external
connecting 8–1
jacks for 5–5
audio-out jack 5–5
Auto/Air Cable
AC power connector 1–11
connecting 3–15
tasks supported by 3–9
Automobile Power
Adapter/Charger
AC power connector 1–11
connecting 3–15
tasks supported by 3–8
AutoPlay 4–8
B
backup software 10–1
battery bay
alignment slots 3–4
Index–1
331734-001.book Page 2 Monday, July 14, 2003 3:47 PM
Index
inserting battery pack into 3–4
Microsoft Certificate of
Authenticity label, inside
1–17
release latch 1–15
removing a battery pack
security screw from 3–6
removing battery pack from
3–2
battery light 1–2
battery pack
button and lights on 3–12
calibrating 3–16
charging 3–8
disposing of 3–21
inserting 3–4
monitoring charge in 3–10
Quick Check feature 3–12
recycling 3–21
release latch 1–15
security screws 3–6
storing 3–1, 3–20
tabs 3–4
battery power
conserving 3–19
low-battery conditions 3–13,
3–14
running tablet PC on 3–1
switching to and from 3–1
battery, bridge 3–14
biometric identification PC Cards
9–1
board
mini PCI 1–16, 7–5
modem 6–1
bridge battery 3–14
Index–2
button(s)
battery quick check 3–12
esc 1–6, 2–12
Journal launch 1–3, 2–9
media eject, on diskette drive
4–7
media release, on optical drive
4–5
PC Card eject 9–4
pen 2–2
pointing stick 2–19
Q menu 1–6, 2–10
reset 2–12
rotate 1–3, 2–9
tab 1–6, 2–11
Tablet PC Input Panel launch
1–3, 2–8
Windows Security 1–5, 2–11
See also jog dial; latch; switch
C
cable
DC 1–11
modem 1–21, 6–3
modem vs. network 1–21
network 1–21, 7–2
security 8–10
cable lock, security 8–10
calibration
battery pack 3–16
pen 2–4
cap, replacing pointing stick 10–13
caps lock light 1–23
card and socket services, PC Card
9–2
Hardware Guide
331734-001.book Page 3 Monday, July 14, 2003 3:47 PM
Index
CD-ROM, CD-RW drives. See
drives
CDs included with tablet PC 1–19
CDs, CD-RWs. See drive media
circuitry, noise suppression
on modem cable 6–3
on network cable 7–2
command controls
identified 2–6
procedures 2–8
Quick Reference 2–7
commands, AT 6–8
compartment memory 1–16, 9–9
connector(s)
AC power 1–11
connection procedures 8–1
docking 1–14
drive 4–3
external monitor 1–11
External MultiBay 1–11
keyboard 1–9
modem 6–2
network 1–21
telephone 1–21
USB 8–2
See also fasteners for tablet pc
keyboard; jack
conservation, power 3–19
controls, command 2–6
cord, power 1–21
See also cable
country-specific modem adapter
configuring software for use
with 6–5
connecting 6–4
Hardware Guide
included with tablet PC 1–22
when required 6–2
critical low-battery condition
identifying 3–13
restoring from 3–15
ctrl+alt+delete command 2–11
D
DC cable 1–11
device drivers
for external devices 8–1
modem 6–1
network 7–1
PC Card 9–2
SD (Secure Digital) 9–5
updating 10–17
USB 8–2
dial, jog
described 2–13
identified 2–6
dialing modes (pulse vs. tone) 6–6
digital telephone lines 6–6
dimensions, tablet PC 11–1
disc drive, diskette drive. See
drives
disc, diskette. See drive media
disk, rotation 1–25
display device images, managing
8–1
docking
alignment notches 1–25
alignment slots 1–8
connector 1–14
connector pass-through 1–27
restraint latch recess 1–14
Index–3
331734-001.book Page 4 Monday, July 14, 2003 3:47 PM
Index
Docking Station
audio-out jack on 5–3
docking alignment notches
1–25
docking alignment slots 1–8
docking connector 1–14
drives supported by 4–1
drive media
affected by airport security 4–3
affected by Standby and
Hibernation 4–8
caring for 4–9
displaying contents of 4–8
inserting a CD or DVD 4–4
inserting a diskette 4–7
playing 4–10
removing a CD or DVD (power
available) 4–5
removing a CD or DVD (power
unavailable) 4–6
removing a diskette 4–7
types and terms 4–2
drivers. See device drivers
drives
adding to system 4–1
affected by airport security 4–3
caring for 4–3
shipping 4–3
supported 4–1
types and terms 4–2
USB 8–2
See also hard drive, system
DVD, DVD/CD-RW drive. See
drives
DVDs, CD-RWs. See drive media
Index–4
E
eject button
diskette drive 4–7
optical drive 4–5
PC Card 9–4
electrostatic discharge (ESD) 9–8
enablers, PC Card 9–2
enter command 2–13
environmental specifications 11–1
esc button
identified 1–6
procedures 2–12
ESD (electrostatic discharge) 9–8
external devices
connecting, disconnecting 8–1
USB 8–2
See also connector(s); fasteners
for tablet PC keyboard; jack;
specific types of devices
external monitor connector 1–11
External MultiBay
connectors for 1–11
drives supported 4–1
External MultiBay connector 1–11
F
F11/F12 key
procedures 2–23
responding to Network Service
Boot prompt with 7–5
fasteners for tablet PC keyboard
8–4
FDD (floppy disk drive). See
drives
feet, tilt and stationary 1–18
Hardware Guide
331734-001.book Page 5 Monday, July 14, 2003 3:47 PM
Index
Fn, specific functions of
on on-screen keyboard 2–17
on tablet PC keyboard 2–21,
2–23
freeze, system 2–11
function keys (F1, F2, etc.)
accessing F12 on tablet PC
keyboard 2–23
accessing, on on-screen
keyboard 2–17
standard functions of 1–24
H
hard drive bay
cover 10–8
cover retaining screws 10–8
replacing system hard drive in
10–8
hard drive, system
defined 4–2
displaying amount of free space
on 9–7
replacing 10–8
retaining screw 10–9
space on, required for
Hibernation file 9–7
See also drives
HDD (hard disk drive). See hard
drive, system
headphones
audio-out jack 5–5
connecting 5–6, 8–1
headset
connecting 5–6, 8–1
headset jack 5–5
Hardware Guide
Hibernation
avoiding while playing media
4–8
identifying 10–8
initiated during critical
low-battery condition 3–13
initiating 3–15
resuming from 3–15
holder, pen 2–5
hooks, keyboard 1–26, 8–4
HP Support Software CD 10–17
hub, USB 8–2
humidity specifications 11–2
I
identifying pen components 1–1
identifying tablet PC components
additional 1–19
back 1–14
front 1–2
left side 1–9, 1–10
lower side 1–8
right side 1–4
top 1–10, 1–11
identifying tablet PC keyboard
components
additional 1–28
back 1–27
front 1–23
internal wireless activity light 1–2
internal wireless LAN
antennas 1–7, 1–10
documentation 7–5
optimizing transmissions 1–7
Index–5
331734-001.book Page 6 Monday, July 14, 2003 3:47 PM
Index
J
connector 1–26
detaching 8–7, 8–8
F11/F12 key 2–23
hooks 1–26
latch 8–7
locking to tablet PC 8–7
numeric keypad 2–20
obtaining 2–18
opening 8–5, 8–7
pointing device 2–19
releasing 8–7, 8–8
replacing pointing stick cap
10–13
rotating 8–5
securing 8–6
setting pointing device
preferences 2–20
shipping 10–14
tilting 8–5
unlocking 8–7
jack
audio-out 5–5
connection procedures 8–1
headset 5–5
microphone 5–5
PBX 6–6
RJ-11 telephone 6–2
RJ-45 network 7–2
See also connector(s)
Japan-specific outlet adapter 1–22
jog dial
identified 1–7
procedures 2–13
Journal application 2–9
Journal launch button
identified 1–3
procedures 2–9
K
key(s)
F11/F12 2–23
function (F1, F2, etc.) 1–24
Microsoft logo 1–24
numeric keypad 2–20
Windows application 1–24
keyboard, external USB
connecting 8–2
supported 2–1
keyboard, on-screen 2–17
keyboard, tablet PC
alignment key 1–26
attaching 8–3
cleaning 10–7
closing 8–6
components identified 1–23
Index–6
L
label
Microsoft Certificate of
Authenticity 1–17
modem approvals 1–17
product identification 1–17
system 1–17
wireless certification 1–17
LAN. See internal wireless LAN;
network
LAN connection lights 7–3
landscape orientation
defined 2–14
rotate button 1–3
Hardware Guide
331734-001.book Page 7 Monday, July 14, 2003 3:47 PM
Index
Landscape View, Primary and
Secondary 2–14
latch
battery pack release 1–15, 3–3
docking restraint, recess 1–14
keyboard 8–7
See also button(s); switch
light(s)
AC adapter 1–2
battery 1–2
battery quick check 3–12
caps lock 1–23
LAN connection 7–3
power/standby 1–4
wireless LAN activity 1–2
local area network. See internal
wireless LAN; network
lock, security cable 8–10
lockup, system 1–4
low-battery conditions
identifying 3–13
resolving 3–15
M
magnetic fields, affecting
hardware 10–15
media eject button 4–7
media, drive
avoiding Standby and
Hibernation while using 4–8
caring for 4–9
displaying contents of 4–8
software 4–10
types and terms 4–2
memory
displaying amount of 9–7
Hardware Guide
module, inserting or removing
9–8
modules supported 9–7
slots available 9–7
microphone, external
connecting 5–7, 8–1
microphone jack 5–5
microphone, internal 5–4
Microsoft logo key 1–24
modem adapter
configuring software for use
with 6–5
connecting 6–4
included 1–22
when required 6–2
modem cable
connecting 6–2
included 1–21
noise suppression circuitry on
6–3
RJ-11 telephone jack 1–11
vs. network cable 1–21
modem commands 6–8
modem, internal
board 6–1
setting country preferences for
6–5
specifications 6–1, 11–3
travel connection
troubleshooting 6–6
using while connected to a
network 7–1
modes, dialing (pulse vs. tone) 6–6
module, memory 9–7
monitor, external
connecting 8–1
Index–7
331734-001.book Page 8 Monday, July 14, 2003 3:47 PM
Index
displaying image on 8–1
external monitor connector
1–11
mouse, external
setting preferences for 2–1
supported 2–1
USB connectors 8–2
N
network
accessing at startup 7–4
connection specifications 7–1
hardware and software included
7–1
LAN lights 7–3
Service Boot prompt 7–5
turning connection on and off
7–3
using internal modem while
connected to 7–1
network cable
connecting 7–2
included 1–21
noise suppression circuitry on
7–2
RJ-45 network jack 1–11
vs. modem cable 1–21
No Dial Tone error message 6–7
noise suppression circuitry
on modem cable 6–3
on network cable 7–2
number
keys, on keypad 2–20
keys, on on-screen keyboard
2–17
Index–8
Product Key 1–17
serial 1–17
numeric keypad 2–20
O
operating environment
specfications 11–2
operating system Product Key
number 1–17
optical disc. See drive media
optical drive. See drives
Outlook 2–9
P
PBX jack 6–2, 6–6
PC Card
eject button 9–4
enablers and card and socket
services 9–2
functions 9–1
inserting 9–3
microdrive 4–1
removing 9–4
stopping 9–3
pen
attaching 2–5
button 2–2
calibration 2–4
components 1–1
entering information with 2–2
Help and tutorials 2–1
Journal application 2–1, 2–7
pen-activated buttons 2–6
setting preferences for 2–5,
2–20
Hardware Guide
331734-001.book Page 9 Monday, July 14, 2003 3:47 PM
Index
peripherals
connecting, disconnecting 8–1
USB 8–2
See also connector(s); fasteners
for tablet PC keyboard; jack;
specific types of devices
pointing device(s)
command controls 2–6
on tablet PC keyboard 2–18
pen 2–1
setting preferences for 2–5,
2–20
using in Setup utility 7–4
pointing stick cap
replacing 10–13
spares included 1–28
portfolio(s)
attaching 10–3
detaching 10–5
Executive 10–3
included with tablet PC 10–3
when to use 10–3
portrait orientation
defined 2–14
rotate button 1–3
Portrait View, Primary and
Secondary 2–14
power
connector, AC 1–11
conservation 3–19
cord 1–21
rated input 11–2
switch 1–4
switching between external and
battery 3–1
See also battery power
Hardware Guide
Power Meter 3–10
power/standby light 1–4
Product Key number 1–17
projector
connecting 8–1
displaying image on 8–1
external monitor connector
1–11
pulse dialing mode 6–6
PXE (Preboot eXecution
Environment) server 7–4
Q
Q Menu
Brightness tab 3–19
described 2–10
Internal and External item 8–1
Internal Only item 8–1
menu 1–6
volume controls 5–2
Q menu button
identified 1–6
procedures 2–10
Quick Check feature, battery 3–12
R
RAM (random access memory)
9–7
recycling a battery pack 3–21
regulatory information
Class B designation (FCC)
11–3
release latch, battery pack 3–3
release switch, attachment
on tablet PC 1–14, 8–9
on tablet PC keyboard 1–27
reset (emergency shut down) 2–11
Index–9
331734-001.book Page 10 Monday, July 14, 2003 3:47 PM
Index
RJ-11 telephone jack
connecting 6–2
modem cable 1–21
RJ-45 network jack
connecting 7–2
network cable 1–21
rotate button
identified 1–3
procedures 2–9
setting preferences for 2–14
rotation disk 1–25
RPL (Remote Program Load)
server 7–4
S
screen protector
included with Docking Station
1–9
slots, on tablet PC 1–9
slots, on tablet PC keyboard
1–27
universal attachment slots 1–9,
1–27
screen, cleaning 10–6
SD (Secure Digital) Card
drivers 9–5
functions 9–4
power considerations 9–4, 9–6
stopping 9–6
Secure Digital Card, See also SD
(Secure Digital) Card
security
cable lock 8–10
screws, battery pack 3–6
security devices, affecting
hardware 10–15
Index–10
serial number 1–17
servers, network 7–4
Setup utility
accessing 7–4
network settings 7–4
resetting the tablet PC 2–12
shipping the tablet PC 10–14
shutting down the tablet PC 2–11
Sleep. See Standby
slipcase 10–3
slot(s)
alignment key 1–9
battery bay 3–4
docking alignment 1–8
memory 9–7
PC Card 9–3
screen protector, on keyboard
1–27
screen protector, on tablet PC
1–9
SD (Secure Digital) Card 9–5
security cable 8–10
universal attachment, on tablet
PC 1–9
universal attachment, on tablet
PC keyboard 1–27
socket services, PC Card 9–2
Soft Modem AT Command Reference Manual 6–8
software
AT command 6–8
AutoPlay 4–8
backup 10–1
Journal 2–9
modem 3–19, 6–1, 6–8
Outlook 2–9
Hardware Guide
331734-001.book Page 11 Monday, July 14, 2003 3:47 PM
Index
Power Meter 3–10
setting up 2–2
Setup utility 2–12
Tablet PC Input Panel 2–17
Task Manager 2–11
Windows Security window
2–11
speakers, external
audio-out jack 5–5
connecting 5–6, 8–1
speakers, internal 5–3
specifications
modem 6–1, 11–3
network 7–1
tablet PC 11–1
Standby
avoiding while playing media
4–8
initiated during critical
low-battery condition 3–13
initiating 3–15
power/standby light 1–4
resuming from 3–15
stylus.See pen
sunlight, affecting tablet PC 10–2
support, HP customer 10–16
Suspend. See Standby
switch
attachment release, on
keyboard 1–27
attachment release, on tablet PC
1–14
power 1–4
See also button(s); latch
system hard drive. See hard drive,
system
Hardware Guide
system lockup 2–11
T
tab button
identified 1–6
procedures 2–11
responding to Network Service
Boot prompt with 7–5
Tablet PC Input Panel application
2–17
Tablet PC Input Panel launch
button
identified 1–3
procedures 2–8
tablet PC keyboard. See keyboard,
tablet PC
telephone jack (RJ-11)
connecting 6–3
modem cable 1–21
telephone line(s)
analog vs. digital 6–6
connecting modem to 6–2
temperature(s)
operating 11–2
overheating 1–10
storage, for battery packs 3–20
thermal vent 1–10
tilt
adjustment 1–26
feet 1–18
tone dialing mode 6–6
traveling with the tablet PC
Auto/Air Cable 3–15
Automobile Power
Adapter/Charger 3–15
Index–11
331734-001.book Page 12 Monday, July 14, 2003 3:47 PM
Index
battery pack temperature
considerations 3–20
connecting the modem 6–2,
6–5
modem approvals label 1–17
operating environment
specifications 11–2
wireless certification label
1–17
troubleshooting
modem problems, while
traveling 6–6
resources 10–17
turning off the tablet PC 2–11
tutorials
Journal 2–9
Tablet PC Input Panel 2–9
Type I, II, and III PC Cards 9–2
U
ultraviolet light, affecting tablet
PC 10–2
universal attachment slots
on tablet PC 1–9
on tablet PC keyboard 1–27
USB
connector 1–11
devices, connecting 8–2
External MultiBay connector
1–11
hub 8–2
utilities. See software
Index–12
V
vent 1–10
virus protection software 10–1
volume controls
adjusting volume with 5–1
conserving power with 3–19
W
Windows applications key 1–24
Windows Security button
identified 1–5
procedures 2–11
wireless LAN, internal
antennas 1–7, 1–10
documentation 7–5
optimizing transmissions 1–7
wireless LAN activity light 1–2
worldwide telephone numbers, HP
10–17
X
x-rays, affecting hardware 10–15
Z
zoomed video 9–2
Hardware Guide
