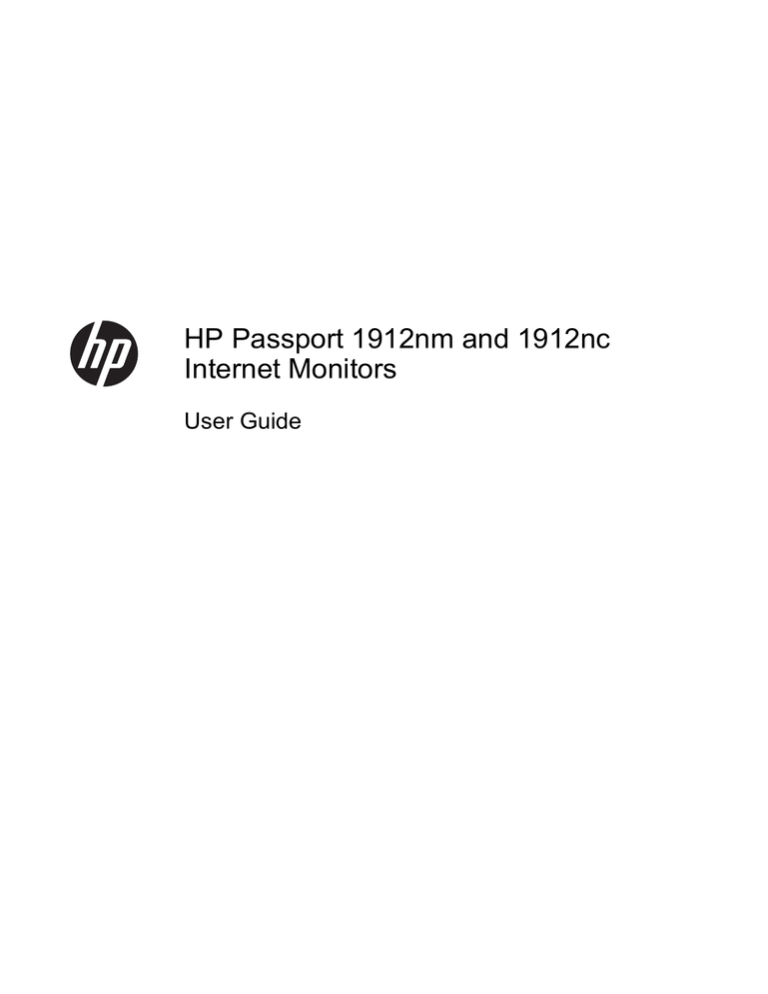

HP Passport 1912nm and 1912nc
Internet Monitors
User Guide
© 2011 Hewlett-Packard Development
Company, L.P.
The only warranties for HP products and
services are set forth in the express
warranty statements accompanying such
products and services . Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable
for technical or editorial errors or omissions
contained herein.
This document contains proprietary
information that is protected by copyright.
No part of this document may be
photocopied, reproduced, or translated to
another language without the prior written
consent of Hewlett-Packard Company.
First Edition (December 2011)
Document Part Number: 674720-001
About This Guide
This guide provides information on setting up and using the Internet monitor.
WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily
harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or loss of information.
NOTE:
ENWW
Text set off in this manner provides important supplemental information.
iii
iv
About This Guide
ENWW
Table of contents
1 Product Features ............................................................................................................................................ 1
HP Passport 1912nm and 1912nc Internet Monitors ........................................................................... 1
Net Mode vs PC Mode ......................................................................................................................... 2
2 Setting Up the Monitor ................................................................................................................................... 3
Preparing the Monitor for Desktop Use ................................................................................................ 3
Preparing the Monitor for Wall-Mounting .............................................................................................. 4
Rear Components ................................................................................................................................ 6
Connecting the Cables ......................................................................................................................... 7
Connecting the Cables for Net Mode ................................................................................... 7
Connecting the Cables for PC Mode ................................................................................... 9
Front Panel Controls .......................................................................................................................... 12
Adjusting the Tilt ................................................................................................................................. 13
Installing a Cable Lock ....................................................................................................................... 13
Turning on the Monitor for the First Time ........................................................................................... 14
3 Using the Net Mode Interface ...................................................................................................................... 15
Browsing the Internet ......................................................................................................................... 16
Listening to Music ............................................................................................................................... 16
Watching Videos ................................................................................................................................ 17
Viewing Photographs ......................................................................................................................... 18
Adjusting the Settings ......................................................................................................................... 19
Slide Show Options ........................................................................................................... 19
Network Settings ................................................................................................................ 19
Date/Time Settings ............................................................................................................ 20
Language Settings ............................................................................................................. 20
System Settings ................................................................................................................. 20
Password Settings ............................................................................................................. 21
Printing in Net Mode ........................................................................................................................... 22
Introducing ePrint ............................................................................................................... 22
ENWW
v
4 Finding More Information ............................................................................................................................. 23
5 Technical Specifications .............................................................................................................................. 24
1912nm and 1912nc Models .............................................................................................................. 24
Recognizing Preset Display Resolutions ............................................................................................ 26
1912nm and 1912nc Models (PC Mode) ........................................................................... 26
Entering User Modes ......................................................................................................... 26
Energy Saver Feature ........................................................................................................................ 27
vi
ENWW
1
Product Features
HP Passport 1912nm and 1912nc Internet Monitors
The HP Passport 1912nm and HP Passport 1912nc Internet monitors are designed to provide easy,
simple access to the internet, streaming views of media content (video, audio, photos) directly
through the monitor without the need for a PC. The monitors can also operate as standard external
monitors when connected to a PC.
The Internet monitors have an active matrix, thin-film transistor (TFT) panel. The monitor models and
features include:
ENWW
●
1912nm and 1912nc models, 47 cm (18.5-inch) diagonal viewable area display with 1366 x 768
resolution, plus full-screen support for lower resolutions; includes custom scaling for maximum
image size while preserving original aspect ratio
●
Non-glare panel with CCFL backlight
●
Web browser, video player, music player, and photo viewer
●
Internet access and streaming views of media content without the need for a PC when in Net
mode
●
PC connectivity support when used as a standard monitor in PC mode
●
Plug and play capability in PC mode
●
Mode button on front panel that toggles between PC mode and Net mode
●
5ms response time
●
Fast boot time
●
USB 2.0 hub with one upstream port (connects to a computer) and five downstream ports
(connects to USB devices)
●
Audio in and audio out ports
●
Built-in stereo speakers
●
4-in-1 media card reader (SD, MMC, MS, xD)
●
Video signal input to support VGA analog
●
Wired USB keyboard and mouse included
●
Removable stand and Video Electronics Standards Association (VESA) standard mounting
holes for flexible mounting solutions, including wall-mounting
HP Passport 1912nm and 1912nc Internet Monitors
1
●
Security slot provision on rear of monitor for optional cable lock
●
Tilt capability
●
On-Screen Display (OSD) adjustments in several languages for easy setup and screen
optimization
●
Energy saver feature to meet requirements for reduced power consumption
●
Energy Star® qualified
●
Compliant with the following regulated specifications (for additional certifications and agency
notices, refer to the HP LCD Monitors Reference Guide available on http://www.hp.com/
support):
◦
European Union CE Directives
◦
Swedish TCO Requirements
Net Mode vs PC Mode
The monitor can operate as a stand-alone Internet monitor (Net mode) or as a standard external
monitor connected to a PC (PC mode).
●
Net Mode: No PC is required. An active Ethernet cable is required for Internet access. In this
mode you can browse the Internet, watch videos, listen to music, or view photographs.
●
PC Mode: A PC is required. In this mode the monitor functions as a standard monitor and is
totally independent of the Net mode interface and settings.
You can set up the monitor for both Net mode and PC mode and switch between the two modes by
pressing the Mode button on the front of the monitor.
To set up the monitor for Net mode, refer to Connecting the Cables for Net Mode on page 7. To
set up the monitor for PC mode, refer to Connecting the Cables for PC Mode on page 9.
2
Chapter 1 Product Features
ENWW
2
Setting Up the Monitor
You can install the monitor on a desktop or mount it on a mounting fixture such as a wall mount or
swing arm. Be sure to place the monitor in a convenient, well- ventilated location. Connect the
monitor cables after you have installed the monitor.
To set up the monitor, ensure that the power is turned off to the monitor and all attached devices,
then follow the instructions below for your configuration.
Preparing the Monitor for Desktop Use
To assemble the monitor for desktop use:
1.
Set the monitor screen face down on a flat, soft, protected table or desk surface with the support
column overhanging the edge.
2.
Align the center column with the base and push the center column onto the base (1). Then align
the monitor support column with the center column and push the monitor all the way onto the
center column (2) until it snaps securely in place.
Figure 2-1 Installing the Monitor Center Column and Base
3.
ENWW
Lift the monitor to an upright position and place on a flat, stable surface.
Preparing the Monitor for Desktop Use
3
Preparing the Monitor for Wall-Mounting
NOTE:
This apparatus is intended to be supported by UL or CSA Listed wall mount bracket.
To attach the monitor to a mounting fixture:
1.
Set the monitor screen face down on a flat, soft, protected table or desk surface with the support
column overhanging the edge.
2.
If the center column and base are attached to the monitor, pinch together the two release tabs
on the bottom of the base (1) and pull the base off the center column (2). Then press the button
on the rear of the center column (3) and slide the center column off the monitor support column
(4).
Figure 2-2 Removing the Monitor Center Column and Base
3.
Remove the two screws that attach the support column to the monitor (1), then slide the support
column back and remove it from the monitor (2).
Figure 2-3 Removing the Monitor Support Column
4
Chapter 2 Setting Up the Monitor
ENWW
4.
To attach the monitor to a mounting fixture, insert four 10mm screws through the holes on the
mounting plate and into the mounting holes on the monitor.
CAUTION: This monitor supports the VESA industry standard 100 mm mounting holes. To
attach a third-party mounting solution to the monitor, four 4 mm, 0.7 pitch, and 10 mm long
screws are required. Longer screws must not be used because they may damage the monitor. It
is important to verify that the manufacturer’s mounting solution is compliant with the VESA
standard and is rated to support the weight of the monitor display panel. For best performance, it
is important to use the power and video cables provided with the monitor.
Figure 2-4 Mounting the Monitor
ENWW
Preparing the Monitor for Wall-Mounting
5
Rear Components
Figure 2-5 Rear Components
Component
Function
1
AC Power Connector
Connects the AC power cord to the monitor.
2
Audio In Connector
Connects an input audio cable between the monitor and a
PC when using the monitor in PC mode.
3
Audio Out Connector
Connects an output audio cable between the monitor and an
external audio device.
4
VGA Connector
Connects a VGA cable between the monitor and a PC when
using the monitor in PC mode.
5
Ethernet Connector
Connects an Ethernet cable to the monitor when using the
monitor in Net mode.
6
USB In Connector
Connects the USB hub cable to the monitor's USB hub
connector and to a host USB port/hub on a PC so that the
USB ports on the monitor are active when using the monitor
in PC mode.
7
4 USB Out Connectors
Connects external USB devices to the monitor.
8
USB Out Connector
Connects external USB devices to the monitor.
9
4-in-1 Media Card Reader Slot
Supports SD, MMC, MS, and xD cards.
10
Lock Slot
Attaches a locking mechanism to the monitor.
11
Speakers
Two 2-watt stereo speakers.
NOTE: In PC mode, a USB upstream cable (not provided) must be connected between the PC and
the monitor's USB In connector in order for the USB Out connectors to function. In Net mode, the
USB Out connectors function without connecting to a PC.
6
Chapter 2 Setting Up the Monitor
ENWW
Connecting the Cables
The cable connections required depends on whether you will operate the monitor as a stand-alone
Internet monitor (Net mode) or as a standard external monitor connected to a PC (PC mode).
NOTE: You can connect the cables for both Net mode and PC mode and switch between the two
modes by pressing the Mode button on the front of the monitor.
Connecting the Cables for Net Mode
1.
Place the monitor in a convenient, well-ventilated location.
2.
Connect an active Ethernet cable to the Ethernet port on the monitor's rear panel.
Figure 2-6 Connecting the Ethernet Cable
ENWW
Connecting the Cables
7
3.
Connect the supplied keyboard and mouse (required to navigate) to the USB ports on the
monitor's rear panel.
Figure 2-7 Connecting the Keyboard and Mouse
4.
Connect one end of the power cord to the AC power connector on the back of the monitor and
the other end to an electrical wall outlet.
Figure 2-8 Connecting the Power Cord
8
Chapter 2 Setting Up the Monitor
ENWW
Connecting the Cables for PC Mode
1.
Place the monitor in a convenient, well-ventilated location near the PC.
2.
Connect the supplied keyboard and mouse (required to navigate) to the USB ports on the
monitor's rear panel.
Figure 2-9 Connecting the Keyboard and Mouse
3.
Connect a VGA cable between the VGA connector on the PC and the VGA connector on the
rear of the monitor.
Figure 2-10 Connecting the VGA Cable
ENWW
Connecting the Cables
9
4.
Connect the upstream end of a USB cable to the USB In connector on the monitor's rear panel
and the downstream end to a USB Out connector on the PC.
NOTE: This step is optional. However, the USB cable is required for the USB Out ports and
the 4-in-1 media card reader on the monitor to function in PC mode.
Figure 2-11 Connecting a USB Cable
5.
Connect one end of an audio cable to the Audio In connector on the monitor's rear panel and the
other end to an Audio Out connector on the PC.
NOTE: This step is optional. However, the audio cable is required for the monitor's speakers to
function in PC mode.
Figure 2-12 Connecting an Audio Cable
10
Chapter 2 Setting Up the Monitor
ENWW
6.
Connect one end of the power cord to the AC power connector on the back of the monitor and
the other end to an electrical wall outlet.
Figure 2-13 Connecting the Power Cord
7.
After turning on power to the monitor, you must press the Mode button on the monitor's front
panel to change from Net mode to PC mode.
Figure 2-14 Pressing the Mode Button
ENWW
Connecting the Cables
11
Front Panel Controls
Figure 2-15 Monitor Front Panel Controls
Table 2-1 Monitor Front Panel Controls
Control
Function
1
Menu
Opens the On-Screen Display (OSD) menu, selects items within the OSD
menu, and closes the OSD menu.
2
– (Minus)
If the OSD menu is on, press to navigate backward through the OSD
menu and decrease adjustment levels.
If the OSD menu is inactive, press to open the OSD volume control menu
and adjust the volume level.
3
+ (Plus)
If the OSD menu is on, press to navigate forward through the OSD menu
and increase adjustment levels.
If the OSD menu is inactive and the monitor is in Net mode, press to open
the OSD volume control menu and adjust the volume level.
If the OSD menu is inactive and the monitor is in PC mode, press to
activate the auto adjustment feature to optimize the screen image.
4
Mode
Toggles the monitor between Net mode and PC mode.
5
Power
Turns the monitor on or off.
6
Power LED
Blue = Fully powered.
Amber = Sleep mode.
Flashing Amber = Sleep Timer mode.
12
Chapter 2 Setting Up the Monitor
ENWW
Adjusting the Tilt
For optimal viewing, adjust the screen tilt to your own preference.
1.
Face the front of the monitor and hold the base so that you do not topple the monitor while
changing the tilt.
2.
Adjust the tilt by moving the top edge of the monitor either toward or away from you, without
touching the screen.
Figure 2-16 Adjusting the Tilt
Installing a Cable Lock
You can secure the monitor to a fixed object with an optional cable lock available from HP.
Figure 2-17 Installing a Cable Lock
ENWW
Adjusting the Tilt
13
Turning on the Monitor for the First Time
After connecting the cables, press the power button on the front of the monitor to turn it on.
NOTE: Net mode is the monitor's default mode. You can toggle between Net mode and PC mode
by pressing the Mode button on the monitor's front panel.
CAUTION: Burn-in image damage may occur on monitors that display the same static image on
screen for a prolonged period of time.* To avoid burn-in image damage on the monitor screen, you
should always turn off the monitor when it is not in use for a prolonged period of time. Image retention
is a condition that may occur on all LCD screens. Monitors with a “burned-in image” are not covered
under the HP warranty.
* A prolonged period of time is 12 consecutive hours of non-use.
The first time you turn on the monitor there will be a brief video highlighting the monitor's features
(select models only). You can bypass the video by pressing the Esc key on your keyboard. If you
would like to play this video again, it is stored as a sample in the Video player.
After the video ends or is bypassed the Startup Wizard will begin. Follow the instructions in the
Startup Wizard to:
●
Select your language
●
Set the date and time
●
Set the timer to turn off the display after an assigned period of inactivity
●
Enter the network settings
●
Assign a password that secures access to the monitor settings and unlocks the monitor, if
desired
NOTE: You can modify the settings that were entered in the Startup Wizard any time by clicking the
Settings icon on the Net mode Home page. For more information on the settings in the Startup
Wizard, refer to Adjusting the Settings on page 19.
After completing the Startup Wizard, the Net mode Home page will be displayed.
14
Chapter 2 Setting Up the Monitor
ENWW
3
Using the Net Mode Interface
The Net mode Home page is displayed when the monitor is powered on. Click on one of the icons to
use that feature of the Internet monitor.
NOTE:
mode.
The user interface and features in this chapter are only available when the monitor is in Net
Figure 3-1 Net Mode Home Page
NOTE: The Net mode modules listed below are independent applications that cannot be run
simultaneously. For example, if you are listening to music in the Music module and switch to the
Browser module, the music session will end.
ENWW
Music
Click this icon to listen to music stored on a media device.
Video
Click this icon to watch videos stored on a media device.
Browser
Click this icon to browse the Internet.
Click this icon to view photographs stored on a media device.
15
Settings
Click this icon to adjust the monitor settings.
Home
This icon is displayed in the lower left corner of the screen when you are not at the
Home page. You can click the Home icon at any time to return to the Home page.
NOTE: When you return to the Home page any Net mode application you were
running will close (Video, Browser, Music, Photo).
Browsing the Internet
The monitor uses the Firefox web browser to browse the Internet and includes support for Adobe
Flash and HTML5. You must have Internet access to browse the Internet (not provided).
To browse the Internet:
1.
Ensure that you have a live Ethernet cable (not provided) plugged into the monitor.
2.
Click the Browser icon on the Net mode Home page.
3.
If you are in an environment with a firewall, you must manually enter an HTTP proxy
configuration to use the browser. On the browser toolbar, go to Edit > Preferences > Advanced
> Network > Settings > Manual Proxy Configuration, enter the information provided by your
IT support and click the OK button to apply.
4.
Use the browser to browse the Internet.
To change your browser's landing page:
1.
Go the website that you would like to become your landing page.
2.
Using the browser controls, go to Edit and then select Preferences.
3.
In the new page that appears, the first part is Startup. Under Startup, use the drop-down arrow
to select Show my home page. Then click the Use Current Page button under the Home Page
section.
Listening to Music
You can use the music player to listen to music that you have stored on a USB flash media device or
media card.
NOTE: The audio file name and the folder(s) name can be any length but cannot include special
characters or spaces in order for the file manager to recognize the audio file.
To listen to music:
16
1.
Click the Music icon on the Net mode Home page.
2.
Insert the media device into the 4-in-1 media card reader or a USB port on the monitor.
Chapter 3 Using the Net Mode Interface
ENWW
3.
In the Music module, select the media device that you inserted, navigate to the desired music file
and click on it.
NOTE: If a photos folder was selected in the Slide Show options section of the Settings
module, a slide show of the selected photos will be displayed while the music is playing (refer to
Slide Show Options on page 19 to configure a slide show). If you do not want to view a slide
show of photos while playing music, make sure that no folder is selected in the Slide Show
options section of the Settings module.
4.
Use the controls at the bottom of the slide show player to stop, start, or pause the slide show
and adjust volume levels.
5.
To return to the navigation folder where your music is stored, click
show player.
at the bottom of the slide
The following audio formats are supported and will be displayed:
●
MP3
●
AAC
●
WMA
Watching Videos
You can use the video player to watch videos that you have stored on a USB flash media device or
media card.
NOTE: The video file name and the folder(s) name can be any length but cannot include special
characters or spaces in order for the file manager to recognize the video file.
To watch a video:
1.
Click the Video icon on the Net mode Home page.
2.
Insert the media device into the 4-in-1 media card reader or a USB port on the monitor.
3.
In the Video module, select the media device that you inserted, navigate to the desired video file
and click on it. The video will begin playing.
4.
Use the controls at the bottom of the video player to stop, start, or pause the video and adjust
volume levels.
5.
To return to the navigation folder where your video is stored, click
player.
at the bottom of the video
The following video formats are supported and will be displayed:
ENWW
●
MPEG4 H.263
●
MPEG4 H.264
●
MPEG2 VC1
Watching Videos
17
Viewing Photographs
You can use the photograph viewer to view photographs that you have stored on a USB flash media
device or media card.
NOTE: The photo file name and the folder(s) name can be any length but cannot include special
characters or spaces in order for the file manager to recognize the photo file.
To view photographs:
1.
Click the Photo icon on the Net mode Home page.
2.
Insert the media device into the 4-in-1 media card reader or a USB port on the monitor.
3.
In the Photo module, select the media device that you inserted, navigate to the desired photo file
and click on it. The photograph will be displayed.
4.
Use the controls at the bottom of the video player to go to the next or previous photograph,
rotate the photograph or run a slide show of the photographs. The slide show will display all the
photographs you have stored in the same media device folder.
NOTE: To run a slide show of photos while playing music, configure the slide show in the Slide
Show Settings (refer to Slide Show Options on page 19) then select the music in the Music
module (refer to Listening to Music on page 16). You cannot play music while viewing photos
within the Photo module.
5.
To return to the navigation folder where your photographs are stored, click
the bottom of the slide show player.
at the bottom at
The following picture formats are supported and will be displayed:
18
●
JPEG
●
GIF
●
PNG
●
BMP
Chapter 3 Using the Net Mode Interface
ENWW
Adjusting the Settings
To configure the settings, click the Settings icon on the Net mode Home page.
The Settings module includes five tabs for configuring and adjusting the settings:
●
Slide Show Options:Sets up and customize a music and photograph slide show.
●
Network: Configures the monitor’s network connection.
●
Date/Time: Sets the monitor’s date and time.
●
Language: Selects a language for the monitor.
●
System: Returns all settings to their factory default values, sets the timer, updates the software,
locks the monitor, and enables or disables fast boot.
●
Password: Sets a password required to access the Settings module and unlock the monitor.
Slide Show Options
The Slide Show Options allow you to select photos that will be displayed during all music playback.
To configure a slide show of photos during all music playback:
1.
Select the Slide Show Options tab in the Settings module.
2.
In the Select Photos for Display during Music playback section, click the folder icon and
navigate to the folder with photos that you want to run as a slide show while playing music.
3.
In the Slide Show Photo Settings section, select an effect of how the photographs transition
from one photograph to another in the slide show.
4.
In the Slide Show Photo Settings section, select a time period to display each of the
photographs in the slide show.
5.
Click the Apply button to save the configuration.
After the slide show is configured, the slide show of photos that you selected will run when you play
any music from the Music module (see Listening to Music on page 16).
Network Settings
The Network settings allow you to configure the network connection.
To configure the network settings:
ENWW
1.
Select the Network tab in the Settings module.
2.
Click the Auto button in the Wizard section and follow the instructions on the screen, or click the
Manual button to enter the information manually then click the Apply button.
Adjusting the Settings
19
Date/Time Settings
The Date/Time settings allow you to set the date and time for the monitor.
To set the date and time:
1.
Select the Date/Time tab in the Settings module.
2.
Select your time zone to automatically set the date and time or click the Manual button and
manually set the date and time.
3.
Click the Apply button to save the settings.
Language Settings
The Language settings allow you to select a language for the monitor.
To select a language:
1.
Select the Language tab in the Settings module.
2.
Select a language.
3.
Click the Apply button to save the settings.
System Settings
The System settings allow you to return all settings to the factory default values, set the monitor’s
timer to put the display in standby mode after a designated period of inactivity, update the software,
lock the monitor's screen, and enable or disable the fast boot feature.
To return all settings to the factory default values:
1.
Select the System tab in the Settings module.
2.
Click the Set Default Value button.
3.
Click the Apply button to save the settings.
To set the timer so that the monitor goes into standby mode after a designated period of
inactivity:
1.
Select the System tab in the Settings module.
2.
In the Turn Off the Display section, adjust the hours and/or minutes to transpire before the
display automatically goes into standby mode if there is no activity detected. You can also select
the Never button to disable the timer. The monitor will return to full power if it detects mouse or
keyboard activity.
3.
Click the Apply button to save the timer’s settings.
To update the software:
20
Chapter 3 Using the Net Mode Interface
ENWW
NOTE: The monitor must be connected to the Internet to update the software. Internet access is not
provided. Contact your local Broadband supplier.
1.
Select the System tab in the Settings module.
2.
In the Software Version section, click the Update Now button or click the Auto Update button
and adjust the number of days to transpire before the software is automatically updated.
3.
Click the Apply button to save the software update settings.
To lock the monitor's screen and restrict access to your current session without a password
(after a password is set up):
1.
Select the System tab in the Settings module.
2.
Click the Lock Screen button.
3.
To unlock the monitor's screen, enter your password and click the Done button. For more
information on passwords, refer to Password Settings on page 21.
To enable or disable the fast boot feature:
1.
Select the System tab in the Settings module.
2.
In the Fast Boot section, click either the Disable or Enable button.
3.
Click the Apply button to save the fast boot settings.
NOTE: When Fast Boot is enabled, the monitor will resume from standby within seconds. Fast
Boot must be disabled to meet Energy Star qualification.
Password Settings
The Password settings allow you to create a password that is required to access the Settings module
and unlock the monitor's screen if it has been locked.
To set a password:
1.
Select the Password tab in the Settings module.
2.
Click the On button (or click the Off button if you do not want access to the Settings module to
require a password or if you do not want a password required to unlock the monitor's screen).
3.
Enter your password in the Password text box. The password must be 6 to 10 characters and is
not case sensitive. Special characters are allowed but spaces are not allowed.
4.
Enter your password again in the Verify Password text box.
5.
Click the Apply button to save the settings.
To change your password:
ENWW
1.
Select the Password tab in the Settings module.
2.
Ensure that the On button is selected.
3.
Enter your new password in the Password text box. The password must be 6 to 10 characters
and is not case sensitive. Special characters are allowed but spaces are not allowed.
Adjusting the Settings
21
4.
Enter your new password again in the Verify Password text box.
5.
Click the Apply button to save the settings.
To cancel a password:
1.
Select the Password tab in the Settings module.
2.
Click the Off button. A password will not be required to access the Settings module or unlock the
monitor's screen
3.
Click the Apply button to save the settings.
If you forgot your password and need to reset all settings to the default values:
NOTE: The only way to access the Settings module and unlock the monitor's screen if you have
forgotten your password is to reset all Settings to the default values. The default setting for the
password is Off.
1.
Turn the power off.
2.
Press and hold down the Menu button and the – (Minus) button on the monitor's front panel at
the same time, then press the power button to turn on the monitor.
3.
Continue holding down the Menu button and the – (Minus) button for 10 seconds.
4.
Reset the password and reconfigure the other settings as necessary.
Printing in Net Mode
Standard print functionality in Net mode is not supported. However, convenience printing may be
supported via HP ePrint.
NOTE: HP ePrint provides convenience printing, and documents printed with ePrint may appear
different from the original. Style, formatting and text flow may differ slightly from the original
document. For documents requiring a higher quality (such as legal documents), HP recommends that
you print from the software application on your computer where you will have more control over how
your printouts appear.
Introducing ePrint
HP ePrint lets you print from virtually anywhere to an HP printer that supports ePrint. Once enabled,
ePrint assigns an email address to your printer. To print, simply send an email containing your
document to your printer’s address. For more information, visit http://www.hp.com/go/ePrintCenter for
compatibility and details.
22
Chapter 3 Using the Net Mode Interface
ENWW
4
Finding More Information
Refer to the HP LCD Monitors Reference Guide at http://www.hp.com/support for additional
information on:
●
Optimizing monitor performance
●
Safety and maintenance guidelines
●
Agency regulatory and environmental notices
●
Using the OSD menu
●
Downloading additional software from the Web for PC mode.
For additional information on using and adjusting your monitor, go to http://www.hp.com/support.
Select your country or region, select Product Support & Troubleshooting, and then enter your monitor
model in the SEARCH window.
NOTE: The monitor user guide, reference guide, and drivers are available at http://www.hp.com/
support.
The VGA cable, USB upstream cable, audio cable, Ethernet cable, and Internet access are not
provided.
ENWW
23
5
Technical Specifications
NOTE: All specifications represent the typical specifications provided by HP's component
manufacturers; actual performance may vary either higher or lower. Specifications are subject to
change. The complete and latest specifications on display products are available on
http://www.hp.com/support.
1912nm and 1912nc Models
Table 5-1 1912nm and 1912nc Specifications
Maximum Weight (Unpacked)
3.65 kg
8.05 lbs
Height
34.8 cm
13.7 inches
Depth
18.0 cm
7.09 inches
Width
44.8 cm
17.64 inches
Maximum Graphic Resolution
1366 × 768 (60 Hz)
Optimum Graphic Resolution
1366 × 768 (60 Hz)
Power Source
100 – 240 VAC 50/60 Hz
Graphics Input Terminal
One VGA connector for PC mode (cable
not included)
ARM based Processor
IT OMAP4430 ARM Cortex-A9 1.0 GHz
Dual Core
Flash RAM Memory
2GB
DDR II Memory
1G
USB 2.0 ports
1 upstream + 5 downstream
Supported USB Devices
USB 2.0 Storage Devices
Dimensions (include base)
USB Keyboard and Mouse (Provided)
24
Audio
Line In + Line Out
HID
USB Keyboard + USB Mouse
Operating System
Custom HP Linux Kernal 2.6.35
Image / Component Updates
HP Easy Update Manager
Internet Solution (Browser)
Firefox v4.0
Chapter 5 Technical Specifications
ENWW
Table 5-1 1912nm and 1912nc Specifications (continued)
Video Player
Support
Audio Player
Support
Photo Frame
Support
Video Codecs
H.264, H.263, MPEG2, MPEG4, VC-1
Video Container
MP4, M4V, MPG, MKV, WMV, AVI,
MOV, ASF, 3GP, VOB
Audio Codecs
MP3, AACLC, HE-ACC, WMA10 std,
WMA Pro, WMA9 Lossless
Audio Container
MP1, MP2, MP3, AAC, M4A, WMA, ASF
Picture Codecs (2048 x 1536 3M max)
JPEG, PNG, GIF, BMP
Productivity - Document Handler
Box.net / Google Docs
Adobe Flash (720P)
Adobe Flash 10.1
External Input Devices
4-in-1 Card Reader (for SD, MMC, MS,
xD) and USB (2.0) Thumb Drive
For a list of recommended USB and card reader storage devices consult the 1912nm Quickspecs.
NOTE:
ENWW
HP recommends that the storage device is formatted FAT16/32.
1912nm and 1912nc Models
25
Recognizing Preset Display Resolutions
The display resolutions listed below are the most commonly used modes and are set as factory
defaults. This monitor automatically recognizes these preset modes and they will appear properly
sized and centered on the screen.
NOTE: The preset modes can only be adjusted if the monitor is in PC mode. In Net mode, the
preset is locked at 1366 x 768 at 60Hz and cannot be adjusted.
1912nm and 1912nc Models (PC Mode)
Table 5-2 Factory Preset Modes
Preset
Pixel Format
Horz Freq (kHz)
Vert Freq (Hz)
1
640 × 480
31.47
59.94
2
720 × 400
31.47
70.09
3
800 × 600
37.88
60.32
4
1024 × 768
48.36
60.00
5
1280 × 720
45.0
60.0
6
1280 × 960
60.0
60.0
7
1280 × 1024
63.98
60.02
8
1366 × 768
47.71
59.79
Table 5-3 High Definition Video Formats
Preset
Timing Name
Pixel Format
Horz Freq (kHz)
Vert Freq (Hz)
1
480p
720 × 480
31.469
60
2
576p
720 × 576
31.25
50
3
720p50
1280 × 720
37.5
50
4
720p60
1280 × 720
45
60
Entering User Modes
The video controller signal may occasionally call for a mode that is not preset if:
●
You are not using a standard graphics adapter.
●
You are not using a preset mode.
It this occurs, you may need to readjust the parameters of the monitor screen by using the on-screen
display. Your changes can be made to any or all of these modes and saved in memory. The monitor
automatically stores the new setting, then recognizes the new mode just as it does a preset mode. In
addition to the factory preset modes, there are at least 10 user modes that can be entered and
stored.
26
Chapter 5 Technical Specifications
ENWW
Energy Saver Feature
The monitors support a reduced power state. The reduced power state will be entered into if the
monitor detects the absence of either the horizontal sync signal and/or the vertical sync signal. Upon
detecting the absence of these signals, the monitor screen is blanked, the backlight is turned off, and
the power light is turned amber. When the monitor is in the reduced power state, the monitor will
utilize less than one watt of power. There is a brief warm up period before the monitor will return to its
normal operating mode.
Refer to the computer manual for instructions on setting energy saver features (sometimes called
power management features).
NOTE: The above power saver feature only works when connected to computers that have energy
saver features.
By selecting the settings in the monitor's Energy Saver utility, you can also program the monitor to
enter into the reduced power state at a predetermined time. When the monitor's Energy Saver utility
causes the monitor to enter the reduced power state, the power light blinks amber.
ENWW
Energy Saver Feature
27
Download PDF

advertising
