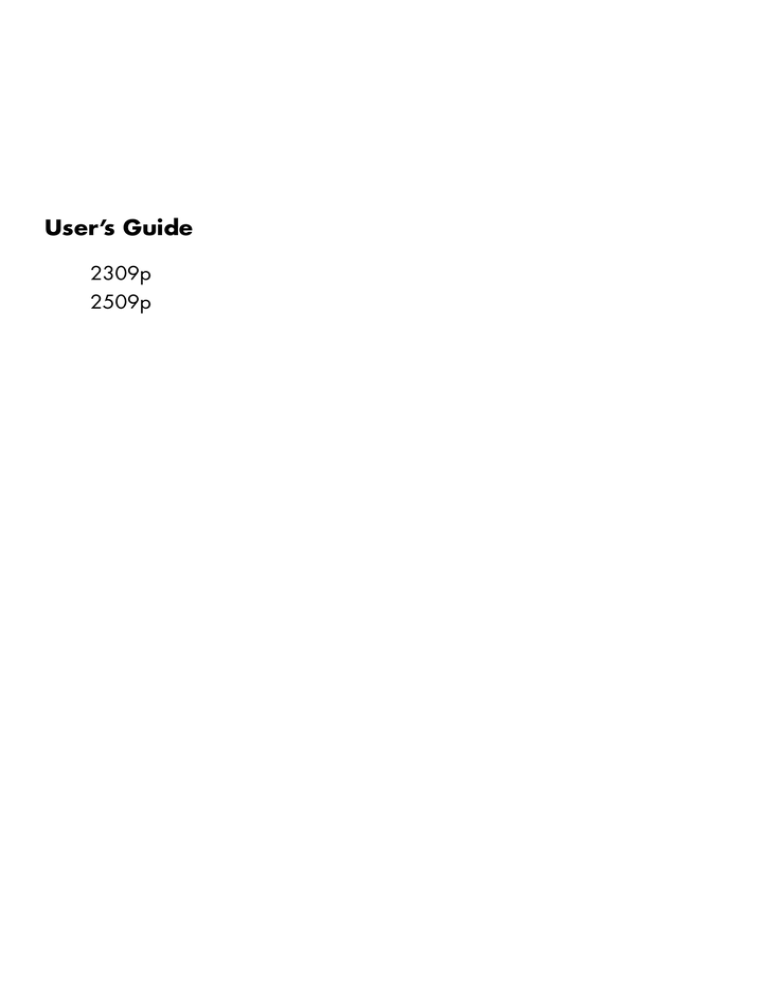

User’s Guide
2309p
2509p
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products
and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or
editorial errors or omissions contained herein.
HP assumes no responsibility for the use or reliability of its software on equipment that is not furnished by HP.
This document contains proprietary information that is protected by copyright. No part of this document may be photocopied,
reproduced, or translated to another language without the prior written consent of HP.
Hewlett-Packard Company
10955 Tantau Avenue
Cupertino, California 95014-0770
USA
© Copyright 2006–2009 Hewlett-Packard Development Company, L.P.
Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation.
Adobe and Acrobat are trademarks of Adobe Systems Incorporated.
ENERGY STAR and the ENERGY STAR logo are U.S. registered marks of the United States Environmental Protection Agency.
Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license.
HP supports lawful use of technology and does not endorse or encourage the use of its products for purposes other than those
permitted by copyright law.
The information contained herein is subject to change without notice.
Notational Conventions
The following section describes notational conventions used in this document.
Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon. These blocks are notes, cautions, and
warnings, and they are used as follows:
WARNING: Indicates that failure to follow directions could result in bodily harm or loss of life.
CAUTION: Indicates that failure to follow directions could result in damage to equipment or loss of information.
NOTE: Indicates additional information.
User’s Guide
iii
iv Features may vary by model.
User’s Guide
Contents
Notational Conventions.......................................................................................................................... iii
Notes, Cautions, and Warnings......................................................................................................... iii
1 Product Features
HP LCD Monitors ................................................................................................................................. 1-1
Features ........................................................................................................................................ 1-1
2 Safety and Maintenance Guidelines
Important Safety Information ................................................................................................................. 2-1
Safety Precautions .......................................................................................................................... 2-1
Maintenance Guidelines....................................................................................................................... 2-2
Cleaning the Monitor ........................................................................................................................... 2-2
3 Setting Up the Monitor
Unpacking the Monitor......................................................................................................................... 3-1
Installing the Monitor ........................................................................................................................... 3-1
Preparing the monitor for desktop use.......................................................................................... 3-1
Preparing the monitor for wall-mounting ....................................................................................... 3-3
Connecting the VGA (Analog) or DVI-D (Digital) Cable ....................................................................... 3-5
To connect the VGA cable.......................................................................................................... 3-5
To connect the DVI-D cable......................................................................................................... 3-5
Connecting the HDMI Cable (Select Models Only) ............................................................................. 3-6
Audio and Video Cables and Adapters............................................................................................. 3-6
High-Bandwidth Digital Content Protection (HDCP) ............................................................................. 3-7
Connecting the Audio Cable............................................................................................................ 3-7
Connecting the USB Hub Cable ....................................................................................................... 3-7
Connecting USB Devices to the Monitor ............................................................................................ 3-8
Connecting the Power Cable ........................................................................................................... 3-9
Cable Management...................................................................................................................... 3-10
Adjusting the Pivot ............................................................................................................................. 3-11
Adjusting the Tilt................................................................................................................................ 3-12
Adjusting the Swivel........................................................................................................................... 3-12
Adjusting the Monitor Height .............................................................................................................. 3-13
Keyboard Parking.............................................................................................................................. 3-13
User’s Guide
v
4 Operating the Monitor
CD Software and Utilities ..................................................................................................................... 4-1
Installing Drivers............................................................................................................................. 4-1
Downloading updated drivers from the Internet ............................................................................. 4-1
Pivot Pro Software ..................................................................................................................... 4-1
Using the Auto-Adjustment Function .................................................................................................. 4-2
Front-Panel Controls ............................................................................................................................. 4-3
Using the On-Screen Display (OSD) ....................................................................................................... 4-3
OSD Menu Selections ..................................................................................................................... 4-4
Selecting Video Input Connectors .......................................................................................................... 4-7
Identifying Monitor Conditions .............................................................................................................. 4-7
Adjusting Screen Quality ...................................................................................................................... 4-8
Optimizing Analog Video ............................................................................................................... 4-8
Power-Saver Feature ............................................................................................................................ 4-8
Webcam (Select Models Only).............................................................................................................. 4-9
Capturing Webcam Video and Snapshots....................................................................................... 4-10
Having a Video Chat or Making Conference Calls ........................................................................... 4-10
5 Preparing the Monitor for Shipping
Preparing the Monitor for Shipping .................................................................................................. 5-1
A Troubleshooting
Solving Common Problems ...................................................................................................................A-1
Getting Support from hp.com ................................................................................................................A-3
Preparing to Call Technical Support .......................................................................................................A-3
Locating the Rating Label.................................................................................................................A-3
B Technical Specifications
HP LCD Monitor .................................................................................................................................. B-1
Preset Video and High-Definition Modes................................................................................................. B-3
LCD Monitor Quality and Pixel Policy..................................................................................................... B-4
Power Cord Set Requirements ............................................................................................................... B-4
C Agency Regulatory Notices
Federal Communications Commission Notice..........................................................................................C-1
Modifications.................................................................................................................................C-1
Cables ..........................................................................................................................................C-1
Declaration of Conformity for Products Marked with FCC Logo, United States Only .....................................C-1
Materials Disposal ...............................................................................................................................C-2
Chemical Substances ...........................................................................................................................C-2
Canadian Notice ................................................................................................................................C-2
Avis Canadien ....................................................................................................................................C-2
European Union Regulatory Notice ........................................................................................................C-2
Disposal of Waste Equipment by Users in Private Households in the European Union...................................C-3
Japanese Notice..................................................................................................................................C-3
Japanese Power Cord Notice................................................................................................................C-3
Japanese Material Content Declaration ..................................................................................................C-3
Korean Notice ....................................................................................................................................C-3
EPA ENERGY STAR® Compliance .........................................................................................................C-4
HP Recycling Program..........................................................................................................................C-4
Republic of Turkey EEE Regulation .........................................................................................................C-4
D Index
vi Features may vary by model.
User’s Guide
1
Product Features
HP LCD Monitors
The HP LCD (liquid crystal display) monitors have an active matrix, thin-film transistor (TFT) screen. This guide
discusses the following models:
■
2309p LCD monitor
■
2509p LCD monitor
Features
■
Large diagonal display
■
Optimum resolution: 1920 x 1080 @ 60Hz
Plus full-screen support for lower resolutions
■
Video inputs supported:
❏
VGA analog signal
❏
DVI digital signal
❏
High-definition multimedia interface (HDMI)
■
Improved sound quality
■
Slider function between + and - switches for fast scrolling through OSD menus and rapid adjustment of
adjustment scales
■
Fast response time, providing better experience for gaming and graphics
■
Easy viewing from a sitting or standing position, or while moving from one side of the monitor to the other
■
Tilt adjustment: –5° to +25° pivot (select models only)
■
Swivel adjustment: 90° pivot (select models only)
■
Height adjustment using tilt/slider mechanism
■
Removable pedestal and Video Electronics Standards Association (VESA) standard mounting holes for flexible
mounting solutions, including wall-mounting
■
Security lock slot for a locking security cable (security cable sold separately)
■
Plug and Play capability, if supported by your computer system
■
On-screen display (OSD) adjustments for ease of setup and screen optimization (choose English, Simplified
Chinese, Traditional Chinese, French, German, Italian, Spanish, Dutch, Japanese, or Brazilian Portuguese)
■
Built-in stereo speakers, downward firing
■
Keyboard parking
■
Power Saver to reduce energy consumption
■
Quick View settings display
■
Cable management
■
Four Universal Serial Bus (USB) 2.0 ports to use with USB devices. In models with four USB ports, one is reserved
for internal-only use (for webcam).
User’s Guide
1–1
Product Features
■
CD included:
❏
Drivers
❏
Auto-adjustment software
❏
Documents
❏
Adobe® Acrobat® Reader
❏
Pivot Pro software
1–2 Features may vary by model.
User’s Guide
2
Safety and Maintenance Guidelines
Important Safety Information
The power cord is designed for use with your monitor. To use a different cord, use only a power source and
connection compatible with this monitor.
WARNING: Always connect your monitor, the computer, and other equipment to a grounded (earthed) power
outlet. To reduce the risk of electric shock or damage to your equipment, do not disable the power cord grounding
feature. The grounding plug is an important safety feature.
WARNING: For your safety, be sure that the grounded power outlet you plug the power cord into is easily
accessible to the operator and located as close to the equipment as possible. To disconnect power from the
equipment, unplug the power cord from the power outlet by grasping the plug firmly. Never pull on the cord.
CAUTION: To protect your monitor, as well as your computer, connect all power cords for your computer and its
peripheral devices (such as a monitor, printer, or scanner) to a surge protection device such as a power strip with
surge protection or uninterruptible power supply (UPS).
Not all power strips provide surge protection; the power strips must be specifically labeled as having this ability. Use
a power strip whose manufacturer offers a damage replacement policy, so you can replace your equipment if surge
protection fails.
Safety Precautions
■
Use only a power source and connection compatible with this monitor, as indicated on the label/back plate of
the monitor.
■
Be sure the total ampere rating of the products connected to the outlet does not exceed the current rating of the
electrical outlet, and the total ampere rating of the products connected to the power cord does not exceed the
rating of the power cord. Look on the power label to determine the ampere rating (Amps or A) for each device.
■
Install your monitor near a power outlet that you can easily reach. Disconnect the monitor by grasping the plug
firmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.
■
Do not allow anything to rest on the power cord. Do not walk on the cord.
User’s Guide
2–1
Safety and Maintenance Guidelines
Maintenance Guidelines
To enhance the performance and extend the life of your monitor:
■
Do not open your monitor cabinet or attempt to service this product yourself. If your monitor is not operating
properly or has been dropped or damaged, contact your Hewlett-Packard authorized dealer, reseller, or service
provider.
■
Adjust only those controls that are described in the operating instructions.
■
Turn your monitor off when not in use. You can substantially increase the life expectancy of the monitor by using
a screen saver program and turning off the monitor when not in use.
■
Keep your monitor in a well-ventilated area, away from excessive light, heat, or moisture.
■
Slots and openings in the cabinet are provided for ventilation. These openings must not be blocked or covered.
Never push objects of any kind into cabinet slots or other openings.
■
Unplug the monitor from the power outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
■
Do not drop the monitor or place it on an unstable surface.
■
When removing the monitor base, you must lay the monitor face down on a soft area to prevent it from getting
scratched, defaced, or broken.
Cleaning the Monitor
The monitor is a high-quality optical device that requires special care when cleaning. To clean the monitor, follow
these steps:
1. Turn off the computer and the monitor.
2. Unplug your monitor from the power outlet before cleaning.
CAUTION: Do not use benzene, thinner, ammonia, or any volatile substance to clean the monitor screen or
cabinet. These chemicals may damage the monitor. Do not use liquid or aerosol cleaners. Never use water to clean
an LCD screen.
3. Wipe the screen with a dry, soft, clean cloth.
If the screen requires additional cleaning, use an antistatic screen cleaner.
4. Dust the monitor housing. Use a damp cloth to clean the cabinet.
If the cabinet requires additional cleaning, use a clean cloth dampened with isopropyl alcohol.
5. Plug in the monitor.
6. Turn on the monitor and the computer.
2–2 Features may vary by model.
User’s Guide
3
Setting Up the Monitor
Unpacking the Monitor
1. Unpack the monitor. Make sure all contents are included. Store the packing box.
2. Turn off the computer and other attached devices.
3. Determine whether the monitor will be desktop mounted or wall-mounted. See “Installing the Monitor” in this
chapter.
4. Prepare a flat area to assemble the monitor. You may need a flat, soft, protected area for placing the monitor
screen down while preparing it for installation.
5. You need a Phillips screwdriver for preparing the monitor for wall-mounting. You may need a straight-slot
screwdriver to secure some cables.
Installing the Monitor
You can install the monitor on a desktop or wall-mount it. Place the monitor in a convenient, well-ventilated location
near your computer.
Connect the monitor cables after you have installed the monitor.
Preparing the monitor for desktop use
CAUTION: The screen is fragile. Avoid touching or applying pressure to the LCD screen; doing so can cause
damage. Unfold the monitor by lifting it from the top edge of the bezel.
1. Set the monitor screen face down on a flat, soft, protected surface.
Monitor with folded base
User’s Guide
3–1
Setting Up the Monitor
2. Grip the base near the bottom of the monitor with one hand and hold the top of the monitor with the other hand.
Then lift the top part of the monitor until it is unfolded into the desired position.
Lifting the monitor to the upright position
3. Lift the monitor to an upright position and place on a flat, stable surface. Push down on the monitor to release
the lock.
Monitor in upright position
3–2 Features may vary by model.
User’s Guide
Setting Up the Monitor
Preparing the monitor for wall-mounting
WARNING: To reduce the risk of personal injury or of damage to the equipment, check that the wall-mounting
fixture is adequately installed and secured before attaching the monitor. Refer to the instructions supplied with the
wall-mounting fixture and check that it is capable of supporting the monitor.
1. Disconnect the power cable and any other cables from the monitor.
2. Place the monitor face down on a flat, protected surface.
3. Remove the monitor base cover by inserting a screw driver into the slots and prying the cover off.
Inserting screwdriver into slots to remove monitor base cover
4. Lift the cover off the bottom of the monitor.
Removing the base cover away from the monitor
User’s Guide
3–3
Setting Up the Monitor
5. Remove the two screws in the monitor base. Lift the monitor base off the monitor.
Removing the plate from the back of the monitor
Four threaded holes are exposed. These holes are for screws to attach the swing arm or other mounting fixture to
the back of the monitor.
Threaded holes for attaching wall mount
6. Follow the instructions included with the mounting fixture to ensure that the monitor is safely attached.
The four threaded holes that are on the back of the panel are compliant with the VESA standard for mounting
flat-panel monitors.
7. Attach a swing arm or other mounting fixture.
3–4 Features may vary by model.
User’s Guide
Setting Up the Monitor
Connecting the VGA (Analog) or DVI-D (Digital) Cable
Use a VGA video cable or a DVI-D video cable (provided with select models). To use DVI, you must have a
DVI-compliant graphic card. Connectors are located on the back of the monitor. Be sure the computer and monitor
are turned off and unplugged.
Connecting the VGA or DVI-D cable—connector locations may vary
To connect the VGA cable
Connect one end of the VGA video cable to the back of the monitor and the other end to the VGA video connector
on the computer.
To connect the DVI-D cable
Connect one end of the DVI-D video cable to the back of the monitor and the other end to the DVI video connector on
the computer. You can use this cable only if your computer has a DVI-compliant graphic card installed. The monitor
DVI-D connector and cable are included with select models only.
NOTE: If you use a DVI-to-HDMI adapter, you must connect the green audio cable to enable the speakers. The
signal from the DVI connector is for video only.
User’s Guide
3–5
Setting Up the Monitor
Connecting the HDMI Cable (Select Models Only)
Connect one end of the HDMI cable to the back of the monitor and the other end to a computer with an HDMI
connector.
Connecting the HDMI cable—connector locations may vary
Audio and Video Cables and Adapters
The following table shows the cable and adapter types that may be required to connect the monitor to the computer,
TV, or set-top box.
The number and type of cables required may vary by model. Some cables and adapters are included for select
models only and may be sold separately.
Cable/Adapter
Name
Description
HDMI cable
HDMI transmits an all-digital signal. It is the
recommended choice for playback from a DVD
or DVR.
HDMI is capable of transmitting both
uncompressed digital audio and digital video
signals, because it has video, audio, and control
signals.
DVI cable
DVI transmits an all-digital video signal.
VGA cable
VGA transmits an analog video signal.
NOTE: When using a VGA or DVI signal, you must connect your audio separately because a VGA or DVI signal
converts only video data, not audio data. A separate audio connection is not necessary when you use an HDMI
signal, because an HDMI signal can convert both video and audio data.
3–6 Features may vary by model.
User’s Guide
Setting Up the Monitor
High-Bandwidth Digital Content Protection (HDCP)
If your monitor supports HDCP, it can receive high-definition content. High-definition content is available in many
sources, such as Blu-ray Disc devices or HDTV air or cable broadcasts. If you do not have an HDCP-enabled monitor,
you may see a black screen or a lower resolution picture when playing high-definition protected content. Your
computer graphic card and monitor must both support HDCP to display protected content.
Connecting the Audio Cable
Connect the built-in monitor speakers to the computer by using the audio cable, as shown in the following illustration.
Connecting the audio cables—connector locations may vary
Connecting the USB Hub Cable
Connect the USB hub cable from the computer to the USB In connector on the monitor. This enables USB 2.0 ports on
the monitor.
USB In
User’s Guide
3–7
Setting Up the Monitor
Connecting USB Devices to the Monitor
You can connect four USB devices, such as a USB flash drive or a digital camcorder, to your monitor. Do this only
after you have connected the USB hub cable from the computer to the monitor.
3–8 Features may vary by model.
User’s Guide
Setting Up the Monitor
Connecting the Power Cable
1. Read the warning below.
WARNING: To reduce the risk of electric shock or damage to your equipment:
■
Do not disable the power cord grounding plug. The grounding plug is an important safety feature. Plug the
power cord into a grounded (earthed) electrical outlet.
■
Be sure that the grounded power outlet you plug the power cord into is easily accessible to the operator and
located as close to the equipment as possible. A power cord should be routed so that it is not likely to be
walked on or pinched by items that are placed upon it or against it.
■
Do not place anything on power cords or cables. Arrange them so that no one may accidentally step on or trip
over them. Do not pull on a cord or cable.
See “Technical Specifications” (Appendix B) for additional information.
Connecting the power cable
2. Connect one end of the power cable to the monitor and the other end to a grounded electrical outlet.
User’s Guide
3–9
Setting Up the Monitor
Cable Management
The HP LCD monitors have cable management.
1. Connect all necessary cables to the monitor.
2. Remove the cable management bracket from the base.
3. Gather the cables from both sides of the monitor and place them over the base.
4. Snap the cable management bracket in place over the base to gather and guide the cables. Cables are partially
hidden when viewed from the front.
.
Monitor cables routed under removable bracket
3–10 Features may vary by model.
User’s Guide
Setting Up the Monitor
Adjusting the Pivot
The monitor may be pivoted to make it easy to plug in all the connections (select models only). See
“Pivot Pro Software” for more information.
1. Face the front of the monitor and hold the base so that you do not topple the monitor while changing the pivot:
Full pivot — the monitor pivots 90° to portrait position (select models only).
Partial pivot — the monitor pivots 45° (select models only).
2. After plugging in the connections, move the monitor back to its landscape position.
Monitor pivots to a partial position and a portrait position (select models only)
User’s Guide
3–11
Setting Up the Monitor
Adjusting the Tilt
For optimal viewing, adjust the screen tilt to your own preference, as follows:
1. Face the front of the monitor and hold the base so that you do not topple the monitor while changing the tilt.
2. Adjust the tilt by moving the top edge of the monitor either toward or away from you, without touching the
screen.
Adjusting the monitor tilt
Adjusting the Swivel
The HP LCD monitor allows a usable range of motion with the swivel feature.
Adjusting the monitor swivel
CAUTION: To avoid breakage or other damage, avoid applying pressure to the LCD screen while swiveling it or
changing the tilt.
3–12 Features may vary by model.
User’s Guide
Setting Up the Monitor
Adjusting the Monitor Height
The HP LCD monitor has a slider height adjustment mechanism with a locking feature. The range of the height
adjustment is 4 inches (102 mm).
1. While holding the monitor base, push the monitor down to release the lock mechanism.
2. Move the monitor up or down to the desired position and lock into place.
Adjusting the monitor height
Keyboard Parking
If you need more space on your desktop, place the keyboard under the monitor when not in use.
Placing the keyboard under the monitor
User’s Guide
3–13
Setting Up the Monitor
3–14 Features may vary by model.
User’s Guide
4
Operating the Monitor
CD Software and Utilities
The CD that is included with this monitor contains the drivers and software that you can install on your computer.
Installing Drivers
If you determine that you need to update the drivers, you can install the monitor-driver INF and ICM files from the CD,
or download them from the Internet.
To install the monitor-driver software from the CD:
1. Insert the CD in your computer CD drive. The CD menu appears.
2. Select the language.
3. Click Install Monitor Driver Software.
4. Follow the onscreen instructions.
5. Restart the computer.
6. Ensure that the proper resolutions and refresh rates appear in the Display Control Panel settings. Refer to the
Windows® operating system documentation for more information.
NOTE: You might need to install the digitally signed monitor drivers (INF or ICM files) manually from the CD, in case
of an installation error. Refer to the “Driver Software Readme” file on the CD for instructions (in English only).
Downloading updated drivers from the Internet
To download the latest version of drivers and software files from the HP Support site:
1. Refer to: http://www.hp.com/support
2. Select your country/region.
3. Select Download Drivers and Software.
4. Enter the model number of your monitor. The software-download pages for your monitor are displayed.
5. Download and install the driver and software files by using the instructions in the download pages.
6. Ensure that your system meets the requirements.
Pivot Pro Software
Use Pivot Pro Software to switch between landscape and portrait view.
To install the software:
1. Insert the CD in your computer CD drive. The CD menu displays.
2. Select the language.
3. Click Install Pivot Pro Software (available on select models).
4. Follow the onscreen instructions.
5. Restart the computer.
User’s Guide
4–1
Operating the Monitor
Using the Auto-Adjustment Function
You can easily optimize the screen performance for the VGA input by using the Auto/Select button on the monitor
and the auto-adjustment pattern software on the CD provided.
Do not use this procedure if your monitor is using a DVI or HDMI input. If your monitor is using the VGA input, this
procedure can correct the following image-quality conditions:
■
Fuzzy or unclear focus
■
Ghosting, streaking, or shadowing effects
■
Faint vertical bars
■
Thin, horizontal scrolling lines
■
Off-center picture
CAUTION: Burn-in image damage may occur on monitors that display the same static image on screen for a
prolonged period of time (12 consecutive hours of non-use). To avoid burn-in image damage on your monitor
screen, you should always activate a screen saver application or turn off the monitor when it is not in use for a
prolonged period of time. Image retention is a condition that may occur on all LCD screens.
To use the auto-adjustment feature:
1. Allow the monitor to warm up for 20 minutes before adjusting.
2. Press the Auto/Adjust button on the monitor front panel.
❏
You can also press the Menu button, and then select Image Control, followed by Auto Adjustment from
the OSD menu. See “Adjusting Screen Quality” in this chapter.
❏
If the result is not satisfactory, continue with the procedure.
3. Insert the CD in your computer CD drive. The CD menu displays.
4. Select the language.
5. Select Open Auto-Adjustment Software.
6. The setup test pattern displays.
Auto-adjustment setup test pattern
7. Press the Auto/Adjust button on the monitor front panel to produce a stable, centered image.
4–2 Features may vary by model.
User’s Guide
Operating the Monitor
Front-Panel Controls
Control buttons are located on the lower right front of the monitor:
Icon
Description
Power
Turns the monitor on and to standby or sleep mode.
NOTE: The power button is located on the bottom or front of the monitor depending on the model.
Menu
Opens, selects, or exits the OSD menu.
Volume
Adjusts the volume level.
Source
Chooses video input source from the computer.
–
Navigates backward through the OSD menu and decreases adjustment levels.
Slider bar activates the OSD and moves quickly through the menu or submenu selected.
+
Auto
OK
Navigates forward through the OSD menu and increases adjustment levels.
Auto-adjusts the display to the ideal setting when the OSD is not active.
Enters the selected option.
Using the On-Screen Display (OSD)
An On-screen display is an image superimposed on a screen picture, commonly used by monitors, televisions, VCRs,
and DVD players to display information such as volume, channel, and time.
1. If the monitor is not already on, press the Power button to turn on the monitor.
2. Touch the slider bar to enable the OSD menu, then press the Menu button. The OSD Main Menu displays.
3. To navigate through the Main or Sub-Menu menu, press the + (Plus) button on the monitor’s front panel to scroll
up, or the – (Minus) button to scroll in reverse. With the OSD active, swiping (one horizontal movement across
the slider) from Minus to Plus results in steady movement to the top of the menu or sub-menu being displayed.
Then press the OK button to select the highlighted function.
With an adjustment scale active, swiping from Minus to Plus results in steady movement to the maximum
adjustment setting. If movement is stopped before the end of the slider, the adjustment level stays at the last
setting.
4. To adjust the scale of a selected item, swipe between the + and – buttons.
5. Select Save and Return.
If you don’t want to save the setting, select Cancel from the Sub-Menu or Exit from the Main Menu.
6. Press the Menu button to exit the OSD.
NOTE: When a menu is displayed, if the buttons are untouched for 30 seconds (factory default), adjustments and
settings are saved and the menu closes.
User’s Guide
4–3
Operating the Monitor
OSD Menu Selections
The following table lists the On-Screen Display (OSD) menu selections and their functional descriptions. After
changing an OSD menu item, and if the menu screen has these options, you may choose to:
■
Cancel — to return to the previous menu level.
■
Save and Return — to save all changes and return to the OSD Main Menu screen. This Save and Return
option is active only if you change a menu item.
■
Reset — to change back to the previous setting.
Icon
Main Menu
Options
Submenu Options
Description
Brightness
Adjusts the brightness level of the screen.
Contrast
Adjusts the contrast level of the screen.
Image Control
Adjusts the screen image. Also enables or disables the ambient
light sensor (select models).
Auto-Adjustment
Automatically adjusts the screen image (VGA Input only).
Horizontal Position
Adjusts the horizontal position of the picture (VGA Input only).
Vertical Position
Adjusts the vertical position of the picture (VGA Input only).
Clock
Minimizes any vertical bars or strips visible on the screen
background. Adjusting the clock will also change the
horizontal screen image (VGA Input only).
Clock Phase
Adjusts the focus of the display. This adjustment allows you to
remove any horizontal noise, and clear or sharpen the image
of characters (VGA Input only).
Custom Scaling
Fill to Screen
Fill to Aspect Ratio
One to One
Sharpness
Adjust sharpness level of screen.
Video OverDrive
On or Off selection.
Ambient Light Sensor
(select models only)
On or Off selection.
OSD Control
4–4 Features may vary by model.
Adjusts the display of the OSD menus on the screen.
Horizontal OSD Position
Changes the viewing position of the OSD menu to the left or
right area of the screen. The factory default range is 50.
Vertical OSD Position
Changes the viewing position of the OSD menu to the top or
bottom area of the screen. The factory default range is 50.
OSD Transparency
Adjust to view the background information through the OSD.
OSD Timeout
Sets the time in seconds that the OSD is visible after the last
button is pressed. The factory default is 30 seconds.
Rotate OSD
Rotates the OSD menu to landscape or portrait position.
User’s Guide
Operating the Monitor
Icon
Main Menu
Options
Submenu Options
Color
Description (Continued)
Selects the screen color. The factory default is 6500 K or
Custom Color, depending on the model.
9300 K
Changes to slightly blueish white.
6500 K
Changes to slightly reddish white.
Custom Color
Selects and adjusts your own color scales:
R — Sets your own red color levels.
G — Sets your own green color levels.
B — Sets your own blue color levels.
sRGB
Sets your screen colors to adapt to the color standards used in
the image technology industry.
Quick View
Shows views optimized for different media:
Movie
Gaming
Text
Custom
Language
Selects the language in which the OSD menu is displayed. The
factory default is English.
Management
Selects the power-management features of the monitor.
Volume
Adjusts the volume level for various components.
Select Audio Auto-Detect
Select HDMI Audio
Select PC Analog Audio
Speaker Self-Test
Power Saver
Enables the power saving feature (see “Power-Saver Feature”
in this chapter). Select:
On
Off
The factory default is On.
Mode Display
Displays the resolution, refresh rate, and frequency information
on the screen each time the OSD Main Menu is accessed.
Select:
On
Off
The factory default is On or Off, depending on the model.
Monitor Status
Displays the operating status of the monitor each time the
monitor is powered on. Select the location to which to display
the status:
Top
Middle
Bottom
Off
The factory default is Top or Off, depending on the model.
User’s Guide
4–5
Operating the Monitor
Icon
Main Menu
Options
Management
(continued)
Submenu Options
Description (Continued)
DDC/CI Support
Allows the computer to control some OSD menu features such
as brightness, contrast, and color temperature. Set to:
On
Off
The factory default is On.
Bezel Power LED
Turns the light (LED) in the power button On and Off. When set
to Off, the light will remain off at all times.
Sleep Timer
Provides the timer-adjustment menu options:
Set Current Time — Sets the current time in hours and minutes.
Set Sleep Time — Sets the time you want to place the monitor
in sleep mode.
Set on Time — Sets the time you want the monitor to wake up
from sleep mode.
Timer — Sets the Sleep Timer feature On or Off; the default
setting is Off.
Sleep Now — Immediately sets the monitor to enter
sleep mode.
Source Control
Selects the default video input signal when the monitor is
connected to two active and valid video sources. The default is
DVI. You must restart the computer to have the change take
effect.
DVI
Video input signal comes from DVI.
HDMI
Video input signal comes from HDMI.
VGA
Video input signal comes from VGA.
Default Source
DVI
HDMI
VGA
The factory default is DVI.
Auto-Switch Source
On
Off
The factory default is On.
Information
Factory Reset
4–6 Features may vary by model.
Selects and displays important information about the monitor.
Current Settings
Provides the current input video mode.
Recommended Settings
Provides the recommended resolution mode and refresh rate
for the monitor.
Serial Number
Reports the serial number of the monitor. The serial number is
needed if contacting HP technical support.
FW Version
Reports the firmware version of the monitor.
Backlight Hours
Reports the total hours of backlight operation.
Service Support
For service support, go to: http://www.hp.com/support
Returns settings to factory defaults.
User’s Guide
Operating the Monitor
Selecting Video Input Connectors
The input connectors are:
■
VGA connector (analog)
■
DVI-D connector (digital)
■
HDMI connector (digital)
The monitor automatically determines which inputs have valid video signals, and displays the image.
You can connect the VGA cable, the DVI-D cable, or both. If both cables are installed, the default input selection is
DVI. The HDMI cable is in place of the DVI-D cable. The source of input can be switched using the Switch Video
Input option in the OSD menu. Switching from a VGA to an HDMI input source may take several seconds.
Identifying Monitor Conditions
Special messages appear on the monitor screen for the following monitor conditions:
■
Input Signal Out of Range — Indicates the monitor does not support the video card’s input signal because
its resolution or refresh rate are set higher than the monitor supports.
Change your video card settings to a lower resolution or refresh rate. Restart your computer for the new settings
to take effect.
■
Monitor Going to Sleep — Indicates the screen display is entering a sleep mode. The speakers are turned
off in sleep mode.
■
Check Video Cable — Indicates a video input cable is not properly connected to the computer or monitor.
■
OSD Lock-out — The OSD can be enabled or disabled by pressing and holding the Menu button on the front
panel for 10 seconds. If the OSD is locked, the warning message OSD Lock-out appears for 10 seconds.
If the OSD is locked, press and hold the Menu button for 10 seconds to unlock the OSD.
If the OSD is unlocked, press and hold the Menu button for 10 seconds to lock the OSD.
■
No Input Signal — Indicates the monitor is not receiving a video signal from the computer on the monitor
video input connector(s). Check to see if the computer or input signal source is off or in the power-saver mode.
■
Auto Adjustment in Progress — Indicates the auto-adjustment function is active. See “Adjusting Screen
Quality” in this chapter.
User’s Guide
4–7
Operating the Monitor
Adjusting Screen Quality
The auto-adjustment feature automatically fine-tunes the image quality for display size, position, clock, and phase
each time a new video mode is displayed. For more precise adjustments of VGA input, run the Auto-Adjustment
software on the CD. See “Using the Auto-Adjustment Function” in this chapter.
If you want additional image-quality improvement, use the Clock and Clock Phase controls of the monitor to fine-tune
the image. See “Optimizing Analog Video” in this chapter.
Optimizing Analog Video
Some monitors contain advanced circuitry that allow the monitor to function as a standard analog monitor. Two
controls in the OSD menu can be adjusted to improve analog image performance:
■
Clock — Increase or decrease the value to minimize any vertical bars or stripes visible on the screen
background.
■
Clock Phase — Increase or decrease the value to minimize video distortion or video jitter.
Use these controls only when the auto-adjustment function does not provide a satisfactory monitor image in
analog mode.
To obtain the best results:
1. Allow the monitor to warm up for 20 minutes before adjusting.
2. Display the adjustment-pattern application provided on the CD.
3. Access the OSD menu, then select Image Control.
4. Set the main Clock settings correctly first, because the Clock Phase settings depend on the main Clock setting.
When adjusting the Clock and Clock Phase values, if the monitor images become distorted, continue adjusting
the values until the distortion disappears.
To restore the factory settings, access the OSD menu, select Factory Reset, and then select Yes.
Power-Saver Feature
When the monitor is in normal operating mode, the Power light is aqua and the monitor uses the normal watts of
power. For power usage, refer to “Technical Specifications” (Appendix B).
The monitor also supports a power-saver mode that is controlled by the computer. When the monitor is in the
reduced-power state, the monitor screen is blank, the backlight is off, and the Power light is amber. The monitor uses
minimum power. When the monitor is “awakened,” a brief warm-up period occurs before the monitor returns to
normal operating mode. The energy-saving reduced power state activates if the monitor does not detect either the
horizontal sync signal or the vertical sync signal. The power-saver feature must be activated on your computer for this
feature to work.
Refer to your computer documentation for instructions on setting energy-saver features (sometimes called
power-management features).
NOTE: The energy-saver feature works only when the monitor is connected to computers that have energy-saver
features.
4–8 Features may vary by model.
User’s Guide
Operating the Monitor
Webcam (Select Models Only)
Install CyberLink YouCam software and driver from the CD that came with your monitor.
NOTE: USB connectivity between the monitor and PC is required for the webcam to operate.
Use your webcam to:
■
create videos from files on your computer.
■
create snapshots to view, organize, edit, send, and print.
■
create video notes for an enhanced visual calendar and to share.
■
initiate live video chats with Windows Live Messenger or other compatible software program.
■
import live videos into a movie-making program to save, send, stream on the Web, or record to disc.
A — Activity light
B — Webcam
C — Microphone
User’s Guide
4–9
Operating the Monitor
Capturing Webcam Video and Snapshots
To use CyberLink YouCam after you install it from the provided CD:
1. Click the Start button.
2. Click All Programs, CyberLink YouCam, and then click CyberLink YouCam again.
3. Click Tutorials to view an instructional video.
Having a Video Chat or Making Conference Calls
To set up a video chat, you must have a connection to the Internet, an ISP, and software that enables you to make
video calls over the Internet. As with chat or instant messenger software, you can use this kind of software to chat with
one or more people at a time. This software may require a separate subscription.
The optimal distance for recording sound with the array microphone is about .5 meters (2 feet) away from the
microphone.
Before you can set up a video chat:
1. Download an Internet messenger or video phone call program. Make sure the person you are calling has
compatible video-calling software.
2. Enable your webcam as the default video input. This is usually done through the video setup in the Tools menu
in the software program you are using.
3. Send your video call by following the instructions for the video-calling software program.
To start a video chat in CyberLink YouCam:
1. Click the Start button.
2. Click All Programs.
3. Click CyberLink YouCam, and again CyberLink YouCam, and then click Start a Video Call.
4–10 Features may vary by model.
User’s Guide
5
Preparing the Monitor for Shipping
Keep the original packing box in a storage area. You may need it later if you move or ship your monitor.
WARNING: Before folding the monitor, turn off the monitor power, and disconnect all power, video, and audio
cables. To disconnect power from the equipment, unplug the power cord from the power outlet by grasping the
power plug firmly. Never pull on the cord.
CAUTION: The screen is fragile. Placing the monitor screen down on a flat, soft area prevents scratches, defacing,
or breakage. Avoid applying pressure to the LCD screen; doing so can cause damage.
Preparing the Monitor for Shipping
1. Disconnect the power, video, and audio cables from the monitor.
2. Set the monitor base on a soft, protected surface.
Preparing the monitor for shipping
3. Hold the base with one hand, where it attaches to the rear of the monitor, and push the monitor forward, folding
the monitor flat onto the soft, protected surface.
4. Push monitor down in horizontal direction to shipping position.
5. Place the monitor and base in the original packing box.
User’s Guide
5–1
Preparing the Monitor for Shipping
5-2 Features may vary by model.
User’s Guide
A
Troubleshooting
Solving Common Problems
The following table lists possible problems, the possible cause of each problem, and the recommended solutions:
Problem
Solution
Power LED is not on.
Make sure the Power button is illuminated (aqua or amber light), and the power cord is
properly connected to a grounded power outlet and to the monitor.
Select Management in the OSD menu, and then select Bezel Power LED. Check if the
Bezel Power LED option is set to Off and, if so, set to On mode.
Screen is blank.
Connect the power cord. Turn on the power.
Connect the video cable properly. See “Setting Up the Monitor” for more information.
Press a key on the keyboard or move the mouse to turn off the screen-blanking utility.
Screen is black or displaying
at a lower resolution while
displaying high-definition
(HD) content.
Check if your monitor and computer support HDCP.
Image appears blurred,
indistinct, or too dark.
Activate the OSD by swiping the slider bar. Press the Auto/Adjust button on the monitor front
panel. If this does not correct the image, press the Menu button to open the OSD menu, and
adjust the brightness and contrast scales.
Image is not centered.
Press the Menu button to access the OSD menu. Select Image Control, and then select
Horizontal Position or Vertical Position to adjust the position of the image.
Check Video Cable appears
on screen.
Connect the monitor VGA signal cable to the VGA connector on the computer, or connect the
DVI-D signal cable to the DVI connector on the computer, or connect the monitor HDMI signal
cable to the HDMI connector on the computer. Be sure that the computer power is off while
connecting the video cable.
Input Signal Out of Range
appears on screen.
Restart your computer and enter Safe Mode. Change your settings to a supported setting (see
the table in “Preset Video and High-Definition Modes” in Appendix B). Restart your computer
so that the new settings take effect.
Picture is fuzzy and has
ghosting, shadowing
problem.
Adjust the contrast and brightness controls.
Refer to High-Content Digital Bandwidth Protection or http://www.hp.com/support
Make sure that you are not using an extension cable or switch box. We recommend plugging
the monitor directly into the graphic card output connector on the back of your computer.
For VGA input, the auto-adjustment feature might fix this problem.
Unable to set the monitor to
the optimal resolution.
Make sure the graphic card supports the optimal resolution.
Using HDMI connection,
unable to hear audio.
Ensure HDMI audio is selected as the main audio output in the operating system. To do so, click
the Start button, and then click Control Panel. Click Sound, and in the Playback tab,
ensure the check mark is next to the HDMI output, and click OK.
User’s Guide
Make sure the latest supported driver is installed for the graphic card. For HP and Compaq
systems, you can download the latest graphics driver for your system from:
www.hp.com/support. For other systems, refer to the Web site for your graphic card.
A–1
Troubleshooting
Problem
Solution (Continued)
Unable to hear audio from
built-in speakers.
Do the following:
No Plug and Play.
■
Ensure the source signal is good by using headphones at the source.
■
Press the Menu button to access the OSD menu. Select Management, and then select
Volume to adjust the volume.
■
Turn up the volume with the front panel volume button.
■
Ensure speaker volume is not muted or too low: Click the Start button, Control Panel,
and Hardware and Sound. Under Audio Devices and Sound, click Adjust system
volume. Under Main Volume, move the slider up.
In order for the Plug and Play feature of the monitor to work, you need a computer and graphic
card that are compatible with Plug and Play. Check with your computer manufacturer.
Check the monitor’s video cable, and make sure that none of the pins are bent.
Make sure that the HP monitor drivers are installed. Refer to “Installing Drivers” in the
Operating the Monitor chapter for more information. HP monitor drivers are also available at:
http://www.hp.com/support
Picture bounces, flickers, or
wave pattern is present in the
picture.
Move electrical devices that may cause electrical interference as far away from the monitor as
possible.
Monitor is always in “Sleep
Mode (Amber LED).”
The computer power switch should be illuminated — aqua for full power, amber for
sleep mode.
Use the maximum refresh rate that your monitor is capable of at the resolution that you are
using.
The computer graphic card should be snugly seated in its slot.
Check that the monitor video cable is properly connected to the computer.
Inspect the monitor video cable, and make sure that none of the pins are bent.
Check that your computer is operational: Press the Caps Lock key and observe the Caps Lock
LED found on most keyboards. The LED should either turn on or off after hitting the Caps
Lock key.
USB 2.0 ports are not
working.
A–2 Features may vary by model.
Make sure the USB hub cable is securely connected to the monitor and the computer.
User’s Guide
Troubleshooting
Getting Support from hp.com
Before you contact customer service, refer to HP Technical Support at: http://www.hp.com/support
Select your country/region, and then follow the links to the support page for your monitor.
Preparing to Call Technical Support
If you cannot solve a problem by using the troubleshooting tips in this section, you might have to call technical
support. For technical support contact information, refer to the printed documentation included with the monitor. Have
the following information available when you call:
■
Monitor model number (located on label on back of monitor)
■
Monitor serial number (located on label on back of monitor or in the OSD display in the Information menu)
■
Purchase date on invoice
■
Conditions under which the problem occurred
■
Error messages received
■
Hardware configuration
■
Name and version of hardware and software you are using
Locating the Rating Label
The rating label on the monitor provides the product number and serial number. You may need these numbers when
contacting HP about your monitor model.
The rating label is on the back of the monitor.
User’s Guide
A–3
Troubleshooting
A–4 Features may vary by model.
User’s Guide
B
Technical Specifications
All specifications represent the typical specifications provided by HP’s component manufacturers; actual performance
may vary either higher or lower.
HP LCD Monitor
Face treatment: Glare polarizer with hard coating
Input Terminals:
■
VGA connector (select models)
■
DVI-D 24-pin D-type connector (select models)
■
HDMI connector (select models)
Specifications
model 2309p
Display Type:
TFT LCD active matrix
Viewable Image Size:
23 in. (58.4 cm) diagonal
Tilt:
–5° to +25°
Maximum Weight (unpacked):
13.7 lb (6.2 Kg)
Dimensions (h x w x d):
16.2 x 22.6 x 7.9 in. (412 x 573 x 200 mm)
Maximum Graphics Resolution:
1920 x 1080 @ 60 Hz analog mode
Optimum Graphics Resolution:
1920 x 1080 @ 60 Hz analog mode
Text Mode:
720 x 400
Dot Pitch:
0.30 x 0.30 mm
Horizontal Frequency (analog mode):
24 to 94 kHz
Vertical Frequency (analog mode):
50 to 76 Hz
Environmental Requirements
Temperature (independent of altitude)
Operating Temperature:
41° to 105° F (5° to 35° C)
Non-operating Temperature:
–29° to 140° F (–20° to 60° C)
Relative Humidity (non-condensing):
Operating Humidity:
20% to 80%
Non-operating Humidity:
5% to 95%
Power Source:
100–240Vv, 50/60 Hz
Power Consumption:
56 watts maximum
Sleep Power Consumption:
<2 watts typical
User’s Guide
B–1
Technical Specifications
Specifications (Continued)
model 2509p
Display Type:
TFT LCD active matrix
Viewable Image Size:
25 in. (63.44 cm) diagonal
Tilt:
–5° to +25°
Maximum Weight (unpacked):
21.1 lb (9.6 Kg)
Dimensions (h x w x d):
24.3 x 20.3 x 9.3 in. (617 x 515 x 235 mm)
Maximum Graphics Resolution:
1920 x 1080 @ 60 Hz analog mode
Optimum Graphics Resolution:
1920 x 1080 @ 60 Hz analog mode
Text Mode:
720 x 400
Dot Pitch:
0.29 x 0.29 mm
Horizontal Frequency (analog mode):
24 to 94 kHz
Vertical Frequency (analog mode):
50 to 76 Hz
Environmental Requirements
Temperature (independent of altitude)
Operating Temperature:
41° to 105° F (5° to 40° C)
Non-operating Temperature:
–29° to 140° F (–20° to 60° C)
Relative Humidity (non-condensing):
Operating Humidity:
20% to 80%
Non-operating Humidity:
5% to 95%
Power Source:
100–240Vv, 50/60 Hz
Power Consumption:
70 watts maximum
Sleep Power Consumption:
<2 watts typical
B–2 Features may vary by model.
User’s Guide
Technical Specifications
Preset Video and High-Definition Modes
The monitor automatically recognizes many preset video input modes that will appear properly sized and centered
on the screen.
Factory Preset Video Input Modes, 2309p and 2509p
Preset
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
1
640 x 480
31.47
59.94
2
720 x 400
31.47
70.09
3
800 x 600
37.88
60.32
4
1024 x 768
48.36
60.00
5
1280 x 720
45.00
60.00
6
1280 x 960
60.00
60.00
7
1280 x 1024
63.98
60.02
8
1440 x 900
55.94
59.89
9
1600 x 1200
75.00
60.00
10
1680 x 1050
65.29
60.00
11
1920 x1080
67.50
60.00
High Definition Video Formats
Preset
User’s Guide
Timing Name
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
1
480p60
720 x 480
31.47
60
2
720p60
1280 x 720
45.00
60
3
576p50
720 x 576
31.25
50
4
720p50
1280 x 720
37.50
50
5
1080p60
1920 x 1080
67.50
60
6
1080p50
1920 x 1080
56.25
50
B–3
Technical Specifications
LCD Monitor Quality and Pixel Policy
The HP LCD Monitor uses high-precision technology, manufactured according to high standards, to help guarantee
trouble-free performance. Nevertheless, the display may have cosmetic imperfections that appear as small bright or
dark spots. This is common to all LCD displays used in products supplied by all vendors and is not specific to the
HP LCD Monitor. These imperfections are caused by one or more defective pixels or subpixels.
■
A pixel consists of one red, one green, and one blue subpixel.
■
A defective whole pixel is always turned on (a bright spot on a dark background), or it is always off (a dark spot
on a bright background). The first is the more visible of the two.
■
A defective subpixel (dot defect) is less visible than a defective whole pixel, and is small and only visible on a
specific background.
To locate defective pixels, the monitor should be viewed under normal operating conditions and in normal operating
mode at a supported resolution and refresh rate, from a distance of approximately 16 inches (50 cm).
We expect that, over time, the industry will continue to improve its ability to produce displays with fewer cosmetic
imperfections, and we will adjust guidelines as improvements are made.
For more information about your HP LCD Monitor, refer to the HP Web site at: http://www.hp.com/support
Power Cord Set Requirements
The monitor power supply is provided with Automatic Line Switching (ALS). This feature allows the monitor to operate
on input voltages between 100–240Vv, 50/60 Hz, 1.5A.
The power cord set (flexible cord or wall plug) received with the monitor meets the requirements for use in the
country/region where you purchased the equipment.
If you need to obtain a power cord for a different country/region, you should purchase a power cord that is
approved for use in that country/region.
The power cord must be rated for the product and for the voltage and current marked on the product’s electrical
ratings label. The voltage and current rating of the cord should be greater than the voltage and current rating marked
on the product. If you have questions about the type of power cord to use, contact your HP-authorized service
provider.
A power cord should be routed so that it is not likely to be walked on or pinched by items placed upon it or against
it. Particular attention should be paid to the plug, electrical outlet, and the point where the cord exits from the
product.
B–4 Features may vary by model.
User’s Guide
C
Agency Regulatory Notices
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
■
Reorient or relocate the receiving antenna.
■
Increase the separation between the equipment and the receiver.
■
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■
Consult the dealer or an experienced radio or television technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly
approved by Hewlett-Packard Company may void the user’s authority to operate the equipment.
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain
compliance with FCC rules and regulations.
Declaration of Conformity for Products Marked with FCC
Logo, United States Only
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
For questions regarding your product, contact:
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
Or
Call: 1-800-474-6836
For questions regarding this FCC declaration, contact:
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
Or
Call: 1-281-514-3333
To identify this product, refer to the part, series, or model number found on the product.
User’s Guide
C–1
Agency Regulatory Notices
Materials Disposal
This HP product contains mercury in the fluorescent lamp in the display LCD that might require special handling at
end-of-life:
Disposal of this material can be regulated because of environmental considerations. For disposal or recycling
information, contact your local authorities or the Electronic Industries Alliance (EIA) (http://www.eiae.org).
Chemical Substances
HP is committed to providing our customers with information about the chemical substances in our products as
needed to comply with legal requirements such as REACH (Regulation EC No 1907/2006 of the European
Parliament and the Council). A chemical information report for this product can be found at:
http://www.hp.com/go/reach
Canadian Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du
Canada.
European Union Regulatory Notice
This product complies with the following EU Directives:
■
Low Voltage Directive 2006/95/EC
■
EMC Directive 2004/108/EC
Compliance with these directives implies conformity to applicable harmonized European standards (European
Norms) which are listed on the EU Declaration of Conformity issued by Hewlett-Packard for this product or product
family.
This compliance is indicated by one of the following conformity markings placed on the product:
XXXX*
This marking is valid for
non-Telecom products and for EU
harmonized Telecom products
(for example, Bluetooth).
This marking is valid for EU
non-harmonized Telecom products.
*Notified body number (used only if
applicable—refer to the product label).
Hewlett-Packard GmbH, HQ-TRE, Herrenberger Straße 140, 71034 Böblingen, Germany
C–2 Features may vary by model.
User’s Guide
Agency Regulatory Notices
Disposal of Waste Equipment by Users in Private
Households in the European Union
This symbol on the product or on its packaging indicates that this product must not be disposed of
with your other household waste. Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for the recycling of waste electrical
and electronic equipment. The separate collection and recycling of your waste equipment at the
time of disposal will help to conserve natural resources and ensure that it is recycled in a manner
that protects human health and the environment. For more information about where you can drop
off your waste equipment for recycling, please contact your local city office, your household waste
disposal service or the shop where you purchased the product.
Japanese Notice
Japanese Power Cord Notice
Japanese Material Content Declaration
A Japanese regulatory requirement, defined by Specification JIS-C-0950, 2008, mandates that manufacturers
provide Material Content Declarations for certain categories of electronic products offered for sale after July 1,
2006. To view the JIS-C-0950 material declaration for this product, visit www.hp.com/go/jisc0950
Korean Notice
User’s Guide
C–3
Agency Regulatory Notices
EPA ENERGY STAR® Compliance
Products marked with the ENERGY STAR® logo on the packaging box qualify with the U.S.
Environmental Protection Agency’s ENERGY STAR® guidelines for energy efficiency.
Products with the ENERGY STAR® label are designed to use less energy, help you save money on
utility bills, and help protect the environment.
ENERGY STAR® is a registered trademark owned by the U.S. government.
HP Recycling Program
HP offers product end-of-life return programs for HP and other manufacturers’ hardware in several geographic areas.
The terms and availability of these programs vary by geography because of differences in regulatory requirements
and local customer demand. For information on the HP recycling program, refer to the HP Web site at:
http://www.hp.com/recycle
Republic of Turkey EEE Regulation
Republic of Turkey: In conformity with the EEE Regulation.
C–4 Features may vary by model.
User’s Guide
Agency Regulatory Notices
The Table of Toxic and Hazardous Substances/Elements and their Content
as required by China’s
Management Methods for Controlling Pollution by Electronic Information Products
Toxic and Hazardous Substances and Elements
Part Name
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(Cr(VI))
Polybrominated
biphenyls (PBB)
Polybrominated
diphenyl ethers
(PBDE)
Liquid Crystal Display
Panel
X
X
O
O
O
O
Chassis/Other
X
O
O
O
O
O
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below
the limit requirement in SJ/T11363-2006.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this
part is above the limit requirement in SJ/T11363-2006.
All parts named in this table with an “X” are in compliance with the European Union’s RoHS Legislation – “Directive
2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain
hazardous substances in electrical and electronic equipment”.
Note: The referenced Environmental Protection Use Period Marking was determined according to normal operating use
conditions of the product such as temperature and humidity.
ѻકЁ᳝↦᳝ᆇ⠽䋼៪‫ܗ‬㋴ⱘৡ⿄ঞ৿䞣
ᩮᝪਛ࿖‫⬉ޝ‬ሶାᕷѻຠ∵ᨴប೙▤ℂࡲᴺ‫ޞ‬
䚼ӊৡ⿄
᳝↦᳝ᆇ⠽䋼៪‫ܗ‬㋴
䪙(Pb)
ᳮ
䬝(Cd)
(Hg)
౐ચ䫀
ᄙ⒈㘨⧶
(Cr(VI))
(PBB)
໮⒈Ѡ㣃䝮
(PBDE)
⎆᱊ᰒ⼎ሣ
X
X
O
O
O
O
ᴎㆅ/݊Ҫ
X
O
O
O
O
O
O˖㸼⼎䆹᳝↦᳝ᆇ⠽䋼೼䆹䚼ӊ᠔᳝ഛ䋼ᴤ᭭Ёⱘ৿䞣ഛ೼SJ/T11363-2006 ᷛ‫ޚ‬㾘ᅮⱘ䰤䞣㽕∖ҹϟDŽ
X˖㸼⼎䆹᳝↦᳝ᆇ⠽䋼㟇ᇥ೼䆹䚼ӊⱘᶤϔഛ䋼ᴤ᭭Ёⱘ৿䞣䍙ߎSJ/T11363-2006 ᷛ‫ޚ‬㾘ᅮⱘ䰤䞣㽕∖DŽ
⴫ਛᷛ᦭̌X” ⊛ᚲ᦭ㇱઙㇺ╓ว᰷⋖ RoHS ᴺ㾘
“᰷ᵮ䆂ળ๺᰷⋖ℂ੐ળ 2003 ᐕ 1 ᦬ 27 ᣣ݇੓⬉ሶ⬉ེ䆒໛ਛ㒢೙૶↪ᨱੜ᦭ኂ‛䋼⊛ 2002/95/EC ภᜰ઎̍
ᵈ㧦⦃଻૶↪ᦼ㒢⊛ෳ⠨ᷛ䆚ขಀ੓ѻຠᱜᏱᎿ૞⊛᷷ᐲ๺Ḩᐲ╬᧦ઙ
User’s Guide
C–5
Agency Regulatory Notices
C–6 Features may vary by model.
User’s Guide
D
Index
A
M
adjustments
maintenance
swivel 3-12
cleaning 2-2
tilt 3-11 – 3-12
guidelines 2-2
audio and video cables and adapters 3-6
monitor conditions
Auto Adjustment in Progress 4-7
B
base
unfolding 3-2
C
cleaning 2-2
connecting
audio cable 3-7
DVI-D 3-5
HDMI 3-6
power cable 3-9
Check Video Cable 4-7
Input Signal Out of Range 4-7
Monitor Going to Sleep 4-7
No Input Signal 4-7
OSD Lock-out 4-7
monitor operation 4-1 – 4-10
monitor setup 3-1 – 3-13
P
power cable
connecting 3-9
power saver 4-8
VGA 3-5
F
R
regulatory notices C-1 – C-5
features 1-1
front panel 4-3
H
High-Bandwidth Digital Content Protection (HDCP) 3-7
I
installing 3-1 – 3-13
K
S
safety
guidelines 2-1
precautions 2-1
setup 3-1 – 3-13
shipping the monitor 5-1
software and utilities CD 4-2 – 4-6
specifications B-1 – B-4
swivel adjustment 3-12
keyboard parking 3-13
User’s Guide
D–1
Index
T
technical specifications B-1 – B-4
U
unpacking 3-1
tilt adjustment 3-11 – 3-12
troubleshooting A-1 – A-3
V
video and audio cables and adapters 3-6
video input connectors
selecting 4-7
Part number: 575820-001
D–2 Features may vary by model.
User’s Guide
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
