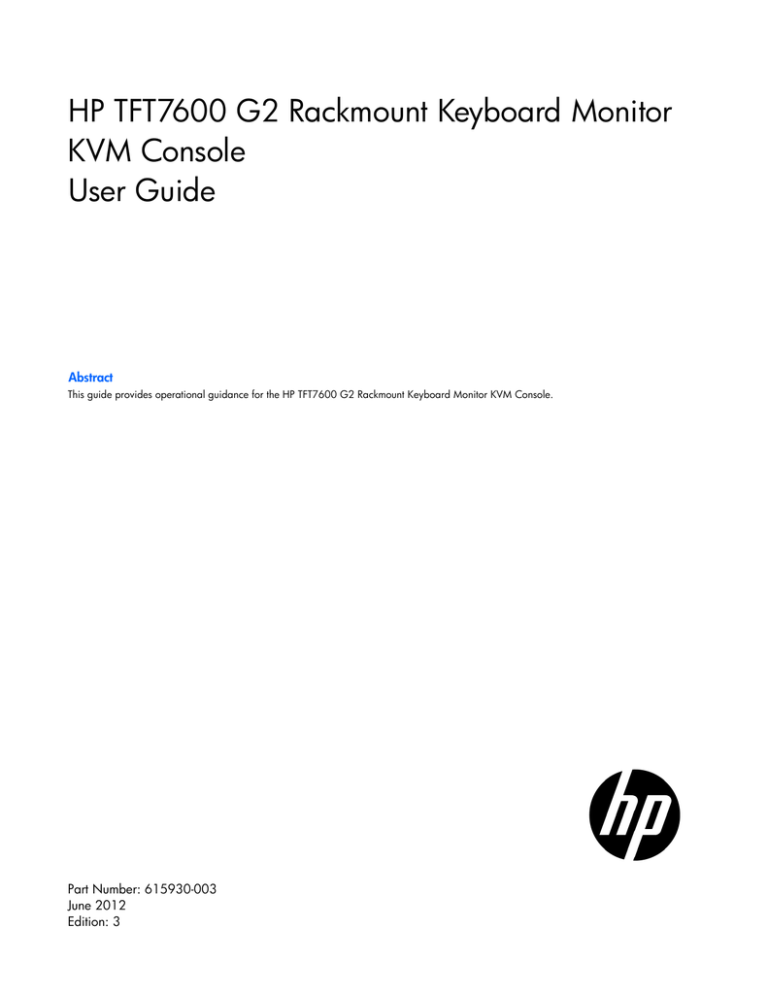

HP TFT7600 G2 Rackmount Keyboard Monitor
KVM Console
User Guide
Abstract
This guide provides operational guidance for the HP TFT7600 G2 Rackmount Keyboard Monitor KVM Console.
Part Number: 615930-003
June 2012
Edition: 3
© Copyright 2010, 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions contained herein.
Bluetooth® is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. ENERGY STAR® and the ENERGY STAR®
logo are registered U.S. marks.
Contents
Introduction .................................................................................................................................. 5
Main components ...................................................................................................................................... 5
Rear components....................................................................................................................................... 6
ENERGY STAR compliant ................................................................................................................. 6
Installation ................................................................................................................................... 7
Kit contents ............................................................................................................................................... 7
Installing the HP TFT7600 G2 Rackmount Keyboard Monitor KVM Console ...................................................... 7
Connecting and routing cables ................................................................................................................. 11
Accessing the HP TFT7600 KVM Console ................................................................................................... 12
Removing the HP 1U Adjustable Toolless Rails ............................................................................................ 13
Removing PS2 cables with cable-locking mechanism .................................................................................... 13
Enabling the native display resolution of 1440x900 in HP-UX ....................................................................... 14
Operational overview ................................................................................................................. 15
On-screen display ................................................................................................................................... 15
Launching OSD menu .............................................................................................................................. 15
Navigating OSD ..................................................................................................................................... 15
OSD menu ............................................................................................................................................. 16
Brightness/Contrast ....................................................................................................................... 16
Image control ................................................................................................................................ 16
Advanced..................................................................................................................................... 17
Auto Configuration ........................................................................................................................ 18
Factory settings ............................................................................................................................. 18
Language ..................................................................................................................................... 18
Information ................................................................................................................................... 18
Maintenance .............................................................................................................................. 19
Maintenance guidelines ........................................................................................................................... 19
Cleaning the monitor ..................................................................................................................... 19
Shipping instructions ................................................................................................................................ 20
Moving a rack with the HP TFT7600 KVM Console installed ......................................................................... 20
Regulatory compliance notices ..................................................................................................... 21
Regulatory compliance identification numbers ............................................................................................. 21
Federal Communications Commission notice ............................................................................................... 21
FCC rating label ............................................................................................................................ 21
FCC Notice, Class A Equipment ...................................................................................................... 21
FCC Notice, Class B Equipment ...................................................................................................... 21
Declaration of conformity for products marked with the FCC logo, United States only ............................. 22
Modifications ................................................................................................................................ 22
Cables ......................................................................................................................................... 22
Canadian notice (Avis Canadien) .............................................................................................................. 22
European Union regulatory notice ............................................................................................................. 23
Japanese notice ...................................................................................................................................... 24
BSMI notice ............................................................................................................................................ 24
Korean notice ......................................................................................................................................... 24
Chinese notice ........................................................................................................................................ 25
Contents
3
China energy regulations ......................................................................................................................... 25
Disposal of waste equipment by users in private households in the European Union ......................................... 25
Power cord requirement ........................................................................................................................... 25
Power cord statement for Japan................................................................................................................. 26
Electrostatic discharge ................................................................................................................. 27
Preventing electrostatic discharge .............................................................................................................. 27
Grounding methods to prevent electrostatic discharge .................................................................................. 27
Support and other resources ........................................................................................................ 28
HP contact information ............................................................................................................................. 28
Acronyms and abbreviations ........................................................................................................ 29
Documentation feedback ............................................................................................................. 30
Index ......................................................................................................................................... 31
Contents
4
Introduction
Main components
Callout
Component
Function
1
Display release latch
Pushes down to unlatch the display assembly
2
Blue LED
•
•
Turns on when the display is closed
Helps identify the HP TFT7600 KVM
Console in a rack
3
OSD activation button
•
•
•
Launches OSD menus
Selects
Exits menus and OSD
4
OSD scroll up and
down button
Used to scroll in the OSD menu and adjust
functions
5
Scroll lock LED
Lights when Scroll lock is on
6
Cap lock LED
Lights when Cap lock is on
7
Number lock LED
Lights when Number lock is on
8
USB connection
Pass-through to the rear USB port
9
Scroll bar
Used to scroll on the monitor
10
Right pick button
Used to select the option on the right
11
Middle pick button
Used to select the option in the middle
12
Left pick button
Used to select the option on the left
13
Touchpad
Used to move the mouse on the monitor
Introduction
5
Rear components
Callout
Component
1
USB pass-through
2
USB keyboard and mouse port
3
PS2 keyboard port
4
PS2 mouse port
5
VGA input port
6
Power connection port
7
Serial firmware port
ENERGY STAR compliant
The HP TFT7600 KVM Console is ENERGY STAR® qualified.
For more information about the ENERGY STAR® qualifications, see the HP website
(http://www.hp.com/hpinfo/globalcitizenship/environment/products/ecolabels.html).
Introduction
6
Installation
Kit contents
Item
Quantity
HP TFT7600 KVM Console
1
M6 screws
4
6-32 screws
5
HP Adjustable Toolless Rails
2
Cable management arm, power adapter with brace rail
1
Lock plates
2
USB cables
2
PS2 cables
2
Video cable
1
Power cords
2
USB cable labels
2
This kit might contain extra hardware.
Installing the HP TFT7600 G2 Rackmount Keyboard
Monitor KVM Console
1.
Align the HP 1U Adjustable Toolless Rails with the holes marked on the rack, and snap them into place.
a. Snap one end of the HP 1U Adjustable Toolless Rails into the retna rails.
b. Extend the other half of the HP 1U Adjustable Toolless Rails to meet the appropriate rack depth, and
snap them into place.
NOTE: If the HP 1U Adjustable Toolless Rails do not snap into place, be sure that they align with
the holes marked on the rack. The holes marked on the rack must be in the same location for the
front and rear of the rack.
Installation 7
2.
Extend the inner slides until they lock into place.
3.
Align the unit with the extended inner slides, and then insert the unit into the rack.
Installation 8
4.
From the rear of the rack, slide the brace rail assembly in between the HP 1U Adjustable Toolless Rails.
5.
Align the screw holes on the brace rail with the screw holes on the HP 1U Adjustable Toolless Rails.
6.
Using two 6-32 screws, secure the brace rail to the HP 1U Adjustable Toolless Rails.
Installation 9
7.
Remove and discard the two shipping screws from the rear of the unit.
8.
Attach the cable management arm to the rear of the unit with two 6-32 screws.
Installation 10
9.
Connect and route the cables through the cable management arm and unit opening.
Installation is complete.
Connecting and routing cables
When connecting and routing the cables through the cable management arm and cable tray to the HP
TFT7600 KVM Console, use the following cable-routing method to ensure that the cables fit into the tray.
IMPORTANT: Use either the PS/2 cables or USB keyboard/mouse cable when connecting the
unit to a device. Do not use both.
NOTE: The PS/2 cables use the same cable-routing method as the USB keyboard/mouse cable.
To connect and route the cables:
1.
Connect and route the power cable (1).
2.
Connect and route the VGA cable (2).
3.
Connect and route the USB keyboard/mouse cable (3).
4.
Connect and route the USB pass-through cable (4).
Installation 11
The following figure illustrates where the cables connect and how to route the cables in the tray.
Item
Description
1
Power cable
2
VGA cable
3
USB keyboard/mouse cable
4
USB pass-through cable
Accessing the HP TFT7600 KVM Console
1.
Gently extend the HP TFT7600 KVM Console until the slides lock.
2.
Push the display release latch, and then lift the display.
Installation 12
Removing the HP 1U Adjustable Toolless Rails
1.
Locate the spring release.
2.
Place your hand on the outside of the HP 1U Adjustable Toolless Rails so that you can move the spring
release.
3.
Gently move the spring release toward the inside of the rack (1) while moving the HP 1U Adjustable
Toolless Rails out toward you and away from the rack (2).
NOTE: If you cannot gain access to the spring release from the outside of the HP 1U Adjustable
Toolless Rails, a tool might be required to unlock the spring release from the inside of the HP 1U
Adjustable Toolless Rails.
4.
Repeat the previous steps for the other HP 1U Adjustable Toolless Rail.
Removing PS2 cables with cable-locking mechanism
PS2 cables have a locking mechanism to provide a secure cable connection. You must use proper
procedures when disconnecting these cables.
CAUTION: Failure to follow proper disconnect procedures could result in damage to the cable or
to your unit.
To properly disconnect a PS2 cable:
1.
Grasp the housing.
Installation 13
2.
Slide it back to release the locking mechanism and gently pull to remove the cable.
Enabling the native display resolution of 1440x900
in HP-UX
To fix issues related to wide screen panels, verify that you have at least one of the following server patches
(or newer) installed:
•
PHSS_40809 (11.31)
•
PHSS_40810 (11.23)
For more information about setting resolutions in HP-UX, see the Graphics Administration Guide for HP-UX
11.x servers on the HP website (http://docs.hp.com/en/5900-0585/5900-0585.pdf).
Installation 14
Operational overview
On-screen display
The OSD buttons are used to operate the HP TFT7600 KVM Console OSD menus.
Callout
Component
Function
1
OSD activation button
•
•
•
2
OSD scroll up and down button
Used to scroll in the OSD menu and
adjust the function
Launches OSD menus
Selects menu options
Exits menus and OSD
Launching OSD menu
To launch the OSD menu:
1.
Press the OSD activation button on the front panel. The main menu displays on the screen.
2.
To select a menu item, scroll up or down by pressing OSD scroll up and down button.
3.
Press the OSD activation button again to select your choice. A second level will expand menu items.
Navigating OSD
To navigate through the OSD menus and functions:
•
Use the Up (+) or Down (-) button to scroll through the OSD menu or an OSD sub-menu. The Up (+) and
Down (-) button are also used to adjust or change a function setting.
Operational overview
15
•
Use the OSD activation button to select a sub-menu or a function.
Example:
To exit the OSD menu:
1.
Press the Down (-) button to scroll to the Exit function.
2.
Press the OSD activation button to select the Exit function and exit the OSD menu.
OSD menu
The OSD menu provides access to display settings and functions, enabling the user to customize the HP
TFT7600 KVM Console display settings.
Brightness/Contrast
The Brightness/Contrast option contains the following options:
•
Brightness
•
Contrast
•
Exit sub-menu
Brightness
The Brightness option displays a slider bar to enable the adjustment of the back light brightness.
Contrast
The Contrast option displays a slider bar to enable the adjustment of the screen contrast. Contrast
adjustments are more discernable when the background is white.
Image control
The Image control option contains the following sub-menu:
•
Horizontal position
•
Vertical position
•
Clock
•
Phase
•
Exit sub-menu
Horizontal position
The H position option displays a slider bar to enable the adjustment of the screen's horizontal position.
The center of the bar is obtained from the factory-preset value for Horizontal Position. At value=MIN, the
selection of + positioning response might vary between XGA and SXGA panels. This is caused by physical
limitations at MIN OSD placement.
Operational overview
16
Vertical position
The V position option displays a slider bar to enable the adjustment of the screen's vertical position.
The center of the bar is obtained from the factory-preset value for Vertical Position.
Clock
The Clock option displays a slider bar to enable the adjustment of the Horizontal Clocks.
Phase
The Phase option displays a slider bar to enable the adjustment of the analog signals phase.
Advanced
The Advanced option provides access to the following options:
•
OSD settings menu
•
Exit sub-menu
OSD settings
The OSD settings option provides access to the following options:
•
Lock OSD settings
o
Yes
o
No
•
Timeout
•
V position
•
H position
•
Exit sub-menu
Lock OSD settings
The Lock OSD settings option locks or unlocks the OSD settings.
Timeout
The Timeout option displays a slider bar at the right side of the OSD display to enable the adjustment of OSD
timeout. The timeout ranges from 5 to 60 seconds with 1-second intervals. The default setting is 10 seconds.
Vertical position
The V position option enables the location of the OSD window to move up or down on the screen.
Horizontal position
The H position option enables the location of the OSD window to move left or right on the screen.
Operational overview
17
Auto Configuration
The Auto Configuration option performs four functions automatically:
•
Auto Level—Automatically adjusts the black and white levels of the screen
•
Auto Position—Automatically adjusts the position of the screen
•
Auto Phase—Automatically adjusts the phase
•
Auto Clock—Automatically adjusts the output clock per line to match the input
Factory settings
The Factory settings option enables the user to set the HP TFT7600 back to its original factory settings. The
following options are available in the Factory settings menu list:
•
Yes
•
No
•
Exit sub-menu
Language
The Language option allows the user to change the language in which the menu options are displayed. The
following languages are available:
•
English
•
French
•
German
•
Italian
•
Japanese
•
Simple Chinese
•
Spanish
Information
The Information option provides the following unit information:
•
Current mode
•
Recommended mode
•
SW version
•
Exit sub-menu
Operational overview
18
Maintenance
Maintenance guidelines
To protect your unit from overheating and other types of damage:
•
Use only a power source and connection appropriate for this unit, as indicated on the marking label
and back plate.
•
If an extension cord or power strip is used, be sure that the cord or strip is rated for the product. Also,
be sure that the total ampere ratings of all products plugged into the extension cord or power strip do
not exceed 80% of the extension cord or power strip ampere ratings limit.
•
Do not overload an electrical outlet, power strip, or convenience receptacle. The overall system load
must not exceed 80% of the branch circuit rating. If power strips are used, do not allow the load to
exceed 80% of the power strip input rating.
•
Install the unit near an outlet that you can reach easily. Disconnect the unit by grasping the plug firmly
and pulling it from the outlet. Do not disconnect the plug by pulling the cord.
•
Disconnect the unit from the wall before cleaning. Do not use liquid or aerosol cleaners.
•
Slots and openings in the monitor are provided for ventilation. These openings must not be blocked or
covered. Do not push objects of any kind into these slots or openings.
•
Do not drop the unit or place it on an unstable surface.
•
Do not allow anything to rest on the power cord. Do not step on the cord.
•
Keep the unit in a well-ventilated area, away from excessive light, heat, and moisture. Keep the monitor
away from high-capacity transformers, electric motors, and other strong magnetic fields.
•
Do not attempt to service this product yourself. Adjust only those controls that are covered by the
operating instructions. If the unit is not operating properly or has been dropped or damaged, contact
your HP authorized dealer, reseller, or service provider.
Cleaning the monitor
To clean the display:
1.
Turn off and unplug the unit.
2.
Dust the panel by wiping the screen with a soft, clean cloth.
If the screen requires additional cleaning, use any anti-static LCD screen cleaner.
CAUTION: Do not use benzene, thinner, ammonia, or any volatile substance to clean the
monitor screen or cabinet. These chemicals might damage the monitor. Never use water to clean
an LCD screen.
Maintenance
19
Shipping instructions
Keep the original packing box in a storage area in case you must move or ship your HP TFT7600 KVM
Console.
Moving a rack with the HP TFT7600 KVM Console
installed
When moving the HP TFT7600 KVM Console installed in a rack, HP recommends that you install the lock
plates, included in your kit, on each side of the unit and rack.
To install lock plates:
1.
Place the lock plate into the slot and rotate it back.
2.
Insert one M6 screw into the hole on the lock plate, securing the unit to the rack.
3.
Repeat steps 1 and 2 to install the other lock plate.
Maintenance
20
Regulatory compliance notices
Regulatory compliance identification numbers
For the purpose of regulatory compliance certifications and identification, this product has been assigned a
unique regulatory model number. The regulatory model number can be found on the product nameplate
label, along with all required approval markings and information. When requesting compliance information
for this product, always refer to this regulatory model number. The regulatory model number is not the
marketing name or model number of the product.
Federal Communications Commission notice
Part 15 of the Federal Communications Commission (FCC) Rules and Regulations has established Radio
Frequency (RF) emission limits to provide an interference-free radio frequency spectrum. Many electronic
devices, including computers, generate RF energy incidental to their intended function and are, therefore,
covered by these rules. These rules place computers and related peripheral devices into two classes, A and
B, depending upon their intended installation. Class A devices are those that may reasonably be expected
to be installed in a business or commercial environment. Class B devices are those that may reasonably be
expected to be installed in a residential environment (for example, personal computers). The FCC requires
devices in both classes to bear a label indicating the interference potential of the device as well as additional
operating instructions for the user.
FCC rating label
The FCC rating label on the device shows the classification (A or B) of the equipment. Class B devices have
an FCC logo or ID on the label. Class A devices do not have an FCC logo or ID on the label. After you
determine the class of the device, refer to the corresponding statement.
FCC Notice, Class A Equipment
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. Operation of this equipment in a residential area
is likely to cause harmful interference, in which case the user will be required to correct the interference at
personal expense.
FCC Notice, Class B Equipment
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
Regulatory compliance notices
21
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit that is different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio or television technician for help.
Declaration of conformity for products marked with the FCC logo,
United States only
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
For questions regarding this product, contact us by mail or telephone:
•
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
•
1-800-HP-INVENT (1-800-474-6836). (For continuous quality improvement, calls may be recorded or
monitored.)
For questions regarding this FCC declaration, contact us by mail or telephone:
•
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
•
1­281-514-3333
To identify this product, refer to the part, series, or model number found on the product.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this device that are not
expressly approved by Hewlett-Packard Company may void the user’s authority to operate the equipment.
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods in
order to maintain compliance with FCC Rules and Regulations.
Canadian notice (Avis Canadien)
Class A equipment
Regulatory compliance notices
22
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur
du Canada.
Class B equipment
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur
du Canada.
European Union regulatory notice
Products bearing the CE marking comply with the following EU Directives:
•
Low Voltage Directive 2006/95/EC
•
EMC Directive 2004/108/EC
•
Ecodesign Directive 2009/125/EC, where applicable
CE compliance of this product is valid if powered with the correct CE-marked AC adapter provided by HP.
Compliance with these directives implies conformity to applicable harmonized European standards
(European Norms) that are listed in the EU Declaration of Conformity issued by HP for this product or product
family and available (in English only) either within the product documentation or at the following HP website
(http://www.hp.eu/certificates) (type the product number in the search field).
The compliance is indicated by one of the following conformity markings placed on the product:
For non-telecommunications products and for EU harmonized telecommunications products, such as
Bluetooth® within power class below 10mW.
For EU non-harmonized telecommunications products (If applicable, a 4-digit notified body number is
inserted between CE and !).
Please refer to the regulatory label provided on the product.
The point of contact for regulatory matters is Hewlett-Packard GmbH, Dept./MS: HQ-TRE, Herrenberger
Strasse 140, 71034 Boeblingen, GERMANY.
Regulatory compliance notices
23
Japanese notice
BSMI notice
Korean notice
Class A equipment
Class B equipment
Regulatory compliance notices
24
Chinese notice
Class A equipment
China energy regulations
Disposal of waste equipment by users in private
households in the European Union
This symbol on the product or on its packaging indicates that this product must not be disposed of
with your other household waste. Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for the recycling of waste electrical
and electronic equipment. The separate collection and recycling of your waste equipment at the
time of disposal will help to conserve natural resources and ensure that it is recycled in a manner
that protects human health and the environment. For more information about where you can drop
off your waste equipment for recycling, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.
Power cord requirement
The power cord should be approved for use in your country. The power cord must be rated for the product
and for the voltage and current marked on the electrical ratings label of the product. The voltage and current
rating for the cord should be greater than the voltage and current rating marked on the product. In addition,
the diameter of the wire must be a minimum of 1.00 mm2 or 18 AWG, your maximum length may be up to
3.66 m (12 ft).
Regulatory compliance notices
25
Power cord statement for Japan
Regulatory compliance notices
26
Electrostatic discharge
Preventing electrostatic discharge
To prevent damaging the system, be aware of the precautions you need to follow when setting up the system
or handling parts. A discharge of static electricity from a finger or other conductor may damage system
boards or other static-sensitive devices. This type of damage may reduce the life expectancy of the device.
To prevent electrostatic damage:
•
Avoid hand contact by transporting and storing products in static-safe containers.
•
Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.
•
Place parts on a grounded surface before removing them from their containers.
•
Avoid touching pins, leads, or circuitry.
•
Always be properly grounded when touching a static-sensitive component or assembly.
Grounding methods to prevent electrostatic discharge
Several methods are used for grounding. Use one or more of the following methods when handling or
installing electrostatic-sensitive parts:
•
Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis. Wrist
straps are flexible straps with a minimum of 1 megohm ±10 percent resistance in the ground cords. To
provide proper ground, wear the strap snug against the skin.
•
Use heel straps, toe straps, or boot straps at standing workstations. Wear the straps on both feet when
standing on conductive floors or dissipating floor mats.
•
Use conductive field service tools.
•
Use a portable field service kit with a folding static-dissipating work mat.
If you do not have any of the suggested equipment for proper grounding, have an authorized reseller install
the part.
For more information on static electricity or assistance with product installation, contact an authorized
reseller.
Electrostatic discharge
27
Support and other resources
HP contact information
For United States and worldwide contact information, see the Contact HP website
(http://www.hp.com/go/assistance).
In the United States:
•
To contact HP by phone, call 1-800-334-5144. For continuous quality improvement, calls may be
recorded or monitored.
•
If you have purchased a Care Pack (service upgrade), see the Support & Drivers website
(http://www8.hp.com/us/en/support-drivers.html). If the problem cannot be resolved at the website,
call 1-800-633-3600. For more information about Care Packs, see the HP website
(http://pro-aq-sama.houston.hp.com/services/cache/10950-0-0-225-121.html).
Support and other resources
28
Acronyms and abbreviations
KVM
keyboard, video, and mouse
OSD
on-screen display
RKM
rackmount keyboard monitor
TFT
thin film transistor
USB
universal serial bus
Acronyms and abbreviations 29
Documentation feedback
HP is committed to providing documentation that meets your needs. To help us improve the documentation,
send any errors, suggestions, or comments to Documentation Feedback (mailto:docsfeedback@hp.com).
Include the document title and part number, version number, or the URL when submitting your feedback.
Documentation feedback
30
Index
A
I
accessing the unit 12
Advanced 17
authorized reseller 28
auto-configuration process 18
Image Enhancement 16
installation instructions 7
installation overview 7
introduction 5
B
J
BSMI notice 24
Japanese notice 24
C
K
cable connectors 13
cables, connecting and routing 11
Canadian notice 22
Clock Adjust 17
components 5, 6
kit contents 7
Korean notices 24
D
Declaration of Conformity 22
default 17
E
electrostatic discharge 27
Energy Star 6
European Union regulatory notice 23
F
factory default settings 18
FCC rating label 21
features 5
Federal Communications Commission (FCC)
notice 21, 22
G
grounding methods 27
H
Horizontal Position 16
HP website 28
L
languages 18
M
maintenance 19
maintenance guidelines 19
moving a rack with the unit installed 20
N
native resolution 14
notices 21
O
On-screen display 15
operational overview 13, 15
OSD lockout 17
OSD menu 16
OSD position 17
OSD settings 17
OSD, launching 15
P
Phase adjust 16, 17
power cord 25, 26
PS/2 devices 13
Index
31
R
rear components 6
regulatory compliance notices 21, 25
Removing the Brace Rail Assembly 13
removing the HP 1U Adjustable Toolless Rails 13
removing the unit 13
S
shipping the unit 20
T
technical support 28
telephone numbers 28
V
Vertical Position 17
W
website, HP 28
Index
32
Download PDF

advertising
