© 2003 Hewlett-Packard Development Company, L.P.
hp compaq d530 Series Personal
Computer
HP and the HP logo are trademarks of Hewlett-Packard
Development Company, L.P.
All other product names mentioned herein may be
trademarks of their respective companies.

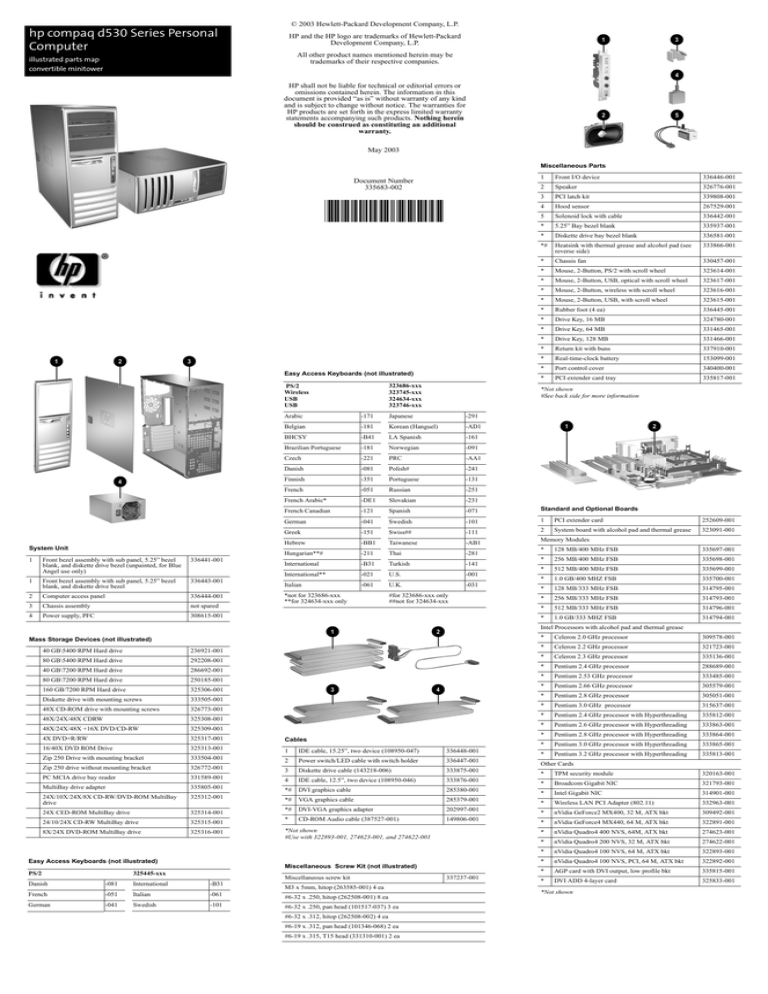

illustrated parts map
convertible minitower
HP shall not be liable for technical or editorial errors or
omissions contained herein. The information in this
document is provided “as is” without warranty of any kind
and is subject to change without notice. The warranties for
HP products are set forth in the express limited warranty
statements accompanying such products. Nothing herein
should be construed as constituting an additional
warranty.
May 2003
Miscellaneous Parts
Document Number
335683-002
Easy Access Keyboards (not illustrated)
323686-xxx
323745-xxx
324634-xxx
323746-xxx
PS/2
Wireless
USB
USB
System Unit
1
1
Front bezel assembly with sub panel, 5.25” bezel
blank, and diskette drive bezel (unpainted, for Blue
Angel use only)
336441-001
Front bezel assembly with sub panel, 5.25” bezel
blank, and diskette drive bezel
336443-001
2
Computer access panel
336444-001
3
Chassis assembly
not spared
4
Power supply, PFC
308615-001
1
Front I/O device
336446-001
2
Speaker
326776-001
3
PCI latch kit
339808-001
4
Hood sensor
267529-001
5
Solenoid lock with cable
336442-001
*
5.25” Bay bezel blank
335937-001
*
Diskette drive bay bezel blank
336581-001
*#
Heatsink with thermal grease and alcohol pad (see
reverse side)
333866-001
*
Chassis fan
330457-001
*
Mouse, 2-Button, PS/2 with scroll wheel
323614-001
*
Mouse, 2-Button, USB, optical with scroll wheel
323617-001
*
Mouse, 2-Button, wireless with scroll wheel
323616-001
*
Mouse, 2-Button, USB, with scroll wheel
323615-001
*
Rubber foot (4 ea)
336445-001
*
Drive Key, 16 MB
324780-001
*
Drive Key, 64 MB
331465-001
*
Drive Key, 128 MB
331466-001
*
Return kit with buns
337910-001
*
Real-time-clock battery
153099-001
*
Port control cover
340400-001
*
PCI extender card tray
335817-001
*Not shown
#See back side for more information
Arabic
-171
Japanese
-291
Belgian
-181
Korean (Hanguel)
-AD1
BHCSY
-B41
LA Spanish
-161
Brazilian Portuguese
-181
Norwegian
-091
Czech
-221
PRC
-AA1
Danish
-081
Polish#
-241
Finnish
-351
Portuguese
-131
French
-051
Russian
-251
French Arabic*
-DE1
Slovakian
-231
French Canadian
-121
Spanish
-071
Standard and Optional Boards
German
-041
Swedish
-101
1
PCI extender card
252609-001
2
System board with alcohol pad and thermal grease
323091-001
Greek
-151
Swiss##
-111
Hebrew
-BB1
Taiwanese
-AB1
Hungarian**#
-211
Thai
-281
International
-B31
Turkish
-141
International**
-021
U.S.
-001
Italian
-061
U.K.
-031
*not for 323686-xxx
**for 324634-xxx only
#for 323686-xxx only
##not for 324634-xxx
Memory Modules
*
128 MB/400 MHz FSB
335697-001
*
256 MB/400 MHz FSB
335698-001
*
512 MB/400 MHz FSB
335699-001
*
1.0 GB/400 MHZ FSB
335700-001
*
128 MB/333 MHz FSB
314795-001
*
256 MB/333 MHz FSB
314793-001
*
512 MB/333 MHz FSB
314796-001
*
1.0 GB/333 MHZ FSB
314794-001
Intel Processors with alcohol pad and thermal grease
Mass Storage Devices (not illustrated)
40 GB\5400 RPM Hard drive
236921-001
80 GB\5400 RPM Hard drive
292208-001
40 GB\7200 RPM Hard drive
286692-001
80 GB\7200 RPM Hard drive
250185-001
160 GB/7200 RPM Hard drive
325306-001
Diskette drive with mounting screws
333505-001
48X CD-ROM drive with mounting screws
48X/24X/48X CDRW
326773-001
325308-001
48X/24X/48X +16X DVD/CD-RW
4X DVD+R/RW
325309-001
325317-001
16/40X DVD ROM Drive
325313-001
Zip 250 Drive with mounting bracket
333504-001
Cables
1
IDE cable, 15.25”, two device (108950-047)
336448-001
2
Power switch/LED cable with switch holder
336447-001
Zip 250 drive without mounting bracket
326772-001
3
Diskette drive cable (143218-006)
333875-001
PC MCIA drive bay reader
331589-001
4
IDE cable, 12.5”, two device (108950-046)
333876-001
MultiBay drive adapter
335805-001
*#
DVI graphics cable
285380-001
24X/10X/24X/8X CD-RW/DVD-ROM MultiBay
drive
325312-001
*#
VGA graphics cable
285379-001
24X CED-ROM MultiBay drive
325314-001
*#
DVI-VGA graphics adapter
202997-001
*
CD-ROM Audio cable (387527-001)
149806-001
24/10/24X CD-RW MultiBay drive
325315-001
8X/24X DVD-ROM MultiBay drive
325316-001
Easy Access Keyboards (not illustrated)
PS/2
*Not shown
#Use with 322893-001, 274623-001, and 274622-001
Miscellaneous Screw Kit (not illustrated)
325445-xxx
Miscellaneous screw kit
Danish
-081
International
-B31
French
-051
Italian
-061
#6-32 x .250, hitop (262508-001) 8 ea
German
-041
Swedish
-101
#6-32 x .250, pan head (101517-037) 3 ea
M3 x 5mm, hitop (263585-001) 4 ea
#6-32 x .312, hitop (262508-002) 4 ea
#6-19 x .312, pan head (101346-068) 2 ea
#6-19 x .315, T15 head (331310-001) 2 ea
337237-001
*
Celeron 2.0 GHz processor
309578-001
*
Celeron 2.2 GHz processor
321723-001
*
Celeron 2.3 GHz processor
335136-001
*
Pentium 2.4 GHz processor
288689-001
*
Pentium 2.53 GHz processor
333485-001
*
Pentium 2.66 GHz processor
305579-001
*
Pentium 2.8 GHz processor
305051-001
*
Pentium 3.0 GHz processor
315637-001
*
Pentium 2.4 GHz processor with Hyperthreading
335812-001
*
Pentium 2.6 GHz processor with Hyperthreading
333863-001
*
Pentium 2.8 GHz processor with Hyperthreading
333864-001
*
Pentium 3.0 GHz processor with Hyperthreading
333865-001
*
Pentium 3.2 GHz processor with Hyperthreading
335813-001
Other Cards
*
TPM security module
320163-001
*
Broadcom Gigabit NIC
321793-001
*
Intel Gigabit NIC
314901-001
*
Wireless LAN PCI Adapter (802.11)
332963-001
*
nVidia GeForce2 MX400, 32 M, ATX bkt
309492-001
*
nVidia GeForce4 MX440, 64 M, ATX bkt
322891-001
*
nVidia Quadro4 400 NVS, 64M, ATX bkt
274623-001
*
nVidia Quadro4 200 NVS, 32 M, ATX bkt
274622-001
*
nVidia Quadro4 100 NVS, 64 M, ATX bkt
322893-001
*
nVidia Quadro4 100 NVS, PCI, 64 M, ATX bkt
322892-001
*
AGP card with DVI output, low profile bkt
335815-001
*
DVI ADD 4-layer card
325833-001
*Not shown
Keyboard Diagnostic LEDs, PS/2 Keyboards O nly
LED
Color
LED Activity
State/Message
Num, Caps,
Scroll Lock
Green
On (Rising Tone)
ROM reflashed successfully
Num Lock
Green
On
ROMPaq diskette not present, is bad, or drive
not ready.*
Caps Lock
Green
On
Enter password.
Num, Caps,
Scroll Lock
Green
Blink On in sequence, one at a
time - N, C, SL
Keyboard locked in network mode
* Insert valid ROMPaq diskette in drive A. Turn power switch off, then on to reflash ROM. If ROM flash is successful, all
three keyboard LEDs will light up, and you will hear a rising tone series of beeps. Remove diskette and turn power off,
then on to restart the computer. For more information about flashing the ROM, refer to the Troubleshooting guide.
Clearing CMOS*
The computer's configuration (CMOS) may occasionally be corrupted. If it is, it is necessary to clear the CMOS
memory using switch SW50.
To clear and reset the configuration, perform the following procedure:
1. Prepare the computer for disassembly.
System Board Connectors and Jumpers (position of some untitled components may vary in location)
E49
Password jumper
P21
Secondary IDE
J20
PCI slot 1
P23
Front audio/USB
J21
PCI slot 2
P27
Miulti Bay
J22
PCI slot 3
P29
SCSI LED
J30
PCI slot extender
P30
Primary Serial ATA (SATA) Port
J40
AGP slot
P31
Secondary Serial ATA (SATA) Port
P1
Main power (20 pin)
P54
Serial Port “B”
P3
CPU regulator power (4 pin)
P70
CPU fan
P5
Front panel
P124
Hood lock
P6
Internal chassis speaker
P125
Hood sensor
P7
CD audio in
SW50
CMOS button
P8
Chassis fan
XBT1
Battery
P10
Diskette drive
XMM1
Memory socket
P11
Aux audio in
XMM2
Memory socket
P14
Boot block
XMM3
Memory socket
P16
Power supply fan control
XMM4
Memory socket
P20
Primary IDE
XU100
Security
Ä
2.
3.
4.
5.
CAUTION: The power cord must be disconnected from the power source before pushing the Clear CMOS
Button (NOTE: All LEDs on the board should be OFF). Failure to do so may damage the system board
Remove the access panel.
Press the CMOS button located on the system board and keep it depressed for 5 seconds.
Replace the access panel.
Turn the computer on and run F10 Computer Setup (Setup-utility) to reconfigure the system.
*When the CMOS button is pushed or the jumper is removed, both the power-on password and the setup password
become invalid because both are stored in the configuration memory. You will need to reset the passwords.
Disabling or Clearing the Power-On and Setup Passwords*
1.
2.
3.
4.
5.
6.
7.
8.
Turn off the computer and any external devices, and disconnect the power cord from the power outlet.
Remove the access panel.
Locate the header and jumper labeled E49.
Remove the jumper from pins 1 and 2. Place the jumper over pin 2 only, in order to avoid losing it.
Replace the access panel.
Plug in the computer and turn on power. Allow the operating system to start.
NOTE: Placing the jumper on pin 2 clears the current passwords and disables the password features.
To re-enable the password features, repeat steps 1-3, then replace the jumper on pins 1 and 2.
Repeat steps 5-6, then establish new passwords.
Refer to the Computer Setup (F10 Setup) instructions to establish new passwords.
*When the CMOS button is pushed or the jumper is removed, both the power-on password and the setup password
become invalid because both are stored in the configuration memory. You will need to reset the passwords.
Computer Setup (F10) Utility Features (not all features may be available)
File
System Information
About
Set Time and date
Save to Diskette
Restore From Diskette
Set defaults and Exit
Ignore Changes and Exit
Save Changes and Exit
Storage
Device Configuration
Options
IDE DPS Self-Test
Controller Order
SCSI Narrow Termination
Boot Order
Security
Setup Password
Power-On Password
Password Options
Smart Cover
Smart Sensor
DriveLock
Master Boot Record Security
Save Master Boot Record
Restore Master Boot Record
Device Security
Network Service Boot
System IDs
Advanced
Power-On Options
Onboard devices
PCI Devices
Bus Options
Devise Options
PCI VGA Configuration
Note: See Computer Setup (F10) Utility Guide on the Documentation Library CD.
Interchangeable Heatsinks
PCI Extender Card Connectors and Jumpers
J23
PCI slot 4
J24
PCI slot 5
P30
Male expansion plug
System Hardware Interrupts
IRQ
System Function
IRQ
System Function
0
Timer Interrupt
8
Real-Time Clock
1
Keyboard
9
Unused
2
Interrupt Controller Cascade
10
Unused, available for PCI
3
Serial Port (COM B)
11
Unused, available for PCI
4
Serial Port (COM A)
12
Mouse
5
Unused, available for PCI
13
Coprocessor
6
Diskette Drive
14
Primary ATA (IDE) Controller
7
Parallel Port (LPT 1)
15
Secondary ATA (IDE) Controller
Computer Diagnostic LEDs (on front of computer)
LED
Color
LED Activity
State/Message
Power
Green
On
(S0) Computer on
Power
Green
1 blink every 2 seconds
(S1) Suspend Mode
Power
Green
1 blink every 2 seconds
(S3) Suspend to RAM
Power
Green
Off
(S4) Suspend to Disk (if applicable)
Power
Clear
Off
(S5) Computer off
Power
Red
1 blink followed by 2-second
pause - Repeat
Power Supply failure
Power
Red*
2 blinks 1 second apart
CPU thermal shutdown
Power
Red*
3 blinks 1 second apart
CPU not installed
Power
Red*
4 blinks 1 second apart
Power supply overload ( crow bar)
Power
Red*
5 blinks 1 second apart
No memory
Power
Red*
6 blinks 1 second apart
No graphics
Power
Red*
7 blinks 1 second apart
System board failure (detected prior to video)
Power
Red*
8 blinks 1 second apart
Invalid ROM
Hard Drive
Green
Blinking
Hard drive activity
*Blinking codes are repeated after a 2 second pause.
Heat Sink Removal
Download PDF

advertising
