QuickSpecs
HP Compaq dc5800 Business PC

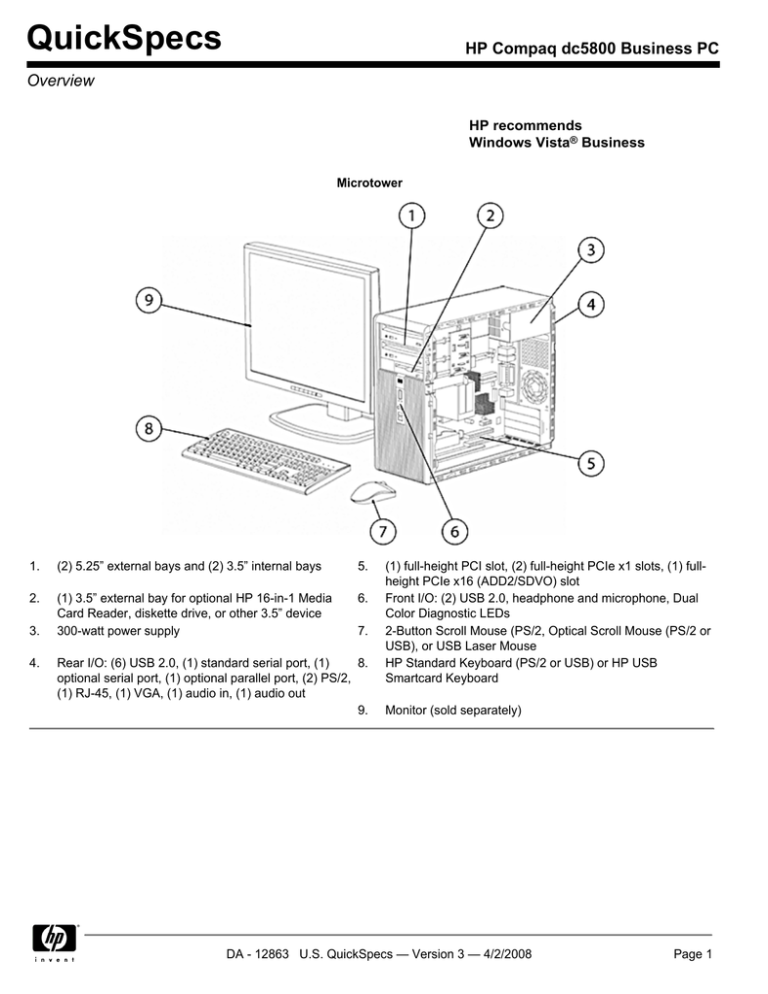

Overview
HP recommends
Windows Vista® Business
Microtower
1.
(2) 5.25” external bays and (2) 3.5” internal bays
5.
2.
(1) 3.5” external bay for optional HP 16-in-1 Media
Card Reader, diskette drive, or other 3.5” device
300-watt power supply
6.
3.
4.
7.
Rear I/O: (6) USB 2.0, (1) standard serial port, (1)
8.
optional serial port, (1) optional parallel port, (2) PS/2,
(1) RJ-45, (1) VGA, (1) audio in, (1) audio out
9.
(1) full-height PCI slot, (2) full-height PCIe x1 slots, (1) fullheight PCIe x16 (ADD2/SDVO) slot
Front I/O: (2) USB 2.0, headphone and microphone, Dual
Color Diagnostic LEDs
2-Button Scroll Mouse (PS/2, Optical Scroll Mouse (PS/2 or
USB), or USB Laser Mouse
HP Standard Keyboard (PS/2 or USB) or HP USB
Smartcard Keyboard
Monitor (sold separately)
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 1
QuickSpecs
HP Compaq dc5800 Business PC
Overview
Small Form Factor
1.
2.
3.
4.
5.
(1) 3.5” external bay for optional HP 16-in-1 Media Card
6.
Reader, diskette drive, or other 3.5” device;
(1) 3.5” internal bay
(1) 5.25” external bay for optional optical drive, or other
7.
5.25” device (bay tilts up for device removal and insertion)
240-watt power supply
8.
Rear I/O: (6) USB 2.0, (1) standard serial port, (1) optional 9.
serial port, (1) optional parallel port, (2) PS/2, (1) RJ-45,
(1) VGA, audio in/out
(1) low profile PCI slot, (2) low profile PCIe x1 slots,
(1) low profile PCIe x16 (SDVO/ADD2) slot
Front I/O: (2) USB 2.0, headphone and microphone,
Dual Color Diagnostic LEDs
2-Button Scroll Mouse (PS/2), Optical Scroll Mouse
(PS/2 or USB), or USB Laser Mouse
HP Standard Keyboard (PS/2 or USB) or HP USB
Smartcard Keyboard
Monitor (sold separately)
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 2
QuickSpecs
HP Compaq dc5800 Business PC
Overview
At A Glance
The HP Compaq dc5800 offers a stable solution with mainstream features and flexibility that exceed basic business
requirements
Intel® Q33 Express chipset, Intel Core™ 2 Duo processors, Intel Core 2 Quad processors, and Intel Graphics Media
Accelerator 3100 integrated graphics
Embedded TPM1.2 compliant security module* (Vista Bit-Locker ready)
Support for up to 500-GB SATA 3.0Gb/s Smart IV hard drives
Value-added software on select models
HP Total Care Advisor
HP Backup and Recovery Manager
HP Software Agent
HP ProtectTools security software suite
Altiris Deployment Solution Agent
McAfee Anti-Virus with 60 day Live Update Subscription
HP Insight Diagnostics software
Microsoft Office 2007
Verdiem Surveyor remote power management agent
PDF Complete
Computrace for Desktops (select countries)
Value-added software available for free download from the Web (http://www.hp.com/go/easydeploy)
HP Client Configuration Manager, Basic Edition
HP Client Manager for Altiris
Altiris Out-of-Band Management Solution
HP SoftPaq Download Manager
HP System Software Manager
HP Client Catalog for Microsoft SMS
Verdiem Surveyor remote power management agent
Fully compatible software OS image across all models (Microtower, Small Form Factor)
HP BIOS for security, manageability and software image stability
Standard 3-years parts, 3-years labor, and 3-years on-site warranty services
(terms and conditions vary by country; certain restrictions and exclusions apply)
HP Insight Diagnostics software
Selected configurations with global availability easily set up and ordered through HP.com Business to Business portals
(http://h10019.www1.hp.com/business-site/index.html)
Tailored HP Factory Express deployment and lifecycle services available
(http://h71028.www7.hp.com/enterprise/cache/97688-0-0-225-121.aspx)
*TPM module disabled where use is restricted by law; for example, Russia.
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 3
QuickSpecs
HP Compaq dc5800 Business PC
Configurable Components - Select Models (localized by Regions)
Model Key and Example
NOTE: This diagram is an example that illustrates how to read the model number. It is not intended to give every available
configuration choice specified in the body of this document and may include references to modules that are out of date and
no longer available.
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 4
QuickSpecs
HP Compaq dc5800 Business PC
Standard Features and Configurable Components
Operating System –
One of the following
Preinstalled
Genuine Windows Vista Business 32*
Genuine Windows Vista Business 64*
Genuine Windows Vista Home Basic 32*
Genuine Windows Vista Ultimate 32*
Genuine Windows Vista Business 32* with downgrade to XP
Professional pre-installed
FreeDOS
Certified
Red Hat Enterprise Linux
SUSE Linux Enterprise Desktop 10
* Certain Windows Vista product features require advanced or additional hardware. See
http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and
http://www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista
Upgrade Advisor can help you determine which features of Windows Vista will run on your
computer. To download the tool, visit http://www.windowsvista.com/upgradeadvisor.
Value-added Software Altiris Deployment Solution Agent
(on select models; not HP Software Agent
included with FreeDOS) Altiris Out-of-Band Management Solution
HP Insight Diagnostics
(available via HP Backup and Recovery
Manager)
Computer Setup Utility
HP Backup and Recovery Manager
McAfee Total Protection Anti-Virus with 60 day
trial Subscription
Sonic/Roxio DigitalMedia Plus 7.2
(select models)
or
Easy Media Creator 9 (select models)
HP Total Care Advisor
Microsoft Office 2007 Basic
Microsoft Office 2007 Personal
Microsoft Office 2007 Professional
Microsoft Office 2007 Small Business
Microsoft Works 8.5
Microsoft Internet Explorer with AOL Toolbar
PDF Complete
Computrace for Desktops (select countries)
Verdiem Surveyor agent
InterVideo WinDVD 5.0 (select models)
HP ProtectTools security software suite
Value-added Software HP Client Configuration Manager, Basic Edition HP Client Catalog for Microsoft SMS
(available for free
HP Systems Software Manager
download from the Web HP Client Manager for Altiris
http://www.hp.com/
HP SoftPaq Download Manager
Verdiem Surveyor agent
go/easydeploy)
Value-added Services HP Stable Platform Program
Factory Express Deployment and Lifecycle
and Features
Services
Business-to-Business Portals
TPM 1.2 Security chip*
HP Global Series Services
* TPM module disabled where use is restricted by law; for example, Russia.
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 5
QuickSpecs
HP Compaq dc5800 Business PC
Standard Features and Configurable Components
Service and Support
On-site Warranty and Service Note 1: This three-year (3-3-3), limited warranty and service offering
delivers three years of parts, labor and on-site repair. Response time is next business-day Note 2
and includes free telephone support Note 3 24 x 7. Global coverage Note 2 ensures that any
product purchased in one country and transferred to another non-restricted country will remain fully
covered under the original warranty and service offering. Some countries/regions do not offer one
year onsite and labor. For HP Care Pack services see http://www.hp.com/go/lookuptool.
NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply.
NOTE 2: On-site service may be provided pursuant to a service contract between HP and an
authorized HP third-party provider, and is not available in certain countries. Global service
response times are based on commercially reasonable best effort and may vary by country.
NOTE 3: Technical telephone support applies only to HP-configured, HP and HP-qualified, thirdparty hardware and software. Toll-free calling and 24 x 7 support may not be available in some
countries.
Microtower
Small Form Factor
Chassis Dimensions
14.85 x 6.95 x 16.85 in
3.95 x 13.3 x 14.9 in
(H x W x D)
Optional Tower Stand
N/A
1.05 x 6.95 x 7.83 in
Dimensions
(26.75 x 176.46 x 198.87 mm)
(H x W x D)
System weight*
19.75 lb (8.96 kg)
17.86 lb (8.10 kg)
System volume
1739 cu in
941.63 cu in
Shipping weight*
28.79 lb (13.06 kg)
26.70 lb (12.11 kg)
Maximum supported
77.1 lb (35 kg)
77.1 lb (35 kg)
weight (desktop
orientation)
Shipping box
12.0 x 19.76 x 23.62 in
9.72 x 19.68 x 22.67 in
dimensions
(H x W x D)
* Configured with 1 hard drive, 1 optical drive, no diskette drive, and no PCI card.
Power Supply
300W power supply – passive PFC
240W power supply – active PFC
80 PLUS Power Supply 300W 80 PLUS* power supply – active PFC
240W 80 PLUS* power supply – active PFC
* This alternate 80% efficient power supply is a requirement for ENERGY STAR 4.0 compliance in conjunction with a select
range of processors and modules.
Ports
USB 2.0
8 (2 front, 6 rear)
Serial
1 standard with 2nd optional
Parallel
1 optional
PS/2
1 keyboard, 1 mouse
Video
analog for integrated graphics
DVI output
available via ADD2 card in PCIe x16 connector
Support for Multi-Monitor
available via ADD2 card in PCIe x16 connector or via PCIe graphics cards
Audio
Integrated High Definition audio with internal speaker
Front – mic and headphone
Rear – input (supports microphone or line input), line out
NIC (RJ-45)
Integrated Intel 82566DM Gigabit Network Connection Ethernet
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 6
QuickSpecs
HP Compaq dc5800 Business PC
Standard Features and Configurable Components
Chipset
Intel Q33 Express chipset
Processor and Speed* Intel Celeron Processors:
One of the following
Intel Celeron 420 Processor (1.6-GHz, 512K L2 cache, 800-MHz FSB)
Intel Celeron 430 Processor (1.8-GHz, 512K L2 cache, 800-MHz FSB)
Intel Celeron Dual-Core Processors
Intel Celeron E1200 Processor (1.6-GHz, 512K L2 cache, 800-MHz FSB)
Intel Pentium Dual-Core Processors:
Intel Pentium E2160 Processor (1.8-GHz, 1-MB L2 cache, 800-MHz FSB)
Intel Pentium E2180 Processor (2.0-GHz, 1-MB L2 cache, 800-MHz FSB)
Intel Pentium E2200 Processor (2.2-GHz, 1-MB L2 cache, 800-MHz FSB)
Intel Core 2 Duo Processors:
MT
X
SFF
X
X
X
X
X
X
X
X
X
X
X
X
X
Intel Core 2 Duo E4500 Processor (2.20-GHz, 2 MB L2 cache, 800-MHz FSB)
X
Intel Core 2 Duo E4600 Processor (2.40-GHz, 2 MB L2 cache, 800-MHz FSB)
X
Intel Core 2 Duo E4700 Processor (2.60-GHz, 2MB L2 cache, 800-MHz FSB)
X
Intel Core 2 Duo E6550 Processor (2.33-GHz, 4 MB L2 cache, 1333-MHz FSB)
X
Intel Core 2 Duo E6750 Processor (2.66-GHz, 4 MB L2 cache, 1333-MHz FSB)
X
Intel Core 2 Duo E8200 Processor (2.66-GHz, 6 MB L2 cache, 1333-MHz FSB)
X
Intel Core 2 Duo E8300 Processor (2.83-GHz, 6 MB L2 cache, 1333-MHz FSB)
X
Intel Core 2 Duo E8400 Processor (3.0-GHz, 6 MB L2 cache, 1333-MHz FSB)
X
Intel Core 2 Quad Processors:
Intel Core 2 Quad Q6700 Processor (2.66-GHz, 8 MB L2 cache, 1066-MHz FSB)
X
Intel Core 2 Quad Q9300 Processor (2.50-GHz, 6 MB L2 cache, 1333-MHz FSB)
X
* Intel processor numbers are not a measure of performance. Processor numbers differentiate features within each
processor family, not across different processor families.
Memory
X
X
X
X
X
X
X
X
X
X
DDR2 SYNCH DRAM NON-ECC MEMORY
Memory upgrades are accomplished by adding single or multiple DIMMs of the same or varied
sizes. This chart does not represent all possible memory configurations. The Intel Q33 Express
chipset supports non-ECC DDR2 PC2-6400 (800-MHz) memory.
CAUTION: You must shut down the computer and disconnect the power cord before adding or
removing memory modules. Regardless of the power-on state, voltage is always supplied to the
memory modules as long as the computer is plugged in to an active AC outlet. Adding or
removing memory modules while voltage is present may cause irreparable damage to the memory
modules or system board.
HP recommends dual-channel symmetric configurations for maximum performance.
For best performance, add the same amount of total memory to each channel and do not mix
speeds. For dual-channel symmetric performance, the total amount of memory in each channel
must be equal. If speeds are mixed, speed will default to the slowest DIMM.
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 7
QuickSpecs
HP Compaq dc5800 Business PC
Standard Features and Configurable Components
Microtower and Small Form Factor
Maximum Memory*
Supports up to 8-GB of DDR2 SYNCH DRAM. Slot 1 is black and must always be populated. Not
all memory configurations possible are represented below.
NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all
memory may not be available due to system resource requirements. Addressing memory above 4
GB requires a 64-bit operating system.
DIMM Size
Slot
Channel A
1 (black)
512-MB
1-GB
512-MB
Channel B
2 (white)
3 (black)
4 (white)
512-MB
1-GB
1-GB
512-MB
(dual-channel symmetric)
2-GB
1-GB
1-GB
(dual-channel symmetric)
2-GB
512-MB
512-MB
512-MB
512-MB
(dual-channel symmetric)
3-GB
1-GB
512-MB
1-GB
512-MB
(dual-channel symmetric)
4-GB maximum
1-GB
1-GB
1-GB
1-GB
(dual-channel symmetric)
8-GB maximum
2-GB
2-GB
2-GB
2-GB
(dual-channel symmetric)
* The Intel Q33 Express chipset includes a built-in Management Engine (ME), which allocates memory for manageability
functions. Management Engine memory is shared with system memory. If the PC contains a single DIMM, 16 MB of memory
is pre-allocated for it at system startup. If the PC contains two DIMMs, 32 MB of memory is pre-allocated. This memory is
not made available to the operating system, just as pre-allocated video memory is not available.
Memory Configurations 512-MB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (1 x 512)
One of the following
1-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (1 x 1GB)
1-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (2 x 512)
2-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (1 x 2GB)
2-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (2 x 1GB)
2-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (4 x 512)
3-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (3 x 1GB)
4-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (4 x 1GB)
4-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (2 x 2GB)
8-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (4 x 2GB)
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
MT
X
X
X
X
X
X
X
X
X
X
SFF
X
X
X
X
X
X
X
X
X
X
Page 8
QuickSpecs
HP Compaq dc5800 Business PC
Standard Features and Configurable Components
Expandability
PCI slots
Max power per slot
PCIe x1 slot
Max power per slot
PCIe x16 slot (also
functions as
SDVO/ADD2 slot)
Max power per slot
External Bays
3.5”
5.25”
IDE
Internal 3.5” HDD Bays
Hard Drive Controller
(SATA) Supported
Hard Drive Interfaces
Supported
Microtower
Microtower
1 full-height
35W
2
10W
1 full-height
Small Form Factor
1 low-profile
35W
2
10W
1 low-profile
60W
25W
1
2
1
1
2
SATA
1
SATA
SATA 3.0Gb/s
SATA 3.0Gb/s
Small Form Factor
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 9
QuickSpecs
HP Compaq dc5800 Business PC
Standard Features and Configurable Components
Storage – Drive Support
Quantity Supported
Microtower
Media Card
5.25” Serial
Reader or
ATA Devices
Diskette Drive
(optional)
1
2
Position Supported
Controller
Hard Drive
One or two of the
following
USB/Diskette
,
SATA
3.5” Serial
ATA Devices
2
, ,
SATA
Small Form Factor
Media Card
5.25” Serial
3.5” Serial
Reader or
ATA Devices ATA Devices
Diskette Drive
(optional)
1
1
2
USB/Diskette
SATA
80-GB SATA 3.0-Gb/s Hard Drive (8MB Cache, 7200 RPM, NCQ, Smart IV)
160-GB SATA 3.0-Gb/s Hard Drive (8MB Cache, 7200 RPM, NCQ, Smart IV)
250-GB SATA 3.0-Gb/s Hard Drive (8MB Cache, 7200 RPM, NCQ, Smart IV)
500-GB SATA 3.0-Gb/s Hard Drive (16MB Cache, 7200 RPM, NCQ, Smart IV)
80-GB SATA 3.0-Gb/s Hard Drive (16MB Cache,10,000 RPM, NCQ, Smart III)
160-GB SATA 3.0-Gb/s Hard Drive (16MB Cache, 10,000 RPM, NCQ, Smart III)
3.5” Removable 80-GB SATA 3.0 Gb/s Hard Drive (8MB Cache, 7200 RPM,
NCQ, Smart IV)
3.5” Removable 160-GB SATA 3.0 Gb/s Hard Drive (8MB Cache, 7200 RPM,
NCQ, Smart IV)
3.5” Removable 250-GB SATA 3.0 Gb/s Hard Drive (8MB Cache, 7200 RPM,
NCQ, Smart IV)
2nd hard drive, 80-GB SATA 3.0-Gb/s Hard Drive (8MB Cache, 7200 RPM, NCQ,
Smart IV)
2nd hard drive, 250-GB SATA 3.0-Gb/s Hard Drive (8MB Cache, 7200 RPM,
NCQ, Smart IV)
2nd hard drive, 500-GB SATA 3.0-Gb/s Hard Drive (16MB Cache, 7200 RPM,
NCQ, Smart IV)
NOTE : NCQ functionality requires a user set-up BIOS setting.
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
,
SATA
MT
X
X
SFF
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Page 10
QuickSpecs
HP Compaq dc5800 Business PC
Standard Features and Configurable Components
Removable Storage –
One or more of the
following depending on
form factor (see Storage
– Drive Support section
above)
Diskette Drives
1.44-MB Diskette Drive
X
Media Reader
HP 16-in-1 Media Reader (USB connection on the system board)
X
Optical Drives
SATA DVD-ROM Drive1
X
SATA CD-RW/DVD-ROM Combo Drive1,2
X
1,2,3
SATA SuperMulti LightScribe DVD Writer Drive
X
1 For playing DVDs, InterVideo WinDVD 5
2 For writing CDs, choice of Sonic/Roxio DigitalMedia Plus 7.2 (Windows XP only) or
Easy Media Creator 9
3 For writing CDs and DVDs, video editing and authoring DVDs, choice of Sonic/Roxio
DigitalMedia Plus 7.2 (Windows XP only) or Easy Media Creator 9
X
X
X
X
X
Media Card Reader –
One of the following
HP 16-in-1 3.5” Media Card Reader
X
X
Security
Integrated 1.2 TPM Embedded Security Chip*
HP Desktop Security lock kit (lock and cable)
Security cable with Kensington lock
HP ProtectTools security software suite
* TPM module disabled where use is restricted by law; for example, Russia.
X
X
X
X
X
X
X
X
NIC
Intel 82566DM Gigabit Network Connection (integrated on system board)
Broadcom NetXtreme Gigabit Ethernet PCIe NIC Card
Intel PRO/1000 PT PCIe Gigabit NIC
X
X
X
X
X
X
Wireless
Wireless A+G PCI Card (full height bracket)
Wireless A+G PCI Card (low profile bracket)
X
2006 Agere PCI 56K International SoftModem (full height)
2006 Agere PCI 56K International SoftModem (low profile)
X
Modem
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
X
X
Page 11
QuickSpecs
HP Compaq dc5800 Business PC
Standard Features and Configurable Components
Graphics
Integrated Intel Graphics Media Accelerator 3100
X
X
HP ADD2 SDVO PCIe DVI-D adapter
X
X
HP ADD2 SDVO PCIe VGA/TV-Out Adapter
X
X
NVIDIA Quadro NVS 290 256MB DH PCIe x16 Graphics Card
X
X
†
NVIDIA GeForce 8400 GS 256MB DH PCIe x1 Graphics Card *
X
X
†
NVIDIA GeForce 8400 GS 256MB SH PCIe x16 Graphics Card
X
X
ATI Radeon HD 2400 XT 256MB DH PCIe x16 Graphics Card
X
X
† 1GB of system memory required. Graphics cards use part of the total system memory to
enhance graphics performance.
* Two NVIDIA GeForce 8400 GS 256MB DH PCIe x1 graphics cards can be installed to provide
support for four monitors.
Audio
Integrated High Definition audio with ADI1884 codec (all ports are stereo)
X
X
Microphone and Headphone front ports
X
X
Line-out and Line-In rear ports*
X
X
Multistreaming capable*
X
X
Internal Speaker
X
X
* Rear audio input port is re-taskable as Line-in or Microphone-in. External speakers must be
powered externally. Multistreaming can be enabled in the ADI control panel to allow independent
audio streams to be sent to/from the front and rear jacks. This allows for different audio
applications to use separate audio ports on the system. For example, the front jacks could be
used with a headset for a communications application while the rear jacks are being used with
external speakers and a multimedia application.
Input Devices
Miscellaneous
Keyboard – One of the following
HP PS/2 Standard Keyboard
HP USB Standard Keyboard
Mouse – One of the following
USB 2-Button Laser Mouse
PS/2 2-Button Optical Scroll Mouse
USB 2-Button Optical Scroll Mouse
HP FireWire / IEEE 1394 PCI Card (full height)
HP FireWire / IEEE 1394 PCI Card (low profile)
2nd serial port adapter
2nd serial port adapter (low profile)
Tower stand
1-GB Flash Module for Vista ReadyBoost
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Page 12
QuickSpecs
HP Compaq dc5800 Business PC
After-Market Options (availability may vary by region)
Office 2007 Media-less
License Kits (MLK's)
MS Office Basic Edition 2007 – Media-less License Kit
MS Office Small Business Edition 2007 – Media-less License
Kit
MS Office Professional Edition 2007 – Media-less License Kit
Communications
Wireless LAN
HP Wireless A+G PCI Card (North America only)
HP Wireless A+G PCI Card (WW except North America)
HP BT450 USB Bluetooth Wireless Printer and PC Adapter
NICs
Broadcom NetXtreme Gigabit Ethernet PCIe NIC Card
Intel PRO/1000 PT PCIe Gigabit NIC Card
Modem
Agere 2006 PCI 56K International Modem
Connectivity
Bundle Connectivity Starter Kit – Surge Protector/LAN
cable/Printer cable
MT
SFF
Part Number
X
X
RZ361A#ABA
X
X
RZ365A#ABA
X
X
RZ363A#ABA
X
X
X
X
X
X
EA118AA
PZ928AA
IPQ639A
X
X
X
X
EA833AA
EH352AA
X
X
EK694AA
X
X
RT174AA
Graphics
Single head solutions
HP ADD2 SDVO DVI-D Adapter
X
X
DY674A
NVIDIA GeForce 8400 GS 256MB SH PCIe x16 Graphics
X
X
GJ119AA
Card*
Multi head solutions
HP DVI to DVI Cable
X
X
DL139A
NVIDIA Quadro NVS 290 256MB DH PCIe x1 Graphics Card
X
X
KN586AA
NVIDIA Quadro NVS 290 256MB DH PCIe x16 Graphics Card
X
X
KG748AA
NVIDIA GeForce 8400 GS 256MB DH PCIe x1 Graphics Card*
X
X
GJ120AA
ATI HD 2400 XT 256MB Dual Head PCIe x16, low profile
KD060AA
X
X
Graphics Card
(launching 4/28)
* 1GB of system memory required. Graphics cards use part of the total system memory to
enhance graphics performance.
Hard Drives
Serial ATA Hard Drives
HP 80-GB SATA (NCQ/Smart IV) 3.0-Gb/s Hard Drive
HP 160-GB SATA (NCQ/Smart IV) 3.0-Gb/s Hard Drive
HP 250-GB SATA (NCQ/Smart IV) 3.0-Gb/s Hard Drive
HP 500-GB SATA (NCQ/Smart IV) 3.0-Gb/s Hard Drive
HP Removable SATA Hard Drive Enclosure (Frame & Carrier)
HP Removable SATA Hard Drive Enclosure (Carrier Only)
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
X
X
X
X
X
X
X
X
X
X
X
X
PY276AA
PY277AA
PY278AA
PV943A
RY102AA
RY103AA
Page 13
QuickSpecs
HP Compaq dc5800 Business PC
After-Market Options (availability may vary by region)
Input/Output Devices
HP PS/2 Standard Keyboard
HP USB Standard Keyboard
HP USB Smartcard Keyboard
HP USB Laser Mouse
HP PS/2 2-Button Optical Scroll Mouse
HP USB 2-Button Optical Scroll Mouse
X
X
X
X
X
X
X
X
X
X
X
X
DT527A
DT528A
ED707AA
GW405AA
EY703AA
DC172B
Memory (DIMMs)
PC2-6400 (DDR2, 800 MHz) DIMMs Non-ECC
HP 2-GB PC2-6400 (DDR2 800 MHz) DIMM
HP 1-GB PC2-6400 (DDR2 800 MHz) DIMM
HP 512-MB PC2-6400 (DDR2 800 MHz) DIMM
HP 2-GB PC2-5300 (DDR2 667 MHz) DIMM
HP 1-GB PC2-5300 (DDR2 667 MHz) DIMM
X
X
X
X
X
X
X
X
X
X
AH060AA
AH058AA
AH056AA
PX977AA
PX976AA
HP 512-MB PC2-5300 (DDR2 667 MHz) DIMM
1GB Flash Module for Windows Ready Boost
X
X
X
X
PX975AA
KG274AA
Monitors
CRTs
Business LCD Monitors
HP L1506 15-inch LCD Monitor
HP L1710 17-inch LCD Monitor
HP L1750 17-inch LCD Monitor
HP L1745 17-inch LCD Monitor
HP L1910 19-inch LCD Monitor
HP L1950 19-inch LCD Monitor
HP LP1965 19-inch LCD Monitor
HP LP2065 20-inch LCD Monitor
Business Widescreen LCD Monitors
HP L1908w 19-inch Widescreen LCD Monitor
HP L2045w 20-inch Widescreen LCD Monitor
HP L2208w 22-inch Widescreen LCD Monitor
HP L2245w 22-inch Widescreen LCD Monitor
HP LP2465 24-inch Widescreen LCD Monitor
HP LP3065 30-inch Widescreen LCD Monitor
Business Widescreen LCD Monitor with Integrated Speakers
HP L1908wm 19-inch Widescreen LCD Monitor with Built in Integrated
Speakers
Business GSA Monitors
Business Touchscreen LCD Monitor
HP L5006tm 15-inch Touch Screen LCD Monitor
Business LCD Monitor with Integrated Work Stand
HP L1908wi 19-inch Widescreen LCD Monitor plus Integrated Work Stand
HP L1910i 19-inch LCD Monitor plus Integrated Work Stand
Options
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
3PO Offering
PX848AA#ABA
GS917AA#ABA
GF904AA#ABA
GE178AA#ABA
GS918AA#ABA
GG458AA#ABA
RA373AA#ABA
EF227A4#ABA
GX007AA#ABA
GP536AA#ABA
RD125AA#ABA
GX007AA#ABA
GX008AA#ABA
EF224A4#ABA
EZ320A4#ABA
KA214AA#ABA
3PO Offering
RB146AA#ABA
GP537AA#ABA
GS581AA#ABA
Page 14
QuickSpecs
HP Compaq dc5800 Business PC
After-Market Options (availability may vary by region)
HP Flat Panel Speaker Bar
HP Quick Release Kit
HP Integrated Work Stand (stand alone)
Multimedia
HP USB Powered Speakers
Thin USB Powered Speakers
Optical Drives
DVD-ROM Drive
HP SATA DVD-ROM Drive
DVD Writer
HP SATA SuperMulti LightScribe DVD Writer Drive
CD-RW/DVD-ROM Combo Drive
48X SATA CD-RW/DVD-ROM Combo Drive
Removable Storage
Security
Diskette and Digital Drives
HP 1.44-MB External USB Diskette Drive
HP 1.44-MB Internal Diskette Drive
Multimedia
HP 16-in-1 Media Card Reader with PCI Card
Kensington lock
HP ProtectTools security software suite
HP 2007 Wall Mount/Security Sleeve
HP USB Biometric Fingerprint Reader
HP USB Smartcard Keyboard
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
EE418AA
EM870AA
GN783AA
X
X
X
X
RD628AA
KK912AA
(launching
4/14/08)
X
X
AH047AA
X
X
GF343AA
X
X
AH046AA
X
X
X
X
DC141B
AH053AA
X
X
EM718AA
X
X
X
X
X
X
X
PC766A
KN740AA
GF344AA
EM717AA
ED707AA
X
X
Page 15
QuickSpecs
HP Compaq dc5800 Business PC
After-Market Options (availability may vary by region)
Manageability
HP Client Configuration Manager, Premium Edition
X
X
HP ProtectTools Client Security Software including
HP ProtectTools Security Manager
BIOS Configuration for HP ProtectTools
Credential Manager for HP ProtectTools
Device Access Manager for HP ProtectTools
Drive Encryption for HP ProtectTools
Embedded Security for HP ProtectTools
Java Card Security for HP ProtectTools
Altiris Client Management Suite Level 1
Includes:
Altiris Deployment Solution
Altiris Inventory Solution
Altiris Application Metering Solution
Altiris Carbon Copy Solution
Altiris Software Delivery Solution
Altiris Application Management Solution
Altiris Patch Management Solution
X
X
X
X
DR605A
(use DR606A
for 1000+
licenses)
X
X
GJ118AA
RG048AA
X
X
X
X
X
X
X
X
X
PA716A
KD061AA
EM449AA
PA997A
DC198A
DC177B
AH122AA
AH123AA
AG290AA
Brackets/Stands
HP 2007 SFF Tower Stand
HP Tower Stand
Miscellaneous
Accessories
HP 2nd Serial Port Adapter
HP Parallel Port Adapter
Belken USB to Serial Adapter
HP FireWire / IEEE 1394 PCI Card
DVI to DVI Cable
5.25" Blank Bezel Kit (Carbonite 50/Bulk Pack)
Local Area Network (LAN) cable, Ethernet cable
Firewire (1394) Cable
7-outlet Surge Protector
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
X
X
X
X
X
X
X
X
X
T3488AA
(use T3489AA
for 1000
licenses)
KN740AA
Page 16
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications
Unit Environment and Operating
Conditions
General Unit Operating Guidelines
Microtower
Small Form Factor
Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that
unit is operated within the specified operating range.
Leave a 10.2 cm (4 in) clearance on all vented sides of the computer to permit the required airflow.
Never restrict airflow into the computer by blocking any vents or air intakes.
Do not stack computers on top of each other or place computers so near each other that they are subject to each
other's re-circulated or preheated air.
Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other
foreign matter can block the vents and limit the airflow.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the
enclosure, and the same operating guidelines listed above will still apply.
Temperature Range
Operating: 50° to 95° F (10° to 35° C)*
Non-operating: -22° to 140° F(-30° to 60° C)
Relative Humidity
Operating: 10% to 90% (non-condensing at ambient)
Non-operating: 5% to 95% (non-condensing at ambient)
Maximum Altitude (unpressurized)
Operating: 10,000 ft (3048 m)
Non-operating: 30,000 ft (9144 m)
*NOTE: Operating temperature is de-rated 1.0 deg C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level, no direct
sustained sunlight. Maximum rate of change is 10 deg C/Hr. The upper limit may be limited by the type and number of
options installed.
Microtower
Power Supply
300-watt BTX power 300-watt 80 PLUS*
supply – Passive
BTX power supply –
PFC
Active PFC
115v/230v line switch
Operating Voltage Range
90 to 132VAC, or 180
90 to 264VAC
to 264VAC
Rated Voltage Range
100 to 127VAC, or
100 to 240VAC
200 to 240VAC
Rated Line Frequency
50/60 Hz
50/60 Hz
Operating Line Frequency Range
47–63 Hz
47–63 Hz
Rated Input Current
8A/4A
5A/2.5A
Heat Dissipation
Typical 315 btu/hr
Typical 270 btu/hr
(79 kg-cal/hr)
(68 kg-cal/hr)
Maximum 1575 btu/hr Maximum 1280 btu/hr
(397 kg-cal/hr)
(322 kg-cal/hr)
Power Supply Fan
ENERGY STAR 4.0 Compliant
FEMP Standby Power Compliant
(<2W in S5 – Power Off)**
Power Consumption in ES Mode
– Suspend to RAM (S3)
(Instantly Available PC)
Variable speed fan
X
Variable speed fan
X
X
<4W
<3W
Small Form Factor
240-watt BTX power 240-watt 80 PLUS*
supply – Active PFC BTX power supply –
115v/230v line switch
Active PFC
90 to 132VAC, or 180
90 to 264VAC
to 264VAC
100 to 127VAC, or
100 to 240VAC
200 to 240VAC
50/60 Hz
50/60 Hz
47–63 Hz
47–63 Hz
6A/3A
3.5A/1.75
Typical 315 btu/hr
Typical 270 btu/hr
(79 kg-cal/hr)
(68 kg-cal/hr)
Maximum
Maximum 1025 btu/hr
1260 btu/hr
(258 kg-cal/hr)
(317 kg-cal/hr)
Variable speed fan
Variable speed fan
X
X
X
<4W
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
<3W
Page 17
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications
NOTES:
* This 80% efficient power supply is a requirement for ENERGY STAR 4.0 compliance in conjunction with a select range of
processors and modules.
** Power consumption in the Off/Apparent Off mode is measured and reported with the network interface controller “Wake
on LAN” feature disabled in F10 Setup (default is “enabled”).
ROM BIOS Information
Key features of the HP BIOS in the dc5800 include:
Deployment and manageability – HP BIOS provides several technologies that help integrate the HP Business desktop
computer into the enterprise, such as PXE, remote configuration, remote control, and F10 Setup support for 12
languages.
Stability – HP BIOS supports the HP stable product roadmap by releasing only critical BIOS changes to the factory
and advanced change notification.
Security – HP BIOS offers a robust and flexible set of security features to help the system administrator secure their
systems from removal of sensitive data, and help prevent access by unauthorized users.
Tracking and tracing capabilities in case of theft available in select countries (subscription sold separately).
Thermal and power management – The HP BIOS provides and enables thermal and power management technologies
to assist in operating the HP Business Desktop computer in any enterprise environment.
Serviceability – HP BIOS provides diagnostic and detailed service information.
Upgrades and recovery – HP BIOS provides numerous ways to upgrade HP Business Desktop computers, including
BIOS updates from within DOS (Flashlite), BIOS updates from within Windows (HPQFlash, SSM), HP Client Manager,
and fail-safe recovery. In addition, the HP Business Desktop BIOS Utilities tool enables replicated BIOS setup
throughout the Enterprise; it is available from within the BIOS software and from the support website.
Additional HP BIOS Features
Administrator password – Also known as the setup password, this helps prevent unauthorized changes to the system
configuration. If the administrator password is not known, the BIOS version cannot be changed and changes cannot
be made to BIOS settings using F10 setup or under the OS.
Advanced Configuration and Power Interface (ACPI) – Represents a significant innovation in power and configuration
management, allowing operating systems and applications to manage power based on activity and usage. Provides
power conservation features under Windows XP.
Ability to mute the internal speaker
Other Features
ACPI-Ready Hardware
SMBIOS Ver. 2.4
Wired for Management Support
Dual-State Power Button
Description
Advanced Configuration and Power Management Interface (ACPI).
Allows the system to wake from a low power mode.
Controls system power consumption, making it possible to place individual
cards and peripherals in a low-power or powered-off state without affecting
other elements of the system.
System Management BIOS, previously known as DMI BIOS, for system
management information
Intel-driven, industry-wide initiative to make Intel architecture-based PCs, servers
and mobile computers more inherently manageable right out of the box and over
the network
Power button acts as both an on/off button and suspend-to-sleep button
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 18
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications
Serviceability Features of System
Dual Color Power LED on Front of Computer (Indicates Normal Operations and Fault Conditions)
Diagnostic LED Explanation Table
Number of 1-second red LED blinks followed by 2-second pause, then repeats:
2-processor thermal protection activated
3-processor not installed
4-power supply failure
5-memory error
6-video error
7-PCA failure (ROM detected failure prior to video)
8-invalid ROM, bootblock recover mode
System/Emergency ROM
Flash ROM
CMOS Battery Holder for easy
Replacement
Flash Recovery with Video
5 Aux Power LED on System PCA
Processor ZIF Socket for easy
Upgrade
Over-Temp Warning on Screen
Clear Password Jumper
DIMM Connectors for easy Upgrade
(Requires IM Agents)
Restore CD
Clear CMOS Switch
NIC LEDs (integrated) (Green &
Amber)
Serviceability Features of Chassis
Dual Color Power and HD LED
– To Indicate Normal
Operations and Fault
Conditions
Front power switch
Feature
Towerable
Drive Self Tests (DPS)
DPS Access through F10 Setup
during Boot
SMART IV Technology*
(Self-Monitoring, Analysis and
Reporting Technology)
Color coordinated cables and
connectors
Tool-less Hood Removal
(thumbscrews for Microtower,
spring-latch for Small Form Factor)
System memory can be upgraded
upgraded on Microtower without
removing any internal components
Tool-less Hard Drive, CD & Diskette
Removal
Description
Product can be oriented as a tower (in addition to desktop orientation)
Drive Protection System
A diagnostic hard drive self test. It scans critical physical components and every
sector of the hard drive for physical faults and then reports any faults to the
user.
Running independently of the operating system, it can be accessed through a
Windows-based diagnostics utility or through the computer's setup procedure. It
produces an evaluation on whether the hard drive is the source of the problem
and needs to be replaced.
The system expands on the Self-Monitoring, Analysis, and Reporting
Technology (SMART), a continuously running systems diagnostic that alerts the
user to certain types of failures.
Allows hard drives to monitor their own health and to raise flags if imminent failures
were predicted
Predicts failures before they occur. Tracks fault prediction and failure indication
parameters such as re-allocated sector count, spin retry count, calibration retry
count
By avoiding actual hard drive failures, SMART hard drives act as “insurance”
against unplanned user downtime and potential data loss from hard drive failure
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 19
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Audio
High Definition Audio
Type
Integrated
High Definition Stereo Yes – 4-channel ADI 1884 codec
Codec
Audio Jacks
Front microphone-In (150-K ohm Input Impedance)
Rear Line-In/Microphone input (150-K ohm Input Impedance, function is
configurable by audio driver)
Rear Line-Out * (190 ohms Output Impedance, expects at least a 10-K
ohm load)
Front Headphone-Out (0.5 Ohm Output Impedance, expects at least a
32 ohm load)
*Internal Speaker Amplifier is for Internal Speaker only. External Speakers need to be powered
externally. Rear Line in audio port is re-taskable as Line-in or Microphone-in.
Multistreaming
Multistreaming can be enabled in the ADI control panel to allow
Capable
independent audio streams to be sent to/from the front and rear jacks.
Sampling
8 kHz – 192 kHz
Wavetable Syntheses Yes – Uses OS soft wavetable
(software)
Analog Audio
Yes
Number of Channels Stereo (Left & Right channels)
on Line-Out
(mono/stereo)
Internal Audio Speaker 1.5 W
Power Rating
Internal Speaker
Yes; ability to mute internal speaker through F10 Setup
External Speaker Jack Yes
(Line-Out)
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 20
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Communications
Integrated Intel
82566DM Gigabit
Network Connection
Connector
Controller
Memory
Data rates supported
Compliance
Bus architecture
Data transfer mode
RJ-45
Intel Nineveh Gigabit platform LAN Connect Networking Controller
Integrated 96KbB on chip buffer memory
10/100/1000 Mbps
IEEE 802.1P, 802.1Q, 802.2, 802.3, 802.3 ab and 802.3u compliant,
GLCI, LCI interface. Intel specific MAC to PHY interface
At gigabit GLCI (802.3 serdes) is for Data, LCI (parallel bus)for MDIO,
at 10/100 LCI for both data and MDIO, GLCI is idle.
Hardware certifications FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS
Mark for European Union
Power requirement
Require 3.3Vaux,1.8V and 1.0V or just 3.3V with integrated regulators
Power consumption 1.16 Watts for 82566, whole LOM 2.53 Watts
ACBS
Intel Auto Connect Battery Saving feature
Boot ROM support
Yes
Network transfer mode Full-duplex
Half-duplex (not available for the 1000BASE-T transceiver)
Network transfer rate 10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps
Environmental
Operating temperature 32° to 131°F (0° to 55° C)
To 70° C for external regulator
Operating humidity
85% at 131° F (55° C)
Management
WOL, auto MDI crossover, PXE, Muti-port teaming, RSS, Advanced
capabilities
cable diagnostic.
Intel PRO/1000 PT PCIe Connector
Gigabit NIC
Controller
RJ-45
Intel 82572EI Gigabit Ethernet Controller
Memory
Integrated Dual 48K configurable transmit receive FIFO Buffers
Data rates supported 10/100/1000 Mbps
Compliance
IEEE 802.1P, 802,1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,
802.3x flow control
Bus architecture
PCI-E 1.0a
Data transfer mode
Bus-master DMA
Hardware certifications FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS
Mark for European Union
Power requirement
Aux 3.3V, 3.0 Watts in 1000base-T and 2.0 Watts in 100Base-T
Boot ROM support
Yes
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 21
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Communications
Network transfer rate
Environmental
Dimensions
Management
capabilities
Broadcom NetXtreme Connector
Gigabit Ethernet PCIe Controller
NIC Card
Memory
Data rates supported
Compliance
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps (actual rate limited by PCI Bus)
Operating temperature
32° to 131°F (0° to 55° C)
Operating humidity
85% at 131° F (55° C)
6.4 x 2.6 x 0.8 in (16.3 x 6.6 x 1.9 cm)
WOL, PXE, DMI, WFM 2.0.
RJ-45
Broadcom 5751 PCI-Express LAN Controller
Integrated 96Kb frame buffer memory
10/100/1000 Mbps
IEEE 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,
802.3x flow control
Bus architecture
PCI-E
Data path width
Single channel, PCI-E
Data transfer mode
Bus-master DMA
Hardware certifications FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS
Mark for European Union
Power requirement
3.1 watts @ +3.3V AUX supply with 5V tolerance
Boot ROM support
Yes
Network transfer mode Full-duplex
Half-duplex (not available for the 1000BASE-T transceiver)
Network transfer rate 10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps (actual rate limited by PCI Bus)
Environmental
Operating temperature
32° to 131°F (0° to 55° C)
Operating humidity
85% at 131° F (55° C)
Dimensions
4.4 x 2.2 x 0.08 in (11.2 x 5.5 x 2 cm)
Management
ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Broadcom mgmt utility
capabilities
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 22
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Communications
HP Wireless A+G PCI
Dimensions
Weight
Controller
system interface
Network standard
Frequency band
4.99 x 2.54 x 0.71 in (126.8 x 64.4 x 18.0 mm)
0.268 lb (65 g)
Atheros AR5414X chipset
PCI Spec 2.2
IEEE 802.11a/b/g
5.1500 to 5.8500 GHz
2.4000 to 2.4835 GHz
2.4465 to 2.4835 GHz (Europe, Middle East, Asia and Asia Pacific –
excluding Japan)
2.4000 to 2.4697 GHz (Japan)
Operating temperature 32° to 140° F (0° to 60° C), operating
Storage temperature -4° to 176° F (-20° to 80° C), non-operating
Humidity
10% to 85% non-condensing
Operating voltage
Power consumption
Output power
(approximately)
Receive sensitivity
Data transfer rate
Spreading
Security
Antenna
Throughput
Certifications
Certifications for use
by country
5V ± 5%
Tx/Rx peak 560/250mA @ 3.3V (max.)
15 dBM ±2dB
-90dBm at 11 Mbps (typical)
Standard rates of 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 48, 54 and Super AG
Mode108-Mbps
DSSS (Direct Sequence Spread Spectrum)
64(40h) bit, 128(104h) bit, WPA, IEEE802.1X, AES-OCB, AES-CCM,
Microsoft PEAP,TKIP, WEP.
External 5dBi antenna
108 Mbps (only with Belkin 54G or 200 ft (60.96 m) – Indoor
above router that supports 108
Mbps speed)
54 Mbps
200 ft (60.96 m) – Indoor
11 Mbps
200 ft (60.96 m) – Indoor
Wi-Fi certified
North America: United States, Canada
Europe: Austria, Belgium, Cyprus, Denmark, Finland, France, Germany,
Greece, Iceland, Ireland, Italy, Liechtenstein, Luxembourg, Netherlands,
Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom
Australia
New Zealand
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 23
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Communications
2006 Agere PCI 56K
International
SoftModem
Data Transmission
Technology speeds: 56,000 Kbps maximum downstream data,
controllerless
NOTE: 56 Kbps technology refers to download speeds only and requires compatible modems at
server sites. Other conditions may limit modem speed. FCC limitations allow a maximum of 53
Kbps during download transmissions.
Data Speeds
(Upload only)
33,600/31,200/28,800/26,400/21,600/19,200/16,800/14,400/12,000/
9,600/7,200/4,800/2,400/1,200/300
Data Standards
ITU-T V.90, ITU-T, ITU-T V.34, V.44, V.42, V.42bis21, V.32bis, Bell
212A, and Bell 103
Fax Speeds
14,400/12,000/9,600/7,200/4,800/2,400/1,200/300 b/s
Fax Mode Capabilities ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2
Error Correction and V.44, 42bis, V.42 and MNP2-5
Data Compression
Power Management
ACPI; PPMI 1.1 and wake support with PME and Vaux; meets PCI 2.3
requirements and PC 2001 requirements
Upgradeability
Driver upgradeable for future enhancements
Video
ITU-T V.80 video ready interface
Other
TIA/EIA 602 standard AT command set
Integrated DTE interface with speeds of up to 115.2 Kbps, parallel
16550a UART-compatible interface
Optional ring wakeup signal
Operating Temperature32° to 158° F (0° to 70° C)
Operating Humidity
20% to 90%, non-condensing
Power
Requires a 3.3-V auxiliary power rail on PCI bus
Uses only one PCI load (i.e., one grant/request pair), one shared IRQ,
one electrical load
Chipset
Agere Systems SV92PL – Integrated PCI interface with 5-V tolerant
buffers and CardBus support
Dimensions (L X H)
Complies with PCI low profile specifications-6.7 x 2.3 in (17.0 x 5.8 cm)
and supports high- and low-profile brackets
Connection
Single RJ-11 connector
Other Features
Digital line protection, call progress monitoring via on-board piezo
device, support for high profile and low profile brackets, PnP ID support
Safety
UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950
(TUV, NEMKO, DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO,
DEMKO, SEMKO, CE mark
EMC
FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN
61000-4-6, EN 61000-4-8
Telecom
FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals
Not available in Korea or the Republic of South Africa.
Health
Bare PCB material compliant to 94V-0 or better (marked as such)
Other
PC 2001 compliant, PCI version 2.3, WHQL approved; ACPI compliant
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 24
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Graphics
Integrated Graphics
3D/2D Controller
Media Accelerator 3100
VGA Controller
Bus Type
RAMDAC
Memory
Microsoft DirectX® 9 based with support for Pixel Shader 2.0, 4:1
anisotropic filtering, Gaussian texture filtering, shadow maps, volumetric
textures, double-sided stencil buffers, and 4 pixel pipes.
Integrated
PCI Express™ x16 (If an external graphics card is installed in a PCI or
PCIe x1 slot, the internal graphics can be enabled or disabled using the
system's BIOS setup utility. If a graphics card other than an
SDVO/ADD2 card is installed in the PCI Express™ x16 slot, the internal
graphics cannot be enabled).
Integrated, 350 MHz ([email protected] Hz)
Graphics memory is shared with system memory. Graphics memory
usage varies depending on the amount of system memory installed and
system load. 8 MB is pre-allocated for graphics use at system boot time.
Additional memory is allocated for graphics as needed using Intel's
Dynamic Video Memory Technology (DVMT), to provide an optimal
balance between graphics and system memory use.
System memory equal or greater than 512 MB
8 MB pre-allocated + 248 MB DVMT = max frame buffer of 256 MB
Overlay Planes
Single overlay support with 5x3 filtering
Maximum Color Depth 32 bits/pixel
Maximum Vertical
85 Hz at up to 1920x1440, 75 Hz at 2048x1536. Varies with mode and
Refresh Rate
configuration. See table below.
Multi-display Support Support for one CRT via the motherboard's VGA connector on SFF and
MT. Support for an additional display on SFF/MT can be accomplished
with the addition of SDVO/ADD2 option installed in PCIe x16 slot.
Graphics/Video API
Microsoft DirectX®9, DirectXVA®, VMR9, GDI/GDI+; OpenGL® 1.4.
Support
Resolutions
Supported1
Resolution
Maximum Refresh Rate (Hz)
Analog Monitor
Digital Monitor
640 x 480
85
60
800 x 600
85
60
1024 x 768
85
60
1280 x 1024
85
60
1600 x 1200
85
60
1920 x 1080
85
60
1920 x 1200
85
60
1920 x 1440
85
N/A
2048 x 1536
75
N/A
1 Modes listed are supported with a single active display. The supported mode list for multiple active displays is a subset of
this list. Not all modes will support video playback and some supported modes may use software MC (motion compensation)
rather than hardware MC. Not all modes will support 3D acceleration depending on the system configuration (e.g., resolution
selected, size of frame buffer, number of installed memory modules, etc.).
NOTE: Other resolutions and refresh rates may be selectable but are not recommended.
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 25
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Graphics
DVI ADD2 Graphics1
Models
Form Factor
DVI-D Connector
Dual Head Support
Display Devices
Supported
HP ADD2 SDVO DVI-D Out Adapter
Low-profile card
Digital connection only
Yes, when used with the integrated VGA connector
HP L1740
HP L1940T
HP L2045W
HP LP1965
NOTE: These graphics adapters offer optimal performance with any display that meets applicable
VESA standards.
Color Depth
All modes support 8-bpp, 16-bpp, and 24-bpp color depths
Host Interface
Mechanically compliant with PCI-E standard
Connector
Complies with the Intel ADD2 and Intel Serial Digital Video Output
(SDVO) specifications
Dot Clock
Display Modes
Resolution
Blanking
640 x 480
800 x 600
1024 x 768
1280 x 1024
1600 x 1200
NVIDIA Quadro NVS
290 256MB PCIe Dual
Head
165 MHz maximum
Supports display modes that require up to 165-MHz bandwidth on the
link, as shown in the following table.
VGA
SVGA
XGA
SXGA
UXGA
Form Factor
Bus Type
Memory
Connector
Display Resolution
Support
RAMDAC
Color planes
Overlay planes
nView architecture
Multi-Monitor support
DVI support
High-definition Video
Processor (HDVP)
60-Hz LCD
5% reduced
Yes
Yes
Yes
Yes
Yes
60-Hz
GTF
Yes
Yes
Yes
Yes
Yes
75-Hz
GTF
Yes
Yes
Yes
No
No
85-Hz
GTF
Yes
Yes
Yes
No
No
Low Profile
PCIe x16
256 MB 400MHz DDR2 SDRAM unified frame buffer, Z-buffer and
Texture storage
DMS-59, includes DMS-59 to Dual DVI-I cable. DMS-59 to Dual VGA
cable available as an option.
Dual integrated analog display controllers supporting up to two analog
displays at 2048x1536 @ 85Hz on both displays or dual digital displays
at 1920x1200 (single-link).
NVIEW advanced multi-display desktop and application management
seamlessly integrated into Microsoft Windows
Integrated dual 400MHz
32-bit color buffer
Hardware supported
Advanced multi-display desktop & application management seamlessly
integrated into Microsoft Windows.
Dual monitor support
DMS-59 (to dual DVI-SL)
Full-screen, full-frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG2Independent hardware color controls for video overlay
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 26
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Graphics
Supported graphics
APIs
NVIDIA GeForce 8400
GS (256 MB SH) PCIe
x16 Graphics
Controller
Bus type
Maximum vertical
refresh rate
Display support
Display max resolution
Input/Output
connectors
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
OGL 2.1 & DX10 Support; Shader Model 4.0
PCI Express (x16 lanes)
85 Hz
Integrated 400 MHz RAMDAC
2048 x 1536 (analog), 2560 x 1600 (digital)
DVI-I (DVI port supports dual-link and HDCP)
TV-out (4 pin S-video)
Board display options DVI-I + TV
DVI-I supports analog CRT or flat panel or digital flat panel (using DVIA, DVI-D or DVI-I connector)
DVI-I supports analog CRT or flat panel (with VGA connector and DVI-I
to VGA dongle)
TV connector is a 4-pin mini-DIN S-video connector
Board configuration
Specification
Description
Graphics Chip
NVIDIA P413-260
Core clock
460 MHz
Memory clock
200 MHz
Frame buffer
256 MB DDR2
Languages supported 24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,
Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek,
Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish,
Portuguese, Russian, Spanish, Swedish, Thai, Turkish
System memory
1GB of system memory required
Core power
25 W (Max board power)
NVIDIA GeForce 8400 GS (256 MB SH) PCIe x16 Graphics Controller display resolutions and refresh rates
NOTE: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP.
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 27
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Graphics
Analog Resolution
640 x 480
800 x 600
1024 x 768
1280 x 1024
1600 x 1200
1920 x 1080
1920 x 1200
1920 x 1440
2048 x 1536
Digital Resolution
640 x 480
800 x 600
1024 x 768
1280 x 1024
1600 x 1200
1920 x 1200*
1920 x 1440**
2560 x 1600**
Maximum Refresh Rate
85 Hz
85 Hz
85 Hz
85 Hz
85 Hz
85 Hz
85 Hz
85 Hz
85 Hz
Maximum Refresh Rate
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
* Reduced blanking timings used when connected to a single-link DVI monitor
** Requires a dual-link DVI capable monitor
NVIDIA GeForce 8400 Bus type
GS (256 MB DH) PCIe Maximum vertical
x1 Graphics Controller refresh rate
Display support
Display max resolution
Input/Output
connectors
Board display options
PCIe x1
85 Hz
Integrated 400 MHz RAMDAC
2048 x 1536 (analog), 2560 x 1600 (digital)
DMS59 (DMS-59 port supports Dual VGA or Dual DVII connections)
TV-out (4 pin S-video)
DMS59 + TV
DMS59 supports either 2 VGA displays with the included cable or 2 DVII
displays with optional
HP DMS59 DVI Dual-head Connector Cable kit #DL139A
TV connector is a 4-pin mini-DIN S-video connector
Board configuration
Specification
Description
Graphics Chip
NVIDIA GeForce 8400 GS
Core clock
460 MHz
Memory clock
200 MHz
Frame buffer
256 MB DDR2
Languages supported 24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,
Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek,
Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish,
Portuguese, Russian, Spanish, Swedish, Thai, Turkish
System memory
1GB of system memory required
Core power
25 W (Max board power)
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 28
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Graphics
NVIDIA GeForce 8400 GS (256 MB DH) PCIe x1 Graphics Controller display resolutions and refresh rates
NOTE: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP.
Analog Resolution
640 x 480
800 x 600
1024 x 768
1280 x 1024
1600 x 1200
1920 x 1080
1920 x 1200
1920 x 1440
2048 x 1536
Digital Resolution
640 x 480
800 x 600
1024 x 768
1280 x 1024
1600 x 1200
1920 x 1200*
Maximum Refresh Rate
85 Hz
85 Hz
85 Hz
85 Hz
85 Hz
85 Hz
85 Hz
85 Hz
85 Hz
Maximum Refresh Rate
85 Hz
85 Hz
85 Hz
85 Hz
85 Hz
85 Hz
* Reduced blanking timings used when connected to a single-link DVI monitor
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 29
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Hard Drives
7200 RPM Serial ATA
Hard Drives
500-GB
Capacity
Height
Width
500,107,862,016 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Interface
Serial ATA (3.0 Gb/s)
Synchronous Transfer Up to 3 Gb/s
Rate (Maximum)
Buffer
16 MB
Seek Time (typical
Single Track
2.0 ms
reads, includes controller Average
11 ms
overhead, including
Full-Stroke
21 ms
settling)
Rotational Speed
7,200 rpm
Logical Blocks
976,773,168
Operating Temperature41° to 131° F (5° to 55° C)
250-GB
Capacity
Height
Width
250,059,350,016 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Interface
Serial ATA (3.0 Gb/s)
Synchronous Transfer Up to 3 Gb/s
Rate (Maximum)
Buffer
8 MB
Seek Time (typical
Single Track
2.0 ms
reads, includes controller Average
11 ms
overhead, including
Full-Stroke
21 ms
settling)
Rotational Speed
7,200 rpm
Logical Blocks
488,397,168
Operating Temperature41° to 131° F (5° to 55° C)
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 30
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Hard Drives
160-GB
Capacity
Height
Width
160,041,885,696 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Interface
Serial ATA (3.0 Gb/s)
Synchronous Transfer Up to 3 Gb/s
Rate (Maximum)
Buffer
8 MB
Seek Time (typical
Single Track
2.0 ms
reads, includes controller Average
11 ms
overhead, including
Full-Stroke
21 ms
settling)
Rotational Speed
Logical Blocks
7,200 rpm
312,581,808
Operating Temperature41° to 131° F (5° to 55° C)
80-GB
Capacity
Height
Width
80,026,361,856 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Interface
Serial ATA (3.0 Gb/s)
Synchronous Transfer Up to 3 Gb/s
Rate (Maximum)
Buffer
8 MB
Seek Time (typical
Single Track
2.0 ms
reads, includes controller Average
11 ms
overhead, including
Full-Stroke
21 ms
settling)
Rotational Speed
7,200 rpm
Logical Blocks
156,301,488
Operating Temperature41° to 131° F (5° to 55° C)
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 31
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Input/Output Devices
PS/2 Standard
Keyboard
Physical
characteristics
Electrical
Mechanical
Keys
104, 105, 106, 107, 109 layout (depending
upon country)
Dimensions (L x W x H) 18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)
Weight
2 lb (0.9 kg) minimum
Operating voltage
+ 5VDC ± 5%
Power consumption
50-mA maximum (with three LEDs ON)
System interface
PS/2 6-pin mini din connector
ESD
CE level 4, 15-kV air discharge
EMI – RFI
Conforms to FCC rules for a Class B
computing device
Microsoft PC 99 – 2001 Functionally compliant
Languages
38 available
Keycaps
Low-profile design
Switch actuation
Switch life
55-g nominal peak force with tactile feedback
20 million keystrokes (using Hasco modified
tester)
Contamination-resistant switch membrane
For all double-wide and greater-length keys
Switch type
Key-leveling
mechanisms
Cable length
6 ft (1.8 m)
Microsoft PC 99 – 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
Environmental
Operating temperature 50° to 122° F (10° to 50° C)
Non-operating
-22° to 140° F (-30° to 60° C)
temperature
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity20% to 80% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock 80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating
4-g peak acceleration
vibration
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
42 in (107 cm) on concrete, 16-drop
sequence
Approvals
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
Ergonomic compliance ANSI HFS 100, ISO 9241-4, and TUVGS
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 32
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Input/Output Devices
HP PS/2 Optical Scroll Dimensions (H x L x W) 3.95 x 6.21 x 11.7 cm (1.56 x 2.44 x 4.61 in)
Mouse
Weight
4.44 oz (126 g)
Environmental
Operating temperature -32° to 104°F (0° to 40° C)
Non-operating
-4° to 140°F ( -20° to 60° C)
temperature
Operating humidity
10% to 90% (non condensing at ambient)
Non-operating humidity10% to 90% non condensing
Operating shock
40 g, 6 surfaces
Non-operating shock 80 g, 6 surfaces
Operating vibration
2 g peak acceleration
Non-operating
4 g peak acceleration
vibration
Drop (out of box)
80 cm height onto asphalt tile over concrete
or equivalent, 5-drop in 5 direction except the
cable face
Electrical
Operating voltage
5 VDC ± 10%
Power consumption
100mA
System consumption PS/2 mini-din connector
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B
computing device
Microsoft PC99 – 2001 Functionally compliant
Mechanical
Resolution
400 ± 20% DPI
Tracking speed
10 in/s (25.4 cm/s) maximum
Acceleration
100 in/s/s (2.54 m/s/s)
Switch actuation
61 g nominal peak force
Switch life
3,000,000 operations (using Hasco modified
tester)
Switch type
Low force micro-switches
Tracking mechanism 155 mi (250 km) at average speed of 10 in/s
life
Cable length
6 ft (1.8 m)
Microsoft PC99 – 2001 Mechanically compliant
Scroll wheel
Width
8 mm
Diameter
1.01 in (25.6 mm)
Maximum rotation
48 rats/sec
speed
Switch type
Light force micro-switch
Switch life
1 million operations
Mechanical life
Minimum 200,000 revolutions
Regulatory approvals Compliant
UL, CSA, FCC, CE Mark, TUV, TUV GS,
VCCI, BSMI, C-Tick, MIC
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 33
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Input/Output Devices
HP USB Optical Scroll Dimensions (H x L x W) 1.5 x 4.5 x 2.5 in (3.8 x 11.6 x 6.3 cm)
Mouse
Weight
0.27 lb (0.12 kg)
Cable length
72.8 in (185 cm)
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 34
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Optical Storage
HP SATA SuperMulti Height
5.25-inch, half-height, tray-load
LightScribe DVD Writer Orientation
Either horizontal or vertical
Drive
Interface type
SATA/ATAPI
Disc capacity
8.5 GB DL or 4.7 GB standard
Dimensions (W x H x D) 5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
Weight (max)
2.6 lb (1.2 kg)
Write speeds
DVD-RAM
Up to 12X
DVD+R
Up to 16X
DVD+RW
Up to 8X
DVD+R DL
Up to 8X
DVD-R DL
Up to 8X
DVD-R
Up to 16X
Read speeds
DVD-RW
CD-R
CD-RW
DVD-RAM
DVD+RW, DVD-RW,
DVD+R DL, DVD-R DL
DVD-ROM DL
DVD-ROM, DVD+R,
DVD-R
CD-ROM, CD-R
CD-RW
Random
Up to 6X
Up to 48X
Up to 32X
Up to 12X
Up to 8X
Up to 8X
Up to 16X
Up to 48X
Up to 32X
Access time
DVD: < 140 ms (typical), CD: < 125 ms
(typical reads, including
(typical)
settling)
Full Stroke
DVD: < 250 ms (seek), CD: < 210 ms (seek)
Power
Source
SATA DC power receptacle
DC Power Requirement5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
DC Current
5 VDC (< 1000 mA typical, 1600 mA
maximum)
12 VDC (< 600 mA typical, 1400 mA
maximum)
Environmental
Temperature
41° to 122° F (5° to 50° C)
conditions (operating – Relative Humidity
10% to 90%
non-condensing)
Maximum Wet Bulb
86° F (30° C)
Temperature
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 35
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Optical Storage
SATA CD-RW/DVDROM Combo Drive
Height
Orientation
Interface type
Disc capacity
5.25-inch, half-height, tray-load
Either horizontal or vertical
SATA/ATAPI
Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)
Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)
Dimensions (W x H x D) 5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
Weight (max)
2.6 lb (1.2 kg)
Write speeds
CD-R
Up to 48X
CD-RW
Up to 32X
Read speeds
DVD+R/-R/+RW/
Up to 8X
-RW/+R DL /-R DL
DVD-ROM
Up to 16X
CD-ROM, CD-R
Up to 48X
CD-RW
Random
Up to 32X
Access time
DVD: < 140 ms (typical), CD: < 125 ms
(typical reads, including
(typical)
settling)
Full Stroke
DVD: < 250 ms (typical), CD: < 210 ms
(typical)
Power
Source
SATA DC power receptacle
DC Power Requirement5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
DC Current
5 VDC (< 1000 mA typical, < 1600 mA
maximum)
12 VDC (< 600 mA typical, < 1400 mA
maximum)
Environmental
Temperature
41° to 122° F (5° to 50° C)
(all conditions
Relative Humidity
10% to 90%
non-condensing)
Maximum Wet Bulb
86° F (30° C)
Temperature
SATA DVD-ROM Drive Height
Orientation
Interface type
Disc capacity
5.25-inch, half-height, tray-load
Either horizontal or vertical
SATA/ATAPI
Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)
Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)
Dimensions (W x H x D) 5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
Weight (max)
2.6 lb (1.2 kg)
Read speeds
DVD+R/-R/+RW/
Up to 8X
-RW/+R DL /-R DL
DVD-ROM
Up to 16X
DVD-RAM
Up to 4X
CD-ROM, CD-R
Up to 48X
CD-RW
Up to 32X
Removable Storage – Media
Read
Write
Media Compatibility –
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 36
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Optical Storage
Media Compatibility – CD-ROM
DVD-ROM
CD-R
CD-RW
DVD-ROM
DVD-ROM DL
DVD-RAM
DVD+R
DVD+R DL
DVD+RW
DVD-R
DVD-RW
DVD-R DL
Access times
Random
(typical reads, including
setting)
Full Stroke
Cache Buffer
Data Transfer Modes
Power
Environmental
(all conditions
non-condensing)
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
DVD: < 140 ms (typical), CD: < 125 ms
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
2 MB (minimum)
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s); ATA UltraDMA
Mode 3 (44.4 MB/s -default)
Source
SATA DC power receptacle
DC Power Requirement5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
DC Current
5 VDC – <1000 mA typical, < 1600 mA
maximum
12 VDC –< 600 mA typical, < 1400 mA
maximum
Temperature
41° to 122° F (5° to 50° C)
Relative Humidity
10% to 90%
Maximum Wet Bulb
86° F (30° C)
Temperature
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 37
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Removable Storage
HP 16-in-1 Media Card USB Interface
Reader
Advance protocol
support
USB 2.0 High-speed device
Supports hardware ECC (Error Correction Code) function
Supports hardware CRC (Cyclic Redundancy Check) function
Supports MS 4-bit parallel transfer mode
Supports MS-PRO 4-bit parallel transfer mode
Supports SD 4-bit parallel transfer mode
Supports high-speed 50-MHz SD 4-bit card (version 1.1)
Support high-speed 52-MHz MMC 8-bit card
MicroSD (T-Flash)
Memory Stick Micro
Supported media type
with card adapter
Mechanical
Environmental
Operational
Environmental
Extremes
Approvals
Test Parameters/Conditions – Power applied,
unit operating on system ±5% nominal supply
voltage.
10°C 10% R.H. ≥ 24 hours
10°C 90% R.H. ≥ 24 hours
20°C 90% R.H. ≥ 24 hours
30°C 90% R.H. ≥ 24 hours
40°C 90% R.H. ≥ 24 hours
50°C 90% R.H. ≥ 24 hours
50°C 10% R.H. ≥ 24 hours
Storage Environmental Test Parameters/Conditions
Extremes
60°C @ 80% R.H. for 96 hours
-30°C @ 20% R.H. for 48 hours
No power applied
Delta °C < 1.0°C/min
Delta % R.H. < 1.5% R.H./min
USB-IF, WHQL, Compliant with USB Mass Storage Class Bulk only
Transport Specification Rev. 1.0, Compliant Intel Front Panel I/O
Connectivity Design Guide V. 1.2
FCC, CE, BSMI, C-Tick, VCCI, MIC, cUL, TUV-T
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 38
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Environmental Data
Eco-Label
Certifications and
declarations
This product has received or is in the process of being certified to the following approvals and may
be labeled with one or more of these marks:
US Energy Star
US Federal Energy Management Program (FEMP)
Taiwan Green Mark
China Energy Conservation Program
IT ECO declaration
EPEAT Rated – GOLD
Korea Eco-label
Japan PC Green label*
* This product conforms to the examination standards (2003 version) under JEITA's 'PC Green
Label System.'
Small Form Factor
System Configuration The configuration used for the Energy Consumption and Declared Noise Emissions data for the
Small Form Factor Desktop model is based on a typically configured product.
Energy Consumption
AC Input Voltage at 115 VAC AC Input Voltage at 230 VAC AC Input Voltage at 100 VAC
+/- 5 VAC, 60 Hz +/- 3 Hz
+/- 5 VAC, 50 Hz +/- 3 Hz
+/- 5 VAC, 50 Hz +/- 3 Hz
Normal Operation On56.4813 W
55.4734 W
57.0071 W
Idle (ENERGY STAR
Idle (S0))
ENERGY STAR “Sleep”
3.2813 W
3.5599 W
3.2663 W
(S3) (Wake On LAN
(WOL) Enabled)
ENERGY STAR “Sleep”
3.2795 W
3.5581 W
3.2692 W
(S3) (Wake On LAN
(WOL) Disabled)
ENERGY STAR
1.6005 W
1.8699 W
1.5823 W
“Standby” (Off) (S5)
(Wake On LAN (WOL)
Enabled)
ENERGY STAR
0.8966 W
1.1596 W
0.8763 W
“Standby” (Off) (S5)
(Wake On LAN (WOL)
Disabled)
Heat Dissipation*
AC Input Voltage at 115 VAC AC Input Voltage at 230 VAC AC Input Voltage at 100 VAC
+/- 5 VAC, 60 Hz +/- 3 Hz
+/- 5 VAC, 50 Hz +/- 3 Hz
+/- 5 VAC, 50 Hz +/- 3 Hz
Normal Operation On192.714 BTU/hr
189.275 BTU/hr
194.508 BTU/hr
Idle (ENERGY STAR
Idle (S0))
ENERGY STAR “Sleep”
11.195 BTU/hr
12.146 BTU/hr
11.144 BTU/hr
(S3) (Wake On LAN
(WOL) Enabled)
ENERGY STAR “Sleep”
11.189 BTU/hr
12.14 BTU/hr
11.154 BTU/hr
(S3) (Wake On LAN
(WOL) Disabled)
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 39
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Environmental Data
ENERGY STAR
5.46 BTU/hr
6.38 BTU/hr
5.398 BTU/hr
“Standby” (Off) (S5)
(Wake On LAN (WOL)
Enabled)
ENERGY STAR
3.059 BTU/hr
3.956 BTU/hr
2.989 BTU/hr
“Standby” (Off) (S5)
(Wake On LAN (WOL)
Disabled)
* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.
This product is in compliance with US executive order 13221, WOL (wake on LAN) disabled.
Declared Noise
Emissions
(in accordance with
ISO 7779 and ISO 9296)
System Fan Off
Idle
Fixed Disk (random
writes)
Batteries
Sound Power
(LWAd, bels)
3.8
3.9
Sound Pressure
(LpAm, decibels)
27
28
This product complies with ISO standards:
EU Directive 91/ 157/ EEC
EU Directive 93/ 86/ EEC
EU Directive 98/ 101/ EEC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
Lead greater than 4000ppm by weight.
Battery size: CR2032 (coin cell)
Battery type: Lithium
Additional Information
This product is in compliance with the Restrictions of Hazardous Substances (RoHS)
directive - 2002/95/EC.
This product is in compliance with California Proposition 65 (State of California; Safe
Drinking Water and Toxic Enforcement Act of 1986).
This HP product is designed to comply with the Waste Electrical and Electronic Equipment
(WEEE) Directive – 2002/96/EC.
This product is in compliance with the IEEE 1680 (EPEAT) standard at the GOLD level, see
http://www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and
ISO1043.
This product contains 0% recycled materials (by wt.)
This product is 93% recyclable when properly disposed of at end of life.
Packaging Materials
Corrugated Paper
1600 g
EPE Foam
200 g
LDPE Bag
52 g
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 40
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Environmental Data
The EPE foam packaging material is made from 30 to 60% industrial recycled content.
The corrugated paper packaging materials contain at least 80% post consumer recycled
content.
Minitower
System Configuration The configuration used for the Energy Consumption and Declared Noise Emissions data for the
Minitower Desktop model is based on a typically configured product.
Energy Consumption
AC Input Voltage at 115 VAC AC Input Voltage at 230 VAC AC Input Voltage at 100 VAC
+/- 5 VAC, 60 Hz +/- 3 Hz
+/- 5 VAC, 50 Hz +/- 3 Hz
+/- 5 VAC, 50 Hz +/- 3 Hz
Normal Operation On57.7234 W
57.1631 W
58.1231 W
Idle (ENERGY STAR
Idle (S0))
ENERGY STAR “Sleep”
3.0145 W
3.3215 W
2.9863 W
(S3) (Wake On LAN
(WOL) Enabled)
ENERGY STAR “Sleep”
(S3) (Wake On LAN
(WOL) Disabled)
ENERGY STAR
“Standby” (Off) (S5)
(Wake On LAN (WOL)
Enabled)
ENERGY STAR
“Standby” (Off) (S5)
(Wake On LAN (WOL)
Disabled)
Heat Dissipation*
3.0142 W
3.3181 W
2.983 W
1.4702 W
1.7589 W
1.4495 W
0.8089 W
1.0882 W
0.7862 W
AC Input Voltage at 115 VAC AC Input Voltage at 230 VAC AC Input Voltage at 100 VAC
+/- 5 VAC, 60 Hz +/- 3 Hz
+/- 5 VAC, 50 Hz +/- 3 Hz
+/- 5 VAC, 50 Hz +/- 3 Hz
196.952 BTU/hr
195.04 BTU/hr
198.316 BTU/hr
Normal Operation OnIdle (ENERGY STAR
Idle (S0))
ENERGY STAR “Sleep”
10.285 BTU/hr
11.332 BTU/hr
10.189 BTU/hr
(S3) (Wake On LAN
(WOL) Enabled)
ENERGY STAR “Sleep”
10.284 BTU/hr
11.321 BTU/hr
10.177 BTU/hr
(S3) (Wake On LAN
(WOL) Disabled)
ENERGY STAR
5.016 BTU/hr
6.001 BTU/hr
4.945 BTU/hr
“Standby” (Off) (S5)
(Wake On LAN (WOL)
Enabled)
ENERGY STAR
2.759 BTU/hr
3.712 BTU/hr
2.682 BTU/hr
“Standby” (Off) (S5)
(Wake On LAN (WOL)
Disabled)
* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.
This product is in compliance with US executive order 13221, WOL (wake on LAN) disabled.
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 41
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Environmental Data
Declared Noise
Emissions
(in accordance with
ISO 7779 and ISO 9296)
Idle
Fixed Disk (random
writes)
Batteries
Sound Power
(LWAd, bels)
3.8
3.9
Sound Pressure
(LpAm, decibels)
27
28
This product complies with ISO standards:
EU Directive 91/ 157/ EEC
EU Directive 93/ 86/ EEC
EU Directive 98/ 101/ EEC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
Lead greater than 4000ppm by weight.
Battery size: CR2032 (coin cell)
Battery type: Lithium
Additional Information
This product is in compliance with the Restrictions of Hazardous Substances (RoHS)
directive - 2002/95/EC.
This product is in compliance with California Proposition 65 (State of California; Safe
Drinking Water and Toxic Enforcement Act of 1986).
This HP product is designed to comply with the Waste Electrical and Electronic Equipment
(WEEE) Directive – 2002/96/EC.
This product is in compliance with the IEEE 1680 (EPEAT) standard at the GOLD level, see
http://www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and
ISO1043.
This product contains 0% recycled materials (by wt.)
This product is 93% recyclable when properly disposed of at end of life.
Packaging Materials
Corrugated Paper
1642 g
EPE Foam
385 g
LDPE Bag
50 g
The EPE foam packaging material is made from 30 to 60% industrial recycled content.
The corrugated paper packaging materials contains at least 80% post consumer recycled
content.
Small Form Factor, Minitower
RoHS Compliance
Material Usage
Hewlett-Packard is committed to compliance with all applicable environmental laws and
regulations, including the European Union Restriction of Hazardous Substances (RoHS) Directive.
HP's goal is to exceed compliance obligations by meeting the requirements of the RoHS Directive
on a worldwide basis. By July 1, 2006, RoHS substances were virtually eliminated (virtually = to
levels below legal limits) for all HP electronic products subject to the RoHS Directive, except
where it is widely recognized that there is no technically feasible alternative (as indicated by an
exemption under the EU RoHS Directive).
This product does not contain any of the following substances in excess of regulatory limits (refer
to the HP General Specification for the Environment at
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 42
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Environmental Data
http://www.hp.com/hpinfo/globalcitizenship/environment/
supplychain/gen_specifications.html):
Packaging
End-of-life
Management and
Recycling
Hewlett-Packard
Corporate
Environmental
Information
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants – may not be used as flame retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel – finishes must not be used on the external surface designed to be frequently
handled or carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has
been voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
HP follows these guidelines to decrease the environmental impact of product packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in
packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in packaging materials.
Use readily recyclable packaging materials such as paper and corrugated materials.
Reduce size and weight of packages to improve transportation fuel efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic
areas. To recycle your product, please go to: http://www.hp.com/recycle or contact your nearest
HP sales office. Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for
each product type for use by treatment facilities. This information (product disassembly
instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These
instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
For more information about HP's commitment to the environment:
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 43
QuickSpecs
HP Compaq dc5800 Business PC
Technical Specifications - Environmental Data
© Copyright 2008 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Intel and Pentium are U.S. registered trademarks of Intel Corporation. Microsoft and Windows are U.S. registered trademarks
of Microsoft Corporation. The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP
shall not be liable for technical or editorial errors or omissions contained herein.
DA - 12863 U.S. QuickSpecs — Version 3 — 4/2/2008
Page 44
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
