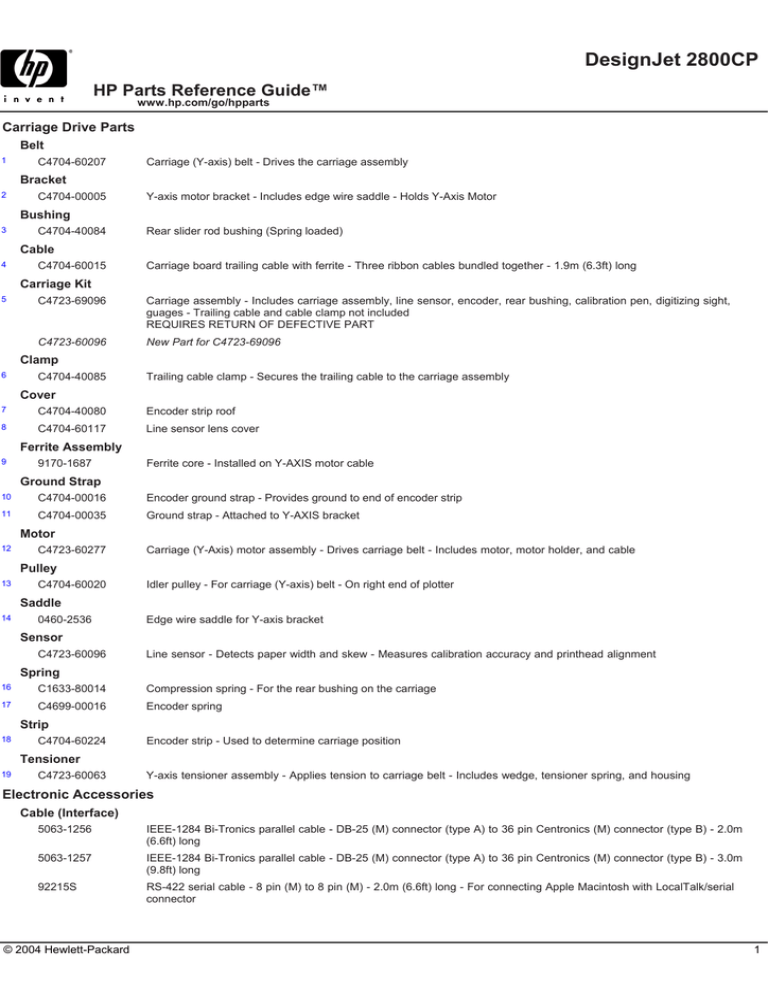

DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Carriage Drive Parts
Belt
1
C4704-60207
Carriage (Y-axis) belt - Drives the carriage assembly
Bracket
2
C4704-00005
Y-axis motor bracket - Includes edge wire saddle - Holds Y-Axis Motor
Bushing
3
C4704-40084
Rear slider rod bushing (Spring loaded)
Cable
4
C4704-60015
Carriage board trailing cable with ferrite - Three ribbon cables bundled together - 1.9m (6.3ft) long
Carriage Kit
5
C4723-69096
Carriage assembly - Includes carriage assembly, line sensor, encoder, rear bushing, calibration pen, digitizing sight,
guages - Trailing cable and cable clamp not included
REQUIRES RETURN OF DEFECTIVE PART
C4723-60096
New Part for C4723-69096
Clamp
6
C4704-40085
Trailing cable clamp - Secures the trailing cable to the carriage assembly
Cover
7
C4704-40080
Encoder strip roof
8
C4704-60117
Line sensor lens cover
Ferrite Assembly
9
9170-1687
Ferrite core - Installed on Y-AXIS motor cable
Ground Strap
10
C4704-00016
Encoder ground strap - Provides ground to end of encoder strip
11
C4704-00035
Ground strap - Attached to Y-AXIS bracket
Motor
12
C4723-60277
Carriage (Y-Axis) motor assembly - Drives carriage belt - Includes motor, motor holder, and cable
Pulley
13
C4704-60020
Idler pulley - For carriage (Y-axis) belt - On right end of plotter
Saddle
14
0460-2536
Edge wire saddle for Y-axis bracket
Sensor
C4723-60096
Line sensor - Detects paper width and skew - Measures calibration accuracy and printhead alignment
Spring
16
C1633-80014
Compression spring - For the rear bushing on the carriage
17
C4699-00016
Encoder spring
Strip
18
C4704-60224
Encoder strip - Used to determine carriage position
Tensioner
19
C4723-60063
Y-axis tensioner assembly - Applies tension to carriage belt - Includes wedge, tensioner spring, and housing
Electronic Accessories
Cable (Interface)
5063-1256
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 2.0m
(6.6ft) long
5063-1257
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m
(9.8ft) long
92215S
RS-422 serial cable - 8 pin (M) to 8 pin (M) - 2.0m (6.6ft) long - For connecting Apple Macintosh with LocalTalk/serial
connector
© 2004 Hewlett-Packard
1
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Electronic Accessories
Cable (Interface)
C2950A
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 2.0m
(6.6ft) long
5063-1256
New Part for C2950A
C2951A
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m
(9.8ft) long
C2990A
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) (type A) to 36 pin (M) Centronics (type B) - 1.8m (6ft) long
NO LONGER SUPPLIED
C2991A
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) (type A) to 36 pin (M) Centronics (type B) - 3.0m (10ft) long
NO LONGER SUPPLIED
Memory (Product)
27
C6229A
4MB SIMM memory module - For DesignJet CP printer
NO LONGER SUPPLIED
28
C6230A
8MB SIMM memory module - For DesignJet CP printer
NO LONGER SUPPLIED
29
C6231A
16MB SIMM memory module - For DesignJet 400, 700, CP series printers
NO LONGER SUPPLIED
30
C6232A
32MB SIMM memory module upgrade - For DesignJet 400, 700, CP series printers
Memory (SIMM)
31
1818-6171
4MB EDO (Extended Data Output) DRAM SIMM memory module
32
1818-6172
8MB EDO (Extended Data Output) DRAM SIMM memory module
NO LONGER SUPPLIED
33
C4723-60264
16MB, 60nS EDO (Extended Data Output) DRAM SIMM memory module
Electronics/Power Supply
Cable
34
C4704-60015
Carriage board trailing cable with ferrite - Three ribbon cables bundled together - 1.9m (6.3ft) long
35
C4704-60025
Ribbon cable assembly with ferrite - Has 28 pin (F) connectors - 1.3m (4.1ft) long
Carriage Kit
36
C4723-69096
Carriage assembly - Includes carriage assembly, line sensor, encoder, rear bushing, calibration pen, digitizing sight,
guages - Trailing cable and cable clamp not included
REQUIRES RETURN OF DEFECTIVE PART
C4723-60096
New Part for C4723-69096
Firmware
37
C4723-69294
Firmware SIMM kit (Revision A.04.08) - Mounts in the electronics module - NOTE: this is not a postscript SIMM
REQUIRES RETURN OF DEFECTIVE PART
C4723-60294
New Part for C4723-69294
Front Panel
38
C4704-60255
Front (Control) panel and cable assembly - Includes function buttons and display
Module
39
C4723-69114
Electronics module - Includes power supply, fan, and main board
REQUIRES RETURN OF DEFECTIVE PART
C4723-60114
New Part for C4723-69114
Motor
40
C4704-60040
Bail motor
PC Board
41
C4704-60009
© 2004 Hewlett-Packard
Refill interconnect board
2
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Electronics/Power Supply
Power Cord
8120-0698
Power cord (Black) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 220V/240V in the USA and Canada)
8120-1378
Power cord (Jade Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 120V in USA, Canada, Latin
America, Korea, Taiwan, Thailand, Spain, Brazil, and Vietnam)
RIP Server
C6084-69001
Raster image processor server assembly - External unit used to improve print speed and provide networking for a
DesignJet large format printer - Not for Japan
C6084-69002
Raster image processor server assembly - External unit used to improve print speed and provide networking for a
DesignJet large format printer - Kanji version for Japan
REQUIRES RETURN OF DEFECTIVE PART
C6084-60002
New Part for C6084-69002
Sensor
46
C4704-60029
Right end cover and window closed sensors - Includes cable and connector
47
C4704-60052
Pincharm sensor
48
C4704-60058
Left end cover sensor - Includes cable and connector
49
C4704-60195
Media sensor assembly - Includes, edge measuring and secondary levers, media sensor and holder
C4723-60096
Line sensor - Detects paper width and skew - Measures calibration accuracy and printhead alignment
Switch
51
C4704-60056
Power switch - Includes cable
52
C4704-60261
Stand-by switch asembly
External Case Parts
Bin
53
C4704-60073
Media bin arm (Loop assembly)
C4713-60147
New Part for C4704-60073
Cover
54
C4704-00004
MIO (Modular input/output) cover
55
C4704-00021
Top cover
56
C4704-00033
SIMM slot cover
57
C4704-40057
Electronics module left cover
58
C4704-40058
Electronics module right cover
59
C4704-60274
Electronics module cover
60
C4723-60115
Right end cover - Has cut outs for the control panel
61
C4723-60116
Left end cover
Cross-Brace
62
C4704-60077
Cross-brace (E-size) - Main structure that extends between stand legs
Foot
63
C4704-60086
Foot assembly (includes casters)
Hardware Kit
64
C4704-60095
Hardware kit for printer stand - Includes screwdriver, screws, washers, and media bin retaining clips
Holder
65
C4704-60218
Quick reference holder pocket - Holds quick reference guides and media knife
Leg
66
C4704-60075
© 2004 Hewlett-Packard
Leg assembly - Side support for the plotter - Does NOT include the foot assembly
3
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
External Case Parts
Overlay
C4704-60101
Front panel overlay - Shows the function of the front panel buttons and indicator lights (English)
C4704-60102
Front panel overlay - Shows the function of the front panel buttons and indicator lights (Korean)
C4704-60103
Front panel overlay - Shows the function of the front panel buttons and indicator lights (Taiwanese)
C4704-60104
Front panel overlay - Shows the function of the front panel buttons and indicator lights (German)
C4704-60105
Front panel overlay - Shows the function of the front panel buttons and indicator lights (French)
C4704-60106
Front panel overlay - Shows the function of the front panel buttons and indicator lights (Spanish)
C4704-60107
Front panel overlay - Shows the function of the front panel buttons and indicator lights (Italian)
C4704-60108
Front panel overlay - Shows the function of the front panel buttons and indicator lights (Japanese)
C4704-60109
Front panel overlay - Shows the function of the front panel buttons and indicator lights (Portuguese)
C4704-60110
Front panel overlay - Shows the function of the front panel buttons and indicator lights (Chinese)
Sensor
77
C4723-69071
Take-up reel sensor assembly
REQUIRES RETURN OF DEFECTIVE PART
C4723-60071
New Part for C4723-69071
Spindle
78
C6246-60010
36-inch take-up reel spindle assembly
Strip
79
C4704-40070
Capping strips ( E-size) - Two strips that snap together on the ends of the bin arms
Support
80
C4714-60147
Media bin support (E-size) - Supports media bin arms
81
C4723-60072
Take-up reel left hand support assembly
C6246-60009
Take-up reel right hand support assembly
82
Take-Up Reel
83
C6246A
Take-up reel kit for DesignJet 2000CP/2500CP - Includes take-up reel spindle assembly, left and right take-up reel
supports, take-up reel sensor assembly, empty core tubes, and media weight tubes
Tray
84
C4704-60084
Plotter stand tray assembly - Mounted between the feet of plotter
Tube Kit
85
C6246-60011
Media weight and core kit for the take-up reel
Window
86
C4704-60087
Lift-up viewing window
Optional Interfaces
Interface (Product)
J2552B
LAN & LocalTalk interface - Has EtherTwist (10Base-T) , ThinLAN (10Base-2) , and LocalTalk (DIN-8) connectors
NO LONGER SUPPLIED
J2555B
Token ring LAN interface board - DB-9 and RJ-45 connectors
NO LONGER SUPPLIED
J2590A
External JetDirect LAN interface module with RJ-45 connector for EtherTwist (10Base-T) or 100VG/802.12 input and 3
parallel (DB-25) output connectors
NO LONGER SUPPLIED
J2591A
External JetDirect LAN interface module and power module - Has EtherTwist (10Base-T) and ThinLAN (10Base-2)
connectors
NO LONGER SUPPLIED
J3264A
External JetDirect 500X token ring interface module - Interfaces up to 3 parallel printers to a token ring (DB-9 or RJ-45)
LAN
J3265A
External JetDirect 500X LAN interface module - Interfaces up to 3 parallel printers to an ethernet 10Base-T (RJ-45),
10Base2 (BNC), or 100Base-TX (RJ-45) LAN
© 2004 Hewlett-Packard
4
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Optional Interfaces
Module
J2590-69001
External JetDirect LAN interface module with RJ-45 connector for ethertwist (10Base-T) or 100VG/802.12 input and 3
parallel (DB-25) output connectors
REQUIRES RETURN OF DEFECTIVE PART
J2590-61011
New Part for J2590-69001
J2591-69001
External JetDirect LAN interface module with ethertwist (10Base-T) and ThinLAN (10BASE-2) connectors
J2593-69001
External JetDirect LAN interface module with Ethertwist (10Base-T) and ThinLAN (10BASE-2) input connectors and 3
parallel (DB-25) output connectors - (part of J2593A)
J2594-69001
External JetDirect token ring interface module with DB-9 and RJ-45 input connectors and 3 parallel (DB-25) output
connectors - (part of J2594A)
REQUIRES RETURN OF DEFECTIVE PART
J2594-61011
New Part for J2594-69001
PC Board (Interface)
J2552-69013
LAN and LocalTalk interface - EtherTwist (10Base-T), ThinLAN (10Base-2), and LocalTalk (DIN-8) connectors
J2555-69013
Token ring LAN interface board - DB-9 and RJ-45 connectors
Other Accessories
CD-ROM (Support)
C7769-90066
DesignJet support CD ROM - Version A.04.01 - Has product information, user's manuals, service manuals, diagnostic
software, test drawings, newsletters, and service notes
Cleaning Supplies
C6247A
DesignJet cleaning kit - Includes cleaning solution and 20 cleaning rags
Humidor
C6236A
DesignJet CP ink system storage container - Holds printheads and printhead cleaners when not in use
Ink System Return Kt
5183-5283
Return kit (Box and instructions) - For returning defective large format printer ink systems covered under CREW
program
Ink and Printhead
C1806A
Black ink system - Includes print head, print head cleaner and ink cartridge
C1807A
Cyan ink system - Includes print head, print head cleaner and ink cartridge
C1808A
Magenta ink system - Includes print head, print head cleaner and ink cartridge
C1809A
Yellow ink system - Includes print head, print head cleaner and ink cartridge
C1892A
Black UV ink system - Includes print head, print head cleaner and ink cartridge
C1893A
Cyan UV ink system - Includes print head, print head cleaner and ink cartridge
C1894A
Magenta UV ink system - Includes print head, print head cleaner and ink cartridge
C1895A
Yellow UV ink system - Includes print head, print head cleaner and ink cartridge
C4723-60141
Preventive maintenance kit - Contains line sensor cover, encoder strip, Y-AXIS pulley, belt, motor, cutter, silicon grease,
plastic surface cleaner, synthetic oil and wipes
C4723-60238
Adjustment kit - Includes instructions, empty cartridge, digitizing sight (magnifier) and gauge
Kit
Lubricant
6040-0855
Synthetic oil - 4oz (113g) plastic bottle
Manual
5959-9733
HP-GL/2 & HP RTL reference guide - Programming information, handbook for developers
5959-9734
Comparison guide for HP-GL/2 and RTL peripherals (English)
© 2004 Hewlett-Packard
5
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Other Accessories
Manual Kit
C4703-60041
DesignJet 2000CP/2800CP manual kit - Includes user's guide, setup guide, quick reference guide, and assembly
instructions (English)
C4703-60042
DesignJet 2000CP/2800CP manual kit - Includes user's guide, setup guide, and assembly instructions (Korean)
C4703-60043
DesignJet 2000CP/2800CP manual kit - Includes user's guide, setup guide, and assembly instructions (Traditional
Chinese)
C4703-60049
DesignJet 2000CP/2800CP manual kit - Includes user's guide, setup guide, and assembly instructions (Portuguese)
C4703-60050
DesignJet 2000CP/2800CP manual kit - Includes user's guide, setup guide, and assembly instructions (Simplified
Chinese)
C4704-60304
DesignJet 2000CP/2500CP/2800CP manual kit - Includes user's guide, setup guide, and assembly instructions
(German)
C4704-60305
DesignJet 2000CP/2500CP/2800CP manual kit - Includes user's guide, setup guide, and assembly instructions (French)
C4704-60306
DesignJet 2000CP/2500CP/2800CP manual kit - Includes user's guide, setup guide, and assembly instructions
(Spanish)
C4704-60307
DesignJet 2000CP/2500CP/2800CP manual kit - Includes user's guide, setup guide, and assembly instructions (Italian)
C4704-60338
DesignJet 2000CP/2500CP/2800CP manual kit - Includes user's guide, setup guide, and assembly instructions
(Japanese)
Software
C6072-60281
Toolbox and driver software - HP-GL/2 and RTL drivers for Windows 3.1/95/98/NT 4.0 (all DesignJets), and toolbox
software for Windows 95/NT 4.0 (Only for DesignJet 430/450C/455CA/1050C/1055CM) - On 3.5-inch 1.44MB floppy
disks (English)
C6072-60284
Toolbox and driver software - HP-GL/2 and RTL drivers for Windows 3.1/95/98/NT 4.0 (all DesignJets), and toolbox
software for Windows 95/NT 4.0 (Only for DesignJet 430/450C/455CA/1050C/1055CM) - On 3.5-inch 1.44MB floppy
disks (German)
C6072-60285
Toolbox and driver software - HP-GL/2 and RTL drivers for Windows 3.1/95/98/NT 4.0 (all DesignJets), and toolbox
software for Windows 95/NT 4.0 (Only for DesignJet 430/450C/455CA/1050C/1055CM) - On 3.5-inch 1.44MB floppy
disks (French)
C6072-60286
Toolbox and driver software - HP-GL/2 and RTL drivers for Windows 3.1/95/98/NT 4.0 (all DesignJets), and toolbox
software for Windows 95/NT 4.0 (Only for DesignJet 430/450C/455CA/1050C/1055CM) - On 3.5-inch 1.44MB floppy
disks (Spanish)
C6072-60287
Toolbox and driver software - HP-GL/2 and RTL drivers for Windows 3.1/95/98/NT 4.0 (all DesignJets), and toolbox
software for Windows 95/NT 4.0 (Only for DesignJet 430/450C/455CA/1050C/1055CM) - On 3.5-inch 1.44MB floppy
disks (Italian)
C6072-60301
HP-GL/2 driver software for AutoCAD - For DOS and Windows 3.1/95/NT 4.0 - On 3.5-inch 1.44MB floppy disks
(English)
C6072-60304
HP-GL/2 driver software for AutoCAD - For DOS and Windows 3.1/95/NT 4.0 - On 3.5-inch 1.44MB floppy disks
(German)
C6072-60305
HP-GL/2 driver software for AutoCAD - For DOS and Windows 3.1/95/NT 4.0 - On 3.5-inch 1.44MB floppy disks
(French)
C6072-60306
HP-GL/2 driver software for AutoCAD - For DOS and Windows 3.1/95/NT 4.0 - On 3.5-inch 1.44MB floppy disks
(Spanish)
C6072-60307
HP-GL/2 driver software for AutoCAD - For DOS and Windows 3.1/95/NT 4.0 - On 3.5-inch 1.44MB floppy disks (Italian)
C6071-60368
ZEHRaster software for UNIX - Allows TIFF and JPEG printing on DesignJet 700 series, 1000 series, and CP series
(Japanese)
C7779-60040
ZEHRaster software for UNIX - Allows TIFF and JPEG printing on DesignJet 700 series, 1000 series, and CP series
(Chinese)
C7779-60041
ZEHRaster software for UNIX - Allows TIFF and JPEG printing on DesignJet 700 series, 1000 series, and CP series
(English)
C7779-60042
ZEHRaster software for UNIX - Allows TIFF and JPEG printing on DesignJet 700 series, 1000 series, and CP series
(Korean)
C7779-60043
ZEHRaster software for UNIX - Allows TIFF and JPEG printing on DesignJet 700 series, 1000 series, and CP series
(Taiwanese)
© 2004 Hewlett-Packard
6
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Other Accessories
Software
C7779-60044
ZEHRaster software for UNIX - Allows TIFF and JPEG printing on DesignJet 700 series, 1000 series, and CP series
(German)
C7779-60045
ZEHRaster software for UNIX - Allows TIFF and JPEG printing on DesignJet 700 series, 1000 series, and CP series
(French)
C7779-60046
ZEHRaster software for UNIX - Allows TIFF and JPEG printing on DesignJet 700 series, 1000 series, and CP series
(Spanish)
C7779-60047
ZEHRaster software for UNIX - Allows TIFF and JPEG printing on DesignJet 700 series, 1000 series, and CP series
(Italian)
Take-Up Reel
145
C6246A
Take-up reel kit for DesignJet 2000CP/2500CP - Includes take-up reel spindle assembly, left and right take-up reel
supports, take-up reel sensor assembly, empty core tubes, and media weight tubes
Other Internal Parts
Bushing
146
C3195-40076
Cutter bushing - Connects cutter assembly to slider rod
Cable
147
C4704-60024
Ribbon cable assembly - Has 28 pin (F) connectors - 23.5cm (9.3 inches) long
Clamp
148
C4723-40086
Trailing cable holder
Cutter
149
C4704-60299
Cutter assembly - Auto cutter for rollfeed paper - Only for serial prefix ESA and ESB
150
C4723-60244
Cutter assembly - Auto cutter for rollfeed paper
Elevator
151
C4704-60033
Elevator platform assembly - Raises and lowers ink cartridges to fill the print heads - Located on left side of plotter
Enclosure
152
C4704-60067
Cutter enclosure - Mounted above entry platen
Flag
153
C4704-40007
Service station flag - Spring loaded flag on right side of service station
Refill Assembly
154
C4723-60249
Refill assembly - Mounted inside the left hand cover - Includes motor and gears
Service Station
155
C4723-60276
Service station assembly
Spring
156
C4704-80009
Service station spring
Trim
157
C4704-60113
Right trim assembly - At right of entry platen
158
C4723-60111
Left trim assembly - At left of entry platen
Paper Drive Parts
Bail
192
C4704-60329
Bail assembly - Mounting strip assembly for the starwheel mount assemblies (Not included) - Extends width of plotter
Bearing
193
1410-0708
Sleeve bearing - Used on left end of overdrive assembly
Bushing
194
C1633-40082
© 2004 Hewlett-Packard
Pincharm spring retaining bushing
7
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Paper Drive Parts
Cam
195
C3180-40020
Pinch arm cam - Attached to pinch arm (Media) lever
196
C3190-60149
Left cam journal - Mounted on left end of pincharm shaft
Gear
197
C1633-40019
Overdrive gear cluster
Gear Assembly
198
C4705-60089
Clutch / overdrive gear assembly
Guard
199
C4704-60295
Starguard starwheel cover assembly
Lever
200
C4704-40059
Pinch arm (media) lever - Used when loading paper
Link
201
C4704-00025
Front wire link
Motor
202
C4704-60040
Bail motor
203
C4723-60303
X-AXIS motor assembly - Includes motor, belt, and worm gear - No longer supplied - Order X-AXIS motor assembly kit
NO LONGER SUPPLIED
C4724-60053
New Part for C4723-60303
C4724-60053
X-Axis motor assembly kit - New design does not use a belt - Kit includes motor with attached worm gear, helical gear,
motor mount, screws and nuts for mounting the parts, grease for the helical gear, installation instructions
204
Mount
205
C1633-40089
Overdrive mount block
Overdrive Assy
206
C4704-60213
Overdrive assembly - Includes overdrive shims, clutch and overdrive gear
207
C4704-60281
Overdrive assembly (B) - Includes overdrive shims, clutch and overdrive gear
Pincharm
208
C4723-60247
Pincharm Assembly - Curved black plastic plate with 4 small rubber rollers (Does NOT include spring or bushing)
Platen
209
C4704-60294
Entry Platen Assembly - Cover/guide that is next to the paper drive (Platen) roller
Roller
210
C4700-60042
Paper drive (Platen) roller assembly - Long gear driven roller - Includes roller and mark encoder
Sensor
211
C4704-60052
Pincharm sensor
212
C4704-60195
Media sensor assembly - Includes, edge measuring and secondary levers, media sensor and holder
Shaft
213
C2848-60032
Pincharm shaft assembly - Includes cam journals mounted on each end
Spring
214
C1633-80005
Compression spring between pincharm assembly and bushing
Starwheel Mount
215
C4704-60143
Big starwheel mount assembly - Includes cover, body, spring and two starwheels
216
C4713-60035
Starwheel mount assembly - Includes cover, body, spring and two starwheels
Support
217
C4704-40026
© 2004 Hewlett-Packard
Roller support bracket on left side plate
8
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Paper and Other Media
Canvas
C6771A
Studio canvas (368 gsm) - 91.4cm (36in) x 10.7m (35ft) roll - For regular ink or UV resistant ink
C7966A
Canvas with Matte finish - 61cm (24in) x 10.7m (35ft) (USA)
C7967A
Canvas with Matte finish - 91.4cm (36in) x 10.7m (35ft) (USA)
Film (Glossy)
C6794A
Durable Imaging Glossy UV media - For UV ink only - 91.4cm (36in) x 30.5m (100ft) roll
Film (Opaque)
C7955A
Opaque White Glossy Polyester Film - 61cm (24in) x 15.2m (50ft) (USA)
C7956A
Opaque White Glossy Film - 91.4cm (36in) x 15.2m (50ft) (USA)
Paper
C7923A
Basic Heavyweight Paper - 61cm (24in) x 30.5m (100ft) (USA and Asia/Pacific)
C7924A
Basic Heavyweight Paper - 91.4cm (36in) x 30.5m (100ft) (USA and Asia/Pacific)
Q1739A
Heat Transfer Paper - 91.4cm (36in) x 30.5m (100ft) (USA)
Q1745A
Paper Backed Fabric Polyester - 91.4cm (36in) x 10.1m (33ft) (USA)
Paper (Backlit)
C7960A
Backlit Reverse Print paper - 91.4cm (36in) x 22.9m (75ft) (USA)
C6778A
Colorlucent backlit UV paper - 91.4cm (36in) x 30.5m (100ft) roll - For UV (pigmented) inks ONLY
Paper (Banner)
C6786A
Banner paper with Tyvek (140 gsm) - UV ink only - 61cm (24in) x 15.2m (50ft) roll
NO LONGER SUPPLIED
C6787A
Banner paper with Tyvek (140 gsm) - UV ink only - 91.4cm (36in) x 15.2m (50ft) roll
Paper (Coated)
C6019B
Coated paper (98 gsm) - 61cm (24in) x 45.7m (150ft) roll (USA, Canada, and Latin America)
C6021B
Heavyweight coated paper - 61cm (24in) x 30.5m (100ft) roll (USA, Canada, and Latin America)
NO LONGER SUPPLIED
C6029C
Heavyweight coated paper - 61cm (24in) x 30.5m (100ft) roll - For regular or UV resistant ink
C6020B
Coated paper (98 gsm) - 91.4cm (36in) x 45.7m (150ft) roll (USA, Canada, and Latin America)
C6022B
Heavyweight coated paper - 91.4cm (36in) x 30.5m (100ft) roll (USA, Canada, and Latin America)
NO LONGER SUPPLIED
C6030C
Heavyweight coated paper - 91.4cm (36in) x 30.5m (100ft) roll - For regular or UV resistant ink
Paper (Glossy)
C8315A
High Gloss Photo Paper - 61cm (24in) x 30.5m (100ft) (USA and Asia/Pacific)
C8316A
High Gloss Photo Paper - 91.4cm (36in) x 30.5m (100ft) (USA and Asia/Pacific)
C6025A
High gloss photo paper - 61cm (24in) x 30.5m (100ft) roll (USA, Canada, and Latin America)
C6026A
High gloss photo paper - 91.4cm (36in) x 30.5m (100ft) roll (USA, Canada, and Latin America)
Paper (Photo)
C8310A
Basic Photo Satin paper - 61cm (24in) x 30.5m (100ft) (USA and Asia/Pacific)
C8311A
Basic Photo Satin paper - 91.4cm (36in) x 30.5m (100ft) (USA and Asia/Pacific)
Paper (Poster)
C7949A
Outdoor Billboard Paper - Blue back - 91.4cm (36in) x 30.5m (100ft) (USA)
Paper (Satin)
C7952A
Proofing Paper RC Satin - 91.4cm (36in) x 30.5m (100ft) (USA)
Paper (Semi-Glossy)
C6023A
Semi-gloss photo paper - 61cm (24in) x 30.5m (100ft) roll (USA, Canada, and Latin America)
C6782A
Paper based semi-gloss media - 61cm (24in) x 30.5m (100ft) roll
NO LONGER SUPPLIED
© 2004 Hewlett-Packard
9
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Paper and Other Media
Paper (Semi-Glossy)
C6024A
Semi-gloss photo paper - 91.4cm (36in) x 30.5m (100ft) roll (USA, Canada, and Latin America)
C6783A
Paper based semi-gloss media - 91.4cm (36in) x 30.5m (100ft) roll
NO LONGER SUPPLIED
Vinyl (Adhesive)
C6775A
Colorfast adhesive vinyl (328 gsm) - 91.4cm (36in) x 12.2m (40ft) roll - For regular ink or UV-resistant ink
Roll Feed Parts
Brake/Housing
218
C4704-60199
Brake/housing assembly (on right side) - Accepts the flange end of the spindle rod assembly - Includes the 2 housing
pieces, 2 brake shoes, brake gear, brake lever, and springs
Cover
219
C4704-60312
Rollfeed access cover - Opens forward to allow access to paper spindle assembly
End Cap
220
C2858-40043
Spindle end cap (small) (or core spacer) - Removes for loading the media roll
Housing
221
C4704-60082
Housing assembly (on left side)
Spindle
222
C4704-60317
Rollfeed spindle rod assembly - Includes flange and core spindle spacer
Spring
223
C1633-80004
© 2004 Hewlett-Packard
Extension spring - Holds the rollfeed access cover closed
10
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Carriage Assembly
_
5, 36
_
4, 34
6
_
_
7
_
8
16
_
3
© 2004 Hewlett-Packard
_
11
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Electronics Module
_
39
51
_
_
_
© 2004 Hewlett-Packard
56
59
12
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Elevator Assembly
_
© 2004 Hewlett-Packard
151
13
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Entry Platen Area
_
215, 216
192
_
_
_
_
_
© 2004 Hewlett-Packard
152
209
199
14
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Left Hand Cover Area
158
61
_
_
48
© 2004 Hewlett-Packard
_
15
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Paper Drive Roller Area
_
94
8
_
205
210
214
208
_
_
_
_
217
_
197
_
_
_
_
© 2004 Hewlett-Packard
206, 207
193
205
16
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Pinch Arm Assembly
_
196
196
_
200
_
213
_
195
_
201
© 2004 Hewlett-Packard
_
_
47, 211
17
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Printer Rear
148
55
_
_
_
4, 34
_
54
_ 27, 28, 29, 30, 31,
32, 33
_
_
_
_
59
58
56
37
_
_
© 2004 Hewlett-Packard
18
57
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Printer Support
62
83, 145
_
64
_
_
_
66
82, 83, 145
79
_
_
84
_
_
_
83, 85, 145
80
_
53
_
77, 83, 145
63
© 2004 Hewlett-Packard
78, 83, 145
_
_
19
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Refill Assembly
_
154
48
_
© 2004 Hewlett-Packard
20
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Refill Interconnect Board, Bail Motor and Cutter Assembly
146
_
_
41
149
_
40, 202
_
146
_
_
41
150
_
40, 202
_
© 2004 Hewlett-Packard
21
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Right Hand Cover Area
65
_
_
86
60
_
_
157
52
_
_
46
© 2004 Hewlett-Packard
38
_
22
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Roll Cover Area
218
223
_
_
_
_
_
_
© 2004 Hewlett-Packard
219
222
220
221
23
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Service Station Assembly
_
_
147
_
_
_
© 2004 Hewlett-Packard
15
156
155
155
24
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
X-Axis Motor Assembly
203, 204
203, 204
_
_
© 2004 Hewlett-Packard
25
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Y-Axis Assembly (1 of 3) Belt, Tensioner, Pulley and Encoder
1
13
_
_
_
19
18
_
© 2004 Hewlett-Packard
26
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Y-Axis Assembly (2 of 3) Belt, Encoder Strip, Hardware
_
9
_
1
10
_
_
© 2004 Hewlett-Packard
17
18
_
27
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
Y-Axis Assembly (3 of 3) Motor and Hardware
12
11
_
_
2
_
14
_
© 2004 Hewlett-Packard
28
DesignJet 2800CP
HP Parts Reference Guide™
www.hp.com/go/hpparts
HP Parts Reference Guide
http://www.hp.com/go/parts
HP PartSurfer
http://partsurfer.hp.com
HP Parts Ordering Information
http://www.hp.com/go/hpparts
HP Parts Questions/Comments
http://partsurfer.hp.com/contactus.htm
© 2004 Hewlett-Packard
29
Download PDF

advertising
