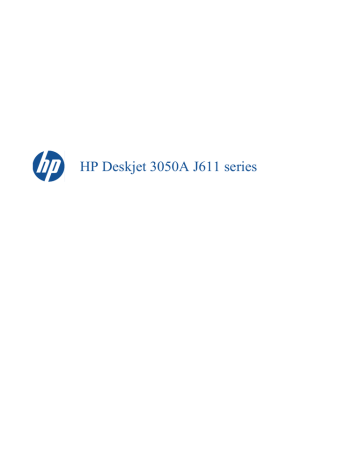

HP Deskjet 3050A J611 series
Contents
1
How Do I?.................................................................................................................................................................................................3
2
Get to know the HP All-in-One
Printer parts...............................................................................................................................................................................................5
Control panel features...............................................................................................................................................................................6
Wireless Settings.......................................................................................................................................................................................6
Status Lights..............................................................................................................................................................................................7
Auto Power-Off ........................................................................................................................................................................................8
3
Print
Print photos...............................................................................................................................................................................................9
Print documents.......................................................................................................................................................................................10
Print Quick Forms...................................................................................................................................................................................11
Print envelopes........................................................................................................................................................................................11
Tips for print success...............................................................................................................................................................................11
4
ePrint from anywhere
ePrint from anywhere..............................................................................................................................................................................15
5
Paper basics
Recommended papers for printing..........................................................................................................................................................17
Load media..............................................................................................................................................................................................18
6
Copy and scan
Copy........................................................................................................................................................................................................23
Scan to a computer..................................................................................................................................................................................24
Tips for copy success..............................................................................................................................................................................26
Tips for scan success...............................................................................................................................................................................26
7
Work with cartridges
Check the estimated ink levels................................................................................................................................................................27
Order ink supplies...................................................................................................................................................................................27
Replace the cartridges.............................................................................................................................................................................28
Use single-cartridge mode.......................................................................................................................................................................30
Cartridge warranty information...............................................................................................................................................................30
8
Connectivity
Wi-Fi Protected Setup (WPS – requires WPS router).............................................................................................................................31
Traditional wireless connection (requires router)...................................................................................................................................32
USB Connection (non-network connection)...........................................................................................................................................32
Change from a USB connection to a wireless network...........................................................................................................................32
Connect a new printer.............................................................................................................................................................................33
Change wireless network settings...........................................................................................................................................................33
Tips for setting up and using a networked printer...................................................................................................................................33
Advanced printer management tools (for networked printers)...............................................................................................................33
9
Solve a problem
Improve print quality...............................................................................................................................................................................35
Clear a paper jam.....................................................................................................................................................................................36
Unable to print.........................................................................................................................................................................................38
Networking..............................................................................................................................................................................................42
HP support...............................................................................................................................................................................................42
10 Technical information
Notice......................................................................................................................................................................................................45
Specifications..........................................................................................................................................................................................45
Environmental product stewardship program.........................................................................................................................................47
1
Regulatory notices...................................................................................................................................................................................49
Index..............................................................................................................................................................................................................55
2
1
How Do I?
Learn how to use your HP All-in-One
•
•
•
•
Printer parts
Load media
Replace the cartridges
Clear a paper jam
How Do I?
3
Chapter 1
4
How Do I?
2
Get to know the HP All-in-One
•
•
•
•
•
Printer parts
Control panel features
Wireless Settings
Status Lights
Auto Power-Off
Printer parts
1
Input tray
2
Paper-width guide for the input tray
3
Control panel
4
Cartridge door
5
Output tray
6
Output tray extender (also referred to as the tray extender)
7
Cartridges
Get to know the HP All-in-One
5
Chapter 2
Control panel features
Control panel features
1
Back: Returns to the previous screen.
2
Cancel: Stops the current operation, restores default settings.
3
Setup: Opens the Setup menu where you can check ink levels, change Auto Power-Off setting, perform maintenance tasks, and set
language and region settings.
4
Selection buttons: Use buttons to select menu items on the printer display.
5
Wireless status light and button: Blue light indicates wireless connection. Pressing button opens wireless menu.
6
ePrint light and button: White light indicates ePrint is connected. Pressing button displays printer's email address and ePrint menu options.
7
On button
Wireless Settings
Press the Wireless button to view wireless status and menu options.
•
•
•
If the printer has an active connection to a wireless network, the printer display will show Connected and the printer’s IP
address.
If wireless is disabled (wireless radio off) and the wireless network is not available, the display screen shows Wireless
Off.
If wireless is enabled (wireless radio on) and you do not have a wireless connection , the display screen shows that it is
either in the process of Connecting or Not Connected.
You can use the printer display to retrieve information about your wireless network, establish a wireless connection, and more.
How do I?
Instructions
Print network configuration page.
1.
The network configuration page will display the network status, hostname,
network name, and more.
Print wireless network test report.
The wireless network test report will display the diagnostics results for the status
of the wireless network, wireless signal strength, detected networks, and more.
6
Get to know the HP All-in-One
2.
3.
1.
2.
3.
Press the Wireless button to display the Wireless
Menu.
From the Wireless Menu, select Print Reports.
From the Print Reports menu select
Configuration.
Press the Wireless button to display the Wireless
Menu.
From the Wireless Menu, select Print Reports.
From the Print Reports menu select Wireless
Test.
(continued)
How do I?
Instructions
View signal strength of wireless connection.
1.
2.
3.
Restore network settings to default settings.
The printer will disconnect from the network. To reconfigure the wireless printer
settings, see Connect a new printer.
Turn wireless on or off.
1.
2.
3.
4.
1.
2.
3.
4.
Establish a Wi-Fi Protected Setup (WPS) connection.
Press the Wireless button to display the Wireless
Menu.
From the Wireless Menu, select Connected IP
XXX.XXX.XX.XX.
Printer display will show wireless signal strength.
Press the Wireless button to display the Wireless
Menu.
From the Wireless Menu, select Settings.
From the Settings menu, select Restore Defaults.
Confirm selection to restore defaults.
Press the Wireless button to display the Wireless
Menu.
From the Wireless Menu, select Wireless
Settings.
From the Settings menu, select Wireless On/Off.
From the Wireless On/Off menu select On or
Off.
Wi-Fi Protected Setup (WPS – requires WPS router)
Status Lights
•
•
•
Wireless Status Light
ePrint Status Light
On Button Light
Wireless Status Light
Light behavior
Solution
Off
Wireless is off. Press Wireless button to access wireless
menu on the printer display. Use wireless menu to
enable wireless printing.
Slow blinking
Wireless is on but not connected to a network. If
connection cannot be established, make sure printer is
within range of wireless signal.
Fast blinking
Wireless error has occurred. Refer to messages on
printer display.
On
Wireless connection has been established and you can
print.
ePrint Status Light
Status Lights
7
Chapter 2
Light behavior
Solution
Off
ePrint is disabled. Press ePrint button to access ePrint
menu on the printer display.
On
ePrint is on and connected.
On Button Light
Light behavior
Solution
Off
The device is powered off.
Pulsing
Indicates the device is in sleep mode. The device
automatically enters sleep mode after 5 minutes of
inactivity.
Fast blinking
Error has occurred. Refer to messages on printer display.
On
Printer is on and ready to print.
Auto Power-Off
Auto Power-Off is automatically enabled by default when you turn on the printer. When Auto Power-Off is enabled, the printer
automatically turns off after 2 hours of inactivity to help reduce energy use. Auto Power-Off is automatically disabled when
the printer establishes a wireless or Ethernet (if supported) network connection. You can change the Auto Power-Off setting
from the control panel. Once you change the setting, the printer maintains the setting. Auto Power-Off turns the printer off
completely, so you must use the power button to turn the printer back on.
To change Auto Power-Off setting
1. From the Control Panel home screen, which displays Copy, Scan, and Quick Forms, press the Setup button.
NOTE: If you do not see the home screen, press the Back button until you can see it.
2. From the Setup menu on the printer display, select Auto Power-Off.
3. From the Auto Power-Off menu select Enabled or Disabled, and then confirm the setting.
TIP: If you are printing over a wireless or Ethernet connected network, Auto Power-Off should be disabled to ensure that
print jobs do not get lost. Even when Auto Power-Off is disabled, the printer enters Sleep mode after 5 minutes of inactivity
to help reduce energy use.
8
Get to know the HP All-in-One
3
Print
Choose a print job to continue.
Print photos
Print documents
Print envelopes
Print Quick Forms
See Tips for print success for more information.
Print photos
To print a photo on photo paper
1. Make sure the output tray is open.
2. Make sure you have paper loaded in the input tray.
See Load media for more information.
3. On the File menu in your software application, click Print.
4. Make sure the product is the selected printer.
5. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties, Options, Printer Setup, Printer, or
Preferences.
6. Select the appropriate options.
• On Layout tab select Portrait or Landscape orientation.
• On Paper/Quality tab select the appropriate paper type and print quality from the Media drop-down list and select
the appropriate paper size from the Paper Size drop-down list.
Print
9
Chapter 3
NOTE: For maximum dpi resolution, go to the Paper/Quality tab and select Photo Paper, Best Quality from the
Media drop-down list. Then go to the Advanced tab and select Yes from the Print in Max DPI drop-down list. If you
want to print Max DPI in grayscale, select High Quality Grayscale from Print in Grayscale on the drop-down list,
and then select Max DPI, after selecting Photo Paper, Best Quality.
7. Click OK to return to the Properties dialog box.
8. Click OK, and then click Print or OK in the Print dialog box.
NOTE: Do not leave unused photo paper in the input tray. The paper might start to curl, which could reduce the quality
of your printout. Photo paper should be flat before printing.
Print documents
To print a document
1. Make sure the paper output tray is open.
2. Make sure you have paper loaded in the input tray.
3.
4.
5.
6.
7.
8.
See Load media for more information.
From your software application, click the Print button.
Make sure the product is the selected printer.
Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties, Options, Printer Setup, Printer, or
Preferences.
Select the appropriate options.
• On Layout tab select Portrait or Landscape orientation.
• On Paper/Quality tab select the appropriate paper type and print quality from the Media drop-down list and select
the appropriate paper size from the Paper Size drop-down list.
Click OK to close the Properties dialog box.
Click Print or OK to begin printing.
NOTE: 1 You can print your document on both sides of the paper, instead of just one side. Click on the Advanced button
on the Paper/Quality or Layout tab. From the Pages to Print drop-down menu select Print Odd Pages Only. Click OK
to print. After the odd numbered pages of the document have been printed, remove the document from the output tray.
Reload the paper in the input tray with the blank side facing up. Return to the Pages to Print drop-down menu and then
select Print Even Pages Only. Click OK to print.
NOTE: 2 If your printed documents are not aligned within the margins of the paper, make sure that you have selected the
correct language and region. On the printer display, select Setup, then select Language/Region. Select your language, and
then region from the options provided. The correct Language/Region settings ensure that the printer will have the
appropriate default paper size settings.
10
Print
Print Quick Forms
Use Quick Forms to print Office Forms, Paper Types, and Games.
Print Quick Forms
1. Select Quick Forms from the printer display menu.
TIP: If the Quick Forms option does not appear on the printer display menu, press the Back button until the Quick
Forms option appears.
2. Press the selection buttons to select Office Forms, Paper Type, or Games. Then select OK.
3. After you have selected the type of form that you want to print, select the number of copies, then press OK.
Print envelopes
You can load one or more envelopes into the input tray of the HP All-in-One. Do not use shiny or embossed envelopes or
envelopes that have clasps or windows.
NOTE: For specific details on how to format text for printing on envelopes, consult the help files in your word processing
software. For best results, consider using a label for the return address on envelopes.
To
1.
2.
3.
print envelopes
Make sure the output tray is open.
Slide the paper guide all the way to the left.
Place the envelopes in the right side of the tray. The side to be printed on should face up. The flap should be on the left
side.
See Load media for more information.
4. Push the envelopes into the printer until they stop.
5. Slide the paper guide firmly against the edge of the envelopes.
6. Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties, Options, Printer Setup, Printer, or
Preferences.
7. Select the appropriate options.
• On Paper/Quality tab select the appropriate paper type and print quality from the Media drop-down list and select
the appropriate paper size from the Paper Size drop-down list.
8. Click OK, and then click Print or OK in the Print dialog box.
Tips for print success
To successfully print, the HP cartridges should be functioning properly with sufficient ink, the paper should be loaded correctly,
and the product should have the appropriate settings.
Tips for print success
11
Chapter 3
Ink tips
• Use genuine HP ink cartridges.
• Install both the black and tri-color cartridges correctly.
For more information, see Replace the cartridges.
• Check the estimated ink levels in the cartridges to make sure there is sufficient ink.
For more information, see Check the estimated ink levels.
• For more information, see Improve print quality.
• If you are seeing ink smears on the back of the pages that you printed, use the Tools menu on the printer display to clean.
◦ From the home screen, which displays Copy, Scan, and Quick Forms, press the Setup button.
NOTE: If you do not see the home screen, press the Back button until you can see it.
◦
◦
Scroll through the Tools menu until you see Clean Ink Smear, then select OK.
Follow the onscreen instructions.
Paper loading tips
• Load a stack of paper (not just one page). All of the paper in the stack should be the same size and type to avoid a paper
jam.
• Load paper with side to be printed on facing up.
• Ensure that paper loaded in the paper tray lays flat and the edges are not bent or torn.
• Adjust the paper-width guides in the paper tray to fit snugly against all paper. Make sure the paper-width guide does not
bend the paper in the paper tray.
• For more information, see Load media.
Printer settings tips
• On the Paper/Quality tab of the print driver, select the appropriate paper type and print quality from the Media drop-down
list.
• Select the appropriate size from the Paper Size drop-down list on the Paper/Quality tab.
• Click the HP All-in-One desktop icon to open the Printer Software. In the Printer Software, click Printer Actions and then
click Set Preferences to access the print driver.
NOTE: You can also access the Printer Software by clicking Start > Programs > HP > HP Deskjet 3050A J611
series > HP Deskjet 3050A J611 series
Notes
• Genuine HP ink cartridges are designed and tested with HP printers and papers to help you easily produce great results,
time after time.
NOTE: HP cannot guarantee the quality or reliability of non-HP supplies. Product service or repairs required as a result
of using a non-HP supply will not be covered under warranty.
If you believe you purchased genuine HP ink cartridges, go to:
www.hp.com/go/anticounterfeit
•
Ink level warnings and indicators provide estimates for planning purposes only.
NOTE: When you receive a low-ink warning message, consider having a replacement cartridge available to avoid
possible printing delays. You do not need to replace the cartridges until print quality becomes unacceptable.
•
12
Print
Software settings selected in the print driver only apply to printing, they do not apply to copying or scanning.
•
You can print your document on both sides of the paper, instead of just one side.
NOTE: Click the Advanced button on the Paper/Quality or Layout tab. From the Pages to Print drop-down list
select Print Odd Pages Only. Click OK to print. After the odd numbered pages of the document have been printed,
remove the document from the output tray. Reload the paper in the input tray with the blank side facing up. Return to
the Pages to Print drop-down list and then select Print Even Pages Only. Click OK to print.
•
Print using black ink only
NOTE: If you want to print a black and white document using black ink only, click the Advanced button. From the
Print in Grayscale drop-down menu select Black Ink Only, then click the OK button.
Print using the maximum dpi
Use maximum dots per inch (dpi) mode to print high-quality, sharp images on photo paper.
See technical specifications for the print resolution of the maximum dpi mode.
Printing in maximum dpi takes longer than printing with other settings and requires a large amount of disk space.
To
1.
2.
3.
4.
print in Maximum dpi mode
Make sure you have photo paper loaded in the input tray.
On the File menu in your software application, click Print.
Make sure the product is the selected printer.
Click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties, Options, Printer Setup, Printer, or
Preferences.
5. Click the Paper/Quality tab.
6. In the Media drop-down list, click Photo Paper, Best Quality.
NOTE: Photo Paper, Best Quality must be selected from the Media drop-down list on the Paper/Quality tab to
enable printing in maximum DPI.
7. Click the Advanced button.
8. In the Printer Features area, select Yes from the Print in Max DPI drop-down list.
9. Select Paper Size from Paper/Output drop-down list.
10. Click OK to close the advanced options.
11. Confirm Orientation on Layout tab, then click OK to print.
Print using the maximum dpi
13
Chapter 3
14
Print
4
ePrint from anywhere
The ePrint feature on your product provides convenience printing that allows you to print from anywhere. Once enabled,
ePrint assigns an email address to your product. To print, simply send an email containing your document to that address. You
can print images, Word, PowerPoint, and PDF documents. It's easy!
•
ePrint from anywhere
ePrint from anywhere
To ePrint a document from anywhere
1. Find your ePrint email address.
a. Press the ePrint button on the control panel. You will see the web services Settings menu on the printer display.
b. Select Display Email Address from the printer display to view the printer’s email address.
NOTE: To use ePrint, web services must first be enabled. If web services have not been enabled, you will see a message
directing you to the Printer Software. Open the Printer Software, select ePrint, then follow the onscreen instruction to
enable.
TIP: To print the email address or registration url, select Print Info Sheet from the Settings menu on the printer display.
2. Compose and send email.
a. Create a new email and type the product email address in the To box.
b. Type text in the body of the email and attach the documents or images that you want to print.
c. Send the email.
The product prints your email.
NOTE: To receive email, your product must be connected to the Internet. Your email will print as soon as it is
received. As with any email, there is no guarantee when or if it will be received. When you register online with
ePrint, you can check the status of your jobs.
TIP: If you have enabled Auto Power-Off, you should disable it before using ePrint. For more information, see Auto
Power-Off
NOTE: 1 Device must be connected wirelessly and on an active network with internet access.
NOTE: 2 Documents printed with ePrint may appear different from the original. Style, formatting, and text flow may
differ from the original document. For documents that need to be printed with a higher quality (such as legal documents),
we recommend that you print from the software application on your computer, where you will have more control over what
your printout looks like.
Click here to go online for more information.
ePrint from anywhere
15
Chapter 4
16
ePrint from anywhere
5
Paper basics
•
•
Recommended papers for printing
Load media
Recommended papers for printing
If you want the best print quality, HP recommends using HP papers that are specifically designed for the type of project you
are printing.
Depending on your country/region, some of these papers might not be available.
ColorLok
• HP recommends plain papers with the ColorLok logo for printing and copying of everyday documents. All papers with the
ColorLok logo are independently tested to meet high standards of reliability and print quality, and produce documents with
crisp, vivid color, bolder blacks, and dry faster than ordinary plain papers. Look for papers with the ColorLok logo in a
variety of weights and sizes from major paper manufacturers.
HP Advanced Photo Paper
• This thick photo paper features an instant-dry finish for easy handling without smudging. It resists water, smears,
fingerprints, and humidity. Your prints have a look and feel comparable to a store-processed photo. It is available in several
sizes, including A4, 8.5 x 11 inch, 10 x 15 cm (4 x 6 inch) (with or without tabs), 13 x 18 cm (5 x 7 inch), and two finishes
- glossy or soft gloss (satin matte). It is acid-free for longer lasting documents.
HP Everyday Photo Paper
• Print colorful, everyday snapshots at a low cost, using paper designed for casual photo printing. This affordable, photo
paper dries quickly for easy handling. Get sharp, crisp images when you use this paper with any inkjet printer. It is available
in semi-gloss finish in several sizes, including A4, 8.5 x 11 inch, and 10 x 15 cm (4 x 6 inch) (with or without tabs). For
longer-lasting photos, it is acid-free.
HP Brochure Paper or HP Superior Inkjet Paper
• These papers are glossy-coated or matte-coated on both sides for two-sided use. They are the perfect choice for nearphotographic reproductions and business graphics for report covers, special presentations, brochures, mailers, and calendars.
HP Premium Presentation Paper or HP Professional Paper
• These papers are heavy two-sided matte papers perfect for presentation, proposals, reports, and newsletters. They are
heavyweight for an impressive look and feel.
HP Bright White Inkjet Paper
• HP Bright White Inkjet Paper delivers high-contrast colors and sharp text. It is opaque enough for two-sided color usage
with no show-through, which makes it ideal for newsletters, reports, and flyers. It features ColorLok Technology for less
smearing, bolder blacks, and vivid colors.
Paper basics
17
Chapter 5
HP Printing Paper
• HP Printing Paper is a high-quality multifunction paper. It produces documents that look and feel more substantial than
documents printed on standard multipurpose or copy paper. It features ColorLok Technology for less smearing, bolder
blacks, and vivid colors. It is acid-free for longer lasting documents.
HP Office Paper
• HP Office Paper is a high-quality multifunction paper. It is suitable for copies, drafts, memos, and other everyday documents.
It features ColorLok Technology for less smearing, bolder blacks, and vivid colors. It is acid-free for longer lasting
documents.
HP Iron-On Transfers
• HP Iron-on Transfers (for color fabrics or for light or white fabrics) are the ideal solution for creating custom T-shirts from
your digital photos.
HP Premium Inkjet Transparency Film
• HP Premium Inkjet Transparency Film make your color presentations vivid and even more impressive. This film is easy
to use and handle and dries quickly without smudging.
HP Photo Value Pack
• HP Photo Value Packs conveniently package original HP cartridges and HP Advanced Photo Paper to save you time and
take the guesswork out of printing affordable professional photos with your HP All-in-One. Original HP inks and HP
Advanced Photo Paper have been designed to work together so your photos are long lasting and vivid, print after print.
Great for printing out an entire vacation’s worth of photos or multiple prints to share.
Load media
▲ Select a paper size to continue.
Load full-size paper
a. Raise the input tray
Raise the input tray.
b. Lower the output tray
Lower the output tray and pull out the tray extender.
18
Paper basics
c. Slide paper-width guide to the left
Slide paper-width guide to the left.
d. Load paper.
Insert stack of paper into input tray with short edge forward and print side up.
Slide stack of paper down until it stops.
Slide paper-width guide to the right until it stops at edge of paper.
Load small-size paper
a. Raise the input tray
Raise the input tray.
Load media
19
Chapter 5
b. Lower the output tray
Lower the output tray and pull out the tray extender.
c. Slide paper-width guide to the left.
Slide paper-width guide to the left.
d. Load paper.
Insert stack of photo paper with short edge down and print side up.
Slide stack of paper forward until it stops.
NOTE: If the photo paper you are using has perforated tabs, load photo paper so that tabs are on top.
Slide paper-width guide to the right until it stops at edge of paper.
Load envelopes
a. Raise the input tray
Raise the input tray.
20
Paper basics
b. Lower the output tray
Lower the output tray and pull out the tray extender.
c. Slide paper-width guide to the left.
Slide paper-width guide to the left.
Remove all paper from the main input tray.
d. Load envelopes.
Insert one or more envelopes into far-right side of the input tray. The side to be printed on should face up. The flap
should be on the left side and facing down.
Slide stack of envelopes down until it stops.
Slide paper-width guide to the right against stack of envelopes until it stops.
Load media
21
Chapter 5
22
Paper basics
6
Copy and scan
•
•
•
•
Copy
Scan to a computer
Tips for copy success
Tips for scan success
Copy
▲ The copy menu on the printer display allows you to easily select number of copies and color or black and white for copying
on plain paper. For more advanced settings, such as changing the paper type and size, adjusting the darkness of the copy,
and resizing the copy, select Settings from the Copy Menu.
Easy Copy
a. Load paper.
Load full-size paper in the paper tray.
b. Load original.
Lift lid on product.
Load original print side down on right front corner of glass.
Copy and scan
23
Chapter 6
Close lid.
c. Select Copy from the printer display menu to access the copy menu.
If you do not see Copy on the printer display, press the back button until you see Copy.
From the Copy menu, press the button next to Copy.
Press the button next to Copy Number to increase or decrease the number of copies. Press the button next to
OK to confirm.
Press the button next to Copy Black or Copy Color to copy onto A4 or 8.5” x 11” plain paper.
More copy features
▲ While in the Copy menu, press the selection button next to Settings to access the Copy Settings menu.
Paper Size/Type: You will see menus to select paper size and paper type. A plain paper setting will print in plain
paper normal print quality. A photo paper setting will print in photo paper best quality.
Resize: Actual size makes a copy that is the same as the size of the original, but the margins of the copied image
may be clipped. Resize to fit makes a copy that is centered with a white border around the edges. The resized image
is either enlarged or reduced to fit the size of the selected output paper. Custom Size allows you to increase the
size of the image by selecting values greater than 100% or reduce the image size by selecting values less than 100%.
Lighter / Darker: Adjusts the copy settings to make copies lighter or darker.
NOTE: After two minutes of inactivity the copy options will automatically return to the default settings of plain paper A4
or 8.5” x 11” (depending on region).
Scan to a computer
You can initiate a scan from the control panel of the printer or from your computer. Scan from the control panel if you want to
quickly scan one page to an image file. Scan from your computer if you want to scan multiple pages into one file, define the
file format of the scan, or make adjustments to the scanned image.
Prepare the scan
▲ To prepare the scan:
a. Load original.
Lift lid on product.
Load original print side down on right front corner of glass.
24
Copy and scan
Close lid.
b. Start scan.
Scan from the printer control panel
1. Select Scan from the printer display menu. If you do not see Scan on the printer display press the Back button until you
do.
2. Select the computer that you want to scan to from the printer display.
If you do not see your computer listed on the printer display make sure that your computer is connected to the printer either
wirelessly or through a USB cable. If you have a wireless connection and you have confirmed that the connection is working,
you will need to enable wireless scanning in the software.
a. Click the HP All-in-One desktop icon to open the Printer Software.
NOTE: You can also access the Printer Software by clicking Start > Programs > HP > HP Deskjet 3050A J611
series > HP Deskjet 3050A J611 series
b. Click the Scanner Actions icon.
c. Click Manage Scan to Computer.
NOTE: You can choose to keep the Scan to Computer option always active. If this feature is always active, you will
be able to select the Scan option from the printer display to scan to your wirelessly connected computers that are in
use. If this feature is not always active, then you will need to first activate the Scan to Computer option in the Printer
Software before you scan. This only affects the Scan button on the printer control panel. Whether Scan to
Computer is active or not, you will always be able to make a scan from your computer
3. Locate the scanned image on your computer. After the scan is saved, a Windows Explorer window will open in the directory
where the scan was saved.
NOTE: There is a limited number of computers that can have the scan function activated at the same time. Press the
Scan button on the printer and you will see the computers that are currently available for scanning.
Scan from your computer
1. Open the HP Scan application. Click Start > Programs >HP > HP Deskjet 3050A J611 series >HP Scan
2. Select the type of scan that you want from the shortcut menu and then click Scan.
NOTE: If Show Scan Preview is selected, you will be able to make adjustments to the scanned image in the preview
screen.
Scan to a computer
25
Chapter 6
3. Select Save if you want to keep the application open for another scan, or select Done to exit the application.
4. After the scan is saved, a Windows Explorer window will open in the directory where the scan was saved.
Tips for copy success
•
Load your original print side down on the right front corner of the glass.
•
To increase or decrease the contrast of your printed output, select Copy from the printer display and then select Settings.
From the Copy Settings menu select Lighter/Darker to adjust the contrast.
To select the paper size and paper type of the printed output, select Copy from the printer display, then select Settings.
From the Copy Settings menu select Size to Fit to choose plain or photo paper and photo paper size.
To resize the image, select Copy from the printer display, then select Settings. From the Copy Settings menu select
Resize.
•
•
Click here to go online for more information.
Tips for scan success
•
Load your original print side down on the right front corner of the glass.
•
•
Clean the scanner glass and make sure that there are no foreign materials adhering to it.
After you select Scan from the printer display, choose the computer that you want to scan to from the list of printers on the
printer display.
If you have a wireless connection from your printer to your computer, and you want to always be able to quickly scan to
your connected computer, choose to have Scan to Computer always active. See Scan to a computer for more information.
If you want to scan a document with several pages into one file instead of multiple files, start the scan with the Printer
Software instead of selecting Scan from the control panel.
•
•
Click here to go online for more information.
26
Copy and scan
7
Work with cartridges
•
•
•
•
•
Check the estimated ink levels
Order ink supplies
Replace the cartridges
Use single-cartridge mode
Cartridge warranty information
Check the estimated ink levels
You can easily check the ink supply level to determine how soon you might need to replace a cartridge. The ink supply level
shows an estimate of the amount of ink remaining in the cartridges.
To check the ink levels from the control panel
1. From the Control Panel home screen, which displays Copy, Scan, and Quick Forms, press the Setup button.
NOTE: If you do not see the home screen, press the Back button until you can see it.
2. Select Ink Status
To check the ink levels from the Printer Software
1. Click the HP All-in-One desktop icon to open the Printer Software.
NOTE: You can also access the Printer Software by clicking Start > Programs > HP > HP Deskjet 3050A J611
series > HP Deskjet 3050A J611 series
2. In the Printer Software, click Estimated Ink Levels.
NOTE: 1 If you have installed a refilled or remanufactured cartridge, or a cartridge that has been used in another printer,
the ink level indicator might be inaccurate or unavailable.
NOTE: 2 Ink level warnings and indicators provide estimates for planning purposes only. When you receive a low-ink
warning message, consider having a replacement cartridge available to avoid possible printing delays. You do not have to
replace the cartridges until the print quality is unacceptable.
NOTE: 3 Ink from the cartridges is used in the printing process in a number of different ways, including in the initialization
process, which prepares the product and cartridges for printing, and in printhead servicing, which keeps print nozzles clear
and ink flowing smoothly. In addition, some residual ink is left in the cartridge after it is used. For more information, see
www.hp.com/go/inkusage.
Order ink supplies
Before ordering cartridges, locate the correct cartridge number.
Locate the cartridge number on the printer
▲ The cartridge number is located inside the cartridge door.
Work with cartridges
27
Chapter 7
Locate the cartridge number in the Printer Software
1. Click the HP All-in-One desktop icon to open the Printer Software.
NOTE: You can also access the Printer Software by clicking Start > Programs > HP > HP Deskjet 3050A J611
series > HP Deskjet 3050A J611 series
2. In the Printer Software, click Shop For Supplies Online. The correct cartridge number will be automatically displayed
when you use this link.
To order genuine HP supplies for the HP All-in-One, go to www.hp.com/buy/supplies. If prompted, choose your country/region,
follow the prompts to select your product, and then click one of the shopping links on the page.
NOTE: Ordering cartridges online is not supported in all countries/regions. If it is not available in your country/region,
you may still view supplies information and print a list for reference when shopping at a local HP reseller.
Related topics
• Choose the right cartridges
Choose the right cartridges
HP recommends that you use original HP cartridges. Original HP cartridges are designed and tested with HP printers to help
you easily produce great results, time after time.
Related topics
• Order ink supplies
Replace the cartridges
To
1.
2.
3.
28
replace the cartridges
Check power.
Load paper.
Remove cartridge.
a. Open cartridge door.
Work with cartridges
Wait for print carriage to move to center of the product.
b. Press down to release cartridge, then remove it from slot.
4. Insert new cartridge.
a. Remove cartridge from packaging.
b. Remove plastic tape using pink pull tab.
c. Slide cartridge into slot until it clicks into place.
Replace the cartridges
29
Chapter 7
d. Close cartridge door.
5. Align cartridges.
Related topics
• Choose the right cartridges
• Order ink supplies
Use single-cartridge mode
Use the single-cartridge mode to operate the HP All-in-One with only one print cartridge. The single-cartridge mode is initiated
when a print cartridge is removed from the print cartridge carriage. During single-cartridge mode, the product can only print
jobs from the computer.
NOTE: When the HP All-in-One operates in single-cartridge mode, a message is displayed on screen. If the message is
displayed and two print cartridges are installed in the product, verify that the protective piece of plastic tape has been
removed from each print cartridge. When plastic tape covers the print cartridge contacts, the product cannot detect that the
print cartridge is installed.
Exit single-cartridge mode
Install two print cartridges in the HP All-in-One to exit single-cartridge mode.
Related topics
• Replace the cartridges
Cartridge warranty information
The HP cartridge warranty is applicable when the product is used in its designated HP printing device. This warranty does not
cover HP ink products that have been refilled, remanufactured, refurbished, misused, or tampered with.
During the warranty period the product is covered as long as the HP ink is not depleted and the end of warranty date has not
been reached. The end of warranty date, in YYYY/MM/DD format, may be found on the product as indicated:
For a copy of the HP Limited Warranty Statement, see the printed documentation that came with the product.
30
Work with cartridges
8
Connectivity
•
•
•
•
•
•
•
•
Wi-Fi Protected Setup (WPS – requires WPS router)
Traditional wireless connection (requires router)
USB Connection (non-network connection)
Change from a USB connection to a wireless network
Connect a new printer
Change wireless network settings
Tips for setting up and using a networked printer
Advanced printer management tools (for networked printers)
Wi-Fi Protected Setup (WPS – requires WPS router)
These instructions are for customers who have already setup and installed the printer software. For first time installation refer
to the setup instructions that came with the printer.
To connect the HP All-in-One to a wireless network using Wi-Fi Protected Setup (WPS), you will need the following:
A wireless 802.11b/g/n network that includes a WPS-enabled wireless router or access point.
NOTE: 802.11n will only support 2.4Ghz
A desktop computer or laptop with either wireless networking support, or a network interface card (NIC). The computer
must be connected to the wireless network that you intend to install the HP All-in-One on.
NOTE: If you have a Wi-Fi Protected Setup (WPS) router with a WPS push button, follow the Push Button method. If
you are not certain your router has a push button, follow the Wireless Settings Menu method.
Push Button (PBC) method
1. Press the Wi-Fi Protected Setup (WPS) button on your router.
2. Press and hold the Wireless button on the printer until the wireless light starts blinking. Press and hold for 3 seconds to
start WPS push button mode .
NOTE: The product begins a timer for approximately two minutes while a wireless connection is established.
Wireless Settings Menu method
1. Press the Wireless button on the printer to display the Wireless menu. If the printer is printing, in an error state, or performing
a critical task, wait until the task has been completed or the error cleared before pressing the Wireless button.
2. Select Wireless Settings from the printer display.
3. Select Wi-Fi Protected Setup from the printer display.
4. If you have a Wi-Fi Protected Setup (WPS) router with a WPS push button, select Push Button, and then follow the onscreen
instructions. If your router does not have a push button or you are not certain if your router has a push button, select PIN,
and then follow the onscreen instructions.
NOTE: The product begins a timer for approximately two minutes during which the corresponding button on the
networking device needs to be pressed or the router PIN needs to be entered on the router’s configuration page.
Connectivity
31
Chapter 8
Traditional wireless connection (requires router)
To connect the HP All-in-One to an integrated wireless WLAN 802.11 network, you will need the following:
A wireless 802.11b/g/n network that includes a wireless router or access point.
NOTE: 802.11n will only support 2.4Ghz
A desktop computer or laptop with either wireless networking support, or a network interface card (NIC). The computer
must be connected to the wireless network that you intend to install the HP All-in-One on.
Network name (SSID).
WEP key or WPA Passphrase (if needed).
To connect the product
1. Insert the product Software CD in the computer CD-ROM drive.
2. Follow the instructions on the screen.
When you are prompted, connect the product to the computer using the USB setup cable included in the box. Follow the
onscreen prompts to enter your wireless network settings. The product will attempt to connect to the network. If the
connection fails, follow the prompts to correct the problem, and then try again.
3. When the setup is finished, you will be prompted to disconnect the USB cable and test the wireless network connection.
Once the product connects successfully to the network, install the software on each computer that will use the product over
the network.
USB Connection (non-network connection)
The HP All-in-One supports a rear USB 2.0 High Speed port for connection to a computer.
NOTE: Web services will not be available with a USB direct connection.
To connect the product with the USB cable
▲ Refer to the setup instructions that came with your product for information on connecting to a computer with a USB cable.
NOTE: Do not connect the USB cable to the product until you are prompted to do so.
If the printer software has been installed, the printer will operate as a plug and play device. If the software has not been installed,
insert the CD that came with the device and follow the onscreen instructions.
Change from a USB connection to a wireless network
If you first setup your printer and installed the software with a USB cable, directly connecting the printer to your computer,
you can easily change to a wireless network connection. You will need a wireless 802.11b/g/n network that includes a wireless
router or access point.
NOTE: 802.11n will only support 2.4Ghz
Change from a USB connection to a wireless network
1. From the computer’s start menu select All Programs or Programs, and then select HP.
2. Select HP Deskjet 3050A J611 series
3. Select Printer Setup and Software Selection.
4. Select Convert a USB connected printer to wireless. Follow the onscreen instructions.
32
Connectivity
Connect a new printer
NOTE: This method is available if you have already installed the printer software.
Connect a new printer
1. From the computer’s start menu select All Programs or Programs, and then select HP.
2. Select HP Deskjet 3050A J611 series
3. Select Printer Setup and Software Selection.
4. Select Connect a new printer. Follow the onscreen instructions.
Change wireless network settings
NOTE: 1 This method is available if you have already installed the printer software.
NOTE: 2 This method requires a USB cable. Do not connect the USB cable until prompted to do so.
Change network settings
1. From the computer’s start menu select All Programs or Programs, and then select HP.
2. Select HP Deskjet 3050A J611 series
3. Select Printer Setup and Software Selection.
4. Select Connect a new printer. Follow the onscreen instructions.
Tips for setting up and using a networked printer
Use the following tips to set up and use a networked printer:
•
•
•
•
•
•
When setting up the wireless networked printer, make sure your wireless router or access point is powered on. The printer
searches for wireless routers, then lists the detected network names on the computer.
If your computer is connected to a Virtual Private Network (VPN), you need to disconnect from the VPN before you can
access any other device on your network, including the printer.
Learn how to find your network security settings. Click here to go online for more information.
Learn about the Network Diagnostic Utility and other troubleshooting tips. Click here to go online for more information.
Learn how to change from a USB to wireless connection. Click here to go online for more information.
Learn how to work with your firewall and antivirus programs during printer setup. Click here to go online for more
information.
Advanced printer management tools (for networked printers)
When the printer is connected to a network, you can use the embedded Web server to view status information, change settings,
and manage the printer from your computer.
NOTE: To view or change some settings, you might need a password.
You can open and use the embedded Web server without being connected to the Internet. However, some features are not
available.
•
•
To open the embedded Web server
About cookies
Advanced printer management tools (for networked printers)
33
Chapter 8
To open the embedded Web server
NOTE: The printer must be on a network and must have an IP address. The IP address for the printer can be found by
pressing the Wireless button or by printing a network configuration page.
In a supported Web browser on your computer, type the IP address or hostname that has been assigned to the printer.
For example, if the IP address is 192.168.0.12, type the following address into a Web browser such as Internet Explorer: http://
192.168.0.12.
About cookies
The embedded Web server (EWS) places very small text files (cookies) on your hard drive when you are browsing. These files
let the EWS recognize your computer the next time you visit. For example, if you have configured the EWS language, a cookie
helps remember which language you have selected so that the next time you access the EWS, the pages are displayed in that
language. Though some cookies are cleared at the end of each session (such as the cookie that stores the selected language),
others (such as the cookie that stores customer-specific preferences) are stored on the computer until you clear them manually.
You can configure your browser to accept all cookies, or you can configure it to alert you every time a cookie is offered, which
allows you to decide which cookies to accept or refuse. You can also use your browser to remove unwanted cookies.
NOTE: Depending on your printer, if you disable cookies, you also disable one or more of the following features:
•
•
•
Starting where you left the application (especially useful when using setup wizards)
Remembering the EWS browser language setting
Personalizing the EWS Home page
For information about how to change your privacy and cookie settings and how to view or delete cookies, see the documentation
available with your Web browser.
34
Connectivity
9
Solve a problem
This section contains the following topics:
•
•
•
•
•
Improve print quality
Clear a paper jam
Unable to print
Networking
HP support
Improve print quality
1. Make sure you are using genuine HP cartridges.
2. Check the print properties to make sure you have selected the appropriate paper type and print quality from the Media
drop-down list. In the Printer Software, click Printer Actions and then click Set Preferences to access the print properties.
3. Check the estimated ink levels to determine if the cartridges are low on ink. For more information, see Check the estimated
ink levels. If the print cartridges are low on ink consider replacing them.
4. Align the cartridges
To align the cartridges from the Printer Software
NOTE: Aligning the cartridges ensures high-quality output. The HP All-in-One prompts you to align the cartridges
every time you install a new cartridge. If you remove and reinstall the same print cartridge, the HP All-in-One will not
prompt you to align the print cartridges. The HP All-in-One remembers the alignment values for that print cartridge,
so you do not need to realign the print cartridges.
a.
b.
c.
d.
e.
f.
Load letter or A4 unused plain white paper into the input tray.
In the Printer Software, click Printer Actions and then click Maintenance Tasks to access the Printer Toolbox.
The Printer Toolbox appears.
Click Align Ink Cartridges on the Device Services tab. The product prints an alignment sheet.
Load the cartridge alignment sheet print side down on the right front corner of the glass.
Follow the instructions on the on the printer display to align the cartridges. Recycle or discard the cartridge alignment
sheet.
5. Print a diagnostics page if the cartridges are not low on ink.
To print a diagnostics page
a. Load letter or A4 unused plain white paper into the input tray.
b. Click the HP All-in-One desktop icon to open the Printer Software.
NOTE: You can also access the Printer Software by clicking Start > Programs > HP > HP Deskjet 3050A J611
series > HP Deskjet 3050A J611 series
c. In the Printer Software, click Printer Actions and then click Maintenance Tasks to access the Printer Toolbox.
d. Click Print Diagnostic Information on the Device Reports tab to print a diagnostics page. Review the blue, magenta,
yellow, and black boxes on the diagnostics page. If you are seeing streaks in the color and black boxes, or no ink in
portions of the boxes, then automatically clean the cartridges.
Solve a problem
35
Chapter 9
6. Clean the print cartridges automatically, if the diagnostic page shows steaks or missing portions of the color and black
boxes.
To
a.
b.
c.
clean the cartridges automatically
Load letter or A4 unused plain white paper into the input tray.
In the Printer Software, click Printer Actions and then click Maintenance Tasks to access the Printer Toolbox.
Click Clean Ink Cartridges on the Device Services tab. Follow the onscreen instructions.
If the above solutions do not resolve the problem, click here for more online troubleshooting.
Clear a paper jam
Clear a paper jam.
To clear a paper jam
1. Press the cancel button to try to clear the jam automatically. If this does not work, the paper jam will need to be cleared
manually.
2. Locate the paper jam
Input tray
• If the paper jam is located near the back input tray, pull the paper gently out of the input tray.
36
Solve a problem
Output tray
• If the paper jam is located near the front output tray, pull the paper gently out of the output tray.
•
You may need to open the carriage door and slide the print carriage to the right to access the paper jam.
Inside of printer
• If the paper jam is located inside the printer, open the cleanout door located on the bottom of the printer. Press tabs on
both sides of the cleanout door.
•
Remove jammed paper.
•
Close the cleanout door. Gently push the door towards the printer until both latches snap into place.
3. Press the OK selection button on the control panel to continue the current job.
Clear a paper jam
37
Chapter 9
If the above solutions do not resolve the problem, click here for more online troubleshooting.
Prevent paper jams
• Do not overfill the input tray.
• Remove printed papers from the output tray frequently.
• Ensure that paper loaded in the input tray lays flat and the edges are not bent or torn.
• Do not combine different paper types and paper sizes in the input tray; the entire stack of paper in the input tray must be
the same size and type.
• Adjust the paper-width guide in the input tray to fit snugly against all paper. Make sure the paper-width guide does not
bend the paper in the input tray.
• Do not force paper too far forward in the input tray.
If the above solutions do not resolve the problem, click here for more online troubleshooting.
Unable to print
If you're having trouble printing, you can download the HP Printing Diagnostic Utility, which can troubleshoot this issue for
you automatically. To get the utility, click the appropriate link:
NOTE: The HP Printing Diagnostic Utility may not be available in all languages.
Take me to the HP Printing Diagnostic Utility download page (32-bit Windows).
Take me to the HP Printing Diagnostic Utility download page (64-bit Windows).
Resolve print issues
NOTE: Make sure that the printer is turned on and that there is paper in the tray. If you are still unable to print, try the
following in order:
1. Check for error messages and resolve.
2. If your computer is connected to the printer with a USB cable, disconnect and reconnect the USB cable. If your computer
is connected to the printer with a wireless connection, confirm that the connection is working.
3. Verify that the product is not paused or offline.
To verify that the product is not paused or offline
a. Depending upon your operating system, do one of the following:
• Windows 7: From the Windows Start menu, click Devices and Printers.
• Windows Vista: From the Windows Start menu, click Control Panel, and then click Printers.
• Windows XP: From the Windows Start menu, click Control Panel, and then click Printers and Faxes.
b. Either double-click the icon for your product or right-click the icon for your product and select See what’s printing
to open the print queue.
c. On the Printer menu, make sure there are no check marks next to Pause Printing or Use Printer Offline.
d. If you made any changes, try to print again.
4. Verify that the product is set as the default printer.
To verify that the product is set as the default printer
a. Depending upon your operating system, do one of the following:
• Windows 7: From the Windows Start menu, click Devices and Printers.
• Windows Vista: From the Windows Start menu, click Control Panel, and then click Printers.
• Windows XP: From the Windows Start menu, click Control Panel, and then click Printers and Faxes.
b. Make sure the correct product is set as the default printer.
The default printer has a check mark in a black or green circle next to it.
c. If the wrong product is set as the default printer, right-click the correct product and select Set as Default Printer.
d. Try using your product again.
38
Solve a problem
5. Restart the print spooler.
To restart the print spooler
a. Depending upon your operating system, do one of the following:
Windows 7
• From the Windows Start menu, click Control Panel, System and Security, and then Administrative Tools.
• Double-click Services.
• Right-click the Print Spooler, and then click Properties.
• On the General tab, next to Startup type, make sure that Automatic is selected.
• If the service is not already running, under Service status, click Start, and then click OK.
Windows Vista
• From the Windows Start menu, click Control Panel, System and Maintenance, Administrative Tools.
• Double-click Services.
• Right-click the Print Spooler service, and then click Properties.
• On the General tab, next to Startup type, make sure that Automatic is selected.
• If the service is not already running, under Service status, click Start, and then click OK.
Windows XP
• From the Windows Start menu, right click My Computer.
• Click Manage, and then click Services and Applications.
• Double-click Services, and then select Print Spooler.
• Right-click Print Spooler, and click Restart to restart the service.
b. Make sure the correct product is set as the default printer.
The default printer has a check mark in a black or green circle next to it.
c. If the wrong product is set as the default printer, right-click the correct product and select Set as Default Printer.
d. Try using your product again.
6. Restart the computer.
7. Clear the print queue.
To clear the print queue
a. Depending upon your operating system, do one of the following:
• Windows 7: From the Windows Start menu, click Devices and Printers.
• Windows Vista: From the Windows Start menu, click Control Panel, and then click Printers.
• Windows XP: From the Windows Start menu, click Control Panel, and then click Printers and Faxes.
b. Double-click the icon for your product to open the print queue.
c. On the Printer menu, click Cancel all documents or Purge Print Document, and then click Yes to confirm.
d. If there are still documents in the queue, restart the computer and try printing again after the computer has restarted.
e. Check the print queue again to make sure it is clear, and then try to print again.
If the print queue is not clear, or if it is clear but jobs are still failing to print, proceed to the next solution.
If the above solutions do not resolve the problem, click here for more online troubleshooting.
Clear the print carriage
Remove any objects, such as paper, that are blocking the print carriage.
See Clear a paper jam for more information.
NOTE: Do not use any tools or other devices to remove jammed paper. Always use caution when removing jammed paper
from inside the product.
Clear the print carriage
39
Chapter 9
Click here to go online for more information.
Prepare the trays
Open output tray
▲ Output tray must be open to begin printing.
Close cartridge door
▲ Cartridge door must be closed to begin printing.
Click here to go online for more information.
Printer failure
Resolve printer failure.
▲ If you have already turned the printer off and then on, and this does not solve your problem, contact HP support.
Please contact HP support for help .
Ink cartridge problem
First try removing and reinserting the cartridges. If this does not work, clean the cartridge contacts. If your problem is still not
resolved, Replace the cartridges.
Clean the ink cartridge contacts
CAUTION: The cleaning procedure should take only a few minutes. Make sure that the ink cartridges are reinstalled in
the product as soon as possible. It is not recommended to leave the ink cartridges outside of the product longer than 30
minutes. This could result in damage to both the printhead and the ink cartridges.
1. Check that power is on.
2. Open cartridge access door.
40
Solve a problem
Wait for the print carriage to move to the center of the product.
3. Remove the cartridge indicated in the error message.
4. Hold the ink cartridge by its sides with the bottom pointing up and locate the electrical contacts on the ink cartridge. The
electrical contacts are four small rectangles of copper or gold-colored metal on the bottom of the ink cartridge.
5. Wipe only the contacts with a dry swab or lint-free cloth.
CAUTION: Be careful to touch only the contacts, and do not smear any of the ink or other debris elsewhere on the
cartridge.
6. On the inside of the product, locate the contacts in the printhead. The contacts look like a set of four copper or gold-colored
pins positioned to meet the contacts on the ink cartridge.
7. Use a dry swab or lint-free cloth to wipe the contacts.
8. Reinstall the ink cartridge.
Ink cartridge problem
41
Chapter 9
9. Close the access door, and check if the error message has gone away.
10. If you still receive the error message, turn the product off, and then on again.
Click here to go online for more information.
Networking
•
•
•
•
Learn how to find your network security settings. Click here to go online for more information.
Learn about the Network Diagnostic Utility and other troubleshooting tips. Click here to go online for more information.
Learn how to change from a USB to wireless connection. Click here to go online for more information.
Learn how to work with your firewall and antivirus programs during printer setup. Click here to go online for more
information.
HP support
•
•
•
•
Register the product
Support process
HP support by phone
Additional warranty options
Register the product
By taking just a few quick minutes to register, you can enjoy quicker service, more efficient support, and product support alerts.
If you did not register your printer while installing the software, you can register now at http://www.register.hp.com.
Support process
If you have a problem, follow these steps:
1. Check the documentation that came with the product.
2. Visit the HP online support Web site at www.hp.com/support. HP online support is available to all HP customers. It is the
fastest source for up-to-date product information and expert assistance and includes the following features:
• Fast access to qualified online support specialists
• Software and driver updates for the product
• Valuable product and troubleshooting information for common problems
• Proactive product updates, support alerts, and HP newsgrams that are available when you register the product
3. Call HP support. Support options and availability vary by product, country/region, and language.
HP support by phone
Phone support options and availability vary by product, country/region, and language.
This section contains the following topics:
•
•
•
•
Phone support period
Placing a call
Support phone numbers
After the phone support period
Phone support period
One year of phone support is available in North America, Asia Pacific, and Latin America (including Mexico). To determine
the duration of phone support in Europe, the Middle East, and Africa, go to www.hp.com/support. Standard phone company
charges apply.
42
Solve a problem
Placing a call
Call HP support while you are in front of the computer and the product. Be prepared to provide the following information:
•
•
Product name (HP Deskjet 3050A J611 series)
Model number (located inside the cartridge door)
•
•
•
Serial number (located on the back or bottom of the product)
Messages that appear when the situation occurs
Answers to these questions:
◦ Has this situation happened before?
◦ Can you re-create it?
◦ Did you add any new hardware or software to your computer at about the time that this situation began?
◦ Did anything else occur prior to this situation (such as a thunderstorm, product was moved, etc.)?
Support phone numbers
For the most current HP list of telephone support numbers and call costs information, see www.hp.com/support.
After the phone support period
After the phone support period, help is available from HP at an additional cost. Help may also be available at the HP online
support Web site: www.hp.com/support. Contact your HP dealer or call the support phone number for your country/region to
learn more about support options.
Additional warranty options
Extended service plans are available for the HP All-in-One at additional costs. Go to www.hp.com/support, select your country/
region and language, then explore the services and warranty area for information about the extended service plans.
HP support
43
Chapter 9
44
Solve a problem
10 Technical information
The technical specifications and international regulatory information for the HP All-in-One are provided in this section.
For additional specifications, see the printed documentation that came with the HP All-in-One.
This section contains the following topics:
•
•
•
•
Notice
Specifications
Environmental product stewardship program
Regulatory notices
Notice
Specifications
Technical specifications for the HP All-in-One are provided in this section. For complete product specifications, see the Product
Data Sheet at www.hp.com/support.
System requirements
For information about future operating system releases and support, visit the HP online support Web site at www.hp.com/
support.
Environmental specifications
• Recommended operating temperature range: 15 ºC to 32 ºC (59 ºF to 90 ºF)
• Allowable operating temperature range: 5 ºC to 40 ºC (41 ºF to 104 ºF)
• Humidity: 15% to 80% RH non-condensing; 28 ºC maximum dewpoint
• Non-operating (Storage) temperature range: –40 ºC to 60 ºC (–40 ºF to 140 ºF)
• In the presence of high electromagnetic fields, it is possible the output from the HP All-in-One may be slightly distorted
• HP recommends using a USB cable less than or equal to 3 m (10 feet) in length to minimize injected noise due to potential
high electromagnetic fields
Input tray capacity
Plain paper sheets (80 g/m2 [20lb]): Up to 50
Envelopes: Up to 5
Index cards: Up to 20
Photo paper sheets: Up to 20
Output tray capacity
Plain paper sheets (80 g/m2 [20lb]): Up to 30
Technical information
45
Chapter 10
Envelopes: Up to 5
Index cards: Up to 10
Photo paper sheets: Up to 10
Paper size
For a complete list of supported media sizes, see the printer software.
Paper weights
Plain Paper: 64 to 90 g/m² (16 to 24 lb)
Envelopes: 75 to 90 g/m² (20 to 24 lb)
Cards: Up to 200 g/m² (110-lb index maximum)
Photo Paper: Up to 280 g/m² (75 lb)
Print specifications
• Print speeds vary according to the complexity of the document
• Method: drop-on-demand thermal inkjet
• Language: PCL3 GUI
Copy specifications
• Digital image processing
• Copy speeds vary according to the complexity of the document and model
Scan specifications
• Resolution: up to 1200 x 1200 ppi optical
For more information about ppi resolution, see the scanner software.
• Color: 24-bit color, 8-bit grayscale (256 levels of gray)
• Maximum scan size from glass: 21.6 x 29.7 cm (8.5 x 11.7 inches)
Print resolution
Draft mode
• Color Input/Black Render: 300x300dpi
• Output (Black/Color): Automatic
Normal mode
• Color Input/Black Render: 600x300dpi
• Output (Black/Color): Automatic
Plain-Best mode
• Color Input/Black Render: 600x600dpi
• Output: 600x1200dpi (Black), Automatic (Color)
Photo-Best mode
• Color Input/Black Render: 600x600dpi
• Output (Black/Color): Automatic
Max DPI mode
• Color Input/Black Render: 1200x1200dpi
• Output: Automatic (Black), 4800x1200 optimized dpi (Color)
Power specifications
0957-2286
• Input voltage: 100-240Vac (+/- 10%)
• Input frequency: 50/60 Hz (+/- 3Hz)
46
Technical information
0957-2290
• Input voltage: 200-240Vac (+/- 10%)
• Input frequency: 50/60 Hz (+/- 3Hz)
NOTE: Use only with the power adapter supplied by HP.
Cartridge yield
Visit www.hp.com/go/learnaboutsupplies for more information on estimated cartridge yields.
Acoustic information
If you have Internet access, you can get acoustic information from the HP Web site. Go to: www.hp.com/support.
Environmental product stewardship program
Hewlett-Packard is committed to providing quality products in an environmentally sound manner. Design for recycling has
been incorporated into this product. The number of materials has been kept to a minimum while ensuring proper functionality
and reliability. Dissimilar materials have been designed to separate easily. Fasteners and other connections are easy to locate,
access, and remove using common tools. High priority parts have been designed to access quickly for efficient disassembly and
repair.
For more information, visit HP’s Commitment to the Environment Web site at:
www.hp.com/hpinfo/globalcitizenship/environment/index.html
This section contains the following topics:
•
•
•
•
•
•
•
•
•
•
Eco-Tips
Paper use
Plastics
Material safety data sheets
Recycling program
HP inkjet supplies recycling program
Power consumption
Sleep mode
Disposal of waste equipment by users in private households in the European Union
Chemical Substances
Eco-Tips
HP is committed to helping customers reduce their environmental footprint. HP has provided the Eco-Tips below to help you
focus on ways to assess and reduce the impact of your printing choices. In addition to specific features in this product, please
visit the HP Eco Solutions web site for more information on HP’s environmental initiatives.
www.hp.com/hpinfo/globalcitizenship/environment/
Your product's Eco features
• Energy Savings information: To determine the ENERGY STAR® qualification status for this product, see www.hp.com/
go/energystar.
• Recycled Materials: For more information regarding recycling of HP products, please visit:
www.hp.com/hpinfo/globalcitizenship/environment/recycle/
Paper use
This product is suited for the use of recycled paper according to DIN 19309 and EN 12281:2002.
Plastics
Plastic parts over 25 grams are marked according to international standards that enhance the ability to identify plastics for
recycling purposes at the end of product life.
Material safety data sheets
Material safety data sheets (MSDS) can be obtained from the HP Web site at:
www.hp.com/go/msds
Environmental product stewardship program
47
Chapter 10
Recycling program
HP offers an increasing number of product return and recycling programs in many countries/regions, and partners with some
of the largest electronic recycling centers throughout the world. HP conserves resources by reselling some of its most popular
products. For more information regarding recycling of HP products, please visit:
www.hp.com/hpinfo/globalcitizenship/environment/recycle/
HP inkjet supplies recycling program
HP is committed to protecting the environment. The HP Inkjet Supplies Recycling Program is available in many countries/
regions, and lets you recycle used print cartridges and ink cartridges free of charge. For more information, go to the following
Web site:
www.hp.com/hpinfo/globalcitizenship/environment/recycle/
Power consumption
Hewlett-Packard printing and imaging equipment marked with the ENERGY STAR® logo is qualified to the U.S.
Environmental Protection Agency’s ENERGY STAR specifications for imaging equipment. The following mark will appear
on ENERGY STAR qualified imaging products:
Additional ENERGY STAR qualified imaging product model information is listed at: www.hp.com/go/energystar
Sleep mode
• Power usage is reduced while in Sleep mode.
• After initial setup of printer, the printer will enter Sleep mode after 5 minutes of inactivity.
• The time to Sleep mode cannot be changed.
48
Technical information
Disposal of waste equipment by users in private households in the European Union
Chemical Substances
HP is committed to providing our customers with information about the chemical substances in our products as needed to
comply with legal requirements such as REACH (Regulation EC No 1907/2006 of the European Parliament and the
Council). A chemical information report for this product can be found at: www.hp.com/go/reach.
Regulatory notices
The HP All-in-One meets product requirements from regulatory agencies in your country/region.
This section contains the following topics:
•
•
•
Regulatory model identification number
FCC statement
Notice to users in Korea
Regulatory notices
49
Chapter 10
•
•
•
•
VCCI (Class B) compliance statement for users in Japan
Notice to users in Japan about the power cord
European Union Regulatory Notice
Regulatory wireless statements
Regulatory model identification number
For regulatory identification purposes, your product is assigned a Regulatory Model Number. The Regulatory Model Number
for your product is VCVRA-1002. This regulatory number should not be confused with the marketing name (HP Deskjet 3050A
J611 series, etc.) or product numbers (CB730A, etc.).
FCC statement
Notice to users in Korea
VCCI (Class B) compliance statement for users in Japan
50
Technical information
Notice to users in Japan about the power cord
European Union Regulatory Notice
Products bearing the CE marking comply with the following EU Directives:
•
•
•
Low Voltage Directive 2006/95/EC
EMC Directive 2004/108/EC
Ecodesign Directive 2009/125/EC, where applicable
CE compliance of this product is valid only if powered with the correct CE-marked AC adapter provided by HP.
If this product has telecommunications functionality, it also complies with the essential requirements of the following EU
Directive:
•
R&TTE Directive 1999/5/EC
Compliance with these directives implies conformity to applicable harmonized European standards (European Norms) that are
listed in the EU Declaration of Conformity issued by HP for this product or product family and available (in English only) either
within the product documentation or at the following web site: www.hp.com/go/certificates (type the product number in the
search field).
The compliance is indicated by one of the following conformity markings placed on the product:
For non-telecommunications products and for EU
harmonized telecommunications products, such as
Bluetooth® within power class below 10mW.
For EU non-harmonized telecommunications products
(If applicable, a 4-digit notified body number is inserted
between CE and !).
Please refer to the regulatory label provided on the product.
The telecommunications functionality of this product may be used in the following EU and EFTA countries: Austria, Belgium,
Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovak Republic,
Slovenia, Spain, Sweden, Switzerland, and United Kingdom.
The telephone connector (not available for all products) is intended for connection to analogue telephone networks.
Products with wireless LAN devices
• Some countries may have specific obligations or special requirements about the operation of Wireless LAN networks such
as indoor use only or restrictions of the channels available. Please make sure that the country settings of the wireless network
are correct.
Regulatory notices
51
Chapter 10
France
• For 2.4-GHz Wireless LAN operation of this product, certain restrictions apply: This product may be used indoors for the
entire 2400-MHz to 2483.5-MHz frequency band (channels 1 to 13). For outdoor use, only the 2400-MHz to 2454-MHz
frequency band (channels 1 to 7) may be used. For the latest requirements, see www.arcep.fr.
The point of contact for regulatory matters is:
Hewlett-Packard GmbH, Dept./MS: HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, GERMANY
Regulatory wireless statements
This section contains the following regulatory information pertaining to wireless products:
•
•
•
•
Exposure to radio frequency radiation
Notice to users in Brazil
Notice to users in Canada
Notice to users in Taiwan
Exposure to radio frequency radiation
Notice to users in Brazil
Notice to users in Canada
52
Technical information
Notice to users in Taiwan
Regulatory notices
53
Chapter 10
54
Technical information
Index
scan specifications 46
system requirements 45
A
after the support period 43
W
B
buttons, control panel 6
warranty 43
C
control panel
buttons 6
features 6
copy
specifications 46
customer support
warranty 43
E
environment
Environmental product stewardship
program 47
environmental specifications 45
I
interface card 31, 32
N
network
interface card
31, 32
P
paper
recommended types 17
phone support 42
phone support period
period for support 42
print
specifications 46
R
recycle
ink cartridges 48
regulatory notices
regulatory model identification
number 50
wireless statements 52
S
scan
scan specifications 46
support process 42
system requirements 45
T
technical information
copy specifications 46
environmental specifications 45
print specifications 46
55
56
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
