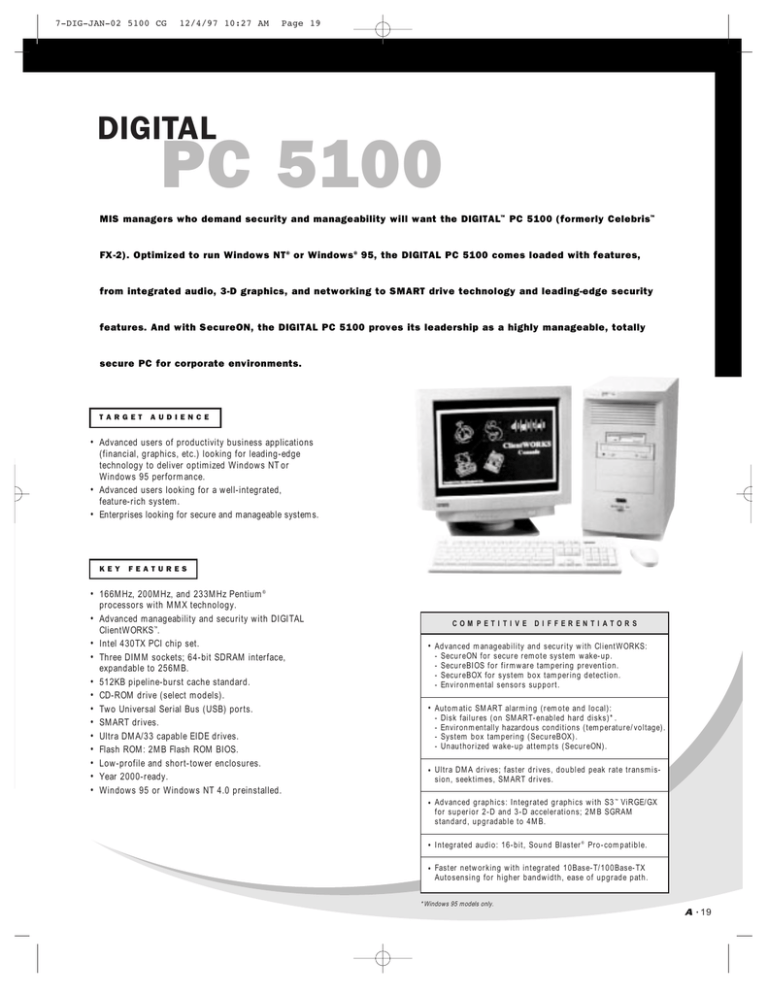

DIGITAL
PC 5100
MIS managers who demand security and manageability will want the DIGITAL™ PC 5100 (formerly Celebris™
FX-2). Optimized to run Windows NT® or Windows® 95, the DIGITAL PC 5100 comes loaded with features,
from integrated audio, 3-D graphics, and networking to SMART drive technology and leading-edge security
features. And with SecureON, the DIGITAL PC 5100 proves its leadership as a highly manageable, totally
secure PC for corporate environments.
TARGET
AUDIENCE
• Advanced users of productivity business applications
(financial, graphics, etc.) looking for leading-edge
technology to deliver optimized Windows NT or
Windows 95 performance.
• Advanced users looking for a well-integrated,
feature-rich system.
• Enterprises looking for secure and manageable systems.
KEY
FEATURES
• 166MHz, 200MHz, and 233MHz Pentium®
processors with MMX technology.
• Advanced manageability and security with DIGITAL
•
•
•
•
•
•
•
•
•
•
•
ClientWORKS™.
Intel 430TX PCI chip set.
Three DIMM sockets; 64-bit SDRAM interface,
expandable to 256MB.
512KB pipeline-burst cache standard.
CD-ROM drive (select models).
Two Universal Serial Bus (USB) ports.
SMART drives.
Ultra DMA/33 capable EIDE drives.
Flash ROM: 2MB Flash ROM BIOS.
Low-profile and short-tower enclosures.
Year 2000-ready.
Windows 95 or Windows NT 4.0 preinstalled.
COMPETITIVE
DIFFERENTIATORS
• Advanced manageability and security with ClientWORKS:
-
SecureON for secure remote system wake-up.
SecureBIOS for firmware tampering prevention.
SecureBOX for system box tampering detection.
Environmental sensors support.
• Automatic SMART alarming (remote and local):
-
Disk failures (on SMART-enabled hard disks)*.
Environmentally hazardous conditions (temperature/voltage).
System box tampering (SecureBOX).
Unauthorized wake-up attempts (SecureON).
• Ultra DMA drives; faster drives, doubled peak rate transmission, seektimes, SMART drives.
• Advanced graphics: Integrated graphics with S3 ™ ViRGE/GX
for superior 2-D and 3-D accelerations; 2MB SGRAM
standard, upgradable to 4MB.
• Integrated audio: 16-bit, Sound Blaster ® Pro-compatible.
• Faster networking with integrated 10Base-T/100Base-TX
Autosensing for higher bandwidth, ease of upgrade path.
*Windows 95 models only.
A • 19
7-DIG-JAN-02 5100 CG
12/4/97 10:27 AM
Page 20
Competitive Comparison
D I G I TA L P C 5 1 0 0
A • 20
Features
Processors
DIGITAL™
PC 5100
Compaq
Deskpro 4000
HP
XA
IBM
PC 300PL
Dell
OptiPlex GXi
166 Pentium® w/MMX
200 Pentium w/MMX
233 Pentium w/MMX
166 Pentium w/MMX
200 Pentium w/MMX
233 Pentium w/MMX
166 Pentium w/MMX
200 Pentium w/MMX
233 Pentium w/MMX
166 Pentium w/MMX
200 Pentium w/MMX
233 Pentium w/MMX
200 Pentium
166 Pentium w/MMX
200 Pentium w/MMX
233 Pentium w/MMX
Chip set
Intel 430TX
VIA Apollo
Intel 430HX
Intel 430HX
Intel 430HX
Enclosure
Low-profile (3x4)
Short-tower (5x6)
Desktop (5x4)
Mini-tower (7x5)
Desktop (4x4)
Mini-tower (6x6)
Desktop (4x4)
Mini-tower (6x6)
Slim (3x3)
Desktop (5x5)
Mini-tower (7x6)
Standard
graphics
S3™
ViRGE/GX
S3
ViRGE/GX
Matrox Millennium
card
Matrox
Mystique 220
S3 Trio
64V/GX
Video RAM std.
2MB SGRAM
2MB SGRAM
2MB WRAM
2MB SGRAM
2MB EDO DRAM
Video RAM max.
4MB SGRAM
4MB SGRAM
8MB WRAM
4MB SGRAM
2MB EDO DRAM
Maximum memory
256MB
384MB
192MB
384MB
512MB ECC
EDO DRAM
Memory type
SDRAM DIMMs
SDRAM DIMMs
EDO DRAM SIMMs
SDRAM DIMMs
EDO DRAM DIMMs
Cache standard/
maximum
512KB/512KB
512KB/1MB
512KB/512KB
512KB/512KB
256KB/512KB
Cache type
Pipeline-burst
Pipeline-burst
Pipeline-burst
Pipeline-burst
Pipeline-burst
USB port
2 ports
2 ports
2 ports
2 ports
2 ports
CD-ROM
24x on select
models
16x on select
models
8x on select
models
24x on select
models
12x/24x
Audio
16-bit audio
(stereo)
On CD
models
16-bit audio
on CD models
16-bit audio
on CD models
Sound Blaster®
Pro-compatible
(all models)
Standard hard disk
configurations
EIDE: 2.1GB, 3.2GB,
4.0GB
EIDE: 2.4GB,
3.2GB
EIDE: 1.6GB,
2.5GB
EIDE: 1.6GB,
2.5GB
EIDE: 2.5GB
4.2GB
Disk controller
Ultra DMA/33
Ultra DMA/33
EIDE DMA mode2
EIDE DMA mode2
Ultra-Wide SCSI:
2.1GB, 4.3GB
EIDE DMA mode2
Ultra-Wide SCSI:
2.0GB, 4.0GB
Networking
10Base-T/100Base-TX
with Autosensing
10/100 Ethernet
with Autosensing
10/100Base-T
10/100Base-T
3Com
10/100 Ethernet
Desktop
management
ClientWORKS™
(local & remote
DMI viewer)
Intelligent
Manageability
(local DMI viewer)
HP TopTOOLS
(local DMI viewer)
NetFinity
(local & remote
DMI viewer)
Dell Inspector
(local DMI viewer)
12/4/97 10:27 AM
Page 21
A
D I G I TA L P C 5 1 0 0
Processors
Slots
Model/Processor/Speed/Enclosure:
DIGITAL™ PC 5100 low-profile/short-tower
166MHz Pentium® processor with MMX technology
200MHz Pentium processor with MMX technology
233MHz Pentium processor with MMX technology
External bus speed: 66MHz
Internal architecture: 32-bit PCI
Address bus: 32-bit
Data bus: 64-bit
Primary cache: 32KB
Low-profile
Total: 3
PCI: 1
PCI/ISA: 1
ISA: 1
Short-tower
Total: 5
PCI: 2
ISA: 3
Bays
Processor Socket
Zero-Insertion-Force (ZIF) socket 7
System Memory
Included: 16/32MB SDRAM
Maximum: 256MB SDRAM
Configuration: Three DIMM sockets
Upgradable: With 16, 32, 64, and 128MB SDRAM DIMM upgrade modules
Secondary Cache
512KB pipeline-burst secondary cache standard
Bus Architecture
32-bit PCI/16-bit ISA
BIOS
Flash ROM BIOS
Video BIOS
Plug and Play BIOS
Phoenix
Graphics
Type: PCI 64-bit S3™ ViRGE/GX graphics accelerator for 2-D and 3-D
graphics applications
Graphics memory: 2MB SGRAM standard, upgradable to 4MB
Supports up to 1600 x 1200 @ 75Hz
Diskette Drive
Low-profile: 4 total
Front-accessible:
1 3.5" slim-height (1.44MB diskette drive installed)
2 5.25" half-height
Internal:
1 3.5" slim-height
Short-tower: 6 total
Front-accessible:
1 3.5" slim-height (1.44MB diskette drive installed)
3 5.25" half-height
Internal:
2 3.5" slim-height
External Ports
Enhanced parallel (ECP/EPP):
1 D-type female 25-pin
High-speed 16550-compatible serial:
1 D-type male 9-pin
Universal Serial Bus (USB):
2 USB ports
VGA graphics:
1 D-type female 15-pin
Ethernet:
1 10Base-T/100Base-TX
Keyboard:
1 PS/2-compatible 6-pin mini-DIN
Mouse:
1 PS/2-compatible 6-pin mini-DIN
Audio:
2 jacks (line in/stereo out)
1 microphone
1 headphone connection
Te c h n i c a l S p e c i f i c a t i o n s
7-DIG-JAN-02 5100 CG
3.5" 1.44MB
Power Supply
CD-ROM Drive
5.25" 24x max. EIDE (select models)
Low-profile: 100 watts
Short-tower: 200 watts
Operating voltage: 110/220V switch-selectable
Audio Features
Sound Blaster® Pro-compatible
Full-duplex stereo
Headphones in/microphone in on front
Line in/speaker out on rear
Networking Features
Integrated 32-bit PCI DIGITAL 21143 Ethernet chip
10Base-T/100Base-TX standard
Autosensing capability
Dimensions
Low-profile
Height:
Width:
Depth:
Weight:
Short-tower
Height:
Width:
Depth:
Weight:
4.2"
16.5"
17.75"
31.2 lb
105.7mm
419.1mm
450.8mm
14.1kg
16.0"
8.5"
17.5"
33.6 lb
406.4mm
215.9mm
444.5mm
15.2kg
A • 21
7-DIG-JAN-02 5100 CG
12/4/97 10:27 AM
Page 22
Te c h n i c a l S p e c i f i c a t i o n s
D I G I TA L P C 5 1 0 0
Multilevel Security and Manageability
SecureON for secure remote system wake-up
SecureBIOS for firmware tampering prevention
SecureBOX for system box tampering detection
Built-in BIOS password protection
User and supervisor passwords
Diskette drive write control
Flash ROM write protection
Diskette drive boot control
SMART IDE disk support for Windows® 95 with user applet and status indicator
as part of ClientWORKS™
Security hasp
Preemptive Fault Management
Automatic remote and local alarming on all SMART devices supported via both
remote DMI and local applications: SMART IDE drives (Windows 95), thermal
sensors, voltage sensors
Regulatory Certifications
FCC-B, CISPR-22 (class B), UL, PTT, VCCI-2, CSA, TUV-GS, CE Mark (Europe),
Korean EMI, N-Mark (NEMKO), D-Mark (DEMKO), S-Mark (SEMKO), FIMKO
(SETI), CB (European), AS/NZS 3548
Software Preinstalled
Windows 95 or Windows NT® 4.0
DIGITAL™ ClientWORKS (Desktop Management Interface [DMI] manageability
software) with SMART applet (see Section C)
Alta Vista Search My Computer pX
System Readme
On-line documentation
Power management
Adobe® Acrobat™ Reader
Microsoft® Internet Explorer
AMI Diagnostics (DOS-based)
Power panel for Windows NT
PC Care Diagnostics for Windows 95
Desktop Wellness
Z.A.K. (on backup CD)
Certified Operating Systems
Windows 95, Windows NT Workstation,
Novell® NetWare® 386 3.12 and 4.1 (client only)
Other Standard Features
Color-coded I/O ports
Integrated disk controller with Ultra DMA/33 capability
Bus Master EIDE support for Mode 3 and 4 EIDE drives
Slide-in, slide-out MLB
Single-thumbscrew enclosure (low-profile)
Three-thumbscrew enclosure (short-tower)
Front reset button
Intel 430TX PCI chip set
Keyboard
Mouse
SMART interface disk support
Other Specifications
Front panel indicators:
Power, hard disk drive, diskette drive
Front panel switches:
Power, reset
Operating temperature: 10°C to 40°C
Storage temperature: -40° to 66°C
Operating humidity: 20% to 80%
Storage humidity: 10% to 95%
Warranty
Three-year limited warranty
A • 22
12/4/97 10:27 AM
Page 23
A
D I G I TA L P C 5 1 0 0
Configurations
Options
All configurations include:
3.5" 1.44MB diskette drive, 512KB pipeline-burst
write-back cache, integrated S3™ ViRGE/GX 2-D/3-D
graphics controller, integrated audio, integrated
10Base-T/100Base-TX networking
System Memory
DIGITAL™ PC 5100 low-profile
166MHz Pentium processor with MMX technology,...................FR-DAA04-AC
32MB SDRAM, 2GB Ultra DMA hard disk drive,
Windows® 95 preinstalled
166MHz Pentium processor with MMX technology, .....................FR-DAB04-AC
32MB SDRAM, 2GB Ultra DMA hard disk drive,
Windows NT® 4.0 preinstalled
Model 1, 200MHz Pentium processor with ..................................FR-DA004-AS
MMX technology, 32MB SDRAM, no hard disk drive
200MHz Pentium processor with MMX technology, .....................FR-DAA04-AE
32MB SDRAM, 2GB Ultra DMA hard disk drive,
24x max. CD-ROM drive, Windows 95 preinstalled
200MHz Pentium processor with MMX technology, .....................FR-DAB04-AE
32MB SDRAM, 2GB Ultra DMA hard disk drive,
24x max. CD-ROM drive, Windows NT 4.0 preinstalled
200MHz Pentium processor with MMX technology, .....................FR-DAB04-CA
32MB SDRAM, 3.2GB Ultra DMA hard disk drive,
Windows NT 4.0 preinstalled
Model 1, 233MHz Pentium processor with ..................................FR-DA004-AV
MMX technology, 32MB SDRAM, no hard disk drive
233MHz Pentium processor with MMX technology, .....................FR-DAA04-AJ
32MB SDRAM, 3.2GB Ultra DMA hard disk drive,
Windows 95 preinstalled
233MHz Pentium processor with MMX technology, .....................FR-DAB04-AH
32MB SDRAM, 3.2GB Ultra DMA hard disk drive,
Windows NT 4.0 preinstalled
®
16MB SDRAM single-bank DIMM upgrade kit .............................FR-PCCAM-EB
32MB SDRAM dual-bank DIMM upgrade kit ................................FR-PCCAM-EC
64MB SDRAM single-bank DIMM upgrade kit .............................FR-PCCAM-ED
128MB SDRAM dual-bank DIMM upgrade kit ..............................FR-PCCAM-EE
Graphics Options and Upgrades
2MB SGRAM upgrade for S3 ViRGE/GX .......................................FR-PCCAM-EG
Matrox MGA Millennium II graphics accelerator ...........................FR-PCXAG-BD
4MB WRAM upgrade for Matrox MGA Millennium II....................FR-PCCAM-CC
Storage Devices
3.5" 1.44MB diskette drive.............................................................FR-PCXRJ-AD
2GB Ultra DMA EIDE hard disk drive.............................................FR-PCXRA-AR
3.2GB Ultra DMA EIDE hard disk drive..........................................FR-PCXRA-AS
4GB Ultra DMA EIDE hard disk drive.............................................FR-PCXRA-AT
6.4GB Ultra DMA EIDE hard disk drive..........................................FR-PCXRA-AU
2GB Ultra-Wide SCSI hard disk drive ............................................FR-CDCAA-BA
4GB Ultra-Wide SCSI hard disk drive ............................................FR-PCXRE-BA
4/8GB internal ATAPI tape drive ....................................................FR-PCXAT-DB
24x max. EIDE CD-ROM drive, 5.25" ............................................FR-PCXRN-AM
Par t Numbers
7-DIG-JAN-02 5100 CG
Network Interface Cards
Ethernet PCI 10Mbps ....................................................................FR-DE450-CA
Ethernet PCI 10/100Mbps .............................................................FR-DE500-AA
Multimedia
24x CD-ROM drive, Creative Labs multimedia kit ........................FR-PCXBJ-DP
(includes Plug and Play sound card, headset with
microphone, audio cable, installation disk)
Speaker kit –10 watt.......................................................................FR-PCXJA-AH
Headset with microphone...............................................................FR-PCXJF-AC
SCSI Adapter
Adaptec 2940UW PCI/SCSI Ultra-Wide adapter............................FR-PCTAZ-DE
Monitors
DIGITAL PC 5100 short-tower
166MHz Pentium processor with MMX technology,.....................FR-DAA04-AH
16MB SDRAM, 2GB Ultra DMA hard disk drive,
24x max.CD-ROM drive, Windows 95 preinstalled
166MHz Pentium processor with MMX technology,.....................FR-DAA04-AD
32MB SDRAM, 3.2GB Ultra DMA hard disk drive,
24x max. CD-ROM drive, Windows 95 preinstalled
166MHz Pentium processor with MMX technology, .....................FR-DAB04-AD
32MB SDRAM, 3.2GB Ultra DMA hard disk drive,
24x max. CD-ROM drive, Windows NT 4.0 preinstalled
200MHz Pentium processor with MMX technology, .....................FR-DAA04-AF
32MB SDRAM, 3.2GB Ultra DMA hard disk drive,
24x max. CD-ROM drive, Windows 95 preinstalled
200MHz Pentium processor with MMX technology, .....................FR-DAB04-AF
32MB SDRAM, 3.2GB Ultra DMA hard disk drive,
24x max. CD-ROM drive, Windows NT 4.0 preinstalled
Model 1, 233MHz Pentium processor with ..................................FR-DA004-AW
MMX technology, 32MB SDRAM, no hard disk drive
233MHz Pentium processor with MMX technology, .....................FR-DAA04-AK
32MB SDRAM, 3.2GB Ultra DMA hard disk drive,
24x max. CD-ROM drive, Windows 95 preinstalled
233MHz Pentium processor with MMX technology, .....................FR-DAB04-AJ
32MB SDRAM, 3.2GB Ultra DMA hard disk drive,
24x max. CD-ROM drive, Windows NT 4.0 preinstalled
233MHz Pentium processor with MMX technology, .....................FR-DAB04-CB
32MB SDRAM, 4.3GB Ultra DMA hard disk drive,
24x max. CD-ROM drive, Windows NT 4.0 preinstalled
DIGITAL PC 5000 Series PCs support all DIGITAL
monitors. Refer to the Monitors section for part numbers
Keyboard
Windows 95 keyboard....................................................................FR-PCXLA-NA
Mice
Logitech PS/2-style, two-button mouse.........................................FR-PCXLN-AB
Logitech PS/2-style, three-button mouse ......................................FR-PCXLN-AD
Modem
56Kbps internal data/fax modem ...................................................FR-PCXFA-AA
For updated information refer to www.windows.digital.com
A • 23
7-DIG-JAN-02 5100 CG
12/4/97 10:27 AM
Page 24
Perspectives
D I G I TA L P C 5 1 0 0
Low-profile Enclosure
Power
On/Off Switch
Microphone
Jack
Power
Indicator
Headphone
Jack
3.5" 1.44MB Diskette
Drive (standard)
Reset
Button
CD-ROM Drive
(select models)
Hard Drive
Indicator
Front-accessible
5.25" Storage Bays
Diskette Eject
Button
CD-ROM Eject
Button
Front View
Expansion Board
Slots
AC Power
Input
Voltage
Selector
Enhanced Parallel
Port
Line In
Keyboard
Port
Speaker Out
Back View
A • 24
Mouse
Port
Thumbscrew
10Base-T/100Base-TX
Autosense
USB
Ports
Graphics
Port
Security
Hasp
Serial
Port
7-DIG-JAN-02 5100 CG
12/4/97 10:27 AM
Page 25
A
Perspectives
D I G I TA L P C 5 1 0 0
Low-profile Enclosure
Internal Hard Disk Drive
CD-ROM Drive
(select models)
1 PCI Slot
1 ISA Slot
1 PCI/ISA Slot
3.5" 1.44MB
Diskette Drive
Three DIMM
Sockets
Slide-in/Slide-out
Motherboard
Pentium® Processor
with ZIF Socket 7
Internal View
(with case removed)
A • 25
7-DIG-JAN-02 5100 CG
12/4/97 10:27 AM
Page 26
Perspectives
D I G I TA L P C 5 1 0 0
Short-tower Enclosure
Power Button
Indicator Lights
Reset Button
Headphone/Microphone
Jacks (on side)
3.5" 1.44MB
Diskette Drive (standard)
CD-ROM Drive
(select models)
Front-accessible
5.25" Storage Bays
Front View
Thumbscrews
Serial Port
Audio Jacks
Graphics Port
Two USB Ports
Mouse Port
Keyboard Port
Voltage Select
Switch
10Base-T/100Base-TX Autosense
AC Power
Input
Enhanced Parallel Port
Thumbscrew
Expansion Board Slots
Security Hasp
Back View
A • 26
7-DIG-JAN-02 5100 CG
12/4/97 10:27 AM
Page 27
A
Perspectives
D I G I TA L P C 5 1 0 0
Short-tower Enclosure
Slide-in/Slide-out
Motherboard
Three 168-Pin
DIMM Sockets
Pentium® Processor
with ZIF Socket 7
3.5" 1.44MB
Diskette Drive
200W Power Supply
CD-ROM Drive
(select models)
Swing-out
Hard Disk Drive
Bracket
Additional
5.25" External
Drive Bays
Two 3.5" Internal
Storage Bays
PCI and ISA Slots
Internal Side View
(with motherboard pulled out)
A • 27
7-DIG-JAN-02 5100 CG
12/4/97 10:27 AM
Page 28
Memory Configurations
D I G I TA L P C 5 1 0 0
A • 28
DIGITAL ™ PC 5100
Memory Configurations
Total
Memory
Socket J7
Dual-Bank
Socket J6
Dual-Bank
Socket J5
Single-Bank
16MB
16MB
32MB
32MB
16MB
32MB
16MB
48MB
48MB
48MB
16MB
16MB
32MB
16MB
32MB
16MB
16MB
64MB
64MB
16MB
32MB
32MB
16MB
16MB
16MB
64MB
64MB
80MB
32MB
64MB
16MB
32MB
80MB
80MB
96MB
96MB
128MB
128MB
144MB
144MB
160MB
160MB
192MB
192MB
256MB
32MB
64MB
32MB
64MB
64MB
128MB
16MB
128MB
32MB
128MB
64MB
128MB
128MB
32MB
16MB
64MB
32MB
64MB
64MB
16MB
128MB
16MB
128MB
32MB
128MB
64MB
128MB
Notes:
1. Base models include 16MB or 32MB DIMM standard.
2. Install 168-pin DIMMs using 66MHz (or faster) 64-bit SDRAMs.
(Note: Install DIMMs supplied by Digital Equipment Corporation and qualified vendors.
DIGITAL does not support system performance, product warranty, or service calls resulting
from installation of non-qualified DIMMs.)
3. Single-bank DIMMs are available in 16MB and 64MB modules. Single-bank DIMMs have
memory chips on only one side of the memory module.
4. Dual-bank DIMMs are available in 32MB and 128MB (based on industry availability) modules.
Dual-bank DIMMs have memory chips on both sides of the memory module.
5. Memory Sockets J7 and J6 support both single- and dual-bank DIMMs.
Memory Socket J5 supports only single-bank DIMMs.
Download PDF

advertising
