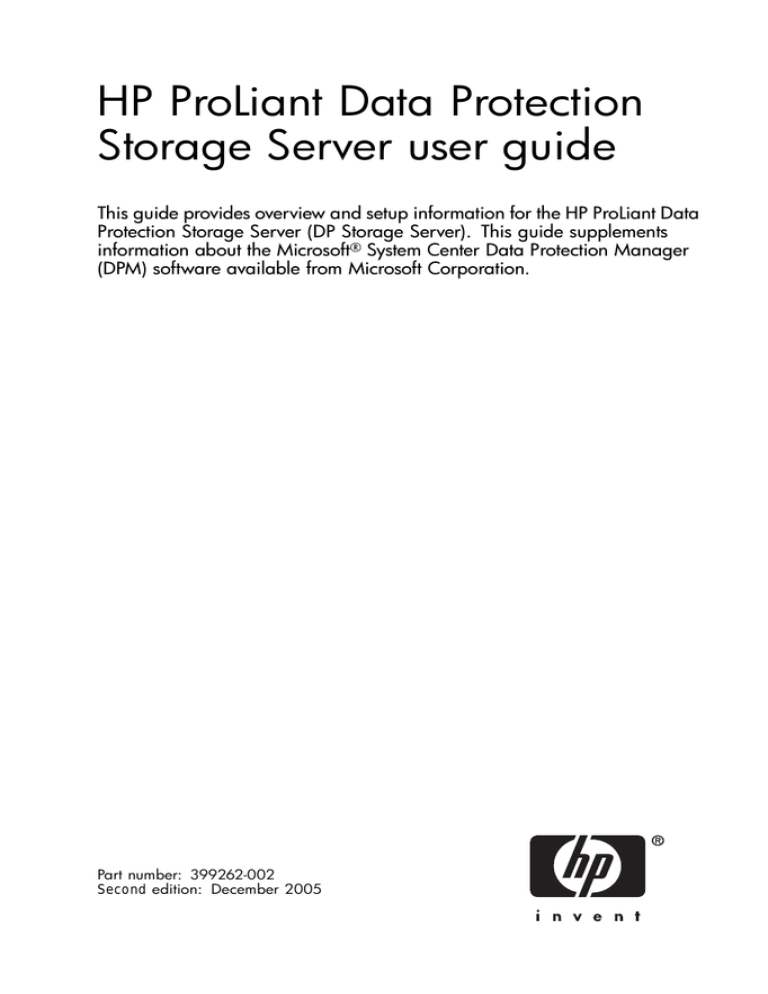

HP ProLiant Data Protection
Storage Server user guide
This guide provides overview and setup information for the HP ProLiant Data
Protection Storage Server (DP Storage Server). This guide supplements
information about the Microsoft® System Center Data Protection Manager
(DPM) software available from Microsoft Corporation.
Part number: 399262-002
Second edition: December 2005
Legal and notice information
© Copyright 2005 Hewlett-Packard Development Company, L.P.
Hewlett-Packard Company makes no warranty of any kind with regard to this material,
including, but not limited to, the implied warranties of merchantability and fitness for a
particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for
incidental or consequential damages in connection with the furnishing, performance, or
use of this material.
This document contains proprietary information, which is protected by copyright. No part
of this document may be photocopied, reproduced, or translated into another language
without the prior written consent of Hewlett-Packard. The information contained in this
document is subject to change without notice. The only warranties for HP products and
services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP
shall not be liable for technical or editorial errors or omissions contained herein.
Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions
contained herein. The information is provided “as is” without warranty of any kind and is
subject to change without notice. The warranties for Hewlett-Packard Company products
are set forth in the express limited warranty statements for such products. Nothing herein
should be construed as constituting an additional warranty.
Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation.
HP ProLiant Data Protection Storage Server user guide
Contents
About this guide . . . . . . . . . . . . .
Intended audience . . . . . . .
Related documentation . . . . . .
Document conventions and symbols
Document conventions . . . .
Text symbols . . . . . . . .
Equipment symbols . . . . .
Getting help . . . . . . . . . .
HP technical support . . . .
HP hardware support services
HP authorized reseller . . . .
Helpful web sites . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
9
.
.
.
.
.
.
.
.
.
.
.
. . 9
. . 9
.
10
.
10
.
11
.
12
.
13
.
13
.
14
.
14
.
14
1 Overview . . . . . . . . . . . . . . .
17
What is DP Storage Server? . . . . . . .
Use scenarios . . . . . . . . . . . . .
DPM end-user recovery option . . . . . .
Licenses and upgrades . . . . . . . . . .
Registering your DP Storage Server . .
Expanding DP Storage Server to support
.
.
.
.
.
.
.
.
.
.
.
. . . . . . . . . .
. . . . . . . . . .
. . . . . . . . . .
. . . . . . . . . .
. . . . . . . . . .
additional file servers
2 DP Storage Server startup . . . . . . . .
Administer the DP Storage Server . . . . . . . . . . . . . .
Using the Remote Desktop Connection method . . . . . .
Using the Direct Attach method . . . . . . . . . . . . .
Using the Integrated Lights-Out (iLO) method (ML310 G3 and
DL380 D4) . . . . . . . . . . . . . . . . . . . . .
Install the Windows Multilingual User Interface (MUI) (optional) .
Prepare the DP Storage Server for DPM installation . . . . . . .
Run the DPM mini-setup . . . . . . . . . . . . . . . . . .
Complete additional setup (optional) . . . . . . . . . . . . .
Change default storage configurations (optional) . . . . . . . .
3 Default storage configurations . . . . . .
.
.
.
.
.
.
.
.
.
Storage for DL100 G2 DP Storage Servers . . . . . . . . . . .
HP ProLiant Data Protection Storage Server user guide
17
18
20
20
20
21
23
23
23
24
25
25
26
27
30
31
33
33
3
Physical configurations . . . . . .
Four-HDD configurations . . .
Two-HDD configurations . . . .
Storage for ML310 G3 DP Storage Servers
Physical configuration . . . . . . .
Storage for DL380 G4 DP Storage Servers
Physical configurations . . . . . .
Default boot sequence . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
A Regulatory compliance and safety . . . .
Federal Communications Commission notice . . . . . .
Class A equipment . . . . . . . . . . . . . . .
Class B equipment . . . . . . . . . . . . . . .
Declaration of conformity for products marked with the
United States only . . . . . . . . . . . . . . .
Modifications . . . . . . . . . . . . . . . . .
Cables . . . . . . . . . . . . . . . . . . . .
Laser compliance . . . . . . . . . . . . . . . . . .
International notices and statements . . . . . . . . . .
Canadian notice (Avis Canadien) . . . . . . . . .
Class A equipment . . . . . . . . . . . . .
Class B equipment . . . . . . . . . . . . .
European Union notice . . . . . . . . . . . . .
BSMI notice . . . . . . . . . . . . . . . . . .
Japanese notice . . . . . . . . . . . . . . . .
Korean notice (A&B) . . . . . . . . . . . . . .
Safety . . . . . . . . . . . . . . . . . . . . . . .
Battery Replacement notice . . . . . . . . . . . .
Taiwan Battery Recycling Notice . . . . . . .
Power cords . . . . . . . . . . . . . . . . . .
Japanese Power Cord notice . . . . . . . . . . .
Electrostatic discharge . . . . . . . . . . . . . .
Preventing electrostatic discharge . . . . . . .
Grounding methods . . . . . . . . . . . .
Waste Electrical and Electronic Equipment directive . . .
Czechoslovakian notice . . . . . . . . . . . . .
Danish notice . . . . . . . . . . . . . . . . .
Dutch notice . . . . . . . . . . . . . . . . . .
English notice . . . . . . . . . . . . . . . . .
Estonian notice . . . . . . . . . . . . . . . . .
Finnish notice . . . . . . . . . . . . . . . . .
French notice . . . . . . . . . . . . . . . . .
German notice . . . . . . . . . . . . . . . . .
Greek notice . . . . . . . . . . . . . . . . . .
Hungarian notice . . . . . . . . . . . . . . . .
Italian notice . . . . . . . . . . . . . . . . . .
4
. .
. .
. .
FCC
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
.
.
.
.
.
.
.
.
34
34
35
37
39
38
39
40
43
. .
43
. .
43
. .
46
logo,
. .
44
. .
45
. .
45
. .
45
. .
46
. .
46
. .
46
. .
46
. .
46
. .
47
. .
47
. .
47
. .
48
. .
48
. .
48
. .
49
. .
49
. .
49
. .
50
. .
50
. .
51
. .
51
. .
51
. .
51
. .
52
. .
52
. .
53
. .
53
. .
53
. .
54
. .
54
. .
55
Latvian notice .
Lithuanian notice
Polish notice . .
Portuguese notice
Slovakian notice
Slovenian notice
Spanish notice .
Swedish notice .
Index
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. . . . . . . . . . . . . . . . .
HP ProLiant Data Protection Storage Server user guide
.
.
.
.
.
.
.
.
55
56
56
56
57
57
58
58
59
5
Figures
1 Small-to-medium business environment . . . . . . . . . . . .
2 Centralized branch office environment . . . . . . . . . . . .
6
19
20
Tables
1 Document conventions . . . . . . . . . . . . . . . . . . .
11
2 Configuration worksheet . . . . . . . . . . . . . . . . . .
27
3 DL100 G2 1TB DP Storage Server (four-HDD) internal drive
configurations . . . . . . . . . . . . . . . . . . . . . . .
34
4 DL100 G2 3TB and 6TB DP Storage Server (two-HDD) internal drive
configurations . . . . . . . . . . . . . . . . . . . . . . .
35
5 DL100 G2 3TB DP Storage Server (two-HDD) 1–MSA20 drive
configurations . . . . . . . . . . . . . . . . . . . . . . .
36
6 DL100 G2 6TB DP Storage Server (two-HDD) 2–MSA20 drive
configurations . . . . . . . . . . . . . . . . . . . . . . .
37
7 ML310 G3 1TB DP Storage Server internal drive configuration .
38
8 DL380 G4 9TB DP Storage Server internal drive configurations .
39
9 DL380 G4 DP Storage Server 9TB two–MSA30 configurations . .
40
HP ProLiant Data Protection Storage Server user guide
7
8
About this guide
This guide provides overview and startup information for the following HP
ProLiant Data Protection Storage Server (DP Storage Server) models:
•
•
•
•
•
HP
HP
HP
HP
HP
ProLiant
ProLiant
ProLiant
ProLiant
ProLiant
DL100 G2 1TB Data Protection Storage Server
DL100 G2 3TB Data Protection Storage Server
DL100 G2 6TB Data Protection Storage Server
ML310 G3 1TB Data Protection Storage Server
DL380 G4 9TB Data Protection Storage Server
In addition to being printed and included in your product kit, this guide
is also provided as a printable document (PDF) on the HP ProLiant Data
Protection Manager Storage Server documentation CD.
IMPORTANT:
This guide supplements information about Microsoft® System Center
Data Protection Manager (DPM) software, which is preinstalled on your
DP Storage Server. To access the DPM home page, go to the Microsoft
web site at http://www.microsoft.com and search for Microsoft Data
Protection Manager.
Intended audience
This book is intended for use by technical professionals who are
experienced with the following:
• Microsoft administrative procedures
• System and storage configurations
Related documentation
In addition to this guide, HP provides the following additional information
related to this product:
• HP ProLiant DL100 G2 Data Protection Storage Server installation
instructions
• HP ProLiant ML310 G3 Data Protection Storage Server installation
instructions
HP ProLiant Data Protection Storage Server user guide
9
• HP ProLiant DL380 G4 Data Protection Storage Server installation
instructions
• HP ProLiant Data Protection Storage Server expansion guide
• HP ProLiant Storage Server user guide
• HP ProLiant Storage Server administration guide
• HP ProLiant Storage Server release notes
User documentation for the DPM software can be accessed at the Microsoft
web site at: http://www.microsoft.com. Search for Microsoft Data
Protection Manager. DPM documentation includes the following:
• DPM FAQ
• DPM Help
• DPM Planning and Deployment Guide (also shipped on the DP
Storage Server documentation CD)
• DPM Operations Guide
Document conventions and symbols
Conventions and symbols consist of the following:
• Document conventions, page 10
• Text symbols, page 11
• Equipment symbols, page 12
Document conventions
This document uses the following conventions:
10
About this guide
Table 1 Document conventions
Convention
Element
Blue text
Cross-reference links
Bold
Menu items, buttons, and key,
tab, and box names
Italics
Text emphasis and document
titles in body text
Monospace font
User input, commands, code,
file and directory names, and
system responses (output and
messages)
Monospace, italic font
Command-line and code
variables
Blue underlined text (http://
www.hp.com)
Web site addresses
Text symbols
The following symbols may be found in the text of this guide. They have
the following meanings:
WARNING!
Text set off in this manner indicates that failure to follow directions in the
warning could result in bodily harm or death.
CAUTION:
Text set off in this manner indicates that failure to follow directions could
result in damage to equipment or data.
NOTE:
Text set off in this manner presents commentary, sidelights, or interesting
points of information.
HP ProLiant Data Protection Storage Server user guide
11
Equipment symbols
The following equipment symbols may be found on hardware for which
this guide pertains.
WARNING!
Any enclosed surface or area of the equipment marked
with these symbols indicates the presence of electrical shock hazards.
Enclosed area contains no operator serviceable parts. WARNING: To
reduce the risk of personal injury from electrical shock hazards, do not
open this enclosure.
WARNING!
Any RJ-45 receptacle marked with these symbols indicates a
network interface connection. WARNING: To reduce the risk of electrical
shock, fire, or damage to the equipment, do not plug telephone or
telecommunications connectors into this receptacle.
WARNING!
Any surface or area of the equipment marked with these
symbols indicates the presence of a hot surface or hot component.
Contact with this surface could result in injury. WARNING: To reduce
the risk of personal injury from a hot component, allow the surface to
cool before touching.
WARNING!
Power supplies or systems marked with these symbols
indicate the presence of multiple sources of power. WARNING: To
reduce the risk of personal injury from electrical shock, remove all power
cords to completely disconnect power from the power supplies and
systems.
12
About this guide
WARNING!
Any product or assembly marked with these symbols
indicates that the component exceeds the recommended weight for one
individual to handle safely. WARNING: To reduce the risk of personal
injury or damage to the equipment, observe local occupational health
and safety requirements and guidelines for manually handling material.
Getting help
If you still have a question after reading this guide, contact an HP
authorized service provider or access our web site: http://www.hp.com.
NOTE:
Known issues and workarounds for the storage server products and
the service release are addressed in release notes. To view the latest
version, visit http://www.hp.com/go/support. Select See support
and troubleshooting information and enter a product name/number.
Under self-help resources, select the manuals (guides, supplements,
addendums, etc) link.
HP technical support
Telephone numbers for worldwide technical support are listed on the
following HP web site: http://www.hp.com/support. From this web site,
select the country of origin.
NOTE:
For continuous quality improvement, calls may be recorded or monitored.
Be sure to have the following information available before calling:
•
•
•
•
•
•
Technical support registration number (if applicable)
Product serial numbers
Product model names and numbers
Applicable error messages
Operating system type and revision level
Detailed, specific questions
HP ProLiant Data Protection Storage Server user guide
13
HP hardware support services
HP Instant Support Enterprise Edition (ISEE) provides proactive remote
monitoring, diagnostics, and troubleshooting to help you enhance
the availability of your servers, as well as storage and network
devices. The ISEE software is located on the storage server in the
c:\hpnas\components\ISEE folder. For more information, go
to the HP web site: http://h20219.www2.hp.com/services/cache/
10707-0-0-225-121.aspx.
HP Services provides service tools that notify you when a significant system
event has or will occur. These tools, WEBES System Event Analyzer (SEA)
and OSEM, are used both as part of the ISEE remote service offering and
as standalone tools to HP service customers. They are designed to send a
notification only when an event or series of events has occurred that require
service action. They are not intended to be real-time system state monitors
that trigger with every event. Most system components have the capability
of sending hundreds of state events during normal operation. SEA and
OSEM are designed to filter these component events and only notify
customers and/or HP Services when action needs to be taken to resolve or
prevent an outage. As designed they will not report all events. Other utilities
are available to monitor real time system state. The software is located on
the storage server in the c:\hpnas\components\ISEE\OSEM and
c:\hpnas\components\ISEE\WEBES folders.
NOTE:
This service is only available on the ML310 G3 and DL380 G4 DP
Storage Servers.
HP authorized reseller
For the name of your nearest HP authorized reseller:
• In the United States, call 1-800-282-6672
• Elsewhere, see the HP web site for locations and telephone
numbers: http://www.hp.com.
Helpful web sites
For product and third-party information, see the following web sites:
• http://www.hp.com
• http://www.hp.com/go/storage
• http://www.hp.com/support
14
About this guide
• http://www.docs.hp.com
• http://www.microsoft.com
HP ProLiant Data Protection Storage Server user guide
15
16
About this guide
1 Overview
The HP ProLiant Data Protection Storage Server (DP Storage Server) is an
HP ProLiant Storage Server preinstalled with Microsoft System Center Data
Protection Manager (DPM) software and preconfigured with optimized
storage settings to deliver a rapid, reliable disk-to-disk backup and recovery
solution. Server platforms include the HP ProLiant DL100 G2, ML310 G3,
and the DL380 G4. The DP Storage Server is offered in four configurations:
• HP ProLiant DL100 G2 1TB Data Protection Storage Server—Entry
level appliance with 1 TB of internal storage, hardware RAID, and
optional SCSI HBA for disk-to-disk tape implementation.
• HP ProLiant DL100 G2 3TB Data Protection Storage
Server—Small-to-medium data center appliance with 3 TB of
external SATA storage in a single MSA20 disk array, and optional
SCSI HBA for disk-to-disk tape implementation.
• HP ProLiant DL100 G2 6TB Data Protection Storage
Server—Medium data center appliance with 6 TB of external SATA
storage in two MSA20 disk arrays, and optional SCSI HBA for
disk-to-disk tape implementation.
• HP ProLiant ML310 G3 1TB Data Protection Storage Server—Entry
level appliance with 1 TB of internal storage, hardware RAID, and
optional SCSI HBA for disk-to-disk tape implementation.
• HP ProLiant DL380 G4 9TB Data Protection Storage Server—Data
center or enterprise level appliance with 1.2 TB of internal SCSI
storage, 8.4 TB of external SCSI in two MSA30 disk arrays, and
optional SCSI or FC HBAs for disk-to-disk tape implementation.
NOTE:
All configurations run Microsoft Windows® Storage Server 2003
operating systems.
What is DP Storage Server?
DP Storage Server is a dedicated disk-to-disk backup device that enhances
your current backup strategies by leveraging the functionality of Microsoft
System Center Data Protection Manager (DPM). DPM automatically
discovers network file servers, creates initial replications of the files on each
server, captures snapshots of byte-level changes at administrator-defined
HP ProLiant Data Protection Storage Server user guide
17
intervals, and pushes file restore/recovery functionality to network client
end-users. DP Storage Server sits between the file servers and the tape
library, and can store up to 64 file snapshots. Users can then restore these
backups without the help of an administrator.
Benefits
DP Storage Server offers the following benefits:
• Easy implementation—DP Storage Server arrives at your site
preinstalled with DPM, and preconfigured with optimized storage
settings. All you do is plug the server into your MSA and run the
DPM mini-setup to answer some environmental questions.
• Operational simplicity—DP Storage Server is intuitive and allows
users to restore files without the help of IT. To restore a file, right-click
the folder from the Microsoft dialog box or Explorer, and then use
the Properties window to restore the file from previous version.
• Fast and reliable—Disk-to-disk backup is a fast, secure, and
reliable medium. It offers near continuous data protection in much
less time than tape backups.
Use scenarios
Depending on the needs of your business, you can configure the DP
Storage Server for use in a local area network (LAN) environment or for
use across a wide-area network (WAN) environment. In both cases, the DP
Storage Server provides end-users with the ability to restore data across the
network without the intervention of a system administrator.
The following figures show two example deployment scenarios. Figure
1 shows a typical DP Storage Server deployment in a small-to-medium
business environment. In this example, the DP Storage Server (either an HP
ProLiant DL100 G2, ML310 G3, or DL380 G4) provides backup services
and snapshot capability for local, LAN-attached file servers.
18
Overview
File Servers
To Tape
MSA Array
(3TB, 6TB, and 9TB servers only)
DPS
Server
Snapshot
of file
servers
End user
restore
10693
Figure 1 Small-to-medium business environment
Figure 2 shows a typical DP Storage Server deployment in a centralized
branch office environment with file servers connected remotely through a
WAN. Note that in this scenario the DP Storage Server could physically
reside in a centralized location and take snapshots of file servers in branch
offices worldwide.
HP ProLiant Data Protection Storage Server user guide
19
File
Servers
MSA Array
(3TB, 6TB, and 9TB servers only)
WAN
End user
restore
DPS
Server
To Tape
Snapshot image
of file servers
10692
Figure 2 Centralized branch office environment
DPM end-user recovery option
The DPM end-user recovery feature allows end users to independently
recover data by retrieving shadow copies of files. To use this feature, you
must enable it on your DP Storage Server and on the end-user client PC.
For detailed instructions on enabling the end-user recovery function, please
see Microsoft DPM help.
Licenses and upgrades
This section contains information about how to register your DP Storage
Server and how to obtain licenses for additional network file servers.
Registering your DP Storage Server
IMPORTANT:
If you purchased the DP Storage Server from an HP Authorized reseller,
you need to register the product with HP within 10 days of purchase to
receive phone-in support and software update services.
Registration information is provided by the registration letter that came
with your product.
20
Overview
Expanding DP Storage Server to support additional file servers
Your DP Storage Server ships with a full copy of Microsoft System Center
Data Protection Manager (DPM) 2006, which includes licenses to back
up three network file servers. Each file server in the DPM protection group
must have a valid license.
To be licensed to back up more than three file servers, you must order an
additional Microsoft System Center Data Protection Management License
2006 (DPML) (p/n 403557–B21). Each DPML allows you to back up an
additional server. For example, to support six additional servers, order
six additional DPMLs. This would license you to support a total of nine
file servers.
You can obtain additional DPMLs from your authorized HP sales channel.
When you expand the DP Storage Server to support additional network
file servers, keep in mind the maximum amount of data that the DP
Storage Server can handle during each backup session. HP and Microsoft
recommend implementing 1.5 times the available capacity on your
disk-to-disk backup target; however this multiplier varies based on the rate
that data changes on your network. For example, if you need to protect 1
TB of data, you will require 1.5 TB available capacity on your DP Storage
Server.
NOTE:
The SATA-based DL100 G2 DP Storage Server is optimized for total
configurations of less than 7 TB. If you need to back up more than 7 TB
of file data, HP recommends either adding another DP Storage Server
to distribute the workload or upgrading to the SCSI-based DL380 9TB
DP Storage Server. SCSI-based configurations can adequately scale to
20 TB of total capacity, after which HP recommends adding another DP
Storage Server to distribute the workload.
To update the file server agent licenses in the DPM interface:
1. From the DPM 2006 main window, select Action>Update Agent.
The Update Agent License window opens.
HP ProLiant Data Protection Storage Server user guide
21
2. Change the total number of licenses.
22
Overview
2 DP Storage Server startup
Before beginning the startup procedures, verify that the DP Storage Server
is completely installed, and that all cables and cords are connected. Also,
read the supplied documentation before starting. Documents include:
• HP ProLiant DP Storage Server installation instructions (for your
model)
• HP ProLiant Storage Server administration guide
• HP ProLiant Storage Server release notes (available at:
http://www.hp.com/go/servers)
To start DP Storage Server for the first time:
• Administer the DP Storage Server, page 23
• Install the Windows Multilingual User Interface (MUI)
(optional), page 25
• Prepare the DP Storage Server for DPM installation, page 26
• Run the DPM mini-setup, page 27
• Complete additional setup (optional), page 30.
• Change default storage configurations (optional), page 31
NOTE:
The WebUI is disabled until the DPM mini-setup is complete.
Administer the DP Storage Server
Use one of the following administration methods:
• Using the Remote Desktop Connection method, page 23
• Using the Direct Attach method, page 24
• Using the Integrated Lights-Out (iLO) method, page 25
Using the Remote Desktop Connection method
DP Storage Server ships with DHCP enabled on the network port. If the
system is placed on a DHCP-enabled network and the serial number of the
HP ProLiant Data Protection Storage Server user guide
23
device is known, it can be accessed through a client PC running Remote
Desktop Connection software.
NOTE:
HP recommends that the client PC be on the same network segment
as the DP Storage Server.
1.
Connect the Ethernet cable to the network port of the DP Storage
Server and the corresponding network segment.
2. Power on the DP Storage Server and wait several minutes for the
server to be accessible on the network.
NOTE:
The DP Storage Server responds when the operating system has
started.
3. On the client PC, open Remote Desktop Connection.
4. Enter the IP address or serial number of the DP Storage Server.
NOTE:
Substitute the server name for the serial number if a server name
was previously set.
5. Enter the default user name and password to log in to the DP
Storage Server.
NOTE:
The default login is Administrator and the password is hpinvent.
Using the Direct Attach method
You can access the DP Storage Server by attaching a monitor, mouse,
and keyboard directly to the server.
1.
Connect the Ethernet cable to the network port of the DP Storage
Server and the corresponding network segment.
2. Connect the monitor, mouse, and keyboard directly to the rear
panel connectors of the DP Storage Server.
3. Power on the DP Storage Server.
24
DP Storage Server startup
4. Enter the default user name and password to log in to DP Storage
Server.
NOTE:
The default login is Administrator and the password is hpinvent.
Using the Integrated Lights-Out (iLO) method (ML310 G3
and DL380 D4)
You can access the DP Storage Server using the iLO port and a Web
browser from a client PC.
1.
Connect the Ethernet cable to the iLO port of the DP Storage
Server and corresponding network segment.
2. Power on the DP Storage Server and wait several minutes for the
iLO to be accessible on the network.
3. Open a Web browser on the client PC, and then enter the IP
address or the name of the iLO connection.
NOTE:
The default iLO name is iLO<serial number>. The default user name
is Administrator. The default password is on the tag attached to
the server.
4. Use the license key supplied with the Integrated Lights-Out
Advanced Pack to enable the advanced iLO features.
NOTE:
The Intelligent Platform Management Interface (IPMI) method (DL100 G2
only) is handled through the use of Server Management Software (SMS)
loaded on the DL100 G2. For complete information on IPMI usage,
please see the SMS help files available on the DP Storage Server.
Install the Windows Multilingual User Interface (MUI)
(optional)
The latest HP ProLiant Storage Server Service Release (SR) DVD includes
Microsoft Windows Multilingual User Interface (MUI) pack. The
Windows MUI pack is a set of language-specific resource files that
HP ProLiant Data Protection Storage Server user guide
25
can be added to the English version of Windows Server 2003. When
installed on the English version of Windows, MUI allows the language
of the operating system user interface to be changed according to the
preferences of individual users. Languages included on the SR DVD
are French, German, Italian, Spanish, Korean, simplified Chinese,
traditional Chinese, Portuguese (Brazil), Dutch, Swedish, and Japanese.
For more information about the MUI, visit the Microsoft web site:
http://www.microsoft.com/globaldev/DrIntl/faqs/MUIFaq.mspx.
To install Windows MUI:
1. Review the Windows MUI read me first document.
2. Before configuring the storage server, insert the Service Release
DVD into the DVD-ROM drive on your storage server.
The installation should begin automatically. If the setup does not
begin automatically, browse to the CD in Windows Explorer and
double-click Setup.exe.
3. On the HP storage server service release menu, select Install
Service Release X.X (where X.X is the version number) to start the
setup wizard; then, from the Features menu, select the appropriate
MUI packs and follow the instructions to install them on the
system. Do not select the service release items because they are
already installed on the storage server.
NOTE:
Installing Windows MUI localizes only the Windows operating system,
and does not localize the NAS WebUI or NAS-unique Help files.
Prepare the DP Storage Server for DPM installation
1.
Assign a host name to the server. Follow Microsoft help for
assigning a host name.
NOTE:
DP Storage Server is shipped with DHCP enabled. If you do not
want to use DHCP, enter an IP and DNS server address.
2. Join the server to the domain. Follow Microsoft help for joining
a domain.
3. (Optional) Configure additional Microsoft parameters (see Table
2).
26
DP Storage Server startup
Table 2 Configuration worksheet
Part A: To be completed for DHCP and non-DHCP configurations
Server host name:
Part B: To be completed for non-DHCP configurations only
DNS servers
IP address
1
2
3
Storage server
NIC port*
IP address
Subnet
mask
Gateway
address
NIC 1
NIC 2
* Disable all unused ports and configure each Ethernet port
(whether standard or added) to be on a separate subnet.
Part C: SNMP information (optional)
Trap destination
(IP address)
manager client:
Management
traps community
string:
System
management
community
string:
Run the DPM mini-setup
Before you begin:
• Ensure that you have the product license key from the COA card
that shipped with your DP Storage Server.
• Ensure that you assigned a host name to the server and joined
the server to the domain.
HP ProLiant Data Protection Storage Server user guide
27
1.
On the desktop, double-click the Microsoft System Center Data
Protection Manager 2006 icon.
The DPM Mini-Setup Welcome window opens.
2. Review the information and click Next.
The License Agreement window opens.
3. Click Next to accept the terms of the license agreement.
NOTE:
This licence agreement is for the DPM software, not the DP Storage
Server.
The Product Registration window opens.
4. Enter your user name, company name (required), and the product
license key, and then click Next.
NOTE:
The license product key is the HP DP Storage Server license key on
the COA card that shipped with your DP Storage Server.
The Security Settings window opens.
28
DP Storage Server startup
5. Enter a SQL Server password, and then confirm it. This password
must conform to the group security policy set up by your domain
administrator (for example, eight characters or more).
NOTE:
This is a required field.
The Summary of Settings window opens, displaying your user
name and company name.
6. Click Configure.
The configuration process begins, displaying a slider bar. When
finished, the Confirmation window opens, indicating that DPM
has been successfully configured.
7. To start DPM, select Open DPM 2006 Administrator Console
when the Mini-Setup closes. Then, click Close. DPM opens in a
few moments.
HP ProLiant Data Protection Storage Server user guide
29
IMPORTANT:
When DPM 2006 opens, a help window is displayed. Use the help
information to complete the following configuration tasks:
• Configure the server.
• Install disk agents.
• Create a Protection Group.
Complete additional setup (optional)
Some computing environments require additional settings and
configuration, as noted below. Most of these tasks can be completed
using Microsoft capabilities and procedures. Procedures for the DPM
configuration tasks can be found in the Microsoft DPM Planning and
Deployment Guide.
1. Adjust logging for system, application, and security events.
2. Install additional third-party software, such as backup, anti-virus,
or monitoring agents.
NOTE:
HP StorageWorks Library and Tape Tools (L&TT) installer
software is located on the DP Storage Server in the
c:\hpnas\components\tapetools folder. For more
information about this product, go to: http://www.hp.com/
support/tapetools.
3. Create and verify a full server system backup before putting the
system into production.
NOTE:
HP highly recommends that you run Microsoft Windows Update
to identify, review, and install the latest, applicable, critical
security updates on the DP Storage Server. For recommendations,
instructions, and documentation to help manage software
updates, hotfix, and security patches process on the server, see
Microsoft Software Updates on HP ProLiant Storage Servers at:
http://h18006.www1.hp.com/storage/storageservers.html.
30
DP Storage Server startup
Change default storage configurations (optional)
NOTE:
This information applies only to the 3TB, 6TB, and 9TB servers.
If you are an experienced storage administrator, you can use the HP Array
Configuration Utility (ACU) to change the storage configuration of your DP
Storage Server.
CAUTION:
The DP Storage Server is preconfigured by HP for optimum storage
management. Do not attempt further array configuration unless you are
an experienced storage administrator and are familiar with storage
management tasks, such as adding disks and configuring RAID levels. If
you change the array configuration, keep the following in mind:
• When you add a disk into DPM, all previous data is deleted.
• Do not reconfigure the DON’T ERASE partition.
HP ProLiant Data Protection Storage Server user guide
31
32
DP Storage Server startup
3 Default storage
configurations
The DP Storage Server is preconfigured with optimized storage settings
and preinstalled with the operating system (OS). This chapter provides
additional details about the preconfigured storage configurations for the
following DP Storage Server platforms:
• Storage for DL100 G2 DP Storage Servers, page 33
• Storage for DL310 G3 DP Storage Servers, page 37
• Storage for DL380 G4 DP Storage Servers, page 38
Storage for DL100 G2 DP Storage Servers
Storage is preconfigured for each of the HP ProLiant DL100 G2 DP Storage
Server models:
• DL100 G2 1TB DP Storage Server (preconfigured for internal
storage)
• DL100 G2 3TB DP Storage Server (preconfigured for single
MSA20 storage array)
• DL100 G2 6TB DP Storage Server (preconfigured for two MSA20
storage arrays)
The 1TB model is configured prior to shipment from the factory. No
additional storage configuration is needed. The 1TB model can be
reconfigured using the Adaptec Array Storage Manager (ASM) utility.
The Adaptec ASM user guide is available for download at the following
Adaptec web site: http://download.adaptec.com/pdfs/user_guides/
aar2410Sa_iug.pdf
The 3TB and 6TB models are configured prior to shipment from the factory.
No additional storage configuration is needed. The 3TB and 6TB models
can be reconfigured using the HP Array Configuration Utility (ACU). The
ACU user guide is available for download at the following HP web site:
http://h200002.www2.hp.com/bc/docs/support/SupportManual/
c00294139/c00294139.pdf .
HP ProLiant Data Protection Storage Server user guide
33
Physical configurations
Depending on the model, each DL100 G2 DP Storage Server comes with
either two or four Serial Advanced Technology Attachment (SATA) hard disk
drives (HDDs) and /or an additional external MSA20 storage enclosure:
DL100 G2 model
Internal HDD
External HDD
1TB
4
0
3TB
2
12 (in one MSA20)
6TB
2
24 (in two MSA20)
The following sections describe how these HDDs are configured for each
DP Storage Server based on whether two or four HDDs are installed.
Four-HDD configurations
The four HDDs included with the DL100 G2 DP Storage Server (1TB model)
are configured for hardware RAID fault tolerance using the Adaptec RAID
controller. The HDDs are hot-pluggable and hot-swappable. The drives
can be removed and installed with the power on; the Adaptec controller
determines whether a rebuild of a drive is necessary.
The DL100 G2 DP Storage Server (four-HDD) uses Microsoft Disk Manager
(DM) for managing the logical drives presented to the file system. The
DL100 G2 DP Storage Server (four-HDD) uses all three logical drives as
presented to it from the physical storage layer. The first two logical drives
are used for housing the OS and DON’T ERASE basic partitions. The
third logical drive houses the data volume to be added into the DPM
administration console on a basic partition.
Table 3 DL100 G2 1TB DP Storage Server (four-HDD) internal
drive configurations
Logical
drive
34
RAID level
Size/allocation
Purpose
1
RAID 5
12 GB across physical drives
0, 1, 2, 3.
OS
2
RAID 5
5 GB across physical drives
0, 1, 2, 3.
DON’T
ERASE
3
RAID 5
Remaining space across all
physical drives.
Data
Default storage configurations
NOTE:
In Adaptec Storage Manager (ASM), logical drives are labeled 1, 2,
and so on. In Microsoft Disk Manager, logical drives are displayed as
0, 1, and so on.
NOTE:
The DON’T ERASE logical drive supports the Quick Restore process
only and does not host the secondary operating system. If you need to
perform a Quick Restore of your server, see the Quick Restore instructions
on the Quick Restore DVD. Be sure to back up your user data, and then
use the Quick Restore DVD to restore the server to the factory default state.
Two-HDD configurations
Internal storage drives
The two HDDs included with the DL100 G2 DP Storage Server (3TB
and 6TB models) are configured for software RAID fault tolerance using
the motherboard SATA controller. The HDDs are hot-pluggable, but not
hot-swappable. The drives can be removed or inserted while the power is
on, but user intervention is needed to rebuild the logical drives.
The DL100 G2 DP Storage Server (two-HDD) uses Microsoft Disk Manager
(DM) to present the 160 GB HDDs to the system as dynamic disks. The
server uses two logical drives as presented to it from the physical storage
layer for the primary and secondary OS basic partitions. Additional
internal disk space is available but cannot be allocated to DPM due to
residing on the same physical disks as the OS.
Table 4 DL100 G2 3TB and 6TB DP Storage Server (two-HDD)
internal drive configurations
Logical
drive
RAID level
Size/allocation
Purpose
1
RAID 1
12 GB across physical drives
0,1.
Primary OS
2
RAID 1
12 GB across physical drives
0,1.
Secondary
OS
HP ProLiant Data Protection Storage Server user guide
35
When the primary OS has a failure, such as system files becoming
corrupted, registry corrupted, or the system hangs during boot, the
system should be run from the secondary OS. To run the system from the
secondary OS:
1. Power down the unit.
2. Connect a monitor, keyboard, and mouse directly to the rear of the
unit.
3. Power on the unit.
4. During boot up, select to use the secondary partition.
Be sure to back up your user data, and then use the Quick Restore DVD
to restore the server to the factory default state as soon as conveniently
possible.
External storage drives
The MSA20 drives for the DL100 G2 3TB and 6TB are configured for
hardware RAID fault tolerance using the HP Smart Array 6402 RAID
Controller. The HDDs are hot-pluggable and hot-swappable.
The logical drives are configured as RAID 5 volumes, and partitioned with
two RAID 5 logical partitions. A total of two or four RAID 5 backup data
partitions are available for the DPM software, depending on the model.
Table 5 DL100 G2 3TB DP Storage Server (two-HDD) 1–MSA20
drive configurations
Logical
drive
RAID level
Size/allocation
Purpose
Array A
1
RAID 5
2 TB across the array.
Backup
data
2
RAID 5
Remaining space across the
array.
Backup
data
1
1For each array, one hot spare drive is available.
36
Default storage configurations
Table 6 DL100 G2 6TB DP Storage Server (two-HDD) 2–MSA20
drive configurations
Logical
drive
RAID level
Size/allocation
Purpose
Array A
1
RAID 5
2 TB across the array.
Backup
data
2
RAID 5
Remaining space across the
array.
Backup
data
1
RAID 5
2 TB across the array.
Backup
data
2
RAID 5
Remaining space across the
array.
Backup
data
Array B
1
1For each array, one hot spare drive is available.
Storage for ML310 G3 DP Storage Servers
Storage is preconfigured for the ML310 G3 1TB DP Storage Server prior to
shipment from the factory. No additional storage configuration is needed.
The 1TB model can be reconfigured using the HP Storage Manager utility.
Physical configuration
The four hard drives included with the ML310 G3 DP Storage Server
are configured for hardware RAID fault tolerance using the RAID Array
HP 6-Port SATA RAID Controller. The HDDs are hot-pluggable and
hot-swappable. The drives can be removed and installed with the power
on. The controller determines whether a rebuild of the drive is necessary.
The ML310 G3 DP Storage Server uses Microsoft Disk Manager (DM) for
managing the logical drives presented to the file system. The DP Storage
Server uses all three logical partitions as presented to it from the physical
storage layer. The first two logical drives are used for housing the OS
and DON’T ERASE basic partitions. The third logical drive houses the
data volume to be added into the DPM administrative console on a basic
partition.
HP ProLiant Data Protection Storage Server user guide
37
Table 7 ML310 G3 1TB DP Storage Server internal drive
configuration
Logical
drive
RAID level
Size/allocation
Purpose
1
RAID 5
12 GB across physical drives
0,1, 2, 3.
OS
2
RAID 5
5 GB across physical drives
0,1, 2, 3.
DON’T
ERASE
3
RAID 5
Remaining space across the
array.
Backup
data
NOTE:
With HP Storage Manager, logical disks are labeled 1, 2, and so
on. In Disk Manager, logical disks are displayed as 0, 1, and so
on. Information about HP Storage Manager can be obtained from
http://h200005.www2.hp.com/bc/docs/support/SupportManual/
c00405440/c00405440.pdf.
NOTE:
The DON’T ERASE logical drive supports the Quick Restore process
only and does not host the secondary operating system. If you need to
perform a Quick Restore of your server, see the Quick Restore instructions
inside the Quick Restore DVD. Be sure to back up your user data, and
then use the Quick Restore DVD to restore the server to the factory
default state.
Storage for DL380 G4 DP Storage Servers
Storage is preconfigured for the DL380 G4 9TB DP Storage Server
(preconfigured for two MSA30 storage enclosures).
The 9TB model is configured prior to shipment from the factory. No
additional storage configuration to either the internal or external drives
is needed. The 9TB model can be reconfigured using the HP Array
Configuration Utility (ACU). The ACU user guide is available for download
at the following HP web site: http://h200002.www2.hp.com/bc/docs/
support/SupportManual/c00294139/c00294139.pdf .
38
Default storage configurations
Physical configurations
Internal storage drives
The two hard drives included with the DL380 G4 DP Storage Server are
configured for hardware RAID fault tolerance using the HP Smart Array
6i RAID Controller. The HDDs are hot-pluggable and hot-swappable. The
drives are configured by default into two logical drives at the controller
level.
The DL380 G4 DP Storage Server uses Microsoft Disk Manager (DM) to
present the 36 GB HDDs to the system as basic disks. The server uses two
logical drives as presented to it from the physical storage layer for the OS
and DON’T ERASE basic partitions. The internal DL380 G4 drives are
configured in a single RAID 5 partition. The non-OS logical drives are
used by DPM and should not be configured using DM.
Table 8 DL380 G4 9TB DP Storage Server internal drive
configurations
Logical
drive
RAID level
Size/allocation
Purpose
Array A
1
RAID 1
27 GB across physical drives
0,1.
OS
2
RAID 1
7 GB across physical drives
0,1.
DON’T
ERASE
RAID 5
Remaining space across the
array.
Backup
data
Array B
1
NOTE:
In the HP ACU, logical drives are labeled 1 and 2. In Microsoft Disk
Manager, logical drives are displayed as 0 and 1.
HP ProLiant Data Protection Storage Server user guide
39
NOTE:
The DON’T ERASE logical drive supports the Quick Restore process
only and does not host the secondary operating system. If you need to
perform a Quick Restore of your server, see the Quick Restore instructions
inside the Quick Restore DVD. Be sure to back up your user data, and
then use the Quick Restore DVD to restore the server to the factory
default state.
External storage drives
The two MSA30 storage enclosures for the DL380 G4 9TB are configured
for hardware RAID fault tolerance using the HP Smart Array 6402 RAID
Controller. The HDDs are hot-pluggable and hot-swappable.
The logical drives are configured as RAID 5 volumes, and partitioned
with four RAID 5 logical partitions. A total of four RAID 5 backup data
partitions, plus one internal, are available for the DPM software.
Table 9 DL380 G4 DP Storage Server 9TB two–MSA30
configurations
Logical
drive
RAID level
Size/allocation
Purpose
Array A
1
RAID 5
2 TB across the array.
Backup
data
2
RAID 5
Remaining space across the
array.
Backup
data
1
RAID 5
2 TB across the array.
Backup
data
2
RAID 5
Remaining space across the
array.
Backup
data
Array B
1
1For each array, a hot spare is available.
Default boot sequence
The BIOS supports the following default boot sequence:
40
Default storage configurations
1. DVD-ROM.
2. HDD order as follows:
• HDD 0, 1 (for two-HDD storage servers, DL380 G4)
• HDD 0, 1, 2 (for four-HDD storage servers)
3. PXE (network boot)
Under normal circumstances, the DPS Servers boot up from the primary
OS logical drive.
• If the system experiences a drive failure, the drive displays a
amber disk failure LED.
• If a single drive failure occurs, it is transparent to the OS.
HP ProLiant Data Protection Storage Server user guide
41
42
Default storage configurations
A Regulatory compliance and
safety
Federal Communications Commission notice
Part 15 of the Federal Communications Commission (FCC) Rules and
Regulations has established Radio Frequency (RF) emission limits to provide
an interference-free radio frequency spectrum. Many electronic devices,
including computers, generate RF energy incidental to their intended
function and are, therefore, covered by these rules. These rules place
computers and related peripheral devices into two classes, A and B,
depending upon their intended installation. Class A devices are those that
may reasonably be expected to be installed in a business or commercial
environment. Class B devices are those that may reasonably be expected
to be installed in a residential environment (personal computers, for
example). The FCC requires devices in both classes to bear a label
indicating the interference potential of the device as well as additional
operating instructions for the user.
The rating label on the device shows which class (A or B) the equipment
falls into. Class B devices have an FCC logo or FCC ID on the label. Class
A devices do not have an FCC logo or FCC ID on the label. Once the class
of the device is determined, refer to the following corresponding statement.
Class A equipment
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference, in which case
the user will be required to correct the interference at personal expense.
Class B equipment
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
HP ProLiant Data Protection Storage Server user guide
43
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio or television technician
for help.
Declaration of conformity for products marked with the FCC
logo, United States only
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
For questions regarding your product, contact:
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
Or, call
1-800- 652-6672
For questions regarding this FCC declaration, contact:
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
Or, call
(281) 514-3333
To identify this product, refer to the Part, Series, or Model number found
on the product.
44
Regulatory compliance and safety
Modifications
The FCC requires the user to be notified that any changes or modifications
made to this device that are not expressly approved by Hewlett-Packard
Company may void the user's authority to operate the equipment.
Cables
Connections to this device must be made with shielded cables with metallic
RFI/EMI connector hoods in order to maintain compliance with FCC Rules
and Regulations.
Laser compliance
This product may be provided with an optical storage device (that is, CD
or DVD drive) and/or fiber optic transceiver. Each of these devices contain
a laser that is classified as a Class 1 Laser Product in accordance with
US FDA regulations and the IEC 60826–1. The product does not emit
hazardous laser radiation.
WARNING!
Use of controls or adjustments, or performance of procedures other than
those specified herein, or in the laser product’s installation guide, may
result in hazardous radiation exposure. To reduce the risk of exposure to
hazardous radiation:
• Do not try to open the module enclosure. There are no
user-serviceable components inside.
• Do not operate controls, make adjustments, or perform procedures to
the laser device, other than those specified herein.
• Allow only HP Authorized Service technicians to repair the unit.
The Center for Devices and Radiological Health (CDRH) of the U.S. Food
and Drug Administration implemented regulations for laser products on
August 2, 1976. These regulations apply to laser products manufactured
from August 1 1976. Compliance is mandatory for products marketed
in the United States.
HP ProLiant Data Protection Storage Server user guide
45
International notices and statements
Canadian notice (Avis Canadien)
Class A equipment
This Class A digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du
Règlement sur le matériel brouilleur du Canada.
Class B equipment
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du
Règlement sur le matériel brouilleur du Canada.
European Union notice
Products bearing the CE marking comply with the EMC Directive
(89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by
the Commission of the European Community and if this product has
telecommunication functionality, the R&TTE Directive (1999/5/EC).
Compliance with these directives implies conformity to the following
European Norms (in parentheses are the equivalent international standards
and regulations):
• EN 55022 (CISPR 22) - Electromagnetic Interference
• EN55024 (IEC61000-4-2, 3, 4, 5, 6, 8, 11) - Electromagnetic
Immunity
• EN61000-3-2 (IEC61000-3-2) - Power Line Harmonics
• EN61000-3-3 (IEC61000-3-3) - Power Line Flicker
• EN 60950 (IEC 60950) - Product Safety
46
Regulatory compliance and safety
BSMI notice
Japanese notice
Korean notice (A&B)
Class A equipment
HP ProLiant Data Protection Storage Server user guide
47
Class B equipment
Safety
Battery Replacement notice
WARNING!
The computer contains an internal lithium manganese dioxide, a
vanadium pentoxide, or an alkaline battery pack. A risk of fire and
burns exists if the battery pack is not properly handled. To reduce the
risk of personal injury:
• Do not attempt to recharge the battery.
• Do not expose the battery to temperatures higher than 60˚C (140˚F).
• Do not disassemble, crush, puncture, short external contacts, or
dispose of in fire or water.
Batteries, battery packs, and accumulators should not be disposed of
together with the general household waste. To forward them to recycling
or proper disposal, please use the public collection system or return them
to HP, an authorized HP Partner, or their agents.
For more information about battery replacement or proper disposal,
contact an authorized reseller or an authorized service provider.
Taiwan Battery Recycling Notice
The Taiwan EPA requires dry battery manufacturing or
importing firms in accordance with Article 15 of the Waste Disposal Act
to indicate the recovery marks on the batteries used in sales, giveaway
or promotion. Contact a qualified Taiwanese recycler for proper battery
disposal.
48
Regulatory compliance and safety
Power cords
The power cord set must meet the requirements for use in the country where
the product was purchased. If the product is to be used in another country,
purchase a power cord that is approved for use in that country.
The power cord must be rated for the product and for the voltage and
current marked on the product electrical ratings label. The voltage and
current rating of the cord should be greater than the voltage and current
rating marked on the product. In addition, the diameter of the wire must be
a minimum of 1.00 mm2 or 18 AWG, and the length of the cord must be
between 1.8 m (6 ft) and 3.6 m (12 ft). If you have questions about the
type of power cord to use, contact an HP authorized service provider.
NOTE:
Route power cords so that they will not be walked on and cannot be
pinched by items placed upon or against them. Pay particular attention
to the plug, electrical outlet, and the point where the cords exit from
the product.
Japanese Power Cord notice
Electrostatic discharge
To prevent damage to the system, be aware of the precautions you need to
follow when setting up the system or handling parts. A discharge of static
electricity from a finger or other conductor may damage system boards
or other static-sensitive devices. This type of damage may reduce the life
expectancy of the device.
To prevent electrostatic damage, observe the following precautions:
• Avoid hand contact by transporting and storing products in
static-safe containers.
• Keep electrostatic-sensitive parts in their containers until they arrive
at static-free workstations.
• Place parts on a grounded surface before removing them from
their containers.
• Avoid touching pins, leads, or circuitry.
HP ProLiant Data Protection Storage Server user guide
49
• Always be properly grounded when touching a static-sensitive
component or assembly.
Preventing electrostatic discharge
To prevent electrostatic damage, observe the following precautions:
• Avoid hand contact by transporting and storing products in
static-safe containers.
• Keep electrostatic-sensitive parts in their containers until they arrive
at static-free workstations.
• Place parts on a grounded surface before removing them from
their containers.
• Avoid touching pins, leads, or circuitry.
• Always be properly grounded when touching a static-sensitive
component or assembly.
Grounding methods
There are several methods for grounding. Use one or more of the following
methods when handling or installing electrostatic-sensitive parts:
• Use a wrist strap connected by a ground cord to a grounded
workstation or computer chassis. Wrist straps are flexible straps
with a minimum of 1 megohm ± 10 percent resistance in the
ground cords. To provide proper grounding, wear the strap snug
against the skin.
• Use heel straps, toe straps, or boot straps at standing workstations.
Wear the straps on both feet when standing on conductive floors
or dissipating floor mats.
• Use conductive field service tools.
• Use a portable field service kit with a folding static-dissipating
work mat.
If you do not have any of the suggested equipment for proper grounding,
have an authorized reseller install the part.
NOTE:
For more information on static electricity, or for assistance with product
installation, contact your authorized reseller.
50
Regulatory compliance and safety
Waste Electrical and Electronic Equipment directive
Czechoslovakian notice
Likvidace zařízení soukromými domácími uživateli v Evropské unii
Tento symbol na produktu nebo balení označuje výrobek, který
nesmí být vyhozen spolu s ostatním domácím odpadem. Povinností
uživatele je předat takto označený odpad na předem určené sběrné
místo pro recyklaci elektrických a elektronických zařízení. Okamžité
třídění a recyklace odpadu pomůže uchovat přírodní prostředí a zajistí
takový způsob recyklace, který ochrání zdraví a životní prostředí člověka.
Další informace o možnostech odevzdání odpadu k recyklaci získáte na
příslušném obecním nebo městském úřadě, od firmy zabývající se sběrem
a svozem odpadu nebo v obchodě, kde jste produkt zakoupili.
Danish notice
Bortskaffelse af affald fra husstande i den Europæiske Union
Hvis produktet eller dets emballage er forsynet med dette symbol,
angiver det, at produktet ikke må bortskaffes med andet almindeligt
husholdningsaffald. I stedet er det dit ansvar at bortskaffe kasseret
udstyr ved at aflevere det på den kommunale genbrugsstation, der
forestår genvinding af kasseret elektrisk og elektronisk udstyr. Den
centrale modtagelse og genvinding af kasseret udstyr i forbindelse med
bortskaffelsen bidrager til bevarelse af naturlige ressourcer og sikrer,
at udstyret genvindes på en måde, der beskytter både mennesker og
miljø. Yderligere oplysninger om, hvor du kan aflevere kasseret udstyr til
genvinding, kan du få hos kommunen, den lokale genbrugsstation eller i
den butik, hvor du købte produktet.
Dutch notice
Verwijdering van afgedankte apparatuur door privé-gebruikers in de
Europese Unie
HP ProLiant Data Protection Storage Server user guide
51
Dit symbool op het product of de verpakking geeft aan dat dit
product niet mag worden gedeponeerd bij het normale huishoudelijke
afval. U bent zelf verantwoordelijk voor het inleveren van uw afgedankte
apparatuur bij een inzamelingspunt voor het recyclen van oude elektrische
en elektronische apparatuur. Door uw oude apparatuur apart aan te
bieden en te recyclen, kunnen natuurlijke bronnen worden behouden
en kan het materiaal worden hergebruikt op een manier waarmee de
volksgezondheid en het milieu worden beschermd. Neem contact op met
uw gemeente, het afvalinzamelingsbedrijf of de winkel waar u het product
hebt gekocht voor meer informatie over inzamelingspunten waar u oude
apparatuur kunt aanbieden voor recycling.
English notice
Disposal of waste equipment by users in private household in the European
Union
This symbol on the product or on its packaging indicates that this
product must not be disposed of with your other household waste. Instead,
it is your responsibility to dispose of your waste equipment by handing it
over to a designated collection point for recycling of waste electrical and
electronic equipment. The separate collection and recycling of your waste
equipment at the time of disposal will help to conserve natural resources
and ensure that it is recycled in a manner that protects human health and
the environment. For more information about where you can drop off your
waste equipment for recycling, please contact your local city office, your
household waste disposal service, or the shop where you purchased the
product.
Estonian notice
Seadmete jäätmete kõrvaldamine eramajapidamistes Euroopa Liidus
See tootel või selle pakendil olev sümbol näitab, et kõnealust toodet
ei tohi koos teiste majapidamisjäätmetega kõrvaldada. Teie kohus on oma
seadmete jäätmed kõrvaldada, viies need elektri- ja elektroonikaseadmete
jäätmete ringlussevõtmiseks selleks ettenähtud kogumispunkti. Seadmete
jäätmete eraldi kogumine ja ringlussevõtmine kõrvaldamise ajal aitab
52
Regulatory compliance and safety
kaitsta loodusvarasid ning tagada, et ringlussevõtmine toimub viisil, mis
kaitseb inimeste tervist ning keskkonda. Lisateabe saamiseks selle kohta,
kuhu oma seadmete jäätmed ringlussevõtmiseks viia, võtke palun ühendust
oma kohaliku linnakantselei, majapidamisjäätmete kõrvaldamise teenistuse
või kauplusega, kust Te toote ostsite.
Finnish notice
Laitteiden hävittäminen kotitalouksissa Euroopan unionin alueella
Jos tuotteessa tai sen pakkauksessa on tämä merkki, tuotetta ei
saa hävittää kotitalousjätteiden mukana. Tällöin hävitettävä laite on
toimitettava sähkölaitteiden ja elektronisten laitteiden kierrätyspisteeseen.
Hävitettävien laitteiden erillinen käsittely ja kierrätys auttavat säästämään
luonnonvaroja ja varmistamaan, että laite kierrätetään tavalla, joka estää
terveyshaitat ja suojelee luontoa. Lisätietoja paikoista, joihin hävitettävät
laitteet voi toimittaa kierrätettäväksi, saa ottamalla yhteyttä jätehuoltoon tai
liikkeeseen, josta tuote on ostettu.
French notice
Élimination des appareils mis au rebut par les ménages dans l’Union
européenne
Le symbole apposé sur ce produit ou sur son emballage indique que
ce produit ne doit pas être jeté avec les déchets ménagers ordinaires. Il est
de votre responsabilité de mettre au rebut vos appareils en les déposant
dans les centres de collecte publique désignés pour le recyclage des
équipements électriques et électroniques. La collecte et le recyclage de vos
appareils mis au rebut indépendamment du reste des déchets contribue
à la préservation des ressources naturelles et garantit que ces appareils
seront recyclés dans le respect de la santé humaine et de l’environnement.
Pour obtenir plus d’informations sur les centres de collecte et de recyclage
des appareils mis au rebut, veuillez contacter les autorités locales de votre
région, les services de collecte des ordures ménagères ou le magasin dans
lequel vous avez acheté ce produit.
German notice
Entsorgung von Altgeräten aus privaten Haushalten in der EU
HP ProLiant Data Protection Storage Server user guide
53
Das Symbol auf dem Produkt oder seiner Verpackung weist darauf
hin, dass das Produkt nicht über den normalen Hausmüll entsorgt werden
darf. Benutzer sind verpflichtet, die Altgeräte an einer Rücknahmestelle für
Elektro- und Elektronik-Altgeräte abzugeben. Die getrennte Sammlung
und ordnungsgemäße Entsorgung Ihrer Altgeräte trägt zur Erhaltung der
natürlichen Ressourcen bei und garantiert eine Wiederverwertung, die
die Gesundheit des Menschen und die Umwelt schützt. Informationen
dazu, wo Sie Rücknahmestellen für Ihre Altgeräte finden, erhalten Sie bei
Ihrer Stadtverwaltung, den örtlichen Müllentsorgungsbetrieben oder im
Geschäft, in dem Sie das Gerät erworben haben.
Greek notice
Απόρριψη άχρηστου εξοπλισµού από χρήστες σε ιδιωτικά νοικοκυριά στην
Ευρωπαϊκή Ένωση
Το σύµβολο αυτό στο προϊόν ή τη συσκευασία του υποδεικνύει ότι το
συγκεκριµένο προϊόν δεν πρέπει να διατίθεται µαζί µε τα άλλα οικιακά σας
απορρίµµατα. Αντίθετα, είναι δική σας ευθύνη να απορρίψετε τον άχρηστο
εξοπλισµό σας παραδίδοντάς τον σε καθορισµένο σηµείο συλλογής για
την ανακύκλωση άχρηστου ηλεκτρικού και ηλεκτρονικού εξοπλισµού. Η
ξεχωριστή συλλογή και ανακύκλωση του άχρηστου εξοπλισµού σας κατά
την απόρριψη θα συµβάλει στη διατήρηση των φυσικών πόρων και θα
διασφαλίσει ότι η ανακύκλωση γίνεται µε τρόπο που προστατεύει την
ανθρώπινη υγεία και το περιβάλλον. Για περισσότερες πληροφορίες
σχετικά µε το πού µπορείτε να παραδώσετε τον άχρηστο εξοπλισµό σας
για ανακύκλωση, επικοινωνήστε µε το αρµόδιο τοπικό γραφείο, την
τοπική υπηρεσία διάθεσης οικιακών απορριµµάτων ή το κατάστηµα όπου
αγοράσατε το προϊόν.
Hungarian notice
Készülékek magánháztartásban történő selejtezése az Európai Unió
területén
A készüléken, illetve a készülék csomagolásán látható azonos
szimbólum annak jelzésére szolgál, hogy a készülék a selejtezés során
az egyéb háztartási hulladéktól eltérő módon kezelendő. A vásárló
54
Regulatory compliance and safety
a hulladékká vált készüléket köteles a kijelölt gyűjtőhelyre szállítani
az elektromos és elektronikai készülékek újrahasznosítása céljából. A
hulladékká vált készülékek selejtezéskori begyűjtése és újrahasznosítása
hozzájárul a természeti erőforrások megőrzéséhez, valamint biztosítja a
selejtezett termékek környezetre és emberi egészségre nézve biztonságos
feldolgozását. A begyűjtés pontos helyéről bővebb tájékoztatást a
lakhelye szerint illetékes önkormányzattól, az illetékes szemételtakarító
vállalattól, illetve a terméket elárusító helyen kaphat.
Italian notice
Smaltimento delle apparecchiature da parte di privati nel territorio
dell’Unione Europea
Questo simbolo presente sul prodotto o sulla sua confezione indica
che il prodotto non può essere smaltito insieme ai rifiuti domestici. È
responsabilità dell’utente smaltire le apparecchiature consegnandole
presso un punto di raccolta designato al riciclo e allo smaltimento di
apparecchiature elettriche ed elettroniche. La raccolta differenziata e il
corretto riciclo delle apparecchiature da smaltire permette di proteggere
la salute degli individui e l’ecosistema. Per ulteriori informazioni relative
ai punti di raccolta delle apparecchiature, contattare l’ente locale per lo
smaltimento dei rifiuti, oppure il negozio presso il quale è stato acquistato
il prodotto.
Latvian notice
Nolietotu iekārtu iznīcināšanas noteikumi lietotājiem Eiropas Savienības
privātajās mājsaimniecībās
Šāds simbols uz izstrādājuma vai uz tā iesaiņojuma norāda, ka
šo izstrādājumu nedrīkst izmest kopā ar citiem sadzīves atkritumiem. Jūs
atbildat par to, lai nolietotās iekārtas tiktu nodotas speciāli iekārtotos
punktos, kas paredzēti izmantoto elektrisko un elektronisko iekārtu
savākšanai otrreizējai pārstrādei. Atsevišķa nolietoto iekārtu savākšana
un otrreizējā pārstrāde palīdzēs saglabāt dabas resursus un garantēs, ka
šīs iekārtas tiks otrreizēji pārstrādātas tādā veidā, lai pasargātu vidi un
cilvēku veselību. Lai uzzinātu, kur nolietotās iekārtas var izmest otrreizējai
pārstrādei, jāvēršas savas dzīves vietas pašvaldībā, sadzīves atkritumu
savākšanas dienestā vai veikalā, kurā izstrādājums tika nopirkts.
HP ProLiant Data Protection Storage Server user guide
55
Lithuanian notice
Vartotojų iš privačių namų ūkių įrangos atliekų šalinimas Europos
Sąjungoje
Šis simbolis ant gaminio arba jo pakuotės rodo, kad šio gaminio
šalinti kartu su kitomis namų ūkio atliekomis negalima. Šalintinas įrangos
atliekas privalote pristatyti į specialią surinkimo vietą elektros ir elektroninės
įrangos atliekoms perdirbti. Atskirai surenkamos ir perdirbamos šalintinos
įrangos atliekos padės saugoti gamtinius išteklius ir užtikrinti, kad jos bus
perdirbtos tokiu būdu, kuris nekenkia žmonių sveikatai ir aplinkai. Jeigu
norite sužinoti daugiau apie tai, kur galima pristatyti perdirbtinas įrangos
atliekas, kreipkitės į savo seniūniją, namų ūkio atliekų šalinimo tarnybą
arba parduotuvę, kurioje įsigijote gaminį.
Polish notice
Pozbywanie się zużytego sprzętu przez użytkowników w prywatnych
gospodarstwach domowych w Unii Europejskiej
Ten symbol na produkcie lub jego opakowaniu oznacza, że
produktu nie wolno wyrzucać do zwykłych pojemników na śmieci.
Obowiązkiem użytkownika jest przekazanie zużytego sprzętu do
wyznaczonego punktu zbiórki w celu recyklingu odpadów powstałych ze
sprzętu elektrycznego i elektronicznego. Osobna zbiórka oraz recykling
zużytego sprzętu pomogą w ochronie zasobów naturalnych i zapewnią
ponowne wprowadzenie go do obiegu w sposób chroniący zdrowie
człowieka i środowisko. Aby uzyskać więcej informacji o tym, gdzie
można przekazać zużyty sprzęt do recyklingu, należy się skontaktować z
urzędem miasta, zakładem gospodarki odpadami lub sklepem, w którym
zakupiono produkt.
Portuguese notice
Descarte de Lixo Elétrico na Comunidade Européia
56
Regulatory compliance and safety
Este símbolo encontrado no produto ou na embalagem indica
que o produto não deve ser descartado no lixo doméstico comum. É
responsabilidade do cliente descartar o material usado (lixo elétrico),
encaminhando-o para um ponto de coleta para reciclagem. A coleta
e a reciclagem seletivas desse tipo de lixo ajudarão a conservar as
reservas naturais; sendo assim, a reciclagem será feita de uma forma
segura, protegendo o ambiente e a saúde das pessoas. Para obter mais
informações sobre locais que reciclam esse tipo de material, entre em
contato com o escritório da HP em sua cidade, com o serviço de coleta de
lixo ou com a loja em que o produto foi adquirido.
Slovakian notice
Likvidácia vyradených zariadení v domácnostiach v Európskej únii
Symbol na výrobku alebo jeho balení označuje, že daný výrobok
sa nesmie likvidovať s domovým odpadom. Povinnosťou spotrebiteľa je
odovzdať vyradené zariadenie v zbernom mieste, ktoré je určené na
recykláciu vyradených elektrických a elektronických zariadení. Separovaný
zber a recyklácia vyradených zariadení prispieva k ochrane prírodných
zdrojov a zabezpečuje, že recyklácia sa vykonáva spôsobom chrániacim
ľudské zdravie a životné prostredie. Informácie o zberných miestach na
recykláciu vyradených zariadení vám poskytne miestne zastupiteľstvo,
spoločnosť zabezpečujúca odvoz domového odpadu alebo obchod, v
ktorom ste si výrobok zakúpili.
Slovenian notice
Odstranjevanje odslužene opreme uporabnikov v zasebnih gospodinjstvih
v Evropski uniji
Ta znak na izdelku ali njegovi embalaži pomeni, da izdelka ne
smete odvreči med gospodinjske odpadke. Nasprotno, odsluženo opremo
morate predati na zbirališče, pooblaščeno za recikliranje odslužene
električne in elektronske opreme. Ločeno zbiranje in recikliranje odslužene
opreme prispeva k ohranjanju naravnih virov in zagotavlja recikliranje te
opreme na zdravju in okolju neškodljiv način. Za podrobnejše informacije
HP ProLiant Data Protection Storage Server user guide
57
o tem, kam lahko odpeljete odsluženo opremo na recikliranje, se obrnite
na pristojni organ, komunalno službo ali trgovino, kjer ste izdelek kupili.
Spanish notice
Eliminación de residuos de equipos eléctricos y electrónicos por parte de
usuarios particulares en la Unión Europea
Este símbolo en el producto o en su envase indica que no
debe eliminarse junto con los desperdicios generales de la casa.
Es responsabilidad del usuario eliminar los residuos de este tipo
depositándolos en un "punto limpio" para el reciclado de residuos
eléctricos y electrónicos. La recogida y el reciclado selectivos de
los residuos de aparatos eléctricos en el momento de su eliminación
contribuirá a conservar los recursos naturales y a garantizar el reciclado
de estos residuos de forma que se proteja el medio ambiente y la salud.
Para obtener más información sobre los puntos de recogida de residuos
eléctricos y electrónicos para reciclado, póngase en contacto con su
ayuntamiento, con el servicio de eliminación de residuos domésticos o con
el establecimiento en el que adquirió el producto.
Swedish notice
Bortskaffande av avfallsprodukter från användare i privathushåll inom
Europeiska Unionen
Om den här symbolen visas på produkten eller förpackningen
betyder det att produkten inte får slängas på samma ställe som
hushållssopor. I stället är det ditt ansvar att bortskaffa avfallet genom att
överlämna det till ett uppsamlingsställe avsett för återvinning av avfall från
elektriska och elektroniska produkter. Separat insamling och återvinning
av avfallet hjälper till att spara på våra naturresurser och gör att avfallet
återvinns på ett sätt som skyddar människors hälsa och miljön. Kontakta
ditt lokala kommunkontor, din närmsta återvinningsstation för hushållsavfall
eller affären där du köpte produkten för att få mer information om var du
kan lämna ditt avfall för återvinning.
58
Regulatory compliance and safety
Index
A
ACU
See Array Configuration
Utility
Adaptec Array Storage
Manager (ASM)
See Array Storage Manager
(ASM)
additional setup
completing, 30
administering
DP Storage Server, 23
administration methods, 23
Direct Attach method, 24
Integrated Lights-Out (iLO)
method, 25
Remote Desktop Connection
method, 23
agent licenses
updating, 21
Array Configuration Utility
(ACU), 33, 38, 39
Array Storage Manager (ASM),
33, 34
ASM
See Array Storage Manager
(ASM)
audience, 9
authorized reseller, HP, 14
B
benefits
DP Storage Server, 17
boot sequence, 40
C
default storage
configurations, 31
Class A equipment, 43
Class B equipment, 43
configuration
worksheet, 27
conventions
document, 10
text symbols, 11
D
Data Protection Management
License, 21
declaration of conformity, 44
default boot sequence, 40
default storage configurations
changing, 31
DL100 G2 1 TB, 33, 34
DL100 G2 3TB, 33, 34
DL100 G2 6TB, 33, 34
DL380 G4 9TB, 38
ML310 G3 1TB, 37
Direct Attach method, 24
Disk Manager (DM), 34, 35,
37, 39
DL100 G2 1TB
default storage
configurations, 33, 34
hard drive configurations
(internal), 34
overview, 17
reconfiguring, 33
DL100 G2 3TB
default storage
configurations, 33, 34
hard drive configurations
(external), 36
changing
HP ProLiant Data Protection Storage Server user guide
59
hard drive configurations
(internal), 35
overview, 17
reconfiguring, 33
DL100 G2 6TB
default storage
configurations, 33, 34
hard drive configurations
(external), 36
hard drive configurations
(internal), 35
overview, 17
reconfiguring, 33
DL380 G4 9TB
default storage
configurations, 38
hard drive configurations
(external), 40
hard drive configurations
(internal), 39
overview, 17
DM
See Disk Manager (DM)
document
conventions, 10
related documentation, 9,
10
DON’T ERASE partition, 34,
37, 39
DP Storage Server
administering, 23
benefits, 17
completing additional setup,
30
defined, 17
expanding, 21
licensing, 20
overview, 17
preparing for DPM
installation, 26
registering, 20
starting, 23
use scenarios, 18
DPM
about, 17
end-user recovery option, 20
installing, 27
60
running the mini-setup, 27
DPM end-user recovery option
See end-user recovery option
DPM installation
preparing DP Storage
Server, 26
DPM mini-setup
running, 27
DPML
See Data Protection
Management License
E
enabling
end-user recovery option, 20
end-user recovery option
enabling, 20
Ethernet ports
configuring, 27
expanding
DP Storage Server, 21
F
FCC logo, 44
four-HDD configurations, 34
G
getting help, 13
H
hard drive configurations
(external)
DL100 G2 3TB, 36
DL100 G2 6TB, 36
DL380 G4 9TB, 40
hard drive configurations
(internal)
DL100 G2 1TB, 34
DL100 G2 3TB, 35
DL100 G2 6TB, 35
DL380 G4 9TB, 39
ML310 G3 1TB, 37
hard drives
failure, indicators, 36
hardware support services, 14
help
getting, 13
HP
authorized reseller, 14
hardware support services,
14
technical support, 13
HP Array Configuration Utility
(ACU)
See Array Configuration
Utility (ACU)
HP Storage Manager, 37, 38
I
iLO
See Integrated Lights-Out
method
installation
preparing DP Storage Server
for DPM, 26
installing
DPM, 27
Multilingual User Interface
(MUI), 25
Integrated Lights-Out (iLO)
method, 25
international notices and
statements, 46
ISSE
See hardware support
services
L
laser compliance, 45
licensing
DP Storage Server, 20
M
Microsoft DM
See Disk Manager (DM)
mini-setup
See DPM mini-setup
ML310 G3 1TB
default storage
configurations, 37
hard drive configurations
(internal), 37
overview, 17
MSA20, 33, 34
hard drive configurations,
36
MSA30, 38
hard drive configurations,
40
MUI
See Multilingual User
Interface (MUI)
Multilingual User Interface
(MUI)
about, 25
installing, 25
R
rack stability, warning, 12
reconfiguring
default storage
considerations, 31
DL100 G2 1TB, 33
DL100 G2 3TB, 33
DL100 G2 6TB, 33
DL380 G4 9TB, 38
ML310 G3 1TB, 37
registering
DP Storage Server, 20
regulatory compliance, 43
related documentation, 9, 10
Remote Desktop Connection
method, 23
S
SATA hard drives, 34
starting
DP Storage Server, 23
HP ProLiant Data Protection Storage Server user guide
61
symbols in text, 11
T
technical support, HP, 13
text symbols, 11
two-HDD configurations, 35
U
updating
agent licenses, 21
use scenarios
DP Storage Server, 18
62
W
warning
rack stability, 12
Waste Electrical and Electronic
Equipment directive, 51
web sites
helpful, 14
Web UI, 23
Windows MUI
See Multilingual User
Interface (MUI)
Windows Multilingual User
Interface
See Multilingual User
Interface (MUI)
