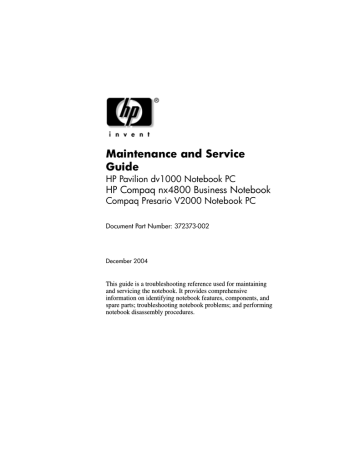

Maintenance and Service
Guide
HP Pavilion dv1000 Notebook PC
HP Compaq nx4800 Business Notebook
Compaq Presario V2000 Notebook PC
Document Part Number: 372373-002
December 2004
This guide is a troubleshooting reference used for maintaining
and servicing the notebook. It provides comprehensive
information on identifying notebook features, components, and
spare parts; troubleshooting notebook problems; and performing
notebook disassembly procedures.
© Copyright 2004 Hewlett-Packard Development Company, L.P.
Microsoft and Windows are U.S. registered trademarks of Microsoft
Corporation. Intel, Pentium, and Celeron are trademarks or registered
trademarks of Intel Corporation or its subsidiaries in the United States and
other countries. Bluetooth is a trademark of its proprietor and used by
Hewlett-Packard Company under license.
The information contained herein is subject to change without notice. The
only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing
herein should be construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions contained herein.
Maintenance and Service Guide
HP Pavilion dv1000 Notebook PC
HP Compaq nx4800 Business Notebook
Compaq Presario V2000 Notebook PC
Second Edition: December 2004
First Edition: September 2004
Document Part Number: 372373-002
Contents
1 Product Description
1.1
1.2
1.3
1.4
1.5
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
Resetting the Notebook . . . . . . . . . . . . . . . . . . . . . . . 1–4
Power Management. . . . . . . . . . . . . . . . . . . . . . . . . . 1–5
External Components . . . . . . . . . . . . . . . . . . . . . . . . 1–6
Design Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . 1–36
2 Troubleshooting
2.1 Computer Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
2.2 Troubleshooting Flowcharts . . . . . . . . . . . . . . . . . . . 2–5
3 Illustrated Parts Catalog
3.1
3.2
3.3
3.4
3.5
3.6
Serial Number Location . . . . . . . . . . . . . . . . . . . . . . 3–1
Notebook Major Components . . . . . . . . . . . . . . . . . . 3–2
Miscellaneous Plastics Kit . . . . . . . . . . . . . . . . . . . 3–18
Mass Storage Devices . . . . . . . . . . . . . . . . . . . . . . . 3–20
Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–22
Sequential Part Number Listing . . . . . . . . . . . . . . . 3–24
4 Removal and Replacement Preliminaries
4.1
4.2
4.3
4.4
4.5
4.6
4.7
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Considerations . . . . . . . . . . . . . . . . . . . . . . .
Preventing Damage to Removable Drives . . . . . . . .
Preventing Electrostatic Damage . . . . . . . . . . . . . . .
Packaging and Transporting Precautions . . . . . . . . .
Workstatinon Precautions . . . . . . . . . . . . . . . . . . . . .
Grounding Equipment and Methods . . . . . . . . . . . . .
Maintenance and Service Guide
4–1
4–1
4–2
4–3
4–4
4–5
4–6
iii
Contents
5 Removal and Replacement Procedures
5.1 Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2
5.2 Disassembly Sequence Chart . . . . . . . . . . . . . . . . . . 5–3
5.3 Preparing the Notebook for Disassembly . . . . . . . . . 5–5
5.4 Notebook Feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–10
5.5 Memory Module . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–11
5.6 Mini PCI Communications Card. . . . . . . . . . . . . . . 5–14
5.7 Optical Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–17
5.8 Switch Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–19
5.9 Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–25
5.10 Display Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 5–31
5.11 Base Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–36
5.12 USB/S-Video Controller Board . . . . . . . . . . . . . . 5–41
5.13 Speaker Assembly. . . . . . . . . . . . . . . . . . . . . . . . . 5–43
5.14 RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–45
5.15 Menu Control Button Board . . . . . . . . . . . . . . . . . 5–46
5.16 Heat Sink. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–49
5.17 Fan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–51
5.18 Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–53
5.19 System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–55
5.20 LED Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–62
6 Specifications
A Connector Pin Assignments
B Power Cord Set Requirements
C Screw Listing
Index
iv
Maintenance and Service Guide
1
Product Description
The HP Pavilion dv1000 Notebook PC 1 and the
HP Compaq nx4800 Business Notebook and Compaq Presario
V2000 Notebook PC (both represented by 2) offer advanced
modularity, Intel® Mobile Pentium® M and Celeron® M
processors, and extensive multimedia support.
HP Pavilion dv1000, HP Compaq nx4800, and
Compaq Presario V2000
Maintenance and Service Guide
1–1
Product Description
1.1 Features
■
The following processors are available, varying by
notebook model:
❏ Intel Pentium M 745 (1.8-GHz) with 400-MHz front
side bus (FSB)
❏ Intel Pentium M 735 (1.7-GHz) with 400-MHz FSB
❏ Intel Pentium M 725 (1.6-GHz) with 400-MHz FSB
❏ Intel Pentium M 710 TJ85 (1.4-GHz) with 400-MHz FSB;
operates at a lower temperature than other processors
❏ Intel Celeron M 340 (1.5-GHz) with 400-MHz FSB
❏ Intel Celeron M 330 (1.4-GHz) with 400-MHz FSB
1–2
■
14.0-inch WXGA (1280 × 768) TFT display with over
16.7 million colors, varying by notebook model
■
80-, 60-, or 40-GB high-capacity hard drive, varying by
notebook model
■
256-MB DDR synchronous DRAM (SDRAM) at 266 MHz,
expandable to 2.0 GB on notebook models with Intel Mobile
Pentium M processors and 1.0 GB on notebook models with
Intel Celeron M processors
■
Microsoft® Windows® XP Home Edition or Windows XP
Professional, or Free DOS, varying by notebook model
■
Full-size Windows keyboard with embedded numeric keypad
■
TouchPad pointing device with on button and dedicated
two-way scroll region
■
Integrated 10/100 BASE-T Ethernet local area network
(LAN) network interface card (NIC) with RJ-45 jack
■
Integrated high-speed 56K modem with RJ-11 jack
■
Integrated wireless support for Mini PCI IEEE 802.11b and
802.11b/g WLAN device
Maintenance and Service Guide
Product Description
■
Support for one Type II PC Card slots, with support for both
32-bit (CardBus) and 16-bit PC Cards
■
External 65-watt AC adapter with 3-wire power cord
■
6-cell or 12-cell Li-Ion battery pack
■
Stereo speakers with volume up and down buttons
■
Support for the following optical drives:
❏ 8X Max DVD+RW/R and CD-RW Combo Drive
❏ 4X Max DVD+RW/R and CD-RW Combo Drive
❏ 8X Max DVD-ROM Drive
❏ 24X Max DVD/CD-RW Combo Drive
■
Connectors:
❏ External monitor
❏ Universal Serial Bus (USB) v. 2.0
❏ RJ-11 (modem)
❏ RJ-45 (network)
❏ Audio-out (headphone)
❏ Audio-in (microphone)
❏ Power
❏ IEEE 1394 digital (select models only)
❏ S-Video-out (select models only)
❏ Infrared (HP Pavilion notebook models only)
❏ Parallel
❏ Serial
❏ Docking (select models only)
❏ Digital memory card reader (select models only)
Maintenance and Service Guide
1–3
Product Description
1.2 Resetting the Notebook
If the notebook you are servicing has an unknown password,
follow these steps to clear the password. These steps also
clear CMOS:
1. Prepare the notebook for disassembly (refer to Section 5.3,
“Preparing the Notebook for Disassembly,” for more
information).
2. Remove the real time clock (RTC) battery (refer to
Section 5.14, “RTC Battery,” for more information).
3. Wait approximately 5 minutes.
4. Replace the RTC battery and reassemble the notebook.
5. Connect AC power to the notebook. Do not reinsert any
battery packs at this time.
6. Turn on the notebook.
All passwords and all CMOS settings have been cleared.
1–4
Maintenance and Service Guide
Product Description
1.3 Power Management
The notebook comes with power management features that
extend battery operating time and conserve power. The
notebook supports the following power management features:
■
Standby
■
Hibernation
■
Setting customization by the user
■
Hotkeys for setting the level of performance
■
Battery calibration
■
Lid switch standby/resume
■
Power/standby button
■
Advanced Configuration and Power Management (ACPM)
compliance
Maintenance and Service Guide
1–5
Product Description
1.4 External Components
The external components on the front of the HP Pavilion dv1000
notebook are shown below and described in Table 1-4.
Front Components, HP Pavilion dv1000
1–6
Maintenance and Service Guide
Product Description
Table 1-4
Front Components
HP Pavilion dv1000
Item
Component
Function
1
Speakers (2)
Produces stereo sound.
2
Power/standby light
■ On: Notebook is turned on.
■ Blinking: Notebook is in standby.
■ Off: Notebook is off.
3
IDE (Integrated Drive
Electronics) drive light
On or blinking: The internal hard drive or an
optical drive is being accessed.
4
Battery light
■ Amber: The battery pack is charging.
■ Green: The battery pack is fully
charged.
■ Off: The battery pack is discharging
or not inserted.
5
Display release latch
Opens the notebook.
6
Audio-in
(microphone) jack
Connects an optional monaural (single
sound channel) microphone.
7
Audio-out
(headphone) jack (2)
Connect optional headphones or powered
stereo speakers. Also connect the audio
function of an audio/video device such as
a television or VCR.
Maintenance and Service Guide
1–7
Product Description
The external components on the front of the HP Compaq nx4800
and Compaq Presario V2000 notebooks are shown below and
described in Table 1-5.
Front Components, HP Compaq nx4800 and
Compaq Presario V2000
1–8
Maintenance and Service Guide
Product Description
Table 1-5
Front Components
HP Compaq nx4800 and Compaq Presario V2000
Item
Component
Function
1
Speakers (2)
Produces stereo sound.
2
Wireless button light
(select models only)
On: An integrated wireless device is
hardware enabled.
3
Power/standby light
■ On: Notebook is turned on.
■ Blinking: Notebook is in standby.
■ Off: Notebook is off.
4
IDE (Integrated Drive
Electronics) drive light
■ On or blinking: The internal hard drive
Battery light
■ Amber: The battery pack is charging.
■ Green: The battery pack is fully
5
or an optical drive is being accessed.
charged.
■ Off: The battery pack is discharging
or not inserted.
6
Display release latch
Opens the notebook.
7
Audio-in
(microphone) jack
Connects an optional monaural (single
sound channel) microphone.
8
Audio-out
(headphone) jack
(2 on HP Pavilion
dv1000 notebook
models)
Connect optional headphones or powered
stereo speakers. Also connect the audio
function of an audio/video device such as
a television or VCR.
Maintenance and Service Guide
1–9
Product Description
The external components on the right side of the
HP Pavilion dv1000 notebook are shown below and described
in Table 1-6.
Right-Side Components, HP Pavilion dv1000
1–10
Maintenance and Service Guide
Product Description
Table 1-6
Right-Side Components
HP Pavilion dv1000
Item
Component
Function
1
USB connectors (2)
Connect an optional USB device.
2
6-in-1 Digital Media
Reader (select models
only)
In Windows, supports digital memory cards.
3
1394 port
(select models only)
Connects an optional 1394a device such
as a scanner, digital camera, or digital
camcorder.
4
6-in-1 Digital Media
Reader light
(select models only)
On: A digital memory card is being
accessed.
5
Optical drive
Supports an optical disc.
6
S-Video-out jack
(select models only)
Connects an optional S-Video device, such
as a television, VCR, camcorder, projector,
or video capture card.
Maintenance and Service Guide
1–11
Product Description
The external components on the right side of the
HP Compaq nx4800 and Compaq Presario V2000 notebooks are
shown below and described in Table 1-7.
Right-Side Components, HP Compaq nx4800 and
Compaq Presario V2000
1–12
Maintenance and Service Guide
Product Description
Table 1-7
Right-Side Components
HP Compaq nx4800 and Compaq Presario V2000
Item
Component
Function
1
USB connectors (2)
Connect an optional USB device.
2
6-in-1 digital memory
card reader (select
models only)
In Windows, supports digital memory cards.
3
1394 port
(select models only)
Connects an optional 1394 device such
as a scanner, digital camera, or digital
camcorder.
4
6-in-1 digital memory
card reader light
(select models only)
On: A digital memory card is being
accessed.
5
Optical drive
Supports an optical disc.
6
S-Video-out jack
(select models only)
Connects an optional S-Video device, such
as a television, VCR, camcorder, projector,
or video capture card.
Maintenance and Service Guide
1–13
Product Description
The external components on the rear and left side of the
HP Pavilion dv1000 notebook are shown below and described
in Table 1-8.
Rear and Left-Side Components, HP Pavilion dv1000
1–14
Maintenance and Service Guide
Product Description
Table 1-8
Rear and Left-Side Components
HP Pavilion dv1000
Item
Component
Function
1
Wireless light
(select models only)
On: An integrated wireless device is
hardware enabled.
2
Exhaust vent
Provides airflow to cool internal
components.
prevent overheating, do not
Ä To
obstruct vents. Do not allow a hard
surface, such as a printer, or a soft
surface, such as pillows, thick rugs
or clothing, to block airflow.
3
Power connector
Connects an AC adapter cable.
4
External monitor port
Connects an optional VGA external monitor
or projector.
5
Expansion port
Connects the notebook to an optional
expansion base.
6
RJ-45 (network) jack
Connects an optional network cable.
7
RJ-11 (modem) jack
Connects the modem cable.
8
USB connector
Connects an optional USB device.
9
PC Card slot
Supports an optional Type I or Type II 32-bit
(CardBus) or 16-bit PC Card.
Also serves as a storage location for the
optional HP Mobile Remote Control.
10
PC Card eject button
Ejects an optional PC Card from the
PC Card slot.
11
Security cable slot
Attaches an optional security cable to the
notebook.
Maintenance and Service Guide
1–15
Product Description
The external components on the rear and left side of the
HP Compaq nx4800 and Compaq Presario V2000 notebooks are
shown below and described in Table 1-9.
Rear and Left-Side Components, HP Compaq nx4800 and
Compaq Presario V2000
1–16
Maintenance and Service Guide
Product Description
Table 1-9
Rear and Left-Side Components
HP Compaq nx4800 and Compaq Presario V2000
Item
Component
Function
1
Exhaust vent
Provide airflow to cool internal components.
prevent overheating, do not
Ä To
obstruct vents. Do not allow a hard
surface, such as a printer, or a soft
surface, such as pillows, thick rugs
or clothing, to block airflow.
2
Power connector
Connects an AC adapter cable.
3
External monitor port
Connects an optional VGA external monitor
or projector.
4
Expansion port
Connects the notebook to an optional
expansion base.
5
RJ-45 (network) jack
Connects an optional network cable.
6
RJ-11 (modem) jack
Connects the modem cable.
7
USB connector
Connects an optional USB device.
8
PC Card slot
Supports an optional Type I or Type II 32-bit
(CardBus) or 16-bit PC Card.
9
PC Card eject button
Ejects an optional PC Card from the
PC Card slot.
10
Security cable slot
Attaches an optional security cable to the
notebook.
Maintenance and Service Guide
1–17
Product Description
The notebook keyboard components on the HP Pavilion dv1000
notebook are shown below and described in Table 1-10.
Keyboard Components, HP Pavilion dv1000
1–18
Maintenance and Service Guide
Product Description
Table 1-10
Keyboard Components
HP Pavilion dv1000
Item
Component
Function
1
fn key
Combines with other keys to perform
system tasks. For example, pressing
fn+f7 decreases screen brightness.
2
caps lock key
Enables caps lock and turns on the caps
lock light.
3
f1 to f12 keys (12)
Perform system and application tasks.
When combined with the fn key, several
keys and buttons perform additional tasks
as hotkeys.
4
num lock key
Enables numeric lock, turns on the
embedded numeric keypad, and turns
on the num lock light.
5
Keypad keys (15)
In Windows, can be used like the keys
on an external numeric keypad.
6
Arrow keys
Move the cursor around the screen.
7
Windows
applications key
In Windows, displays a shortcut menu
for items beneath the pointer.
8
Windows logo key
In Windows, displays the Windows
Start menu.
Maintenance and Service Guide
1–19
Product Description
The notebook keyboard components on the HP Compaq nx4800
and Compaq Presario V2000 notebooks are shown below and
described in Table 1-11.
Keyboard Components, HP Compaq nx4800 and
Compaq Presario V2000
1–20
Maintenance and Service Guide
Product Description
Table 1-11
Keyboard Components
HP Compaq nx4800 and Compaq Presario V2000
Item
Component
Function
1
fn key
Combines with other keys to perform
system tasks. For example, pressing
fn+f7 decreases screen brightness.
2
caps lock key
Enables caps lock and turns on the caps
lock light.
3
f1 to f12 keys (12)
Perform system and application tasks.
When combined with the fn key, several
keys and buttons perform additional tasks
as hotkeys.
4
num lock key
Enables numeric lock, turns on the
embedded numeric keypad, and turns
on the num lock light.
5
Keypad keys (15)
In Windows, can be used like the keys
on an external numeric keypad.
6
Arrows keys
Move the cursor around the screen.
7
Windows
applications key
In Windows, displays a shortcut menu
for items beneath the pointer.
8
Windows logo key
In Windows, displays the Windows
Start menu.
Maintenance and Service Guide
1–21
Product Description
The notebook top components on the HP Pavilion dv1000
notebook are shown below and described in Table 1-12.
Top Components, Part 1, HP Pavilion dv1000
Table 1-12
Top Components, Part 1
HP Pavilion dv1000
Item
Component
Function
1
Display switch
If the notebook is closed while on, turns off
the display.
2
Power button
When the notebook is
■ Off, press to turn on the notebook.
■ On, briefly press to initiate Hibernation.
■ In Standby, briefly press to resume
from Standby.
■ In Hibernation, briefly press to restore
from Hibernation.
1–22
Maintenance and Service Guide
Product Description
Table 1-12
Top Components, Part 1
HP Pavilion dv1000 (Continued)
Item
Component
Function
3
DVD button
When the notebook is
■ Off, opens QuickPlay DVD mode.
■ On in Windows, opens the default
Windows DVD application.
■ On in QuickPlay music mode, opens
QuickPlay DVD mode.
■ On in QuickPlay DVD mode, displays
the DVD setup menu.
■ In Standby, resumes from Standby
into Windows.
■ In Hibernation, opens QuickPlay
DVD mode.
4
Music button
When the notebook is
■ Off, opens QuickPlay music mode.
■ On in Windows, opens the default
Windows music application.
■ On in QuickPlay DVD mode, opens
QuickPlay music mode.
■ In Standby, resumes from Standby
into Windows.
■ In Hibernation, opens QuickPlay
music mode.
5
Previous/Rewind
Button
When a disc is in the optical drive:
■ Press to play the previous track or
chapter.
■ Press fn+this button to rewind.
6
Play/Pause button
When a disc is in the optical drive and is:
■ Not playing, press to play the disc.
■ Playing, press to pause the disc.
Maintenance and Service Guide
1–23
Product Description
The notebook top components on the HP Pavilion dv1000
notebook are shown below and described in Table 1-13.
Top Components, Part 2, HP Pavilion dv1000
1–24
Maintenance and Service Guide
Product Description
Table 1-13
Top Components, Part 2
HP Pavilion dv1000
Item
Component
Function
1
Next/Fast Forward
button
When a disc is in the optical drive:
■ Press once to play the next track or
chapter.
■ Press fn+this button to fast forward.
2
Stop button
When a disc is in the optical drive, press
to stop the current disc activity.
3
Volume down button
Decreases system volume.
4
Volume mute button
Mute light
Mutes or restores volume.
On: Volume is muted.
5
Volume up button
Increases system volume.
6
Wireless button
Enables/disables an internal wireless
device.
Maintenance and Service Guide
1–25
Product Description
The notebook top components on the HP Pavilion dv1000
notebook are shown below and described in Table 1-14.
Top Components, Part 3, HP Pavilion dv1000
1–26
Maintenance and Service Guide
Product Description
Table 1-14
Top Components, Part 3
HP Pavilion dv1000
Item
Component
Function
1
TouchPad
Moves the pointer.
2
TouchPad light
On: TouchPad is enabled.
3
Caps lock light
On: Caps lock is on.
4
Power/ button light
■ On: Notebook is turned on.
■ Blinking: Notebook is in standby.
■ Off: Notebook is off.
5
Wireless light
On: an integrated wireless device is
hardware enabled.
6
Num lock light
On: Num lock or the internal keypad is on.
7
Back button
■ In Windows, emulates the “back” function
of the alt+left arrow command in the
active application.
■ In QuickPlay, moves up one directory
level in an on-screen menu.
8
OK button
Selects an item you have chosen on the
screen.
9
TouchPad on/off
button
Enables/disables the TouchPad.
10
TouchPad vertical
scroll region
Scrolls upward or downward.
11
Left and right
TouchPad buttons
Function like the left and right buttons on an
external mouse.
Maintenance and Service Guide
1–27
Product Description
The notebook top components on the HP Compaq nx4800 and
Compaq Presario V2000 notebooks are shown below and
described in Table 1-15.
Top Components, Part 1, HP Compaq nx4800 and
Compaq Presario V2000
Table 1-15
Top Components, Part 1
HP Compaq nx4800 and Compaq Presario V2000
Item
Component
Function
1
Caps lock light
On: Caps lock is on.
2
Display switch
If the notebook is closed while on, turns off
the display.
1–28
Maintenance and Service Guide
Product Description
Table 1-15
Top Components, Part 1
HP Compaq nx4800 and Compaq Presario V2000 (Continued)
Item
Component
Function
3
Wireless button
Enables/disables an internal wireless
device.
Wireless light
On: an integrated wireless device is
hardware enabled.
Power button
When the notebook is
■ Off, press to turn on the notebook.
■ On, briefly press to initiate Hibernation.
■ In Standby, briefly press to resume
from Standby.
■ In Hibernation, briefly press to restore
from Hibernation.
Power/standby light
■ On: Notebook is turned on.
■ Blinking: Notebook is in standby.
■ Off: Notebook is off.
5
Volume down button
Decreases system volume.
6
Volume mute button
Mutes or restores volume.
Mute light
On: Volume is muted.
7
Volume up button
Increases system volume.
8
Num lock light
On: Num lock or the internal keypad is on.
4
Maintenance and Service Guide
1–29
Product Description
The notebook top components on the HP Compaq nx4800 and
Compaq Presario V2000 notebooks are shown below and
described in Table 1-16.
Top Components, Part 2, HP Compaq nx4800 and
Compaq Presario V2000
1–30
Maintenance and Service Guide
Product Description
Table 1-16
Top Components, Part 2
HP Compaq nx4800 and Compaq Presario V2000
Item
Component
Function
1
TouchPad horizontal
scrolling region
Scrolls toward left side or right side.
2
TouchPad
Moves the pointer.
3
TouchPad light
On: TouchPad is enabled.
4
TouchPad on/off
button
Enables/disables the TouchPad.
5
TouchPad vertical
scroll region
Scrolls upward or downward.
6
Left and right
TouchPad buttons
Function like the left and right buttons on an
external mouse.
Maintenance and Service Guide
1–31
Product Description
The external components on the bottom of the
HP Pavilion dv1000 notebook are shown below and described
in Table 1-17.
Bottom Components, HP Pavilion dv1000
Table 1-17
Bottom Components
HP Pavilion dv1000
Item
Component
Function
1
Optical drive
Supports an optical disc.
2
Battery pack release latch
Releases a battery pack from the
battery bay.
3
Battery pack
Holds a battery pack.
1–32
Maintenance and Service Guide
Product Description
Table 1-17
Bottom Components
HP Pavilion dv1000 (Continued)
Item
Component
Function
4
Exhaust vents (4)
Provide airflow to cool internal
components.
Ä
To prevent overheating, do not
obstruct vents. Do not allow a
hard surface, such as a printer, or
a soft surface, such as pillows,
thick rugs or clothing, to block
airflow.
5
Hard drive bay
Holds the internal hard drive.
6
Mini PCI compartment
Holds an optional wireless LAN device.
Ä
To prevent an unresponsive
system and the display of a
warning message, install only a
Mini PCI device authorized for
use in your notebook by the
governmental agency that
regulates wireless devices in your
country. If you install a device and
then receive a warning message,
remove the device to restore
notebook functionality. Then
contact Customer Care.
7
Memory module
compartment
Contains two memory slots that support
replaceable memory modules. The
number of preinstalled memory
modules varies by notebook model.
8
Label areas (2)
Contain the notebook serial number and
other applicable regulatory labels.
Maintenance and Service Guide
1–33
Product Description
The external components on the bottom of the
HP Compaq nx4800 and Compaq Presario V2000 notebooks are
shown below and described in Table 1-18.
Bottom Components, HP Compaq nx4800 and
Compaq Presario V2000
Table 1-18
Bottom Components
HP Compaq nx4800 and Compaq Presario V2000
Item
Component
Function
1
Optical drive
Supports an optical disc.
2
Battery pack release latch
Releases a battery pack from the
battery bay.
3
Battery pack
Holds a battery pack.
1–34
Maintenance and Service Guide
Product Description
Table 1-18
Bottom Components
HP Compaq nx4800 and Compaq Presario V2000 (Continued)
Item
Component
Function
4
Exhaust vents (4)
Provide airflow to cool internal
components.
Ä
To prevent overheating, do not
obstruct vents. Do not allow a
hard surface, such as a printer,
or a soft surface, such as pillows,
thick rugs or clothing, to block
airflow.
5
Hard drive bay
Holds the internal hard drive.
6
Mini PCI compartment
Holds an optional wireless LAN device.
Ä
To prevent an unresponsive
system and the display of a
warning message, install only a
Mini PCI device authorized for
use in your notebook by the
governmental agency that
regulates wireless devices in your
country. If you install a device and
then receive a warning message,
remove the device to restore
notebook functionality. Then
contact Customer Care.
7
Memory module
compartment
Contains 2 memory slots that support
replaceable memory modules. The
number of preinstalled memory
modules varies by notebook model.
8
Label areas (2)
Contain the notebook serial number and
other applicable regulatory labels.
Maintenance and Service Guide
1–35
Product Description
1.5 Design Overview
This section presents a design overview of key parts and features
of the notebook. Refer to Chapter 3, “Illustrated Parts Catalog,”
to identify replacement parts, and Chapter 5, “Removal and
Replacement Procedures,” for disassembly steps.
The system board provides the following device connections:
Ä
■
Memory module
■
Mini PCI communications devices
■
Hard drive
■
Display
■
Keyboard and TouchPad
■
Audio
■
Intel Pentium M and Celeron M processors
■
Fan
■
PC Card
CAUTION: To properly ventilate the notebook, allow at least a 7.6-cm
(3-inch) clearance on the left and right sides of the notebook.
The notebook uses an electric fan for ventilation. The fan is
controlled by a temperature sensor and is designed to be turned
on automatically when high temperature conditions exist. These
conditions are affected by high external temperatures, system
power consumption, power management/battery conservation
configurations, battery fast charging, and software applications.
Exhaust air is displaced through the ventilation grill located on
the left side of the notebook.
1–36
Maintenance and Service Guide
2
Troubleshooting
Å
WARNING: Only authorized technicians trained by HP should repair
this equipment. All troubleshooting and repair procedures are detailed
to allow only subassembly-/module-level repair. Because of the
complexity of the individual boards and subassemblies, do not attempt
to make repairs at the component level or modifications to any printed
wiring board. Improper repairs can create a safety hazard. Any
indication of component replacement or printed wiring board
modification may void any warranty or exchange allowances.
2.1 Computer Setup
Computer Setup is a system information and customization utility
that can be used even when your operating system is not working
or will not load. This utility includes settings that are not
available in Windows.
Using Computer Setup
Information and settings in Computer Setup are accessed from
the Main, Security, Advanced, or Tools menus:
1. Turn on or restart the notebook. Press f10 while the
F10 = ROM-Based Setup message is displayed in
the lower-left corner of the screen.
❏ To change the language, use the cursor control keys
to navigate to the Advanced menu.
❏ To view navigation information, press f1.
❏ To return to the Computer Setup menu, press esc.
Maintenance and Service Guide
2–1
Troubleshooting
2. Select the Main, Security, Advanced, or Tools menu.
3. To close Computer Setup and restart the notebook:
❏ Select Exit > Exit Saving Changes, and then press enter.
- or ❏ Select Exit > Exit Discarding Changes, and then
press enter.
- or ❏ Select Exit > Load Setup Defaults, and then press enter.
4. When you are prompted to confirm your action, press f10.
Selecting from the Main Menu
Table 2-1
Main Menu
Select
To Do This
System Information
■ Change the system time and system date.
■ View identification information about the
notebook.
■ View specification information about the
processor, memory and cache size, and
system ROM.
2–2
Maintenance and Service Guide
Troubleshooting
Selecting from the Security Menu
Table 2-2
Security Menu
Select
To Do This
Administrator Password
Enter, change, or delete a Administrator
password.
Power-on Password
Enter, change, or delete a power-on password.
DriveLock Passwords
Enable/disable DriveLock; change a DriveLock
user or master password.
Settings are accessible only
✎ DriveLock
when you enter Computer Setup by turning
on (not restarting) the notebook.
Password Options
(Password options can
be selected only when
a power-on password
has been set.)
Enable/disable:
■ QuickLock
■ QuickLock on Standby
■ QuickBlank
enable QuickLock on Standby or
✎ To
QuickBlank, you must first enable
QuickLock.
Device Security
Enable/disable:
■ Diskette drive startup*
■ CD-ROM or diskette startup
for a DVD-ROM can be entered
✎ Settings
in the CD-ROM field.
*Not applicable to SuperDisk LS-120 drives.
Maintenance and Service Guide
2–3
Troubleshooting
Selecting from the Advanced Menu
Table 2-3
Advanced Menu
Select
To Do This
Language
Change the Computer Setup language.
Boot Order
Enable/disable MultiBoot, which sets a startup
sequence that can include most bootable devices
and media in the system.
Accessibility Options
Allows electronic and information technology to
be accessible to people with varying ranges of
abilities.
Video Memory
Displays the amount of video memory available
on the notebook.
Selecting from the Tools Menu
Table 2-4
Tools Menu
Select
To Do This
Hard Drive Self Test
Run a quick comprehensive self test on hard
drives in the system that support the test features.
2–4
Maintenance and Service Guide
Troubleshooting
2.2 Troubleshooting Flowcharts
Table 2-5
Troubleshooting Flowcharts Overview
Flowchart
Description
2.1
”Flowchart 2.1—Initial Troubleshooting”
2.2
”Flowchart 2.2—No Power, Part 1”
2.3
”Flowchart 2.3—No Power, Part 2”
2.4
”Flowchart 2.4—No Power, Part 3”
2.5
”Flowchart 2.5—No Power, Part 4”
2.6
”Flowchart 2.6—No Video, Part 1”
2.7
”Flowchart 2.7—No Video, Part 2”
2.8
”Flowchart 2.8—Nonfunctioning Expansion Base (if applicable)”
2.9
”Flowchart 2.9—No Operating System (OS) Loading”
2.10
”Flowchart 2.10—No OS Loading, Hard Drive, Part 1”
2.11
”Flowchart 2.11—No OS Loading, Hard Drive, Part 2”
2.12
”Flowchart 2.12—No OS Loading, Hard Drive, Part 3”
2.13
”Flowchart 2.13—No OS Loading, Diskette Drive”
Maintenance and Service Guide
2–5
Troubleshooting
Table 2-5
Troubleshooting Flowcharts Overview (Continued)
Flowchart
Description
2.14
”Flowchart 2.14—No OS Loading, CD-ROM or DVD-ROM Drive”
2.15
”Flowchart 2.15—No OS Loading for QuickPlay Application,
Part 1”
2.16
”Flowchart 2.16—No OS Loading for QuickPlay Application,
Part 2”
2.17
”Flowchart 2.17—No Audio, Part 1”
2.18
”Flowchart 2.18—No Audio, Part 2”
2.19
”Flowchart 2.19—Nonfunctioning Device”
2.20
”Flowchart 2.20—Nonfunctioning Keyboard”
2.21
”Flowchart 2.21—Nonfunctioning Pointing Device”
2.22
”Flowchart 2.22—No Network/Modem Connection”
2–6
Maintenance and Service Guide
Troubleshooting
Flowchart 2.1—Initial Troubleshooting
Begin
troubleshooting.
N
Go to
“Flowchart
2.2—No Power,
Part 1.”
Is there
power?
Y
N
Check
LED board,
speaker
connections.
Beeps,
LEDs, or error
messages?
N
Y
Go to
All drives
working?
N
Go to
Is there video?
(no boot)
Y
“Flowchart
2.6—No Video,
Part 1.”
N
Keyboard/
pointing
device
working?
Y
N
Go to
Is the OS
loading?
N
Go to
Is there
sound?
Y
“Flowchart
2.9—No
Operating
System (OS)
Y
“Flowchart
2.17—No Audio,
Part 1.”
Y
Maintenance and Service Guide
“Flowchart
2.19—Nonfuncti
oning Device.”
Go to
”Flowchart
2.20—Nonfuncti
oning Keyboard”
or “Flowchart
2.21—Nonfuncti
oning Pointing
Device.”
N
Connecting
to network
or modem?
Y
Go to
“Flowchart
2.22—No
Network/Modem
Connection.”
End
2–7
Troubleshooting
Flowchart 2.2—No Power, Part 1
No power
(power LED
is off).
Remove from
expansion base
(if applicable).
N
N
Power up
on battery
power?
Go to
Power up
on battery
power?
Reset
power.*
“Flowchart
2.3—No Power,
Part 2.”
Y
Y
N
N
Power up
on AC
power?
Power up
on AC
power?
Reset
power.*
Y
Go to
“Flowchart
2.4—No Power,
Part 3.”
Y
Y
Power up in
docking
device?
Done
N
1. Reseat the power cables in the
expansion base and at the AC outlet.
2. Ensure the AC power source is active.
3. Ensure that the power strip is working.
Y
Done
2–8
N
Power up
in expansion
base?
*NOTES
1. On select models, there is a separate
reset button.
2. On select models, the notebook can be
reset using the Standby switch and
either the lid switch or the main power
switch.
Go to
“Flowchart
2.8—Nonfunctioning
Expansion Base (if
applicable).”
Maintenance and Service Guide
Troubleshooting
Flowchart 2.3—No Power, Part 2
Continued from
“Flowchart
2.2—No Power,
Part 1.”
Visually check for
debris in battery
socket and clean
if necessary.
Y
Power on?
Done
N
Check battery by
recharging it,
moving it to
another notebook,
or replacing it.
N
Replace
power supply
(if applicable).
Power on?
Y
N
Go to
Done
Power on?
“Flowchart
2.4—No Power,
Part 3.”
Y
Done
Maintenance and Service Guide
2–9
Troubleshooting
Flowchart 2.4—No Power, Part 3
Continued from
“Flowchart
2.3—No Power,
Part 2.”
Plug directly
into AC outlet.
Y
Power LED
on?
Done
N
Reseat AC adapter
in notebook and
at power source.
Y
Done
Power on?
N
External
N
Try different
outlet.
Power outlet
active?
Y
Internal or
external AC
adapter?
Replace external
AC adapter.
N
Internal
Go to
“Flowchart
2.5—No Power,
Part 4.”
Replace
power cord.
Power on?
Y
Y
Done
Power on?
Done
N
2–10
Maintenance and Service Guide
Troubleshooting
Flowchart 2.5—No Power, Part 4
Continued from
“Flowchart
2.4—No Power,
Part 3.”
Open
notebook.
Y
Loose or
damaged
parts?
N
Reseat loose
components and
boards and
replace damaged
items.
Close
notebook and
retest.
N
Power on?
Y
Done
Replace the following items (if applicable).
Check notebook operation after each
replacement:
1. Internal DC-DC converter*
2. Internal AC adapter
3. Processor board*
4. System board*
*NOTE: Replace these items as a set to
prevent shorting out among components.
Maintenance and Service Guide
2–11
Troubleshooting
Flowchart 2.6—No Video, Part 1
No video.
Expansion Base
Go to
Stand-alone
or expansion
base?
*NOTE: To change from internal to
external display, use the hotkey
combination.
“Flowchart
2.7—No Video,
Part 2.”
Stand-alone
Internal or
external
display*?
Y
Adjust
brightness.
A
Adjust
brightness.
Press lid
switch to ensure
operation.
Y
Video OK?
Done
N
Internal
External
Video OK?
Y
Done
N
Video OK?
Done
N
Replace the following one at a time. Test after each replacement.
1. Cable between notebook and notebook display (if applicable)
2. Display
3. System board
Check for bent
pins on cable.
N
Video OK?
Y
Internal and
external
video OK?
Replace
system
board.
Y
Done
2–12
N
Try
another
display.
Done
Maintenance and Service Guide
Troubleshooting
Flowchart 2.7—No Video, Part 2
Continued from
“Flowchart
2.6—No Video,
Part 1.”
Remove
notebook from
expansion base,
if connected.
Adjust
display
brightness.
Check brightness
of external
monitor.
N
Y
Go to “A” in
“Flowchart
2.6—No Video,
Part 1.”
Video OK?
Y
Video OK?
Done
N
Check that notebook is properly
seated in expansion base, for
bent pins on cable, and for
monitor connection.
Try another
external
monitor.
Y
Video OK?
Y
Internal
and external
video OK?
Done
Done
N
N
Go to
Adjust external
monitor display.
Maintenance and Service Guide
“Flowchart
2.8—Nonfunctioning
Expansion Base (if
applicable).”
2–13
Troubleshooting
Flowchart 2.8—Nonfunctioning Expansion Base
(if applicable)
Nonfunctioning
expansion base.
Reseat power
cord in expansion
base and
power outlet.
Check voltage
setting on
expansion base.
Reinstall
notebook into
expansion base.
Y
Reset monitor
cable connector at
expansion base.
Expansion
base
operating?
N
Y
Expansion
base
operating?
N
Remove
notebook, reseat
all internal parts,
and replace any
damaged items in
expansion base.
2–14
Done
Done
Replace the following expansion base
components one at a time. Check
notebook operation after each
replacement.
1. Power supply
2. I/O board
3. Backplane board
4. Switch box
5. Expansion base motor mechanism
Maintenance and Service Guide
Troubleshooting
Flowchart 2.9—No Operating System (OS)
Loading
No OS
loading.*
Reseat power
cord in expansion
base and
power outlet.
No OS loading from hard drive,
go to “Flowchart 2.10—No OS Loading,
Hard Drive, Part 1.”
No OS loading from diskette drive,
go to “Flowchart 2.13—No OS Loading,
Diskette Drive.”
No OS loading from CD- or DVD-ROM drive,
go to “Flowchart 2.14—No OS Loading,
CD-ROM or DVD-ROM Drive.”
No OS loading from network,
go to “Flowchart 2.22—No Network/Modem
Connection.”
*NOTE: Before beginning troubleshooting,
always check cable connections, cable ends,
and drives for bent or damaged pins.
Maintenance and Service Guide
2–15
Troubleshooting
Flowchart 2.10—No OS Loading, Hard Drive,
Part 1
OS not
loading from
hard drive.
Y
Go to
“Flowchart
2.11—No OS
Loading,
Hard Drive, Part 2.”
Nonsystem
disk
message?
N
Reseat
external
hard drive.
Y
OS loading?
Done
N
N
Boot
from
CD?
N
Y
Check the Setup
utility for correct
booting order.
Boot
from
diskette?
Y
Change boot
priority through
the Setup utility
and reboot.
N
Boot
from
hard drive?
N
Y
Boot
from
hard drive?
Done
Y
2–16
Go to
“Flowchart
2.13—No OS
Loading,
Diskette Drive.”
Go to
“Flowchart
2.19—Nonfunctioning
Device.”
Maintenance and Service Guide
Troubleshooting
Flowchart 2.11—No OS Loading, Hard Drive,
Part 2
Continued from
“Flowchart
2.10—No OS
Loading,
Hard Drive, Part 1.”
Reseat
hard drive.
N
1. Replace
hard drive.
2. Replace
system board.
CD or
diskette in
drive?
Y
Y
Hard drive
accessible?
Done
N
Remove
diskette and
reboot.
Run FDISK.
Y
Boot
from
hard drive?
N
Done
N
Hard drive
partitioned?
Y
N
Y
N
Go to
“Flowchart
2.13—No OS
Loading,
Diskette Drive.”
Boot
from diskette
drive?
Hard drive
formatted?
Y
Format hard drive
and bring to
a bootable
C:\ prompt.
N
Y
Hard drive
accessible?
Y
Notebook
booted?
Done
N
Go to
“Flowchart
2.12—No OS
Loading,
Hard Drive, Part 3.”
Maintenance and Service Guide
Create partition,
and then format
hard drive to
bootable
C:\ prompt.
Load OS using
System Restore
CD (if applicable).
Go to
“Flowchart
2.12—No OS
Loading,
Hard Drive, Part 3.”
2–17
Troubleshooting
Flowchart 2.12—No OS Loading, Hard Drive,
Part 3
Continued from
“Flowchart
2.11—No OS
Loading,
Hard Drive, Part 2.”
N
System
files on hard
drive?
Install OS
and reboot.
Y
Y
Y
Virus
on
hard drive?
OS
loading from
hard drive?
Clean virus.
N
Done
N
Y
Run SCANDISK
and check for
bad sectors.
Diagnostics
on diskette?
Replace
hard drive.
N
N
Can bad
sectors
be fixed?
Run diagnostics
and follow
recommendations.
Replace
hard drive.
Y
N
Boot from
hard drive?
Fix bad
sectors.
Replace
hard drive.
Y
Done
2–18
Maintenance and Service Guide
Troubleshooting
Flowchart 2.13—No OS Loading, Diskette Drive
Y
OS not loading
from
diskette drive.
Reseat
diskette drive.
OS
loading?
Done
N
Y
N
Bootable
diskette
in drive?
Nonsystem
disk message?
N
Y
N
Check diskette
for system files.
Try different
diskette.
Go to
Boot
from another
device?
“Flowchart
2.19—Nonfunction
ing Device.”
Y
Y
N
Diskette
drive enabled
in the Setup
utility?
Enable drive
and cold boot
notebook.
1. Replace
diskette drive.
2. Replace system
board.
Nonsystem
disk error?
N
Y
Y
Y
N
Install bootable
diskette and
reboot notebook.
Is diskette
drive boot
order
correct?
Change boot
priority using
the Setup utility.
OS
loading?
Reset the
notebook. Refer to
Section 1.2,
“Resetting the
Notebook,” for
Done
N
instructions.
Go to
“Flowchart
2.19—Nonfunctioning
Device.”
Maintenance and Service Guide
2–19
Troubleshooting
Flowchart 2.14—No OS Loading, CD-ROM
or DVD-ROM Drive
No OS
loading from
CD-ROM or
DVD-ROM Drive.
Y
N
Install bootable
disc and
reboot
notebook.
Bootable
disc in
drive?
Disc
in drive?
Y
N
Install
bootable disc.
Try another
bootable disc.
Y
Boots from
CD or DVD?
Done
N
Y
Boots from
CD or DVD?
Reseat
drive.
Done
N
N
Booting
from another
device?
Go to
“Flowchart
2.19—Nonfunctioning
Device.”
Y
Y
Booting
order
correct?
N
Reset the
notebook. Refer to
Go to
Section 1.2,
“Resetting the
Notebook,” for
“Flowchart
2.19—Nonfunctioning
Device.”
instructions.
Correct boot
order using
the Setup utility.
2–20
Maintenance and Service Guide
Troubleshooting
Flowchart 2.15—No OS Loading for QuickPlay
Application, Part 1
No OS loads for
QuickPlay
application.
Reseat
hard drive.
Y
OS loads for
QuickPlay
application?
Done
N
Reboot the computer
from the HP QuickPlay
CD. Follow the on-screen
instructions.
Y
OS loads for
QuickPlay
application?
Done
N
1. Reboot the computer to Windows OS.
2. Go to Control Panel > Administrative Tools > Computer Management > Disk
Management and delete the Linux QuickPlay partition. The Linux QuickPlay partition will
appear in the lower left corner as “Healthy (Unknown Partition).”
3. Reboot the computer from the HP QuickPlay CD. Follow the on-screen instructions.
Y
OS loads for
QuickPlay
application?
Done
N
Go to
“Flowchart 2.16—No
OS Loading for
QuickPlay
Application, Part 2.”
Maintenance and Service Guide
2–21
Troubleshooting
Flowchart 2.16—No OS Loading for QuickPlay
Application, Part 2
Continued from
“Flowchart
2.15—No OS
Loading for
QuickPlay
Application, Part 1.”
1. Reformat the hard drive.
2. Insert the Windows installation CD and follow the on-screen instructions.
3. When you are prompted “To create the new partition, enter a size below and press Enter,”
enter 204 MB as the reserved partition size. This process creates two partitions. The first
partition is used for Windows. The second partition is used for QuickPlay.
4. Continue with the on-screen instructions to complete the installation of Windows on the
first partition.
Reboot the computer
from the HP QuickPlay
CD. Follow the
on-screen instructions.
Y
OS loads for
QuickPlay
application?
Done
N
1. Replace the hard drive.
2. Insert the Windows Installation CD and follow the on-screen instructions.
3. When you are prompted “To create the new partition, enter a size below and press Enter,”
enter 204 MB as the reserved partition size. This process creates 2 partitions. The first
partition is used for Windows. The second partition is used for QuickPlay.
4. Continue with the on-screen instructions to complete the installation of Windows on the
first partition.
N
Reboot the computer
from the HP QuickPlay
CD. Follow the
on-screen instructions.
2–22
OS loads for
QuickPlay
application?
Done
Y
Maintenance and Service Guide
Troubleshooting
Flowchart 2.17—No Audio, Part 1
Y
Turn up audio
internally or
externally.
No audio.
Audio?
Done
N
N
Y
Notebook in
expansion base
(if applicable)?
Go to
Internal
audio?
Undock
N
“Flowchart
2.18—No Audio,
Part 2.”
Y
Replace the following expansion base
components one at a time, as applicable.
Check audio status after each change.
1. Reseat expansion base audio cable.
2. Replace audio cable.
3. Replace speaker.
4. Replace expansion base audio board.
5. Replace backplane board.
6. Replace I/O board.
Go to
“Flowchart
2.18—No Audio,
Part 2.”
Y
Go to
“Flowchart
2.19—Nonfunctioning
Device.”
Audio?
Done
N
Maintenance and Service Guide
2–23
Troubleshooting
Flowchart 2.18—No Audio, Part 2
Continued from
“Flowchart
2.17—No Audio,
Part 1.”
N
Audio
driver in OS
configured?
Reload
audio drivers.
Y
N
Correct
drivers for
application?
Load drivers and
set configuration
in OS.
Y
Connect to
external
speaker.
N
Audio?
Y
Replace audio
board and
speaker
connections
in notebook
(if applicable).
Y
Audio?
Done
N
1. Replace internal speakers.
2. Replace audio board (if applicable).
3. Replace system board.
2–24
Maintenance and Service Guide
Troubleshooting
Flowchart 2.19—Nonfunctioning Device
Nonfunctioning
device.
Reseat
device.
Unplug the nonfunctioning device from
the notebook and inspect cables and plugs for
bent or broken pins or other damage.
Y
Clear
CMOS.
Fix or
replace
broken item.
Any physical
device detected?
N
Reattach device.
Close notebook,
plug in power,
and reboot.
Go to
“Flowchart
2.9—No
Operating System
(OS) Loading.”
Replace hard drive.
N
Device
boots
properly?
N
Replace NIC.
If integrated NIC,
replace system
board.
Y
Device
boots
properly?
Y
Done
Maintenance and Service Guide
Replace diskette
drive.
Done
2–25
Troubleshooting
Flowchart 2.20—Nonfunctioning Keyboard
Keyboard
not operating
properly.
Connect notebook
to good external
keyboard.
N
External
device
works?
Replace
system
board.
Y
Reseat internal
keyboard
connector
(if applicable).
N
Replace internal
keyboard or
cable.
OK?
Y
Y
Done
OK?
Done
N
Replace
system
board.
2–26
Maintenance and Service Guide
Troubleshooting
Flowchart 2.21—Nonfunctioning Pointing
Device
Pointing device
not operating
properly.
Connect notebook
to good external
pointing device.
N
Replace
system
board.
External
device
works?
Y
Reseat internal
pointing device
connector
(if applicable).
N
Replace internal
pointing device
or cable.
OK?
Y
Y
Done
OK?
Done
N
Replace
system
board.
Maintenance and Service Guide
2–27
Troubleshooting
Flowchart 2.22—No Network/Modem
Connection
No network
or modem
connection.
N
Network
or modem
jack active?
Replace jack
or have jack
activated.
Y
Y
Connect
to nondigital
line.
Digital
line?
N
Y
N
NIC/modem
configured
in OS?
Reload
drivers and
reconfigure.
Done
OK?
N
Y
Disconnect all
power from
the notebook
and open.
Replace
NIC/modem
(if applicable).
Y
Reseat
NIC/modem
(if applicable).
OK?
Done
N
Replace
system
board.
2–28
Maintenance and Service Guide
3
Illustrated Parts Catalog
This chapter provides an illustrated parts breakdown and a
reference for spare part numbers and option part numbers.
3.1 Serial Number Location
When ordering parts or requesting information, provide the
notebook serial number and model number located on the bottom
of the notebook.
Serial Number Location
Maintenance and Service Guide
3–1
Illustrated Parts Catalog
3.2 Notebook Major Components
Notebook Major Components, HP Pavilion dv1000
3–2
Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
Spare Parts: Notebook Major Components
Spare Part
Number
Item
Description
1
Display assemblies (include wireless antenna boards and cables)
For use on HP Pavilion dv1000 notebook models
14.0-inch, WXGA, SVA with Brightview
14.0-inch, WXGA
373054-001
367783-001
For use on HP Compaq nx4800 notebook models
14.0-inch, WXGA, SVA with Brightview
14.0-inch, WXGA
373060-001
373528-001
For use on Compaq Presario V2000 notebook models
14.0-inch, WXGA, SVA with Brightview
14.0-inch, WXGA
373055-001
367784-001
Left and right display hinge covers and brackets
For use on HP Pavilion dv1000 notebook models
382077-001
For use on HP Compaq nx4800 and Compaq Presario
notebook models
382078-001
Wireless antenna cables (not illustrated)
376082-001
Maintenance and Service Guide
3–3
Illustrated Parts Catalog
Notebook Major Components, HP Compaq nx4800 and
Compaq Presario V2000
3–4
Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
Spare Parts: Notebook Major Components (Continued)
Item
Description
2
Switch covers (include wireless button and light)
Spare Part
Number
For use on HP Pavilion dv1000 notebook models
with wireless capability
367781-001
For use on HP Pavilion dv1000 notebook models
without wireless capability
367780-001
For use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models with a
1394 port, S-Video-out jack, expansion port, Memory
Reader, and wireless capability
367782-001
For use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models with a
1394 port, S-Video-out jack, expansion port, and
Memory Reader without wireless capability
367779-001
For use on Compaq Presario V2000 notebook models
without a 1394 port, S-Video-out jack, expansion port,
and Memory Reader
373532-001
Maintenance and Service Guide
3–5
Illustrated Parts Catalog
Notebook Major Components, HP Pavilion dv1000
3–6
Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
Spare Parts: Notebook Major Components (Continued)
Item
Description
3
Keyboards
Spare Part
Number
For use on HP Pavilion dv1000 notebook models
Belgium
Denmark
France
French
Canada
Germany
Greece
Israel
Italy
Korea
Latin America
Europe and
the
Netherlands
Norway
Portugal
367778-A41
367778-081
367778-051
367778-121
367778-041
367778-DJ1
367778-BB1
367778-061
367778-AD1
367778-161
367778-331
367778-091
367778-131
Saudi Arabia
Spain
Sweden/Finland
Switzerland
Taiwan
Thailand
United Kingdom
Asia Pacific,
Australia,
Canada,
Hong Kong,
People’s
Republic
of China, and the
United States
367778-171
367778-071
367778-B71
367778-111
367778-AB1
367778-281
367778-031
367778-001
For use on HP Compaq nx4800 notebook models
Japan
367777-291
For use on Compaq Presario V2000 notebook models
Korea
Latin America
Taiwan
Thailand
367777-AD1
367777-161
367777-AB1
367777-281
Maintenance and Service Guide
Asia Pacific,
Australia,
Hong Kong,
People’s
Republic of
China, and the
United States
367777-001
3–7
Illustrated Parts Catalog
Notebook Major Components, HP Compaq nx4800 and
Compaq Presario V2000
3–8
Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
Spare Parts: Notebook Major Components (Continued)
Item
Description
4
LED boards (include cable, not illustrated)
5
Spare Part
Number
For use on HP Pavilion dv1000 notebook models
367797-001
For use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models
367798-001
Top covers (include TouchPad)
For use on HP Pavilion dv1000 notebook models
367761-001
For use on HP Compaq nx4800 notebook models
373529-001
For use on Compaq Presario V2000 notebook models
with a 1394 port, S-Video-out jack, expansion port,
and Memory Reader
367762-001
For use on Compaq Presario V2000 notebook models
without a 1394 port, S-Video-out jack, expansion port,
and Memory Reader
373531-001
6
Heat sink (includes thermal pad)
367796-001
7
Fan (includes thermal pad)
367795-001
8
Processors (include thermal pad)
Intel Pentium M 745 (1.8-GHz) with 400-MHz FSB
Intel Pentium M 735 (1.7-GHz) with 400-MHz FSB
Intel Pentium M 725 (1.6-GHz) with 400-MHz FSB
Intel Pentium M 715A (1.5-GHz) with 400-MHz FSB
Intel Pentium M 705 (1.5-GHz) with 400-MHz FSB
Intel Pentium M 710 (1.4-GHz) with 400-MHz FSB
Intel Celeron M 340 (1.5-GHz) with 400-MHz FSB
Intel Celeron M 360 (1.4-GHz) with 400-MHz FSB
Intel Celeron M 330 (1.4-GHz) with 400-MHz FSB
Intel Celeron M 350 (1.3-GHz) with 400-MHz FSB
Intel Celeron M 320 (1.3-GHz) with 400-MHz FSB
Maintenance and Service Guide
373053-001
373052-001
367771-001
380690-001
375979-001
376588-001
367768-001
380033-001
367767-001
380032-001
374874-001
3–9
Illustrated Parts Catalog
Notebook Major Components, HP Pavilion dv1000
3–10
Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
Spare Parts: Notebook Major Components (Continued)
Item
Description
9
System boards (include disk cell RTC battery)
10
Spare Part
Number
For use on HP Pavilion dv1000 notebook models with
Intel Pentium M processors
367799-001
For use on HP Pavilion dv1000 notebook models with
Intel Celeron M processors
367800-001
For use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models with
Intel Pentium M processors
373522-001
For use on Compaq Presario V2000 notebook models
with Intel Celeron M processors
373523-001
USB/S-Video controller boards
For use on HP Pavilion dv1000 notebook models
and HP Compaq nx4800 and
Compaq Presario V2000 notebook models with a
1394 port, S-Video-out jack, expansion port, and
digital memory card reader
367794-001
For use only on Compaq Presario V2000 notebook
models without a 1394 port, S-Video-out jack,
expansion port, and Memory Reader
373533-001
11
Menu control button board (includes bracket and
cable, for use only on HP Pavilion dv1000
notebook models)
373535-001
12
Speaker assemblies
For use on HP Pavilion dv1000 notebook models
367793-001
For use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models
374625-001
Maintenance and Service Guide
3–11
Illustrated Parts Catalog
Notebook Major Components, HP Compaq nx4800 and
Compaq Presario V2000
3–12
Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
Spare Parts: Notebook Major Components (Continued)
Item
Description
13
Base enclosures
14
15
Spare Part
Number
For use on HP Pavilion dv1000 notebook models
367763-001
For use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models
367764-001
Battery packs
12-cell, 8.8-AHr
367760-001
6-cell, 4.4-AHr
367759-001
Optical drives (include bezel)
For use on HP Pavilion dv1000 notebook models
8X DVD-ROM Drive
24X DVD/CD-RW Combo Drive
4X DVD+RW/R and CD-RW Combo Drive
4X DVD±RW/R and CD-RW Combo Drive
8X DVD±RW/R and CD-RW Combo Drive
367789-001
367790-001
373625-001
375981-001
375983-001
For use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models
8X DVD-ROM Drive
24X DVD/CD-RW Combo Drive
4X DVD+RW/R and CD-RW Combo Drive
4X DVD±RW/R and CD-RW Combo Drive
8X DVD±RW/R and CD-RW Combo Drive
373524-001
373525-001
373626-001
375982-001
375984-001
Maintenance and Service Guide
3–13
Illustrated Parts Catalog
Notebook Major Components, HP Pavilion dv1000
3–14
Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
Spare Parts: Notebook Major Components (Continued)
Item
Description
16
Hard drives (include frame and connector)
17
5400-rpm
80-GB
60-GB
377651-001
375980-001
4200-rpm
100-GB
80-GB
60-GB
40-GB
381721-001
367788-001
367787-001
367786-001
Mini PCI communications cards
802.11b/g Broadcomm (MOW)
802.11b/g Broadcomm (ROW)
802.11b/g Broadcomm (Japan, for use only on
HP Compaq nx4800 notebook models)
802.11b Intel (MOW)
802.11b Intel (ROW)
802.11b/g Intel (MOW)
802.11b/g Intel (ROW)
Bluetooth® Wireless LAN
18
Spare Part
Number
373047-001
373048-001
373061-291
373023-001
373024-001
373026-001
373025-001
376651-001
Memory modules (266 MHz)
1024-MB
512-MB
256-MB
128-MB
Maintenance and Service Guide
367775-001
367774-001
367773-001
373056-001
3–15
Illustrated Parts Catalog
Notebook Major Components, HP Compaq nx4800 and
Compaq Presario V2000
3–16
Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
Spare Parts: Notebook Major Components (Continued)
Item
Description
Spare Part
Number
Miscellaneous Plastics Kit
19a
19b
19c
For use on HP Pavilion dv1000 notebook models
367765-001
For use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models
367766-001
Includes:
Hard drive cover (includes two captive screws)
Memory module compartment cover (includes
2 captive screws)
Mini PCI compartment cover (includes 2 captive
screws)
Notebook feet (not illustrated)
Maintenance and Service Guide
3–17
Illustrated Parts Catalog
3.3 Miscellaneous Plastics Kit
Miscellaneous Plastics Kit
3–18
Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-2
Miscellaneous Plastics Kit
Spare Part Number Information
Item
Description
Spare Part
Number
Miscellaneous Plastics Kit
For use on HP Pavilion dv1000 notebook models
1a
2a
3a
4a
Includes:
Mini PCI compartment cover
Memory module compartment cover
Notebook feet
Hard drive cover
For use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models
1b
2b
3b
4b
367765-001
367766-001
Includes:
Mini PCI compartment cover
Memory module compartment cover
Notebook feet
Hard drive cover
Maintenance and Service Guide
3–19
Illustrated Parts Catalog
3.4 Mass Storage Devices
Mass Storage Devices
Table 3-3
Mass Storage Devices
Spare Part Number Information
Spare Part
Number
Item
Description
1
Hard drives (include frame and connector)
5400-rpm
80-GB
60-GB
3–20
377651-001
375980-001
Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-3
Mass Storage Devices
Spare Part Number Information (Continued)
Item
Description
Spare Part
Number
Hard drives (Continued)
4200-rpm
100-GB
80-GB
60-GB
40-GB
2
381721-001
367788-001
367787-001
367786-001
Optical drives
For use on HP Pavilion dv1000 notebook models
8X DVD-ROM Drive
24X DVD/CD-RW Combo Drive
4X DVD+RW/R and CD-RW Combo Drive
4X DVD±RW/R and CD-RW Combo Drive
8X DVD±RW/R and CD-RW Combo Drive
367789-001
367790-001
373625-001
375981-001
375983-001
For use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models
8X DVD-ROM Drive
24X DVD/CD-RW Combo Drive
4X DVD+RW/R and CD-RW Combo Drive
4X DVD±RW/R and CD-RW Combo Drive
8X DVD±RW/R and CD-RW Combo Drive
373524-001
373525-001
373626-001
375982-001
375984-001
USB diskette drive (not illustrated)
359118-001
USB digital drive (not illustrated)
364727-001
HP USB pocket drive (not illustrated)
338796-001
Maintenance and Service Guide
3–21
Illustrated Parts Catalog
3.5 Miscellaneous
Table 3-4
Spare Parts: Miscellaneous (not illustrated)
Spare Part
Number
Description
Logo Kits
For use on HP Pavilion dv1000 notebook models
373058-001
For use on HP Compaq nx4800 notebook models
373530-001
For use on Compaq Presario V2000 notebook models
373059-001
Wired headset with volume control
371693-001
Personal Video Recorder
352950-001
HP remote control (for use only on HP dv1000
notebook models)
371694-001
USB travel mouse
309674-001
Notebook entertainment cable and Y-cable
375759-001
65-watt AC adapter
371790-001
Screw Kit (includes the following screws; refer to Appendix C, “Screw Listing,”
for more information on screw specifications and usage)
For use on HP Pavilion dv1000 notebook models
367776-001
For use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models
373534-001
■ Phillips PM2.5×4.0 screw
■ Phillips PM2.0×4.0 screw
■ Phillips PM2.0×7.0 round head screw ■ Phillips PM2.0×3.0 screw
■ Phillips PM2.0×7.0 screw
■ Phillips PM2.0×5.0 screw
3–22
■ Phillips PM1.5×2.0 screw
Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-4
Spare Parts: Miscellaneous (not illustrated) (Continued)
Description
Spare Part
Number
Power cords
For use in:
Australia and New Zealand
373979-011
Belgium, Europe, Finland, France, Germany, Greece,
the Netherlands, Norway, Portugal, Spain, and Sweden
373979-021
Canada, French Canada, Latin America, Taiwan, Thailand,
and the United States
373979-001
Denmark
373979-081
Hong Kong and the United Kingdom
373979-031
Israel
373979-BB1
Italy
373979-061
Japan
373979-291
Korea
373979-AD1
People’s Republic of China
373979-AA1
Switzerland
373979-111
Maintenance and Service Guide
3–23
Illustrated Parts Catalog
3.6 Sequential Part Number Listing
Table 3-5
Spare Parts: Sequential Part Number Listing
Spare Part
Number
Description
309674-001
USB travel mouse
352950-001
Personal Video Recorder
359118-001
USB diskette drive
364727-001
USB digital drive
367759-001
Battery pack, 6-cell, 4.4-AHr
367760-001
Battery pack, 12-cell, 8.8-AHr
367761-001
Top cover for use on HP Pavilion dv1000 notebook models
(includes TouchPad)
367762-001
Top cover for use on Compaq Presario V2000 notebook
models with a 1394 port, S-Video-out jack, expansion port,
and Memory Reader (includes TouchPad)
367763-001
Base enclosure for use on HP Pavilion dv1000 notebook
models
367764-001
Base enclosure for use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models
367765-001
Miscellaneous Plastics Kit for use on HP Pavilion dv1000
notebook models
367766-001
Miscellaneous Plastics Kit for use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models
367767-001
Processor, Intel Celeron M 330 (1.4-GHz) with 400-MHz FSB
(includes thermal pad)
367768-001
Processor, Intel Celeron M 340 (1.5-GHz) with 400-MHz FSB
(includes thermal pad)
3–24
Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-5
Spare Parts: Sequential Part Number Listing (Continued)
Spare Part
Number
Description
367771-001
Processor, Intel Pentium M 725 (1.6-GHz) with 400-MHz FSB
(includes thermal pad)
367773-001
Memory module, 256-MB (266 MHz)
367774-001
Memory module, 512-MB (266 MHz)
367775-001
Memory module, 1024-MB (266 MHz)
367776-001
Screw Kit for use on HP Pavilion dv1000 notebook models
367777-001
Keyboard for use on Compaq Presario V2000 notebook
models in Asia Pacific, Australia, Hong Kong,
People’s Republic of China, and the United States
367777-161
Keyboard for use on Compaq Presario V2000 notebook
models in Latin America
367777-281
Keyboard for use on Compaq Presario V2000 notebook
models in Thailand
367777-291
Keyboard for use on HP Compaq nx4800 notebook model in
Japan
367777-AD1
Keyboard for use on Compaq Presario V2000 notebook
models in Korea
367778-001
Keyboard for use on HP Pavilion dv1000 notebook models in
Asia Pacific, Australia, Canada, Hong Kong, People’s Republic
of China, and the United States
367778-031
Keyboard for use on HP Pavilion dv1000 notebook models in
the United Kingdom
367778-041
Keyboard for use on HP Pavilion dv1000 notebook models in
Germany
367778-051
Keyboard for use on HP Pavilion dv1000 notebook models in
France
Maintenance and Service Guide
3–25
Illustrated Parts Catalog
Table 3-5
Spare Parts: Sequential Part Number Listing (Continued)
Spare Part
Number
Description
367778-061
Keyboard for use on HP Pavilion dv1000 notebook models in
Italy
367778-071
Keyboard for use on HP Pavilion dv1000 notebook models in
Spain
367778-081
Keyboard for use on HP Pavilion dv1000 notebook models in
Denmark
367778-091
Keyboard for use on HP Pavilion dv1000 notebook models in
Norway
367778-111
Keyboard for use on HP Pavilion dv1000 notebook models in
Switzerland
367778-121
Keyboard for use on HP Pavilion dv1000 notebook models in
French Canada
367778-131
Keyboard for use on HP Pavilion dv1000 notebook models in
Portugal
367778-161
Keyboard for use on HP Pavilion dv1000 notebook models in
Latin America
367778-171
Keyboard for use on HP Pavilion dv1000 notebook models in
Saudi Arabia
367778-281
Keyboard for use on HP Pavilion dv1000 notebook models in
Thailand
367778-331
Keyboard for use on HP Pavilion dv1000 notebook models in
Europe and the Netherlands
367778-A41
Keyboard for use on HP Pavilion dv1000 notebook models in
Belgium
367778-AB1
Keyboard for use on HP Pavilion dv1000 notebook models in
Taiwan
367778-AD1
Keyboard for use on HP Pavilion dv1000 notebook models in
Korea
3–26
Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-5
Spare Parts: Sequential Part Number Listing (Continued)
Spare Part
Number
Description
367778-B71
Keyboard for use on HP Pavilion dv1000 notebook models
Finland and Sweden
367778-BB1
Keyboard for use on HP Pavilion dv1000 notebook models in
Israel
367778-DJ1
Keyboard for use on HP Pavilion dv1000 notebook models in
Greece
367779-001
Switch cover for use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models with a 1394 port,
S-Video-out jack, expansion port, and Memory Reader
without wireless capability
367780-001
Switch cover for use on HP Pavilion dv1000 notebook models
without wireless capability
367781-001
Switch cover for use on HP Pavilion dv1000 notebook models
with wireless capability
367782-001
Switch cover for use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models with a 1394 port,
S-Video-out jack, expansion port, and Memory Reader with
wireless capability
367783-001
Display assembly, 14.0-inch, WXGA for use on
for use on HP Pavilion dv1000 notebook models
367784-001
Display assembly, 14.0-inch, WXGA for use on
Compaq Presario V2000 notebook models
367786-001
Hard drive, 60-GB, 4200-rpm (includes frame and connector)
367787-001
Hard drive, 40-GB, 4200-rpm (includes frame and connector)
367788-001
Hard drive, 80-GB, 4200-rpm (includes frame and connector)
367789-001
8X DVD-ROM Drive for use on
HP Pavilion dv1000 notebook models
Maintenance and Service Guide
3–27
Illustrated Parts Catalog
Table 3-5
Spare Parts: Sequential Part Number Listing (Continued)
Spare Part
Number
Description
367790-001
24X DVD/CD-RW Combo Drive for use on
HP Pavilion dv1000 notebook models
367793-001
Speaker assembly for use on HP Pavilion dv1000 notebook
models
367794-001
USB/S-Video controller board for use on HP Pavilion dv1000
notebook models and HP Compaq nx4800 and
Compaq Presario V2000 notebook models with a 1394 port,
S-Video-out jack, expansion port, and digital memory card
reader
367795-001
Fan (includes thermal pad)
367796-001
Heat sink (includes thermal pad)
367797-001
LED board for use on HP Pavilion dv1000 notebook models
(includes cable)
367798-001
LED board for use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models (includes cable)
367799-001
System board for use on HP Pavilion dv1000 notebook
models with Intel Pentium M processors
367800-001
System board for use on HP Pavilion dv1000 notebook
models with Intel Celeron M processors
371693-001
Wired headset with volume control
371694-001
HP remote control (for use only on HP dv1000
notebook models)
371790-001
65-watt AC adapter
373023-001
Mini PCI communications card, 802.11b Intel (MOW)
373024-001
Mini PCI communications card, 802.11b Intel (ROW)
373025-001
Mini PCI communications card, 802.11b/g Intel (ROW)
373026-001
Mini PCI communications card, 802.11b/g Intel (MOW)
3–28
Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-5
Spare Parts: Sequential Part Number Listing (Continued)
Spare Part
Number
Description
373047-001
Mini PCI communications card, 802.11b/g Broadcomm
(MOW)
373048-001
Mini PCI communications card, 802.11b/g Broadcomm (ROW)
373052-001
Processor, Intel Pentium M 735 (1.7-GHz) with
400-MHz FSB (includes thermal pad)
373053-001
Processor, Intel Pentium M 745 (1.8-GHz) with
400-MHz FSB (includes thermal pad)
373054-001
Display assembly, 14.0-inch, WXGA, SVA with Brightview for
use on HP Pavilion dv1000 notebook models
373055-001
Display assembly, 14.0-inch, WXGA, SVA with Brightview for
use on Compaq Presario V2000 notebook models
373056-001
Memory module, 128-MB (266 MHz)
373058-001
Logo Kit for use on HP Pavilion dv1000 notebook models
373059-001
Logo Kit for use on Compaq Presario V2000 notebook models
373060-001
Display assembly, 14.0-inch, WXGA, SVA with Brightview for
use on HP Compaq nx4800 notebook models
373061-001
Mini PCI communications card, 802.11b/g Broadcomm
(Japan)
373522-001
System board for use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models with
Intel Pentium M processors
373523-001
System board for use on Compaq Presario V2000 notebook
models with Intel Celeron M processors
373524-001
8X DVD-ROM Drive for use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models
Spare Part
Number
Description
Maintenance and Service Guide
3–29
Illustrated Parts Catalog
Table 3-5
Spare Parts: Sequential Part Number Listing (Continued)
Spare Part
Number
Description
373525-001
24X DVD/CD-RW Combo Drive for use on
HP Compaq nx4800 and Compaq Presario V2000 notebook
models
373528-001
Display assembly, 14.0-inch, WXGA, SVA for use on
HP Compaq nx4800 notebook models
373529-001
Top cover for use on HP Compaq nx4800 notebook models
(includes TouchPad)
373530-001
Logo Kit for use on HP Compaq nx4800 notebook models
373531-001
Top cover for use on Compaq Presario V2000 notebook
models without a 1394 port, S-Video-out jack, expansion port,
and Memory Reader (includes TouchPad)
373532-001
Switch cover for use on Compaq Presario V2000 notebook
models without wireless (includes wireless button and light)
373533-001
USB/S-Video controller board for use only on Compaq
Presario V2000 notebook models without a 1394 port,
S-Video-out jack, expansion port, and Memory Reader
373534-001
Screw Kit for use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models
373535-001
Menu control button board (includes bracket and cable, for use
only on HP Pavilion dv1000 notebook models)
373625-001
4X DVD+RW/R and CD-RW Combo Drive for use on
HP Pavilion dv1000 notebook models
373626-001
4X DVD+RW/R and CD-RW Combo Drive for use on
Compaq Presario V2000 notebook models
373979-001
Power cord for use in Canada, French Canada, Latin America,
Taiwan, Thailand, and the United States
373979-011
Power cord for use in Australia and New Zealand
3–30
Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-5
Spare Parts: Sequential Part Number Listing (Continued)
Spare Part
Number
Description
373979-021
Power cord for use in Belgium, Europe, Finland, France,
Germany, Greece, the Netherlands, Norway, Portugal, Spain,
and Sweden
373979-031
Power cord for use in Australia, Hong Kong, New Zealand, and
the United Kingdom
373979-061
Power cord for use in Italy
373979-081
Power cord for use in Denmark
373979-111
Power cord for use in Switzerland
373979-291
Power cord for use in Japan
373979-AA1
Power cord for use in People’s Republic of China
373979-AD1
Power cord for use in Korea
373979-BB1
Power cord for use in Israel
374625-001
Speaker assembly for use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models
374874-001
Processor, Intel Celeron M 320 (1.3-GHz) with
400-MHz FSB (includes thermal pad)
375759-001
Notebook entertainment cable and Y-cable
375978-001
Mini-PCI communications card, 802.11b Intel (ROW)
375979-001
Processor, Intel Pentium M 710 (1.4-GHz) with
400-MHz FSB (includes thermal pad)
375980-001
Hard drive, 60-GB, 5400-rpm (includes frame and connector)
375981-001
4X DVD±RW/R and CD-RW Combo Drive for use on
HP Pavilion dv1000 notebook models
375982-001
4X DVD±RW/R and CD-RW Combo Drive for use on
Compaq Presario V2000 notebook models
Maintenance and Service Guide
3–31
Illustrated Parts Catalog
Table 3-5
Spare Parts: Sequential Part Number Listing (Continued)
Spare Part
Number
Description
375983-001
8X DVD±RW/R and CD-RW Combo Drive for use on
HP Pavilion dv1000 notebook models
375984-001
8X DVD±RW/R and CD-RW Combo Drive for use on
Compaq Presario V2000 notebook models
376082-001
Wireless antenna cables
376588-001
Processor, Intel Pentium 705 (1.5-GHz) with
400-MHz FSB (includes thermal pad)
376651-001
Mini PCI communications card, Bluetooth Wireless LAN
377651-001
Hard drive, 80-GB, 5400-rpm (includes frame and connector)
380032-001
Processor, Intel Celeron M 350 (1.3-GHz) with
400-MHz FSB (includes thermal pad)
380033-001
Processor, Intel Celeron M 360 (1.4-GHz) with
400-MHz FSB (includes thermal pad)
380690-001
Processor, Intel Pentium M 715A (1.5-GHz) with
400-MHz FSB (includes thermal pad)
381721-001
Hard drive, 100-GB, 4200-rpm (includes frame and connector)
382077-001
Left and right display hinge covers and brackets for use on
HP Pavilion dv1000 notebook models
382078-001
Left and right display hinge covers and brackets for use on
HP Compaq nx4800 and Compaq Presario notebook models
3–32
Maintenance and Service Guide
4
Removal and Replacement
Preliminaries
This chapter provides essential information for proper and
safe removal and replacement service.
4.1 Tools Required
You will need the following tools to complete the removal and
replacement procedures:
■ Magnetic screwdriver
■ Phillips P0 screwdriver
■ 5.0-mm socket for system board screwlocks
■ Flat-bladed screwdriver
■ Tool kit—includes connector removal tool, loopback plugs,
and case utility tool
4.2 Service Considerations
The following sections include some of the considerations
that you should keep in mind during disassembly and assembly
procedures.
you remove each subassembly from the notebook, place
✎ As
the subassembly (and all accompanying screws) away from
the work area to prevent damage.
Maintenance and Service Guide
4–1
Removal and Replacement Preliminaries
Plastic Parts
Using excessive force during disassembly and reassembly can
damage plastic parts. Use care when handling the plastic parts.
Apply pressure only at the points designated in the maintenance
instructions.
Cables and Connectors
Ä
CAUTION: When servicing the notebook, ensure that cables are
placed in their proper locations during the reassembly process.
Improper cable placement can damage the notebook.
Cables must be handled with extreme care to avoid damage.
Apply only the tension required to unseat or seat the cables
during removal and insertion. Handle cables by the connector
whenever possible. In all cases, avoid bending, twisting, or
tearing cables. Ensure that cables are routed in such a way that
they cannot be caught or snagged by parts being removed or
replaced. Handle flex cables with extreme care; these cables
tear easily.
4.3 Preventing Damage to
Removable Drives
Removable drives are fragile components that must be handled
with care. To prevent damage to the notebook, damage to a
removable drive, or loss of information, observe the following
precautions:
■ Before removing or inserting a hard drive, shut down the
notebook. If you are unsure whether the notebook is off or
in Hibernation, turn the notebook on, and then shut it down
through the operating system.
■ Before removing a diskette drive or optical drive, ensure that
a diskette or disc is not in the drive and ensure that the optical
drive tray is closed.
4–2
Maintenance and Service Guide
Removal and Replacement Preliminaries
■
■
■
■
■
■
■
Before handling a drive, ensure that you are discharged of
static electricity. While handling a drive, avoid touching the
connector.
Handle drives on surfaces covered with at least one inch of
shock-proof foam.
Avoid dropping drives from any height onto any surface.
After removing a hard drive, CD-ROM drive, or a diskette
drive, place it in a static-proof bag.
Avoid exposing a hard drive to products that have magnetic
fields, such as monitors or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack
mailer or other suitable form of protective packaging and label
the package, “Fragile: Handle With Care.”
4.4 Preventing Electrostatic Damage
Many electronic components are sensitive to electrostatic
discharge (ESD). Circuitry design and structure determine the
degree of sensitivity. Networks built into many integrated circuits
provide some protection, but in many cases, the discharge
contains enough power to alter device parameters or melt
silicon junctions.
A sudden discharge of static electricity from a finger or other
conductor can destroy static-sensitive devices or microcircuitry.
Often the spark is neither felt nor heard, but damage occurs.
An electronic device exposed to electrostatic discharge might not
be affected at all and can work perfectly throughout a normal
cycle. Or the device might function normally for a while, then
degrade in the internal layers, reducing its life expectancy.
Maintenance and Service Guide
4–3
Removal and Replacement Preliminaries
4.5 Packaging and Transporting
Precautions
Use the following grounding precautions when packaging and
transporting equipment:
■ To avoid hand contact, transport products in static-safe
containers, such as tubes, bags, or boxes.
■ Protect all electrostatic-sensitive parts and assemblies with
conductive or approved containers or packaging.
■ Keep electrostatic-sensitive parts in their containers until
the parts arrive at static-free workstations.
■ Place items on a grounded surface before removing items
from their containers.
■ Always be properly grounded when touching a sensitive
component or assembly.
■ Store reusable electrostatic-sensitive parts from assemblies
in protective packaging or nonconductive foam.
■ Use transporters and conveyors made of antistatic belts and
roller bushings. Ensure that mechanized equipment used for
moving materials is wired to ground and that proper materials
are selected to avoid static charging. When grounding is not
possible, use an ionizer to dissipate electric charges.
4–4
Maintenance and Service Guide
Removal and Replacement Preliminaries
4.6 Workstatinon Precautions
Use the following grounding precautions at workstations:
■ Cover the workstation with approved static-shielding material
(refer to Table 4-2, “Static-Shielding Materials”).
■ Use a wrist strap connected to a properly grounded work
surface and use properly grounded tools and equipment.
■ Use conductive field service tools, such as cutters,
screwdrivers, and vacuums.
■ When using fixtures that must directly contact dissipative
surfaces, only use fixtures made of static-safe materials.
■ Keep the work area free of nonconductive materials, such
as ordinary plastic assembly aids and Styrofoam.
■ Handle electrostatic-sensitive components, parts, and
assemblies by the case or PCM laminate. Handle these
items only at static-free workstations.
■ Avoid contact with pins, leads, or circuitry.
■ Turn off power and input signals before inserting or removing
connectors or test equipment.
Maintenance and Service Guide
4–5
Removal and Replacement Preliminaries
4.7 Grounding Equipment and
Methods
Grounding equipment must include either a wrist strap or a
foot strap at a grounded workstation.
■ When seated, wear a wrist strap connected to a grounded
system. Wrist straps are flexible straps with a minimum of
one megohm ±10% resistance in the ground cords. To provide
proper ground, wear a strap snugly against the skin at all times.
On grounded mats with banana-plug connectors, use alligator
clips to connect a wrist strap.
■ When standing, use foot straps and a grounded floor mat.
Foot straps (heel, toe, or boot straps) can be used at standing
workstations and are compatible with most types of shoes
or boots. On conductive floors or dissipative floor mats, use
foot straps on both feet with a minimum of one megohm
resistance between the operator and ground. To be effective,
the conductive strips must be worn in contact with the skin.
4–6
Maintenance and Service Guide
Removal and Replacement Preliminaries
Other grounding equipment recommended for use in preventing
electrostatic damage includes:
■ Antistatic tape
■ Antistatic smocks, aprons, and sleeve protectors
■ Conductive bins and other assembly or soldering aids
■ Nonconductive foam
■ Conductive tabletop workstations with ground cords of
one megohm resistance
■ Static-dissipative tables or floor mats with hard ties to
the ground
■ Field service kits
■ Static awareness labels
■ Material-handling packages
■ Nonconductive plastic bags, tubes, or boxes
■ Metal tote boxes
■ Electrostatic voltage levels and protective materials
Maintenance and Service Guide
4–7
Removal and Replacement Preliminaries
Table 4-1 shows how humidity affects the electrostatic voltage
levels generated by different activities.
Table 4-1
Typical Electrostatic Voltage Levels
Relative Humidity
Event
10%
40%
55%
Walking across carpet
35,000 V
15,000 V
7,500 V
Walking across vinyl floor
12,000 V
5,000 V
3,000 V
Motions of bench worker
6,000 V
800 V
400 V
Removing DIPS from plastic tube
2,000 V
700 V
400 V
Removing DIPS from vinyl tray
11,500 V
4,000 V
2,000 V
Removing DIPS from Styrofoam
14,500 V
5,000 V
3,500 V
Removing bubble pack from PCB
26,500 V
20,000 V
7,000 V
Packing PCBs in foam-lined box
21,000 V
11,000 V
5,000 V
✎ A product can be degraded by as little as 700 V.
Table 4-2 lists the shielding protection provided by antistatic
bags and floor mats.
Table 4-2
Static-Shielding Materials
Material
Use
Voltage Protection Level
Antistatic plastic
Bags
1,500 V
Carbon-loaded plastic
Floor mats
7,500 V
Metallized laminate
Floor mats
5,000 V
4–8
Maintenance and Service Guide
5
Removal and Replacement
Procedures
This chapter provides removal and replacement procedures.
There are 58 screws, in 7 different sizes, that must be removed,
replaced, or loosened when servicing the notebook. Make special
note of each screw size and location during removal and
replacement.
Refer to Appendix C, “Screw Listing,” for detailed information
on screw sizes, locations, and usage.
Maintenance and Service Guide
5–1
Removal and Replacement Procedures
5.1 Serial Number
Report the notebook serial number to HP when requesting
information or ordering spare parts. The serial number is
located on the bottom of the notebook.
Serial Number Location
5–2
Maintenance and Service Guide
Removal and Replacement Procedures
5.2 Disassembly Sequence Chart
Use the chart below to determine the section number to be
referenced when removing notebook components.
Disassembly Sequence Chart
Section
Description
5.3
Preparing the notebook for
disassembly
Battery pack
Hard drive
# of Screws Removed
0
2 to remove hard drive
4 to disassemble hard drive
5.4
Notebook feet
0
5.5
Memory module
2 loosened
5.6
Mini PCI communications card
1 loosened
Ä
To prevent an unresponsive system and the display of a
warning message, install only a Mini PCI device authorized
for use in your notebook by the governmental agency that
regulates wireless devices in your country. If you install a
device and then receive a warning message, remove the
device to restore notebook functionality. Then contact
Customer Care.
5.7
Optical drive
1
5.8
Switch cover
HP Pavilion dv1000 = 3
HP Compaq nx4800 and
Compaq Presario V2000 = 2
5.9
Keyboard
HP Pavilion dv1000 = 2
HP Compaq nx4800 and
Compaq Presario V2000 = 4
Maintenance and Service Guide
5–3
Removal and Replacement Procedures
Disassembly Sequence Chart (Continued)
Section
Description
# of Screws Removed
5.10
Display assembly
4
5.11
Base enclosure
HP Pavilion dv1000 = 19
HP Compaq nx4800 and
Compaq Presario V2000 = 18
5.12
USB/S-Video controller board
2
5.13
Speaker assembly
0
5.14
RTC battery
0
5.15
Menu control button board
4
5.16
Heat sink
3
5.17
Fan
2
5.18
Processor
0
5.19
System board
4
5.20
LED board
HP Pavilion dv1000 = 3
HP Compaq nx4800 and
Compaq Presario V2000 = 2
5–4
Maintenance and Service Guide
Removal and Replacement Procedures
5.3 Preparing the Notebook for
Disassembly
Before you begin any removal or installation procedures:
1. Shut down the notebook. If you are unsure whether the
notebook is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the notebook.
3. Disconnect the power cord.
Spare Part Number Information
Battery packs
12-cell, 8.8-AHr
6-cell, 4.4-AHr
367760-001
367759-001
4. Remove the battery pack by following these steps:
a. Turn the notebook upside down with the front panel
toward you.
b. Slide and hold the battery release latch 1 to the left. (The
front edge of the battery pack disengages from the
notebook.)
c. Lift the front edge of the battery pack up and swing it
back 2.
d. Remove the battery pack.
Maintenance and Service Guide
5–5
Removal and Replacement Procedures
Removing the Battery Pack
Reverse the above procedure to install the battery pack.
5–6
Maintenance and Service Guide
Removal and Replacement Procedures
5. Remove the hard drive by following these steps:
a. Loosen the 2 PM2.0×5.0 screws 1 that secure the hard
drive cover to the notebook.
b. Lift the left side of the cover and swing it to the right 2.
c. Remove the hard drive cover.
hard drive cover is included in the Miscellaneous
✎ The
Plastics Kits, spare part numbers 367765-001 (for use on
HP Pavilion dv1000 notebook models) and 367766-001
(for use on HP Compaq nx4800 and Compaq Presario V2000
notebook models).
Removing the Hard Drive Cover
Maintenance and Service Guide
5–7
Removal and Replacement Procedures
Spare Part Number Information
Hard drives (include frame and connector)
5400-rpm
80-GB
60-GB
4200-rpm
100-GB
80-GB
60-GB
40-GB
377651-001
375980-001
381721-001
367788-001
367787-001
367786-001
d. Use the mylar tab 1 on the right side of the hard drive to
lift the right side of the hard drive up 2 until it
disconnects from the notebook.
e. Slide the hard drive to the right and remove it from the
hard drive bay.
Removing the Hard Drive
5–8
Maintenance and Service Guide
Removal and Replacement Procedures
f. Remove the 4 PM2.5×4.0 screws 1 that secure the
hard drive frame to the hard drive.
g. Lift the frame straight up 2 to remove if from the hard
drive.
h. Slide the hard drive connector 3 off the hard drive.
Removing the Hard Drive Frame and Connector
Reverse the above procedure to install and reassemble the
hard drive.
Maintenance and Service Guide
5–9
Removal and Replacement Procedures
5.4 Notebook Feet
The notebook feet are adhesive-backed rubber pads. The feet are
included in the Miscellaneous Plastics Kits, spare part numbers
367765-001 (for use on HP Pavilion dv1000 notebook models)
and 367766-001 (for use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models). The feet attach to the
base enclosure as illustrated below.
Replacing the Notebook Feet
5–10
Maintenance and Service Guide
Removal and Replacement Procedures
5.5 Memory Module
Spare Part Number Information
1024-MB
512-MB
256-MB
128-MB
367775-001
367774-001
367773-001
373056-001
1. Prepare the notebook for disassembly (refer to Section 5.3).
2. Loosen the 2 PM2.0×5.0 screws 1 that secure the memory
module compartment cover to the notebook.
3. Lift the front edge of the memory module compartment cover
up and swing it back 2.
4. Remove the memory module compartment cover.
memory module compartment cover is included in the
✎ The
Miscellaneous Plastics Kits, spare part numbers 367765-001
(for use on HP Pavilion dv1000 notebook models) and
367766-001 (for use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models).
Maintenance and Service Guide
5–11
Removal and Replacement Procedures
Removing the Memory Module Compartment Cover
5–12
Maintenance and Service Guide
Removal and Replacement Procedures
5. Spread the retaining tabs 1 on each side of the memory
module socket to release the memory module. (The right side
of the module rises away from the notebook.)
6. Slide the module away from the socket at an angle 2.
that memory modules are slotted to prevent incorrect
✎ Note
installation into the memory module socket.
Removing the Memory Module
Reverse the above procedure to install a memory module.
Maintenance and Service Guide
5–13
Removal and Replacement Procedures
5.6 Mini PCI Communications Card
Spare Part Number Information
802.11b/g Broadcomm (MOW)
802.11b/g Broadcomm (ROW)
802.11b/g Broadcomm (Japan, for use only on
HP Compaq nx4800 notebook models)
802.11b Intel (MOW)
802.11b Intel (ROW)
802.11b/g Intel (MOW)
802.11b/g Intel (ROW)
Bluetooth® Wireless LAN
373047-001
373048-001
373061-291
373023-001
373024-001
373026-001
373025-001
376651-001
1. Prepare the notebook for disassembly (Section 5.3).
5–14
Maintenance and Service Guide
Removal and Replacement Procedures
2. Loosen the PM2.0×5.0 screw 1 that secures the Mini PCI
compartment cover to the notebook.
3. Lift the rear edge of the Mini PCI compartment cover up, and
then swing it forward 2.
4. Remove the Mini PCI compartment cover.
Mini PCI compartment cover is included in the
✎ The
Miscellaneous Plastics Kits, spare part numbers 367765-001
(for use on HP Pavilion dv1000 notebook models) and
367766-001 (for use on HP Compaq nx4800 and
Compaq Presario V2000 notebook models).
Removing the Mini PCI Compartment Cover
Maintenance and Service Guide
5–15
Removal and Replacement Procedures
note of which wireless antenna cable is attached to
✎ Make
which antenna clip on the Mini PCI communications card
before disconnecting the cables.
5. Disconnect the wireless antenna cables 1 from the Mini PCI
communications card.
6. Spread the 2 retaining tabs 2 that secure the Mini PCI
communications card to the communications compartment
socket. (The board rises up).
7. Remove the wireless communications card by pulling the
board away from the socket at a 45-degree angle 3.
Removing a Mini PCI Communications Card
Reverse the above procedure to install a Mini PCI
communications card.
5–16
Maintenance and Service Guide
Removal and Replacement Procedures
5.7 Optical Drive
Spare Part Number Information
For use on HP Pavilion dv1000 notebook models
8X DVD-ROM Drive
24X DVD/CD-RW Combo Drive
4X DVD+RW/R and CD-RW Combo Drive
4X DVD±RW/R and CD-RW Combo Drive
8X DVD±RW/R and CD-RW Combo Drive
367789-001
367790-001
373625-001
375981-001
375983-001
For use on HP Compaq nx4800 and Compaq Presario V2000
notebook models
8X DVD-ROM Drive
24X DVD/CD-RW Combo Drive
4X DVD+RW/R and CD-RW Combo Drive
4X DVD±RW/R and CD-RW Combo Drive
8X DVD±RW/R and CD-RW Combo Drive
373524-001
373525-001
373626-001
375982-001
375984-001
1. Prepare the notebook for disassembly (Section 5.3).
Maintenance and Service Guide
5–17
Removal and Replacement Procedures
2. Remove the PM2.0×7.0 screw 1 that secures the optical
drive to the notebook.
3. Insert a thin tool, such as a paper clip, into the media tray
release hole 2. (The optical drive media tray releases from
the optical drive.)
4. Use the media tray frame to slide the optical drive to the
left 3.
5. Remove the optical drive.
Removing the Optical Drive
Reverse the above procedure to install an optical drive.
5–18
Maintenance and Service Guide
Removal and Replacement Procedures
5.8 Switch Cover
Spare Part Number Information
For use on HP Pavilion dv1000 notebook models with wireless
capability
367781-001
For use on HP Pavilion dv1000 notebook models without
wireless capability
367780-001
For use on HP Compaq nx4800 and Compaq Presario V2000
notebook models with a 1394 port, S-Video-out jack, expansion
port, and Memory Reader with wireless capability
367782-001
For use on HP Compaq nx4800 and Compaq Presario V2000
notebook models with a 1394 port, S-Video-out jack, expansion
port, and Memory Reader without wireless capability
367779-001
For use on Compaq Presario V2000 notebook models
without a 1394 port, S-Video-out jack, expansion port, and
Memory Reader
373532-001
1. Prepare the notebook for disassembly (Section 5.3).
2. Position the notebook with the rear panel toward you.
Maintenance and Service Guide
5–19
Removal and Replacement Procedures
3 through 9 apply only to HP Pavilion dv1000 notebook
✎ Steps
models. See steps 10 through 14 in this section for information
on removing the switch cover on HP Compaq nx4800 and
Compaq Presario V2000 notebook models.
3. Remove the 3 PM2.0×4.0 screws that secure the switch cover
to the notebook.
Removing the Switch Cover Screws, HP Pavilion dv1000 Notebook
Models Only
5–20
Maintenance and Service Guide
Removal and Replacement Procedures
4. Turn the notebook display-side up with the front panel
toward you.
5. Open the notebook as far as possible.
6. Insert a flat-blade screwdriver under the outside edges of the
display hinge covers.
7. Lift up on the outside edges of the hinge covers 1 until the
switch cover disengages 2 from the notebook.
Releasing the Switch Cover, HP Pavilion dv1000 Notebook
Models Only
Maintenance and Service Guide
5–21
Removal and Replacement Procedures
8. Swing the rear edge of the switch cover forward.
Removing the Switch Cover, HP Pavilion dv1000 Notebook
Models Only
9. Remove the switch cover.
5–22
Maintenance and Service Guide
Removal and Replacement Procedures
10 through 14 apply only to HP Compaq nx4800 and
✎ Steps
Compaq Presario V2000 notebook models.
10. Remove the 2 PM2.0×4.0 screws that secure the switch cover
to the notebook.
Removing the Switch Cover Screws, HP Compaq nx4800 and
Compaq Presario V2000 Notebook Models Only
Maintenance and Service Guide
5–23
Removal and Replacement Procedures
11. Turn the notebook display-side up with the front panel
toward you.
12. Open the notebook as far as possible.
13. Insert a flat-blade screwdriver into the slots located behind
the F1, F5, F11, and insert keys 1 and lift up on the front edge
of the switch cover 2 until it disengages from the notebook.
14. Remove the switch cover.
Removing the Switch Cover, HP Compaq nx4800 and
Compaq Presario V2000 Notebook Models Only
Reverse the above procedure to install the switch cover.
5–24
Maintenance and Service Guide
Removal and Replacement Procedures
5.9 Keyboard
Spare Part Number Information
For use on HP Pavilion dv1000 notebook models
Belgium
Denmark
France
French Canada
Germany
Greece
Israel
Italy
Korea
Latin America
Europe and
the Netherlands
367778-A41
367778-081
367778-051
367778-121
367778-041
367778-DJ1
367778-BB1
367778-061
367778-AD1
367778-161
367778-331
Norway
Portugal
Saudi Arabia
Spain
Sweden/Finland
Switzerland
Taiwan
Thailand
United Kingdom
Asia Pacific, Australia,
Hong Kong, People’s
Republic of China, and
the United States
367778-091
367778-131
367778-171
367778-071
367778-B71
367778-111
367778-AB1
367778-281
367778-031
367778-001
For use on HP Compaq nx4800 notebook models
Japan
3677777-291
For use on Compaq Presario V2000 notebook models
Korea
Latin America
Taiwan
Thailand
367777-AD1
367777-161
367777-AB1
367777-281
Asia Pacific, Australia,
Hong Kong, People’s
Republic of China, and
the United States
367777-001
1. Prepare the notebook for disassembly (Section 5.3).
2. Remove the optical drive (Section 5.7).
3. Remove the switch cover (Section 5.8).
4. Close the notebook.
5. Turn the notebook upside down with the rear panel
toward you.
Maintenance and Service Guide
5–25
Removal and Replacement Procedures
6 through 11 apply only to HP Pavilion dv1000 notebook
✎ Steps
models. See steps 12 through 15 in this section for information
on removing the keyboard on HP Compaq nx4800 and
Compaq Presario V2000 notebook models.
6. Remove the 2 PM2.0×4.0 screws that secure the keyboard to
the notebook.
Removing the Keyboard Screws, HP Pavilion dv1000 Notebook
Models Only
5–26
Maintenance and Service Guide
Removal and Replacement Procedures
7. Turn the notebook display-side up with the front panel
toward you.
8. Open the notebook as far as possible.
9. Lift the rear edge of the keyboard and swing it forward until it
rests on the palm rest.
Releasing the Keyboard, HP Pavilion dv1000 Notebook
Models Only
Maintenance and Service Guide
5–27
Removal and Replacement Procedures
10. Release the zero insertion force (ZIF) connector 1 to which
the keyboard cable is connected and disconnect the keyboard
cable 2 from the system board.
Disconnecting the Keyboard Cable, HP Pavilion dv1000 Notebook
Models Only
11. Remove the keyboard.
5–28
Maintenance and Service Guide
Removal and Replacement Procedures
12 through 15 apply only to HP Compaq nx4800 and
✎ Steps
Compaq Presario V2000 notebook models.
12. Remove the 4 PM2.0×3.0 screws 1 that secure the keyboard
to the notebook.
13. Swing the rear edge of the keyboard up and forward 2 until
it rests on the palm rest.
Releasing the Keyboard, HP Compaq nx4800 and
Compaq Presario V2000 Notebook Models Only
Maintenance and Service Guide
5–29
Removal and Replacement Procedures
14. Release the ZIF connector 1 to which the keyboard cable is
connected and disconnect the keyboard cable 2 from the
system board.
Disconnecting the Keyboard Cable, HP Compaq nx4800 and
Compaq Presario V2000 Notebook Models Only
15. Remove the keyboard.
Reverse the above procedure to install the keyboard.
5–30
Maintenance and Service Guide
Removal and Replacement Procedures
5.10 Display Assembly
Spare Part Number Information
For use on HP Pavilion dv1000 notebook models
14.0-inch, WXGA, SVA with Brightview
14.0-inch, WXGA
373054-001
367783-001
For use on HP Compaq nx4800 notebook models
14.0-inch, WXGA, SVA with Brightview
14.0-inch, WXGA
373060-001
373528-001
For use on Compaq Presario V2000 notebook models
14.0-inch, WXGA, SVA with Brightview
14.0-inch, WXGA
373055-001
367784-001
Left and right display hinge covers and brackets
For use on HP Pavilion dv1000 notebook models
for use on HP Compaq nx4800 and Compaq Presario
notebook models
382077-001
382078-001
Wireless antenna cables (not illustrated)
376082-001
1. Prepare the notebook for disassembly (Section 5.3).
2. Remove the memory module compartment (Section 5.5) and
Mini PCI compartment covers (Section 5.6).
Maintenance and Service Guide
5–31
Removal and Replacement Procedures
3. Disconnect the wireless antenna cables from the Mini PCI
communications card.
Disconnecting the Wireless Antenna Cables
4. Remove the wireless antenna cables from the Mini PCI and
memory module compartments.
5. Remove the switch cover (Section 5.8).
6. Remove the keyboard (Section 5.9).
7. Turn the notebook display-side up with the front panel toward
you.
8. Open the display as far as possible.
5–32
Maintenance and Service Guide
Removal and Replacement Procedures
9. Disconnect the display cable from the system board 1.
10. Remove the tape 2 that secures the wireless antenna cables
to the top cover.
11. Remove the cables from the clips 3 in the top cover.
Disconnecting the Display Cable and Removing the Wireless
Antenna Cables
Maintenance and Service Guide
5–33
Removal and Replacement Procedures
12 and 13 apply only to HP Pavilion dv1000 notebook
✎ Steps
models. See steps 14 and 15 in this section for information on
removing the display assembly on HP Compaq nx4800 and
Compaq Presario V2000 notebook models.
Ä
CAUTION: Support the display assembly when removing the following
screws. Failure to support the display assembly can result in damage to
the display assembly and other notebook components.
12. Remove the 4 PM2.0×7.0 round head screws 1 that secure
the display assembly to the notebook.
13. Remove the display assembly 2.
Removing the Display Assembly, HP Pavilion dv1000 Notebook
Models Only
5–34
Maintenance and Service Guide
Removal and Replacement Procedures
14 and 15 apply only to HP Compaq nx4800 and
✎ Steps
Compaq Presario V2000 notebook models.
Ä
CAUTION: Support the display assembly when removing the following
screws. Failure to support the display assembly can result in damage to
the display assembly and other notebook components.
14. Remove the 4 PM2.0×5.0 screws 1 that secure the display
assembly to the notebook.
15. Remove the display assembly 2.
Removing the Display Assembly, HP Compaq nx4800 and
Compaq Presario V2000 Notebook Models Only
Reverse the above procedure to install the display assembly
Maintenance and Service Guide
5–35
Removal and Replacement Procedures
5.11 Base Enclosure
Spare Part Number Information
For use on HP Pavilion dv1000 notebook models
367763-001
For use on HP Compaq nx4800 and Compaq Presario V2000
notebook models
367764-001
1. Prepare the notebook for disassembly (Section 5.3)
and remove the following components:
❏ Optical drive (Section 5.7)
❏ Switch cover (Section 5.8)
❏ Keyboard (Section 5.9)
❏ Display assembly (Section 5.10)
5–36
Maintenance and Service Guide
Removal and Replacement Procedures
2 through 7 apply only to HP Pavilion dv1000 notebook
✎ Steps
models. See steps 8 and 9 in this section for information on
removing the base enclosure on HP Compaq nx4800 and
Compaq Presario V2000 notebook models.
2. Remove the 2 PM2.0×7.0 screws that secure the base
enclosure to the notebook
Removing the Base Enclosure Screws, Part 1, HP Pavilion dv1000
Notebook Models Only
Maintenance and Service Guide
5–37
Removal and Replacement Procedures
3. Turn the notebook upside down with the front panel
toward you.
4. Remove the following:
❏ 14 PM2.0×7.0 screws 1
❏ 1 PM2.0×5.0 screw 2
❏ 2 PM2.0×4.0 screws 3
Removing the Base Enclosure Screws, Part 2, HP Pavilion dv1000
Notebook Models Only
5–38
Maintenance and Service Guide
Removal and Replacement Procedures
5. Swing the rear edge of the base enclosure straight up and
forward 1 until it rests at an angle.
6. Slide the base enclosure back at an angle 2.
7. Remove the base enclosure.
Removing the Base Enclosure, HP Pavilion dv1000 Notebook
Models Only
Maintenance and Service Guide
5–39
Removal and Replacement Procedures
8 and 9 apply only to HP Compaq nx4800 and Compaq
✎ Steps
Presario V2000 notebook models.
8. Remove the following:
❏ 15 PM2.0×7.0 screws 1
❏ 3 PM2.0×4.0 screws 2
9. Lift the base enclosure straight up and remove it 3.
Removing the Base Enclosure, HP Compaq nx4800 and
Compaq Presario V2000 Notebook Models Only
Reverse the above procedure to install the base enclosure.
5–40
Maintenance and Service Guide
Removal and Replacement Procedures
5.12 USB/S-Video Controller Board
Spare Part Number Information
For use on HP Pavilion dv1000 notebook models and
HP Compaq nx4800 and Compaq Presario V2000 notebook
models with a 1394 port, S-Video-out jack, expansion port, and
digital memory card reader
367794-001
For use only on Compaq Presario V2000 notebook models
without a 1394 port, S-Video-out jack, expansion port, and
Memory Reader
373533-001
1. Prepare the notebook for disassembly (Section 5.3)
and remove the following components:
❏ Optical drive (Section 5.7)
❏ Switch cover (Section 5.8)
❏ Keyboard (Section 5.9)
❏ Display assembly (Section 5.10)
❏ Base enclosure (Section 5.11)
Maintenance and Service Guide
5–41
Removal and Replacement Procedures
2. Remove the 2 PM2.0×4.0 screws 1 that secure the
USB/S-Video controller board to the top cover.
3. Lift up on the right side of the board 2 to disconnect it from
the system board.
4. Remove the USB/S-Video controller board.
Removing the USB/S-Video Controller Board
Reverse the above procedure to install the USB/S-Video
controller board.
5–42
Maintenance and Service Guide
Removal and Replacement Procedures
5.13 Speaker Assembly
Spare Part Number Information
For use on HP Pavilion dv1000 notebook models
367793-001
For use on HP Compaq nx4800 and Compaq Presario V2000
notebook models
374625-001
1. Prepare the notebook for disassembly (Section 5.3)
and remove the following components:
❏ Optical drive (Section 5.7)
❏ Switch cover (Section 5.8)
❏ Keyboard (Section 5.9)
❏ Display assembly (Section 5.10)
❏ Base enclosure (Section 5.11)
Maintenance and Service Guide
5–43
Removal and Replacement Procedures
2. Disconnect the speaker cable 1 from the system board.
3. Lift the speaker straight up to remove it from the top cover 2.
Removing the Speaker Assembly
Reverse the above procedure to install the speaker assembly.
5–44
Maintenance and Service Guide
Removal and Replacement Procedures
5.14 RTC Battery
RTC battery is included with the system board. Refer to
✎ The
Section 5.19, “System Board,” for more information.
1. Prepare the notebook for disassembly (Section 5.3)
and remove the following components:
❏ Optical drive (Section 5.7)
❏ Switch cover (Section 5.8)
❏ Keyboard (Section 5.9)
❏ Display assembly (Section 5.10)
❏ Base enclosure (Section 5.11)
2. Remove the RTC battery from the socket on the system
board.
Removing the RTC Battery
Reverse the above procedure to install the RTC battery.
Maintenance and Service Guide
5–45
Removal and Replacement Procedures
5.15 Menu Control Button Board
section applies only to HP Pavilion dv1000 notebook
✎ This
models.
Spare Part Number Information
Menu control button board (includes bracket and cable, for use
only on HP Pavilion dv1000 notebook models)
373535-001
1. Prepare the notebook for disassembly (Section 5.3)
and remove the following components:
❏ Optical drive (Section 5.7)
❏ Switch cover (Section 5.8)
❏ Keyboard (Section 5.9)
❏ Display assembly (Section 5.10)
❏ Base enclosure (Section 5.11)
2. Position the top cover with the front panel toward you.
5–46
Maintenance and Service Guide
Removal and Replacement Procedures
3. Remove the tape that secures the menu control button board
cable to the system board 1.
4. Release the ZIF connector 2 to which the menu control
button board cable is connected and disconnect the cable 3.
Disconnecting the Menu Control Button Board Cable
Maintenance and Service Guide
5–47
Removal and Replacement Procedures
5. Remove the 4 PM2.0×3.0 screws 1 that secure the menu
control button board and shield to the top cover.
6. Remove the menu control button board shield 2 and
board 3.
Removing the Menu Control Button Board and Shield
Reverse the above procedure to install the menu control button
board and shield.
5–48
Maintenance and Service Guide
Removal and Replacement Procedures
5.16 Heat Sink
Spare Part Number Information
Heat sink (includes thermal pad)
367796-001
1. Prepare the notebook for disassembly (Section 5.3)
and remove the following components:
❏ Optical drive (Section 5.7)
❏ Switch cover (Section 5.8)
❏ Keyboard (Section 5.9)
❏ Display assembly (Section 5.10)
❏ Base enclosure (Section 5.11)
2. Turn the notebook upside down with the front panel
toward you.
Maintenance and Service Guide
5–49
Removal and Replacement Procedures
3. Disconnect the fan cable from the system board 1.
4. Remove the 3 PM2.0×4.0 screws 2 that secure the heat sink
to the top cover.
5. Remove the heat sink 3.
Removing the Heat Sink
Reverse the above procedure to install the heat sink.
5–50
Maintenance and Service Guide
Removal and Replacement Procedures
5.17 Fan
Spare Part Number Information
Fan (includes thermal pad)
367795-001
1. Prepare the notebook for disassembly (Section 5.3)
and remove the following components:
❏ Optical drive (Section 5.7)
❏ Switch cover (Section 5.8)
❏ Keyboard (Section 5.9)
❏ Display assembly (Section 5.10)
❏ Base enclosure (Section 5.11)
❏ Heat sink (Section 5.16)
2. Turn the heat sink upside down with the front panel
toward you.
Maintenance and Service Guide
5–51
Removal and Replacement Procedures
3. Remove the 2 PM2.0×4.0 screws 1 that secure the fan to the
heat sink.
4. Remove the fan 2.
Removing the Fan
Reverse the above procedure to install the fan.
5–52
Maintenance and Service Guide
Removal and Replacement Procedures
5.18 Processor
Spare Part Number Information
Intel Pentium M 745 (1.8-GHz) with 400-MHz FSB
Intel Pentium M 735 (1.7-GHz) with 400-MHz FSB
Intel Pentium M 725 (1.6-GHz) with 400-MHz FSB
Intel Pentium M 715A (1.5-GHz) with 400-MHz FSB
Intel Pentium M 705 (1.5-GHz) with 400-MHz FSB
Intel Pentium M 710 (1.4-GHz) with 400-MHz FSB
373053-001
373052-001
367771-001
380690-001
375979-001
376588-001
Intel Celeron M 340 (1.5-GHz) with 400-MHz FSB
Intel Celeron M 360 (1.4-GHz) with 400-MHz FSB
Intel Celeron M 330 (1.4-GHz) with 400-MHz FSB
Intel Celeron M 350 (1.3-GHz) with 400-MHz FSB
Intel Celeron M 320 (1.3-GHz) with 400-MHz FSB
367768-001
380033-001
367767-001
380032-001
374874-001
1. Prepare the notebook for disassembly (Section 5.3)
and remove the following components:
❏ Optical drive (Section 5.7)
❏ Switch cover (Section 5.8)
❏ Keyboard (Section 5.9)
❏ Display assembly (Section 5.10)
❏ Base enclosure (Section 5.11)
❏ Heat sink (Section 5.16)
Maintenance and Service Guide
5–53
Removal and Replacement Procedures
2. Turn the processor locking screw 1 ¼-turn counterclockwise
until you feel a click.
3. Lift the processor 2 straight up and remove it.
that the gold triangle 3 on the processor should be
✎ Note
aligned in the front right corner when you install the processor.
Removing the Processor
Reverse the above procedure to install a processor.
5–54
Maintenance and Service Guide
Removal and Replacement Procedures
5.19 System Board
Spare Part Number Information
For use on HP Pavilion dv1000 notebook models with
Intel Pentium M processors
367799-001
For use on HP Pavilion dv1000 notebook models with
Intel Celeron M processors
367800-001
For use on HP Compaq nx4800 and Compaq Presario V2000
notebook models with Intel Pentium M processors
373522-001
For use on Compaq Presario V2000 notebook models with
Intel Celeron M processors
373523-001
✎ All system board spares kits include a disk cell RTC battery.
replacing the system board, ensure that the following
✎ When
components are removed from the defective system board and
installed on the replacement system board:
■ Memory modules (Section 5.5)
■ Mini PCI communications card (Section 5.6)
■ RTC battery (Section 5.14)
■ Menu control button board (Section 5.15)
■ Heat sink (Section 5.16)
■ Processor (Section 5.18)
Maintenance and Service Guide
5–55
Removal and Replacement Procedures
1. Prepare the notebook for disassembly (Section 5.3) and
remove the following components:
❏ Optical drive (Section 5.7)
❏ Switch cover (Section 5.8)
❏ Keyboard (Section 5.9)
❏ Display assembly (Section 5.10)
❏ Base enclosoure (Section 5.11)
❏ USB/S-Video controller board (Section 5.12)
❏ Speaker assembly (Section 5.13)
2. Turn the top cover right side up with the front panel
toward you.
3. Release the ZIF connector 1 to which the TouchPad cable is
connected and disconnect the cable 2 from the system board.
Disconnecting the TouchPad Cable
5–56
Maintenance and Service Guide
Removal and Replacement Procedures
4. Turn the top cover upside down with the front panel
toward you.
5 and 6 apply only to HP Pavilion dv1000 notebook
✎ Steps
models. See steps 7 and 8 in this section for information on
removing the system board on HP Compaq nx4800 and
Compaq Presario V2000 notebook models.
5. Release the ZIF connector 1 to which the LED board cable is
connected and disconnect the cable 2 from the system board.
6. Remove the 4 PM2.0×4.0 screws 3 that secure the system
board to the top cover.
Disconnecting the LED Board Cable and Removing the System
Board Screws, HP Pavilion dv1000 Notebook Models Only
Maintenance and Service Guide
5–57
Removal and Replacement Procedures
7 and 8 apply only to HP Compaq nx4800 and
✎ Steps
Compaq Presario V2000 notebook models.
7. Release the ZIF connector 1 to which the LED board cable is
connected and disconnect the cable 2 from the system board.
8. Remove the 4 PM2.0×4.0 screws 3 that secure the system
board to the top cover.
Disconnecting the LED Board Cable and Removing the System
Board Screws, HP Compaq nx4800 and Compaq Presario V2000
Notebook Models Only
5–58
Maintenance and Service Guide
Removal and Replacement Procedures
9. Flex and hold the left edge of the top cover to the left 1.
10. Lift the left side of the system board 2 until the USB 3 and
1394 connectors 4 are clear.
Releasing the System Board, Part 1
Maintenance and Service Guide
5–59
Removal and Replacement Procedures
11. Flex and hold the front edge of the top cover forward 1.
12. Lift the front of the system board 2 until the audio
connectors 3 are clear.
Releasing the System Board, Part 2
5–60
Maintenance and Service Guide
Removal and Replacement Procedures
13. Slide the system board to the left at an angle and remove it
from the top cover.
Removing the System Board
Reverse the above procedure to install the system board.
Maintenance and Service Guide
5–61
Removal and Replacement Procedures
5.20 LED Board
Spare Part Number Information
For use on HP Pavilion dv1000 notebook models
367797-001
For use on HP Compaq nx4800 and Compaq Presario V2000
notebook models
367798-001
✎
1. Prepare the notebook for disassembly (Section 5.3) and
remove the following components:
❏ Optical drive (Section 5.7)
❏ Switch cover (Section 5.8)
❏ Keyboard (Section 5.9)
❏ Display assembly (Section 5.10)
❏ Base enclosoure (Section 5.11)
❏ USB/S-Video controller board (Section 5.12)
❏ Speaker assembly (Section 5.13)
❏ System board (Section 5.19)
2. Turn the notebook upside down with the front panel
toward you.
5–62
Maintenance and Service Guide
Removal and Replacement Procedures
3 and 4 apply only to HP Pavilion dv1000 notebook
✎ Steps
models. See steps 5 and 6 in this section for information on
removing the LED board on HP Compaq nx4800 and
Compaq Presario V2000 notebook models.
3. Release the ZIF connector 1 to which the LED board cable is
connected and disconnect the cable 2 from the system board.
4. Remove the 3 PM1.5×2.0 screws 3 that secure the LED
board to the top cover.
Removing the LED Board Screws, HP Pavilion dv1000 Notebook
Models Only
Maintenance and Service Guide
5–63
Removal and Replacement Procedures
5 and 6 apply only to HP Compaq nx4800 and
✎ Steps
Compaq Presario V2000 notebook models.
5. Release the ZIF connector 1 to which the LED board cable is
connected and disconnect the cable 2 from the system board.
6. Remove the 2 PM2.0×3.0 screws 3 that secure the LED
board to the top cover.
Removing the LED Board Screws, HP Compaq nx4800 and
Compaq Presario V2000 Notebook Models Only
7. Remove the LED board.
Reverse the above procedure to install the LED board.
5–64
Maintenance and Service Guide
6
Specifications
This chapter provides physical and performance specifications.
Table 6-1
Notebook
Dimensions
HP Pavilion dv1000
Height (varies from front to back)
Width
Depth
3.01 cm to 3.86 cm
23.46 cm
33.40 cm
1.19 in to 1.52 in
9.24 in
13.15 in
HP Compaq nx4800 and Compaq Presario V2000
Height (varies from front to back)
Width
Depth
3.29 cm to 3.89 cm
23.06 cm
33.40 cm
1.30 in to 1.53 in
9.08 in
13.15 in
2.44 kg
2.39 kg
5.38 lb
5.26 lb
Weight (varies by configuration)
HP Pavilion dv1000
HP Compaq nx4800 and
Compaq Presario V2000
Stand-alone power requirements
Nominal operating voltage
Peak operating power
Maintenance and Service Guide
14.8 V dc
60.0 W
6–1
Specifications
Table 6-1
Notebook (Continued)
Temperature
Operating*
Nonoperating
10°C to 35°C
-20°C to 60°C
50°F to 95°F
-4°F to 140°F
Relative humidity (noncondensing)
Operating
Nonoperating
10% to 90%
5% to 95%, 38.7°C (101.6°F) maximum
wet bulb temperature
Maximum altitude (unpressurized)
Operating (14.7 to 10.1 psia)
Nonoperating (14.7 to 4.4 psia)
-15 m to 3,048 m
-15 m to 12,192 m
-50 ft to 10,000 ft
-50 ft to 40,000 ft
Shock
Operating
Nonoperating
125 g, 2 ms, half-sine
200 g, 2 ms, half-sine
Random Vibration
Operating
Nonoperating
0.75 g zero-to-peak, 10 Hz to 500 Hz,
0.25 oct/min sweep rate
1.50 g zero-to-peak, 10 Hz to 500 Hz,
0.5 oct/min sweep rate
product safety standards specify thermal limits for plastic
✎ Applicable
surfaces. The notebook operates well within this range of temperatures.
* For HP Compaq nx4800 only:
Operating
(not writing to optical disc)
Operating (writing to optical disc)
Nonperating
6–2
0°C to 35°C
32°F to 95°F
5°C to 35°C
-20°C to 60°C
41°F to 95°F
-4°F to 140°F
Maintenance and Service Guide
Specifications
Table 6-2
14.0-inch, WXGA, SVA Display
Dimensions
Height
Width
Diagonal
27.94 cm
20.83 cm
35.56 cm
Number of colors
Up to 16.8 million
Contrast ratio
250:1
Brightness
180 nits typical
11.0 in
8.2 in
14.0 in
Pixel resolution
Pitch
Format
Configuration
0.279 × 0.279 mm
1280 × 768
RGB vertical stripe
Backlight
Edge lit
Character display
80 × 25
Total power consumption
4W
Viewing angle
+/-40° horizontal, +20/-40° vertical
typical
Maintenance and Service Guide
6–3
Specifications
Table 6-3
Hard Drives
80-GB
60-GB
60-GB
40-GB
Dimensions
Height
Width
Weight
Interface type
9.5 mm
70 mm
99 g
9.5 mm
70 mm
102 g
9.5 mm
70 mm
99 g
9.5 mm
70 mm
99 g
ATA-5
ATA-5
ATA-5
ATA-5
100 MB/sec
100 MB/sec
100 MB/sec
100 MB/sec
ATA security
ATA security
ATA security
ATA
security
3 ms
13 ms
24 ms
3 ms
13 ms
24 ms
Transfer rate
Synchronous
(maximum)
Security
Seek times (typical read, including setting)
Single track
Average
Maximum
3 ms
13 ms
24 ms
3 ms
13 ms
24 ms
Logical blocks†
156,301,488 117,210,240 117,210,240 78,140,160
Disk rotational
speed
5400 rpm
Operating
temperature
✎
5400 rpm
4200 rpm
4200 rpm
5°C to 55°C (41°F to 131°F)
Certain restrictions and exclusions apply. Consult Customer Care
for details.
*1 GB = 1 billion bytes when referring to hard drive storage capacity. Accessible
capacity is less.
†Actual drive specifications may differ slightly.
6–4
Maintenance and Service Guide
Specifications
Table 6-4
Primary 6-cell, Li-Ion Battery Pack
Dimensions
Height
Width
Depth
Weight
2.00 cm
9.40 cm
13.40 cm
0.34 kg
0.79 in
3.70 in
5.28 in
0.75 lb
Energy
Voltage
Amp-hour capacity
Watt-hour capacity
11.1 V
4.4 Ah
48 Wh
Temperature
Operating
Nonoperating
Maintenance and Service Guide
5°C to 45°C
0°C to 60°C
41°F to 113°F
32°F to 140°F
6–5
Specifications
Table 6-5
24X DVD/CD-RW Combo Drive
Applicable disk
Read:
Write:
DVD-R, DVD-RW,
CD-R and CD-RW
DVD-ROM (DVD-5,
DVD-9, DVD-10,
DVD-18),
CD-ROM (Mode 1 and 2)
CD Digital Audio
CD-XA ready (Mode 2,
Form 1 and 2)
CD-I ready (Mode 2,
Form 1 and 2)
CD-R, CD-RW
Photo CD (single and
multisession)
CD-Bridge
Center hole diameter
1.5 cm (0.59 in)
Disk diameter
Standard disc
Mini disc
6–6
12 cm (4.72 in)
8 cm (3.15 in)
Maintenance and Service Guide
Specifications
Table 6-5
24X DVD/CD-RW Combo Drive (Continued)
Disk thickness
1.2 mm (0.047 in)
Track pitch
0.74 µm
Access time
CD media
DVD media
< 110 ms
< 210 ms
< 130 ms
< 225 ms
Random
Full stroke
Audio output level
Line-out, 0.7 V rms
Cache buffer
2 MB
Data transfer rate
CD-R (24X)
CD-RW (10X)
CD-ROM (24X)
DVD (8X)
Multiword DMA mode 2
3600 KB/s (150 KB/s at 1X CD rate)
1500 KB/s (150 KB/s at 1X CD rate)
3600 KB/s (150 KB/s at 1X CD rate)
10,800 KB/s (1352 KB/s at 1X DVD rate)
16.6 MB/s
Startup time
< 15 seconds
Stop time
< 6 seconds
Maintenance and Service Guide
6–7
Specifications
Table 6-6
4X DVD+RW/R and CD-RW Combo Drive
Applicable disk
Read:
Write:
DVD-R, DVD-RW,
CD-R and CD-RW
DVD-ROM (DVD-5,
DVD-R and DVD-RW
DVD-9, DVD-10,
DVD-18),
CD-ROM (Mode 1 and 2)
CD Digital Audio
CD-XA ready (Mode 2,
Form 1 and 2)
CD-I ready (Mode 2,
Form 1 and 2)
CD-R, CD-RW
Photo CD (single and
multisession)
CD-Bridge
Center hole diameter
1.5 cm (0.59 in)
Disk diameter
Standard disc
Mini disc
6–8
12 cm (4.72 in)
8 cm (3.15 in)
Maintenance and Service Guide
Specifications
Table 6-6
4X DVD+RW/R and CD-RW Combo Drive (Continued)
Disk thickness
1.2 mm (0.047 in)
Track pitch
0.74 µm
Access time
CD media
DVD media
< 175 ms
< 285 ms
< 230 ms
< 335 ms
Random
Full stroke
Audio output level
Audio-out, 0.7 Vrms
Cache buffer
2 MB
Data transfer rate
CD-R (16X)
CD-RW (8X)
CD-ROM (24X)
DVD (8X)
DVD-R (4X)
DVD-RW (2X)
Multiword DMA mode 2
2,400 KB/s (150 KB/s at 1X CD rate)
1,200 KB/s (150 KB/s at 1X CD rate)
3,600 KB/s (150 KB/s at 1X CD rate)
10,800 KB/s (1,352 KB/s at 1X DVD rate)
5,400 KB/s (1,352 KB/s at 1X DVD rate)
2,700 KB/s (1,352 KB/s at 1X DVD rate)
16.6 MB/s
Startup time
< 15 seconds
Stop time
< 6 seconds
Maintenance and Service Guide
6–9
Specifications
Table 6-7
4X DVD±RW/R and CD-RW Combo Drive
Applicable disk
Read:
Write:
DVD-R, DVD-RW,
CD-R and CD-RW
DVD-ROM (DVD-5,
DVD-R and DVD-RW
DVD-9, DVD-10,
DVD-18),
CD-ROM (Mode 1 and 2)
CD Digital Audio
CD-XA ready (Mode 2,
Form 1 and 2)
CD-I ready (Mode 2,
Form 1 and 2)
CD-R, CD-RW
Photo CD (single and
multisession)
CD-Bridge
Center hole diameter
1.5 cm (0.59 in)
Disk diameter
Standard disc
Mini disc
6–10
12 cm (4.72 in)
8 cm (3.15 in)
Maintenance and Service Guide
Specifications
Table 6-7
4X DVD±RW/R and CD-RW Combo Drive (Continued)
Disk thickness
1.2 mm (0.047 in)
Track pitch
0.74 µm
Access time
CD
DVD
< 175 ms
< 285 ms
< 230 ms
< 335 ms
Random
Full stroke
Audio output level
Audio-out, 0.7 Vrms
Cache buffer
2 MB
Data transfer rate
CD-R (16X)
CD-RW (8X)
CD-ROM (24X)
DVD (8X)
DVD-R (4X)
DVD-RW (2X)
Multiword DMA mode 2
2,400 KB/s (150 KB/s at 1X CD rate)
1,200 KB/s (150 KB/s at 1X CD rate)
3,600 KB/s (150 KB/s at 1X CD rate)
10,800 KB/s (1,352 KB/s at 1X DVD rate)
5,400 KB/s (1,352 KB/s at 1X DVD rate)
2,700 KB/s (1,352 KB/s at 1X DVD rate)
16.6 MB/s
Startup time
< 15 seconds
Stop time
< 6 seconds
Maintenance and Service Guide
6–11
Specifications
Table 6-8
8X DVD±RW/R and CD-RW Combo Drive
Applicable disk
Read:
DVD-R, DVD-RW,
DVD-ROM (DVD-5,
DVD-9, DVD-10,
DVD-18),
CD-ROM (Mode 1
and 2)
CD Digital Audio
CD-XA ready (Mode
2, Form 1 and 2)
CD-I ready (Mode 2,
Form 1 and 2)
CD-R, CD-RW
Photo CD (single
and multisession)
CD-Bridge
Center hole diameter
1.5 cm (0.59 in)
Write:
CD-R and CD-RW
DVD-R and
DVD-RW
Disk diameter
Standard disc
Mini disc
6–12
12 cm (4.72 in)
8 cm (3.15 in)
Maintenance and Service Guide
Specifications
Table 6-8
8X DVD±RW/R and CD-RW Combo Drive (Continued)
Disk thickness
1.2 mm (0.047 in)
Track pitch
0.74 µm
Access time
CD
DVD
< 175 ms
< 285 ms
< 230 ms
< 335 ms
Random
Full stroke
Audio output level
Audio-out, 0.7 Vrms
Cache buffer
2 MB
Data transfer rate
CD-R (16X)
CD-RW (8X)
CD-ROM (24X)
DVD (8X)
DVD-R (4X)
DVD-RW (2X)
Multiword DMA mode 2
2,400 KB/s (150 KB/s at 1X CD rate)
1,200 KB/s (150 KB/s at 1X CD rate)
3,600 KB/s (150 KB/s at 1X CD rate)
10,800 KB/s (1,352 KB/s at 1X DVD rate)
5,400 KB/s (1,352 KB/s at 1X DVD rate)
2,700 KB/s (1,352 KB/s at 1X DVD rate)
16.6 MB/s
Startup time
< 15 seconds
Stop time
< 6 seconds
Maintenance and Service Guide
6–13
Specifications
Table 6-9
8X Max DVD-ROM Drive
Applicable disk
DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18)
CD-ROM (Mode 1 and 2)
CD Digital Audio
CD-XA ready (Mode 2, Form 1 and 2)
CD-I ready (Mode 2, Form 1 and 2)
CD-R
CD-RW
Photo CD (single and multisession)
CD-Bridge
Center hole diameter
1.5 cm (0.59 in)
Disk diameter
Standard disc
Mini disc
Disk thickness
6–14
12 cm (4.72 in)
8 cm (3.15 in)
1.2 mm (0.047 in)
Maintenance and Service Guide
Specifications
Table 6-9
8X Max DVD-ROM Drive (Continued)
Track pitch
0.74 µm
Access time
CD media
DVD media
< 100 ms
< 175 ms
< 125 ms
< 225 ms
Random
Full stroke
Audio output level
Line-out, 0.7 V rms
Cache buffer
512 KB
Data transfer rate
CD-R (24X)
CD-RW (10X)
CD-ROM (24X)
DVD (8X)
Multiword DMA mode 2
3600 KB/s (150 KB/s at 1X CD rate)
1500 KB/s (150 KB/s at 1X CD rate)
3600 KB/s (150 KB/s at 1X CD rate)
10,800 KB/s (1352 KB/s at 1X DVD rate)
16.6 MB/s
Startup time
< 10 seconds
Stop time
< 3 seconds
Maintenance and Service Guide
6–15
Specifications
Table 6-10
System DMA
Hardware DMA
System Function
DMA0
n/a
DMA1*
n/a
DMA2*
n/a
DMA3
n/a
DMA4
Direct memory access controller
DMA5*
Available for PC Card
DMA6
Not assigned
DMA7
Not assigned
*PC Card controller can use DMA 1, 2, or 5.
6–16
Maintenance and Service Guide
Specifications
Table 6-11
System Interrupts
Hardware IRQ
System Function
IRQ0
System timer
IRQ1
Standard 101-/102-Key or Microsoft Natural Keyboard
IRQ2
Cascaded
IRQ3
Intel 82801DB/DBM USB2 Enhanced Host
Controller—24CD
IRQ4
COM1
IRQ5*
Conexant AC—Link Audio
Intel 82801DB/DBM SMBus Controller—24C3
Data Fax Modem with SmartCP
IRQ6
Diskette drive
IRQ7*
Parallel port
IRQ8
System CMOS/real time clock
IRQ9*
Microsoft ACPI-compliant system
IRQ10*
Intel USB UHCI controller—24C2
Intel 82852/82855 GM/GME Graphic Controller
Realtek RTL8139 Family PCI fast Ethernet Controller
*Default configuration; audio possible configurations are IRQ5, IRQ7, IRQ9,
IRQ10, or none.
Maintenance and Service Guide
6–17
Specifications
Table 6-11
System Interrupts (Continued)
Hardware IRQ
System Function
IRQ11
Intel USB EHCI controller—24CD
Intel USB UHCI controller—24C4
Intel USB UHCI controller—24C7
Intel Pro/Wireless 2200BG
TI OHCI 1394 host controller
TI PCI1410 cardbus controller
IRQ12
Synaptics PS/2 touch pad
IRQ13
Numeric data processor
IRQ14
Primary IDE channel
IRQ15
Secondary IDE channel
Cards may assert IRQ3, IRQ4, IRQ5, IRQ7, IRQ9, IRQ10, IRQ11, or
✎ PC
IRQ15. Either the infrared or the serial port may assert IRQ3 or IRQ4.
6–18
Maintenance and Service Guide
Specifications
Table 6-12
System I/O Addresses
I/O Address (hex)
System Function (shipping configuration)
000 - 00F
DMA controller no. 1
010 - 01F
Unused
020 - 021
Interrupt controller no. 1
022 - 024
Opti chipset configuration registers
025 - 03F
Unused
02E - 02F
87334 “Super I/O” configuration for CPU
040 - 05F
Counter/timer registers
044 - 05F
Unused
060
Keyboard controller
061
Port B
062 - 063
Unused
064
Keyboard controller
065 - 06F
Unused
070 - 071
NMI enable/RTC
072 - 07F
Unused
080 - 08F
DMA page registers
090 - 091
Unused
092
Port A
093 - 09F
Unused
0A0 - 0A1
Interrupt controller no. 2
Maintenance and Service Guide
6–19
Specifications
Table 6-12
System I/O Addresses (Continued)
I/O Address (hex)
System Function (shipping configuration)
0A2 - 0BF
Unused
0C0 - 0DF
DMA controller no. 2
0E0 - 0EF
Unused
0F0 - 0F1
Coprocessor busy clear/reset
0F2 - 0FF
Unused
100 - 16F
Unused
170 - 177
Secondary fixed disk controller
178 - 1EF
Unused
1F0 - 1F7
Primary fixed disk controller
1F8 - 200
Unused
201
Joystick (decoded in ESS1688)
202 - 21F
Unused
220 - 22F
Entertainment audio
230 - 26D
Unused
26E - 26
Unused
278 - 27F
Unused
280 - 2AB
Unused
2A0 - 2A7
Unused
2A8 - 2E7
Unused
2E8 - 2EF
Reserved serial port
6–20
Maintenance and Service Guide
Specifications
Table 6-12
System I/O Addresses (Continued)
I/O Address (hex)
System Function (shipping configuration)
2F0 - 2F7
Unused
2F8 - 2FF
Infrared port
300 - 31F
Unused
320 - 36F
Unused
370 - 377
Secondary diskette drive controller
378 - 37F
Parallel port (LPT1/default)
380 - 387
Unused
388 - 38B
FM synthesizer—OPL3
38C - 3AF
Unused
3B0 - 3BB
VGA
3BC - 3BF
Reserved (parallel port/no EPP support)
3C0 - 3DF
VGA
3E0 - 3E1
PC Card controller in CPU
3E2 - 3E3
Unused
3E8 - 3EF
Internal modem
3F0 - 3F7
“A” diskette controller
3F8 - 3FF
Serial port (COM1/default)
CF8 - CFB
PCI configuration index register (PCIDIVO-1)
CFC - CFF
PCI configuration data register (PCIDIVO-1)
Maintenance and Service Guide
6–21
Specifications
Table 6-13
System Memory Map
Size
Memory Address
System Function
640 KB
00000000-0009FFFF
Base memory
128 KB
000A0000-000BFFFF
Video memory
48 KB
000C0000-000CBFFF
Video BIOS
160 KB
000C8000-000E7FFF
Unused
64 KB
000E8000-000FFFFF
System BIOS
15 MB
00100000-00FFFFFF
Extended memory
58 MB
01000000-047FFFFF
Super extended memory
58 MB
04800000-07FFFFFF
Unused
2 MB
08000000-080FFFFF
Video memory (direct access)
4 GB
08200000-FFFEFFFF
Unused
64 KB
FFFF0000-FFFFFFFF
System BIOS
6–22
Maintenance and Service Guide
A
Connector Pin Assignments
Table A-1
Universal Serial Bus
Pin
Signal
Pin
Signal
1
+5 VDC
3
Data +
2
Data –
4
Ground
Maintenance and Service Guide
A–1
Connector Pin Assignments
Table A-2
RJ-45 (Network)
Pin
Signal
Pin
Signal
1
Transmit +
5
Unused
2
Transmit –
6
Receive –
3
Receive +
7
Unused
4
Unused
8
Unused
A–2
Maintenance and Service Guide
Connector Pin Assignments
Table A-3
S-Video-Out
Pin
Signal
Pin
Signal
1
TV-Ground
5
TV-CD
2
TV-CVBS
6
TV-Ground
3
TV-Ground
7
TV-YD
4
TV-Ground
Maintenance and Service Guide
A–3
Connector Pin Assignments
Table A-4
External Monitor
Pin
Signal
Pin
Signal
1
Red analog
9
+5 VDC
2
Green analog
10
Ground
3
Blue analog
11
Monitor detect
4
Not connected
12
DDC 2B data
5
Ground
13
Horizontal sync
6
Ground analog
14
Vertical sync
7
Ground analog
15
DDC 2B clock
8
Ground analog
A–4
Maintenance and Service Guide
Connector Pin Assignments
Table A-5
RJ-11 (Modem)
Pin
Signal
Pin
Signal
1
Unused
4
Unused
2
Tip
5
Unused
3
Ring
6
Unused
Maintenance and Service Guide
A–5
Connector Pin Assignments
Table A-6
Audio-In (Microphone)
Pin
Signal
Pin
Signal
1
Audio signal in
3
Ground
2
Audio signal in
Table A-7
Audio-Out (Headphone)
Pin
Signal
Pin
Signal
1
Audio out, left channel
3
Ground
2
Audio out, right channel
A–6
Maintenance and Service Guide
B
Power Cord Set Requirements
3-Conductor Power Cord Set
The wide range input feature of the notebook permits it to operate
from any line voltage from 100 to 120 or 220 to 240 volts AC.
The power cord set included with the notebook meets the
requirements for use in the country where the equipment
is purchased.
Power cord sets for use in other countries must meet the
requirements of the country where the notebook is used.
Maintenance and Service Guide
B–1
Power Cord Set Requirements
General Requirements
The requirements listed below are applicable to all countries.
B–2
■
The length of the power cord set must be at least 1.5 m
(5.0 ft) and a maximum of 2.0 m (6.5 ft).
■
All power cord sets must be approved by an acceptable
accredited agency responsible for evaluation in the
country where the power cord set will be used.
■
The power cord sets must have a minimum current capacity
of 10 amps and a nominal voltage rating of 125 or 250 V AC,
as required by each country’s power system.
■
The appliance coupler must meet the mechanical
configuration of an EN 60 320/IEC 320 Standard Sheet C13
connector for mating with the appliance inlet on the back of
the notebook.
Maintenance and Service Guide
Power Cord Set Requirements
Country-Specific Requirements
3-Conductor Power Cord Set Requirements
Country
Accredited Agency
Applicable Note Number
Australia
EANSW
1
Austria
OVE
1
Belgium
CEBC
1
Canada
CSA
2
Denmark
DEMKO
1
Finland
FIMKO
1
France
UTE
1
Germany
VDE
1
Italy
IMQ
1
Japan
METI
3
The Netherlands
KEMA
1
Norway
NEMKO
1
Sweden
SEMKO
1
Switzerland
SEV
1
Maintenance and Service Guide
B–3
Power Cord Set Requirements
3-Conductor Power Cord Set Requirements (Continued)
Country
Accredited Agency
Applicable Note Number
United Kingdom
BSI
1
United States
UL
2
✎
1. The flexible cord must be <HAR> Type HO5VV-F, 3-conductor, 1.0 mm²
conductor size. Power cord set fittings (appliance coupler and wall plug)
must bear the certification mark of the agency responsible for evaluation
in the country where it will be used.
2. The flexible cord must be Type SPT-3 or equivalent, No. 18 AWG,
3-conductor. The wall plug must be a two-pole grounding type with a
NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.
3. The appliance coupler, flexible cord, and wall plug must bear a “T” mark and
registration number in accordance with the Japanese Dentori Law. The
flexible cord must be Type VCT or VCTF, 3-conductor, 1.00 mm² conductor
size. The wall plug must be a two-pole grounding type with a Japanese
Industrial Standard C8303 (7 A, 125 V) configuration.
B–4
Maintenance and Service Guide
C
Screw Listing
This appendix provides specification and reference information
for the screws used in the notebook. All screws listed in this
appendix are available in the Miscellaneous Screw Kits, spare
part numbers 367776-001 (for use on HP Pavilion dv1000
notebook models) and 373534-001 (for use on
HP Compaq nx4800 and Compaq Presario V2000 notebook
models).
Maintenance and Service Guide
C–1
Screw Listing
Table C-1
Phillips PM2.0×5.0 Screw
mm
Color
Qty.
Length
Thread
Head
Width
Black
10
5.0 mm
2.0 mm
4.0 mm
Where used:
1 Two screws that secure the hard drive cover to the notebook (screws are
captured on the cover by C clips; documented in Section 5.3)
2 Two screws that secure the memory module compartment cover to the
notebook (screws are captured on the cover by C clips;
documented in Section 5.5)
3 One screw that secures the Mini PCI compartment cover to the notebook
(screw is captured on the cover by C clips; documented in Section 5.6)
Phillips M2.0×5.0 Screw Locations
C–2
Maintenance and Service Guide
Screw Listing
Table C-1
Phillips PM2.0×5.0 Screw (Continued)
mm
Color
Qty.
Length
Thread
Head
Width
Black
10
5.0 mm
2.0 mm
4.0 mm
Where used:
4 screws that secure the display assembly on the HP Compaq nx4800 and
Compaq Presario V2000 notebook (documented in Section 5.10)
Phillips M2.0×5.0 Screw Locations
Maintenance and Service Guide
C–3
Screw Listing
Table C-1
Phillips PM2.0×5.0 Screw (Continued)
mm
Color
Qty.
Length
Thread
Head
Width
Black
10
5.0 mm
2.0 mm
4.0 mm
Where used:
1 screw that secures the base enclosure on the HP Pavilion dv1000 notebook
(documented in Section 5.11)
Phillips M2.0×5.0 Screw Locations
C–4
Maintenance and Service Guide
Screw Listing
Table C-2
Phillips PM2.5×4.0 Screw
mm
Color
Qty.
Length
Thread
Head
Width
Silver
4
4.0 mm
2.5 mm
4.0 mm
Where used:
4 screws that secure the hard drive frame to the hard drive
(documented in Section 5.3)
Phillips M2.5×4.0 Screw Locations
Maintenance and Service Guide
C–5
Screw Listing
Table C-3
Phillips PM2.0×7.0 Screw
mm
Color
Qty.
Length
Thread
Head
Width
Black
18
7.0 mm
2.0 mm
4.0 mm
Where used:
1 screw that secures the optical drive to the notebook
(documented in Section 5.7)
Phillips M2.0×7.0 Screw Locations
C–6
Maintenance and Service Guide
Screw Listing
Table C-3
Phillips PM2.0×7.0 Screw (Continued)
mm
Color
Qty.
Length
Thread
Head
Width
Black
18
7.0 mm
2.0 mm
4.0 mm
Where used:
2 screws that secure the base enclosure on the HP Pavilion dv1000 notebook
(documented in Section 5.11)
Phillips M2.0×6.0 Screw Locations
Maintenance and Service Guide
C–7
Screw Listing
Table C-3
Phillips PM2.0×6.0 Screw (Continued)
mm
Color
Qty.
Length
Thread
Head
Width
Black
18
7.0 mm
2.0 mm
4.0 mm
Where used:
14 screws that secure the base enclosure on the HP Pavilion dv1000 notebook
(documented in Section 5.11)
Phillips M2.0×6.0 Screw Locations
C–8
Maintenance and Service Guide
Screw Listing
Table C-3
Phillips PM2.0×6.0 Screw (Continued)
mm
Color
Qty.
Length
Thread
Head
Width
Black
18
7.0 mm
2.0 mm
4.0 mm
Where used:
15 screws that secure the base enclosure on the HP Compaq nx4800 and
Compaq Presario V2000 notebook (documented in Section 5.11)
Phillips M2.0×6.0 Screw Locations
Maintenance and Service Guide
C–9
Screw Listing
Table C-4
Phillips PM2.0×4.0 Screw
mm
Color
Qty.
Length
Thread
Head
Width
Black
19
4.0 mm
2.0 mm
4.0 mm
Where used:
3 screws that secure the switch cover on the HP Pavilion dv1000 notebook
(documented in Section 5.8)
Phillips M2.0×4.0 Screw Locations
C–10
Maintenance and Service Guide
Screw Listing
Table C-4
Phillips PM2.0×4.0 Screw (Continued)
mm
Color
Qty.
Length
Thread
Head
Width
Black
19
4.0 mm
2.0 mm
4.0 mm
Where used:
2 screws that secure the switch cover on the HP Compaq nx4800 and
Compaq Presario V2000 notebook (documented in Section 5.8)
Phillips M2.0×4.0 Screw Locations
Maintenance and Service Guide
C–11
Screw Listing
Table C-4
Phillips PM2.0×4.0 Screw (Continued)
mm
Color
Qty.
Length
Thread
Head
Width
Black
19
4.0 mm
2.0 mm
4.0 mm
Where used:
2 screws that secure the keyboard on the HP Pavilion dv1000 notebook
(documented in Section 5.9)
Phillips M2.0×4.0 Screw Locations
C–12
Maintenance and Service Guide
Screw Listing
Table C-4
Phillips PM2.0×4.0 Screw (Continued)
mm
Color
Qty.
Length
Thread
Head
Width
Black
19
4.0 mm
2.0 mm
4.0 mm
Where used:
2 screws that secure the base enclosure on the HP Pavilion dv1000 notebook
(documented in Section 5.11)
Phillips M2.0×4.0 Screw Locations
Maintenance and Service Guide
C–13
Screw Listing
Table C-4
Phillips PM2.0×4.0 Screw (Continued)
mm
Color
Qty.
Length
Thread
Head
Width
Black
19
4.0 mm
2.0 mm
4.0 mm
Where used:
3 screws that secure the base enclosure on the HP Compaq nx4800 and
Compaq Presario V2000 notebook (documented in Section 5.11)
Phillips M2.0×4.0 Screw Locations
C–14
Maintenance and Service Guide
Screw Listing
Table C-4
Phillips PM2.0×4.0 Screw (Continued)
mm
Color
Qty.
Length
Thread
Head
Width
Black
19
4.0 mm
2.0 mm
4.0 mm
Where used:
2 screws that secure the USB/S-Video controller board to the notebook
(documented in Section 5.12)
Phillips M2.0×4.0 Screw Locations
Maintenance and Service Guide
C–15
Screw Listing
Table C-4
Phillips PM2.0×4.0 Screw (Continued)
mm
Color
Qty.
Length
Thread
Head
Width
Black
19
4.0 mm
2.0 mm
4.0 mm
Where used:
3 screws that secure the heat sink to the notebook
(documented in Section 5.16)
Phillips M2.0×4.0 Screw Locations
C–16
Maintenance and Service Guide
Screw Listing
Table C-4
Phillips PM2.0×4.0 Screw (Continued)
mm
Color
Qty.
Length
Thread
Head
Width
Black
19
4.0 mm
2.0 mm
4.0 mm
Where used:
2 screws that secure the fan to the heat sink (documented in Section 5.17)
Phillips M2.0×4.0 Screw Locations
Maintenance and Service Guide
C–17
Screw Listing
Table C-4
Phillips PM2.0×4.0 Screw (Continued)
mm
Color
Qty.
Length
Thread
Head
Width
Black
19
4.0 mm
2.0 mm
4.0 mm
Where used:
4 screws that secure the system board on the HP Pavilion dv1000 notebook
(documented in Section 5.19)
Phillips M2.0×4.0 Screw Locations
C–18
Maintenance and Service Guide
Screw Listing
Table C-4
Phillips PM2.0×4.0 Screw (Continued)
mm
Color
Qty.
Length
Thread
Head
Width
Black
19
4.0 mm
2.0 mm
4.0 mm
Where used:
4 screws that secure the system board on the HP Compaq nx4800 and
Compaq Presario V2000 notebook (documented in Section 5.19)
Phillips M2.0×4.0 Screw Locations
Maintenance and Service Guide
C–19
Screw Listing
Table C-5
Phillips PM2.0×3.0 Screw
mm
Color
Qty.
Length
Thread
Head
Width
Black
10
3.0 mm
2.0 mm
4.0 mm
Where used:
4 screws that secure the keyboard on the HP Compaq nx4800 and
Compaq Presario V2000 notebook (documented in Section 5.9)
Phillips M2.0×3.0 Screw Locations
C–20
Maintenance and Service Guide
Screw Listing
Table C-5
Phillips PM2.0×3.0 Screw (Continued)
mm
Color
Qty.
Length
Thread
Head
Width
Black
10
3.0 mm
2.0 mm
4.0 mm
Where used:
4 screws that secure the menu control button board on the HP Pavilion dv1000
notebook (documented in Section 5.15)
Phillips M2.0×3.0 Screw Locations
Maintenance and Service Guide
C–21
Screw Listing
Table C-5
Phillips PM2.0×3.0 Screw (Continued)
mm
Color
Qty.
Length
Thread
Head
Width
Black
10
3.0 mm
2.0 mm
4.0 mm
Where used:
2 screws that secure the LED board on the HP Compaq nx4800 and
Compaq Presario V2000 notebook (documented in Section 5.20)
Phillips M2.0×3.0 Screw Locations
C–22
Maintenance and Service Guide
Screw Listing
Table C-6
Phillips PM2.0×7.0 Round Head Screw
mm
Color
Qty.
Length
Thread
Head
Width
Silver
4
7.0 mm
2.0 mm
4.0 mm
Where used:
4 screws that secure the display assembly on the HP Pavilion dv1000 notebook
(documented in Section 5.10)
Phillips M2.0×5.0 Round Head Screw Locations
Maintenance and Service Guide
C–23
Screw Listing
Table C-7
Phillips PM1.5×2.0 Screw
mm
Color
Qty.
Length
Thread
Head
Width
Black
3
2.0 mm
1.5 mm
6.0 mm
Where used:
3 screws that secure the LED board on the HP Pavilion dv1000 notebook
(documented in Section 5.20)
Phillips M1.5×2.0 Screw Locations
C–24
Maintenance and Service Guide
Index
1394 port 1–11, 1–13
6-in-1 Digital Media Reader
1–11
6-in-1 Digital Media Reader
light 1–11
6-in-1 Memory Reader 1–13
6-in-1 Memory Reader light
1–13
A
AC adapter, spare part number
3–22, 3–28
antenna cable, spare part
number 3–3, 3–32
arrow keys 1–19, 1–21
audio troubleshooting 2–23
audio-in (microphone) jack
location 1–7, 1–9
pin assignments A–6
audio-out (headphone) jack
location 1–7, 1–9
pin assignments A–6
B
Back button 1–27
base enclosure
removal 5–36
spare part numbers 3–13,
3–24, 5–36
Maintenance and Service Guide
battery light 1–7, 1–9
battery pack
location 1–32, 1–34
removal 5–5
spare part numbers 3–13,
3–24, 5–5
specifications 6–5
battery pack release latch
1–32, 1–34
bottom components 1–32,
1–34
C
cables, service considerations
4–2
caps lock key 1–19, 1–21
caps lock light 1–27, 1–28
CD-ROM drive
OS loading problems 2–20
precautions 4–2
components
bottom 1–32, 1–34
front 1–6, 1–8
keyboard 1–18, 1–20
left-side 1–14, 1–16
rear 1–14, 1–16
right-side 1–10, 1–12
Index–1
Index
top 1–22, 1–24, 1–26,
1–28, 1–30
Computer Setup
Advanced Menu 2–4
Main Menu 2–2
overview 2–1
Security Menu 2–3
Tools Menu 2–4
connector pin assignments
external monitor A–4
headphone A–6
microphone A–6
monitor A–4
RJ-11 (modem) A–5
RJ-45 (network) A–2
S-Video-out A–3
Universal Serial Bus (USB)
A–1
connectors, service
considerations 4–2
D
design overview 1–36
disassembly sequence chart
5–3
diskette drive
OS loading problems 2–19
spare part number 3–21
display assembly
removal 5–31
spare part numbers 3–3,
3–27, 3–29, 3–30, 5–31
specifications 6–3
display hinge cover
spare part numbers 3–3,
3–32
Index–2
display release button 1–7, 1–9
display switch 1–22, 1–28
DMA specifications 6–16
drives, preventing damage 4–2
DVD button 1–23
DVD+RW/R and CD-RW
Combo Drive
removal 5–17
spare part numbers 3–13,
3–21, 3–30, 3–31, 3–32,
5–17
specifications 6–8
DVD/CD-RW Combo Drive
removal 5–17
spare part numbers 3–13,
3–21, 3–28, 3–30, 5–17
specifications 6–6
DVD±RW/R and CD-RW
Combo Drive
removal 5–17
spare part numbers 3–13,
3–21, 5–17
specifications 6–10, 6–12
DVD-ROM Drive
OS loading problems 2–20
precautions 4–2
removal 5–17
spare part numbers 3–13,
3–21, 3–27, 3–29, 5–17
specifications 6–14
E
electrostatic discharge 4–3,
4–8
entertainment cable, spare part
number 3–22, 3–31
Maintenance and Service Guide
Index
exhaust vents 1–15, 1–17,
1–33, 1–35
expansion base,
troubleshooting 2–14
expansion port 1–15, 1–17
external monitor port
location 1–15, 1–17
pin assignments A–4
nonfunctioning expansion
base 2–14
nonfunctioning keyboard
2–26
nonfunctioning pointing
device 2–27
fn key 1–19, 1–21
front components 1–6, 1–8
F
G
f1 to f12 keys 1–19, 1–21
fan
removal 5–51
spare part number 3–9,
3–28, 5–51
features 1–2
feet
illustrated 3–18
locations 5–10
flowcharts, troubleshooting
no audio 2–23, 2–24
no network/modem
connection 2–28
no OS loading 2–15
no OS loading from
CD-ROM/DVD-ROM
Drive 2–20
no OS loading from
diskette drive 2–19
no OS loading from hard
drive 2–16, 2–17, 2–18
no power 2–8, 2–10, 2–11
no video 2–12, 2–13
nonfunctioning device
2–25
grounding equipment and
methods 4–6
Maintenance and Service Guide
H
hard drive
OS loading problems 2–16
precautions 4–2
removal 5–7
spare part numbers 3–15,
3–20, 3–21, 3–27, 3–31,
3–32, 5–8
specifications 6–4
hard drive bay 1–33, 1–35
hard drive cover
illustrated 3–18
removal 5–7
headphone jack
location 1–7, 1–9
pin assignments A–6
headset, spare part number
3–22, 3–28
heat sink
removal 5–49
spare part number 3–9,
3–28, 5–49
HP USB pocket drive, spare
part number 3–21
Index–3
Index
I
I/O address specifications
6–19
IDE drive light 1–7, 1–9
interrupt specifications 6–17
K
keyboard
removal 5–25
spare part numbers 3–7,
3–25, 3–26, 3–27, 5–25
troubleshooting 2–26
keyboard components 1–18,
1–20
keypad keys 1–19, 1–21
L
label area 1–33, 1–35
LED board
removal 5–62
spare part numbers 3–9,
3–28, 5–62
left-side components 1–14,
1–16
Logo Kit, spare part number
3–22, 3–29, 3–30
M
mass storage devices, spare
part numbers 3–20
memory map specifications
6–22
memory module
removal 5–11
spare part numbers 3–15,
3–25, 3–29, 5–11
Index–4
memory module compartment
cover
illustrated 3–18
removal 5–11
menu control button board
removal 5–46
spare part number 3–11,
3–30, 5–46
microphone jack
location 1–7, 1–9
pin assignments A–6
Mini PCI communications
card
removal 5–14
spare part numbers 3–15,
3–28, 3–29, 3–31, 3–32
Mini PCI compartment 1–33,
1–35
Mini PCI compartment cover
illustrated 3–18
removal 5–15
Miscellaneous Plastics Kit
components 3–18
contents 3–17, 3–19, 3–24
spare part numbers 3–17,
3–19, 3–24
modem jack
location 1–15, 1–17
pin assignments A–5
modem, troubleshooting 2–28
monitor port
location 1–15, 1–17
pin assignments A–4
mouse, spare part number
3–22, 3–24
Maintenance and Service Guide
Index
Music button 1–23
mute button 1–25, 1–29
mute light 1–25, 1–29
N
network jack
location 1–15, 1–17
pin assignments A–2
network, troubleshooting 2–28
Next/Fast Forward button
1–25
nonfunctioning device,
troubleshooting 2–14, 2–25
notebook feet
illustrated 3–18
locations 5–10
notebook specifications 6–1
num lock key 1–19, 1–21
num lock light 1–27, 1–29
O
OK button 1–27
operating system loading,
troubleshooting 2–15
optical drive
location 1–11, 1–13, 1–32,
1–34
OS loading problems 2–20
removal 5–17
spare part numbers 3–13,
3–21, 3–27, 3–28, 3–29,
3–30, 3–31, 3–32, 5–17
P
packing precautions 4–4
PC Card eject buttons 1–15,
1–17
Maintenance and Service Guide
PC Card slots 1–15, 1–17
plastic parts 4–2
Play/Pause button, location
1–23
pointing device,
troubleshooting 2–27
power button 1–22, 1–29
power button light 1–27
power connector 1–15, 1–17
power cord
set requirements B–2
spare part numbers 3–23,
3–30, 3–31
power management features
1–5
power, troubleshooting 2–8
power/standby light 1–7, 1–9,
1–29
Previous/Rewind button 1–23
processor
removal 5–53
spare part numbers 3–9,
3–24, 3–25, 3–29, 3–31,
3–32, 5–53
Q
QuickPlay, no OS loading
2–21, 2–22
R
rear components 1–14, 1–16
remote control, spare part
number 3–22, 3–28
removal
preliminaries 4–1
procedures 5–1
Index–5
Index
replacement
preliminaries 4–1
procedures 5–1
right-side components 1–10,
1–12
RJ-11 (modem) jack
location 1–15, 1–17
pin assignments A–5
RJ-45 (network) jack
location 1–15, 1–17
pin assignments A–2
RTC battery, removal 5–45
S
Screw Kit, spare part number
3–22, 3–25, 3–30
screw listing C–1
security cable slot 1–15, 1–17
serial number 3–1, 5–2
service considerations 4–1
speaker assembly
removal 5–43
spare part numbers 3–11,
3–28, 3–31, 5–43
speakers 1–7, 1–9
specifications
battery pack 6–5
display 6–3
DMA 6–16
DVD+RW/R and CD-RW
Combo Drive 6–8
DVD/CD-RW Combo
Drive 6–6
DVD±RW/R and CD-RW
Combo Drive 6–10, 6–12
DVD-ROM Drive 6–14
Index–6
hard drive 6–4
I/O addresses 6–19
interrupts 6–17
memory map 6–22
notebook 6–1
static shielding materials 4–8
Stop button 1–25
S-Video-out jack
location 1–11, 1–13
pin assignments A–3
switch cover
removal 5–19
spare part numbers 3–5,
3–27, 3–30, 5–19
system board
removal 5–55
spare part numbers 3–11,
3–28, 3–29, 5–55
system memory map 6–22
T
tools required 4–1
top components 1–22, 1–24,
1–26, 1–28, 1–30
top cover, spare part numbers
3–9, 3–24, 3–30
TouchPad 1–27, 1–31
TouchPad buttons 1–27, 1–31
TouchPad horizontal scrolling
region 1–31
TouchPad light 1–27, 1–31
TouchPad on/off button 1–27,
1–31
TouchPad vertical scroll
region 1–27, 1–31
transporting precautions 4–4
Maintenance and Service Guide
Index
troubleshooting
audio 2–23
Computer Setup 2–1
expansion base 2–14
flowcharts 2–5
keyboard 2–26
modem 2–28
network 2–28
no OS loading for
QuickPlay Application
2–21, 2–22
nonfunctioning device
2–14, 2–25
OS loading 2–15
overview 2–1
pointing device 2–27
power 2–8
video 2–12
U
Universal Serial Bus (USB)
connector
location 1–11, 1–13, 1–15,
1–17
pin assignments A–1
USB digital drive, spare part
number 3–21, 3–24
USB diskette drive, spare part
number 3–24
USB travel mouse, spare part
number 3–22, 3–24
USB/S-Video controller board
removal 5–41
spare part numbers 3–11,
3–28, 3–30, 5–41
Maintenance and Service Guide
V
video recorder, spare part
number 3–22, 3–24
video troubleshooting 2–12
volume down button 1–25,
1–29
volume mute button 1–25,
1–29
volume up button 1–25, 1–29
W
Windows applications key
1–19, 1–21
Windows logo key 1–19, 1–21
wireless button 1–25, 1–29
wireless button light 1–9
wireless light 1–15, 1–29
workstation precautions 4–5
Y
Y-cable, spare part number
3–22, 3–31
Index–7
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
