HP | dv9341eu | User's Manual | HP dv9341eu User's Manual

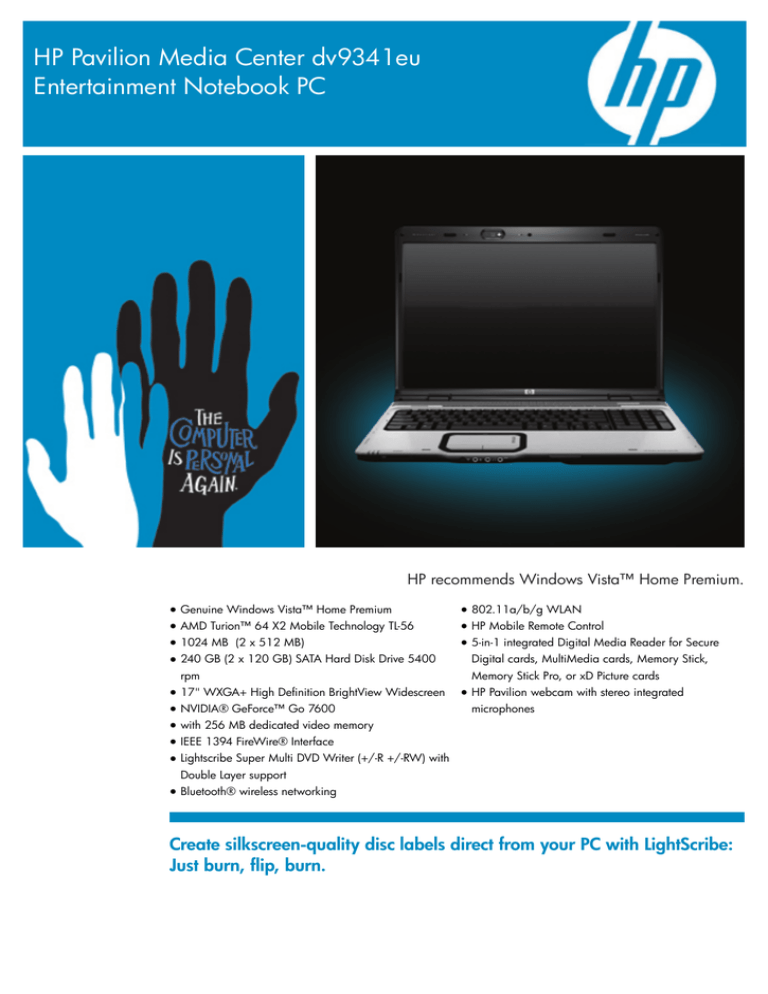

HP Pavilion Media Center dv9341eu
Entertainment Notebook PC
HP recommends Windows Vista™ Home Premium.
● Genuine Windows Vista™ Home Premium
● 802.11a/b/g WLAN
● AMD Turion™ 64 X2 Mobile Technology TL-56
● HP Mobile Remote Control
● 1024 MB (2 x 512 MB)
● 5-in-1 integrated Digital Media Reader for Secure
● 240 GB (2 x 120 GB) SATA Hard Disk Drive 5400
rpm
● 17" WXGA+ High Definition BrightView Widescreen
● NVIDIA® GeForce™ Go 7600
Digital cards, MultiMedia cards, Memory Stick,
Memory Stick Pro, or xD Picture cards
● HP Pavilion webcam with stereo integrated
microphones
● with 256 MB dedicated video memory
● IEEE 1394 FireWire® Interface
● Lightscribe Super Multi DVD Writer (+/-R +/-RW) with
Double Layer support
● Bluetooth® wireless networking
Create silkscreen-quality disc labels direct from your PC with LightScribe:
Just burn, flip, burn.
HP Pavilion Media Center dv9341eu Entertainment Notebook PC
HP recommends Windows Vista™ Home Premium.
Operating system
Genuine Windows Vista™ Home Premium
Power
Processor
AMD Turion™ 64 X2 Mobile Technology TL-56
Level 2 cache 512 KB + 512 KB, Up to 1600 MHz system bus
running at AC/DC mode 35 Watt
90 W AC Power Adapter
8-cell Lithium-Ion (Li-Ion) battery
Software
Memory
1024 MB (2 x 512 MB)
Supports up to 2 GB DDR2 memory
Storage
240 GB (2 x 120 GB) SATA Hard Disk Drive 5400 rpm
Microsoft® Works 8
Microsoft® Internet Explorer 7.0
Windows Mail
Adobe® Reader 8.0
Windows Media Player
HP Photosmart Essential, Windows Photo Gallery
DVD Play
Windows Movie Maker, Windows DVD Maker, Roxio MyDVD Basic
Roxio Creator Basic
Windows Media center, QuickPlay for Windows
Special offer: for accessories, software and warranty promotions,
please visit: www.mypcchoice.com
Service & support
Recovery partition (including possibility to recover system, applications
and drivers separately)
Optional re-allocation of recovery partition
Recovery CD/DVD creation tool
Symantec™ Norton Internet Security™ 2007 (60 days live update)
Notebook Help & Support
up to 9 GB partition for system recovery
Lightscribe Super Multi DVD Writer (+/-R +/-RW) with Double Layer
support
Create silkscreen-quality disc labels direct from your PC with
LightScribe: Just burn, flip, burn.
5-in-1 integrated Digital Media Reader for Secure Digital cards,
MultiMedia cards, Memory Stick, Memory Stick Pro, or xD Picture
cards
Mobile entertainment
HP QuickPlay media player software and its dedicated menu controls,
music and DVD buttons
HP Pavilion webcam with stereo integrated microphones
HP Mobile Remote Control
Communication
High speed 56K modem
Ethernet 10/100BT integrated network interface
802.11a/b/g WLAN
Bluetooth® wireless networking
One ExpressCard/54 slot (also supports ExpressCard/34)
Additional information P/N: GH768EA#ABU
UPC/EAN code: 883585193899 Weight
Out of package: 3.56 kg (7.8 lbs)
Packed: 5.10 kg
Display
17" WXGA+ High Definition BrightView Widescreen
Resolution: 1440 x 900
Dimensions
Video
NVIDIA® GeForce™ Go 7600
with 256 MB dedicated video memory
PCI Express®
Out of package: 28.50 cm (L) x 39.60 cm (W) x 3.16 cm (min)H /
4.18 cm (max) H
Packed: 480 x 170 x 350 mm
Warranty
Sound
3D Sound Blaster Pro compatible sound 16 bit integrated
Altec Lansing® speakers
1 year, pick-up and return, parts and labour
A +2 years warranty extension is available - HP Care Pack U4819E or
U4821E (including Accidental Damage Protection) Express service
UE601E (D+2 Turn around Time)
Keyboard
Full size desktop keyboard (with separate numeric keypad layout)
Touch Pad with On/Off button and dedicated vertical Scroll Up/Down
pad, volume control, mute buttons, 2 Quick Launch Buttons
Ports
1 VGA port
1 HDMI port
4 USB 2.0 ports
1 IEEE-1394
1 RJ 11 modem connector
1 RJ 45 Ethernet connector
S-video TV out
Remote control infrared port (Remote Control optional)
2 Headphones-out one w/ SPDIF Digital Audio, 1 Microphone-in port
Cable docking connector
