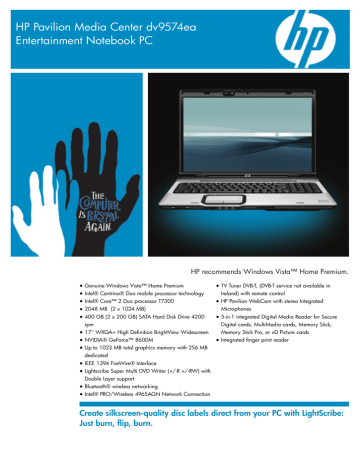

HP Pavilion Media Center dv9574ea
Entertainment Notebook PC
HP recommends Windows Vista™ Home Premium.
● Genuine Windows Vista™ Home Premium
● Intel® Centrino® Duo mobile processor technology
● Intel® Core™ 2 Duo processor T7300
● 2048 MB (2 x 1024 MB)
● 400 GB (2 x 200 GB) SATA Hard Disk Drive 4200
rpm
● 17" WXGA+ High Definition BrightView Widescreen
● NVIDIA® GeForce™ 8600M
● TV Tuner DVB-T, (DVB-T service not available in
Ireland) with remote control
● HP Pavilion WebCam with stereo Integrated
Microphones
● 5-in-1 integrated Digital Media Reader for Secure
Digital cards, MultiMedia cards, Memory Stick,
Memory Stick Pro, or xD Picture cards
● Integrated finger print reader
● Up to 1023 MB total graphics memory with 256 MB
dedicated
● IEEE 1394 FireWire® Interface
● Lightscribe Super Multi DVD Writer (+/-R +/-RW) with
Double Layer support
● Bluetooth® wireless networking
● Intel® PRO/Wireless 4965AGN Network Connection
Create silkscreen-quality disc labels direct from your PC with LightScribe:
Just burn, flip, burn.
HP Pavilion Media Center dv9574ea Entertainment Notebook PC
HP recommends Windows Vista™ Home Premium.
Operating system
Genuine Windows Vista™ Home Premium
Processor
Intel® Core™ 2 Duo processor T7300
2 GHz, Level 2 cache 4 MB
Memory
2048 MB (2 x 1024 MB)
Supports up to 4 GB DDR2 memory
Storage
400 GB (2 x 200 GB) SATA Hard Disk Drive 4200 rpm
Software
Microsoft® Works 8
Microsoft® Internet Explorer 7.0
Windows Mail
Adobe® Reader 8.0
Windows Media Player
HP Photosmart Essential, Windows Photo Gallery
DVD Play
Windows Movie Maker, Windows DVD Maker, Roxio MyDVD Basic
Roxio Creator Basic
Windows Media center, QuickPlay for Windows
TV Play
Verisoft Access Manager
Special offer: for accessories, software and warranty promotions,
please visit: www.mypcchoice.com
Service & support
Recovery partition (including possibility to recover system, applications
and drivers separately)
Optional re-allocation of recovery partition
Recovery CD/DVD creation tool
Symantec™ Norton Internet Security™ 2007 (60 days live update)
Notebook Help & Support
up to 9 GB partition for system recovery
Lightscribe Super Multi DVD Writer (+/-R +/-RW) with Double Layer
support
Create silkscreen-quality disc labels direct from your PC with
LightScribe: Just burn, flip, burn.
5-in-1 integrated Digital Media Reader for Secure Digital cards,
MultiMedia cards, Memory Stick, Memory Stick Pro, or xD Picture
cards
Mobile entertainment
HP QuickPlay media player software and its dedicated menu controls,
music and DVD buttons
HP Pavilion WebCam with stereo Integrated Microphones
TV Tuner DVB-T, (DVB-T service not available in Ireland) with remote
control
Communication
High speed 56K modem
Ethernet 10/100BT integrated network interface
Intel® PRO/Wireless 4965AGN Network Connection
Bluetooth® wireless networking
One ExpressCard/54 slot (also supports ExpressCard/34)
Ease of use
Integrated finger print reader
Display
17" WXGA+ High Definition BrightView Widescreen
Resolution: 1440 x 900
Video
NVIDIA® GeForce™ 8600M
Up to 1023 MB total graphics memory with 256 MB dedicated
Sound
3D Sound Blaster Pro compatible sound 16 bit integrated
Altec Lansing® speakers
Keyboard
Full size desktop keyboard (with separate numeric keypad layout)
Touch Pad with On/Off button and dedicated vertical Scroll Up/Down
pad, volume control, mute buttons, 2 Quick Launch Buttons
Ports
3 USB 2.0, 1 HDMI connector, 1 VGA port, 1 RJ11 modem
connector, 1 RJ45 ethernet connector, S-video TV out, 2
headphones-out, 1 mic-in, 1 IEEE 1394, remote control infrared port
(remote optional), cable docking connector
Power
90 W AC Power Adapter
8-cell Lithium-Ion (Li-Ion) battery
Additional information P/N: GT433EA#ABU
UPC/EAN code: 883585383856 Weight
Out of package: 3.55 kg (7.8 lbs)
Packed: 5.10 kg
Dimensions
Out of package: 28.50 cm (L) x 39.60 cm (W) x 3.16 cm (min)H /
4.18 cm (max) H
Packed: 480 x 170 x 350 mm
Warranty
1 year, pick-up and return, parts and labour
A +2 years warranty extension is available - HP Care Pack U4819E or
U4821E (including Accidental Damage Protection) Express service
UE601E (D+2 Turn around Time)
The product could differ from the images shown. © 2007 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only
warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Certain Windows Vista product features require advanced
or additional hardware. See http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and http://www.microsoft.com/windowsvista/getready/capable.mspx for
details. Windows Vista Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit
www.windowsvista.com/upgradeadvisor. Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. 06/07
www.hp.com
