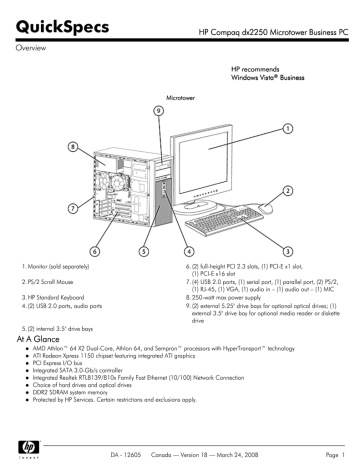

QuickSpecs
HP Compaq dx2250 Microtower Business PC
Overview
HP recommends
Windows Vista® Business
Microtower
1. Monitor (sold separately)
6. (2) full-height PCI 2.3 slots, (1) PCI-E x1 slot,
(1) PCI-E x16 slot
7. (4) USB 2.0 ports, (1) serial port, (1) parallel port, (2) PS/2,
(1) RJ-45, (1) VGA, (1) audio in – (1) audio out – (1) MIC
8. 250-watt max power supply
9. (2) external 5.25" drive bays for optional optical drives; (1)
external 3.5" drive bay for optional media reader or diskette
drive
2. PS/2 Scroll Mouse
3. HP Standard Keyboard
4. (2) USB 2.0 ports, audio ports
5. (2) internal 3.5" drive bays
At A Glance
AMD Athlon™ 64 X2 Dual-Core, Athlon 64, and Sempron™ processors with HyperTransport™ technology
ATI Radeon Xpress 1150 chipset featuring integrated ATI graphics
PCI Express I/O bus
Integrated SATA 3.0-Gb/s controller
Integrated Realtek RTL8139/810x Family Fast Ethernet (10/100) Network Connection
Choice of hard drives and optical drives
DDR2 SDRAM system memory
Protected by HP Services. Certain restrictions and exclusions apply.
DA - 12605
Canada — Version 18 — March 24, 2008
Page 1
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Standard Features - Select Models
Model Key and Example
NOTE: This diagram is an example that illustrates how to read the model number. It is not intended to give every available
configuration choice specified in the body of this document and may include references to modules that are out of date and no
longer available.
DA - 12605
Canada — Version 18 — March 24, 2008
Page 2
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Standard Features and Configurable Components
Processor and Speed
One of the following
AMD Sempron Processors with HyperTransport Technology:
AMD Sempron 3000+ Processor (1.6-GHz, 256K L2 cache, 1600-MHz FSB)
AMD Sempron 3200+ Processor (1.8-GHz, 128K L2 cache, 1600-MHz FSB)
AMD Sempron 3400+ Processor (1.8-GHz, 256K L2 cache, 1600-MHz FSB)
AMD Sempron 3500+ Processor (2.0-GHz, 128K L2 cache, 1600-MHz FSB)
AMD Sempron 3600+ Processor (2.0-GHz, 256K L2 cache, 1600-MHz FSB)
AMD Sempron 3800+ Processor (2.2-GHz, 256K L2 cache, 1600-MHz FSB)
AMD Sempron LE-1200 Processor (2.1-GHz, 512K L2 cache, 800-MHz FSB)
AMD Sempron LE-1250 Processor (2.2-GHz, 512K L2 cache, 800-MHz FSB)
AMD Athlon 64 Processors with HyperTransport Technology:
Athlon 64 3500+ Processor (2.2-GHz, 512K L2 cache, 2000-MHz FSB)
Athlon 64 3800+ Processor (2.4-GHz, 512K L2 cache, 2000-MHz FSB)
Athlon 64 4000+ Processor (2.6-GHz, 512K L2 cache, 2000-MHz FSB)
AMD Athlon X2 Dual-Core Processors with HyperTransport Technology:
Athlon X2 BE-2300 Processor (1.9-GHz, 2x512K L2 cache, 2000-MHz FSB)
Athlon X2 BE-2350 Processor (2.1-GHz, 2x512K L2 cache, 2000-MHz FSB)
Athlon X2 BE-2400 Processor (2.3-GHz, 2x512K L2 cache, 2000-MHz FSB)
AMD Athlon 64 X2 Dual-Core Processors with HyperTransport Technology:
Athlon 64 X2 Dual-Core 3800+ Processor (2.0-GHz, 2x512K L2 cache, 2000-MHz FSB)
Athlon 64 X2 Dual-Core 4000+ Processor (2.1-GHz, 2x512K L2 cache, 2000-MHz FSB)
Athlon 64 X2 Dual-Core 4400+ Processor (2.3-GHz, 2x512K L2 cache, 2000-MHz FSB)
Athlon 64 X2 Dual-Core 4800+ Processor (2.5-GHz, 2x512K L2 cache, 2000-MHz FSB)
Athlon 64 X2 Dual-Core 5000+ Processor (2.6-GHz, 2x512K L2 cache, 2000-MHz FSB)
Athlon 64 X2 Dual-Core 5200+ Processor (2.6-GHz, 2x1MB L2 cache, 2000-MHz FSB)
Athlon 64 X2 Dual-Core 5400+ Processor (2.8-GHz, 2x512K L2 cache, 2000-MHz FSB)
Athlon 64 X2 Dual-Core 5600+ Processor (2.8-GHz, 2x1MB L2 cache, 2000-MHz FSB)
Athlon 64 X2 Dual-Core 6000+ Processor (3.0-GHz, 2x1MB L2 cache, 2000-MHz FSB)
Operating System –
One of the following
Preinstalled
Genuine Windows Vista Business 32*
Genuine Windows XP Professional SP2
Genuine Windows XP Home SP2
Red Flag Linux (China Only)
Free DOS (not available in China)
* Certain Windows Vista product features require advanced or additional hardware. See
http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and
http://www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista Upgrade
Advisor can help you determine which features of Windows Vista will run on your computer. To
download the tool, visit http://www.windowsvista.com/upgradeadvisor.
NOTE: Drivers for Windows Vista are continually being made available for download from
http://www.hp.com. Windows Vista support for all hardware and software features of this product is
planned by April 1, 2007.
DA - 12605
Canada — Version 18 — March 24, 2008
Page 3
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Standard Features and Configurable Components
Application Software
(availability varies by
region)
Microsoft Office 2003 Basic
Microsoft Office 2003 Small Business
Microsoft Office 2003 Professional
Microsoft Office 2007 Basic
Microsoft Office 2007 SBE
Microsoft Office 2007 Professional
Microsoft Works
HP Backup and Recovery Manager
Roxio DigitalMedia Plus (by SONIC)*
Intervideo WinDVD*
Symantec Antivirus 2005 with 60 day Live Update Subscription (availability varies by region)
Sun Java Runtime Environment
Google Toolbar
* Supporting software available with certain optical drive configurations
Hard Drives
80-GB Serial ATA 3.0-Gb/s Hard Drive (7200 rpm)
160-GB Serial ATA 3.0-Gb/s Hard Drive (7200 rpm)
250-GB Serial ATA 3.0-Gb/s Hard Drive (7200 rpm)
System Memory
256-MB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (1 x 256-MB)
512-MB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (1 x 512-MB)
512-MB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (2 x 256-MB)
1-GB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (1 x 1-GB)
1-GB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (2 x 512-MB)
2-GB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (2 x 1-GB)
Storage –
One or more of the
following (see Storage
section below)
Diskette Drive
1.44-MB Diskette Drive
Media Reader
HP 16-in-1 Media Reader and additional USB 2.0 port
Optical Drives (Serial ATA)
PATA DVD-ROM Drive
PATA CD-RW/DVD-ROM Combo Drive (not supported by Windows Vista)
PATA DVD+/-RW (DL/DF) LightScribe Drive
Keyboard One of the following
HP PS/2 Standard Keyboard
HP USB Standard Keyboard
DA - 12605
Canada — Version 18 — March 24, 2008
Page 4
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Standard Features and Configurable Components
Mouse One of the following
PS/2 2-Button Scroll Mouse
PS/2 2-Button Optical Scroll Mouse
USB 2-Button Optical Scroll Mouse
USB 2-Button Scroll Mouse
Audio
Realtek High Definition audio codec
Internal PC speaker
Communication
Integrated Realtek RTL8139/810x Family Fast Ethernet (10/100) Network Connection
Intel PRO/1000 PT PCIe Gigabit Ethernet NIC
Agere 56K PCI Modem
Graphics
Integrated ATI graphics processor (provided by the Radeon Xpress 1150 chipset)
ATI RADEON X1300 (256MB DH) PCIe Graphics Card
ATI RADEON X1300 (256MB SH) PCIe Graphics Card
Miscellaneous
HP Firewire / IEEE 1394 PCI Card (full height)
DA - 12605
Canada — Version 18 — March 24, 2008
Page 5
QuickSpecs
HP Compaq dx2250 Microtower Business PC
System Details
Base Unit
Slots
Micro ATX microtower chassis, including power supply and front bezel
Five (5) drive bays and four expansion slots
Microsoft operating system CD
Active type heatsink
92 x 92 x 25 mm chassis fan
System board with ATI Radeon Xpress 1150 chipset, integrated Realtek RTL8139/810x Family Fast
Ethernet (10/100) Network Connection, integrated graphics and audio, 2 PCI slots, 1 PCI Express
x1 slot, 1 PCI Express x16 slot, 2 DDR2 DIMM memory slots
(4) Serial ATA data connectors
(2) Serial ATA data cables
(1) Parallel ATA data connector (no PATA data cables are included)
Product documentation on CD
Power cord
PCI
Memory Expansion
Two (2) full-height PCI 2.3 slots on PCA
One (1) full-height PCI Express x1 slot on PCA
One (1) full-height PCI Express x16 slot on PCA (for graphic cards)
Two (2) DIMM slots (2 GB maximum memory support)
Bays
Internal
External
Two (2) 3.50"
Two (2) 5.25”
One (1) 3.50”
USB Support
EHCI high-speed USB 2.0 controller
Two (2) front ports; Four (4) rear ports, Two (2) internal ports on motherboard
Interfaces (Legacy)
One (1) parallel port
One (1) serial port
One (1) PS/2 keyboard port
One (1) PS/2 mouse port
One (1) analog VGA video port
One (1) line in; one (1) line out; one (1) mic in
One (1) RJ45 network port
Weight and Dimensions
Chassis Dimensions
(H x W x D)
Packaged Dimensions
(L x W x H)
System Weight
Shipping Weight
DA - 12605
13.90 x 6.89 x 16.38 in (353 x 175 x 416 mm)
22.25 x 19.63 x 16.31 in (565.15 x 498.5 x 414.3 mm) (NA)
21.10 x 19.53 x 15.008 in (536.0 x 496.0 x 383.0 mm) (EMEA)
21.16 lb (9.6 kg)
30.86 lb (14.0 kg)
Canada — Version 18 — March 24, 2008
Page 6
QuickSpecs
HP Compaq dx2250 Microtower Business PC
System Details
Technology and Features Memory Type
Hard Drive Interfaces
Supported
Chassis
Front Panel
Cooling Solutions
Supported
Slots Supported
Front I/O
Rear I/O
Drive Bays
Internal Speaker
Security
Power Supply
PC2-5300 DDR2 SDRAM (667-MHz) non-ECC
2 GB maximum system memory
Serial ATA 3.0-Gb/s hard drives are supported
Power button
Power On LED
HDD Activity LED
Power Supply Fan (variable speed)
Aluminum active heatsink (variable speed)
Chassis fan (variable speed)
Four (4) full-height expansion slots
Two (2) USB 2.0 ports
Standard Micro ATX I/O connectors, including four (4) USB 2.0 ports
Two (2) 5-1/4” external
One (1) 3-1/2” external
Two (2) 3-1/2” internal
Standard
Padlock loop
250-watt ATX Power Supply – PFC/non-PFC with a 115v/230v line switch
(varies by country/region)
Unit Environment and
Operating Conditions
General Unit Operating Guidelines
Keep the computer away from excessive moisture, direct moisture and the extremes of heat and
cold, to ensure that unit is operated within the specified operating range.
Leave a 4 in (10.2 cm) clearance on all vented sides of the computer to permit the required
airflow.
Never restrict airflow into the computer by blocking any vents or air intakes.
Do not stack computers on top of each other or place computers so near each other that they are
subject to each other's re-circulated or preheated air.
Occasionally clean the air vents on the front, back, and any other vented side of the computer.
Lint, dust and other foreign matter can block the vents and limit the airflow.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must
be provided on the enclosure, and the same operating guidelines listed above will still apply.
Operating: 50° to 95° F (10° to 35° C)
Temperature Range
Non-operating: –22° to 140° F (–30° to 60° C)
Operating: 10% to 90% (non-condensing at ambient)
Relative Humidity
Non-operating: 5% to 95% (non-condensing at ambient)
Operating: 10,000 ft (3048 m)
Maximum Altitude
(unpressurized)
Non-operating: 30,000 ft (9000 m)
NOTE: Operating temperature is de-rated 1.0 deg C per 1000 ft (300 m) to 10,000 ft (3000 m) above
sea level, no direct sustained sunlight. Maximum rate of change is 10 deg C/Hr. The upper limit may be
limited by the type and number of options installed.
System Board
Processor
Socket AM2 industry standard Micro ATX form factor
DA - 12605
Canada — Version 18 — March 24, 2008
Page 7
QuickSpecs
HP Compaq dx2250 Microtower Business PC
System Details
PWM
Chipset
Super I/O
Front Side Bus Frequency
Memory
Clock Generator
Integrated Graphics
Audio
LOM
IDE
Serial
Expansion Slots
BIOS
Industrial Standard
Rear Side I/O Ports
On Board I/O Interfaces
Board Size
DA - 12605
Support single AMD Athlon 64 X2 Dual-Core, Athlon 64, or Sempron
processor
Intersil 6566 VRM 10.1
ATI Radeon Xpress 1150
ATI RS485 (Northbridge), ATI SB600 (Southbridge)
W83627EHG
533/800 MHz
DDR2 SDRAM
2 x DIMM slots
ICS 951412GLFT
Built-in ATI graphics processor
provided by the ATI Radeon Xpress 1150 chipset
Realtek High Definition (HD) audio codec
Realtek RTL8139/810x Family Fast Ethernet (10/100)
Support all PIO modes
1 x IDE ports support up to 2 devices
Support Ultra ATA 33/66/100
Four Serial ATA interfaces support data transfer rates up to 3.0 Gb/s
2 x PCI 2.3 slots
1 x PCI Express x1 slot
1 x PCI Express x16 slot
LPC EEPROM
PCI 2.3 compliant
USB 2.0
1 x PS/2 keyboard port
1 x PS/2 mouse port
4 x USB 2.0 ports
1 x RJ-45 10/100 port
1 x serial port
1 x parallel port
1 x DB 15 pin analog VGA port
3 x audio ports
1 x ATX power connector
1 x +12V power connector
1 x Floppy connector
1 x Front panel connector, Switch, LED (ON/Flash/OFF)
2 x Fan headers for CPU, chassis, with voltage/fan speed control
1 x ATAPI headers-CD IN
1 x header to support 2 USB 2.0 ports at front side
1 x header to support USB media reader
Micro-ATX, PCB Size: 9.6 x 9.0 in (24.38 x 22.86 cm)
4-layer PCB with green colour
Canada — Version 18 — March 24, 2008
Page 8
QuickSpecs
HP Compaq dx2250 Microtower Business PC
System Details
Additional Features
Network Interface
Hardware Highlights
Features
Hardware Highlights
Features
Wireless
Bootable without keyboard, mouse or monitor
Keyboard/mouse/USB wake up
Support S3, S4 and S5
ACPI status
Hardware monitor capability
CPU fan speed control
Integrated Realtek RTL8139/810x Fast Ethernet Network Controller
PCI interfaces
10-Mbps and 100-Mbps operation
Intel PRO/1000 PT PCIe Gigabit NIC
PCI interfaces
10-Mbps, 100-Mbps and 1000-Mbps operation
Wireless A+G PCI Card (full height bracket)
Power Supply
ATX Power Supply – Passive PFC/non-PFC with a 115v/230v line switch
Passive Power Factor Correction (PFC) – with line switch set to 230V – No PFC in 115V line switch
position
90 to 140VAC, or 180 to 264VAC operating voltage range
100 to 127VAC, or 200 to 240VAC rated voltage range
50–60 Hz rated line frequency
47–63 Hz operating line frequency range
250 watt maximum rated power
80-mm power supply fan – variable speed for optimum acoustics
(2) PATA device power connectors
(4) SATA device power connectors
Power Conservation
‘Energy Saver‘
APM 1.2 support
Screen blanking
Hard drive 'Idle' mode
System Idle mode
~2 watt power consumption in ES mode – suspend to RAM (S3) (instantly available PC)
Processor/Cache memory power-down (S3)
DA - 12605
Canada — Version 18 — March 24, 2008
Page 9
QuickSpecs
HP Compaq dx2250 Microtower Business PC
System Details
System Environmental
Specs
Values are subject to change without notification and are for reference only.
Performance of system, options, and ancillary equipment will vary depending on the system
configuration.
Levels presented do not account for non-HP/Compaq installed hardware.
50° to 95°F (10° to 35°C) at sea level with an
Ambient Air Temperature Operating
altitude de-rating of 1.0°C per every 1000 ft
(300 m) above sea level to a maximum of 8000
ft (2500 m), no direct sustained sunlight.
Maximum rate of change is 77°F/Hr (25°C/Hr).
The upper limit may be limited by the type and
number of options installed.
–22° to 140°F (–30° to 60°C) –
Storage
Maximum rate of change: 410°F/Hr (210°C/Hr).
10% to 90% relative humidity (Rh), 86°F (30°C)
Humidity
Operating
maximum wet bulb temperature, non-condensing
10% to 95% relative humidity (Rh), 101.66°F
Storage
(38.7°C) maximum wet bulb temperature, noncondensing
0 to 10,000 feet (0 to 3048 metres) – This value
Altitude
Operating
may be limited by the type and number of
options installed. Maximum allowable altitude
change rate is 1,000 ft/min (304.8 m/min).
0 to 30,000 feet (0 to 9,144 metres) – Maximum
Non-Operating
allowable altitude change rate is 1200 ft/min
(365.76 m/min).
Listed are the levels of shock the product can withstand with NO damage
Shock
being incurred. The values represent peak input acceleration during an 2~3
ms half-sine shock pulse, 11 ms trapezoidal shock pulse.
40 g (Half-sine Shock)
Non-Operating
40 g (Trapezoidal Shock)
Listed are the levels of vibration the product can withstand with NO damage
Vibration
being incurred. The values represent a flat random vibration input
acceleration profile across the given frequency range.
Random vibration at [email protected]²/Hz,
Operating
[email protected]²/Hz, [email protected]²/Hz,
[email protected]²/Hz
5Hz to 300Hz, (0.25G's nominal).
Random vibration at 0.008G²/Hz,
Non-Operating
10Hz to 500Hz, (2 Grms nominal).
DA - 12605
Canada — Version 18 — March 24, 2008
Page 10
QuickSpecs
HP Compaq dx2250 Microtower Business PC
System Details
Service and Support
On-site WarrantyNote 1: One-year (1-1-1) limited warranty delivers one year of on-site, next businessdayNote 2 service for parts and labour and includes free telephone supportNote 3 24 x 7. Global
coverageNote 2 ensures that any product purchased in one country and transferred to another nonrestricted country will remain fully covered under the original warranty and service offering. One-year
onsite and labour are not available in all countries.
NOTE 1: Certain restrictions and exclusions apply.
NOTE 2: Global service response times are based on commercially reasonable best effort and may vary
by country.
NOTE 3: Technical telephone support applies only to HP-configured Compaq and third-party HPqualified hardware and software. Toll-free calling and 24 x 7 support may not be available in some
countries.
DA - 12605
Canada — Version 18 — March 24, 2008
Page 11
QuickSpecs
HP Compaq dx2250 Microtower Business PC
After-Market Options
Communications
NICs
Intel PRO/1000 PT PCIe Gigabit NIC Card
Wireless LAN
HP Wireless A+G PCI Card
Modems
Agere 2006 PCI High-Speed 56K International SoftModem
Connectivity
HP Surge Protector, LAN & Printer Cable
Office 2007 Media-less
License Kits (MLKs)
MS Office Basic Edition 2007 – Media-less License Kit
MS Office Small Business Edition 2007 – Media-less License Kit
MS Office Professional Edition 2007 – Media-less License Kit
Hard Disk Drives
HP 250-GB SATA 3.0-Gb/s Hard Drive
HP 160-GB SATA 3.0-Gb/s Hard Drive
HP 80-GB SATA 3.0-Gb/s Hard Drive
Removable Storage
Devices
Diskette Drive
HP 1.44-MB Internal Diskette Drive
HP 1.44-MB USB Diskette Drive – External
16-in-1 Media Reader
Input Devices
Keyboards
HP PS/2 Standard Keyboard
HP USB Standard Keyboard
Mice
HP PS/2 2-Button Scroll Mouse
HP PS/2 2-Button Optical Scroll Mouse
HP USB 2-Button Optical Scroll Mouse
HP USB 2-Button Laser Mouse
Memory
HP 1-GB PC2-5300 (DDR2-667 MHz) DIMM
HP 512-MB PC2-5300 (DDR2-667 MHz) DIMM
HP 256-MB PC2-5300 (DDR2-667 MHz) DIMM
NOTE: The HP Compaq dx2200 Microtower memory frequency is clocked at 630 MHz.
DA - 12605
Canada — Version 18 — March 24, 2008
EH352AA
EA118AA
EK694AA
RT174AA
RZ361A#ABA
RZ365A#ABA
RZ363A#ABA
PY278AA
PY277AA
PY276AA
AG295AA
DC141B
EM718AA
DT527A
DT528A
DD440B
EY703AA
DC172B
GW405AA
PX976AA
PX975AA
PX974AA
Page 12
QuickSpecs
HP Compaq dx2250 Microtower Business PC
After-Market Options
Audio
HP USB Powered Speakers
Thin USB Powered Speakers
RD628AA
KK912AA
(launching
4/14/08)
Graphics
ATI RADEON X1300 (256MB DH) PCIe Graphics Card
ATI RADEON X1300 (256MB SH) PCIe Graphics Card
HP DMS59 DVI Dual-head Connector Cable
AH050AA
AG392AA
DL139A
Optical Drives
HP PATA CD-RW/DVD-ROM Combo Drive
DL976B
HP SATA CD-RW/DVD-ROM Combo Drive
HP PATA DVD-ROM Drive
HP SATA DVD-ROM Drive
HP PATA DVD+/-RW SuperMulti LightScribe Drive
AH046AA
PR596A
AH047AA
GF343AA
Security
HP Business PC Security Lock Kit
HP Smart Data Protection Service
Kensington Compaq Security Lock – Single
TBD
BB731UT
PC766A
Miscellaneous
Accessories
Belken USB to Serial Adapter
HP FireWire / IEEE 1394 PCI Card
5.25" Blank Bezel Kit (Carbonite 50/Bulk Pack)
DVI to DVI Cable
Local Area Network (LAN) cable
Firewire (1394) Cable
7-outlet Surge Protector
DA - 12605
Canada — Version 18 — March 24, 2008
EM449AA
PA997A
DC177B
DC198A
AH122AA
AH123AA
AG290AA#ABA
Page 13
QuickSpecs
HP Compaq dx2250 Microtower Business PC
After-Market Options
Monitors
CRTs
Business LCD Monitors
HP L1506 15-inch LCD Monitor
HP L1710 17-inch LCD Monitor
HP L1750 17-inch LCD Monitor
HP L1745 17-inch LCD Monitor
HP L1910 19-inch LCD Monitor
HP L1950 19-inch LCD Monitor
HP LP1965 19-inch LCD Monitor
HP LP2065 20-inch LCD Monitor
Business Widescreen LCD Monitors
HP L1908w 19-inch Widescreen LCD Monitor
HP L2045w 20-inch Widescreen LCD Monitor
HP L2208w 22-inch Widescreen LCD Monitor
HP L2245w 22-inch Widescreen LCD Monitor
HP LP2465 24-inch Widescreen LCD Monitor
HP LP3065 30-inch Widescreen LCD Monitor
Business Widescreen LCD Monitor with Integrated Speakers
HP L1908wm 19-inch Widescreen LCD Monitor with Built in Integrated Speakers
Business GSA Monitors
Business Touchscreen LCD Monitor
HP L5006tm 15-inch Touch Screen LCD Monitor
Business LCD Monitor with Integrated Work Stand
HP L1908wi 19-inch Widescreen LCD Monitor plus Integrated Work Stand
HP L1910i 19-inch LCD Monitor plus Integrated Work Stand
Options
HP Flat Panel Speaker Bar
HP Quick Release Kit
HP Integrated Work Stand (stand alone)
DA - 12605
Canada — Version 18 — March 24, 2008
3PO Offering
PX848AA#ABA
GS917AA#ABA
GF904AA#ABA
GE178AA#ABA
GS918AA#ABA
GG458AA#ABA
RA373AA#ABA
EF227A4#ABA
GX007AA#ABA
GP536AA#ABA
RD125AA#ABA
GX007AA#ABA
GX008AA#ABA
EF224A4#ABA
EZ320A4#ABA
KA214AA#ABA
3PO Offering
RB146AA#ABA
GP537AA#ABA
GS581AA#ABA
EE418AA
EM870AA
GN783AA
Page 14
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Memory
DDR SYNCH DRAM NON-ECC MEMORY
The ATI Radeon Xpress 1150 chipset supports non-ECC DDR2 memory up to PC2-5300 (667-MHz). Memory upgrades are
accomplished by adding single or multiple DIMMs of the same or varied sizes. This chart does not represent all possible memory
configurations.
MAXIMUM MEMORY
Supports up to 2-GB of DDR2 SYNCH DRAM. Not all memory configurations possible are represented below.
DIMM Size
256-MB
512-MB
Slot 1
256-MB
512-MB
Slot 2
512-MB
1-GB
1-GB
2-GB
256-MB
1-GB
512-MB
1-GB
256-MB
DA - 12605
Canada — Version 18 — March 24, 2008
512-MB
1-GB
Page 15
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Storage
HP Compaq dx2250 Microtower Business PC
Maximum Quantity
Supported
Position Supported
Controller
1
1
2
2
2
2
2
3
3
1, 2
1, 2
1, 2
1, 2
4,5
SIO
Internal USB 2.0 port
IDE ATAPI
IDE ATAPI
IDE ATAPI
IDE ATAPI
SATA
Drive Support
Diskette Drives
Media Reader
CD-ROM Drives
DVD-ROM Drives
CD-RW/Combo Drives
DVD+/-RW Drives
3.5” Serial ATA Hard Drives
DA - 12605
Canada — Version 18 — March 24, 2008
Page 16
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Technical Specifications - Audio
Integrated Realtek High
Definition (HD) Audio
Type
HD Audio compatible
codec
Audio Jacks
Power Support
Other
DA - 12605
Integrated
Yes
Mic-In
Line-In
Line-Out / Headphone Out
Digital: 3.3V
Analog: 5V
Meets performance requirements for audio on PC99/2001 systems
High quality differential CD input
Canada — Version 18 — March 24, 2008
Page 17
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Technical Specifications - Communications
Intel PRO/1000 PT PCIe
Gigabit NIC
Connector
Controller
Memory
Data rates supported
Compliance
Bus architecture
Data transfer mode
Hardware certifications
RJ-45
Intel 82572EI Gigabit Ethernet Controller
Integrated Dual 48K configurable transmit receive FIFO Buffers
10/100/1000 Mbps
IEEE 802.1P, 802,1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,
802.3x flow control
PCI-E 1.0a
Bus-master DMA
FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark
for European Union
Power requirement
Boot ROM support
Network transfer rate
Aux 3.3V, 3.0 Watts in 1000base-T and 2.0 Watts in 100Base-T
Yes
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps (actual rate limited by PCI Bus)
Environmental
32° to 131°F (0° to 55° C)
Operating temperature
85% at 131° F (55° C)
Operating humidity
Dimensions
6.4 x 2.6 x 0.8 in (16.3 x 6.6 x 1.9 cm)
Management capabilities ASF, WOL, PXE, DMI, WFM 2.0.
HP Wireless A+G PCI
Dimensions
Weight
Controller
system interface
Network standard
Frequency band
Operating temperature
Storage temperature
Humidity
Operating voltage
Power consumption
Output power
(approximately)
Receive sensitivity
Data transfer rate
DA - 12605
4.99 x 2.54 x 0.71 in (126.8 x 64.4 x 18.0 mm)
0.268 lb (65 g)
Atheros AR5414X chipset
PCI Spec 2.2
IEEE 802.11a/b/g
5.1500 to 5.8500 GHz
2.4000 to 2.4835 GHz
2.4465 to 2.4835 GHz
2.4000 to 2.4697 GHz
32° to 140° F (0° to 60° C), operating
-4° to 176° F (-20° to 80° C), non-operating
10% to 85% non-condensing
5V ± 5%
Tx/Rx peak 560/250mA @ 3.3V (max.)
15 dBM ±2dB
-90dBm at 11 Mbps (typical)
Standard rates of 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 48, 54 and Super AG
Mode108-Mbps
Canada — Version 18 — March 24, 2008
Page 18
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Technical Specifications - Communications
Spreading
Security
Antenna
Throughput
Certifications
Certifications for use by
country
Agere 56K PCI Modem
Data Transmission
Data Speeds
Data Standards
Fax Speeds
Fax Mode Capabilities
Error Correction and
Data Compression
Power Management
Upgradeability
Video
Other
Operating Temperature
Operating Humidity
Power
Chipset
Dimensions (L X H)
DA - 12605
DSSS (Direct Sequence Spread Spectrum)
64(40h) bit, 128(104h) bit, WPA, IEEE802.1X, AES-OCB, AES-CCM,
Microsoft PEAP,TKIP, WEP
External 5dBi antenna
200 ft (60.96 m) – Indoor
108 Mbps (only with
Belkin 54G or above
router that supports 108
Mbps speed)
200 ft (60.96 m) – Indoor
54 Mbps
200 ft (60.96 m) – Indoor
11 Mbps
Wi-Fi certified
North America: United States, Canada
56,000 Kbps maximum downstream data
NOTE: 56 Kbps technology refers to download speeds only and requires
compatible modems at server sites. Other conditions may limit modem
speed. FCC limitations allow a maximum of 53 Kbps during download
transmissions.
(Upload only)
33,600/31,200/28,800/26,400/21,600/19,200/16,800/14,400/
12,000/9,600/7,200/4,800/2,400/1,200/300
ITU-T V.90, ITU-T, ITU-T V.34, V.44, V.42, V.42bis21, V.32bis, Bell 212A,
and Bell 103
14,400/12,000/9,600/7,200/4,800/2,400/300 b/s
ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2
V.44, 42bis, V.42 and MNP2-5
ACPI; PPMI 1.1 and wake support with PME and Vaux; meets PCI 2.3
requirements and PC 2001 requirements
Driver upgradeable for future enhancements
ITU-T V.80 video ready interface
TIA/EIA 602 standard AT command set
Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a
UART-compatible interface
Optional ring wakeup signal
32° to 158° F (0° to 70° C)
20% to 90%, non-condensing
Requires a 3.3-V auxiliary power rail on PCI bus
Uses only one PCI load (i.e., one grant/request pair), one shared IRQ, one
electrical load
Agere Systems SV92PL – Integrated PCI interface with 5-V tolerant buffers
and CardBus support
Complies with PCI low profile specifications-6.7 x 2.3 in (17.0 x 5.8 cm) and
supports high- and low-profile brackets
Canada — Version 18 — March 24, 2008
Page 19
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Technical Specifications - Communications
Connection
Other Features
Safety
EMC
Telecom
Health
Other
DA - 12605
Single RJ-11 connector
Digital line protection, call progress monitoring via on-board piezo device,
support for high profile and low profile brackets, PnP ID support
UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950 (TUV,
NEMKO, DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO,
SEMKO, CE mark
FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN
61000-4-6, EN 61000-4-8
FCC Part 68
Bare PCB material compliant to 94V-0 or better (marked as such)
PC 2001 compliant, PCI version 2.3, WHQL approved; ACPI compliant
Canada — Version 18 — March 24, 2008
Page 20
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Technical Specifications - Graphics
Integrated ATI graphics
provided by the Radeon
Xpress 1150 chipset
3D/2D Controller
Full Microsoft DirectX® 9 based with Shader 2.0 support, full precision
floating point pixel pipeline, 2x, 4x, or 6x Anti-Aliasing, hidden surface
removal using 16, 24, or 32-bit Z-Buffering, and support for 12-bit per pixel
formats. Support for Microsoft's DirectDraw, Double Buffering, Virtual
Sprites, Transparent Blit, and Masked Blit.
VGA/DVI Controller
Integrated
Bus Type
PCI Express™ x16 for optional graphics upgrade
RAMDAC
Integrated
Memory
HYPERMEMORY™ technology offers optional dedicated Local Frame Buffer
configuration for a 32-bit or 64-bit interface and up to 128MB of memory.
UMA mode operation uses from 32MB up to 256MB of shared system
memory.
Controller Clock Speed 400 MHz
Overlay Planes
Back end overlay supporting Motion Adaptive De-Interlacing
Maximum Colour Depth 32 bits/pixel
Maximum Vertical Refresh Supports resolutions up to 2045x1536 @ 32bpp
Rate
SURROUNDVIEW™ support for up to three monitors with an ATI discrete
Multi-display Support
graphics card. One display is supported via the integrated VGA connector.
An additional 2 displays can be supported via the ATI discrete graphics card.
Dual independent display modes are supported.
Microsoft DirectX 9, DirectXVA®, VMR7, VMR9, GDI/GDI+; OpenGL® 1.4.
Graphics/Video API
Support
ATI RADEON X1300 PCIe Bus type
Graphics Card
Maximum vertical refresh
(256 MB)
rate
Display support
Display max resolution
Board display options
Board configuration
Core power
DA - 12605
PCI Express (x16 lanes)
85 Hz
Integrated 400 MHz RAMDAC
2048 x 1536
DVI-I + TV
DVI-I supports analog CRT or flat panel or digital flat panel (using DVI-A,
DVI-D or DVI-I connector)
DVI-I supports analog CRT or flat panel (with VGA connector and DVI-I to
VGA dongle)
TV connector is a 4-pin mini-DIN S-video connector
Specification
Description
Graphics Chip
RV515
Core clock
450 MHz
Memory clock
250 MHz
Frame buffer
256 MB DDR2
25 W (Max board power)
Canada — Version 18 — March 24, 2008
Page 21
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Technical Specifications - Graphics
Option kit contents
Compliance standards
ATI RADEON X1300 PCIe graphics card with full height bracket
attached
Low profile bracket
DVI-to-VGA Adapter
Software CD with graphics drivers
Warranty documentation
EMC Emissions:
a) FCC Part 15, Subpart B – Unintentional Radiators, Class B Computing
Devices for Home & Office Use
b) CISPR22: 1997/EN 55022:1998 – Class B – Limits and methods of
measurement of radio disturbance characteristics of Information Technology
Equipment
EMC Immunity:
CISPR 24:1997/EN 55024:1998 – Information Technology Equipment –
Immunity Characteristics – Limits and Methods of Measurement.
Safety:
UL 60950 (USA) & EN 60950 (EU): Safety of Information Technology
Equipment, Including Electrical Business Equipment. All boards meet UL PCB
flammability requirements.
DA - 12605
Canada — Version 18 — March 24, 2008
Page 22
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Technical Specifications - Input/Output Devices
HP PS/2 or USB Standard Physical
Keyboard
characteristics
Electrical
Mechanical
Environmental
Approvals
Ergonomic compliance
DA - 12605
Keys
Dimensions (L x W x H)
Weight
Operating voltage
Power consumption
ESD
EMI – RFI
MicrosoftPC
MicrosoftPC 99 – 2001
Languages
Keycaps
Switch actuation
Switch life
104, 105, 106, 107, 109 layout (depending
upon country)
18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)
2 lb (0.9 kg) minimum
+ 5VDC ± 5%
50-mA maximum (with three LEDs ON)
CE level 4, 15-kV air discharge
Conforms to FCC rules for a Class B computing
device
Functionally compliant
38 available
Low-profile design
55-g nominal peak force with tactile feedback
20 million keystrokes (using Hasco modified
tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 – 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
50° to 122° F (10° to 50° C)
Operating temperature
Non-operating
-22° to 140° F (-30° to 60° C)
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Non-operating humidity 20% to 80% (non-condensing at ambient)
40 g, six surfaces
Operating shock
80 g, six surfaces
Non-operating shock
2-g peak acceleration
Operating vibration
Non-operating vibration 4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
Drop (out of box)
42 in (107 cm) on concrete, 16-drop sequence
Drop (in box)
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
ANSI HFS 100, ISO 9241-4, and TUVGS
Canada — Version 18 — March 24, 2008
Page 23
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Technical Specifications - Input/Output Devices
HP 2-Button Scroll Mouse Scroll Wheel
(PS/2 or USB)
Maximum Rotation Speed
Switch Type
Switch Life
Mechanical Life
Environmental
Electrical
Mechanical
Regulatory Approvals
DA - 12605
8 mm
30 mm/s
Light force micro-switch
1 million operations
Minimum 200,000 revolutions
Operating Temperature 50° to 122° F (10° to 50° C)
-22° to 140° F (-30° to 60° C)
Non-operating
Temperature
10% to 90% (non condensing at ambient)
Operating Humidity
Non-operating Humidity 20% to 80% (non condensing at ambient)
40 g, 6 surfaces
Operating Shock
Non-operating Shock
Operating Vibration
Non-operating Vibration
Operating Voltage
Power Consumption
System Consumption
ESD
EMI-RFI
80 g, 6 surfaces
2 g peak acceleration
4 g peak acceleration
+ 5VDC ± 10%
15mA
PS/2 mini-din connector
CE level 4, 15 kV air discharge
Conforms to FCC rules for a Class B computing
device
PC98
Functionally compliant
Resolution
400 ± 20% DPI
Tracking Speed
10 in/s maximum
Acceleration
100 in/s
Switch Actuation
85 g nominal peak force
Switch Life
1,000,000 operations (using Hasco modified
tester)
Cable Length
2m
PC98-99
Mechanically compliant
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BCIQ, C-Tick
Canada — Version 18 — March 24, 2008
Page 24
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Technical Specifications - Hard Drives
Serial ATA Hard Drives
(7200 rpm)
80 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
160 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 12605
80,026,361,856 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9 cm)
Physical size: 4 in (10.2 cm)
Serial ATA
3.0 Gb/s
8 MB
Single Track
1.0 ms
Average
8.5 ms
Full-Stroke
18 ms
7,200 rpm
156,301,488
32° to 140° F (0° to 60° C)
160,041,885,696 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9 cm)
Physical size: 4 in (10.2 cm)
Serial ATA
3.0 Gb/s
8 MB
Single Track
1.0 ms
Average
8.5 ms
Full-Stroke
18 ms
7,200 rpm
312,581,808
32° to 140° F (0° to 60° C)
Canada — Version 18 — March 24, 2008
Page 25
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Technical Specifications - Hard Drives
250 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 12605
250,059,350,016 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9 cm)
Physical size: 4 in (10.2 cm)
Serial ATA
3.0 Gb/s
8 MB
Single Track
0.8 ms
Average
<9.0 ms
Full-Stroke
=17 ms
7,200 rpm
488,397,168
41° to 131° F (5° to 55° C)
Canada — Version 18 — March 24, 2008
Page 26
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Technical Specifications - Optical Storage
HP PATA DVD-ROM Drive Height
Orientation
Interface type
Disc capacity
Dimensions (W x H x D)
Weight (max)
Read speeds
5.25-inch, half-height, tray-load
Either horizontal or vertical
PATA/ATAPI
Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)
Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
1.54 lb (0.7 kg)
Up to 8X
DVD+R/-R/+RW/
-RW/+R DL
Up to 16X
DVD-ROM
CD-ROM, CD-R
Up to 48X
Up to 32X
CD-RW
Removable Storage - Media Compatibility - DVD-ROM
Media
Read
Write
CD-ROM
Yes
No
Yes
No
CD-R
Yes
No
CD-RW
Yes
No
DVD-ROM
Yes
No
DVD-ROM DL
Yes
No
DVD+R
Yes
No
DVD+R DL
Yes
No
DVD+RW
Yes
No
DVD-R
Yes
No
DVD-RW
DVD: < 140 ms (typical), CD: < 125 ms
Access times
Random
(typical reads, including
(typical)
setting)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
Full Stroke
256 KB (minimum)
Cache Buffer
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
Data Transfer Modes
DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode
3 (44.4 MB/s -default)
Four-pin, DC power receptacle
Power
Source
5 VDC ± 5% – 100 mV ripple p-p
DC Power Requirement
12 VDC ± 5% – 200 mV ripple p-p
5 VDC – <800 mA typical, < 1000 mA
DC Current
maximum
12 VDC –< 870 mA typical
0.7 VRMS
Audio output
Line-Out
74 dB
Signal-to-Noise Ratio
65 dB
Channel Separation
DA - 12605
Canada — Version 18 — March 24, 2008
Page 27
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Technical Specifications - Optical Storage
Environmental
(all conditions
non-condensing)
Option kit contents
HP PATA DVD+/-RW
LightScribe Drive
Temperature (operating) 41° to 122° F (5° to 50° C)
10% to 90%
Relative Humidity
(operating)
86° F (30° C)
Maximum Wet Bulb
Temperature (operating)
HP PATA DVD-ROM Drive, InterVideo WinDVD Version 5, and installation
guide.
Height
Orientation
Interface type
5.25-inch, half-height, tray-load
Either horizontal or vertical
PATA/ATAPI
Disc recording capacity
Dimensions (W x H x D)
Weight (max)
Write speed
8.5 GB DL or 4.7 GB standard
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
1.54 lb (0.7 kg)
Up to 16X
DVD+R
Up to 8X
DVD+RW
Up to 8X
DVD+R DL
Up to 4X
DVD-R DL
Up to 16X
DVD-R
Up to 6X
DVD-RW
Up to 48X
CD-R
Up to 32X
CD-RW
Up to 8X
DVD+RW, DVD-RW,
DVD+R DL, DVD-R DL
Up to 16X
DVD-ROM, DVD+R,
DVD-R
Up to 48X
CD-ROM, CD-R
Up to 32X
CD-RW
DVD: < 140 ms (typical), CD: < 125 ms
Random
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
Full Stroke
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
Data Transfer Modes
DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode
3 (44.4 MB/s -default)
Four-pin, DC power receptacle
Source
5 VDC ± 5%-100 mV ripple p-p
DC Power Requirement
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, 1600 mA
DC Current
maximum)
12 VDC (< 600 mA typical, 1400 mA
maximum)
< 2.5 Watt
Total Drive Power
(standby mode)
Read speed
Access time
(typical reads, including
settling)
Power
DA - 12605
Canada — Version 18 — March 24, 2008
Page 28
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Technical Specifications - Optical Storage
Audio output
Line-Out
0.7 VRMS
74 dB
Signal-to-Noise Ratio
65 dB
Channel Separation
Environmental conditions Temperature
41° to 122° F (5° to 50° C)
(operating - non10% to 90%
Relative humidity
condensing)
86° F (30° C)
Maximum wet bulb
temperature
Option kit contents
16X DVD+/-RW LightScribe drive, LightScribe software, Roxio Easy Media
Creator Version 9, InterVideo WinDVD Version 5, installation guide, and
DVD+R media.
HP PATA DVD+/-RW
LightScribe Drive
Height
Orientation
Interface type
Disc recording capacity
Dimensions (W x H x D)
Weight (max)
Write speed
Read speed
Access time
(typical reads, including
settling)
Power
DA - 12605
5.25-inch, half-height, tray-load
Either horizontal or vertical
PATA/ATAPI
8.5 GB DL or 4.7 GB standard
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
1.54 lb (0.7 kg)
Up to 16X
DVD+R
Up to 8X
DVD+RW
Up to 8X
DVD+R DL
Up to 4X
DVD-R DL
Up to 16X
DVD-R
Up to 6X
DVD-RW
Up to 48X
CD-R
Up to 32X
CD-RW
Up to 8X
DVD+RW, DVD-RW,
DVD+R DL, DVD-R DL
Up to 16X
DVD-ROM, DVD+R,
DVD-R
Up to 48X
CD-ROM, CD-R
Up to 32X
CD-RW
DVD: < 140 ms (typical), CD: < 125 ms
Random
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
Full Stroke
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
Data Transfer Modes
DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode
3 (44.4 MB/s -default)
Four-pin, DC power receptacle
Source
5 VDC ± 5%-100 mV ripple p-p
DC Power Requirement
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, 1600 mA
DC Current
maximum)
12 VDC (< 600 mA typical, 1400 mA
maximum)
Canada — Version 18 — March 24, 2008
Page 29
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Technical Specifications - Optical Storage
Total Drive Power
< 2.5 Watt
(standby mode)
Audio output
0.7 VRMS
Line-Out
74 dB
Signal-to-Noise Ratio
65 dB
Channel Separation
Environmental conditions Temperature
41° to 122° F (5° to 50° C)
(operating - non10% to 90%
Relative humidity
condensing)
86° F (30° C)
Maximum wet bulb
temperature
Option kit contents
16X DVD+/-RW LightScribe drive, LightScribe software, Roxio Easy Media
Creator Version 9, InterVideo WinDVD Version 5, installation guide, and
DVD+R media.
DA - 12605
Canada — Version 18 — March 24, 2008
Page 30
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Technical Specifications - Removable Storage
HP 1.44-MB Diskette
Drive
Size
LED Indicators (front
panel)
Read/Write Capacity per
Diskette (high/low)
Drive Height
Drive Rotation
Transfer Rate (high/low)
Bytes/Sector
Sectors/Track (high/low)
3.5 in (8.89 cm)
Green
Tracks/Side (high/low)
Access Times
80/80
Track-to-Track (high/low)
Average (high/low)
Settling Time
Latency Average
80/80
Two
Cylinders (high/low)
Read/Write Heads
HP 16-in-1 Media Card
Reader
1.44 MB/720 KB
One-third
300 rpm
500/250 KB/s
512
18/9
3/6 ms
94/173 ms
15 ms
100 ms
USB interface
USB 2.0 High-speed device via PCI card or pass -through via internal USB
port of system board
Advance protocol support
Supports hardware ECC (Error Correction Code) function
Supports hardware CRC (Cyclic Redundancy Check) function
Supports MS 4-bit parallel transfer mode
Supports MS-PRO 4-bit parallel transfer mode
Supports SD 4-bit parallel transfer mode
Supports high-speed 50 MHz SD 4-bit card (version 1.1)
Support high-speed 52 MHz MMC 8-bit card (version 4.x)
Supported media types
Supports CompactFlash Card Type I (CF I), CompactFlash Card Type
II (CF II),MicroDrive (MD)
Supports 3.3V SmartMedia Card (SM), SmartMedia ROM (SM ROM),
xD-Picture Card (xD)
Supports Secure Digital Card (SD), Secure Digital ROM Card (SD
ROM), miniSD, MultiMediaCard (MMC), Secure MultiMediaCard
(Secure MMC), ROM Type MultiMediaCard (MMC ROM), Reduced
Size MultiMediaCard (RS MMC), MultiMediaCard 4.0 (MMC Plus),
Reduced Size MultiMediaCard 4.0 (MMC Mobile)
Support Memory Stick (MS), Memory Stick ROM (MS ROM),
MagicGate Memory Stick (MG), Memory Stick Select, Memory Stick
Duo (MS Duo), Memory Stick PRO (MS-PRO), Memory Stick PRO Duo
(MS PRO Duo)
Mechanical
124.7 cm
Length (3.5")
101.6 cm
Width (3.5")
25.4 cm
Height (3.5")
171.6 cm
Length (5.25")
148.9 cm
Width (5.25")
DA - 12605
Canada — Version 18 — March 24, 2008
Page 31
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Technical Specifications - Removable Storage
Environmental
Approvals
DA - 12605
Height (5.25")
Operational
environmental extremes
42.7 cm
Test Parameters/Conditions - Power applied, unit
operating on system ±5%
nominal supply voltage.
10°C 10% R.H. = 24 hours
10°C 90% R.H. = 24 hours
20°C 90% R.H. = 24 hours
30°C 90% R.H. = 24 hours
40°C 90% R.H. = 24 hours
50°C 90% R.H. = 24 hours
50°C 10% R.H. = 24 hours
Storage environmental
Test Parameters/Conditions
extremes
60°C @ 80% R.H. for 96 hours
-30°C @ 20% R.H. for 48 hours
No power applied
Delta °C < 1.0°C/min
Delta % R.H. < 1.5% R.H./min
USB-IF, WHQL, Compliant with USB Mass Storage Class Bulk only Transport
Specification Rev. 1.0, Compliant Intel Front Panel I/O Connectivity Design
Guide V. 1.2
FCC, CE, BSMI, C-Tick, VCCI, MIC, cUL, TUV-T
Canada — Version 18 — March 24, 2008
Page 32
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Technical Specifications - Environmental Data
Environmental Data
Eco-Label Certifications This product has received or is in the process of being certified to the following
& declarations
approvals and may be labeled with one or more of these marks:
System Configuration
US Federal Energy Management Program (FEMP)
Taiwan Green Mark
IT ECO declaration
The configuration used for the Energy Consumption and Declared Noise
Emissions data for the Microtower Desktop model included:
AMD Sempron 3600+
Processor
512-MB DDR2 Synch DRAM (2 x 256-MB)
Memory
80-GB SATA (7200 rpm)
Hard Drive
Optical Drive
Other Storage
Communications
Energy Consumption
Normal Operation
Sleep
Off
Heat Dissipation*
Normal Operation
Sleep
Off
HP DVD ROM
16-in-1 Media Reader
Integrated Realtek 8100C Fast Ethernet
Network Connection, Agere 56K PCI Modem
Microtower
115VDC
61.1 W
2.88 W
1.63 W
230VDC
61.0 W
2.9 W
1.68 W
100VDC
60.3 W
2.75 W
1.51 W
115VDC
230VDC
100VDC
208.53 BTU/hr 208.19 BTU/hr 205.80 BTU/hr
9.83 BTU/hr
9.9 BTU/hr
9.37 BTU/hr
5.56 BTU/hr
5.73 BTU/hr
5.15 BTU/hr
*NOTE:
NOTE: Heat dissipation is calculated based on the measured watts, assuming
the service level is attained for one hour.
Declared Noise
Emissions
(in accordance with
ISO 7779 and ISO
9296)
Longevity and
Upgrading
Sound Power
(LWad, bels)
Idle
Fixed Disk
(random writes)
Optical Drive
(sequential reads)
4.18
4.21
Deskside
Sound Pressure
(LpAm, decibels)
31.4
35.9
5.2
46
This product is designed to be upgraded, possibly extending its useful life by
several years. Spare parts are available throughout the warranty period and for
up to 15 months after the end of production. Upgradeability features contained
in the product include:
6 USB ports
2 external 5.25" drive bays
2 internal 3.5" drive bays
1 external 3.5" drive bay
2 empty standard PCI slots
1 empty standard PCI-EX1 slot
1 empty standard PCI-EX 16 slot
DA - 12605
Canada — Version 18 — March 24, 2008
Page 33
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Technical Specifications - Environmental Data
2 memory slots
1 Serial port
1 Parallel port
This product complies with ISO standards:
Batteries
EU Directive 91/ 157/ EEC
EU Directive 93/ 86/ EEC
EU Directive 98/ 101/ EEC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
Lead greater than 4000ppm by weight.
Additional Information
Battery size: CR2032 (coin cell)
Battery type: Lithium
This product is in compliance with the IEEE 1680 (EPEAT) standard at the SILVER
level, see http://www.epeat.net.
This product is in compliance with the Restrictions of Hazardous Substances
(RoHS) directive – 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic
Equipment (WEEE) Directive – 2002/96/EC.
Plastics parts weighing over 25 grams used in the product are marked per ISO
11469 and ISO1043.
This product contains 70.6% recycled materials (by wt.)
This product is 70.6% recycle-able when properly disposed of at end of life.
Packaging Materials
Material Usage
External:
Corrugated Paper 1840 g
Internal:
LDPE Foam 280 g
LDPE Bag 50 g
This product does not contain any of the following substances in excess of
regulatory limits (refer to the HP General Specification for the Environment at:
http://www.hp.com/hpinfo/globalcitizenship/environment/
supplychain/gen_specifications.html):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants – may not be used as flame
retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
DA - 12605
Canada — Version 18 — March 24, 2008
Page 34
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Technical Specifications - Environmental Data
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel – finishes must not be used on the external surface designed to be
frequently handled or carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail
packaging has been voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
HP follows these guidelines to decrease the environmental impact of product
packaging:
Packaging
Eliminate the use of heavy metals such as lead, chromium, mercury and
cadmium in packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging
materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in
packaging materials.
Use readily recyclable packaging materials such as paper and corrugated
materials.
Reduce size and weight of packages to improve transportation fuel
efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN
6120 standards.
End-of-life Management Hewlett-Packard offers end-of-life HP product return and recycling programs in
and Recycling
many geographic areas. To recycle your product, please go to:
http://www.hp.com/recycle or contact your nearest HP sales office. Products
returned to HP will be recycled, recovered or disposed of in a responsible
manner.
Hewlett-Packard
For more information about HP's commitment to the environment:
Corporate
Environmental
Global Citizenship Report:
Information
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications:
http://www.hp.com/hpinfo/globalcitizenship/environment/
productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/
operations/envmanagement.html
DA - 12605
Canada — Version 18 — March 24, 2008
Page 35
QuickSpecs
HP Compaq dx2250 Microtower Business PC
Technical Specifications - Environmental Data
© Copyright 2008 Hewlett-Packard Development Company, L.P.
All rights reserved.
The information contained herein is subject to change without notice.
Athlon and Sempron are registered trademarks or trademarks of AMD Corporation in the U.S. an/or other countries. Microsoft and
Windows are U.S. registered trademarks of Microsoft Corporation. The only warranties for HP products and services are set forth in
the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
DA - 12605
Canada — Version 18 — March 24, 2008
Page 36
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
