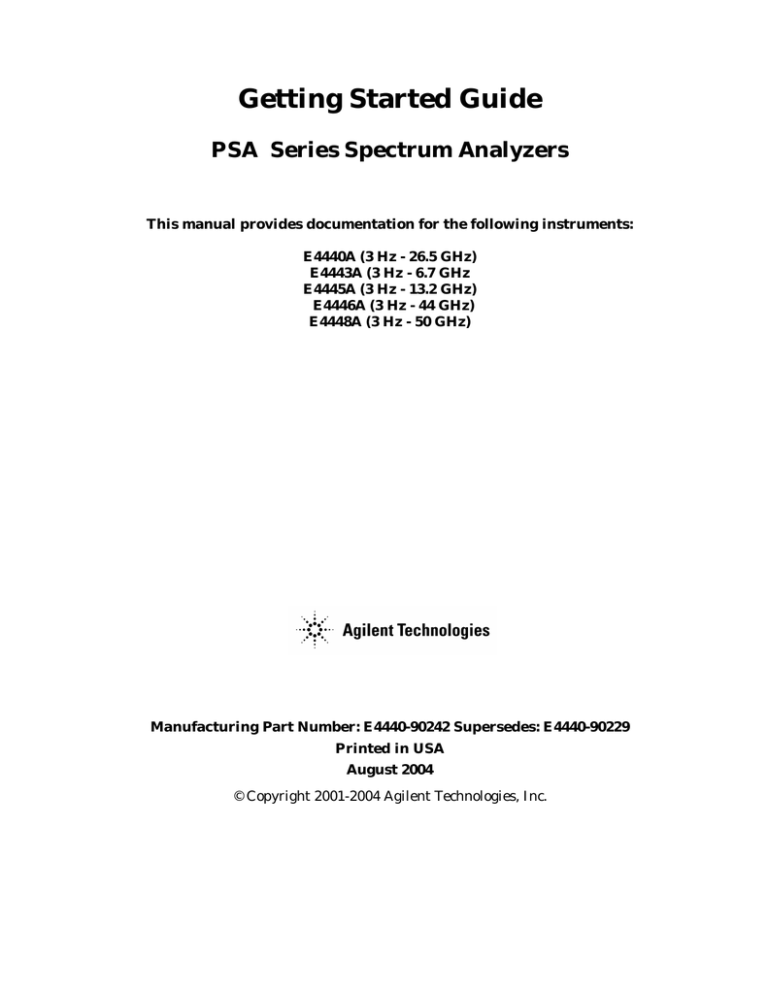

Getting Started Guide
PSA Series Spectrum Analyzers
This manual provides documentation for the following instruments:
E4440A (3 Hz - 26.5 GHz)
E4443A (3 Hz - 6.7 GHz
E4445A (3 Hz - 13.2 GHz)
E4446A (3 Hz - 44 GHz)
E4448A (3 Hz - 50 GHz)
Manufacturing Part Number: E4440-90242 Supersedes: E4440-90229
Printed in USA
August 2004
© Copyright 2001-2004 Agilent Technologies, Inc.
Notice
The information contained in this document is subject to change
without notice.
Agilent Technologies makes no warranty of any kind with regard to this
material, including but not limited to, the implied warranties of
merchantability and fitness for a particular purpose. Agilent
Technologies shall not be liable for errors contained herein or for
incidental or consequential damages in connection with the furnishing,
performance, or use of this material.
The following safety symbols are used throughout this manual.
Familiarize yourself with the symbols and their meaning before
operating this analyzer.
WARNING
Warning denotes a hazard. It calls attention to a procedure
which, if not correctly performed or adhered to, could result in
injury or loss of life. Do not proceed beyond a warning note
until the indicated conditions are fully understood and met.
CAUTION
Caution denotes a hazard. It calls attention to a procedure that, if not
correctly performed or adhered to, could result in damage to or
destruction of the analyzer. Do not proceed beyond a caution sign until
the indicated conditions are fully understood and met.
NOTE
Note calls out special information for the user’s attention. It provides
operational information or additional instructions of which the user
should be aware.
Additional Information
For the latest information about this analyzer, including firmware
upgrades, application information, and product information, see the
following URL:
http://www.agilent.com/find/psa/
2
Contents
1. Installation and Setup
Initial Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
AC Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Turning on the Analyzer for the First Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Why Aren’t All the Personality Options Loaded in Memory? . . . . . . . . . . . . . . . . . . 14
Using an External Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Firmware Revision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Running Internal Alignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Printer Setup and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Protecting Against Electrostatic Discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2. Front and Rear Panel Features
Front Panel Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front-Panel Connectors and Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Display Annotations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear-Panel Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front and Rear Panel Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
22
24
27
29
31
3. Making a Basic Measurement
Using the Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Entering Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using Menu Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Presetting the Spectrum Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Creating a User Preset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Viewing a Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35
35
35
36
36
37
4. Viewing Catalogs and Saving Files
File Menu Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Locating and viewing files in the catalog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Creating a directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Saving a File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Step 1. Set up the analyzer trace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Step 2. Save the file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading a file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Renaming a File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Copying a File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting a File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Alpha Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
45
45
47
48
48
50
52
54
55
56
57
5. Options and Accessories
Ordering Options and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
3
Contents
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
50 Ohm/75 Ohm Minimum Loss Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
75 Ohm Matching Transformer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
AC Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
AC Probe (Low Frequency) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Broadband Preamplifiers and Power Amplifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
GPIB Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
USB/GPIB Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
HP/Agilent 11970 Series Harmonic Mixers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
HP/Agilent 11974 Series Preselected Millimeter Mixers . . . . . . . . . . . . . . . . . . . . . . 68
RF and Transient Limiters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Static Safe Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
6. In Case of Difficulty
Types of Spectrum Analyzer Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Before Calling Agilent Technologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Check the Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Read the Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Service Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Calling Agilent Technologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Returning an Analyzer for Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
4
1 Installation and Setup
5
Installation and Setup
This chapter provides the following information that you may need when you first receive
your spectrum analyzer:
• “Initial Inspection” on page 7
• “Power Requirements” on page 9
• “Turning on the Analyzer for the First Time” on page 13
• “Printer Setup and Operation” on page 17
• “Protecting Against Electrostatic Discharge” on page 19
• “Running Internal Alignments” on page 16
• “Safety Information” on page 20
Agilent Technologies Performance Spectrum Analyzer (PSA)
6
Chapter 1
Installation and Setup
Initial Inspection
Initial Inspection
Inspect the shipping container and the cushioning material for signs of stress. Retain the
shipping materials for future use, as you may wish to ship the analyzer to another location
or to Agilent Technologies for service. Verify that the contents of the shipping container are
complete. The following table lists the items shipped with the analyzer.
Item
Description
Accessories
IntuiLink Toolbar software, CD-ROM
Provides a set of connectivity tools that enable you to easily
move data from your analyzer to your PC.
Power Cable (See Table 1-2. on page 11)
Connection for power source.
Adapter (E4446A and E4448A only)
2.4 mm(f) to K(f) front panel connector adapter, part number
1250-2187
Adapter (E4446A and E4448A only)
2.4 mm(f) to 2.4 mm(f) front panel connector adapter, part
number 1250-2188
Standard Documentation Set
Getting Started Guide
Covers unpacking and setting up the analyzer, analyzer
features, and how to make a basic measurement. Includes
information on options and accessories, and what to do if you
have a problem.
User’s and Programmer’s Reference
Describes analyzer features in detail, including front-panel
key descriptions, basic spectrum analyzer programming
information, and SCPI command descriptions.
Measurement Guide
Provides details on how to measure various signals, and how
to use catalogs and files.
Specifications Guide
Documents specifications, safety, and regulatory information.
Instrument Messages and Functional Tests
Includes instrument messages (and suggestions for
troubleshooting them), and manual functional tests.
Programming Conversion Guide
Describes SCPI programming command compatibility for
8590, 8560, 8566, ESA/PSA series analyzers.
Documentation CD-ROM
Includes the documents in the standard set (listed above).
You can view and print the information as needed. See the
CD-ROM jacket for installation information.
NOTE
If you purchased one or more optional measurement personalities, the related guides for the
options you ordered are included.
Service documentation is not included in the standard documentation set. See “Options” on
page 61 for information on ordering.
Chapter 1
7
Installation and Setup
Initial Inspection
If There Is a Problem
If the shipping materials are damaged or the contents of the container are incomplete:
• Contact the nearest Agilent Technologies office to arrange for repair or replacement
(Table 6-2. on page 75). You will not need to wait for a claim settlement.
• Keep the shipping materials for the carrier’s inspection.
• If you must return an analyzer to Agilent Technologies, use the original (or comparable)
shipping materials (see “Returning an Analyzer for Service” on page 76).
8
Chapter 1
Installation and Setup
Power Requirements
Power Requirements
The only physical installation of your Agilent spectrum analyzer is a connection to a power
source.
Line voltage does not need to be selected.
This analyzer does not contain customer serviceable fuses.
WARNING
Failure to ground the analyzer properly can result in personal
injury. Before turning on the analyzer, you must connect its
protective earth terminals to the protective conductor of the main
power cable. Insert the main power cable plug into a socket outlet
that has a protective earth contact only. DO NOT defeat the
earth-grounding protection by using an extension cable, power
cable, or autotransformer without a protective ground conductor.
If you are using an autotransformer, make sure its common terminal
is connected to the protective earth contact of the power source
outlet socket.
This is a Safety Class 1 Product (provided with a protective earthing
ground incorporated in the power cord). The mains plug shall only
be inserted in a socket outlet provided with a protective earth
contact. Any interruption of the protective conductor inside or
outside of the product is likely to make the product dangerous.
Intentional interruption is prohibited.
WARNING
To prevent electrical shock, disconnect the Agilent Technologies
spectrum analyzer from mains before cleaning. Use a dry cloth or
one slightly dampened with water to clean the external case parts.
Do not attempt to clean internally.
CAUTION
VENTILATION REQUIREMENTS: When installing the product in a cabinet,
the convection into and out of the product must not be restricted. The ambient
temperature (outside the cabinet) must be less than the maximum operating
temperature of the product by 4°C for every 100 watts dissipated in the
cabinet. If the total power dissipated in the cabinet is greater than 800 watts,
then forced convection must be used.
This analyzer has autoranging line voltage input. Be sure the supply voltage
is within the specified range.
Chapter 1
9
Installation and Setup
Power Requirements
For more information regarding analyzer specifications, see the
Specifications guide.
NOTE
Table 1-1. Power Requirements
Description
Specifications
Voltage,
100 to 132 Vrms, 47 to 66 Hz/360 to 440Hz
Frequency
195 to 250 Vrms, 47 to 66 Hz
Power Consumption, On
Base
< 260 W
Power Consumption, Standby
< 20 W
Fully Loaded
< 450 W
AC Power Cord
The analyzer is equipped with a three-wire power cord, in accordance with international
safety standards. This cable grounds the analyzer cabinet when connected to an
appropriate power line outlet. The cable appropriate to the original shipping location is
included with the analyzer.
Various AC power cables are available that are unique to specific geographic areas. You
can order additional AC power cables for use in different areas. AC Power Cords, on
page 11 lists the available AC power cables, illustrates the plug configurations, and
identifies the geographic area in which each cable is appropriate.
NOTE
The front panel switch is a standby switch only; it is not a LINE switch
(power disconnecting device).
WARNING
Install the product so that the detachable power cord is readily
identifiable and easily reached by the operator. The detachable
power cord is the product disconnecting device. It disconnects the
mains circuits from the mains supply before other parts of the
product. The front panel switch is only a standby switch and is not a
LINE switch. Alternatively, an externally installed switch or circuit
breaker (which is readily identifiable and is easily reached by the
operator) may be used as a disconnecting device.
CAUTION
Always use the three-prong AC power cord supplied with this product.
Failure to ensure adequate earth grounding by not using this cord can cause
product damage.
10
Chapter 1
Installation and Setup
Power Requirements
Table 1-2. AC Power Cords
Chapter 1
11
Installation and Setup
Power Requirements
Battery Information
The analyzer uses a Lithium Polycarbon Monofloride battery to power the analyzer clock.
The battery is located on the CPU board.
You can order the service documentation for Agilent spectrum analyzers through your
Agilent Sales and Service office. The documentation is described under “Options” on
page 61.
NOTE
If the analyzer’s clock does not work, the problem is the battery. See
“Returning an Analyzer for Service” on page 76.
WARNING
Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type recommended. Discard used
batteries according to the manufacturer’s instructions.
12
Chapter 1
Installation and Setup
Turning on the Analyzer for the First Time
Turning on the Analyzer for the First Time
❏ Plug in the power cord.
WARNING
If this product is to be energized via an external auto transformer for
voltage reduction, make sure that its common terminal is connected to a
neutral (earthed pole) of the power supply.
CAUTION
The analyzer is shipped with a a transportation disk inserted in the disk
drive to prevent damage to the disk drive during transportation. This
transportation disk, or a blank floppy disk, should be inserted in the disk
drive whenever transporting the analyzer.
Do not leave a disk in the front-panel disk drive while turning the analyzer
on. Also, ensure that the transportation disk is removed from the drive.
NOTE
Do not connect anything else to the analyzer yet.
❏ Press the power switch (located in the lower left-hand corner of the analyzer’s front
panel) to turn the analyzer on. See “Front Panel Overview” on page 22.
NOTE
The instrument requires >2 minutes to power-on.
Information Screen
An information screen appears during the initialization process. The information screen
contains the analyzer product number and a URL for accessing product support
information on the World Wide Web. See “Additional Information” on page 2.
NOTE
The information screen displays for approximately 10 seconds before the
initialization process is complete.
Record the firmware revision and serial number, and keep it for reference. If
you should ever need to call Agilent Technologies for service or with any
questions regarding your analyzer, it will be helpful to have this information
readily available. You can also obtain the firmware revision and serial
number by pressing System, More, Show System.
Chapter 1
13
Installation and Setup
Turning on the Analyzer for the First Time
❏ If using LAN, set the IP address of the analyzer to an appropriate number for your
network (one that the network recognizes, but that is not yet in use):
— Press System, Config I/O, and note the IP address.
— If the current address is not appropriate, press IP Address and use the keypad to
change it.
— Connect the LAN cable to the LAN connector located on the rear panel of your
analyzer (see “Rear-Panel Features” on page 27).
— Cycle the analyzer power.
NOTE
It is necessary to cycle the power to the analyzer after plugging in the LAN
for the analyzer to recognize the network.
❏ Allow the spectrum analyzer to warm-up for 30 minutes before making a calibrated
measurement. To meet its specifications, the analyzer must meet operating
temperature conditions.
NOTE
It is normal to hear clicking when the Auto Alignment function is on. See
“Running Internal Alignments” on page 16 for more information.
Why Aren’t All the Personality Options Loaded in Memory?
Many measurement personality options are available for use with this instrument. If the
option is loaded in the instrument, you must also have a license key entered, to use it.
Some versions of instrument hardware my not have enough memory to accommodate all
the options that you have ordered. If this is the case you will need to swap the applications
in/out of memory, as needed. It may also be possible to upgrade your hardware to have
more memory. Contact your local sales/service office.
Using an External Reference
1. To use an external frequency reference, connect it to the EXT REF IN connector on the
rear panel (see “Rear-Panel Features” on page 27).
2. Enter the frequency of the external reference into the analyzer:
a. Press System, Reference, Freq Ref
b. Select the Ext function.
c. Use the keypad to enter the frequency of the external frequency reference.
14
Chapter 1
Installation and Setup
Firmware Revision
Firmware Revision
To view the firmware revision of your analyzer, press System, More, Show System. If you
call Agilent Technologies regarding your analyzer, it is helpful to have this revision and the
analyzer serial number available.
TIP
Chapter 1
You can get automatic electronic notification of new firmware releases and
other product updates/information by subscribing to the Agilent Technologies
Test & Measurement E-Mail Notification Service for the PSA and ESA Series
at http://www.agilent.com/find/notifyme
15
Installation and Setup
Running Internal Alignments
Running Internal Alignments
Each time the analyzer is powered on, the internal alignment routine runs automatically.
The analyzer was shipped from the factory with the Alignments mode set to Auto. This
setting enables the alignment routine to run automatically either every 24 hours, or when
the internal analyzer temperature changes ±3°C.
NOTE
When the Alignment routine runs, you will hear the attenuator settings
changing, which generates noise. This is not an indication of trouble.
Manually Performing an Alignment
If Auto Align, Off is selected, refer to the Specifications guide for the conditions required to
maintain calibration.
NOTE
16
For detailed information regarding the alignment routine (including how to
run alignments, and how the analyzer can alert you when alignments are
required) refer to the User’s guide for your analyzer.
Chapter 1
Installation and Setup
Printer Setup and Operation
Printer Setup and Operation
A printer can be connected to your analyzer if it is equipped with an external I/O interface.
Supported printers accept Hewlett-Packard Printer Control Language Level 3 (PCL3) or 5
(PCL5). Refer to the documentation or specifications supplied with your printer, or contact
the manufacturer to identify your printer’s language.
Equipment
• IEEE 1284 compliant printer cable.
• Supported and tested printers are listed below. Note that there are many PCL3/5
printers that may work with your analyzer, however, they have not been tested.
— PCL3 printers include most HP DeskJet printers.
— PCL5 printers include most HP LaserJet printers.
NOTE
The following printers are not compatible with your analyzer.
• HP Deskjet 720C, 722C, 820C and 1600C
• Epson MX-80, FX-85, Stylus, and LQ-570
Printer Models
Language Type
Color Capable
HP DeskJet 310, 320, 350C, 400L
PCL3
yes
HP DeskJet 500C, 550C, 600, 660C, 672C,
680C, 682C, 690C, 693C
PCL3
yes
HP DeskJet 840C, 850C, 870C, 890C, 895C
PCL3
yes
HP DeskJet 935C, 970C, 990C
PCL3
yes
HP DeskJet 1120C, 1150C
PCL3
yes
HP Inkjet 2000C
PCL 3
yes
HP LaserJet 4L, 4P, 4 Plus
PCL3/5
no
HP LaserJet 5L, 5M, 5N, 5P, 5SI
PCL3/5
no
HP LaserJet 6L, 6MP, 6P
PCL5
no
HP LaserJet 2100 Series,
PCL3/5
no
HP LaserJet 4050N
PCL3/5
yes
HP LaserJet 5000GN
PCL3/5
yes
HP Professional Series 2500CM
PCL3
yes
HP Professional Series 2500CM
PCL3
yes
Chapter 1
17
Installation and Setup
Printer Setup and Operation
Interconnection and Setup
1. Turn off the printer and the analyzer.
2. Using an IEEE 1284 compliant parallel printer cable, connect the printer to the
analyzer parallel I/O interface connector on the rear panel (see “Rear-Panel Features”
on page 27).
3. Turn on the analyzer and printer.
4. On the front panel, press Print Setup, then press the Printer Setup menu key.
5. Select the printer language and color capability appropriate for your printer. See table
above this section for a list of some compatible printers.
Testing Printer Operation
When you have completed the printer setup for the analyzer, press the front panel Print
key. If the printer is ready and the printer setup was successful, a printout of the analyzer
display will be printed. If the printer is not ready, the message “Printer not responding”
appears at the bottom of the screen.
NOTE
18
There may be some small discrepancies in the color mapping of the analyzer
display to your color printer. Due to differences in display and printer
technologies, the default display colors do not map exactly to the printer
colors. For example trace 1 is yellow on your analyzer display while it maps to
green on your printer.
Chapter 1
Installation and Setup
Protecting Against Electrostatic Discharge
Protecting Against Electrostatic Discharge
Electrostatic discharge (ESD) can damage or destroy electronic components (the possibility
of unseen damage caused by ESD is present whenever components are transported, stored,
or used).
Test Equipment and ESD
To help reduce ESD damage that can occur while using test equipment:
• Before connecting any coaxial cable to an analyzer connector for the first time each day,
momentarily short the center and outer conductors of the cable together.
• Personnel should be grounded with a 1 MΩ resistor-isolated wrist-strap before touching
the center pin of any connector and before removing any assembly from the analyzer.
• Be sure that all instruments are properly earth-grounded to prevent build-up of static
charge.
WARNING
Do not use these first three techniques when working on circuitry
with a voltage potential greater than 500 volts.
• Perform work on all components or assemblies at a static-safe workstation.
• Keep static-generating materials at least one meter away from all components.
• Store or transport components in static-shielding containers.
• Always handle printed circuit board assemblies by the edges. This reduces the
possibility of ESD damage to components and prevent contamination of exposed
plating.
For information on ordering static-safe accessories, see “Accessories” on page 66.
Additional Information about ESD
For more information about ESD and how to prevent ESD damage, contact the
Electrostatic Discharge Association (http://www.esda.org). The ESD standards developed
by this agency are sanctioned by the American National Standards Institute (ANSI).
Chapter 1
19
Installation and Setup
Safety Information
Safety Information
WARNING
This is a Safety Class 1 Product (provided with a protective earthing
ground incorporated in the power cord). The mains plug shall be
inserted only in a socket outlet provided with a protective earth
contact. Any interruption of the protective conductor inside or
outside of the product is likely to make the product dangerous.
Intentional interruption is prohibited.
If this product is not used as specified, the protection provided by
the equipment could be impaired. This product must be used in a
normal condition (in which all means for protection are intact) only.
20
Chapter 1
2 Front and Rear Panel Features
This chapter gives you an overview of the front and rear panels of your analyzer. For
details on analyzer keys and remote programming, refer to the User’s and Programmer’s
Reference. For connector specifications (including input/output levels), see the
Specifications guide.
21
Front and Rear Panel Features
Front Panel Overview
Front Panel Overview
This section provides information on the analyzer’s front panel, including:
• Front Panel Connectors and Keys, see below
• “Display Annotations” on page 24
Front-Panel Connectors and Keys
Item
Description
#
Name
1
I and
Q Inputs
Allow connection of an analog I/Q demodulator (not currently implemented).
2
Softkeys
Menu labels identifying the current function of each softkey appear to the left of each
key. Softkey menus dependent on the active menu. Also see “Using Menu Keys” on
page 49.
3
ESC Key
Exits any function without modifying the current parameters. Also blanks the active
function annotation.
4
Control Keys
Set parameters used for making measurements in the current measurement mode.
5
Measure Key
s
Select and set up specific measurements within the current application.
6
Mode Keys
Select measurement mode and mode parameters.
22
Chapter 2
Front and Rear Panel Features
Front Panel Overview
Item
Description
#
Name
7
System Keys
Access features used with all analyzer modes and affect the state of the entire spectrum
analyzer.
8
Vol. Control/
Earphones
Not currently implemented. To be implemented in future firmware upgrade.
9
PROBE PWR
Supplies power for external high frequency probes and accessories (see page 83).
10
Marker Keys
Enable markers to obtain specific information about the displayed measurement.
11
EXT TRIGGE
R
INPUT
Enables you to externally trigger measurements.
12
POWER
ON/OFF
Turns the analyzer on. A green light indicates power on. A yellow light indicates standby
mode.
NOTE
The front-panel switch is a standby switch, not a LINE switch
(disconnecting device); the analyzer continues to draw power even when
the line switch is in standby. Use the detachable power cord to
disconnect the analyzer from the mains supply.
13
Help Key
Not currently implemented. To be implemented in future firmware upgrade.
14
Window Key
s
Next Window: On displays with multiple windows, changes the highlighted window that is
currently active.
Zoom: Zooms in on the highlighted window.
15
Navigation
Keys
Not currently implemented. To be implemented in future firmware upgrade.
16
Return Key
Exits the current menu and returns to the previous menu.
17
Data Control
s
Change the numeric value of an active function. Entries appear in the active function
area of the display. Also see “Entering Data” on page 49.
18
Floppy
Disk Drive
Accepts a 3.5 inch 1.44 MB floppy disk.
19
RF Input
Input for an external signal. Make sure that the total power of all signals at the analyzer
input does not exceed +30 dBm (1 watt). The E4446A and E4448A input connector is
2.4 mm.
20
IF Input, 1st
LO Output
Allows connections for external mixing (Option AYZ)
Chapter 2
23
Front and Rear Panel Features
Front Panel Overview
Display Annotations
Item
24
Description
Associated Function Keys
1
Detector typea
Det/Demod, Detector
2
Reference level
Amplitude, Ref Level
3
Active function block
Refer to the description of the activated function.
4
Screen title
Display, Title
5
Time and date display
System, Time/Date
6
RF attenuationa
Amplitude, Attenuation
7
Display line
Display, Display Line
8
Marker
Marker
9
Active marker
Marker
10
Active marker frequency and
amplitude
Marker
Chapter 2
Front and Rear Panel Features
Front Panel Overview
Item
Description
Associated Function Keys
11
Data invalid indicator
Asterisk (*) means some or all trace data may not match
annotation due to possible analyzer setting changes.
12
Status message area
Displays status messages (see “Types of Spectrum
Analyzer Messages” on page 71).
13
Key menu title
Dependent on menu selection.
14
Softkey menu
Softkey labels
15
Frequency span or stop frequency
Span or Frequency, Stop Freq
16
Sweep timea
Sweep, Sweep Time
17
Video bandwidtha
BW, Video BW
18
Frequency offset
Frequency, Freq Offset
19
Display status line
Displays informational and error messages (see “Types of
Spectrum Analyzer Messages” on page 71).
20
Resolution bandwidtha
BW, Res BW
21
Center frequency or start frequency
Frequency, Center Freq or Start Freq
22
Internal preamp
Amplitude, Int Preamp
23
Auto alignment routine status
System, Alignments, Auto align
(If auto alignment is off, no indicator appears)
AA: auto alignment of all
analyzer parameters.
24
Trigger or Trace
AL: analyzer alerts you
when alignment is
needed.
Trig or Trace/Avg
Trigger & sweep modes:
F: free-run trigger
X: external (front) trigger
R: external (rear) trigger
L: line trigger
V: video trigger
C: continuous sweep
S: single sweep
Trace modes:
W: clear-write
S: store blank
m: minimum hold
M: maximum hold
V: view
1: trace 1
2: trace 2
3: trace 3
VAvg: voltage average
LgAv: log power average
PAvg power average
25
Averagea
Trace/Avg, Average: The
number shown indicates
current average number.
26
Display line annotation
Display, Display Line
27
Amplitude offset
Amplitude, Ref Lvl Offst
28
Amplitude scale
Amplitude, Scale Type or Amplitude, Scale/Div
Chapter 2
25
Front and Rear Panel Features
Front Panel Overview
Item
29
Description
Phase noise optimizationa
Associated Function Keys
Auto Couple, PhNoise Opt
Phase noise can be optimized for:
f<50k: frequencies less than 50 kHz from carrier.
f>50k: frequencies greater than 50 kHz from carrier.
FTun: LO for fast tuning.
30
Sweep typea
Sweep, Sweep Type
31
Signal track
Frequency, Signal Track
(could also be CP Continuous Peak
Peak Search, Continuous Pk
a. This function can be auto-coupled. A pound (#) symbol in front of this annotation indicates an
uncoupled function.
26
Chapter 2
Front and Rear Panel Features
Rear-Panel Features
Rear-Panel Features
Item
Description
#
Name
1
NOISE SOURCE
DRIVE OUT
+28 V (PULSED)
Provides 28 V to drive a noise source. Used on Option 219 Noise Figure personality.
2
PRESEL TUNE
OUT
Outputs tuning voltage for preselected harmonic mixer.
3
10 MHz OUT
(SWITCHED)
A switched output of the analyzer’s internal 10 MHz frequency reference signal used
to lock the frequency reference of other test equipment to the analyzer.
4
EXT REF IN
Input for a 1 to 30 MHz external frequency reference signal. Also see page 12.
5
321.4 MHz IF
Out
Provides 321.4 MHz IF output.
6
TRIGGER 1 OUT
A trigger output used to synchronize other test equipment with the analyzer. Trigger
1 is the High=Sweeping (HSWP) signal.
7
TRIGGER 2 IN
Allows external triggering of measurements.
8
VIDEO OUT
Provides a y-axis video out signal. Note that this signal is not available when gating
is being used.
9
21.4 MHz IF OUT
Provides 21.4 MHz IF output.
SCSI
This feature is for factory use only
10
Chapter 2
27
Front and Rear Panel Features
Rear-Panel Features
Item
#
Description
Name
11
KYBD
Enables connection of an external PS-2 keyboard using a 6-pin mini-DIN connector.
Always turn off power before plugging in keyboard.
This feature not fully implemented. Currently used only for firmware upgrades.
12
Line power
input
The AC power connection. Also see “Power Requirements” on page 5.
13
GPIB
Allows the connection of a General Purpose Interface Bus (GPIB, IEEE 488.1) cable,
which enables remote analyzer operation.
14
LAN
A TCP/IP Interface.
Also see “Turning on the Analyzer for the First Time” on page 11 for information on
setting the IP address.
For information on using the analyzer remotely, refer to the User’s and
Programmer’s Reference.
15
TRIGGER 2 OUT
A trigger output used to synchronize other test equipment with the analyzer.
Reserved for future applications.
16
PARALLEL
Supports remote printing (Printing is supported only from the parallel port).
17
70 MHZ IF OUT
Provides 70 MHz IF output.
18
MONITOR
Allows connection of an external VGA monitor.
19
RS-232
Allows connection of a PC, printer, or modem.
This feature not fully implemented; to be implemented in a future release.
20
HNQ IN
H7L IN
H70 IN
These features are only available when special options are installed.
28
Chapter 2
Front and Rear Panel Features
Key Overview
Key Overview
The keys labeled FREQUENCY Channel, System, and Marker are all examples of front-panel
keys. The front-panel keys are dark gray, light gray, green, or white in color. Front-panel
keys that are white perform an immediate action rather than bringing up a menu. The
only green key is the Preset key, which performs an analyzer reset (A summary of all front
panel keys and their related menu keys can be found in user’s guide for your analyzer).
Pressing most of the dark or light gray front-panel keys accesses menus of functions that
are displayed along the right side of the display. These are called menu keys.
Menu keys list functions other than those accessed directly by the front panel keys. To
activate a menu key function, press the key immediately to the right of the annotation on
the screen. The menu keys that are displayed depend on which front-panel key is pressed
and which menu level is enabled.
If a menu key function’s value can be changed, it is called an active function. The function
label of the active function is highlighted after that key has been selected. For example,
press AMPLITUDE Y Scale. This calls up the menu of related amplitude functions. Note the
function labeled Ref Level (the default selected key in the Amplitude menu) is highlighted.
Ref Level also appears in the active function block, indicating that it is the active amplitude
function and can now be changed using any of the data entry controls.
A menu key with On and Off in its label can be used to turn the menu key’s function on or
off. To turn the function on, press the menu key so that On is underlined. To turn the
function off, press the menu key so that Off is underlined. In the manual, when On should
be underlined, it will be indicated as Function (On).
A function with Auto and Man in the label can either be auto-coupled or have its value
manually changed. The value of the function can be changed manually using the numeric
keypad, knob, or step keys. To auto-couple a function, press the menu key so that Auto is
underlined. In the manual, when Auto should be underlined, it will be indicated as
Function (Auto).
In some key menus, one key label will always be highlighted to show which key has been
selected. For example, when you press Marker, you will access a menu of keys in which
some of the keys are grouped together by a blue bar on the left side of the menu. The
Normal key, which is the Marker menu default key, will be highlighted. When you press
another key within the blue bar region, such as Delta, the highlight will move to that key to
show it has been selected.
Chapter 2
29
Front and Rear Panel Features
Key Overview
In other key menus, one key label will always be highlighted to show which key has been
selected but the menu is immediately exited when a selection is made. For example, when
you press the Orientation key (on the Print Setup menu), it will bring up its own menu of
keys. The Portrait key, which is the Orientation menu default key, will be highlighted.
When you press the Landscape key, the highlight will move to that key to show it has been
selected and the screen will return to the Print Setup menu.
The arrow keys located below the analyzer display (sometimes referred to as Tab keys) can
be used to navigate within tables, for example the Limit-Line table. These keys are used to
move between rows. The Left-arrow key moves up, while the right-arrow key moves down.
While navigating through the table, the cursor (inverse video highlight) stays in the same
column. Navigating left or right in the table is accomplished by choosing the desired field
using the front-panel keys.
30
Chapter 2
Front and Rear Panel Features
Front and Rear Panel Symbols
Front and Rear Panel Symbols
This symbol is used to indicate power ON (green LED).
This symbol is used to indicate power STANDBY mode (yellow LED).
This symbol is used to indicate the ON position of the power button.
This symbol is used to indicate the OFF position of the power button.
This symbol indicates the input power required is AC.
The instruction documentation symbol. The product is marked with this
symbol when it is necessary for the user to refer to instructions in the
documentation.
The CE mark is a registered trademark of the European Community.
The C-Tick mark is a registered trademark of the Australian Spectrum
Management Agency.
This is a marking of an Industrial Scientific and Medical Group 1 Class A
product, and to indicate product compliance with the Canadian
Interference-Causing Equipment Standard (ICES-001).
The CSA mark is a registered trademark of the Canadian Standards
Association.
Chapter 2
31
Front and Rear Panel Features
Front and Rear Panel Symbols
32
Chapter 2
3 Making a Basic Measurement
This chapter provides information on basic analyzer operation. For more information on
making measurements, see the measurement guide for your analyzer.
33
Making a Basic Measurement
This chapter is divided into the following sections:
• “Using the Front Panel” on page 35
• “Presetting the Spectrum Analyzer” on page 36
• “Viewing a Signal” on page 37
CAUTION
Ensure that the total power of all signals at the analyzer input does not
exceed +30 dBm (1 watt).
Basic Assumption
The material in this chapter is presented with the assumption that you understand the
front and rear panel layout, and display annotations of your analyzer. If you do not, refer
to “Front and Rear Panel Features” on page 21.
NOTE
34
The display examples in this book are made using various analyzer
models, you may see some variations depending upon your analyzer.
Chapter 3
Making a Basic Measurement
Using the Front Panel
Using the Front Panel
Entering Data
When setting measurement parameters, there are several ways to enter or modify the
value of the active function:
Knob
Increments or decrements the current value.
Arrow Keys
Increments or decrements the current value.
Numeric Keypad Enters a specific value. Then press the desired terminator (either
a unit softkey, or the Enter key).
Unit Softkeys
Terminate a value that requires a unit-of-measurement.
Enter Key
Terminates an entry when either no unit of measure is needed, or
you want to use the default unit.
Using Menu Keys
Menu Keys (which appear along the right side of the display) provide access to many
analyzer functions. Here are examples of menu key types:
Toggle
Allows you to activate/deactivate states.
Example:
Submenu
Toggles the selection (underlined choice)
Signal Track
each time you press the key.
On
Off
Displays a new menu of softkeys.
Example:
Catalog
Choice
Allows you to make a selection from a list of values.
Example:
Adjust
A submenu key allows you to view a new
menu of softkeys related to the submenu
key category.
Y Axis Units
dBm
A choice key displays the currently selected
submenu choice, in this example, dBm.
When the choice is made, the submenu
automatically returns.
Highlights the softkey and sets the active function.
Examples:
CF Step
13.2550000 GHz
Press this type of key and enter a value.
Attenuation The default for softkeys with an automatic
10.00 dB (Auto) or manual (Man) choice is automatic.
Auto
Man After you enter a value, the selection
changes to manual. You can also press the
softkey twice to change to manual.
Chapter 3
35
Making a Basic Measurement
Presetting the Spectrum Analyzer
Presetting the Spectrum Analyzer
Preset provides a known starting point for making measurements. The analyzer has
three types of preset:
Factory Preset
Restores the analyzer to its factory-defined state.
User Preset
Restores the analyzer to a user-defined state.
Mode Preset
This type of preset restores the currently selected mode to a known
state.
For details, see the User’s/Programmer’s manual.
When Preset Type is set to Factory, pressing the green Preset key triggers a factory
preset. When Preset Type is set to User, pressing Preset displays the softkeys Factory
Preset, User Preset, and Mode Preset (if applicable); you then select the preset you want.
If Preset Type is set to Mode, but a personality is not installed, pressing Preset triggers a
factory preset.
Creating a User Preset
If you constantly use settings which are not the factory defaults, use the following steps
to create a user-defined preset:
1. Set analyzer parameters as desired.
2. Press System, Power On/Preset, Save User Preset to set the current parameters as the
user preset state.
3. Press Preset to select User in the same softkey menu to enable user preset as an
option.
Disabling User Preset
Go to the Power On/Preset menu (press System, Power On/Preset) and select a Preset Type
of Factory or Mode.
36
Chapter 3
Making a Basic Measurement
Viewing a Signal
Viewing a Signal
1. Press Preset. If the softkeys Factory Preset and User Preset appear, select
Factory Preset.
2. Press System, Reference, then note the 10MHz Out setting. If Off is active (underlined),
press the softkey to toggle the reference on.
3. Connect the analyzer’s rear panel 10 MHz OUT (SWITCHED) to the front-panel input.
Setting Reference Level and Center Frequency
The display examples in this section are made using various analyzer
models, you may see some variations depending upon your analyzer.
NOTE
4. Set the reference level to 10 dBm: Press AMPLITUDE, 10, dBm.
5. Set the center frequency to 30 MHz: Press FREQUENCY, Center Freq, 30, MHz.
The 10 MHz reference signal spectrum appears on the display, as shown in
Figure 3-1.
NOTE
Chapter 3
The display examples in this book are made using various analyzer
models, you may see some variations depending upon your analyzer.
37
Making a Basic Measurement
Viewing a Signal
Figure 3-1
10 MHz Internal Reference Signal and Associated Spectrum
10 MHz Peak
Setting Frequency Span
6. Set the frequency span to 50 MHz: Press SPAN, 5, 0, MHz.
This displays the signal as shown in Figure 3-2.
38
Chapter 3
Making a Basic Measurement
Viewing a Signal
Figure 3-2
Span Changed to 50 MHz
10 MHz Peak
Reading Frequency & Amplitude
7. Place a marker (labeled 1) on the 10 MHz peak, as shown in Figure 3-3.
Press Peak Search.
Note that the frequency and amplitude of the marker appear both in the active
function block, and in the upper-right corner of the screen. You can use the knob, the
arrow keys, or the softkeys in the Peak Search menu to move the marker. Pressing
Esc removes the value from the display.
8. If you have moved the marker, return it to the peak of the 10 MHz signal.
Changing Reference Level
9. Press AMPLITUDE, and note that reference level (Ref Level) is now the active function.
Press Marker ➞, Mkr ➞ Ref Lvl.
Note that changing the reference level changes the amplitude value of the top
graticule line.
Figure 3-4 shows the relationship between center frequency and reference level. The
box represents the analyzer display. Changing the center frequency changes the
horizontal placement of the signal on the display. Changing the reference level
changes the vertical placement of the signal on the display. Increasing the span
increases the frequency range that appears horizontally across the display.
Chapter 3
39
Making a Basic Measurement
Viewing a Signal
Figure 3-3
A Marker on the 10 MHz Peak
Active function block
Figure 3-4
40
Marker Annotation
Relationship Between Frequency and Amplitude
Chapter 3
Making a Basic Measurement
Viewing a Signal
Improving Frequency Accuracy
10.While not all of the zeros following the decimal in the active function block are
significant, the numbers after the decimal in the marker annotation (upper-right
corner of screen) are significant. To increase the accuracy of the frequency reading in
the marker annotation, turn on the frequency count function.
a. Press Mkr Fctn.
• The Marker Fctn softkeys appear.
b. Press Marker Count.
• The Marker Count softkeys appear.
11.Note softkey Marker Count On Off. If Off is underlined, press the softkey to toggle
marker count on.
As shown in Figure 3-5:
• The marker annotation changes from Mkr1 to Cntr1.
• The displayed resolution in the marker annotation improves.
NOTE
When you use the frequency count function, if the ratio of the resolution
bandwidth to the span is less than 0.002, the following message
appears on the display: Freq Count: Reduce Span/RBW ratio
This indicates that the resolution bandwidth is too narrow.
12.Press Marker ➞, Mkr ➞ CF to move the 10 MHz peak to the center of the display.
Valid Marker Count Range
13.Move the marker down the skirt of the 10 MHz peak. Note that although the readout
in the active function changes, as long as the marker is at least 26 dB above the noise,
the counted value (upper-right corner of display) does not change (see Figure 3-6). For
an accurate count, the marker does not have to be at the exact peak.
NOTE
Marker count functions properly only on CW signals or discrete peaks.
For a valid reading, the marker must be ≥26 dB above the noise.
14.Press BW/Avg, Res BW, then enter a new value. This action makes the resolution
bandwidth the active function and allows you to experiment with different resolution
bandwidth (RBW) values.
15.Press Marker, Off to turn the marker off.
NOTE
Chapter 3
After properly setting the analyzer to display your signal, you can save
the settings as either a user preset (press System, Power On/Preset, Save
User Preset), or a file (see “Saving a File” on page 48).
41
Making a Basic Measurement
Viewing a Signal
Figure 3-5
Increasing Marker Frequency Accuracy
Frequency Count
increases accuracy
Figure 3-6
42
Using Marker Counter
Chapter 3
4 Viewing Catalogs and Saving Files
43
Viewing Catalogs and Saving Files
The analyzer stores and retrieves data similarly to the way that a personal computer (PC)
does: both have internal storage and a floppy disk drive. While a PC has an internal drive,
the analyzer’s internal storage is nonvolatile (flash) memory, which acts as an internal
drive. As with a PC, both the internal storage and the floppy disk drive have directory and
sub-directory capability; in the analyzer, directories and subdirectories are called catalogs.
This chapter tells you how to:
• locate catalogs and view files, on page 45.
• save a file, on page 48.
For more information on catalogs and files, see the Measurement guide.
44
Chapter 4
Viewing Catalogs and Saving Files
File Menu Functions
File Menu Functions
This chapter describes how to use the functions located under the front-panel File key.
Data storage and retrieval are handled similarly to that of personal computers (PCs). Like
PCs, these analyzers include an internal storage drive and a floppy disk drive, both of
which have directory and sub-directory capability.
You will learn how to do all of the following:
•
•
•
•
•
•
•
locate and view files in the catalog
format a floppy disk
save a file
load a file
rename a file
copy a file
delete a file
NOTE
The display examples in this book are made using various analyzer models,
you may see some variations depending upon your analyzer.
Locating and viewing files in the catalog
Techniques for locating files and directories are consistent throughout the various file
menu functions. Although this section provides specific information about navigation in
the catalog, you may wish to refer back to this section when performing other operations of
the file menu.
The analyzer has three default catalogs (directories):
• State, which stores analyzer settings.
• Trace, which stores trace information.
• Screen, which stores screen captures of the display in .gif or .wmf format.
NOTE
Chapter 4
Trace files are not bitmap files. Files saved as Trace cannot be imported into
other applications or converted. If you require the use of other applications,
for example Microsoft Word or Microsoft Excel, be sure to save your files as
.gif or .wmf formats using Screen for your file Type.
45
Viewing Catalogs and Saving Files
File Menu Functions
Press File, Catalog to bring up a screen display as shown in Figure 4-1.
Figure 4-1. Catalog Menu
NOTE
Use the front-panel Step Keys or Knob and the Dir Up or Dir Select keys to
move up and down within the directory information box.
1. The entry fields show the parameters for the files viewed. Entry fields that are being
modified or are modifiable are indicated by highlighting (inverse video). Each file menu
function has its own unique set of entry fields pertaining to that function. Below are the
fields listed under the catalog key:
a. Name: field states the filename.
b. Show Type: field displays the type of files viewed.
c. Path: field displays the drive and directory location of the files.
2. The directory information box displays the drives, directories, and/or files currently
described in the entry fields. Highlighting a row of information selects that location and
updates the entry fields. There are four column headings in this area of the display.
They are described as follows:
a. Name: column states the drive ([-A-] or [-C-]) if at the top level on the drive,
directory name, or filename.
46
Chapter 4
Viewing Catalogs and Saving Files
File Menu Functions
b. Type: column displays the extension of the filename, for example, .SET, .STA,
.TRC. Directories are displayed as DIR and drives have nothing listed under Type:.
They are only designated by the Name: column ([-A-] or [-C-]).
c. Size: column displays the size of the file in bytes.
d. Modified: column displays the date and time the last change occurred.
3. The softkey menu has four options:
a. Type: allows you to choose the type of file you wish to view. (You may view all types
by using the All key under Type.)
b. Sort: Under the Sort key, you can sort by any of the four columns and you can choose
up (ascending) or down (descending).
c. Dir Up: moves you up one directory level. If you are already at the top level, this key
moves you up to the drive level, displaying the available disk drives.
d. Dir Select: moves you down into the highlighted directory or up into the next level
(directory or drive) if the “. .” under the Name: column is highlighted.
NOTE
Navigation keys: Use the front-panel Step Keys or Knob and the Dir Up or Dir
Select keys to move around in the directory information box.
4. The drive space line shows the number of bytes used on the drive and the number of
bytes still free on the drive.
Creating a directory
Directories and sub-directories can be created on both the A: floppy disc and the internal
C: drive. This allows maximum flexibility in organizing files. For this example, we will
create a directory on the C: drive.
1. Press File, More 1 of 2, Create Dir. Your screen should look similar to Figure 4-1, except
the entry fields will be Dir Name: and Path: and the Heading will read: Directories.
2. Navigate through the file system until the Path: field displays C:\. (Use the Step Keys,
Knob, Dir Up, and/or Dir Select keys.)
3. Press Name and enter the name, “START” using the Alpha Editor. (The numeric keypad
is also available for the filename.) Press Enter (hardkey) when the Dir Name: field
contains this directory title. (Use the Bk Sp hardkey on the front panel to make
corrections.)
4. Press Create Dir Now to execute the operation. The message: Creating Directory
appears on the screen. Then the status bar displays: Directory C:\START created.
5. To make a sub-directory, scroll down to the START directory you just created and press
Dir Select. The Path: field should now read: C:\START\. Repeat Steps 3 and 4 above,
using a new name. The status bar now should read: Directory C:\START\new name
created.
Chapter 4
47
Viewing Catalogs and Saving Files
Saving a File
Saving a File
You can save files (setups, states, traces, limits, corrections, measurement results, or
screens) to a floppy disk (A:\), or the internal drive (C:\). In this example you will save a
trace to the internal C: drive.
NOTE
Trace files are not bitmap files. Files saved as Trace cannot be imported into
other applications or converted. If you require the use of other applications,
for example Microsoft Word or Microsoft Excel, be sure to save your files as
.gif or .wmf formats using Screen for your file Type.
Step 1. Set up the analyzer trace
1. Perform a factory preset by pressing Preset, Factory Preset (if present).
2. Turn on the internal 50 MHz alignment signal of the analyzer as follows:
• Press Input/Output, Input Port, Amptd Ref.
3. Set the center frequency to 50 MHz by pressing press FREQUENCY, Center Freq, 50, MHz.
4. Set the span to 75 MHz by pressing SPAN, Span, 75, MHz. The reference signal will
appear on the display.
5. View trace 1 and put it into maximum hold by pressing View/Trace, Max Hold. (Trace 1
should already by underlined, but if not, press Trace 1 2 3 until 1 is underlined and then
press Max Hold.) Your analyzer display should look similar to Figure 4-3.
Figure 4-2. Viewing Trace 1
48
Chapter 4
Viewing Catalogs and Saving Files
Saving a File
6. Activate trace 2 and put it into minimum hold by pressing Trace (2), Min Hold. Your
analyzer display should look similar to Figure 4-4.
Figure 4-3. Viewing Traces 1 and 2
7. Activate trace 3 by pressing Trace (3), Clear Write. Your analyzer display should look
similar to Figure 4-5.
Chapter 4
49
Viewing Catalogs and Saving Files
Saving a File
Figure 4-4. Viewing Traces 1, 2, and 3
Step 2. Save the file
1. To access the Save menu, press, File, Save.
2. Select the type of file you want to save. In this example you are saving a trace; press
Type, Trace.
NOTE
Trace files are not bitmap files. Files saved as Trace cannot be imported into
other applications or converted. If you require the use of other applications,
for example Microsoft Word or Microsoft Excel, be sure to save your files as
.gif or .wmf formats using Screen for your file Type.
3. Select the trace you wish to save (1, 2, 3, or all traces). In this example you will save
trace 3; press Source (softkey), Trace 3.
4. Select the format you wish to use for saving the trace, either trace plus state
(Trace + State) or comma separated value (CSV). In this example you will save as trace
plus state; press Format, Trace + State.
50
Chapter 4
Viewing Catalogs and Saving Files
Saving a File
5. Enter a filename by pressing Name. The Alpha Editor appears. For this example you
will name the file, “TEST1”. (The numeric keypad is also available for the filename.)
Note that the file extension is always set by the system and for this file type the
extension is TRC. You must now press the Enter (hardkey) to get back to the Save menu.
NOTE
You need to use a filename that does not already exist in the current
directory. The filename is limited to eight characters, alpha (A-Z) or numeric
(0-9) in any combination. The analyzer will not allow you to overwrite an
existing file. If you select a filename that already exists, the status bar will
display the message: File already exists. If you do not choose a filename,
the analyzer will automatically generate a name based on the type of file you
are saving (Setup: SETUP, State: STATE, Trace: TRACE, Limits: LIMIT,
Corrections: COREC, Screen: SCREN). It also generates a three digit integer
(starting at 000 and extending through 999, remembering the previously
saved value through a power cycle) which it adds to the name, for example:
TRACE056.TRC. Also note that this three digit integer increments upon each
attempted save until a unique filename is created, without regard to the
success of the save.
6. The destination for the saved file is shown in the Path: field. In this example, you will
select the path as C:\START\. If the correct location is not listed in the Path: field,
change directories as follows:
a. Press Dir Up or Dir Select and use the step keys or knob, to highlight the desired
destination directory.
b. Press Dir Select and confirm your choice displayed in the Path: field.
7. Press Save Now or Save (hardkey) to save the file to the C:\Start\ location. The
message Saving Now is displayed during this operation. For this example, the status
line displays: C:\START\TEST1.TRC file saved.
NOTE
Chapter 4
When saving to drive (A:), never remove the floppy disk during the save
operation. To do so could corrupt all data on the floppy disk.
51
Viewing Catalogs and Saving Files
Saving a File
Loading a file
1. Reset the analyzer by pressing Preset, Factory Preset (if present).
2. To access the Load menu, press File, Load.
3. Select the type of file you want to load (setup, state, trace, limits, or corrections). In this
example you are loading a trace file; press Type, Trace.
NOTE
Not all file types can be loaded back into the analyzer. For example, Screen
files and CSV (comma separated value) files cannot be loaded. CSV and
Screen files are designed for use with a PC.
4. Select the directory where your file is located. In this example, select the C:\START\
directory. (Use the front-panel step keys, knob, Dir Up, and/or Dir Select keys to locate
the directory.)
5. Select the file you want to load into the analyzer by moving the cursor with the
front-panel knob to highlight the file name. In this example the file is TEST1.TRC. Select
the trace into which you wish to load the file. In this example, load it into Trace 2.
(Destination, Trace 2).
6. Press Load Now to load the specified file. Your display should look similar to Figure 4-6.
The status bar reads: C:\START\TEST1.TRC file loaded.
Figure 4-5. File Loaded
52
Chapter 4
Viewing Catalogs and Saving Files
Saving a File
NOTE
You should notice that the trace you saved, in this example trace 3, is loaded
to trace 2. If you wish to verify this condition, remove the signal input. Press
Input/Output, Input Port, Amptd Ref (Off).
Note that when a trace is loaded, it is placed in view mode. To see that trace 2
is in view mode, blank traces 1 and 3 by pressing View/Trace, Trace 1, Blank,
Trace 3, Blank. Then press Trace 2. Notice that trace 2 is the only trace
displayed in view mode (the view key is selected, and the trace is not
sweeping). Your display should look similar to Figure 4-7.
Figure 4-6. Verifying Trace 1
CAUTION
When operating in dc coupled mode, ensure protection of the input mixer by
limiting the input level to 0 Vdc and +30 dBm.
NOTE
When loading Limits files, be sure you have selected the appropriate X Axis
Units: frequency or time (Display, Limits, Properties, X Axis Units). If you are in
time X-Axis Units, and you load frequency limits, all current limit line data
will be erased and the analyzer will switch to the frequency domain. The
reverse of the this situation also holds true.
Chapter 4
53
Viewing Catalogs and Saving Files
Saving a File
Renaming a File
1. To access the Rename menu, press File, Rename.
2. Select the type of file you want to rename (setup, state, trace, limits, screens, or
corrections). In this example you are renaming a trace file; press Type, Trace.
3. Select the drive and directory where your file is located. In this example, choose drive
C:\START.
4. Select the file you want to rename. In this example, choose the file TEST1.TRC.
5. Press Name to open the Alpha Editor menu. For this example, rename the file to RENAME
using the Alpha Editor softkeys. (The Name: field is limited to eight characters.) Your
display should look similar to Figure 4-8.
6. Press Enter, Rename Now: your file is now renamed and visible within the directory
displayed on your analyzer. The status line displays the message: C:\START\TEST1.TRC
file renamed to C:\START\RENAME.TRC.
Figure 4-7. Renaming a File
54
Chapter 4
Viewing Catalogs and Saving Files
Saving a File
Copying a File
1. To access the Copy menu, press File, Copy. This menu function brings up 2 directory
boxes as described by the From: and To: fields located directly above the boxes. Refer to
Figure 4-9.
Figure 4-8. Copy Menu
2. Put a formatted floppy in the A: drive.
3. Select the type of file you want to copy (setup, state, trace, limits, screens, or
corrections). In this example you are copying a trace file from the C: drive to the A:
drive; press, Type, Trace.
4. Press Dir (in the key menu) to underline From:. Notice the From: field (just above the
top directory box) highlights the location from which you will be copying. Using the
navigation keys (Dir Up, Direct select, step keys, or front panel knob), locate the
C:\START\ directory.
5. Scroll to highlight the file displayed in the directory box from which you wish to copy. In
this example, you will need to highlight the file RENAME.
6. Press Dir (in the key menu) to underline To:. The To: field (just above the bottom
directory box) is highlighting the location to which you will be copying. Using the
navigation keys as described above, highlight the A:\ drive.
NOTE
Chapter 4
When pressing Dir (To), the file chosen in the From: location is no longer
highlighted, however the Name: field above the From directory box displays
the chosen file; in this example: RENAME.TRC.
55
Viewing Catalogs and Saving Files
Saving a File
NOTE
Highlighting a filename in the To: directory box has no significance. The file
cannot be placed inside another file.
7. Press Copy Now to execute the operation. The message: “Copying file” is displayed
during the copying process. Upon completion, the status bar reads:
“C:\START\RENAME.TRC file copied”. You have now copied the file RENAME from the
C: drive to the A: drive.
Deleting a File
1. To access the Delete menu, press File, Delete.
2. Select the type of file you want to delete (setup, state, trace, limits, screens, or
corrections). In this example, you are deleting a trace file; press Type, Trace.
3. Select the drive and directory where the file you wish to delete is located. In this
example, choose C:\START\. Use the navigation keys (Dir Up, Dir Select, step keys, front
panel knob) to highlight this location in the Path: field. (Refer to “Locating and viewing
files in the catalog” on page 45 for more instructions.)
4. Select the file you want to delete. In this example, choose the file RENAME.TRC. Move the
cursor with the navigation keys to highlight the file name.
5. Press Delete Now. The message: Deleting file pops up on the display during the
operation. Upon completion, the status bar reads: C:\START\RENAME.TRC file
deleted. Your file is now deleted and is no longer visible in the directory displayed on
your analyzer.
56
Chapter 4
Viewing Catalogs and Saving Files
Using the Alpha Editor
Using the Alpha Editor
The Alpha Editor enables you to select letters to enter a name for a file or directory (File,
Rename, for example).
1. Use the More keys to display the softkey that lists the character you want. Each softkey
has several characters on it.
2. When you press a softkey, its characters are displayed on individual softkeys.
3. Select the one you want.
Chapter 4
57
Viewing Catalogs and Saving Files
Using the Alpha Editor
58
Chapter 4
5 Options and Accessories
This chapter lists options and accessories available for your analyzer.
59
Options and Accessories
Ordering Options and Accessories
Ordering Options and Accessories
Options and accessories help you configure the analyzer for your specific applications, and
enable you to use the analyzer.
Options (see page 61)
Unless specified otherwise, all options are available when you order a spectrum analyzer;
some options are also available as kits that you can order and install after you receive the
analyzer. Order kits through your local Agilent Sales and Service Office.
For the latest information on Agilent Spectrum Analyzer options and upgrade kits, visit
the following Internet URL:
http://www.agilent.com/find/sa_upgrades
Accessories (see page 66)
Order accessories through your local Agilent Sales and Service Office.
60
Chapter 5
Options and Accessories
Options
Options
Option
Number
Name
Description
Manual Set on CD-ROM
Only
The documentation CD-ROM contains the standard
documentation set as well as Adobe Acrobat Reader with Search.
Additional Manual Set
An additional set of the standard documentation shipped with
the analyzer. See “Initial Inspection” on page 7 for information
about the standard documentation set.
Service Documentation
The Service guide describes assembly-level troubleshooting
procedures, provides a parts list, and documents post-repair
procedures.
Rack Mount Kit
Includes rack mount flanges and hardware. Used to rack mount
analyzers without front handles (available as P/N 5063-9215).
1CN
Front Handle Kit
Available as P/N 5063-9228.
1CP
Rack Mount Kit with
Handles
Includes the parts necessary to rack mount an analyzer with
front handles attached (available as P/N 5063-9222). (Includes
handles.)
Rack Slide Kit
Available as P/N E4406-60115. Rack slides allow the analyzer to
be pulled out while the analyzer is secured to the rack.
Preamplifier
An internal preamplifier assembly.
0B0
0B1
0BW
1CM
1CR
1DS
Frequency Range: 100 kHz to 3 GHz
122
80 MHz Bandwidth
Digitizer
Adds an alternative 80 MHz wide IF path for making
measurements. Additional measurement accuracy can be
achieved using the External Calibration Wizard Option 235, or
with the 89600 Vector Signal Analyzer Application calibration.
The 80 MHz functionality is available as part of the added Basic
Mode. Basic Mode includs the measurements:
spectrum (frequency domain)
waveform (time domain)
123
Chapter 5
Switchable Microwave
Preselector Bypass
Allows you to bypass the tuned filter at the input of the spectrum
analyzer when making measurements in the 3 - 26.5 GHz range.
This improves the sensitivity and increases the available
measurement dynamic range. However it allows the analyzers
internal mixing products and image response signals to be
visible on the display, in addition to the actual desired signal
response.
61
Options and Accessories
Options
Option
Number
Name
Description
124
Y-axis Video Output
Provides a 0 to 1 V signal that corresponds to the bottom and top
of the display graticule, respectively. The output voltage tracks
the Y-axis position of the trace data while the analyzer is
sweeping. (This output is similar to the 8566B Video Out.)
202
GSM with EDGE
Measurement Personality
General transmitter measurement:
transmit power
Provides GSM (GMSK modulation) transmitter measurements:
power vs. time
phase and frequency error
output RF spectrum
transmit band spurs
Provides EDGE (8PSK modulation) transmitter measurements:
EVM
power vs. time
output RF spectrum
transmit band spurs
Requires Option B7J hardware.
204
1xEV-DO Measurement
Personality
Provides 1xEV transmitter measurements:
channel power
ACPR
intermodulation
spectrum emission mask
occupied BW
code domain power (pilot)
EVM (pilot)
QPSK EVM
power statistics CCDF
Requires Option B7J hardware.
210
HSDPA Measurement
Personality
Provides High-Speed Downlink Packet Access to support 16
QAM and modulation accuracy. Requires Option BAF.
Requires Option B7J harware.
211
214
TD-SCDMA Measurement
Personality
Measures the power profile of TD SCDMA BTS and MS.
1xEV-DV
Supports 8 PSK and 16 QAM modulation analysis. Requires
Option B78. Includes measurements:
Requires Option B7J hardware.
Composite Rho
Code Domain tests
Requires Option B7J hardware.
219
Noise Figure Measurement
Personality
Provides noise figure measurements:
Limit lines
Loss compensation
Extended frequency (measures up/down converters)
You need the preamp Option 1DS to have specified performance
below 3 GHz.
62
Chapter 5
Options and Accessories
Options
Option
Number
226
Name
Description
Phase Noise Measurement
Personality
Provides phase noise measurements:
233
License for N5531A
Measuring Receiver
Software
This option allows you to license your PSA to use the N5531A
Measuring Receiver Software. The software networks a power
meter with the PSA. The resulting system can be used as a
substitute for the HP 8902A measuring receiver.
235
80 MHz Digitizer External
Calibration Wizard and
License
This calibration software runs on an external PC to generate a
file of correction factors for PSAs with option 122. You get
improved measurement accuracy using this correction file.
241
Flexible Digital Modulation
Analysis
Provides flexible demodulating analysis for measuring many
different formats of digital modulation, including:
Monitor spectrum
Spot frequency
Log plot
MSK type 1 and type 2
EDGE
QPSK and offset QPSK
8PSK
BPSK
DQPSK and Pi/4 DQPSK
D8PSK
QAM 16, 32, 64, 128, 256
FSK 2, 4, 8 states
266
Programming Code
Compatibility Suite
ANE
Enhanced Memory Upgrade Replaces existing pc board providing additional memory for
storing optional measurement personalities.
AYZ
External Mixing
Chapter 5
Lets you select one of three different modes that let you use a
limited set of 8566 Series, 8566B/8568B or 8590 Series
programming commands. These modes let you control the PSA
Series analyzers with code from other spectrum analyzer
families. When these modes are enabled, the instruments native
SCPI commands are disabled if the remote language selected is
not SCPI.
Provides the ability to use the HP/Agilent 11970 Series harmonic
mixers, and HP/Agilent 11974 preselected harmonic mixers with
the Agilent E4440A, E4446A, or E4448A analyzer to extend the
frequency range to 110 GHz. Operation to 325 GHz is also
possible with non-HP/Agilent mixers.
63
Options and Accessories
Options
Option
Number
B78
Name
cdma2000 Measurement
Personality
Description
Provides cdma2000 transmitter measurements:
channel power
ACPR
intermodulation
spectrum emission mask
occupied BW
code domain power
modulation accuracy (composite rho)
QPSK EVM
power statistics CCDF
Requires Option B7J hardware.
B7J
Digital Demod Hardware
Adds 1 dB step, electronic attenuator in addition to the existing
manual attenuator. This is required for the personality options:
BAC, BAE, BAF, B78, 202, 204. This option also adds the
functionality of Basic Mode, including the measurements:
spectrum (frequency domain)
waveform (time domain)
BAB
APC 3.5 Input Connector
Replaces the standard type-N female connector with an APC
3.5-mm male connector.
BAC
cdmaOne Measurement
Personality
Provides IS-95 and J-STD-008 transmitter measurements:
channel power
modulation accuracy (rho)
code domain power
ACPR
spur close
Requires Option B7J hardware.
BAE
NADC/PDC Measurement
Personality
Provides NADC transmitter measurements:
ACP
EVM (error vector magnitude)
Provides PDC transmitter measurements:
ACP
EVM (error vector magnitude)
occupied BW
Requires Option B7J hardware.
BAF
W-CDMA Measurement
Personality
Provides 3GPP W-CDMA transmitter measurements:
channel power
ACPR (ACLR)
intermodulation
multi carrier power
spectrum emission mask
occupied BW
code domain power
modulation accuracy (composite EVM)
QPSK EVM
power statistics CCDF
Requires Option B7J hareware.
64
Chapter 5
Options and Accessories
Options
Option
Number
Name
Description
Commercial Calibration
with Test Data a
Provides the factory calibration test data and the standard
commercial calibration certificate at initial shipment.
W30
3-Year Warranty Service
Support a
A total of 3 years of warranty service support. This adds a 2-year
service contract to the base analyzer 1-year warranty
W50
5-Year Warranty Service
Support a
A total of 5 years of warranty service support. This adds a 4-year
service contract to the base analyzer 1-year warranty
UK6
a. Available only at time of purchase
Chapter 5
65
Options and Accessories
Accessories
Accessories
A number of accessories are available from Agilent Technologies to help you configure your
analyzer for your specific applications. They can be ordered through your local Agilent
Sales and Service Office and are listed below.
50 Ohm/75 Ohm Minimum Loss Pad
The HP/Agilent 11852B is a low VSWR minimum loss pad that allows you to make
measurements on 75 Ohm devices using an analyzer with a 50 Ohm input. It is effective
over a frequency range of dc to 2 GHz.
75 Ohm Matching Transformer
The HP/Agilent 11694A allows you to make measurements in 75 Ohm systems using an
analyzer with a 50 Ohm input. It is effective over a frequency range of 3 to 500 MHz.
AC Probe
The Agilent 85024A high frequency probe performs in-circuit measurements without
adversely loading the circuit under test. The probe has an input capacitance of 0.7 pF
shunted by 1 MOhm of resistance and operates over a frequency range of 300 kHz to
3 GHz. High probe sensitivity and low distortion levels allow measurements to be made
while taking advantage of the full dynamic range of the spectrum analyzer.
AC Probe (Low Frequency)
The Agilent 41800A low frequency probe has a low input capacitance and a frequency
range of 5 Hz to 500 MHz.
Broadband Preamplifiers and Power Amplifiers
Preamplifiers and power amplifiers can be used with your spectrum analyzer to enhance
measurements of very low-level signals.
• The Agilent 8447D preamplifier provides a minimum of 25 dB gain from 100 kHz to
1.3 GHz.
The Agilent 87405A preamplifier provides a minimum of 22 dB gain from 10 MHz to
3 GHz. (Power is supplied by the probe power output of the analyzer.)
The Agilent 83006A preamplifier provides a minimum of 26 dB gain from 10 MHz to
26.5 GHz.
• The Agilent 85905A CATV 75 ohm preamplifier provides a minimum of 18 dB gain from
45 MHz to 1 GHz. (Power is supplied by the probe power output of the analyzer.)
• The 11909A low noise preamplifier provides a minimum of 32 dB gain from 9 kHz to
1 GHz and a typical noise figure of 1.8 dB.
66
Chapter 5
Options and Accessories
Accessories
GPIB Cable
For use with Option A4H. The Agilent 10833 Series GPIB cables interconnect GPIB
devices and are available in four different lengths (0.5 to 4 meters). GPIB cables are used
to connect controllers to a spectrum analyzer.
USB/GPIB Cable
For use with Option A4H. The Agilent 82357A USB/GPIB interface provides a direct
connection from the USB port on your laptop or desktop PC to GPIB instruments. It comes
with the SICL and VISA software for Windows® 98 (SE)/Me/2000/XP. Using VISA
software, your existing GPIB programs work immediately, without modification. The
82357A is a standard Plug and Play device and you can interface with up to 14 GPIB
instruments.
HP/Agilent 11970 Series Harmonic Mixers
The 11970 Series harmonic mixers are available to extend the frequency range of
analyzers with Option AYZ (external mixing) up to 110 GHz. The following six models are
available:
Table 5-1.
Chapter 5
HP/Agilent Model
Number
Frequency Range
11970K
18.0 to 26.5 GHz
11970A
26.5 to 40.0 GHz
11970Q
33.0 to 50.0 GHz
11970U
40.0 to 60.0 GHz
11970V
50.0 to 75.0 GHz
11970W
75.0 to 110 GHz
67
Options and Accessories
Accessories
HP/Agilent 11974 Series Preselected Millimeter Mixers
11974 Series preselected millimeter mixers are available to extend the frequency range of
analyzers with Option AYZ (external mixing) up to 75 GHz. Preselection reduces mixer
overload from broadband signals, reduces radiation of local oscillator harmonics back to
the device under test, and reduces the level of image and multiple responses displayed.
The following four models are available:
Table 5-2.
HP/Agilent Model
Number
Frequency Range
11974A
26.5 to 40.0 GHz
11974Q
33.0 to 50.0 GHz
11974U
40.0 to 60.0 GHz
11974V
50.0 to 75.0 GHz
RF and Transient Limiters
The Agilent 11867A and 11693A RF Limiters protect the analyzer input circuits from
damage due to high power levels. The 11867A operates over a frequency range of dc to
1800 MHz and begins reflecting signal levels over 1 mW up to 10 W average power and
100 watts peak power. The 11693A microwave limiter (0.1 to 12.4 GHz, usable to 18 GHz)
guards against input signals over 1 milliwatt up to 1 watt average power and 10 watts
peak power.
The Agilent 11947A Transient Limiter protects the analyzer input circuits from damage
due to signal transients. It specifically is needed for use with a line impedance
stabilization network (LISN). It operates over a frequency range of 9 kHz to 200 MHz, with
10 dB of insertion loss.
Static Safe Accessories
9300-0797
3M static control mat 0.6 m × 1.2 m (2 ft. × 4 ft.) with a 4.6 cm (15 ft.)
ground wire. Does not include wrist strap or cord
9300-1367
Wrist-strap, color black, stainless steel. Four adjustable links and a 7 mm
post-type connection.
9300-0980
Wrist-strap cord 1.5 m (5 ft.)
9300-1308
ESD heel-strap (reusable 6 to 12 months)
68
Chapter 5
6 In Case of Difficulty
This chapter includes information on how to check for a problem with your Agilent
Technologies spectrum analyzer, and how to return it for service.
If you experience a problem or would like additional information about your analyzer,
Agilent Technologies’ worldwide organization is ready to provide the support you need.
69
In Case of Difficulty
Before calling Agilent Technologies, however (or returning an analyzer for service),
perform the quick checks listed in “Check the Basics” on page 72. This check may eliminate
the problem.
If a problem persists, you may choose to:
• Repair the analyzer yourself. See “Service Options” on page 74.
• Return the analyzer to Agilent Technologies for repair. See “Returning an Analyzer for
Service” on page 76, for more information.
WARNING
No operator serviceable parts inside. Refer servicing to qualified
personnel. To prevent electrical shock, do not remove covers.
NOTE
If the analyzer is still under warranty or is covered by a maintenance
contract, it will be repaired under the terms of the warranty or plan (the
warranty is located at the front of this manual).
If the analyzer is no longer under warranty or is not covered by an Agilent
Technologies maintenance plan, Agilent Technologies will notify you of the
cost of the repair after examining the analyzer.
70
Chapter 6
In Case of Difficulty
Types of Spectrum Analyzer Messages
Types of Spectrum Analyzer Messages
The analyzer can generate various messages that appear on the display during operation.
For a complete list of spectrum analyzer messages, see the Instrument Messages and
Functional Tests manual. The following table describes the four types of spectrum
analyzer messages.
Table 6-1
Types of Messages
Type of Message
Location
Notes
Informational messages
typically provide verification
that an action has occurred. In
general, no user intervention is
required.
Bottom of the
display in the
status line (in
green on analyzers
with a color
display).
Messages will remain until the
message is cleared by pressing
Esc or Preset, or is overwritten
by another message.
Pop-up messages prompt you
to verify that an action will be
performed or tell you that an
action is currently being
performed.
Middle of the
display in a
framed box.
Message remains until you
acknowledge the prompt, or the
action is completed.
Status messages indicate a
condition that may result in
erroneous data being displayed.
Multiple status messages may
be displayed at the same time.
Right side of the
display and/or in
the SCPI Status
Register system.
Most messages remain only
until the erroneous condition is
corrected.
User Error messages appear
when an attempt has been
made to set a parameter
incorrectly or an operation has
failed (such as saving a file).
Bottom of the
display in the
status line (in
yellow on
analyzers with a
color display) and
in the SCPI Error
Queue.
Messages remain until you
clear the error (press System,
Chapter 6
Show Errors, Clear Error Queue),
or another message is displayed
in the status line.
Pressing the Esc or Preset keys
will clear error messages from
the display, but the messages
will remain in the error queue.
71
In Case of Difficulty
Before Calling Agilent Technologies
Before Calling Agilent Technologies
Check the Basics
❏ Is there power at the receptacle?
❏ Make sure there is no disk in the front-panel disk drive.
❏ Is the analyzer turned on? Check to see if the green LED above the power switch is on.
Also, listen for internal fan noise to determine if the analyzer cooling fans are running.
❏ If other equipment, cables, and connectors are being used with your spectrum analyzer,
make sure they are connected properly and operating correctly.
❏ Review the measurement procedures being performed when the problem first appeared.
Are all of the settings correct?
❏ If the analyzer is not functioning as expected, return the analyzer to a known state by
pressing Preset, and Factory Preset (if displayed).
NOTE
Some analyzer settings are not affected by a Preset. If you wish to reset the
analyzer configuration to the state it was in when it was originally sent from
the factory, press System, Power On/Preset, Preset Type, Factory. Then press the
green Preset key on the front panel.
❏ Is the measurement being performed, and the results that are expected, within the
specifications and capabilities of the analyzer? Refer to the Specifications guide for your
analyzer.
❏ If the analyzer is not communicating via the LAN connection, check for the presence of
blinking yellow LEDs on the rear panel LAN connector. If the Rx (receive) LED is not
blinking, check the LAN cable and LAN integrity.
NOTE
The analyzer must be powered on with the LAN already connected in order to
recognize the LAN port.
❏ To meet specifications, the analyzer must be aligned. Either the Auto Align (On) feature
must be selected (press System, Alignments, Auto Align, On), or the analyzer must be
manually aligned at least once every 24 hours, or whenever the temperature changes
more than 3°C. When Auto Align, On is selected, the AA screen annotation appears on
the left edge of the display.
72
Chapter 6
In Case of Difficulty
Before Calling Agilent Technologies
❏ Perform an Alignment. Press System, Alignments, Align Now, All.
❏ If the previously performed alignments did not resolve the problem, press System,
Alignments, Restore Align Defaults. Then press System, Alignments, Align All Now.
❏ Is the analyzer displaying an error message? If so, refer to the Instrument Messages
and Functional Tests manual.
❏ If the necessary equipment is available, perform the functional tests in the Instrument
Messages and Functional Tests document for your analyzer.
❏ If the 10 MHz output is not functioning, verify that it is turned on by pressing System,
Reference, 10 MHz to select On.
TIP
Chapter 6
You can get automatic electronic notification of new firmware releases and
other product updates/information by subscribing to the Agilent Technologies
Test & Measurement E-Mail Notification Service for the PSA or ESA Series at
http://wwwdb.tm.agilent.com/cgi-bin/notification/user.pl
73
In Case of Difficulty
Before Calling Agilent Technologies
Read the Warranty
The warranty for your analyzer is in the front of your Specifications Guide. Please read it
and become familiar with its terms.
If your analyzer is covered by a separate maintenance agreement, please be familiar with
its terms.
Service Options
Agilent Technologies offers several optional maintenance plans to service your analyzer
after the warranty has expired. Call your Agilent Technologies office for full details.
If you want to service the analyzer yourself after the warranty expires, you can purchase
the service documentation that provides all necessary test and maintenance information.
You can order the service documentation, Option 0BW (assembly level troubleshooting and
adjustment software) through your Agilent Technologies office.
Calling Agilent Technologies
Agilent Technologies has offices around the world to provide you with complete support for
your analyzer. To obtain servicing information or to order replacement parts, contact the
nearest Agilent Technologies office listed in Table 6-2. on page 75. In any correspondence
or telephone conversations, refer to your analyzer by its product number, full serial
number, and firmware revision.
Press System, More (1 of 3), Show System, and the product number, serial number, and
firmware revision information will be displayed on your analyzer screen. A serial number
label is also attached to the rear panel of the analyzer.
74
Chapter 6
In Case of Difficulty
Before Calling Agilent Technologies
Table 6-2. Contacting Agilent Technologies
Online assistance: www.agilent.com/find/assist
United States
(tel) 1 800 452 4844
Latin America
(tel) (305) 269 7500
(fax) (305) 269 7599
New Zealand
(tel) 0 800 738 378
(fax) 64 4 495 8950
Canada
(tel) 1 877 894 4414
(fax) (905) 282-6495
Japan
(tel) (81) 426 56 7832
(fax) (81) 426 56 7840
Asia Pacific
(tel) (852) 3197 7777
(fax) (852) 2506 9284
Europe
(tel) (31 20) 547 2323
(fax) (31 20) 547 2390
Australia
(tel) 1 800 629 485
(fax) (61 3) 9210 5947
Chapter 6
75
In Case of Difficulty
Returning an Analyzer for Service
Returning an Analyzer for Service
Service Tag
When you are returning an analyzer to Agilent Technologies for service, fill out and attach
one of the blue service tags provided at the end of this chapter. Please be as specific as
possible about the problem. If you have recorded any error messages that appeared on the
display, have completed a functional test, or have any other specific data on the
performance of your analyzer, please include a copy of this information.
Original Packaging
Before shipping, pack the unit in the original factory packaging materials if they are
available. If the original materials were not retained, see "Other Packaging" (below).
NOTE
Install the transportation disk into the floppy drive to reduce the possibility
of damage during transportation. If the original transportation disk is not
available, a blank floppy may be substituted.
Other Packaging
CAUTION
Analyzer damage can result from using packaging materials other than those
specified. Never use styrene pellets in any shape as packaging materials.
They do not adequately cushion the equipment or prevent it from shifting in
the carton. They cause equipment damage by generating static electricity and
by lodging in the analyzer louvers, blocking airflow.
You can repackage the analyzer with commercially available materials, as follows:
1. Attach a completed service tag to the analyzer.
2. Install the transportation disk or a blank floppy disk into the disk drive.
3. Wrap the analyzer in antistatic plastic to reduce the possibility of damage caused by
electrostatic discharge.
4. Use a strong shipping container. The carton must be both large enough and strong
enough to accommodate the analyzer. A double-walled, corrugated cardboard carton
with 159 kg (350 lb) bursting strength is adequate. Allow at least 3 to 4 inches on all
sides of the analyzer for packing material.
76
Chapter 6
In Case of Difficulty
Returning an Analyzer for Service
5. Surround the equipment with three to four inches of packing material and prevent the
equipment from moving in the carton. If packing foam is not available, the best
alternative is S.D.-240 Air Cap™ from Sealed Air Corporation (Hayward, California,
94545). Air Cap looks like a plastic sheet filled with 1-1/4 inch air bubbles. Use the
pink-colored Air Cap to reduce static electricity. Wrapping the equipment several times
in this material should both protect the equipment and prevent it from moving in the
carton.
6. Seal the shipping container securely with strong nylon adhesive tape.
7. Mark the shipping container “FRAGILE, HANDLE WITH CARE” to assure careful
handling.
8. Retain copies of all shipping papers.
Chapter 6
77
In Case of Difficulty
Returning an Analyzer for Service
78
Chapter 6
Index
Numerics
10 MHz reference, turning on, 37
50 ohm/75 ohm minimum loss
pad, 66
75 ohm matching transformer, 66
A
AC probe, 66
Accessories, 66
accessories
50 ohm/75 ohm minimum loss
pad, 66
75 ohm matching transformer,
66
AC probe, 66
broadband preamplifiers, 66
GPIB cable, 67
harmonic mixers, 67
preselected millimeter mixers,
68
RF limiters, 68
transient limiters, 68
active function, 29
address, IP, 14
Agilent Technologies, calling, 74
alignments, internal, 16
alpha editor, using, 57
amplifiers, 66
annotations, display, 24
application information, 2
arrow keys, using, 35
B
battery information, 12
broadband preamplifiers, 66
C
cable
GPIB, 67
Catalog Menu, 46
catalogs
definition, 44
naming, 57
clock, battery, 12
connectivity
tools, 7
connectors, front panel, 22
copy files, 55
D
data, entering from front panel,
35
DC probes
use of, 66
delete files, 56
Dir Select key, 47
Dir Up key, 47
directories, definition, 44
directory
creating, 47
display annotations, 24
display, information screen, 13
documentation
additional set, 61
CD-ROM, 7
CD-ROM only, 61
service, 61
standard set, 7
E
electrostatic discharge (ESD)
protecting against, 19
Enter key, using, 35
ESD safety accessories, 68
examples
frequency accuracy, 41
signals, viewing, 37
external reference (10 MHz),
turning on, 37
F
factory preset, description, 36
file copying, 55
file deleting, 56
file formats, 45, 48, 50
file menu functions, 45
copy, 55
delete, 56
rename, 54
save, 48, 50, 52
file renaming, 54
file saving, 48, 50, 52
files
naming, 57
firmware upgrade information, 2
frequency accuracy, increasing, 41
frequency count, using, 41
front panel
connectors and keys, 22
display annotations, 24
entering data, 35
symbols, 31
IP address, 14
K
key overview, 29
keypad, using, 35
keys, 22
knob, using, 35
L
LAN, setting IP address, 14
limiters
RF and transient, 68
M
manuals, ordering, 61
manuals, standard set, 7
marker
frequency and amplitude,
reading, 39
moving
to peak, 39
to reference level, 39
with knob or arrow key, 39
turning off, 41
marker annotation
change with frequency count, 41
location, 39
menu keys, 29
missing options, 14
mixers
External Mixing (Option AYZ),
63
harmonic, 67
preselected millimeter, 68
moving
data from analyzer, 7
data to PC, 7
N
navigating
catalogs, 46
files, 46
tables, 30
Navigation keys, 46, 47
numeric keypad, using, 35
G
GPIB cable, 67
O
options not in instrument
memory, 14
overview, keys and key menus, 29
I
information screen, 13
information, additional, 2
internal alignments, 16
IntuiLink software, 7
P
packaging, 76
parallel interface connector, 28
PC connectivity, 7
Index-79
Index
personality options not in
instrument, 14
power amplifiers, 66
preamplifiers, 66
preset
factory, 36
types, 36
user, creating, 36
printer setup, 17
probes
AC and DC, 66
product information, 2
R
rear panel
symbols, 31
rear panel features, 27
reference level, setting, 39
reference, turning on 10 MHz, 37
rename files, 54
RF limiters, 68
RPG, using, 35
RS-232 interface connector, 28
S
save files, 48, 50, 52
saving
bitmaps, 45, 48, 50
trace files, 45, 48, 50
screen annotation, 24
screen, information, 13
service options, 74
signals, increasing accuracy, 41
signals, viewing, 37
softkeys, auto and man mode, 35
softkeys, basic types, 35
software
IntuiLink, 7
static safety accessories, 68
symbols in titles, 57
symbols, on front and rear panels,
31
T
tab key, 30
table
navigation, 30
text, entering, 57
titles, editing, 57
transient limiter, 68
turning on the analyzer for the
first time, 13
U
unit softkeys, using, 35
URL, PSA analyzers, 2
Index-80
URL, sales and service, 75
user preset
creating, 36
description, 36
disabling, 36
W
warm-up time, 14
warranty, 74
Download PDF

advertising
