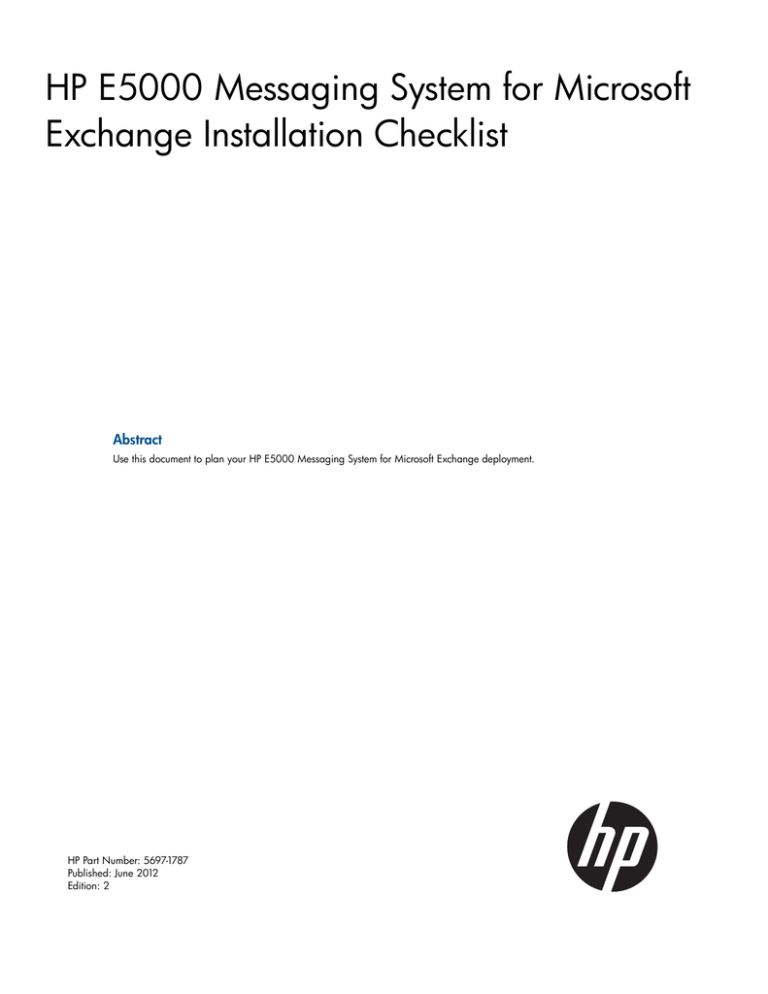

HP E5000 Messaging System for Microsoft
Exchange Installation Checklist
Abstract
Use this document to plan your HP E5000 Messaging System for Microsoft Exchange deployment.
HP Part Number: 5697-1787
Published: June 2012
Edition: 2
© Copyright 2012 Hewlett-Packard Development Company, L.P.
Before you begin
Moving to Exchange 2010 entails the following:
•
Use a Database Availability Group (DAG) to establish high availability for the Exchange 2010
environment. The E5000 software tools will guide you through the setup. Be prepared with inputs
for the Exchange Deployment Tool wizard as outlined in “Using the Exchange Deployment Tool
(EDT)” (page 9).
•
Deploy all roles on each server, per HP's best practice. As a result, the E5000 has the Client
Access Server (CAS), HUB transport, and mailbox roles on each server.
NOTE: If all roles are assigned to one server, Windows Network Load Balancing will not work.
In this situation, an external hardware or software load balancer is strongly recommended to
route client connections.
•
Download the HP E5000 Messaging System for Microsoft Exchange Administrator Guide and
the HP E5000 Messaging System for Microsoft Exchange Quick Start Guide at:
http://www.hp.com/support/manuals
Under Solutions, select Solution Appliances and then select your E5000 model to display the
manuals page.
•
Check for and download the latest software updates on the HP Support & Drivers website at:
http://www.hp.com/go/support
Select Drivers & Software. Enter E5000 in the Enter a product name/number box and click Search.
Navigate to your product and download any applicable files.
NOTE:
•
The tables in this document include an Acknowledgment and/or Decision column. After reading
the task, put a check mark in the Acknowledgment column to indicate your understanding. In the
Decision column, enter how you plan to address the task.
•
Use the table in “Recording network details” (page 9) to enter the networking details needed to
complete the installation.
Table 1 Pre-installation checklist
Step
Description
Resources
Plan integration with
legacy systems
(Exchange 2003).
Identify the bridgehead
server name. Decide
whether to run the
Microsoft Exchange 2010
Pre-Deployment Analyzer
and/or the Exchange
Deployment Assistant.
Pre-Deployment Analyzer:
http://go.microsoft.com/?
linkid=9738616
Determine the DAG
naming convention.
Consider whether there
are naming conventions
in your organization.
The tool suggests a default
name of DAG1.
Obtain the IP address
to be used for the
DAG and the IP
addresses and names
for the E5000 servers.
Work with your network
administrator to reserve
these IP addresses. See
“Network planning”
(page 5) for additional
information about other
networks.
Acknowledgment
Decision
Exchange Deployment
Assistant:
http://go.microsoft.com/?
linkid=9738615
Before you begin
3
Table 1 Pre-installation checklist (continued)
Step
Description
Resources
Determine the
database prefix
naming.
Consider whether there
are naming conventions
in your organization.
The tool suggest a default
name of DB1.
Determine the location
(server and directory)
for the witness file
share for the
Exchange 2010
DAG.
This can be a file server
in your domain.
HP recommends that you
let the Exchange
Deployment Tool create
the file share and set
permissions.
A permissions change to the
witness server may be
necessary. See Microsoft
TechNet article:
http://technet.microsoft.com/
en-us/library/dd351107.aspx
Determine the load
balancing approach.
External hardware or
software load balancers
are not included with the
E5000.
Review the Load
balancing best practices
for the HP E5000
Messaging System white
paper.
http://
h20195.www2.hp.com/v2/
GetPDF.aspx/
4AA3-3433ENW.pdf
Review Microsoft's list of http://technet.microsoft.com/
qualified load balancers. en-us/exchange/
gg176682.aspx
Determine the CAS
array name and
whether it will be
Internet facing.
Enter the name of the
load-balanced CAS array
that will be set on your
database property.
You will need the domain
name to be used with your
external CAS (for example,
mail.contoso.com).
For more information, see:
http://go.microsoft.com/?
linkid=9746236
Set the DNS name of the
CAS array to be the IP
address of the load
balanced array.
For more information, see
“Defining a CAS array” in the
Best practices for networking
and load balancing with HP
E5000 Messaging Systems
white paper at:
http://
h20195.www2.hp.com/v2/
GetPDF.aspx/
4AA3-3433ENW.pdf
Ensure that you have
SSL certificates.
SSL certificates are
required for any client
protocol using SSL
security.
See the Microsoft TechNet
article, “Managing SSL for a
Client Access Server (applies
to Exchange 2010 SP2)” at:
http://technet.microsoft.com/
en-us/library/bb310795.aspx
This article contains links to
related topics, such as digital
certificates, Certification
Authorities, SSL, and
configuring SSL certificates.
4
Before you begin
Acknowledgment
Decision
Table 1 Pre-installation checklist (continued)
Step
Description
Resources
Ensure that you have
two legally licensed
copies of Exchange
2010 (either Standard
or Enterprise Edition).
Standard Edition is limited
to five databases. As a
result, it is not compatible
with some E5000 models.
During installation, you
will enter the license key
for each server in the
E5000.
For more information about
Microsoft Exchange licensing
requirements, see:
http://www.microsoft.com/
exchange/en-us/
licensing-exchange-server-email.aspx
Ensure that Active
Exchange 2010 requires
Directory is prepared. certain updates to your
Active Directory that if not
completed will complicate
or block a successful
Exchange 2010
installation.
On your AD server, use
Exchange setup, which takes
approximately 20–30 minutes:
“setup.exe /p /
on:<your_org_name>”
Acknowledgment
Decision
• setup /pl: Use for
Legacy interoperability
only.
• setup /ps: Prepares
schema, which is included
in prepareAD.
• setup /pd: Prepare a
local domain but only when
setting up child domain. (or
run setup /pad).
Microsoft Technet article:
http://technet.microsoft.com/
en-us/library/bb125224.aspx
Network planning
The E5000 Configuration Wizard will request information about your network preferences, but there
is some additional planning before using the wizard:
•
MAPI (static or DHCP): Static addressing is recommended for this client access network.
•
EMU/iLO (static or DHCP): Determined by your approach for remote server management.
•
EMU to server connectivity: The E5000 Configuration Wizard will request that this connectivity
exist and will ask for the EMU password. EMU connectivity is necessary for E5000 monitoring
and maintenance.
You will need to select a physical network port from each server (see Figure 1 (page 6) and
Figure 2 (page 6)) that will be used to provide this connectivity. This network port will then need
to be configured (using the E5000 Configuration Wizard or standard Windows networking
configuration tools) to match the network you assigned to the EMU.
•
If you purchased an E5300, be aware that it has fewer NIC ports for network connectivity than
the E5500 or E5700 (see Figure 1 (page 6) and Figure 2 (page 6) for comparison). If you
require more network connectivity for the E5300, you must purchase additional hardware, which
consists of two (2) NC382m mezzanine NICs and two (2) Ethernet 1 GbE I/O modules (BV897A).
Before you begin
5
Figure 1 Typical E5300 network configuration
1. Client/MAPI network
2. Replication network cable
3. Domain controller
4. Connection to EMU
Figure 2 Typical E5500/E5700 network configuration
1. Client/MAPI network
4. Domain controller
2. Replication network cable
5. Connection to EMU
3. Connection to management network
6. Management network
Complete hardware installation (rack and cable)
Complete the steps described in Table 2 (page 7).
6
Complete hardware installation (rack and cable)
Table 2 Hardware installation
Step
Description
Acknowledgment
Record the serial number of the E5000 Once the E5000 components are installed in a rack, it is
and expansion disk enclosures, if any. difficult to read serial numbers.
If you are deploying multiple messaging
systems, confirm that any expansion
disk enclosures are matched to the
appropriate messaging system as noted
on the rear label before you install them
in the rack.
Install the messaging system components Ensure that the disk drives are fully seated in the disk drive
into the rack.
drawer and in the expansion disk enclosures.
Plug in the messaging system.
If possible, ensure that redundant power supplies in the
E5000 enclosure and any expansion disk enclosures are
provided power from separate power distribution units
(PDUs) and a separate power infrastructure.
Connect the messaging system network Physical connections may include iLO/EMU, MAPI,
cables.
replication, and other management networks.
Power on the messaging system.
Power on the expansion disk enclosures, if any. Power on
the messaging system by pushing the power button on the
back of the chassis. Once the messaging system power is
on, the server blades should automatically power on within
a few minutes.
Configure the iLO and EMU network
ports.
See “Configure the EMU and iLO management processors”
in the HP E5000 Messaging System for Microsoft Exchange
Administrator Guide for instructions.
NOTE: There are passwords for the iLO and EMU. The
iLO Administrator password is located on the blade pull-out
tab in the front of the E5000. The EMU administrator
password is located on the tear-away label attached to the
top rear of the enclosure.
For iLO documentation, go to the following website and
select More iLO Documentation:
http://www.hp.com/go/iLO
Connect to the messaging system using See “Accessing the messaging system” in the HP E5000
either the remote console (iLO) or a
Messaging System for Microsoft Exchange Administrator
direct (KVM) connection.
Guide.
Running the E5000 Configuration Wizard (ECW)
Complete all steps on Server 1, including those for the Exchange Deployment Tool (EDT) before starting
on Server 2. Note that Server 2 should be powered up when configuring Server 1.
Running the E5000 Configuration Wizard (ECW)
7
IMPORTANT: Prior to running the ECW, disable local User Access Control (UAC). If UAC is enabled
as a policy on the domain controller for the domain you will be joining, put the E5000 servers in an
organizational unit that has blocked the application of the domain policy. You can apply a different
group policy that will not apply any UAC policies on the E5000 server.
Step
Description
Enter your locale information in the
Windows setup dialog and accept the
license terms.
The Windows setup completes in
approximately 15 minutes, and the HP
E5000 Configuration Wizard starts.
Enter and confirm the server
Administrator password.
The Administrator password is required
only the first time you run the wizard.
Press Next.
NOTE: You will set the new
Administrator password on both servers. NOTE: Password complexity rules will
Determine if there is an organization
be enforced.
convention that needs to be considered.
Complete each menu option in the
wizard to complete the minimum
required configuration.
After you enter your EMU Administrator
password, the wizard displays the status
of tasks it must complete before
continuing.
If the wizard finds errors, it reports them
and stops. Exit the wizard, fix the
errors, and restart the wizard from the
Program Files menu on your system.
When the Summary screen appears,
review the summary report.
Click Apply Settings to apply the
configuration settings or click Back to
modify them.
When you are ready to accept the
settings, click Finish to reboot the server.
If you do not want to reboot at this time,
clear the check box next to Reboot after
exiting the wizard.
IMPORTANT: The ECW joins the
server to your domain. Log in as the
domain administrator when it reboots
(not the local administrator).
After running the ECW, but before
running the EDT:
The servers do not have to be on the
same IP subnet as the domain
• Avoid simple errors by running some controllers. Networking must be
configured so that the E5000 servers
networking tests (such as ping or
can communicate with the domain
tracert) to confirm that networking
and name resolution are configured controller.
properly.
• Open Disk Management (in the
Server Manager, click Storage and
select Disk Management) to verify
that database volumes and the
recovery volume have been
formatted and mounted. If not, you
must do this manually or call HP
Support for assistance.
Review “Using the Exchange
Deployment Tool (EDT)” (page 9)
before you use the tool on Server 1.
Run the EDT on Server 1 to configure
Exchange 2010.
8
Running the E5000 Configuration Wizard (ECW)
Acknowledgment
Using the Exchange Deployment Tool (EDT)
Verify that you have the appropriate permissions, correct operating system version, and Active Directory
schema before proceeding to deploy Exchange 2010. The Prerequisite Checks screen runs a series
of tests to verify your configuration is set up correctly. If any test displays a Fail or Warning status,
you must fix the issue before you can continue.
Step
Description
Resource
Review and accept the end
user license agreement for
Exchange.
The wizard reminds you to obtain
your Exchange license if you have
not already done so.
Review and accept the end
user license agreement for
Microsoft Jetstress.
Accept the Microsoft Exchange
Jetstress 2010 end user license
agreement to proceed.
Optional but recommended:
Run Jetstress test.
Jetstress 2010 can verify the
For more information, see:
stability and performance of the
http://go.microsoft.com/?
disk subsystem prior to putting the linkid=9744747
Exchange server into production.
Select either the Normal or Quick
option.
Acknowledgment
Follow the screens of the EDT
to complete deployment.
Verifying the installation
Complete the following steps:
1. After exiting the EDT, you have the option to run the Exchange Best Practices Analyzer (ExBPA).
HP recommends running the analyzer after you have completed deployment on both servers.
2. Use the E5000 System Manager to monitor the messaging system. See the HP E5000 Messaging
System for Microsoft Exchange Administrator Guide for more information.
3. Launch the Exchange Management Console.
Migrating data and settings
If you are migrating from an existing Exchange 2003 or 2007 deployment, you may need a tool to
migrate your data and settings (mailboxes, settings, public folders) before deploying Exchange 2010.
Some available tools are:
•
Quest Recovery Manager for Exchange (good for migrating public folders and permissions)
•
Binary tools
•
Exchange has built-in tools for migrating mailboxes.
Recording network details
Use the following table to record the various network details you will need for installation.
MAPI Network
Subnet mask:
Default gateway:
DNS:
DNS2:
Server 1 IP address:
Using the Exchange Deployment Tool (EDT)
9
Server 2 IP address:
DAG IP address:
Replication Network (if changing from defaults)
Subnet mask:
Server 1 IP address:
Server 2 IP address:
Management Network
Subnet mask:
Default gateway:
DNS:
DNS2:
Server 1 IP address:
Server 2 IP address:
Database Information
Existing or new DAG?
DAG name:
Database naming prefix:
10
Recording network details
Download PDF

advertising
