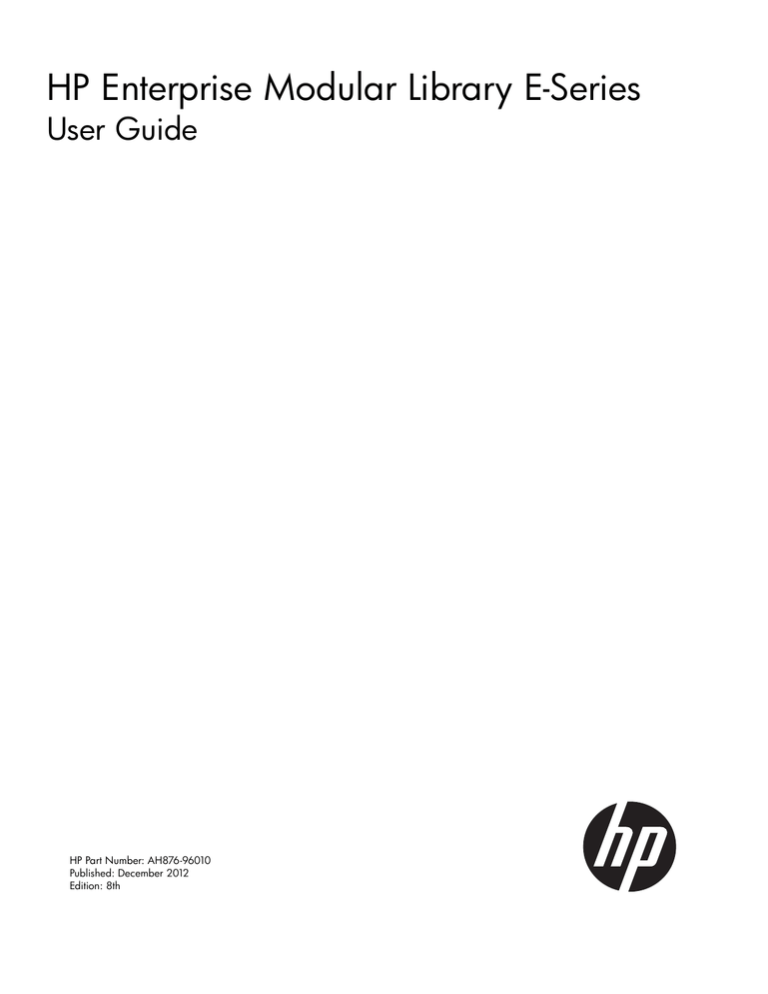

HP Enterprise Modular Library E-Series
User Guide
HP Part Number: AH876-96010
Published: December 2012
Edition: 8th
© Copyright 2005, 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions contained herein.
Contents
1 Library overview.........................................................................................7
Available configurations............................................................................................................7
Parts of the library..................................................................................................................10
Base module..........................................................................................................................11
Expansion modules.................................................................................................................13
Tape drive expansion module..............................................................................................14
Card cage expansion module.............................................................................................14
Capacity expansion module................................................................................................15
Controller cards......................................................................................................................15
Library robotics controller....................................................................................................16
Interface Manager card......................................................................................................16
Interface controller ............................................................................................................18
Ports on the e2400-FC 2Gb interface controller.................................................................18
Ports on the e2400-FC 4Gb interface controller.................................................................18
Changing the master controller (SIPP master).....................................................................19
Functional description..............................................................................................................19
Load ports and magazines......................................................................................................20
Tape drives............................................................................................................................21
Switch for the internal network..................................................................................................21
Operator control panel............................................................................................................22
Numbering............................................................................................................................22
Command View TL..................................................................................................................26
Library and Tape Tools............................................................................................................27
2 Using the library......................................................................................28
Powering on the library...........................................................................................................28
Powering off the library...........................................................................................................29
Center-door interlock...............................................................................................................29
Performing an inventory...........................................................................................................29
Attaching barcode labels to tape cartridges...............................................................................29
Setting the write-protect switch..................................................................................................31
Inserting tape cartridges into the load port.................................................................................31
Using the OCP.......................................................................................................................32
OCP icons........................................................................................................................32
Home screen.....................................................................................................................33
OCP tabs and status bar.....................................................................................................33
Timeouts...........................................................................................................................34
OCP functions...................................................................................................................35
Status screen.....................................................................................................................37
Configuration screen..........................................................................................................39
Operations screen..............................................................................................................40
Support screen..................................................................................................................42
Controls and indicators...........................................................................................................42
Library robotics controller....................................................................................................42
Interface Manager card......................................................................................................43
e2400-FC 2Gb interface controller.......................................................................................44
e2400-FC 4Gb interface controller.......................................................................................44
LTO tape drives..................................................................................................................45
Switch for the internal network.............................................................................................46
Library main power switch...................................................................................................47
Power supply in the base module or tape drive expansion module............................................48
Power supply in the card cage expansion module..................................................................48
Contents
3
Power distribution unit.........................................................................................................49
3 Troubleshooting and event reporting...........................................................50
Periodic and routine maintenance.............................................................................................50
Maintaining tape cartridges................................................................................................50
Cleaning Ultrium tape drives...............................................................................................51
Diagnostic support tools..........................................................................................................51
Troubleshooting......................................................................................................................51
Startup problems...............................................................................................................53
OCP problems...................................................................................................................55
Robotics problems..............................................................................................................55
Operating problems...........................................................................................................57
Tape drive problems...........................................................................................................57
Interface Manager card problems........................................................................................58
Interface controller problems...............................................................................................61
LED indicators...............................................................................................................61
Basic troubleshooting.....................................................................................................61
Examining FC port connection...................................................................................62
Examining the interface controller configuration............................................................62
Examining devices....................................................................................................62
Examining the host configuration................................................................................62
Examining HBA device driver information....................................................................62
Examining serial port configuration.............................................................................62
4 Removing and replacing parts....................................................................64
Interface Manager card...........................................................................................................64
Required tools...................................................................................................................64
Interface Manager card 342213-001 or 393531-001..............................................................64
Removing the Interface Manager card 342213-001 or 393531-001......................................64
Replacing the Interface Manager card 342213-001 or 393531-001......................................66
Interface Manager card 480240-001...................................................................................67
Removing the Interface Manager card480240-001............................................................67
Replacing the Interface Manager card 480240-001..........................................................68
Power supply in the base module or tape drive expansion module................................................69
Required tools...................................................................................................................69
Removing a power supply from the base module or tape drive expansion module......................69
Replacing a power supply in the base module or tape drive expansion module..........................70
Power supply in the card cage expansion module ......................................................................70
Required tools...................................................................................................................71
Removing a power supply from the card cage expansion module ............................................71
Replacing a power supply in the card cage expansion module ...............................................71
LTO2 or LTO3 tape drive..........................................................................................................72
Required tools...................................................................................................................72
Removing an LTO2 or LTO3 tape drive..................................................................................72
Replacing an LTO2 or LTO3 tape drive..................................................................................72
LTO4 and later tape drives.......................................................................................................73
Load port magazine...............................................................................................................75
Removing a load port magazine..........................................................................................75
Replacing a load port magazine..........................................................................................75
5 Moving the library....................................................................................77
Selecting an installation location...............................................................................................77
Preparing the library for a short move.......................................................................................77
Preparing the library for long-distance relocation........................................................................77
Repacking the library..............................................................................................................78
Preparing the library for operation............................................................................................79
4
Contents
6 Support and other resources......................................................................80
Contacting HP........................................................................................................................80
Related information.................................................................................................................80
Related documentation.......................................................................................................80
HP websites......................................................................................................................80
HP tape cartridges........................................................................................................81
Product warranties.........................................................................................................81
Subscription services......................................................................................................81
Typographic conventions.........................................................................................................81
Updated regulatory compliance and recycling notices.................................................................82
7 Documentation feedback...........................................................................83
A Specifications and characteristics...............................................................84
Library component specifications..............................................................................................84
Library environmental specifications..........................................................................................85
Acoustics...............................................................................................................................86
Ultrium tape drive comparisons.................................................................................................86
B Regulatory statements................................................................................87
Federal Communications Commission notice..............................................................................87
FCC rating label................................................................................................................87
Class A equipment........................................................................................................87
Class B equipment........................................................................................................87
Declaration of Conformity for products marked with the FCC logo, United States only.................87
Modification.....................................................................................................................88
Cables.............................................................................................................................88
Canadian notice (Avis Canadien).............................................................................................88
Class A equipment.............................................................................................................88
Class B equipment.............................................................................................................88
European Union notice............................................................................................................88
Japanese notices....................................................................................................................88
Japanese VCCI-A notice......................................................................................................88
Japanese VCCI-B notice......................................................................................................89
Japanese power cord statement...........................................................................................89
Korean notices.......................................................................................................................89
Class A equipment.............................................................................................................89
Class B equipment.............................................................................................................89
Taiwanese notices...................................................................................................................89
BSMI Class A notice...........................................................................................................89
Taiwan battery recycle statement..........................................................................................90
Turkish recycling notice............................................................................................................90
Laser compliance notices.........................................................................................................91
English laser notice............................................................................................................91
Dutch laser notice..............................................................................................................91
French laser notice.............................................................................................................91
German laser notice...........................................................................................................92
Italian laser notice..............................................................................................................92
Japanese laser notice.........................................................................................................92
Spanish laser notice...........................................................................................................93
Recycling notices....................................................................................................................93
English recycling notice......................................................................................................93
Bulgarian recycling notice...................................................................................................94
Czech recycling notice........................................................................................................94
Danish recycling notice.......................................................................................................94
Dutch recycling notice.........................................................................................................94
Contents
5
Estonian recycling notice.....................................................................................................95
Finnish recycling notice.......................................................................................................95
French recycling notice.......................................................................................................95
German recycling notice.....................................................................................................95
Greek recycling notice........................................................................................................96
Hungarian recycling notice.................................................................................................96
Italian recycling notice........................................................................................................96
Latvian recycling notice.......................................................................................................96
Lithuanian recycling notice..................................................................................................97
Polish recycling notice.........................................................................................................97
Portuguese recycling notice.................................................................................................97
Romanian recycling notice..................................................................................................97
Slovak recycling notice.......................................................................................................98
Spanish recycling notice.....................................................................................................98
Swedish recycling notice.....................................................................................................98
Battery replacement notices.....................................................................................................98
Dutch battery notice...........................................................................................................98
French battery notice..........................................................................................................99
German battery notice........................................................................................................99
Italian battery notice........................................................................................................100
Japanese battery notice....................................................................................................100
Spanish battery notice......................................................................................................101
C Ordering HP tape cartridges and barcode label packs...............................102
Where to buy tape cartridges and barcode labels....................................................................102
Part numbers for tape cartridges and barcode labels.................................................................102
D Installing a redundant PDU......................................................................104
PDU components..................................................................................................................104
Leakage current....................................................................................................................104
Redundancy.........................................................................................................................104
Power rating........................................................................................................................104
Placement of redundant PDU components................................................................................105
Installation of redundant PDU components...............................................................................105
Glossary..................................................................................................106
Index.......................................................................................................109
6
Contents
1 Library overview
The HP Enterprise Modular Library (EML) E-Series Tape Libraries provide performance, reliability
and investment protection for your data protection needs. With up to 16 HP LTO tape drives, the
EML E-Series boasts native throughput of over 6.9 TB/hr. Based on the HP Extended Tape Library
Architecture (ETLA), controllers help to ensure that rogue I/O requests do not interrupt the backup
or recovery job in progress. Additionally, the hardware itself is very reliable, designed for 24x7
environments. Investment protection is achieved through the addition of expansion modules, the
EML E-Series library scales within the library footprint to 16 drives and 442 slots for maximum
performance, or 8 drives and 505 slots for maximum capacity.
The EML E-Series Tape Libraries contain the following features:
•
Scalable capacity from 71 slots to 505 slots
•
Scalable performance up to 16 Ultrium tape drives with 442 slots
•
Interface controllers protect tape drives from SAN events
•
Remote management via Command View for Tape Libraries software or the command line
interface
•
Easy to use touch screen graphical user interface
•
User configurable load ports with removable magazines
•
Certified under the HP Enterprise Backup Solution (EBS)
•
Factory and field rack configurations
•
2,000,000 mean swaps between failure
Available configurations
You can order the library in the following configurations.
Table 1 EML configurations
Configuration
Illustration Height in Maximum
“U”
slots
available
Configurable Configurable Number of
load port
reserved
possible
slots (in
slots
tape drives
multiples of
5)
71e1 base modulefield racked
12
71
0–5
0
1–4
103e1 base modulefactory
racked
12
103
0–5
0–9
1–4
Available configurations
7
Table 1 EML configurations (continued)
Configuration
8
Illustration Height in Maximum
“U”
slots
available
Configurable Configurable Number of
load port
reserved
possible
slots (in
slots
tape drives
multiples of
5)
245e1 base module1 tape drive
expansion module1 card cage
expansion modulefactory racked
24
245
0–15
0–9
1–8
348e1 base module2 tape drive
expansion modules1 card cage
expansion modulefactory racked
32
348
0–25
0–9
1–12
375e1 base module1 tape drive
expansion module1 card cage
expansion module1 capacity
expansion modulefactory racked
32
375
0–25
0–9
1–8
442e1 base module3 tape drive
expansion modules1 card cage
expansion modulefactory racked
40
442
0–35
0–9
1–16
Library overview
Table 1 EML configurations (continued)
Configuration
Illustration Height in Maximum
“U”
slots
available
Configurable Configurable Number of
load port
reserved
possible
slots (in
slots
tape drives
multiples of
5)
469e1 base module2 tape drive
expansion modules1 card cage
expansion module1 capacity
expansion modulefactory racked
40
469
0–35
0–9
1–12
505e1 base module1 tape drive
expansion module1 card cage
expansion module2 capacity
expansion modulesfactory racked
40
505
0–35
0–9
1–8
Available configurations
9
Parts of the library
The following figures show the parts of a 469e library. See (page 7).
Figure 1 Front view of the library
1. Reserved space. If your library contains LTO4 or later
tape drives, this space contains the switch for the internal
network.
2. Base module
3. Tape drive expansion module
4. Card cage expansion module
5. Capacity expansion module
6. Robotics unit
7. Viewing windows
8. Operator control panel (OCP)
9. 5-Cartridge load port
10. 4U blank covers
11. 10-Cartridge load ports
10
Library overview
Figure 2 Rear view of the library
1. Reserved space
2. Switch for the internal network (in libraries with LTO4 or
later tape drives only)
3. Base module
4. Tape drive expansion module
5. Card cage expansion module
6. Capacity expansion module
7. Main power switch
8. Base module card cage (e2400-FC 2Gb interface
controller shown)
9. Tape drives (LTO3 tape drives shown)
10. Cable management features
11. Fans
12. Power supplies
13. Power strips
14. Power distribution unit (PDU)
Base module
The 12U base module (see (page 10) and (page 11)) resides at the top of the library below the
2U reserved space or the switch for the internal network.
In the EML 71e, the base module contains a total of 71 LTO slots. Five slots within a load port are
configurable as either import/export slots or storage slots. No reserved slots are available.
In all other EML configurations, the base module contains a total of 103 LTO slots. Five slots are
configurable as either import/export slots or storage slots within a load port through the use of a
removable magazine. You can configure 9 slots as reserved. A common use for reserved slots is
for holding cleaning cartridges. The number of usable permanent slots depends on whether it is
the bottom module in the library because the library floor is always attached to the bottom module
Base module
11
and the floor limits the distance that the robot can travel. If the library floor is attached to the base
module, the bottom two rows (containing 16 slots) cannot be used.
The robotics unit is located at the top of the base module. When fully retracted (or parked), the
robot is fully contained within a 2U space. For safety reasons, the robot is parked before the center
door can be opened.
Within the robot, a lift table assembly contains a motor, pulleys, and cables to move the table up
and down to a specific level in the library. The picker assembly moves front and back, and
side-to-side along the table. A barcode scanner, attached to the bottom of the picker assembly,
scans targets on rack components for alignment, as well as barcode labels on tape cartridges, if
they are present. The picker has fingers that remove and insert tape cartridges among storage
slots, tape drives, or load ports.
Figure 3 Robotics unit
1. Robotics unit
2. Lift-flex retraction handle
3. Ratchet tool
4. Robot picker
5. Lift suspension cable
6. Table assembly
7. Lift pole
8. Lift-flex cable
The base module has two windows on the front for viewing the robotic motion inside the library.
A load port door is located to the right front (see (page 10)) where a 5-cartridge magazine can
be loaded with tape cartridges for insertion into or removal from the library. The load ports are
mechanical devices that enable you to import and export tape cartridges to and from the library
through removable magazines, or act as additional library storage slots. These two functions for
a load port cannot be mixed; you must either designate an entire load port to be import/export
slots or storage slots. The base module contains a load port capable of using one 5-cartridge
magazine. An operator control panel (OCP) is located at the bottom front of the base module.
The base module contains an autoranging power supply (a redundant power supply is optional),
card cage, cable management features, and space for mounting up to four LTO-technology tape
drives on the back.
12
Library overview
The card cage in the base module (see (page 13)) provides six cPCI slots for the following:
•
Library robotics controller (see (page 16)) A single slot, 6U-wide cPCI board having Ethernet
ports and an RS-232 port. One Ethernet port connects this controller to the Interface Manager
card.
•
Interface Manager card (see (page 16)) A single slot, 4U-wide cPCI board having six Ethernet
ports. This board contains 128MB of dynamic random access memory (DRAM) plus a 256MB
CompactFlash memory card, both in their own sockets. A 2U-wide adapter panel next to the
4U-wide Interface Manager card enables it to fit in the lowest 6U-wide card cage slot.
•
Interface controller A cPCI board, having two FC ports for connecting to the SAN, along with
four FC ports for connecting up to four HP LTO2 or LTO3 tape drives. LTO4 and later tape
drives do not connect to the interface controller; instead, they connect directly to the SAN.
The interface controller is available in two speeds. The e2400-FC 2Gb interface controller
has an FC speed of 2 Gbps, is 6U wide, and uses a single slot (see (page 18)). The e2400-FC
4Gb interface controller has an FC speed of 4 Gbps, is 4U wide, and uses two slots (see
(page 18)).
Figure 4 Base module card cage (LTO3 tape drives shown)
1. Base module card cage
2. Interface Manager card
3. Interface controller (e2400-FC 2Gb interface controller 4. Library robotics controller
shown)
5. Adapter panel
The cable management feature is a spool, mounted near the tape drives, that enables LAN and
FC cables to be dressed and routed away from hot plug or hot swap components.
Expansion modules
Three expansion modules are available to increase library capacity beyond that provided by the
base module. These expansions modules are:
•
Tape drive expansion module
•
Card cage expansion module
•
Capacity expansion module
IMPORTANT: If you are adding expansion modules to an EML 71e, you must purchase a capacity
upgrade license for Command View TL (part number AH063A). This license upgrades your base
module from 71 slots to 103 slots. You must also make sure that your rack has side panels and
doors installed to comply with regulatory requirements.
Expansion modules
13
Tape drive expansion module
The tape drive expansion module is an 8U chassis containing 94 LTO slots (84 permanent and
10 configurable). The number of usable permanent slots depends on whether it is the bottom module
in the library because the library floor is always attached to the bottom module and the floor limits
the distance that the robot can travel. If the library floor is attached to the tape drive expansion
module, the bottom row (containing seven slots) cannot be used.
CAUTION:
Never operate the library with the floor removed. The robot can be damaged.
The tape drive expansion module has three windows on the front for viewing the robotic motion
inside the library. To the right is a 10-cartridge configurable load port that holds two 5-cartridge
magazines.
On the back, the module contains one primary power supply with a slot provided for another
optional redundant power supply. Up to four Ultrium tape drives can be installed in the tape drive
expansion module. Cable management features are provided for cable routing and dressing.
Figure 5 Tape drive expansion module
1. Viewing windows
2. 10-Cartridge load port
3. Power supplies (optional redundant power supply shown) 4. Tape drives (LTO3 tape drives shown)
5. Cable management features
Card cage expansion module
The card cage expansion module is a 4U chassis that contains 48 permanent LTO slots and space
for additional interface controllers. This module must be located directly below the top 8U tape
drive expansion module. The number of usable permanent slots depends on whether it is the bottom
module in the library because the library floor is always attached to the bottom module and the
floor limits the distance that the robot can travel. If the library floor is attached to the card cage
expansion module, the last two rows (containing 16 slots) cannot be used.
CAUTION:
Never operate the library with the floor removed. The robot can be damaged.
The front of the card cage expansion module has one window for viewing robotic motion inside
the library. On the back, six PCI card slots are available for additional interface controllers to
expand the library tape drive capacity. One interface controller is added for every four additional
LTO2 or LTO3 tape drives. LTO4 and later tape drives do not connect to an interface controller;
instead, they connect directly to the SAN. Two power supplies are located at the bottom of the
card cage, and two cooling fans are on the right.
14
Library overview
Figure 6 Card cage expansion module
1. Viewing window
2. 4U blank cover
3. Card slots
4. Power supplies
5. Fans
Capacity expansion module
The capacity expansion module is an 8U chassis containing 120 LTO slots (110 permanent and
10 configurable). If the library floor is attached to the capacity expansion module, the bottom row
containing 10 slots is blocked and cannot be used.
CAUTION:
Never operate the library with the floor removed. The robot can be damaged.
If the capacity expansion module is placed below the base module or a tape drive expansion
module, six slots at the top of the back wall cannot be used because the tape drives in the module
above it prevent the robot from reaching these slots.
On the front of the capacity expansion module are three windows for viewing the robotic motion
inside the library. To the right is a 10-cartridge configurable load port that holds two 5-cartridge
magazines.
On the back of the capacity expansion module are cable management features for cable routing
and dressing.
Figure 7 Capacity expansion module
1. Viewing windows
2. 10-Cartridge load port
3. Cable management features
Controller cards
This section explains the function of the three major cards that control the library. These cards are:
•
Library robotics controller
•
Interface Manager card
•
Interface controller
Controller cards
15
Library robotics controller
The library robotics controller contains firmware to control the robot, communicate with the Interface
Manager card, manage the library servo and vision control, and monitor the door and load port
sensor status.
Robot commands are sent from hosts in the SAN to an interface controller, which directs them over
an internal Ethernet network to the library robotics controller. The library robotics controller translates
these commands into movements to be performed by the robot.
Figure 8 Ports on the library robotics controller
1. Private Ethernet port (not used)
2. Public Ethernet port (connection to Interface Manager
card)
3. Reserved port (not used)
4. CLI port (RS-232–HP services only)
Interface Manager card
The Interface Manager card is an HP proprietary management card designed to consolidate and
simplify the management of multiple interface controllers installed in the library. It also provides
SAN-related diagnostics and management for library components, including the interface controllers,
tape drives, and robotics. The Interface Manager card, in conjunction with HP Command View TL
software, provides remote management of the library by using a serial, Telnet, or Web-based
graphical user interface (GUI).
Figure 9 Ports on the Interface Manager card 342213–001 or 393531–001
1. Cascade Ethernet port (connection to library robotics
controller)
2. Private Ethernet ports to interface controllers
3. Network Ethernet port (to management station)
4. Serial port
5. Auxiliary RJ-11 serial connector (not used)
Figure 10 Ports on the Interface Manager card 480240-001
1. Cascade Ethernet port (connection to library robotics
controller)
2. Private Ethernet ports to interface controllers
3. Network Ethernet port (to management station)
4. Serial port
5. USB port
16
Library overview
The Interface Manager card communicates with the management station over the LAN. The
management station is a Microsoft Windows-based PC (server) that hosts the Command View TL
software. Ideally, the management station should have a static IP address, and be dedicated for
use with the Interface Manager card and Command View TL software.
IP connections on the EML can be IPv4 or IPv6 format. The library can be configured to use one
or both formats, but can not operate if neither protocol is enabled. View the IP connections on the
Identity Screen (from the Home screen select Status, then Identity Screen).
Figure 11 Viewing IP connections from the Identity Screen
Enable or disable the protocols from the Change Network Settings screen, then view and save the
settings from that same screen.
To view and change the settings for either IPv4 or IPv6:
1. From the Home screen, select Configuration.
2. From the Library Configuration menu select Change Network Settings.
Figure 12 Viewing the Change Network Settings screen
3.
4.
To enable or disable IPv4 or IPv6, touch the appropriate Enable or Disable button.
To view or change the settings, touch the appropriate Settings button.
NOTE:
Some settings are read-only.
Controller cards
17
5.
To save any changes to the network settings, select the Save button at the bottom, right of the
OCP.
Any client machine on the LAN can communicate with the Interface Manager card either through
the GUI or through a command line interface (CLI). At a higher level, multiple libraries, each
containing an Interface Manager card, can be connected to a single management station. Each
Interface Manager card can communicate with only one management station, but the management
station can communicate with multiple Interface Manager cards.
After being configured, the Interface Manager card is used to configure the interface controllers
based on knowledge of the library and SAN. As robotics commands are received from the interface
controllers, the Interface Manager card acts as a switch to relay these commands to the library
robotics controller. The Interface Manager card contains on-board Flash memory to provide a
persistent history of the library and storage network health.
Interface controller
The interface controller is an HP proprietary card that provides FC connectivity for LTO2 and LTO3
tape drives and robotics in the SAN. Commands, data, and status information are transferred to
and from this controller, from hosts, the robot, and the LTO2 and LTO3 tape drives. One interface
controller can manage up to four LTO2 or LTO3 tape drives.
LTO4 and later tape drives do not connect to an interface controller; instead, they connect directly
to the SAN. Libraries that contain only LTO4 or later tape drives still need one interface controller
which is used to direct commands to the robot. The interface controller is available in two speeds:
2 Gbps and 4 Gbps.
Ports on the e2400-FC 2Gb interface controller
Figure 13 Ports on the e2400-FC 2Gb interface controller
1. FC ports to LTO2 and LTO3 tape drives
2. FC ports to hosts
3. Ethernet port (connection to Interface Manager card)
4. Serial port
Ports on the e2400-FC 4Gb interface controller
Figure 14 Ports on the e2400-FC 4Gb interface controller
18
1. FC ports to LTO2 and LTO3 tape drives
2. FC ports to hosts
3. Ethernet port (connection to Interface Manager card)
4. Serial port
Library overview
Changing the master controller (SIPP master)
One interface controller is assigned by the Interface Manager card as the master controller the
SIPP master. Only the SIPP master is designated to send commands to the library robotics controller.
If multiple interface controllers are present, Command View TL software, through the Cabling View,
can be used to determine which one is acting as the SIPP master. Changing the SIPP master requires
a service-level password and command using the CLI (Telnet or serial). The commands are:
SERVICE L&TTPASSWORD
SET IPCONNECTION INTERFACE MASTER X
, if the IM firmware is i182 or lower
SERVICE L&TTPASSWORD
SET IPCONNECTION MASTER X
, if the IM firmware is I200 or higher
where L&TTPASSWORD is the Library and Tape Tools (L&TT) password and X is the interface
controller number. Obtain the password from the web site L&TT web siteby calling HP Support to
get a 2–day ltt service password. Find the interface controller number by using the SHOW
INTERFACE INFO ALL CLI command.
If the master interface controller (designated SIPP master) is replaced, the Hardware Replacement
wizard sets up the SIPP master. If the master interface controller (designated SIPP master) is moved
to another interface controller in the library, perform the following manual service steps:
1. Remove all partitions.
2. Remove all host maps.
3. Log in to the CLI and obtain service-level access.
4. Use the SET IPCONNECTION MASTER X command to make a particular interface controller
the SIPP master. Currently, the Interface Manager card does not automatically failover an
interface controller, even if the previous SIPP master is missing.
5. Reconfigure maps and partitions.
Functional description
The library receives commands and data throughout the SAN from hosts running applications from
approved independent software vendors (ISVs). Host bus adapters (HBAs) in servers send this traffic
over FC links, usually through FC switches. For LTO4 and later tape drives, the traffic goes directly
to the tape drive; but for LTO2 and LTO3 tape drives, the traffic first goes through an interface
controller. One interface controller can connect up to four LTO2 or LTO3 tape drives. For all
libraries, regardless of whether they contain LTO2 and LTO3 or LTO4 and later tape drives, at
least one interface controller is required to pass tape cartridge changer (robotics) commands to
the Interface Manager card over a private network. The Interface Manager card passes these SCSI
commands on to the library robotics controller over the private network, taking advantage of the
error handling and retry capabilities of TCP/IP.
Functional description
19
Figure 15 Library network
1. Hosts
2. FC Switch (SAN)
3. Interface controller
4. Interface Manager card
5. LTO2 or LTO3 tape drives
6. Library robotics controller
7. Robot
8. OCP
9. Serial connection
10. Telnet connection
11. Management station
12. Library boundary
13. LTO4 and later tape drives
14. Switch for the internal network
In addition to receiving traffic from the interface controllers, the Interface Manager card receives
command and diagnostic requests over an Ethernet connection from three other possible sources.
The majority of requests come from a management station where Command View TL software
resides. The other two sources are through a Telnet session or a serial interface. The Interface
Manager card works in the background to manage library functions. It configures the interface
controllers to direct commands from host systems to the appropriate LTO2 or LTO3 tape drive or
to the library robotics controller.
The library robotics controller receives commands over an internal private network and from the
OCP. It manages robotics movement, monitors the door and load port sensor status, and stores
library information in volatile memory.
Load ports and magazines
The load ports are mechanical devices on the front of the library that enable you to import and
export tape cartridges to and from the library through removable magazines, or act as additional
library storage slots. These two functions for a load port cannot be mixed; you must either designate
an entire load port to be import/export slots or storage slots. The base module contains a load
port capable of using one 5-cartridge magazine. The 8U expansion modules contain load ports
capable of using two 5-cartridge magazines each.
20
Library overview
Figure 16 Library load ports on 40U configuration
Tape drives
The Ultrium tape drive is a high performance streaming tape drive that uses LTO technology. The
library can use Ultrium 460 (LTO 2), Ultrium 960 (LTO 3), Ultrium 1840 (LTO4), Ultrium 3280
(LTO5) and Ultrium 6650 (LTO6) tape drives.
The Ultrium 960 and later include support for both rewriteable and Write-Once, Read-Many
(WORM) tape cartridges. WORM tape cartridges provide an enhanced level of data security
against alteration of data because you cannot erase or overwrite them. To check whether your
backup or archive software application supports WORM tape cartridges, see the following web
site: http://www.hp.com/go/connect.
For optimum performance, always use a tape cartridge that matches the specifications of your
tape drive. You can find comparisons between the Ultrium tape drives in (page 86).
Tape cartridges and cleaning cartridges are specifically formatted for use with Ultrium drives. To
order Ultrium tape cartridges, see “Ordering HP tape cartridges and barcode label packs” (page
102).
Switch for the internal network
CAUTION: Do not connect this switch to your local LAN. It is for internal library use only.
Connecting this switch to the LAN could cause library components to perform incorrectly or report
failures.
The 24-port Ethernet switch provides a private management network to connect the Interface
Manager card to the LTO4 or later tape drives. You must install one switch in each library that
contains LTO4 or later tape drives.
Tape drives
21
Figure 17 Ports on the switch for the internal network
1. 10/100Base-TX RJ-45 ports
Operator control panel
The OCP displays library status information and enables you to access the library menus with a
touch screen. Use these menus to view and change the library settings, move tape cartridges,
obtain status information, or run diagnostic tests. Functions provided by the OCP are:
•
Robotic and tape drive firmware revision reporting
•
Library configuration
•
Library and tape drive serial number reporting
•
Critical component status report
•
Critical component failure notification
•
Ability to move tapes to and from any location
•
Ability to configure barcode label length and justification reporting to the front panel and to
the host
•
Access to error information
•
Adjust screen contrast
Figure 18 Location of the OCP
Numbering
All of the tape cartridge slots and tape drives in a library are numbered with a coordinate system.
You might see these numbers in your application software or in error or diagnostic messages. Error
22
Library overview
messages often include a slot location in the format MRC x,y,z. This identifies a module (x), row
(y), and column (z) location.
Each module has a different number of available slots, but a common numbering scheme for
identifying the slot location.
The library numbers the LTO slots using the following scheme:
•
In general, the library numbers the slots one module at a time, starting with the top module.
For slot numbering purposes, the 12U base module is considered to be two modules: an 8U
base module and a 4U base module.
•
Within each module, column numbering starts with 1 at the left column as viewed from the
front of the library.
•
Within each module, row numbering starts with 1 at the top row.
•
Any reserved slots, located in the first column of the 8U base module, and taking up as many
as nine slots, are not included in the numbering scheme. A common use for reserved slots is
for holding cleaning cartridges.
NOTE:
•
Reserved slots are not available on the EML 71e.
If the load port slots are configured as import/export slots, they are skipped and not counted
in the numbering of storage slots. If the load port slots are instead configured as storage slots,
they are counted in the numbering scheme.
NOTE: Reconfiguring the load port slots for either import/export or storage changes the slot
numbering in any lower modules the next time you perform an inventory.
•
Some slots are not available in the bottom module in the library because the floor limits the
distance that the robot can travel.
CAUTION:
Never operate the library with the floor removed. The robot can be damaged.
The slot numbering for various modules are shown on the following pages:
•
Base module of the EML 71e ((page 24))
•
Base module of all other configurations ((page 25))
•
Tape drive expansion module ((page 25))
•
Card cage expansion module ((page 26))
•
Capacity expansion module ((page 26))
Numbering
23
Figure 19 Slot numbering in the base module for the EML 71e
24
1. Robot park zone
2. Array targets for the barcode scanner
3. Slots available for data cartridges
4. Software demarcation between upper and lower modules
for slot counting purposes
5. Tape drives
6. Expansion identification label
7. Row numbering
8. Column numbering
9. Load port slots
10. 8U base module
11. 4U base module
12. Tape drive numbering
Library overview
Figure 20 Slot numbering in the base module for all other EML configurations
1. Robot park zone
2. Array targets for the barcode scanner
3. Reserved slots-can be used for cleaning cartridges or
data cartridges
4. Software demarcation between upper and lower modules
for slot counting purposes
5. Slots available for data cartridges
6. Slots unavailable for use when the library floor is installed
in this module
7. Tape drives
8. Expansion identification label
9. Row numbering
10. Column numbering
11. Load port slots
12. 8U base module
13. 4U base module
14. Tape drive numbering
Figure 21 Slot numbering in the tape drive expansion module
1. Slots available for data cartridges
2. Array targets
3. Slots unavailable for use when the library floor is installed 4. Tape drive numbering
in this module
5. Tape drives
6. Expansion identification label
7. Row numbering
8. Column numbering
9. Load port slots
Numbering
25
Figure 22 Slot numbering in the card cage expansion module
1. Slots available for data cartridges
2. Array targets
3. Slots unavailable for use when the library floor is installed 4. Expansion identification label
in this module
5. Row numbering
6. Column numbering
Figure 23 Slot numbering in the capacity expansion module
1. Slots available for data cartridges
2. Array targets
3. Slots unavailable for use when the library floor is installed 4. Slots unavailable for use when a base module or tape
in this module
drive expansion module is above this module
5. Row numbering
6. Column numbering
7. Load port slots
Command View TL
Command View TL provides a browser-based GUI for remote management and monitoring of the
Interface Manager card through a LAN. Command View TL is the preferred method for controlling
the Interface Manager card. In conjunction with the Interface Manager card, Command View TL
provides the following:
•
Configuration and management of the Interface Manager card and FC interface controllers
•
Management of the entire library system
•
Hardware inventory and identity information
•
Status information for connected hardware
•
Error reporting and comprehensive error logs
•
Firmware management
•
License management
Command View TL is installed on a management station and communicates with the Interface
Manager card through the LAN. The management station processes information from the Interface
Manager card and serves up the Command View TL GUI. You can access Command View TL from
26
Library overview
the management station directly, or through any client on the LAN using a browser-based GUI.
Multiple Command View TL clients can be simultaneously open across the LAN, and multiple
libraries can be managed through the Command View TL software.
See the Command View TL documentation at http://www.hp.com/support/cvtl for prerequisites,
installation, and operating instructions.
IMPORTANT: If you are upgrading an EML 71e, you must purchase a capacity upgrade license
for Command View TL (part number AH063A). This license upgrades your base module from 71
slots to 103 slots.
Library and Tape Tools
Library and Tape Tools (L&TT) is a collection of storage hardware management and diagnostic
tools assembled into a single, convenient program. L&TT offers a GUI or command screen interface
(CSI), enabling you to perform the following functions with the library:
•
Installation check Guides you through a basic installation check of the library. The software
helps you choose an appropriate HBA, making sure that the device is detected by the system,
and verifying key device functionality.
•
Device identification Identifies the storage products connected to the system, along with key
information on product configuration and status.
•
Troubleshooting tests Provides various tests to verify product functionality or to isolate product
issues. Tests include device self-tests, read/write tests on tape drives, exerciser tests for
autoloaders and libraries, and specific device utilities.
•
Support ticket generation If you experience a problem with a storage product, L&TT can
generate a support ticket that includes essential information for troubleshooting the problem.
•
Automatic notification of Web updates If a connection to the Internet is present and Web
updates are enabled in the tool preferences, L&TT automatically informs you of the following
updates, if available, each time the program is started:
◦
New versions of L&TT
◦
New firmware files for connected devices
◦
New device-specific functionality (such as new or updated tests) for connected devices
For more information on L&TT, go to the web site http://www.hp.com/support/tapetools.
Library and Tape Tools
27
2 Using the library
This chapter describes operating procedures for the library.
Powering on the library
1.
Close the center door of the library and turn the center-door knob one-quarter turn clockwise
to lock it.
Figure 24 Closing the center door
2.
At the back of the library, press the library main power switch to the I (On) position.
Figure 25 Library main power switch control
1. Library main power switch
NOTE: The following step applies only when the library is powered on for the first time or
when a new interface controller is installed. This step is necessary to put the interface controller
into managed mode.
28
Using the library
3.
If this is the first time the library has been powered on after delivery, or if a new interface
controller was installed, configure the interface controller so that it is recognized by the Interface
Manager card. Do one of the following:
•
If your library has an e2400-FC 2Gb interface controller, wait approximately two minutes,
and turn off the main power switch. Wait several seconds and then turn on the power
switch again.
•
If your library has an e2400-FC 4Gb interface controller, reset the interface controller
twice. To reset the interface controller, insert a paper clip into the reset hole. After resetting
the interface controller, wait three minutes, then reset it again.
NOTE: A 71e library requires approximately 15 minutes to initialize. All other library models
require up to an hour to initialize and do an inventory. Nothing appears on the OCP for the
first few minutes of this process.
Powering off the library
1.
2.
3.
Use your backup software to stop all library activity and make sure the picker is empty.
On the OCP, select the Operations→Unlock Door command to park the robot.
After the robot is parked, press the main power switch ((page 28)) to the O (Off) position.
Center-door interlock
The center door on the front of the library cannot be opened until a password-protected command
to unlock the center door is selected on the OCP. This command parks the robot, and actuates a
lever that enables you to open the center door. Even if the unit is powered off, the robot must be
parked before you can open the center door. If the robot is not parked prior to removing power,
you cannot readily open the center door.
Performing an inventory
The library does an inventory at three different times:
•
When you turn on the power to the library
•
When you reboot the library (Operations→Reboot Library)
•
When you open and close the center door of the library (Operations→Unlock Door )
During the inventory:
•
The library robotics controller applies voltage to the motors (picker, reach, wrist, and lift drive)
to obtain range of motion for each motor.
•
The range of motion of the robot is tested.
•
The targets and labels are read for calibration purposes.
•
The barcode scanner looks at each slot to see if it contains a tape. The library robotics controller
stores this information. You must configure the library to use or not use barcode labels
(Configuration→Library Configuration→Configure Inventory Mode). If barcode labels are not
used, the inventory time may take as long as an hour, and a tape cartridge in a slot is only
known to the library as being full.
Attaching barcode labels to tape cartridges
Attaching barcode labels enables the library and application software to identify the tape cartridge
quickly, thereby speeding up inventory time. When a barcode label is not used, the library simply
designates that tape slot as being full. Even though the library functions without barcode labels,
Powering off the library
29
HP recommends that you use them on your tape cartridges. Your host software can use barcode
labels to track the following information:
•
Date of format or initialization
•
Media pool of tape
•
Data residing on the tape
•
Age of the backup
•
Errors encountered while using the tape (to determine if the tape is faulty)
CAUTION: Handle tape cartridges with care. Do not drop or mishandle them, or place them
near sources of electromagnetic interference. Rough handling can damage the tape cartridge
making it unusable and potentially hazardous to the tape drives.
CAUTION: The misuse of barcode technology can result in backup and restore failures. To ensure
that your barcodes meet HP's quality standards, always purchase them from an approved supplier
and never print barcode labels yourself. For more information, see the order form provided with
the library, as well as the Barcode Label Requirements, Compatibility and Usage white paper
available from http://www.hp.com/support.
NOTE: For information on ordering tape cartridges and barcode labels, see “Ordering HP tape
cartridges and barcode label packs” (page 102).
Ultrium tape cartridges have a recessed area located on the face of the tape cartridge next to the
write-protect switch. Use this area for attaching the adhesive-backed barcode label. Only apply
labels onto the tape cartridge in this designated area. For successful operation of your tape library,
place the barcode label entirely within the recessed area, making sure that no part of the label
extends outside.
Figure 26 Proper barcode label placement
Position the barcode label as shown in the following figure, with the alphanumeric portion facing
the hub side of the tape cartridge (LTO2) or numeric portion away from the hub (LTO3 and later).
Never apply multiple labels onto a tape cartridge, because extra labels can cause the tape cartridge
to jam inside a tape drive.
Always use the proper barcode labels for your tape drive technology. An L2 (Ultrium 460), L3
(Ultrium 960), L4 (Ultrium 1840), or L5 (Ultrium 3280), L6 (Ultrium 6650) identifier is located at
the end of the 8-character Ultrium barcode labels on data cartridges. The universal LTO cleaning
cartridges have a CLN and L1 identifier on the label.
30
Using the library
Figure 27 Attaching an Ultrium barcode label
Setting the write-protect switch
Each tape cartridge has a sliding write-protect switch. This switch determines whether new data
can be written to the tape cartridge (write-enabled) or whether data on the tape cartridge is
protected from being erased or overwritten (write-protected).
By moving the switch to the left, the tape cartridge is write-enabled. By moving the switch to the
right, the tape cartridge is write-protected.
Figure 28 Write-protecting Ultrium tape cartridges
1. Write-enabled
2. Write-protected
3. Write-protect switch
4. Barcode label
5. Insertion arrow
Inserting tape cartridges into the load port
Inserting tapes through the center door of the library should only be done when bulk loading. At
all other times, load tape cartridges into the library through the load port. Not using the load port
stops all robotic activity and tape movement, and requires a complete library inventory before
operations can resume. When using the load port, tape cartridges are inserted into 5-cartridge
magazines, which are placed into either the 5-cartridge load port or a 10-cartridge load port. To
use a load port:
1. Attach a barcode label to each tape cartridge (see (page 29)).
2. Write-protect or write-enable each tape cartridge as appropriate (see (page 31)).
3. On the OCP, select Operations→Unlock Load Ports. If the load ports are password protected
and you are prompted to enter the password, use the keypad that appears on the OCP to
enter the password, then press the Enter key on the touchscreen. All load port doors open.
Setting the write-protect switch
31
4.
Grab the handle on the magazine and pull it out of the library.
CAUTION: Guard plates prevent access to the inside of the library when a load port
magazine is removed. These doors will move back out of the way when a magazine is
reinserted. You should not attempt to otherwise move these guards, nor gain access to the
library through the load ports.
5.
Insert the tape cartridges into any available slots in the magazine.
CAUTION: Excessive force when inserting a magazine can cause a tape cartridge to unseat
and extend into the path of the robot.
6.
7.
8.
Align the magazine with the track on the load port door and gently slide the magazine through
the spring door and fully into the load port.
Close the load port door.
After all load port doors are closed, the library does an inventory of the load ports.
Figure 29 Inserting a magazine into the load port
Using the OCP
The OCP is an LCD screen located on the front of the library that is operated by touch. The icons,
text, and tabs on the OCP enable you to obtain information about the library, execute library
commands, and test library functions.
OCP icons
The following table displays icons that can appear on the OCP.
Table 2 OCP icons
Icon
Description
Critical error—A component failure has made the library inoperable.
Warning—A component failure has degraded library activity, but the library
is still operable.
Ready—The library is online and ready for operation.
Thumbtack out—The screen is eligible to be selected for display after a period
of inactivity.
32
Using the library
Table 2 OCP icons (continued)
Icon
Description
Thumbtack in—The screen has been selected for display after a period of
inactivity. Only one screen at a time can be thumbtacked.
Item selection—The item can be selected from a menu list.
Password required—A password is required to access this feature.
Password entered—The correct password has been entered. The command is
available.
Home screen
The first screen that appears after library initialization is the Home screen. After the library status
is determined (ready, warning, or error), that status appears on the Home screen, and you can
touch the screen to access other functional and operational screens.
Figure 30 Home screen
OCP tabs and status bar
After touching the Home screen, the menu screen appears. All menu screens contain a status bar
to the left of an HP logo, two rows of tabs, and an area for detailed screen information in the
center.
Using the OCP
33
Figure 31 Menu screen
The status bar is a quick indicator of library health. The bar is green when the library is functioning
normally, yellow during a warning condition, and red during an error condition. Touching the
status bar takes you to the Health Summary screen.
The detailed functions of the four top-level menu tabs (Status, Configuration, Operations, and
Support) are discussed later. Selecting any of these four tabs takes you to menu items under that
screen category.
Five navigation tabs can be displayed at the bottom of the screen. The thumbtacked (in or out) tab
was discussed in (page 33). The remaining tabs are:
•
Help Displays help text for features appearing on that screen.
•
Page Up Scrolls text to a previous page when text is longer than a page in size.
•
Page Down Scrolls text to the following page when text is longer than a page in size.
•
Back Moves you one level up in the menu tree. All screens except the Home, test status, error
message, and keypad screens have this tab at the lower, right corner. Returning to the Home
screen removes all password privileges previously granted through the OCP.
Timeouts
The library enters a timeout state after five minutes of inactivity. In this state:
•
The OCP backlight turns off.
•
Password privileges are removed on all screens granted access.
•
The OCP returns to either the Home screen or a thumbtacked screen, if one is designated. If
a thumbtacked screen consists of more than one page, the pages cycle every five seconds.
Touching a screen in a timeout state turns on the backlight. Subsequent touches after the backlight
is lit perform the requested command.
The following are special timeout cases:
34
•
When a service password is entered, the length of time to enter a timeout state changes from
5 minutes to 30 minutes. If the OCP is touched during the 30-minute period, the library reverts
to a normal 5-minute period before a timeout.
•
If a warning condition occurs while the library is timed-out, the backlight comes on for 30
minutes. If the OCP is touched during this 30-minute period, the library reverts to a normal
5-minute period before a timeout. Otherwise, the library re-enters a normal timeout state after
30 minutes.
•
If an error condition occurs while the library is timed-out, the backlight comes on for 60 minutes.
If the OCP is touched during this 60-minute period, the library reverts to a normal 5-minute
Using the library
period before a timeout. Otherwise, the library re-enters a normal timeout state after 60
minutes.
For certain functions, the timeout feature is disabled and re-enabled when the function completes.
This occurs:
•
During an operation and until the operation completes. For example, the OCP does not time
out while a tape drive cleaning operation is in progress but waits for the operation to complete
before starting the 5-minute timeout counter.
•
While displaying the results of any test operation. Select the Cancel or OK button to return to
the test menu screen.
•
When displaying an error report or menu after an error. The screen is treated as temporarily
thumbtacked, which clears the password protected screens after the normal timeout period,
but displays the screen until it is acknowledged.
•
When success or failure messages appear for an operation. The screen is temporarily
thumbtacked, clearing the password protected screens after the normal timeout period, but
the screen remains until acknowledged.
OCP functions
The OCP enables you to perform various functions on the library. Table 3 (page 36) provides a
list of the OCP functions available from the Home screen.
Using the OCP
35
Table 3 OCP components
Tab
Options to view or select
Status
Identity Screen
Health Summary >
• Library and Robotics >
◦
Library Status
◦
Robotics Status
◦
Power Supply Status > (power supplies 1–6)
• Load Ports > (load ports 1–4)
• Drives > (drives 1–16)
• Interface Controllers > (interface controllers 1–4)
• Interface Manager
Component Status >
• Library and robotics Status >
◦
Library Status
◦
Robotics Status
◦
Drive Odometers
◦
Load Port Door Status
◦
Library Sensors > (modules 1–4)
• Individual Drive Status
• All Drive Summary
• Interface Controller Status > (interface controllers 1–4)
• Interface Manager Status
Event Log Type Selection
View Library Inventory
Configuration
Library Configurations >
• Change Password
◦
Load Port Access Password Option
• Configure Load Ports
• Change Network Settings
• Configure Barcode Reporting Formats >
◦
Format for front panel reporting
◦
Format for host reporting
• Configure Reserve Slots
• Configure Inventory Mode
Adjust Screen Contrast
Operations
Unlock Load Ports
Unlock Door
36
Using the library
Table 3 OCP components (continued)
Tab
Options to view or select
Reboot Library
Media Operations >
• Move Tape
• Clean Drive
Run Admin Tests >
• Operator Control Panel >
◦
Align Touch Screen
◦
Panel Colors
◦
Panel Pixel Test
◦
Panel Firmware Version
◦
Turn Backlight Off
• Inventory Library
• Run Demo
• Run Self Test
• Slot Test
• Drive Load/Unload Test
• Force Rewind Unload Test
• Recalibrate Library
Support
HP Support Info
Service Menu >
Contact Information
Display Library Time
Status screen
The Status screen provides access to the current state of every library component.
Power supplies, load ports, tape drives, and interface controllers are all numbered from top to
bottom in the rack. However, power supplies are numbered by slot, so if a slot is not filled with a
power supply, the slot still receives a number. For example, the top power supply slot in the rack
is power supply 1. The power supply slot under that is power supply number 2. If a power supply
is on the same level horizontally (like those in the card cage expansion module), the one to the
right (facing the back of the rack) has the next highest number. If a component is removed, the
numbering does not change until you reboot the library. After a reboot, the library rediscovers all
components and reassigns numbers from top to bottom.
Using the OCP
37
Figure 32 OCP Status screen
Table 4 Status screen functions
Function
Description
Identity Screen
Contains basic configuration information. The library name, IPv4 address,
and IPv6 Interface Identifier are obtained from Command View TL. Other
information comes from the robot firmware.
The number of interface controllers and tape drives installed in the library
are listed, as well as the total number of available storage slots. For
example, load port slots configured as storage slots are counted in the
total of available slots, while load ports used to move tape cartridges in
and out of the library are not counted in the total.
This screen also shows the library model, library serial number, and library
firmware version.
Health Summary
Displays a status icon and health information for the library and individual
components:
• Library and Robotics—Displays the health status of the library, robotics,
and each power supply in the library.
• Load Ports—Provides the health status of each load port in the library.
• Drives—Provides the health status of each drive in the library.
• Interface Controllers—Provides the health status of each Interface
Controller in the library.
• Interface Manager—Provides the health status of the library Interface
Manager.
Component Status
Identifies the status of the overall library and individual components:
• Library and Robotics Status—Displays library and robotics
characteristics, the tape drive odometer, the status of the load port
doors, and the status of the library sensors. The odometer counts the
number of loads for each tape drive. The load count is reset when a
tape drive is replaced.
• Individual Drive Status—Displays detailed tape drive information for
each tape drive on individual screens. Select the Page Up and Page
Down tabs to move between available tape drives.
• All Drive Summary—Displays an overall status of all installed tape
drives and whether they contain tape cartridges.
• Interface Controller Status—Displays the status for individual interface
controllers, showing the number of host ports, device ports, and
firmware revision.
• Interface Manager Status—Displays health and configuration
characteristics of the Interface Manager card.
38
Using the library
Table 4 Status screen functions (continued)
Function
Description
Event Log Type Selection
Enables you to filter informational, warning, and critical events. The five
most recent events of any category are listed with the oldest listed first
and the most recent listed last. Filtering events does not remove them from
the log.
View Library Inventory
Identifies the status of each tape drive and slot location.
Configuration screen
The Configuration screen provides administrator access to screens that enable you to change the
library configuration and enables any user to adjust the contrast of the OCP screen.
Figure 33 OCP Configuration screen
Table 5 Configuration screen functions
Function
Description
Library Configuration
enables the following items to be configured:
• Change Password—The library ships with a null password. Passwords
must be set to exactly eight characters, consisting of the numbers 0
through 9 and the period character. The password can be required to
unlock load ports. If you forget your password, contact HP support.
HP support can generate a temporary password that will enable you
to access the library.
Change Password is also used to set whether the admin password is
required to unlock the library load ports from the OCP. After entering
the existing or a new password (Configuration+Library
Configuration→Change Password), the Load Port Access Password
Option screen appears and indicates whether the password is required
or not. To toggle the setting to require the password, press the box
containing the text OCP admin password NOT required for load port
access. If the box already contains the text OCP admin password
required for load port access, the password is already required. (Press
the text box again, if appropriate, to disable password protection of
the load ports.) Press the Save button on the OCP.
• Configure Load Ports—Shows the number of installed load ports and
enables you to toggle between using each as a load port or for tape
slots. Configure it as a Load Port to move tapes in and out of the library.
Configure as Slots to increase the number of storage slots in the library.
Changing a load port configuration causes a library reboot.
• Change Network Settings—Configures the network settings for the
Interface Manager card, which can be automatically set with DHCP
(IPv4 DHCP is default), IPv4 static address, or variety of IPv6 addresses.
Using the OCP
39
Table 5 Configuration screen functions (continued)
Function
Description
Both IPv4 and IPv6 can be enabled, but both cannot be disabled at
the same time.
• Configure Barcode Reporting Formats—Defines how barcodes appear
on the OCP and sent to the host. Barcode reporting can be configured
as 6 to 8 characters and left or right aligned. If 6 characters with left
alignment is chosen, any characters after the six are truncated. With
6 characters and right alignment, only the last six characters are shown
with the beginning characters truncated.
• Configure Reserve Slots Up to nine slots can be reserved for special
purposes, such as cleaning tapes. The default is none. Select the number
you want to reserve and select Save.
NOTE:
Reserve slots are not available on the EML 71e.
• Configure Inventory Mode enables you to require barcodes on tape
cartridges, or to make them optional. Requiring barcodes significantly
shortens inventory time.
Adjust Screen Contrast
Use the up and down arrows to adjust the screen contrast. The screen
refreshes each time an arrow is pressed. Select the OK button when
finished.
Operations screen
The Operations screen provides access to screens that enable you to unlock load ports, unlock the
library door, reboot the library, move tapes, clean tape drives, and run administrative tests.
Figure 34 OCP Operations screen
Table 6 Operations screen functions
40
Function
Description
Unlock Load Ports
Instructs the robot to unlock all load port doors. In library firmware version
1407 or later, this option can be protected using the admin password.
(Password protection is enabled or disabled from the Configuration
screen.) When all load port doors are closed, each load port is scanned
and inventoried.
Unlock Door
Parks the robot, which enables you to open the center door of the library.
The library is reinventoried after the center door is closed.
Reboot Library
Does a library reboot. Does an inventory of all tape slots and rediscovers
all hardware controllers and tape drives.
Using the library
Table 6 Operations screen functions (continued)
Function
Description
Media Operations
Performs the following tasks:
• Move Tape Select a Source and Element Type (where you want to
move a tape from) and a Destination and Element Type (where you
want to move a tape to).
Element types consist of a tape drive, load port (I/O), or slot location.
Numbers can be entered from the keypad. The up/down arrows cycle
you through full (source) or empty (destination) locations.
After choosing a source and destination, select Move.
• Clean Drive Select the cleaning media and the drive to be cleaned.
Run Admin Tests
Performs the following tests:
• Operator Control Panel
◦
Align Touch Screen Touch and release the screen near the rectangle
in the center. As you approach the rectangle at some point, it
changes color. The color change takes place when the border of
the rectangle is touched. This is where the touch pad and visual
screen should be aligned. Use the Up/Down/Left/Right buttons to
align the screen.
There is no visual effect when using the adjustment buttons. Use the
touch screen again to make sure that the adjustment is how you
want it. Select the Save tab to make the adjustments permanent.
◦
Panel Colors —Displays the range of colors available to the OCP.
◦
Panel Pixel Test—Tests for bad screen pixels. Select the Test button
to turn all pixels black. Touch the screen to turn all pixels white.
Touch the screen again to end the test.
◦
Panel Firmware Version—Displays the version of the OCP firmware.
◦
Turn Backlight Off—When pressed, turns the OCP backlight off.
• Inventory Library—Performs an inventory of all the tape cartridges in
a library. Unlabeled tapes are shown as FULL if the library has been
configured to detect unlabeled tapes.
• Run Demo—Performs tape swaps between slots and load ports. Set
the number of loops to be performed (must be at least one). When the
demo completes, the tape cartridges are back in their original
configuration.
• Run Self Test—Initializes the mechanics and performs tests to make
sure the library is functioning correctly. Tests include verifying the status
of all components; tape exchanges between storage slots, load port
slots, and tape drives; and corner-to-corner slot exchanges. When the
self test completes, the tape cartridges are back in their original
locations.
• Slot Test—Performs a repeated move of a tape from one slot to another.
Select the source slot, the destination slot, and the loop count, and
then select Start Test.
• Drive Load/Unload Test—Moves media into and out of each tape
drive for a specified number of loops.
• Force Rewind Unload Test—Clears the prevent media removal bit for
a tape drive and unloads the tape cartridge to its original slot or to
the first empty slot. Interrupts the tape drive operation that is currently
running, if any. Use the Up and Down arrows to select the tape drive
that you want to force rewind unload.
• Recalibrate Library—Recalibrates all the targets in the library.
Using the OCP
41
Support screen
The Support screen provides access to screens showing HP support information, service tasks,
contact information, and enables you to display the library time.
Figure 35 OCP Support screen
Table 7 Support screen functions
Function
Description
HP Support Info
Provides alternate locations where useful information can be
obtained.
Service Menu
To be used only by authorized HP service personnel.
Contact Information
Provides contact information as recorded by Command View
TL.
Display Library Time
This date and time are used for support purposes and do not
necessarily reflect the local date and time.
Controls and indicators
Library robotics controller
Figure 36 Indicators on the library robotics controller
Table 8 Indicators on the library robotics controller
42
Index No. Control/indicator
Function
1
EJECT OK LED
Not used.
2
FAULT LED
When flashing (red), indicates the card detects a board fault
or software initialization in progress.
3
STANDBY LED
Not used.
4
ACTIVE LED
Always lit (green) when power applied.
Using the library
Interface Manager card
Figure 37 Indicators and reset on the Interface Manager card 342213–001 or 393531–001
Figure 38 Indicators and reset on the Interface Manager card 480240-001
Table 9 Indicators and reset on the Interface Manager cards
Index No. Control/indicator
Function
1
Green link speed
LED
On—Port operating at 100 Mbps.
Green link
activity LED
Off--Port disconnected/no link.
2
Off--Port is operating at 10 Mbps, or port is not connected (see
link activity LED).
On--Port connected to another Ethernet device.
Flashing--Data is being transmitted or received.
3
4
Red LED
Green LED
On
Off
BIOS code failed to run.
Blinks 1x per 5
second interval
Off
Either: 1) Hardware POST failed; no firmware images are
loaded. 2) There is no DHCP connection.
Blinks 2x per 5
second interval
Off
No CompactFlash disk or valid boot sector image found.
Blinks 3x per 5
second interval
Off
Specified firmware image files cannot be found. Neither the
current nor the previous image was found.
Blinks 4x per 5
second interval
Off
Load or execute command failed (boot code remains at end
of process). This indicates that load, decompress, or execution
failed on both the current and previous image files.
Off
Blinks 1x per 5
second interval
Normal state. Load or execute command succeeded. Boot code
successfully loaded, decompressed, and initiated one of the
image files.
Off
Blinks 2x per 5
second interval
Normal state. Application software is initializing.
Off
Blinks 3x per 5
second interval
Normal state. Application is identifying all library components.
Off
On
Normal state. Application has identified all library components.
Reset hole
To reset the card, insert a paper clip into the hole.
Controls and indicators
43
e2400-FC 2Gb interface controller
Figure 39 Indicators on the e2400-FC 2Gb interface controller
Table 10 Indicators on the e2400-FC 2Gb interface controller
Index No. Control/indicator
Function
1
ACT/LNK indicators
ACT indicator--When lit, shows port activity. LNK
indicatorWhen lit, shows a valid link is established.
2
PWR indicator
When green, power is applied to the module.
When yellow, Power-On-Self-Test (POST) is in process or
processor problems exist.
e2400-FC 4Gb interface controller
Figure 40 Indicators on the e2400-FC 4Gb interface controller
Table 11 Indicators on the e2400-FC 4Gb interface controller
Index
No.
Control/Indicator
Function
1
Beacon
Use to locate the card.
2
ACT/LNK indicators
ACT indicator--When lit, shows port activity. LNK indicator--When lit, shows a
valid link is established.
3
PWR indicator
When green, power is applied to the module.
When yellow, Power-On-Self-Test (POST) is in process or processor problems
exist.
4
44
Using the library
Reset hole
To reset the card, insert a paper clip into the hole.
LTO tape drives
Figure 41 Indicator on an LTO2 or LTO3 tape drive
Table 12 Indicator on an LTO2 or LTO3 tape drive
Index No. Control/indicator
Function
1
When lit (yellow), indicates that initialization is in progress,
the library robotics controller software has detected a failure
that requires the replacement of the tape drive assembly,
or a hot swap can occur.
FAULT LED
When not lit, indicates normal operation.
Figure 42 Indicators on an LTO4 tape drive
Table 13 Indicators on an LTO4 tape drive
Index No. Control/indicator
Function
1
When lit (yellow), indicates that initialization is in progress,
the library robotics controller software has detected a failure
that requires the replacement of the tape drive assembly,
or a hot swap can occur.
FAULT
When not lit, indicates normal operation.
2
ID
Beacon.
3
FC A
When lit (green), indicates link activity on FC port A.
4
FC B
When lit (green), indicates link activity on FC port B.
Controls and indicators
45
Figure 43 Indicators on an LTO5 and LTO6 tape drive
Table 14 Indicators on an LTO5 or later tape drive
Index No. Control/indicator
Function
1
When lit (yellow), indicates that initialization is in progress,
the library robotics controller software has detected a failure
that requires the replacement of the tape drive assembly,
or a hot swap can occur.
FAULT
When not lit, indicates normal operation.
2
ID
Beacon.
3
ENCRYPTION STATUS
When flashing (green), indicates that the drive is reading
or writing encrypted data.
4
MANAGEMENT ACTIVE
When flashing, indicates activity across the Ethernet port.
5
MANAGEMENT SIGNAL
When lit (orange), indicates the Ethernet port is connected.
6
FC A
When lit (green), indicates link activity on FC port A.
7
FC B
When lit (green), indicates link activity on FC port B.
Switch for the internal network
Figure 44 Indicators on the switch for the internal network
Table 15 Indicators on the switch for the internal network
46
Index
No.
Control/indicator
Function
1
Power (green)
On--The switch is receiving power. Off--The switch is not receiving power.
2
LED Mode Select (2 green FDx--Indicates that the port Mode LEDs are displaying whether the ports are
LEDs)
operating in full-duplex. Speed--Indicates that the port Mode LEDs are displaying
the operating speed.
Using the library
Table 15 Indicators on the switch for the internal network (continued)
Index
No.
Control/indicator
Function
3
Link/Act
On--The port is enabled and receiving a link indication from the connected
device. Off--The port has no active network cable connected, or is not receiving
link signal. Flashing--Indicates that there is network activity on the port.
4
Mode
FDx--When the FDx (full duplex) indicator LED is on, the port Mode LEDs turn on
for those ports that are operating at full duplex. Speed--When the Speed indicator
LED is on, the port Mode LEDs for ports 1--22 are lit for ports that are in 100
Mbps mode and are off for ports operating at 10 Mbps. The port Mode LEDs
for ports 23--24, are lit for ports that are in 100 or 1000 Mbps mode or are off
for ports operating at 10 Mbps.
Library main power switch
Figure 45 Control on the library main power switch
Table 16 Control on the library main power switch
Index No. Control/indicator
Function
1
When switched On (I), powers on all library power supplies.
Switch
When switched Off (O), places all library power supplies
in standby mode.
Controls and indicators
47
Power supply in the base module or tape drive expansion module
Figure 46 Indicator on the autoranging power supply
Table 17 Indicator on the autoranging power supply
Index No. Indicator
Function
1
When lit (green), indicates that all four DC outputs and the
fan speed are within specification, and the AC boost circuit
is active.
Power LED
When not lit, indicates the main library power switch is
turned off or the power supply is in a failed condition and
is available for a hot swap.
Power supply in the card cage expansion module
Figure 47 Indicators on the card cage expansion module power supply
Table 18 Indicators on the card cage expansion module power supply
48
Index No. Control/indicator
Function
1
PWR GOOD LED
When lit (green), all DC outputs and the AC input are within
operational limits.
2
FAULT LED
When lit (yellow), one or all of the DC outputs or the AC
input is not within operational limits. This can be an
indication that the module power cord is not fully seated into
a power receptacle at either end, or that the main library
power switch is off.
Using the library
Power distribution unit
NOTE: The EML 71e does not include a power distribution unit because you install it in your
own rack.
Figure 48 Controls and indicator on the PDU
Table 19 Controls and indicator on the PDU
Index No. Control/indicator
Function
1
Power LED
When lit (red), shows power is applied to the unit. When
not lit, indicates the PDU is not receiving power.
2
PDU switch 1
When switched On, applies power to power strip 1.
3
PDU switch 2
When switched On, applies power to power strip 2.
4
Power strip power switch
When set to I (On), applies power to the power strip. When
set to O (Off), removes power from the power strip.
Controls and indicators
49
3 Troubleshooting and event reporting
This chapter describes how to solve problems you might encounter while operating the library.
For additional assistance with troubleshooting, use the online HP Guided Troubleshooting tool
which can be found at http://h20499.www2.hp.com/gts/sparks/public/
Admin_Navigate_All_All_All.
Periodic and routine maintenance
This section describes maintenance that occurs on a scheduled or as-needed basis.
Maintaining tape cartridges
NOTE: In addition to the information provided in this manual, see the HP Ultrium Tape Drive
User Guide from http://www.hp.com/support for more information.
For longer life of recorded or unrecorded tape cartridges:
•
Do not carry tape cartridges loosely in a container that exposes them to unnecessary physical
shock. Dropping or bumping tape cartridges can dislodge and damage internal components.
•
Store tape cartridges vertically in their protective cases until needed. Store tape cartridges in
a clean environment that duplicates the conditions of the room in which they will be used.
•
Use tape cartridges in temperatures between 10°C and 40°C (50°F to 104°F).
•
If a tape cartridge has been exposed to extreme heat or cold, stabilize the tape cartridge at
room temperature for the same amount of time it was exposed for up to 24 hours.
•
Keep tape cartridges out of direct sunlight, and do not place tape cartridges near
electromagnetic interference sources, such as terminals, motors, and video or X-ray equipment.
Performing so can cause data on the tape cartridge to be altered or erased.
•
Do not touch the tape medium or open the tape door unnecessarily. Dust and skin oils can
contaminate the tape, impact performance, and cause damage.
•
Store tape cartridges in a dust-free environment where the relative humidity is between 20
percent and 80 percent. For longer tape cartridge life, store the tape cartridge at 40 percent
to 60 percent relative humidity.
•
Use only HP qualified barcode labels. Apply them only in the designated areas of the tape
cartridge, and do not apply more than one per tape cartridge.
•
Follow guidelines provided by the tape cartridge manufacturer.
CAUTION: Do not touch the tape leader or the tape medium. Dust or skin oils can contaminate
the tape performance, and cause damage.
50
Troubleshooting and event reporting
Cleaning Ultrium tape drives
Be aware of the following:
•
Ultrium tape drives have been developed to have a minimal cleaning requirement.
•
An Ultrium universal cleaning cartridge can be used up to 50 times. If you are using an older
Ultrium cleaning cartridge, check the documentation that came with your cleaning cartridge.
CAUTION: Only use Ultrium universal cleaning cartridges in Ultrium tape drives. See
“Ordering HP tape cartridges and barcode label packs” (page 102) for obtaining supplies.
The same cleaning cartridge is used for all Ultrium tape drives.
•
If the cleaning cartridge is ejected immediately, is expired, or is not an Ultrium cleaning
cartridge, discard it and use a new one.
To clean the tape heads:
1. Move a cleaning cartridge into the tape drive using your application software. The tape drive
automatically loads the cleaning cartridge and cleans the heads. The cleaning cycle can take
up to five minutes.
2. Move the cleaning cartridge back to the proper storage bin using your application software.
Diagnostic support tools
The following tools are available to help you troubleshoot the library:
•
Command View TL
•
Library and Tape Tools
Command View TL version 1.5.5 or later provides SAN-related diagnostics for the major library
components such as interface controllers, tape drives, and robot. Only Command View TL can
generate support tickets for the interface controllers, the Interface Manager card, and the
management station. You should do all library firmware updates with Command View TL. To use
the Command View TL for library diagnostics, see the HP Interface Manager and Command View
TL User Guide.
Library and Tape Tools (L&TT) is installed on the host, which enables you to troubleshoot host
connectivity and performance. In addition, with L&TT you can:
•
Identify all FC devices connected to your system.
•
View detailed configuration, identification, inventory, and tape drive information for the library.
•
Run advanced diagnostic tests, including connectivity, read/write, media validation, and
testing library functionality.
•
View library and tape drive error logs.
•
Generate a detailed support file that can be E-mailed or faxed to your support representative
for analysis.
The L&TT diagnostic provides an intuitive GUI with integrated context-sensitive help, and can be
downloaded free of charge. Go to http://www.hp.com/support/tapetools and select HP L&TT
Tool.
Troubleshooting
An incorrect installation or configuration can cause platform problems. In this case, the library
appears to be operating normally, but no data can be interchanged, or performance is poor. You
also could get an error code on the OCP. To identify an error caused by this type of problem,
check your installation and configuration setup.
General tape drive errors usually result from a miscommunication between a library processor and
a tape drive processor, tape drive and tape interaction issues, or a mechanical malfunction within
Diagnostic support tools
51
the library. Both platform problems and general tape drive errors display an error message or
event code on the OCP. Use the event codes listed later in this chapter to help determine a recovery
procedure.
The library depends on several other components to operate correctly. Errors that seem to be
caused by the library are often a result of issues on the host, the network cabling, or with the
application software. When troubleshooting the library, begin by ruling out these components.
Your application software may need to be reconfigured or, in some cases, reinstalled after you
have installed additional tape drives or slots into the library. Changing the number of load ports,
number of reserved slots, or type of tape drive, might require changes to software. Some application
software may require the purchase of additional add-on components or licenses when increasing
the number of storage slots or tape drives. Contact your application software provider for more
information, or if your application software does not recognize newly installed storage slots or
tape drives.
Command View TL should be the first tool used to diagnose a problem, followed by L&TT. These
two applications generally provide more detail than the OCP, but the OCP can be an aid in
determining the cause of errors. Support tickets from Command View TL or L&TT contain full log
events for all components. The OCP only shows summary information for robotic events. A support
ticket has to be generated to access the event logs.
Using the OCP, you can check the event log on the Status screen for the five most recent
informational, warning, or critical events. The last event listed on the screen is the most recent event
that occurred. Events have a date stamp, code numbers, a brief text description of the problem,
and usually a location of the module or slot where the error took place. The following is an example
of an OCP log event, and what information is included:
2005-04-06T10:07:57.068, 0.0.0.0.0, 3200, ifm, (null), error, 3000,
3312, "(re . . "
Code values are decoded with a support ticket from Command View TL and L&TT. This OCP
message decodes to:
Date/time, address, opstate, source, source, severity, activity, event ID or result, additional
information.
In this case, the opstate is Ifm is ok, the activity is Cartridge Move and result is Get Failed.
For general troubleshooting, use the following table after you isolate your problem to a category
or specific area of the library, and then go to the reference mentioned that describes a corrective
action.
Table 20 Fault isolation to a specific area
52
Problem area or category
Where to find corrective action
Startup problems
Go to (page 53)
OCP problems
Go to (page 55)
Robotics problems
Go to (page 55)
Operating problems
Go to (page 57)
Tape drive problems
Go to (page 57)
Interface Manager card problems
Go to (page 59) and (page 60)
Interface controller problems
Go to (page 61)
Troubleshooting and event reporting
Startup problems
Table 21 Startup problems
Problem
Corrective action
The library does not power on.
Make sure that:
• The power cord is connected to a grounded electrical outlet.
• Each PDU power switch is on, as well as the switch on the power strips.
Troubleshooting
53
Table 21 Startup problems (continued)
Problem
Corrective action
• Power cords from PDU power strips are installed and seated.
• The library main power switch is on.
The library powers on but the robot
does not move.
• Check the connections of the Ethernet cable between the library robotics
controller and the Interface Manager card.
• If the Interface Manager card does not have access to the DHCP server
and the library firmware is at release 2.4 or greater, access the CLI from
a serial connection and execute the command set network config
eml.
• If the Interface Manager card does not have access to the DHCP server
and the library firmware is at an earlier version than 2.4, use a valid service
password to enter the IM CLI service mode then use the set network
config eml command.
• Make sure that the robot shipping restraints have been removed.
The library or tape drives are not
• Check cable connections.
detected by the Interface Manager card
• Check the cabling. Make sure that all radial bends are greater than 5 cm
or Command View TL software.
(2 inches) in diameter.
• Make sure that the tape drives and library are powered on and can be
seen by the OCP and hosts.
• Check that the FAULT LED on the tape drives are off.
• Check the log files for network problems.
• Make sure that the interface controllers are powered on and ready.
During initialization, the library robot
stops moving and the OCP status bar
is red.
• Use Command View TL or L&TT to generate a support ticket and check the
event log.
• Check the last entry in the critical error log on the OCP. Use the following
errors as examples in correcting the problem:
0100: Module # does not have RLP(2)
• Check power to the module number. Refer to the checks listed previously
under “The library does not power on.”
5501: Failed target calibration for MRC: X, X, X
• Make sure that nothing is obstructing the barcode reader.
• Make sure that the magazine is installed and seated properly.
• Check for defective magazine target markings.
0000: End of Text
• Open the library door and check the picker for a tape cartridge. If a
cartridge is present, remove the tape cartridge and place it into an empty
slot. Close the library door to start an inventory.
Opcode: 0514 (Robot needs to be reset)
• The library can fail to initialize if a tape is located on the floor. If unable
to use Command View TL or Telnet, disconnect the network connection and
reconnect.
One or more tape drives fail during
startup.
• Check power supply indicator for power to the tape drive.
• Check that the tape drive is properly cabled and ready.
• Check the link indicators on the interface controllers for a valid link to the
tape drives.
• Check whether the FAULT indicator is lit on the back of the tape drive. If
so, diagnose the problem.
• Make sure the tape drive has the appropriate firmware.
54
Troubleshooting and event reporting
Table 21 Startup problems (continued)
Problem
Corrective action
The OCP displays a yellow warning
and the Status→Health
Summary→Interface Manager screen
indicates the Interface Manager card
is initializing.
• Check cable connections.
• Check Interface Manager card and interface controller configurations.
If problem persists:
• Reset the interface controller.
• Power cycle the library.
• Reset the default configuration on the interface controller.
OCP problems
Table 22 OCP problems
Problem
Corrective action
The OCP is blank.
• Touch the OCP to wake it from sleep mode.
• Confirm that the power is on.
• Use Command View TL software or the Interface Manager CLI to check for
errors. See the HP Interface Manager and Command View TL User Guide.
The OCP does not respond to touch.
• Make sure that the Ethernet cable is properly connected between the library
robotics controller PUBLIC port and the CASCADE port on the Interface
Manager card.
• Use Command View TL or the Interface Manager CLI to check for errors.
An error message appears on a red
OCP status bar.
• Review latest error messages in the critical and warning event logs to help
decipher the message and determine the cause.
A warning message is appears on a
yellow OCP status bar.
• Check the Health Status on the OCP to determine cause.
• Review latest event details in the warning event log to determine the cause.
Robotics problems
Table 23 Robotics problems
Problem
Corrective action
The robot does not move at power on.
• Make sure that all internal shipping restraints have been removed.
• Check that the library center door is closed.
• Review latest error messages in the critical and warning event logs to help
decipher the message and determine the cause.
The picker partially grips a tape
cartridge.
• On the OCP, enter the Operations→Media Operations→Move Tape
command to move the tape cartridge from the picker to an empty slot.
• Review latest error messages in the critical and warning event logs to help
decipher the message and determine the cause.
• Power cycle the library.
The barcode reader fails.
Use the OCP to open the center door and:
• Make sure that nothing obstructs the reader.
• Make sure that nothing is obstructing the robot.
• Make sure that all tape cartridges are fully inserted into the storage slots
and no tapes are lying on the library floor.
• If barcode labels are required, check that approved labels are being used
and are correctly applied.
Troubleshooting
55
Table 23 Robotics problems (continued)
Problem
Corrective action
Close the center door to recalibrate the library.
The robot times out or hangs.
• Make sure that nothing obstructs the robot.
• Retry the operation.
• Power cycle the library to recalibrate.
• Review latest error messages in the critical and warning event logs to help
decipher the message and determine the cause.
The robot fails during an operation.
Review latest error messages in the critical and warning event logs to help
decipher the message and determine the cause.
The robot drops a tape cartridge.
• Use the OCP to open the center door. Retrieve the tape cartridge, position
it properly, and place the tape cartridge in an empty storage bin. (Do not
try to place the tape cartridge in the picker.)
• Close the doors to perform an inventory.
56
Troubleshooting and event reporting
Operating problems
Table 24 Operating problems
Problem
Corrective action
The host computer cannot communicate • Make sure that Command View TL reports a green status for the library
with the library.
and tape drives.
• Make sure that the host computer was added to the Secure Manager using
the Command View TL software, and was given access to library
components.
• Check library network configuration.
• Make sure that there is power to library components.
• Make sure that cable connections and termination are correct.
• Check that the interface controller is configured correctly for the SAN it is
attached to (for example, fabric or loop).
• Make sure that the interface controller link LEDs show activity.
• Restart the host and the library.
A tape cartridge (medium) is reported
not present.
• Make sure that the designated tape cartridge is present and properly
seated. (For a tape drive, make sure that the tape cartridge is completely
unloaded.) Then, retry the command.
• Make sure that the tape cartridge has good barcode labels, or that the
library is configured to not use labels.
• On the OCP, make sure Support→Service Menu+autoaudit is turned On.
If autoaudit is Off, the library does not do an inventory and therefore might
report storage slots with tape cartridges as being empty.
• Perform an inventory by opening and closing the center door.
A move command failed.
• Review event logs for detailed information.
• Check the source and destination. The source should hold the tape cartridge
to be moved; the destination should be empty.
• Make sure that the picker is empty and that there are no obstructions.
• Retry the command.
Long inventory times.
Use barcoded media and configure the library to use barcodes. Expect
inventory times ranging from 30 minutes for a 24U library to 1 hour for a
40U library with unlabeled media.
Redundant power supply warning.
A warning indicates that the redundant power supply failed. Make sure that
there is AC power to the power supply. If it is receiving power, replace the
power supply.
Tape drive problems
IMPORTANT: For LTO4 or later tape drives, you must use FC port A to connect the tape drive to
the SAN unless you are using ETLA custom mapping in which case either port A or B can be used.
Table 25 Tape drive problems
Problem
Corrective action
The library is unable to communicate
with a tape drive.
This is indicated by a Drive Communication Time-out error.
• Tape drives added to new drive bays require a reboot.
• Check link indicators on the interface controllers (LTO2 and LTO3 tape
drives) or on the switch for the internal network (LTO4 and later tape drives).
Troubleshooting
57
Table 25 Tape drive problems (continued)
Problem
Corrective action
• Reseat the tape drive.
• Check tape drive status on the OCP and with Command View TL.
The tape drive does not eject a
cartridge.
• Attempt the operation from the application software.
• Open the center door, reach in, and then press the Eject button on the tape
drive in question. If this fails, press and hold the Eject button for at least
ten seconds to force an eject.
• Power off the library, disconnect the FC cables, power on the library, open
the center door, and press and hold the Eject button on the tape drive in
question.
The tape drive reports a read/write
error.
• Try using a new tape.
• Clean the tape drive.
• Run the tape drive assessment test using L&TT.
An LTO4 or later tape drive does not
link up
Some switch types require specific speed and topology settings. Try changing
the speed and topology settings with Command View TL or the Interface
Manager CLI.
• LTO4 and later tape drives have a default speed setting of auto negotiate.
Change the speed to 1Gb (LTO4 only), 2Gb, 4Gb, or 8Gb (LTO5 and
LTO6).
• LTO4 and later tape drives have a default auto negotiate topology setting
of loop-ptp which will try loop mode first, and then switch to point-to-point
if loop is not successful. Change the topology or mode setting to soft or
hard loop mode, or N_port mode which uses only point-to-point topology.
NOTE: Restoring the Interface Manager defaults with Command View TL or
the Interface Manager CLI will set the drive speed and topology back to the
auto negotiate settings.
Interface Manager card problems
In addition to the Command View TL GUI, the Interface Manager card can be managed through
a CLI. These CLI commands can be used to diagnose problems. You can access the CLI either
through a direct RS-232 serial connection or by using Telnet over the LAN. Refer to the HP Interface
Manager and Command View TL User Guide for instructions on using the CLI.
The following table describes common symptoms relating to the Interface Manager card and how
to resolve them. (page 60) provides more Interface Manager card fault isolation procedures through
the actions of LED indicators.
58
Troubleshooting and event reporting
Table 26 Common Interface Manager card issues
Symptom
Possible cause
Solution
Command View TL server
does not detect the Interface
Manager card.
Bad network connection • Make sure that the Interface Manager card and the
management station are correctly connected to the LAN.
• Use LEDs to troubleshoot Ethernet cabling ((page 43) and
(page 60)).
• Ping the Interface Manager card to make sure that the
network is healthy.
Interface Manager card
not powered on or in
ready state
Command View TL server
does not detect the Interface
Manager card (cont.).
• Power on the library. Observe status and link LEDs
((page 43) and (page 60)).
• Check for proper version of firmware. See the HP Interface
Manager and Command View TL User Guide for
instructions.
Incorrect IPv4 address or Make sure the correct IPv4 or IPv6 address of the Interface
IPv6 Interface Identifier Manager card is entered in Command View TL.
• See the HP Interface Manager and Command View TL
User Guide for information on using CLI commands to
make sure that the network IP address is correct.
• Configure Command View TL with the correct IP address.
See the HP Interface Manager and Command View TL
User Guide for information on adding a library or visit
http://www.hp.com/support/cvtl.
• See the HP Interface Manager and Command View TL
User Guide for information about adding the library to
Command View TL.
Interface Manager card does Bad network connection • Make sure that the Interface Manager card is properly
not detect one or more
connected to the interface controllers and that the cables
interface controllers.
are good.
• Use LEDs to troubleshoot Ethernet cabling ((page 43) and
(page 60)).
Defective Interface
Manager card or
interface controller
Interface Manager card does Timing issues
not detect tape drives or
library.
Tape drive not powered
on or in ready state
• Observe status and link LEDs ((page 43)). Replace
defective card or controller.
Reset the corresponding interface controller.
• Make sure the tape drive is not powered off.
• Troubleshoot the tape drive.
Interface Manager card
Possible ESD failure
unresponsive, with link activity
light stuck on or off.
Reboot the library.
Message on OCP
Improper settings
Status→Health
Summary→Interface Manager
screen shows warning that
Interface Manager card is
initializing.
Restore system defaults using CLI.
Topology incomplete
System interference
(Interface Manager card
timed out when attempting
communication with interface
controllers).
Retry the command. This behavior can be expected if system
activity is high, because the Interface Manager commands
have lower priority.
Troubleshooting
59
Table 26 Common Interface Manager card issues (continued)
Symptom
Possible cause
Solution
Cabling
Check cabling and observe indicators on the Interface
Manager card, interface controllers, and tape drives.
Configuration
• Check each interface controller for active link LEDs to each
tape drive.
• Check that the number of tape drives reported by the
library matches the number of tape drives reported by the
Interface Manager card. Check each interface controller
for correct number of tape drives mapped. Reboot
mismatched interface controllers or tape drives, if needed.
Restore default configuration on mismatched interface
controllers and reboot.
• Disconnect Interface Manager card from interface
controllers and restore system defaults on the Interface
Manager card. Reconnect connections to interface
controllers and reboot.
• Swap tape drive locations to see if the problem follows
the tape drive, and replace the tape drive, if needed.
Command View TL does not
run in the browser.
Incompatible browser
version or JavaTM
support not enabled
• Make sure that you are using a minimum of Microsoft
Internet Explorer 6.0 SP1 or later, or Netscape Navigator
6.2 or later.
• Make sure that Java support is enabled in the browser.
Java Runtime
Environment (JRE) not
installed
Download and install the Java 2 Platform, Standard Edition
1.4.2 or later from http://wwws.java.com.
Bad network connection • Check all physical network connections. If the connections
or network down
are good, contact your network administrator.
• Ping the management station. If pinging fails and the IP
address is correct, contact your network administrator.
Wrong IP address
• Check the IP address of the management station. On the
management station, open a command shell and enter
IPCONFIG. You must use this IP address (or the network
name of the management station) in the URL to access
Command View TL.
Management station not • Check to see if the management station is operational.
running, or Command
• Use the Services applet to make sure that the Command
View TL service not
View TL service is running on the management station.
running on management
Select Start→Settings→Control Panel→Administrative
station
Tools→Services.
Table 27 Interface Manager card LED fault isolation
Indicators
Red LED
Blinks 1x per 5 second Off
interval
Blinks 2x per 5 second Off
interval
Blinks 3x per 5 second Off
interval
60
Troubleshooting and event reporting
Procedures
Green LED
Reset the Interface Manager card (see (page 43)). If the problem
persists, replace the Interface Manager card.
Table 27 Interface Manager card LED fault isolation (continued)
Indicators
Procedures
Blinks 4x per 5 second Off
interval
Blinks 1x per 5 second • Reset the Interface Manager card (see (page 43)).
interval
• If the Interface Manager card does not have access to the DHCP
server and the library firmware is at release 2.4 or greater, access
the CLI from a serial connection and execute the command set
network config eml.
Off
• If the Interface Manager card does not have access to the DHCP
server and the library firmware is at an earlier version than 2.4,
use a valid service password to enter the IM CLI service mode then
use the set network config eml command.
• If the problem persists, replace the Interface Manager card.
Off
Blinks 2x per 5 second Interface Manager card is in discovery mode. If problem persists, it
interval
can be due to an incomplete topology. Refer to (page 59).
Off
Blinks 3x per 5 second Processes are running. If the problem persists, check the configuration
interval
and the IP address.
Interface controller problems
Most problems with the interface controller occur during the initial installation. Before proceeding
with advanced troubleshooting techniques, make sure that all connections are correct and review
the configuration and firmware. If a new interface controller was installed, the library may need
to be rebooted for the controller configuration to be set.
LED indicators
The LED indicators on the interface controllers (see (page 44) and (page 44)) are useful for
diagnosing various problems:
•
FC port LEDs--Indicate FC activity (ACT) and link (LNK) status. If the link LED is not lit, it can
indicate a problem with an FC link. Make sure that the FC port configuration and cabling is
correct.
•
Ethernet LEDs--Indicate activity and link status. If one of these indicators is not lit or stays
continuously lit, it can indicate a problem with the network connection or cabling. Make sure
that the network connection is correct. The port must be connected to a 10/100Base-T Ethernet
network to function properly.
Basic troubleshooting
Simplify the installation by reducing it to the most basic configuration. Then, add elements one at
a time, making sure that the library operates correctly after each step.
Basic troubleshooting includes making sure that the setup and connections are correct:
•
The FC port connection
•
The interface controller configuration
•
Devices
•
Host configuration
•
HBA device driver information
•
Serial port configuration
Each of these topics is discussed in the following sections.
Troubleshooting
61
Examining FC port connection
Most hubs and switches have link indicators showing link status. When the interface controller is
connected and powered on, the link indicator appears solid. If it is not, examine the cabling or
connections.
To examine links:
•
Make sure that the library is not running any tasks before disconnecting any cables. Disconnect
and reconnect the FC cable. This procedure causes momentary activity of this indicator as the
link reinitializes.
•
Make sure that the cable type for the interface controller and the attached hub, HBA, or switch
are similar.
NOTE: By default, the FC port speed is set to 2 Gbps for the e2400-FC 2Gb interface
controller and to 4 Gbps for the e2400-FC 4Gb interface controller. Changes to the FC port
speed must be manually set, such as for 1 Gbps. If set incorrectly and the interface controller
is plugged into a Loop or Fabric, the unit can receive framing errors, which can be found in
the trace logs; the fiber link light will be off because of the incorrect FC link speed.
Examining the interface controller configuration
To examine the interface controller configuration, make sure that:
•
The interface controller speed is set correctly.
•
The connection type is set correctly.
•
The host is added to Secure Manager in Command View TL and given permission to
communicate with the library.
Examining devices
HP recommends using Command View TL to make sure that the devices are operating correctly.
Examining the host configuration
In some cases, the FC HBA or host device driver may not be working properly. Check the
configuration of these elements.
Check the release notes for the device driver to see if there are any specific issues or a required
configuration. Also, make sure that you are using the current version of the HBA driver.
Older applications can have expectations about what constitutes a valid SCSI ID, and thus may
not correctly handle certain mappings. This is not an issue for the operating system or most
applications. However, some applications may exhibit difficulties addressing target IDs greater
than 15 (16 and higher). To resolve this situation in a direct-attach configuration, configure the
interface controller to use hard addressing and set the AL_PA to a value that the HBA can map,
with an ID less than 16.
Examining HBA device driver information
Review the HBA device driver Readme.txt file for configuration specifics. An HBA may require
a different configuration. HBAs typically come with utility programs to view or change their
configurations.
Examining serial port configuration
If you have problems connecting to the serial interface, make sure that the configuration of the
terminal or terminal emulation program is correct.
62
Troubleshooting and event reporting
Table 28 Terminal configuration settings
Attribute
Setting
BAUD Rate
Autobaud, 9600, 19200, 38400, 57600, 1152001
Data Bits
8
Stop Bit
1
Parity
None
Flow Control
None or XON/XOFF
1
Default setting
If problems persist, examine the cabling.
If a valid Ethernet IP address is configured, serial configuration settings can also be set using Telnet.
Troubleshooting
63
4 Removing and replacing parts
This chapter provides information for the removal and replacement of each expansion module and
field replaceable unit (FRU).
CAUTION: Components within the library contain static-sensitive parts. Use appropriate ESD
precautions, including the use of a grounding strap, when performing service inside the library.
Interface Manager card
Part Number
342213-001, 393531-001 or 480240-001
Location
Bottom slot in the base-module card cage
Characteristics
Contains six Ethernet connections to the library robotics controller,
four interface controllers, and the SAN; two 3-pin serial ports;
status, activity, and error LEDs
Function
Manages the interface controllers in order to monitor and manage
the library
Illustration
342213-001 or 393531-001
480240-001
Required tools
•
#1 Phillips screwdriver
Interface Manager card 342213-001 or 393531-001
This section explains how to replace the 342213-001 or 393531-001 Interface Manager card
installed in an EML E-Series tape library. These versions of the Interface Manager card contain a
label with the part number AS#340252-001 or AS#340252-002 and have an AUX port next to
the serial port.
Removing the Interface Manager card 342213-001 or 393531-001
1.
2.
3.
4.
5.
64
Use your backup software to stop all library activity and make sure the picker is empty.
Turn off the power to the library.
Identify the Interface Manager card. It is located in the bottom slot in the card cage in the
base module.
Label the cables or write a note that shows the locations of all the cables plugged into the
Interface Manager card to make it easier to reconnect them later.
Unplug all cables from the Interface Manager card.
Removing and replacing parts
6.
Loosen the captive screws in the ejector handles at both ends of the Interface Manager card.
Use a #1 Phillips screwdriver.
CAUTION: Be aware that the metal tabs on the gasket on the filler panel can be caught and
bent by the pins on the Interface Manager card. If bent, these tabs can cause a short circuit.
Avoid removing or installing the Interface Manager card at an extreme angle and watch that
the metal tabs on the gasket do not get caught or bent.
7.
8.
Push the ejector handles to the outside, and then pull the ejector handles to remove the Interface
Manager card from the library.
Pull the ejector handles to remove the Interface Manager card from the library.
Figure 49 Removing the Interface Manager card
9.
Move the CompactFlash memory card from the original Interface Manager card to the new
Interface Manager card. The CompactFlash memory card stores the firmware and configuration
information for the Interface Manager card.
a. Put the Interface Manager card battery-side up on your work surface.
b. Grasp the edges of the CompactFlash memory card and slide it out of the flash memory
slot. If needed, push a pen into the corner notches of the flash memory slot to disengage
the CompactFlash memory card.
Figure 50 Removing the CompactFlash memory card from the Interface Manager card
1. Interface Manager card
2. Flash memory slot
3. CompactFlash memory card
c.
d.
Put the new Interface Manager card battery-side up on your work surface.
With the connector going in first, align the sides of the CompactFlash memory card with
the flash memory slot on the new Interface Manager card. Gently slide the CompactFlash
memory card into the slot until it is fully engaged. If the CompactFlash memory card does
not slide in easily, the card is upside down.
Interface Manager card
65
10. Compare the memory modules.
a. Locate the memory module on the old and replacement Interface Manager cards. Compare
the memory modules on the two cards.
•
If the memory module on the old Interface Manager card has more memory, follow
the instructions in Step 10.b to put the larger memory module on the new Interface
Manager card.
•
If the memory modules on the two Interface Manager cards have the same amount
of memory or the new Interface Manager card has more memory, skip Step 10.b
and continue with “Replacing the Interface Manager card 342213-001 or
393531-001” (page 66).
Figure 51 Comparing memory modules
b.
Remove the memory module from both Interface Manager cards. To remove the memory
module from the Interface Manager card, pull the latches away from the memory module
on both sides. When both latches are unfastened, the memory module pops up.
Grasp the edge of the memory module and pull it out of the socket.
Insert the memory module with the most memory into the memory module socket on the
replacement Interface Manager card. Push down on the module to fasten the latches.
Insert the other memory module into the memory module socket on the old Interface
Manager card. Push down on the module to fasten the latches.
Replacing the Interface Manager card 342213-001 or 393531-001
1.
2.
3.
4.
5.
Position the Interface Manager card as shown in (page 65). Align the Interface Manager card
with the guides in the bottom slot in the card cage in the base module and slide the Interface
Manager card into the library.
Push the ejector handles to the inside to fully engage the Interface Manager card into the
backplane.
Tighten the captive screws in both ejector handles. Use a #1 Phillips screwdriver.
Plug the cables into the Interface Manager card exactly as they were plugged into the original
Interface Manager card (see the labels on the cables or the note that you wrote).
Turn on the power to the library.
NOTE: Because all of the configuration settings for the Interface Manager card are stored
on the CompactFlash memory card that you moved, your new Interface Manager card retains
the configuration of the original card. To examine or change these settings, see the HP Interface
Manager and Command View TL User Guide.
6.
66
Make sure that the status LEDs indicate a normal state (see (page 43)).
Removing and replacing parts
Interface Manager card 480240-001
This section explains how to replace the 480240-001 Interface Manager card installed in an EML
E-Series tape library. This version of the Interface Manager card contains a label with the part
number AS#340252-003, has a USB port next to the serial port, and has the word DUAL printed
on the bezel.
Removing the Interface Manager card480240-001
1.
2.
3.
4.
5.
6.
Verify that your library meets the following requirements:
•
This board requires a 1 GB CompactFlash to operate; you cannot use a CompactFlash
with a different capacity. Therefore, the Interface Manager card that you are replacing
must contain a 1 GB CompactFlash. (In Step 7, you move the CompactFlash from the
original card to the new card.) If you need to order a 1 GB CompactFlash, contact HP
service.
•
You cannot use the 480240-001 Interface Manager card in the ESL9000 tape library.
If you have an ESL9000 library, use either the 342213-001 or 393531-001 Interface
Manager card instead.
•
The 480240-001 Interface Manager card requires firmware version I231 or later to
operate. Do not downgrade the firmware to an earlier version.
Use your backup software to stop all library activity and make sure the picker is empty.
Turn off the power to the library.
Identify the Interface Manager card. It is located in the bottom slot of the base module card
cage.
Label and unplug the cables.
a. Label the cables or write a note that shows the locations of all the cables plugged into
the Interface Manager card to make it easier to reconnect them later.
b. Unplug all cables from the Interface Manager card.
Remove the Interface Manager card.
a. Use a #1 Phillips screwdriver to loosen the captive screws in the black ejector handles
at the ends of the Interface Manager card.
b. Push the ejector handles to the outside, then pull on them to remove the controller.
CAUTION: Be aware that the metal tabs on the gasket on the filler panel can be caught and
bent by the pins on the Interface Manager card. If bent, these tabs can cause a short circuit.
Avoid removing or installing the Interface Manager card at an angle and watch that the metal
tabs on the gasket do not get caught or bent.
Interface Manager card
67
7.
Move the CompactFlash card.
a. The Interface Manager card contains a CompactFlash card which stores the library
configuration. To retain the library configuration, move the CompactFlash card to the
replacement Interface Management card.
b.
c.
d.
Grasp the edges of the CompactFlash card and slide it out of the slot on the original
Interface Manager card. If needed, push a pen into the corner notches of the slot to unseat
the CompactFlash card.
Remove the replacement Interface Manager card from its protective sleeve and place it
on your work surface.
With the connector going in first, align the sides of the CompactFlash card with the slot
on the replacement Interface Manager card. Gently slide the CompactFlash card into the
slot until it is securely seated.
NOTE:
If the CompactFlash card does not slide in easily, it is upside down. Pull the card back out,
flip it over, and reinsert it into the slot.
Replacing the Interface Manager card 480240-001
68
1.
Reinstall the Interface Manager card.
a. Align the Interface Manager with the guides in the base module card cage and slide the
Interface Manager into the library.
b. Push the ejection handles to the inside to fully seat the card. Tighten the captive screws.
2.
Plug the cables into the new Interface Manager card exactly as they were plugged into the
original card.
Removing and replacing parts
3.
Power on the library.
a. Set the library power switch at the upper right corner to the ON position. Check the
power supply power indicators to verify that the power is on.
b. Verify that the library robotics controller Active indicator is lit. The library will take 20
minutes or more to boot, depending on the configuration.
4.
Verify that the status LEDs of the Interface Manager card indicate a normal state. The red LED
should be off and the green LED should be blinking or solid.
Close the back doors of the library.
Verify the library configuration. Because all of the configuration settings of the Interface
Manager card are stored in the CompactFlash card that you moved, the replacement Interface
Manager card retains the configuration of the original card. To verify or change these settings,
refer to the HP Interface Manager and Command View TL User Guide.
5.
6.
Power supply in the base module or tape drive expansion module
Part number
375815-001 or 409857–001
Location
Left side of the base module or tape drive expansion module
Characteristics
• Hot-swappable
• Input rating: 100–240 VAC, 50-60 Hz, 7.2A
• Output rating: +3.3 VDC, +5 VDC, +12 VDC, -12 VDC
• 360 Watts total output power
Function
Provides power to the base module or tape drive expansion module
components
Illustration
Required tools
•
T-15 Torx screwdriver
Removing a power supply from the base module or tape drive expansion module
1.
2.
3.
4.
Identify the power supply to be replaced. The power LED might be off (see (page 48)).
Do one of the following:
•
If the faulty power supply is redundant, the library does not have to be powered off during
this procedure.
•
If the faulty power supply is the only power supply in the base module, stop all library
activity and make sure the picker is empty. Turn off the power to the library.
Unplug the power cord from the back of the power supply.
Remove the two 6-32 x 3/8-inch Torx screws that attach the power supply to the library. Use
a T-15 Torx screwdriver.
Power supply in the base module or tape drive expansion module
69
Figure 52 Screw locations on the base-module power supply
WARNING!
5.
6.
The power supply might be hot.
Pull the handle on the power supply to remove it from the library.
The bracket is not part of the replacement kit. You must move the bracket from the original
power supply to the new power supply. Remove the two 6-32 x 1/4-inch Torx screws that
attach the bracket to the power supply with a T-15 Torx screwdriver.
Figure 53 Removing the base-module power supply bracket
Replacing a power supply in the base module or tape drive expansion module
1.
2.
3.
4.
5.
Attach the bracket to the new power supply with two 6-32 x 1/4-inch Torx screws. Use a T-15
Torx screwdriver.
Slide the power supply into the library.
Attach the power supply to the library with two 6-32 x 3/8-inch Torx screws.
Plug the power cord into the power supply.
If the power to the library was previously turned off, turn on the power to the library.
Power supply in the card cage expansion module
70
Part number
375816-001 or 409858-001
Location
Bottom of the card cage expansion module
Removing and replacing parts
Characteristics
• Hot-swappable and redundant
• 3U x 8HP size with two LEDs
Function
Provides 100–240 VAC, 3 A, 47–63 Hz, to the card cage
expansion module
Illustration
Required tools
•
#2 Phillips screwdriver
Removing a power supply from the card cage expansion module
1.
2.
Identify the power supply to be replaced. The FAULT LED light might be lit (see (page 48)).
Loosen the two captive screws. One screw is in the black ejector handle and the other screw
is located on the top-right corner of the power supply back panel. Use a #2 Phillips screwdriver.
WARNING!
3.
4.
The power supply might be hot.
Push the black ejector handle to the left.
Pull the ejector handle to remove the power supply from the library.
Figure 54 Removing a power supply from a card cage expansion module
Replacing a power supply in the card cage expansion module
1.
2.
3.
Position the power supply as shown in (page 71). Align the power supply with the guides in
the card cage and slide the power supply into the library.
Push the ejector handle to the right.
Tighten the two captive screws. Use a #2 Phillips screwdriver.
Power supply in the card cage expansion module
71
LTO2 or LTO3 tape drive
Part number
375817-001 or 409859-001 (Ultrium 460 or LTO2)381676-001
or 409860-001 (Ultrium 960 or LTO3)
Location
In the base module or tape drive expansion module
Characteristics
• Hot-swappable
• 1/2-inch cartridge tape drive
Function
Writes data to and reads data from Linear Tape-Open (LTO)
cartridges
Illustration
Required tools
•
Flat-blade screwdriver
Removing an LTO2 or LTO3 tape drive
1.
Identify the tape drive to be replaced. The FAULT LED light might be lit (see (page 45)).
CAUTION: To avoid damaging FC cables, do not pinch or sharply bend the cables tighter
than a 5-cm (2-inches) diameter.
2.
3.
4.
Unplug the FC cable from the tape drive.
Use your fingers or a flat-blade screwdriver to loosen the captive screw on the right side of
the tape drive.
Pull the tape drive out of the library.
Figure 55 Removing a tape drive
Replacing an LTO2 or LTO3 tape drive
NOTE: HP recommends that you install tape drives from top to bottom, with no gaps between
them. If you are installing LTO2 or LTO3 tape drives and LTO4 or later tape drives in the same
library, HP recommends that you place all LTO2 and LTO3 tape drives above all LTO4 or later
tape drives.
72
Removing and replacing parts
1.
2.
Insert the tape drive into an empty drive bay.
Tighten the captive screw to attach the tape drive to the drive bay.
CAUTION: To avoid damaging FC cables, do not pinch or sharply bend the cables tighter
than a 5-cm (2-inches) diameter.
3.
Connect the FC cable to the tape drive. The FC cable connector clicks into place.
Figure 56 Connecting the FC cable to a tape drive
NOTE: Replacement tape drives placed into previously occupied drive bays are recognized
by the library. Tape drives placed into previously vacant drive bays are not recognized until
after a reboot.
4.
5.
6.
7.
8.
Make sure that the tape drive has the current firmware version. See the HP Interface Manager
and Command View TL User Guide for detailed procedures on updating tape drive firmware.
Use the Command View TL user interface to reboot the interface controller. See the HP Interface
Manager and Command View TL User Guide for detailed procedures.
Make sure the FC port LED for the corresponding tape drive on the interface controller is solid
green (see (page 44) or (page 44)).
If the tape drive was installed in a previously vacant drive bay, reboot the library. On the
OCP, select the Operations→Reboot Library command.
Check the tape drive status on the OCP to make sure that the tape drive is recognized.
Alternatively, make sure Command View TL recognizes the new tape drive using the console.
LTO4 and later tape drives
NOTE: For information on how to remove and replace LTO4 and later tape drives, see the
separate HP EML E-series LTO4 or Later Tape Drive Replacement Instructions at http://www.hp.com/
support/emle.
Part number
447790-001 (Ultrium 1840)
Location
In the base module or tape drive expansion module
Characteristics
• Hot-swappable
• 1/2-inch cartridge tape drive
Function
Writes data to and reads data from Linear Tape-Open (LTO)
cartridges
Illustration
LTO4 and later tape drives
73
Part number
602100-001 (Ultrium 3280)
Location
In the base module or tape drive expansion module
Characteristics
• Hot-swappable
• 1/2-inch cartridge tape drive
Function
Writes data to and reads data from Linear Tape-Open (LTO)
cartridges
Illustration
Part number
706800-001 (Ultrium 6650)
Location
In the base module or tape drive expansion module
Characteristics
• Hot-swappable
• 1/2-inch cartridge tape drive
Function
Illustration
74
Removing and replacing parts
Writes data to and reads data from Linear Tape-Open (LTO)
cartridges
Load port magazine
Part number
375813-001
Location
Inside the load port door on the right side of the base module, tape
drive expansion module, and capacity expansion module
Characteristics
One column, five slots
Function
Holding tape cartridges for placement into library
Illustration
Removing a load port magazine
1.
2.
3.
On the OCP, select the Operations→Unlock Load Ports command. All load port doors open.
Fully open the load port door.
Grab the handle and pull the magazine out of the load port along its track to remove it from
the library.
CAUTION: Guard plates prevent access to the inside of the library when a load port
magazine is removed. These doors will move back out of the way when a magazine is
reinserted. You should not attempt to otherwise move these guards, nor gain access to the
library through the load ports.
Replacing a load port magazine
1.
2.
Align the magazine with the top and bottom track on the load port door, and slide the
magazine through the spring door and fully into the load port.
Close the load port door.
Load port magazine
75
3.
After all load port doors are closed, the library does an inventory of the load ports.
Figure 57 Inserting a magazine into the load port
76
Removing and replacing parts
5 Moving the library
This section explains how to move or ship the library. To ship the library, or move it using a motor
vehicle (for example, truck, or forklift), follow the instructions in this section. To move the library to
a new location within the same building or facility, follow all instructions in this section except for
those found in (page 78).
CAUTION: Moving or shipping the library without proper packaging materials can result in
damage to library components. HP strongly recommends that an HP authorized service representative
move a library to another location.
NOTE: These procedures require the original packaging materials of the library. If you do not
have the original packaging materials, contact your support representative for ordering information.
Selecting an installation location
When choosing an installation site for the library, consider the requirements in the following
sections.
Preparing the library for a short move
1.
2.
Remove all tape cartridges from the tape drives using your application software.
Roll the library carefully on level surfaces to its destination.
Preparing the library for long-distance relocation
1.
2.
3.
4.
5.
Use your application software to remove all tape cartridges from the tape drives.
Remove all tape cartridges from the library slots.
Carefully pack all tape cartridges for shipment.
Install the shipping straps on the robot.
Push the yellow gear lock up to prevent movement of the reduction gear.
1. Shipping straps
2. Yellow gear lock
Selecting an installation location
77
6.
7.
Disconnect all cables from hosts, switches, or local networks and pack them with other library
accessories.
If the library needs to be crated, go to the next section.
Repacking the library
Use this section if you need to:
•
Ship the library to the new site.
•
Transport the library by forklift or similar means.
WARNING!
library.
78
Use at least two people to perform any steps that involve lifting or guiding the
1.
Put the library on a shock pallet. If your library was delivered in a rack, use the shock pallet
that came with the library. If your library was not delivered in a rack, use your own shock
pallet.
a. Raise the library support feet.
b. With the help of at least one person, roll the library to a position in front of the pallet
ramp.
c. Roll the library onto the pallet.
2.
Secure the library:
a. Place the antistatic bag over the library, and secure it into place.
b. Use the four shipping bolts to secure the library to the pallet.
c. Remove the ramps from the pallet and place them in a box.
3.
4.
5.
6.
7.
Place the ramp box and accessory kits onto the pallet.
Place the four corner posts against the rack.
Wrap the cardboard sheets around the library, and fasten using the plastic restraining clips.
Place the top (cap) onto the packed library.
Secure the packed library with two restraining bands.
Moving the library
Figure 58 Repacking the library
1. Ramps
2. Corner posts
3. Corrugated sheets
4. Cap
5. Antistatic bag
6. Shock pallet
Preparing the library for operation
After shipping or moving the library, see the Getting Started manual for your library to:
•
Prepare the new installation site.
•
Receive the library.
•
Uncrate the library.
•
Position the library.
•
Remove the robotics unit shipping restraints.
•
Install and configure the library.
Preparing the library for operation
79
6 Support and other resources
•
“Contacting HP” (page 80)
•
“Related information” (page 80)
•
Document conventions and symbols
Contacting HP
Go to www.hp.com/support/cvtl for the latest troubleshooting information, firmware updates,
software versions, and documentation.
Before contacting HP, collect the following information:
•
Product model names and numbers
•
Technical support registration number (if applicable)
•
Product serial numbers
•
Error messages
•
Operating system type and revision level
•
Detailed questions
For worldwide technical support information, see the HP support website:
http://www.hp.com/support
Related information
The following sections present related information, including:
•
Related documentation
•
HP web sites
Related documentation
The following documents and websites provide related information:
•
ESL E-Series Interface Manager poster
•
ESL9000 Series Interface Manager Replacement Instructions poster
•
EML E-Series Interface Manager replacement poster
•
HP Command View TL SMI-S Provider installation instructions
•
HP Enterprise Systems Library (ESL) G3 Tape Library User Guide
You can find these documents from the Manuals page of the HP Business Support Center website:
http://www.hp.com/support/manuals
In the Storage section, click Storage Software or Tape Storage and Media and then select your
product.
HP websites
For additional information, see the following HP websites:
80
•
http://www.hp.com
•
http://www.hp.com/go/storage
•
http://www.hp.com/support/manuals
Support and other resources
•
http://www.hp.com/support/downloads
•
http://www.hp.com/go/tapeassure
HP tape cartridges
To make sure you get the best performance from your tape library, always use HP branded tape
cartridges. HP develops, tests, and qualifies their hardware and tape cartridges together to ensure
compatibility, and enabling you to keep your data safe. To learn more about HP tape cartridges
or to order online, go to the HP website:
www.hp.com/go/storagemedia
Product warranties
For information about product warranties, see the warranty information website:
http://www.hp.com/go/storagewarranty
Subscription services
HP recommends that you register your product at the Subscriber's Choice for Business website:
http://www.hp.com/go/e-updates
After registering, you will receive e-mail notification of product enhancements, new driver versions,
firmware updates, and other product resources.
Typographic conventions
Table 29 Document conventions
Convention
Element
Blue text:
Table 29 (page
81)
Cross-reference links and e-mail addresses
Blue, underlined
text: http://
www.hp.com
Website addresses
Bold text
• Keys that are pressed
• Text entered into a GUI element, such as a box
• GUI elements that are clicked or selected, such as menu
and list items, buttons, tabs, and check boxes
Italic text
Text emphasis
Monospace text • File and directory names
• System output
• Code
• Commands, their arguments, and argument values
Monospace,
italic text
• Code variables
Monospace,
bold text
Emphasized monospace text
WARNING!
CAUTION:
• Command variables
Indicates that failure to follow directions could result in bodily harm or death.
Indicates that failure to follow directions could result in damage to equipment or data.
Typographic conventions
81
IMPORTANT:
NOTE:
TIP:
Provides clarifying information or specific instructions.
Provides additional information.
Provides helpful hints and shortcuts.
Updated regulatory compliance and recycling notices
For regulatory and recycling notices see HP StorageWorks ESL E-Series Tape Library users guide
or HP StorageWorks Enterprise Modular Library E-Series user guide.
82
Support and other resources
7 Documentation feedback
Send any errors, suggestions, or comments to Documentation Feedback ([email protected]).
83
A Specifications and characteristics
Library component specifications
Table 30 Library component specifications
Characteristic
Specification
10642 rack with 1 PDU
Physical:
Weight
114.84 kg (253 lb)
Dimensions (HxDxW)
199.9 x 100.8 x 61.0 cm (78.7 x 39.7 x 24 in)
Electrical:
AC voltage range
200–240 V, 50/60 Hz
Load capacity
3680 VA (@ 230 VAC)
Base module (12U) with 1 power supply, 2 tape drives, and robot (base module consists of base unit
(8U) and tape drive expansion module (4U)
Physical:
Weight, base module
45 kg (98 lb)
Weight, tape drive expansion module
20.5 kg (44.8 lb)
Dimensions (HxDxW), base module
35.6 x 81.1 x 48.0 cm (14.0 x 31.9 x 18.9 in)
Dimensions (HxDxW), tape drive expansion
module
17.8 x 81.1 x 48.0 cm (7.0 x 31.9 x 18.9 in)
Electrical:
Power rating
2 A (at 200 VAC) combined max peak
Card cage expansion module (4U)
Physical:
Weight (with 1 power supply and 3 interface 20 kg (43.8 lb)
controllers)
Dimensions (HxDxW)
17.8 x 76.3 x 48.0 cm (7.0 x 30.0 x 18.9 in)
Electrical:
Power rating
1.25 A (at 200 VAC)
Tape drive expansion module (8U) with 1 power supply and 4 tape drives
Physical:
Weight
41 kg (90.0 lb)
Dimensions (HxDxW)
35.6 x 81.1 x 48.0 cm (14.0 x 31.9 x 18.9 in)
Electrical:
Input power
288 Watts
Power rating
297 VA
Input current
1.5 A (at 200 VAC)
Capacity expansion module (8U)
Physical:
84
Specifications and characteristics
Table 30 Library component specifications (continued)
Characteristic
Specification
Weight
20.1 kg (44.2 lb)
Dimensions (HxDxW)
35.6 x 81.1 x 48.0 cm (14.0 x 31.9 x 18.9 in)
Electrical
Power rating
0.8 A (at 240 VAC)
Main power supply
Weight
2.3 kg (5.4 lb)
Card cage expansion module power supply
Weight
0.8 kg (1.8 lb)
LTO Ultrium tape drive and tray
Weight
3.6 kg (7.9 lb)
LTO Ultrium cartridge
Weight
220 g (7.8 oz)
e2400-FC 2Gb interface controller
Dimensions
6U wide x 4HP tall
Power requirements
3.3 VDC, 1.5 A typ., 4.95 W, 2.85 A for 4 ms5.0
VDC, 2.7 A typ., 13.50 W, 3.2 A for 0.7 secTotal
power=18.45 W
e2400-FC 4Gb interface controller
Dimensions
4U wide x 8HP tall
Power requirements
3.3 VDC +/- 100 mV; 7.5 A peak operating current;
25 W peak operating power5.0 VDC +/- 100 mV; 5
A peak operating current; 25 W operating power
Interface Manager card
Dimensions
4U wide x 4HP tall
Power requirements
3.3 VDC, 0.65 A typ., 2.14 W, 2.0 A5.0 VDC, 0.8
A typ., 4.0 W, 2.0 A Total power=6.14 W
Library environmental specifications
Table 31 Library environmental specifications
Item
Measurements
Operating
Storage
Transporting
Temperature
+10 to +35°C (+50 to
+95°F)
+10 to +40°C (+50 to
+104°F)
-40 to +60°C (-40 to
+140°F)
Humidity
20 to 80%
10 to 95%
10 to 95%
Wet bulb (maximum,
noncondensing)
+29.2°C (+84.5°F)
+35°C (+95°F)
+35°C (+95°F)
Altitude
76 to 4,500 m (-250 to 15,000 ft)
Library environmental specifications
85
Acoustics
Table 32 Acoustics
Item
Operating
Idle
Sound power
7.5 Bels (A)
7.5 Bels (A)
Sound pressure Bystander
position
7.5 Bels (A) (60 dB)
7.5 Bels (A)
Ultrium tape drive comparisons
Table 33 Ultrium tape drive comparisons
Characteristic
Ultrium 460
Ultrium 960
Ultrium 1840
Ultrium 3280
Capacity
(native)
200 GB
400 GB
800 GB
1.5 TB
Transfer rate
(native)
Up to 30 MB/sec1
Up to 80 MB/sec1
Up to 120 MB/sec1
140 MB/sec1
Data rate
matching
10-30 MB/sec
27-80 MB/sec
40-120 MB/sec
47-140 MB/sec
Host interfaces
2 Gb/sec FC
2 Gb/sec FC
4 Gb/sec FC
8 Gb/secFC
Head channels
8
16
16
16
Bit density
7.40 Kb/mm (188
Kb/inch)
9.64 Kb/mm (244.9
Kb/inch)
13.52 Kb/mm (343.4
Kb/in)
13.52 Kb/mm (343.4
Kb/in)
Number of
tracks
512
704
896
896
Length
609 m
680 m
820 m
820 m
Yes
Yes
Yes
WORM support No
Compatibility
Write
Ultrium Gen. 1, 2
Ultrium Gen. 2, 3
Ultrium Gen. 3, 4
Ultrium Gen. 4, 5
Read
Ultrium Gen. 1, 2
Ultrium Gen. 1, 2, 3
Ultrium Gen. 2, 3, 4
Ultrium Gen. 3, 4, 5
1
86
HP classifies the performance of the Ultrium drives as 1000 x 1000 bytes per second (that is, in base 10) in common
with most other disk and tape drive vendors. Most applications, however, measure performance as 1024 x 1024 bytes
per second.
Specifications and characteristics
B Regulatory statements
Federal Communications Commission notice
Part 15 of the Federal Communications Commission (FCC) Rules and Regulations has established
Radio Frequency (RF) emission limits to provide an interference-free radio frequency spectrum.
Many electronic devices, including computers, generate RF energy incidental to their intended
function and are, therefore, covered by these rules. These rules place computers and related
peripheral devices into two classes, A and B, depending upon their intended installation. Class A
devices are those that may reasonably be expected to be installed in a business or commercial
environment. Class B devices are those that may reasonably be expected to be installed in a
residential environment (for example, personal computers). The FCC requires devices in both classes
to bear a label indicating the interference potential of the device as well as additional operating
instructions for the user.
FCC rating label
The FCC rating label on the device shows the classification (A or B) of the equipment. Class B
devices have an FCC logo or ID on the label. Class A devices do not have an FCC logo or ID on
the label. After you determine the class of the device, refer to the corresponding statement.
Class A equipment
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at personal expense.
Class B equipment
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•
Reposition or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit that is different from that to which the receiver
is connected.
•
Consult the dealer or an experienced radio or television technician for help.
Declaration of Conformity for products marked with the FCC logo, United States only
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause und operation.
For questions regarding this FCC declaration, contact us by mail or telephone:
•
Hewlett-Packard Company P.O. Box 692000, Mail Stop 510101 Houston, Texas 77269-2000
•
Or call 1-281-514-3333
Federal Communications Commission notice
87
Modification
The FCC requires the user to be notified that any changes or modifications made to this device
that are not expressly approved by Hewlett-Packard Company may void the user's authority to
operate the equipment.
Cables
When provided, connections to this device must be made with shielded cables with metallic RFI/EMI
connector hoods in order to maintain compliance with FCC Rules and Regulations.
Canadian notice (Avis Canadien)
Class A equipment
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la class A respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
Class B equipment
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la class B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
European Union notice
This product complies with the following EU directives:
•
Low Voltage Directive 2006/95/EC
•
EMC Directive 2004/108/EC
Compliance with these directives implies conformity to applicable harmonized European standards
(European Norms) which are listed on the EU Declaration of Conformity issued by Hewlett-Packard
for this product or product family.
This compliance is indicated by the following conformity marking placed on the product:
This marking is valid for non-Telecom products and EU
harmonized Telecom products (e.g., Bluetooth).
Certificates can be obtained from http://www.hp.com/go/certificates.
Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany
Japanese notices
Japanese VCCI-A notice
88
Regulatory statements
Japanese VCCI-B notice
Japanese power cord statement
Korean notices
Class A equipment
Class B equipment
Taiwanese notices
BSMI Class A notice
Korean notices
89
Taiwan battery recycle statement
Turkish recycling notice
Türkiye Cumhuriyeti: EEE Yönetmeliğine Uygundur
90
Regulatory statements
Laser compliance notices
English laser notice
This device may contain a laser that is classified as a Class 1 Laser Product in accordance with
U.S. FDA regulations and the IEC 60825-1. The product does not emit hazardous laser radiation.
WARNING! Use of controls or adjustments or performance of procedures other than those
specified herein or in the laser product's installation guide may result in hazardous radiation
exposure. To reduce the risk of exposure to hazardous radiation:
•
Do not try to open the module enclosure. There are no user-serviceable components inside.
•
Do not operate controls, make adjustments, or perform procedures to the laser device other
than those specified herein.
•
Allow only HP Authorized Service technicians to repair the unit.
The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration
implemented regulations for laser products on August 2, 1976. These regulations apply to laser
products manufactured from August 1, 1976. Compliance is mandatory for products marketed in
the United States.
Dutch laser notice
French laser notice
Laser compliance notices
91
German laser notice
Italian laser notice
Japanese laser notice
92
Regulatory statements
Spanish laser notice
Recycling notices
English recycling notice
Disposal of waste equipment by users in private household in the European Union
This symbol means do not dispose of your product with your other household waste. Instead, you should
protect human health and the environment by handing over your waste equipment to a designated
collection point for the recycling of waste electrical and electronic equipment. For more information,
please contact your household waste disposal service
Recycling notices
93
Bulgarian recycling notice
Изхвърляне на отпадъчно оборудване от потребители в частни домакинства в Европейския
съюз
Този символ върху продукта или опаковката му показва, че продуктът не трябва да се изхвърля заедно
с другите битови отпадъци. Вместо това, трябва да предпазите човешкото здраве и околната среда,
като предадете отпадъчното оборудване в предназначен за събирането му пункт за рециклиране на
неизползваемо електрическо и електронно борудване. За допълнителна информация се свържете с
фирмата по чистота, чиито услуги използвате.
Czech recycling notice
Likvidace zařízení v domácnostech v Evropské unii
Tento symbol znamená, že nesmíte tento produkt likvidovat spolu s jiným domovním odpadem. Místo
toho byste měli chránit lidské zdraví a životní prostředí tím, že jej předáte na k tomu určené sběrné
pracoviště, kde se zabývají recyklací elektrického a elektronického vybavení. Pro více informací kontaktujte
společnost zabývající se sběrem a svozem domovního odpadu.
Danish recycling notice
Bortskaffelse af brugt udstyr hos brugere i private hjem i EU
Dette symbol betyder, at produktet ikke må bortskaffes sammen med andet husholdningsaffald. Du skal
i stedet den menneskelige sundhed og miljøet ved at afl evere dit brugte udstyr på et dertil beregnet
indsamlingssted for af brugt, elektrisk og elektronisk udstyr. Kontakt nærmeste renovationsafdeling for
yderligere oplysninger.
Dutch recycling notice
Inzameling van afgedankte apparatuur van particuliere huishoudens in de Europese Unie
Dit symbool betekent dat het product niet mag worden gedeponeerd bij het overige huishoudelijke afval.
Bescherm de gezondheid en het milieu door afgedankte apparatuur in te leveren bij een hiervoor bestemd
inzamelpunt voor recycling van afgedankte elektrische en elektronische apparatuur. Neem voor meer
informatie contact op met uw gemeentereinigingsdienst.
94
Regulatory statements
Estonian recycling notice
Äravisatavate seadmete likvideerimine Euroopa Liidu eramajapidamistes
See märk näitab, et seadet ei tohi visata olmeprügi hulka. Inimeste tervise ja keskkonna säästmise nimel
tuleb äravisatav toode tuua elektriliste ja elektrooniliste seadmete käitlemisega egelevasse kogumispunkti.
Küsimuste korral pöörduge kohaliku prügikäitlusettevõtte poole.
Finnish recycling notice
Kotitalousjätteiden hävittäminen Euroopan unionin alueella
Tämä symboli merkitsee, että laitetta ei saa hävittää muiden kotitalousjätteiden mukana. Sen sijaan sinun
on suojattava ihmisten terveyttä ja ympäristöä toimittamalla käytöstä poistettu laite sähkö- tai
elektroniikkajätteen kierrätyspisteeseen. Lisätietoja saat jätehuoltoyhtiöltä.
French recycling notice
Mise au rebut d'équipement par les utilisateurs privés dans l'Union Européenne
Ce symbole indique que vous ne devez pas jeter votre produit avec les ordures ménagères. Il est de
votre responsabilité de protéger la santé et l'environnement et de vous débarrasser de votre équipement
en le remettant à une déchetterie effectuant le recyclage des équipements électriques et électroniques.
Pour de plus amples informations, prenez contact avec votre service d'élimination des ordures ménagères.
German recycling notice
Entsorgung von Altgeräten von Benutzern in privaten Haushalten in der EU
Dieses Symbol besagt, dass dieses Produkt nicht mit dem Haushaltsmüll entsorgt werden darf. Zum
Schutze der Gesundheit und der Umwelt sollten Sie stattdessen Ihre Altgeräte zur Entsorgung einer dafür
vorgesehenen Recyclingstelle für elektrische und elektronische Geräte übergeben. Weitere Informationen
erhalten Sie von Ihrem Entsorgungsunternehmen für Hausmüll.
Recycling notices
95
Greek recycling notice
Απόρριψη άχρηοτου εξοπλισμού από ιδιώτες χρήστες στην Ευρωπαϊκή Ένωση
Αυτό το σύμβολο σημαίνει ότι δεν πρέπει να απορρίψετε το προϊόν με τα λοιπά οικιακά απορρίμματα.
Αντίθετα, πρέπει να προστατέψετε την ανθρώπινη υγεία και το περιβάλλον παραδίδοντας τον άχρηστο
εξοπλισμό σας σε εξουσιοδοτημένο σημείο συλλογής για την ανακύκλωση άχρηστου ηλεκτρικού και
ηλεκτρονικού εξοπλισμού. Για περισσότερες πληροφορίες, επικοινωνήστε με την υπηρεσία απόρριψης
απορριμμάτων της περιοχής σας.
Hungarian recycling notice
A hulladék anyagok megsemmisítése az Európai Unió háztartásaiban
Ez a szimbólum azt jelzi, hogy a készüléket nem szabad a háztartási hulladékkal együtt kidobni. Ehelyett
a leselejtezett berendezéseknek az elektromos vagy elektronikus hulladék átvételére kijelölt helyen történő
beszolgáltatásával megóvja az emberi egészséget és a környezetet.További információt a helyi
köztisztasági vállalattól kaphat.
Italian recycling notice
Smaltimento di apparecchiature usate da parte di utenti privati nell'Unione Europea
Questo simbolo avvisa di non smaltire il prodotto con i normali rifi uti domestici. Rispettare la salute
umana e l'ambiente conferendo l'apparecchiatura dismessa a un centro di raccolta designato per il
riciclo di apparecchiature elettroniche ed elettriche. Per ulteriori informazioni, rivolgersi al servizio per
lo smaltimento dei rifi uti domestici.
Latvian recycling notice
Europos Sąjungos namų ūkio vartotojų įrangos atliekų šalinimas
Šis simbolis nurodo, kad gaminio negalima išmesti kartu su kitomis buitinėmis atliekomis. Kad
apsaugotumėte žmonių sveikatą ir aplinką, pasenusią nenaudojamą įrangą turite nuvežti į elektrinių ir
elektroninių atliekų surinkimo punktą. Daugiau informacijos teiraukitės buitinių atliekų surinkimo tarnybos.
96
Regulatory statements
Lithuanian recycling notice
Nolietotu iekārtu iznīcināšanas noteikumi lietotājiem Eiropas Savienības privātajās mājsaimniecībās
Šis simbols norāda, ka ierīci nedrīkst utilizēt kopā ar citiem mājsaimniecības atkritumiem. Jums jārūpējas
par cilvēku veselības un vides aizsardzību, nododot lietoto aprīkojumu otrreizējai pārstrādei īpašā lietotu
elektrisko un elektronisko ierīču savākšanas punktā. Lai iegūtu plašāku informāciju, lūdzu, sazinieties ar
savu mājsaimniecības atkritumu likvidēšanas dienestu.
Polish recycling notice
Utylizacja zużytego sprzętu przez użytkowników w prywatnych gospodarstwach domowych w
krajach Unii Europejskiej
Ten symbol oznacza, że nie wolno wyrzucać produktu wraz z innymi domowymi odpadkami.
Obowiązkiem użytkownika jest ochrona zdrowa ludzkiego i środowiska przez przekazanie zużytego
sprzętu do wyznaczonego punktu zajmującego się recyklingiem odpadów powstałych ze sprzętu
elektrycznego i elektronicznego. Więcej informacji można uzyskać od lokalnej firmy zajmującej wywozem
nieczystości.
Portuguese recycling notice
Descarte de equipamentos usados por utilizadores domésticos na União Europeia
Este símbolo indica que não deve descartar o seu produto juntamente com os outros lixos domiciliares.
Ao invés disso, deve proteger a saúde humana e o meio ambiente levando o seu equipamento para
descarte em um ponto de recolha destinado à reciclagem de resíduos de equipamentos eléctricos e
electrónicos. Para obter mais informações, contacte o seu serviço de tratamento de resíduos domésticos.
Romanian recycling notice
Casarea echipamentului uzat de către utilizatorii casnici din Uniunea Europeană
Acest simbol înseamnă să nu se arunce produsul cu alte deşeuri menajere. În schimb, trebuie să protejaţi
sănătatea umană şi mediul predând echipamentul uzat la un punct de colectare desemnat pentru reciclarea
echipamentelor electrice şi electronice uzate. Pentru informaţii suplimentare, vă rugăm să contactaţi
serviciul de eliminare a deşeurilor menajere local.
Recycling notices
97
Slovak recycling notice
Likvidácia vyradených zariadení používateľmi v domácnostiach v Európskej únii
Tento symbol znamená, že tento produkt sa nemá likvidovať s ostatným domovým odpadom. Namiesto
toho by ste mali chrániť ľudské zdravie a životné prostredie odovzdaním odpadového zariadenia na
zbernom mieste, ktoré je určené na recykláciu odpadových elektrických a elektronických zariadení.
Ďalšie informácie získate od spoločnosti zaoberajúcej sa likvidáciou domového odpadu.
Spanish recycling notice
Eliminación de los equipos que ya no se utilizan en entornos domésticos de la Unión Europea
Este símbolo indica que este producto no debe eliminarse con los residuos domésticos. En lugar de ello,
debe evitar causar daños a la salud de las personas y al medio ambiente llevando los equipos que no
utilice a un punto de recogida designado para el reciclaje de equipos eléctricos y electrónicos que ya
no se utilizan. Para obtener más información, póngase en contacto con el servicio de recogida de
residuos domésticos.
Swedish recycling notice
Hantering av elektroniskt avfall för hemanvändare inom EU
Den här symbolen innebär att du inte ska kasta din produkt i hushållsavfallet. Värna i stället om natur
och miljö genom att lämna in uttjänt utrustning på anvisad insamlingsplats. Allt elektriskt och elektroniskt
avfall går sedan vidare till återvinning. Kontakta ditt återvinningsföretag för mer information.
Battery replacement notices
Dutch battery notice
98
Regulatory statements
French battery notice
German battery notice
Battery replacement notices
99
Italian battery notice
Japanese battery notice
100 Regulatory statements
Spanish battery notice
Battery replacement notices
101
C Ordering HP tape cartridges and barcode label packs
Where to buy tape cartridges and barcode labels
HP recommends using HP tape cartridges in your HP StorageWorks tape library. These can be
purchased directly from HP, or through an authorized reseller or sales office.
•
•
For the location of an HP authorized reseller:
◦
Call 1-800-345-1518 (U.S. only).
◦
Call 1-800-263-5868 (Canada only).
◦
Outside of North America, see the HP web site for locations and telephone numbers:
http://www.hp.com/support.
To order through HP:
◦
Call 1-800-538-8787 (North America only).
◦
Visit us online at http://www.hp.com/go/storagemedia.
Part numbers for tape cartridges and barcode labels
Table 34 HP tape cartridges and barcode labels
Tape drive type/product
HP part number
Ultrium 460
Data cartridge
C7972A (400 GB)1
Prelabeled data cartridge
C7972AL (400 GB1—Europe, Americas only)
Universal cleaning cartridge
C7978A
Barcode label pack (100 data labels, 10 cleaning
labels)
Q2002A
Ultrium 960
Data cartridge, read/write
C7973A (800 GB1)
Data cartridge, WORM (write once, read many)
C7973W (800 GB1)
Prelabeled data cartridges, read/write, 20 pack
C7973AL (800 GB1—Europe, Americas only)
Prelabeled data cartridges, WORM, 20 pack
C7973WL (800 GB1—Europe, Americas only)
Universal cleaning cartridge
C7978A
Barcode label pack, read/write (100 data labels, 10
cleaning labels)
Q2007A
Barcode label pack, WORM (100 data labels, 10
cleaning labels)
Q2008A
Ultrium 1840
Data cartridge, read/write
C7974A (1.6 TB1)
Data cartridge, WORM (write once, read many)
C7974W (1.6 TB1)
Non-custom prelabeled data cartridges, read/write,
20 pack
C7974AN (1.6 TB1—Europe, Americas only)
Custom prelabeled data cartridges, read/write,
20 pack
C7974AL (1.6 TB1—Europe, Americas only)
102 Ordering HP tape cartridges and barcode label packs
Table 34 HP tape cartridges and barcode labels (continued)
Tape drive type/product
HP part number
Custom prelabeled data cartridges, WORM, 20 pack C7974WL (1.6 TB1—Europe, Americas only)
Barcode label pack, read/write (100 data labels, 10
cleaning labels)
Q2009A
Barcode label pack, WORM (100 data labels, 10
cleaning labels)
Q2010A
Ultrium 3280
Data cartridge, read/write
C7975A (3.0 TB1)
Data cartridge, WORM (write once, read many)
C7975AL (3.0 TB1, Europe, Americas only)
Non-custom prelabeled data cartridges, read/write,
20 pack
C7975W (3.0 TB1)
Custom prelabeled data cartridges, read/write,
20 pack
C7975WL (3.0 TB1, Europe, Americas only)
Custom prelabeled data cartridges, WORM, 20 pack C7978A
Barcode label pack, read/write (100 data labels, 10
cleaning labels)
Q2011A
Barcode label pack, WORM (100 data labels, 10
cleaning labels)
Q2012A
1
Capacity values assume a 2:1 compression ratio
Part numbers for tape cartridges and barcode labels 103
D Installing a redundant PDU
PDU components
The library comes with one PDU installed. For a variety of reasons, it may be desirable or necessary
to add a second PDU to the library rack. The factors that determine when to add a second PDU
are described below.
The main PDU components are:
•
High voltage modular PDU, 200–240 VAC, 16 amp, part number 252663-B24 (kit includes
two power strips and mounting hardware)
•
Main power cord, L6-20P 20 amp, 220 V, twist lock, part number 340653-001
•
Power cords (PDU to library), 1/2 meter, part number 142257-B28
Leakage current
The most overriding reason to add a second PDU to the rack is to meet safety requirements for
leakage current. Regulations limit the amount of leakage current per power outlet to 3.5 mA. This
is the amount of current that may be returned through the ground line to the wall outlet, and therefore
is the amount of leakage current allowed per PDU.
The individual power supplies of the library may each contribute a maximum of 0.5 mA. This
means no more than seven of the library power supplies may be attached to a single PDU. A fully
configured library, with redundant power supplies, would necessitate 10 power supplies. In that
configuration, a second PDU is certainly required. Even a 32U-high configuration of the library
with redundant power supplies would require a second PDU. Even if redundant power supplies
are not currently installed, you should consider adding a second PDU when the library is expanded
above 24U in height. With a second PDU installed, upgrading to redundant power supplies in the
future is simplified by being able to just slide them into place and connect them to the power strip.
If equipment is added to the library rack from other sources, it is your responsibility to determine
the maximum leakage current from all the equipment using the PDU so that the 3.5 mA limit on a
single PDU is not exceeded.
Redundancy
Another important reason to add a second PDU to the library rack is to add another layer of power
redundancy to the product. As redundant power supplies are added to library modules, the system
can be made even more fail-safe by powering individual power supplies, one from each module,
with separate AC power circuits. This requires a second PDU.
Every library module level (for example, the base module, card cage expansion module, tape
drive expansion module, and so on) can have redundant power supplies added as an option.
Each module level, with each power supply powered from different AC circuits, ensures continued
library operation should one of the AC power outlets fail. The location of the power strips for the
second PDU are installed in a manner such that the power cords of the redundant power supplies
of each module level can easily reach the PDU.
Power rating
As was the case with leakage current, if equipment is added to the library rack from other sources,
it is your responsibility to make sure the power rating of the PDU and power cords are not exceeded
by the load of this additional equipment. The power rating of the PDU is sufficient to power up to
seven power supplies in the library that are allowed by the leakage current specification. You must
check the power ratings of any additional equipment added to the rack, the power rating of the
PDU, and the power rating of the power cords, to make sure all are within specified limits.
104 Installing a redundant PDU
Placement of redundant PDU components
The library primary PDU (#1) and two power strips (#1 and #3) are installed at the factory. The
redundant PDU (#2) is installed above the primary PDU, also in a 0U side mount position. The top
of PDU #1 is approximately 33 cm (13 inches) from the caster boss. The top of PDU #2 is placed
approximately 63 cm (25 inches) from the caster boss (see (page 105)).
Power strip #2 is placed equidistant between power strips #1 and #3.
Power strip #4 is placed in a position low in the rack so that it does not interfere with the power
cords coming from PDU #1 to power strips #1 and #3.
With properly placed power strips in a fully redundant 40U configuration, the top six power supply
cords go to power strips #1 and #2. One power cord at each redundant level goes to each power
strip.
Similarly, the bottom four power cords in a fully redundant configuration are divided between
power strips #3 and #4. By using 0.5-m (15-inch) power cords, the dressing should be minimal.
Figure 59 Redundant PDU and power strip placement
1. Power strip #2
2. Redundant PDU (#2)
3. Power strip #4
4. Caster boss
Installation of redundant PDU components
Refer to the instructions provided with your redundant PDU for installation steps. After installation,
dress all cords with cable ties. In addition, use cable ties to lock the power cords coming out of
the PDU that go to each power strip.
Placement of redundant PDU components 105
Glossary
array
(1) A section of vertical or horizontal tape cartridge receptacles inside a library.
(2) A molded unit that holds multiple cartridges.
backplane
The storage system electronic printed circuit board into which storage system devices can be
plugged.
barcode reader
A component of the robot that is used for tape cartridge identification and position calibration.
base module
The 12U module in every HP Enterprise Modular Library E-Series that contains the robot, tape
drives, and card cage for controller cards. For slot numbering purposes, the base module is
divided into a base unit (8U) and tape drive expansion module (4U).
card
Also called printed wire assembly or printed circuit board.
cartridge
The plastic housing around a cartridge tape. A plastic leader block is attached to the tape for
automatic threading when loaded in transport. The spine of the cartridge contains a label listing
the volume identification number.
cartridge array
See array..
center door
A door on the center-front of a library through which service personnel or operators can access
the interior of the library.
Class A digital
device
Class A equipment is intended for commercial installation.
Class I laser
product
Class 1 lasers are products where the power of the laser beam produced (the accessible emission)
is always below the Maximum Permissible Exposure value. Therefore, for Class 1 lasers the output
power is below the level at which it is believed eye damage will occur. Exposure to the beam of
a Class 1 laser will not result in eye injury. Class 1 lasers may therefore be considered eye safe.
Class II laser
product
Class 2 lasers are limited to a maximum output power of 1 mW. A person receiving an eye
exposure from a Class 2 laser, either accidentally or as a result of someone else's deliberate
action (misuse) will be protected from injury by their natural blink reflex. This is a natural involuntary
response which causes the individual to blink and avert their head thereby terminating the eye
exposure.
cleaning cartridge
A tape cartridge that contains special material to clean the tape path in a transport or tape drive.
LTO cleaning cartridges labels have CLN prefixes.
CLI
Command Line Interface
CompactPCI (cPCI)
Industry standard bus used for card-to-card bus expansion.
containment box
A box in the HP Enterprise Modular Library robot that holds the lift-flex cable. The cable retracts
into the box as the table is raised.
data cartridge
A term used to distinguish a cartridge onto which a tape drive may write data from a cartridge
used for cleaning purposes.
drive
The device that the library uses to record data onto tapes. Also called tape drive.
drive cleaning
A library feature that uses a cleaning cartridge to clean a tape drive.
drive module
The entire assembly that houses the tape drive, including the metal housing and connectors.
ESD
Electrostatic discharge. The release of static electricity from one conductor to another.
Ethernet
A local-area, packet-switched network technology. Originally designed for coaxial cable, it is
now found running over shielded, twisted-pair cable. Ethernet is a 10- or
100-megabytes-per-second LAN.
event
A significant library occurrence (such as tape drive errors, online/offline transition, tape drive
cleanings, and other information) that is listed in an automated log.
export
The action in which the library places a tape cartridge into the load port so that the operator can
remove the cartridge from the library.
Fibre Channel
A bidirectional, full-duplex, point-to-point, serial data channel structured for high performance
capacity. The Fibre Channel is an interconnection of multiple communication ports, called N_Ports.
These N_Ports are interconnected by a switching network, called a fabric, to a point-to-point link,
106 Glossary
or an arbitrated loop. Fibre Channel is a generalized transport mechanism with no protocol of
its own. A Fibre Channel does not have a native input/output command set, but can transport
existing Upper Level Protocols (ULP) such as SCSI. Fibre Channel operates at speeds of 200 MB
per second. Fibre Channel operates over distances of up to 100 m over copper media or up to
10 km over optical links.
flash memory
Firmware memory for the current and previous version of library firmware.
get
An activity in which a robot obtains a tape cartridge from a slot or tape drive.
GUI
Graphical user interface. Software that enables the user to control the library environment through
visual screens.
HBA
Host bus adapter. A circuit board residing in the host system that handles requests to and from
the host system and the library.
host
One or more computers that generate and communicate data to the library.
hot-swappable
The capability that enables a component to be replaced while power to the component is
maintained. This feature enables hardware maintenance actions and hardware upgrades to
proceed without disrupting subsystem availability.
HP (unit of
measure)
Horizontal pitch. A measurement of the width of a chassis. Library circuit card assemblies sitting
horizontally in card cages are measured vertically in these units where one HP is 5.08 mm (0.2
inches).
HP Enterprise
Modular Library
E-Series
An automated tape library composed of a:
•
Base module
•
Tape drive expansion module (optional)
•
Card cage expansion module (optional)
import
The process of placing a tape cartridge into the load port so that the robot can insert it into a
storage slot.
initialization
A procedure that activates a machine reset, initiates wake-up diagnostics (from EPROMs) and
loads functional code.
interlock switch
A switch that disconnects power to library mechanisms, excluding tape drives, when the center
door is opened.
inventory
The process of reading and storing in memory the barcode identification and locations of all tape
cartridges in the library.
IPv4
IPv4 is an Internet Protocol that contains addressing information and some control information
that enables data to be routed in a network. IPv4 has an IP address size of 32 bits and is written
as four numbers separated by periods. An IPv4 address contains numerals only (0–255). A
sample IPv4 IP address looks like: 127.0.0.1.
IPv6
IPv6 is an Internet Protocol that contains addressing information and some control information
that enables data to be routed in a network. IPv6 has an IP address size of 128 bits and is in
hexadecimal format (base 16). An IPv6 address can contain numerals (0-9) and some letters (a-f).
A sample IPv6 address looks like: 3ffe:ffff:100:f101:210:a4ff:fee3:9566.
lift drive assembly
A component of the robot that moves the table assembly vertically among the library modules.
lift drive pulley
A component of the lift drive assembly used to move the table assembly vertically along the lift
pole to slots and tape drives.
lift pole
The device that guides the vertical movement of the table assembly.
lift reduction gear
The component of the lift drive assembly that controls the lift drive pulley.
lift suspension
cables
Four cables used to lift and lower the table assembly among the library modules.
lift-flex cable
The cable that carries control and power signals to the table assembly. This cable automatically
adjusts to the position of the table assembly in the library.
load port
A device in the library that enables an operator to insert or remove tape cartridges during library
operations.
logical library
A virtual representation of a physical library. Also called virtual library partition.
107
magazine
A removable array that holds tape cartridges and is placed into the load port.
PCI
Peripheral component interconnect. The PCI bus typically runs at speeds of 33 MHz or 66 MHz
and is usually 32 bits wide. This means that it passes 32 bits of data simultaneously as if down
32 separate wires. Some of the most recent computers include wider 64-bit PCI buses, and already
certain very high-end video capture cards offer improved performance if connected to a 64-bit
PCI bus.
picker
The portion of the picker assembly that grasps and holds a tape cartridge.
picker assembly
A part of the library robot whose function is to grasp tape cartridges and move them between
slots and tape drives. A barcode scanner on the hand assembly reads tape cartridge volume
labels.
put
An activity in which a robot places a tape cartridge into a slot or tape drive.
PWA
Printed wiring assembly.
reach mechanism
A component of the robot that moves the gripper to get or put a tape cartridge at a designated
location.
robot
An electro-mechanical device that transports tape cartridges to and from locations in the library.
robotics unit
The unit that includes the robotics components and that controls the movement of the robot between
slots, tape drives, and load ports.
RS-232C
Short for Recommended Standard-232C, a standard interface approved by the Electronic Industries
Association (EIA) for connecting serial devices. This standard is for asynchronous transfer between
computer equipment and accessories. Data is transmitted bit by bit in a serial fashion. The RS-232
standard defines the function and use of all 25 pins of a DB-25 type connector.
slot
The location in the library in which a tape cartridge is stored.
slot database
The tape cartridge and slot records collected by the library inventory.
suspension cable
One of four cables used to raise and lower the table.
table assembly
A component of the robotics unit that carries the picker assembly vertically among the library
modules.
tape cartridge
A container holding magnetic tape that can be processed without separating the tape from the
container. The library uses data and cleaning cartridges. These cartridges are not interchangeable.
tape drive
An electromechanical device that moves magnetic tape and includes mechanisms for writing and
reading data to and from the tape.
tape drive
assembly
An interface to control/monitor tape drive operation.
U
A measure of chassis height. 1U in rack measurement is 44.45 mm (1.75 inches).
Circuit card assemblies using the cPCI standard use the Eurocard range of circuit card sizes,
where 3U cards are 100 x 160 mm (3.94 x 6.3 inches) and 6U cards are 230 x 160 mm (9.187
x 6.3 inches). The Interface Manager card is considered 4U wide with dimensions of 161.9 x
157.3 mm (6.4 x 6.2 inches).
World Wide Name
(WWN)
A 64-bit integer that identifies a Fibre Channel port.
wrist
A component of the hand assembly that rotates the hand horizontally.
108 Glossary
Index
adapter panel, 13
adjust screen contrast, 40
align screen, 41
barcode reporting formats, 40
interface controller verification, 62
inventory mode, 29, 40
load ports, 39
reserve slots, 40
Configuration screen, 39
Contact Information screen, 42
contrast adjustment, 40
conventions
document, 81
text symbols, 81
cPCI slots, 13
customer reserved space, 11
B
D
barcode labels
configuring use, 29, 40
information tracked, 30
inventory speed, 40, 57
ordering, 102
placement, 30
barcode reader
failure, 55
location, 12
barcode reporting format, 40
base module
card cage, 13
description, 11
base module power supply, removal and replacement, 69
battery replacement notices, 98
Declaration of Conformity, 87
devices, troubleshooting, 62
DHCP, 39
diagnostic support tools, 51
Display Library Time screen, 42
Disposal of waste equipment, European Union, 93
documentation
conventions, 81
HP website, 80
related, 80
Symbols
71e
configuration, 7
number of slots, 11
reserved slots, 23, 40
slot numbering, 24
upgrading, 13, 27
A
C
cable management feature, 13
Canadian notice, 88
capacity expansion module, 15
card cage expansion module, 14
power supply removal and replacement, 70
caster boss, 105
center door interlock, 29
change network settings, 39
change password, 39
changing the master controller, 19
clean tape drive, 51
cleaning
a drive, 41
command line interface, 19, 58
command screen interface, 27
Command View TL
as diagnostic tool, 51
capacity upgrade license, 13, 27
with Interface Manager card, 16, 17
CompactFlash memory card
location, 13
removal, 65
Component Status screen, 38
configuration
E
e2400--FC 4Gb interface controller
depiction, 44
e2400-FC 2Gb interface controller
depiction, 18, 44
functional description, 18
LED indicators, 61
master controller, 19
troubleshooting, 61
e2400-FC 4Gb interface controller
depiction, 18
LED indicators, 61
troubleshooting, 61
EML
network, 20
physical description, 7
powering off, 29
powering on, 28
repacking, 78
European Union notice, 88
Event Log Type Selection screenlist, 39
expansion modules
capacity, 15
card cage, 14
tape drive, 14
Extended Tape Library Architecture, 7
F
FC connection, troubleshooting, 62
FC port connection, verifying, 62
109
Federal Communications Commission notice, 87
floor
at lowest module, 23
library, 12, 14, 23
H
HBA device driver
troubleshooting, 62
verifying information, 62
Health Summary screen, 38
help
obtaining, 80
Home screen, OCP, 33
host configuration
troubleshooting, 62
verifying, 62
host maps, 19
HP
technical support, 80
HP Support Info screen, 42
I
Identity Screen, 38
import/export slots, 12, 20, 23
independent software vendors, 19
installation location, EML, 77
installing
redundant PDU, 104
Interface Manager card
depiction, 16
functional description, 16
removal and replacement, 64
troubleshooting, 58
interlock, center door, 29
internal network, 21, 46
inventory, 29
J
Japanese notices, 88
K
Korean notices, 89
L
labeling tape cartridges, 29
laser compliance notices, 91
leakage current, 104
LED fault isolation, 60
LED indicators
interface controller, 61
Interface Manager card, 58
library
description, 19
floor, 12, 14, 23
tape cartridges used, 21
Library and Tape Tools (L&TT)
as diagnostic tool, 51
description, 27
Library Configuration screen, 39
110
Index
library robotics controller
depiction, 16
functional description, 16
volatile memory, 20
library, relocating, 77
lift pole, 12
lift suspension cable, 12
lift table assembly, 12
lift-flex cable, 12
lift-flex retraction handle, 12
load port
configuring, 39
functional description, 20
inserting tape cartridges, 31
unlocking, 40
LTO
slots, 22
technology, 21
LTO2
LED, 45
part number, 72
removal and replacement, 72
LTO3
LED, 45
part number, 72
removal and replacement, 72
LTO4
barcode label, 29
LEDs, 45
part number, 73
removal and replacement, 73
LTO5
barcode label, 29
LEDs, 46
part number, 74
removal and replacement, 74
LTO6
LEDs, 46
part number, 74
removal and replacement, 74
M
magazine
depiction, 21
functional description, 12, 20
inserting cartridges, 31
inserting into load port, 32
removal and replacement, 75
maintaining tape cartridges, 50
management station, 17, 20, 26
moving
a tape, 41
the library, 77
N
network
internal, 21, 46
numbering
library components, 37
power supplies, 37
slots, 23
O
OCP
functions, 35
Home screen, 33
icons, 32
tabs and status bar, 33
timeouts, 34
troubleshooting, 55
OCP screens
Component Status, 38
Configuration, 39
Event Log Type Selection, 39
Health Summary, 38
Identity, 38
Library Configuration, 39
Operations, 40
Support, 42
View Library Inventory, 39
operating problems, 57
operations, 41
Operations screen, 40
P
partitions, 19
password, changing, 39
PDU
installing redundant, 104
requirements, 104
physical description, 7
picker assembly, 12
power distribution unit
LEDs, 49
power off library, 29
power rating, PDU, 104
power supply
autoranging, 12, 14
power supply in base module
LED, 48
power supply in card cage expansion module
LEDs, 48
power supply in tape drive expansion module
LED, 48
powering on library, 28
prelabeled , ordering, 102
preparing tape cartridges, 29
R
ratchet tool, 12
rebooting the library, 29, 40
recycling notices, 93
redundant PDU, installing, 104
regulatory compliance
Canadian notice, 88
European Union notice, 88
Japanese notices, 88
Korean notices, 89
laser, 91
recycling notices, 93
Taiwanese notices, 89
related documentation, 80
relocating the library, 77
removal and replacement
base module power supply, 69
card cage expansion module power supply, 70
Interface Manager card, 64
load port magazine, 75
tape drive expansion module power supply, 69
Ultrium tape drive, 72, 73, 74
repacking the library, 78
reserve slots, configuring, 40
robotics unit
description, 12
troubleshooting, 55
RS232 interface, 20
run admin tests, 41
S
Secure Manager, 57, 62
serial port configuration, verifying, 62
Service Menu screen, 42
slot numbering
base module, 25
base module 71e, 24
card cage expansion module, 26
scheme, 23
tape drive expansion module, 25
startup problems, 53
Status screen, 37
Subscriber's Choice, HP, 81
Support screen, 42
support ticket, 52
switch
LEDs, 46
ports, 21
symbols in text, 81
T
table assembly, 12
Taiwanese notices, 89
tape cartridges
ESD precautions, 29
labeling, 29
maintaining, 50
used by library, 21
WORM, 21
write-protect switch, 31
tape drive, 29
see also Ultrium tape drive
cleaning, 51
tape drive expansion module, 14
tape drive expansion module power supply, removal and
replacement, 69
tape inventory, 29
TCP/IP, 19
technical support
111
HP, 80
Telnet session, 19, 20
terminal configuration settings, 63
text symbols, 81
troubleshooting
basic Fibre Channel, 61
devices, verifying, 62
FC connection, verifying, 62
HBA device driver, verifying, 62
host configuration, verifying, 62
interface controller, 61
interface controller problems, 61
Interface Manager card, 58
OCP problems, 55
operating problems, 57
robotics problems, 55
startup problems, 53
tape drive problems, 57
U
Ultrium 1840 see LTO4
Ultrium 3280 see LTO5
Ultrium 6650 see LTO6
Ultrium tape drive
1840, 21
3280, 21
6650, 21
960, 21
removal and replacement, 72, 73, 74
unlock door, 40
unlock load ports, 40
using the OCP, 32
V
View Library Inventory screen, 39
W
web sites
Command View TL, 59
websites
HP, 80
HP Subscriber's Choice for Business, 81
product manuals, 80
WORM tape cartridges, 21
write-protect switch, tape cartridges, 31
