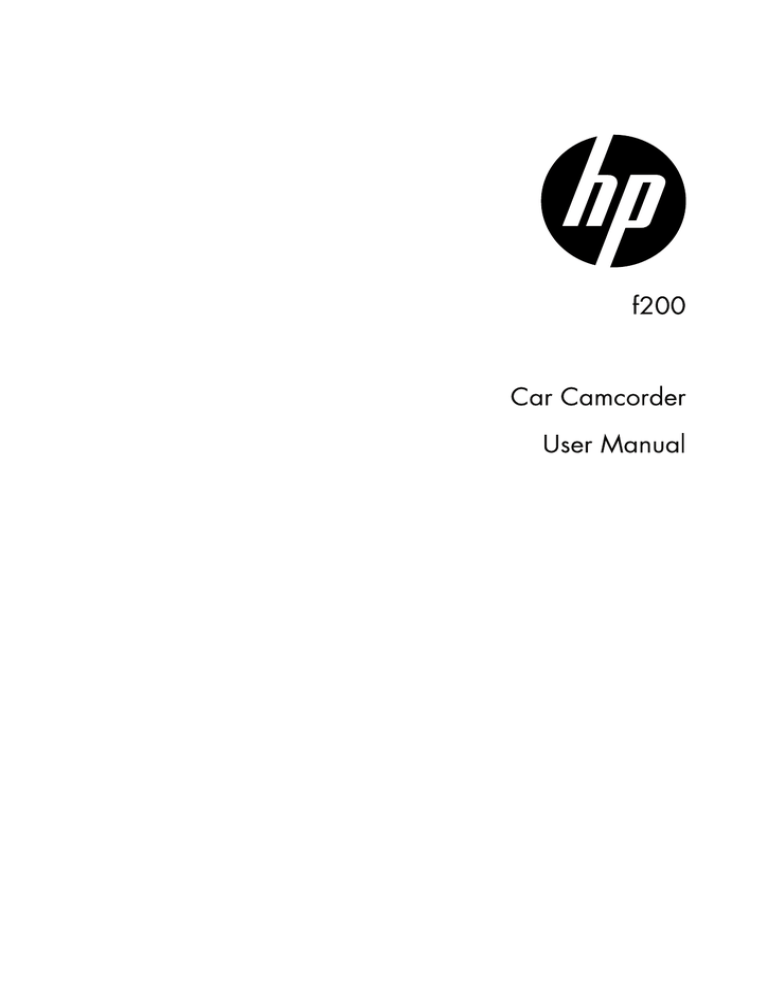

HP | F200 | User's Manual | HP f200 Car Camcorder User manual

f200 English User Manual Contents
About this Guide...................................................................3
FCC Statement.....................................................................3
WEEE Notice........................................................................3
CE Regulatory Notice...........................................................4
Notes on Installation.............................................................4
Caution .................................................................................4
1
Introduction...................................................................5
1.1
Features ....................................................................5
1.2
Package Contents .....................................................5
1.3
Product Overview ......................................................6
2
Getting Started ..............................................................7
2.1
Inserting the Memory Card........................................7
2.2
Installing in Vehicles ..................................................8
2.2.1
2.2.2
Mount to Windshield ................................8
Adjust Device Position..............................8
2.3
Connecting to Power .................................................9
2.4
Powering the Device On / Off ..................................10
2.4.1
2.4.2
2.5
Initial Settings .......................................................... 11
2.5.1
2.5.2
3
Auto Power On/Off ................................10
Manual Power On/Off ...........................10
Set Automatic Recording ........................11
Set the Date and Time .............................11
Using the Car Recorder..............................................12
3.1
Recording Videos ....................................................12
3.1.1
Record videos while driving ..................12
1
3.1.2
3.1.3
3.1.4
3.1.5
3.1.6
3.2
Playback Videos and Photos...................................16
3.2.1
3.2.2
3.2.3
3.2.4
4
5
Record all other types of videos.............12
Emergency Recording .............................13
The Recording Screen..............................14
Using the LED Light................................15
Taking Snapshot ......................................15
Playing Videos .........................................17
Viewing Photos ........................................17
The Playback Screen................................18
Deleting Files............................................19
Adjusting the Settings................................................20
4.1
Using the Menu .......................................................20
4.2
Menu Tree ...............................................................21
Specifications .............................................................23
2
About this Guide
The content in this document is for information purpose and is subject to change without
prior notice. We made every effort to ensure that this User Guide is accurate and complete.
However, no liability is assumed for any errors and omissions that may have occurred.
The manufacturer reserves the right to change the technical specifications without prior
notice.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
WEEE Notice
Disposal of Waste Electrical and Electronic Equipment and/or Battery by users in
private households in the European Union
This symbol on the product or on the packaging indicates that this can not be
disposed of as a household waste. You must dispose of your waste equipment
and/or battery by handling it over to the applicable take-back scheme for the
recycling of electrical and electronic equipment and/or battery. For more
information about recycling of this equipment and/or battery, please contact
your city office, the shop where you purchased the equipment or your
household waste disposal service. The recycling of materials will help to
conserve natural resources and ensure that it is recycled in a manner that
protects human health and environment.
3
CE Regulatory Notice
This equipment complies with the requirements set out in the Council Directives on the
Approximation of the Laws of the Member States relating Electromagnetic Compatibility
(2004/108/EC); the Low Voltage Directive (2006/95/EC); the Restriction of The Use of
Certain Hazardous Substances in Electrical And Electronic Equipment Directive
(2002/95/EC), Turkish EEE Directive; the Commission Regulation (EC) No 1275/2008
implementing Directive 2005/32/EC of the European Parliament and of the Council with
regard to eco-design requirements for standby and off mode electric power consumption of
electrical and electronic household and office equipment, and the Directive 2009/125/EC of
the European parliament and of the council establishing a framework for the setting of
eco-design requirements for energy-related products.
Notes on Installation
1.
2.
3.
4.
5.
Install the device near the rear-view mirror to obtain the best
open-field view.
Make sure that the lens is within the wiping range of the windscreen
wiper to ensure a clear view even when it rains.
Do not touch the lens with your fingers. Finger grease may be left
on the lens and will result in unclear videos or snapshots. Clean the
lens on a regular basis.
Do not install the device on a tinted window. Doing so may damage
the tint film.
Make sure that the installation position is not hindered by the tinted
window.
Caution





Use the authorized charger only.
Never disassemble by yourself.
Never short-circuit the battery.
Dispose of the battery properly.
Exposing the battery to open flames can cause explosion.
4
1 Introduction
Thank you for purchasing this advanced Car Recorder. This device
is specifically designed for real time video and audio recording
when driving.
1.1 Features







Full HD camera (1920x1080 @ 30fps)
2.4” LCD color screen
Wide angle lens
High power LED for low light environments
Motion detection
Automatic Emergency recording for collision detection
Supports SDHC up to 32GB
1.2 Package Contents
The package contains the following items. In case there is any
missing or damaged item, contact your dealer immediately.
Car Recorder
Bracket
Car adapter
Quick start guide
Video cable
USB cable
5
1.3 Product Overview
Front View
Top and Bottom Views
12
5
1
Side (Left and Right) Views
4
13
14
6
15
Rear View
7
2
8
3
9
16
10
11
No.
Item
No.
Item
1
Bracket Socket
9
Reset Button
2
Memory Card Slot
10
Wide Angle Lens
3
Power Button
11
Speaker
4
Bracket Socket
12
LCD Panel
5
Microphone
13
Up Button (
6
Back Button (
14
Down Button (
)
7
USB Connector
15
Enter Button (
)
8
HDMI Connector
16
LED Light
)
)
Note: To operate the device, press the corresponding buttons (6, 13~15) according to guide
icons shown the screen.
6
2 Getting Started
2.1 Inserting the Memory Card
Insert the memory card with the gold contacts facing the back of the
device. Push the memory card until it clicks into place.
To remove the memory card
Push to eject the memory card out of the slot.
Note: Do not remove or insert the memory card when the device is turned on. This may
damage the memory card.
7
2.2 Installing in Vehicles
2.2.1
Mount to Windshield
1.
Attach the device to the
bracket base. Turn and
tighten the car holder and
the bracket base to make
sure the device is securely
locked in place.
2.
With the suction-cup laying flat,
position the suction-cup on the
windshield.
3.
Hold the base firmly on the
windshield and press down
the clamp to mount the car
holder to the windshield. Make
sure the base is securely
locked in place.
2.2.2
Adjust Device Position
Knob
Knob
Rotate the knob to swivel
the device vertically.
Rotate the knob to swivel the
device horizontally up to 360°.
8
2.3 Connecting to Power
Use only the supplied car adapter to power up the device and
charge the built-in battery.
1.
Connect one end of the car adapter to the USB connector of
the device.
2.
Plug the other end of the car charger to the cigarette lighter
socket of your vehicle. Once the vehicle engine is started, the
device automatically turns on.
Note:
The orange LED lights up while the battery is charging.
Please take note if the environment temperature reaches 45°C or above, the car adapter still
can supply power to device, but it will not charge the Lithium-ion battery. This is the
characteristic of Lithium-ion and is not a malfunction.
9
2.4 Powering the Device On / Off
2.4.1
Auto Power On/Off
Once the vehicle engine is started, the device automatically turns on.
If the Automatic Record function is enabled, the recording will
automatically start right after the device turns on.
See Set Automatic Recording on page 11.
Once the vehicle engine shuts down, the device automatically saves
the recording and turns off the power within 10 seconds.
See Delay Shutdown on page 22.
2.4.2
Manual Power On/Off
To manually turn on the power, press the POWER
button.
To turn off, press and hold the POWER button
for at least 2 seconds.
10
2.5 Initial Settings
Before using the device, we recommend you to enable the
Automatic Record function and set up the correct date and time.
2.5.1
Set Automatic Recording
To enable the recording to start automatically after you turn on the
power, do the following:
button to enter the OSD menu.
1.
Press the
2.
/
button to select
Press the
Automatic Record and press the
button.
3.
/
Press the
and press the
4.
Press the BACK button to exit the
menu.
2.5.2
button to select On
button.
Set the Date and Time
To set the correct date and time, do the following:
button to enter the OSD menu.
1.
Press the
2.
/
Press the
button.
3.
/
button to adjust the
Press the
button to
value and press the
move to another field.
4.
Repeat step 3 until the date and time
setting is complete.
button to select Date / Time and press the
11
3 Using the Car Recorder
3.1 Recording Videos
3.1.1
Record videos while driving
When the vehicle engine starts up and the Automatic Record
function is enabled, the device automatically turns on and starts
recording.
Recording will automatically stop when the engine is switched off.
button to stop recording manually.
Or, press the
Note:
On some cars, the recording will continue when the engine is switched off.
If this happens, do one of the following:
- Manually turn off the cigarette lighter.
- Remove the car adapter from the cigarette lighter.
3.1.2
Record all other types of videos
1.
Press the
2.
Press the
button to start recording.
button to stop recording.
Note:
One video file is saved for every 3 or 5 minutes of recording. See Using the Menu 在第 20 頁.
The device saves the recording in the memory card. If the memory card capacity is full, the
oldest file in the memory card is overwritten.
12
3.1.3
Emergency Recording
During video recording, press the
button to continuously record the video
in one file until the memory card storage
is full or the recording is manually
stopped.
To stop the recording, press the
button.
Note: If the Collision Detection function is enabled and a collision is detected, the device will
automatically trigger the emergency recording. See Using the Menu 在第 20 頁.
13
3.1.4
No.
The Recording Screen
1
4
2
3
5
6
7
Description
Item
1
Duration
Indicates the recording duration.
2
Date and time
Indicates the current recording date
and time.
3
Guide icon
(Menu)
Press the
menu.
4
Battery
Indicates the remaining battery power.
5
Guide icon
(Stop)
Press the
recording.
6
Guide icon
(Emergency)
Press the
button to continuously
record the video in one file until the
recording is manually stopped.
7
Guide icon
(Playback)
button to switch to
Press the
Playback mode.
button to enter the OSD
14
button to stop the
3.1.5
Using the LED Light
You can use the LED light to provide extra light when the lighting is
insufficient.
To enable the LED light, do the following:
button to enter the OSD menu.
1.
Press the
2.
/
button to select
Press the
Auxiliary Light and press the
button.
3.
/
Press the
and press the
4.
Press the
menu.
button to select On
button.
button to exit the
Note:
Turn off LED lights when the battery is low.
When using LED lights for a long time, it may become hot. Take care not to touch the hot LED
lights.
3.1.6
Taking Snapshot
You can also use this device to take snapshots of the current scene.
From the standby screen, press the
button to take a snapshot.
Note: If recording is in progress, press the
button to stop the recording.
15
3.2 Playback Videos and Photos
1.
If recording is in progress, press the
button to stop
recording. The standby screen is displayed.
2.
Press the
3.
/
button to select the
Press the
file category that you want to browse
button.
and press the
4.
/
button to view the
Press the
next or the previous file and press
button to view the file in full
the
screen.
button to enter the OSD menu.
Note: From the standby screen, you can directly enter Playback mode by pressing
The last recorded video is displayed on the screen.
16
button.
3.2.1
Playing Videos
To play videos, do the following:
1.
If recording is in progress, press the
recording.
2.
Press the
3.
/
Press the
button.
4.
Press the
press the
5.
/
button to browse
Press the
for the desired video file and press
button to play the video.
the
6.
button to pause the
Press the
playback. Press it again to resume.
3.2.2
button to stop
button to enter the OSD menu.
/
button to select File Playback and press the
button to select Video or Emergency and
button.
Viewing Photos
To view photos, do the following:
1.
If recording is in progress, press the
recording.
2.
Press the
3.
/
Press the
button.
4.
Press the
button.
/
5.
Press the
press the
/
button to stop
button to enter the OSD menu.
button to select File Playback and press the
button to select Picture and press the
button to browse for the desired photo file and
button to view the file in full screen.
17
3.2.3
The Playback Screen
Video Playback Screen
Photo Playback Screen
7
7
1
6
3
2
No.
4
2
5
3
4
Description
Item
1
Date and time Indicates the recorded date and time.
2
Guide icon
(Back)
button to return to file
Press the
selection display.
3
Guide icon
(Previous)
button to view the
Press the
previous video/photo.
4
Guide icon
(Next)
button to view the next
Press the
video/photo.
5
Guide icon
(Pause)
button to pause the
Press the
video playback.
6
Duration
Indicates the elapse time.
7
Battery
Indicates the remaining battery power.
18
3.2.4
Deleting Files
To delete file(s), do the following:
1.
If recording is in progress, press the
recording.
2.
Press the
3.
/
button to select
Press the
File Deletion and press the
button.
4.
/
button to select the
Press the
file category and press the
button.
5.
Press the
/
button to select the
file that you want to delete and press
button to enter the Delete
the
menu.
6.
Press the
Item
7.
button to enter the OSD menu.
/
button to select an option.
Description
Delete One
Delete the current file.
Delete All
Delete all files.
Press the
button to stop
button to confirm delete.
Note: Deleted files cannot be recovered. Ensure the files have backup before deletion.
19
4 Adjusting the Settings
4.1 Using the Menu
You can customize the video recording and other general settings
via the on-screen display (OSD) menus.
1.
If recording is in progress, press the Record button to stop
recording.
2.
Press the
3.
/
button to select a menu option and press the
Press the
button to enter the selected menu.
4.
/
button to select the desired setting and press
Press the
button to confirm the setting.
the
5.
Press the
button to open the OSD menu.
button to exit the menu.
20
4.2 Menu Tree
Refer to the below table for details on menu items and available
menu options.
Menu
option
Description
Available option
Auxiliary
Light
Enable/Disable the LED light.
On / Off
File
Playback
Select the file category that
you want to view.
Video / Emergency /
Date / Time
Set the date and time.
Time Stamp
Enable/Disable the date
stamp.
On / Off
Resolution
Set the video resolution.
1080P(1920x1080) /
720P(1280x720)
LCD Setting
Set the duration for the
display to automatically turn
off right after video recording
starts.
On / Turn Off After 30
Sec. / Turn Off After 3
min. / Off
Voice
Record
Enable/Disable the voice
recording.
On / Off
Beep
Enable/Disable the beep.
On / Off
Automatic
Record
Enable/Disable the device to
automatically record video
after the device is turned on.
On / Off
Record
Interval
Set the recording duration for
each recorded video file.
3 mins / 5 mins
Motion
Detection
Enable/Disable the motion
detection. If this function is
enabled and the device
detects any object movement,
it will automatically start the
recording.
On / Off
21
Menu
option
Description
Available option
Collision
Detection
Enable/Disable the collision
detection. If this function is
enabled and any collision is
detected, the device will
automatically trigger the
emergency recording.
High Sensitivity /
Normal Sensitivity /
Low Sensitivity / off
Delay
Shutdown
Set the delay duration before
turning off the power.
10 Sec. / Off
Language
Set the on-screen display
menu language.
File Deletion
Delete the file(s).
Video / Emergency /
TV standard
Set the TV type based on
your local region.
NTSC / PAL
Format
Format the memory card.
Yes / No
Default
Reset all settings to factory
default settings.
Yes / No
22
5
Specifications
Item
Description
Image sensor
1/3.2” CMOS sensor
Effective pixels
2592 (H) x 1944 (V)
Storage media
Support Micro SDHC, up to 32GB class 4 or above
LCD display
2.4” LCD color TFT (112K pixels)
Lens
Wide Angle Fixed Focus lens
F2.4, f=3.0mm
Focus range
1.5m~Infinity
Movie Clip
Resolution: Full HD (1920 x 1080), 30fps
HD (1280 x 720), 30fps
Format: .mov
Still image
(Snapshot)
Resolution: 5M (2592 x 1944)
Format: DCF (JPEG, Exif: 2.2)
Shutter
Electronic shutter
Auto:1/2 ~1/2000 sec.
G-Sensor
3-Axis G-Force sensor
ISO
Auto
White Balance
Auto
Assist Lamp
Yes
Microphone
Yes
Speaker
Yes
23
Item
Description
Interface
Mini USB, Mini C Type HDMI
Battery
Built-in 470mAH Li-polymer rechargeable
Operating
Temperature
-10° ~ 60° C
Operating
Humidity
20 ~ 70% RH
Storage
Temperature
-20° ~ 80° C
Dimensions
67.8 x 62 x 30 mm
Weight
Approx. 85g
24
Copyright © 2013
All rights reserved.
All other marks, products or company names mentioned in this guide are
trademarks of their respective companies.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
