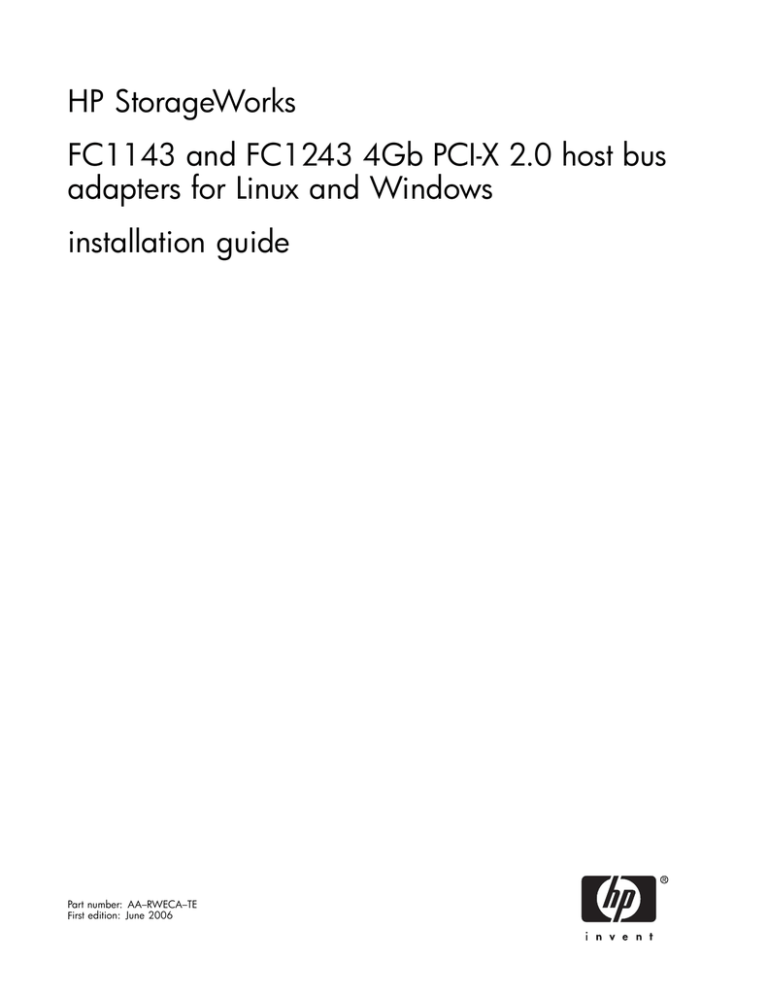

HP StorageWorks
FC1143 and FC1243 4Gb PCI-X 2.0 host bus
adapters for Linux and Windows
installation guide
Part number: AA–RWECA–TE
First edition: June 2006
Legal and notice information
© Copyright 2006 Hewlett-Packard Development Company, L.P.
© Copyright 2006 QLogic Corporation
Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with FAR 12.211 and
12.212, Commercial Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are
licensed to the U.S. Government under vendor’s standard commercial license.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth
in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting
an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Linux is a U.S. registered trademark of Linus Torvalds.
RED HAT is a trademark of Red Hat, Inc.
SUSE is a registered trademarks of Novell, Inc.
Contents
About this guide
. . . . . . . . . . . . . . . . . . . . . . . . . .
Intended audience . . . . . . . .
Related documentation . . . . . .
Document conventions and symbols
HP technical support . . . . . . .
Helpful web sites . . . . . .
Subscription service . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
7
7
7
7
8
9
9
1 HBA features . . . . . . . . . . . . . . . . . . . . . . . . . .
11
2 Installing the HBAs
13
Performance specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Environmental specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Physical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
Installation prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LED indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 Installing and configuring the Linux driver . . . . . . . . . . . . . .
Installing the driver kit . . . . . . . . . . .
Using the RPM . . . . . . . . . . . . . .
Changing driver parameters . . . . . . . . .
EFI driver utilities . . . . . . . . . . . . . .
Proc file system support . . . . . . . . . . .
Using fibreutils . . . . . . . . . . . . . .
Installing the fibreutils RPM . . . . . . .
fibreutils RPM contents . . . . . . . . .
fibreutils commands . . . . . . . . . .
Starting probe-luns at system boot time
Using FLASUTIL . . . . . . . . . . . . . .
Using Fast!UTIL . . . . . . . . . . . . . .
Configuration Settings . . . . . . . . .
Adapter Settings . . . . . . . . . . . .
Selectable Boot Settings . . . . . .
Restore Default Settings . . . . . . .
Raw NVRAM Data . . . . . . . . . . .
Advanced Adapter Settings . . . . . . .
Scan Fibre Devices . . . . . . . . . . .
Fibre Disk Utility . . . . . . . . . . . .
Select Host Adapter . . . . . . . . . .
Troubleshooting Linux . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
4 Installing the Windows drivers . . . . . . . . . . . . . . . . . . .
Prerequisites . . . . . . . .
Installing drivers using the Smart
Troubleshooting Windows . . .
Using the Event Viewer . .
. . . . .
Component
. . . . .
. . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
FC1143 and FC1243 4Gb PCI-X 2.0 host bus adapters for Linux and Windows
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
11 12 12 13 14 15 17 17
18
18
18
18
19
19
19
19
20
20
22
22
22
23
24
24
24
25
25
25
25
27 27
27
28
28
3
A Regulatory compliance and safety . . . . . . . . . . . . . . . . .
Declaration of conformity for products marked with
Laser device . . . . . . . . . . . . . . . .
Laser safety warning . . . . . . . . . . . . .
Certification and classification information . .
Laser product label . . . . . . . . . . . .
International notices and statements . . . . . .
Canadian notice (avis Canadien) . . . . .
European Union notice . . . . . . . . . .
BSMI (Taiwan) . . . . . . . . . . . . . .
Japanese notice . . . . . . . . . . . . .
Korean notice . . . . . . . . . . . . . .
Electrostatic discharge . . . . . . . . . . . .
Grounding methods . . . . . . . . . . . . .
the FCC logo,
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
United States
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
only
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
.
.
.
.
.
.
.
.
.
.
.
.
.
29 29
29
29
29
30
30
30
30
31
31
31
32
32
33
Figures
1
2
3
4
5
PCI-X 2.0 connector . . .
Class 1 laser product label
BSMI (Taiwan) notice . .
Japanese notice . . . .
Korean notice . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
FC1143 and FC1243 4Gb PCI-X 2.0 host bus adapters for Linux and Windows
.
.
.
.
.
14
30
31
31
31
5
Tables
1
2
3
4
5
6
7
8
9
6
Document conventions . . . . .
HBA environmental specifications
HBA specifications . . . . . .
LED indicators activity . . . . .
fibreutils commands . . . . . .
FLASUTIL commands . . . . .
FLASUTIL command examples . .
Adapter Settings . . . . . . .
Advanced Adapter Settings . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. . 7 .
12 .
12 .
15 .
20
.
21
.
22
.
23 .
24 About this guide
This guide provides information about:
• Installing and configuring the FC1143 and FC1243 4Gb PCI-X 2.0 HBAs
• Contacting technical support for additional assistance
Intended audience
This guide is intended for system administrators who are familiar with:
• Linux® oerating systems
• Microsoft® Window® operating systems
• host bus adapter (HBAs)
Related documentation
In addition to this guide, see the QLogic host bus adapters for x86 and x64 Linux and Windows, and
x86 NetWare release notes.
Other HP documents are available on the HP web site: http://www.docs.hp.com.
Document conventions and symbols
Table 1 Document conventions
Convention
Element
Medium blue text: Related documentation
Cross-reference links and e-mail addresses
Medium blue, underlined text
(http://www.hp.com)
Web site addresses
Bold font
• Key names
• Text typed into a GUI element, such as into a box
• GUI elements that are clicked or selected,
such as menu and list items, buttons, and check
boxes
Italic font
Text emphasis
Monospace font
•
•
•
•
•
Monospace, italic font
• Code variables
• Command-line variables
File and directory names
System output
User input
Code
Text typed at the command line
WARNING!
Indicates that failure to follow directions could result in bodily harm or death.
FC1143 and FC1243 4Gb PCI-X 2.0 host bus adapters for Linux and Windows
7
CAUTION:
Indicates that failure to follow directions could result in damage to equipment or data.
IMPORTANT:
Provides clarifying information or specific instructions.
NOTE:
Provides additional information.
TIP:
Provides helpful hints and shortcuts.
HP technical support
Telephone numbers for worldwide technical support are listed on the HP support web site:
http://www.hp.com/support/.
Collect the following information before calling:
•
•
•
•
•
•
8
Technical support registration number (if applicable)
Product serial numbers
Product model names and numbers
Applicable error messages
Operating system type and revision level
Detailed, specific questions
About this guide
Helpful web sites
For other product information, see the following HP web sites:
•
•
•
•
http://www.hp.com
http://www.hp.com/go/storage
http://www.hp.com/support/
http://www.docs.hp.com
Subscription service
HP strongly recommends that customers register online using the Subscriber’s choice web site:
http://www.hp.com/go/e-updates.
Subscribing to this service provides you with e-mail updates on the latest product enhancements, newest
driver versions, and firmware documentation updates, as well as instant access to numerous other product
resources.
After subscribing, locate your products by selecting Business Support Center and then Storage under
Product Category.
FC1143 and FC1243 4Gb PCI-X 2.0 host bus adapters for Linux and Windows
9
10
About this guide
1 HBA features This chapter describes the features of the FC1143 single-port HBA (product number AB429A) and
FC1243 dual-port HBA (product number AE369A).
• Performance specifications, page 11
• Environmental specifications, page 12
• Physical specifications, page 12
Performance specifications
The FC1143 and FC1243 HBAs are 4Gb PCI-X 2.0 high-performance direct memory access (DMA)
bus master HBAs designed for high-end systems.
These HBAs have the following features:
• Combines a powerful reduced instruction set computing (RISC) processor, a Fibre Channel
protocol manager (FPM) with 4Gb Fibre Channel transceivers, and a peripheral component
interconnect (PCI) or peripheral component interconnect-extended (PCI-X) local bus interface in
a single-chip solution
• Supports Fabric Loop Attach (FLA) connections
• Supports bus master DMA
• Supports SCSI-3 Fibre Channel Protocol (SCSI-FCP), and Fibre Channel-Virtual Interface (FC-VI)
protocols
• Supports point-to-point fabric connection (F-PORT FABRIC LOGIN)
• Complies with:
• PCI Local Bus Specification revision 2.3
• PCI-X Protocol Addendum to the PCI Local Bus Specification, revision 2.0a
• PCI-X Electrical and Mechanical Addendum (revision 2.0a) to the PCI Local Bus Specification
• PCI Bus Power Management Interface Specification revision 1.1
• PCI Hot Plug Specification, revision 1.0PCI-X Addendum (revision 1.0) to the PCI Local Bus
Specification
• Third-generation Fibre Channel–Physical and Signaling Interface (FC-PH) standard
• Fibre Channel-Arbitrated Loop (FC-AL-2) standard
• Fibre Channel Framing and Signaling (FC-FS)
• U.S. and international safety and emissions standards
FC1143 and FC1243 4Gb PCI-X 2.0 host bus adapters for Linux and Windows
11
Environmental specifications
Table 2 lists the HBA environmental specifications.
Table 2 HBA environmental specifications
Environment
Minimum
Maximum
Operating temperature
0 °C/32 °F
55 °C/131 °F
Storage temperature
-20 °C/-4 °F
70 °C/158 °F
Relative humidity (noncondensing)
10%
90%
Storage humidity (noncondensing)
5%
95%
Physical specifications
Table 3 lists the HBA specifications.
Table 3 HBA specifications
Type
Specification
Bus interface
64-bit, PCI-X 2.0 266-MHz DDR, compatible with 66/33-MHz PCI
and 133/100/66-MHz PCI-X
Conforms to PCI Local Bus Specification, revision 2.3, PCI Bus
Power Management Interface Specification, revision 1.1, PCI Hot
Plug Specification, revision 1.0
Fibre Channel specifications
Bus type: fiber optic media
Bus transfer rate:
4Gb/s FC increases aggregate throughput rate to 800 MBps in
full-duplex mode
Central processing unit (CPU)
Single-chip design that includes a RISC processor, Fibre
Channel protocol manager, PCI-XDMA controller, integrated
serializer/deserializer (SEREDES), and electrical transceivers that
can autonegotiate a data rate of 4 Gb/s.
Memory
1-MB SRAM, 1-MB flash (SPI), and 2-KB NVRAM (SPI)
Signal voltage
3.3 V (mode 1), 3.3 V/1.5 V (mode 2)
Data rate
4, 2, 1 Gb/s auto-negotiation (4.2480/2.1240/1.0625 Gb/s)
Onboard DMA
Five-channel DMA controller: two data and one command, one
auto-DMA request, and one auto-DMA response.
Frame Buffers
Integrated 10-KB frame buffer FIFOs (6-KB receive and
4-KB transmit) for each data channel.
Ports
Single or Dual 4 Gb/s
Connectors
Small-form-factor fixed (SFF) multimode optic with LC connector
Form factor
Low-profile MD2: 16.93 cm × 5.15 cm (6.7 in. × 2.5 in.)
Bracket size
Standard: 1.84 cm × 12.08 cm (0.73 in. × 4.76 in.)
Low-profile: 1.84 cm × 8.01 cm (0.73 in. × 3.15 in.)
Power consumption
~11.0 Watts
12
HBA features
2 Installing the HBAs
This chapter describes the procedure for installing the FC1143 and FC1243 HBAs, including:
• Installation prerequisites, page 13
• Installation procedure, page 14
Refer to your host documentation for installing the HBAs. WARNING!
Disconnect the host from the power source before installing the HBAs. To reduce the risk of personal
injury from hot surfaces, allow the internal server or workstation components to cool before touching.
CAUTION:
Electrostatic discharge (ESD) can damage electronic components. Be sure you are properly grounded
before beginning this procedure as described in "Regulatory compliance and safety" on page 29.
Installation prerequisites
Before you begin, ensure that you have:
• An optical multimode cable with an LC-style duplex connector
• An empty PCI-X slot
• The following unique information that is located on the bottom of the HBA:
• Serial number
• World Wide Port Name (WWPN) and Node Name (NN), each of which is derived from the
HBA’s IEEE address. Combined, the WWPN and NN create the World Wide Name (WWN)
that uniquely identifies an HBA in the Fibre Channel environment
FC1143 and FC1243 4Gb PCI-X 2.0 host bus adapters for Linux and Windows
13
Installation procedure
To install the HBA:
1. Check the motherboard and make any necessary configuration changes to accommodate the HBA.
2. Power down the peripherals, and then turn off the computer.
3. Disconnect the power cable.
4. Remove the computer cover and save the screws.
5. Locate the appropriate bus slot. The connector for the slot looks like the connector in Figure 1.
Figure 1 PCI-X 2.0 connector
6. Remove the slot cover for the slot in which you will install the HBA.
7. Place the HBA in the slot and carefully press the board into the slot until it seats firmly.
8. Secure the HBA to the chassis following the server manufacturer’s instructions.
9. Connect the appropriate cable from the devices to the corresponding LC-connector.
10. Close and tighten the computer cover.
11. Plug in the power cable.
12. Power up all external FC devices, then power up the server and observe the monitor and the LED
indicators described in "LED indicators " on page 15 to ensure proper operation.
14
Installing the HBAs
LED indicators
Table 4 identifies and describes the activity of the LED indicators.
Table 4 LED indicators activity
Yellow LED
Green LED
Amber LED
Activity
Off
Off
Off
Power off
On
On
On
Power on before or after
firmware initialization
Flashing
Flashing
Flashing
Power on after firmware
initialization
Alternately flashing
Alternately flashing
Alternately flashing
Firmware fault
Off
Off
Flashing
Activity at 1Gb
Off
Flashing
Off
Activity at 2Gb
Flashing
Off
Off
Activity at 4Gb
Flashing
Off
Flashing
Beacon
FC1143 and FC1243 4Gb PCI-X 2.0 host bus adapters for Linux and Windows
15
16
Installing the HBAs
3 Installing and configuring the
Linux driver
This chapter provides instructions for installing the Linux qla2xxx (The xxxis the kit date string) driver for
an FC1143 or FC1243 HBA on an already installed Red Hat™Enterprise Linux (Red Hat EL) or SUSE®
Linux Enterprise Server (SUSE SLES) system.
You can obtain the software kit for the driver from the following HP web site:
http://h18006.www1.hp.com/storage/saninfrastructure.html.
To install the driver, you must be familiar with the operating system under which the HBA is to operate,
and have access to standard system documentation.
To install the driver, use the procedures and information in the following sections:
• Installing the driver kit, page 17
• Using the RPM, page 18
To use Linux HBA utilities, use the use the procedures and information in the following sections:
•
•
•
•
•
•
Changing driver parameters, page 18
EFI driver utilities, page 18
Proc file system support, page 18
Using fibreutils, page 19
Using FLASUTIL, page 20
Using Fast!Util, page 22
Installing the driver kit
HP recommends that you install the complete driver kit for this HBA. The kit contains the driver and
utilities you need to deploy this HBA on Linux.
NOTE:
You must install the gcc compiler and the kernel sources or kernel development packages on your
system before installing the driver kit.
To install the complete HP driver kit, copy the .gz file to your system and enter the following commands:
# tar -zxvf hp_qla2x00-xxx.tar.gz
# cd hp_qla2xxx
# ./INSTALL
The xxx is the kit date string.
Refer to the README file included with the driver kit for more information.
FC1143 and FC1243 4Gb PCI-X 2.0 host bus adapters for Linux and Windows
17
Using the RPM
The RPM Package Manager (RPM) is a package management system that lets you easily install Linux
software. Using RPM, you can install software in prebuilt bundles called RPM packages.
This section is included for reference only. See this section for future separate RPM installations you
may need.
For example:
• To install the RPM, copy the RPM package file to your system and enter the following command:
# rpm -ivh package_name.rpm
• To manually install the Linux HBA driver RPM, enter the following command:
# rpm -ivh hp_qla2xxx.rpm
• To upgrade the RPM, copy the RPM package file to your system and enter the following command:
• For Red Hat EL, enter:
# rpm -Uvh --nopostun --nopreun package_name.rpm
• For SUSE SLES:
# rpm -Uvh package_name.rpm
• To uninstall the RPM package, enter the following command:
# rpm -e package_name.rpm
Changing driver parameters
To change driver parameters:
1. Run the set_parm script located in the /opt/hp/src… directory.
2. Reboot the server.
NOTE:
You must reboot. Otherwise, the qla2xxx driver may not unload if there is a process or file
system using a device that is attached to the HBA.
EFI driver utilities
The EFI driver utilities let you load the EFI drivers included with the fibreutils RPM. See the EFI driver
information files for detailed information about using these drivers.
Proc file system support
The /proc file system for the qla2xxx driver is located in the /proc/scsi/qla2xxx/ directory. This
directory contains entries for each SCSI HBA channel in the system. Each entry presents information
about the adapter and transfer statistics for each discovered LUN.
18
Installing and configuring the Linux driver
Using fibreutils
This section describes how to install and use fibreutils. Use this utility to manage Fibre-attached
storage. The fibreutils utility performs the following:
•
•
•
•
•
Gathers system information
Lists information about HBAs in the target server
Lists sd and sg device information
Loads the latest EFI drivers
Rescans for new devices
Installing the fibreutils RPM
HP recommends installing the fibreutils RPM found in the driver kit. It contains utilities for managing
Fibre-attached storage. To manually install this RPM, enter:
# rpm -ivh fibreutils-version.rpm
To uninstall the fibreutils RPM, enter:
rpm -e fibreutils
fibreutils RPM contents
The fibreutils RPM contains utilities and EFI drivers and installs them in the following directories:
• The utilities reside in /opt/hp/hp_fibreutils.
• The EFI files reside in:
• Red Hat Linux: /boot/efi/efi/qla2x00
• SUSE Linux: /boot/efi/qla2x00
• The QLogic EFI driver resides in the qla directory.
fibreutils commands
fibreutils comprises command files that reside in the /opt/hp/hp_fibreutils directory.
These command files link to the /usr/sbin directory, enabling you to invoke them from anywhere.
FC1143 and FC1243 4Gb PCI-X 2.0 host bus adapters for Linux and Windows
19
Table 5 describes the fibreutils commands.
Table 5 fibreutils commands
Command
Description
adapter_info
Lists useful information about HBAs in the system.
Use the -h option to list other switches.
hp_rescan
Forces the QLA HBAs and the SCSI midlayer (scsi_mod.o) to rescan
for LUNs on all adapters or a particular adapter instance.
Use the -h option to list other switches.
hp_system_info
Gathers information on the current system and packages it into a
compressed tar file.
lssd
Lists all sd devices with instance, channel, bus, and LUN information,
SCSI product ID, firmware level, WWNN and INQUIRY page 0x83
UUID information.
Use the -h option to list other switches.
lssg
List all sg devices with instance, channel, bus and LUN information,
SCSI product ID, firmware level, WWNN and INQUIRY page 0x83
UUID information.
Use the -h option to list other switches.
probe-luns
Forces the SCSI midlayer module (scsi_mod.o) to rescan LUNs 0-32
for targets attached to HBAs.
Use the -h option to list other switches.
See "Starting probe-luns at system boot time" on page 20 for more
information.
scsi_info
Shows inquiry information for a specific SCSI device
Starting probe-luns at system boot time
In some cases, specifically, if a device is not in the SCSI blacklist or device list, a probe must be forced at a
specific host, channel, ID, or LUN to find a LUN. Running probe-luns at system boot can solve this issue.
To start probe-luns at system boot, the appropriate code resides in the pbl_inst.sh script in
the /opt/hp/hp_fibreutils/pbl directory.
To install the probe-luns startup code, enter:
# cd /opt/hp/hp_fibreutils/pbl
# ./pbl_inst.sh -i
Using FLASUTIL
FLASUTIL is a Flash and NVRAM Programming DOS utility. The following table describes the command
line options.
Note the following about FLASUTIL options:
• The options apply only to the associated component. For example, you cannot use an command
option for Boot Code image for Fcode image.
• In the following options, xxxx is the HBA address. If no address is specified, the option applies to
all HBAs.
20
Installing and configuring the Linux driver
Table 6 FLASUTIL commands
Component
Option
Description
Boot Code image
/F xxxx
Writes BIOS Flash. If the flash contains a valid
BIOS, the existing NVRAM defaults do not
change.
/C xxxx
Verifies the BIOS Flash of the specified HBA.
/Wxxxx
Copies the BIOS Flash to the QL1xROM.SAV file.
/FFxxxx
Writes FCode flash for the specified HBA address.
/CFxxxx
Verifies Fcode of the specified HBA.
/FRxxxx
Writes RISC code to Flash at the specified HBA
address.
/CRxxxx
Verifies the RISC code of the specified HBA.
/WRxxxx
Copies the RISC code from Flash to a file.
/FBxxxx
Verifies the 1Mb combined image in Flash.
/CBxxxx
Writes 1Mb combined image to Flash.
/WBxxxx
Copies 1Mb image from Flash to a file.
/I
Ignores Subsystem ID.
/M
Does not prompt for I/O address.
/O filename.ext>
Uses filename.ext instead of QLxxRXX.BIN file.
/Q
Does not display messages.
/S xxxx
Displays the serial number of the specified HBA.
/U xxxx
Updates the NVRAM defaults in the BIOS for the
specified HBA.
If the SSVID/SSID in the NVRAM files do not
match those in the NVRAM, the NVRAM and the
BIOS are not updated.
/V xxxx
Displays the current BIOS version for the specified
HBA.
/VR xxxx
Displays the current RISC version for the specified
HBA.
/Y xxxx
Displays the Port Name of the specified HBA.
/D xxxx
Copies NVRAM to the QL1xNVRM.SAV file for
the specified HBA.
/L xxxx
Writes NVRAM for the specified HBA.
/N filename.ext>
Uses filename.ext instead of NVRMxxx.DAT file.
/X xxxx
Verifies the NVRAM for the specified HBA.
Fcode image
RISC code image
1M complete flash
NVRAM
FC1143 and FC1243 4Gb PCI-X 2.0 host bus adapters for Linux and Windows
21
Table 7 shows FLASUTIL command examples.
Table 7 FLASUTIL command examples
Purpose
Command
Description
Write flash in all QLogic
HBAs in a system without
being prompted for I/O
address
flasutil /f
Updates the BIOS while preserving previous NVRAM
defaults.
Write the RISC code in all
HBAs
flasutil /fr
Updates the RISC code for all HBAs
Write NVRAM and change
defaults in the BIOS
flasutil /u
Writes the NVRAM and updates the BIOS defaults
Write NVRAM without
updating the BIOS defaults
in all HBAs in a system
without being prompted for
the I/O address
flasutil /l
Updates the NVRAM (the existing SSID/SSVID in
the NVRAM need to match those in the provided
NVRAM files)
Write NVRAM and update
BIOS defaults using a
custom NVRAM file.
flasutil /u /n
mynvram.dat
Writes NVRAM and update BIOS defaults writing the
NVRAM to mynvram.dat.
Using Fast!UTIL
This section provides detailed configuration information for advanced users who want to customize the
configuration of an HBA and the connected devices.
Use Fast!UTIL, HP’s BIOS-resident configuration tool to customize the HBA’s configuration. Access
Fast!UTIL by pressing ALT+Q during the HBA BIOS initialization (it may take a few seconds for the Fast!
UTIL Options menu to display). If you have more than one HBA, Fast!UTIL prompts you to select the
HBA you want to configure. After changing the settings and exiting the utility, Fast!UTIL reboots your
system to load the new parameters.
CAUTION:
If the configuration settings are incorrect, your HBA may not function properly.
The following sections describe the Fast!UTIL options.
Configuration Settings
The first selection on the Fast!UTIL Options menu is Configuration Settings. These settings configure the
Fibre Channel devices and the HBA to which they are attached.
Adapter Settings
From the Configuration Settings menu in Fast!UTIL, select Adapter Settings. Table 8 lists the default
settings for the HBA:
22
Installing and configuring the Linux driver
Table 8 Adapter Settings
Setting
Options
Default
Host Adapter BIOS
Enabled, Disabled
Disabled
Frame Size
512, 1024, 2048
2048
Loop Reset Delay
0–60 seconds
5
Adapter Hard Loop ID
Enabled, Disabled
Disabled
Hard Loop ID
0–125
0
Spin Up Delay
Enabled, Disabled
Disabled
Connection Options
0, 1, 2
2
Fibre Channel Tape Support
Enabled, Disabled
Enabled
Data Rate
0, 1, 2, 3
2
The following section describes the settings:
• Adapter BIOS—When this setting is Disabled, the ROM BIOS on the HBA is disabled, freeing
space in upper memory. This setting must be enabled if you are booting from an FC hard disk
attached to the HBA. The default is Disabled.
• Frame Size—Sspecifies the maximum frame length supported by the HBA. The default size is
2048, which provides maximum performance for F-Port (point-to-point) connections.
• Loop Reset Delay—After resetting the loop, the firmware refrains from initiating any loop activity
for the number of seconds specified in this setting. The default is 5 seconds.
• Adapter Hard Loop ID—Forces the adapter to attempt to use the ID specified in the Hard Loop
ID setting. The default is Disabled.
• Hard Loop ID—If the Adapter Hard Loop ID setting is enabled, the adapter attempts to use the ID
specified in this setting. The default ID is 0.
• Spin Up Delay—When set, the BIOS waits up to two minutes to find the first drive. The default is
Disabled,
• Connection Options—Defines the type of connection. The default is 2. The options are:
• 0: loop
• 1: point-to-point
• 2: loop preferred, then point-to-point
• Fibre Channel Tape Support—Enables FCP-2 recovery. The default is Enabled.
• Data Rate—Determines the data rate. The default is 2. The options are:
• 0: 1 Gb/s
• 1: 2 Gb/s
• 2: Auto-negotiates and determines the data rate.
• 3: 4 Gb/s
Selectable Boot Settings
This option enables you to select the node name from which you want to boot. Once enabled, this option
forces the system to boot on the selected FC hard disk, ignoring any IDE hard disks attached to your
system. If you disable this option, the system looks for a boot device (as selected in the system BIOS). In
disabled mode, the Boot ID and Boot LUN parameters have no effect.
Some new system BIOS support selectable boot, which supersedes the Fast!UTIL selectable boot setting.
To boot from an FC hard disk attached to the HBA, select the HBA Fibre Channel hard disk on the
system BIOS.
FC1143 and FC1243 4Gb PCI-X 2.0 host bus adapters for Linux and Windows
23
NOTE:
This option applies only to hard disks; it does not apply to tape drives and other nondisk devices.
Restore Default Settings
This option restores the HBA default settings.
Raw NVRAM Data
This option displays the HBA’s NVRAM contents in hexadecimal format. This is a troubleshooting tool;
you cannot modify the data.
Advanced Adapter Settings
From the Configuration Settings menu in Fast!UTIL, select Advanced Adapter Settings. Table 9 lists the
default settings for the HBA:
Table 9 Advanced Adapter Settings
Setting
Options
Default
Execution Throttle
1–256
16
Luns per Target
0, 8, 16, 32, 64, 128, 256
128
Enable LIP Reset
Yes, No
No
Enable LIP Full Login
Yes, No
Yes
Enable Target Reset
Yes, No
Yes
Login Retry Count
0–255
8
Port Down Retry Count
0–255
16
Link Down Timeout
0–255
30
Operational Mode
0, 5, 6
0
Interrupt Delay Timer
0–255
0
The following section describes the settings:
• Execution Throttle—Specifies the maximum number of commands executing on any one port.
When a port’s execution throttle is reached, no new commands are executed until the current
command finishes executing. The valid options for this setting are 1–256. The default is 16.
• LUNs per Target—Specifies the number of LUNs per target. Multiple LUN support is typically for
RAID boxes that use LUNs to map drives. The default is 8. If you do not need multiple LUN
support, set the number of LUNs to 0.
• Enable LIP Reset—Determines the type of loop initialization process (LIP) reset that is used when
the operating system initiates a bus reset routine. When this setting is Yes, the driver initiates a
global LIP reset to clear the target device reservations. When this setting is No, the driver initiates
a global LIP reset with full login. The default is No.
• Enable LIP Full Login—Instructs the ISP chip to re-login to all ports after any LIP. The default is Yes.
• Enable Target Reset—Enables the drivers to issue a Target Reset command to all devices on the
loop when a SCSI Bus Reset command is issued. The default is Yes.
• Login Retry Count—Specifies the number of times the software tries to log in to a device. The
default is 8 retries.
• Port Down Retry Count—Specifies the number of times the software retries a command to a port
returning port down status. The default is 8 retries.
24
Installing and configuring the Linux driver
• Link Down Timeout—Specifies the number of seconds the software waits for a link down to
come up. The default is 30.
• Operational Mode—Specifies the reduced interrupt operation (RIO) modes, if supported by
the software driver. The RIO modes allow posting multiple command completions in a single
interrupt. The default is 0. The modes are:
• 0: Interrupt for every I/O completion
• 5: Interrupt when Interrupt Delay Timer expires
• 6: Interrupt when Interrupt Delay Timer expires or no active I/Os
• Interrupt Delay Timer—Contains the value (in 200-microsecond increments) used by a timer to set
the wait time between generating an interrupt. The default is 0.
Scan Fibre Devices
This option scans the FC loop and lists all the connected devices by loop ID. Information about each
device is listed, for example, vendor name, product name, and revision. This information is useful when
configuring your HBA and attached devices.
Fibre Disk Utility
This option scans the FC loop and lists all the connected devices by loop ID. You can select a hard disk
and perform a low-level format or verify the hard disk.
CAUTION:
Performing a low-level format destroys all data on the hard disk.
Select Host Adapter
If you have multiple HBAs in your system, use this setting to select and then configure or view the settings
of a specific HBA.
Troubleshooting Linux
For troubleshooting Linux driver-related information, check the /var/log/messages file. If the qla2xxx
driver detects any fabric or driver events, the information about these events reside in this file.
FC1143 and FC1243 4Gb PCI-X 2.0 host bus adapters for Linux and Windows
25
26
Installing and configuring the Linux driver
4 Installing the Windows drivers
This chapter describes how to install the Windows Storport miniport driver, including the following topics:
• Prerequisites, page 27
• Installing drivers using the Smart Component, page 27
• Troubleshooting Windows, page 28
Prerequisites
Perform the following tasks before you install the drivers:
• Prior to installing or updating drivers, obtain the QLogic host bus adapters for x86 and x64 Linux
and Windows, and x86 NetWare release notes, which are available from the HP web site:
http://h18006.www1.hp.com/storage/saninfrastructure.html.
• Obtain the HP Smart Component kit with the latest drivers from the HP web site:
http://h18006.www1.hp.com/storage/saninfrastructure.html.
• Be familiar with the operating system under which the HBA is to operate, and have access
to standard system documentation.
• Review any restrictions or mandatory hot fixes that apply to your configuration and operating
system.
Installing drivers using the Smart Component
To install HBA Windows drivers, obtain the latest Smart Component for your configuration and copy it to
your Windows desktop. Double-click the Smart Component executable to begin the installation, and then
click Install. The installation completes automatically.
NOTE:
If you are performing a driver upgrade, HP recommends that, prior to launching the installation, you
verify that the current driver parameter values match those in described in the QLogic host bus adapters
for x86 and x64 Linux and Windows, and x86 NetWare release notes. If there are any discrepancies,
launch the Smart Component using the command prompt window.
To launch the Smart Component in the command prompt window:
1. Open a command prompt window. Enter Start > Run > cmd.
2. Use the cd command to set the current directory to the folder containing the Smart Component bug
fixes for the Storport miniport driver.
3. Enter the following command:
cp00xxxx.exe /X
The xxxx is the numerical value in the Smart Component’s name. This command installs the new
driver and ensures that all registry parameters associated with the driver are using QLogic defaults or
HP-supported values.
For more information about Smart Component installation options, see the QLS***Readme.txt
file. To obtain a copy of this document, double-click the Smart Component executable, then click
Extract to place a copy of all Smart Component files in the folder you select.
FC1143 and FC1243 4Gb PCI-X 2.0 host bus adapters for Linux and Windows
27
Troubleshooting Windows
This section describes how to use the Windows Event Viewer to troubleshoot Windows drivers.
Using the Event Viewer
The miniport drivers verify the condition of the HBA’s POST LED states. If there is a failure or a suspected
failure, an error log entry appears in the Windows Event Log. Use the Event viewer to access the Event log
To open the Event Viewer:
1. Click Start > Programs > Administrative Tools >Event Viewer, or right-click My Computer and
select Manage.
2. Click Event Viewer in Computer Management.
The Event Viewer window appears.
3. See the following web site for information about interpreting the event codes:
http://www.qlogic.com/support/logs/evlogV9xxx_error.asp.
28
Installing the Windows drivers
A Regulatory compliance and
safety
Declaration of conformity for products marked with the FCC
logo, United States only
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation. For questions regarding your
product, visit http://www.hp.com. For questions regarding this FCC declaration, contact us by mail or
telephone:
• Hewlett-Packard Company, P.O. Box 692000, Mailstop 510101 Houston, TX 77269–2000
• 1–281–514–3333
To identify this product, refer to the part, Regulatory Model Number, or product number found on the
product.
Laser device
All HP systems equipped with a laser device comply with safety standards, including International
Electrotechnical Commission (IEC) 825. With specific regard to the laser, the equipment complies with
laser product performance standards set by government agencies as a Class1 laser product. The product
does not emit hazardous light.
Laser safety warning
WARNING!
To reduce the risk of exposure to hazardous radiation:
• Do not try to open the laser device enclosure. There are no user-serviceable components inside.
• Do not operate controls, make adjustments, or perform procedures to the laser device other than
those specified herein.
• Allow only HP-authorized service technicians to repair the laser device.
Certification and classification information
This product contains a laser internal to the fiber optic (FO) transceiver for connection to the Fibre
Channel communications port.
In the USA, the FO transceiver is certified as a Class 1 laser product conforming to the requirements
contained in the Department of Health and Human Services (DHHS) regulation 21 CFR, Subchapter J. A
label on the plastic FO transceiver housing indicates the certification.
Outside the USA, the FO transceiver is certified as a Class 1 laser product conforming to the requirements
contained in IEC 825-1:1993 and EN 60825-1:1994, including Amendment 11:1996 and Amendment
2:2001.
FC1143 and FC1243 4Gb PCI-X 2.0 host bus adapters for Linux and Windows
29
Laser product label
The optional label in Figure 2 or equivalent may be located on the surface of the HP-supplied laser device.
Figure 2 Class 1 laser product label
International notices and statements
Canadian notice (avis Canadien)
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
European Union notice
Products bearing the CE marking comply with the EMC Directive (89/336/EEC) and the Low Voltage
Directive (73/23/EEC) issued by the Commission of the European Community, and if this product has
telecommunication functionality, the R&TTE Directive (1999/5/EC).
Compliance with these directives implies conformity to the following European Norms (in parentheses are
the equivalent international standards and regulations):
• EN55022 (CISPR 22)—Electromagnetic Interference
• EN55024 (IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6,
IEC61000-4-8, IEC61000-4-11)—Electromagnetic Immunity
• Power Quality:
• EN61000-3-2 (IEC61000-3-2)—Power Line Harmonics
• EN61000-3-3 (IEC61000-3-3)—Power Line Flicker
• EN60950 (IEC60950)—Product Safety
• Also approved under UL 60950/CSA C22.2 No. 60950-00, Safety of Information Technology
Equipment
30
Regulatory compliance and safety
BSMI (Taiwan)
Figure 3 BSMI (Taiwan) notice
Japanese notice
Figure 4 Japanese notice
Korean notice
Figure 5 Korean notice
FC1143 and FC1243 4Gb PCI-X 2.0 host bus adapters for Linux and Windows
31
Electrostatic discharge
To prevent damage to the system, be aware of the precautions you need to follow when setting up the
system or handling parts. A discharge of static electricity from a finger or other conductor may damage
system boards or other static-sensitive devices. This type of damage may reduce the life expectancy of
the device.
To prevent electrostatic damage, observe the following precautions:
•
•
•
•
•
To avoid hand contact, transport and store products in static-safe containers.
Keep static-sensitive parts in their containers until they arrive at static-free workstations.
Place parts on a grounded surface before removing them from their containers.
Avoid touching pins, leads, or circuitry.
Always be properly grounded when touching a static-sensitive component or assembly (see
"Grounding methods" on page 32).
Grounding methods
There are several methods for grounding. Use one or more of the following methods when handling or
installing static-sensitive parts:
• Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis.
Wrist straps are flexible straps with a minimum of 1 megohm (±10 percent) resistance in the
ground cords. To provide proper ground, wear the strap snug against the skin.
• Use heel straps, toe straps, or boot straps at standing workstations. Wear the straps on both feet
when standing on conductive floors or dissipating floor mats.
• Use conductive field service tools.
• Use a portable field service kit with a folding static-dissipating work mat.
If you do not have any of the recommended equipment for proper grounding, have an HP-authorized
reseller install the part.
NOTE:
For more information on static electricity, or assistance with product installation, contact your
HP-authorized reseller.
32
Regulatory compliance and safety
Index
A
F
audience, 7
B
BSMI (Taiwan) regulatory compliance notice,
31
C
certification and classification information,
laser, 29
Class A equipment, Canadian compliance
statement, 30
configuring HBAs, 22
conventions
document, 7
text symbols, 7
G
D
declaration of conformity, 29
document
conventions, 7
related documentation, 7
documentation, HP web site, 7
drivers
changing parameters on Linux, 18
installing from RPM, 18
installing with Smart Component, 27
qla2xxx, 17
Storport miniport, 27
troubleshooting Windows, 28
E
Fast!UTIL
Adapter settings, 22
Advanced Adapter settings, 24
Fibre Disk Utility, 25
Raw NVRAM data, 24
Restore default settings, 24
Scan Fibre Devices, 25
Select Host Adapter, 25
Selectable Boot settings, 23
FCC rules, 29
features, 11
fibreutils
commands, 19 RPM, 19 using, 19 FLASUTIL, 20
EFI drivers
Linux, 18
electrostatic discharge (ESD), 13, 32
environmental specifications, 12
European Union regulatory compliance notice,
30
Event Viewer
using, 28
gcc compiler, 17
grounding methods, 32
H
HBAs
configuring on Linux, 22
environmental specifications, 12
installation prerequisites, 13
installing, 14
LED indicators, 15
Linux Configuration protocol, 22
performance specifications, 11
physical specifications, 12
HP
Subscriber’s choice web site, 8
subscription service, 9
I
IEC EMC worldwide regulatory compliance
notice, 30
installing
HBA, 14 prerequisites, 13 RPM, 18 Windows drivers, 27 J
Japanese regulatory compliance notice, 31
FC1143 and FC1243 4Gb PCI-X 2.0 host bus adapters for Linux and Windows
33
K
Korean regulatory compliance notice, 31
L
laser
international certification and classification
information, 29
product label, 30
safety warning, 29
LED indicators, 15
Linux
.gz file, 17
changing driver parameters, 18
configuring HBAs, 22
EFI drivers, 18
fibreutil commands, 19
fibreutils RPM, 19
FLASUTIL, 20
gcc compiler, 17
RPM, 18
set_parm script, 18
troubleshooting, 25
using fibreutils, 19
P
related documentation, 7
RPM, 18
fibreutils, 19
uninstalling, 18
upgrading, 18
S
set_parm script, 18
Smart Component, 27
specifications
environmental, 12 performance, 11 physical, 12 Storport miniport driver, 27
Subscriber’s choice, HP, 8
subscription service, HP, 9
symbols in text, 7
T
text symbols, 7
troubleshooting
Windows drivers, 28
Windows Event Viewer, 28
troubleshooting Linux drivers, 25
parameters, Linux drivers, 18
prerequisites
HBA installation, 13
Linux driver installation, 17
Windows driver installation, 27
preventing electrostatic discharge (ESD), 32
U
Q
W
qla2xxx
parameter changes, 18
installing, 17
troubleshooting, 25
R
regulatory compliance notices
BSMI (Taiwan), 31
Canadian, 30
European Union, 30
Japanese, 31
Korean, 31
34
uninstalling the RPM, 18
upgrading RPM, 18
utilities
FLASUTIL, 20
warnings, lasers radiation, 29
web sites
HP documentation, 7
HP Subscriber’s choice, 9
Windows
driver installation, 27
driver installation prerequisites, 27
Event Viewer, 28
troubleshooting drivers, 28
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
