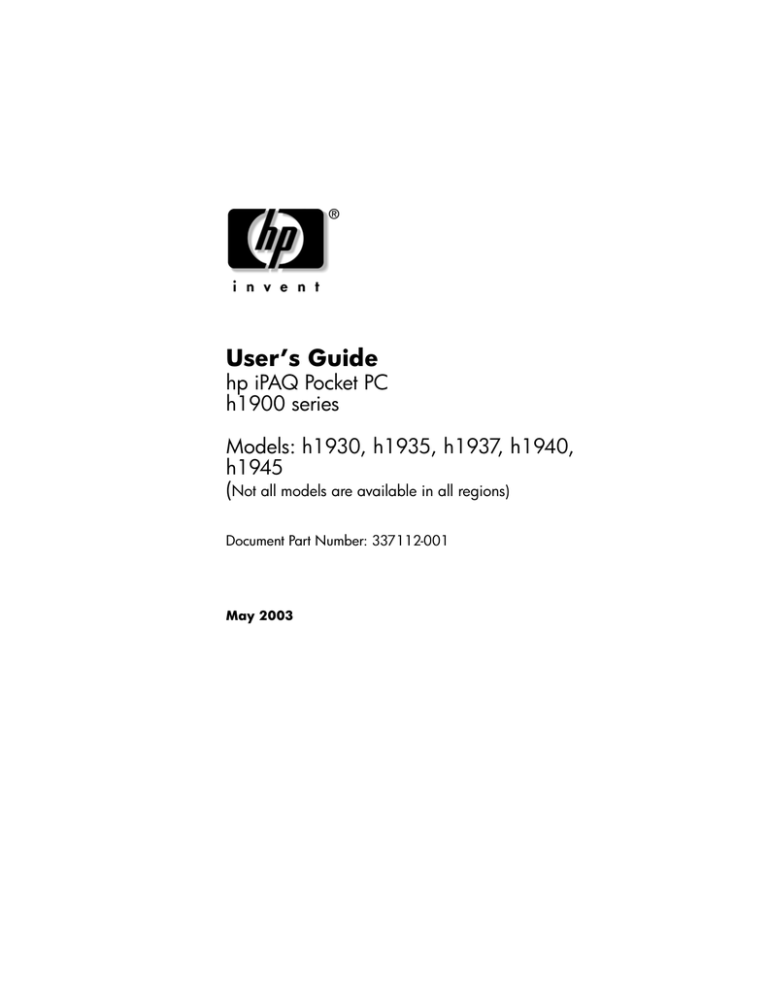

User’s Guide
hp iPAQ Pocket PC
h1900 series
Models: h1930, h1935, h1937, h1940,
h1945
(Not all models are available in all regions)
Document Part Number: 337112-001
May 2003
© 2003 Hewlett-Packard Company
© 2003 Hewlett-Packard Development Company, L.P.
HP, Hewlett Packard, and the Hewlett-Packard logo are trademarks of
Hewlett-Packard Company in the U.S. and other countries.
iPAQ is a trademark of Hewlett-Packard Development Company, L.P. in the
U.S. and other countries.
Microsoft, Windows, the Windows logo, Outlook, and ActiveSync are
trademarks of Microsoft Corporation in the U.S. and other countries.
hp iPAQ Pocket PC is Powered by Microsoft® Windows®.
SD Logo is a trademark of Secure Digital.
BluetoothTM is a trademark owned by the Bluetooth SIG, Inc.
SamsungTM is a trademark of Samsung Electronics, Inc.
All other product names mentioned herein may be trademarks of their
respective companies.
Hewlett-Packard Company shall not be liable for technical or editorial
errors or omissions contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this
material. The information in this document is provided “as is” without
warranty of any kind, including, but not limited to, the implied warranties
of merchantability and fitness for a particular purpose, and is subject to
change without notice. The warranties for HP products are set forth in the
express limited warranty statements accompanying such products. Nothing
herein should be construed as constituting an additional warranty.
This document contains proprietary information that is protected by
copyright. No part of this document may be photocopied, reproduced, or
translated to another language without the prior written consent of
Hewlett-Packard Company.
Å
WARNING: Text set off in this manner indicates that failure to
follow directions could result in bodily harm or loss of life.
Ä
CAUTION: Text set off in this manner indicates that failure to follow
directions could result in damage to equipment or loss of information.
User’s Guide
hp iPAQ Pocket PC h1900 series
First Edition (May 2003)
Document Part Number: 337112-001
Contents
1 Getting to Know Your iPAQ Pocket PC
Using the Stylus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5
Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . 1–6
Setting the Time for Home and Locations You Are
Visiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6
Setting the Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Entering Owner Information . . . . . . . . . . . . . . . . . . . . . . 1–7
Resetting the Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8
Performing a Normal Reset . . . . . . . . . . . . . . . . . . . . 1–8
Performing a Full Reset. . . . . . . . . . . . . . . . . . . . . . . 1–9
Aligning the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–10
Routine Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–10
2 Using ActiveSync
Connecting to a Computer . . . . . . . . . . . . . . . . . . . . . . . .
Synchronizing with Your Computer . . . . . . . . . . . . .
Changing Synchronization Settings. . . . . . . . . . . . . .
Copying Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Backing up and Restoring . . . . . . . . . . . . . . . . . . . . . . . .
Synchronizing Links . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sending and Receiving E-mail. . . . . . . . . . . . . . . . . . . . .
Requesting Meetings . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2–2
2–2
2–4
2–5
2–6
2–6
2–7
2–7
2–7
3 Managing the Battery
Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1
User’s Guide
iii
Contents
Removing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . .
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preserving Battery Time . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the Backlight Settings . . . . . . . . . . . . . . . .
Manually Monitoring the Battery . . . . . . . . . . . . . . .
3–5
3–6
3–7
3–7
3–8
4 Learning the Basics
Using the Today Screen . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
Navigation Bar and Command Bar . . . . . . . . . . . . . . 4–2
Status Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3
Pop-Up Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4
Creating information . . . . . . . . . . . . . . . . . . . . . . . . . 4–5
Customizing the Today Screen . . . . . . . . . . . . . . . . . 4–6
Using Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8
Opening Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8
Minimizing Programs . . . . . . . . . . . . . . . . . . . . . . . . 4–8
Closing Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–9
Installing Programs . . . . . . . . . . . . . . . . . . . . . . . . . 4–10
Using iPAQ Image Viewer . . . . . . . . . . . . . . . . . . . 4–10
Backing Up Information . . . . . . . . . . . . . . . . . . . . . 4–17
Using iPAQ File Store Folder . . . . . . . . . . . . . . . . . 4–18
5 Learning Input Methods
Changing Word Suggestion Options . . . . . . . . . . . . . . . .
Using the On-Screen Keyboard . . . . . . . . . . . . . . . . . . . .
Writing with the Stylus and the Letter Recognizer . . . . .
Writing with the Stylus and Microsoft Transcriber . . . . .
Writing with the Stylus and Block Recognizer . . . . . . . .
Drawing and Writing on the Screen. . . . . . . . . . . . . . . . .
Converting Writing to Text . . . . . . . . . . . . . . . . . . . .
5–2
5–4
5–5
5–7
5–8
5–9
5–9
6 Expansion Cards
Installing an Expansion Card . . . . . . . . . . . . . . . . . . . . . . 6–2
Removing a Secure Digital (SD) Expansion Card. . . . . . 6–3
iv
User’s Guide
Contents
Viewing the Content of Memory Cards . . . . . . . . . . . . . . 6–4
7 Connecting to the Internet
Connecting to a Private Network . . . . . . . . . . . . . . . . . . .
Synchronizing Links . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Entering an Internet Address . . . . . . . . . . . . . . . . . . . . . .
Using a Favorites List . . . . . . . . . . . . . . . . . . . . . . . . . . .
7–2
7–2
7–3
7–4
8 Using Bluetooth
Getting Acquainted with Bluetooth . . . . . . . . . . . . . . . . . 8–2
Understanding Terms . . . . . . . . . . . . . . . . . . . . . . . . 8–3
Supported Services . . . . . . . . . . . . . . . . . . . . . . . . . . 8–4
Working with Bluetooth Settings. . . . . . . . . . . . . . . . . . . 8–5
Opening Bluetooth Settings. . . . . . . . . . . . . . . . . . . . 8–5
Setting Accessibility Properties. . . . . . . . . . . . . . . . . 8–6
Enabling Bluetooth Services . . . . . . . . . . . . . . . . . . . 8–9
Setting a Shared Folder . . . . . . . . . . . . . . . . . . . . . . 8–11
Understanding Profiles . . . . . . . . . . . . . . . . . . . . . . 8–12
Working with Bluetooth Manager . . . . . . . . . . . . . . . . . 8–15
Opening Bluetooth Manager . . . . . . . . . . . . . . . . . . 8–16
Locating and Selecting a Device . . . . . . . . . . . . . . . 8–16
Connecting to Other Devices . . . . . . . . . . . . . . . . . . . . . 8–18
Identifying the Communications Port . . . . . . . . . . . 8–18
Establishing an ActiveSync Connection . . . . . . . . . 8–19
Establishing a Serial Connection. . . . . . . . . . . . . . . 8–20
Dial-Up Networking . . . . . . . . . . . . . . . . . . . . . . . . 8–20
Join a Personal Area Network . . . . . . . . . . . . . . . . . 8–22
Establishing a Cell Phone Partnership. . . . . . . . . . . 8–22
Working with Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–22
Creating a File Transfer Connection . . . . . . . . . . . . 8–23
Sending Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–23
Creating a Folder on a Remote Device . . . . . . . . . . 8–23
Receiving a File from a Remote Device . . . . . . . . . 8–24
Deleting a File from a Remote Device . . . . . . . . . . 8–24
User’s Guide
v
Contents
Using Business Card Exchange. . . . . . . . . . . . . . . .
Setting Up Your Business Card Information. . . . . .
Opening a Connection . . . . . . . . . . . . . . . . . . . . . . . . . .
Viewing Connection Status . . . . . . . . . . . . . . . . . . .
Closing a Connection. . . . . . . . . . . . . . . . . . . . . . . .
Viewing Connection Information . . . . . . . . . . . . . .
Working with Connections . . . . . . . . . . . . . . . . . . .
8–24
8–25
8–27
8–27
8–28
8–28
8–28
9 Troubleshooting
Common Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ActiveSync . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Expansion Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9–1
9–4
9–6
9–7
A Regulatory Notices
Federal Communications Commission Notice. . . . . . . . . A–1
Declaration of Conformity for products marked with the
FCC logo—United States only . . . . . . . . . . . . . . . . . A–2
Canadian Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–3
Avis Canadien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–3
Japanese Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–3
European Union Notice . . . . . . . . . . . . . . . . . . . . . . . . . . A–4
Battery Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–5
Equipment Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–5
Airline Travel Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–6
Wireless Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–6
U.S. Regulatory Wireless Notice. . . . . . . . . . . . . . . . A–6
Canadian Regulatory Wireless Notice. . . . . . . . . . . . A–6
Japanese Regulatory Wireless Notice . . . . . . . . . . . . A–7
Brazilian Regulatory Wireless Notice . . . . . . . . . . . . A–7
B Specifications
System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . B–1
Physical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . B–2
vi
User’s Guide
Contents
Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . . B–2
Index
User’s Guide
vii
Contents
viii
User’s Guide
1
Getting to Know Your iPAQ
Pocket PC
Congratulations on purchasing an HP iPAQ Pocket PC h1900
Series. Use this guide to find out about setting up your Pocket PC
and to learn about how it works.
The software programs described below are preinstalled on your
iPAQ Pocket PC. These preinstalled programs are not deleted if
your Pocket PC loses power.
You can find detailed information for using these programs in the
Help files on your iPAQ Pocket PC. To access these Help files,
from the Start menu, tap Help and select a program.
In addition, Microsoft Pocket PC Basics provides instructions on
operating the Pocket PC. To locate Pocket PC Basics, go to the
Today screen and tap Start > Help.
User’s Guide
1–1
Getting to Know Your iPAQ Pocket PC
hp iPAQ Software
iPAQ Backup
Functions
Back up your data to protect it from loss due
to hardware failure, battery power failure,
or accidental deletion.
✎
iPAQ Image Viewer
Trial version on CD for h1930 series.
Full version pre-installed for h1940
series.
Display individual images and run slide shows.
Also display images from a digital camera SD
storage card.
✎
Full version on CD for h1930 series.
Full version pre-installed for h1940
series.
Self-Test
Run a basic diagnostic test on the device..
Asset Viewer
List detailed information about your system
configuration.
Bluetooth (available on
h1940, h1945 only)
Allow short-range wireless communications
technology capable of exchanging information
up to a distance of about 30 feet (10 meters).
hp Mobile Print Center
Enable printing.
✎
1–2
On CD for all models.
User’s Guide
Getting to Know Your iPAQ Pocket PC
Microsoft Pocket PC
Software
Functions
ActiveSync
Synchronize the information between your Pocket
PC and personal computer so you have the latest
information in both locations. Be sure you install
ActiveSync on both your Pocket PC and personal
computer.
Calculator
Perform calculations and convert currency.
Calendar
Schedule appointments, meetings, and other
events, and set an alarm to remind you of the
appointments. Appointments for the day are
displayed on the Today screen.
Connections
Connect your Pocket PC to the Internet and
intranet to browse Web sites, send and receive
e-mail, and synchronize information using
ActiveSync.
Contacts
Keep an updated list of friends and colleagues to
e-mail and telephone.
Inbox
Receive and send Internet e-mail messages
in Inbox. You must have an e-mail address
provided by your Internet Service Provider (ISP)
or employer to send and receive e-mail.
Notes
Create handwritten or typed notes, drawings,
and recordings.
Pocket Excel
Create and edit workbooks or view and edit
Excel workbooks created on your personal
computer.
Pocket Internet Explorer
Browse the Internet and download pages
through synchronization or by connecting to the
Internet.
User’s Guide
1–3
Getting to Know Your iPAQ Pocket PC
Microsoft Pocket PC
Software
Functions
Pocket Word
Create new documents or view and edit Word
documents created on your personal computer.
Settings
Obtain quick instructions for setting the
backlight, clock, contrast, memory, power,
regional settings, Today screen, password,
sounds and notifications, etc.
Tasks
Keep track of your to-do list.
Terminal Services Client
Use programs available on your personal
computer from your Pocket PC.
Windows Media Player
9 Series
Play digital audio and video files in Windows
Media or MP3 format on your device.
1–4
User’s Guide
Getting to Know Your iPAQ Pocket PC
Using the Stylus
Your iPAQ Pocket PC comes with a stylus that you should use to
tap or write on your screen.
Ä
CAUTION: To prevent damage to your iPAQ Pocket PC screen,
never use any device other than the stylus that comes with the
Pocket PC or an approved replacement to tap or write on the
screen. If you lose or break your stylus, you can order extras at
www.hp.com/products/pocketpc/options.
You can perform three basic actions using the stylus:
Tap—Lightly touch the screen to select or open an item. Lift the
stylus after you tap an item. Tapping is equivalent to clicking an
item with the mouse on your personal computer.
Drag—Place the point of the stylus on the screen and drag an
item across the screen without lifting the stylus until you have
completed the selection. Dragging is equivalent to dragging with
the left mouse button pressed on your personal computer.
Tap and hold—Hold the stylus pointer on an item for a short
time until a menu displays. Tapping and holding is equivalent to
right-clicking your personal computer mouse button. When you
tap and hold, a circle of red dots appears around the stylus to
indicate that the menu will soon pop up.
User’s Guide
1–5
Getting to Know Your iPAQ Pocket PC
Setting the Date and Time
When you turn on your iPAQ Pocket PC for the first time, you are
requested to select your time zone. After setting the time zone,
you still need to set the time and date on your unit. All three
settings are located in the Clock Settings screen and can be set
at the same time.
default, the time on the iPAQ Pocket PC is synchronized with
✎ By
your personal computer each time the two devices connect using
ActiveSync.
Setting the Time for Home and Locations
You Are Visiting
1. From the Start menu, tap Settings > System tab > Clock
icon.
SHORTCUT: From the Today screen, tap the Clock icon to set
the time.
2. Tap either Home or Visiting.
3. Tap the time-zone down arrow, and select the appropriate
time zone.
4. Tap the hour, minutes, or seconds, and use the up and down
arrows to adjust the time.
SHORTCUT: You can also adjust the time by moving the hands
of the clock with the stylus.
5. Tap AM or PM.
6. Tap OK.
7. Tap Yes to save the time.
1–6
User’s Guide
Getting to Know Your iPAQ Pocket PC
Setting the Date
1. From the Start menu, tap Settings > System tab > Clock
icon.
SHORTCUT: From the Today screen, tap the Clock icon to set
the date.
2. Tap the down arrow by the date.
3. Tap the left or right arrow to select a month and year.
4. Tap a day.
5. Tap OK.
6. Tap Yes to save the date settings.
You need to reset your time zone, time, and date if:
■
The location time (Home or Visiting) needs to be changed.
■
All power to the iPAQ Pocket PC is lost, which removes all
saved settings.
■
You perform a full reset of your iPAQ Pocket PC.
SHORTCUT: From the Today screen, tap the Clock icon to set
the time zone, time, and date.
Entering Owner Information
You can personalize your iPAQ Pocket PC by entering owner
information. To enter owner information:
1. From the Today screen, tap Tap here to set owner
information.
SHORTCUT: Tap Start > Settings > Owner Information
2. Tap in the Name field. A keyboard appears at the bottom of
the screen. Tap on the characters to enter your name.
User’s Guide
1–7
Getting to Know Your iPAQ Pocket PC
3. Tap the Tab key on the keyboard to move the cursor to the
next field.
4. Continue entering whatever information you want to include.
5. To display owner information at startup, tap in the Show
information when device is turned on checkbox.
6. Tap on the Notes tab to enter any notes.
7. Tap OK to save the information and return to the Today
screen.
Resetting the Unit
Performing a Normal Reset
A normal reset is sometimes referred to as a “soft reset.” A
normal reset stops all running applications, but does not erase any
programs or saved data.
Ä
CAUTION: Be sure to save any unsaved data before performing a
normal reset since normal reset erases all unsaved data.
To perform a normal reset:
1. Locate the Reset button on the side of your iPAQ Pocket PC.
2. Use the stylus to lightly press the Reset button for two
seconds. The Pocket PC restarts in approximately five
seconds and displays the Today screen.
1–8
User’s Guide
Getting to Know Your iPAQ Pocket PC
Performing a Full Reset
A full reset is sometimes referred to as a “hard reset.” Perform a
full reset when you want to clear all settings, programs, and data
from RAM.
Ä
CAUTION: If you perform a full reset, your iPAQ Pocket PC returns
to its default settings and loses all information that is not recorded
in iPAQ File Storage.
To perform a full reset:
1. Press and hold the Power button.
2. Press the Reset button on the side of the iPAQ Pocket PC
with the Stylus.
3. Hold both buttons until the Pocket PC resets. A progress
graph displays on the lower portion of the screen.
4. Release the Power button and remove the stylus. The Pocket
PC powers on.
User’s Guide
1–9
Getting to Know Your iPAQ Pocket PC
Aligning the Screen
When the iPAQ Pocket PC is turned on for the first time, you are
guided through a screen alignment process. You must realign
your screen if:
■
The Pocket PC does not respond accurately to your taps.
■
You perform a full reset of your Pocket PC.
To realign the iPAQ Pocket PC screen:
1. From the Start menu, tap Settings > System tab > Screen
icon.
2. Tap the Align Screen button.
use an alternate path to the same destination without tapping
✎ Toon the
screen, push down and hold the 5-Way Navigation button,
and press Application Button 1 (Calendar).
3. Tap the cross-hair object at each location. Be precise when
tapping the cross-hair object.
4. Tap OK.
Routine Care
To keep your iPAQ Pocket PC in good condition and working
properly, follow these guidelines:
1–10
■
Keep your Pocket PC away from excessive moisture and
temperature extremes.
■
Do not expose your Pocket PC to liquids or precipitation.
■
Do not place anything on top of your Pocket PC to prevent
damage to the screen..
■
Clean your Pocket PC by wiping the screen and the exterior
with a soft, damp cloth lightly moistened only with water.
User’s Guide
Getting to Know Your iPAQ Pocket PC
Ä
■
Avoid exposing your Pocket PC to direct sunlight or strong
ultraviolet light for extended periods of time.
■
Avoid scratching the surface of the screen and banging it
against hard objects.
■
Use only the stylus that comes with your Pocket PC or an
approved replacement on the screen to prevent scratching it.
CAUTION: To reduce the risk of electrical shock or damage to the
internal components, do not spray liquid directly on the screen or
allow excess liquid to drip inside your iPAQ Pocket PC. Using soap or
other cleaning products on the screen may discolor the finish and
damage it.
User’s Guide
1–11
Getting to Know Your iPAQ Pocket PC
1–12
User’s Guide
2
Using ActiveSync
You can use Microsoft ActiveSync to:
■
Synchronize information between your iPAQ Pocket PC and
your personal computer or server so that you have the latest
information in all locations.
■
Change synchronization settings and the synchronization
schedule.
■
Copy files between your device and personal computer.
■
Install applications on your iPAQ Pocket PC.
■
Back up and restore device information.
■
Synchronize links.
■
Send and receive e-mail.
■
Request meetings.
User’s Guide
2–1
Using ActiveSync
Connecting to a Computer
Connect your iPAQ Pocket PC to your personal computer using
Microsoft ActiveSync and the USB Synchronization Cable, a
wireless infrared connection, or Bluetooth. For more information
on using ActiveSync with Bluetooth, refer to Chapter 8, “Using
Bluetooth.”
using Microsoft ActiveSync to synchronize e-mail on your
✎ When
personal computer with your iPAQ Pocket PC, you must have
Microsoft Outlook 98 or later installed on your personal
computer. If you do not have Outlook, install the Microsoft
Outlook 2002 software from the CD. Microsoft Outlook Express
will not work with the iPAQ Pocket PC and ActiveSync.
Synchronizing with Your Computer
Ä
CAUTION: For synchronization to work properly, install Microsoft
ActiveSync on your personal computer before you connect your
iPAQ Pocket PC to your computer.
During ActiveSync installation, you can:
2–2
■
Create partnerships that enable you to synchronize
information with multiple computers.
■
Select information to be synchronized with your iPAQ Pocket
PC (for example, Contacts, Calendar, Inbox, Tasks, Favorites,
Files, Notes, and AvantGo).
User’s Guide
Using ActiveSync
you synchronize files, you can drag and drop the selected
✎ When
files from your personal computer to the synchronized folder on
your iPAQ Pocket PC. If you named your device “PC1” when you
created your partnership, then the synchronized folder is named
“PC1.” When you synchronize, the files move to your iPAQ
Pocket PC.
To install Microsoft ActiveSync on your personal computer:
1. Insert the Companion CD into the CD tray or slot on your
personal computer.
2. Select the link to install Microsoft ActiveSync.
3. Follow the instructions in the installation wizard. For more
help, click the ActiveSync Help button during installation.
The information you select automatically synchronizes when
your installation is complete.
4. After installing ActiveSync on your personal computer,
connect the iPAQ Pocket PC to the personal computer using
the USB Synchronization Cable.
Using the Serial Infrared (IR) Connection
As an alternative to using the USB Synchronization Cable, you
can synchronize your iPAQ Pocket PC and your personal
computer using an infrared connection if you have an infrared
port or an infrared USB adapter installed on your computer. The
infrared connection option works only on computers that have
Microsoft Windows 98SE, Me, 2000, or XP operating systems
installed.
User’s Guide
2–3
Using ActiveSync
To set up an infrared connection to a computer:
1. Synchronize your iPAQ Pocket PC with your computer using
the USB Synchronization Cable.
2. Follow your computer manufacturer’s instructions to install
and set up an infrared port.
3. Remove the cable from the iPAQ Pocket PC and line up the
infrared port with the computer infrared port so they are
unobstructed and within 12 inches (30.5 cm) of each other.
4. Initiate a connection by tapping Start > ActiveSync >
Tools > Connect via IR. Synchronization begins on your
device.
5. To disconnect, move the devices away from each other or
tap X in the upper right of the screen to turn off.
Changing Synchronization Settings
You can modify your synchronization settings for Microsoft
ActiveSync to:
2–4
■
Change when your iPAQ Pocket PC synchronizes with your
personal computer or server.
■
Change the type of connection from your iPAQ Pocket PC
to your computer (for example, serial, USB, infrared
connections).
■
Select the files and information to synchronize with your
computer.
■
Select the files and information you do not want to
synchronize with your computer (for example, e-mail
attachments).
■
Determine how conflicts between information on your
iPAQ Pocket PC and information on your computer are
handled.
User’s Guide
Using ActiveSync
To change synchronization settings:
1. From the Start menu on your personal computer, click
Programs > Microsoft ActiveSync > Tools > Options.
a. On the Sync Options tab, select the files and information
to synchronize with your personal computer.
b. On the Schedule tab, select when your iPAQ Pocket PC
synchronizes with your personal computer.
c. On the Rules tab, determine how conflicts between
information on your iPAQ Pocket PC and information on
your personal computer are handled.
2. Tap OK when you are finished.
3. From the File menu, click Connection Settings. Select the
type of connection to be allowed between the iPAQ Pocket
PC and the personal computer.
Copying Files
You can copy files to and from your personal computer using
Explore in ActiveSync and Windows Explorer.
To copy files:
1. From the Start menu on your personal computer, click
Programs > Microsoft ActiveSync.
2. Click Explore.
3. Double-click the My Pocket PC icon.
4. On your personal computer, right-click the Start menu, and
select Explore.
User’s Guide
2–5
Using ActiveSync
5. Locate the file to be moved.
6. Drag and drop your files between your iPAQ Pocket PC and
your computer. ActiveSync converts the files so that they can
be used by the Pocket Office applications, if necessary.
your files directly into My Documents on your iPAQ
✎ Move
Pocket PC (or into a folder inside My Documents), so the
applications on your iPAQ Pocket PC can locate them.
Installing Programs
To install programs on your iPAQ Pocket PC from your personal
computer using ActiveSync:
1. Connect your iPAQ Pocket PC to your personal computer
using the USB Synchronization Cable.
2. Follow the instructions provided with the program and by the
installation wizard.
3. Check the screen of your iPAQ Pocket PC to see if any
further steps are necessary to complete the program
installation.
Backing up and Restoring
To help reduce the chance of losing information, you should back
up information to your computer regularly. For more information
on backing up and restoring information using Microsoft
ActiveSync, refer to “Backing up your Files” in Chapter 4.
2–6
User’s Guide
Using ActiveSync
Synchronizing Links
You can synchronize links to Web sites from your Favorites
list on your computer to view them offline with Pocket Internet
Explorer.
1. From the Start menu on your computer, click Programs
and double-click the Internet Explorer icon.
2. Click Favorites to see the list of links to your favorite
Web sites.
3. To save a Web site link to Mobile Favorites, open the
Web site, and click Create Mobile Favorite.
If you select “Favorites” as an information type to be
synchronized, ActiveSync copies your mobile favorite
to your Pocket PC the next time you synchronize.
4. Follow the instructions in Synchronize information to
manually synchronize your favorite links.
Sending and Receiving E-mail
You can send and receive e-mail messages by synchronizing your
iPAQ Pocket PC with your personal computer using ActiveSync.
If you are using ActiveSync to send and receive e-mail messages,
the name of the folder you are using is displayed at the bottom of
the screen. For more information on sending and receiving e-mail
using ActiveSync, from the Start menu, tap Help > Inbox.
Requesting Meetings
You can schedule a meeting and send a meeting request through
ActiveSync. For more information, from the Start menu, tap
Help > Calendar.
User’s Guide
2–7
Using ActiveSync
2–8
User’s Guide
3
Managing the Battery
Installing the Battery
The Pocket PC has a small internal backup battery that allows
you to change the main battery without losing RAM data
(user-installed programs and data) as long as it is replaced
immediately.
It is recommended that you fully charge the iPAQ Pocket PC
battery before setting up the unit, and recharge regularly. Your
Pocket PC uses some power to maintain files in RAM and the
clock. While working at your desk, keep the Pocket PC and
Charger Adapter connected through the USB Synchronization
Cable. When you travel, it is recommended that you carry the AC
Adapter, Charger Adapter plug, or an optional spare battery with
you.
Your iPAQ Pocket PC is shipped with the battery partially
charged.
User’s Guide
3–1
Managing the Battery
To install the removable/rechargeable battery:
1. Locate the battery.
2. On the back of the iPAQ Pocket PC, slide the Cover Release
latch up 1 and pull the cover away from the unit 2 .
3–2
User’s Guide
Managing the Battery
3. Insert the battery into the battery slot on the right side of the
Pocket PC 1, and push the left side of the battery into place
2 with the connectors lined up on the lower right.
the large battery label is visible when the battery is
✎ Ensure
installed.
User’s Guide
3–3
Managing the Battery
4. Replace the cover by matching the tabs on the cover to the
latches on the iPAQ Pocket PC, and snap into place.
Ä
CAUTION: The cover must be tightly latched in place for the iPAQ
Pocket PC to operate.
the battery is not fully charged, you must connect the AC
✎ IfAdapter
to the Pocket PC to fully charge it before continuing.
It takes about four hours to fully charge the battery.
3–4
User’s Guide
Managing the Battery
Removing the Battery
To remove the battery from the iPAQ Pocket PC, lift the left side
of the battery and pull it out.
Ä
CAUTION: Because most of the applications and data you install on
your iPAQ Pocket PC are held in memory (RAM), you need to reinstall
them if the battery completely discharges or if the battery is removed
from the unit for extended periods of time.
You do not need to reinstall applications and data installed in the
iPAQ File Store folder (not available on all models) because they are
saved in nonvolatile memory.
User’s Guide
3–5
Managing the Battery
Charging the Battery
The standard AC Adapter works in any household outlet. You can
also purchase one that works in your vehicle’s cigarette lighter or
a 12-volt power outlet.
Ä
CAUTION: Use only HP recommended AC adapters.
To charge the iPAQ Pocket PC using the AC Adapter:
1. Plug the AC Adapter into an electrical outlet.
2. Insert the AC Adapter plug into the charging adapter.
3. Insert the charging adapter into the bottom of the iPAQ
Pocket PC.
4. When the power indicator on the top of the iPAQ Pocket PC
turns solid amber, the unit is fully charged and you can
disconnect the AC Adapter. The approximate time to fully
charge a unit is four hours.
3–6
User’s Guide
Managing the Battery
Preserving Battery Time
Changing the Backlight Settings
To change the backlight settings in order to conserve more battery
power:
1. From the Start menu, tap Settings > System tab >
Backlight.
2. Select the following backlight settings:
User’s Guide
■
Battery Power
■
External Power
■
Brightness
3–7
Managing the Battery
Manually Monitoring the Battery
To manually monitor the battery power:
1. From the Start menu, tap Settings > System tab >
Power icon.
2. Tap OK.
3–8
User’s Guide
4
Learning the Basics
Using the Today Screen
When you first turn on your iPAQ Pocket PC, the Today screen
displays. You can also display it by tapping Start, and Today.
Use the Today screen to view:
■
Owner information
■
Upcoming appointments
■
Unread and unsent messages
■
Tasks that need to be completed
Tap to switch
to a program.
Tap to set ISP or Work connections.
Tap to change volume or mute all sounds.
Tap to change date and time.
Tap to set appointment or
view existing appointment.
Tap to read e-mail.
Tap to create a new item.
User’s Guide
Tap to power Bluetooth on/off
(Bluetooth models only)
4–1
Learning the Basics
Navigation Bar and Command Bar
The Navigation bar is located at the top of the screen. It displays
the active program and current time, and allows you to close
screens. Use the Start menu to select a program.
Tap to select a program you used recently.
Bluetooth Manager (Bluetooth models only).
Tap to select a program.
Tap to see additional programs.
Tap to customize the settings.
Tap to view online Help.
Bluetooth models only.
Within each program, use the Command bar located at the bottom
of the screen to perform tasks. Tap New to create a new item in
the current program.
Input panel button
New button
Menu
actions
4–2
Buttons
User’s Guide
Learning the Basics
Status Icons
You may see the following status icons displayed on the
Navigation bar or Command bar. Tap the icon on the screen
to view more information related to the item.
Active connection to personal computer.
Inactive connection to personal computer.
Microsoft ActiveSync is synchronizing.
Speaker is on.
Speaker is off.
iPAQ Pocket PC is connected with the USB Synchronization
Cable. This icon appears only when there is an active
connection.
Bluetooth power-on/off icon (Bluetooth models only). When
the Bluetooth icon is blue, Bluetooth is active. When the
Bluetooth icon is grayed with a red X, Bluetooth is inactive.
User’s Guide
4–3
Learning the Basics
Pop-Up Menus
Pop-up menus allow you to quickly perform an action. Use the
pop-up menu to cut, copy, rename, and delete an item, also send
an e-mail or send a file to another device.
To access a pop-up menu, tap and hold the stylus on the item on
which you want to perform the action. When the menu appears,
tap the desired action, or tap anywhere outside the menu to close
it without performing an action.
Tap and hold to display
the pop-up menu.
Tap the action you want.
Tap outside the menu to close
it without performing an action.
4–4
User’s Guide
Learning the Basics
Creating information
From the Today screen, you can create new information,
including:
■
Appointments
■
Contacts
■
Messages
■
Excel Workbook
■
Notes
■
Tasks
■
Word documents
1. Tap
, or from the Start menu, tap Today > New.
2. Tap an option to create a new item.
3. Tap OK after you finish creating a new item.
User’s Guide
4–5
Learning the Basics
Customizing the Today Screen
From the Settings Today screen, you can:
■
Add a picture as the background.
■
Select the information you see.
■
Set the order of the information.
■
Set when to see the Today screen.
1. Tap
, or from the Start menu, tap Settings > Today.
2. Select Use this picture as the background checkbox.
3. Tap Browse to select a picture from File Explorer.
4–6
User’s Guide
Learning the Basics
4. Tap the Items tab to select or reorder the information on the
Today screen.
5. Tap an item to highlight it.
6. Tap Move Up or Move Down to change the order of items on
the Today screen.
cannot change the placement of the Date on the Today
✎ You
screen.
7. Tap the down arrow associated with Display Today screen if
device is not used for...hours checkbox to determine how
many hours must pass before the Today screen displays.
8. Tap OK.
User’s Guide
4–7
Learning the Basics
Using Programs
Opening Programs
Open any program on your iPAQ Pocket PC from the Start menu.
✎ You can also open a program by assigning it to a button.
To open a program:
1. Tap Start > Programs.
2. Tap the desired program title or logo. (Your screen may differ
by model.)
n
Minimizing Programs
To minimize an open program, tap the X at the top right of the
screen.
4–8
User’s Guide
Learning the Basics
Closing Programs
Programs automatically close based on available memory.
However, if your iPAQ Pocket PC is running slowly, you can
close programs manually.
1. From the Start menu, tap Settings > System tab > Memory.
2. Tap Running Programs. (Your screen may differ by model.)
3. Tap Stop All or select a particular program and tap Stop.
bring a currently running program to the foreground, tap
✎ ToActivate.
User’s Guide
4–9
Learning the Basics
Installing Programs
Install programs on your iPAQ Pocket PC from your:
■
Personal computer by using Microsoft ActiveSync.
■
iPAQ Pocket PC if the program file has a .cab extension.
■
iPAQ Pocket PC or your computer by copying an program
file that has an .exe or .cef extension.
When installing programs, look for the correct version for your
iPAQ model and Microsoft PPC 2003 Pro.
■
Follow the instructions provided with the program and by the
installation wizard to install programs from your personal
computer.
■
Tap the program file in File Explorer on your iPAQ Pocket
PC and follow the instructions on the installation wizard to
install programs on your Pocket PC.
Using iPAQ Image Viewer
Using the Image Viewer, you can:
■
Create a slide show of images.
■
Sort and rotate images.
■
Adjust the timing between images in a show.
■
Set a variety of transition effects.
■
View images with .bmp, .jpg, and .gif file extensions.
■
Handle large files and resize photo images to screen size.
iPAQ Pocket PC h1940 Series includes the iPAQ Image
✎ The
Viewer preloaded in ROM. The iPAQ Pocket PC h1930 Series
requires that this application be loaded from a personal computer
with a CD ROM drive.
4–10
User’s Guide
Learning the Basics
Locating an Image
1. From the Start menu, tap Programs > iPAQ Image Viewer.
2. Tap the File tab and tap Look In.
3. Select a file and tap OK.
Viewing Image Information
You can view the image size and type, date taken and modified,
color, and file size of an image.
To view image information:
1. Locate an image and tap it to select it.
2. Tap View > Information Window.
Changing the View
By default, the Image Viewer opens displaying the images in the
Thumbnail View.
User’s Guide
4–11
Learning the Basics
You can change the view to full screen by:
■
Double-tapping a thumbnail.
■
Tapping View > Full Screen.
■
Tapping the View Full Screen icon.
Creating a Slide Show
You can put images together to create a slide show and control
display options such as:
4–12
■
Orientation
■
Zoom
■
Image Quality
■
Transition Effect
■
Timing
User’s Guide
Learning the Basics
To create a slide show:
1. From the Start menu, tap Programs > iPAQ Image Viewer.
2. Tap Show > Set up Show... .
3. Select images for the show and modify any image settings.
change settings for all images in the show, tap the Select All
✎ Tobutton.
4. Tap OK.
User’s Guide
4–13
Learning the Basics
Saving a Slide Show
To save a slide show:
1. From the Start menu, tap Programs > iPAQ Image Viewer.
2. Create a slide show.
3. Tap File and Save Show Settings or Save Show
Settings As... .
4. Enter a name and the location where you want to save the
settings.
5. Tap OK.
4–14
User’s Guide
Learning the Basics
Opening a Slide Show
To open a slide show:
1. From the Start menu, tap Programs > iPAQ Image Viewer.
2. Tap File, > Open Show Settings... .
3. Select a show setting.
Sorting Image Files
To sort image files:
1. From the Start menu, tap Programs > iPAQ Image Viewer.
2. Tap Edit > Sort Images.
3. Select sort order. You can sort by ascending or descending
Name, Type, Size, or Date.
User’s Guide
4–15
Learning the Basics
Viewing a Slide Show
1. From the Start menu, tap Programs > iPAQ Image Viewer.
2. Create or open an existing slide show.
3. Tap the Show tab and View Show.
4. Select a method for advancing the images in the show:
Manual Advance, Automatic Advance, or Automatic
Advance (Loop).
4–16
User’s Guide
Learning the Basics
Backing Up Information
Use iPAQ Backup or Microsoft ActiveSync Backup to back up
and restore information on your iPAQ Pocket PC. To help reduce
the chance of losing information you should back up information
on a regular schedule.
Backup is installed in ROM on the iPAQ Pocket PC h1940
✎ iPAQ
Series and a trial version is contained on CD for the h1930 Series.
You must install ActiveSync on your personal computer before
using ActiveSync Backup.
Backup/Restore using iPAQ Backup
iPAQ Backup saves your data in a backup file. You may designate
a file name and a location for the file to be saved. iPAQ Backup
backs up only to a memory card or the iPAQ File Store folder (not
available on all models). Close all programs on your iPAQ Pocket
PC before backing up or restoring your information.
Ä
CAUTION: Restoring your information replaces the current
information on your iPAQ Pocket PC with the information saved
in your backup.
To backup/restore using iPAQ Backup:
1. Tap
, or from the Start menu, tap Programs > iPAQ
Backup.
2. Tap the Backup tab or the Restore tab.
3. Select the files and folders to be backed up or restored.
4. Select file location for backed-up data.
5. Set backup or restore options.
6. Press the Backup or Restore button, and press the Start
button on the next screen.
User’s Guide
4–17
Learning the Basics
Backup/Restore Using ActiveSync
Close all programs on your iPAQ Pocket PC before backing up or
restoring your information.
Ä
CAUTION: Restoring your information replaces the current
information on your iPAQ Pocket PC with the information saved
in your backup.
To backup/restore using ActiveSync:
1. Be sure the iPAQ Pocket PC is connected to your personal
computer.
2. From your personal computer, open Microsoft ActiveSync.
From the Start menu, click Programs >
Microsoft ActiveSync.
3. From the Tools menu, click Backup/Restore.
4. Click the Backup or Restore tab, and select your options.
5. Click Backup Now or Restore Now.
Using iPAQ File Store Folder
You can install programs and save files to the iPAQ File
Store folder, which is accessed from File Explorer on your
iPAQ Pocket PC.
Programs and files stored in iPAQ File Store (not available on all
models) are held in ROM and are saved if you perform a full reset
of your iPAQ Pocket PC or if the battery discharges completely.
4–18
User’s Guide
Learning the Basics
To save to iPAQ File Store:
1. Copy the files to be saved to the iPAQ File Store folder.
2. From the Start menu, tap Programs > File Explorer > My
Device > iPAQ File Store.
3. Paste the selected files.
saving files to the iPAQ File Store folder, it is a good idea
✎ Before
to determine how much memory is available in the folder. To
view the amount of memory, from the Start menu, tap Settings >
System > Memory > Storage Card tab.
User’s Guide
4–19
Learning the Basics
4–20
User’s Guide
5
Learning Input Methods
Ä
CAUTION: To avoid damaging your iPAQ Pocket PC screen, always
use a stylus. Never use a pen or any type of metal pointer on the
screen.
To input information to your Pocket PC, you can tap the keyboard
or write with the Letter Recognizer, Microsoft Transcriber, or
Block Recognizer in any application. You can use the stylus to
draw and write on the screen in the Notes application and from
any Notes tab in the Calendar, Contacts, and Tasks applications.
User’s Guide
5–1
Learning Input Methods
Changing Word Suggestion Options
As you type or write, the Pocket PC suggests words for you in a
box above the keyboard, Letter Recognizer, or Block Recognizer,
but not in the Transcriber.
You determine:
■
If words are suggested.
■
The number of letters you enter before a word is suggested.
■
The number of words that are suggested per entry.
If you do not want any words suggested, remove the checkmark
by tapping the checkbox next to Suggest Words When Entering
Text.
To change settings for word suggestions:
1. From the Start menu, tap Settings > Input.
2. Tap the Word Completion tab.
5–2
User’s Guide
Learning Input Methods
3. Tap the down arrow associated with letters and select the
number of letters you want to type before a word is
suggested.
t
4. Tap the down arrow associated with words and select the
number of words you want suggested.
5. Tap OK.
User’s Guide
5–3
Learning Input Methods
Using the On-Screen Keyboard
Use the stylus to tap letters, numbers, and symbols on the
on-screen keyboard to enter typed text directly onto the screen.
1. From any application, tap the up arrow next to the Input
Panel icon.
✎ The Transcriber option is not available on all models.
2. Tap Keyboard to display a keyboard on the screen.
✎ To see symbols, tap the
123
or Shift key.
3. Tap a letter, symbol, or number to enter information.
4. Tap OK.
5–4
User’s Guide
Learning Input Methods
Writing with the Stylus and the Letter
Recognizer
Use the stylus and Letter Recognizer to write letters, numbers,
and symbols on the screen. Create words and sentences by
writing in uppercase (ABC), lowercase (abc), and symbols (123)
as instructed here.
To write with the stylus and Letter Recognizer:
1. From any application, tap the up arrow next to the Input
Panel icon.
2. Tap Letter Recognizer.
3. Write a letter or symbol between the dashed line and
baseline.
a. To display in uppercase, write a letter between the hatch
marks labeled ABC.
b. To display in lowercase, write a letter between the hatch
marks labeled abc.
c. Write a number or draw a symbol between the hatch
marks labeled 123.
What you write will be converted to text.
User’s Guide
5–5
Learning Input Methods
✎ A question mark within an program indicates a Help file.
the Letter Recognizer to work effectively, write characters
✎ For
between the dashed line and baseline.
■
If you are writing a letter like “p,” write the top portion
within the dashed line and baseline, and the tail portion
below the baseline.
■ If you writing a letter like “b,” write the bottom portion
within the dashed line and baseline, and the top portion
above the dashed line.
5–6
User’s Guide
Learning Input Methods
Writing with the Stylus and
Microsoft Transcriber
✎ Microsoft Transcriber is not available on all models.
Use the stylus and Microsoft Transcriber to write words, letters,
numbers, and symbols anywhere on the screen.
1. From any application, tap the up arrow next to the Input
Panel icon.
2. Tap Transcriber to display the Transcriber Intro screen.
3. Tap OK.
4. Tap New at the bottom of the screen.
5. Begin writing on the screen. What you write will be
converted to text.
Transcriber your style of writing, tap on the “a ” icon
✎ Toat the“teach”
bottom of the screen to display the Letter Shapes screen
and follow the instructions.
User’s Guide
5–7
Learning Input Methods
Writing with the Stylus and Block
Recognizer
Write letters, numbers, and symbols using the stylus and Block
Recognizer. Create words and sentences by writing letters and
numbers in specific areas.
1. From any application, tap the up arrow next to the Input
Panel button.
2. Tap Block Recognizer.
✎ For online Help, tap the ?
3. Write a word, letter, or symbol between the hatch marks.
a. To type text, write a letter between the hatch marks
labeled “abc.”
b. To type numbers or symbols, write a number or symbol
between the hatch marks labeled “123.”
What you write will be converted to text.
5–8
User’s Guide
Learning Input Methods
Drawing and Writing on the Screen
Use the stylus as a pen to draw and write on the screen in the
Notes program or from the Notes tab in Calendar, Contacts,
or Tasks.
1. From the Start menu, tap Notes > New.
2. Draw and write on the screen.
3. Tap the Pen icon.
4. Tap OK.
Converting Writing to Text
You can convert your writing to text when you write with the
stylus in the Notes program or from the Notes tab in:
■
Calendar
■
Contacts
■
Tasks
To convert writing to text:
1. From the Start menu, tap Notes.
✎ Otherwise, tap the Notes tab in Calendar, Contacts, or Tasks.
2. Tap a note to open it.
3. Tap Tools.
4. Tap Recognize.
convert a particular word or phrase, highlight it before you tap
✎ ToRecognize.
If a word is not recognized, it will not be converted.
5. Tap OK.
User’s Guide
5–9
Learning Input Methods
5–10
User’s Guide
6
Expansion Cards
You can expand the memory and connectivity of your iPAQ
Pocket PC. Use optional expansion cards for:
■
Connecting wirelessly or connecting by using a cable to the
Internet or to a network
■
Adding functionality such as a digital camera
■
Expanding the memory of your iPAQ Pocket PC
■
Viewing the content of memory cards
cards must be purchased separately and are not
✎ Expansion
included with your iPAQ Pocket PC.
To locate information about expansion cards, visit the following
HP Web site:
www.hp.com/products/pocketpc/options
User’s Guide
6–1
Expansion Cards
Installing an Expansion Card
To install a Secure Digital (SD) card into an expansion slot on the
iPAQ Pocket PC:
1. Locate the slot on the top of the iPAQ Pocket PC.
2. Remove the protective plastic card.
3. Insert the expansion card into the expansion slot and push the
connection edge of the card firmly into the expansion slot.
4. To prevent power loss, remove any expansion cards from the
SDIO expansion slot before turning off the iPAQ Pocket PC.
Leaving in the expansion card can drain the unit.
your expansion card is not recognized, follow the card
✎ Ifmanufacturer’s
instructions to install it.
more detailed help, from the Start menu, tap Help >
✎ For
Connections.
6–2
User’s Guide
Expansion Cards
Removing a Secure Digital (SD)
Expansion Card
1. Close all applications that are using the expansion card.
2. Remove a card from the Secure Digital expansion slot by
slightly pushing down on the card 1 to unlock it.
3. When the card disengages and pops up 2, pull it from the
expansion slot.
Ä
CAUTION: SD cards must first be unlocked before removal.
User’s Guide
6–3
Expansion Cards
Viewing the Content of Memory Cards
Use File Explorer to view the files that are located on your
optional Secure Digital card.
1. From the Start menu, tap Programs > File Explorer.
2. Tap the root directory of My Device, and select the Storage
Card folder (SDIO) to see a list of files and folders.
6–4
User’s Guide
7
Connecting to the Internet
Use your iPAQ Pocket PC to connect to the Internet or your Work
network.
To send and receive e-mail with Inbox and to view Web sites
with Pocket Internet Explorer, you must set up a remote
connection with devices such as a Secure Digital Input/Output
(SDIO) modem card, ethernet card, or a wireless 802.11x card.
Another option is to use a Bluetooth-enabled device such as a
phone or LAN Access point.
of dial-up and wireless Internet, e-mail, corporate networks,
✎ Use
and other wireless communications, such as Bluetooth-enabled
devices, may require separately purchased additional hardware
and other compatible equipment, in addition to a standard
Wireless LAN (WLAN) infrastructure and a separately purchased
service contract. Check with your service provider for availability
and coverage in your area. Not all Web content may be available.
Some Web content may require installation of additional
software.
more information on this subject, refer to the Help file on
✎ For
your iPAQ Pocket PC by tapping Start > Help > Connections.
User’s Guide
7–1
Connecting to the Internet
Connecting to a Private Network
1. Before you start, be sure to have your server phone number,
user name, and password. This information can be obtained
from your network administrator.
2. Tap Start > Settings > Connections tab > Connections icon.
3. In My Work Network, set up a new modem connection, new
VPN Server connection, or proxy server connection.
4. Start the connection by inserting the necessary modem card
into the iPAQ Pocket PC, and start using Pocket Internet
Explorer. Your device automatically begins connecting.
Synchronizing Links
You can synchronize links to Web sites from your Favorites list
on your personal computer to view them offline with Pocket
Internet Explorer.
1. From the Start menu on your personal computer, click the
Internet Explorer icon.
2. Click Favorites on the toolbar to see the list of links to your
favorite Web sites.
3. To save a Web site link to Mobile Favorites, open the Web
site, and then click Create Mobile Favorite.
If you select “Favorites” as an information type to be
synchronized, ActiveSync copies your mobile favorite to
your iPAQ Pocket PC the next time you synchronize.
4. Follow the instructions in Synchronize information to
manually synchronize your favorite links.
7–2
User’s Guide
Connecting to the Internet
Entering an Internet Address
With Pocket Internet Explorer and a connection to the Internet,
you can view Web sites on your iPAQ Pocket PC by typing an
address or Universal Resource Locator (URL) in the Address bar.
sites that use HTML 4.0, DHTML, animated GIF images,
✎ Web
and Java applets may not work correctly in Pocket Internet
Explorer without additional software.
To enter an Internet address (URL) on your iPAQ Pocket PC:
1. From the Start menu, tap Internet Explorer > Address Bar.
Bar is not visible, tap the View tab > Address Bar
✎ Ifto theturnAddress
it on.
2. Enter the Internet address (URL) in the Address bar.
3. Tap the Go icon.
User’s Guide
7–3
Connecting to the Internet
Using a Favorites List
With Pocket Internet Explorer and a connection to the Internet,
you can view Web sites on your iPAQ Pocket PC by selecting one
from your Favorites list.
To select a Web site from your Favorites list:
1. From the Start menu, tap Internet Explorer.
2. Tap the Favorites icon and the Web site you want to view.
7–4
User’s Guide
8
Using Bluetooth
Some models of the iPAQ Pocket PC come with built-in
Bluetooth technology that allows short-range connections and
provides fast, reliable, and secure wireless communication.
your Pocket PC has built-in Bluetooth technology, tap
✎ ToStartsee>ifSettings
and tap the Asset Viewer icon.
With Bluetooth powered on, you can send information or perform
the following tasks wirelessly between two Bluetooth devices,
within a range of approximately 10 meters (30 feet):
■
Exchange contacts, calendar items, and tasks
■
Send or exchange business cards
■
Transfer files
■
Synchronize with a computer through an ActiveSync
connection
■
Partner with a Bluetooth-enabled cell phone and use as a
wireless modem
■
Connect to other Bluetooth devices (Virtual COM port)
■
Connect to Bluetooth wireless local area networks (WLANs)
■
Print to a Bluetooth printer
■
Create a personal area network (PAN) to chat, play
games, etc.
User’s Guide
8–1
Using Bluetooth
of dial-up and wireless Internet, e-mail, corporate networks,
✎ Use
and other wireless communications, such as Bluetooth-enabled
devices, may require separately purchased additional hardware
and other compatible equipment, in addition to a standard
Wireless LAN (WLAN) infrastructure and a separately purchased
service contract. Check with your service provider for availability
and coverage in your area. Not all Web content may be available.
Some Web content may require installation of additional
software.
Getting Acquainted with Bluetooth
Before you start using Bluetooth to establish wireless
connections, take a few minutes and familiarize yourself with:
■
Terms used in this chapter
■
Supported Services
■
Bluetooth Settings
■
Bluetooth Manager
more detailed help, refer to the Help files installed on your
✎ For
iPAQ Pocket PC. From the Start menu, tap Help > Bluetooth.
8–2
User’s Guide
Using Bluetooth
Understanding Terms
The following Bluetooth terms are used throughout this chapter.
The Term...
Means...
Authentication
Verification of a numeric passkey before a
connection or activity can be completed.
Authorization
Approval of a connection or activity before it
can be completed.
Bluetooth neighborhood
or device group
Collection of Bluetooth devices.
Bonding (Paired
devices)
Create a trusted connection between your
device and another. After a bond is created,
the two devices become paired.
A paired device does not require
authentication or authorization.
Device address
Unique electronic address of a Bluetooth
device.
Device discovery
Location and recognition of another
Bluetooth device.
Device name
Name that a Bluetooth device provides when
discovered by another device.
Encryption
Method of protecting data.
Link key
Code used to securely pair devices.
Passkey
Code you enter to authenticate connections
or activities requested by other devices.
Personal Information
Manager (PIM)
Collection of programs used to manage
daily business tasks (for example, Contacts,
Calendar, and Tasks).
Profiles
Collection of Bluetooth settings.
Service discovery
Determination of which programs you have
in common with other devices.
User’s Guide
8–3
Using Bluetooth
Supported Services
The functions that Bluetooth supports are called services. You
can communicate only with Bluetooth devices that support at
least one of the following services:
8–4
■
BPP (Basic Printer profile)
■
DUN (Dial-up Networking profile)
■
FAX
■
FTP (File Transfer profile)
■
GAP (Generic Access profile)
■
HCRP (Hard Cable Replacement profile)
■
LAP (LAN Access profile)
■
OBEX (Object Exchange profile)
■
OPP (Object Push profile)
■
PAN (Personal Area Network profile)
■
SPP (Serial Port profile)
■
ActiveSync (Uses SPP to connect to ActiveSync on
computer)
User’s Guide
Using Bluetooth
Working with Bluetooth Settings
From the tabs in Bluetooth Settings, you can:
■
Turn Bluetooth on and off
■
Enter or change your iPAQ Pocket PC Bluetooth name
■
Set your connection preferences
■
Enable Bluetooth services
■
Specify security settings
■
Define settings for sharing and connecting
■
Select a user profile
■
View software and port information
Use the arrows to the right to scroll through the tabs.
Opening Bluetooth Settings
1. From the Today screen, tap the Bluetooth icon.
2. From the pop-up menu, tap Bluetooth Settings.
User’s Guide
8–5
Using Bluetooth
Turning On Bluetooth
To turn on Bluetooth from Bluetooth Settings:
1. From the Today screen, tap the Bluetooth icon.
2. From the pop-up menu, tap Bluetooth Settings.
3. Tap the Turn on button to enable.
SHORTCUTS: There are two shortcuts for turning on Bluetooth.
■ From the Bluetooth pop-up menu, tap Turn Bluetooth
ON.
■ From the Today screen, tap Start > Bluetooth Manager
to automatically turn on Bluetooth.
When Bluetooth is turned on, the Bluetooth icon turns blue and
the left LED on the iPAQ Pocket PC blinks blue. To preserve
battery power, it is recommended that you turn on Bluetooth only
when using it.
Tap the Turn off button to disable. When Bluetooth is turned off,
the Bluetooth icon is grayed with a red X, and no incoming or
outgoing connections are possible
Setting Accessibility Properties
You can enter or change accessibility properties to define how
your iPAQ Pocket PC interacts with other Bluetooth devices.
8–6
User’s Guide
Using Bluetooth
Entering a Device Name
The device name is what other devices see when they locate your
device.
To enter a device name:
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings > Accessibility tab.
2. Highlight the name in the Name field and enter your new
name.
3. Tap OK to save your changes.
Allowing Connections
You can determine if all devices or only paired devices can
connect to your iPAQ Pocket PC.
Allowing All Devices to Connect
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings > Accessibility tab.
2. Select Allow other devices to connect, and All devices.
3. Tap OK.
Ä
CAUTION: This allows any device, even those unknown to you, to
connect to your iPAQ Pocket PC. After they are connected, security
settings for specific services apply as specified in the Bluetooth
Settings.
User’s Guide
8–7
Using Bluetooth
Allowing Paired Devices to Connect
Paired devices share and exchange an internally generated Link
Key before connecting. The Link Key is derived from a unique
Bluetooth device address, a random number, and a user-defined
password.
This feature allows only devices that you trust to connect to your
iPAQ Pocket PC.
To allow paired devices to connect:
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings > Accessibility tab.
2. Select Allow other devices to connect, and Paired
devices only.
3. Tap OK.
Allowing Others to Locate Your Device
You can allow other devices to search and locate your iPAQ
Pocket PC.
remote device has your device’s address, that device
✎ Ifmayanother
be able to locate and connect to you even though you did not
select for your device to be discovered.
To allow others to locate your device:
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings > Accessibility tab.
2. Select Other devices can discover me.
3. Tap OK to save the changes.
8–8
User’s Guide
Using Bluetooth
Enabling Bluetooth Services
You can select to enable certain services:
■
Automatically when Bluetooth is activated
■
When you permit the connection
■
When a passkey or link key is correctly entered
You can use any of these security options when transferring
files, creating a serial port connection, exchanging business
card information, configuring dial-up networking, and joining
a personal network.
Automatically Enabling Services
You can allow devices to connect without any authorization so
that any time Bluetooth is on it is ready for connections.
To automatically enable services:
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings.
2. Tap the tab for the service you want to enable: File Transfer,
Information Exchange, Serial Port, Dial-up Networking,
or Personal Network Server.
3. Select Enable service.
4. Ensure there are no check marks in the Authorization
required or Authentication (Passkey) required
checkboxes.
5. Tap OK.
User’s Guide
8–9
Using Bluetooth
Requiring Authorization to Access Services
If you elect to require authorization to access services, you must
authorize each connection. Then, your iPAQ Pocket PC will
always ask you if the connection should be permitted.
To require authorization to access services:
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings.
2. Tap the tab for the service you want to enable: File Transfer,
Information Exchange, Serial Port, Dial-up Networking,
or Personal Network Server.
3. Select Authorization required.
4. Tap OK.
Secure Connections using a Passkey or Bond
To establish a secure connection with another device, you can use
the passkey feature or an established bond. You can also add data
encryption to this type of security.
A passkey is a code you enter to authenticate connections
requested by other devices. The passkey must be known and
used by both parties or the connection will not be allowed.
To require a passkey or bond:
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings.
2. Tap the tab for the service you want to enable: File Transfer,
Information Exchange, Serial Port, Dial-up Networking,
or Personal Network Server.
3. Select Authentication (Passkey) required.
4. Select Encryption Required if you want to require all data
exchanged between the devices to be encrypted.
5. Tap OK.
8–10
User’s Guide
Using Bluetooth
Setting a Shared Folder
You can determine the folder that other devices access when they
connect to your iPAQ Pocket PC.
To select a shared folder:
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings.
2. Tap the File Transfer tab.
3. Tap the Folder icon and locate a desired file folder.
4. Tap OK.
User’s Guide
8–11
Using Bluetooth
Understanding Profiles
Use profiles to quickly enable selected personal settings in
multiple environments.
Creating a Profile
To create a profile:
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings > General tab > Profile icon.
2. Tap the New button.
8–12
User’s Guide
Using Bluetooth
3. Enter a descriptive name.
4. Select an existing profile to use as a template.
3
4
5. Tap OK.
Activating a Profile
When a new profile is created, you will need to activate it.
To activate a profile after creating it:
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings.
2. From the General tab, select it from the Current Profile
down arrow list.
3. Tap OK.
User’s Guide
8–13
Using Bluetooth
Saving Bluetooth Configuration Settings in a Profile
To save the iPAQ Pocket PC Bluetooth configuration settings to
any profile:
✎ Bluetooth must be turned on for changes to be saved.
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings.
2. From the General tab, tap the Profile icon.
3. Select a profile from the Add/Delete Profiles list or create a
new one.
4. Tap OK.
5. Set up your iPAQ Pocket PC. You should specify the desired
connection, sharing, and security settings in all Bluetooth
Settings tabs.
6. Tap OK to close the Bluetooth Settings. The changes are
automatically saved.
Renaming a Profile
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings.
2. From the General tab, tap the Profile icon.
3. Select a profile from the Add/Delete Profiles list.
4. Tap the Rename button.
5. Enter a new descriptive name.
6. Tap Enter.
7. Tap OK.
8–14
User’s Guide
Using Bluetooth
Deleting a Profile
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings.
2. From the General tab, tap the Profile icon.
3. Select a profile from the Add/Delete Profiles list.
4. Tap the Delete button.
5. Tap Yes to confirm you want to delete the profile.
6. Tap OK.
Working with Bluetooth Manager
Use Bluetooth Manager to:
■
Establish connections
■
Display shortcuts
■
Exchange business cards
■
Control the on-screen display
User’s Guide
8–15
Using Bluetooth
Opening Bluetooth Manager
From the Today screen, tap Start > Bluetooth Manager.
The first screen that displays is My Shortcuts.
Manager can also be accessed from the Today screen
✎ Bluetooth
by tapping the Bluetooth icon, and from the pop-up menu, tap
Bluetooth Manager.
✎ Opening Bluetooth Manager automatically turns on Bluetooth.
Locating and Selecting a Device
Several tasks require you to locate a device and connect to it.
When you are required to locate a device, the Bluetooth browser
assists by searching for your desired function that supports other
Bluetooth devices.
Pairing Devices
You can pair devices so they must exchange a computer generated
security key prior to each connection. The security key is also
called a “Link Key.” It is generated from a unique Bluetooth
device address, a random number, and a user-defined password.
After two devices are paired, they have a trusted relationship with
each other that can be verified using a link key. No additional
input is needed from the user. Therefore, connections and
activities can be performed between the paired devices without
constant authorization from the user.
8–16
User’s Guide
Using Bluetooth
To pair devices:
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap Tools, and tap Paired devices.
3. Tap Add.
4. Tap the Lookup
icon.
5. Tap a device.
6. Enter a password in the Passkey field.
7. Tap OK.
8. Enter the same passkey into the other device.
devices, such as mobile phones, need to be placed in a
✎ Some
mode to accept a bond from another device. Refer to that device’s
user instructions for more information.
User’s Guide
8–17
Using Bluetooth
Unpairing Devices
You can remove a paired relationship between devices.
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap Tools, and Paired devices.
3. Tap a device name.
4. Tap Remove.
5. Tap Yes to remove the pairing.
Connecting to Other Devices
Use ActiveSync, serial and dial-up connections to communicate
with other Bluetooth devices. Establish a partnership with a cell
phone and set up the Bluetooth services it offers.
Identifying the Communications Port
You can identify the virtual COM ports used to create a serial
port connection. You may need to identify these COM ports for
activities such as printing.
Use the inbound COM port when other devices initiate a serial
connection. Use the outbound COM port when you initiate a
serial connection to another device.
To identify the communications port:
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings.
2. Tab over to the Serial Port tab and tap it.
3. Note the names of your inbound and outbound COM ports.
4. Tap OK.
8–18
User’s Guide
Using Bluetooth
Establishing an ActiveSync Connection
You can set up an ActiveSync partnership with a Bluetoothenabled computer.
To establish an ActiveSync connection:
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap New, and Connect.
3. Tap ActiveSync via Bluetooth, and tap Next.
4. Follow the connection wizard instructions.
User’s Guide
8–19
Using Bluetooth
Establishing a Serial Connection
Use the wireless Bluetooth serial port connection just as you
would a physical serial cable connection. You must configure the
application that will use the connection to the correct serial port.
To establish a serial connection:
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap New, and Connect.
3. Tap Explore a Bluetooth device, and tap Next.
4. Follow the connection wizard instructions.
Dial-Up Networking
When you use dial-up networking (DUN), the remote device
providing the dial-up networking service and the remote
computer to which you are connecting must both have telephone
access.
Devices that can provide dial-up networking include Bluetooth:
■
Mobile phones
■
Desktop computers
■
Modems
Using Dial-Up Networking
To connect to a device that provides modem access:
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap New and Connect.
3. Tap Connect to the Internet, and tap Next.
4. Follow the connection wizard instructions.
8–20
User’s Guide
Using Bluetooth
you create the dial-up networking shortcut with a device,
✎ After
tap and hold the shortcut icon in the My Shortcuts tab of the
Bluetooth Manager, and tap Connect.
5. Tap New Connection.
6. Tap OK.
7. Enter a name in the Connection Name field.
8. Enter a phone number. You must sometimes enter the country
code and area code, depending on where you are calling.
9. Tap OK to begin dialing.
mobile phones require a bond between devices (see the
✎ Some
section “Pairing Devices”).
To connect to the Internet and use Pocket Internet Explorer, you
must first connect to a Bluetooth phone from Bluetooth Manager.
To make this connection the default dial-up connection for Pocket
Internet Explorer:
1. From the Today screen, tap Start > Settings >
Connections tab.
2. Tap the Connections icon > Advanced tab.
3. Tap Select Networks.
4. Enable Bluetooth Settings from the dropdown list.
Bluetooth modem connection you created can be viewed
✎ The
only from the Bluetooth Settings on the Connections Task page.
User’s Guide
8–21
Using Bluetooth
Join a Personal Area Network
Connect two or more Bluetooth devices to share files, collaborate
or play multiplayer games.
To establish a Personal Area Network connection:
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap New, and tap Connect.
3. Tap Join a personal network, and tap Next.
4. Follow the Connection Wizard instructions.
Establishing a Cell Phone Partnership
You can establish a partnership with a cell phone, and set up the
Bluetooth services it offers.
To establish a cell phone partnership:
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap New, and tap Connect.
3. Tap Partner with a cell phone, and tap Next.
4. Follow the connection wizard instructions.
Working with Files
You can exchange information with a connected device and use
the Bluetooth File Explorer to:
8–22
■
Navigate through the directories.
■
View files and folders.
■
Create new folders.
■
Send and receive files from a remote device.
■
Delete and rename files on a remote device.
User’s Guide
Using Bluetooth
Creating a File Transfer Connection
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap New, and Connect.
3. Tap Browse files on a remote device, and tap Next.
4. Follow the connection wizard instructions.
Sending Files
1. Tap and hold a file transfer shortcut icon, and tap Connect.
2. Tap File, and Tap Send a File… .
3. Locate a file to send.
4. Tap the file to send it.
5. Tap OK.
Creating a Folder on a Remote Device
1. Tap and hold a file transfer shortcut icon, and tap Connect.
2. Navigate to the location you want for the new folder.
3. Tap File, and Create a folder.
4. Enter a folder name while New Folder is selected, and tap
Enter.
5. Tap OK.
User’s Guide
8–23
Using Bluetooth
Receiving a File from a Remote Device
1. Tap and hold a file transfer shortcut icon, and tap Connect.
2. Navigate to the file location on the remote device.
3. Tap the file.
4. Tap File, and tap Get.
5. Tap OK.
Deleting a File from a Remote Device
1. Tap and hold a file transfer shortcut icon, and tap Connect.
2. Navigate to the file location on the remote device.
3. Tap the file.
4. Tap File, and tap Delete.
5. Tap Yes to verify you want to delete the selected file.
6. Tap OK.
Using Business Card Exchange
Using the business card exchange, you can:
■
Set up your own business card
■
Send a business card to one or more devices
■
Request a business card from one or more devices
■
Exchange business cards with one or more devices
You must establish a default contact name to send or exchange
business card information.
You must first specify your default business card on the
Information Exchange tab in Bluetooth Settings. This name
becomes the default for business card transfers.
8–24
User’s Guide
Using Bluetooth
Setting Up Your Business Card Information
To set up your business card information:
1. Create a contact in the Contacts program that includes your
name, title, and other relevant information.
2. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings.
3. Tap the Information Exchange tab.
4. Tap the My business card (vCard) icon.
5. Choose your contact from the list.
6. Tap OK.
User’s Guide
8–25
Using Bluetooth
Sending Business Cards
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap the Business card icon.
can also open the business card exchange by tapping Tools,
✎ You
Business Card Exchange in the Bluetooth Manager.
3. Tap the Send icon.
4. Tap the device where you want to send your business card.
5. Tap OK.
Requesting Business Cards
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap the Business card icon.
3. Tap the Request icon.
4. Tap the device from which you want to request a business
card.
5. Tap OK.
8–26
User’s Guide
Using Bluetooth
Exchanging Business Cards
You can exchange business card information with another device.
If available, the device’s information will be sent directly into
your Contacts list in Pocket Outlook.
To exchange business cards:
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap the Business card icon.
3. Tap the Exchange icon.
4. Tap the device with which you want to exchange your
business card.
5. Tap OK.
Opening a Connection
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap and hold the icon or list name, and tap Connect.
3. Tap OK.
Viewing Connection Status
You can view:
■
Connection’s name
■
Device’s name
■
Connection status
■
Length of connection
■
Signal strength
User’s Guide
8–27
Using Bluetooth
To view the connection status:
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap and hold an active connection icon or list name, and
tap Status.
3. Tap OK.
Closing a Connection
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap and hold the connection icon or list name.
3. Tap Disconnect from the menu.
4. Tap OK.
Viewing Connection Information
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap and hold the connection icon or list name.
3. Tap Properties from the menu.
4. Tap OK.
Working with Connections
You can create shortcuts to open and view status information for
all connections.
Creating a Shortcut
Creating a shortcut to one or more services does not establish
a connection. It only places a shortcut to that service on the
Shortcut tab of the Bluetooth Manager.
8–28
User’s Guide
Using Bluetooth
To create a shortcut:
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap New, and Connect.
3. Select a type of service, and tap Next.
4. Follow the connection wizard instructions.
✎ Paired devices are designated by a checkmark.
Deleting a Shortcut
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap and hold the connection icon or list name to be deleted.
3. Tap Delete from the menu.
4. Tap Yes to verify the selected shortcut should be deleted.
5. Tap OK.
Viewing Shortcuts
You can view shortcuts as icons or in a list format.
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap View.
3. Tap List or Icon.
4. Tap OK.
User’s Guide
8–29
Using Bluetooth
8–30
User’s Guide
9
Troubleshooting
Common Problems
Use the following suggestions to troubleshoot problems with the
iPAQ Pocket PC.
Problem
I cannot see
anything on the
screen.
Solution
• Be sure the iPAQ Pocket PC is powered on.
• Be sure the iPAQ Pocket PC is connected to the AC
Adapter and the USB Synchronization Cable.
• Reset the device by using the stylus to lightly press the
reset button on the back of the unit.
I cannot keep my
battery charged.
• Always keep the iPAQ Pocket PC connected to the AC
adapter when you are not using it.
• In the backlight settings, adjust the bar to a lower level to
conserve the more battery power.
The backlight
keeps turning
off.
User’s Guide
• In Backlight Settings, increase the amount of time the
backlight stays on if not in use.
• Select the option to turn on the backlight when you touch
the screen or push a button
9–1
Troubleshooting
Problem
I want to travel
with my iPAQ
Pocket PC.
Solution
• Back up your information.
• Take a copy of your backup with you on an SD memory
card.
• Disconnect all external devices.
• Take the AC Adapter and Charger Adapter with you.
• Keep your iPAQ Pocket PC in a protective case and keep
it in your carry-on luggage.
I want to travel
internationally
with my iPAQ
Pocket PC.
I want to ship my
iPAQ Pocket PC
to a repair
facility.
I cannot connect
to a network.
Be sure you have the modem, cable, and plug adapter
appropriate for the country you are visiting.
1. Back up your information.
2. Disconnect all external devices.
3. Remove the battery, but include it in your shipment.
4. Pack your iPAQ Pocket PC and all external devices
in protective packaging. Include any additional
documentation or items as instructed by Customer
Support.
• Be sure you have added the necessary server
information.
• Be sure the network you are attempting to connect to is
not busy.
• Be sure the proper drivers for your card are installed.
• Be sure your user name and password are correct.
• Tap Start > Settings > Connections tab >
Connections and check your connection settings.
• Be sure the hardware you are using with your iPAQ
Pocket PC is properly configured and operational.
9–2
User’s Guide
Troubleshooting
Problem
Solution
When I try to
open the Inbox,
I receive an error
or the
application
hangs.
Limit the number of e-mail services you create.
I get an error
when I try to
record a note
in Calendar or
in Tasks.
Try using a more compressed recording format in Calendar or
Tasks (8,000 Hz, Mono, [.7 KB/s] is the most compressed
format available).
I want to see the
current date.
1. From the Start menu, tap Calendar.
2. Tap the Go-to-Today icon to see today’s date.
I cannot
see all my
appointments.
Be sure the appointment you created is in the selected
category.
I cannot find
the document
or workbook
I saved.
Pocket Word and Excel recognize and display documents in
only one folder below My Documents. For example, if you
created another folder in the Personal folder in My
Documents, the documents in that folder will not show.
My device is
always asking
me for a
password.
Tap Start > Settings > Personal tab > Password to be
sure the password settings are configured as you wish.
I cannot find files
sent to me by
another device.
Check My Documents, which is the default save location used
to receive files.
User’s Guide
9–3
Troubleshooting
ActiveSync
For more information on Microsoft ActiveSync, refer to
Chapter 2, “Using ActiveSync.”
Problem
Solution
I cannot connect
to my computer
using the USB
Synchronization
Cable.
• Be sure you have installed Microsoft ActiveSync 3.7 or
higher on your host computer before connecting your
iPAQ Pocket PC to it.
• Be sure your iPAQ Pocket PC is connected to the USB
Synchronization Cable, and that the sync cable is
connected to your computer.
• Be sure you are running Microsoft Windows 98SE, Me,
2000, or XP and that you have installed Microsoft
ActiveSync 3.7 or a later version on your computer.
I connected my
iPAQ Pocket PC
before installing
Microsoft
ActiveSync.
1. Disconnect the USB Synchronization Cable from your
computer.
2. If you have Windows 98SE, Me, 2000, or XP, uninstall
the USB record.
3. Install Microsoft ActiveSync 3.7 or higher.
4. Reconnect the iPAQ Pocket PC USB Synchronization
Cable.
Microsoft
ActiveSync
cannot locate my
iPAQ Pocket PC
when
I synchronize.
• Be sure the device is on.
• Be sure all cables are securely connected.
• Remove your iPAQ Pocket PC from the USB
Synchronization Cable, power on the unit by pressing the
Power button, and connect it back to the USB
Synchronization Cable.
• Reset the device by using the stylus to lightly press the
Reset button on the back of the unit.
• Check Connection Settings in ActiveSync on your
personal computer to ensure the communications port
you are using is active.
9–4
User’s Guide
Troubleshooting
Problem
Solution
I cannot open
e-mail in the
Inbox after I
restore using
Microsoft
ActiveSync.
Use Microsoft ActiveSync to synchronize your iPAQ Pocket PC
with your personal computer. For more information, refer to
the “Synchronizing with Your Computer” section in Chapter 2.
I tried to
synchronize a
workbook and
the file is
unresolved in
Microsoft
ActiveSync.
Pocket Excel does not support all Excel formatting; therefore,
Microsoft ActiveSync cannot synchronize the file.
User’s Guide
9–5
Troubleshooting
Bluetooth
For more information on Bluetooth (h1940 models only), refer to
Chapter 8, “Using Bluetooth.”
Problem
I cannot discover
another device.
Solution
• Move closer to the device.
• Be sure the Bluetooth radio is turned on.
• Be sure you have not limited your ability to see devices.
• Be sure the device you are attempting to connect to is on
and allows access to being discovered by other devices.
I can see other
devices, but I
cannot connect
or exchange
data with them.
• Move closer to the device.
Other devices
cannot find or
connect to my
device.
• Move closer to the device.
• Be sure the Bluetooth radio is turned on.
• Be sure the other device has not restricted your access.
• Be sure the Bluetooth radio is turned on.
• Be sure you have not restricted other devices from finding
yours.
• Check your Bluetooth settings to ensure you have allowed
your device to be discovered and others to connect.
Other devices
do not receive
my correct
business card
information.
9–6
• Be sure you have correctly set up your business card
information in Bluetooth Settings.
• Check Bluetooth Settings to be sure you have not
restricted this function.
User’s Guide
Troubleshooting
Expansion Cards
For more information on expansion cards, refer to Chapter 6,
“Using Expansion Cards.”
Problem
Solution
I cannot get my
iPAQ Pocket PC
to recognize the
expansion card.
Be sure you have firmly pushed the expansion card down into
the iPAQ Pocket PC. Make sure third party SDIO drivers are
installed.
I cannot insert
my card.
• Be sure you are not inserting the card at an angle.
• Be sure you insert the connection area first.
I cannot remove
my SDIO card.
Push the SDIO card in to release the locking mechanism. The
card will pop out slightly and can and be easily removed.
My iPAQ Pocket
PC cannot
recognize
my card.
• Reset the device by using the stylus to lightly press the
Reset button on the side of the unit.
User’s Guide
• Be sure you loaded any drivers that came with the
purchased expansion card.
9–7
Troubleshooting
9–8
User’s Guide
A
Regulatory Notices
Federal Communications Commission
Notice
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:
■
Reorient or relocate the receiving antenna
■
Increase the separation between the equipment and receiver
■
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected
■
Consult the dealer or an experienced radio or television
technician for help
User’s Guide
A–1
Regulatory Notices
Modifications
The FCC requires the user to be notified that any changes or
modifications made to this device that are not expressly approved
by Hewlett-Packard Company may void the authority to operate
the equipment.
Cables
Connections to this device must be made with shielded cables
with metallic RFI/EMI connector hoods in order to maintain
compliance with FCC Rules and Regulations.
Declaration of Conformity for products
marked with the FCC logo—United
States only
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
For questions regarding your product, contact:
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
Or, call 1-800-652-6672
For questions regarding this FCC declaration, contact:
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
Or, call (281) 514-3333
To identify this product, refer to the Part, Series, or Model
number found on the product.
A–2
User’s Guide
Regulatory Notices
Canadian Notice
This Class B digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les
exigences du Règlement sur le matériel brouilleur du Canada.
Japanese Notice
User’s Guide
A–3
Regulatory Notices
European Union Notice
0682
Products bearing the CE marking comply with the R&TTE
Directive (1999/5/EC), EMC Directive (89/336/EEC), and the
Low Voltage Directive (73/23/EEC) issued by the Commission of
the European Community.
Compliance with these directives implies conformity to the
following European Norms (in parentheses are the equivalent
international standards and regulations):
■
EN 55022 (CISPR 22)—Electromagnetic Interference
■
EN 55024 (IEC61000-4-2, 3, 4, 5, 6, 8, 11)—
Electromagnetic Immunity
■
EN61000-3-2 (IEC61000-3-2)—Power Line Harmonics
■
EN61000-3-3 (IEC61000-3-3)—Power Line Flicker
■
EN 60950 (IEC 60950)—Product Safety
■
ETS 300 328—Technical requirements for radio equipment
■
ETS 300 826 or EN 301 489-17—General EMC
requirements for radio equipment
This product may be used in all EU and EFTA countries.
A–4
User’s Guide
Regulatory Notices
Battery Warning
Å
WARNING: This computer contains a lithium ion rechargeable
battery pack. To reduce the risk of fire or burns, do not disassemble,
crush, puncture, short external contacts, or dispose of in fire or water.
Ä
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the
manufacturer’s instructions.
Because of the type of battery used in your h1930 and h1940 Series,
follow local regulations regarding the safe disposal of the battery.
Your vendor can advise you on local regulations, and/or the
existence of any battery disposal programs in operation.
Equipment Warning
Å
WARNING: To reduce the risk of personal injury, electrical shock, fire
or damage to the equipment:
■
Plug the AC adapter into a grounded (earthed) electrical outlet
that is easily accessible at all times.
■
Disconnect power from the equipment by unplugging the
AC adapter from the electrical outlet or unplugging the
Synchronization cable from the host computer.
■
Do not place anything on the AC adapter cord or any of the
other cables. Arrange them so that no one may accidentally step
on or trip over them.
■
Do not pull on a cord or cable. When unplugging from the
electrical outlet, grasp the cord by the plug or, in the case of the
AC adapter, grasp the AC adapter and pull out from the electrical
outlet.
■
Do not use converter kits sold for appliances to power the
iPAQ h1930 and h1940 Series.
User’s Guide
A–5
Regulatory Notices
Airline Travel Notice
Use of electronic equipment aboard commercial aircraft is at the
discretion of the airline.
Wireless Notices
In some situations or environments, the use of wireless devices
may be restricted. Such restrictions may apply aboard airplanes,
in hospitals, near explosives, in hazardous locations, etc.
If you are uncertain of the policy that applies to the use of this
device, please ask for authorization to use it prior to turning it on.
U.S. Regulatory Wireless Notice
This products emits radio frequency energy, but the radiated
output power of this device is far below the FCC radio frequency
exposure limits. Nevertheless, the device should be used in such a
manner that the potential for human contact with the antenna
during normal operation is minimized.
Canadian Regulatory Wireless Notice
Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.
The term “IC:” before the certification/registration number
only signifies that the Industry Canada technical specifications
were met.
A–6
User’s Guide
Regulatory Notices
Japanese Regulatory Wireless Notice
Brazilian Regulatory Wireless Notice
Este equipamento opera em caráter secundário, isto é, não tem
direito a proteção contra interferência prejudicial, mesmo de
estações do mesmo tipo, e não pode causar interferência a
sistemas operando em caráter primário.
User’s Guide
A–7
Regulatory Notices
A–8
User’s Guide
B
Specifications
System Specifications
✎ Not all models described are available in all regions.
System
Feature
Description
Processor
h1940 Models: Samsung S3C2410 266 MHz
h1930 Models: Samsung S3C2410 203 MHz
RAM (Random
Access Memory)
64 MB SDRAM (56 MB main memory)
h1935 Models (56 MB main memory)
h1930, h1937, h1940, h1945 Models (56 MB main
memory)
iPAQ File Store
(nonvolatile
memory)
h1940, h1945 Models: 14 MB Storage (not available in
Korean, Japanese, Traditional Chinese, and Simplified
Chinese versions)
SD I/O slot
SD memory and SDIO card support
Display
3.5 inch transflective color TFT, 240 x 320 pixels, 64K-color
support.
LED Backlight
Multi-level brightness adjustment
Audio
Microphone, speaker, 2.5 mm stereo audio jack, MP3
stereo through audio jack
Infrared (IrDA)
IrDA, data transfer up to 115.2 Kb per second
User’s Guide
B–1
Specifications
System
Feature
Description
Bluetooth (h1940,
h1945 only)
Class II device; typical 10 meters (30 feet) range
Indicators
3-mode alarm notification:
Flashing green LED, tone, pop-up message
Charging: flashing amber LED
Charged: solid amber LED
Bluetooth active: flashing blue LED
Battery
Removable/rechargeable 900mAh Lithium ion battery with
internal backup battery to maintain data during main
battery replacement.
Physical Specifications
hp iPAQ h1930 and h1940 Series
Length
US
Metric
4.46 in
113.3 mm
Width
2.75 in
69.8 mm
Depth
0.50 in
12.8 mm
Weight
4.37 oz
124 g
Operating Environment
Environment
US
Temperature
Operating
Nonoperating
-4° to 140° F
-20° to 60° C
Relative Humidity
Operating
up to 80%
up to 80%
Nonoperating
up to 80%
up to 80%
Operating
0-15,000 ft
0-4572 m
Nonoperating
0-15,000 ft
0-4572 m
Maximum Altitude
B–2
32° to 104° F
Metric
0° to 40° C
User’s Guide
Index
A
AC Adapter 3–4
ActiveSync 1–3, 4–17
backing up 2–6
backing up/restoring 4–18
connecting 2–2
Explore 2–5
installing 2–3
restoring 2–6
troubleshooting 9–4
uses 2–1
aligning the screen 1–10
applications
closing 4–9
installing 2–6, 4–10
opening 4–8
Asset Viewer 1–2
B
backing up files 4–17
ActiveSync 2–6, 4–18
iPAQ Backup 4–17
backlight settings 3–7, 9–1
backup battery 3–1
basics
learning the 4–1
battery
backlight settings 3–7
User’s Guide
backup 3–1
charging 3–6
installing 3–1
monitoring manually 3–8
preserving battery time 3–7
recharging 3–1
removing 3–5
spare 3–1
specifications B–2
troubleshooting 9–1
Block Recognizer 5–1, 5–8
Bluetooth 1–2, 2–2
ActiveSync connection 8–19
creating shortcuts 8–28
dial-up networking 8–20
pairing devices 8–6, 8–8
properties 8–6
sending files 8–23
settings 8–5
shared folder 8–11
specifications B–2
supported services 8–4
terms 8–3
troubleshooting 9–6
turning on 8–5, 8–6
using 8–1
Bluetooth Manager 8–15
business card
Index–1
Index
troubleshooting 9–7
using 6–1
exchanging information 8–27
C
care and maintenance 1–10
cell phone partnership 8–22
Charger Adapter plug 3–1
Command bar 4–2
CompactFlash (CF) expansion
card 6–2
connecting
to a computer 2–2
to the Internet 7–1
to your work network 7–1
connecting to a network 9–2
connecting to other devices 8–18
Connection Settings 2–5
converting writing to text 5–9
cradle 2–2, 2–3, 3–1
D
data
backing up 1–2
stored in RAM 3–1
date
set 1–7
dial-up networking 8–20
digital files 1–4
drawing on screen 5–9
E
e-mail
sending and receiving 2–7
synchronizing 2–2
expansion cards
CompactFlash (CF) 6–2
memory card 6–4
Secure Digital (SDIO) 6–2
Index–2
F
Favorites list 7–4
full reset 1–9, 1–10
H
hard reset 1–9
Help
accessing 1–1
I
icons 4–3
infrared 2–2, 2–3
specifications B–1
input methods
Block Recognizer 5–1
keyboard 5–1
Letter Recognizer 5–1
Microsoft Transcriber 5–1
installing
applications 4–10
installing ActiveSync 2–3
installing applications 2–6
installing the battery 3–1
Internet
connecting 7–1
Internet address 7–3
iPAQ
Backup 1–2, 4–17
File Store 4–18
Image Viewer 1–2
creating a slide show 4–12
K
keyboard 5–1
User’s Guide
Index
L
Letter Recognizer 5–1, 5–5
Link Key 8–8
linking to Web sites 2–7, 7–2
M
maintenance 1–10
memory
RAM 3–1, 3–5, B–1
ROM 3–5, B–1
memory cards 9–2
view content 6–4
Microsoft
ActiveSync 1–3, 2–1
Calculator 1–3
Calendar 1–3
Connections 1–3
Contacts 1–3
Inbox 1–3, 2–7
Notes 1–3
Pocket Excel 1–3, 9–3, 9–5
Pocket Internet Explorer 1–3,
2–7
Pocket PC Basics 1–1
Pocket Word 1–4, 9–3
Settings 1–4
Tasks 1–4
Terminal Services Client 1–4
Transcriber 5–1, 5–7
Windows Media Player 9
Series 1–4
Mobile Favorites 2–7
monitoring the battery 3–8
MP3 1–4
N
Navigation bar 4–2
User’s Guide
network, connecting 7–1
normal reset 1–8
O
on-screen keyboard 5–4
options
spare battery 3–1
owner information 1–7
P
pairing devices 8–16
settings 8–8
passwords 9–3
pop-up menus 4–4
power indicator 3–6
private network, connecting to 7–2
problems
troubleshooting 9–1
R
RAM 3–1, 3–5
specifications B–1
receiving e-mail 2–7
removing the battery 3–5
reset
full 1–9, 1–10
normal 1–8
Reset button 1–8, 1–9
restoring files
ActiveSync 2–6, 4–18
iPAQ Backup 4–17
ROM 3–5
specifications B–1
routine care 1–10
S
screen
aligning 1–10
Index–3
Index
drawing and writing on the 5–9
Self-Test 1–2
sending e-mail 2–7
set
date 1–7
time, home location 1–6
time, visiting location 1–6
shipping the iPAQ Pocket PC 9–2
slide show 4–12
soft reset 1–8
spare battery 3–1
specifications B–1
status icons 4–3
stylus 1–5
drag 1–5
tap 1–5
tap and hold 1–5
writing with the 5–5, 5–7, 5–8
synchronization cradle 2–2, 2–3,
3–1
synchronizing 1–3
changing settings 2–4
e-mail 2–2
links to Web sites 2–7, 7–2
with your computer 2–2
Index–4
T
time
set for home location 1–6
set for visiting location 1–6
Today screen 1–3, 1–4, 1–7, 4–1
creating new information 4–5
customizing 4–6
using 4–1
Transcriber 5–7
traveling with the iPAQ Pocket PC
9–2
troubleshooting 9–1
ActiveSync problems 9–4
battery problems 9–1
Bluetooth problems 9–6
expansion card problems 9–7
U
USB Synchronization
Cradle/Charger 2–2, 2–3, 3–1
W
Web sites
synchronizing links 2–7, 7–2
Windows Media 1–4
wireless connection 2–2, 2–3
writing on screen 5–9
User’s Guide
Index
User’s Guide
Index–5
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
