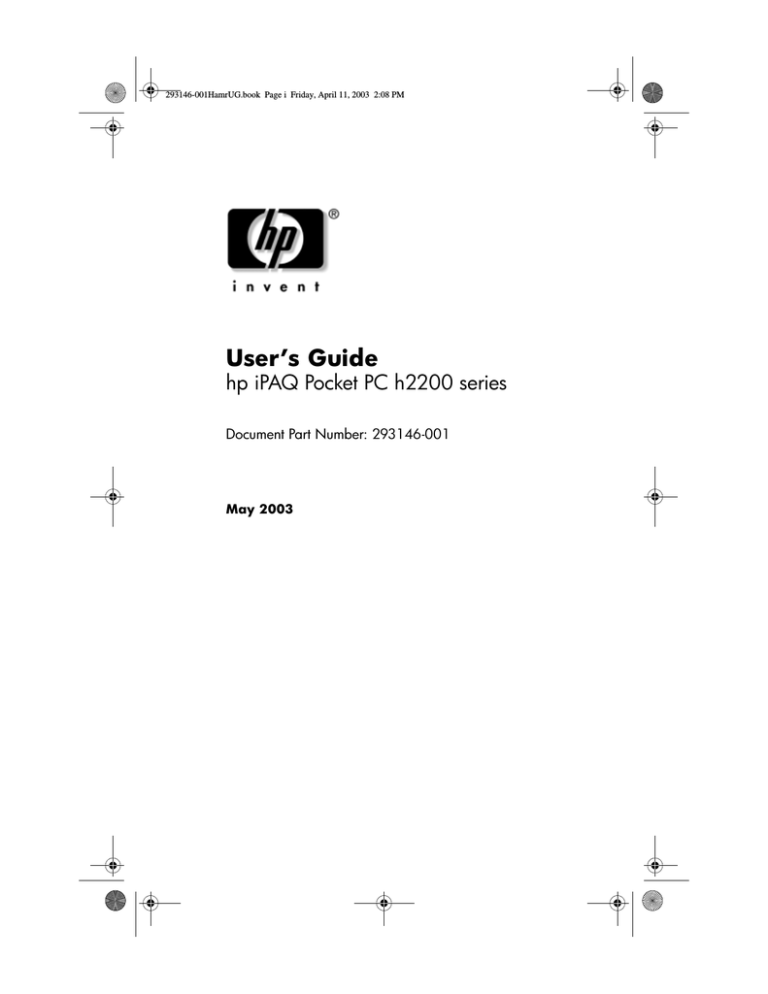

293146-001HamrUG.book Page i Friday, April 11, 2003 2:08 PM
User’s Guide
hp iPAQ Pocket PC h2200 series
Document Part Number: 293146-001
May 2003
293146-001HamrUG.book Page ii Friday, April 11, 2003 2:08 PM
© 2003 Hewlett-Packard Company
© 2003 Hewlett-Packard Development Company, L.P.
HP, Hewlett Packard, and the Hewlett-Packard logo are trademarks of
Hewlett-Packard Company in the U.S. and other countries.
iPAQ is a trademark of Hewlett-Packard Development Company, L.P. in the
U.S. and other countries.
Microsoft, Windows, the Windows logo, Outlook, and ActiveSync are
trademarks of Microsoft Corporation in the U.S. and other countries.
hp iPAQ Pocket PC is Powered by Microsoft® Windows®.
SD Logo is a trademark of Secure Digital in the U.S. and
other countries.
XScale is a trademark of Intel Corporation in the U.S. and other countries.
All other product names mentioned herein may be trademarks of their
respective companies.
Hewlett-Packard Company shall not be liable for technical or editorial
errors or omissions contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this
material. The information in this document is provided “as is” without
warranty of any kind, including, but not limited to, the implied warranties
of merchantability and fitness for a particular purpose, and is subject to
change without notice. The warranties for HP products are set forth in the
express limited warranty statements accompanying such products. Nothing
herein should be construed as constituting an additional warranty.
This document contains proprietary information that is protected by
copyright. No part of this document may be photocopied, reproduced, or
translated to another language without the prior written consent of
Hewlett-Packard Company.
Å
WARNING: Text set off in this manner indicates that failure to
follow directions could result in bodily harm or loss of life.
Ä
CAUTION: Text set off in this manner indicates that failure to follow
directions could result in damage to equipment or loss of information.
User’s Guide
hp iPAQ Pocket PC h2200 series
First Edition (May 2003)
Document Part Number: 293146-001
293146-001HamrUG.book Page iii Friday, April 11, 2003 2:08 PM
Contents
1 Getting to Know Your iPAQ Pocket PC
Using the Stylus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5
Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . 1–6
Setting the Time for Home and Visiting
Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6
Setting the Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Entering Owner Information . . . . . . . . . . . . . . . . . . . . . . 1–7
Resetting the Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8
Performing a Normal Reset . . . . . . . . . . . . . . . . . . . . 1–8
Performing a Full Reset. . . . . . . . . . . . . . . . . . . . . . . 1–9
Aligning the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–10
Routine Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–11
2 Using ActiveSync
Connecting to a Computer . . . . . . . . . . . . . . . . . . . . . . . .
Synchronizing with Your Computer . . . . . . . . . . . . .
Changing Synchronization Settings. . . . . . . . . . . . . .
Copying Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing Applications . . . . . . . . . . . . . . . . . . . . . . . . . . .
Backing up and Restoring . . . . . . . . . . . . . . . . . . . . . . . .
Synchronizing Links . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sending and Receiving E-mail. . . . . . . . . . . . . . . . . . . . .
Requesting Meetings . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User’s Guide
2–2
2–2
2–4
2–5
2–6
2–6
2–7
2–7
2–7
iii
293146-001HamrUG.book Page iv Friday, April 11, 2003 2:08 PM
Contents
3 Managing the Battery
Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1
Removing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–5
Charging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–5
Charging with the AC Adapter and Charger
Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–5
Charging with the USB Synchronization
Cradle/Charger and AC Adapter . . . . . . . . . . . . . . . . 3–7
Preserving Battery Time . . . . . . . . . . . . . . . . . . . . . . . . . 3–8
Adjusting the Standby Setting . . . . . . . . . . . . . . . . . . 3–8
Changing the Backlight Settings . . . . . . . . . . . . . . . 3–10
Disabling Auto Power On for the Application
Buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–10
Manually Monitoring the Battery . . . . . . . . . . . . . . 3–11
4 Learning the Basics
Using the Today Screen . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
Navigation Bar and Command Bar . . . . . . . . . . . . . . 4–2
Status Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3
Pop-Up Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4
Creating information . . . . . . . . . . . . . . . . . . . . . . . . . 4–5
Customizing the Today Screen . . . . . . . . . . . . . . . . . 4–6
Using Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8
Opening Applications . . . . . . . . . . . . . . . . . . . . . . . . 4–8
Minimizing Applications. . . . . . . . . . . . . . . . . . . . . . 4–8
Closing Applications . . . . . . . . . . . . . . . . . . . . . . . . . 4–9
Installing Applications. . . . . . . . . . . . . . . . . . . . . . . 4–10
Using iPAQ Image Viewer . . . . . . . . . . . . . . . . . . . 4–10
Backing Up Information . . . . . . . . . . . . . . . . . . . . . 4–17
Using iPAQ File Store Folder . . . . . . . . . . . . . . . . . 4–18
iv
User’s Guide
293146-001HamrUG.book Page v Friday, April 11, 2003 2:08 PM
Contents
5 Learning Input Methods
Changing Word Suggestion Options . . . . . . . . . . . . . . . .
Using the On-Screen Keyboard . . . . . . . . . . . . . . . . . . . .
Writing with the Stylus and the Letter Recognizer . . . . .
Writing with the Stylus and Microsoft Transcriber . . . . .
Writing with the Stylus and Block Recognizer . . . . . . . .
Drawing and Writing on the Screen. . . . . . . . . . . . . . . . .
Converting Writing to Text . . . . . . . . . . . . . . . . . . . .
5–2
5–4
5–5
5–7
5–8
5–9
5–9
6 Expansion Cards
Installing an Expansion Card . . . . . . . . . . . . . . . . . . . . . .
Removing a CompactFlash (CF)
Expansion Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing a Secure Digital (SD) Expansion Card. . . . . .
Viewing the Content of Memory Cards . . . . . . . . . . . . . .
6–1
6–3
6–3
6–4
7 Connecting to the Internet
Using a Modem Card . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting to a Private Network . . . . . . . . . . . . . . . . . . .
Synchronizing Links . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Entering an Internet Address . . . . . . . . . . . . . . . . . . . . . .
Using a Favorites List . . . . . . . . . . . . . . . . . . . . . . . . . . .
7–2
7–5
7–6
7–6
7–7
8 Using Bluetooth
Getting Acquainted with Bluetooth . . . . . . . . . . . . . . . . . 8–2
Understanding Terms . . . . . . . . . . . . . . . . . . . . . . . . 8–3
Supported Services . . . . . . . . . . . . . . . . . . . . . . . . . . 8–4
Working with Bluetooth Settings. . . . . . . . . . . . . . . . . . . 8–5
Opening Bluetooth Settings. . . . . . . . . . . . . . . . . . . . 8–5
Setting Accessibility Properties. . . . . . . . . . . . . . . . . 8–7
Enabling Bluetooth Services . . . . . . . . . . . . . . . . . . . 8–9
Setting a Shared Folder . . . . . . . . . . . . . . . . . . . . . . 8–11
Understanding Profiles . . . . . . . . . . . . . . . . . . . . . . 8–12
User’s Guide
v
293146-001HamrUG.book Page vi Friday, April 11, 2003 2:08 PM
Contents
Working with Bluetooth Manager . . . . . . . . . . . . . . . . .
Opening Bluetooth Manager . . . . . . . . . . . . . . . . . .
Locating and Selecting a Device . . . . . . . . . . . . . . .
Connecting to Other Devices . . . . . . . . . . . . . . . . . . . . .
Identifying the Communications Port . . . . . . . . . . .
Establishing an ActiveSync Connection . . . . . . . . .
Establishing a Serial Connection. . . . . . . . . . . . . . .
Dial-Up Networking . . . . . . . . . . . . . . . . . . . . . . . .
Join a Personal Area Network . . . . . . . . . . . . . . . . .
Establishing a Cell Phone Partnership. . . . . . . . . . .
Working with Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Creating a File Transfer Connection . . . . . . . . . . . .
Sending Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Creating a Folder on a Remote Device . . . . . . . . . .
Receiving a File from a Remote Device . . . . . . . . .
Deleting a File from a Remote Device . . . . . . . . . .
Selecting Business Card Information. . . . . . . . . . . . . . .
Using Business Cards . . . . . . . . . . . . . . . . . . . . . . .
Opening a Connection . . . . . . . . . . . . . . . . . . . . . . . . . .
Viewing Connection Status . . . . . . . . . . . . . . . . . . .
Closing a Connection. . . . . . . . . . . . . . . . . . . . . . . .
Viewing Connection Information . . . . . . . . . . . . . .
Working with Connections . . . . . . . . . . . . . . . . . . .
8–15
8–16
8–16
8–18
8–18
8–19
8–20
8–20
8–22
8–22
8–22
8–23
8–23
8–23
8–24
8–24
8–24
8–25
8–27
8–27
8–28
8–28
8–28
9 Troubleshooting
ActiveSync . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–4
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–6
Expansion Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–7
vi
User’s Guide
293146-001HamrUG.book Page vii Friday, April 11, 2003 2:08 PM
Contents
A Regulatory Notices
Federal Communications Commission Notice. . . . . . . . . A–1
Declaration of Conformity for products marked
with the FCC logo—United States only . . . . . . . . . . A–2
Canadian Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–3
Avis Canadien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–3
Japanese Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–3
European Union Notice . . . . . . . . . . . . . . . . . . . . . . . . . . A–4
Battery Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–5
Equipment Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–5
Airline Travel Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–6
Wireless Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–6
U.S. Regulatory Wireless Notice. . . . . . . . . . . . . . . . A–6
Canadian Regulatory Wireless Notice. . . . . . . . . . . . A–6
Japanese Regulatory Wireless Notice . . . . . . . . . . . . A–7
Brazilian Regulatory Wireless Notice . . . . . . . . . . . . A–7
B Specifications
System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . B–1
Physical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . B–2
Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . . B–2
Index
User’s Guide
vii
293146-001HamrUG.book Page 1 Friday, April 11, 2003 2:08 PM
1
Getting to Know Your iPAQ
Pocket PC
Congratulations on purchasing an HP iPAQ h2200 Series Pocket
PC. Use this guide to find out about setting up your Pocket PC
and to learn about how it works.
Your iPAQ Pocket PC already includes all the software you need
and more to fully operate your device. The software applications
introduced below are preinstalled on your iPAQ Pocket PC. These
preinstalled applications are not deleted if your Pocket PC loses
power.
You can find detailed information for using these applications in
the Help files on your iPAQ Pocket PC. To access these Help
files, from the Start menu, tap Help and select an application.
In addition, Microsoft Pocket PC Basics provides instructions on
operating the Pocket PC. To locate Pocket PC Basics, go to the
Today screen and tap Start > Help.
hp iPAQ Software
Functions
iPAQ Audio
Adjust the volume for microphone or
headphone use.
iPAQ Backup
Back up your data to protect it from loss due
to hardware failure, battery power failure,
or accidental deletion.
User’s Guide
1–1
293146-001HamrUG.book Page 2 Friday, April 11, 2003 2:08 PM
Getting to Know Your iPAQ Pocket PC
hp iPAQ Software
Functions
iTask
Manage tasks that are running, and functions
as a shortcut to launch or close programs.
Assigned, by default, to the fourth Application
Button on the Pocket PC.
iPAQ Image Viewer
Display individual images and run slide shows.
Also display images from a digital camera
storage card.
Diagnostic ToolKit
Runs a basic diagnostic test on the device.
Asset Viewer
Lists detailed information about your system
configuration.
Bluetooth
Allows short-range wireless communications
technology capable of exchanging information
up to a distance of about 30 feet (10 meters).
Nevo
Transform your iPAQ Pocket PC into an
easy-to-use universal remote control.
1–2
User’s Guide
293146-001HamrUG.book Page 3 Friday, April 11, 2003 2:08 PM
Getting to Know Your iPAQ Pocket PC
Microsoft Pocket PC
Software
Functions
ActiveSync
Synchronize the information between your Pocket
PC and computer so you have the latest
information in both locations. Be sure you install
ActiveSync on both your Pocket PC and personal
computer.
Calculator
Perform calculations and convert currency.
Calendar
Schedule appointments, meetings, and other
events, then set an alarm to remind you of the
appointments. Appointments for the day are
displayed on the Today screen.
Connections
Connect your Pocket PC to the Internet and
intranet to browse Web sites, send and receive
e-mail, and synchronize information using
ActiveSync.
ClearType Tuner
Adjusts the lightness or darkness of text.
Contacts
Keep an updated list of friends and colleagues to
e-mail and telephone.
Inbox
Receive and send Internet e-mail messages
in Inbox. You must have an e-mail address
provided by your Internet Service Provider (ISP)
or employer to send and receive e-mail.
MSN Messenger
Provide the same chat environment as MSN
Messenger on your computer including seeing
who is online, sending and receiving instant
messages, blocking contacts from seeing your
status or sending you messages.
Notes
Create handwritten or typed notes, drawings,
and recordings.
User’s Guide
1–3
293146-001HamrUG.book Page 4 Friday, April 11, 2003 2:08 PM
Getting to Know Your iPAQ Pocket PC
Microsoft Pocket PC
Software
Functions
Pictures
View individual pictures, run a slide show, or set
a picture as the background on the Today
screen.
Pocket Excel
Create and edit workbooks or view and edit
Excel workbooks created on your desktop
computer.
Pocket Internet Explorer
Browse the Internet and download pages
through synchronization or by connecting to the
Internet.
Pocket Word
Create new documents or view and edit Word
documents created on your desktop computer.
Settings
Provides quick instructions for setting the
backlight, clock, contrast, memory, power,
regional settings, Today screen, password,
sounds and notifications, etc.
Tasks
Keep track of your to-do list.
Terminal Services Client
Use programs available on your personal
computer from your Pocket PC.
Windows Media Player
9 Series
Play digital audio and video files in Windows
Media or MP3 format on your device.
1–4
User’s Guide
293146-001HamrUG.book Page 5 Friday, April 11, 2003 2:08 PM
Getting to Know Your iPAQ Pocket PC
Using the Stylus
Your iPAQ Pocket PC comes with a stylus that you should use to
tap or write on your screen.
Ä
CAUTION: To prevent damage to your iPAQ Pocket PC screen,
never use any device other than the stylus that comes with the
Pocket PC or an approved replacement to tap or write on the
screen. If you lose or break your stylus, you can order extras at
www.hp.com/products/pocketpc/options.
You can perform three basic actions using the stylus:
Tap—Lightly touch the screen to select or open an item. Lift the
stylus after you tap an item. Tapping is equivalent to clicking an
item with the mouse on your personal computer.
Drag—Place the point of the stylus on the screen and drag an
item across the screen without lifting the stylus until you have
completed the selection. Dragging is equivalent to pressing the
Shift key while dragging your personal computer mouse with the
mouse button pressed.
Tap and hold—Hold the stylus pointer on an item for a short
time until a menu displays. Tapping and holding is equivalent to
right-clicking your personal computer mouse button. When you
tap and hold, a circle of red dots appears around the stylus to
indicate that the menu will soon pop up.
User’s Guide
1–5
293146-001HamrUG.book Page 6 Friday, April 11, 2003 2:08 PM
Getting to Know Your iPAQ Pocket PC
Setting the Date and Time
When you turn on your iPAQ Pocket PC for the first time, you are
requested to select your time zone. After setting the time zone,
you still need to set the time and date on your unit. All three
settings are located in the Clock Settings screen and can be set
at the same time.
default, the time on the iPAQ Pocket PC is synchronized with
✎ By
your personal computer each time the two devices connect using
ActiveSync.
Setting the Time for Home and Visiting
Locations
1. From the Start menu, tap Settings > System tab > Clock
icon.
SHORTCUT: From the Today screen, tap the Clock icon to set
the time.
2. Tap either Home or Visiting.
3. Tap the time-zone down arrow, then select the appropriate
time zone.
4. Tap the hour, minutes, or seconds, then use the up and down
arrows to adjust the time.
SHORTCUT: You can also adjust the time by moving the hands
of the clock with the stylus.
5. Tap AM or PM.
6. Tap OK.
7. Tap Yes to save the time.
1–6
User’s Guide
293146-001HamrUG.book Page 7 Friday, April 11, 2003 2:08 PM
Getting to Know Your iPAQ Pocket PC
Setting the Date
1. From the Start menu, tap Settings > System tab > Clock
icon.
SHORTCUT: From the Today screen, tap the Clock icon to set
the date.
2. Tap the down arrow by the date.
3. Tap the left or right arrow to select a month and year.
4. Tap a day.
5. Tap OK.
6. Tap Yes to save the date settings.
You need to reset your time zone, time, and date if:
■
The location time (Home or Visiting) needs to be changed
■
All power to the iPAQ Pocket PC is lost, which removes all
saved settings
■
You perform a full reset of your iPAQ Pocket PC
SHORTCUT: From the Today screen, tap the Clock icon to set
the time zone, time, and date.
Entering Owner Information
You can personalize your iPAQ Pocket PC by entering owner
information. To enter owner information:
1. From the Today screen, tap Start > Settings > Owner
Information.
SHORTCUT: From the Today screen, tap Tap here to set
owner information.
2. Tap in the Name field. A keyboard appears at the bottom of
the screen. Tap on the characters to enter your name.
User’s Guide
1–7
293146-001HamrUG.book Page 8 Friday, April 11, 2003 2:08 PM
Getting to Know Your iPAQ Pocket PC
3. Tap the Tab key on the keyboard to move the cursor to the
next field.
4. Continue entering whatever information you want to include.
5. To display owner information at startup, tap in the Show
information when device is turned on checkbox.
6. Tap on the Notes tab to enter any notes.
7. Tap OK to save the information and return to the Today
screen.
Resetting the Unit
Performing a Normal Reset
A normal reset is sometimes referred to as a “soft reset.” Perform
a normal reset to stop all running applications. A normal reset
does not erase any programs or saved data.
Ä
CAUTION: Be sure to save any unsaved data before performing a
normal reset since normal reset erases all unsaved data.
To perform a normal reset:
1. Locate the Reset button on the back of your iPAQ Pocket PC.
2. Use the stylus to lightly press the Reset button. The Pocket
PC restarts and displays the Today screen.
1–8
User’s Guide
293146-001HamrUG.book Page 9 Friday, April 11, 2003 2:08 PM
Getting to Know Your iPAQ Pocket PC
Performing a Full Reset
A full reset is sometimes referred to as a “hard reset.” Perform a
full reset when you want to clear all settings, programs, and data
from RAM.
A full reset deactivates the battery. The power button does not
function until the battery is reactivated.
Ä
CAUTION: If you perform a full reset, your iPAQ Pocket PC returns
to its default settings and loses all information that is not recorded
in ROM.
To perform a full reset:
1. Press and hold Application Buttons 1 (Calendar) and 4
(iTask) on the front of the unit and, at the same time, use the
stylus to press the Reset button on the back of your iPAQ
Pocket PC.
2. Hold all buttons until the displayed image begins to fade
(approximately four seconds).
User’s Guide
1–9
293146-001HamrUG.book Page 10 Friday, April 11, 2003 2:08 PM
Getting to Know Your iPAQ Pocket PC
3. Release the Application Buttons and stylus.
a full reset, press the Power button. If the iPAQ Pocket
✎ ToPCverify
has been fully reset, it does not power on.
4. Reactivate the battery by:
❏
Connecting the iPAQ Pocket PC to AC power
or
❏
Pressing the Reset button with the stylus
Aligning the Screen
When the iPAQ Pocket PC is turned on for the first time, you are
guided through a screen alignment process. You must realign
your screen if:
■
The Pocket PC does not respond accurately to your taps.
■
You perform a full reset of your Pocket PC.
To realign the iPAQ Pocket PC screen:
1. From the Start menu, tap Settings > System tab > Screen
icon.
2. Tap the Align Screen button.
use an alternate path to the same destination without tapping
✎ Toon the
screen, push down and hold exactly in the center of the
5-Way Navigation button, then press Application Button 1
(Calendar).
3. Tap the cross-hair object at each location. Be precise when
tapping the cross-hair object.
4. Tap OK.
1–10
User’s Guide
293146-001HamrUG.book Page 11 Friday, April 11, 2003 2:08 PM
Getting to Know Your iPAQ Pocket PC
Routine Care
To keep your iPAQ Pocket PC in good condition and working
properly, follow these guidelines:
Ä
■
Keep your Pocket PC away from excessive moisture and
temperature extremes.
■
Do not expose your Pocket PC to liquids or precipitation.
■
Do not place anything on top of your Pocket PC to prevent
damage to the screen.
■
Store your Pocket PC in a protective case when not in use.
■
Clean your Pocket PC by wiping the screen and the exterior
with a soft, damp cloth moistened only with water.
■
Avoid exposing your Pocket PC to direct sunlight or strong
ultraviolet light for extended periods of time.
■
Avoid scratching the surface of the screen and banging it
against hard objects.
■
Use only the stylus that comes with your Pocket PC or an
approved replacement on the screen to prevent scratching it.
CAUTION: To reduce the risk of electrical shock or damage to the
internal components, do not spray liquid directly on the screen or
allow excess liquid to drip inside your iPAQ Pocket PC. Using soap or
other cleaning products on the screen may discolor the finish and
damage it.
User’s Guide
1–11
293146-001HamrUG.book Page 1 Friday, April 11, 2003 2:08 PM
2
Using ActiveSync
You can use Microsoft ActiveSync to:
■
Synchronize information between your iPAQ Pocket PC and
your personal computer or server so that you have the latest
information in all locations.
■
Change synchronization settings and the synchronization
schedule.
■
Copy files between your device and personal computer.
■
Install applications on your iPAQ Pocket PC.
■
Back up and restore device information.
■
Synchronize links.
■
Send and receive e-mail.
■
Request meetings.
User’s Guide
2–1
293146-001HamrUG.book Page 2 Friday, April 11, 2003 2:08 PM
Using ActiveSync
Connecting to a Computer
Connect your iPAQ Pocket PC to your computer using Microsoft
ActiveSync and the USB Synchronization Cradle/Charger, a
wireless infrared connection, or Bluetooth. For more information
on using ActiveSync with Bluetooth, refer to Chapter 8,
“Using Bluetooth.”
using Microsoft ActiveSync to synchronize e-mail on your
✎ When
personal computer with your iPAQ Pocket PC, you must have
Microsoft Outlook 98 or later installed on your personal
computer. Outlook 2002 is included on the Companion CD. If
you do not have Outlook, install the Microsoft Outlook 2002
software from the CD. Microsoft Outlook Express will not
work with the iPAQ Pocket PC and ActiveSync.
Synchronizing with Your Computer
Ä
CAUTION: For synchronization to work properly, install Microsoft
ActiveSync on your personal computer before you connect your
iPAQ Pocket PC to your computer.
During ActiveSync installation, you can:
2–2
■
Create partnerships that enable you to synchronize
information with multiple computers.
■
Select information to be synchronized with your iPAQ Pocket
PC (for example, Contacts, Calendar, Inbox, Tasks, Favorites,
Files, Notes, and AvantGo).
User’s Guide
293146-001HamrUG.book Page 3 Friday, April 11, 2003 2:08 PM
Using ActiveSync
you select to synchronize files, you can drag and drop the
✎ Ifselected
files from your computer to the synchronized folder on
your iPAQ Pocket PC. If you named your device “PC1” when you
created your partnership, then the synchronized folder is named
“PC1.” When you synchronize, the files move to your iPAQ
Pocket PC.
To install Microsoft ActiveSync on your personal computer:
1. Insert the Companion CD into the CD tray or slot on your
personal computer.
2. Select the link to install Microsoft ActiveSync.
3. Follow the instructions in the installation wizard. For more
help, click the ActiveSync Help button during installation.
The information you select automatically synchronizes when
your installation is complete.
4. After installing ActiveSync on your personal computer,
connect the iPAQ Pocket PC to the personal computer using
the USB Synchronization Cradle/Charger.
Using the Serial Infrared (IR) Connection
After setting up a connection with the USB connector on the
USB Synchronization Cradle/Charger, you can synchronize your
iPAQ Pocket PC and your personal computer using an infrared
connection if you have an infrared port or an infrared USB
adapter installed on your computer. The infrared connection
option works only on computers that have Microsoft Windows
98SE, Me, 2000, or XP operating systems installed.
User’s Guide
2–3
293146-001HamrUG.book Page 4 Friday, April 11, 2003 2:08 PM
Using ActiveSync
To set up an infrared connection to a computer:
1. Synchronize your iPAQ Pocket PC with your computer using
the USB Synchronization Cradle/Charger.
2. Follow your computer manufacturer’s instructions to install
and set up an infrared port.
3. Remove the iPAQ Pocket PC from the cradle and line up the
infrared port with the computer infrared port so they are
unobstructed and within 12 inches (30.5 cm) of each other.
4. Initiate a connection by tapping Start > ActiveSync >
Tools > Connect via IR. Synchronization begins on your
device.
5. To disconnect, move the devices away from each other or
tap x to turn off.
Changing Synchronization Settings
You can modify your synchronization settings for Microsoft
ActiveSync to:
2–4
■
Change when your iPAQ Pocket PC synchronizes with your
personal computer or server
■
Change the type of connection from your iPAQ Pocket PC
to your computer (for example, serial, USB, infrared
connections)
■
Select the files and information to synchronize with your
computer
■
Select the files and information you do not want to
synchronize with your computer (for example, e-mail
attachments)
■
Determine how conflicts between information on your
iPAQ Pocket PC and information on your computer are
handled
User’s Guide
293146-001HamrUG.book Page 5 Friday, April 11, 2003 2:08 PM
Using ActiveSync
To change synchronization settings:
1. From the Start menu on your computer, click Programs >
Microsoft ActiveSync > Tools > Options.
a. On the Sync Options tab, select the files and information
to synchronize with your computer.
b. On the Schedule tab, select when your iPAQ Pocket PC
synchronizes with your computer.
c. On the Rules tab, determine how conflicts between
information on your iPAQ Pocket PC and information on
your computer are handled.
2. Tap OK when you are finished.
3. From the File menu, click Connection Settings. Select the
type of connection to be allowed between the iPAQ Pocket
PC and the computer.
Copying Files
You can copy files to and from your computer using Explore in
ActiveSync and Windows Explorer.
To copy files:
1. From the Start menu on your computer, click Programs >
Microsoft ActiveSync.
2. Click Explore.
3. Double-click the My Pocket PC icon.
4. On your personal computer, right-click the Start menu, then
select Explore.
User’s Guide
2–5
293146-001HamrUG.book Page 6 Friday, April 11, 2003 2:08 PM
Using ActiveSync
5. Locate the file to be moved.
6. Drag and drop your files between your iPAQ Pocket PC and
your computer. ActiveSync converts the files so that they can
be used by the Pocket Office applications, if necessary.
your files directly into My Documents on your iPAQ
✎ Move
Pocket PC or into a folder inside your My Documents folder,
so the applications on your iPAQ Pocket PC can locate them.
Installing Applications
To install applications on your iPAQ Pocket PC from your
computer using ActiveSync:
1. Connect your iPAQ Pocket PC to your personal computer
using the USB Synchronization Cradle/Charger.
2. Follow the instructions provided with the application and by
the installation Wizard.
3. Check the screen of your iPAQ Pocket PC to see if any
further steps are necessary to complete the application
installation.
Backing up and Restoring
To help reduce the chance of losing information, you should back
up information to your computer regularly. For more information
on backing up and restoring information using Microsoft
ActiveSync, refer to “Backing up your Files” in Chapter 4 of
this User’s Guide.
2–6
User’s Guide
293146-001HamrUG.book Page 7 Friday, April 11, 2003 2:08 PM
Using ActiveSync
Synchronizing Links
You can synchronize links to Web sites from your Favorites
list on your computer to view them offline with Pocket Internet
Explorer.
1. From the Start menu on your computer, click Programs >
Internet Explorer icon.
2. Click Favorites to see the list of links to your favorite
Web sites.
3. To save a Web site link to Mobile Favorites, open the Web
site, then click Create Mobile Favorite.
If you select “Favorites” as an information type to be
synchronized, ActiveSync copies your mobile favorite
to your Pocket PC the next time you synchronize.
4. Follow the instructions in Synchronize information to
manually synchronize your favorite links.
Sending and Receiving E-mail
You can send and receive e-mail messages by synchronizing your
iPAQ Pocket PC with your computer using ActiveSync. If you are
using ActiveSync to send and receive e-mail messages, the name
of the folder you are using is displayed at the bottom of the
screen. For more information on sending and receiving e-mail
using ActiveSync, refer to “Inbox” in the Help files on your iPAQ
Pocket PC. To access the Help files on your Pocket PC, from the
Start menu, tap Help > Inbox.
Requesting Meetings
You can schedule a meeting and send a meeting request through
ActiveSync. Refer to “Calendar” in the Help files on your iPAQ
Pocket PC. To access the Help files on your Pocket PC, from the
Start menu, tap Help > Calendar.
User’s Guide
2–7
293146-001HamrUG.book Page 1 Friday, April 11, 2003 2:08 PM
3
Managing the Battery
Installing the Battery
If you remove the main battery from your iPAQ Pocket PC,
your device does not operate even if you try to use AC power.
However, the Pocket PC has a small internal backup battery that
allows you to change the main battery without losing RAM data
(user-installed programs and data) as long as it is replaced within
10 minutes. If the battery is removed from the unit for longer
than 10 minutes, you will lose unsaved RAM data and need to
reset the unit.
It is recommended that you fully charge the iPAQ Pocket PC
battery before setting up the unit, and recharge regularly. Your
Pocket PC uses some power to maintain files in RAM and the
clock. While working at your desk, keep the Pocket PC connected
to the USB Synchronization Cradle/Charger. When traveling, it is
recommended that you carry the AC Adapter, Charger Adapter
plug, or an optional spare battery with you.
Your iPAQ Pocket PC is shipped with the battery partially
charged.
User’s Guide
3–1
293146-001HamrUG.book Page 2 Friday, April 11, 2003 2:08 PM
Managing the Battery
To install the removable/rechargeable battery:
1. Locate the battery.
2. On the back of the iPAQ Pocket PC, slide the latch to the left
1 to open the battery door, then pull the door out 2 and away
from the unit 3.
3–2
User’s Guide
293146-001HamrUG.book Page 3 Friday, April 11, 2003 2:08 PM
Managing the Battery
3. Insert the battery into the battery slot so that the connectors
on the right side of the battery are seated on the pins 1, then
push the left side of the battery in place 2.
User’s Guide
3–3
293146-001HamrUG.book Page 4 Friday, April 11, 2003 2:08 PM
Managing the Battery
4. Replace the battery door by inserting it back into the tabs on
the battery door area 1, then close and latch it 2.
Ä
CAUTION: The battery door must be tightly latched to power the
battery.
the battery is not fully charged, you must connect the AC
✎ IfAdapter
to the Pocket PC to fully charge it before continuing.
It takes about four hours to fully charge the battery.
3–4
User’s Guide
293146-001HamrUG.book Page 5 Friday, April 11, 2003 2:08 PM
Managing the Battery
Removing the Battery
To remove the battery from the iPAQ Pocket PC, lift the left side
of the battery and pull it out of the device.
Ä
CAUTION: Because most of the applications and data you install on
your iPAQ Pocket PC are held in memory (RAM), you need to reinstall
them if the battery completely discharges or if the battery is removed
from the unit for extended periods of time.
You do not need to reinstall applications and data installed in the
iPAQ File Store folder because they are saved in ROM.
Charging
To recharge the battery, use one of the following methods:
■
AC Adapter with the Charger Adapter
■
USB Synchronization Cradle/Charger with the AC Adapter
Charging with the AC Adapter and Charger
Adapter
The standard AC Adapter works in any household outlet. You can
also purchase one that works in your vehicle’s cigarette lighter or
a 12-volt power outlet.
Ä
CAUTION: Use only HP recommended AC adapters.
User’s Guide
3–5
293146-001HamrUG.book Page 6 Friday, April 11, 2003 2:08 PM
Managing the Battery
To charge the iPAQ Pocket PC using the AC Adapter:
1. Insert the Charger Adapter 1 into the charging port on the
bottom of the iPAQ Pocket PC.
2. Plug one end of the AC Adapter into an electrical outlet 2
and plug the other end into the Charger Adapter 3 on the
bottom of the iPAQ Pocket PC.
3. When the power indicator on the top of the iPAQ Pocket PC
turns solid amber, the unit is fully charged and you can
disconnect the AC Adapter. The approximate time to fully
charge a unit is four hours.
amber charge light blinks while the battery is recharging and
✎ The
turns solid (nonblinking) when the battery is fully charged.
3–6
User’s Guide
293146-001HamrUG.book Page 7 Friday, April 11, 2003 2:08 PM
Managing the Battery
Charging with the USB Synchronization
Cradle/Charger and AC Adapter
Use the USB Synchronization Cradle/Charger to:
■
Charge the iPAQ Pocket PC
■
Synchronize the Pocket PC with your computer.
(For information on synchronizing, refer to Chapter 2,
“Using ActiveSync.”)
■
Recharge an additional battery if you have purchased one
To charge the iPAQ Pocket PC using the USB Synchronization
Cradle/Charger:
1. Plug the AC Adapter into an electrical outlet and connect the
other end of the AC Adapter to the AC connector on the USB
Synchronization Cradle/Charger.
2. Slide the bottom of your iPAQ Pocket PC into the cradle and
push firmly to seat it.
User’s Guide
3–7
293146-001HamrUG.book Page 8 Friday, April 11, 2003 2:08 PM
Managing the Battery
amber charge light blinks while the battery is recharging and
✎ The
turns solid (nonblinking) when the battery is fully charged.
an optional battery at the same time as the iPAQ Pocket
✎ ToPC,charge
insert the battery into the cradle, then insert the iPAQ Pocket
PC in front of the battery.
If you receive a low backup battery warning, charge your unit
immediately before removing the main battery to avoid data loss.
To view the amount of charge left in the backup battery, tap
Start > Settings > System tab > Power.
Preserving Battery Time
Adjusting the Standby Setting
Adjusting the Standby setting can preserve battery time. During
Standby, the unit turns off so very little power is being consumed.
This helps to preserve programs and data stored in RAM.
■
Lower Standby Period—Increases the useable battery time.
If you use the iPAQ Pocket PC for extended periods of time,
you can choose to select a lower Standby Period.
■
Higher Standby Period—Decreases the useable battery
time and allocates it for standby usage. If you leave your
iPAQ Pocket PC off for extended periods of time without
recharging it, you can choose to select a higher Standby
Period.
For more information on using the Standby setting, tap
Start > Settings > System tab > Power icon > Standby tab >
Settings > Help.
3–8
User’s Guide
293146-001HamrUG.book Page 9 Friday, April 11, 2003 2:08 PM
Managing the Battery
To adjust the Standby setting:
1. From the Start menu, tap Settings > System tab >
Power icon.
2. Tap the Standby tab.
3. Drag the pointer to adjust the standby period.
User’s Guide
3–9
293146-001HamrUG.book Page 10 Friday, April 11, 2003 2:08 PM
Managing the Battery
Changing the Backlight Settings
To change the backlight settings in order to conserve more battery
power:
1. From the Start menu, tap Settings > System tab >
Backlight.
settings can also be accessed from the iTask button.
✎ Backlight
Press Application Button 4 (iTask), then tap Settings > System
tab > Backlight.
2. Select the following backlight settings:
■
Battery Power
■
External Power
■
Brightness
Disabling Auto Power On for the
Application Buttons
Pressing the Application Buttons on the front of your iPAQ
Pocket PC will turn your device on by default. To preserve power
and extend the life of your battery, you can disable this function.
To disable the Auto Power On function of the Application
Buttons:
1. Tap Start > Settings > Buttons > Lock tab.
2. Tap in the Disable the application buttons checkbox.
3. Tap OK.
3–10
User’s Guide
293146-001HamrUG.book Page 11 Friday, April 11, 2003 2:08 PM
Managing the Battery
Manually Monitoring the Battery
To manually monitor the battery power:
1. From the Start menu, tap Settings > System tab >
Power icon.
2. Tap OK.
User’s Guide
3–11
293146-001HamrUG.book Page 1 Friday, April 11, 2003 2:08 PM
4
Learning the Basics
Using the Today Screen
When you first turn on your iPAQ Pocket PC, the Today screen
displays. You can also display it by tapping Start, then Today.
Use the Today screen to view:
■
Owner information
■
Upcoming appointments
■
Unread and unsent messages
■
Tasks that need to be completed
Tap to switch
to a program.
Tap to set ISP or Work connections.
Tap to change volume or mute all sounds.
Tap to change date and time.
Tap to set appointment or
view existing appointment.
Tap to read e-mail.
Tap to power Bluetooth on/off
Tap to create a new item.
User’s Guide
4–1
293146-001HamrUG.book Page 2 Friday, April 11, 2003 2:08 PM
Learning the Basics
Navigation Bar and Command Bar
The Navigation bar is located at the top of the screen. It displays
the active program and current time, and allows you to close
screens. Use the Start menu to select your application.
Tap to select a program you have recently used.
Tap to select a program.
Tap to see additional programs.
Tap to customize the settings.
Tap to view online Help
Within each program, use the Command bar located at the bottom
of the screen to perform tasks. Tap New to create a new item in
the current program.
Input panel button
New button
Menu
actions
4–2
Buttons
User’s Guide
293146-001HamrUG.book Page 3 Friday, April 11, 2003 2:08 PM
Learning the Basics
Status Icons
You may see the following status icons displayed on the
Navigation bar or Command bar. Tap the icon on the screen
to view more information related to the item.
Active connection to personal computer.
Inactive connection to personal computer.
Microsoft ActiveSync is synchronizing.
Speaker is on.
Speaker is off.
iPAQ Pocket PC is connected to the USB Synchronization
cradle. This icon only appears when there is an active
connection.
Bluetooth power-on/off icon. When the Bluetooth icon is
blue, Bluetooth is active. When the Bluetooth icon is grayed
with a red X, Bluetooth is inactive.
User’s Guide
4–3
293146-001HamrUG.book Page 4 Friday, April 11, 2003 2:08 PM
Learning the Basics
Pop-Up Menus
Pop-up menus quickly perform an action for an item. Use the
pop-up menu to cut, copy, rename, and delete an item, also send
an e-mail or beam a file to another device.
To access a pop-up menu, tap and hold the stylus on the name
of the item on which you want to perform the action. When the
menu appears, tap the desired action, or tap anywhere outside the
menu to close it without performing an action.
Tap and hold to display
the pop-up menu.
Tap the action you want.
Tap outside the menu to close
it without performing an action.
4–4
User’s Guide
293146-001HamrUG.book Page 5 Friday, April 11, 2003 2:08 PM
Learning the Basics
Creating information
From the Today screen, create new information, including:
■
Appointments
■
Contacts
■
E-mail
■
Excel Workbook Information
■
Notes
■
Tasks
■
Word documents
1. Tap
, or from the Start menu, tap Today > New.
2. Tap an option to create a new item.
3. Tap OK when finished creating a new item.
User’s Guide
4–5
293146-001HamrUG.book Page 6 Friday, April 11, 2003 2:08 PM
Learning the Basics
Customizing the Today Screen
From the Settings Today screen, you can:
■
Add a picture as the background
■
Select the information you see
■
Set the order of the information
■
Decide when to see the Today screen
1. Tap
, or from the Start menu, tap Settings > Today.
2. Select “Use this picture as the background” check box.
3. Tap Browse to select a picture from File Explorer.
4–6
User’s Guide
293146-001HamrUG.book Page 7 Friday, April 11, 2003 2:08 PM
Learning the Basics
4. Tap the Items tab to select or reorder the information on the
Today screen.
5. Tap an item to highlight it.
6. Tap Move Up or Move Down to change the order of items on
the Today screen.
cannot change the placement of the Date on the Today
✎ You
screen.
7. Tap the down arrow associated with “Display Today screen if
device is not used for...hours” check box to determine how
many hours must pass before the Today screen displays.
8. Tap OK.
User’s Guide
4–7
293146-001HamrUG.book Page 8 Friday, April 11, 2003 2:08 PM
Learning the Basics
Using Applications
Opening Applications
Open any application on your iPAQ Pocket PC from the Start
menu.
can also open an application by assigning it to an application
✎ You
button.
To open an application:
1. Tap Start > Programs.
2. Tap the desired application title or logo.
Minimizing Applications
To minimize an open application, tap the x at the top right of the
screen.
4–8
User’s Guide
293146-001HamrUG.book Page 9 Friday, April 11, 2003 2:08 PM
Learning the Basics
Closing Applications
Applications automatically close based on available memory.
However, if your iPAQ Pocket PC is running slowly, you can
close applications using iTask or by manually closing them.
Closing with iTask
1. Press the iTask button (Application Button 4 on the lower
right side of your unit).
2. Tap and hold the program to be closed.
3. From the pop-up menu, tap Close This Task.
Closing Manually
1. From the Start menu, tap Settings > System tab > Memory.
2. Tap Running Programs.
3. Tap Stop All or select a particular application, then tap Stop.
bring a currently running program to the foreground, tap
✎ ToActivate.
User’s Guide
4–9
293146-001HamrUG.book Page 10 Friday, April 11, 2003 2:08 PM
Learning the Basics
Installing Applications
Install applications on your iPAQ Pocket PC from your:
■
Computer by using Microsoft ActiveSync
■
iPAQ Pocket PC if the application file has a .cab extension
■
iPAQ Pocket PC or your computer by copying an application
file that has an .exe or .cef extension
When installing applications, look for the correct version for your
iPAQ model or Pocket PC 2003.
■
Follow the instructions provided with the application and by
the installation Wizard to install applications from your
computer.
■
Tap the application file in File Explorer on your iPAQ Pocket
PC and follow the instructions on the installation Wizard to
install applications on your device.
iPAQ Pocket PC is capable of handling large files and
✎ Your
resizing photo images to screen size.
Using iPAQ Image Viewer
You can use the iPAQ Image Viewer to view images with .bmp,
.jpg, and .gif file extensions.
Using the Image Viewer, you can:
4–10
■
Create a slide show of images
■
Sort and rotate images
■
Adjust the timing between images in a show
■
Set a variety of transition effects
User’s Guide
293146-001HamrUG.book Page 11 Friday, April 11, 2003 2:08 PM
Learning the Basics
Locating an Image
1. From the Start menu, tap Programs > iPAQ Image Viewer.
2. Tap the File tab, then Look In.
3. Select a file, then tap OK.
Viewing Image Information
You can view the image size and type, date taken and modified,
color, and file size of an image.
To view image information:
1. Locate an image and tap it to select it.
2. Tap View, then Information Window.
Changing the View
Images are displayed in the thumbnail view by default. The
Image Viewer opens displaying the images in the Thumbnail
View. This is the default setting when opening images in the
Image Viewer.
User’s Guide
4–11
293146-001HamrUG.book Page 12 Friday, April 11, 2003 2:08 PM
Learning the Basics
You can change the view to full screen by:
■
Double-tapping a thumbnail
■
Tapping View, then Full Screen
■
Tapping the View Full Screen icon
Creating a Slide Show
You can put images together to create a slide show and control
display options like:
4–12
■
Orientation
■
Zoom
■
Image Quality
■
Transition Effect
■
Timing
User’s Guide
293146-001HamrUG.book Page 13 Friday, April 11, 2003 2:08 PM
Learning the Basics
To create a slide show:
1. From the Start menu, tap Programs > iPAQ Image Viewer.
2. Tap Show, then Set up Show... .
3. Select images for the show and modify any image settings.
change settings for all images in the show, tap the Select All
✎ Tobutton.
4. Tap OK.
User’s Guide
4–13
293146-001HamrUG.book Page 14 Friday, April 11, 2003 2:08 PM
Learning the Basics
Saving a Slide Show
To save a slide show:
1. From the Start menu, tap Programs > iPAQ Image Viewer.
2. Create a slide show.
3. Tap File, then Save Show Settings or Save Show
Settings As... .
4. Enter the name and location where you want to save the
settings.
5. Tap OK.
4–14
User’s Guide
293146-001HamrUG.book Page 15 Friday, April 11, 2003 2:08 PM
Learning the Basics
Opening a Slide Show
To open a slide show:
1. From the Start menu, tap Programs > iPAQ Image Viewer.
2. Tap File, then Open Show Settings... .
3. Select the show setting.
Sorting Image Files
To sort image files:
1. From the Start menu, tap Programs > iPAQ Image Viewer.
2. Tap Edit, then Sort Images.
3. Select sort order. You can sort by ascending or descending
Name, Type, Size, or Date.
User’s Guide
4–15
293146-001HamrUG.book Page 16 Friday, April 11, 2003 2:08 PM
Learning the Basics
Viewing a Slide Show
1. From the Start menu, tap Programs > iPAQ Image Viewer.
2. Create or open an existing slide show.
3. Tap the Show tab, then View Show.
4. Select a method for advancing the images in the show,
(Manual Advance, Automatic Advance, or Automatic
Advance [Loop]).
4–16
User’s Guide
293146-001HamrUG.book Page 17 Friday, April 11, 2003 2:08 PM
Learning the Basics
Backing Up Information
Use iPAQ Backup or Microsoft ActiveSync Backup to back up
and restore information on your iPAQ Pocket PC.
Backup is already installed on the iPAQ Pocket PC. You
✎ iPAQ
must install ActiveSync on your personal computer before using
ActiveSync Backup.
To help reduce the chance of losing information, you should back
up information on a regular basis.
Backup/Restore using iPAQ Backup
iPAQ Backup saves your data in a backup file. You may designate
a file name and a location for the file to be saved. iPAQ Backup
backs up only to a memory card or the iPAQ File Store folder.
Close all applications on your iPAQ Pocket PC before backing
up or restoring your information.
Ä
CAUTION: Restoring your information replaces the current
information on your iPAQ Pocket PC with the information saved
in your backup.
To backup/restore using iPAQ Backup:
1. Tap, or from the Start menu, tap Programs > iPAQ Backup.
2. Tap the Backup tab or the Restore tab.
3. Select the files and folders to be backed up or restored.
4. Select file location for backed-up data.
5. Set backup or restore options.
6. Press the Backup or Restore button, then press the Start
button on the following screen.
User’s Guide
4–17
293146-001HamrUG.book Page 18 Friday, April 11, 2003 2:08 PM
Learning the Basics
Backup/Restore Using ActiveSync
Close all applications on your iPAQ Pocket PC before backing
up or restoring your information.
Ä
CAUTION: Restoring your information replaces the current
information on your iPAQ Pocket PC with the information saved
in your backup.
To backup/restore using ActiveSync:
1. Be sure the iPAQ Pocket PC is connected to your personal
computer.
2. From your computer, open Microsoft ActiveSync. From the
Start menu, click Programs > Microsoft ActiveSync.
3. From the Tools menu, click Backup/Restore.
4. Click the Backup or Restore tab, then select your options.
5. Click Backup Now or Restore Now.
Using iPAQ File Store Folder
You can install applications and save files to the iPAQ File
Store folder, which is accessed from File Explorer on your
iPAQ Pocket PC.
Applications and files stored in iPAQ File Store are held in
read-only memory (ROM) and are saved if you perform a full
reset of your iPAQ Pocket PC or if the battery discharges
completely.
4–18
User’s Guide
293146-001HamrUG.book Page 19 Friday, April 11, 2003 2:08 PM
Learning the Basics
To save to iPAQ File Store:
1. Copy the files to be saved to the iPAQ File Store folder.
2. From the Start menu, tap Programs > File Explorer >
My Device > iPAQ File Store.
3. Paste the selected files.
saving files to the iPAQ File Store folder, it is a good idea
✎ Before
to determine how much memory is available in the folder. To
view the amount of memory, from the Start menu, tap Settings >
System > Memory > Storage Card tab.
User’s Guide
4–19
293146-001HamrUG.book Page 1 Friday, April 11, 2003 2:08 PM
5
Learning Input Methods
Ä
CAUTION: To avoid damaging your iPAQ Pocket PC screen, always
use a stylus. Never use a pen or any type of metal pointer on the
screen.
You can tap the keyboard or write with the Letter Recognizer,
Microsoft Transcriber, or Block Recognizer in any application.
Use the stylus to draw and write on the screen in the Notes
application and from any Notes tab in the Calendar, Contacts,
and Tasks applications.
you type or write, the Pocket PC suggests words for you in a
✎ As
box above the Keyboard, Letter Recognizer, or Block Recognizer
but not in Transcriber. You determine when the suggestions
occur (for example, decide how many letters you enter before
suggestions are made) and how many words are suggested.
✎ A question mark within an application indicates a Help file.
User’s Guide
5–1
293146-001HamrUG.book Page 2 Friday, April 11, 2003 2:08 PM
Learning Input Methods
Changing Word Suggestion Options
You determine:
■
If words are suggested
■
The number of letters you enter before a word is suggested
■
The number of words that are suggested per entry
■
If you do not want any words suggested, remove the
checkmark by tapping the check box next to “Suggest Words
When Entering Text.”
To change word suggestions:
1. From the Start menu, tap Settings > Input.
2. Tap the Word Completion tab.
5–2
User’s Guide
293146-001HamrUG.book Page 3 Friday, April 11, 2003 2:08 PM
Learning Input Methods
3. Determine the number of letters to type before a suggestion is
made, then tap the down arrow associated with letters and
select the number.
4. Determine the number of words to be suggested, then tap the
down arrow associated with words and select the number.
5. Tap OK.
User’s Guide
5–3
293146-001HamrUG.book Page 4 Friday, April 11, 2003 2:08 PM
Learning Input Methods
Using the On-Screen Keyboard
Use the stylus to tap letters, numbers, and symbols on the
on-screen keyboard to enter typed text directly on the screen.
✎ To see the symbols, tap the
123
or Shift key.
1. From any application, tap the up arrow next to the Input
Panel icon.
2. Tap Keyboard to display a keyboard on the screen.
3. Tap a letter, symbol, or number to enter information.
4. Tap OK.
5–4
User’s Guide
293146-001HamrUG.book Page 5 Friday, April 11, 2003 2:08 PM
Learning Input Methods
Writing with the Stylus and the Letter
Recognizer
Use the stylus and Letter Recognizer to write letters, numbers,
and symbols on the screen. Create words and sentences by
writing in upper case (ABC), lower case (abc), and symbols (123)
in specific areas.
To write with the stylus and Letter Recognizer:
1. From any application, tap the up arrow next to the Input
Panel icon.
2. Tap Letter Recognizer.
3. Write a letter or symbol between the dashed line and
baseline.
a. Write a letter between the hatch marks labeled ABC to
display in upper case.
b. Write a letter between the hatch marks labeled abc to
display in lower case.
c. Write a number or symbol between the hatch marks
labeled 123.
User’s Guide
5–5
293146-001HamrUG.book Page 6 Friday, April 11, 2003 2:08 PM
Learning Input Methods
the character recognizer to work effectively, write characters
✎ For
between the dashed line and baseline.
■
If you are writing a letter like “p,” write the top portion
within the dashed line and baseline, and the tail portion
below the baseline.
■ If you writing a letter like “b,” write the bottom portion
within the dashed line and baseline, and the top portion
above the dashed line.
4. What you write will be converted to text.
5–6
User’s Guide
293146-001HamrUG.book Page 7 Friday, April 11, 2003 2:08 PM
Learning Input Methods
Writing with the Stylus and
Microsoft Transcriber
Use the stylus and Microsoft Transcriber to write words, letters,
numbers, and symbols anywhere on the screen.
1. From any application, tap the up arrow next to the Input
Panel icon.
2. Tap Transcriber to display the Transcriber Intro screen.
3. Tap OK.
4. Tap New at the bottom of the screen.
5. Begin writing on the screen. What you write will be
converted to text.
Transcriber your style of writing, tap on the “a ” icon
✎ Toat the“teach”
bottom of the screen to display the Letter Shapes screen and
follow the instructions.
User’s Guide
5–7
293146-001HamrUG.book Page 8 Friday, April 11, 2003 2:08 PM
Learning Input Methods
Writing with the Stylus and Block
Recognizer
Write letters, numbers, and symbols using the stylus and Block
Recognizer. Create words and sentences by writing letters and
numbers in specific areas.
1. From any application, tap the up arrow next to the Input
Panel button.
2. Tap Block Recognizer.
✎ For online Help, tap the ?
3. Write a word, letter, or symbol between the hatch marks.
a. Write a letter between the hatch marks labeled “abc” to
type text.
b. Write a number or symbol between the hatch marks
labeled “123” to type numbers or symbols.
What you write will be converted to text.
5–8
User’s Guide
293146-001HamrUG.book Page 9 Friday, April 11, 2003 2:08 PM
Learning Input Methods
Drawing and Writing on the Screen
Use the stylus as a pen to draw and write on the screen in the
Notes application or from the Notes tab in Calendar, Contacts,
or Tasks.
1. From the Start menu, tap Notes > New.
2. Draw and write on the screen.
3. Tap the Pen icon.
4. Tap OK.
Converting Writing to Text
Convert your writing to text when you write with the stylus in the
Notes application or from the Notes tab in:
■
Calendar
■
Contacts
■
Tasks
To convert writing to text:
1. From the Start menu, tap Notes.
✎ Otherwise, tap the Notes tab in Calendar, Contacts, or Tasks.
2. Tap a note to open it.
3. Tap Tools.
4. Tap Recognize.
a particular word or phrase, highlight it before you
✎ Totapconvert
Recognize. If you select more than one word and one is
not recognized, all the other words will be converted. The
unrecognized word will remain written.
5. Tap OK.
User’s Guide
5–9
293146-001HamrUG.book Page 1 Friday, April 11, 2003 2:08 PM
6
Expansion Cards
You can expand the memory and connectivity of your iPAQ
Pocket PC. Use optional expansion cards for:
■
Connecting wirelessly or by using a cable to the Internet or to
a network
■
Adding functionality such as a digital camera
■
Expanding the memory of your iPAQ Pocket PC
■
Viewing the content of memory cards
cards must be purchased separately and are not
✎ Expansion
included with your iPAQ Pocket PC.
To locate information about expansion cards, visit the following
HP Web site:
www.hp.com/products/pocketpc/options
Installing an Expansion Card
To install a CompactFlash (CF) or Secure Digital (SD) card into
an expansion slot on the iPAQ Pocket PC:
1. Locate the appropriate slot on the top of the iPAQ Pocket PC.
To identify slot locations, refer to the Getting Started
document that came with the iPAQ Pocket PC.
User’s Guide
6–1
293146-001HamrUG.book Page 2 Friday, April 11, 2003 2:08 PM
Expansion Cards
2. Before inserting a CompactFlash (CF) card into the CF
expansion slot, pull the plastic slot cover from the CF slot.
3. Insert the expansion card into the appropriate expansion slot
and push the connection edge of the card firmly into the
expansion slot.
your expansion card is not recognized, follow the card
✎ Ifmanufacturer’s
instructions to install it.
more detailed help, refer to the Help files installed on your
✎ For
iPAQ Pocket PC. From the Start menu, tap Help > Connections.
power loss, remove any expansion cards from either
✎ Totheprevent
CF or SD expansion slots before turning off the iPAQ
Pocket PC.
6–2
User’s Guide
293146-001HamrUG.book Page 3 Friday, April 11, 2003 2:08 PM
Expansion Cards
Removing a CompactFlash (CF)
Expansion Card
1. Close all applications using the expansion card.
2. Remove a card from the CompactFlash expansion slot by
using the finger slot on the back side and pulling out the card.
3. Replace the plastic slot cover into the CompactFlash
expansion slot.
Removing a Secure Digital (SD)
Expansion Card
1. Close all applications using the expansion card.
2. Remove a card from the Secure Digital expansion slot by
slightly pushing down on the card 1 to unlock it.
3. When the card disengages and pops up 2, pull the card from
the expansion slot.
Ä
CAUTION: SD cards must first be unlocked before removal. Failure
to do so will result in damage to the device and card.
User’s Guide
6–3
293146-001HamrUG.book Page 4 Friday, April 11, 2003 2:08 PM
Expansion Cards
Viewing the Content of Memory Cards
Use File Explorer to view the files that are located on your
optional CompactFlash or Secure Digital card.
1. From the Start menu, tap Programs > File Explorer.
2. Tap the root directory of My Device, and select the
appropriate Storage Card folder (CF, SD, etc.) to see a
list of files and folders.
6–4
User’s Guide
293146-001HamrUG.book Page 1 Friday, April 11, 2003 2:08 PM
7
Connecting to the Internet
Use your iPAQ Pocket PC to connect to the Internet or your Work
network.
To send and receive e-mail with Inbox and to view Web sites
with Pocket Internet Explorer, you must set up a remote
connection with devices such as a CompactFlash (CF) modem
card, Secure Digital Input/Output (SDIO) modem card, ethernet
card, or a wireless 802.11x card. Another option is to use a
Bluetooth-enabled device such as a phone or LAN Access point.
of dial-up and wireless Internet, e-mail, corporate networks,
✎ Use
and other wireless communications, such as Bluetooth-enabled
devices, may require separately purchased additional hardware
and other compatible equipment, in addition to a standard
Wireless LAN (WLAN) infrastructure and a separately purchased
service contract. Check with your service provider for availability
and coverage in your area. Not all Web content may be available.
Some Web content may require installation of additional
software.
more information on this subject, refer to the Help file on
✎ For
your iPAQ Pocket PC by tapping Start > Help > Connections.
User’s Guide
7–1
293146-001HamrUG.book Page 2 Friday, April 11, 2003 2:08 PM
Connecting to the Internet
Using a Modem Card
To connect to the Internet with a modem card, you need a phone
line, a dial-up Internet Service Provider (ISP) or a Work Internet
connection, and a CompactFlash (CF) Expansion card.
You must also obtain the following information from your ISP
or your network administrator: telephone number, user name,
password, domain name, and TCP/IP settings.
your CF modem card into the CF expansion slot on top
✎ Insert
of your iPAQ Pocket PC before trying to set up a modem
connection.
1. Locate the CF slot on top of the iPAQ Pocket PC.
2. Pull out the plastic slot cover from the CF expansion slot.
3. Insert your CF modem card into the CF expansion slot and
push the connection edge of the card firmly into the
expansion slot.
a. Most of the popular modem card drivers are included on
your iPAQ Pocket PC, so your modem card should be
recognized.
b. If your modem card is not recognized, follow your
modem manufacturer’s instructions to install the modem
card driver on your iPAQ Pocket PC.
4. From the Start menu, tap Settings > Connections tab >
Connections icon.
7–2
User’s Guide
293146-001HamrUG.book Page 3 Friday, April 11, 2003 2:08 PM
Connecting to the Internet
5. Under My ISP or My Work Network, tap Add a new
modem connection.
view additional information on any screen or while changing
✎ Tosettings,
tap the ?.
6. Enter a name for the connection, select the modem type, then
tap Next.
User’s Guide
7–3
293146-001HamrUG.book Page 4 Friday, April 11, 2003 2:08 PM
Connecting to the Internet
7. Enter the phone number exactly as it is dialed, then tap Next.
8. Enter your user name, password, and domain.
9. If you need to enter the specific TCP/IP settings, tap
Advanced, then tap the TCP/IP tab.
10. Select “Use specific IP address.”
11. Enter your IP address.
7–4
User’s Guide
293146-001HamrUG.book Page 5 Friday, April 11, 2003 2:08 PM
Connecting to the Internet
your private network does not use dynamically-assigned IP
✎ Ifaddresses,
ask your network administrator for the address.
12. Tap OK > Finish.
13. Tap OK twice to return to the Today screen.
Connecting to a Private Network
1. Before you start, be sure to have your server phone number,
user name, and password. This information can be obtained
from your network administrator.
2. Tap Start > Settings > Connections tab > Connections icon.
3. In My Work Network, set up a new modem connection, new
VPN Server connection, or proxy server connection.
4. Start the connection by inserting the necessary modem card
into the iPAQ Pocket PC, and start using Pocket Internet
Explorer. Your device automatically begins connecting.
User’s Guide
7–5
293146-001HamrUG.book Page 6 Friday, April 11, 2003 2:08 PM
Connecting to the Internet
Synchronizing Links
You can synchronize links to Web sites from your Favorites list
on your computer to view them offline with Pocket Internet
Explorer.
1. From the Start menu on your computer, click the Internet
Explorer icon.
2. Click the Favorites icon on the Navigation bar to see the list
of links to your favorite Web sites.
3. To save a Web site link to Mobile Favorites, open the Web
site, then click Create Mobile Favorite.
If you select “Favorites” as an information type to be
synchronized, ActiveSync copies your mobile favorite to
your iPAQ Pocket PC the next time you synchronize.
4. Follow the instructions in Synchronize information to
manually synchronize your favorite links.
Entering an Internet Address
With Pocket Internet Explorer and a connection to the Internet,
you can view Web sites on your iPAQ Pocket PC by typing an
address or Universal Resource Locator (URL) in the Address bar.
sites that use HTML 4.0, DHTML, animated GIF images,
✎ Web
and Java applets may not work correctly in Pocket Internet
Explorer without additional software.
7–6
User’s Guide
293146-001HamrUG.book Page 7 Friday, April 11, 2003 2:08 PM
Connecting to the Internet
To enter an Internet address on your iPAQ Pocket PC:
1. From the Start menu, tap Internet Explorer > Address Bar.
Bar is not turned on, tap the View tab > Address
✎ IfBarthetoAddress
turn it on.
2. Enter the address (URL) in the Address bar.
3. Tap the Go icon.
Using a Favorites List
With Pocket Internet Explorer and a connection to the Internet,
you can view Web sites on your iPAQ Pocket PC by selecting a
Web site from your Favorites list.
To select a Web site from your Favorites list:
1. From the Start menu, tap Internet Explorer.
2. Tap the Favorites icon and the Web site you want to view.
User’s Guide
7–7
293146-001HamrUG.book Page 1 Friday, April 11, 2003 2:08 PM
8
Using Bluetooth
This iPAQ Pocket PC comes with built-in Bluetooth technology
that allows short-range connections and provides fast, reliable,
and secure wireless communication.
With Bluetooth powered on, you can send information or perform
the following tasks wirelessly between two Bluetooth devices,
within a range of approximately 10 meters (30 feet):
■
Exchange contacts, calendar items, and tasks
■
Send or exchange business cards
■
Transfer files
■
Synchronize with a computer through an ActiveSync
connection
■
Partner with a Bluetooth-enabled cell phone and use as a
wireless modem
■
Connect to other Bluetooth devices (Virtual COM port)
■
Connect to Bluetooth wireless local area networks (WLANs)
■
Print to a Bluetooth printer
■
Create a personal area network (PAN) to chat, play
games, etc.
User’s Guide
8–1
293146-001HamrUG.book Page 2 Friday, April 11, 2003 2:08 PM
Using Bluetooth
of dial-up and wireless Internet, e-mail, corporate networks,
✎ Use
and other wireless communications, such as Bluetooth-enabled
devices, may require separately purchased additional hardware
and other compatible equipment, in addition to a standard
Wireless LAN (WLAN) infrastructure and a separately purchased
service contract. Check with your service provider for availability
and coverage in your area. Not all Web content may be available.
Some Web content may require installation of additional
software.
Getting Acquainted with Bluetooth
Before you start using Bluetooth to establish wireless
connections, take a few minutes and familiarize yourself with:
■
Terms used in this chapter
■
Supported Services
■
Bluetooth Settings
■
Bluetooth Manager
more detailed help, refer to the Help files installed on your
✎ For
iPAQ Pocket PC. From the Start menu, tap Help > Bluetooth.
8–2
User’s Guide
293146-001HamrUG.book Page 3 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Understanding Terms
The following Bluetooth terms are used throughout this chapter.
The Term...
Means...
Authentication
Must verify a numeric passkey before a
connection or activity can be completed.
Authorization
Must approve a connection or activity before
it can be completed.
Bluetooth neighborhood
or device group
Collection of Bluetooth devices.
Bonding (Paired
devices)
Create a trusted connection between your
device and another. Once a bond is
created, the two devices become paired.
A trusted device does not require
authentication or authorization.
Device address
Unique electronic address of a Bluetooth
device.
Device discovery
Location and recognition of another
Bluetooth device.
Device name
Name that a Bluetooth device provides when
discovered by another device.
Encryption
Method of protecting data.
Link key
Code used to securely pair devices.
Passkey
Code you enter to authenticate connections
or activities requested by other devices.
Personal Information
Manager (PIM)
Collection of applications used to manage
daily business tasks (e.g., Contacts,
Calendar, and Tasks).
Profiles
Collection of Bluetooth settings.
Service discovery
Determine which applications you have in
common with other devices.
User’s Guide
8–3
293146-001HamrUG.book Page 4 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Supported Services
The functions that Bluetooth supports are called services. You
can only communicate with Bluetooth devices that support at
least one of the following services:
8–4
■
BPP (Basic Printer profile)
■
DUN (Dial-up Networking profile)
■
FAX
■
FTP (File Transfer profile)
■
GAP (Generic Access profile)
■
HCRP (Hard Cable Replacement profile)
■
LAP (LAN Access profile)
■
OBEX (Object Exchange profile)
■
OPP (Object Push profile)
■
PAN (Personal Area Network profile)
■
SPP (Serial Port profile)
■
ActiveSync (Uses SPP to connect to ActiveSync on
computer)
User’s Guide
293146-001HamrUG.book Page 5 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Working with Bluetooth Settings
From the tabs in Bluetooth Settings, you can:
■
Turn Bluetooth on and off
■
Enter or change your iPAQ Pocket PC Bluetooth name
■
Set your connection preferences
■
Enable Bluetooth services
■
Specify security settings
■
Define settings for sharing and connecting
■
Select a user profile
■
View software and port information
You must use the arrows to the right of the tab names to scroll
through the tabs.
Opening Bluetooth Settings
1. From the Today screen, tap the Bluetooth icon.
2. From the pop-up menu, tap Bluetooth Settings.
User’s Guide
8–5
293146-001HamrUG.book Page 6 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Turning ON Bluetooth
To turn on Bluetooth from Bluetooth Settings:
1. From the Today screen, tap the Bluetooth icon.
2. From the pop-up menu, tap Bluetooth Settings.
3. Tap the Turn on button to enable.
SHORTCUTS: There are two shortcuts for turning on Bluetooth.
■ From the Bluetooth pop-up menu, tap Turn Bluetooth
ON.
■ From the Today screen, tap Start > Bluetooth Manager
to automatically turn on Bluetooth.
✎ Tap the Turn off button to disable.
Bluetooth is turned on, the Bluetooth icon turns blue and
✎ When
the left LED on the iPAQ Pocket PC blinks blue. When Bluetooth
is turned off, the Bluetooth icon is grayed with a red X, and no
incoming or outgoing connections are possible.
preserve battery power, it is recommended that you turn on
✎ ToBluetooth
only when using it.
8–6
User’s Guide
293146-001HamrUG.book Page 7 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Setting Accessibility Properties
You may want to enter or change accessibility properties to define
how your iPAQ Pocket PC interacts with other Bluetooth devices.
Entering a Device Name
The device name is what other devices see when they locate your
device.
To enter a device name:
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings > Accessibility tab.
2. Highlight the name in the Name field and enter your new
name.
3. Tap OK to save your changes.
Allowing Connections
You can determine if all devices or only paired devices can
connect to your iPAQ Pocket PC.
Allowing All Devices to Connect
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings > Accessibility tab.
2. Select Allow other devices to connect, then All devices.
3. Tap OK.
Ä
CAUTION: This allows any device, even those unknown to you, to
connect to your iPAQ Pocket PC. Once they are connected, security
settings for specific services apply as specified in the Bluetooth
Settings.
User’s Guide
8–7
293146-001HamrUG.book Page 8 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Allowing Paired Devices to Connect
Paired devices share and exchange an internally generated Link
Key prior to each connection. The Link Key is derived from a
unique Bluetooth device address, a random number, and
user-defined password.
This feature allows only devices that you trust to connect to your
iPAQ Pocket PC.
To allow paired devices to connect:
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings > Accessibility tab.
2. Select Allow other devices to connect, then Paired
devices only.
3. Tap OK.
Allowing Others to Locate Your Device
You can allow other devices to search and locate your iPAQ
Pocket PC.
remote device has your device’s address, that device
✎ Ifmayanother
be able to locate and connect to you even though you did not
select for your device to be discovered.
To allow others to locate your device:
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings > Accessibility tab.
2. Select Other devices can discover me.
3. Tap OK to save the changes.
8–8
User’s Guide
293146-001HamrUG.book Page 9 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Enabling Bluetooth Services
You can select to enable certain services:
■
Automatically when Bluetooth is activated
■
When you permit the connection
■
When a passkey or link key is correctly entered
You can use any of these security options when transferring
files, creating a serial port connection, exchanging business
card information, configuring dial-up networking, and joining
a personal network.
Automatically Enabling Services
You can allow devices to connect without any authorization.
When Bluetooth is on, it is ready for connections.
To automatically enable services:
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings.
2. Tap the tab for the service you want to enable: File Transfer,
Information Exchange, Serial Port, Dial-up Networking,
or Personal Network Server.
3. Select Enable service.
4. Ensure there are no check marks in the Authorization
required or Authentication (Passkey) required check
boxes.
5. Tap OK.
User’s Guide
8–9
293146-001HamrUG.book Page 10 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Requiring Authorization to Access Services
If you elect to require authorization to access services, you must
authorize each connection. Your iPAQ Pocket PC will ask you if
the connection should be permitted.
To require authorization to access services:
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings.
2. Tap the tab for the service you want to enable: File Transfer,
Information Exchange, Serial Port, Dial-up Networking,
or Personal Network Server.
3. Select Authorization required.
4. Tap OK.
Secure Connections using a Passkey or Bond
To establish a secure connection with another device, you can use
the passkey feature or an established bond. You can also add data
encryption to this type of security.
A passkey is a code you enter to authenticate connections
requested by other devices. The passkey must be known and
used by both parties or the connection will not be allowed.
To require a passkey or bond:
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings.
2. Tap the tab for the service you want to enable: File Transfer,
Information Exchange, Serial Port, Dial-up Networking,
or Personal Network Server.
3. Select Authentication (Passkey) required.
4. Select Encryption Required if you want to require all data
exchanged between the devices to be encrypted.
5. Tap OK.
8–10
User’s Guide
293146-001HamrUG.book Page 11 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Setting a Shared Folder
You can determine the folder that other devices access when they
connect to your iPAQ Pocket PC.
To set a shared folder:
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings.
2. Tap the File Transfer tab.
3. Tap the Folder icon and locate a desired file folder.
4. Tap OK.
User’s Guide
8–11
293146-001HamrUG.book Page 12 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Understanding Profiles
Use profiles to quickly enable selected personal settings in
multiple environments.
Creating a Profile
A new profile does not automatically become active. You must
select it from the Current Profile list to activate it.
To create a profile:
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings > General tab > Profile icon.
2. Tap the New button.
8–12
User’s Guide
293146-001HamrUG.book Page 13 Friday, April 11, 2003 2:08 PM
Using Bluetooth
3. Enter a descriptive name.
4. Select an existing profile to use as a template.
3
4
5. Tap OK.
Activating a Profile
When a new profile is created, you will need to activate it.
To activate a profile:
1. Create a profile.
2. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings.
3. From the General tab, select it from the Current Profile
down arrow list.
4. Tap OK.
User’s Guide
8–13
293146-001HamrUG.book Page 14 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Saving Configuration Settings in a Profile
To save the iPAQ Pocket PC Bluetooth configuration settings to
any profile:
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings.
2. From the General tab, tap the Profile icon.
3. Select a profile from the Add/Delete Profiles list or create a
new one.
4. Tap OK.
5. Set up your iPAQ Pocket PC. You should specify the desired
connection, sharing, and security settings in all Bluetooth
Settings tabs.
6. Tap OK to close the Bluetooth Settings. The changes are
automatically saved.
✎ Bluetooth must be turned on for changes to be saved.
Renaming a Profile
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings.
2. From the General tab, tap the Profile icon.
3. Select a profile from the Add/Delete Profiles list.
4. Tap the Rename button.
5. Enter a new descriptive name.
6. Tap Enter.
7. Tap OK.
8–14
User’s Guide
293146-001HamrUG.book Page 15 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Deleting a Profile
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings.
2. From the General tab, tap the Profile icon.
3. Select a profile from the Add/Delete Profiles list.
4. Tap the Delete button.
5. Tap Yes to confirm you want to delete the profile.
6. Tap OK.
Working with Bluetooth Manager
Use Bluetooth Manager to:
■
Establish connections
■
Display shortcuts
■
Exchange business cards
■
Control the on-screen display
User’s Guide
8–15
293146-001HamrUG.book Page 16 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Opening Bluetooth Manager
From the Today screen, tap Start > Bluetooth Manager.
The first screen that displays is My Shortcuts.
Manager can also be accessed from the Today screen
✎ byBluetooth
tapping the Bluetooth icon, then from the pop-up menu, tap
Bluetooth Manager.
✎ Opening Bluetooth Manager automatically turns on Bluetooth.
Locating and Selecting a Device
Several tasks require you to locate a device and connect to it.
When you are required to locate a device, the Bluetooth browser
assists by searching for your desired function that supports other
Bluetooth devices.
Pairing Devices
You can pair devices so they must exchange a computer generated
security key prior to each connection. The security key is also
called a “Link Key.” It is generated from a unique Bluetooth
device address, a random number, and a user-defined password.
Once two devices are paired, they have a trusted relationship with
each other that can be verified using a link key. No additional
input is needed from the user. Therefore, connections and
activities can be performed between the paired devices without
constant authorization from the user.
8–16
User’s Guide
293146-001HamrUG.book Page 17 Friday, April 11, 2003 2:08 PM
Using Bluetooth
To pair devices:
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap Tools, then Paired devices.
3. Tap Add.
4. Tap the Lookup
icon.
5. Tap a device.
6. Enter a password in the Passkey field.
7. Tap OK.
8. Enter the same passkey into the other device.
devices, such as mobile phones, need to be placed in a
✎ Some
mode to accept a bond from another device. Refer to that device’s
user instructions for more information.
User’s Guide
8–17
293146-001HamrUG.book Page 18 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Unpairing Devices
You can remove a paired relationship between devices.
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap Tools, then Paired devices.
3. Tap a device name.
4. Tap Remove.
5. Tap Yes to remove the pairing.
Connecting to Other Devices
Use ActiveSync, serial and dial-up connections to communicate
with other Bluetooth devices. Establish a partnership with a cell
phone and set up the Bluetooth services it offers.
Identifying the Communications Port
You can identify the virtual COM ports used to create a serial
port connection. You may need to identify these COM ports for
activities such as printing.
Use the inbound COM port when other devices initiate a serial
connection. Use the outbound COM port when you initiate a
serial connection to another device.
To identify the communications port:
1. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings.
2. Tab over to the Serial Port tab and tap it.
3. Note the names of your inbound and outbound COM ports.
4. Tap OK.
8–18
User’s Guide
293146-001HamrUG.book Page 19 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Establishing an ActiveSync Connection
You can set up an ActiveSync partnership with a Bluetoothenabled computer.
To establish an ActiveSync connection:
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap New, then Connect.
3. Tap “ActiveSync via Bluetooth,” then tap Next.
4. Follow the Connection Wizard instructions.
User’s Guide
8–19
293146-001HamrUG.book Page 20 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Establishing a Serial Connection
Use the wireless Bluetooth serial port connection just as you
would a physical serial cable connection. You must configure the
application that will use the connection to the correct serial port.
To establish a serial connection:
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap New, then Connect.
3. Tap “Explore a Bluetooth device,” then tap Next.
4. Follow the connection wizard instructions.
Dial-Up Networking
When using dial-up networking (DUN), the remote device
providing the dial-up networking service, and the remote
computer to which you are connecting must both have telephone
access.
Devices that can provide dial-up networking include Bluetooth:
■
Mobile phones
■
Desktop computers
■
Modems
Using Dial-Up Networking
To connect to a device that provides modem access:
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap New, then Connect.
3. Tap “Connect to the Internet,” then tap Next.
4. Follow the connection wizard instructions.
8–20
User’s Guide
293146-001HamrUG.book Page 21 Friday, April 11, 2003 2:08 PM
Using Bluetooth
you have created the dial-up networking shortcut with a
✎ Once
device, tap and hold the shortcut icon in the My Shortcuts tab of
the Bluetooth Manager, then tap Connect.
5. Tap New Connection.
6. Tap OK.
7. Enter a name in the Connection Name field.
8. Enter a phone number. You have to enter the country code
and area code depending on where you are calling.
9. Tap OK to begin dialing.
mobile phones require a bond between devices
✎ Some
(see the section “Pairing Devices”).
To connect to the Internet and use Pocket Internet Explorer, you
must first connect to a Bluetooth phone from Bluetooth Manager.
To make this connection the default dial-up connection for Pocket
Internet Explorer:
1. From the Today screen, tap Start > Settings >
Connections tab.
2. Tap the Connections icon > Advanced tab.
3. Tap Select Networks.
4. Enable Bluetooth Settings from the drop down list.
Bluetooth modem connection you created can only be
✎ The
viewed from the Bluetooth Settings on the Connections
Task page.
User’s Guide
8–21
293146-001HamrUG.book Page 22 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Join a Personal Area Network
Connect two or more Bluetooth devices to share files, collaborate
or play multiplayer games.
To establish a Personal Area Network connection:
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap New, then Connect.
3. Tap “Join a personal network,” then tap Next.
4. Follow the Connection Wizard instructions.
Establishing a Cell Phone Partnership
You can establish a partnership with a cell phone, then set up the
Bluetooth services it offers.
To establish a cell phone partnership:
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap New, then Connect.
3. Tap “Partner with a cell phone,” then tap Next.
4. Follow the Connection Wizard instructions.
Working with Files
You can exchange information with a connected device. You can
use the Bluetooth File Explorer to:
8–22
■
Navigate through the directories
■
View files and folders
■
Create new folders
■
Send and receive files from a remote device
■
Delete and rename files on a remote device
User’s Guide
293146-001HamrUG.book Page 23 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Creating a File Transfer Connection
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap New, then Connect.
3. Tap “Browse files on a remote device,” then tap Next.
4. Follow the Connection Wizard instructions.
Sending Files
1. Tap and hold a file transfer shortcut icon, then tap Connect.
2. Tap File, then Tap Send a File… .
3. Locate a file to send.
4. Tap the file to automatically send it.
5. Tap OK.
Creating a Folder on a Remote Device
1. Tap and hold a file transfer shortcut icon, then tap Connect.
2. Navigate to the location you want for the new folder.
3. Tap File, then Create a folder.
4. Enter a folder name while New Folder is highlighted, then
tap Enter.
5. Tap OK.
User’s Guide
8–23
293146-001HamrUG.book Page 24 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Receiving a File from a Remote Device
1. Tap and hold a file transfer shortcut icon, then tap Connect.
2. Navigate to the file location on the remote device.
3. Tap the file.
4. Tap File, then tap Get.
5. Tap OK.
Deleting a File from a Remote Device
1. Tap and hold a file transfer shortcut icon, then tap Connect.
2. Navigate to the file location on the remote device.
3. Tap the file.
4. Tap File, then tap Delete.
5. Tap Yes to verify you want to delete the selected file.
6. Tap OK.
Selecting Business Card Information
Two Bluetooth devices can exchange business card information
electronically. You can determine the information about you that
is sent to another device upon request. This information comes
from the Contacts list in Pocket Outlook. The default selection is
“None.”
To select business card information:
1. Create a contact in the Contacts application that includes
your name, title, and other relevant information.
2. From the Today screen, tap the Bluetooth icon > Bluetooth
Settings.
3. Tap the Information Exchange tab.
8–24
User’s Guide
293146-001HamrUG.book Page 25 Friday, April 11, 2003 2:08 PM
Using Bluetooth
4. Tap the My business card (vCard) icon.
5. Choose your contact from the list.
6. Tap OK.
SHORTCUT: Tap the New Contact icon to enter a new contact.
Using Business Cards
Using the business card exchange, you can:
■
Send a business card to one or more devices
■
Request a business card from one or more devices
■
Exchange business cards with one or more devices
You must establish a default contact name to send or exchange
business card information.
You must first specify your default business card on the
Information Exchange tab in Bluetooth Settings. This name
becomes the default for business card transfers.
User’s Guide
8–25
293146-001HamrUG.book Page 26 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Sending Business Cards
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap the Business card icon.
can open the business card exchange by tapping Tools,
✎ You
Business Card Exchange in the Bluetooth Manager.
3. Tap the Send icon.
4. Tap the device where you want to send your business card.
5. Tap OK.
Requesting Business Cards
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap the Business card icon.
3. Tap the Request icon.
4. Tap the device you want to request a business card.
5. Tap OK.
8–26
User’s Guide
293146-001HamrUG.book Page 27 Friday, April 11, 2003 2:08 PM
Using Bluetooth
Exchanging Business Cards
You can exchange business card information with another device.
If available, the device’s information will be sent directly into
your Contacts list in Pocket Outlook.
To exchange business cards:
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap the Business card icon.
3. Tap the Exchange icon.
4. Tap the device where you want to exchange your
business card.
5. Tap OK.
Opening a Connection
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap and hold the icon or list name, then tap Connect.
3. Tap OK.
Viewing Connection Status
You can view:
■
Connection’s name
■
Device’s name
■
Connection status
■
Length of connection
■
Signal strength
User’s Guide
8–27
293146-001HamrUG.book Page 28 Friday, April 11, 2003 2:08 PM
Using Bluetooth
To view the connection status:
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap and hold an active connection icon or list name, then
tap Status.
3. Tap OK.
Closing a Connection
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap and hold the connection icon or list name.
3. Tap Disconnect from the menu.
4. Tap OK.
Viewing Connection Information
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap and hold the connection icon or list name.
3. Tap Properties from the menu.
4. Tap OK.
Working with Connections
You can create shortcuts to open and view status information for
all connections.
Creating a Shortcut
Creating a shortcut to one or more services does not establish
a connection. It only places a shortcut to that service on the
Shortcut tab of the Bluetooth Manager.
8–28
User’s Guide
293146-001HamrUG.book Page 29 Friday, April 11, 2003 2:08 PM
Using Bluetooth
To create a shortcut:
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap New, then Connect.
3. Select a type of service, then tap Next.
4. Follow the connection wizard instructions.
✎ Paired devices are designated by a checkmark.
Deleting a Shortcut
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap and hold the connection icon or list name to be deleted.
3. Tap Delete from the menu.
4. Tap Yes to verify the selected shortcut should be deleted.
5. Tap OK.
Viewing Shortcuts
You can view shortcuts as icons or in a list format.
1. From the Today screen, tap Start > Bluetooth Manager.
2. Tap View.
3. Tap List or Icon.
4. Tap OK.
User’s Guide
8–29
293146-001HamrUG.book Page 1 Friday, April 11, 2003 2:08 PM
9
Troubleshooting
Use the following suggestions to troubleshoot problems with the
iPAQ Pocket PC.
Problem
I cannot see
anything on the
screen.
Solution
• Be sure the iPAQ Pocket PC is powered on.
• Be sure the iPAQ Pocket PC is connected to the AC
Adapter and the USB Synchronization Cradle/Charger.
• Reset the device by using the stylus to lightly press the
reset button on the back of the unit.
I cannot keep my
battery charged.
• Always keep the iPAQ Pocket PC connected to the AC
adapter when you are not using it.
• In the backlight settings, adjust the bar to a lower level to
conserve the more battery power.
The backlight
keeps turning
off.
• Change the time the backlight stays on and select the
option to turn on the backlight when you touch the screen
or push a button.
• In Backlight Settings, increase the amount of time the
backlight stays on if not in use.
I want to travel
with my iPAQ
Pocket PC.
• Back up your information.
• Take a copy of your backup with you on a CompactFlash
or SD memory card.
• Disconnect all external devices.
• Take the AC Adapter and Charger Adapter with you.
• Keep your iPAQ Pocket PC in a protective case and take it
with your carry-on luggage.
User’s Guide
9–1
293146-001HamrUG.book Page 2 Friday, April 11, 2003 2:08 PM
Troubleshooting
Problem
I want to travel
internationally
with my iPAQ
Pocket PC.
I want to ship my
iPAQ Pocket PC
to a repair
facility.
I cannot connect
to a network.
Solution
Be sure you have the modem, cable, and plug adapter
appropriate for the country you are visiting.
1. Back up your information.
2. Disconnect all external devices.
3. Pack your iPAQ Pocket PC and all external devices
in protective packaging. Include any additional
documentation or items as instructed by Customer
Support.
• Be sure you have added the necessary server
information.
• Be sure the network you are attempting to connect to is
not busy.
• Be sure the proper drivers for your card are installed.
• Be sure your user name and password are correct.
• Tap Start > Settings > Connections tab >
Connections and check your connection settings.
• Be sure the hardware you are using with your iPAQ
Pocket PC is properly configured and operational.
When I try to
open the Inbox,
I receive an
error or the
application
hangs.
Limit the number of e-mail services you create.
I get an error
when I try to
record a note
in Calendar or
in Tasks.
Try using a more compressed recording format in Calendar or
Tasks [e.g., 8,000 Hz, Mono (.7 KB/s) is the most
compressed format available].
9–2
User’s Guide
293146-001HamrUG.book Page 3 Friday, April 11, 2003 2:08 PM
Troubleshooting
Problem
I want to see the
current date.
Solution
1. From the Start menu, tap Calendar.
2. Tap the Go-to-Today icon to see today’s date.
I cannot
see all my
appointments.
Be sure the appointment you created is in the selected
category.
I cannot find
the document
or workbook
I saved.
Pocket Word and Excel only recognize and display
documents in one folder below My Documents. For example,
if you created another folder in the Personal folder in
My Documents, the documents in that folder will not be
shown.
My device is
always asking
me for a
password.
Tap Start > Settings > Personal tab > Password to be
sure the password settings are configured as you wish.
I cannot find files
sent to me by
another device.
Check My Documents which is the default save location used
to receive files.
User’s Guide
9–3
293146-001HamrUG.book Page 4 Friday, April 11, 2003 2:08 PM
Troubleshooting
ActiveSync
For more information on Microsoft ActiveSync, refer to
Chapter 2, “Using ActiveSync.”
Problem
Solution
I cannot connect
to my computer
using the cable
or the USB
Synchronization
Cradle/Charger.
• Be sure you have installed Microsoft ActiveSync 3.7 or
higher on your host computer before connecting your
iPAQ Pocket PC to it.
• Be sure your iPAQ Pocket PC is connected to the sync
cable or inserted in the USB Synchronization
Cradle/Charger, and that the sync cable or cradle is
connected to your computer.
• Be sure your iPAQ Pocket PC is securely seated in the
synchronization cradle and is making contact with the
cradle connector.
• If you are using a serial cable, be sure it is plugged into
the COM port on your host computer.
• If you are using a USB cable, be sure you are running
Microsoft Windows 98SE, Me, 2000, or XP and that you
have installed Microsoft ActiveSync 3.7 or a later version
on your computer.
I connected my
iPAQ Pocket PC
before installing
Microsoft
ActiveSync.
9–4
1. Disconnect the USB or serial cable from your computer.
2. If you have Windows 98SE, Me, 2000, or XP, uninstall
the USB or the serial device record.
3. Install Microsoft ActiveSync 3.7 or higher.
4. Reconnect the iPAQ Pocket PC cable or USB
Synchronization Cradle/Charger.
User’s Guide
293146-001HamrUG.book Page 5 Friday, April 11, 2003 2:08 PM
Troubleshooting
Problem
Microsoft
ActiveSync
cannot locate my
iPAQ Pocket PC
when
I synchronize.
Solution
• Be sure the device is on.
• Be sure all cables are securely connected.
• Remove your iPAQ Pocket PC from the USB Desktop
Cradle/Charger or cable, power on the unit by pressing
the Power button, then put it back in the synchronization
cradle or connect it to the cable.
• Reset the device by using the stylus to lightly press the
Reset button on the back of the unit.
• Check Connection Settings in ActiveSync on your
personal computer to ensure the communications port
you are using is active.
I cannot open
e-mail in the
Inbox after I
restore using
Microsoft
ActiveSync.
It may be necessary to synchronize your iPAQ Pocket PC with
your computer again with Microsoft ActiveSync to link your
e-mail from your Pocket PC to your personal computer. For
more information, refer to the “Synchronizing with Your
Computer” section in Chapter 2.
I tried to
synchronize a
workbook and
the file is
unresolved in
Microsoft
ActiveSync.
Pocket Excel does not support all Excel formatting; therefore,
Microsoft ActiveSync cannot synchronize the file.
User’s Guide
9–5
293146-001HamrUG.book Page 6 Friday, April 11, 2003 2:08 PM
Troubleshooting
Bluetooth
For more information on Bluetooth, refer to Chapter 8,
“Using Bluetooth.”
Problem
I cannot discover
another device.
Solution
• Try to move closer to the device.
• Be sure the Bluetooth radio is turned on.
• Be sure you have not limited your ability to see devices.
• Be sure the device you are attempting to connect to is on
and allowing access to being discovered by other
devices.
I can see other
devices, but I
cannot connect
or exchange
data with them.
• Try to move closer to the device.
Other devices
cannot find or
connect to my
device.
• Try to move closer to the device.
• Be sure the Bluetooth radio is turned on.
• Be sure the other device has not restricted your access.
• Be sure the Bluetooth radio is turned on.
• Be sure you have not restricted other devices from finding
yours.
• Check your Bluetooth settings to ensure you have allowed
your device to be discovered and others to connect.
Other devices
do not receive
my correct
business card
information.
9–6
• Be sure you have correctly set up your business card
information in Bluetooth Settings.
• Check Bluetooth Settings to be sure you have not
restricted this function.
User’s Guide
293146-001HamrUG.book Page 7 Friday, April 11, 2003 2:08 PM
Troubleshooting
Expansion Cards
For more information on expansion cards, refer to Chapter 6,
“Using Expansion Cards.”
Problem
Solution
I cannot get my
iPAQ Pocket PC
to recognize the
expansion card.
• Be sure you have firmly pushed the expansion card down
into the iPAQ Pocket PC.
I cannot insert
my card.
• Be sure you are not inserting the card at an angle.
I cannot remove
my SD card.
My iPAQ Pocket
PC cannot
recognize
my card.
User’s Guide
• Be sure you have inserted the appropriate card into the
appropriate slot.
• Be sure you insert the connection area first.
Push the SD card in to release the locking mechanism. The
card will pop out slightly and can then be easily removed.
• Be sure you have loaded any drivers that came with the
expansion card you purchased.
• Reset the device by using the stylus to lightly press the
Reset button on the back of the unit.
9–7
293146-001HamrUG.book Page 1 Friday, April 11, 2003 2:08 PM
A
Regulatory Notices
Federal Communications Commission
Notice
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:
■
Reorient or relocate the receiving antenna
■
Increase the separation between the equipment and receiver
■
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected
■
Consult the dealer or an experienced radio or television
technician for help
User’s Guide
A–1
293146-001HamrUG.book Page 2 Friday, April 11, 2003 2:08 PM
Regulatory Notices
Modifications
The FCC requires the user to be notified that any changes or
modifications made to this device that are not expressly approved
by Hewlett-Packard Company may void the authority to operate
the equipment.
Cables
Connections to this device must be made with shielded cables
with metallic RFI/EMI connector hoods in order to maintain
compliance with FCC Rules and Regulations.
Declaration of Conformity for products
marked with the FCC logo—United
States only
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
For questions regarding your product, contact:
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
Or, call 1-800-652-6672
For questions regarding this FCC declaration, contact:
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
Or, call (281) 514-3333
To identify this product, refer to the Part, Series, or Model
number found on the product.
A–2
User’s Guide
293146-001HamrUG.book Page 3 Friday, April 11, 2003 2:08 PM
Regulatory Notices
Canadian Notice
This Class B digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les
exigences du Règlement sur le matériel brouilleur du Canada.
Japanese Notice
User’s Guide
A–3
293146-001HamrUG.book Page 4 Friday, April 11, 2003 2:08 PM
Regulatory Notices
European Union Notice
0682
Products bearing the CE marking comply with the R&TTE
Directive (1999/5/EC), EMC Directive (89/336/EEC), and the
Low Voltage Directive (73/23/EEC) issued by the Commission of
the European Community.
Compliance with these directives implies conformity to the
following European Norms (in parentheses are the equivalent
international standards and regulations):
■
EN 55022 (CISPR 22)—Electromagnetic Interference
■
EN 55024 (IEC61000-4-2, 3, 4, 5, 6, 8, 11)—
Electromagnetic Immunity
■
EN61000-3-2 (IEC61000-3-2)—Power Line Harmonics
■
EN61000-3-3 (IEC61000-3-3)—Power Line Flicker
■
EN 60950 (IEC 60950)—Product Safety
■
ETS 300 328—Technical requirements for radio equipment
■
ETS 300 826 or EN 301 489-17—General EMC
requirements for radio equipment
This product may be used in all EU and EFTA countries.
A–4
User’s Guide
293146-001HamrUG.book Page 5 Friday, April 11, 2003 2:08 PM
Regulatory Notices
Battery Warning
Å
WARNING: This computer contains a lithium ion rechargeable
battery pack. To reduce the risk of fire or burns, do not disassemble,
crush, puncture, short external contacts, or dispose of in fire or water.
Ä
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the
manufacturer’s instructions.
Because of the type of battery used in your h2200 Series, follow
local regulations regarding the safe disposal of the battery. Your
vendor can advise you on local regulations, and/or the existence of
any battery disposal programs in operation.
Equipment Warning
Å
WARNING: To reduce the risk of personal injury, electrical shock, fire
or damage to the equipment:
■
Plug the AC adapter into a grounded (earthed) electrical outlet
that is easily accessible at all times.
■
Disconnect power from the equipment by unplugging the
AC adapter from the electrical outlet or unplugging the
Synchronization cable from the host computer.
■
Do not place anything on the AC adapter cord or any of the
other cables. Arrange them so that no one may accidentally step
on or trip over them.
■
Do not pull on a cord or cable. When unplugging from the
electrical outlet, grasp the cord by the plug or, in the case of the
AC adapter, grasp the AC adapter and pull out from the electrical
outlet.
■
Do not use converter kits sold for appliances to power the
iPAQ h2200 Series.
User’s Guide
A–5
293146-001HamrUG.book Page 6 Friday, April 11, 2003 2:08 PM
Regulatory Notices
Airline Travel Notice
Use of electronic equipment aboard commercial aircraft is at the
discretion of the airline.
Wireless Notices
In some situations or environments, the use of wireless devices
may be restricted. Such restrictions may apply aboard airplanes,
in hospitals, near explosives, in hazardous locations, etc.
If you are uncertain of the policy that applies to the use of this
device, please ask for authorization to use it prior to turning it on.
U.S. Regulatory Wireless Notice
This products emits radio frequency energy, but the radiated
output power of this device is far below the FCC radio frequency
exposure limits. Nevertheless, the device should be used in such a
manner that the potential for human contact with the antenna
during normal operation is minimized.
Canadian Regulatory Wireless Notice
Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.
The term “IC:” before the certification/registration number
only signifies that the Industry Canada technical specifications
were met.
A–6
User’s Guide
293146-001HamrUG.book Page 7 Friday, April 11, 2003 2:08 PM
Regulatory Notices
Japanese Regulatory Wireless Notice
Brazilian Regulatory Wireless Notice
Este equipamento opera em caráter secundário, isto é, não tem
direito a proteção contra interferência prejudicial, mesmo de
estações do mesmo tipo, e não pode causar interferência a
sistemas operando em caráter primário.
User’s Guide
A–7
293146-001HamrUG.book Page 1 Friday, April 11, 2003 2:08 PM
B
Specifications
System Specifications
System
Feature
Description
Processor
Intel® XScale 400 MHz
RAM (Random
Access Memory)
64 MB SDRAM (56 MB main memory)
ROM (Read Only
Memory)
32 MB ROM
SD I/O slot
SD memory and SD I/O card support
CF Type II slot
CompactFlash Type I and II card support
Display
Transflective color TFT, 240 x 320 pixels, 64K-color support,
.24 mm dot pitch
LED Backlight
Multi-level brightness adjustment
Audio
Microphone, speaker, 3.5 mm stereo headphone jack, MP3
stereo through audio jack
Infrared
(IrDA and CIR)
IrDA, data transfer up to 115.2 Kb per second and
Universal Remote Control (CIR) for control of home
entertainment units (on select models)
User’s Guide
B–1
293146-001HamrUG.book Page 2 Friday, April 11, 2003 2:08 PM
Specifications
System
Feature
Description
Bluetooth
Class II device; up to 4 dBm transmit, typical 10 meters
(30 feet) range
Indicators
3-mode alarm notification:
Flashing green LED, tone, pop-up message
Charging: flashing amber LED
Charged: solid amber LED
Bluetooth active: flashing blue LED
Battery
Removable/rechargeable 900mAh Lithium ion battery with
internal 10-minute bridge battery to maintain data during
main battery replacement.
Physical Specifications
hp iPAQ h2200 Series
Length
US
Metric
4.57 in
115.4 mm
Width
2.95 in
74.0 mm
Depth
0.63 in
15.4 mm
Weight
5.01 oz
142.0 g
Operating Environment
Environment
US
Temperature
Relative Humidity
Maximum Altitude
B–2
Metric
Operating
32° to 104° F
0° to 40° C
Nonoperating
–4° to 140° F
–20° to 60° C
Operating
10 to 90%
10 to 90%
Nonoperating
10 to 90%
10 to 90%
Operating
0-15,000 ft
14.7 to 10.1 psia
Nonoperating
0-15,000 ft
14.7 to 10.1 psia
User’s Guide
293146-001HamrUG.book Page 1 Friday, April 11, 2003 2:08 PM
Index
A
AC Adapter 3–4
charging with 3–5
ActiveSync 1–3, 4–17
backing up 2–6
backing up/restoring 4–18
connecting 2–2
Explore 2–5
installing 2–3
restoring 2–6
troubleshooting 9–4
uses 2–1
aligning the screen 1–10
Application Buttons 1–2, 3–10
applications
closing 4–9
installing 2–6, 4–10
opening 4–8
Asset Viewer 1–2
Auto Power On
disabling 3–10
B
backing up files 4–17
ActiveSync 2–6, 4–18
User’s Guide
iPAQ Backup 4–17
backlight settings 3–10, 9–1
backup battery 3–1
low warning 3–8
basics
learning the 4–1
battery
backlight settings 3–10
backup 3–1
charging 3–5
charging spare 3–8
charging with the AC Adapter
3–5
charging with the cradle 3–7
deactivating 1–9
installing 3–1
main 3–1
monitoring manually 3–11
preserving battery time 3–8
recharging 3–1
removing 3–5
spare 3–1
specifications B–2
Standby setting 3–8
troubleshooting 9–1
Index–1
293146-001HamrUG.book Page 2 Friday, April 11, 2003 2:08 PM
Index
Bluetooth 1–2, 2–2
ActiveSync connection 8–19
business card information 8–24
creating shortcuts 8–28
dial-up networking 8–20
pairing devices 8–7, 8–8
properties 8–7
sending files 8–23
settings 8–5
shared folder 8–11
specifications B–2
supported services 8–4
terms 8–3
troubleshooting 9–6
turning on 8–5, 8–6
using 8–1
Bluetooth Manager 8–15
business card
exchanging information 8–27
information 8–24
C
care and maintenance 1–11
cell phone partnership 8–22
charge light 3–6, 3–8
Charger Adapter 3–6
Charger Adapter plug 3–1
charging
with the AC Adapter 3–5
with the cradle 3–7
Command bar 4–2
CompactFlash (CF) expansion
card 6–1
Index–2
connecting
to a computer 2–2
to the Internet 7–1
to your work network 7–1
connecting to a network 9–2
connecting to other devices 8–18
Connection Settings 2–5
converting writing to text 5–9
cradle 2–2, 2–3, 3–1, 3–7
D
data
avoiding loss of 3–8
backing up 1–1
stored in RAM 3–1, 3–8
date
set 1–7
Diagnostic ToolKit 1–2
dial-up networking 8–20
digital files 1–4
drawing on screen 5–9
E
e-mail
sending and receiving 2–7
synchronizing 2–2
ethernet card 7–1
expansion card
modem card 7–1
expansion cards
CompactFlash (CF) 6–1
memory card 6–4
modem card 7–1
removing 6–3
Secure Digital (SDIO) 6–1
troubleshooting 9–7
using 6–1
User’s Guide
293146-001HamrUG.book Page 3 Friday, April 11, 2003 2:08 PM
Index
F
K
Favorites list 7–7
full reset 1–9, 1–10
keyboard 5–1
H
Letter Recognizer 5–1, 5–5
Link Key 8–8
linking to Web sites 2–7, 7–6
low backup battery warning 3–8
hard reset 1–9
headphone 1–1
Help
accessing 1–1
I
icons 4–3
infrared 2–2, 2–3
specifications B–1
input methods
Block Recognizer 5–1
keyboard 5–1
Letter Recognizer 5–1
Microsoft Transcriber 5–1
installing
applications 4–10
installing ActiveSync 2–3
installing applications 2–6
installing the battery 3–1
Internet
connecting 7–1
Internet address 7–6
iPAQ
Audio 1–1
Backup 1–1, 4–17
File Store 4–18
Image Viewer 1–2, 4–10
creating a slide show 4–12
iTask 1–2
closing an application 4–9
User’s Guide
L
M
main battery 3–1
maintenance 1–11
memory
RAM 3–1, 3–5, 3–8, B–1
ROM 3–5, B–1
memory cards 9–1
view content 6–4
microphone 1–1
Microsoft
ActiveSync 1–3, 2–1
Calculator 1–3
Calendar 1–3
ClearType Tuner 1–3
Connections 1–3
Contacts 1–3
Inbox 1–3, 2–7
MSN Messenger 1–3
Notes 1–3
Pictures 1–4
Pocket Excel 1–4, 9–3, 9–5
Pocket Internet Explorer 1–4,
2–7
Pocket PC Basics 1–1
Pocket Word 1–4, 9–3
Settings 1–4
Tasks 1–4
Index–3
293146-001HamrUG.book Page 4 Friday, April 11, 2003 2:08 PM
Index
Terminal Services Client 1–4
Transcriber 5–1, 5–7
Windows Media Player 9
Series 1–4
Mobile Favorites 2–7
modem card
using 7–2
monitoring the battery 3–11
MP3 1–4
N
Navigation bar 4–2
network, connecting 7–1
Nevo 1–2
normal reset 1–8
O
on-screen keyboard 5–4
options
spare battery 3–1
owner information 1–7
P
pairing devices 8–16
settings 8–8
passwords 9–3
pop-up menus 4–4
power indicator 3–6, 3–8
private network, connecting to 7–5
problems
troubleshooting 9–1
R
RAM 3–1, 3–5, 3–8
specifications B–1
receiving e-mail 2–7
Index–4
removing the battery 3–5
reset
full 1–9, 1–10
normal 1–8
Reset button 1–8, 1–9
restoring files
ActiveSync 2–6, 4–18
iPAQ Backup 4–17
ROM 3–5
specifications B–1
routine care 1–11
S
screen
aligning 1–10
drawing and writing on the 5–9
sending e-mail 2–7
set
date 1–7
time, home location 1–6
time, visiting location 1–6
shipping the iPAQ Pocket PC 9–2
slide show 4–12
soft reset 1–8
software 1–1
spare battery 3–1
charging 3–8
specifications B–1
Standby setting
adjusting 3–8
status icons 4–3
stylus 1–5
drag 1–5
tap 1–5
tap and hold 1–5
User’s Guide
293146-001HamrUG.book Page 5 Friday, April 11, 2003 2:08 PM
Index
synchronization cradle 2–2, 2–3,
3–1, 3–7
synchronizing 1–3
changing settings 2–4
e-mail 2–2
links to Web sites 2–7, 7–6
with your computer 2–2
T
time
set for home location 1–6
set for visiting location 1–6
Today screen 1–3, 1–4, 1–7, 4–1
creating new information 4–5
customizing 4–6
using 4–1
Transcriber 5–7
traveling with the iPAQ Pocket PC
9–1
User’s Guide
troubleshooting 9–1
ActiveSync problems 9–4
battery problems 9–1
Bluetooth problems 9–6
expansion card problems 9–7
U
USB Synchronization
Cradle/Charger 2–2, 2–3, 3–1
charging with 3–7
W
warning
low backup battery 3–8
Web sites
synchronizing links 2–7, 7–6
Windows Media 1–4
wireless 802.11x card 7–1
wireless connection 2–2, 2–3
writing on screen 5–9
Index–5
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
