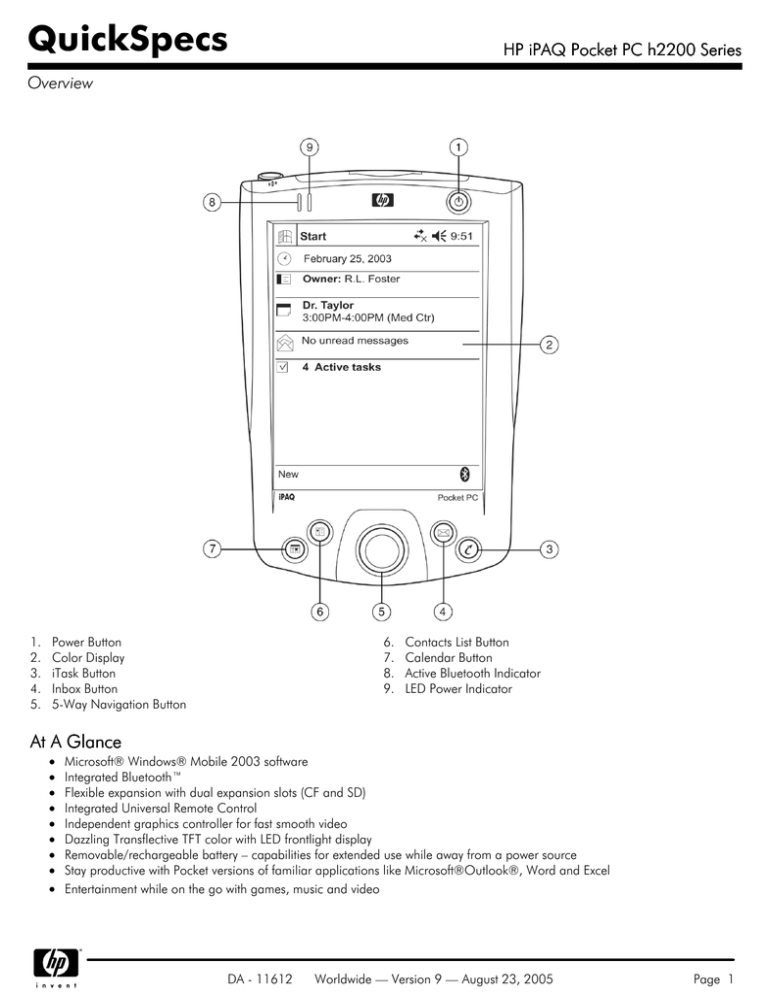

QuickSpecs
HP iPAQ Pocket PC h2200 Series
Overview
1.
2.
3.
4.
5.
Power Button
Color Display
iTask Button
Inbox Button
5-Way Navigation Button
6.
7.
8.
9.
Contacts List Button
Calendar Button
Active Bluetooth Indicator
LED Power Indicator
At A Glance
Microsoft® Windows® Mobile 2003 software
Integrated Bluetooth™
Flexible expansion with dual expansion slots (CF and SD)
Integrated Universal Remote Control
Independent graphics controller for fast smooth video
Dazzling Transflective TFT color with LED frontlight display
Removable/rechargeable battery – capabilities for extended use while away from a power source
Stay productive with Pocket versions of familiar applications like Microsoft®Outlook®, Word and Excel
Entertainment while on the go with games, music and video
DA - 11612
Worldwide — Version 9 — August 23, 2005
Page 1
QuickSpecs
HP iPAQ Pocket PC h2200 Series
Standard Features
Models
iPAQ Pocket PC h2210 – 64-MB SDRAM
FA103A#8ZQ – US Commercial, English
FA103A#ABG – Aust/NZ, English
FA103A#ABB – Euro, English
FA103A#ABU – UK, English
FA103A#ABD – German
FA103A#ABF – French
FA103A#ABZ – Italian
FA103A#ABE – Spanish
FA103A#ABC – Canadian, French
FA103A#B16 – Latin America, Spanish
FA103A#AC4 – Brazil/Portugal, Portuguese
FA103A#ABJ – Japanese
FA103A#UUF – APD, English
FA103A#AB2 – S-Chinese
FA103A#AB0 – Taiwan, T-Chinese
FA103A#AB5 – Hong Kong, T-Chinese
FA103A#AB1 – Korean
iPAQ Pocket PC h2215 – 64-MB SDRAM
FA159A#8ZP – iPAQ h2215 US Retail, English
Processor
400 MHz Intel® XScale™ technology-based processor
Memory
SDRAM
64 MB (56 MB user accessible)
Display
Type
Number of Colors
Touch Screen
Resolution (W x H)
Viewable Image Size
Transflective type TFT color with LED backlight
64K color (65,536 colors) 16-bit
Yes
240 x 320
3.5 in (89 mm)
Hardware Buttons/
Reset Buttons
One power button, one reset button, four software programmable application buttons, one 5-way
navigation button
Stylus
One
Audio
Microphone, speaker, one 2.5 mm headphone jack, MP3 stereo (through audio jack)
DA - 11612
Worldwide — Version 9 — August 23, 2005
Page 2
QuickSpecs
HP iPAQ Pocket PC h2200 Series
Standard Features
Notification Systems
Alarms
Notification
Solid amber LED – battery in unit fully charged
Flashing amber LED – battery in unit is charging
Flashing green LED – event alarm/notification
Flashing blue LED – Bluetooth radio on
Sound and message on the display
SD Slot
SD, SD I/O, and MMC support
CF Slot
Compact Flash Type I and II
Power Supply
Battery
Ergonomic Design
Features
Instant-on/off and Backlight
Navigation button
Touch-sensitive display for stylus
4 programmable application launch buttons – Calendar, Contacts, Inbox, and iTask buttons
2 alarm settings
Built-in speaker
Slip free soft touch sides
Rechargeable 900 mAh Lithium-lon user swappable battery. Estimated usage
time of fully charged battery is up to 12 hours. Charging time up to 4 hours.
AC Power
AC Input: 100~240 Vac, 50/60 Hz, AC Input current: 0.2 Aac max
Output Voltage: 5Vdc (typical), Output Current: 2A (typical)
NOTE: Battery life varies based on the usage pattern of an individual user and the configuration of the
handheld. Use of some optional accessories may significantly decrease battery life.
HP Exclusive Applications iPAQ Task Manager: access and launch programs easily
Bluetooth Manager
iPAQ Backup: utility for Backup/Restore to Main Memory, Memory Card, or iPAQ File Store
Nevo: Universal Remote Control
Adjustable Standby Settings: Utility for adjusting power conservation modes
Utilities: iPAQ Audio, Power Status
Diagnostic Tool kit* - (* on select skus only)
iPAQ Image Viewer*: view images and create slide shows (* on CD in select skus)
iPAQ File Store*: non-volatile storage in flash ROM (*on select skus only)
DA - 11612
Worldwide — Version 9 — August 23, 2005
Page 3
QuickSpecs
HP iPAQ Pocket PC h2200 Series
Standard Features
Companion CD from HP APPLICATIONS
Full Versions
Trial Versions
Adobe PDF Viewer
Ewallet
IPresentation Mobile Client ListPro
LE
Cadenza mNotes
Peacemaker
Pocket Watch
HP Web Registration
Presenter-to-go
Active Sync
Outlook Desktop
Real Player Mobile
ClearVue Suite
Afaria Management
iPAQ Image Viewer (on
CD in select skus)
Diagnostic Tool kit* (* on
select skus only)
CD LINKS
Full Versions
Trial Versions
Audible Player
iPAQ Pocket PC Mobility Services
Handango
Location Based
HP Mobile Print Center
Avant Go
Media Player Desktop
Microsoft Games
File Cyrpto for Pocket PC
Flash Player for Pocket PC
Worldwide Telephone
Numbers
Additional Documentation
Safety and Comfort Guide on PDF and, User Guide on PDF
NOTE: Programs could vary based on SKU. Some programs are accessed through CD links to
download Web sites.
Operating System
Microsoft® Windows® Mobile™ 2003 Premium software for Pocket PC
Operating System
Applications
Powered by Microsoft® Windows® for Pocket PC 2003
Calendar, Contacts, Tasks, Notes with voice recorder, Pocket Word, Pocket Excel, Pocket Internet
Explorer, Calculator, Solitaire, Jawbreaker, Inbox, File Explorer, Infrared Beaming, Clock, Align Screen,
File Explorer, Memory, Volume control, Asset Viewer
Additional Software and
links
Outlook 2002, Microsoft ActiveSync® 3.7 (Desktop device synchronization), Links to Microsoft Web sites
for additional downloadable applications (some programs may require purchase of additional desktop
software to utilize Pocket PC versions), Windows Media Player 9 (MP3, audio and video streaming)
DA - 11612
Worldwide — Version 9 — August 23, 2005
Page 4
QuickSpecs
HP iPAQ Pocket PC h2200 Series
Standard Features
Service and Support
One-year parts and labor, 90 days technical support for software. Optional HP Care Pack available in
North America for Next Business Day replacement (at additional charge).
Bluetooth Specifications* Technology
Bluetooth specification
System interface
User Interface
Device type
Power
Receiver sensitivity
Regulatory standards
Profile Support
Usage Models *
DA - 11612
High-speed, low-power, short-range
1.1 compliant (2.4-GHz Industrial Scientific Medical Band)
High-speed UART processor interface
Bluetooth Manager
Class II device; up to 4 dBm transmit, typical 10 meter range
3.3V ± 5% Peak current - typical TX current at approximately 140 mA
-78 dBm or greater
R&TT#-EN 300 328 and EN 300 826, UL 1950, CB Safety Scheme
inclusive of EN 60950 and IEC 950, FCC Part 15 subpart C, Canadian, CE,
General Access Profile
Serial Port Profile
Generic Object Exchange Profile
File Transfer Profile
Dial-Up Networking Profile
LAN Access Profile
Object Push Profile
Personal Area Networking Profile
Basic Printing Profile
Hard Copy Replacement Profile (printing)
Service Discovery
Determine what Bluetooth devices are within range and support authorization
File Transfer
File and directory browsing and navigation on another Bluetooth device.
File copying
Object manipulation – including add, delete, create new folders etc.
Serial Port
Synchronization between PDAs and PCs
Dial Up Networking
Wireless link to WAN thru Bluetooth enabled cell phone
Agnostic to WAN technology
Send/receive SMS messages
LAN Access
Wireless link to Corporate LAN using Bluetooth and appropriate Bluetooth
access point Corporate email, network neighborhood, access to LAN
applications, file transfer, ftp, Internet browsing, etc, using TCP/IP
Access the Internet by connecting to your desktop or notebook over Bluetooth
and using its network connection
Generic Object Exchange and Object Push
Exchange business cards, tasks, documents, appointments and more
Personal Area Networking
Collaborate, chat, play games, exchange data
Adhoc peer to peer networking
Basic Printing and Hard Copy Replacement Profiles
Print to any HP Bluetooth printer without the need for cables or specific print
drivers
Worldwide — Version 9 — August 23, 2005
Page 5
QuickSpecs
HP iPAQ Pocket PC h2200 Series
Standard Features
Certifications
All necessary regulatory approvals for countries we support including:
Bluetooth logo (FCC (47 CFR) Part 15C, Section 15.247&15.249 ETS 300
328, ETS 300 826 Low Voltage Directive IEC950 UL and CE Mark
NOTE:*
NOTE A standard WLAN infrastructure, other devices enabled with Bluetooth, and a service contract
with a wireless airtime provider may be required for applicable wireless communication. Wireless Internet
use requires a separately purchased service contract. Check with a service provider for availability and
coverage in your area. Not all web content available.
DA - 11612
Worldwide — Version 9 — August 23, 2005
Page 6
QuickSpecs
HP iPAQ Pocket PC h2200 Series
Technical Specifications
System Unit
Dimensions (H x W x D)
Weight
Operating Temperature
Storage Temperature
Operating Humidity
Regulatory Marks
4.54 x 3.00 x 0.61 in (115.4 x 76.4 x 15.4 mm
144.2 g (5.1 oz)
32° to 104° F (0° to 40° C)
-4° to 140° F (-20° to 60° C)
90% RH
Electrical
FCC Class B, UL or CSA NRTL
Safety
C-UL, NOM
TFT Color Display
Number of Colors
Resolution (W x H)
Dot Pitch
Viewable Image (W x H)
Display Type
65,536 (16-bit)
240 x 320
0.24 mm
2.1 x 2.80 in (53.28 x 71.04 mm)
Transflective type TFT color with LED Backlight
AC Adapter
Dimensions (H x W x D)
Cord Length
(approximate)
Power Supply Ratings
3 x 1.9 x 1.8 in (76 x 48 x 44 mm) (including prongs)
6 ft (1.83 m)
Voltage Range
100 to 240 V Switching
Input Current
0.3 A
Input Frequency
50 to 60 Hz
Output Voltage
5 VDC
Output Current
2 Amp
NOTE: Optional accessories are available at additional cost.
DA - 11612
Worldwide — Version 9 — August 23, 2005
Page 7
QuickSpecs
HP iPAQ Pocket PC h2200 Series
Options
Memory/Storage
Power
Synchronization
Other
Cases
NOTE: Optional accessories are available at additional cost.
64-MB SD Memory Card
128-MB SD Memory Card
256-MB SD Memory Card
1-GB IBM Microdrive
900 mAH Lithium Ion Rechargeable Battery
Auto Adapter
Charger Adapter
AC Adapter
U.S., Canada, Latin America, Japan, Taiwan
Australia
Europe, Brazil
United Kingdom, Asia Pacific, Hong Kong
USB Desktop Cradle/Charger
AutoSync Cable (USB and Serial)
Stylus Three-pack
Foldable Keyboard
U. S. English
U. K. English
German
French
Italian
Latin American Spanish
Brazilian Portuguese
Japanese
CF Modem Cards
U. S.
United Kingdom, Netherlands
France, Germany, Italy
All other EU/EFTA countries
Nylon Case
Leather Belt Case
Custom Cases: to view and order go to: http://www.ecases.com
DA - 11612
Worldwide — Version 9 — August 23, 2005
253478-B21
253479-B21
287464-B21
217390-B25
FA134A#AC3
FA135A#AC3
FA136A#AC3
DC379A
253508-B21
274707-B21
FA110A#AC3
FA125A#AC3
FA133A#AC3
253629-001
253629-011
253629-021
253629-031
FA130A#ABA
FA130A#ABG
FA130A#ABB
FA130A#ABU
250178-B21
FA109A#AC3
FA122A#AC3
FA111A#AC3
249693-001
249693-031
249693-041
249693-051
249693-061
249693-161
249693-201
249693-291
FA118A#ABA
FA118A#ABU
FA118A#ABD
FA118A#ABF
FA118A#ABZ
FA118A#ABM
FA118A#AC4
FA118A#ABJ
268927-001
268927-031
268927-A21
268927-B31
FA132A#ABA
FA132A#ABU
FA132A#AK9
FA132A#B13
339657-B21
339656-B21
FA161A#AC3
FA160A#AC3
Page 8
QuickSpecs
HP iPAQ Pocket PC h2200 Series
Options
HP iPAQ Pocket PC is a Microsoft® Windows® Powered Pocket PC
For more information on HP iPAQ Pocket PC, visit our website at http://www.hp.com/go/iPAQ
©2005 Hewlett-Packard Development Company, L.P.
The information in this document is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein. Microsoft, Windows, the Windows Logo and ActiveSync are registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries. Intel is a registered trademark of Intel Corporation
in the U.S. and/or other countries.
DA - 11612
Worldwide — Version 9 — August 23, 2005
Page 9
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
