1

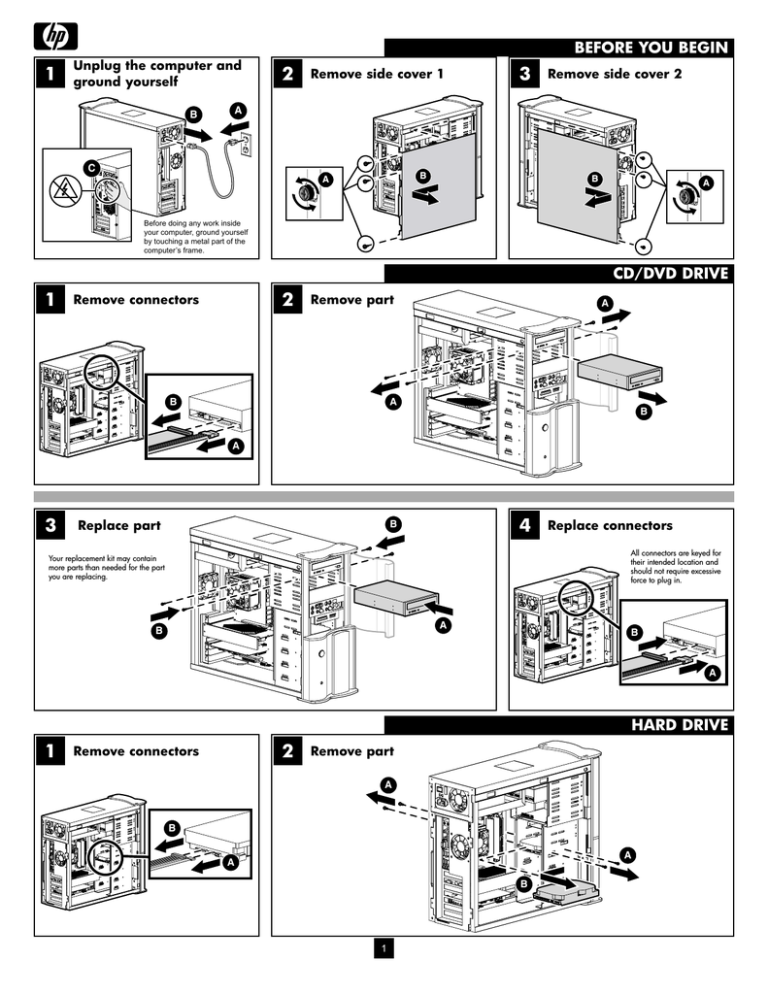

Unplug the computer and
ground yourself
B
BEFORE YOU BEGIN
2
Remove side cover 1
3
Remove side cover 2
A
C
B
A
B
A
Before doing any work inside
your computer, ground yourself
by touching a metal part of the
computer’s frame.
CD/DVD DRIVE
1
2
Remove connectors
Remove part
A
A
B
B
A
3
Replace part
4
B
Replace connectors
All connectors are keyed for
their intended location and
should not require excessive
force to plug in.
Your replacement kit may contain
more parts than needed for the part
you are replacing.
A
B
B
A
HARD DRIVE
1
2
Remove connectors
Remove part
A
B
A
A
B
1
3
4
Replace part
Replace connectors
All connectors are keyed for
their intended location and
should not require excessive
force to plug in.
B
B
Your replacement kit may contain
more parts than needed for the part
you are replacing.
B
A
A
EXPANSION/RAID CARD
1
2
Lay down computer
Remove connectors (if applicable) and remove part
B
C
A
3
Replace part and replace connectors (if applicable)
B
A
C
6-in-1 MEDIA READER
1
Remove connector
2
Remove part
A
A
B
2
3
4
Replace part
Replace connector
B
Your replacement kit may contain
more parts than needed for the part
you are replacing.
B
A
1
Remove power supply
bracket
POWER SUPPLY
2
Remove drive connectors
A
D
B
C
3
4
Remove system connectors
B
5
Replace power supply
Remove power supply
A
6
Replace system connectors
B
A
All connectors are keyed for their intended location
and should not require excessive force to plug in.
3
POWER SUPPLY
7
8
Replace drive connectors
Replace power supply
bracket
A
D
All connectors are
keyed for their
intended location
and should not
require excessive
force to plug in.
B
C
SOUND BLASTER
1
2
Remove connectors
Remove part
A
B
A
A
B
3
4
Replace part
B
Your replacement kit may contain
more parts than needed for the part
you are replacing.
Replace connectors
All connectors are keyed for
their intended location and
should not require excessive
force to plug in.
B
B
A
4
A
