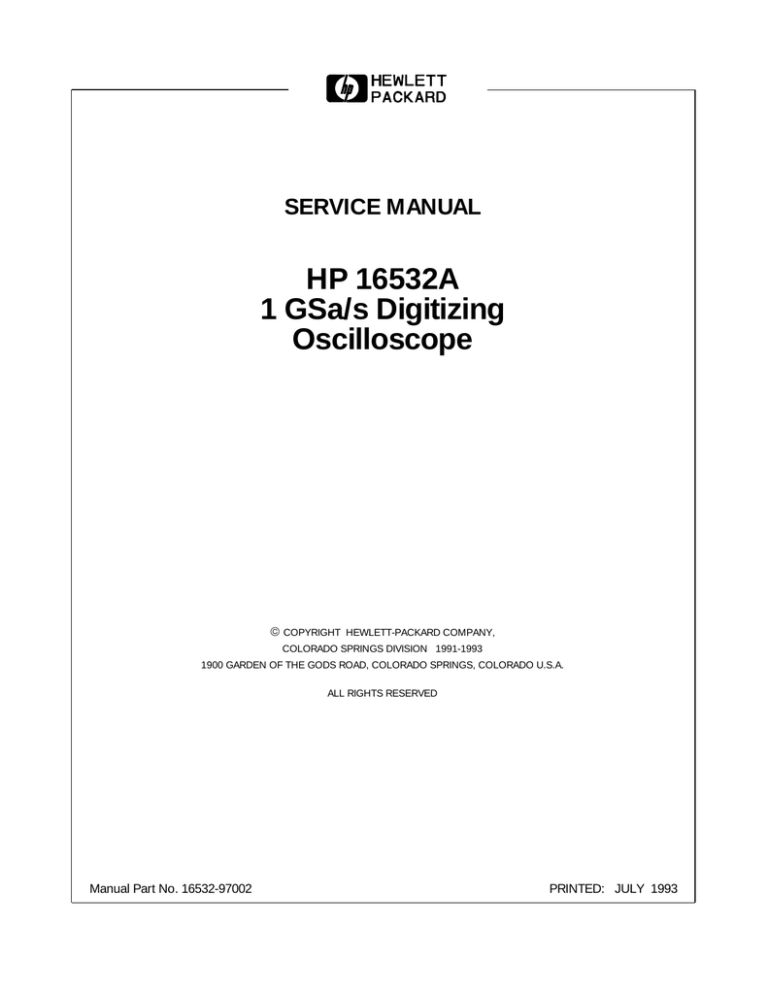

SERVICE MANUAL
HP 16532A
1 GSa/s Digitizing
Oscilloscope
 COPYRIGHT
HEWLETT-PACKARD COMPANY,
COLORADO SPRINGS DIVISION 1991-1993
1900 GARDEN OF THE GODS ROAD, COLORADO SPRINGS, COLORADO U.S.A.
ALL RIGHTS RESERVED
Manual Part No. 16532-97002
PRINTED: JULY 1993
SAFETY CONSIDERATIONS
GENERAL - This is a Safety Class I instrument (provided with
terminal for protective earthing).
•
Do not install substitute parts or perform any unauthorized
modification to the instrument.
OPERATION - BEFORE APPLYING POWER verify that the
power transformer primary is matched to the available line
voltage, the correct fuse is installed, and Safety Precautions
are taken (see the following warnings). In addition, note the instrument’s external markings which are described under
"Safety Symbols."
•
Adjustments described in the manual are performed with
power supplied to the instrument while protective covers
are removed. Energy available at many points may, if contacted, result in personal injury.
•
Any adjustment, maintenance, and repair of the opened instrument under voltage should be avoided as much as
possible, and when inevitable, should be carried out only
by a skilled person who is aware of the hazard involved.
•
Servicing instructions are for use by service-trained personnel. To avoid dangerous electric shock, do not perform
any servicing unless qualified to do so.
•
Capacitors inside the instrument may still be charged
even if the instrument has been disconnected from its
source of supply.
•
BEFORE SWITCHING ON THE INSTRUMENT, the protective earth terminal of the instrument must be connected to
the protective conductor of the (mains) powercord. The
mains plug shall only be inserted in a socket outlet provided with a protective earth contact. The protective action
must not be negated by the use of an extension cord
(power cable) without a protective conductor (grounding).
Grounding one conductor of a two-conductor outlet is not
sufficient protection.
•
•
Instruction manual symbol. The product will be
marked with this symbol when it is necessary for
the user to refer to the instruction manual in order
to protect against damage to the product.
Indicates hazardous voltages
If this instrument is to be energized via an auto-transformer (for voltage reduction) make sure the common terminal is connected to the earth terminal of the power
source.
Any interruption of the protective (grounding) conductor
(inside or outside the instrument) or disconnecting the protective earth terminal will cause a potential shock hazard
that could result in personal injury.
•
Whenever it is likely that the protection has been impaired, the instrument must be made inoperative and be
secured against any unintended operation.
•
Only fuses with the required rated current, voltage, and
specified type (normal blow, time delay, etc.) should be
used. Do not use repaired fuses or short circuited fuseholders. To do so could cause a shock or fire hazard.
•
SAFETY SYMBOLS
Do not operate the instrument in the presence of flammable gasses or fumes. Operation of any electrical instrument in such an environment constitutes a definite safety
hazard.
Earth terminal (sometimes used in manual to indicate circuit common connected to grounded
chassis).
The WARNING sign denotes a hazard. It
calls attention to a procedure, practice,
or the like, which, if not correctly performed or adhered to, could result in personal injury. Do not
proceed beyond a WARNING sign until the indicated conditions are fully understood and met.
The CAUTION sign denotes a hazard. It
calls attention to an operating procedure,
practice, or the like, which, if not correctly performed or adhered to, could result in damage to or
destruction of part or all of the product. Do not proceed beyond a CAUTION sign until the indicated conditions are fully
understood or met.
SC1D984
HP 16532A - Table of Contents
CONTENTS
SECTION I
General Information
1-1.
1-2.
1-3.
1-4.
1-5.
1-6.
1-7.
1-8.
1-9.
Introduction ..............................................................................................................................
Module Covered by This Manual ............................................................................................
Safety Requirements ...............................................................................................................
Product Description .................................................................................................................
Accessories Supplied ..............................................................................................................
Accessories Available...............................................................................................................
Specifications ...........................................................................................................................
Operating Characteristics .......................................................................................................
Recommended Test Equipment .............................................................................................
1-1
1-1
1-1
1-2
1-2
1-2
1-2
1-2
1-2
SECTION II
Installation
2-1.
2-2.
2-3.
2-4.
2-5.
2-6.
2-7.
2-8.
2-9.
2-10.
Introduction .............................................................................................................................
Initial Inspection ......................................................................................................................
Preparation for Use ................................................................................................................
Power Requirements ..............................................................................................................
Safety Requirements ..............................................................................................................
Module Installation .................................................................................................................
Operating Environment ..........................................................................................................
Storage ....................................................................................................................................
Packaging ...............................................................................................................................
Tagging for Service ................................................................................................................
2-1
2-1
2-1
2-1
2-1
2-1
2-4
2-4
2-4
2-4
SECTION III
Performance Tests
3-1.
3-2.
3-3.
3-4.
3-5.
3-6.
3-7.
3-8.
3-9.
3-10.
3-11.
3-12.
3-13.
Introduction ..............................................................................................................................
Recommended Test Equipment .............................................................................................
Test Record ..............................................................................................................................
Performance Test Interval .......................................................................................................
Performance Test Procedures ................................................................................................
DC CAL OUTPUT Test .............................................................................................................
AC CAL OUTPUT Test .............................................................................................................
Input Resistance ......................................................................................................................
Voltage Measurement Accuracy .............................................................................................
Offset Accuracy .......................................................................................................................
Bandwidth ................................................................................................................................
Time Measurement Accuracy ..................................................................................................
Trigger Sensitivity ....................................................................................................................
3-1
3-1
3-1
3-1
3-1
3-2
3-3
3-4
3-6
3-9
3-11
3-13
3-15
v
HP 16532A - Table of Contents
SECTION IV
Calibration
4-1.
4-2.
4-3.
4-4.
4-5.
4-6.
4-7.
4-8.
4-9.
4-10.
4-11.
4-12.
4-13.
4-14.
Introduction............................................................................................................................... 4-1
Safety Requirements ................................................................................................................ 4-1
Calibration Interval.................................................................................................................... 4-1
Maintaining System Integrity.................................................................................................... 4-1
Calibration Protection Switch................................................................................................... 4-1
Recommended Test Equipment .............................................................................................. 4-2
Instrument Warmup.................................................................................................................. 4-2
Calibration................................................................................................................................. 4-2
Setting the PROTECT/UNPROTECT Switch to UNPROTECT................................................ 4-3
Equipment Required for Calibration ....................................................................................... 4-4
Loading the Default Calibration Factors................................................................................. 4-4
Self Cal Menu Calibrations...................................................................................................... 4-5
Setting the PROTECT/UNPROTECT Switch to PROTECT .................................................... 4-8
Sealing the Mainframe............................................................................................................. 4-8
Section V
Replaceable Parts
5-1.
5-2.
5-3.
5-4.
5-5.
5-6.
Introduction ..............................................................................................................................
Abbreviations ...........................................................................................................................
Replaceable Parts List .............................................................................................................
Ordering Information ...............................................................................................................
Exchange Assemblies .............................................................................................................
Direct Mail Order System ........................................................................................................
5-1
5-1
5-1
5-1
5-1
5-2
SECTION VI
Service
6-1.
6-2.
6-3.
6-4.
6-5.
6-6.
6-7.
6-8.
6-9.
6-10.
6-11.
vi
Introduction ..............................................................................................................................
Safety Requirements ...............................................................................................................
Recommended Test Equipment .............................................................................................
Module Block Diagram and Theory of Operation ...................................................................
Attenuator Theory of Operation ...............................................................................................
Main Assembly Theory of Operation .......................................................................................
Self-Tests ..................................................................................................................................
Troubleshooting .......................................................................................................................
Oscilloscope Module Removal and Replacement .................................................................
Trigger Cable Removal and Replacement .............................................................................
Attenuator Removal and Replacement ..................................................................................
6-1
6-1
6-1
6-1
6-1
6-1
6-4
6-10
6-18
6-20
6-21
HP 16532A - Table of Contents
LIST OF TABLES
TABLE
TITLE
PAGE
1-1.
1-2.
1-3.
HP 16532A Specifications........................................................................................................ 1-3
HP 16532A Operating Characteristics..................................................................................... 1-4
Recommended Test Equipment .............................................................................................. 1-9
3-1.
Performance Test Record ........................................................................................................ 3-17
4-1.
Calibration Sequence............................................................................................................... 4-2
5-1.
5-2.
Reference Designator and Abbreviations................................................................................ 5-3
Replaceable Parts List .............................................................................................................. 5-5
LIST OF FIGURES
FIGURE
2-1.
2-2.
TITLE
PAGE
Endplate Overlap - Top Sequence........................................................................................... 2-2
Endplate Overlap - Bottom Sequence..................................................................................... 2-3
3-1. Voltage Measurement Accuracy Test........................................................................................ 3-7
4-1.
4-2.
4-3.
4-4.
4-5.
4-6.
Endplate Overlap - Top Sequence........................................................................................... 4-3
Location of the PROTECT/UNPROTECT Switch..................................................................... 4-3
Default Calibration Display....................................................................................................... 4-4
Ext Trig Null Calibration Connections...................................................................................... 4-7
End of Calibration Display........................................................................................................ 4-8
Endplate Overlap - Top Sequence .......................................................................................... 4-8
5-1.
Parts Identification.................................................................................................................... 5-4
6-1.
6-2.
6-3.
6-4.
6-5.
6-6.
6-7.
6-8.
6-9.
6-10.
6-11.
6-12.
6-13.
HP 16532A Oscilloscope Block Diagram ................................................................................ 6-2
Startup Screen.......................................................................................................................... 6-4
Load Test System Screen ........................................................................................................ 6-5
Test System Screen.................................................................................................................. 6-5
Functional Tests Screen........................................................................................................... 6-6
Main Test Menu ........................................................................................................................ 6-6
A/D Test Run Screen ................................................................................................................ 6-7
Stop Field.................................................................................................................................. 6-7
Exit Test System Screen .......................................................................................................... 6-8
Troubleshooting Flowchart ...................................................................................................... 6-13
Endplate Overlap - Top Sequence........................................................................................... 6-18
Endplate Overlap - Bottom Sequence..................................................................................... 6-19
Oscilloscope Module Exploded View ...................................................................................... 6-20
vii
TABLE OF CONTENTS
General Information
1-1.
1-2.
1-3.
1-4.
1-5.
1-6.
1-7.
1-8.
1-9.
Introduction...........................................................................................................................1-1
Module Covered by Manual .................................................................................................1-1
Safety Requirements.............................................................................................................1-1
Product Description..............................................................................................................1-2
Accessories Supplied ...........................................................................................................1-2
Accessories Available...........................................................................................................1-2
Specifications........................................................................................................................1-2
Operating Characteristics.....................................................................................................1-2
Recommended Test Equipment ..........................................................................................1-2
HP 16532A - General Information
SECTION I
General Information
1-1. Introduction
The service policy for this instrument is replacement of defective assemblies. This service guidel
contains information for finding a defective
assembly by testing and servicing the HP 16532A
1 GSa/s Oscilloscope Module. Also included in
the guide are installation procedures and a list of
recommended test equipment. This guide is
divided into six sections as follows:
I-
General Information
To complete the service documentation for your
HP 16500 Logic Analysis System, place this
service manual in the 3-ring binder with your other
logic analysis system Service Guides.
1-2. Module Covered by This Manual
The information covered in this manual is for the
HP 16532A 1 GSa/s Oscilloscope Module.
II - Installation
1-3. Safety Requirements
III - Performance Tests
Specific warnings, cautions, and instructions are
placed wherever applicable throughout the
manual. These must be observed during all
phases of operation, service, and repair of the
module. Failure to comply with them violates
safety standards of design, manufacture, and
intended use of this module.
IV - Calibration
V- Replaceable Parts
VI - Service
The General Information Section includes safety
requirements, a product description, and a list of
accessories supplied and of accessories available.
Also included are tables listing specifications and
operating characteristics, and a list of
recommended test equipment.
Hewlett-Packard assumes no liability for the failure
of the customer to comply with these safety
requirements.
1-1
HP 16532A - General Information
1-4. Product Description
•
24-pin IC test clip (HP 10211A)
The HP 16532A Oscilloscope Module is a 1 GSa/s
digitizing oscilloscope. Some of the main features
are:
•
BNC-to-BNC ac coupling capacitor
(HP 10240B)
10:1 Probe:
•
1 GSa/s digitizing for 250 MHz bandwidth single shot analysis.
•
8000 samples per channel.
•
Automatic pulse parameters, displays time between markers, acquires until specified time
between markers is captured, performs statistical analysis on time between markers.
•
•
1-MΩ, 7.5-pf miniprobe, 1 m (HP 10435A)
1:1 Probes:
•
40-pf miniprobe, 1 m (HP 10438A)
•
64-pf miniprobe, 2 m (HP 10439A)
•
50-Ω miniprobe, 2 m (HP 10437A)
Lightweight miniprobes.
100:1 Probe:
1-5. Accessories Supplied
The following accessories are supplied with the
HP 16532A Oscilloscope module. Quantity one
unless shown otherwise.
•
User’s Reference and Programming Reference set
•
Service Guide
•
HP 10441A 10:1 probes, Qty 2
•
Right angle BNC adapters, Qty 2
•
BNC miniprobe adapter
•
Master-slave trigger cable
•
Operating System Software
1-6. Accessories Available
•
10:1, 100:1, 50 Ω, 10 pf resistive divider probe
set, 1.2 m (HP 10020A)
•
BNC-to-BNC cable, 1.2 m (HP 10503A)
1-2
•
10-MΩ, 2.5-pf miniprobe, 2 m (HP 10440A)
1-7. Specifications
Module specifications are listed in table 1-1. These
specifications are the performance standards
against which the module is tested.
1-8. Operating Characteristics
Table 1-2 is a listing of the module operating
characteristics. The operating characteristics are
not specifications, but are the typical operating
characteristics included as additional information
for the user.
1-9. Recommended Test
Equipment
Equipment required to test and maintain the
HP 16532A Oscilloscope Module is listed in table
1-3. Other equipment may be substituted if it
meets or exceeds the critical specifications listed
in the table.
HP 16532A - General Information
Table 1-1. HP 16532A Specifications
HP 16532A SPECIFICATIONS
Type: 2-channel simultaneous acquisition
Bandwidth(* ,1): dc to 250 MHz (real time, dc-coupled)
Maximum Sample Rate: 1 Gigasample per second
Number of Channels: 2, 4, 6, 8 simultaneous channels using the same time base setting(s)
OR
Up to 10 channels with independent time bases for each pair of channels.
Up to 18 channels with the HP 16501A Expansion Frame.
Rise Time(2): 1.4 ns
ADC: 8-bit real time
Vertical Resolution: 8 bits over 4 vertical divisions (± 0.4%)
Waveform Record Length: 8000 points
Time Interval Measurement Accuracy(* ,3,6): ± [(0.005% X ∆t)+ (2 x 10− 6 x delay setting)+ 150 ps]
Vertical (dc) Gain Accuracy(4): ± 1.5% of full scale
DC Offset Accuracy(* ): ± (1.0% of channel offset + 2.0% of full scale)
Voltage Measurement Accuracy(* ,5): ± [(1.5% of full scale + offset accuracy) + (0.008 x V/div)]
Trigger Sensitivity(* ): dc to 50 MHz: 0.063 x full scale, 50 to 250 MHz: 0.125 x full scale
Input Coupling: 1 MΩ: ac and dc, 50 Ω: dc only
Input R (selectable) (* ): 1 MΩ: ± 1%, 50 Ω: ± 1%
Input C: Approximately 7 pF
___________________________________________________________________________________________
NOTES:
* Specifications (valid within ± 10° C of auto-calibration temperature, excluding bandwidth− see
note 1 for bandwidth specification.)
1. Upper bandwidth reduces by 2.5 MHz for every degree C above 35° C.
0.35
2. Rise time is calculated from the formula: tr =
bandwidth
3. Specification applies to the maximum sampling rate. At lower rates, the specification is:
± [(0.005% x ∆t)+ (2 x 10-6 x delay setting) + (0.15 x sample interval)] for bandwidth limited signals
1
(tr = 1.4 x sample interval). Sample interval is defined as
sample rate
4. Vertical gain accuracy decreases 0.08% per degree C from software calibration temperature.
1 1
), where LSB= 2 # bits in ADC
5. Digitizing level = (# vertical divisions)( )(
2 LSB
6. The Time Interval Measurement Accuracy deteriorates across multiple modules connected as one
unit with each added module.
1-3
HP 16532A - General Information
Table 1-2. HP 16532A Operating Characteristics
HP 16532A OPERATING CHARACTERISTICS
VERTICAL (at BNC)
Vertical Sensitivity Range (1:1 Probe):
4 mV/div to 10 V/div in 1-2-4 increments
DC Offset Range (1:1 Probe):
Vertical Sensitivity
4 mV/div to 100 mV/div
> 100 mV/div to 500 mV/div
> 500 mV/div to 2.5 V/div
> 2.5 V/div to 10 V/div
Available Offset
±2V
± 10 V
± 50 V
± 250 V
Probe Factors:
Any integer ratio from 1:1 to 1000:1
Maximum Safe Input Voltage:
1 MΩ: ± 250 V [dc + peak ac (< 10 KHz)]
50 Ω: ± 5 VRMS
Channel-to-Channel Isolation:
dc to 50 MHz: 40 dB, 50 MHz to 250 MHz: 30 dB
TIMEBASE
Range:
1 ns/div to 5 s/div
Resolution:
20 ps
Delay Pre-trigger Range:
Time/div Setting
1 µs to 5 s/div
1 ns to 500 ns/div
Available Delay
-8 x (s/div)
-4 µs
Delay Post-trigger Range:
Time/div Setting
100 ms to 5 s/div
1 µs to 50 ms/div
1ns to 500 ns/div
1-4
Available Delay
2.5 ks
33,500 x (s/div)
16.7 ms
HP 16532A - General Information
Table 1-2. HP 16532A Operating Characteristics (cont.)
TRIGGERING
Trigger Level Range:
Within display window (full scale and offset)
Trigger Modes:
Immediate:
Triggers immediately after arming condition is met.
Edge:
Triggers on rising or falling edge of any internal channel or external trigger,
count adjustable from 1 to 32,000.
Pattern:
Triggers on entering, exiting, duration greater than, duration less than, and
duration in range for a specified pattern of both internal channels and external
trigger, count adjustable from 1 to 32,000. Duration time range is adjustable
from 20 ns to 160 ms in 10 ns steps. Duration accuracy is approximately ± 3%
± 2 ns.
Auto-Trigger:
If enabled, the module will self-trigger if no trigger condition is found within
approximately 50 ms after arming.
Events Delay:
The trigger can be set to occur on the nth edge or pattern, as specified by the
user. The number of events (n) can be set from 1 to 32,000 events. Maximum
count frequency is 70 MHz.
Intermodule:
Arms another measurement module or triggers the rear panel BNC.
External:
If enabled, the oscilloscope will trigger on an ECL level signal (-1.3 V).
DIGITIZER
Resolution: 8 bits (1 part in 256)
Digitizing Rate: Up to 1 Gigasample per second
Digitizing Technique: Real-time digitizing; each 8000 samples are acquired on a single acquisition
Acquisition Memory Size: 8000 samples per channel
1-5
HP 16532A - General Information
Table 1-2. HP 16532A Operating Characteristics (cont.)
WAVEFORM DISPLAY
Displayed Waveforms:
Eight waveform windows maximum, with scrolling across 96 waveforms.
Display Formats:
Waveforms can be displayed in an overlapping and/or non-overlapping format.
Display capability of A− B and A+ B is also provided.
Display Resolution:
500 points horizontal, 240 points vertical
DISPLAY MODES
Normal (Single):
New acquisition replaces old acquisition on screen.
Accumulate:
New acquisition is displayed in addition to previous acquisitions until screen is
erased.
Average:
New acquisitions are averaged with old acquisitions, with the updated waveform
displayed until erased. Maximum number of averages is 256.
Overlay:
Up to 8 acquired waveforms from separate channels can be overlayed in the
same display area.
Connect-the-dots:
Provides a display of the sample points connected by straight lines.
Waveform Reconstruction:
When there is insufficient data to fill every horizontal location, a post acquisition
reconstruction filter fills in missing data points for time base < 50 ns/div.
Waveform Math:
Display capability of A− B and A+ B functions is provided.
1-6
HP 16532A - General Information
Table 1-2. HP 16532A Operating Characteristics (cont.)
MEASUREMENT AIDS
Time Markers:
Two vertical markers, X and O, are provided for measurements of time and
voltage. Capabilities are: measure voltage at point where X and O markers
cross each analog waveform; measure time from trigger to X, trigger to O, and
X to O; automatic marker placement by specifying percentage of edge, edge
number, and rising or falling edge type; run until X to O > than, < than, in
range, and not in range provides selective event search; X to O statistics (mean,
max, and min) provide analysis of time interval deviation.
Automatic Search:
Searches for a percentage or an absolute voltage level at a positive or negative
edge, count adjustable from 1 to 100.
Auto Search Statistics:
Mean, maximum, and minimum values for elapsed time from X to O markers for
multiple runs. Number of valid runs and total number of runs available.
Automatic Measurements:
The following pulse parameter measurements can be performed automatically:
Frequency
Period
V p-p
Rise time
Fall time
Preshoot
Overshoot
+ pulse width
− pulse width
V amplitude*
(* gives difference between top and base
voltages; only available over bus)
Grid:
Graticules can be displayed in backround of waveform.
Voltage Markers:
Two horizontal markers, A and B, are provided for voltage measurements.
These markers can each be placed on any acquisition channel trace. A delta
voltage display provides delta V between markers on the same channel or
between two channels.
1-7
HP 16532A - General Information
Table 1-2. HP 16532A Operating Characteristics (cont.)
SETUP AIDS
Autoscale:
Autoscales the vertical and horizontal ranges, offset, and trigger level to display
the input signals. Requires a frequency between 50 Hz and 250 MHz.
Presets:
Scales the vertical range, offset, and trigger level to predetermined values for
displaying ECL or TTL waveforms.
Calibration:
Vertical, trigger, delay, and all defaults. Calibration factors stored in NV-RAM on
the circuit board.
Probe Compensation Source:
External BNC supplies a square wave approximately 0.0 mV to -800 mV into the
open circuit at approximately 1000 Hz.
OPERATING ENVIRONMENT
Temperature:
Instrument, 0° to 55° C (+ 32° to 131° F). Probes and cables, 0° to 65° C (+ 32°
to 149° F).
Humidity:
Instrument, up to 95% relative humidity at + 40° C (+ 104° F). Recommended
disk media, 8% to 80% relative humidity at + 40° C (+ 104° F).
Altitude:
To 4600 m (15,000 ft).
Vibration
Operation:
Random vibration 5-500 Hz, 10 minutes per axis, ~ 0.3 g (rms).
Non-operating:
Random vibration 5-500 Hz, 10 minutes per axis, ~ 2.41 g (rms); and swept
sine resonant search, 5-500 Hz, 0.75 g (0- peak), 5 minute resonant dwell @ 4
resonances per axis.
1-8
HP 16532A - General Information
Table 1-3. Recommended Test Equipment
EQUIPMENT
CRITICAL SPECIFICATIONS
RECOMMENDED MODEL
HP 8656B Option 001
USE*
P
Signal Generator
Frequency: 1 - 250 MHz at approx .
170 mV RMS resolution
Output Accuracy: ± 1 dB
1 MHz time base accuracy 0.25 ppm
Dc Power Supply
Range: − 35.000 to + 35.000 Vdc, ± 1 mV HP 6114A
P
Digital Multimeter
0.1 mV resolution
Accuracy: better than 0.005%
Resistance measurement: better than
0.25% accuracy
HP 3458A
P
Power Meter/Sensor 1 - 250 MHz ± 3% accuracy
HP 436/8482A
P
Power Splitter
Outputs differ by < 0.15 dB
HP 11667B
P
Blocking Capacitor
50 Ω BNC (m-to-f), 0.18 µF, ± 200 V
HP 10240B
P
Adapter
50 Ω BNC (m)(m)
HP 1250-1236
C
Adapter
50 Ω Type N(m)-to-BNC(m)
HP 1250-0082
P
Adapter
50 Ω BNC(f)-to-Dual Banana Plug
HP 1251-2277
P
Adapter
50 Ω Type N(m)-to-BNC(f)
HP 1250-0780
P
Tee Adapter
50 Ω BNC (m)(f)(f)
HP 1250-0781
P,C
Cable
Type N(m-to-m) 24-inch
HP 11500B
P
Cable
50 Ω BNC (m-to-m) 48-inch
HP 10503A
P
Cable
50 Ω BNC (m-to-m) 9 inch
HP 10502A
C
Cable
50 Ω BNC-SMB
HP 16532-61601
C
* P= Performance Tests
C= Calibrations
1-9
1-10
TABLE OF CONTENTS
Installation
2-1.
2-2.
2-3.
2-4.
2-5.
2-6.
2-7.
2-8.
2-9.
2-10.
Introduction ......................................................................................................................... 2-1
Initial Inspection .................................................................................................................. 2-1
Preparation for Use ............................................................................................................. 2-1
Power Requirements .......................................................................................................... 2-1
Safety Requirements ........................................................................................................... 2-1
Module Installation .............................................................................................................. 2-1
Operating Environment ...................................................................................................... 2-4
Storage ................................................................................................................................ 2-4
Packaging ........................................................................................................................... 2-4
Tagging for Service ............................................................................................................. 2-4
HP 16532A - Installation
SECTION II
Installation
2-1. Introduction
2-4. Power Requirements
This section explains how to initially inspect the
HP 16532A Oscilloscope Module, then how to
prepare it for use, storage, and shipment. Also
included are procedures for module installation.
All power supplies required for operating the
HP 16532A Oscilloscope Module are supplied to
the module through the backplane connector in
the mainframe.
2-2. Initial Inspection
2-5. Safety Requirements
Inspect the shipping container for damage. If the
shipping container or cushioning material is
damaged, it should be kept until the contents of
the shipment have been checked for
completeness and the module has been checked
mechanically and electrically. The contents of the
shipment should be as listed in the "Accessories
Supplied" paragraph located in Section I.
Specific warnings, cautions, and instructions are
placed wherever applicable throughout the
manual. These must be observed during all
phases of operation, service, and repair of the
module. Failure to comply with them violates
safety standards of design, manufacture, and
intended use of this module.
Procedures for checking electrical performance
are in Section III. If the contents of the container
are incomplete, there is mechanical damage or
defect, or the instrument does not pass the
performance tests, notify the nearest
Hewlett-Packard sales office.
If the shipping container is damaged, or the
cushioning material shows signs of stress, notify
the carrier as well as the Hewlett-Packard sales
office. Keep the shipping material so the carrier
can inspect it. The Hewlett-Packard office will
arrange for repair or replacement at
Hewlett-Packard’s option without waiting for claim
settlement.
2-3. Preparation for Use
Hewlett-Packard assumes no liability for the failure
of the customer to comply with these safety
requirements.
2-6. Module Installation
Do not install, remove, or replace the module
in the instrument unless the instrument power
is turned off.
The HP 16532A Oscilloscope Module will take up
one slot in the card cage. For every additional
HP 16532A Oscilloscope Module you install, you
will need an additional slot. They may be installed
in any slot and in any order. The installation
procedure for the module is continued,
step-by-step, on the next page.
Read the Safety Considerations in the front of
this manual and in Section I before installing
or operating this module.
2-1
HP 16532A - Installation
Module Installation (cont.)
The effects of ELECTROSTATIC DISCHARGE can damage electronic components. Use grounded wrist straps and mats when you are performing any kind of
service to this module.
Installation Considerations
•
The HP 16532A Oscilloscope Modules can be installed in any available card slot.
•
For multiple modules connected as one unit, the master card must be placed in the slot above the
expander cards. The master card and expander cards must be in adjoining slots.
•
Cards or filler panels below the empty slots intended for module installation do not have to be removed to install a module above them.
Procedure:
1. Turn instrument power switch off, unplug power cord and disconnect any input connections.
2. Starting from the top, loosen the thumb screws on the filler panels and cards.
3. Starting from the top, begin pulling out the cards and filler panels halfway. See figure 2-1.
Figure 2-1. Endplate Overlap - Top Sequence
2-2
HP 16532A - Installation
4. Slide the oscilloscope module into the card cage approximately halfway.
5. If you have more oscilloscope cards to install, slide them into the card cage approximately halfway.
6. Firmly seat the bottom card into the backplane connector. Keep applying pressure to the center
of the card endplate while tightening the thumb screws finger tight.
7. Repeat step 6 for all cards and filler panels in a bottom-to-top order. See figure 2-2.
8. Any filler panels that are not used should be kept for future use. Filler panels must be installed in all
unused card slots for correct air circulation.
Figure 2-2. Endplate Overlap - Bottom Sequence
2-3
HP 16532A - Installation
2-7. Operating Environment
2-9. Packaging
The operating environment is listed in table 1-2 of
Section I of this manual. Note should be made of
the non-condensing humidity limitation.
Condensation within the instrument can cause
poor operation or malfunction. Protection should
be provided against internal condensation.
The following general instructions should be used
for repacking the module with commercially
available materials.
The HP 16532A Oscilloscope Module will operate
at all specifications within the temperature and
humidity range given in table 1-2. However,
reliability is enhanced when operating the module
within the following ranges.
•
Temperature: + 20 °C to + 35 °C (+ 68 °F to
+ 95 °F)
•
Humidity: 20% to 80% non-condensing
•
Wrap the module in antistatic plastic.
•
Use a strong shipping container. A doublewalled carton made of 350-lb test material is
adequate.
•
Use a layer of shock-absorbing material 70 to
100 mm (3- to 4-inch) thick around all sides of
the module to provide firm cushioning and to
prevent movement within the container.
•
Seal the shipping container securely.
•
Mark the shipping container FRAGILE to ensure proper handling.
•
In any correspondence, refer to the module
by its model number and serial number.
2-8. Storage
The module may be stored or shipped in
environments within the following limits:
•
Temperature: − 40 °C to + 75 °C
2-10. Tagging for Service
•
Humidity: Up to 90% at 65 °C
•
Altitude: Up to 15,300 meters (50,000 feet)
If the module is to be shipped to a
Hewlett-Packard sales office for service or repair,
attach a tag showing owner (with address),
complete serial number, and a description of the
service required.
The module should also be protected from
temperature extremes which cause condensation
on the instrument.
2-4
TABLE OF CONTENTS
Performance Tests
3-1.
3-2.
3-3.
3-4.
3-5.
3-6.
3-7.
3-8.
3-9.
3-10.
3-11.
3-12.
3-13.
Introduction ......................................................................................................................... 3-1
Recommended Test Equipment ........................................................................................ 3-1
Test Record ......................................................................................................................... 3-1
Performance Test Interval .................................................................................................. 3-1
Performance Test Procedures ........................................................................................... 3-1
DC CAL OUTPUT Test ........................................................................................................ 3-2
AC CAL OUTPUT Test ........................................................................................................ 3-3
Input Resistance ................................................................................................................. 3-4
Voltage Measurement Accuracy ........................................................................................ 3-6
Offset Accuracy .................................................................................................................. 3-9
Bandwidth ........................................................................................................................... 3-11
Time Measurement Accuracy.............................................................................................. 3-13
Trigger Sensitivity ............................................................................................................... 3-15
HP 16532A - Performance Tests
SECTION III
Performance Tests
3-1. Introduction
The procedures in this section test the
oscilloscope module’s electrical performance
using the specifications listed in Section I as the
performance standards. All tests can be
performed without access to the interior of the
instrument. At the end of this section is a form that
can be used as a record of performance test
results.
3-2. Recommended Test Equipment
Equipment recommended for performance tests is
listed in table 1-3. Any equipment that satisfies the
critical specifications given in the table may be
substituted for the recommended models.
3-3. Test Record
The results recorded on the test record may be
used for comparison in periodic maintenance and
troubleshooting or after repairs and adjustments
have been made.
3-4. Performance Test Interval
Periodic performance verification of the
HP 16532A Oscilloscope Module is required at
one-year intervals. The instrument’s performance
should be verified after it has been serviced, or if
improper operation is suspected. Calibration
should be performed before any performance
verification checks.
3-5. Performance Test Procedures
All performance tests should be performed at the
environmental operating temperature of the
instrument, after a 30-minute warmup period.
Results of performance tests may be tabulated on
the Performance Test Record (table 3-1) at the end
of the procedures. The test record lists all of the
tested specifications and their acceptable limits.
3-1
HP 16532A - Performance Tests
3-6. DC CAL OUTPUT Test
The DC CAL OUTPUT port on the rear panel is used for instrument calibration and probe calibration.
Though calibrator accuracy is not specified in the performance specifications, it must be within limits in order to provide accurate calibration.
Test Limits:
5.000 V ± 10 mV
Equipment Required:
The following equipment is required for the test.
Equipment Required
Recommended
Model/Part Number
Critical Specification
Digital Multimeter
0.1 mV resolution, better than 0.005% accuracy
HP 3458A
Cable
50 Ω BNC (m to m) 48-inch
HP 10503A
Adapter
50 Ω BNC (f) to Dual Banana Plug
HP 1251-2277
Procedure:
1. Use the BNC-to-banana adapter to connect the BNC cable between the multimeter and the oscilloscope module DC CAL OUTPUT connector.
2. On the oscilloscope module set the following parameters in the order given:
Menu
Calibration
Selection
Mode
Procedure
DC Volts
Setting
Service Calibration
DC Cal BNC
0V
3. The DVM should read close to 0.0000 V. Record the reading to four decimal places.
V1 = __________ .
4. In the Calibration menu set the DC Volts to 5 V.
5. The DVM should read close to 5.0000 V. Record the reading to four decimal places.
V2 = __________ .
6. In the Calibration menu set the DC Volts to 0 V.
7. Subtract V1 from V2. The difference should be between 4.990 and 5.010 V. Record the reading in
the performance test record.
3-2
HP 16532A - Performance Tests
3-7. AC CAL OUTPUT Test
The AC CAL OUTPUT port on the rear panel is used for instrument calibration and probe compensation.
Though calibrator accuracy is not specified in the performance specifications, it must be within limits in order to provide accurate calibration.
Test Limits:
1000 Hz ± 10%, 0.8 Vp_p ± 10%
Equipment Required:
The following equipment is required for the test.
Equipment Required
50 Ω BNC (m to m) 48-inch
Cable
Recommended
Model/Part Number
Critical Specification
HP 10503A
Procedure:
1. Use the BNC cable to connect the AC CAL OUTPUT to channel 1 input of the oscilloscope module.
2. On the oscilloscope module set the following parameters in the order given:
Menu
Calibration
Channel
Selection
Mode
Procedure
Signal
Coupling
Probe
Setting
Service Calibration
Oscillator Output
Probe Compensation
1 MΩ/DC
1:1
3. In the Calibration menu select AUTOSCALE.
4. In the Auto-Measure menu verify that the waveform is approximately 0.8 Vp_p at approximately
1000 Hz. Record the reading in the performance test record.
3-3
HP 16532A - Performance Tests
3-8. INPUT RESISTANCE
This test verifies the input resistance of the oscilloscope module. A four-wire measurement is used for accuracy at 50 Ω.
Specification:
1 M Ω ± 1% and 50 Ω ± 1%
Equipment Required:
The following equipment is required for the test. Procedures are based on the model or part numbers recommended.
Equipment Required
Recommended
Model/Part Number
Critical Specification
Digital Multimeter
Measure resistance (4-wire) better than 0.25%
accuracy
HP 3458A
Cables (2)
50 Ω BNC (m to m) 48-inch
HP 10503A
Adapter
50 Ω BNC Tee (m)(f)(f)
HP 1250-0781
Adapters (2)
50 Ω BNC (f) to Dual Banana Plug
HP 1251-2277
Procedure:
1. Set up the multimeter to make a 4-wire resistance measurement.
2. Use the BNC-to-banana adapters to connect one end of each BNC cable to the 4-wire resistance
connections on the multimeter, and connect the free ends of the cables to the BNC Tee.
3. Connect the male end of the BNC tee to the channel 1 input of the oscilloscope module. Set up the
oscilloscope module according to the following parameters in the order given:
Menu
Selection
Setting
Channel
Input
Probe
V/Div
Offset
Coupling
1
1:1
20 mV
0V
50 Ω / DC
Trigger
Mode
Immediate
3-4
HP 16532A - Performance Tests
4. Select RUN - SINGLE. The clicking of attenuator relays should be audible. Verify resistance readings on the digital multimeter of 50 Ω ± 0.5 Ω (49.5 to 50.5 Ω).
5. In the Channel menu change the Coupling field to 1 MΩ/DC.
6. Select RUN. The clicking of attenuator relays should be audible. Verify resistance readings on the
digital multimeter of 1 MΩ ± 10 kΩ (0.990 to 1.010 MΩ).
7. In the Channel menu change the Coupling field to 50 Ω/DC and V/Div to 200 mV/Div. Repeat steps
4 through 6.
8. In the Channel menu change the Coupling field to 50 Ω /DC and V/Div to 1 V/Div. Repeat steps 4
through 6.
9. In the Channel menu change the Coupling field to 50 Ω /DC and V/Div to 4 V/Div. Repeat steps 4
through 6.
10. Connect the male end of the BNC tee to the channel 2 input of the oscilloscope module.
11. Repeat steps 3 through 9 for channel 2, replacing channel 1 with channel 2 where applicable.
Note
If a reading is not within limits, then the attenuator for the out-of-bounds channel
should be replaced. See "Service" in Section VI.
3-5
HP 16532A - Performance Tests
3-9. VOLTAGE MEASUREMENT ACCURACY
This test verifies the DC voltage measurement accuracy of the instrument. This procedure uses a dual cursor measurement that nullifies offset error, resulting in the following measurement:
± [(1.5% of full scale) + (0.016 x V/div)].
Specification:
± [(1.5% of full scale + offset accuracy) + (0.008 x V/div)]
Equipment Required:
The following equipment is required for this test. Procedures are based on the model or part numbers recommended.
Equipment Required
Critical Specification
Recommended
Model/Part Number
DC Power Supply
-14 Vdc to + 14 Vdc, 0.1 mV resolution
HP 6114A
Digital Multimeter
Better than 0.1% accuracy
HP 3458A
Cable
50 Ω BNC (m to m) 48-inch
HP 10503A
Adapter
(cable to power supply)
50 Ω BNC (f) to Dual Banana Plug
HP 1251-2277
Adapter
50 Ω BNC tee (m)(f)(f)
HP 1250-0781
Blocking Capacitor
50 Ω BNC (m to f) 0.18 µF, 200 V
HP 10240B
3-6
HP 16532A - Performance Tests
Procedure:
1. Using a BNC adapter, connect one end of the cable to the power supply. Connect the BNC tee,
the blocking capacitor, and the shorting endcap to the other end of the cable. Refer to figure 3-1.
Figure 3-1. Voltage Measurement Accuracy Test
2. In the Waveform Selection menu delete channel 2. If channel 1 is not inserted, insert channel 1. Set
the following parameters in the order given.
Menu
Selection
Setting
Channel
Input
Probe
Coupling
s/Div
1
1:1
1 MΩ / DC
500 ns
Trigger
Mode
Immediate
Display
Mode
Average #
Grid
Markers
Average
8
On
On
Set the Channel Coupling field to 1 MΩ/DC or damage to the equipment will
result.
3-7
HP 16532A - Performance Tests
Use the following table for steps 3 through 9.
V/Div
4 V/Div
1 V/Div
400 mV/Div
40 mV/Div
40 mV/Div
400 mV/Div
1 V/Div
4 V/Div
Offset
-7.0 V
-1.75 V
-700.0 mV
-70.0 mV
70.0 mV
700.0 mV
1.75 V
7.0 V
Supply
-14.0 V
-3.50 V
-1.40 V
-140.0 mV
140.0 mV
1.40 V
3.50 V
14.0 V
Upper Limit
-13.7 V
-3.43 V
-1.37 V
-137.0 mV
143.0 mV
1.43 V
3.57 V
14.3 V
Lower Limit
-14.3 V
-3.57 V
-1.43 V
-143.0 mV
137.0 mV
1.37 V
3.43 V
13.7 V
3. With the power supply disconnected from the channel input, set the Channel menu to the V/Div
range and offset values shown in the first line of the table.
4. On the oscilloscope, select RUN - REPETITIVE and wait for approximately five seconds, then select
STOP. Read the voltage displayed under the channel label on the left of the display. Enter this
value on the performance test record in the "Zero Input" column.
5. Set the power supply to the first supply value listed in the table. Connect the power supply to the
channel input as shown in figure 3-1.
6. On the oscilloscope, select RUN - REPETITIVE and wait for approximately five seconds, then select
STOP. Read the voltage displayed under the channel label on the left of the display. Enter this
value on the performance test record in the "Measured" column.
7. To obtain the test results, subtract the Zero Input voltage from the Measured voltage listed in the
performance test record. For example: (Measured) - (Zero Input) = (Actual). When calculating the
results, observe the plus or minus value of the voltage measurements. Record the results in the performance test record in the "Actual" column.
8. Repeat steps 3 through 8 for the second line of the table, then for the rest of the lines of the table for
channel 1.
9. In the Waveform Selection menu, select Input channel 2. Delete channel 1 and insert channel 2. Repeat steps 2 through 8 for channel 2, replacing channel 1 with channel 2 where applicable.
3-8
HP 16532A - Performance Tests
3-10. OFFSET ACCURACY
This test verifies the offset accuracy.
Specification:
± (1.0% of channel offset + 2.0% of full scale)
Equipment Required:
The following equipment is required for the test. Procedures are based on the model or part numbers recommended.
Equipment Required
Recommended
Model/Part Number
Critical Specification
DC Power Supply
− 35.000 to + 35.000 Vdc, ± 1 mV resolution
HP 6114A
Digital Multimeter
Better than 0.1% accuracy
HP 3458A
Cable
50 Ω BNC (m to m) 48-inch
HP 10503A
Adapter
50 Ω BNC (f) to Dual Banana Plug
HP 1251-2277
Procedure:
Zero-Input Offset
1. Disconnect all cables and probes from the oscilloscope inputs. In the Waveform Selection menu delete channel 2. If channel 1 is not inserted, insert channel 1. Then set up the oscilloscope module
according to the following parameters in the order given:
Menu
Selection
Setting
Channel
Input
Probe
v/Div
Offset
Coupling
s/Div
1
1:1
4V
0V
1 MΩ / DC
500 ns
Trigger
Mode
Immediate
Display
Mode
Average #
Grid
Markers
Average
32
On
On
2. With the DC power supply disconnected from the channel input, make sure the markers are near
the center of the display.
3-9
HP 16532A - Performance Tests
3. Select RUN - REPETITIVE. Wait approximately 15 seconds (averaging complete), then select
STOP. The display should read 0.00 V ± 320.0 mV as read from the markers voltage field. Record
the reading in the performance test record.
4. In the Channel menu, change the vertical sensitivity to 1 V/Div. Select RUN - REPETITIVE and wait
approximately 15 seconds (averaging complete), then select STOP. The display should read 0.00 V
± 80.0 mV. Record the reading in the performance test record.
5. In the Channel menu, change the vertical sensitivity to 100 mV/Div. Select RUN - REPETITIVE and
wait approximately 15 seconds (averaging complete), then select STOP. The display should read
0.00 V ± 8.0 mV. Record the reading in the performance test record.
6. In the Channel menu, change the vertical sensitivity to 10 mV/Div. Select RUN - REPETITIVE and
wait approximately 15 seconds (averaging complete), then select STOP. The display should read
0.00 V ± 800.0 µV. Record the reading in the performance test record.
DC Input Offset
Set the Channel Coupling field to 1MΩ / DC or damage to the equipment will
result.
7. Use the BNC-to-banana adapter to connect the BNC cable between the power supply and channel
1 input. Monitor the power supply using a voltmeter.
8. Use the following table for the next steps:
V/Div
1 V/Div
100 mV/Div
20 mV/Div
20 mV/Div
100 mV/Div
1 V/Div
Offset
− 35.00 V
− 10.00 V
− 2.00 V
+ 2.00 V
+ 10.00 V
+ 35.00 V
Supply
− 35.00 V
− 10.00 V
− 2.00 V
+ 2.00 V
+ 10.00 V
+ 35.00 V
Min
− 35.4 V
− 10.1 V
− 2.02 V
+ 1.98 V
+ 9.90 V
+ 34.6 V
Max
− 34.6 V
− 9.90 V
− 1.98 V
+ 2.02 V
+ 10.1 V
+ 35.4 V
9. In the Channel menu set the V/Div range and offset per the first line of the table. Set the power
supply per the first line of the table.
10. On the oscilloscope, select RUN - REPETITIVE and wait approximately 15 seconds (averaging
complete), then STOP.
11. Read the voltage from the markers voltage field. It should be within the limits given in the table. Record the reading in the performance test record.
12. Repeat steps 7 through 10 for the remaining lines of the table using the V/Div range, offset, and supply voltages given in the table.
13. In the Channel menu select channel 2. In the Waveform Selection menu delete channel 1 and insert
channel 2.
14. Repeat steps 1 through 12 for channel 2, replacing channel 1 with channel 2 where applicable.
3-10
HP 16532A - Performance Tests
3-11. BANDWIDTH
This test checks the bandwidth of the oscilloscope module.
Specification:
Bandwidth (dc coupled) dc to 250 MHz
Equipment Required:
The following equipment is required for this test. Procedures are based on the model or part number recommended.
Equipment Required
Recommended
Model/Part Number
Critical Specification
Signal Generator
1 - 250 MHz at approx 170 mVrms
HP 8656B
Power Meter/Sensor
1 - 250 MHz ± 3% accuracy
HP 436/8482A
Power Splitter
Outputs differ by < 0.15 dB
HP 11667B
Cable
Type N (m to m) 24-inch
HP 11500B
Adapter
50 Ω Type N (m) to BNC (m)
HP 1250-0082
Procedure:
1. With the N cable, connect the signal generator to the power splitter input. Connect the power
sensor to one output of the power splitter.
2. Using an N-to-BNC adapter, connect the other power splitter output to the Channel 1 input of the
oscilloscope module.
3. In the Waveform Selection menu delete channel 2. If channel 1 is not inserted, insert channel 1.
Set the following parameters.
Menu
Selection
Setting
Channel
Input
Probe
v/Div
Offset
Coupling
s/Div
1
1:1
80 mV
0V
50 Ω / DC
200 ns
Trigger
Mode
Level
Edge
0V
Display
Mode
Average #
Grid
Markers
Average
32
On
Off
3-11
HP 16532A - Performance Tests
4. Set the signal generator for 1MHz at − 2.4 dBm. On the oscilloscope, select RUN - REPETITIVE. The
signal on the screen should be two cycles at three divisions amplitude.
5. After the measurement settles (averaging complete, about 15 seconds), select STOP. In the
Auto-Measure menu note the Vp-p reading. V1MHz = __________ mV.
6. Set the power meter Cal Factor % to the 1MHz value from the calibration chart on the power splitter.
Then press dB[REF] to set a 0 dB reference.
7. Change the signal generator to 250 MHz. Set power meter Cal Factor % to the 250 MHz value from
the chart.
8. Adjust the signal generator amplitude for a power reading as close as possible to 0.0 dB[REL].
Reading = __________ dB.
9. Set the oscilloscope s/Div for 2 ns/Div and select RUN-REPETITIVE.
10. After the measurement settles (averaging complete), select STOP. In the Auto-Measure menu note
the Vp-p reading. V250MHz = ________mV.
11. Calculate the response using the formula:
response ( dB) = 20 log10
V250Mhz
= 20log 10 (_____) = ______dB
V1MHz
12. Correct the result from step 11 with any differences in the power meter from step 8. Observe signs.
For example:
Result from step 11 = − 2.3 dB
Power meter reading = − 0.2 dB[REL]
then true response = (− 2.3) − (− 0.2) − 2.1dB
(__________) − (__________) = ____________ dB
13. The result from step 12 should be ≤ − 3.0 dB. Record the result in the Performance Test Record.
14. In the Channel menu select channel 2. In the Waveform Selection menu delete channel 1 and
insert channel 2.
15. Repeat steps 2 through 14 for channel 2, replacing channel 1 with channel 2 where applicable.
Note
Failure of the bandwidth test can be caused by a faulty attenuator or main
assembly.
3-12
HP 16532A - Performance Tests
3-12. TIME MEASUREMENT ACCURACY
This test uses a precise frequency source to check the accuracy of time measurement functions.
Specification:
± [(0.005% x ∆t) + (2 x 10− 6 x delay setting) + 150 ps]
Equipment Required:
The following equipment is required for this test. Procedures are based on the model or part number recommended.
Equipment Required
Recommended
Model/Part Number
Critical Specification
Signal Generator
200 MHz, timebase accuracy 0.25 ppm
HP 8656B Opt. 001
Cable
50 Ω BNC (m to m) 48-inch
HP 10503A
Adapter
50 Ω Type N (m) to BNC (f)
HP 1250-0780
Procedure:
1. Set the signal generator to 181.81818 MHz (5.5 ns period) and approximately 600 mV rms.
2. Use the N-to-BNC adapter to connect the cable to the signal generator. Connect the free end of the
BNC cable to the channel 1 input.
3. In the Waveform Selection menu delete channel 2. If channel 1 is not inserted, insert channel 1. Set
the following parameters in the order given:
Menu
Selection
Setting
Channel
Input
Probe
v/Div
Offset
Coupling
s/Div
1
1:1
400 mV
0.0 V
50 Ω / DC
2.00 ns
Trigger
Mode
Source
Level
Slope
Edge
Chan 1
0.0 V
Positive
Display
Mode
Grid
Normal
On
3-13
HP 16532A - Performance Tests
4. Select the Markers Auto menu, and set the following parameters:
Menu
Markers
Auto
Selection
Setting
X→
Set on chan 1
at Level 50%
Slope Positive
Occur 1
O→
Set on chan 1
at Level 50%
Slope Positive
Occur 2
Statistics
On
5. Select DONE. On the oscilloscope module select RUN - REPETITIVE. If the waveform is clipping,
reduce the signal generator output voltage level until the waveform no longer clips. Allow the oscilloscope module to run approximately two minutes, then select STOP.
6. In the statistics field, check to see that the MEAN X-O field is approximately 5.500 ns. Check that
both the MIN X-O and the MAX X-O are within 150 ps of the MEAN X-O. Record the results in the
performance test record.
7. Select the Markers Auto menu, and set the following parameters:
Menu
Markers
Auto
Selection
Setting
X→
Manual
O→
Set on chan 1
at Level 50%
Slope Positive
Occur 1
Statistics
On
8. Select DONE. In the Display menu, set MODE AVERAGE # 8 and DELAY 99.00 ns. Select RUN-REPETITIVE and allow the oscilloscope module to run approximately two minutes. Select STOP.
9. In the statistics field, check to see that the MEAN X-O field is approximately 99.000 ns. Check that
both the MIN X-O and the MAX X-O are within 155 ps of the MEAN X-O. Record the results in the
performance test record.
Note
Failure of the time measurement accuracy test can be caused by a defective
main assembly.
3-14
HP 16532A - Performance Tests
3-13. TRIGGER SENSITIVITY
This test checks channel triggers for sensitivity at rated bandwidth.
Specification:
dc to 50 MHz : 0.063 x full scale (0.25 division)
50 to 250 MHz : 0.125 x full scale (0.5 division)
Equipment Required:
The following equipment is required for this test. Procedures are based on the model or part number recommended.
Equipment Required
Recommended
Model/Part Number
Critical Specification
Signal Generator
50 and 250 MHz, 30-80 mV rms output
HP 8656B Opt. 001
Cable
50 Ω BNC 48-inch
HP 10503B
Adapter
50 Ω Type N (m) to BNC (f)
HP 1250-0780
Procedure:
1. In the Waveform Selection menu delete channel 2. If channel 1 is not inserted, insert channel 1. On
the oscilloscope module set the following parameters in the order given:
Menu
Selection
Setting
Channel
Input
Probe
v/Div
Offset
Coupling
s/Div
1
1:1
400 mV
0V
50 Ω / DC
20 ns
Trigger
Mode
Source
Level
Edge
Chan 1
0V
Display
Mode
Average #
Grid
Markers
Average
8
On
Off
2. With an N-to-BNC adapter and BNC cable, connect the signal generator to channel 1 input.
3-15
HP 16532A - Performance Tests
3. Set the signal generator for a 50 MHz and 35 mV rms signal. On the oscilloscope module select
RUN - REPETITIVE.
4. In the Auto-Measure menu read Vp_p . Adjust the signal generator output level so that the signal is
close to and not more than 100 mVp_p .
5. In the Trigger menu adjust the trigger level for a stable display. The test passes if the trigger is stable. Record whether the trigger is stable or is not stable.
6. On the oscilloscope module select STOP. Set the signal generator frequency to 250 MHz and
70 mV rms signal level.
7. In the Channel menu change s/Div to 5 ns/Div and select RUN.
8. In the Auto-Measure menu read Vp_p . Adjust the signal generator output level so that the signal is
close to and not more than 200 mVp_p .
9. In the Trigger menu adjust the trigger level for a stable display. The test passes if the trigger is stable. Record whether the trigger is stable or is not stable in the performance test record.
10. On the oscilloscope module select STOP. In the Channel menu select channel 2. In the Trigger
menu select Source channel 2. In the Waveform Selection menu delete channel 1 and insert
channel 2.
11. Repeat steps 1 through 9 for channel 2, replacing channel 1 with channel 2 where applicable.
Note
Failure of the trigger sensitivity test can be caused by a defective main
assembly.
3-16
HP 16532A - Performance Tests
Table 3-1. Performance Test Record
Hewlett-Packard
Model 16532A
Oscilloscope Module
Serial No.:
____________________
Recommended Performance
Verification Interval:
12
Months
Paragraph No.
Test
Tested by ______________________________
Work Order No. _________________________
Date Tested ____________________________
Results
3-6
DC CAL OUTPUT
5.000Vdc ± 10mV
Minimum
4.990Vdc
3-7
AC CAL OUTPUT
0.8Vp_p ± 10%
1000Hz ± 10%
Minimum
0.72Vp_p
Maximum
0.88Vp_p
Actual
____________Vp_p
Minimum
900Hz
Maximum
1100Hz
Actual
____________Hz
3-8
Input Resistance
50Ω± 0.5Ω (49.5 to 50.5Ω)
1MΩ± 10KΩ (0.990 to
1.010MΩ)
Maximum
5.010Vdc
Channel 1
50Ω
1MΩ
50Ω
1MΩ
50Ω
1MΩ
50Ω
1MΩ
@
@
@
@
@
@
@
@
Reading
20mV/Div
20mV/Div
200mV/Div
200mV/Div
1V/Div
1V/Div
4V/Div
4V/Div
Channel 2
50Ω
1MΩ
50Ω
1MΩ
50Ω
1MΩ
50Ω
1MΩ
3-9
@
@
@
@
@
@
@
@
Actual
____________Vdc
_____________Ω
_____________Ω
_____________Ω
_____________Ω
_____________Ω
_____________Ω
_____________Ω
_____________Ω
Reading
20mV/Div
20mV/Div
200mV/Div
200mV/Div
1V/Div
1V/Div
4V/Div
4V/Div
Voltage Measurement Accuracy
Channel 1
Upper Limit
Lower Limit
Zero Input
Measured
-13.7V
-3.43V
-1.37V
-137.0mV
143.0mV
1.43V
3.57V
14.3V
-14.3V
-3.57V
-1.43V
-143.0mV
137.0mV
1.37V
3.43V
13.7V
__________
__________
__________
__________
__________
__________
__________
__________
__________
__________
__________
__________
__________
__________
__________
__________
_____________Ω
_____________Ω
_____________Ω
_____________Ω
_____________Ω
_____________Ω
_____________Ω
_____________Ω
Actual
__________V
__________V
__________V
__________mV
__________mV
__________V
__________V
__________V
3-17
HP 16532A - Performance Tests
Table 3-1. Performance Test Record (Continued)
Paragraph No.
3-9
3-10
Test
Results
Voltage Measurement Accuracy
(continued)
Upper Limit
Lower Limit
Channel 2
Zero Input
Measured
-13.7V
-3.43V
-1.37V
-137.0mV
143.0mV
1.43V
3.57V
14.3V
__________
__________
__________
__________
__________
__________
__________
__________
__________
__________
__________
__________
__________
__________
__________
__________
__________V
__________V
__________V
__________mV
__________mV
__________V
__________V
__________V
Reading
Actual
-14.3V
-3.57V
-1.43V
-143.0mV
137.0mV
1.37V
3.43V
13.7V
Offset Accuracy
V/Div Setting
Zero-input Offset-Channel 1
4V/Div
1V/Div
100mV/Div
10mV/Div
Offset Accuracy
DC Input Offset-Channel 1
Supply
Min
-35.00V
-10.00V
-2.00V
+2.00V
+10.00V
+35.00V
-35.4V
-10.1V
-2.02V
+1.98V
+9.90V
+34.6V
Offset Accuracy
V/Div Setting
Zero-input Offset-Channel 2
4V/Div
1V/Div
100mV/Div
10mV/Div
Offset Accuracy
DC Input Offset-Channel 2
3-11
Bandwidth
≤ − 3.0dB
0.00V±
0.00V±
0.00V±
0.00V±
320.0mV
80.0mV
8.0mV
800.0µV
Max
-34.6V
-9.90V
-1.98V
+2.02V
+10.1V
+35.4V
Reading
0.00V±
0.00V±
0.00V±
0.00V±
Supply
Min
-35.00V
-10.00V
-2.00V
+2.00V
+10.00V
+35.00V
-35.4V
-10.1V
-2.02V
+1.98V
+9.90V
+34.6V
320.0mV
80.0mV
8.0mV
800.0µV
Max
-34.6V
-9.90V
-1.98V
+2.02V
+10.1V
+35.4V
Channel 1:
Actual Reading= ________ dB
Channel 2:
Actual Reading = ________ dB
3-18
Actual
___________V
___________V
___________V
___________V
Actual
-__________V
-__________V
-__________V
+__________V
+__________V
+__________V
Actual
___________V
___________V
___________V
___________V
Actual
-__________V
-__________V
-__________V
+__________V
+__________V
+__________V
HP 16532A - Performance Tests
Table 3-1. Performance Test Record (Continued)
Paragraph No.
3-12
3-13
Test
Results
Time Measurement Accuracy
5.500ns ± 150ps
MEAN X-O __________ns
MIN X-O __________ns
MEAN X-O - MIN X-O = _________ps
MAX X-O __________ns
MAX X-O - MEAN X-O = _________ps
99.00ns ± 155ps
MEAN X-O __________ns
MIN X-O __________ns
MEAN X-O - MIN X-O = _________ps
MAX X-O __________ns
MAX X-O - MEAN X-O = _________ps
Trigger Sensitivity
Channel 1:
Trigger Stable @ 100mVp_p
Trigger Stable @ 200mVp_p
Yes ____ No ____
Yes ____ No ____
Channel 2:
Trigger Stable @ 100mVp_p
Trigger Stable @ 200mVp_p
Yes ____ No ____
Yes ____ No ____
3-19
3-20
TABLE OF CONTENTS
Calibration
4-1.
4-2.
4-3.
4-4.
4-5.
4-6.
4-7.
4-8.
4-9.
4-10.
4-11.
4-12.
4-13.
4-14.
Introduction..........................................................................................................................4-1
Safety Requirements............................................................................................................4-1
Calibration Interval...............................................................................................................4-1
Maintaining System Integrity ...............................................................................................4-1
Calibration Protection Switch..............................................................................................4-1
Recommended Test Equipment .........................................................................................4-2
Instrument Warmup .............................................................................................................4-2
Calibration ............................................................................................................................4-2
Setting the PROTECT/UNPROTECT Switch to UNPROTECT ...........................................4-3
Equipment Required for Calibration...................................................................................4-4
Loading the Default Calibration Factors ............................................................................4-4
Self Cal Menu Calibrations .................................................................................................4-5
Setting the PROTECT/UNPROTECT Switch to PROTECT................................................4-8
Sealing the Mainframe........................................................................................................4-8
HP 16532A - Calibration
SECTION IV
Calibration
4-1. Introduction
This section provides information on calibrating
the HP 16532A 1 GSa/s Oscilloscope module.
Information is included about when to calibrate the
module, the module warm up interval required
prior to calibration, and how to do the actual
calibration of the module. Also included are safety
requirements to observe when working on the
equipment, a list of recommended test equipment,
and equipment setups for the different calibration
procedures. Although the module has no
hardware adjustments, it does contain a
calibration PROTECT/UNPROTECT switch that
you use before and after calibration. Actual
calibration of the module is performed in software.
4-2. Safety Requirements
Read the safety summary at the front of this
manual before any replacement, maintenance, or
repair is performed.
Specific warnings, cautions, and instructions are
placed wherever applicable throughout the
manual. These must be observed during all
phases of operation, service, and repair of the
module. Failure to comply with them violates
safety standards of design, manufacture, and
intended use of this module. Hewlett-Packard
assumes no liability for the failure of the customer
to comply with these safety requirements.
4-3. Calibration Interval
To maintain proper calibration, perform calibration
at approximately six-month intervals, or every 1000
hours, when the instrument is being used under
normal operating conditions. Immediate
calibration is required if one of the following
occurs:
•
Oscilloscope module is installed, repaired, or
replaced, or if the card slot configuration is
changed.
•
The oscilloscope software changes revision
number and asterisks (* ) are on the calibration menu.
•
Ambient temperature changes more than
10 °C.
If you add or delete a card(s) from a calibrated
multicard oscilloscope module, you must perform
the Time Null calibration.
4-4. Maintaining System Integrity
Calibration factors depend on the mainframe,
module, and module configuration all staying
together. If oscilloscope modules are
interchanged between mainframes, or the
oscilloscope module slot configuration is changed,
calibration must be repeated. In an environment in
which the possibility of sharing oscilloscope
modules exists, Hewlett-Packard recommends
taking the following precautions in order to
maintain system integrity:
With the system turned off, place the
PROTECT/UNPROTECT switch (all switches in a
single or a chained, multiple oscilloscope module
configuration) in the UNPROTECT position.
Boot the system and perform calibration for each
module.
Turn off the system, place the
PROTECT/UNPROTECT switch (all switches in a
single or a chained, multiple oscilloscope module
configuration) in the PROTECT position, then seal
the mainframe.
4-5. Calibration Protection Switch
Each HP 16532A board stores the calibration
factors for that board in non-volatile RAM on the
board itself. The HP 16532A board contains a
calibration protection (PROTECT/UNPROTECT)
switch. With the switch in the PROTECT position,
calibration values cannot be changed.
4-1
HP 16532A - Calibration
To run the scope calibration, the switch must be in
the UNPROTECT position. When you have more
than one HP 16532A board in a mainframe, this
must be done for each one of the boards. After
calibration is complete, all the switches must be
set to the PROTECT position to save the
calibration values. Also, all the modules or filler
panels must be reinstalled in the mainframe, then a
seal should be placed on the equipment such that
the seal touches both the top-most module and
the mainframe. This is done to assure that
calibration integrity is maintained.
4-6. Recommended Test Equipment
The only test equipment required for calibration
are cables and adapters. These are listed in
paragraph 4-10 and are called out in the applicable
calibration procedure.
4-7. Instrument Warmup
Calibrate the oscilloscope module at its
environmental ambient temperature, after a
30-minute warmup period of the
HP 16500A/16501A mainframe with the module
installed.
4-8. Calibration
This section provides software calibration
procedures for the HP 16532A oscilloscope
module. There are no hardware adjustments on
the oscilloscope module. The calibration is
performed without access to the interior of the
instrument.
When ordered with a system, oscilloscope
modules are calibrated at Hewlett-Packard as
single units (not chained together). If you need to
use the modules as one unit (chained together),
perform the Time Null Calibration in section 4-12.
The calibration procedure sets the oscilloscope
calibration factors and stores them in non-volatile
RAM on the board. The procedures use signals
generated in the oscilloscope module itself to
calibrate channel sensitivity, offset, and trigger
parameters. The calibration factors set up the
module each time the instrument is turned on.
The calibration procedures in this section should
be followed in their entirety and in the sequence
listed in table 4-1. Though in this section the
default calibrations are loaded before calibration,
calibration can be done without loading them.
However, if they are loaded, they should be loaded
before an actual calibration is done.
When calibrating the module, it must be installed in
the mainframe, and the mainframe covers and filler
panels must be in place. The module must be
warmed up (refer to "Instrument Warmup" given
earlier in this section).
Calibration procedures require the use of cables
and adapters only. Non-service personnel can
perform the calibration, however, to do the
calibration, it is necessary to unprotect the current
calibration values. This may not be allowed in
some circumstances − check with your
Calibration Laboratory or Service Department
before you attempt calibration. To perform
calibration, follow the "Self Cal Menu Calibration"
procedures given later in this section.
Table 4-1. Calibration Sequence
Sequence
1
2
3
4
5
6
7
8
4-2
Calibration
Set the PROTECT/UNPROTECT Switch to UNPROTECT
Default (Not required as part of the calibration procedures)
Self Cal Menu
Vertical Calibration (all channels)
Delay Calibration− Channel 1
Delay Calibration− Channel 2
Time Null Calibration (all channels)
Logic Trigger - Channel 1
External Trigger Null Calibration
Set the PROTECT/UNPROTECT Switch to PROTECT
Paragraph
4-9
4-11
4-12
4-12
4-12
4-12
4-12
4-12
4-13
HP 16532A - Calibration
4-9. Setting the PROTECT/UNPROTECT Switch to UNPROTECT
The effects of ELECTROSTATIC DISCHARGE can damage electronic components. Use grounded wrist straps and mats when you are performing any kind of
service on this module.
The oscilloscope board contains a calibration PROTECT/UNPROTECT switch. This switch must be set
to UNPROTECT before calibration can be done. Set the switch to UNPROTECT as follows:
1. Remove power from the instrument. Pull halfway out all of the modules located above the
oscilloscope and remove the filler panels and cards located above the oscilloscope. See figure 4-1
for the removal sequence.
Figure 4-1. Endplate Overlap - Top Sequence
2. Remove the oscilloscope module and set the PROTECT/UNPROTECT switch to the UNPROTECT
position. See Figure 4-2 to locate this switch.
Figure 4-2. Location of the PROTECT/UNPROTECT Switch
3. Repeat step 2 for every oscilloscope module if this is a multimodule calibration.
4. Reinstall the modules and filler panels in reverse order of steps 1 and 2.
4-3
HP 16532A - Calibration
4-10. Equipment Required for Calibration
The equipment listed below is required for calibration:
Cable (2)
Cable
Adapter
Adapter
50Ω BNC, 9-inch (equal length)
50Ω BNC - SMB
50Ω BNC tee (m)(f)(f)
50Ω BNC (m)(m)
HP 10502A
HP 16532-61601
HP 1250-0781
HP 1250-1236
4-11. Loading the Default Calibration Factors
Once the default calibration factors are loaded, all calibrations must be done.
This includes all of the calibrations in the Self Cal menu. The calibration must be
performed in the exact sequence listed in table 4-1.
Note
The calibration PROTECT/UNPROTECT switch on the oscilloscope board must
be set to UNPROTECT.
Load the default calibration factors as follows:
1. Touch the menu field (top row, second from the left), then select Calibration from the pop-up menu.
2. Touch the Mode field, then select Service Cal from the pop-up menu.
3. Touch the Procedure field, then select Default Values from the pop-up menu.
Note
After you touch the Start field, you can abort the calibration procedure either by
touching the Cancel field, if it is available in the menu, or by touching either the
Mode or Procedure fields if the continue field is still displayed on the screen.
4. Touch the Start field and follow the instructions on the display. The display should now look similar
to the display shown in figure 4-3.
Figure 4-3. Default Calibration Display
4-4
HP 16532A - Calibration
4-12. Self Cal Menu Calibrations
Note
After you touch the Start field, you can abort the calibration procedure either by
touching the Cancel field, if it is available in the menu, or by touching either the
Mode or Procedure fields if the continue field is still displayed on the screen.
Messages will be displayed as each calibration routine is completed to indicate calibration has passed or
failed. The resulting calibration factors are automatically stored to nonvolatile RAM at the conclusion of
each calibration routine.
The Self Cal menu lets you calibrate vertical sensitivity (Vert Cal) for channels 1 and 2 individually or both
channels on a board simultaneously if it is a stand alone scope. Also, the Self Cal menu lets you calibrate delay (Delay) for channel 1 and 2 separately, then Time Null for each channel separately (except
channel 1 of the master board), and Ext Trig Null for the external trigger (ECL).
Calibrate Vert Cal of the Self Cal menu as follows:
1. Connect two BNC 50-Ω, 9-inch cables to the BNC tee adapter.
Note
When you touch Start, the instrument will prompt you to connect the cables to
the appropriate locations on the rear panel of the module.
2. Touch the Mode field, then select Self Cal from the pop-up menu.
3. Touch the Procedure field, then select Vert Cal from the pop-up menu.
4. Touch the Channel field, then select a channel choice from the pop-up menu.
5. Touch the Start field and follow the instructions on the display.
6. After completion of vertical calibration remove the cables from the rear panel of the oscilloscope.
Calibrate Delay of the Self Cal menu as follows:
1. Obtain a BNC 50-Ω, 9-inch cable.
Note
When you touch Start, the instrument will prompt you to connect the cable to the
appropriate location on the rear panel of the module.
2. Touch the Procedure field, then select Delay from the pop-up menu.
4-5
HP 16532A - Calibration
3. Touch the Channel field, then select S1 from the pop-up menu (where S is the slot letter where the
oscilloscope module is installed in the mainframe).
4. Touch the Start field and follow the instructions on the display.
5. After completion of channel 1 delay calibration, remove the cable from the rear panel of the
oscilloscope.
6. Repeat steps 3 through 5 for channel S2.
7. After completing all of the channel delay calibrations, remove the cable from the rear panel of the
oscilloscope.
Calibrate the Time Null of the Self Cal menu as follows:
1. Connect two BNC 50-Ω, 9-inch cables to the BNC tee adapter.
Note
When you touch Start, the instrument will prompt you to connect the cables to
the appropriate locations on the rear panel of the module.
2. Touch the Procedure field, then select Time Null from the pop-up menu.
3. Touch the Channel field, then select S2 from the pop-up menu (where S is the slot letter where the
oscilloscope module is installed in the mainframe).
4. Touch the Start field and follow the instructions on the display.
5. Repeat steps 3 through 4 for each channel, replacing S2 with the appropriate channel number.
6. At the conclusion of the time null calibration, remove the cables from the rear of the module.
Calibrate the Logic Trigger of the Self Cal menu as follows:
1. Obtain one BNC 50 Ω 9-inch cable.
Note
When you touch Start, the instrument will prompt you to connect the cables to
the appropriate locations on the rear panel of the module.
2. Touch the Procedure field, then select Logic Trigger from the pop-up menu.
3. Touch the Start field, then follow the instructions on the display.
4. At the conclusion of the Logic Trigger calibration, remove the cable from the rear of the module.
4-6
HP 16532A - Calibration
Calibrate the Ext Trig Null of the Self Cal menu as follows:
1. Connect the cables, BNC adapter, and BNC tee adapter together as shown in figure 4-4.
Note
When you touch Start, the instrument will prompt you to connect the cables to
the appropriate locations on the rear panel of the module.
Figure 4-4. Ext Trig Null Calibration Connections
2. Touch the Procedure field, then select Ext Trig Null from the pop-up menu.
3. Touch the Start field and follow the instructions on the display.
4. At the conclusion of the ext trig null calibration, remove the cables from the rear of the module.
Messages will be displayed as each calibration routine is completed to indicate calibration has passed or
failed. The resulting calibration factors are automatically stored to nonvolatile RAM at the conclusion of
each calibration routine.
This is the conclusion of the calibration procedures. The display should now look similar figure 4-5.
4-7
HP 16532A - Calibration
Figure 4-5. End of Calibration Display
4-13. Setting the PROTECT/UNPROTECT Switch to PROTECT
The effects of ELECTROSTATIC DISCHARGE can damage electronic components. Use grounded wrist straps and mats when you are performing any kind of
service on this module.
The PROTECT/UNPROTECT switch must be set to PROTECT after calibration is finished. Set the switch
to PROTECT as follows:
1. Remove power from the instrument. Pull the modules located above the oscilloscope halfway out,
then remove the filler panels and cards located above the oscilloscope. See figure 4-6 for the
removal sequence.
Figure 4-6. Endplate Overlap - Top Sequence
2. Remove the oscilloscope module and set the PROTECT/UNPROTECT switch to the PROTECT
position. See Figure 4-2 to locate this switch.
3. Repeat step 2 for each module calibrated.
4. Reinstall the modules and filler panels in reverse order of steps 1 and 2.
4-14. Sealing the Mainframe
After calibration has been completed, the mainframe should be sealed to protect the integrity of the
system. Place a seal on the equipment such that the seal touches both the top-most module (or filler
panel) and the mainframe.
4-8
TABLE OF CONTENTS
Replaceable Parts
5-1.
5-2.
5-3.
5-4.
5-5.
5-6.
Introduction .......................................................................................................................... 5-1
Abbreviations ....................................................................................................................... 5-1
Replaceable Parts List ......................................................................................................... 5-1
Ordering Information ........................................................................................................... 5-1
Exchange Assemblies ......................................................................................................... 5-1
Direct Mail Order System .................................................................................................... 5-2
HP 16532A - Replaceable Parts
SECTION V
Replaceable Parts
5-1. Introduction
The service policy for this instrument is replacement of defective assemblies. This service manual
contains information for finding a defective
assembly.
This section contains parts and ordering
information for the HP 16532A Oscilloscope
Module. Table 5-1 lists the reference designator
and abbreviations used throughout this manual.
Table 5-2 lists all replaceable parts by reference
designator.
5-2. Abbreviations
Table 5-1 lists abbreviations used throughout the
manual. In some cases two forms of the
abbreviations are used, one in all capital letters,
the other partially or not capitalized. This was
done because the abbreviations in the parts list are
always all capitals. However, in other parts of the
manual other abbreviation forms are used with
both lower and uppercase letters.
5-3. Replaceable Parts List
Table 5-2 lists replaceable parts and is organized
as follows:
•
Exchange assemblies in alphanumerical
order by reference designation.
•
Electrical assemblies in alphanumerical order
by reference designation.
•
Chassis-mounted parts in alphanumerical
order by reference designation.
The information given for each part consists of the
following:
•
Complete reference designation.
•
Hewlett-Packard part number.
•
Total quantity.
•
Description of part.
•
Check digit.
The total quantity for each part is only given once
at the first appearance of the part number in the list.
5-4. Ordering Information
To order a part listed in the replaceable parts table,
quote the Hewlett-Packard part number, check
digit, indicate the quantity required, and address
the order to the nearest Hewlett-Packard office.
To order a part that is not listed in the replaceable
parts table, include the instrument model number,
instrument serial number, the description and
function of the part, and number of parts required.
Address the order to the nearest Hewlett-Packard
office.
5-5. Exchange Assemblies
Exchange assemblies are available when a
repairable assembly is returned to
Hewlett-Packard. These assemblies have been set
up on the "Exchange Assembly" program. This
allows the customer to exchange the faulty
assembly with one that has been repaired,
calibrated, and performance verified by the
factory. The cost is significantly less than that of a
new assembly.
5-1
HP 16532A - Replaceable Parts
Exchange assemblies are listed in a separate
section in the replaceable parts table. They have a
part number in the form XXXXX-695XX (where the
new parts would be XXXXX-665XX). Before
ordering an "exchange assembly," check with your
local parts or repair organization for procedures.
5-6. Direct Mail Order System
Within the USA, Hewlett-Packard can supply parts
through direct mail order. The advantages are as
follows:
•
5-2
Direct ordering and shipment from
Hewlett-Packard Parts Center in Mountain
View, California.
•
No maximum or minimum on any mail order
(there is a minimum order for parts ordered
through local Hewlett-Packard offices when
orders require billing and invoicing).
•
Prepaid transportation (there is a small
handling charge for each order).
•
No invoices - to provide these advantages,
check or money order must accompany each
order.
Mail order forms and specific ordering information
are available through your local Hewlett-Packard
offices.
HP 16532A - Replaceable Parts
Table 5-1. Reference Designator and Abbreviations
REFERENCE DESIGNATOR
A
B
BT
C
CR
DL
DS
E
=
=
=
=
=
assembly
fan;motor
battery
capacitor
diode;diode thyristor;
varactor
= delay line
= annunciator;lamp;LED
= misc. electrical part
F
FL
H
J
L
MP
P
=
=
=
=
fuse
filter
hardware
electrical connector
(stationary portion);jack
= coil;inductor
= misc. mechanical part
= electrical connector
(moveable portion);plug
Q
R
RT
S
T
TB
TP
= transistor;SCR;
triode thyristor
= resistor
= thermistor
= switch;jumper
= transformer
= terminal board
= test point
U
=
=
=
=
=
=
=
=
=
=
=
=
=
=
RND
ROM
RPG
RX
S
V
VR
W
X
Y
= integrated circuit;
microcircuit
= electron tube; glow
lamp
= voltage regulator;
breakdown diode
= cable
= socket
= crystal unit(piezoelectric or quartz)
ABBREVIATIONS
A
A/D
AC
ADJ
AL
AMPL
ANLG
ANSI
ASSY
ASTIG
ASYNCHRO
ATTEN
AWG
BAL
BCD
BD
BFR
BIN
BRDG
BSHG
BW
C
CAL
CC
CCW
CER
CFM
CH
CHAM
CHAN
CHAR
CM
CMOS
CMR
CNDCT
CNTR
CON
CONT
CRT
CW
D
D/A
DAC
DARL
DAT
DBL
DBM
DC
DCDR
DEG
DEMUX
DET
DIA
DIP
DIV
DMA
DPDT
DRC
DRVR
=
=
=
=
=
=
=
=
amperes
analog-to-digital
alternating current
adjust(ment)
aluminum
amplifier
analog
American National
Standards Institute
= assembly
= astigmatism
= asynchronous
= attenuator
= American wire gauge
= balance
= binary-code decimal
= board
= buffer
= binary
= bridge
= bushing
= bandwidth
= ceramic;cermet
(resistor)
= calibrate;calibration
= carbon composition
= counterclockwise
= ceramic
= cubic feet/minute
= choke
= chamfered
= channel
= character
= centimeter
= complementary metaloxide-semiconductor
= common mode rejection
= conductor
= counter
= connector
= contact
= cathode-ray tube
= clockwise
= diameter
= digital-to-analog
= digital-to-analog
converter
= darlington
= data
= double
= decibel referenced
to 1mW
= direct current
= decoder
= degree
= demultiplexer
= detector
= diameter
= dual in-line package
= division
= direct memory access
= double-pole,
double-throw
= DAC refresh controller
= driver
DWL
ECL
ELAS
EXT
F
FC
FD
FEM
FF
FL
FM
FR
FT
FW
FXD
GEN
GND
GP
GRAT
GRV
H
HD
HDND
HG
HGT
HLCL
HORIZ
HP
HP-IB
HR
HV
HZ
I/O
IC
ID
IN
INCL
INCAND
INP
INTEN
INTL
INV
JFET
JKT
K
L
LB
LCH
LCL
LED
LG
LI
LK
LKWR
LS
LV
M
MACH
MAX
=
=
=
=
=
dowel
emitter coupled logic
elastomeric
external
farads;metal film
(resistor)
= carbon film/
composition
= feed
= female
= flip-flop
= flat
= foam;from
= front
= gain bandwidth
product
= full wave
= fixed
= generator
= ground(ed)
= general purpose
= graticule
= groove
= henries;high
= hardware
= hardened
= mercury
= height
= helical
= horizontal
= Hewlett-Packard
= Hewlett-Packard
Interface Bus
= hour(s)
= high voltage
= Hertz
= input/output
= integrated circuit
= inside diameter
= inch
= include(s)
= incandescent
= input
= intensity
= internal
= inverter
= junction fieldeffect transistor
= jacket
= kilo(103)
= low
= pound
= latch
= local
= light-emitting
diode
= long
= lithium
= lock
= lockwasher
= low power Schottky
= low voltage
= mega(106);megohms;
meter(distance)
= machine
= maximum
MFR
MICPROC
MINTR
MISC
MLD
MM
MO
MTG
MTLC
MUX
MW
N
NC
NMOS
NPN
NPRN
NRFR
NSR
NUM
OBD
OCTL
OD
OP AMP
OSC
P
P/O
PC
PCB
PD
PF
PI
PL
PLA
PLST
PNP
POLYE
POS
POT
POZI
PP
PPM
PRCN
PREAMP
PRGMBL
PRL
PROG
PSTN
PT
PW
PWR
R-S
RAM
RECT
RET
RF
RGLTR
RGTR
RK
RMS
manufacturer
microprocessor
miniature
miscellaneous
molded
millimeter
metal oxide
mounting
metallic
multiplexer
milliwatt
nano(10-9)
no connection
n-channel metaloxide-semiconductor
= negative-positivenegative
= neoprene
= not recommended for
field replacement
= not separately
replaceable
= numeric
= order by description
= octal
= outside diameter
= operational amplifier
= oscillator
= plastic
= part of
= printed circuit
= printed circuit board
= power dissipation
= picofarads
= plug in
= plate(d)
= programmable logic
array
= plastic
= positive-negativepositive
= polyester
= positive;position
= potentiometer
= pozidrive
= peak-to-peak
= parts per million
= precision
= preamplifier
= programmable
= parallel
= programmable
= position
= point
= potted wirewound
= power
= reset-set
= random-access
memory
= rectifier
= retainer
= radio frequency
= regulator
= register
= rack
= root-mean-square
SCR
SEC
SEG
SEL
SGL
SHF
SI
SIP
SKT
SL
SLDR
SLT
SOLD
SPCL
SQ
SREG
SRQ
STAT
STD
SYNCHRO
TA
TBAX
TC
TD
THD
THK
THRU
TP
TPG
TPL
TRANS
TRIG
TRMR
TRN
TTL
TX
U
UL
UNREG
VA
VAC
VAR
VCO
VDC
VERT
VF
VS
W
W/
W/O
WW
XSTR
ZNR
oC
oF
oK
=
=
=
=
=
Round
read-only memory
rotary pulse generator
receiver
Schottky-clamped;
seconds(time)
= screw;silicon
controlled rectifier
= second(time);secondary
= segment
= selector
= single
= shift
= silicon
= single in-line
package
= skirt
= slide
= solder
= slot(ted)
= solenoid
= special
= square
= shift register
= service request
= static
= standard
= synchronous
= tantalum
= tubeaxial
= temperature coefficient
= time delay
= thread(ed)
= thick
= through
= test point
= tapping
= triple
= transformer
= trigger(ed)
= trimmer
= turn(s)
= transistor-transistor
= transmitter
= micro(10-6)
= Underwriters
Laboratory
= unregulated
= voltampere
= volt,ac
= variable
= voltage-controlled
oscillator
= volt,dc
= vertical
= voltage,filtered
= versus
= watts
= with
= without
= wirewound
= transistor
= zener
= degree Celsius
(Centigrade)
= degree Fahrenheit
= degree Kelvin
5-3
HP 16532A - Replaceable Parts
Figure 5-1. Parts Identification
5-4
HP 16532A - Replaceable Parts
Table 5-2. Replaceable Parts List
Reference
Designator
HP Part
Number
C Qty
D
Description
16532-69501
2
1
Board Exchange Assembly
(does not include attenuator assemblies)
A1
16532-66501
6
1
A2
16532-63401
9
2
Board Assembly
(does not include attenuator assemblies)
Attenuator Assembly
H1
H2
H3
H4
H5
H6
H7
16500-22401
0510-0684
1250-2075
_________
_________
0515-0430
0515-1246
5
9
5
3
1
2
2
4
2
2
3
4
Endplate Thumbscrew
Thumbscrew Retaining Ring
Nut, Hex, 1/2-inch, RF Connector
Nut, Hex, RF Connector (Included with W2)
Washer, RF Connector (Included with W2)
Endplate Screw
Attenuator Retainer Screw
MP1
MP2
MP3
16532-40501
16500-29101
16532-94301
2
6
3
1
1
1
Rear Panel
Ground Spring
ID Label
W1
W2
16532-61601
16532-61602
7
8
1
1
Master-Slave Trigger Cable
External Trigger Cable
Mfr
Code
Mfr Part
Number
5-5
5-6
TABLE OF CONTENTS
Service
6-1.
6-2.
6-3.
6-4.
6-5.
6-6.
6-7.
6-8.
6-9.
6-10.
6-11.
Introduction ......................................................................................................................... 6-1
Safety Requirements ........................................................................................................... 6-1
Recommended Test Equipment ........................................................................................ 6-1
Module Block Diagram and Theory of Operation............................................................... 6-1
Attenuator Theory of Operation ......................................................................................... 6-1
Main Assembly Theory of Operation .................................................................................. 6-1
Self-Tests ............................................................................................................................. 6-4
Troubleshooting .................................................................................................................. 6-10
Oscilloscope Module Removal and Replacement ............................................................ 6-18
Trigger Cable Removal and Replacement ......................................................................... 6-20
Attenuator Removal and Replacement .............................................................................. 6-21
HP 16532A - Service
SECTION VI
Service
6-1. Introduction
6-5. Attenuator Theory of Operation
The service policy for this instrument is replacement of defective assemblies. This service manual
contains information for finding a defective
assembly. This section contains information for
servicing the HP 16532A Oscilloscope Module.
Included are a block level theory and procedures
for self diagnostics and troubleshooting. If the
module or a cable is determined faulty, procedures
are provided for module and cable replacement.
The channel signals are conditioned by the
attenuator/preamps, thick film hybrids containing
passive attenuators, impedance converters, and a
programmable amplifier. The channel sensitivity
defaults to the standard 1-2-4 sequence (other
sensitivities can be set also). However, the
firmware uses passive attenuation of 1, 5, 25, and
125, with the programmable preamp, to cover the
entire sensitivity range.
6-2. Safety Requirements
Specific warnings, cautions, and instructions are
placed wherever applicable throughout the
manual. These must be observed during all
phases of operation, service, and repair of the
module. Failure to comply with them violates
safety standards of design, manufacture, and
intended use of this module. Hewlett-Packard
assumes no liability for the failure of the customer
to comply with these safety requirements.
The input has a selectable 1 MΩ input impedance
with ac or dc coupling or a 50Ω input impedance
with dc coupling. Compensation for the passive
attenuators is laser trimmed and is not adjustable.
After the passive attenuators, the signal is split into
high-frequency and low-frequency components.
Low frequency components are amplified on the
main assembly, where they are combined with the
offset voltage. The ac coupling is implemented in
the low frequency amplifier.
Table 1-3 lists recommended test equipment. Any
equipment that satisfies the critical specification
given in the table may be substituted for the
recommended models.
The high- and low-frequency components of the
signal are recombined and applied to the input
FET of the preamp. The FET provides a high input
impedance for the preamp. The programmable
preamp adjusts the gain to suit the required
sensitivity and provides the output signal to the
main assembly. The output signal is then sent to
both the trigger circuitry and ADC.
6-4. Module Block Diagram and Theory of Operation
6-6. Main Assembly Theory of
Operation
The following paragraphs contain block level
theory of operation. This theory is not intended for
component level troubleshooting, rather it is to be
used to help isolate a module failure to card level.
Acquisition
6-3. Recommended Test Equipment
The HP 16532A Oscilloscope Module is contained
on one board. It runs at a 1 GSa/s digitizing rate,
with a 250 MHz single-shot (real-time) bandwidth,
8000 samples per measurement per channel, with
2-channel simultaneous acquisition which is
expandable to up to 8 channels. See figure 6-1.
The acquisition circuitry provides the sampling,
digitizing, and storing of the signals from the
channel attenuators. The channels are identical.
The external trigger (ECL) input cannot be
displayed. Trigger signals from each channel and
the external triggers synchronize acquisition
through the time base circuitry. A 100 MHz
oscillator and a time base provide system timing
and sample clocking. A voltage-controlled
oscillator (VCO), frequency divider, and digital
6-1
HP 16532A - Service
Figure 6-1. HP 16532A Oscilloscope Block Diagram
phase detector provide the sample clock for higher
sample rates. After conditioning and sampling, the
signals are digitized, then stored in a hybrid IC
containing a FISO (fast in, slow out) memory.
ADC. The eight-bit ADC digitizes the channel
signal. Digitization is done by comparators in a
flash converter. The sample clock latches the
digitized value of the input to save it so that it can
be sent to memory.
6-2
FISO Memory. 8000 samples of the FISO (fast in,
slow out) memory are used per measurement per
channel. Memory positions are not addressed
directly. The configuration is a ring which loops
continuously as it is clocked. Memory position is
tracked by counting clocks. The clocking rate is
the same as the ADC, however the clock
frequency is half that of the ADC since the FISO
clocks on both transitions of the clock period.
Data is buffered onto the CPU data bus for
processing.
HP 16532A - Service
Triggering. There are two main trigger circuits
that trigger four trigger sources. The two trigger
circuits are the analog trigger and the logic trigger.
The analog trigger IC operates as a multichannel
Schmidt trigger/comparator. A trigger signal (a
copy of the analog input signal) from each of the
inputs is directed to the analog trigger IC inputs.
The trigger signal is continuously compared with
the trigger reference level selected by the user.
Once the trigger condition is met, the trigger TRUE
signal is fed to the logic trigger, which begins the
acquisition and store functions by way of the time
base.
The four trigger sources are Channel 1, Channel 2,
Intermodule Bus (IMB), and external BNC. The
operation of the input channels was discussed
previously. The IMB trigger signal is sent directly
to the logic trigger. External triggering is provided
by the BNC input of the 16500A Logic Analysis
System mainframe.
Time Base. The time base provides the sample
clocks and timing necessary for data acquisition.
It consists of the 100 MHz reference oscillator and
time base hybrid.
The 100 MHz reference oscillator provides the
base sample frequency.
The time base hybrid has programmable dividers
to provide the rest of the sample frequencies
appropriate for the time range selected. The time
base uses the time-stretched output of the fine
interpolator to time-reference the sampling to the
trigger point. The time base has counters to
control how much data is taken before (pre-trigger
data) and after (post-trigger data) the trigger event.
After the desired number of pre-trigger samples
has occurred, the Time base hybrid sends a signal
to the Logic Trigger (trigger arm) indicating it is
ready for the trigger event. When the trigger
condition is satisfied, the Logic Trigger sends a
signal back to the time base hybrid. The time base
hybrid then starts the post-trigger delay counter.
When the countdown reaches zero, the sample
clocks are stopped and the CPU is signaled that
the acquisition is complete. The Fine Interpolator
is a dual-slope integrator that acts as a
time-interval stretcher. When the logic trigger
receives a signal that meets the programmed
triggering requirements, it signals the time base.
The time base then sends a pulse to the fine
interpolator. The pulse is equal in width to the time
between the trigger and the next sample clock.
The fine interpolator stretches this time by a factor
of approximately 500. Meanwhile, the time base
hybrid runs a counter with a clock derived from the
sample rate oscillator. When the interpolator
indicates the stretch is complete, the counter is
stopped. The count represents, with much higher
accuracy, the time between the trigger and the first
sample clock. The count is stored and used to
place the recently acquired data in relationship
with previous data.
AC Cal. The AC Cal is a multiplexer circuit that
can provide several signals to the Probe
Compensation/AC Calibrator output on the rear
panel. The signal provided depends on the mode
of the instrument. It can be either a probe
compensation signal, a pulse representing the
trigger event, signals used for self-calibration, or
the 100 MHz reference oscillator when sample
period is 1 ns.
DC Cal. The DC Cal output, a rear panel signal, is
used for self-calibration. It is one output from the
16-channel DAC.
Digital Interface. The Digital Interface provides
control and interface between the system control
and digital functions in the acquisition circuitry.
Analog Interface. The Analog Interface provides
control of analog functions in the acquisition
circuitry. It is primarily a 16-channel DAC with an
accurate reference and filters on the outputs. It
controls channel offsets and trigger levels, and
provides the DC Cal output.
6-3
HP 16532A - Service
6-7. Self-Tests
The self-tests for the HP 16532A oscilloscope module will identify the improper operation of major functional areas in the module. They are not intended for component level diagnostics.
If there are multiple oscilloscope modules, the user must select the specific oscilloscope module to be
tested at the main test system menu. Multiple HP 16532A modules that are connected as one unit are recognized as a single unit in the test menu. The external trigger cables connected to the ECL IN and ECL
OUT do not need to be removed in order to do the self-test for each board. All other cable connections
must be removed.
All self-tests can be run without access to the interior of the instrument. If a self-test fails, refer to
section 6-8, "Troubleshooting."
Self-Test Access Procedure:
1. Disconnect all oscilloscope inputs and turn on the power switch.
2. From the startup screen, shown in figure 6-2, touch the Configuration field. Then, touch Test in the
pop-up menu.
Figure 6-2. Startup Screen
6-4
HP 16532A - Service
3. Install the Composite PV Test software disk in the inactive disk drive.
4. Touch the box labeled Touch box to Load Test System. See figure 6-3.
Note
When the self-test software is loaded, the user operating system is overwritten in
the mainframe system RAM.
Figure 6-3. Load Test System Screen
5. From the test system screen in figure 6-4, touch Test System, then touch 1 GSa/s SCOPE D. (For
the example shown in figure 6-4, the oscilloscope module is in slot D. If multiple oscilloscope modules are present, select the one to be tested.)
Figure 6-4. Test System Screen
6-5
HP 16532A - Service
Figure 6-5 shows the selection menu for choosing to perform functional tests. The status of the functional
tests is given.
Figure 6-5. Functional Tests Screen
6.
Touch the Functional Tests field.
Figure 6-6 is the main self-test menu. Self-tests can be either run individually by touching a specific test
field, or run automatically through all tests one time by touching the All Tests field. When either All Tests
or individual tests are run, the status will change to either PASSED or FAILED. If you do all tests by touching the All Tests field, skip to step 11. The procedures given in steps 7 through 12 use the A/D Test as an
example of how individual tests are done.
Figure 6-6. Main Test Menu
6-6
HP 16532A - Service
7. Touch the A/D Test field.
The individual test run screens, see figure 6-7, give the test name, a brief description of the test, number of
test runs, and the number of test failures.
Figure 6-7. A/D Test Run Screen
8. Touch Run, then drag your finger to Single or Repetitive.
During the time a Single run or a Repetitive run is executing, the Run field displays Stop.
9. To stop a Repetitive run, touch Stop. See figure 6-8.
Figure 6-8. Stop Field
6-7
HP 16532A - Service
10. Touch Done to exit the A/D test.
11. To exit the self tests, touch the following fields in the lettered sequence below:
a.
b.
c.
d.
1GSa/s Scope
Test System
Configuration
Exit Test
12. Touch the box that reads "Touch box to Exit Test System". See figure 6-9.
Figure 6-9. Exit Test System Screen
6-8
HP 16532A - Service
Self-Test Descriptions
The following self-tests check the major components of the HP 16532A oscilloscope module as well as all
associated circuitry. When the self-tests have all been completed with a "PASS" status, the major data and
control pipelines in the HP 16532A oscilloscope module are functioning properly.
Data Memory Test
This test verifies the correct operation of the FISO (fast-in/slow-out) data memory on each board. Test
patterns are written into the memory and then read and compared with known values.
Timebase Test
The pre-trigger and post-trigger delay modes are first tested by programming a predetermined time
interval in the trigger counters. At the end of the time intervals, the arm, trigger, and run status bits are
read and compared with known values. The coarse and fine interpolators are then checked by reading
the values of the interpolator counters after a simulated acquisition. The counter values are then compared with a known value. Finally, the sample clock is checked by programming a sample clock
frequency and then reading the status of the clock to detect when one clock period has elapsed. The
clock period time interval is then compared with a known value.
A/D Test
This test verifies the correct operation of the A/D convertor on each board. A check of the trigger in
Trigger Immediate mode is first made. The A/D convertors are then exercised by setting the reference
voltage and channel offset such that a simulated acquisition obtains data in the extremes and middle of
the quantization range of the A/D convertor. After each simulated acquisition, the data is compared with
known values.
D/A Test
This test verifies the correct operation of the D/A convertor on each board. Both the offset and trigger
level D/A convertors for each channel are set to a reference level and then changed. The logic trigger IC
is programmed to detect the changes. The detection of a correct trigger indicates that the D/A convertor
is operating normally.
Trigger Test
This test verifies the correct operation of the trigger components on each board. First, the logic trigger
memory is checked by writing and then reading known patterns. The logic qualifiers, logic trigger output,
and trigger holdoff are checked.
IMB Test
This test verifies the correct operation of the oscilloscope card interface to the intermodule bus.
All Tests
This will automatically execute each test, one at a time, until all tests are done.
6-9
HP 16532A - Service
6-8. Troubleshooting
The troubleshooting flow chart given in figure 6-10 will isolate module failures to card level only. It is not
intended for component level troubleshooting. If self-tests indicate a failure, begin at the Start of the troubleshooting flow chart. When a specific test fails, you will be instructed to replace a faulty card or you will
be referred to other flow charts for the isolation of the faulty card or cable.
The effects of ELECTROSTATIC DISCHARGE can damage electronic components. Grounded wriststraps and mats should be used when you perform any
kind of service to this instrument or the cards in it.
Troubleshooting Aids
The Calibration menu contains the Service Cal mode that can help you troubleshoot the oscilloscope
module. When the problem is found and corrected, run all of the calibration procedures given in
Section IV, "Calibration."
If you suspect a fault in the system, you can load the system default values to see if the NVRAM parameters have possibly been corrupted. The procedure for loading the default values is given in Section IV under the heading "Loading the Default Calibration Factors."
If loading the default values does not fix the problem, you may want to verify that the system clock is
working correctly. The procedure to verify the system clock is given below.
If none of these aids find the problem, go to the troubleshooting flow chart to find the problem. As stated
above, when the problem is found and corrected, run all of the calibration procedures given in Section IV
"Calibration."
6-10
HP 16532A - Service
Verifying the System Clock
This procedure is provided as a troubleshooting aid to verify that the 100 MHz System Clock oscillator is
functioning properly. The 100 MHz oscillator is the primary time reference used for all of the acquisition
clock periods. The test limits provided are the test limits for the 100 MHz oscillator only. If the readings
are outside of the test limits, the oscilloscope module will not operate properly.
Equipment Required
Frequency Counter
Critical Specification
> 100 MHz, 50 Ω
Recommended
Model/Part Number
HP 5315A Option 003
Oscilloscope
Bandwidth ≥ 100 MHz, Real Time
HP 54502A
Cable
50 Ω BNC (m to m) 48-inch
HP 10503A
Procedure:
1. Connect the BNC cable from the AC CAL OUTPUT connector on the rear panel of the HP 16532A
oscilloscope module to the input of the frequency counter.
2. On the HP 16532A oscilloscope module, set the following parameters, in the order given.
Menu
Channel
Selection
s/Div
Setting
1 ns
Trigger
Auto-Trig
Off
Calibration
Mode
Procedure
Signal
Service Cal
Osc Out
Sample Clk
3. Select RUN-REPETITIVE. Observe the frequency displayed on the frequency counter and verify
that it is 100 MHz ± 0.005%.
4. Disconnect the BNC cable from the frequency counter and connect the cable to the input of the
HP 54502A Oscilloscope.
6-11
HP 16532A - Service
5. On the HP 54502A Oscilloscope, set the following parameters, in the order given.
Menu
Channel
Selection
Probe
V/Div
Offset
Coupling
Setting
1.000:1
200 mV
0.0 V
DC
Timebase
s/Div
Acquisition
10 ns
Realtime
Trigger
Mode
Level
Slope
Edge
− 200 mV
Falling
6. In the HP 16532A Oscilloscope trigger menu, select Auto-Trig On. Verify that the 100 MHz System
Clock is gated.
7. Select STOP on both the HP 54502A and HP 16532A oscilloscopes.
8. Disconnect the cable from both oscilloscopes.
6-12
HP 16532A - Service
Troubleshooting Sheet 1
H
P
1
6
5
3
2
A
T
R
O
U
B
L
E
S
H
O
O
T
I
N
G
S
H
E
E
T
1
Figure 6-10. Troubleshooting Flowchart
6-13
HP 16532A - Service
Troubleshooting Sheet 2
H
P
1
6
5
3
2
A
T
R
O
U
B
L
E
S
H
O
O
T
I
N
G
S
H
E
E
T
2
Figure 6-10. Troubleshooting Flowchart
6-14
HP 16532A - Service
Troubleshooting Sheet 3
H
P
1
6
5
3
2
A
T
R
O
U
B
L
E
S
H
O
O
T
I
N
G
S
H
E
E
T
Figure 6-10. Troubleshooting Flowchart
3
6-15
HP 16532A - Service
Troubleshooting Sheet 4
H
P
1
6
5
3
2
A
T
R
O
U
B
L
E
S
H
O
O
T
I
N
G
S
H
E
E
T
4
Figure 6-10. Troubleshooting Flowchart
6-16
HP 16532A - Service
Troubleshooting Sheet 5
H
P
1
6
5
3
2
A
T
R
O
U
B
L
E
S
H
O
O
T
I
N
G
Figure 6-10. Troubleshooting Flowchart
S
H
E
E
T
5
6-17
HP 16532A - Service
6-9. Oscilloscope Module Removal and Replacement
The effects of ELECTROSTATIC DISCHARGE can damage electronic components. Use grounded wrist straps and mats when you are performing any kind of
service on this module.
When you need to remove and replace a module, test the module first to determine the faulty part. If
either of the trigger cables are faulty, remove the faulty cable and replace it with a new one. Refer to paragraph 6-10 for procedures to remove and replace a faulty cable. If either of the attenuators are faulty, remove the faulty attenuator and replace it with a new one. Refer to paragraph 6-11 for procedures to remove and replace a faulty attenuator.
Oscilloscope Module Removal Procedure:
Do not install, remove or replace the module in the instrument unless the instrument power is turned off.
1. Turn off the instrument power switch, unplug the power cord, and disconnect any input or output
connections.
2. Starting from the top, loosen the thumb screws on the filler panels and the cards. See figure 6-11.
Figure 6-11. Endplate Overlap - Top Sequence
3. Starting from the top, pull out the cards and the filler panels halfway.
4. Pull out the oscilloscope module completely.
6-18
HP 16532A - Service
5. If a trigger cable was determined to be faulty, replace the faulty trigger cable on the oscilloscope
module (refer to paragraph 6-10). Otherwise, skip to step 6.
6. If an attenuator was determined to be faulty, replace the faulty attenuator on the oscilloscope module (refer to paragraph 6-11). Otherwise, skip to step 7.
7. If the oscilloscope module was determined to be faulty, remove the attenuators from the oscilloscope module (refer to paragraph 6-11).
8. Acquire a replacement oscilloscope module and install the attenuators on the replacement oscilloscope module (refer to paragraph 6-11).
9. Reinstall the repaired (or replacement) oscilloscope module in the mainframe (refer to the next procedure "Oscilloscope Module Replacement Procedure").
Oscilloscope Module Replacement Procedure
1. If you have not already done so, pull the installed boards half way out of the card slots (refer to
steps 1 through 3 of the preceding procedure "Oscilloscope Module Removal").
2. Determine which modules you want to install in the mainframe, and the slots where you want them
installed.
3. Starting with the bottom slot, slide each module to be installed approximately halfway into the mainframe card slot.
4. Firmly seat the bottom card into the backplane connector. Keep applying pressure to the center
of the card endplate while tightening the thumb screws finger tight.
5. Repeat step 4 for all cards and filler panels in a bottom-to-top order. See figure 6-12.
Figure 6-12. Endplate Overlap - Bottom Sequence
6. Any filler panels that are not used should be kept for future use. Filler panels must be installed in
all unused card slots for correct air circulation.
6-19
HP 16532A - Service
6-10. Trigger Cable Removal and Replacement
The effects of ELECTROSTATIC DISCHARGE can damage electronic components. Use grounded wriststraps and mats when performing any kind of service
to this instrument or the cards in it.
Trigger Cable Removal Procedure:
1. Follow the procedures given in paragraph 6-9 "Oscilloscope Module Removal and Replacement" to
remove the HP 16532A Oscilloscope Module to be serviced.
2. Remove the hex nut (H4) and the washer (H5) from the SMB connector on the cable to be removed.
See figure 6-13.
Figure 6-13. Oscilloscope Module Exploded View
6-20
3. Pull the straight SMB connector on the cable through the hole in the rear panel.
4. Pull the right-angle SMB connector on the cable away from its mating connector on the board.
5. Install a new cable (refer to the next paragraph).
Trigger Cable Replacement Procedure:
1. Install the straight SMB connector on the cable through the hole in the rear panel. See figure 6-13.
2. Attach the washer (H5) and the hex nut (H4) to the straight SMB connector on the cable. Tighten
the hex nut.
3. Connect the right-angle SMB connector on the cable to its mating connector on the board.
6-11. Attenuator Removal and Replacement
The effects of ELECTROSTATIC DISCHARGE can damage electronic components. Use grounded wriststraps and mats when performing any kind of service
to this instrument or the cards in it.
Attenuator Removal Procedure:
1. Follow the procedures given in paragraph 6-9 "Oscilloscope Module Removal and Replacement" to
remove the HP 16532A Oscilloscope Module to be serviced.
2. Remove the four hex nuts (H3) from the BNC connectors on the rear panel (MP1). See figure 6-13.
3. Remove the two hex nuts (H4) and the two washers (H5) from the SMB connectors on the rear
panel.
4. Remove the three end plate screws (H6) holding the rear panel (MP1) and the ground spring (MP2)
to the board assembly (A1).
5. Pull the rear panel (MP1) and the ground spring (MP2) from the board assembly (A1). You may
need to loosen the attenuator retainer screws (H7) before removing the ground spring.
6. Remove the two attenuator retainer screws (H7) holding the attenuator assembly (A2) to the board
assembly (A1).
7. Gently pull the attenuator assembly (A2) straight up from the board assembly (A1) being careful not
to damage the connector and the components beneath the attenuator assembly.
8. Install a new attenuator assembly (refer to the next paragraph "Attenuator Replacement Procedure").
HP 16532A - Service
Attenuator Replacement Procedure:
a. Gently push the attenuator assembly (A2) straight down on the board assembly (A1) being careful
not to damage the connector and the components beneath the attenuator assembly. See figure
6-13.
b. Attach the attenuator assembly (A2) to the board assembly (A1) with the two attenuator retainer
screws (H7).
c. Assemble the rear panel (MP1) and the ground spring (MP2) to the board assembly (A1) and attach
them with the three end plate screws (H6). You may need to loosen the attenuator retainer screws
(H7) before assembling the ground spring to the board assembly, then tighten the attenuator
screws (H7) when the assembly is finished.
d. Attach the SMB connectors to the rear panel (MP1) with two hex nuts (H4) and two washers (H5).
e. Attach the BNC connectors to the rear panel (MP1) with four hex nuts (H3).
Note
Tighten the hex nuts down so that they will not interfere with the installation of the
board above the oscilloscope module. One of the flat surfaces on the outside
edge of the nut should be parallel with the top edge of the rear panel.
6-22
