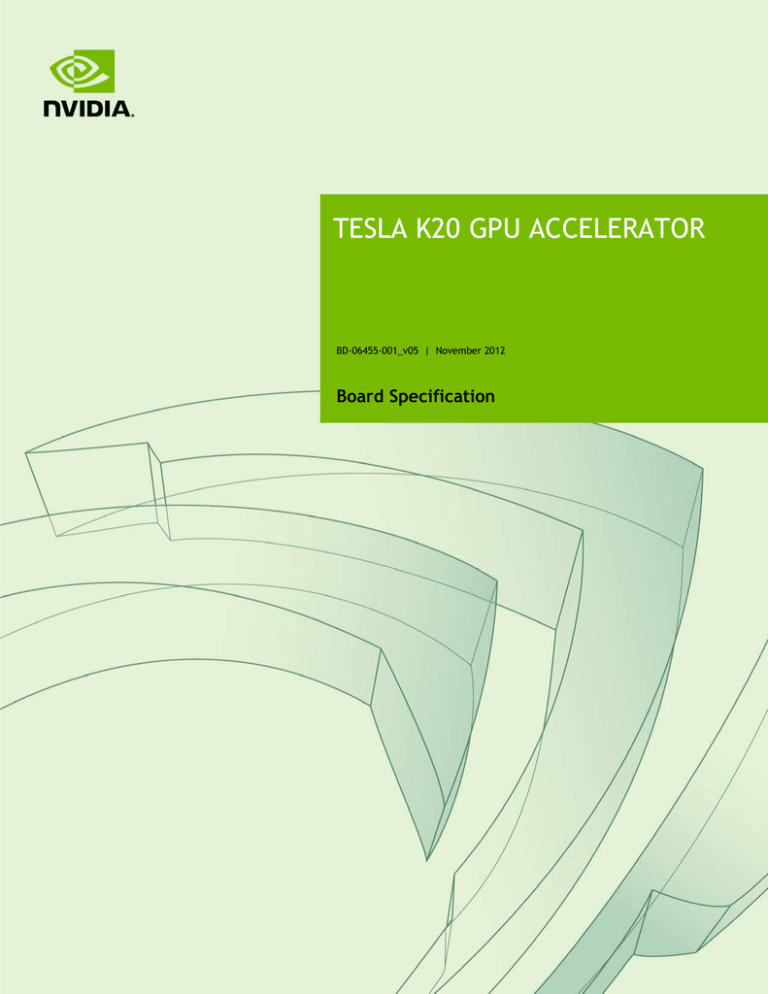

TESLA K20 GPU ACCELERATOR
BD-06455-001_v05 | November 2012
Board Specification
DOCUMENT CHANGE HISTORY
BD-06455-001_v05
Version
Date
Authors
Description of Change
01
August 1, 2012
GG, SM
Preliminary Information (Information contained
within this document is subject to change)
02
September 6, 2012
GG, SM
•Updated “Key Features” section
•Updated Figure 1
•Updated Table 1
•Updated “Standard I/O Connector Placement”
section
03
September 7, 2012
GG, SM
•Updated Table 4
•General edits throughout this specification
04
October 9, 2012
GG, SM
•Changed Gen3 to Gen2
•Updated block diagram (Figure 1)
•Added memory bandwidth
•Changed idle power to 25 W
05
November 9, 2012
Tesla K20 GPU Accelerator
GG, SM
•Removed “Preliminary Information” from
document as this board specification is now final
•Removed “NVIDIA Confidential” from document
•Updated package size
•Updated block diagram (Figure 1)
BD-06455-001_v05 | ii
TABLE OF CONTENTS
Overview ........................................................................................... 1
Key Features ..................................................................................... 1
Tesla K20 Block Diagram ....................................................................... 2
Configuration .................................................................................... 3
Mechanical Specifications ....................................................................... 4
PCI Express System ............................................................................. 4
Tesla K20 Bracket ............................................................................... 5
Power Connectors ............................................................................... 6
Power Specifications ............................................................................. 9
Support Information ............................................................................. 10
Certificates and Agencies ..................................................................... 10
Agencies ...................................................................................... 10
Languages ....................................................................................... 11
Tesla K20 GPU Accelerator
BD-06455-001_v05 | iii
LIST OF FIGURES
Figure
Figure
Figure
Figure
Figure
1.
2.
3.
4.
5.
Tesla K20 Block Diagram ............................................................
Tesla K20 GPU Accelerator..........................................................
Tesla K20 Bracket ....................................................................
6-Pin PCI Express Power Connector ................................................
8-Pin PCI Express Power Connector ................................................
2
4
5
6
7
LIST OF TABLES
Table 1.
Table 2.
Table 3.
Table 4.
Table 5.
Board Configuration .................................................................. 3
6-Pin PCI Express Power Connector Pinout ....................................... 8
8-Pin PCI Express Power Connector Pinout ....................................... 8
Auxiliary Power Connectors ......................................................... 9
Languages Supported ............................................................... 11
Tesla K20 GPU Accelerator
BD-06455-001_v05 | iv
OVERVIEW
The NVIDIA® Tesla® K20 graphics processing unit (GPU) accelerator is a PCI Express,
dual-slot full height (4.376 inches by 10.5 inches by 1.52 inches) form factor computing
module comprising of a single GK110 GPU. The Tesla K20 is designed for servers and
offers a total of 5 GB of GDDR5 on-board memory and supports PCI Express Gen2.
The Tesla K20 can be configured by the OEM or by the end user to enable or disable
ECC or error correcting codes that can fix single-bit errors and detect double-bit errors.
Enabling ECC will cause some of the memory to be used for the ECC bits, so the user
available memory will decrease by 10%. On the Tesla K20, the register files, cache, and
DRAM are ECC protected.
KEY FEATURES
GPU
 Number of processor cores: 2496
 Processor core clock: 706 MHz
 Package size: 45 mm × 45 mm 2397-pin ball grid array (S-FCBGA)
Board
 PCI Express Gen2 ×16 system interface
 Physical dimensions: 4.376 inches × 10.5 inches, dual-slot
Display Connectors
 None
Tesla K20 GPU Accelerator
BD-06455-001_v05 | 1
Overview
Power Connectors
 One 6-pin PCI Express power connector
 One 8-pin PCI Express power connector
Memory
 Memory clock: 2.6 GHz
 Memory bandwidth: 208 GB/sec
 Interface: 320-bit
●
Total board memory: 5 GB
●
20 pieces of 64M × 16 GDDR5, SDRAM
BIOS
 2Mbit Serial ROM
TESLA K20 BLOCK DIAGRAM
Figure 1 is the block diagram for the Tesla K20 GPU dual-slot computing processor
module.
Figure 1.
Tesla K20 Block Diagram
Tesla K20 GPU Accelerator
BD-06455-001_v05 | 2
Overview
CONFIGURATION
The Tesla K20 board is available in the following configuration (Table 1).
Table 1.
Board Configuration
Specifications
Tesla K20
Generic SKU reference
699-22081-0208-xxxx
Chip
GK110
Package size GPU
45 mm × 45 mm 2397-pin S-FCBGA
Processor clock
706 MHz
Memory clock
2.6 GHz
Memory size
5 GB
Memory I/O
320-bit GDDR5
Memory configuration
20 pieces of 64M ×16 GDDR5 SDRAM
Display connectors
None
Power connectors
•8-pin PCI Express power connector
•6-pin PCI Express power connector
Board power
225 W
Idle power
25 W
Thermal cooling solution
Passive heat sink
Tesla K20 GPU Accelerator
BD-06455-001_v05 | 3
MECHANICAL SPECIFICATIONS
PCI EXPRESS SYSTEM
The Tesla K20 board (Figure 2) conforms to the PCI Express full height (4.376 inches by
10.5 inches) form factor.
10.5 inches
4.376 inches
Figure 2.

Tesla K20 GPU Accelerator
Note: The final product will ship with shroud.
Tesla K20 GPU Accelerator
BD-06455-001_v05 | 4
Mechanical Specifications
TESLA K20 BRACKET
As shown in Figure 3, the Tesla K20 includes a vented bracket. If you are an OEM who
qualifies for bracket modifications, you have the option of receiving your module with
no bracket installed.
Figure 3.
Tesla K20 Bracket
Tesla K20 GPU Accelerator
BD-06455-001_v05 | 5
Mechanical Specifications
POWER CONNECTORS
The Tesla K20 GPU accelerator is a performance optimized, high-end product and uses
power from the PCI Express connector as well as external power connectors.
Figure 4 and Figure 5 show the specifications and Table 2 and Table 3 show the pinouts
for the 6-pin and 8-pin PCI Express power connectors.
Figure 4.
6-Pin PCI Express Power Connector
Tesla K20 GPU Accelerator
BD-06455-001_v05 | 6
Mechanical Specifications
Figure 5.
8-Pin PCI Express Power Connector
Tesla K20 GPU Accelerator
BD-06455-001_v05 | 7
Mechanical Specifications
Table 2.
6-Pin PCI Express Power Connector Pinout
Pin Number
Description
1
+12 V
2
+12 V
3
+12 V
4
GND
5
Sense
6
GND
Table 3.
8-Pin PCI Express Power Connector Pinout
Pin Number
Description
1
+12 V
2
+12 V
3
+12 V
4
Sense1
5
GND
6
Sense0
7
GND
8
GND
Tesla K20 GPU Accelerator
BD-06455-001_v05 | 8
POWER SPECIFICATIONS
The Tesla K20 GPU accelerator requires power from the PCI Express connector as well
as one or two auxiliary power connectors.
Table 4.
Auxiliary Power Connectors
8-Pin Header
6-Pin Header
Support
Connect 8-pin cable
Connect 6-pin cable
Yes
Connect 8-pin cable
No cable installed
Yes
8-pin cable must supply
150 W
Connect 6-pin cable
Connect 6-pin cable
No
8-pin connector should
always be connected

Notes
Note: Detailed information about power draw by rail will be available to
authorized system partners in the Tesla K20 System Design Guide.
Tesla K20 GPU Accelerator
BD-06455-001_v05 | 9
SUPPORT INFORMATION
CERTIFICATES AND AGENCIES
Agencies
 Australian Communications Authority and Radio Spectrum Management Group of
New Zealand (C-Tick)
 Bureau of Standards, Metrology, and Inspection (BSMI)
 Conformité Européenne (CE)
 Federal Communications Commission (FCC)
 Industry Canada - Interference-Causing Equipment Standard (ICES)
 Korean Communications Commission (KCC)
 Underwriters Laboratories (cUL)
 Voluntary Control Council for Interference (VCCI)
Tesla K20 GPU Accelerator
BD-06455-001_v05 | 10
Support Information
LANGUAGES
Table 5.
Languages Supported
Windows Server
2008 and Windows
Server 2008 R2
Linux
English (US)
X
X
English (UK)
X
Arabic
X
Chinese, Simplified
X
Chinese, Traditional
X
Danish
X
Dutch
X
Finnish
X
French
X
French (Canada)
X
German
X
Italian
X
Japanese
X
Korean
X
Norwegian
x
Portuguese (Brazil)
X
Russian
X
Spanish
X
Spanish (Latin America)
X
Swedish
X
Thai
X
Note: NVIDIA’s CUDA™ software is only supported in English (U.S.)
