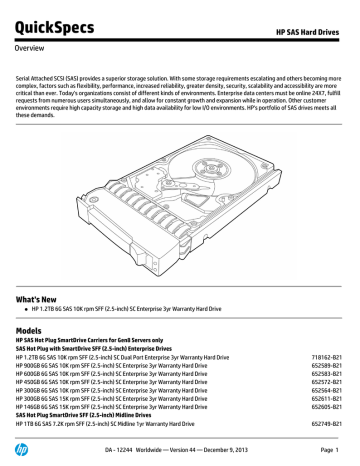

QuickSpecs
HP SAS Hard Drives
Overview
Serial Attached SCSI (SAS) provides a superior storage solution. With some storage requirements escalating and others becoming more
complex, factors such as flexibility, performance, increased reliability, greater density, security, scalability and accessibility are more
critical than ever. Today's organizations consist of different kinds of environments. Enterprise data centers must be online 24X7, fulfill
requests from numerous users simultaneously, and allow for constant growth and expansion while in operation. Other customer
environments require high capacity storage and high data availability for low I/O environments. HP's portfolio of SAS drives meets all
these demands.
What's New
HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
Models
HP SAS Hot Plug SmartDrive Carriers for Gen8 Servers only
SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives
HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard Drive
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives
HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive
DA - 12244 Worldwide — Version 44 — December 9, 2013
718162-B21
652589-B21
652583-B21
652572-B21
652564-B21
652611-B21
652605-B21
652749-B21
Page 1
QuickSpecs
HP SAS Hard Drives
Overview
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive
SAS Hot Plug SmartDrive LFF (3.5-inch) Enterprise Drives
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive
HP 450GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive
SAS Hot Plug SmartDrive LFF (3.5-inch) Midline Drives
HP 4TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
HP SAS Hot Plug Drives
NOTE: These drives are not supported by Gen8 servers
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives
HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 300GB 6G SAS 15K rpm SFF (2.5-inch) Hot Plug Enterprise 3yr Warranty Hard Drive
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive
SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 4TB 6G SAS 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive
HP SAS Non-Hot Plug Drives
SAS Non-Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive
SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive
HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive
HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive
HP SAS Quick Release Drives
SAS Quick Release SFF (2.5-inch) Enterprise (ENT) Drives
HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) Quick Release Dual Port ENT 3yr Warranty Hard Drive
HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) Quick-release Dual Port Enterprise 3yr Warranty Hard Drive
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Quick-release Dual Port Enterprise 3yr Warranty Hard Drive
SAS Quick Release LFF (3.5-inch) Enterprise (ENT) Drives
DA - 12244 Worldwide — Version 44 — December 9, 2013
652745-B21
652620-B21
652615-B21
695510-B21
652766-B21
652757-B21
652753-B21
718160-B21
619291-B21
581286-B21
581284-B21
507127-B21
627117-B21
512547-B21
516828-B21
516816-B21
516814-B21
605835-B21
507610-B21
693689-B21
625031-B21
507616-B21
507614-B21
590698-B21
537809-B21
516830-B21
516826-B21
516824-B21
718164-B21
697572-B21
574879-B21
Page 2
QuickSpecs
HP SAS Hard Drives
Overview
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Quick-release Dual Port Enterprise 3yr Warranty Hard Drive
HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Quick-release Dual Port Enterprise 3yr Warranty Hard Drive
SAS Quick Release LFF (3.5-inch) Midline (MDL) Drives
HP 4TB 6G SAS 7.2k rpm LFF (3.5-inch) Quick-release Midline 1yr Warranty Hard Drive
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Quick-release Dual Port Midline 1yr Warranty Hard Drive
NOTE: Refer to the appropriate server QuickSpecs for full compatibility details
DA - 12244 Worldwide — Version 44 — December 9, 2013
574758-B21
585980-B21
697956-B21
574761-B21
Page 3
QuickSpecs
HP SAS Hard Drives
Standard Features
What is SAS?
Serial Attached SCSI (SAS) is the evolution of the SCSI interface. SAS Enterprise drives satisfy the
enterprise data center requirement of scalability, performance, reliability and manageability, while
providing an enterprise storage infrastructure for both enterprise SAS drives and SATA disk drives. SAS
Midline drives provide the lowest dollars per gigabyte and economical reliability and performance. The SAS
interface is compatible with SATA devices. This compatibility provides users with unprecedented choices
for server and storage subsystem deployment
Drive Quality and
Performance
Today's distributed enterprise is seeing larger, more complex applications, an increase of mission-critical
data moving to the server, increasing demand for transaction processing and critical server consolidation.
In this environment, storage has become a critical component of the information system, significantly
defining both the systems reliability and performance. This is why HP drives undergo an intense
qualification process that eliminates firmware and O/S incompatibilities. All drive firmware is specific to
our drives and is designed to maximize both functionality and compatibility. All drives are proven to
perform in the HP systems for which they were designed.
While selecting the drives in our Enterprise portfolio, only those drives whose performance is suitable for
an enterprise environment are selected through the HP qualification process and are labeled "best-inclass." All our Enterprise drives are proven to be reliable and tuned for optimum performance in the HP
equipment for which they were designed. The drives in our Midline portfolio undergo a similar qualification
process to ensure that you get the economical reliability and performance you need for your low workload
(less than 40% I/O) environments.
Performance
Only those drives whose performance is suitable for an enterprise environment are selected through the
HP qualification process and are labeled "best-in-class." All our drives are proven to be reliable and tuned
for optimum performance in the HP equipment for which they were designed.
Pre-Failure Alert
When used in conjunction with a SMART Array Controller and Systems Insight Manager, the SMART capable
firmware in HP hard drives enables extensive fault prediction capabilities. If potential problems develop in
one of the drives, the Smart Array Controller, Systems Insight Manager and/or SMART hard disk drive lets
you know in advance so you can have the drive replaced, before it fails, under warranty.
NOTE: All drives are protected by a Pre-Failure Alert when used with a HP Smart Array controller and
Systems Insight Manager, allowing hard drives to be replaced before failure under warranty. In addition,
all drives are covered by a one or three-year limited on-site warranty period for the system in which they
are installed. The drive warranty is automatically uplifted when used in a server or MSA for which a Care
Pack is purchased. Please see the Support Services section below for additional services.
Integration
Many issues customers have with third party drives are "simple" integration issues. When buying from
another supplier, there is no guarantee that a drive has been correctly set for proper operation with
ProLiant servers and storage systems. These incompatibilities can create problems in configuration, can
rob your system of performance, or at their worst, can cause you to lose data. HP hard drives are
specifically designed and tested for flawless operation in your HP equipment. The integration of hard
drives in HP systems means that cables, SCSI ID settings, termination, hot plug drive trays and firmware
are right for your ProLiant server or storage system.
