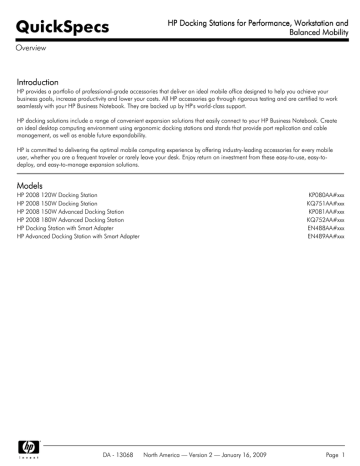

QuickSpecs
HP Docking Stations for Performance, Workstation and
Balanced Mobility
Overview
Introduction
HP provides a portfolio of professional-grade accessories that deliver an ideal mobile office designed to help you achieve your
business goals, increase productivity and lower your costs. All HP accessories go through rigorous testing and are certified to work
seamlessly with your HP Business Notebook. They are backed up by HP's world-class support.
HP docking solutions include a range of convenient expansion solutions that easily connect to your HP Business Notebook. Create
an ideal desktop computing environment using ergonomic docking stations and stands that provide port replication and cable
management, as well as enable future expandability.
HP is committed to delivering the optimal mobile computing experience by offering industry-leading accessories for every mobile
user, whether you are a frequent traveler or rarely leave your desk. Enjoy return on investment from these easy-to-use, easy-todeploy, and easy-to-manage expansion solutions.
Models
HP 2008 120W Docking Station
HP 2008 150W Docking Station
HP 2008 150W Advanced Docking Station
HP 2008 180W Advanced Docking Station
HP Docking Station with Smart Adapter
HP Advanced Docking Station with Smart Adapter
DA - 13068
KP080AA#xxx
KQ751AA#xxx
KP081AA#xxx
KQ752AA#xxx
EN488AA#xxx
EN489AA#xxx
North America — Version 2 — January 16, 2009
Page 1
HP Docking Stations for Performance, Workstation and
Balanced Mobility
QuickSpecs
HP 2008 Docking Station
HP 2008 Docking Station
1.
2.
3.
4.
Power button
Power light
Visual alignment indicator
Docking light
5.
6.
7.
8.
Notebook eject button
Docking posts
Notebook eject mechanisms
Docking connector
HP 2008 Docking Station Left-Side Components
1. Power button and power light
2. Powered USB 2.0 port
3.
USB 2.0 port
HP 2008 Docking Station Right-Side Components
DA - 13068
North America — Version 2 — January 16, 2009
Page 2
HP Docking Stations for Performance, Workstation and
Balanced Mobility
QuickSpecs
HP 2008 Docking Station
1. Notebook eject button and docking light
2.
Integrated cable lock slot (to connect HP Kensington cable
lock)
HP 2008 Docking Station Rear Components
1.
2.
3.
4.
5.
6.
7.
8.
Security cable slot
Monitor stand port
Audio-out (headphone) jack
Mouse connector
Parallel port
RJ-11 (modem) jack
RJ-45 (network) jack
Power light
9.
10.
11.
12.
13.
14.
15.
DA - 13068
USB 2.0 ports
Power connector
Digital video (DVI) port
External monitor port
Serial port
Keyboard connector
Audio-in (microphone) jack
North America — Version 2 — January 16, 2009
Page 3
QuickSpecs
HP Docking Stations for Performance, Workstation and
Balanced Mobility
HP 2008 Docking Station
Key Benefits
Desktop convenience with full port replication capability in a space-saving design.
Easy docking system provides port replication and cable management in one product.
Four USB ports allow you to connect more peripherals to make you more productive.
Optional integrated HP/Kensington Cable Lock allows you to secure your docking station and notebook with one lock.
AC adapter included
The HP 2008 Docking Station gives you an energy-efficient 120W Smart AC adapter for your Notebook PC or 150W Smart AC
adapter for your Mobile Workstations that guards against power fluctuations with integrated surge protection. The HP Docking
Station features the same protection with an energy-efficient 120W Smart AC adapter.
Standard Features
2 docking posts
Docking connector
Visual alignment indicator
Power button and power
light
Eject button and docking
light
USB ports
Powered USB port
Integrated cable lock slot
Audio and Network
connectors
Legacy connectors
Other connectors
Smart Adapter
Align and secure the computer for proper connection to the docking station
Connects the computer to the docking station
Helps you align the computer with the docking station for fast and easy docking
Power indicators
Service and Support
One-year limited warranty. Additional support is available 24 hours a day, seven days a week by phone
as well as online support forms.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
Compatibility
The HP Docking Station is compatible with HP Compaq 6300, 6510, 6515, 6530b, 6535b, 6710,
6715, 6720t, 6730b, 6735b, 6910, 6930p, 7400, 8200, 8400, 8510, 8710 and 9400 series
Notebook PCs and HP Compaq 4200 and 4400 series Tablet PCs.
NOTE: Some notebook models do not support the docking feature.
NOTE: DVI is not supported on the HP Compaq 6100, 6300 and 6500 series.
NOTE: Not all models are available in all regions.
Ejects computer from docking station. Dock light is turned on when the computer is properly connected.
4 USB 2.0 ports (1 powered)
Allows you to connect to select USB powered devices as well as regular USB devices
Supports the HP/Kensington Cable Lock, which secures the docking station and connected computer
Audio, Ethernet and Modem ports
Mouse, Keyboard, Serial and Parallel connectors
Monitor Stand, VGA and DVI-D ports. AC adapter connector with light
120W Smart AC Adapter or 150W Smart AC Adapter
DA - 13068
North America — Version 2 — January 16, 2009
Page 4
QuickSpecs
HP Docking Stations for Performance, Workstation and
Balanced Mobility
HP 2008 Docking Station
Specifications
Dimensions (H x W x D)
Weight
Power Supply (input)
Temperature
Relative Humidity
Maximum Altitude
Shock
Vibration
Option Kit Contents
11.02 x 2.4 x 6.02 in (28.0 x 6.1 cm x 15.3 cm)
2.24 lbs (1.02 kg)
Rated Voltage
100 to 240 V
Rated Current
2.5A rms
Line Frequency
50 – 60 Hz
Operating
50° to 95° F (10° to 35° C)
Non-operating
14° to 140° F (–10° to 60° C)
Operating/Non10% to 90% relative humidity
condensing
Non-operating
5% to 90% relative humidity, 101.6° F (38.7° C) maximum wet bulb
temperature
Operating
0 to 10,000 ft (0 to 3,048 m)
Non-operating
0 to 30,000 ft (0 to 9,144 m)
Operating
10 G, 11 ms, half-sine
Non-operating
60 G, 11 ms, half-sine
Operating
0.5 G zero-to-peak, 10 to 500 Hz, 0.25 oct/min sweep rate
Non-operating
1 G, zero-to-peak, 10 to 500 Hz, 0.5 oct/min sweep rate
HP 2008 Docking Station, AC power adapter, documentation
DA - 13068
North America — Version 2 — January 16, 2009
Page 5
QuickSpecs
HP Docking Stations for Performance, Workstation and
Balanced Mobility
HP 2008 Advanced Docking Station
HP 2008 Advanced Docking Station
1.
2.
3.
4.
Docking light
Notebook eject button
Docking posts
Notebook eject mechanisms
5.
6.
7.
8.
Docking connector
Visual alignment indicator
Power button
Power light
HP 2008 Advanced Docking Station Left-Side Components
1. SATA upgrade bay
2. Power button and power light
3.
4.
ExpressCard slot
SATA upgrade bay release lever
HP 2008 Advanced Docking Station Right-Side Components
DA - 13068
North America — Version 2 — January 16, 2009
Page 6
HP Docking Stations for Performance, Workstation and
Balanced Mobility
QuickSpecs
HP 2008 Advanced Docking Station
1. Notebook eject button
3.
Integrated cable lock slot (to connect HP Kensington cable
lock)
2. USB ports
HP 2008 Advanced Docking Station Rear Components
1.
2.
3.
4.
5.
6.
7.
8.
Security cable slot
Audio-out (headphone) jack
Mouse connector
Parallel port
Monitor stand port
RJ-11 (modem) jack
RJ-45 (network) jack
Power light
9.
10.
11.
12.
13.
14.
15.
16.
DA - 13068
Powered USB 2.0 port
USB 2.0 port
Power connector
Digital video (DVI) port
External monitor port
Serial port
Keyboard connector
Audio-in (microphone) jack
North America — Version 2 — January 16, 2009
Page 7
QuickSpecs
HP Docking Stations for Performance, Workstation and
Balanced Mobility
HP 2008 Advanced Docking Station
Key Benefits
Robust desktop replacement solution for your mobile office with advanced features for future expansion.
Easy docking system provides port replication and cable management, plus expandability through an integrated SATA
upgrade bay and ExpressCard slot - all in one product.
Six USB ports allow you to connect more peripherals to make you more productive.
Optional integrated HP/Kensington Cable Lock allows you to secure your docking station, notebook and integrated SATA
drive with one lock.
AC adapter included
The HP 2008 Advanced Docking Station with Smart Adapter features an energy-efficient 150W (Notebook PC) or 180W (Mobile
WS) Smart AC adapter that guards against power fluctuations with integrated surge protection. The 180W Smart AC adapter that
can be leveraged across all HP Business Notebooks and docking stations, providing a cost-effective solution for reducing power
consumption and equipment costs.
Standard Features
2 docking posts
Docking connector
Visual alignment indicator
Power button and power
light
Eject button and docking
light
USB ports
Powered USB port
Integrated cable lock slot
Audio and Network
connectors
Legacy connectors
Other connectors
Upgrade bay
ExpressCard slot
Smart Adapter
Align and secure the computer for proper connection to the docking station
Connects the computer to the docking station
Helps you align the computer with the docking station for fast and easy docking
Power indicators
Ejects computer from docking station. Dock light is turned on when the computer is properly connected.
6 USB 2.0 ports (1 powered)
Allows you to connect to select powered USB as well as regular USB devices
Supports the HP/Kensington Cable Lock, which secures the docking station, connected computer and the
optional SATA upgrade drive
Audio, Ethernet and Modem ports
Mouse, Keyboard, Serial and Parallel connectors
Monitor Stand, VGA and DVI-D ports. AC adapter connector with light
Supports all HP upgrade bay hard drives and optical drives for additional local storage capabilities
Supports ExpressCard technologies for future expandability
150W or 180W Smart AC Adapter
Service and Support
One-year limited warranty. Additional support is available 24 hours a day, seven days a week by phone
as well as online support forms.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
Compatibility
The HP Docking Station is compatible with HP Compaq 6300, 6510, 6515, 6530b, 6535b, 6710,
6715, 6720t, 6730b, 6735b, 6910, 6930p, 7400, 8200, 8400, 8510, 8710 and 9400 series
Notebook PCs and HP Compaq 4200 and 4400 series Tablet PCs.
NOTE: Some notebook models do not support the docking feature.
NOTE: DVI is not supported on the HP Compaq 6100 and 6300 series.
NOTE: Not all models are available in all regions.
DA - 13068
North America — Version 2 — January 16, 2009
Page 8
QuickSpecs
HP Docking Stations for Performance, Workstation and
Balanced Mobility
HP 2008 Advanced Docking Station
Specifications
Dimensions (H x W x D)
Weight
Power Supply (input)
Temperature
Relative Humidity
Maximum Altitude
Shock
Vibration
Option Kit Contents
11.02 x 2.4 x 9.56 in (28.0 x 6.1 cm x 24.3 cm)
3.93 lbs (1.78 kg)
Rated Voltage
100 to 240 V
Rated Current
2.5A rms
Line Frequency
50 – 60 Hz
Operating
50° to 95° F (10° to 35° C)
Non-operating
14° to 140° F (–10° to 60° C)
Non-operating
5% to 90% relative humidity, 101.6° F (38.7° C) maximum wet bulb
temperature
Operating
0 to 10,000 ft (0 to 3,048 m)
Non-operating
0 to 30,000 ft (0 to 9,144 m)
Operating
10 G, 11 ms, half-sine
Non-operating
60 G, 11 ms, half-sine
Operating
0.5 G zero-to-peak, 10 to 500 Hz, 0.25 oct/min sweep rate
Non-operating
1 G, zero-to-peak, 10 to 500 Hz, 0.5 oct/min sweep rate
HP 2008 Advanced Docking Station, AC power adapter documentation
DA - 13068
North America — Version 2 — January 16, 2009
Page 9
HP Docking Stations for Performance, Workstation and
Balanced Mobility
QuickSpecs
HP Docking Station
HP Docking Station
1.
2.
3.
4.
Power button
Power light
Docking posts
Notebook eject mechanisms
5.
6.
7.
8.
Docking connector
Visual alignment indicator
Notebook eject button and docking light
Integrated cable lock slot (to connect HP Kensington cable
lock)
HP Docking Station Left-Side Components
1. Power button and power light
2. USB 2.0 port
3.
DA - 13068
Powered USB 2.0 port
North America — Version 2 — January 16, 2009
Page 10
QuickSpecs
HP Docking Stations for Performance, Workstation and
Balanced Mobility
HP Docking Station
HP Docking Station Rear Components
1.
2.
3.
4.
5.
6.
7.
8.
9.
Security cable slot
Monitor stand port
Audio-out jack
Mouse Connector
Parallel Port
Digital Video (DVI-D) port
Power light
RJ-11 (modem) jack
RJ-45 (network) jack
10.
11.
12.
13.
14.
15.
16.
17.
USB 2.0 ports (2)
Power connector
External monitor port
Serial port
Keyboard connector
Audio-in jack
Composite video port
S-Video jack
Key Benefits
Desktop convenience with full port replication capability in a space-saving design.
Easy docking system provides port replication and cable management in one product.
Four USB ports allow you to connect more peripherals to make you more productive.
Optional integrated HP/Kensington Cable Lock allows you to secure your docking station and notebook with one lock.
AC adapter included
The HP 2008 Docking Station gives you an energy-efficient 120W Smart AC adapter for your Notebook PC or 150W Smart AC
adapter for your Mobile Workstations that guards against power fluctuations with integrated surge protection. The HP Docking
Station features the same protection with an energy-efficient 120W Smart AC adapter.
DA - 13068
North America — Version 2 — January 16, 2009
Page 11
QuickSpecs
HP Docking Stations for Performance, Workstation and
Balanced Mobility
HP Docking Station
Standard Features
2 docking posts
Docking connector
Visual alignment indicator
Power button and power
light
Eject button and docking
light
USB ports
Powered USB port
Align and secure the computer for proper connection to the docking station
Connects the computer to the docking station
Helps you align the computer with the docking station for fast and easy docking
Power indicators
Service and Support
One-year limited warranty. Additional support is available 24 hours a day, seven days a week by phone
as well as online support forms.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
Compatibility
The HP Docking Station is compatible with HP Compaq 6300, 6510, 6515, 6530b, 6535b, 6710,
6715, 6720t, 6730b, 6735b, 6910, 6930p, 7400, 8200, 8400, 8510, 8710 and 9400 series
Notebook PCs and HP Compaq 4200 and 4400 series Tablet PCs.
NOTE: Some notebook models do not support the docking feature.
NOTE: DVI is not supported on the HP Compaq 6100, 6300 and 6500 series.
NOTE: Not all models are available in all regions.
Ejects computer from docking station. Dock light is turned on when the computer is properly connected.
4 USB 2.0 ports (1 powered)
Allows you to connect to select USB devices such as the HP External MultiBay II as well as regular USB
devices
Integrated cable lock slot Supports the HP/Kensington Cable Lock, which secures the docking station and connected computer
Audio and Network
Audio, Ethernet and Modem ports
connectors
Legacy connectors
Mouse, Keyboard, Serial and Parallel connectors
Other connectors
S-Video, Monitor Stand, VGA and DVI-D ports. AC adapter connector with light
Smart Adapter
120W Smart AC Adapter
Specifications
Dimensions (H x W x D)
Weight
Power Supply (input)
Temperature
Relative Humidity
Maximum Altitude
11.02 x 2.4 x 6.02 in (28.0 x 6.1 cm x 15.3 cm)
2.24 lbs (1.02 kg)
Rated Voltage
100 to 240 V
Rated Current
2.5A rms
Line Frequency
50 – 60 Hz
Operating
50° to 95° F (10° to 35° C)
Non-operating
14° to 140° F (–10° to 60° C)
Operating/Non10% to 90% relative humidity
condensing
Non-operating
5% to 90% relative humidity, 101.6° F (38.7° C) maximum wet bulb
temperature
Operating
0 to 10,000 ft (0 to 3,048 m)
Non-operating
0 to 30,000 ft (0 to 9,144 m)
DA - 13068
North America — Version 2 — January 16, 2009
Page 12
QuickSpecs
HP Docking Stations for Performance, Workstation and
Balanced Mobility
HP Docking Station
Shock
Vibration
Option Kit Contents
Operating
10 G, 11 ms, half-sine
Non-operating
60 G, 11 ms, half-sine
Operating
0.5 G zero-to-peak, 10 to 500 Hz, 0.25 oct/min sweep rate
Non-operating
1 G, zero-to-peak, 10 to 500 Hz, 0.5 oct/min sweep rate
HP Docking Station, AC power adapter, documentation
DA - 13068
North America — Version 2 — January 16, 2009
Page 13
HP Docking Stations for Performance, Workstation and
Balanced Mobility
QuickSpecs
HP Advanced Docking Station
HP Advanced Docking Station
1.
2.
3.
4.
Power button
Power light
Docking posts
Notebook eject mechanisms
5.
6.
7.
8.
Docking connector
Visual alignment indicator
Notebook eject button and docking light
Integrated cable lock slot (to connect HP Kensington cable
lock)
HP Advanced Docking Station Left-Side Components
1. MultiBay II light
2. MultiBay II
3. USB 2.0 ports (3)
4.
5.
6.
DA - 13068
Powered USB 2.0 port
ExpressCard slot
Power button and power light
North America — Version 2 — January 16, 2009
Page 14
HP Docking Stations for Performance, Workstation and
Balanced Mobility
QuickSpecs
HP Advanced Docking Station
HP Advanced Docking Station Rear Components
1.
2.
3.
4.
5.
6.
7.
8.
9.
Security cable slot
Audio-out jack
Mouse connector
Monitor stand port
Parallel port
S-Video jack
Composite video port
Digital Video (DVI-D) port
Power light
10.
11.
12.
13.
14.
15.
16.
17.
RJ-11 (modem) jack
RJ-45 (network) jack
USB 2.0 ports (2)
Power connector
External monitor port
Serial port
Keyboard connector
Audio-in jack
Key Benefits
Robust desktop replacement solution for your mobile office with advanced features for future expansion.
Easy docking system provides port replication and cable management, plus expandability through an integrated MultiBay II
expansion bay and ExpressCard slot - all in one product.
Six USB ports allow you to connect more peripherals to make you more productive.
Optional integrated HP/Kensington Cable Lock allows you to secure your docking station, notebook and integrated MultiBay
II drive with one lock.
AC adapter included
The HP Advanced Docking Station with Smart Adapter features a new energy-efficient 135W Smart AC adapter that guards against
power fluctuations with integrated surge protection. The 135W Smart AC adapter can be leveraged across all HP Business
Notebooks and docking stations, providing a cost-effective solution for reducing power consumption and equipment costs.
DA - 13068
North America — Version 2 — January 16, 2009
Page 15
QuickSpecs
HP Docking Stations for Performance, Workstation and
Balanced Mobility
HP Advanced Docking Station
Standard Features
2 docking posts
Docking connector
Visual alignment indicator
Power button and power
light
Eject button and docking
light
USB ports
Powered USB port
Align and secure the computer for proper connection to the docking station
Connects the computer to the docking station
Helps you align the computer with the docking station for fast and easy docking
Power indicators
Service and Support
One-year limited warranty. Additional support is available 24 hours a day, seven days a week by phone
as well as online support forms.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
Compatibility
The HP Docking Station is compatible with HP Compaq 6300, 6510, 6515, 6530b, 6535b, 6710,
6715, 6720t, 6730b, 6735b, 6910, 6930p, 7400, 8200, 8400, 8510, 8710 and 9400 series
Notebook PCs and HP Compaq 4200 and 4400 series Tablet PCs.
NOTE: Some notebook models do not support the docking feature.
NOTE: DVI is not supported on the HP Compaq 6100 and 6300 series.
NOTE: Not all models are available in all regions.
Ejects computer from docking station. Dock light is turned on when the computer is properly connected.
6 USB 2.0 ports (1 powered)
Allows you to connect to select USB devices such as the HP External MultiBay II as well as regular USB
devices
Integrated cable lock slot Supports the HP/Kensington Cable Lock, which secures the docking station, connected computer and the
optional MultiBay II drive
Audio and Network
Audio, Ethernet and Modem ports
connectors
Legacy connectors
Mouse, Keyboard, Serial and Parallel connectors
Other connectors
S-Video, Monitor Stand, VGA and DVI-D ports. AC adapter connector with light
MultiBay II slot
Supports all 9.5mm HP MultiBay II drives for additional local storage capabilities
ExpressCard slot
Supports ExpressCard technologies for future expandability
Smart Adapter
135W Smart AC Adapter
DA - 13068
North America — Version 2 — January 16, 2009
Page 16
QuickSpecs
HP Docking Stations for Performance, Workstation and
Balanced Mobility
HP Advanced Docking Station
Specifications
Dimensions (H x W x D)
Weight
Power Supply (input)
Temperature
Relative Humidity
Maximum Altitude
Shock
Vibration
Option Kit Contents
11.02 x 2.4 x 9.56 in (28.0 x 6.1 cm x 24.3 cm)
3.93 lbs (1.78 kg)
Rated Voltage
100 to 240 V
Rated Current
2.5A rms
Line Frequency
50 – 60 Hz
Operating
50° to 95° F (10° to 35° C)
Non-operating
14° to 140° F (–10° to 60° C)
Non-operating
5% to 90% relative humidity, 101.6° F (38.7° C) maximum wet bulb
temperature
Operating
0 to 10,000 ft (0 to 3,048 m)
Non-operating
0 to 30,000 ft (0 to 9,144 m)
Operating
10 G, 11 ms, half-sine
Non-operating
60 G, 11 ms, half-sine
Operating
0.5 G zero-to-peak, 10 to 500 Hz, 0.25 oct/min sweep rate
Non-operating
1 G, zero-to-peak, 10 to 500 Hz, 0.5 oct/min sweep rate
HP Advanced Docking Station, AC power adapter, documentation
DA - 13068
North America — Version 2 — January 16, 2009
Page 17
QuickSpecs
HP Docking Stations for Performance, Workstation and
Balanced Mobility
Related Options
HP Upgrade Bay SATA 250-GB 5400 rpm Hard Drive
HP Upgrade Bay SATA DVD+/-RW SuperMulti DL LightScribe Drive
HP 8-Cell Extended Life Battery
HP MBII DVD-ROM Drive
HP Extended Life Battery
HP MBII SuperMulti (DL) DVD+/-RW Drive
AK868AA
AK869AA
PB993A
PA849A
AJ359AA
PA851A
© Copyright 2009 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 13068
North America — Version 2 — January 16, 2009
Page 18
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
