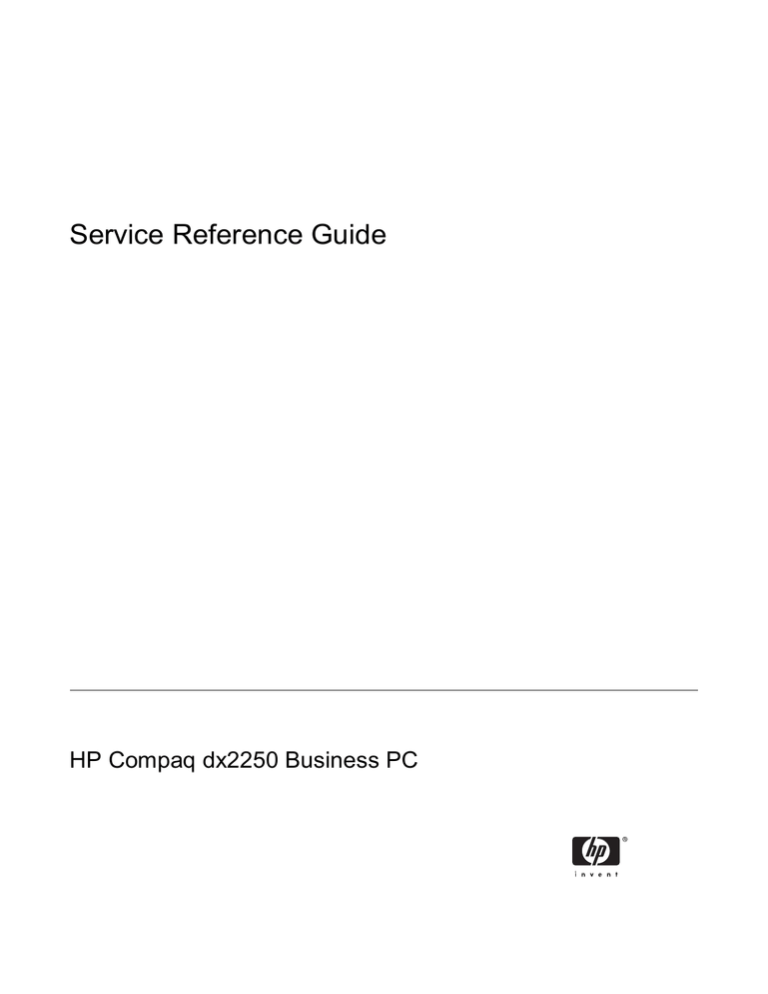

Service Reference Guide
HP Compaq dx2250 Business PC
© Copyright 2006 Hewlett-Packard
Development Company, L.P. The
information contained herein is subject to
change without notice.
Microsoft and Windows are trademarks of
Microsoft Corporation in the U.S. and other
countries.
The only warranties for HP products and
services are set forth in the express warranty
statements accompanying such products
and services. Nothing herein should be
construed as constituting an additional
warranty. HP shall not be liable for technical
or editorial errors or omissions contained
herein.
This document contains proprietary
information that is protected by copyright. No
part of this document may be photocopied,
reproduced, or translated to another
language without the prior written consent of
Hewlett-Packard Company.
Service Reference Guide
Business PCs
First Edition (November 2006)
Document Part Number: 440319–001
About This Book
WARNING! Text set off in this manner indicates that failure to follow directions could result in
bodily harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or loss of information.
NOTE:
ENWW
Text set off in this manner provides important supplemental information.
iii
iv
About This Book
ENWW
Table of contents
Index ................................................................................................................................................................. 153
ENWW
v
vi
ENWW
1
Install the Operating System
CAUTION: Do not add optional hardware or third-party devices to your computer until the
operating system is successfully installed. Doing so may cause errors and may prevent the
operating system from installing properly. Once the automatic installation has begun, DO NOT
TURN OFF THE COMPUTER UNTIL THE PROCESS IS COMPLETE. Turning off the computer
during the installation process might damage the software that runs the computer or prevent its
proper installation.
NOTE: Be sure there is a 10.2-cm (4-inch) clearance at the back of the unit and above the
monitor to permit the required airflow.
The first time the computer is turned on, the operating system is automatically installed. This takes
approximately 10 minutes, depending on the operating system being installed. Carefully read and follow
the instructions that appear on the screen to complete the installation.
NOTE: If the computer shipped with more than one operating system language on the hard
drive, the installation process could take up to 60 minutes.
If the computer was not shipped with a Microsoft operating system, some portions of this documentation
do not apply. For complete operating system installation and configuring instructions, refer to the
operating system documentation. Additional information is available in online help.
Microsoft security updates are available on the Microsoft Web site.
Installing or Upgrading Device Drivers
When installing optional hardware devices after the operating system installation is complete, you must
also install the drivers for each of the devices.
If prompted for the i386 directory, replace the path specification with C:\i386, or use the Browse button
in the dialog box to locate the i386 folder. This action points the operating system to the appropriate
drivers.
Obtain the latest support software, including support software for the operating system from
http://www.hp.com/support. Select your country and language, select Download drivers and
software, enter the model number of the computer, and press Enter.
Transferring Files and Settings
Use the Microsoft Windows XP Professional/Home Files and Settings Transfer Wizard to move files and
settings from the old computer to the new one. Click Start > All Programs > Accessories > System
ENWW
Installing or Upgrading Device Drivers
1
Tools > Files and Settings Transfer Wizard. Follow the wizard's instructions to transfer files and
settings to the new computer.
HP Backup and Recovery Manager
The HP Backup and Recovery Manager is an easy-to-use, versatile application that is pre-loaded on
each system and allows you to:
●
create Recovery Points to back up the entire system incrementally
●
back up the entire system in a single hard archive
●
back up individual files
Backups can be scheduled to occur automatically at designated intervals, or they can be initiated
manually. Recovery can be performed from the Recovery Partition on the hard drive or the Recovery
Disc Set. The Recovery Disc Set includes the Restore Plus! CD, the Microsoft Operating System, and
any Supplemental Software CDs.
NOTE: HP highly recommends that you create a Recovery Disc Set immediately before using
the computer and schedule regular automatic Recovery Point backups.
To create the Recovery Disc Set:
1.
Click Start > HP Backup and Recovery > HP Backup and Recovery Manager to open the
Backup and Recovery Wizard, then click Next.
2.
Select Create factory software recovery CDs or DVDs to recover the system.
3.
Follow the instructions in the wizard.
The HP Backup and Recovery Manager provides two basic recovery methods. The first, recovery of
files and folders, operates in Windows. The second, PC Recovery, requires a reboot to the Recovery
Partition or from the Recovery Disc Set. To reboot to the Recovery Partition, press F11 at startup when
you see the message “Press F11 for Emergency Recovery.”
NOTE: For more information on using HP Backup and Recovery Manager, refer to the HP
Backup and Recovery Manager User Guide by selecting Start > HP Backup and Recovery >
HP Backup and Recovery Manager Manual.
You can order a Recovery Disc Set from HP by calling the HP support center. Go to the following
Web site, select your region, and click the Technical support after you buy link under the Call
HP heading to obtain the support center telephone number for your region.
http://welcome.hp.com/country/us/en/wwcontact_us.html
2
Chapter 1 Install the Operating System
ENWW
2
Computer Setup (F10) Utility
Computer Setup (F10) Utilities
Use Computer Setup (F10) Utility to do the following:
●
Change factory default settings.
●
Set the system date and time.
●
Set, view, change, or verify the system configuration, including settings for processor, graphics,
memory, audio, storage, communications, and input devices.
●
Modify the boot order of bootable devices such as hard drives, diskette drives, optical drives, or
USB flash media devices.
●
Restrict a device from booting the unit.
●
Run hard drive self-tests.
●
View CPU and system temperatures.
●
Enter the Asset Tag or property identification number assigned by the company to this computer.
●
Establish a supervisor password that controls access to Computer Setup (F10) Utility and the
settings described in this section.
●
Secure integrated I/O functionality, including the serial, USB, or parallel ports, audio, or embedded
NIC, so that they cannot be used until they are unsecured.
●
Enable or disable removable media boot ability.
●
Enable or disable legacy diskette write ability (when supported by hardware).
Using Computer Setup (F10) Utilities
Computer Setup can be accessed only by turning the computer on or restarting the system. To access
the Computer Setup Utilities menu, complete the following steps:
1.
Turn on or restart the computer. If you are in Microsoft Windows, click Start > Shut Down >
Restart.
2.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and
again press F10 when the monitor light turns green to access the utility.
ENWW
Computer Setup (F10) Utilities
3
3.
The Computer Setup Utility screen is divided into menu headings and actions.
Eight menu headings appear on the Computer Setup Utility screen:
●
System Information
●
Standard CMOS Features
●
Advanced BIOS Features
●
Advanced Chipset Features
●
Integrated Peripherals
●
Power Management Setup
●
PC Health Status
Five action choices are listed on the Computer Setup Utility screen:
●
Load Optimized Defaults
●
Set Supervisor Password
●
Set User Password
●
Save & Exit Setup
●
Exit Without Saving
Use the arrow keys to select the appropriate heading, then press Enter. Use the arrow (up and
down) keys to select the option you want, then press Enter. To return to the previous screen,
press Esc.
4.
To apply and save changes, press F10 or select Save & Exit Setup on the Computer Setup Utility
screen and press Enter.
If you have made changes that you do not want applied, select Exit Without Saving and press
Enter.
CAUTION: Do NOT turn the computer power OFF while the BIOS is saving the Computer Setup
(F10) changes because the CMOS could become corrupted. It is safe to turn off the computer
only after exiting the F10 Setup screen.
Table 2-1 Computer Setup (F10) Utility Main Menu
4
Heading
Table
System Information
Table 2-2 Computer Setup—System Information on page 5
Standard CMOS Features
Table 2-3 Computer Setup—Standard CMOS Features
on page 6
Advanced BIOS Features
Table 2-4 Computer Setup—Advanced BIOS Features
on page 8
Advanced Chipset Features
Table 2-5 Computer Setup—Advanced Chipset Features
on page 9
Integrated Peripherals
Table 2-6 Computer Setup—Integrated Peripherals
on page 10
Chapter 2 Computer Setup (F10) Utility
ENWW
Table 2-1 Computer Setup (F10) Utility Main Menu (continued)
Power Management Setup
Table 2-7 Computer Setup—Power Management Setup
on page 11
PC Health Status
Table 2-8 Computer Setup—PC Health Status on page 12
(Action Choices)
Table 2-9 Computer Setup—(Action Choices) on page 12
Computer Setup—System Information
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 2-2 Computer Setup—System Information
ENWW
Option
Description
Product Name
(view only)
SKU Number
(view only)
Processor Type
(view only)
Processor Speed
(view only)
Cache Size
(view only)
Memory Size
(view only)
System ROM
(view only)
Integrated MAC
(view only)
UUID
(view only)
System Serial #
(view only)
Asset Tracking
Number
(view only)
Enter Asset Tag No.
Enter asset tag number assigned by the company (maximum 18 characters).
Computer Setup (F10) Utilities
5
Computer Setup—Standard CMOS Features
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 2-3 Computer Setup—Standard CMOS Features
Option
Description
Date (mm:dd:yy)
Allows you to set system date.
Time (hh:mm:ss)
Allows you to set system time.
PATA Controller
Disables/enables PATA Controller.
PATA Channel 0 Master
For each, if PATA HDD is used, allows you to:
PATA Channel 0 Slave
●
●
●
●
6
run HDD self-test for selected channel:
●
SMART Status Check
●
HDD Short Self-Test
●
HDD Extended Self-Test
set PATA Ch 0 Master/Slave device details on selected channel to:
●
Auto
●
Manual
set access mode on selected channel to:
●
CHS (Cylinder-Head-Sector)
●
LBA (Logical Block Addressing)
●
Large
●
Auto
view:
●
Firmware Version
●
Capacity
●
Cylinder
●
Head
●
Precomp
●
Landing Zone
●
Sector
SATA Controller
Disables/enables onboard SATA controller.
SATA Mode
Allows you to set the onboard SATA mode to:
●
Native IDE
●
Legacy IDE
Chapter 2 Computer Setup (F10) Utility
ENWW
Table 2-3 Computer Setup—Standard CMOS Features (continued)
SATA Channel 1 Master
For each, allows you to:
SATA Channel 2 Master
●
●
●
●
●
SMART Status Check
●
HDD Short Self-Test
●
HDD Extended Self-Test
set extended IDE drive on selected channel to:
●
None
●
Auto
set access mode on selected channel to:
●
Large
●
Auto
view:
●
Firmware Version
●
Capacity
●
Cylinder
●
Head
●
Precomp
●
Landing Zone
●
Sector
Floppy Controller
Disables/enables the floppy disk controller.
Drive A
Allows you to set Drive A to:
Halt On
POST Delay
ENWW
run HDD self-test for selected channel:
●
None
●
1.44M, 3.5 in.
Allows you to set POST error behavior to:
●
All Errors
●
No Errors
●
All but Keyboard
●
All but Diskette
●
All but Diskette/Keyboard
Allows you to set a POST delay to:
●
0 seconds
●
5 seconds
●
10 seconds
Computer Setup (F10) Utilities
7
●
15 seconds
●
30 seconds
Computer Setup—Advanced BIOS Features
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 2-4 Computer Setup—Advanced BIOS Features
Device Boot Disabling
Allows you to restrict a device from booting the unit. You can disable as a bootable device:
●
None
●
USB
●
Internal ODD
●
Internal FDD
●
USB + ODD + FDD
F9 Boot Menu
Disables/enables F9 Boot Menu.
Removable Device
Boot Seq.
Allows you to specify the order of attached removable devices (such as Floppy Discs or USB FDD).
The first drive in the order has priority in the boot sequence and is recognized as drive A.
Hard Disk Boot Seq.
Allows you to specify the order of attached hard drive devices (such as USB HDD storage, USB2
Drive Key, or USB flash media). The first drive in the order has priority in the boot sequence and is
recognized as drive C (if any devices are attached).
Optical Drive Boot
Seq.
Allows you to specify the order in which attached optical drives (including USB ODD) are checked
for a bootable operating system image.
Network Boot Seq.
Allows you to specify the order in which network devices (including UP NIC cards) are checked for
a bootable operating system image.
First Boot Device
Allows you to specify which devices will boot first, second, third, and fourth or to disable any of the
four:
Second Boot Device
Third Boot Device
Fourth Boot Device
●
Removable
●
Hard Disk
●
CDROM
●
Network
●
Disabled
NOTE: MS-DOS drive lettering assignments may not apply after a non-MS-DOS operating
system has started.
8
Boot Up NumLock
Status
Allows you to set the default NumLock status to off or on.
Security Option
Allows you to set the security option to Setup or System so that the password is required every time
the system boots or only when entering Computer Setup.
BIOS Write Protect
Disables/enables BIOS write Protect function.
AMD NX Function
Disables/enables AMD NX Function.
Chapter 2 Computer Setup (F10) Utility
ENWW
Computer Setup—Advanced Chipset Features
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 2-5 Computer Setup—Advanced Chipset Features
Option
Description
UMA Frame Buffer
Select the UMA (Unified Memory Architecture) frame buffer size:
●
32MB
●
64MB
●
128MB
●
Recommended (system allocates memory automatically)
Init Display First
Allows you to select the primary display device:
(VGA Setting)
●
PCI Slot
●
OnChipVGA
●
PCIEx
SURROUNDVIEW
Disables/enables SURROUNDVIEW (available when an ATI PCIEx video card is installed).
(VGA Setting)
Auto Detect PCI Clk
Disables/enables PCI clock auto-detection.
(VGA Setting)
Spread Spectrum
Disables/enables Spread Spectrum.
(VGA Setting)
ENWW
Computer Setup (F10) Utilities
9
Computer Setup—Integrated Peripherals
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 2-6 Computer Setup—Integrated Peripherals
Option
Heading
Onboard HD Audio
Disables/enables onboard HD audio.
OnChip USB
Controller
Disables/enables USB controller.
USB Legacy Support
Disables/enables USB legacy support function (USB keyboard, USB mouse, and USB flash media).
Onboard LAN
Disables/enables onboard LAN controller.
Onboard LAN Boot
ROM
Disables/enables the boot ROM of the onboard LAN chip.
Onboard Serial Port
Allows you to select a setting for the onboard serial port:
Onboard Parallel Port
Parallel Port Mode
10
●
Disabled
●
3F8/IRQ4
●
2F8/IRQ3
●
3E8/IRQ4
●
2E8/IRQ3
Allows you to select a setting for the onboard parallel port:
●
Disabled
●
378/IRQ7
●
278/IRQ5
●
3BC/IRQ7
Allows you to select parallel port mode:
●
SPP
●
EPP
●
ECP
●
ECP+EPP
●
Normal
Chapter 2 Computer Setup (F10) Utility
ENWW
Computer Setup—Power Management Setup
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 2-7 Computer Setup—Power Management Setup
ENWW
Option
Heading
After AC Power Loss
Allows you to select system power loss behavior:
●
On
●
Off
●
Last State
External Modem S5
Wake-Up
Disables/enables wake-up modem from S5.
Wake on PCI Device
from S5
Disables/enables PCI S5 on power on.
AMD Cool'n'Quiet
Disables/enables the AMD Cool'n'Quiet feature.
RTC Alarm Resume
Disables/enables RTC (real-time clock) alarm.
Date (of Month)
If RTC Alarm Resume is enabled, allows you to select the day of the month for resumption of RTC
alarm. (Set to 0 for every day.)
Resume Time
(hh:mm:ss)
If RTC Alarm Resume is enabled, allows you to select what time the RTC alarm will resume.
Computer Setup (F10) Utilities
11
Computer Setup—PC Health Status
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 2-8 Computer Setup—PC Health Status
Option
Description
System Fan Fail Check
Disables/enables system fan detection during POST.
Smart Fan Function
Disables/enables smart fan functionality.
Current CPU
Temperature
(view only)
Current System
Temperature
(view only)
Current CPU Fan
Speed
(view only)
Current System Fan
Speed
(view only)
Vcore
(view only)
+12V
(view only)
VCC5
(view only)
+3.3V
(view only)
VBAT (V)
(view only)
3VSB (V)
(view only)
Computer Setup—(Action Choices)
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 2-9 Computer Setup—(Action Choices)
12
Option
Description
Load Optimized
Defaults
Allows you to reset Computer Setup to factory defaults.
Set Supervisor
Password
Allows you to establish a password to control access to Computer Setup.
Set User Password
Allows you to establish a password to control access to the computer. (Supervisor password must
be set before you can set a User password.)
Save & Exit Setup
Allows you to save current settings and exit Computer Setup.
Exit Without Saving
Allows you to exit Computer Setup without saving changes.
Chapter 2 Computer Setup (F10) Utility
ENWW
Recovering the Configuration Settings
Recovering the configuration settings established in the Computer Setup (F10) Utility requires that you
first back up the settings before a recovery is needed.
The CMOS Save/Load utility can be found at http://www.hp.com under the Software & Driver Downloads
for your specific model. Download the firmware files into a folder on a removable storage device. It is
recommended that you save any modified computer configuration settings to a diskette, a USB flash
media device, or a diskette-like device (a storage device set to emulate a diskette drive) and save the
diskette or device for possible future use.
Backing Up the CMOS
1.
Make sure the computer to be backed up is turned on. Connect the removable storage to the
computer.
2.
Boot to DOS.
3.
Type N:\folder\BIOS.exe SAVE:ABC001.DAT (where N is the drive letter of the removable
storage) to save the CMOS setting to the removable storage device.
Restoring the CMOS
ENWW
1.
Make sure the target computer is turned on. Connect the removable storage to the target computer.
2.
Boot to DOS.
3.
Type N:\folder\BIOS.exe LOAD:ABC001.DAT (where N is the drive letter of the removable
storage) to load the custom CMOS setting onto the target system.
Recovering the Configuration Settings
13
14
Chapter 2 Computer Setup (F10) Utility
ENWW
3
HP Insight Diagnostics
HP Insight Diagnostics
NOTE:
HP Insight Diagnostics is included on CD with some computer models only.
The HP Insight Diagnostics utility allows you to view information about the hardware configuration of
the computer and perform hardware diagnostic tests on the subsystems of the computer. The utility
simplifies the process of effectively identifying, diagnosing, and isolating hardware issues.
The Survey tab is displayed when you invoke HP Insight Diagnostics. This tab shows the current
configuration of the computer. From the Survey tab, there is access to several categories of information
about the computer. Other tabs provide additional information, including diagnostic test options and test
results. The information in each screen of the utility can be saved as an html file and stored on a diskette
or USB HP Drive Key.
Use HP Insight Diagnostics to determine if all the devices installed on the computer are recognized by
the system and functioning properly. Running tests is optional but recommended after installing or
connecting a new device.
You should run tests, save the test results, and print them so that you have printed reports available
before placing a call to the Customer Support Center.
NOTE:
Third party devices may not be detected by HP Insight Diagnostics.
Accessing HP Insight Diagnostics
You must boot to the Documentation and Diagnostics CD, as described in the steps below, to access
HP Insight Diagnostics.
1.
While the computer is on, insert the Documentation and Diagnostics CD into an optical drive on
the computer.
2.
Shut down the operating system and turn off the computer.
3.
Turn on the computer. The system will boot to the CD.
NOTE: If the system does not boot to the CD in the optical drive, you may need to change
the boot order in the Computer Setup (F10) utility so that the system attempts to boot to the
optical drive before booting to the hard drive. Refer to the Computer Setup (F10) Utility
Guide on the Documentation and Diagnostics CD for more information.
4.
ENWW
Select the appropriate language and click Continue.
HP Insight Diagnostics
15
NOTE: It is recommended that you accept the assigned default keyboard for your
language unless you want to test your specific keyboard.
5.
In the End User License Agreement page, click Agree if you agree with the terms. The HP Insight
Diagnostics utility launches with the Survey tab displayed.
Survey Tab
The Survey tab displays important system configuration information.
In the View level field, you can select the Summary view to see limited configuration data or select
the Advanced view to see all the data in the selected category.
In the Category field, you can select the following categories of information to display:
All—Gives a listing of all categories of information about the computer.
Overview—Gives you a listing of general information about the computer.
Architecture—Provides system BIOS and PCI device information.
Asset Control—Shows product name, asset tag, system serial number, and processor information.
Communication—Shows information about the computer parallel (LPT) and serial (COM) port settings,
plus USB and network controller information.
Graphics—Shows information about the graphics controller of the computer.
Input Devices—Shows information about the keyboard, mouse, and other input devices connected to
the computer.
Memory—Shows information about all memory in the computer. This includes memory slots on the
system board and any memory modules installed.
Miscellaneous—Shows HP Insight Diagnostics version information, computer configuration memory
(CMOS) information, system board data, and system management BIOS data.
Storage—Shows information about storage media connected to the computer. This list includes all fixed
disks, diskette drives, and optical drives.
System—Shows information about the computer model, processor, chassis, and BIOS, plus internal
speaker and PCI bus information.
Test Tab
The Test tab allows you to choose various parts of the system to test. You can also choose the type of
test and testing mode.
There are three types of tests to choose from:
16
●
Quick Test—Provides a predetermined script where a sample of each hardware component is
exercised and requires no user intervention in either Unattended or Interactive mode.
●
Complete Test—Provides a predetermined script where each hardware component is fully tested.
There are more tests available in the Interactive mode, but these require user intervention.
●
Custom Test—Provides the most flexibility in controlling the testing of a system. The Custom Test
mode allows you to specifically select which devices, tests, and test parameters are run.
Chapter 3 HP Insight Diagnostics
ENWW
For each test type, there are two test modes to choose from:
●
Interactive Mode—Provides maximum control over the testing process. The diagnostic software
will prompt you for input during tests that require your interaction. You may also determine whether
the test passed or failed.
●
Unattended Mode—Does not display prompts and requires no interaction. If errors are found, they
are displayed when testing is complete.
To begin testing:
1.
Select the Test tab.
2.
Select the tab for the type of test you want to run: Quick, Complete, or Custom.
3.
Select the Test Mode: Interactive or Unattended.
4.
Choose how you want the test to be executed, either Number of Loops or Total Test Time. When
choosing to run the test over a specified number of loops, enter the number of loops to perform. If
you desire to have the diagnostic test for a specified time period, enter the amount of time in
minutes.
5.
If performing a Quick Test or Complete Test, select the device to be tested from the drop-down
list. If performing a Custom Test, Click the Expand button and select the devices to be tested or
click the Check All button to select all devices.
6.
Click the Begin Testing button at the bottom right corner of the screen to start the test. The Status
tab, which allows you to monitor the progress of the test, is automatically displayed during the
testing process. When the test is complete, the Status tab shows whether the device passed or
failed.
7.
If errors are found, go to the Log tab and click the Error Log to display more detailed information
and recommended actions.
Status Tab
The Status tab displays the status of the selected tests. The type of test executed (Quick, Complete,
or Custom) is also displayed. The main progress bar displays the percent complete of the current set
of tests. While testing is in progress, a Cancel Testing button is displayed for use if you want to cancel
the test.
After testing has completed, the Cancel Testing button is replaced with a Retest button. The Retest
button will retest the last set of tests executed. This enables you to re-run the set of tests without having
to re-enter the data in the Test tab.
The Status tab also shows:
ENWW
●
The devices being tested
●
The test status (running, passed, or failed) of each device being tested
●
The overall test progress of all devices being tested
●
The test progress for each device being tested
●
The elapsed test times for each device being tested
HP Insight Diagnostics
17
Log Tab
The Log tab contains a Test Log tab and an Error Log tab.
The Test Log displays all tests that have been executed, the number of times of execution, the number
of times failed, and the time it took to complete each test. The Clear Test Log button will clear the
contents of the Test Log.
The Error Log displays the tests for devices that have failed during the diagnostic testing and includes
the following columns of information.
●
The Device section displays the device tested.
●
The Test section displays the type of test run.
●
The Description section describes the error that the diagnostic test found.
●
The Recommended Repair will give a recommended action that should be performed to resolve
the failed hardware.
●
The Failed Count is the number of times the device has failed a test.
●
The Error Code provides a numerical code for the failure. The error codes are defined in the Help
tab.
The Clear Error Log button will clear the contents of the Error Log.
Help Tab
On the Help tab contains an HP Insight Diagnostics tab, an Error Codes tab, and a Test
Components tab.
The HP Insight Diagnostics tab contains help topics and includes search and index features.
The Error Codes tab provides a description of each numerical error code that may appear in the Error
Log tab located on the Log tab. Each code has a corresponding error Message and a Recommended
Repair action that should help solve the problem. To find an error code description quickly, enter the
code in the box at the top of the tab and click the Find Error Codes button.
The Test Components tab displays low-level information on tests that are run.
Saving and Printing Information in HP Insight Diagnostics
You can save the information displayed in the HP Insight Diagnostics Survey and Log tabs to a diskette
or a USB 2.0 HP Drive Key (64MB or higher). You can not save to the hard drive. The system will
automatically create an html file that has the same appearance as the information displayed on the
screen.
18
1.
Insert a diskette or USB 2.0 HP Drive Key (capacity must be 64MB or higher). USB 1.0 Drive Keys
are not supported.
2.
Click Save in the bottom right corner of the screen.
3.
Select Save to the floppy or Save to USB key.
4.
Enter a file name in the File Name box and click the Save button. An html file will be saved to the
inserted diskette or USB HP Drive Key.
Chapter 3 HP Insight Diagnostics
ENWW
NOTE: Do not remove the diskette or USB key until you see a message indicating that the
html file has been written to the media.
5.
Print the information from the storage device used to save it.
NOTE: To exit HP Insight Diagnostics, click Exit Diagnostics button in the bottom left corner of
the screen then remove the Documentation and Diagnostics CD from the optical drive.
Downloading the Latest Version of HP Insight Diagnostics
1.
Go to http://www.hp.com.
2.
Click the Software & Driver Downloads link.
3.
Enter your product number (for example, dc7700) in the text box and press the Enter key.
4.
Select your specific computer model.
5.
Select your OS.
6.
Click the Diagnostic link.
7.
Click HP Insight Diagnostics Offline Edition.
8.
Select a language and click Download.
NOTE:
The download includes instructions on how to create the bootable CD.
Protecting the Software
To protect software from loss or damage, you should keep a backup copy of all system software,
applications, and related files stored on the hard drive. See the operating system or backup utility
documentation for instructions on making backup copies of data files.
Restoring the Software
The HP Backup and Recovery Manager is an easy-to-use, versatile application that is pre-loaded on
each system and allows you to:
●
create Recovery Points to back up the entire system incrementally
●
back up the entire hard drive in a single archive
●
back up individual files
Backups can be scheduled to occur automatically at designated intervals, or they can be initiated
manually. Recovery can be performed from the Recovery Partition on the hard drive or the Recovery
Disc Set . The Recovery Disc Set includes the Restore Plus! CD, the Microsoft Operating System, and
any Supplemental Software CDs.
NOTE: HP highly recommends that you create a Recovery Disc Set immediately before using
the computer and schedule regular automatic Recovery Point backups.
ENWW
Protecting the Software
19
The HP Backup and Recovery Manager provides two basic recovery methods. The first, recovery of
files and folders, operates in Windows. The second, PC Recovery, requires a reboot to the Recovery
Partition or from the Recovery Disc Set. To reboot to the Recovery Partition, press F11 at startup when
you see the message ”Press F11 for Emergency Recovery.”
NOTE: For more information on using HP Backup and Recovery Manager, refer to the HP
Backup and Recovery Manager User Guide by selecting Start > HP Backup and Recovery >
HP Backup and Recovery Manager Manual.
20
Chapter 3 HP Insight Diagnostics
ENWW
4
Desktop Management
HP Client Management Solutions provides standards-based solutions for managing and controlling
desktops, workstations, and notebook PCs in a networked environment. HP pioneered desktop
manageability in 1995 with the introduction of the industry’s first fully manageable desktop personal
computers. HP is a patent holder of manageability technology. Since then, HP has led an industry-wide
effort to develop the standards and infrastructure required to effectively deploy, configure, and manage
desktops, workstations, and notebook PCs. HP develops its own management software and works
closely with leading management software solution providers in the industry to ensure compatibility
between HP Client Management Solutions and these products. HP Client Management Solutions are
an important aspect of our broad commitment to providing you with solutions that assist you in lowering
the total cost of owning and maintaining the PCs throughout their lifecycle.
The key capabilities and features of desktop management are:
●
Initial configuration and deployment
●
Remote system installation
●
Software updating and management
●
ROM flash
●
Asset tracking and security
●
Fault notification and recovery
NOTE: Support for specific features described in this guide may vary by model or software
version.
Initial Configuration and Deployment
The computer comes with a preinstalled system software image. After a brief software “unbundling”
process, the computer is ready to use.
You may prefer to replace the preinstalled software image with a customized set of system and
application software. There are several methods for deploying a customized software image. They
include:
ENWW
●
Installing additional software applications after unbundling the preinstalled software image.
●
Using software deployment tools, such as HP OpenView Client Configuration Manager, HP
OpenView Configuration Management Solutions Radia OS Manager, or Altiris Deployment
Solution, to replace the preinstalled software with a customized software image.
●
Using a disk cloning process to copy the contents from one hard drive to another.
Initial Configuration and Deployment
21
The best deployment method depends on your information technology environment and processes. The
PC Deployment section of the HP Lifecycle Service Web site (http://h20219.www2.hp.com/services/
cache/80906-0-0-225-121.html) provides information to help you select the best deployment method.
The Restore Plus! CD, ROM-based setup, and ACPI hardware provide further assistance with recovery
of system software, configuration management and troubleshooting, and power management.
NOTE: See HP Backup and Recovery Manager on page 23 for information on creating the
Restore Plus! CD.
HP OpenView Agent
The Radia Management Agent (RMA) used by both HP OpenView Client Configuration Manager and
HP OpenView PC Configuration Management Solutions (Radia) is pre-loaded on the computer. When
installed, it enables communication with the HP OpenView management console.
To install the Radia Management Agent:
1.
Click Start.
2.
Click All Programs.
3.
Click HP Manageability.
4.
Click Radia Management Agent Readme.
5.
Review and follow the instructions contained in the Readme file to install the Radia Management
Agent.
Altiris Deployment Solution Agent
This program is pre-loaded on the computer. When installed, it enables communication with the
administrator Altiris Deployment Solution console.
To install Altiris Deployment Solution Agent:
1.
Click Start.
2.
Click All Programs.
3.
Click Software Setup.
4.
Click Next.
5.
Scroll down and click on the link to install Altiris AClient.
The Altiris Deployment Solution Agent is a key infrastructure component for enabling the HP Client
Foundation Suite and the Client Premium Suite. To learn about the other infrastructure components
necessary for implementing the HP Client Foundation Suite and Client Premium Suite, please visit
www.hp.com/go/easydeploy.
22
Chapter 4 Desktop Management
ENWW
HP Backup and Recovery Manager
CAUTION: HP no longer ships the Restore Plus! CD set with PCs. Instead, HP Backup and
Recovery Manager is pre-loaded on each system. HP recommends that you create a recovery
CD set as soon as you have set up the new computer. Creating the Restore Plus! CD set is
important in the event that you ever need to restore the system hard drive to its factory installed
state.
HP Backup and Recovery Manager can create the Restore Plus! CD set. This set includes the Restore
Plus! CD, the Operating System CD, and any Supplemental Software CDs.
CAUTION: The Restore Plus! CD set will not include any system settings or user data created
after the initial system setup.
To create the Restore Plus! CD set:
1.
Click Start > HP Backup and Recovery > HP Backup and Recovery Manager to open the
Backup and Recovery Wizard, then click Next.
2.
Select Create factory software recovery CDs or DVDs to recover the system.
3.
Follow the instructions in the wizard.
In addition to allowing you to create the Restore Plus! CD set, HP Backup and Recovery Manager can
be used to back up data and system files to the hard drive, to network drives, or to removable media,
such as CDs, DVDs, or flash media. If data or system files are lost, deleted, or corrupted, Backup and
Recovery Manager allows you to retrieve data or restore the last good system image.
CAUTION: HP recommends that a backup schedule be created immediately to ensure
continued system and data protection. Automatic backups can be scheduled using the HP
Backup and Recovery Manager Wizard. Recovery Points, Entire Drive Backups, and File
Backups can be automatically backed up without user intervention. HP recommends scheduling
Recovery Point Backups to provide the most comprehensive coverage.
NOTE: If HP Backup and Recovery Manager is preinstalled, the Restore Plus! CD set and the
initial recovery point may be saved to disc as often as necessary, but only a single copy of the
Microsoft Windows CD can be created, due to licensing constraints.
You can access a user manual at Start > HP Backup and Recovery > HP Backup and
Recovery Manager Manual. We suggest that you print this document for easy reference in case
of future emergency.
If Create factory software recovery CDs or DVDs to recover the system is unavailable on
your system, the HP Restore Plus! CD set can be obtained through product support on
http://welcome.hp.com/country/us/en/contact_us.html.
ENWW
Initial Configuration and Deployment
23
Remote System Installation
Remote System Installation allows you to start and set up the system using the software and
configuration information located on a network server by initiating the Preboot Execution Environment
(PXE). The Remote System Installation feature is usually used as a system setup and configuration
tool, and can be used for the following tasks:
●
Formatting a hard drive
●
Deploying a software image on one or more new PCs
●
Remotely updating the system BIOS in flash ROM (Remote ROM Flash on page 29)
●
Configuring the system BIOS settings
To initiate Remote System Installation, press F12 when the F12 = Network Service Boot message
appears in the lower-right corner of the HP logo screen when the computer is booting up. Follow the
instructions on the screen to continue the process. The default boot order is a BIOS configuration setting
that can be changed to always attempt to PXE boot.
Software Updating and Management
HP provides several tools for managing and updating software on desktops, workstations, and
notebooks:
●
HP Client Manager
●
HP System Software Manager
●
HP ProtectTools Security Manager
●
HP Client Management Premium Suite
●
HP Client Foundation Suite
●
HP OpenView Client Configuration Manager
●
HP OpenView Management Suite for Desktops using Radia
●
HP Proactive Change Notification
●
HP Subscriber's Choice
HP Client Management Interface
Regardless of the system management tools your IT department uses, managing both your hardware
and software assets is important to keeping your IT costs low and your business agile.
With the HP Client Management Interface (HP CMI), new HP business computers seamlessly integrate
into your managed IT environment. HP CMI provides an interface that simplifies the integration of HP
business computers with popular industry system management tools (including Microsoft Systems
Management Server, IBM Tivoli Software, and HP OpenView Operations) and custom inhouse
developed management applications. Using HP CMI, systems management tools and applications can
request in-depth client inventory, receive health status information, and manage system BIOS settings
by communicating directly with the client computer, reducing the need for agent or connector software
to achieve integration.
24
Chapter 4 Desktop Management
ENWW
NOTE: The system management tools mentioned above do not automatically connect into HP
CMI. Some script development is typically required to interface with HP CMI.
HP Client Management Interface is based on industry standards that include Microsoft Windows
Management Interface (MS WMI), Web-Based Enterprise Management (WBEM), System Management
BIOS (SMBIOS), and Advanced Configuration and Power Interface (ACPI). HP CMI is a foundation
technology utilized in HP Client Management Solutions. With HP CMI, HP gives you flexibility in choosing
how you manage your HP client computers.
HP Client Management Interface used in conjunction with system management software can:
●
Request in-depth client inventory information—Capture detailed information about the processors,
hard drives, memory, BIOS, drivers, including sensor information (such as fan speed, voltage, and
temperature)
●
Receive health status information—Subscribe for a wide range of client hardware alerts (such as
over-temperature, fan stall, and hardware configuration changes) to be sent to the system
management console, application, or to the local client computer. Alerts are sent real-time when
triggered by hardware events.
●
Manage system BIOS settings—Perform F10 functions including setting and changing the BIOS
passwords and computer boot order remotely from your system management console on any or
all of your client systems without having to visit each machine.
HP System Software Manager
HP System Software Manager (SSM) is a free utility that automates remote deployment of device drivers
and BIOS updates for your networked HP business PCs. When SSM runs, it silently (without user
interaction) determines the revision levels of drivers and BIOS installed on each networked client system
and compares this inventory against system software SoftPaqs that have been tested and stored in a
central file store. SSM then automatically updates any down-revision system software on the networked
PCs to the later levels available in the file store. Since SSM only allows distribution of SoftPaq updates
to the correct client system models, administrators can confidently and efficiently use SSM to keep
system software updated.
System Software Manager integrates with enterprise software distribution tools such as HP OpenView
Management Suite using Radia and Microsoft Systems Management Server (SMS). Using SSM, you
can distribute customer-created or third-party updates that have been packaged in the SSM-format.
SSM may be downloaded at no charge by visiting www.hp.com/go/ssm.
HP Client Manager
HP Client Manager, developed with Altiris, is available free for all supported HP business desktop,
notebook, and workstation models. SSM is integrated into HP Client Manager, and enables central
tracking, monitoring, and management of the hardware aspects of HP client systems.
Use HP Client Manager to:
ENWW
●
Get valuable hardware information such as CPU, memory, video, and security settings
●
Monitor system health to fix problems before they occur
●
Automatically acquire and install drivers and BIOS updates without visiting each PC
Software Updating and Management
25
●
Remotely configure BIOS and security settings
●
Automate processes to quickly resolve hardware problems
Tight integration with HP Instant Support tools reduces hardware troubleshooting time.
●
Diagnostics—remotely run & view reports on HP desktop, notebook, and workstation models
●
System Health Scan—check for known hardware issues in your installed base of HP client systems
●
Active Chat—connect to HP customer support to resolve issues
●
HP Knowledgebase—link to expert information
●
Automated SoftPaq collection and delivery process for fast resolution of hardware problems
●
Identify, inventory, and initialize systems with HP ProtectTools embedded security chip
●
Option for health alerts to display locally on the client system
●
Report basic inventory information for non-HP clients
For more information on HP Client Manager, visit www.hp.com/go/clientmanager.
HP ProtectTools Security Manager
ProtectTools Security Manager software provides security features that help protect against
unauthorized access to the computer, networks, and critical data. Enhanced security functionality is
provided by the following modules:
●
Smart Card Security for ProtectTools
●
Embedded Security for ProtectTools
●
BIOS Configuration for ProtectTools
●
Credential Manager for ProtectTools
The modules available for your computer may vary depending on your model. For example, Embedded
Security for ProtectTools requires that the Trusted Platform Module (TPM) embedded security chip
(some models only) be installed on your computer, and Smart Card Security for ProtectTools requires
an optional smart card and reader.
ProtectTools modules may be preinstalled, preloaded, or available for purchase from the HP Web site.
Visit http://www.hp.com/products/security for more information.
HP Client Management Premium Suite
HP Client Premium Suite (HP CPS) is designed for organizations wanting full client hardware and
software lifecycle management from a single, Web-based management console. It combines:
26
●
HP Client Manager
●
HP Systems Insight Manager Connector
●
HP OpenView Connector
●
Altiris Client Manager Suite - Level 1
●
Altiris Connector Solution
Chapter 4 Desktop Management
ENWW
●
Altiris Local Recovery Pro
●
Altiris AuditExpress
For more information on HP Client Management Premium Suite, visit www.hp.com/go/easydeploy.
HP Client Foundation Suite
The HP Client Foundation Suite (HP CFS) is designed for organizations wanting essential client
management functionality. It combines:
●
HP Client Manager
●
HP Systems Insight Manager Connector
●
Altiris Migration Suite
●
Altiris Local Recovery Pro
For more information about the HP Client Foundation Suite, visit http://www.hp.com/go/easydeploy.
HP OpenView Client Configuration Manager
HP OpenView Client Configuration Manager is a simplified, out-of-the-box, and easy-to-use solution
that solves immediate PC software configuration management needs.
●
●
Integrated software management
●
Inventory collection
●
Operating system deployment and settings migration
●
Patch management
●
Software distribution
●
Software usage metering
Integrated hardware management
●
Remote control
●
HP alert monitoring
●
HP hardware driver and BIOS updates
●
Integration with HP ProtectTools
●
Free add-on support for Intel Active Management Technology (AMT)
●
Free version for basic hardware management of HP desktops and notebooks, and software
and hardware management for HP Thin Clients.
For more information about the HP OpenView Client Configuration Manager, visit
http://www.managementsoftware.hp.com/products/ccm/index.html.
ENWW
Software Updating and Management
27
HP OpenView PC Configuration Management Solutions
HP OpenView Configuration Management solutions automate the management of software such as
operating systems, applications, patches, content, and configuration settings to ensure that each
computing device is maintained in the right configuration.
Proven across enterprises of every size and complexity, HP’s adaptive, policy-based model for software
Configuration Management, automates the entire software lifecycle management process - from
discovery, deployment, and ongoing management through to migration and retirement.
By substituting automation for manual intervention, HP helps its customers lower costs, significantly
reduce software related problems, and ensure the software supporting their business operations is
reliable and secure.
For more information on HP OpenView PC Configuration Management Solution, visit
http://h20229.www2.hp.com/solutions/ascm/index.html.
Proactive Change Notification
The Proactive Change Notification program uses the Subscriber's Choice Web site in order to
proactively and automatically:
●
Send you Proactive Change Notification (PCN) e-mail informing you of hardware and software
changes to most commercial computers and servers, up to 60 days in advance
●
Send you e-mail containing Customer Bulletins, Customer Advisories, Customer Notes, Security
Bulletins, and Driver alerts for most commercial computers and servers
You create your own profile to ensure that you only receive the information relevant to a specific IT
environment. To learn more about the Proactive Change Notification program and create a custom
profile, visit http://h30046.www3.hp.com/subhub.php
Subscriber’s Choice
Subscriber’s Choice is a client-based service from HP.
Based on your profile, HP will supply you with personalized product tips, feature articles, and/or driver
and support alerts/notifications.
Subscriber’s Choice Driver and Support Alerts/Notifications will deliver e-mails notifying you that the
information you subscribed to in your profile is available for review and retrieval. To learn more about
Subscriber’s Choice and create a custom profile, visit http://h30046.www3.hp.com/subhub.php.
Retired Solutions
Two software packages, Altiris Local Recovery, and Dantz Retrospect, will no longer be shipping on HP
business desktops, notebooks, or workstations. Starting with new business desktops, notebooks, and
workstations released in 2006, all will ship with HP Backup and Recovery Manager.
ROM Flash
The computer's BIOS is stored in a programmable flash ROM (read only memory). By establishing a
setup password in the Computer Setup (F10) Utility, you can protect the ROM from being unintentionally
updated or overwritten. This is important to ensure the operating integrity of the computer. Should you
need or want to upgrade the BIOS, you may download the latest BIOS images from the HP driver and
support page, http:///www.hp.com/support/files.
28
Chapter 4 Desktop Management
ENWW
CAUTION: For maximum ROM protection, be sure to establish a setup password. The setup
password prevents unauthorized ROM upgrades. System Software Manager allows the system
administrator to set the setup password on one or more PCs simultaneously. For more
information, visit http://www.hp.com/go/ssm.
Remote ROM Flash
Remote ROM Flash allows the system administrator to safely upgrade the BIOS on remote HP
computers directly from the centralized network management console. Enabling the system
administrator to perform this task remotely on multiple computers results in a consistent deployment of,
and greater control over, HP PC BIOS images over the network. It also results in greater productivity
and lower total cost of ownership.
NOTE: The computer must be powered on, or turned on through Remote Wakeup, to take
advantage of Remote ROM Flash.
For more information on Remote ROM Flash, refer to the HP Client Manager Software or System
Software Manager at http://h18000.www1.hp.com/im/prodinfo.html.
HPQFlash
The HPQFlash utility is used to locally update or restore the system BIOS of individual PCs from a
Windows operating system.
For more information on HPQFlash, visit http://www.hp.com/support/files and enter the model number
of the computer when prompted.
Boot Block Emergency Recovery Mode
Boot Block Emergency Recovery Mode permits system recovery in the unlikely event of a ROM flash
failure. For example, if a power failure were to occur during a BIOS upgrade, the ROM flash would be
incomplete. This would render the system BIOS unusable. The Boot Block is a flash-protected section
of the ROM that contains code that checks for a valid system BIOS image when the system is turned
on.
●
If the system BIOS image is valid, the system starts normally.
●
If the system BIOS image is not valid, a failsafe Boot Block BIOS provides enough support to
●
search removable media for BIOS image files. If an appropriate BIOS image file is found, it is
automatically flashed into the ROM.
●
start the system from bootable removable media that automatically invokes system BIOS
upgrade utilities.
When an invalid system BIOS image is detected, the system power LED will blink red 8 times, one blink
every second. Simultaneously, the speaker will beep 8 times. If the portion of the system ROM containing
the video option ROM image is not corrupt, Boot Block Emergency Recovery Mode will be displayed
on the screen.
ENWW
Boot Block Emergency Recovery Mode
29
To recover the system after it enters Boot Block Emergency Recovery Mode, complete the following
steps:
1.
Turn off the power.
2.
Insert a diskette, CD, or USB flash device containing the desired BIOS image file in the root
directory.
NOTE: The media must be formatted using the FAT12, FAT16, or FAT32 file system.
3.
Turn on the computer.
If no appropriate BIOS image file is found, the failsafe Boot Block BIOS will attempt to start the
system from a bootable device. If no bootable device is found, you will be prompted to insert media
containing a BIOS image file or BIOS upgrade utility.
If the system successfully reprograms the ROM, the system will automatically power off.
4.
Remove the removable media used to upgrade the BIOS.
5.
Turn the power on to restart the computer.
Replicating the Setup
The following procedures give an administrator the ability to easily copy one setup configuration to other
computers of the same model. This allows for faster, more consistent configuration of multiple
computers.
NOTE: Both procedures require a diskette drive or a supported USB flash media device, such
as an HP Drive Key.
Copying to Single Computer
CAUTION: A setup configuration is model-specific. File system corruption may result if source
and target computers are not the same model. For example, do not copy the setup configuration
from a dc7xxx PC to a dx7xxx PC.
1.
Select a setup configuration to copy. Turn off the computer. If you are in Windows, click Start >
Shut Down > Shut Down.
2.
If you are using a USB flash media device, insert it now.
3.
Turn on the computer.
4.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and
again press F10 when the monitor light turns green to access the utility.
30
5.
If you are using a diskette, insert it now.
6.
Click File > Replicated Setup > Save to Removable Media. Follow the instructions on the screen
to create the configuration diskette or USB flash media device.
Chapter 4 Desktop Management
ENWW
7.
Turn off the computer to be configured and insert the configuration diskette or USB flash media
device.
8.
Turn on the computer to be configured.
9.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
10. Click File > Replicated Setup > Restore from Removable Media, and follow the instructions on
the screen.
11. Restart the computer when the configuration is complete.
Copying to Multiple Computers
CAUTION: A setup configuration is model-specific. File system corruption may result if source
and target computers are not the same model. For example, do not copy the setup configuration
from a dc7xxx PC to a dx7xxx PC.
This method takes a little longer to prepare the configuration diskette or USB flash media device, but
copying the configuration to target computers is significantly faster.
NOTE: A bootable diskette is required for this procedure or to create a bootable USB flash
media device. If Windows XP is not available to use to create a bootable diskette, use the method
for copying to a single computer instead (see Copying to Single Computer on page 30).
1.
Create a bootable diskette or USB flash media device. See Supported USB Flash Media Device
on page 32 or Unsupported USB Flash Media Device on page 33.
CAUTION: Not all computers can be booted from a USB flash media device. If the default
boot order in the Computer Setup (F10) Utility lists the USB device before the hard drive,
the computer can be booted from a USB flash media device. Otherwise, a bootable diskette
must be used.
2.
Select a setup configuration to copy. Turn off the computer. If you are in Windows, click Start >
Shut Down > Shut Down.
3.
If you are using a USB flash media device, insert it now.
4.
Turn on the computer.
5.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and
again press F10 when the monitor light turns green to access the utility.
ENWW
6.
If you are using a diskette, insert it now.
7.
Click File > Replicated Setup > Save to Removable Media. Follow the instructions on the screen
to create the configuration diskette or USB flash media device.
8.
Download a BIOS utility for replicating setup (repset.exe) and copy it onto the configuration diskette
or USB flash media device. To obtain this utility, go to tap//welcome.hp.com/support/files and enter
the model number of the computer.
Replicating the Setup
31
9.
On the configuration diskette or USB flash media device, create an autoexec.bat file containing the
following command:
repset.exe
10. Turn off the computer to be configured. Insert the configuration diskette or USB flash media device
and turn the computer on. The configuration utility will run automatically.
11. Restart the computer when the configuration is complete.
Creating a Bootable Device
Supported USB Flash Media Device
Supported devices have a preinstalled image to simplify the process of making them bootable. All HP
or Compaq and most other USB flash media devices have this preinstalled image. If the USB flash media
device being used does not have this image, use the procedure later in this section (see Unsupported
USB Flash Media Device on page 33).
To create a bootable USB flash media device, you must have:
●
a supported USB flash media device
●
a bootable DOS diskette with the FDISK and SYS programs (If SYS is not available, FORMAT may
be used, but all existing files on the USB flash media device will be lost.)
●
a PC that is bootable from a USB flash media device
CAUTION: Some older PCs may not be bootable from a USB flash media device. If the default
boot order in the Computer Setup (F10) Utility lists the USB device before the hard drive, the
computer can be booted from a USB flash media device. Otherwise, a bootable diskette must be
used.
1.
Turn off the computer.
2.
Insert the USB flash media device into one of the computer's USB ports and remove all other USB
storage devices except USB diskette drives.
3.
Insert a bootable DOS diskette with FDISK.COM and either SYS.COM or FORMAT.COM into a
diskette drive and turn on the computer to boot to the DOS diskette.
4.
Run FDISK from the A:\ prompt by typing FDISK and pressing Enter. If prompted, click Yes (Y) to
enable large disk support.
5.
Enter Choice [5] to display the drives in the system. The USB flash media device will be the drive
that closely matches the size of one of the drives listed. It will usually be the last drive in the list.
Note the letter of the drive.
USB flash media device drive: __________
CAUTION: If a drive does not match the USB flash media device, do not proceed. Data
loss can occur. Check all USB ports for additional storage devices. If any are found, remove
them, reboot the computer, and proceed from step 4. If none are found, either the system
does not support the USB flash media device or the USB flash media device is defective.
DO NOT proceed in attempting to make the USB flash media device bootable.
6.
32
Exit FDISK by pressing the Esc key to return to the A:\ prompt.
Chapter 4 Desktop Management
ENWW
7.
If your bootable DOS diskette contains SYS.COM, go to step 8. Otherwise, go to step 9.
8.
At the A:\ prompt, enter SYS x: where x represents the drive letter noted above.
CAUTION:
device.
Be sure that you have entered the correct drive letter for the USB flash media
After the system files have been transferred, SYS will return to the A:\ prompt. Go to step 13.
9.
Copy any files you want to keep from your USB flash media device to a temporary directory on
another drive (for example, the system's internal hard drive).
10. At the A:\ prompt, enter FORMAT /S X: where X represents the drive letter noted before.
CAUTION:
device.
Be sure that you have entered the correct drive letter for the USB flash media
FORMAT will display one or more warnings and ask you each time whether you want to proceed.
Enter Y each time. FORMAT will format the USB flash media device, add the system files, and ask
for a Volume Label.
11. Press Enter for no label or enter one if desired.
12. Copy any files you saved in step 9 back to your USB flash media device.
13. Remove the diskette and reboot the computer. The computer will boot to the USB flash media
device as drive C.
NOTE: The default boot order varies from computer to computer, and it can be changed
in the Computer Setup (F10) Utility.
If you have used a DOS version from Windows 9x, you may see a brief Windows logo screen.
If you do not want this screen, add a zero-length file named LOGO.SYS to the root directory
of the USB flash media device.
Return to Copying to Multiple Computers on page 31.
Unsupported USB Flash Media Device
To create a bootable USB flash media device, you must have:
ENWW
●
a USB flash media device
●
a bootable DOS diskette with the FDISK and SYS programs (If SYS is not available, FORMAT may
be used, but all existing files on the USB flash media device will be lost.)
●
a PC that is bootable from a USB flash media device
Replicating the Setup
33
CAUTION: Some older PCs may not be bootable from a USB flash media device. If the default
boot order in the Computer Setup (F10) Utility lists the USB device before the hard drive, the
computer can be booted from a USB flash media device. Otherwise, a bootable diskette must be
used.
1.
If there are any PCI cards in the system that have SCSI, ATA RAID or SATA drives attached, turn
off the computer and unplug the power cord.
CAUTION: The power cord MUST be unplugged.
2.
Open the computer and remove the PCI cards.
3.
Insert the USB flash media device into one of the computer's USB ports and remove all other USB
storage devices except USB diskette drives. Close the computer cover.
4.
Plug in the power cord and turn on the computer.
5.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and
again press F10 when the monitor light turns green to access the utility.
6.
Go to Advanced > PCI Devices to disable both the PATA and SATA controllers. When disabling
the SATA controller, note the IRQ to which the controller is assigned. You will need to reassign the
IRQ later. Exit setup, confirming the changes.
SATA IRQ: __________
7.
Insert a bootable DOS diskette with FDISK.COM and either SYS.COM or FORMAT.COM into a
diskette drive and turn on the computer to boot to the DOS diskette.
8.
Run FDISK and delete any existing partitions on the USB flash media device. Create a new partition
and mark it active. Exit FDISK by pressing the Esc key.
9.
If the system did not automatically restart when exiting FDISK, press Ctrl+Alt+Del to reboot to the
DOS diskette.
10. At the A:\ prompt, type FORMAT C: /S and press Enter. Format will format the USB flash media
device, add the system files, and ask for a Volume Label.
11. Press Enter for no label or enter one if desired.
12. Turn off the computer and unplug the power cord. Open the computer and re-install any PCI cards
that were previously removed. Close the computer cover.
13. Plug in the power cord, remove the diskette, and turn on the computer.
14. As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
15. Go to Advanced > PCI Devices and re-enable the PATA and SATA controllers that were disabled
in step 6. Put the SATA controller on its original IRQ.
16. Save the changes and exit. The computer will boot to the USB flash media device as drive C.
34
Chapter 4 Desktop Management
ENWW
NOTE: The default boot order varies from computer to computer, and it can be changed
in the Computer Setup (F10) Utility. Refer to the Computer Setup (F10) Utility Guide on
the Documentation and Diagnostics CD for instructions.
If you have used a DOS version from Windows 9x, you may see a brief Windows logo screen.
If you do not want this screen, add a zero-length file named LOGO.SYS to the root directory
of the USB flash media device.
Return to Copying to Multiple Computers on page 31.
Dual-State Power Button
With Advanced Configuration and Power Interface (ACPI) enabled, the power button can function either
as an on/off switch or as a standby button. The standby feature does not completely turn off power, but
instead causes the computer to enter a low-power standby state. This allows you to power down quickly
without closing applications and to return quickly to the same operational state without any data loss.
To change the power button’s configuration, complete the following steps:
1.
Left click on the Start Button, then select Control Panel > Power Options.
2.
In the Power Options Properties, select the Advanced tab.
3.
In the Power Button section, select Stand by.
After configuring the power button to function as a standby button, press the power button to put the
system in a very low power state (standby). Press the button again to quickly bring the system out of
standby to full power status. To completely turn off all power to the system, press and hold the power
button for four seconds.
CAUTION: Do not use the power button to turn off the computer unless the system is not
responding; turning off the power without operating system interaction could cause damage to
or loss of data on the hard drive.
HP Web Site Support
HP engineers rigorously test and debug software developed by HP and third-party suppliers, and
develop operating system specific support software, to ensure performance, compatibility, and reliability
for HP computers.
When making the transition to new or revised operating systems, it is important to implement the support
software designed for that operating system. If you plan to run a version of Microsoft Windows that is
different from the version included with the computer, you must install corresponding device drivers and
utilities to ensure that all features are supported and functioning properly.
HP has made the task of locating, accessing, evaluating, and installing the latest support software easier.
You can download the software from http://www.hp.com/support.
The Web site contains the latest device drivers, utilities, and flashable ROM images needed to run the
latest Microsoft Windows operating system on the HP computer.
ENWW
Dual-State Power Button
35
Industry Standards
HP management solutions integrate with other systems management applications, and are based on
industry standards, such as:
●
Web-Based Enterprise Management (WBEM)
●
Windows Management Interface (WMI)
●
Wake on LAN Technology
●
ACPI
●
SMBIOS
●
Pre-boot Execution (PXE) support
Asset Tracking and Security
Asset tracking features incorporated into the computer provide key asset tracking data that can be
managed using HP Systems Insight Manager, HP Client Manager, HP OpenView Configuration
Management and Asset Management solutions, or other system management applications. Seamless,
automatic integration between asset tracking features and these products enables you to choose the
management tool that is best suited to the environment and to leverage the investment in existing tools.
HP also offers several solutions for controlling access to valuable components and information. HP
Embedded Security for ProtectTools, if installed, prevents unauthorized access to data and checks
system integrity and authenticates third-party users attempting system access. (For more information,
refer to the HP ProtectTools Security Manager Guide at www.hp.com.) Security features such as HP
Embedded Security for ProtectTools, the Smart Cover Sensor and the Smart Cover Lock, available on
some models, help to prevent unauthorized access to the internal components of the personal computer.
By disabling parallel, serial, or USB ports, or by disabling removable media boot capability, you can
protect valuable data assets. Memory Change and Smart Cover Sensor alerts can be automatically
forwarded to system management applications to deliver proactive notification of tampering with a
computer’s internal components.
NOTE: HP Embedded Security for ProtectTools, the Smart Cover Sensor, and the Smart Cover
Lock are available as options on some systems.
Use the following utilities to manage security settings on the HP computer:
●
Locally, using the Computer Setup Utilities. See the Computer Setup (F10) Utility Guide on the
Documentation and Diagnostics CD included with the computer for additional information and
instructions on using the Computer Setup Utilities. Some computers also have HP BIOS
Configuration for ProtectTools, which is a Windows-based component of ProtectTools that allows
administrators to configure BIOS security settings from within the running OS.
●
Remotely, using HP Client Manager Software or System Software Manager. This software enables
the secure, consistent deployment and control of security settings from a simple command-line
utility.
The following table and sections refer to managing security features of the computer locally through the
Computer Setup (F10) Utilities.
36
Chapter 4 Desktop Management
ENWW
Table 4-1 Security Features Overview
Option
Description
Setup Password
Allows you to set and enable setup (administrator) password.
NOTE: If the setup password is set, it is required to change
Computer Setup options, flash the ROM, and make changes to
certain plug and play settings under Windows.
See the Computer Setup (F10) Utility Guide on the Documentation and
Diagnostics CD for more information.
Power-On Password
Allows you to set and enable power-on password.
See the Computer Setup (F10) Utility Guide on the Documentation and
Diagnostics CD for more information.
Password Options
(This selection will appear only if a
power-on password is set.)
Allows you to specify whether the password is required for warm boot (Ctrl
+Alt+Del).
See the Computer Setup (F10) Utility Guide on the Documentation and
Diagnostics CD for more information.
Pre-Boot Authorization
Allows you to enable/disable the Smart Card to be used in place of the PowerOn Password.
Smart Cover
Allows you to:
●
Enable/disable the Cover Lock.
●
Enable/disable the Cover Removal Sensor.
NOTE: Notify User alerts the user that the sensor has detected that
the cover has been removed. Setup Password requires that the
setup password be entered to boot the computer if the sensor detects
that the cover has been removed.
This feature is supported on some models only. See the Computer Setup
(F10) Utility Guide on the Documentation and Diagnostics CD for more
information.
Embedded Security
Allows you to:
●
Enable/disable the Embedded Security device.
●
Reset the device to Factory Settings.
This feature is supported on some models only. See the HP ProtectTools
Security Manager Guide at www.hp.com
ENWW
Device Security
Enables/disables serial ports, parallel port, front USB ports, system audio,
network controllers (some models), and SCSI controllers (some models).
Network Service Boot
Enables/disables the computer’s ability to boot from an operating system
installed on a network server. (Feature available on NIC models only; the
network controller must reside on the PCI bus or be embedded on the system
board.)
Asset Tracking and Security
37
Table 4-1 Security Features Overview (continued)
Option
Description
System IDs
Allows you to set:
●
Asset tag (18-byte identifier) and ownership Tag (80-byte identifier
displayed during POST). See the Computer Setup (F10) Utility Guide
on the Documentation and Diagnostics CD for more information.
●
Chassis serial number or Universal Unique Identifier (UUID) number.
The UUID can only be updated if the current chassis serial number is
invalid. (These ID numbers are normally set in the factory and are used
to uniquely identify the system.)
Keyboard locale setting (for example, English or German) for System ID
entry.
DriveLock (some models)
Allows you to assign or modify a master or user password for ATA hard drives.
When this feature is enabled, the user is prompted to provide one of the
DriveLock passwords during POST. If neither is successfully entered, the
hard drive will remain inaccessible until one of the passwords is successfully
provided during a subsequent cold-boot sequence.
NOTE: This selection will only appear when at least one ATA drive
that supports the ATA Security command set is attached to the
system.
See the Computer Setup (F10) Utility Guide on the Documentation and
Diagnostics CD for more information.
For more information about Computer Setup, see the Computer Setup (F10) Utility Guide on the Documentation and
Diagnostics CD.
Support for security features may vary depending on the specific computer configuration.
Password Security
The power-on password prevents unauthorized use of the computer by requiring entry of a password
to access applications or data each time the computer is turned on or restarted. The setup password
specifically prevents unauthorized access to Computer Setup, and can also be used as an override to
the power-on password. That is, when prompted for the power-on password, entering the setup
password instead will allow access to the computer.
A network-wide setup password can be established to enable the system administrator to log in to all
network systems to perform maintenance without having to know the power-on password, even if one
has been established.
Establishing a Setup Password Using Computer Setup
If the system is equipped with an embedded security device, refer to the HP ProtectTools Security
Manager Guide at www.hp.com. Establishing a setup password through Computer Setup prevents
reconsideration of the computer (use of the Computer Setup (F10) utility) until the password is entered.
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.
2.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and
again press F10 when the monitor light turns green to access the utility.
38
Chapter 4 Desktop Management
ENWW
3.
Select Security, then select Setup Password and follow the instructions on the screen.
4.
Before exiting, click File > Save Changes and Exit.
Establishing a Power-On Password Using Computer Setup
Establishing a power-on password through Computer Setup prevents access to the computer when
power is turned on, unless the password is entered. When a power-on password is set, Computer Setup
presents Password Options under the Security menu. Password options include Password Prompt
on Warm Boot. When Password Prompt on Warm Boot is enabled, the password must also be
entered each time the computer is rebooted.
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.
2.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and
again press F10 when the monitor light turns green to access the utility.
3.
Select Security, then Power-On Password and follow the instructions on the screen.
4.
Before exiting, click File > Save Changes and Exit.
Entering a Power-On Password
To enter a power-on password, complete the following steps:
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart the
Computer.
2.
When the key icon appears on the monitor, type the current password, then press Enter.
NOTE: Type carefully; for security reasons, the characters you type do not appear on the
screen.
If you enter the password incorrectly, a broken key icon appears. Try again. After three unsuccessful
tries, you must turn off the computer, then turn it on again before you can continue.
Entering a Setup Password
If the system is equipped with an embedded security device, refer to the HP ProtectTools Security
Manager Guide at www.hp.com.
If a setup password has been established on the computer, you will be prompted to enter it each time
you run Computer Setup.
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.
2.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and
again press F10 when the monitor light turns green to access the utility.
3.
ENWW
When the key icon appears on the monitor, type the setup password, then press Enter.
Asset Tracking and Security
39
NOTE: Type carefully; for security reasons, the characters you type do not appear on the
screen.
If you enter the password incorrectly, a broken key icon appears. Try again. After three unsuccessful
tries, you must turn off the computer, then turn it on again before you can continue.
Changing a Power-On or Setup Password
If the system is equipped with an embedded security device, refer to the HP ProtectTools Security
Manager Guide at www.hp.com.
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart the
Computer.
2.
To change the Power-On password, go to step 3.
To change the Setup password, as soon as the computer is turned on, press F10 when the monitor
light turns green to enter Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and
again press F10 when the monitor light turns green to access the utility.
3.
When the key icon appears, type the current password, a slash (/) or alternate delimiter character,
the new password, another slash (/) or alternate delimiter character, and the new password again
as shown: current password/new password/new password
NOTE: Type carefully; for security reasons, the characters you type do not appear on the
screen.
4.
Press Enter.
The new password takes effect the next time you turn on the computer.
NOTE: Refer to the National Keyboard Delimiter Characters on page 41 for information about
the alternate delimiter characters. The power-on password and setup password may also be
changed using the Security options in Computer Setup.
Deleting a Power-On or Setup Password
If the system is equipped with an embedded security device, refer to the HP ProtectTools Security
Manager Guide at www.hp.com.
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart the
Computer.
2.
To delete the Power-On password, go to step 3.
To delete the Setup password, as soon as the computer is turned on, press F10 when the monitor
light turns green to enter Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and
again press F10 when the monitor light turns green to access the utility.
40
Chapter 4 Desktop Management
ENWW
3.
When the key icon appears, type the current password followed by a slash (/) or alternate delimiter
character as shown: current password/
4.
Press Enter.
NOTE: Refer to National Keyboard Delimiter Characters on page 41 for information
about the alternate delimiter characters. The power-on password and setup password may
also be changed using the Security options in Computer Setup.
National Keyboard Delimiter Characters
Each keyboard is designed to meet country-specific requirements. The syntax and keys that you use to
change or delete the password depend on the keyboard that came with the computer.
National Keyboard Delimiter Characters
Arabic
/
Greek
-
Russian
/
Belgian
=
Hebrew
.
Slovakian
-
BHCSY*
-
Hungarian
-
Spanish
-
Brazilian
/
Italian
-
Swedish/Finnish
/
Chinese
/
Japanese
/
Swiss
-
Czech
-
Korean
/
Taiwanese
/
Danish
-
Latin American
-
Thai
/
French
!
Norwegian
-
Turkish
.
French Canadian
é
Polish
-
U.S. English
/
German
-
Portuguese
-
* For Bosnia-Herzegovina, Croatia, Slovenia, and Yugoslavia
Clearing Passwords
If you forget the password, you cannot access the computer. Refer to the Troubleshooting Guide on
the Documentation and Diagnostics CD for instructions on clearing passwords.
If the system is equipped with an embedded security device, refer to the HP ProtectTools Security
Manager Guide at www.hp.com.
DriveLock
DriveLock is an industry-standard security feature that prevents unauthorized access to the data on ATA
hard. DriveLock has been implemented as an extension to Computer Setup. It is only available when
hard drives that support the ATA Security command set are detected. DriveLock is intended for HP
customers for whom data security is the paramount concern. For such customers, the cost of the hard
drive and the loss of the data stored on it is inconsequential when compared with the damage that could
result from unauthorized access to its contents. In order to balance this level of security with the practical
need to accommodate a forgotten password, the HP implementation of DriveLock employs a twopassword security scheme. One password is intended to be set and used by a system administrator
while the other is typically set and used by the end-user. There is no "back-door" that can be used to
unlock the drive if both passwords are lost. Therefore, DriveLock is most safely used when the data
ENWW
Asset Tracking and Security
41
contained on the hard drive is replicated on a corporate information system or is regularly backed up.
In the event that both DriveLock passwords are lost, the hard drive is rendered unusable. For users who
do not fit the previously defined customer profile, this may be an unacceptable risk. For users who do
fit the customer profile, it may be a tolerable risk given the nature of the data stored on the hard drive.
Using DriveLock
When one or more hard drives that support the ATA Security command set are detected, the DriveLock
option appears under the Security menu in Computer Setup. The user is presented with options to set
the master password or to enable DriveLock. A user password must be provided in order to enable
DriveLock. Since the initial configuration of DriveLock is typically performed by a system administrator,
a master password should be set first. HP encourages system administrators to set a master password
whether they plan to enable DriveLock or keep it disabled. This will give the administrator the ability to
modify DriveLock settings if the drive is locked in the future. Once the master password is set, the system
administrator may enable DriveLock or choose to keep it disabled.
If a locked hard drive is present, POST will require a password to unlock the device. If a power-on
password is set and it matches the device’s user password, POST will not prompt the user to re-enter
the password. Otherwise, the user will be prompted to enter a DriveLock password. On a cold boot,
either the master or the user password may be used. On a warm boot, enter the same password used
to unlock the drive during the preceding cold-boot. Users will have two attempts to enter a correct
password. On a cold boot, if neither attempt succeeds, POST will continue but the drive will remain
inaccessible. On a warm boot or restart from Windows, if neither attempt succeeds, POST will halt and
the user will be instructed to cycle power.
DriveLock Applications
The most practical use of the DriveLock security feature is in a corporate environment. The system
administrator would be responsible for configuring the hard drive which would involve, among other
things, setting the DriveLock master password and a temporary user password. In the event that the
user forgets the user password or the equipment is passed on to another employee, the master
password can always be used to reset the user password and regain access to the hard drive.
HP recommends that corporate system administrators who choose to enable DriveLock also establish
a corporate policy for setting and maintaining master passwords. This should be done to prevent a
situation where an employee intentionally or unintentionally sets both DriveLock passwords before
leaving the company. In such a scenario, the hard drive would be rendered unusable and require
replacement. Likewise, by not setting a master password, system administrators may find themselves
locked out of a hard drive and unable to perform routine checks for unauthorized software, other asset
control functions, and support.
For users with less stringent security requirements, HP does not recommend enabling DriveLock. Users
in this category include personal users or users who do not maintain sensitive data on their hard drives
as a common practice. For these users, the potential loss of a hard drive resulting from forgetting both
passwords is much greater than the value of the data DriveLock has been designed to protect. Access
to Computer Setup and DriveLock can be restricted through the Setup password. By specifying a Setup
password and not giving it to end users, system administrators are able to restrict users from enabling
DriveLock.
42
Chapter 4 Desktop Management
ENWW
Smart Cover Sensor
CoverRemoval Sensor, available on some models, is a combination of hardware and software
technology that can alert you when the computer cover or side panel has been removed. There are
three levels of protection, as described in the following table.
Table 4-2 Smart Cover Sensor Protection Levels
Level
Setting
Description
Level 0
Disabled
Smart Cover Sensor is disabled (default).
Level 1
Notify User
When the computer is restarted, the screen displays a message
indicating that the computer cover or side panel has been removed.
Level 2
Setup Password
When the computer is restarted, the screen displays a message
indicating that the computer cover or side panel has been removed. You
must enter the setup password to continue.
NOTE: These settings can be changed using Computer Setup. For more information about Computer
Setup, see the Computer Setup (F10) Utility Guide on the Documentation and Diagnostics CD.
Setting the Smart Cover Sensor Protection Level
To set the Smart Cover Sensor protection level, complete the following steps:
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.
2.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and
again press F10 when the monitor light turns green to access the utility.
3.
Select Security > Smart Cover > Cover Removal Sensor, and select the desired security level.
4.
Before exiting, click File > Save Changes and Exit.
Smart Cover Lock
The Smart Cover Lock is a software-controllable cover lock featured on some HP computers. This lock
prevents unauthorized access to the internal components. Computers ship with the Smart Cover Lock
in the unlocked position.
CAUTION: For maximum cover lock security, be sure to establish a setup password. The setup
password prevents unauthorized access to the Computer Setup utility.
NOTE:
ENWW
The Smart Cover Lock is available as an option on some systems.
Asset Tracking and Security
43
Locking the Smart Cover Lock
To activate and lock the Smart Cover Lock, complete the following steps:
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.
2.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and
again press F10 when the monitor light turns green to access the utility.
3.
Select Security > Smart Cover > Cover Lock > Lock option.
4.
Before exiting, click File > Save Changes and Exit.
Unlocking the Smart Cover Lock
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.
2.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and
again press F10 when the monitor light turns green to access the utility.
3.
Select Security > Smart Cover > Cover Lock > Unlock.
4.
Before exiting, click File > Save Changes and Exit.
Using the Smart Cover FailSafe Key
If you enable the Smart Cover Lock and cannot enter the password to disable the lock, you will need a
Smart Cover FailSafe Key to open the computer cover. You will need the key in any of the following
circumstances:
●
Power outage
●
Startup failure
●
PC component failure (such as processor or power supply)
●
Forgotten password
CAUTION: The Smart Cover FailSafe Key is a specialized tool available from HP. Be prepared;
order this key before you need oneat an authorized reseller.
To obtain the FailSafe Key, call the appropriate number listed in the warranty.
For more information about using the Smart Cover FailSafe Key, consult the Hardware Reference
Guide on the Documentation and Diagnostics CD.
Cable Lock Provision
The rear panel of the computer accommodates a cable lock so that the computer can be physically
secured to a work area.
44
Chapter 4 Desktop Management
ENWW
For illustrated instructions, please see the Hardware Reference Guide on the Documentation and
Diagnostics CD.
Fingerprint Identification Technology
Eliminating the need to enter user passwords, HP Fingerprint Identification Technology tightens network
security, simplifies the login process, and reduces the costs associated with managing corporate
networks. Affordably priced, it is not just for high-tech, high-security organizations anymore.
NOTE:
Support for Fingerprint Identification Technology varies by model.
For more information, visit:
http://h18004.www1.hp.com/products/security/.
Fault Notification and Recovery
Fault Notification and Recovery features combine innovative hardware and software technology to
prevent the loss of critical data and minimize unplanned downtime.
If the computer is connected to a network managed by HP Client Manager, the computer sends a fault
notice to the network management application. With HP Client Manager Software, you can also remotely
schedule diagnostics to automatically run on all managed PCs and create a summary report of failed
tests.
Drive Protection System
The Drive Protection System (DPS) is a diagnostic tool built into the hard drives installed in some HP
computers. DPS is designed to help diagnose problems that might result in unwarranted hard drive
replacement.
When HP computers are built, each installed hard drive is tested using DPS, and a permanent record
of key information is written onto the drive. Each time DPS is run, test results are written to the hard
drive. You can use this information to help diagnose conditions that caused you to run the DPS software.
Refer to the Troubleshooting Guide on the Documentation and Diagnostics CD for instructions on using
DPS.
Surge-Tolerant Power Supply
An integrated surge-tolerant power supply provides greater reliability when the computer is hit with an
unpredictable power surge. This power supply is rated to withstand a power surge of up to 2000 volts
without incurring any system downtime or data loss.
Thermal Sensor
The thermal sensor is a hardware and software feature that tracks the internal temperature of the
computer. This feature displays a warning message when the normal range is exceeded, which gives
you time to take action before internal components are damaged or data is lost.
ENWW
Asset Tracking and Security
45
46
Chapter 4 Desktop Management
ENWW
5
Serial and Parallel ATA Drive Guidelines
and Features
NOTE:
Serial ATA = SATA
Parallel ATA = PATA
HP only supports the use of SATA hard drives on these models of computer. No PATA drives
are supported.
SATA Hard Drives
Serial ATA Hard Drive Characteristics
Number of pins/conductors in data cable
7/7
Number of pins in power cable
15
Maximum data cable length
39.37 in (100 cm)
Data interface voltage differential
400-700 mV
Drive voltages
3.3 V, 5 V, 12 V
Jumpers for configuring drive
N/A
Data transfer rate
3.0 Gb/s
SATA Hard Drive Cables
SATA Data Cable
Always use an HP approved SATA 3.0 Gb/s cable as it is fully backwards compatible with the SATA 1.5
Gb/s drives.
Current HP desktop products ship with SATA 3.0 Gb/s hard drives.
SATA data cables are susceptible to damage if overflexed. Never crease a SATA data cable and never
bend it tighter than a 30 mm (1.18 in) radius.
The SATA data cable is a thin, 7-pin cable designed to transmit data for only a single drive. As shown
in the table, each cable has 3 grounds, and 4 transmit/receive pins.
ENWW
SATA Hard Drives
47
Pin Number
Usage
Device Plug
Host Plug
P1
Ground
Ground
Ground
P2*
A+
Transmit data
Receive data
P3*
A-
Transmit data
Receive data
P4
Ground
Ground
Ground
P5**
B-
Receive data
Transmit data
P6**
B+
Receive data
Transmit data
P7
Ground
Ground
Ground
*P2 and P3 differential signal pair
**P5 and P6 differential signal pair
SATA Power Cable
48
Pin
Usage
Notes
Pin
Usage
Notes
P1
V3.3
3.3 V power
P9
V5
5 V power
P2
V3.3
3.3 V power
P10
Ground
P3
V3.3
3.3 V power
P11
Ground
P4
Ground
P12
Ground
P5
Ground
P13
V12
12 V power
P6
Ground
P14
V12
12 V power
P7
V5
5 V power
P15
V12
12 V power
P8
V5
5 V power
Chapter 5 Serial and Parallel ATA Drive Guidelines and Features
ENWW
PATA Device Information
This model supports PATA drives.
ATA SMART Drives
The Self Monitoring Analysis and Recording Technology (SMART) ATA drives for the HP Personal
Computers have built-in drive failure prediction that warns the user or network administrator of an
impending failure or crash of the hard drive. The SMART drive tracks fault prediction and failure
indication parameters such as reallocated sector count, spin retry count, and calibration retry count. If
the drive determines that a failure is imminent, it generates a fault alert.
Hard Drive Capacities
The combination of the file system and the operating system used in the computer determines the
maximum usable size of a drive partition. A drive partition is the largest segment of a drive that may be
properly accessed by the operating system. A single hard drive may therefore be subdivided into a
number of unique drive partitions in order to make use of all of its space.
Because of the differences in the way that drive sizes are calculated, the size reported by the operating
system may differ from that marked on the hard drive or listed in the computer specification. Drive size
calculations by drive manufacturers are bytes to the base 10 while calculations by Microsoft are bytes
to the base 2.
Drive/Partition Capacity Limits
Maximum Size
ENWW
File System
Controller Type
Operating System
Partition
Drive
FAT 32
ATA
Windows 2000/ XP
32 GB
2 TB
NTFS
ATA
Windows NT/2000/XP
2 TB
2 TB
PATA Device Information
49
50
Chapter 5 Serial and Parallel ATA Drive Guidelines and Features
ENWW
6
Identifying the Chassis, Routine Care,
and Disassembly Preparation
This chapter provides general service information for the computer. Adherence to the procedures and
precautions described in this chapter is essential for proper service.
CAUTION: When the computer is plugged into an AC power source, voltage is always applied
to the system board. You must disconnect the power cord from the power source before opening
the computer to prevent system board or component damage.
Chassis Designations
The following subsection illustrates the dx2250 chassis design.
Microtower (MT)
ENWW
Chassis Designations
51
Electrostatic Discharge Information
A sudden discharge of static electricity from your finger or other conductor can destroy static-sensitive
devices or microcircuitry. Often the spark is neither felt nor heard, but damage occurs. An electronic
device exposed to electrostatic discharge (ESD) may not appear to be affected at all and can work
perfectly throughout a normal cycle. The device may function normally for a while, but it has been
degraded in the internal layers, reducing its life expectancy.
Networks built into many integrated circuits provide some protection, but in many cases, the discharge
contains enough power to alter device parameters or melt silicon junctions.
Generating Static
The following table shows that:
●
Different activities generate different amounts of static electricity.
●
Static electricity increases as humidity decreases.
Relative Humidity
Event
55%
40%
10%
Walking across carpet
7,500 V
15,000 V
35,000 V
Walking across vinyl floor
3,000 V
5,000 V
12,000 V
Motions of bench worker
400 V
800 V
6,000 V
Removing DIPs* from plastic tube
400 V
700 V
2,000 V
Removing DIPs* from vinyl tray
2,000 V
4,000 V
11,500 V
Removing DIPs* from Styrofoam
3,500 V
5,000 V
14,500 V
Removing bubble pack from PCB
7,000 V
20,000 V
26,500 V
Packing PCBs in foam-lined box
5,000 V
11,000 V
21,000 V
*These are then multi-packaged inside plastic tubes, trays, or Styrofoam.
NOTE:
700 volts can degrade a product.
Preventing Electrostatic Damage to Equipment
Many electronic components are sensitive to ESD. Circuitry design and structure determine the degree
of sensitivity. The following packaging and grounding precautions are necessary to prevent damage to
electric components and accessories.
52
●
To avoid hand contact, transport products in static-safe containers such as tubes, bags, or boxes.
●
Protect all electrostatic parts and assemblies with conductive or approved containers or packaging.
●
Keep electrostatic sensitive parts in their containers until they arrive at static-free stations.
●
Place items on a grounded surface before removing them from their container.
●
Always be properly grounded when touching a sensitive component or assembly.
Chapter 6 Identifying the Chassis, Routine Care, and Disassembly Preparation
ENWW
●
Avoid contact with pins, leads, or circuitry.
●
Place reusable electrostatic-sensitive parts from assemblies in protective packaging or conductive
foam.
Personal Grounding Methods and Equipment
Use the following equipment to prevent static electricity damage to equipment:
●
Wrist straps are flexible straps with a maximum of one-megohm ± 10% resistance in the ground
cords. To provide proper ground, a strap must be worn snug against bare skin. The ground cord
must be connected and fit snugly into the banana plug connector on the grounding mat or
workstation.
●
Heel straps/Toe straps/Boot straps can be used at standing workstations and are compatible
with most types of shoes or boots. On conductive floors or dissipative floor mats, use them on both
feet with a maximum of one-megohm ± 10% resistance between the operator and ground.
Static Shielding Protection Levels
Method
Voltage
Antistatic plastic
1,500
Carbon-loaded plastic
7,500
Metallized laminate
15,000
Grounding the Work Area
To prevent static damage at the work area, use the following precautions:
●
Cover the work surface with approved static-dissipative material. Provide a wrist strap connected
to the work surface and properly grounded tools and equipment.
●
Use static-dissipative mats, foot straps, or air ionizers to give added protection.
●
Handle electrostatic sensitive components, parts, and assemblies by the case or PCB laminate.
Handle them only at static-free work areas.
●
Turn off power and input signals before inserting and removing connectors or test equipment.
●
Use fixtures made of static-safe materials when fixtures must directly contact dissipative surfaces.
●
Keep work area free of nonconductive materials such as ordinary plastic assembly aids and
Styrofoam.
●
Use field service tools, such as cutters, screwdrivers, and vacuums, that are conductive.
Recommended Materials and Equipment
Materials and equipment that are recommended for use in preventing static electricity include:
ENWW
●
Antistatic tape
●
Antistatic smocks, aprons, or sleeve protectors
●
Conductive bins and other assembly or soldering aids
Electrostatic Discharge Information
53
54
●
Conductive foam
●
Conductive tabletop workstations with ground cord of one-megohm +/- 10% resistance
●
Static-dissipative table or floor mats with hard tie to ground
●
Field service kits
●
Static awareness labels
●
Wrist straps and footwear straps providing one-megohm +/- 10% resistance
●
Material handling packages
●
Conductive plastic bags
●
Conductive plastic tubes
●
Conductive tote boxes
●
Opaque shielding bags
●
Transparent metallized shielding bags
●
Transparent shielding tubes
Chapter 6 Identifying the Chassis, Routine Care, and Disassembly Preparation
ENWW
Operating Guidelines
To prevent overheating and to help prolong the life of the computer:
●
Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and cold.
●
Operate the computer on a sturdy, level surface. Leave a 10.2-cm (4-inch) clearance on all vented
sides of the computer and above the monitor to permit the required airflow.
●
Never restrict the airflow into the computer by blocking any vents or air intakes. Do not place the
keyboard, with the keyboard feet down, directly against the front of the desktop unit as this also
restricts airflow.
●
Occasionally clean the air vents on all vented sides of the computer. Lint, dust, and other foreign
matter can block the vents and limit the airflow. Be sure to unplug the computer before cleaning
the air vents.
●
Never operate the computer with the cover or side panel removed.
●
Do not stack computers on top of each other or place computers so near each other that they are
subject to each other’s re-circulated or preheated air.
●
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must
be provided on the enclosure, and the same operating guidelines listed above will still apply.
●
Keep liquids away from the computer and keyboard.
●
Never cover the ventilation slots on the monitor with any type of material.
●
Install or enable power management functions of the operating system or other software, including
sleep states.
Routine Care
General Cleaning Safety Precautions
1.
Never use solvents or flammable solutions to clean the computer.
2.
Never immerse any parts in water or cleaning solutions; apply any liquids to a clean cloth and then
use the cloth on the component.
3.
Always unplug the computer when cleaning with liquids or damp cloths.
4.
Always unplug the computer before cleaning the keyboard, mouse, or air vents.
5.
Disconnect the keyboard before cleaning it.
6.
Wear safety glasses equipped with side shields when cleaning the keyboard.
Cleaning the Computer Case
Follow all safety precautions in General Cleaning Safety Precautions on page 55 before cleaning the
computer.
ENWW
Operating Guidelines
55
To clean the computer case, follow the procedures described below:
●
To remove light stains or dirt, use plain water with a clean, lint-free cloth or swab.
●
For stronger stains, use a mild dishwashing liquid diluted with water. Rinse well by wiping it with a
cloth or swab dampened with clear water.
●
For stubborn stains, use isopropyl (rubbing) alcohol. No rinsing is needed as the alcohol will
evaporate quickly and not leave a residue.
●
After cleaning, always wipe the unit with a clean, lint-free cloth.
●
Occasionally clean the air vents on the computer. Lint and other foreign matter can block the vents
and limit the airflow.
Cleaning the Keyboard
Follow all safety precautions in General Cleaning Safety Precautions on page 55 before cleaning the
keyboard.
To clean the tops of the keys or the keyboard body, follow the procedures described in Cleaning the
Computer Case on page 55.
When cleaning debris from under the keys, review all rules in General Cleaning Safety Precautions
on page 55 before following these procedures:
CAUTION: Use safety glasses equipped with side shields before attempting to clean debris
from under the keys.
●
Visible debris underneath or between the keys may be removed by vacuuming or shaking.
●
Canned, pressurized air may be used to clean debris from under the keys. Caution should be used
as too much air pressure can dislodge lubricants applied under the wide keys.
●
If you remove a key, use a specially designed key puller to prevent damage to the keys. This tool
is available through many electronic supply outlets.
CAUTION: Never remove a wide leveled key (like the space bar) from the keyboard. If
these keys are improperly removed or installed, the keyboard may not function properly.
●
Cleaning under a key may be done with a swab moistened with isopropyl alcohol and squeezed
out. Be careful not to wipe away lubricants necessary for proper key functions. Use tweezers to
remove any fibers or dirt in confined areas. Allow the parts to air dry before reassembly.
Cleaning the Monitor
56
●
Wipe the monitor screen with a clean cloth moistened with water or with a towelette designed for
cleaning monitors. Do not use sprays or aerosols directly on the screen; the liquid may seep into
the housing and damage a component. Never use solvents or flammable liquids on the monitor.
●
To clean the monitor body follow the procedures in Cleaning the Computer Case on page 55.
Chapter 6 Identifying the Chassis, Routine Care, and Disassembly Preparation
ENWW
Cleaning the Mouse
Before cleaning the mouse, ensure that the power to the computer is turned off.
●
Clean the mouse ball by first removing the retaining plate and the ball from the housing. Pull out
any debris from the ball socket and wipe the ball with a clean, dry cloth before reassembly.
●
To clean the mouse body, follow the procedures in Cleaning the Computer Case on page 55.
Service Considerations
Listed below are some of the considerations that you should keep in mind during the disassembly and
assembly of the computer.
Power Supply Fan
The power supply fan is a variable-speed fan based on the temperature in the power supply.
CAUTION: The cooling fan is always on when the computer is in the “On” mode. The cooling
fan is off when the computer is in “Standby,” “Suspend,” or “Off” modes.
You must disconnect the power cord from the power source before opening the computer to
prevent system board or component damage.
Tools and Software Requirements
To service the computer, you need the following:
●
Torx T-15 screwdriver (HP screwdriver with bits, PN 161946-001)
●
Torx T-15 screwdriver with small diameter shank (for certain front bezel removal)
●
Flat-bladed screwdriver (may sometimes be used in place of the Torx screwdriver)
●
Phillips #2 screwdriver
●
Diagnostics software
●
HP tamper-resistant T-15 wrench (Smart Cover FailSafe Key, PN 166527-001) or HP tamperresistant bits (Smart Cover FailSafe Key, PN 166527-002)
Screws
The screws used in the computer are not interchangeable. They may have standard or metric threads
and may be of different lengths. If an incorrect screw is used during the reassembly process, it can
damage the unit. HP strongly recommends that all screws removed during disassembly be kept with
the part that was removed, then returned to their proper locations.
CAUTION: Metric screws have a black finish. U.S. screws have a silver finish and are used on
hard drives only.
CAUTION: As each subassembly is removed from the computer, it should be placed away from
the work area to prevent damage.
ENWW
Service Considerations
57
Cables and Connectors
Most cables used throughout the unit are flat, flexible cables. These cables must be handled with care
to avoid damage. Apply only the tension required to seat or unseat the cables during insertion or removal
from the connector. Handle cables by the connector whenever possible. In all cases, avoid bending or
twisting the cables, and ensure that the cables are routed in such a way that they cannot be caught or
snagged by parts being removed or replaced.
CAUTION: When servicing this computer, ensure that cables are placed in their proper location
during the reassembly process. Improper cable placement can damage the computer.
Hard Drives
Handle hard drives as delicate, precision components, avoiding all physical shock and vibration. This
applies to failed drives as well as replacement spares.
●
If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective
packaging and label the package “Fragile: Handle With Care.”
●
Do not remove hard drives from the shipping package for storage. Keep hard drives in their
protective packaging until they are actually mounted in the CPU.
●
Avoid dropping drives from any height onto any surface.
●
If you are inserting or removing a hard drive, turn off the computer. Do not remove a hard drive
while the computer is on or in standby mode.
●
Before handling a drive, ensure that you are discharged of static electricity. While handling a drive,
avoid touching the connector. For more information about preventing electrostatic damage, refer
to Electrostatic Discharge Information on page 52
●
Do not use excessive force when inserting a drive.
●
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields
such as monitors or speakers.
Lithium Coin Cell Battery
The battery that comes with the computer provides power to the real-time clock and has a minimum
lifetime of about three years.
See the appropriate removal and replacement chapter for the chassis you are working on in this guide
for instructions on the replacement procedures.
WARNING! This computer contains a lithium battery. There is a risk of fire and chemical burn
if the battery is handled improperly. Do not disassemble, crush, puncture, short external contacts,
dispose in water or fire, or expose it to temperatures higher than 140ºF (60ºC). Do not attempt
to recharge the battery.
NOTE: Batteries, battery packs, and accumulators should not be disposed of together with the
general household waste. In order to forward them to recycling or proper disposal, please use
the public collection system or return them to HP, their authorized partners, or their agents.
58
Chapter 6 Identifying the Chassis, Routine Care, and Disassembly Preparation
ENWW
7
Removal and Replacement Procedures
— Microtower (MT) Chassis
Adherence to the procedures and precautions described in this chapter is essential for proper service.
After completing all necessary removal and replacement procedures, run the Diagnostics utility to verify
that all components operate properly.
NOTE:
Not all features listed in this guide are available on all computers.
Preparation for Disassembly
1.
Close any open software applications.
2.
Exit the operating system.
3.
Remove any diskette or compact disc from the computer.
4.
Turn off the computer and any peripheral devices that are connected to it.
CAUTION: Turn off the computer before disconnecting any cables.
CAUTION: Regardless of the power-on state, voltage is always present on the system
board as long as the system is plugged into an active AC outlet. In some systems the cooling
fan is on even when the computer is in the “Standby,” or “Suspend” modes. The power cord
should always be disconnected before servicing a unit.
5.
Disconnect the power cord from the electrical outlet and then from the computer.
6.
Disconnect all peripheral device cables from the computer.
NOTE: During disassembly, label each cable as you remove it, noting its position and
routing. Keep all screws with the units removed.
CAUTION: The screws used in the computer are of different thread sizes and lengths;
using the wrong screw in an application may damage the unit.
ENWW
Preparation for Disassembly
59
Access Panel
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 59).
CAUTION: Before removing the computer access panel, ensure that the computer is
turned off and that the power cord is disconnected from the electrical outlet.
2.
Disconnect the power cord from the computer and from the power source (1).
3.
Remove the two screws that secure the access panel to the computer chassis (2).
4.
Slide the access panel back about 6 mm (1/4 inch), then rotate the top of the panel away from the
chassis (pivot on the bottom) and lift it off the unit (3).
To replace the access panel, reverse the removal steps.
60
Chapter 7 Removal and Replacement Procedures— Microtower (MT) Chassis
ENWW
Front Bezel
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 59)
2.
Remove the access panel (Access Panel on page 60 )
3.
Press down on all three tabs (1) on the left side of the bezel then, rotate the bezel off the chassis
(2), beginning with the left side and then the right side.
To reinstall the front bezel, reverse the removal procedure.
ENWW
Front Bezel
61
Front Drive Bezels
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 59)
2.
Remove the access panel (Access Panel on page 60)
3.
Remove the front bezel (Front Bezel on page 61)
5.25" Drive Bezel Blank
While facing the inside of the front bezel, press the two retaining tabs on the right towards the outer
edge of the bezel (1) and pull the bezel blank inwards (2) to remove it.
To install a bezel blank, reverse the removal procedure.
62
Chapter 7 Removal and Replacement Procedures— Microtower (MT) Chassis
ENWW
Removing a 3.5” Drive Bezel Blank
While facing the inside of the front bezel, press outward on the retaining tabs on each side of the bezel
blank (1) and pull the bezel blank inwards to remove it.
NOTE: To install a 3.5” bezel blank, press the blank inward from the inside of the front bezel
so that it snaps into place.
ENWW
Removing a 3.5” Drive Bezel Blank
63
Memory
The computer comes with double data rate 2 synchronous dynamic random access memory (DDR2SDRAM) dual inline memory modules (DIMMs).
CAUTION: DDR and DDR2 memory modules are not interchangeable.
DDR2-SDRAM DIMMs
The memory sockets on the system board can be populated with up to two industry-standard DIMMs.
These memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum
memory support, you can populate the system board with up to 2 GB of memory configured in a highperforming dual channel mode.
For proper system operation, the DDR2-SDRAM DIMMs must be:
●
industry-standard 240-pin
●
unbuffered PC2-5300 667 MHz-compliant
●
1.8 volt DDR2-SDRAM DIMMs
The DDR2-SDRAM DIMMs must also:
●
support CAS latency 4 and 5 for DDR2/667 MHz
●
contain the mandatory JEDEC SPD information
In addition, the computer supports:
●
256Mbit, 512Mbit, and 1Gbit non-ECC memory technologies
●
single-sided and double-sided DIMMs
●
DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not
supported
NOTE:
The system will not start if you install unsupported DIMMs.
Installing Memory Modules
CAUTION: The memory module sockets have gold metal contacts. When upgrading the
memory, it is important to use memory modules with gold metal contacts to prevent corrosion
and/or oxidation resulting from having incompatible metals in contact with each other.
CAUTION: Static electricity can damage the electronic components of the computer or optional
cards. Before beginning these procedures, ensure that you are discharged of static electricity by
briefly touching a grounded metal object.
64
Chapter 7 Removal and Replacement Procedures— Microtower (MT) Chassis
ENWW
CAUTION: When handling a memory module, be careful not to touch any of the contacts. Doing
so may damage the module.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 59).
2.
Remove the access panel and lay the computer down on its side to make it easier to work on.
(Access Panel on page 60)
WARNING! To reduce risk of personal injury from hot surfaces, allow the internal system
components to cool before touching.
3.
Open both latches of the memory module socket (1), and insert the memory module into the socket
(2). Begin by installing a module into the socket nearest the pre-installed module, and install the
modules following the numerical order of the sockets.
NOTE: A memory module can be installed in only one way. Match the notch on the module
with the tab on the memory socket.
4.
Push the module down into the socket, ensuring that the module is fully inserted and properly
seated. Make sure the latches are in the closed position (3).
5.
Repeat steps 4 and 5 for any additional modules that you want to install.
To reassemble the computer, reverse the removal procedure.
ENWW
Memory
65
Expansion Cards
Expansion Slot Cover Lock
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 59)
2.
Remove the access panel (Access Panel on page 60)
3.
Lay the computer down on its side to make it easier to work on.
4.
On the rear of the computer, remove the screw that secures the slot cover lock in place (1) then,
slide the slot cover lock up and away from the slots to remove it from the computer (2).
To reinstall the slot cover lock, reverse the removal procedure.
66
Chapter 7 Removal and Replacement Procedures— Microtower (MT) Chassis
ENWW
PCI/PCIe Expansion Card
To remove an expansion card continue with step 1.
To install an expansion card in an existing empty slot go to step 9.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 59)
2.
Remove the access panel (Access Panel on page 60)
3.
Lay the computer down on its side to make it easier to work on.
4.
Remove the slot cover lock (Expansion Slot Cover Lock on page 66)
If you are installing an expansion card for the first time go to step 9.
If you are replacing an existing expansion card go to step 5.
5.
Disconnect any cables attached to the expansion card.
6.
Hold the card at each end and carefully rock it back and forth until the connectors pull free from
the socket. Be sure not to scrape the card against other components.
7.
Store the card in anti-static packaging.
8.
Install a new expansion card or an expansion slot cover to close the open slot.
To install a replacement expansion card go to step 10.
9.
ENWW
If you are installing an expansion card for the first time you must first remove the expansion slot
cover. Use a flat blade screwdriver to pry out the metal shield on the rear panel that covers the
expansion slot. Be sure you remove the appropriate shield for the expansion card you are installing.
Removable Shield
Expansion Card Type
Top shield
PCI Express x16
Second shield
PCI Express x1
Third shield
PCI
Bottom shield
PCI
Expansion Cards
67
10. With the card aligned so the mounting bracket will fit firmly against the computer backwall, slide
the expansion card into the expansion socket and press it firmly into place.
NOTE: When you install an expansion card, make sure you press firmly on the card so
that the entire connector seats properly in the expansion card socket.
11. Reinstall the slot cover lock and its retaining screw.
12. Replace the access panel.
13. Connect external cables to the installed card, if needed.
Reconfigure the computer, if necessary.
68
Chapter 7 Removal and Replacement Procedures— Microtower (MT) Chassis
ENWW
Cable Management
Always follow good cable management practices when working inside the computer.
●
Keep cables away from major heat sources like the heatsink.
●
Do not jam cables on top of expansion cards or memory modules. Printed circuit cards like these
are not designed to take excessive pressure on them.
●
When folding a flat ribbon cable, never fold to a sharp crease. Sharp creases may damage the
wires.
●
Some flat ribbon cables come prefolded. Never change the folds on these cables.
●
Do not bend any cable sharply. A sharp bend can break the internal wires.
●
Never bend a SATA data cable tighter than a 30 mm (1.18 in) radius.
●
Never crease a SATA data cable.
●
Do not rely on components like the drive cage, power supply, or computer cover to push cables
down into the chassis. Always position the cables to lay properly by themselves.
When removing the power supply power cable from the P1 connector on the system board, always
follow these steps:
1.
Squeeze on the top of the retaining latch attached to the cable end of the connector 1.
2.
Grasp the cable end of the connector and pull it straight up 2.
CAUTION: Always pull the connector - NEVER pull on the cable. Pulling on the cable could
damage the cable and result in a failed power supply.
ENWW
Cable Management
69
Cable Connections
70
Cable
To
Cable Designator
Power Supply
1st SATA Hard drive
P6
Power Supply
System board, 24–pin
P1
Power Supply
CPU power, 4-pin
P2
Power Supply
1st Optical drive
P3
Power Supply
2nd Optical drive
P4
Power Supply
2nd SATA Hard drive
P5
Power Supply
Diskette drive
P7
Cable
To
PCA Designator
Diskette drive
System board
FDD1 (Black)
1st SATA Hard drive
System board
SATA 0 (Orange)
2nd SATA Hard drive
System board
SATA 1 (Orange)
ODD Data
System board
IDE1 (Blue)
ODD Audio
System board
JCD1 (Black)
Heatsink fan
System board
CPU FAN 2 (Brown)
Secondary system fan
System board
SYSFAN1 (White)
Front power on button
System board
JFP1 (Black)
Front I/O USB
System board
JUSB1 (Black)
Speaker
System board
SPKR (White)
Front audio
System board
AUD1 (Green)
Chapter 7 Removal and Replacement Procedures— Microtower (MT) Chassis
ENWW
Drives
The computer supports up to five drives that may be installed in various configurations.
This Section describes the procedure for replacing or upgrading the storage drives. A Torx T-15
screwdriver is needed to remove and install the guide screws on a drive.
CAUTION: Make sure personal files on the hard drive are backed up to an external storage
device before removing the hard drive. Failure to do so will result in data loss. After replacing the
primary hard drive, you will need to run the Restore Plus! CD to load the Compaq factory-installed
files.
Drive Positions
Drive Positions
Item
Description
Item
Description
(1)
Optical drive*
(4)
Internal hard drive (secondary)
(2)
Optical drive*
(5)
Internal hard drive (primary)
(3)
External# 3.5” drive
*
An optical drive is a CD-ROM, CD-R/RW, DVD-ROM, DVD-R/RW, or CD-RW/DVD Combo drive.
#
Optical media card reader illustrated.
ENWW
Drives
71
5.25" Drive
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 59)
2.
Remove the access panel (Access Panel on page 60)
3.
Remove the front bezel (Front Bezel on page 61)
4.
Disconnect the power, data, and audio cables, as necessary, from the back of the drive.
5.
Remove the two screws that secure the drive in the drive cage (1).
6.
Slide the drive out of the drive cage, as shown in the illustration below (2).
7.
After the drive has been removed from the chassis, remove the two guide screws from the left side
of the drive. These screws should be transferred to the new drive.
To install a drive, reverse the removal procedure.
NOTE: If you are installing a 5.25” drive for the first time into bay 2 you must first remove the
metal shield that covers the bay by pressing in on the silver-colored tab on the left side of the
chassis then pulling the shield out from the front of the chassis. It is not necessary to remove the
drive from bay 1 when performing this operation.
NOTE: There are a total of eight extra guide/retainer screws on the front of the chassis behind
the bezel. Four have Unified Standard (US) #6–32 standard threads and for have M3 metric
threads. US screws are used for used for hard drives and have a silver finish. Metric screws are
used for all other drives and have a black finish. Be sure to install the appropriate guide screws
into the drive.
72
Chapter 7 Removal and Replacement Procedures— Microtower (MT) Chassis
ENWW
3.5” Drive
If you are installing a device for the first time in the external 3.5” drive bay you will need to use a flat
blade screwdriver to break out the metal shield.
The 3.5” external drive bay may be populated with a diskette drive or a media card reader. The removal
procedure is the same for both devices.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 59)
2.
Remove the access panel (Access Panel on page 60)
3.
Remove the front bezel (Front Bezel on page 61)
4.
If the device is a media card reader, disconnect the internal USB cable from the system board. If
the device is a diskette drive, disconnect the power, and data cables from the back of the drive.
5.
Remove the retainer screws that secure the drive in the bay (1) then slide the drive forward and
out of the bay (2).
To install a drive, reverse the removal procedure. Be sure to install a guide screw on the front right side
of a new drive. The guide screw helps secure the drive in place.
Refer to the table below for proper retainer and guide screw locations.
Device
Retainer Screws
Guide Screws
Diskette Drive
2 (labeled “FDD” on chassis)
1 (front left side of drive)
Media Card Reader
2 (labeled “CR” on chassis)
none
NOTE: If you are installing a drive in the external 3.5” drive bay for the first time, use a flat blade
screwdriver to pry out the metal shield covering the bay.
ENWW
Drives
73
NOTE: There are a total of eight extra guide/retainer screws on the front of the chassis behind
the bezel. Four have Unified Standard (US) #6–32 standard threads and for have M3 metric
threads. US screws are used for used for hard drives and have a silver finish. Metric screws are
used for all other drives and have a black finish. Be sure to install the appropriate guide screws
into the drive.
74
Chapter 7 Removal and Replacement Procedures— Microtower (MT) Chassis
ENWW
Removing a 3.5” Hard Drive
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 59)
2.
Remove the access panel (Access Panel on page 60)
3.
Remove the front bezel (Front Bezel on page 61)
4.
Disconnect the power, and data cables from the back the drive.
5.
Remove the four retaining screws that secure the drive in the drive cage (1).
6.
Slide the drive out of the rear of the drive bay (2).
To replace the hard drive cage, reverse the removal procedure. No guide screws are required for drives
installed in the hard drive bays (bays 4 and 5).
NOTE: If you replaced the primary hard drive, the Restore Plus!CD may be used to restore the
operating system, software drivers, and/or any software applications that were preinstalled on
the computer. Follow the instructions in the guide included with the CD. When the restore process
has been completed, reinstall any personal files that were backed up before replacing the hard
drive.
ENWW
Drives
75
Front I/O Panel Housing Assembly
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 59)
2.
Remove the access panel and rotate the computer so the system board is parallel to the table to
make it easier to work on (Access Panel on page 60)
3.
Remove the front bezel (Front Bezel on page 61)
4.
Free the two cables from the cable tie that is attached to the chassis.
5.
Remove the screw (1) that secures the housing to the chassis and then rotate the housing away
from the chassis and pull the assembly out of the chassis.
To install the housing assembly, reverse the removal procedures.
76
Chapter 7 Removal and Replacement Procedures— Microtower (MT) Chassis
ENWW
Power Switch Assembly
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 59).
2.
Remove the access panel and rotate the computer so the system board is parallel to the table to
make it easier to work on (Access Panel on page 60)
3.
Disconnect the braided cables from the system board.
4.
Free the braided cables from the cable tie that is attached to the chassis.
5.
Squeeze the top of the switch holder (1), rotate the switch, and remove it from the chassis.
To install the power switch assembly, reverse the removal procedures.
ENWW
Power Switch Assembly
77
Speaker
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 59)
2.
Remove the access panel (Access Panel on page 60)
3.
Remove the front bezel (Front Bezel on page 61)
4.
Disconnect the speaker cable from the system board.
5.
Free the cable from the cable tie that is attached to the chassis.
6.
Remove the screw that secures the speaker to the inside of the chassis (1) then, remove the
speaker (2) by sliding it out of the retaining clips..
To install the speaker, reverse the removal procedure.
When installing the speaker, make sure the speaker wires point towards the speaker retaining screw.
78
Chapter 7 Removal and Replacement Procedures— Microtower (MT) Chassis
ENWW
System Fan
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 59)
2.
Remove the access panel (Access Panel on page 60)
3.
Disconnect the cable that connects the system fan to the system board.
4.
Remove the screws that secure the fan to the chassis and remove the fan.
To install the fan, reverse the removal procedures.
NOTE: When installing the fan, make sure the wires leading from the fan are located near the
P2 4–pin power connector on the system board.
ENWW
System Fan
79
Heatsink
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 59)
2.
Remove the access panel and lay the computer down on its side to make it easier to work on.
(Access Panel on page 60)
3.
Disconnect the heatsink control cable from the system board.
4.
Loosen the four captive screws that secure the heatsink to the system board.
5.
Lift the heatsink from atop the processor and set it on its side to keep from contaminating the work
area with thermal grease.
When reinstalling an existing heatsink, make sure that its bottom has been cleaned with an alcohol wipe
and fresh thermal grease has been applied to the top of the processor. New heatsinks come from the
factory with fresh thermal grease already applied.
Position the heatsink so that fan wiring is closest to the power supply. Check to ensure that the heatsink
mounting lugs do not rest on any electrical components before tightening the retaining screws.
CAUTION: Heatsink retaining screws should be tightened in diagonally opposite pairs (as in
an X) to evenly seat the heatsink to the processor. This is especially important as the pins on the
socket are very fragile and any damage to them may require replacing the system board.
80
Chapter 7 Removal and Replacement Procedures— Microtower (MT) Chassis
ENWW
Processor
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 59).
2.
Remove the access panel and lay the computer down on its side to make it easier to work on.
(Access Panel on page 60).
3.
Disconnect the heatsink control cable from the system board and remove the heatsink. Heatsink
on page 80
4.
Rotate the processor locking lever to its full open position (1).
5.
Raise and rotate the microprocessor retainer to its full open position (2)
6.
Carefully lift the processor from the socket (3).
CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile
and handling them could cause irreparable damage. Once pins are damaged it may be
necessary to replace the system board.
CAUTION: The heatsink must be installed within 24 hours of installing the processor to
prevent damage to the processor’s solder connections.
To install a new processor:
1.
Place the processor in its socket and close the retainer.
2.
Secure the locking lever.
If reusing the existing heatsink, go to step 3.
If using a new heatsink, go to step 6.
ENWW
3.
If reusing the existing heatsink, clean the bottom of the heatsink with the alcohol pad provided in
the spares kit.
4.
Apply the thermal grease provided in the spares kit to the top of the processor and install the
heatsink atop the processor.
Processor
81
5.
Go to step 7.
6.
If using a new heatsink, remove the protective covering from the bottom of the heatsink and place
it in position atop the processor.
7.
Secure the heatsink to the system board and system board tray with the 4 captive screws and
attach the heatsink control cable to the system board.
CAUTION: Heatsink retaining screws should be tightened in diagonally opposite pairs (as
in an X) to evenly seat the heatsink on the processor. This is especially important as the
pins on the socket are very fragile and any damage to them may require replacing the system
board.
NOTE: After installing a new processor onto the system board, always update the system
ROM to ensure that the latest version of the BIOS is being used on the computer. The latest
system ROM BIOS can be found on the Web at: http:\\h18000.www1.hp.com/support/files.
82
Chapter 7 Removal and Replacement Procedures— Microtower (MT) Chassis
ENWW
System Board
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 59)
2.
Remove the access panel.(Access Panel on page 60)
3.
Remove the front bezel and lay the computer down on its side to make it easier to work on. (Front
Bezel on page 61).
4.
Disconnect the power, and data cables from the back of all installed drives.
5.
Disconnect all cables from the system board.
6.
Remove the heatsink from the system board (Heatsink on page 80)
7.
Remove the 6 screws that secure the system board to the chassis (1).
8.
Slide the system board towards the front of the chassis (2) then, angle the back of the board up to
remove it (3).
NOTE: The system board in the computer may look slightly different from the one shown
here.
To install the system board, reverse the removal procedure.
NOTE: After installing a new system board, always update the system ROM to ensure that the
latest version of the BIOS is being used on the computer. The latest system ROM BIOS can be
found on the Web at: http:\\h18000.www1.hp.com/support/files.
ENWW
System Board
83
Battery
The battery that comes with your computer provides power to the real-time clock and has a lifetime of
about three years. When replacing the battery, use a battery equivalent to the battery originally installed
on the computer. The computer comes with a 3-volt lithium coin cell battery.
NOTE: The lifetime of the lithium battery can be extended by plugging the computer into a live
AC wall socket. The lithium battery is only used when the computer is NOT connected to AC
power.
WARNING! This computer contains an internal lithium manganese dioxide battery. There is a
risk of fire and burns if the battery is not handled properly. To reduce the risk of personal injury:
Do not attempt to recharge the battery.
Do not expose to temperatures higher than 60°C (140°F)
Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
Replace the battery only with the HP/Compaq spare designated for this product.
CAUTION: Before replacing the battery, it is important to back up the computer CMOS settings.
When the battery is removed or replaced, the CMOS settings will be cleared. Refer to the
Troubleshooting Guide for information on backing up the CMOS settings.
NOTE: Batteries, battery packs, and accumulators should not be disposed of together with the
general household waste. In order to forward them to recycling or proper disposal, please use
the public collection system or return them to HP/Compaq, their authorized partners, or their
agents.
CAUTION: Static electricity can damage the electronic components of the computer or optional
equipment. Before beginning these procedures, ensure that you are discharged of static
electricity by briefly touching a grounded metal object.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 59)
2.
Remove the access panel (Access Panel on page 60).
NOTE: It may be necessary to remove an expansion card to gain access to the battery.
3.
84
Locate the battery and battery holder on the system board.
Chapter 7 Removal and Replacement Procedures— Microtower (MT) Chassis
ENWW
Type 1 Battery Holder
ENWW
1.
Lift the battery out of its holder.
2.
Slide the replacement battery into position, positive side up.
3.
The battery holder automatically secures the battery in the proper position.
4.
Replace the computer access panel.
5.
Plug in the computer and turn on power to the computer.
6.
Reset the date and time, your passwords, and any special system setups, using Computer Setup.
Refer to the Computer Setup (F10) Utility Guide.
Battery
85
Type 2 Battery Holder
86
1.
To release the battery from its holder, squeeze the metal clamp that extends above one edge of
the battery. When the battery pops up, lift it out (1).
2.
To insert the new battery, slide one edge of the replacement battery under the holder’s lip with the
positive side up (2). Push the other edge down until the clamp snaps over the other edge of the
battery.
3.
Replace the computer access panel.
4.
Plug in the computer and turn on power to the computer.
5.
Reset the date and time, your passwords, and any special system setups, using Computer Setup.
Refer to the Computer Setup (F10) Utility Guide.
Chapter 7 Removal and Replacement Procedures— Microtower (MT) Chassis
ENWW
Type 3 Battery Holder
ENWW
1.
Pull back on the clip (1) that holds the battery in place, then remove the battery (2).
2.
Insert the new battery and position the clip back in place.
3.
Replace the computer access panel.
4.
Plug in the computer and turn on power to the computer.
5.
Reset the date and time, your passwords, and any special system setups, using Computer Setup.
Refer to the Computer Setup (F10) Utility Guide.
Battery
87
Power Supply
WARNING! Voltage is always present on the system board when the computer is plugged into
an active AC outlet. To avoid possible personal injury and damage to the equipment the power
cord should be disconnected from the computer and/or the AC outlet before opening the
computer.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 59)
2.
Remove the access panel (Access Panel on page 60).
3.
Disconnect all power cables from the mass storage devices and from the system board.
4.
Remove the 4 screws that secure the power supply to the chassis.
5.
Slide the power supply toward the front of the computer, then lift it out of the computer.
To install the power supply, reverse the removal procedure.
88
Chapter 7 Removal and Replacement Procedures— Microtower (MT) Chassis
ENWW
A
Connector Pin Assignments
This appendix contains the pin assignments for many computer and workstation connectors. Some of
these connectors may not be used on the product being serviced.
Keyboard
Connector and Icon
Pin
Signal
1
Data
2
Unused
3
Ground
4
+5 VDC
5
Clock
6
Unused
Pin
Signal
1
Data
2
Unused
3
Ground
4
+5 VDC
5
Clock
6
Unused
Pin
Signal
1
Data
2
Ground
Mouse
Connector and Icon
Ethernet BNC
Connector and Icon
ENWW
Keyboard
89
Ethernet RJ-45
Connector and Icon
Pin
Signal
1
(+) Transmit Data
2
(-) Transmit Data
3
(+) Receive Data
4
Unused
5
Unused
6
(-) Receive Data
7
Unused
8
Unused
Ethernet AUI
Connector and Icon
90
Pin
Signal
Pin
Signal
1
Ground
9
Positive AUI Differential Receive
2
Negative AUI Differential Collision
10
+12V
3
Positive AUI Differential Collision
11
Ground
4
Negative AUI Differential Transmit
12
Ground
5
Positive AUI Differential Transmit
13
Unused
6
Ground
14
Unused
7
Ground
15
Unused
8
Negative AUI Differential Receive
16
Unused
Appendix A Connector Pin Assignments
ENWW
Parallel Interface
Connector and Icon
Pin
Signal
Pin
Signal
1
Strobe
10
Acknowledge
2
Data Bit 0
11
Busy
3
Data Bit 1
12
Paper End
4
Data Bit 2
13
Select
5
Data Bit 3
14
Auto Linefeed
6
Data Bit 4
15
Error
7
Data Bit 5
16
Initialize Printer
8
Data Bit 6
17
Select IN
9
Data Bit 7
18–25
Signal Ground
Serial Interface, Powered and Non-Powered
Connector and Icon
Pin
Signal
1
Carrier Detect (12V if powered)
2
Receive Data
3
Transmit Data
4
Data Terminal Ready
5
Signal Ground
6
Data Set Ready
7
Request to Send
8
Clear to Send
9
Ring Indicator (5V if powered)
Pin
Signal
1
+5 VDC
2
- Data
3
+ Data
4
Ground
USB
Connector and Icon
ENWW
Parallel Interface
91
Microphone
Connector and Icon (1/8” miniphone)
1 2 3
Pin
Signal
1 (Tip)
Audio_left
2 (Ring)
Audio_Right
3 (Shield)
Ground
Pin
Signal
1 (Tip)
Audio_left
2 (Ring)
Power_Right
3 (Shield)
Ground
Pin
Signal
1 (Tip)
Audio_In_Left
2 (Ring)
Audio_In_Right
3 (Shield)
Ground
Pin
Signal
1 (Tip)
Audio_Out_Left
2 (Ring)
Audio_Out_Right
3 (Shield)
Ground
Pin
Signal
Headphone
Connector and Icon (1/8” miniphone)
1 2 3
Line-in Audio
Connector and Icon (1/8” miniphone)
1 2 3
Line-out Audio
Connector and Icon (1/8” miniphone)
1 2 3
External Infrared Transceiver
Connector and Icon
92
Appendix A Connector Pin Assignments
ENWW
1
Transmit
2
Receive
3
Ground
4
5V
5
Mode
6
Not Used
7
Not Used
8
Not Used
Monitor
Connector and Icon
ENWW
Pin
Signal
Pin
Signal
1
Red Analog
9
+5V (fused)
2
Green Analog
10
Ground
3
Blue Analog
11
Not used
4
Not used
12
DDC Serial Data
5
Ground
13
Horizontal Sync
6
Ground
14
Vertical Sync
7
Ground
15
DDC Serial Clock
8
Ground
Monitor
93
ATA/ATAPI (IDE) Standard Drive Cable
Connector
Pin
Signal
Pin
Signal
Pin
Signal
1
Reset
15
DD1
29
DMAK
2
Ground
16
DD14
30
Ground
3
DD7
17
DD0
31
INTRQ
4
DD8
18
DD15
32
IOCS16
5
DD6
19
Ground
33
DA1
6
DD9
20
(Key)
34
PDIAG (cable detect)
7
DD5
21
DMARQ
35
DA0
8
DD10
22
Ground
36
DA2
9
DD4
23
DIOW
37
CS1FX
10
DD11
24
Ground
38
CS3FX
11
DD3
25
DIOR
39
DASP
12
DD12
26
Ground
40
Ground
13
DD2
27
IORDY
14
DD13
28
CSEL
24-Pin Power
Connector
94
24
13
12
1
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
1
+3.3V
7
GND
13
+3.3V
19
GND
2
+3.3V
8
POK
14
–12V
20
open
3
GND
9
+5 Vaux
15
GND
21
+5V
4
+5V
10
+12V
16
PSON
22
+5V
5
GND
11
+12V
17
GND
23
+5V
6
+5V
12
+3.3V
18
GND
24
GND
Appendix A Connector Pin Assignments
ENWW
24-Pin MicroFit Power
Connector
24
13
12
1
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
1
+5 Vaux
7
PWRGD
13
+12V
19
GND
2
GND
8
+3.3V
14
+5V Sense
20
+3.3V
3
+5V
9
+3.3V
15
GND
21
Sense
4
+5V
10
Tach
16
+5V
22
+3.3V
5
PS_ON
11
GND
17
+5V
23
+3.3V
6
GND
12
Fan-CMD
18
+3.3V
24
GND
-12V
4-Pin Power (for CPU)
Connector and Icon
Pin
Signal
1
GND
2
GND
3
+12V CPU
4
-12V CPU
Pin
Signal
1
GND
2
GND
3
GND
4
12V CPU
5
12V CPU
6
+12V
6-Pin Power (for CPU)
Connector and Icon
4
ENWW
6
24-Pin MicroFit Power
95
SATA Data and Power
Drive Connector
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
S1
Ground
S2
A+
S3
A-
S4
Ground
S5
B-
S6
B+
S7
Ground
P1
Ground
P2
V 3.3
P3
V 3.3
P4
Ground
P5
B-
P6
Ground
P7
V5
P8
V5
P9
V5
P10
Ground
P11
Reserved
P12
Ground
P13
V 12
P14
V12
P15
V 12
*S = Data, P = Power
PCI Express
x1, x4, x8, and x16 PCI Express Connector
Pin A
96
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
1
PRSNT1
6
JTAG3
11
PERST#
16
PERp0
21
PERp1
2
+12V
7
JTAG4
12
GND
17
PERn0
22
PERn1
3
+12V
8
JTAG5
13
REFCLK+
18
GND
23
GND
4
GND
9
+3.3V
14
REFCLK-
19
RSVD
24
GND
5
JTAG2
10
+3.3V
15
GND
20
GND
25
PERp2
26
PERn(2)
31
GND
36
PERn4
41
GND
46
GND
27
GND
32
RSVD
37
GND
42
GND
47
PERp7
28
GND
33
RSVD
38
GND
43
PERp6
48
PERn7
29
PERp3
34
GND
39
PERp5
44
PERn6
49
GND
30
PERn3
35
PERp4
40
PERn5
45
GND
50
RSVD
51
GND
56
PERp9
61
PERn10
66
GND
71
GND
Appendix A Connector Pin Assignments
ENWW
52
PERp8
57
PERn9
62
GND
67
GND
72
PERp13
53
PERN8
58
GND
63
GND
68
PERp12
73
PERn13
54
GND
59
GND
64
PERp11
69
PERn12
74
GND
55
GND
60
PERp10
65
PERn11
70
GND
75
GND
76
PERp14
81
PERn15
77
PERn14
82
GND
78
GND
79
GND
80
PERp15
Pin B information is on the next page
NOTE: x1 PCI Express uses pins 1-18
x4 PCI Express uses pins 1-32
x8 PCI Express uses pins 1-49
x16 PCI Express uses pins 1-8
PCI Express
x1, x4, x8, and x16 PCI Express Connector
Pin B
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
1
+12V
6
SMDAT
11
WAKE#
16
GND
21
GND
2
+12V
7
GND
12
RSVD
17
22
GND
23
PETp2
24
PETn2
25
GND
GND
3
RSVD
8
+3.3 V
13
GND
18
PETp1
4
GND
9
JTAG1
14
PETp0
19
PETn1
ENWW
5
SMCLK
10
3.3vAux
15
PETn0
20
26
GND
31
PRSNT2#
36
GND
41
PETp6
46
PETn7
27
PETp3
32
GND
37
PETp5
42
PRTn6
47
GND
28
PETn3
33
PETp4
38
PETn5
43
GND
48
PRSNT2#
29
GND
34
PETn4
39
GND
44
GND
49
GND
30
RSVD
35
GND
40
GND
45
PETp7
50
PETp8
PCI Express
97
51
PETn8
56
GND
61
GND
66
PETp12
71
PETn13
52
GND
57
GND
62
PETp11
67
PETn12
72
GND
53
GND
58
PETp10
63
PETn11
68
GND
73
GND
54
PETp9
59
PETn10
64
GND
69
GND
74
PETp14
55
PETn9
60
GND
65
GND
70
PETp13
75
PETn14
76
GND
81
PRSNT2#
77
GND
82
RSVD
78
PETp15
79
PETn15
80
GND
Pin B information is on the next page
NOTE:
x1 PCI Express uses pins 1-18
x4 PCI Express uses pins 1-32
x8 PCI Express uses pins 1-49
x16 PCI Express uses pins 1-8
DVI Connector
Connector and Icon
98
Pin
Signal
Pin
Signal
1
T.M.D.S. Data2–
13
T.M.D.S. Data3+
2
T.M.D.S. Data2+
14
+5V Power
3
T.M.D.S. Data2/4 Shield
15
Ground (for +5V)
4
T.M.D.S. Data4–
16
Hot Pug Detect
5
T.M.D.S. Data4+
17
T.M.D.S. Data0–
6
DDC Clock
18
T.M.D.S. Data0+
7
DDC Data
19
T.M.D.S. Data0/5 Shield
8
No Connect
20
T.M.D.S. Data5–
9
T.M.D.S. Data1–
21
T.M.D.S. Data5+
10
T.M.D.S. Data1+
22
T.M.D.S. Data Shield
11
T.M.D.S. Data1/3 Shield
23
T.M.D.S. Clock+
Appendix A Connector Pin Assignments
ENWW
12
ENWW
T.M.D.S. Data3–
24
T.M.D.S. Clock-
DVI Connector
99
100 Appendix A Connector Pin Assignments
ENWW
B
Power Cord Set Requirements
The power supplies on some computers have external power switches. The voltage select switch feature
on the computer permits it to operate from any line voltage between 100-120 or 220-240 volts AC. Power
supplies on those computers that do not have external power switches are equipped with internal
switches that sense the incoming voltage and automatically switch to the proper voltage.
The power cord set received with the computer meets the requirements for use in the country where
you purchased the equipment.
Power cord sets for use in other countries must meet the requirements of the country where you use
the computer.
General Requirements
The requirements listed below are applicable to all countries:
1.
The power cord must be approved by an acceptable accredited agency responsible for evaluation
in the country where the power cord set will be installed.
2.
The power cord set must have a minimum current capacity of 10A (7A Japan only) and a nominal
voltage rating of 125 or 250 volts AC, as required by each country’s power system.
3.
The diameter of the wire must be a minimum of 0.75 mm2 or 18AWG, and the length of the cord
must be between 1.8 m (6 feet) and 3.6 m (12 feet).
The power cord should be routed so that it is not likely to be walked on or pinched by items placed upon
it or against it. Particular attention should be paid to the plug, electrical outlet, and the point where the
cord exits from the product.
WARNING! Do not operate this product with a damaged power cord set. If the power cord set
is damaged in any manner, replace it immediately.
Japanese Power Cord Requirements
For use in Japan, use only the power cord received with this product.
CAUTION: Do not use the power cord received with this product on any other products.
Country-Specific Requirements
Additional requirements specific to a country are shown in parentheses and explained below.
ENWW
General Requirements 101
Country
Accrediting Agency
Country
Accrediting Agency
Australia (1)
EANSW
Italy (1)
IMQ
Austria (1)
OVE
Japan (3)
METI
Belgium (1)
CEBC
Norway (1)
NEMKO
Canada (2)
CSA
Sweden (1)
SEMKO
Denmark (1)
DEMKO
Switzerland (1)
SEV
Finland (1)
SETI
United Kingdom (1)
BSI
France (1)
UTE
United States (2)
UL
Germany (1)
VDE
1.
The flexible cord must be Type HO5VV-F, 3-conductor, 0.75mm2 conductor size. Power cord set fittings (appliance coupler
and wall plug) must bear the certification mark of the agency responsible for evaluation in the country where it will be used.
2.
The flexible cord must be Type SVT or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole grounding
type with a NEMA 5-15P (15A, 125V) or NEMA 6-15P (15A, 250V) configuration.
3.
Appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the
Japanese Dentori Law. Flexible cord must be Type VCT or VCTF, 3-conductor, 0.75 mm2 conductor size. Wall plug must
be a two-pole grounding type with a Japanese Industrial Standard C8303 (7A, 125V) configuration.
102 Appendix B Power Cord Set Requirements
ENWW
C
POST Error Messages
This appendix lists the error codes, error messages, and the various indicator light and audible
sequences that you may encounter during Power-On Self-Test (POST) or computer restart, the probable
source of the problem, and steps you can take to resolve the error condition.
POST Message Disabled suppresses most system messages during POST, such as memory count
and non-error text messages. If a POST error occurs, the screen will display the error message. To
manually switch to the POST Messages Enabled mode during POST, press any key (except F10 or
F12). The default mode is POST Message Disabled.
The speed at which the computer loads the operating system and the extent to which it is tested are
determined by the POST mode selection.
Quick Boot is a fast startup process that does not run all of the system level tests, such as the memory
test. Full Boot runs all of the ROM-based system tests and takes longer to complete.
Full Boot may also be enabled to run every 1 to 30 days on a regularly scheduled basis. To establish
the schedule, reconfigure the computer to the Full Boot Every x Days mode, using Computer Setup.
NOTE: For more information on Computer Setup, see the Computer Setup (F10) Utility
Guide on the Documentation and Diagnostics CD.
Power-On Self-Test (POST)
POST is a series of diagnostic tests that runs automatically when the system is turned on. POST checks
the following items to ensure that the computer system is functioning properly:
●
Keyboard
●
Memory modules
●
All mass storage devices
●
Processors
●
Controllers
NOTE: If the Power-On Password is set, a key icon appears on the screen while POST is
running. You will need to enter the password before continuing.
If POST finds an error in the system, an audible and/or visual message occurs.
ENWW
Power-On Self-Test (POST) 103
POST Numeric Codes and Text Messages
This section covers those POST errors that have numeric codes associated with them. The section also
includes some text messages that may be encountered during POST.
NOTE:
The computer will beep once after a POST text message is displayed on the screen.
Table C-1 Numeric Codes and Text Messages
Control panel message
Description
Recommended action
101-Option ROM Checksum Error
System ROM or expansion board option
ROM checksum.
1.
Verify the correct ROM.
2.
Flash the ROM if needed.
3.
If an expansion board was recently
added, remove it to see if the problem
remains.
4.
Clear CMOS.
5.
If the message disappears, there may
be a problem with the expansion card.
6.
Replace the system board.
1.
Clear CMOS.
2.
Remove expansion boards.
3.
Replace the system board.
1.
If a PCI expansion card was recently
added, remove it to see if the problem
remains.
2.
In Computer Setup, set Advanced >
Device Options > NIC PXE Option
ROM Download to DISABLE to prevent
PXE option ROM for the internal NIC
from being downloaded during POST to
free more memory for an expansion
card's option ROM. Internal PXE option
ROM is used for booting from the NIC to
a PXE server.
3.
Ensure the ACPI/USB Buffers @ Top of
Memory setting in Computer Setup is
enabled.
103-System Board Failure
110-Out of Memory Space for Option ROMs
162-System Options Not Set
DMA or timers.
Recently added PCI expansion card contains
an option ROM too large to download during
POST.
Configuration incorrect.
RTC (real-time clock) battery may need to
be replaced.
Run Computer Setup and check the
configuration in Advanced > Onboard
Devices.
Reset the date and time under Control
Panel. If the problem persists, replace the
RTC battery. See the Hardware Reference
Guide on the Documentation and Diagnostics
CD for instructions on installing a new battery,
or contact an authorized dealer or reseller for
RTC battery replacement.
163-Time & Date Not Set
Invalid time or date in configuration memory.
104 Appendix C POST Error Messages
Reset the date and time under Control
Panel (Computer Setup can also be used). If
ENWW
Table C-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
RTC (real-time clock) battery may need to
be replaced.
the problem persists, replace the RTC
battery. See the Hardware Reference Guide
on the Documentation and Diagnostics CD
for instructions on installing a new battery, or
contact an authorized dealer or reseller for
RTC battery replacement.
163-Time & Date Not Set
CMOS jumper may not be properly installed.
Check for proper placement of the CMOS
jumper if applicable.
164-MemorySize Error
Memory amount has changed since the last
boot (memory added or removed).
Press the F1 key to save the memory
changes.
164-MemorySize Error
Memory configuration incorrect.
1.
Run Computer Setup or Windows
utilities.
2.
Make sure the memory module(s) are
installed properly.
3.
If third-party memory has been added,
test using HP-only memory.
4.
Verify proper memory module type.
1.
Run Computer Setup or Windows
utilities.
2.
Ensure memory modules are correctly
installed.
3.
Verify proper memory module type.
4.
Remove and replace the identified faulty
memory module(s).
5.
If the error persists after replacing
memory modules, replace the system
board.
A memory module in memory socket
identified in the error message is missing
critical SPD information, or is incompatible
with the chipset.
1.
Verify proper memory module type.
2.
Try another memory socket.
3.
Replace DIMM with a module
conforming to the SPD standard.
214-DIMM Configuration Warning
Populated DIMM Configuration is not
optimized.
Rearrange the DIMMs so that each channel
has the same amount of memory.
219-ECC Memory Module Detected ECC
Modules not supported on this Platform
Recently added memory module(s) support
ECC memory error correction.
1.
If additional memory was recently
added, remove it to see if the problem
remains.
2.
Check product documentation for
memory support information.
1.
Reconnect keyboard with computer
turned off.
2.
Check connector for bent or missing
pins.
201-Memory Error
213-Incompatible Memory Module in
Memory Socket(s) X, X, ...
301-Keyboard Error
ENWW
RAM failure.
Keyboard failure.
POST Numeric Codes and Text Messages 105
Table C-1 Numeric Codes and Text Messages (continued)
Control panel message
303-Keyboard Controller Error
304-Keyboard or System Unit Error
404-Parallel Port Address Conflict Detected
Description
I/O board keyboard controller.
Keyboard failure.
Both external and internal ports are assigned
to parallel port X.
Recommended action
3.
Ensure that none of the keys are
depressed.
4.
Replace keyboard.
1.
Reconnect keyboard with computer
turned off.
2.
Replace the system board.
1.
Reconnect the keyboard with computer
turned off.
2.
Ensure that none of the keys are
depressed.
3.
Replace the keyboard.
4.
Replace the system board.
1.
Remove any parallel port expansion
cards.
2.
Clear CMOS.
3.
Reconfigure card resources and/or run
Computer Setup.
410-Audio Interrupt Conflict
IRQ address conflicts with another device.
Enter Computer Setup and reset the IRQ in
Advanced > Onboard Devices.
411-Network Interface Card Interrupt Conflict
IRQ address conflicts with another device.
Enter Computer Setup and reset the IRQ in
Advanced > Onboard Devices.
501-Display Adapter Failure
Graphics display controller.
1.
Reseat the graphics card (if applicable).
2.
Clear CMOS.
3.
Verify monitor is attached and turned
on.
4.
Replace the graphics card (if possible).
510-Flash Screen Image Corrupted
Flash Screen image has errors.
511-CPU, CPUA, or CPUB Fan not Detected CPU fan is not connected or may have
malfunctioned.
512-Chassis, Rear Chassis, or Front Chassis
Fan not Detected
514-CPU or Chassis Fan not Detected
Chassis, rear chassis, or front chassis fan is
not connected or may have malfunctioned.
CPU or chassis fan is not connected or may
have malfunctioned.
106 Appendix C POST Error Messages
Reflash the system ROM with the latest BIOS
image.
1.
Reseat CPU fan.
2.
Reseat fan cable.
3.
Replace CPU fan.
1.
Reseat chassis, rear chassis, or front
chassis fan.
2.
Reseat fan cable.
3.
Replace chassis, rear chassis, or front
chassis fan.
1.
Reseat CPU or chassis fan.
2.
Reseat fan cable.
3.
Replace CPU or chassis fan.
ENWW
Table C-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
601-Diskette Controller Error
Diskette controller circuitry or floppy drive
circuitry incorrect.
1.
Run Computer Setup.
2.
Check and/or replace cables.
3.
Clear CMOS.
4.
Replace diskette drive.
5.
Replace the system board.
1.
Run Computer Setup.
2.
Disconnect any other diskette controller
devices (tape drives).
3.
Clear CMOS.
605-Diskette Drive Type Error
Mismatch in drive type.
610-External Storage Device Failure
External tape drive not connected.
Reinstall tape drive or press F1 and allow
system to reconfigure without the drive.
611-Primary Floppy Port Address
Assignment Conflict
Configuration error.
Run Computer Setup and check the
configuration in Advanced > Onboard
Devices.
660-Display cache is detected unreliable
Integrated graphics controller display cache
is not working properly and will be disabled.
Replace system board if minimal graphics
degrading is an issue.
912-Computer Cover Has Been Removed
Since Last System Startup
Computer cover was removed since last
system startup.
No action required.
917-Front Audio Not Connected
Front audio harness has been detached or
unseated from motherboard.
Reconnect or replace front audio harness.
918-Front USB Not Connected
Front USB harness has been detached or
unseated from motherboard.
Reconnect or replace front USB harness.
921-Device in PCI Express slot failed to
initialize
There is an incompatibility/problem with this
device and the system or PCI Express Link
could not be retrained to an x1.
Try rebooting the system. If the error
reoccurs, the device may not work with this
system
1151-Serial Port A Address Conflict Detected
Both external and internal serial ports are
assigned to COM1.
1.
Remove any serial port expansion
cards.
2.
Clear CMOS.
3.
Reconfigure card resources and/or run
Computer Setup or Windows utilities.
1.
Remove any serial port expansion
cards.
2.
Clear CMOS.
3.
Reconfigure card resources and/or run
Computer Setup or Windows utilities.
1.
Remove any serial port expansion
cards.
2.
Clear CMOS.
3.
Reconfigure card resources and/or run
Computer Setup or Windows utilities.
1152-Serial Port B Address Conflict Detected
1155-Serial Port Address Conflict Detected
1201-System Audio Address Conflict
Detected
ENWW
Both external and internal serial ports are
assigned to COM2.
Both external and internal serial ports are
assigned to same IRQ.
Device IRQ address conflicts with another
device.
Enter Computer Setup and reset the IRQ in
Advanced > Onboard Devices.
POST Numeric Codes and Text Messages 107
Table C-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
1202-MIDI Port Address Conflict Detected
Device IRQ address conflicts with another
device.
Enter Computer Setup and reset the IRQ in
Advanced > Onboard Devices.
1203-Game Port Address Conflict Detected
Device IRQ address conflicts with another
device.
Enter Computer Setup and reset the IRQ in
Advanced > Onboard Devices.
1720-SMART Hard Drive Detects Imminent
Failure
Hard drive is about to fail. (Some hard drives
have a hard drive firmware patch that will fix
an erroneous error message.)
1.
Determine if hard drive is giving correct
error message. Enter Computer Setup
and run the Drive Protection System test
under Storage > DPS Self-test.
2.
Apply hard drive firmware patch
if applicable. (Available at
http://www.hp.com/support.)
3.
Back up contents and replace hard
drive.
1796-SATA Cabling Error
One or more SATA devices are improperly
attached. For optimal performance, the SATA
0 and SATA 1 connectors must be used
before SATA 2 and SATA 3.
Ensure SATA connectors are used in
ascending order. For one device, use SATA
0. For two devices, use SATA 0 and SATA 1.
For three devices, use SATA 0, SATA1, and
SATA 2.
1797-SATA Drivelock is not supported in
RAID mode.
Drivelock is enabled on one or more SATA
hard drives, and they cannot be accessed
while the system is configured for RAID
mode.
Either remove the Drivelocked SATA device
or disable the Drivelock feature. To disable
the Drivelock feature, enter Computer Setup,
change Storage > Storage Options > SATA
Emulation to IDE, and select File > Save
Changes and Exit. Reenter Computer Setup
and select Security > Drivelock. For each
listed Drivelock-capable SATA device,
ensure Drivelock is Disabled. Lastly,
change Storage > Storage Options > SATA
Emulation back to RAID and select File >
Save Changes and Exit.
1801-Microcode Patch Error
Processor is not supported by ROM BIOS.
1.
Upgrade BIOS to proper version.
2.
Change the processor.
1.
Reboot the computer.
2.
Unplug the power cord, re-seat the
memory modules, and reboot the
computer.
3.
If the memory configuration was
recently changed, unplug the computer,
restore the original memory
configuration, and reboot the computer.
4.
If the error persists, replace the system
board.
1.
Reboot the computer.
2.
Unplug the power cord, re-seat the
memory modules, and reboot the
computer.
3.
If the memory configuration was
recently changed, unplug the power
2200-PMM Allocation Error during MEBx
Download
2201-MEBx Module did not checksum
correctly
Memory error during POST execution of the
Management Engine (ME) BIOS Extensions
option ROM
Memory error during POST execution of the
Management Engine (ME) BIOS Extensions
option ROM
108 Appendix C POST Error Messages
ENWW
Table C-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
cord, restore the original memory
configuration, and reboot the computer.
2202-PMM Deallocation Error during MEBx
cleanup
2203-Setup error during MEBx execution
2204-Inventory error during MEBx execution
2205-Interface error during MEBx execution
Invalid Electronic Serial Number
Network Server Mode Active and No
Keyboard Attached
ENWW
Memory error during POST execution of the
Management Engine (ME) BIOS Extensions
option ROM
MEBx selection or exit resulted in a setup
failure.
BIOS information passed to the MEBx
resulted in a failure.
MEBx operation experienced a hardware
error during communication with ME.
Electronic serial number has become
corrupted.
Keyboard failure while Network Server Mode
enabled.
4.
If the error persists, replace the system
board.
1.
Reboot the computer.
2.
Unplug the power cord, re-seat the
memory modules, and reboot the
computer.
3.
If the memory configuration was
recently changed, unplug the power
cord, restore the original memory
configuration, and reboot the computer.
4.
If the error persists, replace the system
board.
1.
Reboot the computer.
2.
Unplug the power cord, re-seat the
memory modules, and reboot the
computer.
3.
If the memory configuration was
recently changed, unplug the power
cord, restore the original memory
configuration, and reboot the computer.
4.
If the error persists, replace the system
board.
1.
Reboot the computer.
2.
If the error persists, update to the latest
BIOS version.
3.
If the error still persists, replace the
system board.
1.
Reboot the computer.
2.
If the error persists, update to the latest
BIOS version.
3.
If the error still persists, replace the
system board.
1.
Run Computer Setup. If Setup already
has data in the field or will not allow
the serial number to be entered,
download from http://www.hp.com
and run SP5572.EXE (SNZERO.EXE).
2.
Run Computer Setup and try to enter
serial number under Security, System
ID, then save changes.
1.
Reconnect keyboard with computer
turned off.
2.
Check connector for bent or missing
pins.
POST Numeric Codes and Text Messages 109
Table C-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
3.
Ensure that none of the keys are
depressed.
4.
Replace keyboard.
Parity Check 2
Parity RAM failure.
Run Computer Setup and Diagnostic utilities.
System will not boot without fan
CPU fan not installed or disconnected in
VSFF chassis.
1.
Remove the computer cover, press the
power button, and see if the processor
fan spins. If the processor fan is not
spinning, make sure the fan's cable is
plugged onto the system board header.
Ensure the heatsink is properly seated
and installed.
2.
If the fan is plugged in and the heatsink
is properly seated but the fan does not
spin, then replace the heatsink-fan
assembly.
110 Appendix C POST Error Messages
ENWW
Interpreting POST Diagnostic Front Panel LEDs
This section covers the front panel LED codes that may occur before or during POST that do not
necessarily have an error code or text message associated with them.
NOTE: If you see flashing LEDs on a PS/2 keyboard, look for flashing LEDs on the front panel
of the computer and refer to the following table to determine the front panel LED codes.
Recommended actions in the following table are listed in the order in which they should be
performed.
Replace the system board or power supply only as the last resort.
Activity
Possible Cause
Recommended Action
Green Power LED On.
Computer on.
None
Green Power LED flashes every
one second.
Processor thermal protection
activated:
1.
Ensure that the computer air vents are not blocked
and the processor cooling fan is running.
A fan may be blocked or not
turning.
2.
Open hood, press power button, and see if the
processor fan spins. If the processor fan is not
spinning, make sure the fan's cable is plugged onto
the system board header. Ensure the fan is fully/
properly seated or installed.
OR
The heatsink/fan assembly is
not properly attached to the
processor.
ENWW
Green Power LED flashes every
two seconds.
Computer in Suspend to RAM
mode (some models only) or
normal Suspend mode.
Green Power LED flashes five
times, once every second, followed
by a two second pause.
Pre-video memory error.
WARNING! Rotating fan blades can
cause serious bodily harm. Be sure to keep
your hands away from the rotating blades.
3.
If fan is plugged in and seated properly, but is not
spinning, then replace processor fan.
4.
Reseat processor heatsink and verify that the fan
assembly is properly attached.
5.
Contact an authorized reseller or service provider.
Press any key or move the mouse to wake the computer.
CAUTION: To avoid damage to the DIMMs or
the system board, you must unplug the
computer power cord before attempting to
reseat, install, or remove a DIMM module.
1.
Reseat DIMMs.
2.
Replace DIMMs one at a time to isolate the faulty
module.
3.
Replace third-party memory with HP memory.
4.
Replace the system board.
Interpreting POST Diagnostic Front Panel LEDs 111
Activity
Possible Cause
Recommended Action
Green Power LED flashes six
times, once every second, followed
by a two second pause.
Pre-video graphics error.
For systems with a graphics card:
1.
Reseat the graphics card.
2.
Replace the graphics card.
3.
Replace the system board.
For systems with integrated graphics, replace the system
board.
Green Power LED flashes eight
times, once every second, followed
by a two second pause.
System does not power on and
LEDs are not flashing.
Invalid ROM based on bad
checksum.
System unable to power on.
1.
Reflash the system ROM with the latest BIOS
image.
2.
Replace the system board.
Press and hold the power button for less than 4 seconds.
If the hard drive LED turns green, the power button is
working correctly. Try the following:
1.
Check that the voltage selector (some models),
located on the rear of the power supply, is set to the
appropriate voltage. Proper voltage setting
depends on your region.
2.
Replace the system board.
OR
Press and hold the power button for less than 4 seconds.
If the hard drive LED does not turn on green then:
112 Appendix C POST Error Messages
1.
Check that the unit is plugged into a working AC
outlet.
2.
Open hood and check that the power button
harness is properly connected to the system board.
3.
Check that both power supply cables are properly
connected to the system board.
4.
Check to see if the 5V_aux light on the system
board is turned on. If it is turned on, then replace
the power button harness. If the problem persists,
replace the system board.
5.
If the 5V_aux light on the system board is not turned
on, remove the expansion cards one at a time until
the 5V_aux light on the system board turns on. It
the problem persists, replace the power supply.
ENWW
D
Troubleshooting Without Diagnostics
This chapter provides information on how to identify and correct minor problems, such as diskette drive,
hard drive, optical drive, graphics, audio, memory, and software problems. If you encounter problems
with the computer, refer to the tables in this chapter for probable causes and recommended solutions.
NOTE: For information on specific error messages that may appear on the screen during
Power-On Self-Test (POST) at startup, refer to Appendix A, POST Error Messages
on page 103.
Safety and Comfort
WARNING! Misuse of the computer or failure to establish a safe and comfortable work
environment may result in discomfort or serious injury. Refer to the Safety & Comfort Guide on
the Documentation and Diagnostics CD and available on the Web site at http://www.hp.com/
ergo for more information on choosing a workspace and creating a safe and comfortable work
environment. This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. For more information, refer to Safety &
Regulatory Information on the Documentation and Diagnostics CD.
Before You Call for Technical Support
If you are having problems with the computer, try the appropriate solutions below to try to isolate the
exact problem before calling for technical support.
ENWW
●
Run the diagnostics utility. Refer to Chapter 1, HP Insight Diagnostics on page 15 for more
information.
●
Run the Drive Protection System (DPS) Self-Test in Computer Setup. Refer to the Computer Setup
(F10) Utility Guide on the Documentation and Diagnostics CD for more information.
●
Check the Power LED on the front of the computer to see if it is flashing red. The flashing lights
are error codes that will help you diagnose the problem. Refer to Appendix A, POST Error
Messages on page 103 for more information.
●
If the screen is blank, plug the monitor into a different video port on the computer if one is available.
Or, change out the monitor with a monitor that you know is functioning properly.
●
If you are working on a network, plug another computer with a different cable into the network
connection. There may be a problem with the network plug or cable.
●
If you recently added new hardware, remove the hardware and see if the computer functions
properly.
Safety and Comfort 113
●
If you recently installed new software, uninstall the software and see if the computer functions
properly.
●
Boot the computer to the Safe Mode to see if it will boot without all of the drivers loaded. When
booting the operating system, use “Last Known Configuration.”
●
Refer to the comprehensive online technical support at http://www.hp.com/support.
●
Refer to the following Helpful Hints on page 114 section in this guide.
To assist you in resolving problems online, HP Instant Support Professional Edition provides you with
self-solve diagnostics. If you need to contact HP support, use HP Instant Support Professional Edition's
online chat feature. Access HP Instant Support Professional Edition at: http://www.hp.com/go/ispe.
Access the Business Support Center (BSC) at http://www.hp.com/go/bizsupport for the latest online
support information, software and drivers, proactive notification, and worldwide community of peers and
HP experts.
If it becomes necessary to call for technical assistance, be prepared to do the following to ensure that
your service call is handled properly:
●
Be in front of your computer when you call.
●
Write down the computer serial number and product ID number, and the monitor serial number
before calling.
●
Spend time troubleshooting the problem with the service technician.
●
Remove any hardware that was recently added to your system.
●
Remove any software that was recently installed.
●
Restore the system to a Recovery Point created in HP Backup and Recovery Manager or run
the Restore Plus! CD. For more information on using HP Backup and Recovery Manager, refer to
the HP Backup and Recovery Manager User Guide by selecting Start > HP Backup and
Recovery > HP Backup and Recovery Manager Manual.
CAUTION: Running the Restore Plus! CD will erase all data on the hard drive.
Helpful Hints
If you encounter problems with the computer, monitor, or software, see the following list of general
suggestions before taking further action:
●
Check that the computer and monitor are plugged into a working electrical outlet.
●
Check to see that the voltage select switch (some models) is set to the appropriate voltage for your
region (115V or 230V).
●
Check to see that the computer is turned on and the green power light is on.
●
Check to see that the monitor is turned on and the green monitor light is on.
●
Check the Power LED on the front of the computer to see if it is flashing red. The flashing lights
are error codes that will help you diagnose the problem. Refer to Appendix A, POST Error
Messages on page 103 for more information.
●
Turn up the brightness and contrast controls of the monitor if the monitor is dim.
114 Appendix D Troubleshooting Without Diagnostics
ENWW
●
Press and hold any key. If the system beeps, then the keyboard should be operating correctly.
●
Check all cable connections for loose connections or incorrect connections.
●
Wake the computer by pressing any key on the keyboard or pressing the power button. If the system
remains in suspend mode, shut down the computer by pressing and holding the power button for
at least four seconds then press the power button again to restart the computer. If the system will
not shut down, unplug the power cord, wait a few seconds, then plug it in again. The computer will
restart if automatic start on power loss is set in Computer Setup. If it does not restart, press the
power button to start the computer.
●
Reconfigure the computer after installing a non–plug and play expansion board or other option.
See Solving Hardware Installation Problems on page 137 for instructions.
●
Be sure that all the needed device drivers have been installed. For example, if you are using a
printer, you need a driver for that model printer.
●
Remove all bootable media (diskette, CD, or USB device) from the system before turning it on.
●
If you have installed an operating system other than the factory-installed operating system, check
to be sure that it is supported on the system.
●
If the system has multiple video sources (embedded, PCI, or PCI-Express adapters) installed
(embedded video on some models only) and a single monitor, the monitor must be plugged into
the monitor connector on the source selected as the primary VGA adapter. During boot, the other
monitor connectors are disabled and if the monitor is connected into these ports, the monitor will
not function. You can select which source will be the default VGA source in Computer Setup.
CAUTION: When the computer is plugged into an AC power source, there is always voltage
applied to the system board. You must disconnect the power cord from the power source before
opening the computer to prevent system board or component damage.
ENWW
Helpful Hints 115
Solving General Problems
You may be able to easily resolve the general problems described in this section. If a problem persists
and you are unable to resolve it yourself or if you feel uncomfortable about performing the operation,
contact an authorized dealer or reseller.
WARNING! When the computer is plugged into an AC power source, voltage is always applied
to the system board. To reduce the risk of personal injury from electrical shock and/or hot
surfaces, be sure to disconnect the power cord from the wall outlet and allow the internal system
components to cool before touching.
Look for the LED on the system board. If the LED is illuminated, the system still has power. Power
off the computer and remove the power cord before proceeding.
Table D-1 Solving General Problems
Computer appears locked up and will not turn off when the power button is pressed.
Cause
Solution
Software control of the power switch is not functional.
1.
Press and hold the power button for at least four seconds
until the computer turns off.
2.
Disconnect the power cord from the electrical outlet.
Computer will not respond to USB keyboard or mouse.
Cause
Solution
Computer is in standby mode.
To resume from standby mode, press the power button.
CAUTION: When attempting to resume from
standby mode, do not hold down the power button for
more than four seconds. Otherwise, the computer will
shut down and you will lose any unsaved data.
System has locked up.
Restart computer.
Computer date and time display is incorrect.
Cause
Solution
RTC (real-time clock) battery may need to be replaced.
First, reset the date and time under Control Panel (Computer
Setup can also be used to update the RTC date and time). If
the problem persists, replace the RTC battery. See the
Hardware Reference Guide on the Documentation and
Diagnostics CD for instructions on installing a new battery, or
contact an authorized dealer or reseller for RTC battery
replacement.
NOTE: Connecting the computer to a live AC outlet
prolongs the life of the RTC battery.
116 Appendix D Troubleshooting Without Diagnostics
ENWW
Table D-1 Solving General Problems (continued)
Cursor will not move using the arrow keys on the keypad.
Cause
Solution
The Num Lock key may be on.
Press the Num Lock key. The Num Lock light should not be on
if you want to use the arrow keys. The Num Lock key can be
disabled (or enabled) in Computer Setup.
There is no sound or sound volume is too low.
Cause
Solution
System volume may be set low or muted.
1.
Check the F10 BIOS settings to make sure the internal
system speaker is not muted (this setting does not affect
the external speakers).
2.
Make sure the external speakers are properly connected
and powered on and that the speakers' volume control is
set correctly.
3.
Use the system volume control available in the operating
system to make sure the speakers are not muted or to
increase the volume.
The audio device may be connected to the wrong jack on the Ensure that the device is connected to the correct jack on the
rear of the computer or the jack has been retasked to perform rear of the computer. If the correct jack is being used and the
a different function.
problem persists, the jack may have been retasked to perform
a function that is different from the default function. Open the
Realtek control panel by clicking the Realtek HD Audio
Manager icon in the task tray or the Realtek entry in the
operating system's Control Panel and set the jack to the
desired function.
Poor performance is experienced.
ENWW
Cause
Solution
Processor is hot.
1.
Make sure airflow to the computer is not blocked. Leave
a 10.2-cm (4-inch) clearance on all vented sides of the
computer and above the monitor to permit the required
airflow.
2.
Make sure fans are connected and working properly
(some fans only operate when needed).
3.
Make sure the processor heatsink is installed properly.
Hard drive is full.
Transfer data from the hard drive to create more space on the
hard drive.
Low on memory.
Add more memory.
Hard drive fragmented.
Defragment hard drive.
Program previously accessed did not release reserved
memory back to the system.
Restart the computer.
Virus resident on the hard drive.
Run virus protection program.
Solving General Problems 117
Table D-1 Solving General Problems (continued)
Poor performance is experienced.
Cause
Solution
Too many applications running.
1.
Close unnecessary applications to free up memory.
Some applications run in the background and can be
closed by right-clicking on their corresponding icons in the
task tray. To prevent these applications from launching at
startup, go to Start > Run and type msconfig. On the
Startup tab of the System Configuration Utility, uncheck
applications that you do not want to launch automatically.
CAUTION: Do not prevent applications from
launching at startup that are required for proper
system operation.
Some software applications, especially games, are stressful
on the graphics subsystem
Cause unknown.
2.
Add more memory.
1.
Lower the display resolution for the current application or
consult the documentation that came with the application
for suggestions on how to improve performance by
adjusting parameters in the application.
2.
Add more memory.
3.
Upgrade the graphics solution.
Restart the computer.
Computer powered off automatically and the Power LED flashes Red two times, once every second, followed by a two
second pause, and the computer beeps two times. (Beeps stop after fifth iteration but LEDs continue flashing).
Cause
Solution
Processor thermal protection activated:
1.
Ensure that the computer air vents are not blocked and
the processor cooling fan is running.
2.
Open hood, press power button, and see if the processor
fan spins. If the processor fan is not spinning, make sure
the fan's cable is plugged onto the system board header.
3.
If fan is plugged in, but is not spinning, then replace the
heatsink/fan assembly.
A fan may be blocked or not turning.
OR
The heatsink is not properly attached to the processor.
System does not power on and the LEDs on the front of the computer are not flashing.
Cause
Solution
System unable to power on.
Press and hold the power button for less than 4 seconds. If the
hard drive LED turns green, then:
118 Appendix D Troubleshooting Without Diagnostics
1.
Check that the voltage selector, located on the rear of the
power supply on some models, is set to the appropriate
voltage. Proper voltage setting depends on your region.
2.
Remove the expansion cards one at a time until the
5V_aux light on the system board turns on.
3.
Replace the system board.
ENWW
Table D-1 Solving General Problems (continued)
System does not power on and the LEDs on the front of the computer are not flashing.
Cause
Solution
OR
Press and hold the power button for less than 4 seconds. If the
hard drive LED does not turn on green then:
ENWW
1.
Check that the unit is plugged into a working AC outlet.
2.
Open hood and check that the power button harness is
properly connected to the system board.
3.
Check that both power supply cables are properly
connected to the system board.
4.
Check to see if the 5V_aux light on the system board is
turned on. If it is turned on, then replace the power button
harness.
5.
If the 5V_aux light on the system board is off, then replace
the power supply.
6.
Replace the system board.
Solving General Problems 119
Solving Power Problems
Common causes and solutions for power problems are listed in the following table.
Table D-2 Solving Power Problems
Power supply shuts down intermittently.
Cause
Solution
Voltage selector switch on rear of computer chassis (some
models) not switched to correct line voltage (115V or 230V).
Select the proper AC voltage using the selector switch.
Power supply will not turn on because of internal power supply
fault.
Replace the power supply.
Computer powered off automatically and the Power LED flashes Red two times, once every second, followed by a two
second pause, and the computer beeps two times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Processor thermal protection activated:
1.
Ensure that the computer air vents are not blocked and
the processor cooling fan is running.
2.
Open hood, press power button, and see if the processor
fan spins. If the processor fan is not spinning, make sure
the fan's cable is plugged onto the system board header.
3.
If fan is plugged in, but is not spinning, then replace the
heatsink/fan assembly.
A fan may be blocked or not turning.
OR
The heatsink is not properly attached to the processor.
Power LED flashes Red four times, once every second, followed by a two second pause, and the computer beeps four
times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Power failure (power supply is overloaded).
1.
Check that the voltage selector, located on the rear of the
power supply (some models), is set to the appropriate
voltage. Proper voltage setting depends on your region.
2.
Open the hood and ensure the 4- or 6-wire power supply
cable is seated into the connector on the system board.
3.
Check if a device is causing the problem by removing ALL
attached devices (such as hard, diskette, or optical
drives, and expansion cards). Power on the system. If the
system enters the POST, then power off and replace one
device at a time and repeat this procedure until failure
occurs. Replace the device that is causing the failure.
Continue adding devices one at a time to ensure all
devices are functioning properly.
4.
Replace the power supply.
5.
Replace the system board.
120 Appendix D Troubleshooting Without Diagnostics
ENWW
Solving Diskette Problems
Common causes and solutions for diskette problems are listed in the following table.
NOTE: You may need to reconfigure the computer when you add or remove hardware, such
as an additional diskette drive. See Solving Hardware Installation Problems on page 137 for
instructions.
Table D-3 Solving Diskette Problems
Diskette drive light stays on.
Cause
Solution
Diskette is damaged.
In Microsoft Windows XP, right-click Start, click Explore, and
select a drive. Select File > Properties > Tools. Under Errorchecking click Check Now.
Diskette is incorrectly inserted.
Remove diskette and reinsert.
Drive cable is not properly connected.
Reconnect drive cable. Ensure that all four pins on the diskette
power cable are connected to the drive.
Drive not found.
Cause
Solution
Cable is loose.
Reseat diskette drive data and power cables.
Removable drive is not seated properly.
Reseat the drive.
Diskette drive cannot write to a diskette.
ENWW
Cause
Solution
Diskette is not formatted.
Format the diskette.
1.
From Windows Explorer select the disk (A) drive.
2.
Right-click the drive letter and select Format.
3.
Select the desired options, and click Start to begin
formatting the diskette.
Diskette is write-protected.
Use another diskette or remove the write protection.
Writing to the wrong drive.
Check the drive letter in the path statement.
Not enough space is left on the diskette.
1.
Use another diskette.
2.
Delete unneeded files from diskette.
Legacy diskette writes are disabled in Computer Setup.
Enter Computer Setup and enable Legacy Diskette Write
in Storage > Storage Options.
Diskette is damaged.
Replace the damaged disk.
Solving Diskette Problems 121
Table D-3 Solving Diskette Problems (continued)
Cannot format diskette.
Cause
Solution
Invalid media reported.
When formatting a disk in MS-DOS, you may need to specify
diskette capacity. For example, to format a 1.44-MB diskette,
type the following command at the MS-DOS prompt:
FORMAT A: /F:1440
Disk may be write-protected.
Open the locking device on the diskette.
Legacy diskette writes are disabled in Computer Setup.
Enter Computer Setup and enable Legacy Diskette Write
in Storage > Storage Options.
A problem has occurred with a disk transaction.
Cause
Solution
The directory structure is bad, or there is a problem with a file. In Windows XP, right-click Start, click Explore, and select a
drive. Select File > Properties > Tools. Under Errorchecking, click Check Now.
Diskette drive cannot read a diskette.
Cause
Solution
You are using the wrong diskette type for the drive type.
Check the type of drive that you are using and use the correct
diskette type.
You are reading the wrong drive.
Check the drive letter in the path statement.
Diskette is damaged.
Replace the diskette with a new one.
“Invalid system disk” message is displayed.
Cause
Solution
A diskette that does not contain the system files needed to start When drive activity stops, remove the diskette and press the
the computer has been inserted in the drive.
Spacebar. The computer should start up.
Diskette error has occurred.
Restart the computer by pressing the power button.
Cannot Boot to Diskette.
Cause
Solution
Diskette is not bootable.
Replace with a bootable diskette.
Diskette boot has been disabled in Computer Setup.
1.
Run Computer Setup and enable diskette boot in
Storage > Boot Order.
2.
Run Computer Setup and enable diskette boot in
Storage > Storage Options > Removable Media
Boot.
122 Appendix D Troubleshooting Without Diagnostics
ENWW
Table D-3 Solving Diskette Problems (continued)
Cannot Boot to Diskette.
Cause
Solution
NOTE: Both steps should be used as the
Removable Media Boot function in Computer Setup
overrides the Boot Order enable command.
Network server mode is enabled in Computer Setup.
ENWW
Run Computer Setup and disable Network Server Mode in
Security > Password Options.
Solving Diskette Problems 123
Solving Hard Drive Problems
Table D-4 Solving Hard Drive Problems
Hard drive error occurs.
Cause
Solution
Hard disk has bad sectors or has failed.
1.
In Windows XP, right-click Start, click Explore, and
select a drive. Select File > Properties > Tools. Under
Error-checking, click Check Now.
2.
Use a utility to locate and block usage of bad sectors. If
necessary, reformat the hard disk.
Disk transaction problem.
Cause
Solution
Either the directory structure is bad or there is a problem with
a file.
In Windows XP, right-click Start, click Explore, and select a
drive. Select File > Properties > Tools. Under Errorchecking, click Check Now.
Drive not found (identified).
Cause
Solution
Cable could be loose.
Check cable connections.
The system may not have automatically recognized a newly
installed device.
See reconfiguration directions in the Solving Hardware
Installation Problems on page 137 section. If the system still
does not recognize the new device, check to see if the device
is listed within Computer Setup. If it is listed, the probable
cause is a driver problem. If it is not listed, the probable cause
is a hardware problem.
If this is a newly installed drive, run the Computer Setup utility
and try adding a POST delay under Advanced > Power-On
Options.
The device is attached to a SATA port that has been disabled
in Computer Setup.
Run the Computer Setup utility and ensure the device's SATA
port is enabled in Storage > Storage Options.
Drive responds slowly immediately after power-up.
Run Computer Setup and increase the POST Delay in
Advanced > Power-On Options.
Nonsystem disk/NTLDR missing message.
Cause
Solution
The system is trying to start from a diskette that is not bootable.
Remove the diskette from the diskette drive.
The system is trying to start from the hard drive but the hard
drive may have been damaged.
1.
Insert a bootable diskette into the diskette drive and
restart the computer.
2.
Check the hard drive format using fdisk: If NTFS
formatting, use a third party reader to evaluate the drive.
If FAT32 formatting, the hard drive cannot be accessed.
124 Appendix D Troubleshooting Without Diagnostics
ENWW
Table D-4 Solving Hard Drive Problems (continued)
Nonsystem disk/NTLDR missing message.
Cause
Solution
System files missing or not properly installed.
1.
Insert a bootable diskette into the diskette drive and
restart the computer.
2.
Check the hard drive format using Fdisk: If NTFS
formatting, use a third party reader to evaluate the drive.
If FAT32 formatting, the hard drive cannot be accessed.
3.
Install system files for the appropriate operating system.
4.
Restore the system to a recovery point in HP Backup and
Recovery Manager. Refer to the HP Backup and
Recovery Manager User Guide in the Windows Start
menu for more information.
Hard drive boot has been disabled in Computer Setup.
Run the Computer Setup utility and enable the hard drive entry
in the Storage > Boot Order list.
Bootable hard drive is not attached as first in a multi-hard drive
configuration.
If attempting to boot from a hard drive, ensure it is attached to
the system board connector labeled P60 SATA 0.
Bootable hard drive's controller is not listed first in the Boot
Order.
Run the Computer Setup utility and select Storage > Boot
Order and ensure the bootable hard drive's controller is listed
immediately under the Hard Drive entry.
Computer will not boot from hard drive.
Cause
Solution
The device is attached to a SATA port that has been disabled
in Computer Setup.
Run the Computer Setup utility and ensure the device's SATA
port is enabled in Storage > Storage Options.
Boot order is not correct.
Run the Computer Setup utility and change boot sequence
in Storage > Boot Order.
Hard Drive's "Emulation Type" is set to "None."
Run the Computer Setup utility and change the "Emulation
Type" to "Hard Disk" in the device's details under Storage >
Device Configuration.
The device is attached to a SATA port that has been disabled
in Computer Setup.
Run the Computer Setup utility and ensure the device's SATA
port is enabled in Storage > Storage Options.
Hard drive is damaged.
Observe if the front panel Power LED is blinking RED and if
any beeps are heard. See Appendix A, POST Error
Messages on page 103 to determine possible causes for the
blinking red and beep codes.
See the Worldwide Limited Warranty for terms and conditions.
Computer seems to be locked up.
ENWW
Cause
Solution
Program in use has stopped responding to commands.
Attempt the normal Windows “Shut Down” procedure. If this
fails, press the power button for four or more seconds to turn
off the power. To restart the computer, press the power button
again.
Solving Hard Drive Problems 125
Solving Media Card Reader Problems
Table D-5 Solving Media Card Reader Problems
Media card will not work in a digital camera after formatting it in Microsoft Windows XP.
Cause
Solution
By default, Windows XP will format any media card with a
capacity greater than 32MB with the FAT32 format. Most digital
cameras use the FAT (FAT16 & FAT12) format and can not
operate with a FAT32 formatted card.
Either format the media card in the digital camera or select FAT
file system to format the media card in a computer with
Windows XP.
A write-protected or locked error occurs when attempting to write to the media card.
Cause
Solution
Media card is locked. Locking the media card is a safety feature
that prevents writing to and deleting from an SD/Memory Stick/
PRO card.
If using an SD card, make sure that the lock tab located on the
right of the SD card is not in the locked position. If using a
Memory Stick/PRO card, make sure that the lock tab located
on the bottom of the Memory Stick/PRO card is not in the
locked position.
Can not write to the media card.
Cause
Solution
The media card is a read-only memory (ROM) card.
Check the manufacturer’s documentation included with your
card to see if it is writable.
Unable to access data on the media card after inserting it into a slot.
Cause
Solution
The media card is not inserted properly, is inserted in the wrong
slot, or is not supported.
Ensure that the card is inserted properly with the gold contact
on the correct side. The green LED will light if inserted properly.
Do not know how to remove a media card correctly.
Cause
Solution
The computer’s software is used to safely eject the card.
Open My Computer, right-click on the corresponding drive
icon, and select Eject. Then pull the card out of the slot.
NOTE: Never remove the card when the green LED
is flashing.
126 Appendix D Troubleshooting Without Diagnostics
ENWW
Table D-5 Solving Media Card Reader Problems (continued)
After installing the media card reader and booting to Windows, the reader and the inserted cards are not recognized
by the computer.
Cause
Solution
The operating system needs time to recognize the device if the Wait a few seconds so that the operating system can recognize
reader was just installed into the computer and you are turning the reader and the available ports, and then recognize
the PC on for the first time.
whatever media is inserted in the reader.
After inserting a media card in the reader, the computer attempts to boot from the media card.
Cause
Solution
The inserted media card has boot capability.
If you do not want to boot from the media card, remove it during
boot or do not select the option to boot from the inserted media
card during the boot process.
Computer will not boot from a USB removable drive or media that is inserted in the USB port on the media card reader.
Cause
Solution
The media card reader is connected to the computer via the
PCI card, which is not supported on the HP Desktop BIOS.
The bootable USB device will have boot support if you connect
the media card reader to an available USB connector on the
computer’s system board. If no connector is available, plug the
bootable device into a different USB port on the computer.
After installing the media card reader, the front USB ports on the computer do not work.
ENWW
Cause
Solution
The USB cable for the front USB ports was disconnected so
that the system board connector could be used for the reader.
Reconnect the cable for the front USB ports. Install the PCI
card and connect the media reader to the USB connector on
the PCI card.
Solving Media Card Reader Problems 127
Solving Display Problems
If you encounter display problems, see the documentation that came with the monitor and to the common
causes and solutions listed in the following table.
Table D-6 Solving Display Problems
Blank screen (no video).
Cause
Solution
Monitor is not turned on and the monitor light is not on.
Turn on the monitor and check that the monitor light is on.
Bad monitor.
Try a different monitor.
The cable connections are not correct.
Check the cable connection from the monitor to the computer
and to the electrical outlet.
You may have a screen blanking utility installed or energy
saver features are enabled.
Press any key or click the mouse button and, if set, type your
password.
System ROM is corrupted; system is running in Boot Block
Emergency Recovery Mode (indicated by eight beeps).
Reflash the system ROM with the latest BIOS image. See the
“Boot Block Emergency Recovery Mode” section of the
Desktop Management Guide on the Documentation and
Diagnostics CD for more information.
You are using a fixed-sync monitor and it will not sync at the
resolution chosen.
Be sure that the monitor can accept the same horizontal scan
rate as the resolution chosen.
Computer is in standby mode.
Press the power button to resume from standby mode.
CAUTION: When attempting to resume from
standby mode, do not hold down the power button for
more than four seconds. Otherwise, the computer will
shut down and you will lose any unsaved data.
Monitor cable is plugged into the wrong connector.
Ensure that the monitor is plugged into an active connector on
the rear of the computer. If another connector is available,
connect the monitor to that connector and reboot the system.
Monitor settings in the computer are not compatible with the
monitor.
1.
Restart the computer and press F8 during startup when
you see “Press F8” in the bottom right corner of the
screen.
2.
Using the keyboard arrow keys, select Enable VGA
Mode and press Enter.
3.
In Windows Control Panel, double-click the Display icon
and select the Settings tab.
4.
Use the sliding control to reset the resolution.
Cannot enable integrated graphics after installing a PCI Express graphics card.
Cause
Solution
On systems with ATI integrated graphics, the integrated
graphics can be enabled in Computer Setup only if an ATI PCI
Express graphics card is installed.
On systems with ATI integrated graphics, install an ATI PCI
Express graphics card and enable the integrated graphics in
Computer Setup.
128 Appendix D Troubleshooting Without Diagnostics
ENWW
Table D-6 Solving Display Problems (continued)
Blank screen and the power LED flashes Red five times, once every second, followed by a two second pause, and the
computer beeps five times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Pre-video memory error.
1.
Reseat DIMMs. Power on the system.
2.
Replace DIMMs one at a time to isolate the faulty module.
3.
Replace third-party memory with HP memory.
4.
Replace the system board.
Blank screen and the power LED flashes Red six times, once every second, followed by a two second pause, and the
computer beeps six times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Pre-video graphics error.
For systems with a graphics card:
1.
Reseat the graphics card. Power on the system.
2.
Replace the graphics card.
3.
Replace the system board.
For systems with integrated graphics, replace the system
board.
Blank screen and the power LED flashes Red seven times, once every second, followed by a two second pause, and
the computer beeps seven times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
System board failure (ROM detected failure prior to video).
Replace the system board.
Monitor does not function properly when used with energy saver features.
Cause
Solution
Monitor without energy saver capabilities is being used with
energy saver features enabled.
Disable monitor energy saver feature.
Dim characters.
ENWW
Cause
Solution
The brightness and contrast controls are not set properly.
Adjust the monitor brightness and contrast controls.
Cables are not properly connected.
Check that the graphics cable is securely connected to the
graphics card and the monitor.
Solving Display Problems 129
Table D-6 Solving Display Problems (continued)
Blurry video or requested resolution cannot be set.
Cause
Solution
If the graphics controller was upgraded, the correct graphics
drivers may not be loaded.
Install the video drivers included in the upgrade kit.
Monitor is not capable of displaying requested resolution.
Change requested resolution.
Graphics card is bad.
Replace the graphics card.
The picture is broken up, rolls, jitters, or flashes.
Cause
Solution
The monitor connections may be incomplete or the monitor
may be incorrectly adjusted.
1.
Be sure the monitor cable is securely connected to the
computer.
2.
In a two-monitor system or if another monitor is in close
proximity, be sure the monitors are not interfering with
each other’s electromagnetic field by moving them apart.
3.
Fluorescent lights or fans may be too close to the monitor.
Monitor needs to be degaussed.
Degauss the monitor. Refer to the documentation that came
with the monitor for instructions.
Image is not centered.
Cause
Solution
Position may need adjustment.
Press the Menu button to access the OSD menu. Select
ImageControl/ Horizontal Position or Vertical Position to
adjust the horizontal or vertical position of the image.
“No Connection, Check Signal Cable” displays on screen.
Cause
Solution
Monitor video cable is disconnected.
Connect the video cable between the monitor and computer.
CAUTION: Ensure that the computer power is off
while connecting the video cable.
“Out of Range” displays on screen.
Cause
Solution
Video resolution and refresh rate are set higher than what the
monitor supports.
Restart the computer and enter Safe Mode. Change the
settings to a supported setting then restart the computer so that
the new settings take effect.
130 Appendix D Troubleshooting Without Diagnostics
ENWW
Table D-6 Solving Display Problems (continued)
Vibrating or rattling noise coming from inside a CRT monitor when powered on.
Cause
Solution
Monitor degaussing coil has been activated.
None. It is normal for the degaussing coil to be activated when
the monitor is powered on.
Clicking noise coming from inside a CRT monitor.
Cause
Solution
Electronic relays have been activated inside the monitor.
None. It is normal for some monitors to make a clicking noise
when turned on and off, when going in and out of standby
mode, and when changing resolutions.
High pitched noise coming from inside a flat panel monitor.
Cause
Solution
Brightness and/or contrast settings are too high.
Lower brightness and/or contrast settings.
Fuzzy focus; streaking, ghosting, or shadowing effects; horizontal scrolling lines; faint vertical bars; or unable to
center the picture on the screen (flat panel monitors using an analog VGA input connection only).
Cause
Solution
Flat panel monitor’s internal digital conversion circuits may be 1.
unable to correctly interpret the output synchronization of the
graphics card.
2.
Select the monitor’s Auto-Adjustment option in the
monitor’s on-screen display menu.
Graphics card is not seated properly or is bad.
1.
Reseat the graphics card.
2.
Replace the graphics card.
Manually synchronize the Clock and Clock Phase onscreen display functions. To download a SoftPaq that will
assist you with the synchronization, go to the following
Web site, select the appropriate monitor, and download
either SP32347 or SP32202: http://www.hp.com/support
Certain typed symbols do not appear correct.
Cause
Solution
The font you are using does not support that particular symbol. Use the Character Map to locate and select the appropriate
symbol. Click Start > All Programs > Accessories > System
Tools > Character Map. You can copy the symbol from the
Character Map into a document.
ENWW
Solving Display Problems 131
Solving Audio Problems
If the computer has audio features and you encounter audio problems, see the common causes and
solutions listed in the following table.
Table D-7 Solving Audio Problems
Sound cuts in and out.
Cause
Solution
Processor resources are being used by other open
applications.
Shut down all open processor-intensive applications.
Direct sound latency, common in many media player
applications.
In Windows XP:
1.
From the Control Panel, select Sounds and Audio
Devices.
2.
On the Audio tab, select a device from the Sound
Playback list.
3.
Click the Advanced button and select the Performance
tab.
4.
Set the Hardware acceleration slider to None and the
Sample rate conversion quality slider to Good and
retest the audio.
5.
Set the Hardware acceleration slider to Full and the
Sample rate conversion quality slider to Best and
retest the audio.
Sound does not come out of the speaker or headphones.
Cause
Solution
Software volume control is turned down.
Double-click the Speaker icon on the taskbar, then make sure
that Mute is not selected and use the volume slider to adjust
the volume.
Audio is hidden in Computer Setup.
Enable the audio in Computer Setup: Security >
Device Security > Audio.
The external speakers are not turned on.
Turn on the external speakers.
The audio device may be connected to the wrong jack on the
rear of the computer or the jack has been retasked to perform
a different function.
Ensure that the device is connected to the correct jack on the
rear of the computer. If the correct jack is being used and the
problem persists, the jack may have been retasked to perform
a function that is different from the default function. Open the
Realtek control panel by clicking the Realtek HD Audio
Manager icon in the task tray or the Realtek entry in the
operating system's Control Panel and set the jack to the
desired function.
External speakers plugged into the wrong audio jack on a
recently installed sound card.
See the sound card documentation for proper speaker
connection.
Digital CD audio is not enabled.
Enable digital CD audio:
132 Appendix D Troubleshooting Without Diagnostics
1.
From the Control Panel, select System.
2.
On the Hardware tab, click the Device Manager button.
ENWW
Table D-7 Solving Audio Problems (continued)
Sound does not come out of the speaker or headphones.
Cause
Solution
3.
Right-click on the CD/DVD device and select
Properties.
4.
On the Properties tab, make sure Enable digital CD
audio for this CD-ROM device is checked.
Headphones or devices connected to the line-out connector
mute the internal speaker.
Turn on and use headphones or external speakers, if
connected, or disconnect headphones or external speakers.
Volume is muted.
1.
From the Control Panel program, click Sound, Speech
and Audio Devices, then click Sounds and Audio
Devices.
2.
Click the Mute check box to remove the check mark from
the box.
Computer is in standby mode.
Press the power button to resume from standby mode.
CAUTION: When attempting to resume from
standby mode, do not hold down the power button for
more than four seconds. Otherwise, the computer will
shut down and you will lose any unsaved data.
Sound from headphones is not clear or muffled.
Cause
Solution
Headphones are plugged into the rear audio output connector.
The rear audio output connector is for powered audio devices
and is not designed for headphone use.
Plug the headphones into the headphone connector on the
front of the computer.
Computer appears to be locked up while recording audio.
Cause
Solution
The hard disk may be full.
Before recording, make sure there is enough free space on the
hard disk. You can also try recording the audio file in a
compressed format.
Line-in, Line-out, headphone, or microphone jacks are not functioning properly.
ENWW
Cause
Solution
Jacks have been reconfigured in the audio driver or application
software.
In the audio driver or application software, reconfigure the
jacks or set the jacks to their default values.
Solving Audio Problems 133
Solving Printer Problems
If you encounter printer problems, see the documentation that came with the printer and to the common
causes and solutions listed in the following table.
Table D-8 Solving Printer Problems
Printer will not print.
Cause
Solution
Printer is not turned on and online.
Turn the printer on and make sure it is online.
The correct printer drivers for the application are not installed.
1.
Install the correct printer driver for the application.
2.
Try printing using the MS-DOS command:
DIR C:\ > LPT1
If the printer works, reload the printer driver.
If you are on a network, you may not have made the connection
to the printer.
Make the proper network connections to the printer.
Printer may have failed.
Run printer self-test.
Printer will not turn on.
Cause
Solution
The cables may not be connected properly.
Reconnect all cables and check the power cord and electrical
outlet.
Printer prints garbled information.
Cause
Solution
The correct printer driver for the application is not installed.
Install the correct printer driver for the application.
The cables may not be connected properly.
Reconnect all cables.
Printer memory may be overloaded.
Reset the printer by turning it off for one minute, then turn it
back on.
Printer is offline.
Cause
Solution
The printer may be out of paper.
Check the paper tray and refill it if it is empty. Select online.
134 Appendix D Troubleshooting Without Diagnostics
ENWW
Solving Keyboard and Mouse Problems
If you encounter keyboard or mouse problems, see the documentation that came with the equipment
and to the common causes and solutions listed in the following table.
Table D-9 Solving Keyboard Problems
Keyboard commands and typing are not recognized by the computer.
Cause
Solution
Keyboard connector is not properly connected.
1.
On the Windows Desktop, click Start.
2.
Click Shut Down. The Shut Down Windows dialog box
is displayed.
3.
Select Shut down.
4.
After the shutdown is complete, reconnect the keyboard
to the back of the computer and restart the computer.
Program in use has stopped responding to commands.
Shut down your computer using the mouse and then restart
the computer.
Keyboard needs repairs.
See the Worldwide Limited Warranty for terms and conditions.
Wireless device error.
1.
Check the software, if available, for device status.
2.
Check/replace device batteries.
3.
Reset receiver and keyboard.
Computer is in standby mode.
Press the power button to resume from standby mode.
CAUTION: When attempting to resume from
standby mode, do not hold down the power button for
more than four seconds. Otherwise, the computer will
shut down and you will lose any unsaved data.
Cursor will not move using the arrow keys on the keypad.
Cause
Solution
The Num Lock key may be on.
Press the Num Lock key. The Num Lock light should not be on
if you want to use the arrow keys. The Num Lock key can be
disabled (or enabled) in Computer Setup.
Table D-10 Solving Mouse Problems
Mouse does not respond to movement or is too slow.
ENWW
Cause
Solution
Mouse connector is not properly plugged into the back of the
computer.
Shut down the computer using the keyboard.
1.
Press the Ctrl and Esc keys at the same time (or press
the Windows logo key) to display the Start menu.
2.
Use the up or down arrow key to select Shut Down and
then press the Enter key.
Solving Keyboard and Mouse Problems 135
Table D-10 Solving Mouse Problems (continued)
Mouse does not respond to movement or is too slow.
Cause
Solution
3.
Use the up or down arrow key to select the Shut Down
option and then press the Enter key.
4.
After the shutdown is complete, plug the mouse
connector into the back of the computer (or the keyboard)
and restart.
Program in use has stopped responding to commands.
Shut down the computer using the keyboard then restart the
computer.
Mouse may need cleaning.
Remove the roller ball cover on the mouse and clean the
internal components.
Mouse may need repair.
See the Worldwide Limited Warranty for terms and conditions.
Wireless device error.
1.
Check the software, if available, for device status.
2.
Check/replace device batteries.
3.
Reset receiver and mouse.
Computer is in standby mode.
Press the power button to resume from standby mode.
CAUTION: When attempting to resume from
standby mode, do not hold down the power button for
more than four seconds. Otherwise, the computer will
shut down and you will lose any unsaved data.
Mouse will only move vertically, horizontally, or movement is jerky.
Cause
Solution
Mouse roller ball or the rotating encoder shafts that make
contact with the ball are dirty.
Remove roller ball cover from the bottom of the mouse and
clean the internal components with a mouse cleaning kit
available from most computer stores.
136 Appendix D Troubleshooting Without Diagnostics
ENWW
Solving Hardware Installation Problems
You may need to reconfigure the computer when you add or remove hardware, such as an additional
drive or expansion card. If you install a plug and play device, Windows XP automatically recognizes the
device and configures the computer. If you install a non–plug and play device, you must reconfigure the
computer after completing installation of the new hardware. In Windows XP, use the Add Hardware
Wizard and follow the instructions that appear on the screen.
WARNING! When the computer is plugged into an AC power source, voltage is always applied
to the system board. To reduce the risk of personal injury from electrical shock and/or hot
surfaces, be sure to disconnect the power cord from the wall outlet and allow the internal system
components to cool before touching.
Look for the LED on the system board. If the LED is illuminated, the system still has power. Power
off the computer and remove the power cord before proceeding.
Table D-11 Solving Hardware Installation Problems
A new device is not recognized as part of the system.
Cause
Solution
Device is not seated or connected properly.
Ensure that the device is properly and securely connected and
that pins in the connector are not bent down.
Cable(s) of new external device are loose or power cables are
unplugged.
Ensure that all cables are properly and securely connected and
that pins in the cable or connector are not bent down.
Power switch of new external device is not turned on.
Turn off the computer, turn on the external device, then turn on
the computer to integrate the device with the computer system.
When the system advised you of changes to the configuration,
you did not accept them.
Reboot the computer and follow the instructions for accepting
the changes.
A plug and play board may not automatically configure when
added if the default configuration conflicts with other devices.
Use Windows XP Device Manager to deselect the automatic
settings for the board and choose a basic configuration that
does not cause a resource conflict. You can also use Computer
Setup to reconfigure or disable devices to resolve the resource
conflict.
USB ports on the computer are disabled in Computer Setup.
Enter Computer Setup (F10) and enable the USB ports.
Computer will not start.
ENWW
Cause
Solution
Wrong memory modules were used in the upgrade or memory
modules were installed in the wrong location.
1.
Review the documentation that came with the system to
determine if you are using the correct memory modules
and to verify the proper installation.
2.
Observe the beeps and LED lights on the front of the
computer. Beeps and flashing LEDs are codes for
specific problems.
3.
If you still cannot resolve the issue, contact Customer
Support.
Solving Hardware Installation Problems 137
Table D-11 Solving Hardware Installation Problems (continued)
Power LED flashes Red five times, once every second, followed by a two second pause, and the computer beeps five
times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Memory is installed incorrectly or is bad.
CAUTION: To avoid damage to the DIMMs or the
system board, you must unplug the computer power
cord before attempting to reseat, install, or remove a
DIMM module.
1.
Reseat DIMMs. Power on the system.
2.
Replace DIMMs one at a time to isolate the faulty module.
3.
Replace third-party memory with HP memory.
4.
Replace the system board.
Power LED flashes Red six times, once every second, followed by a two second pause, and the computer beeps six
times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Graphics card is not seated properly or is bad, or system board
is bad.
For systems with a graphics card:
1.
Reseat the graphics card. Power on the system.
2.
Replace the graphics card.
3.
Replace the system board.
For systems with integrated graphics, replace the system
board.
Power LED flashes Red ten times, once every second, followed by a two second pause, and the computer beeps ten
times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Bad option card.
1.
Check each option card by removing the cards one at time
(if multiple cards), then power on the system to see if fault
goes away.
2.
Once bad card is identified, remove and replace bad
option card.
3.
Replace the system board.
138 Appendix D Troubleshooting Without Diagnostics
ENWW
Solving Network Problems
Some common causes and solutions for network problems are listed in the following table. These
guidelines do not discuss the process of debugging the network cabling.
Table D-12 Solving Network Problems
Wake-on-LAN feature is not functioning.
Cause
Solution
Wake-on-LAN is not enabled.
Enable Wake-on-LAN.
NOTE: Some NICs come with their own
configuration applets that allow for more detailed
control and configuration of wake features. Refer to
the documentation included with the NIC for more
information.
1.
Select Start > Control Panel.
2.
Double-click Network Connections.
3.
Double-click Local Area Connection.
4.
Click Properties.
5.
Click Configure.
6.
Click the Power Management tab, then select the check
box to Allow this device to bring the computer out of
standby.
Network driver does not detect network controller.
Cause
Solution
Network controller is disabled.
1.
Run Computer Setup and enable network controller.
2.
Enable the network controller in the operating system via
Device Manager.
Incorrect network driver.
Check the network controller documentation for the correct
driver or obtain the latest driver from the manufacturer’s Web
site.
Network status link light never flashes.
NOTE: The network status light is supposed to flash when there is network activity.
ENWW
Cause
Solution
No active network is detected.
Check cabling and network equipment for proper connection.
Network controller is not set up properly.
Check for the device status within Windows, such as Device
Manager for driver load and the Network Connections applet
within Windows for link status.
Network controller is disabled.
1.
Run Computer Setup and enable network controller.
2.
Enable the network controller in the operating system via
Device Manager.
Solving Network Problems 139
Table D-12 Solving Network Problems (continued)
Network status link light never flashes.
NOTE:
The network status light is supposed to flash when there is network activity.
Cause
Solution
Network driver is not properly loaded.
Reinstall network drivers. See the Network & Internet
Communications Guide on the Documentation and
Diagnostics CD.
System cannot autosense the network.
Disable auto-sensing capabilities and force the system into the
correct operating mode. See the Network & Internet
Communications Guide on the Documentation and
Diagnostics CD.
Diagnostics reports a failure.
Cause
Solution
The cable is not securely connected.
Ensure that the cable is securely attached to the network
connector and that the other end of the cable is securely
attached to the correct device.
The cable is attached to the incorrect connector.
Ensure that the cable is attached to the correct connector.
There is a problem with the cable or a device at the other end
of the cable.
Ensure that the cable and device at the other end are operating
correctly.
Network controller interrupt is shared with an expansion board.
Under the Computer Setup Advanced menu, change the
resource settings for the board.
The network controller is defective.
Replace the network controller.
Diagnostics passes, but the computer does not communicate with the network.
Cause
Solution
Network drivers are not loaded, or driver parameters do not
match current configuration.
Make sure the network drivers are loaded and that the driver
parameters match the configuration of the network controller.
Make sure the correct network client and protocol is installed.
The network controller is not configured for this computer.
Select the Network icon in the Control Panel and configure
the network controller.
Network controller stopped working when an expansion board was added to the computer.
Cause
Solution
Network controller interrupt is shared with an expansion board.
Under the Computer Setup Advanced menu, change the
resource settings for the board.
The network controller requires drivers.
Verify that the drivers were not accidentally deleted when the
drivers for a new expansion board were installed.
The expansion board installed is a network card (NIC) and
conflicts with the embedded NIC.
Under the Computer Setup Advanced menu, change the
resource settings for the board.
140 Appendix D Troubleshooting Without Diagnostics
ENWW
Table D-12 Solving Network Problems (continued)
Network controller stops working without apparent cause.
Cause
Solution
The files containing the network drivers are corrupted.
Download the network drivers from http://www.hp.com and
reinstall them.
The cable is not securely connected.
Ensure that the cable is securely attached to the network
connector and that the other end of the cable is securely
attached to the correct device.
The network controller is defective.
Replace the network controller.
New network card will not boot.
Cause
Solution
New network card may be defective or may not meet industrystandard specifications.
Install a working, industry-standard NIC, or change the boot
sequence to boot from another source.
Cannot connect to network server when attempting Remote System Installation.
Cause
Solution
The network controller is not configured properly.
Verify Network Connectivity, that a DHCP Server is present,
and that the Remote System Installation Server contains the
NIC drivers for your NIC.
System setup utility reports unprogrammed EEPROM.
ENWW
Cause
Solution
Unprogrammed EEPROM.
Contact HP.
Solving Network Problems 141
Solving Memory Problems
If you encounter memory problems, some common causes and solutions are listed in the following table.
CAUTION: Power may still be supplied to the DIMMs when the computer is turned off. To avoid
damage to the DIMMs or the system board, you must unplug the computer power cord before
attempting to reseat, install, or remove a DIMM module.
For those systems that support ECC memory, HP does not support mixing ECC and non-ECC
memory. Otherwise, the computer will not boot the operating system.
Table D-13 Solving Memory Problems
System will not boot or does not function properly after installing additional memory modules.
Cause
Solution
Memory module is not the correct type or speed grade for the
system or the new memory module is not seated properly.
Replace module with the correct industry-standard device for
the computer. On some models, ECC and non-ECC memory
modules cannot be mixed.
Out of memory error.
Cause
Solution
Memory configuration may not be set up correctly.
Use the Device Manager to check memory configuration.
You have run out of memory to run the application.
Check the application documentation to determine the memory
requirements.
Memory count during POST is wrong.
Cause
Solution
The memory modules may not be installed correctly.
Check that the memory modules have been installed correctly
and that proper modules are used.
Integrated graphics may use system memory.
No action required.
Insufficient memory error during operation.
Cause
Solution
Too many Terminate and Stay Resident programs (TSRs) are
installed.
Delete any TSRs that you do not need.
You have run out of memory for the application.
Check the memory requirements for the application or add
more memory to the computer.
142 Appendix D Troubleshooting Without Diagnostics
ENWW
Table D-13 Solving Memory Problems (continued)
Power LED flashes Red five times, once every second, followed by a two second pause, and the computer beeps five
times. (Beeps stop after fifth iteration but LEDs continue flashing.)
ENWW
Cause
Solution
Memory is installed incorrectly or is bad.
1.
Reseat DIMMs. Power on the system.
2.
Replace DIMMs one at a time to isolate the faulty module.
3.
Replace third-party memory with HP memory.
4.
Replace the system board.
Solving Memory Problems 143
Solving Processor Problems
If you encounter processor problems, common causes and solutions are listed in the following table.
Table D-14 Solving Processor Problems
Poor performance is experienced.
Cause
Solution
Processor is hot.
1.
Make sure the airflow to the computer is not blocked.
2.
Make sure the fans are connected and working properly
(some fans only operate when needed).
3.
Make sure the processor heatsink is installed properly.
Power LED flashes Red three times, once every second, followed by a two second pause.
Cause
Solution
Processor is not seated properly or not installed.
1.
Check to see that the processor is present.
2.
Reseat the processor.
144 Appendix D Troubleshooting Without Diagnostics
ENWW
Solving CD-ROM and DVD Problems
If you encounter CD-ROM or DVD problems, see the common causes and solutions listed in the
following table or to the documentation that came with the optional device.
Table D-15 Solving CD-ROM and DVD Problems
System will not boot from CD-ROM or DVD drive.
Cause
Solution
The device is attached to a SATA port that has been disabled
in the Computer Setup utility.
Run the Computer Setup utility and ensure the device's SATA
port is enabled in Storage > Storage Options.
Removable Media Boot is disabled in the Computer Setup
utility.
Run the Computer Setup utility and enable booting to
removable media in Storage > Storage Options. Ensure CDROM is enabled in Storage > Boot Order.
Network Server Mode is enabled in Computer Setup.
Run the Computer Setup utility and disable Network Server
Mode in Security > Password Options.
Non-bootable CD in drive.
Try a bootable CD in the drive.
Boot order not correct.
Run the Computer Setup utility and change boot sequence
in Storage > Boot Order.
Drive not found (identified).
Cause
Solution
Cable could be loose.
Check cable connections.
The system may not have automatically recognized a newly
installed device.
See reconfiguration directions in the Solving Hardware
Installation Problems on page 137 section. If the system still
does not recognize the new device, check to see if the device
is listed within Computer Setup. If it is listed, the probable
cause is a driver problem. If it is not listed, the probable cause
is a hardware problem.
If this is a newly installed drive, run the Computer Setup utility
and try adding a POST delay under Advanced > Power-On
Options.
The device is attached to a SATA port that has been disabled
in Computer Setup.
Run the Computer Setup utility and ensure the device's SATA
port is enabled in Storage > Storage Options.
Drive responds slowly immediately after power-up.
Run Computer Setup and increase the POST Delay in
Advanced > Power-On Options.
CD-ROM or DVD devices are not detected or driver is not loaded.
ENWW
Cause
Solution
Drive is not connected properly or not properly configured.
See the documentation that came with the optional device.
Solving CD-ROM and DVD Problems 145
Table D-15 Solving CD-ROM and DVD Problems (continued)
Movie will not play in the DVD drive.
Cause
Solution
Movie may be regionalized for a different country.
See the documentation that came with the DVD drive.
Decoder software is not installed.
Install decoder software.
Damaged media.
Replace media.
Movie rating locked out by parental lock.
Use DVD software to remove parental lock.
Media installed upside down.
Reinstall media.
Cannot eject compact disc (tray-load unit).
Cause
Solution
Disc not properly seated in the drive.
Turn off the computer and insert a thin metal rod into the
emergency eject hole and push firmly. Slowly pull the tray out
from the drive until the tray is fully extended, then remove
the disc.
CD-ROM, CD-RW, DVD-ROM, or DVD-R/RW drive cannot read a disc or takes too long to start.
Cause
Solution
Media has been inserted upside down.
Re-insert the Media with the label facing up.
The DVD-ROM drive takes longer to start because it has to
determine the type of media played, such as audio or video.
Wait at least 30 seconds to let the DVD-ROM drive determine
the type of media being played. If the disc still does not start,
read the other solutions listed for this topic.
CD or DVD disc is dirty.
Clean CD or DVD with a CD cleaning kit, available from most
computer stores.
Windows does not detect the CD-ROM or DVD-ROM drive.
1.
Use Device Manager to remove or uninstall the device.
2.
Restart the computer and let Windows detect the CD or
DVD driver.
Recording or copying CDs is difficult or impossible.
Cause
Solution
Wrong or poor quality media type.
1.
Try using a slower speed when recording.
2.
Verify that you are using the correct media for the drive.
3.
Try a different brand of media. Quality varies widely
between manufacturers.
146 Appendix D Troubleshooting Without Diagnostics
ENWW
USDT computer boots too slow after removing a CD-ROM or DVD drive.
ENWW
Cause
Solution
The system is searching for the drive during boot because the
drive cable is still attached to the system board.
Disconnect the drive cable from the system board.
Solving CD-ROM and DVD Problems 147
Solving Drive Key Problems
If you encounter Drive Key problems, common causes and solutions are listed in the following table.
Table D-16 Solving Drive Key Problems
USB Drive Key is not seen as a drive letter in Windows XP.
Cause
Solution
The drive letter after the last physical drive is not available.
Change the default drive letter for the Drive Key in Windows
XP.
USB Drive Key not found (identified).
Cause
Solution
The device is attached to a USB port that has been hidden in
Computer Setup.
Run the Computer Setup utility and ensure that "Device
available" is selected for "All USB Ports" and "Front USB Ports"
under Security > Device Security.
The device was not properly seated before power-up.
Ensure the device is fully inserted into the USB port before
applying power to the system.
System will not boot from USB Drive Key.
Cause
Solution
Boot order is not correct.
Run the Computer Setup utility and change boot sequence
in Storage > Boot Order.
Removable Media Boot is disabled in the Computer Setup
utility.
Run the Computer Setup utility and enable booting to
removable media in Storage > Storage Options. Ensure USB
is enabled in Storage > Boot Order.
The image on the device is not bootable.
Follow the procedures described in the "ROM Flash:
Replicating the Setup: Creating a Bootable Device: Supported
USB Flash Media Device" section of the Service Reference
Guide.
The computer boots to DOS after making a bootable Drive Key.
Cause
Solution
Drive Key is bootable.
Install the Drive Key only after the operating system boots.
148 Appendix D Troubleshooting Without Diagnostics
ENWW
Solving Front Panel Component Problems
If you encounter problems with devices connected to the front panel, refer to the common causes and
solutions listed in the following table.
Table D-17 Solving Front Panel Component Problems
A USB device, headphone, or microphone is not recognized by the computer.
Cause
Solution
Device is not properly connected.
1.
Turn off the computer.
2.
Reconnect the device to the front of the computer and
restart the computer.
The device does not have power.
If the USB device requires AC power, be sure one end is
connected to the device and one end is connected to a live
outlet.
The correct device driver is not installed.
1.
Install the correct driver for the device.
2.
You might need to reboot the computer.
1.
If possible, replace the cable.
2.
Restart the computer.
1.
Replace the device.
2.
Restart the computer.
The cable from the device to the computer does not work.
The device is not working.
USB ports on the computer are disabled in Computer Setup.
ENWW
Enter Computer Setup (F10) and enable the USB ports.
Solving Front Panel Component Problems 149
Solving Internet Access Problems
If you encounter Internet access problems, consult your Internet Service Provider (ISP) or refer to the
common causes and solutions listed in the following table.
Table D-18 Solving Internet Access Problems
Unable to connect to the Internet.
Cause
Solution
Internet Service Provider (ISP) account is not set up properly.
Verify Internet settings or contact your ISP for assistance.
Modem is not set up properly.
Reconnect the modem. Verify the connections are correct
using the quick setup documentation.
Web browser is not set up properly.
Verify that the Web browser is installed and set up to work with
your ISP.
Cable/DSL modem is not plugged in.
Plug in cable/DSL modem. You should see a “power” LED light
on the front of the cable/DSL modem.
Cable/DSL service is not available or has been interrupted due
to bad weather.
Try connecting to the Internet at a later time or contact your
ISP. (If the cable/DSL service is connected, the “cable” LED
light on the front of the cable/DSL modem will be on.)
The CAT5 UTP cable is disconnected.
Connect the CAT5 UTP cable between the cable modem and
the computers’s RJ-45 connector. (If the connection is good,
the “PC” LED light on the front of the cable/DSL modem will be
on.)
IP address is not configured properly.
Contact your ISP for the correct IP address.
Cookies are corrupted. (A “cookie” is a small piece of
information that a Web server can store temporarily with the
Web browser. This is useful for having the browser remember
some specific information that the Web server can later
retrieve.)
Windows XP
1.
Select Start > Control Panel.
2.
Double-click Internet Options.
3.
On the General tab, click the Delete Cookies button.
Windows 2000
1.
Select Start > Settings > Control Panel.
2.
Double-click Internet Options.
3.
On the General tab, click the Delete Cookies button.
Cannot automatically launch Internet programs.
Cause
Solution
You must log on to your ISP before some programs will start.
Log on to your ISP and launch the desired program.
Internet takes too long to download Web sites.
Cause
Solution
Modem is not set up properly.
Verify that the correct modem speed and COM port are
selected.
150 Appendix D Troubleshooting Without Diagnostics
ENWW
Table D-18 Solving Internet Access Problems (continued)
Internet takes too long to download Web sites.
Cause
Solution
Windows XP
1.
Select Start > Control Panel.
2.
Double-click System.
3.
Click the Hardware tab.
4.
In the Device Manager area, click the Device Manager
button.
5.
Double-click Ports (COM & LPT).
6.
Right-click the COM port the modem uses, then click
Properties.
7.
Under Device status, verify that the modem is working
properly.
8.
Under Device usage, verify the modem is enabled.
9.
If there are further problems, click the Troubleshoot
button and follow the on-screen instructions.
Windows 2000
ENWW
1.
Select Start > Settings > Control Panel.
2.
Double-click System.
3.
Click the Hardware tab.
4.
In the Device Manager area, click the Device Manager
button.
5.
Double-click Ports (COM & LPT).
6.
Right-click the COM port the modem uses, then click
Properties.
7.
Under Device status, verify that the modem is working
properly.
8.
Under Device usage, verify the modem is enabled.
9.
If there are further problems, click the Troubleshoot
button and follow the on-screen instructions.
Solving Internet Access Problems 151
Solving Software Problems
Most software problems occur as a result of the following:
●
The application was not installed or configured correctly.
●
There is insufficient memory available to run the application.
●
There is a conflict between applications.
●
Be sure that all the needed device drivers have been installed.
●
If you have installed an operating system other than the factory-installed operating system, check
to be sure it is supported on the system.
NOTE: HP Backup and Recovery Manager can be used to restore the software to a recovery
point or to restore the system to its factory configuration. Refer to HP Backup and Recovery
Manager on page 2 for more information.
If you encounter software problems, see the applicable solutions listed in the following table.
Table D-19 Solving Software Problems
Computer will not continue and no HP logo screen has appeared.
Cause
Solution
POST error has occurred.
Observe the beeps and LED lights on the front of the computer.
See Appendix A, POST Error Messages on page 103 to
determine possible causes.
See the Restore Kit or the Worldwide Limited Warranty for
terms and conditions.
Computer will not continue after HP logo screen has appeared.
Cause
Solution
System files may be damaged.
Restore the files from the Recovery Disc Set or backups you
created in HP Backup and Recovery Manager.
“Illegal Operation has Occurred” error message is displayed.
Cause
Solution
Software being used is not Microsoft-certified for your version
of Windows.
Verify that the software is certified by Microsoft for your version
of Windows (see program packaging for this information).
Configuration files are corrupt.
If possible, save all data, close all programs, and restart the
computer.
152 Appendix D Troubleshooting Without Diagnostics
ENWW
Index
Symbols/Numerics
24–pin MicroFit power pin
assignments 95
24–pin power pin
assignments 94
4–pin power pin assignments 95
5.25
drive bezel blank 62
6–pin power pin assignments 95
A
access panel, removal and
replacement 60
access to computer,
controlling 36
adding devices 1
Altiris
AClient 22
Deployment Solution
Agent 22
asset tracking 36
ATA/ATAPI (IDE) drive cable pin
assignments 94
audible codes 111
audio problems 132
B
Backup and Recovery
Manager 2, 19, 23
battery
disposal 58
removal and replacement 84
beep codes 111
bezel blank, 5.25" drive 62
BIOS
Boot Block Emergency
Recovery Mode 29
HPQFlash 29
Remote ROM Flash 29
ENWW
Boot Block Emergency Recovery
Mode 29
boot problems 147
bootable device
creating 32
DiskOnKey 32, 33
HP Drive Key 32, 33
USB flash media device 32
booting options
Full Boot 103
Quick Boot 103
C
cable connections 70
cable lock provision 44
cable management 69
cable pinouts
SATA data 47
SATA power 48
cautions
AC power 51
adding devices 1
cables 58
cooling fan 57
cover lock security 43
electrostatic discharge 52
FailSafe Key 44
keyboard cleaning 56
keyboard keys 56
operating system
installation 1
protecting ROM 28
CD-ROM or DVD problems 145
change notification 28
changing operating systems,
important information 35
changing password 40
chasis types, illustrated 51
chassis
MT illustrated 51
cleaning
computer 55
mouse 57
safety precautions 55
clearing password 41
Client Foundation Suite 27
Client Management Interface 24
Client Management Premium
Suite 26
Client Manager 25
cloning tools, software 21
computer cleaning 55
Computer Setup Utilities 30
configuring power button 35
connector pin assignments 89
controlling access to
computer 36
country power cord set
requirements 101
cover lock 43
cover lock security, caution 43
Customer Support 113
customizing software 21
D
deleting password 40
delimiter characters, table 41
deployment tools, software 21
device drivers, installing 1
diagnostic tool for hard drives 45
diagnostics utility 15
disassembly preparation 59
disk, cloning 21
diskette problems 121
DiskOnKey
bootable 32, 33
HP Drive Key 32
Index 153
drive
5.25" removal and
replacement 72
hard drive removal and
replacement 73
Drive Key problems 148
drive positions 71
drive, protecting 45
DriveLock
applications 42
using 42
dual-state power button 35
DVI pin assignments 98
E
electrostatic discharge (ESD)
preventing damage 52
Emergency Recovery Mode, Boot
Block 29
entering
power-on password 39
setup password 39
error
codes 103, 111
messages 104
ethernet
AUI pin assignments 90
BNC pin assignments 89
RJ-45 pin assignments 90
expansion card removal and
replacement 67
expansion slot cover lock removal
and replacement 66
F
FailSafe Key
caution 44
ordering 44
fan, power supply 57
Fault Notification and Recovery
HP Client Manager 45
fingerprint identification
technology 45
flashing LEDs 111
front bezel removal and
replacement 61
front drive bezel 62
front I/O panel removal and
replacement 76
front panel problems 149
154 Index
G
general problems 116
grounding methods 53
H
hard drive
proper handling 58
removal and replacement 73,
75
SATA characteristics 47
hard drive problems 124
hard drives, diagnostic tool 45
hardware installation
problems 137
headphone pin assignments 92
heatsink removal and
replacement 80
helpful hints 114
HP
Backup and Recovery
Manager 23
Client Foundation Suite 27
Client Management
Interface 24
Client Management Premium
Suite 26
Client Manager 25
ProtectTools Security
Manager 26
System Software Manager 25
HP Backup and Recovery
Manager 2
HP Drive Key
bootable 32, 33
DiskOnKey 32
HP Insight Diagnostics 15
HP Lifecycle solutions 21
HP OpenView Agent 22
HP OpenView Client Configuration
Manager 27
HP OpenView PC Management
Solution 28
HPQFlash 29
I
industry standards 36
infrared (IR) transceiver, enternal,
pin assignments 92
initial configuration 21
Insight Diagnostics 15
internal temperature of
computer 45
Internet access problems 150
Internet addresses. See Web sites
K
keyboard
cleaning 56
pin assignments 89
keyboard delimiter characters,
national 41
keyboard problems 135
L
line—in audio pin
assignments 92
line—out audio pin
assignments 92
locking Smart Cover Lock 44
M
Media Card Reader
problems 126
memory
specifications 64
memory problems 142
memory, removal and
replacement 64
microphone pin assignments 92
monitor
pin assignments 93
monitor problems 128
mouse
pin assignments 89
mouse cleaning 57
mouse problems 135
MT
chassis, illustrated 51
N
national keyboard delimiter
characters 41
network problems 139
notification of changes 28
numeric error codes 104
O
operating guidelines 55
operating systems, important
information about 35
optical drive problems 145
ENWW
ordering FailSafe Key 44
overheating, prevention 55
P
parallel interface pin
assignments 91
password
changing 40
clearing 41
deleting 40
power-on 39
security 38
setup 38, 39
PC deployment 21
PCI Express pin assignments 96
PCN (Proactive Change
Notification) 28
POST error messages 103
power button
configuring 35
dual-state 35
power cord set requirements
country specific 101
power problems 120
power supply
fan 57
removal and replacement 88
power supply, surge-tolerant 45
power switch assembly, removal
and replacement 77
power-on password
changing 40
deleting 40
entering 39
setting 39
Preboot Execution Environment
(PXE) 24
preinstalled software image 21
preparation for disassembly 59
printer problems 134
Proactive Change Notification
(PCN) 28
problems
audio 132
CD-ROM or DVD 145
diskette 121
Drive Key 148
front panel 149
general 116
hard drive 124
ENWW
hardware installation 137
Internet access 150
keyboard 135
Media Card Reader 126
memory 142
monitor 128
mouse 135
network 139
power 120
printer 134
processor 144
software 152
processor problems 144
processor removal and
replacement 81
protecting hard drive 45
protecting ROM, caution 28
ProtectTools Security
Manager 26
PXE (Preboot Execution
Environment) 24
R
Radia Management Agent 22
recovery
creating disc recovery set 2
Recovery Disc Set 19
Recovery Mode, Boot Block
Emergency 29
recovery, software 21
Remote ROM Flash 29
remote setup 24
Remote System Installation 24
removal and replacement
5.25" drive 72
access pannel 60
battery 84
expansion card 67
expansion slot cover lock 66
front bezel 61
front I/O panel 76
hard drive 73, 75
heatsink 80
memory 64
power switch assembly 77
processor 81
speaker 78
system board 83
system fan 79
Restore Plus! CD 2
retired solutions 28
ROM
flash 28
Remote Flash 29
S
safety and comfort 113
safety precautions
cleaning 55
SATA
connectors on system
board 47
data cable pinouts 47
hard drive characteristics 47
pin assignments 96
power cable pinouts 48
screws, correct size 57
SDRAM (synchronous dynamic
random access memory 64
security
cable lock 44
DriveLock 41
features, table 37
fingerprint identification
technology 45
password 38
ProtectTools Security
Manager 26
settings 36
Smart Cover Lock 43
Smart Cover Sensor 43
serial interface pin
assignments 91
service considerations 57
setup
copying to multiple
computers 31
copying to single computer 30
initial 21
replicating 30
setup password
changing 40
deleting 40
entering 39
setting 38
Smart Cover FailSafe Key,
ordering 44
Smart Cover Lock
FailSafe Key 44
Index 155
locking 44
unlocking 44
Smart Cover Sensor
protection levels 43
setting 43
software
Altiris AClient 22
Altiris Deployment Solution
Agent 22
asset tracking 36
backing up 19
Drive Protection System 45
HP Backup and Recovery
Manager 2, 23
HP Client Foundation
Suite 27
HP Client Management
Interface 24
HP Client Management
Premium Suite 26
HP Client Manager 25
HP Insight Diagnostics 15
HP OpenView Client
Configuration Manager 27
HP OpenView PC Management
Solution 28
HP ProtectTools Security
Manager 26
HP System Software
Manager 25
integration 21
problems 152
recovery 21
Remote System
Installation 24
Restore Plus! 23
Restore Plus! CD 2
restoring 19
servicing computer 57
updating and management
tools 24
spare part number
tamper-resistent wrench 57
Torx T-15 screwdriver 57
speaker, removal and
replacement 78
specifications
memory 64
static electricity 52
Subscriber's Choice 28
156 Index
surge-tolerant power supply 45
system board
SATA connectors 47
system board removal and
replacement 83
system fan, removal and
replacement 79
System Software Manager 25
T
tamper-proof screws
tool 57
temperature control 55
temperature, internal
computer 45
thermal sensor 45
tools, servicing 57
Torx T15 screwdriver 57
Proactive Change
Notification 28
Remote ROM Flash 29
replicating setup 31
Restore Plus! 23
ROM Flash 29
software support 35
Subscriber's Choice 28
Subscriber’s Choice 28
System Software Manager
download 25
U
unlocking Smart Cover Lock 44
URLs (Web sites). See Web sites
USB flash media device,
bootable 32, 33
USB pin assignments 91
V
ventilation, proper 55
W
Wake-on-LAN feature 139
Web sites
BIOS download 28
Fingerprint Identification
Technology 45
HP Client Foundation
Suite 27
HP Client Foundation Suite and
Client Premium Suite 22
HP Client Management
Premium Suite 27
HP Client Manager 26
HP OpenView Client
Configuration Manager 27
HP OpenView Management
Suite 28
HP ProtectTools Security
Manager 26
HPQFlash 29
PC deployment 22
ENWW
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
