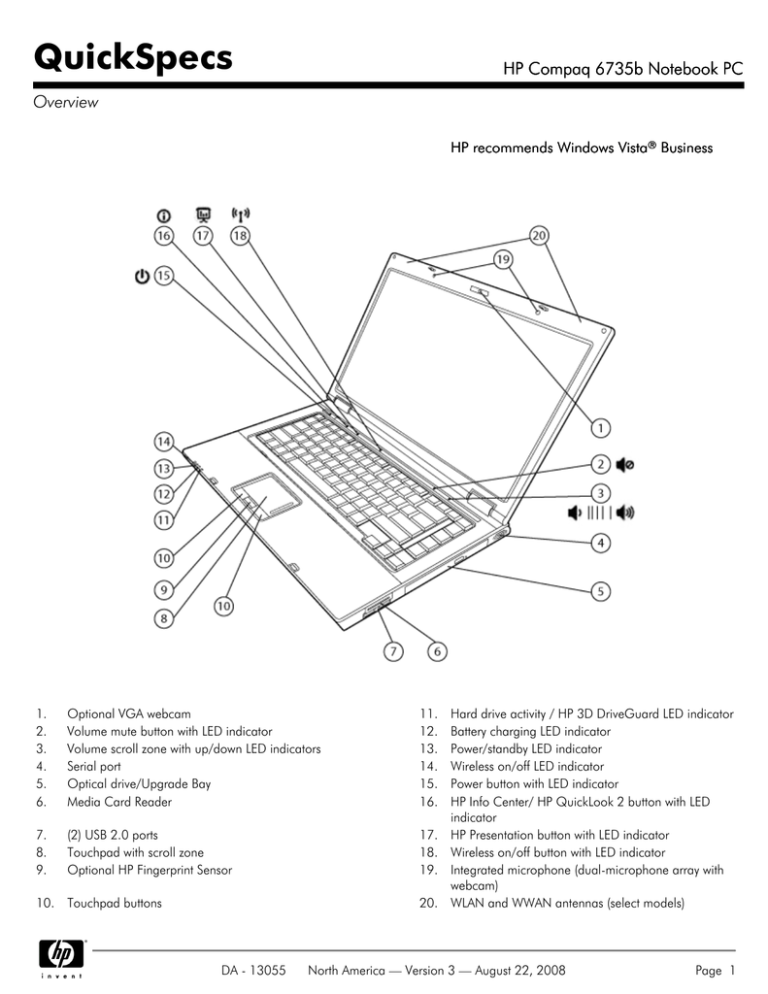

HP Compaq 6735b Notebook PC
Overview
HP recommends Windows Vista® Business
1.
2.
3.
4.
5.
6.
Optional VGA webcam
Volume mute button with LED indicator
Volume scroll zone with up/down LED indicators
Serial port
Optical drive/Upgrade Bay
Media Card Reader
11.
12.
13.
14.
15.
16.
7.
8.
9.
(2) USB 2.0 ports
Touchpad with scroll zone
Optional HP Fingerprint Sensor
17.
18.
19.
10. Touchpad buttons
20.
DA - 13055
Hard drive activity / HP 3D DriveGuard LED indicator
Battery charging LED indicator
Power/standby LED indicator
Wireless on/off LED indicator
Power button with LED indicator
HP Info Center/ HP QuickLook 2 button with LED
indicator
HP Presentation button with LED indicator
Wireless on/off button with LED indicator
Integrated microphone (dual-microphone array with
webcam)
WLAN and WWAN antennas (select models)
North America — Version 3 — August 22, 2008
Page 1
QuickSpecs
HP Compaq 6735b Notebook PC
Overview
1.
2.
3.
4.
5.
6.
7.
Stereo speakers
Stereo headphone/line out
Stereo microphone in
Display release latch
Power connector
(2) USB 2.0 ports
1394a port
8.
9.
10.
11.
12.
13.
DA - 13055
ExpressCard/54 slot or optional Smart Card Reader
Kensington Lock slot
RJ-11/modem port
RJ-45/Ethernet port
VGA/external monitor connector
S-Video TV out
North America — Version 3 — August 22, 2008
Page 2
QuickSpecs
HP Compaq 6735b Notebook PC
Overview
1.
2.
3.
4.
Docking connector
WLAN module compartment (select models)
Hard drive bay
Bluetooth module compartment
5
6.
7.
8.
Secondary battery connector
SIM slot for WWAN (select models) – inside battery bay
Battery release latch
Battery bay
At A Glance
Genuine Windows Vista Business 32, Genuine Windows Vista Home Basic 32, Genuine Windows Vista Business with
downgrade to Windows XP Professional custom installed, or FreeDOS
Widescreen 15.4-inch diagonal display with wide-viewing angle, optional BrightView and HP Privacy Filter support
AMD Turion™ X2 Ultra Dual-Core Mobile Processor, AMD Turion™ X2 Dual-Core Mobile Processor, AMD Athlon™ X2 DualCore Processor
Thin, lightweight design starting at 5.93 lb/2.69 kg and 1.32 inch/33.6 mm thin at front
Upgrade Bay for easy optical drive upgrade or optional second hard drive
Flexible wireless connectivity options:
Integrated HP un2400 EV-DO/HSPA Mobile Broadband Module provides worldwide Gobi mobile Internet technology
Integrated 802.11 a/b/g/n draft 2.0 or b/g wireless LAN module
Bluetooth®
Enhanced security features including HP ProtectTools, HP SpareKey, TPM 1.2;* optional Smart Card Reader and HP
Fingerprint Sensor
Optional integrated VGA webcam with dual-microphone array
HP QuickLook 2 for instant access to e-mail, calendar, and contact information
Up to 250 GB 5400 rpm or 160 GB 7200 rpm user-removable hard drive with HP 3D DriveGuard protection
Enhanced reliability with magnesium alloy support structure and HP DuraFinish
Touch-sensitive controls for HP Info Center / HP QuickLook, HP Presentation button, wireless on/off, mute, and volume up,
volume down
Media Card Reader
Up to 8 GB of 800 MHz DDR2 SDRAM supported, dual-channel memory support
DA - 13055
North America — Version 3 — August 22, 2008
Page 3
QuickSpecs
HP Compaq 6735b Notebook PC
Overview
ATI Radeon™ HD 3200 Graphics
Broadcom NetLink Gigabit Ethernet Controller (10/100/1000 NIC)
Touchpad with scroll zone
* TPM module disabled where not permitted by law (for example, Russia and China).
DA - 13055
North America — Version 3 — August 22, 2008
Page 4
QuickSpecs
HP Compaq 6735b Notebook PC
Standard Features
Processors
AMD Turion X2 Ultra Dual-Core Mobile Processor ZM-86 (2.4 GHz, 2 MB L2 cache)
AMD Turion X2 Ultra Dual-Core Mobile Processor ZM-82 (2.2 GHz, 2 MB L2 cache)
AMD Turion X2 Ultra Dual-Core Mobile Processor ZM-80 (2.1 GHz, 2 MB L2 cache)
AMD Turion X2 Dual-Core Mobile Processor RM-70 (2.0 GHz, 1 MB L2 cache)
AMD Athlon 64 X2 Dual-Core Processor for Notebook PCs QL-60 (1.9 GHz, 1 MB L2 cache)
NOTE: Processor speed denotes maximum performance mode; processors will run at lower speeds in
battery optimization mode.
Operating System
Preinstalled
Genuine Windows Vista Business 32*
Genuine Windows Vista Home Basic 32*
Genuine Windows Vista Business with downgrade to Windows XP
Professional custom installed*†
FreeDOS
Supported
Genuine Windows Vista Business 64*
Genuine Windows Vista Enterprise*
Certified
SuSE Linux Enterprise Desktop 10
* Certain Windows Vista product features require advanced or additional hardware. See:
http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and:
http://www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista Upgrade
Advisor can help you determine which features of Windows Vista will run on your computer. To
download the tool, visit: http://www.windowsvista.com/upgradeadvisor.
†
Windows Vista Business may be included for future upgrade if desired. To qualify for this downgrade
an end user must be a business (including governmental or educational institutions) and is expected to
order annually at least 25 customer systems with the same custom image.
Chipset
AMD M780G
Graphics
ATI Radeon HD 3200
Microsoft DirectX 10 capable
DA - 13055
North America — Version 3 — August 22, 2008
Page 5
QuickSpecs
HP Compaq 6735b Notebook PC
Standard Features
Display
Internal
External
15.4-inch diagonal WXGA anti-glare (1280 x 800 resolution)
15.4-inch diagonal WXGA BrightView (1280 x 800 resolution)
15.4-inch diagonal WSXGA+ WVA anti-glare (1680 x 1050 resolution)
HP Privacy Filter support
Up to 32-bit per pixel color depth
VGA port supports resolutions up to 2048 x 1536 at 75 Hz, and lower
resolutions at up to 100 Hz
DVI-D (single link) video signal available through DVI port in optional HP
Docking Station (sold separately)
supports resolutions up to 1600 x 1200 at both full and reduced
blanking, and 1920 x 1200 at reduced blanking
NOTE: Resolutions are dependent upon monitor capability, and resolution
and color depth settings.
Memory
Standard
800 MHz DDR2 SDRAM; two slots supporting dual-channel memory
1024 MB, 2048 MB, or 4096 MB
Maximum
Upgradeable to 8192 MB with 4096 MB SODIMMs in slots 1 and 2
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same size
and speed in both memory slots.
NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend
HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the
lower memory speed. Full availability of 4 GB or more of memory requires Windows Vista Business 64bit or Linux. With Windows 32-bit operating systems, the amount of usable memory is dependent upon
your configuration, so that above 3 GB all memory may not be available due to system resource
requirements.
Communications
Integrated Broadcom NetLink Gigabit Ethernet Controller (10/100/1000 NIC)*
56K V.92 modem**
* The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for
Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission,
connection to a Gigabit Ethernet server and network infrastructure is required.
** Designed for downloads from 56K modem compliant sources. Maximum achievable download
transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability
is subject to country regulatory approval.
DA - 13055
North America — Version 3 — August 22, 2008
Page 6
QuickSpecs
HP Compaq 6735b Notebook PC
Standard Features
Wireless Devices
Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring
support for the latest industry standards. Wireless LAN is factory configurable or available as an option
to be added later. Broadband Wireless (WWAN) requires Windows Vista Business or Windows XP
Professional and is available in select countries as a standard, factory configurable feature only.
Integrated Bluetooth is also available (factory configurable only) and can be combined with any of the
supported wireless LAN and wireless WAN options.
HP un2400 EV-DO/HSPA Integrated WWAN module with Gobi global mobile Internet technology that
Mobile Broadband
provides worldwide connection to both CDMA (EVDO) and UMTS (HSPA)
Module
wireless networks.
NOTE: Separately purchased mobile network operator service is required.
Two 850/900/1800/1900/2100 MHz antennas integrated in the top of the
display panel support current and future WWAN technologies.
All 802.11 integrated
wireless LAN options
Wi-Fi Certified*
Cisco Compatible Extensions support
Wired Equivalent Privacy (WEP) support up to 128-bit keys
Wi-Fi Protected Access (WPA) and WPA2 support
802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAP-GTC,
PEAP-MSCHAPv2, and LEAP
Advanced Encryption Standard (AES) support
Dual antennas integrated in the display enclosure
Broadcom 4322AGN
Integrated support for 802.11a, b, g, and n draft 2.0*
802.11a/b/g/draft-n Wi- Up to 300 mbps data rate
Fi Adapter
Integrated support for 802.11 b and g
Broadcom 4312G
802.11b/g
Up to 54 mbps data rate
WiFi Adapter
Bluetooth Specification v2.0 compliant
HP Integrated Module
with Bluetooth Wireless
Works with a wide range of Bluetooth devices
Technology
* The specifications for 802.11n draft 2.0 are draft specifications and are not final. If the final
specifications differ from the draft specifications, it may affect the ability of the notebook to communicate
with other 802.11n WLAN devices. In countries where n draft 2.0 is not allowed, this capability is not
enabled.
Keyboard
The 101/102-key compatible keyboard features an industry standard, full-pitch key layout with desktop
keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right
control and alt keys, and 12 function keys. U.S. and International key layouts are available. Other
features include an integrated numeric keypad, hotkeys for instant access to power conservation,
brightness, and other features, 19 x 19 mm key pitch (center-to-center spacing), 2.5 mm stroke, and
comfort-dished keycaps.
Touch-sensitive controls
Touch-sensitive controls provide easy access to the following features: HP Info Center, HP QuickLook 2,
HP Presentation button, wireless on/off, mute, and volume up, volume down
Pointing device
Touchpad with scroll zone, two pick buttons
DA - 13055
North America — Version 3 — August 22, 2008
Page 7
QuickSpecs
HP Compaq 6735b Notebook PC
Standard Features
Expansion card slots
ExpressCard/54 slot
Supports ExpressCard/54 and ExpressCard/34
or
Optional Integrated Smart Compatible with ISO 7816 compliant Smart Cards
Card Reader (replaces
PC/SC interface support
ExpressCard/54 slot)
Supports SD (Secure Digital), HC-SD (High Capacity Secure Digital), MMC
Media Card Reader
(MultiMedia Card), HS-MMC (MultiMedia Card Plus), Sony Memory Stick,
Sony Memory Stick Pro, Memory Stick Duo*, xD-Picture card
Additionally, the following cards are supported via passive adapters (sold
separately): Mini-Secure Digital (Mini-SD), Transflash (Micro-SD), Reduced
size Multimedia card (RS-MMC), Reduced size Dual voltage Multimedia
card, MMC Mobile Cards, MMC Micro Cards, Memory Stick Duo (MS
Duo)**, Memory Stick Duo Pro (MS Duo Pro)**, Memory Stick M2 Micro
* Memory Stick Duo Adapters are required and sold separately. Inserting a Memory Stick Duo Card
directly into your notebook could damage the memory card and/or notebook.
Storage
Hard drives
120/160/250 GB 5400 rpm SMART SATA II
160 GB 7200 rpm SMART SATA II
NOTE: These hard drives are customer removable and will withstand multiple insertion/removal cycles.
Up to 10 GB is reserved for the system recovery software.
HP 3D DriveGuard
The hard drive is mounted directly to the notebook frame, reducing the
transmission of shock to the hard drive. Uses three-axis digital motion
detection with intelligent sensitivity to help protect the hard drive during
normal use from shock and vibration. The digital accelerometer temporarily
halts all data transfer and parks the hard drive when abrupt motion is
detected.
Fixed 12.7 mm SATA
DVD+/-RW SuperMulti DL LightScribe Drive
Upgrade Bay
optical drive
DVD/CD-RW Combo Drive
DVD-ROM Drive
or
Second hard drive
250 GB 5400 rpm SMART SATA II Hard Drive
DA - 13055
North America — Version 3 — August 22, 2008
Page 8
QuickSpecs
HP Compaq 6735b Notebook PC
Standard Features
Interfaces
Audio/Visual
ExpressCard/54 slot
External monitor
1394a
Stereo microphone in
Stereo headphone/line
out
Power connector
RJ-11/modem
RJ-45/Ethernet
S-video TV out
USB 2.0
One (or optional Smart Card Reader)
One (VGA)
One
One
One
Serial port
Docking connector
Secondary battery
connector
One
One
One
One
One
One
One (Support for NTSC/PAL)
Four
High Definition Audio support w/24-bit DAC
Integrated stereo speakers
Integrated microphone (dual-microphone array when equipped with optional VGA webcam)
Touch-sensitive controls for volume up, volume down, and mute
Stereo headphone/line out
Stereo microphone in
Optional VGA webcam
Supports videoconferencing and still image capture
Large image sensor for excellent color matching and good low light sensitivity
Up to 30 frames/sec
Fixed focus lens
Video capture up to 640x480 pixels
16-bit true color (camera sensors output YCrCb format among others)
DA - 13055
North America — Version 3 — August 22, 2008
Page 9
QuickSpecs
HP Compaq 6735b Notebook PC
Standard Features
Software
Preinstalled software with HP Recovery Manager
Windows Vista or
HP Help and Support Center
Windows XP
HP QuickLook 2
HP Universal Print Driver
HP ProtectTools Security Manager:
BIOS Configuration for HP ProtectTools
Credential Manager for HP ProtectTools
Device Access Manager for HP ProtectTools
Drive Encryption for HP ProtectTools
Embedded Security for HP ProtectTools
HP Quick Launch Buttons
HP Wireless Assistant
Microsoft Office Ready with 60-day Office Professional 2007 Trial Edition
(select models)
PDF Complete SE
Intervideo WinDVD – DVD Player
Roxio Creator Business (for optional DVD+/-RW and DVD/CDRW drives)
McAfee Total Protection*
Synaptics Touchpad Driver
Microsoft Windows Live Messenger (select models)
HP Webcam Software (with optional VGA webcam)
HP SoftPaq Download Manager
Additional software
available from the web
HP Client Manager Software
HP Client Management Solutions
Java Card Security for HP ProtectTools
* 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to
receive updates. First update included. Subscription required for updates thereafter.
HP Recovery Manager
Each unit is shipped with HP Recovery Manager. HP Recovery Manager enables fast recovery of the
factory preinstalled image if the system becomes corrupted or if important system files are accidentally
deleted. Up to 10 GB of the hard drive is reserved for the system recovery software.
SMBIOS Version 2.4
System Management BIOS, previously known as DMI BIOS, is used to store system management
information.
DA - 13055
North America — Version 3 — August 22, 2008
Page 10
QuickSpecs
HP Compaq 6735b Notebook PC
Standard Features
HP ProtectTools Security
Manager
HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP
ProtectTools Security Manager is an extensible client security console that delivers enhanced security
capabilities through add-on software modules. Modules currently available are:
BIOS Configuration for HP ProtectTools
Credential Manager for HP ProtectTools
Device Access Manager for HP ProtectTools
Drive Encryption for HP ProtectTools
File Sanitizer for HP ProtectTools
Set-up Wizard for HP ProtectTools
Privacy Manager for HP ProtectTools (Chat & Sign)
Embedded Security for HP ProtectTools
Java Card Security for HP ProtectTools
Security
Standard Features
HP ProtectTools Security Manager
Enhanced Pre-Boot Security
HP SpareKey
One-Step Logon
Configuration Control Hardware
Memory Change Alert
Ownership Tag
Setup Password
Power-On Password
TPM 1.2 Embedded Security Chip*
TPM Enhanced DriveLock*
HP Disk Sanitizer
HP 3D DriveGuard
Kensington Lock slot
Support for Computrace / LoJack for Laptops (must be purchased
separately)
Optional Features
Compatible with ISO 7816 compliant Smart
Smart Card Reader
(replaces ExpressCard/54 Cards
slot)
PC/SC interface support
Enhanced sensor scans the fingerprint to uniquely
HP Fingerprint Sensor
identify and authenticate a person.
Narrows viewing area so that screen data is
HP Privacy Filter
visible only to persons directly in front of the
monitor
* TPM module disabled where use is restricted by law; for example, Russia and China.
NOTE: For more information on HP security solutions refer to: http://www.hp.com/go/security.
Power Supply
External 90-watt Smart AC adapter, 6-foot (1.8 meter) power cord included.
Total length including external AC adapter is 12 feet (3.66 meter).
HP Fast Charge*
* HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to 12cell Ultra-Capacity batteries.
DA - 13055
North America — Version 3 — August 22, 2008
Page 11
QuickSpecs
HP Compaq 6735b Notebook PC
Standard Features
Battery
Primary battery
Optional HP Extended
Life Battery
Optional HP UltraCapacity Battery
6-cell (55 WHr) Li-Ion battery
8-cell (52 WHr) high capacity Li-Ion battery
12-cell (95 WHr) high capacity Li-Ion battery
Battery Life
Primary battery
Primary battery and
optional HP Extended Life
Battery
System Standby Time
6-cell (55 WHr) Primary
Up to 4 hours and 15 minutes
Up to 8 hours and 45 minutes
Primary battery and
Up to 11 hours and 45 minutes
optional HP UltraCapacity Battery
NOTE: The listed battery life measurements were taken on models running Microsoft Windows Vista
Business. Battery life will vary depending on the product configuration, product model, applications
loaded on the product, power management settings of the product, and the product features used by the
customer. As with all batteries, the maximum capacity of this battery will decrease with time and usage.
Up to TBD week
Power Conservation
ATI PowerPlay technology
Hibernation
Standby
ACPI compliance
Docking and Stands
HP 2008 120W Docking Station
HP 2008 150W Docking Station
HP 2008 150W Advanced Docking Station
HP 2008 180W Advanced Docking Station
HP Mobile Port Replicator
HP Monitor Stand
HP Adjustable Notebook Stand
HP Dual Monitor Stand
HP's shared docking solutions provide simple and convenient port replication and cable management.
Features include Gigabit NIC pass through, modem pass through, legacy parallel and serial ports, Svideo TV out, USB 2.0 ports, integrated security mechanism*, integrated MultiBay II and ExpressCard**
slots. These docking solutions are compatible across multiple Business Notebook platforms enabling a
lower total cost of ownership.
* HP/Kensington Cable Lock required (purchased separately)
** HP Advanced Docking Station only
DA - 13055
North America — Version 3 — August 22, 2008
Page 12
QuickSpecs
HP Compaq 6735b Notebook PC
Standard Features
Service and Support
HP Services offers limited 3-year, 1-year and 90-day warranty options depending on country;
1-year limited warranty on primary battery. On-site service and warranty upgrades are also available.
HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level
of service for your HP product, use the HP Care Pack Services Lookup Tool at:
http://www.hp.com/go/lookuptool. Additional HP Care Pack Services information by product is
available at: http://www.hp.com/hps/carepack.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp.
DA - 13055
North America — Version 3 — August 22, 2008
Page 13
QuickSpecs
HP Compaq 6735b Notebook PC
Options
Memory
HP 1 GB (DDR2 800 MHz) SODIMM
HP 2 GB (DDR2 800 MHz) SODIMM
HP 4 GB (DDR2 800 MHz) SODIMM
KT292AA
KT293AA
KT294AA
Storage
HP Notebooks USB Diskette Drive
HP Primary SATA 120 GB 7200 rpm Hard Drive
HP Primary SATA 250 GB 5400 rpm Hard Drive
HP Upgrade Bay SATA 250 GB 5400 rpm Hard Drive
HP Upgrade Bay SATA DVD+/-RW SuperMulti DL LightScribe Drive
DC361B
AH920AA
AK072AA
AK868AA
AK869AA
HP Primary SATA 120 GB 5400 rpm Hard Drive
RT080AA
MultiBay II Storage
HP MultiBay II DVD-ROM Drive
(9.5-mm)
NOTE: Requires HP
Advanced Docking Station HP MultiBay II DVD+/-RW SuperMulti DL Drive
or HP External MultiBay II
PA849A
PA851A
Expansion Solutions
HP 2008 120W Docking Station
HP 2008 150W Docking Station
HP 2008 150W Advanced Docking Station
HP 2008 180W Advanced Docking Station
HP Mobile Port Replicator
HP Monitor Stand
HP Adjustable Notebook Stand
HP Dual-Monitor Stand
HP External MultiBay II
KP080AA#ABA
KQ751AA#ABA
KP081AA#ABA
KQ752AA#ABA
AK155AA
PA507A
PA508A
AK084AA
PA509A#ABA
Power
HP 1-Bay Battery Charging Station
HP 5-Bay Battery Charging Station
HP Battery Adapter Kit
HP 90W Smart AC Adapter
HP 90W Smart Combo Adapter
HP 6-Cell Li-Ion Primary Battery
HP 12-Cell Ultra-Capacity Battery
HP 8-cell Extended Life Battery (2008 ID)
HP 90W Smart Auto Adapter
HP 65W AC/Auto/Air Combo Smart Adapter
RW635AA#ABA
RW636AA#ABA
KV829AA
ED495AA#ABA
AJ652AA#ABA
KU531AA
EJ092AA
AJ359AA
ED493AA
ED993AA#ABA
DA - 13055
North America — Version 3 — August 22, 2008
Page 14
QuickSpecs
HP Compaq 6735b Notebook PC
Options
Carrying Cases
HP Basic Carrying Case
HP Value Nylon Case
HP Universal Nylon Case
HP Executive Leather Case
HP Deluxe Nylon Backpack
HP Deluxe Roller Case
Security
HP ExpressCard Smart Card Reader with Java Card
HP ProtectTools Java Card - 10 units
HP/Kensington MicroSaver Security Lock
AJ451AA
EL348AA
PC766A
HP 15.4" Display Privacy Filter
AJ358AA
Input/Output Devices
HP PS/2 Keyboard & Mouse Bundle
HP USB Keyboard & Mouse Bundle
HP USB/PS2 Optical 2-Button Scroll Mouse
HP USB Optical Travel Mouse
DA - 13055
North America — Version 3 — August 22, 2008
AJ078AA
RR314AA
RR315AA
RR316AA
RR317AA
GD405AA
RC464AA#xxx
RC465AA#xxx
DC369A
RH304AA
Page 15
QuickSpecs
HP Compaq 6735b Notebook PC
Memory
800 MHz DDR2 SDRAM
Two DIMM slots supporting dual-channel memory
DIMM sizes supported: 1024 MB, 2048 MB, and 4096 MB
Standard Memory
Optional Memory
Upgrades
1024 MB (1024 MB x 1)
2048 MB (2048 MB x 1 or 1024 MB x 2)
3072 MB (2048 MB + 1024 MB)
4096 MB (2048 MB x 2)
Support for up to 8192 MB of memory with the installation of optional DDR2 SDRAM memory kits. Both
memory slots are user-accessible. Please refer to the Hardware and Software Guide for installation
procedures. Maximized dual-channel performance requires SODIMMs of the same size and speed in
both memory slots.
Up to
1024 MB
2048 MB
2048 MB
3072 MBB
4096 MB
8192 MB
Slot 1
1024 MB
2048 MB
1024 MB
2048 MB
2048 MB
4096 MB
Slot 2
Empty
Empty
1024 MB
1024 MB
2048 MB
4096 MB
NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some thirdparty memory modules, we strongly recommend using only HP- branded memory modules to ensure compatibility. If you mix
memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB or more of memory requires Windows
Vista Business 64-bit or Linux. With Windows 32-bit operating systems, the amount of usable memory is dependent upon your
configuration, so that above 3 GB all memory may not be available due to system resource requirements.
Memory Upgrades
HP 1 GB (DDR2 800 MHz) SODIMM
HP 2 GB (DDR2 800 MHz) SODIMM
HP 4 GB (DDR2 800 MHz) SODIMM
DA - 13055
North America — Version 3 — August 22, 2008
KT292AA
KT293AA
KT294AA
Page 16
QuickSpecs
HP Compaq 6735b Notebook PC
Storage
Upgrade Bay Drive Support
DVD+/-RW SuperMulti DL
LightScribe Drive
DVD/CD-RW Combo
Drive
DVD-ROM Drive
250 GB 5400 rpm SMART
SATA II Hard Drive
Quantity Supported
One
Drive Bay
Upgrade Bay
One
Upgrade Bay
One
One
Upgrade Bay
Upgrade Bay
Internal Storage Device
Hard Drives
250 GB 5400 rpm SMART
SATA II Hard Drive
160 GB 5400 rpm SMART
SATA II Hard Drive
120 GB 5400 rpm SMART
SATA II Hard Drive
160 GB 7200 rpm SMART
SATA II Hard Drive
Quantity Supported
Drive Bay
One
Dedicated hard drive bay
One
Dedicated hard drive bay
One
Dedicated hard drive bay
One
Dedicated hard drive bay
DA - 13055
North America — Version 3 — August 22, 2008
Page 17
QuickSpecs
HP Compaq 6735b Notebook PC
Technical Specifications
System Unit
Dimensions (HxWxD)
1.32 in (at front) x 14.02 in x 10.46 in
33.6 mm (at front) x 356.0 mm x 265.4 mm
Weight
Starting at 5.93 lb (2.69 kg)
NOTE: Height varies depending upon where on the notebook the measurement is made. Weight varies
by configuration and components. Weight includes 6-cell battery, hard drive, and optical drive. Weight
varies by configuration and components.
Nominal Operating
18.5 V
Stand-Alone Power
Requirements
Voltage
(AC Power)
Average Operating Power TBD W
Max Operating Power
< 90 W
Temperature
Operating
Relative Humidity
Non-operating
Operating
Non-operating
Shock
Random Vibration
Altitude
(unpressurized)
Industry Standard
Certifications
DA - 13055
Operating
Non-operating
Operating
Non-operating
Operating
Non-operating
UL
CSA
FCC Compliance
ENERGY STAR®
EPEAT
ICES
GS
Australia / NZ A-Tick
Compliance
CCC
Japan VCCI Compliance
MIC
BSMI
CE Marking Compliance
BNCI or BELUS
CIT
GOST
Saudi Arabian
Compliance (ICCP)
SABS
332° to 95° F (0° to 35° C) (not writing optical)
41° to 95° F (5° to 35° C) (writing optical)
-4° to 140° F (-20° to 60° C)
10% to 90%, non-condensing
5% to 95%, 101.6° F (38.7° C) maximum wet
bulb temperature
125 G, 2 ms, half-sine
200 G, 2 ms, half-sine
0.75 grms
1.50 grms
–50 to 10,000 ft (–15.24 to 3,048 m)
–50 to 40,000 ft (–15.24 to 12,192 m)
Yes
Yes
Yes
Yes*
TBD
Yes
TBD
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
North America — Version 3 — August 22, 2008
Page 18
QuickSpecs
HP Compaq 6735b Notebook PC
Technical Specifications
UKRSERTCOMPUTER
Yes
* When configured with AMD Turion processor
NOTE: For accessibility information on HP products, please visit: http://www.hp.com/accessibility.
HP 90W Smart AC
Adapter
Dimensions
Weight
Input
Output
Connector
Environmental Design
EMI and Safety
Certifications
DA - 13055
5.00 x 1.97 x 1.1 in (12.7 x 5.0 x 2.9 cm)
0.82 lb (370 g)
100 to 240 VAC
Input Efficiency
83% min at 115 VAC
Input frequency range
47 to 63 Hz
Input AC current
1.5 A at 90 VAC, 0.75 A at 180 VAC PFC
Version
2.4 A at 90 VAC, 1.2 A at 180 VAC NON PFC
Version
Output power 65W
90W
DC output
19.0V
Hold-up time
5 msec at 115 VAC input
Output current limit
<11A, Over voltage protection- 29V max
automatic shutdown
3 pin/grounded, mates with interchangeable cords
Operating temperature
32° to 104° F (0° to 40° C)
Non-operating (storage) –4° to 149° F (–20° to 65° C)
temperature
Altitude
0 to 10,000 ft (0 to 3,048 m)
Humidity
20% to 80%
Storage Humidity
10% to 90%
CE Mark – full compliance with LVD and EMC directives; Worldwide safety
standards – IEC60950, EN60950, UL60950, Class1, SELV; Agency
approvals – C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B,
CISPR22 Class B, CCC, NOM-1 NYCE; MTBF– over 200,000 hours at
25°C ambient condition.
North America — Version 3 — August 22, 2008
Page 19
QuickSpecs
HP Compaq 6735b Notebook PC
Technical Specifications
Optional HP UltraCapacity Battery
Dimensions (H x W x L)
Weight
Cells/Type
Energy
Temperature
Battery Re-Charge Time
Fuel Gauge
Optional HP Extended Life Dimensions (H x W x L)
Battery
Weight
Cells/Type
Energy
Temperature
Battery Re-Charge Time
Fuel Gauge
6-Cell (55 WHr) Li-Ion
battery
Dimensions (H x W x L)
Weight
Cells/Type
Energy
Temperature
Battery Re-Charge Time
DA - 13055
1.3 x 6.0 x 10.6 in (3.33 x 15.25 x 26.88 cm)
1.77 lb (0.803 kg)
12-cell Li-Ion
Watt-hour Capacity
95 WHr
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging) 14° to 140° F (–10° to 60° C)
Non-operating
–4° to 140° F (–20° to 60° C)
Smart Adapter
3 to 4 hours
System ON
4 to 5 hours (depending on system power
consumption)
When pressed, LEDs light indicating level of charge remaining on battery
1.0 x 3.9 x 8.7 in (2.5 x 10.0 x 22.0 cm)
1.00 lb (0.455 kg)
8-cell Li-Ion
Watt-hour Capacity
52 WHr
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging) 14° to 140° F (–10° to 60° C)
Non-operating
–4° to 140° F (–20° to 60° C)
System in OFF mode or
3 hours
Standby
System ON
3 to 5 hours (depending on system power
consumption)
HP Fast Charge
Charges the battery up to 90% within 90 minutes
Technology
when system is OFF
When pressed, LEDs light indicating level of charge remaining on battery
0.8 x 2.1 x 8.0 in (2.0 x 5.3 x 20.3 cm)
0.737 lb (0.335 kg)
6-cell Li-Ion
Watt-hour Capacity
55 WHr
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging) 14° to 140° F (–10° to 60° C)
Non-operating
–4° to 140° F (–20° to 60° C)
System in OFF mode or
2.5 hours
Standby
System ON
3 to 5 hours (depending on system power
consumption)
HP Fast Charge
Charges the battery up to 90% within 90 minutes
Technology
when system is OFF
North America — Version 3 — August 22, 2008
Page 20
QuickSpecs
HP Compaq 6735b Notebook PC
Technical Specifications
Displays
15.4-inch WSXGA+
Dimensions (W x H)
wide-viewing angle, anti- Diagonal Size
glare
Surface Treatment
Number of Colors
Contrast Ratio
Refresh Rate
Brightness
Pixel Resolution
Backlight
PPI
Viewing Angle
15.4-inch WXGA antiglare
Active Area (W x H)
Diagonal Size
Surface Treatment
Number of Colors
Contrast Ratio
Refresh Rate
Brightness
Pixel Resolution
Backlight
PPI
Viewing Angle
DA - 13055
13.0 x 8.1 in (33.1 x 20.7 cm)
15.4 in (39.1 cm)
Anti-glare
Up to 16M
300:1 (typical)
60 Hz
200 nit (typical)
0.197 mm
Pitch
Format
1680 x 1050
RGB stripe
Configuration
CCFL
129
±60° Horizontal, ± 50° Vertical (minimum) or
±70° Horizontal, ±60° Vertical (typical)
13.0 x 8.1 in (33.1 x 20.7 cm)
15.4 in (39.1 cm)
Anti-glare
Up to 16M
300:1 (typical)
60 Hz
200 nit (typical)
0.259 mm
Pitch
1280 x 800
Format
RGB stripe
Configuration
CCFL
98
±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)
North America — Version 3 — August 22, 2008
Page 21
QuickSpecs
HP Compaq 6735b Notebook PC
Technical Specifications
15.4-inch WXGA
BrightView
Active Area (W x H)
Diagonal Size
Surface Treatment
Number of Colors
Contrast Ratio
Refresh Rate
Brightness
Pixel Resolution
13.0 x 8.1 in (33.1 x 20.7 cm)
15.4 in (39.1 cm)
BrightView
Up to 16M
300:1 (typical)
60 Hz
200 nit (typical)
0.259 mm
Pitch
1280 x 800
Format
RGB stripe
Configuration
Backlight
PPI
Viewing Angle
CCFL
98
±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)
Hard Drives
160 GB 7200 rpm SATA Drive Weight
Hard Drive
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
DA - 13055
0.25 lb (115 g)
160 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Synchronous (maximum) 100 MB/s (Drive Capability)
1.5 ms
Single Track
11 ms
Average
22 ms
Maximum
7200 rpm
312,581,808
32° to 140° F (0° to 60° C) [case temp]
ATA Security
North America — Version 3 — August 22, 2008
Page 22
QuickSpecs
HP Compaq 6735b Notebook PC
Technical Specifications
250 GB 5400 rpm SATA Drive Weight
Hard Drive
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
160 GB 5400 rpm SATA Drive Weight
Hard Drive
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
DA - 13055
0.22 lb (101 g)
250 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Synchronous (maximum) 100 MB/s (Drive Capability)
3 ms
Single Track
13 ms
Average
24 ms
Maximum
5400 rpm
488,397,168
32° to 140° F (0° to 60° C) [case temp]
ATA Security
0.22 lb (101 g)
160 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Synchronous (maximum) 100 MB/s (Drive Capability)
3 ms
Single Track
13 ms
Average
24 ms
Maximum
5400 rpm
312,581,808
32° to 140° F (0° to 60° C) [case temp]
ATA Security
North America — Version 3 — August 22, 2008
Page 23
QuickSpecs
HP Compaq 6735b Notebook PC
Technical Specifications
120 GB 5400 rpm SATA Drive Weight
Hard Drive
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
0.22 lb (101 g)
120 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Synchronous (maximum) 100 MB/s (Drive Capability)
3 ms
Single Track
13 ms
Average
24 ms
Maximum
5400 rpm
234,441,648
32° to 140° F (0° to 60° C) [case temp]
ATA Security
Removable Storage Drives
DVD-ROM Drive
Access Times
Random
Max Data Transfer Rate
24X CD-ROM
8X-DVD
UDMA Mode 5
Gen 1 SATA
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD
(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVDROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R,
DVD+RW, DVD-RAM
None
4.7 GB
Transfer Mode
Interface
Supported Media (read)
Supported Media (write)
Max Media Capacity
(read)
Transport
DA - 13055
<116 ms CD (typical)
<125 ms DVD (typical)
Up to 3,600 KB/s
Up to 10,800 KB/s
Tray Loading
North America — Version 3 — August 22, 2008
Page 24
QuickSpecs
HP Compaq 6735b Notebook PC
Technical Specifications
DVD/CD-RW Combo
Drive
Access Times
Random
Max Data Transfer Rate
24X CD-ROM
8X DVD
24X CD-R
24X CD-RW
UDMA Mode 5
Gen 1 SATA
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD
(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVDROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R,
DVD+RW
CD-R, CD-RW
8.5 GB
Transfer Mode
Interface
Supported Media (read)
Supported Media (write)
Max Media Capacity
(read)
Max Media Capacity
(write)
Transport
DVD+/-RW SuperMulti
DL LightScribe Drive
<110 ms CD (typical)
<130 ms DVD (typical)
Up to 3,600 KB/s
Up to 10,800 KB/s
Up to 3,600 KB/s
Up to 3,600 KB/s
700 MB
Tray loading
Access Times
Random
Max Data Transfer Rate
24X CD-ROM
8X DVD
24X CD-R
16X CD-RW
8X DVD+R
4X DVD+RW
8X DVD-R
4X DVD-RW
2.4X DVD+R(9)
5X DVD-RAM
UDMA Mode 5
Gen 1 SATA
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD
(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVDROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R,
DVD+RW, DVD-RAM
CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM,
LightScribe
8.5 GB
Transfer Mode
Interface
Supported Media (read)
Supported Media (write)
Max Media Capacity
(read)
DA - 13055
<175 ms CD (typical)
<230 ms DVD (typical)
Up to 3,600 KB/s
Up to 10,800 KB/s
Up to 3,600 KB/s
Up to 2,400 KB/s
Up to 10,800 KB/s
Up to 5,400 KB/s
Up to 10,800 KB/s
Up to 5,400 KB/s
Up to 2,700 KB/s
Up to 6,750 KB/s
North America — Version 3 — August 22, 2008
Page 25
QuickSpecs
HP Compaq 6735b Notebook PC
Technical Specifications
Max Media Capacity
(write)
Transport
8.5 GB
Mobile Voltage
Operation
Operating Temperature
Current Consumption @
3.3V
3.0V–3.6V Single Supply
Implementation
Touch-Sensitive Volume
Controls
Full Duplex
Microphone In
Headphone/Line Out
Integrated Microphone
ADI1981HD High Definition CODEC
Volume up, volume down, and mute
Frequency Response
Signal to Noise Ratio
Total Harmonic Distortion
Noise Floor
Play/Record Sampling
Rate(s)
Rate
DAC
ADC
20 Hz – 20 kHz
>85 dB
0.01%
-110 dB
8 kHz – 48kHz
Power Rating
Impedance
2 Watts
4 Ohms
Tray Loading
Security
HP Fingerprint Sensor
(optional)
32° – 158°F (0° – 70°C)
Less than 70 mA peak imaging and scrolling
Less than 25 mA hardware finger detection
Advanced Power Management
High-Rate Image Capture Up to 240 image frames /sec
ESD Resistance
IEC 61000-4-2 Level 4 (±15KV)
Detection Matrix
192 x 16 Pixels
9.7 mm x 0.81 mm
500 ppi High-Resolution Images
Audio
Hardware
Audio Output Quality
Integrated Stereo
Speakers
DA - 13055
Yes
Stereo
Stereo
Yes, dual-microphone array when equipped with optional webcam
16, 20 or 24-bit
16 or 20-bit
North America — Version 3 — August 22, 2008
Page 26
QuickSpecs
HP Compaq 6735b Notebook PC
Technical Specifications
Communications
Integrated Broadcom
Ethernet Features
NetLink Gigabit Ethernet
(10/100/1000 NIC)
BCM5787M
10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 2130)
1000 Mbit/s operation (1000BASE-T; IEEE 802.3z and 802.3ab; IEEE
802.3 clauses 34-42)
Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100
Mbit/s
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
Power Management
ACPI compliant -- multiple power modes
Situation-sensitive features reduce power consumption
Performance Features
TCP/IP/UDP Checksum Offload (configurable)
Manageability
Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft
Wake-Up Frame); Wake-on-LAN from off (Magic Packet only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x,
clause 30))
Comprehensive diagnostic and configuration software suite
Interface
PCI Express x1
NIC Device Driver Name Broadcom NetLink Gigabit Ethernet
V.92 56K Data/Fax
Modem
Form Factor
Power Management
Support
Approvals/
Certifications
MDC 1.5 Daughtercard
APM Revision 1.2, ACPI
Data Mode Capabilities
DA - 13055
UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part
15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE
Mark, Other Countries
V.92 data
V.8bis
V.80
V44, V.42bis, MNP5 (Compression)
V.42 (LAPM, MNP2-4) (Error Correction)
Optional symbol rates:
2800, 3429
Asymmetric Symbol rates
Synchronous primary channel data signaling rates:
3600, 31200
Automatic rate re-negotiation
V.34
V.32bis
V.32
V.23
V.22bis
North America — Version 3 — August 22, 2008
Page 27
QuickSpecs
HP Compaq 6735b Notebook PC
Technical Specifications
Fax Mode Capabilities
Command Set
HP un2400
EV-DO/HSPA Mobile
Broadband Module
Technology/Operating
Bands
Wireless Protocol
Standards
Wireless Parametric
Standards
Maximum Data Rates
Maximum Output Power
Maximum Power
Consumption
Power Consumption,
Sleep Mode
Power Management
Antenna Type
Form Factor
Weight
Dimensions (Length x
Width x Thickness)
DA - 13055
V.22
V.21
Bell 212A
Bell 103J
TIA/EIA-578-B (Class 1)
T.30, T.4 (Group 3)
V.17
V.29
V.27ter
V.21 Channel 2
V.250 (Partial)
TIA-602
Identification: +GMI, +GMM, +GMR
Port control: +IPR, +ICF, +IFC, +ILRR
Modulation: +MS, +MR, +MA
Error control: +ES, +ER, +EB, +ESR, +ETBM
Data compression: +DS, +DR
V.251
GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS),
1900MHz (PCS)
UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I),
1900MHz (UTRA FDD Band II), 850MHz (UTRA FDD Band V)
1xEVDO/1xRTT with receive diversity: 850MHz (Band Class0-Cell),
1900MHz (Band Class1-PCS)
GSM/GPRS/EDGE: Class B, Multi-slot operation, coding schemes CS1 –
CS4 and MSC1 – MSC9.
UMTS/WCDMA: Release 99 and Release 5
CDMA: 1xEVDO Release 0 and Release A, IS-95A, IS-95B, IS-2000
Meets or exceeds TIA/EIA IS-98-D
UMTS (HSPA) – 7.2 Mbps (Download ), 2.0Mbps (Upload)
CDMA (EVDO Release A) – 3.1 Mbps (Download), 1.8Mbps (Upload)
GSM/GPRS/EDGE: 32dBm (+/-1)
WCDMA: 24dBm (+/-1)
CDMA: 24dBm (+/-1)
2500mA (peak); 1000mA (average)
5 mA
USB selective suspend
Integrated notebook wireless button
Dual high efficiency 5 band antennae with spatial diversity, mounted in the
display enclosure
PCI-Express MiniCard
11.5 g
2.01 x 1.18 x 0.18 in (51 x 30 x 4.5 mm)
North America — Version 3 — August 22, 2008
Page 28
QuickSpecs
HP Compaq 6735b Notebook PC
Technical Specifications
Voltage, Operating
Temperature, Operating
(from TIA/EIA/IS-98-D)
Temperature, Nonoperating, 96 hours (from
MIL-STD 202 Method
108)
Humidity, Non-operating
Configuration Utilities
LED Activity
Broadcom 4312G
Wireless LAN Standards
802.11b/g WiFi Adapter
Interoperability
Frequency Band
Data Rates
Modulation
Security1
3.3v +/- 10%
–22° to 140° F (–30° to 60° C) (full RF performance)
–22° to 167° F (–30° to 75° C) (reduced RF performance)
–40° to 185° F (–40° to 85° C)
85% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)
HP Connection Manager
LED Off – Radio Off;
Solid LED On – Radio On
IEEE 802.11b
IEEE 802.11g
Wi-Fi certified (802.11abg only)
Cisco Compatible Extensions Program compliant (802.11abg only) with
Microsoft Windows Vista and XP (details at:
http://www.hp.com/go/notebooks/WLAN)
Tested with wireless access points from several major manufacturers
(details at: http://www.hp.com/go/notebooks/WLAN/draft-n)
2.4 GHz
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,
802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAPMSCHAPv2, LEAP, EAP-FAST.
Support for Cisco Security Features (proven compatibility with Cisco Aironet
infrastructure products through the Cisco Compatible Extensions Program
Version 4) with Microsoft Windows Vista and XP only.
Sub-channels
Multinational support with frequency bands and channels compliant to local
regulations.
Media Access Protocol
CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Ad-hoc (Peer to Peer)
Models
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
2
Output Power (for CCK) 17 dBm
Output Power (for OFDM; 15 dBm
power varies by data
rate)2
Idle associated: 250 mW
Power Consumption
Idle unassociated: 150 mW
Transmit: 2.0 W (max)
Receive: 2.0 W (max)
DA - 13055
North America — Version 3 — August 22, 2008
Page 29
QuickSpecs
HP Compaq 6735b Notebook PC
Technical Specifications
Power Management
ACPI compliant power management
802.11 compliant power saving mode
54 Mbps: -71 dBm, 11 Mbps: -85 dBm , 1 Mbps: -95 dBm
High efficiency dual band antenna with spatial diversity, mounted in the
display enclosure
802.11 b – Typical
1200 feet – Outdoor Open Area
(@1 Mbps)
300 feet – Indoor, Office environment
802.11 g – Typical
1200 feet – Outdoor Open Area
(@1 Mbps)
300 feet – Indoor, Office environment
PCI-Express MiniCard
0.026 lb (12 g)
Receiver Sensitivity3
Antenna type
Range
Form Factor
Weight
Dimensions
Operating Voltage
Temperature
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
3.3v +/- 10%
Operating
14° to 149° F (–10° to 65° C)
Non-operating
–40° to 176° F (–40° to 80° C)
Operating
10% to 90% (non-condensing)
Non-operating
5% to 95% (non-condensing)
Operating
0 to 10,000 ft (3,048 m)
Non-operating
0 to 50,000 ft (15,240 m)
Microsoft Windows XP
Choice of Configuration Utility:
Humidity
Altitude
Configuration Utility4
Microsoft Windows XP Wireless Network Connection Manager
Broadcom Wireless Configuration Utility (required for Cisco
Compatible Extensions support)
Microsoft Windows Vista
Microsoft Windows Vista Wireless Network Connection Manager
Broadcom IHV extensions for Windows Vista available to support
Cisco Compatible Extensions.
LED Activity
LED Off – Radio OFF; Solid LED On – Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
4. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN
supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows
Vista.
Broadcom 4322AGN
Wireless LAN Standards
802.11a/b/g/draft-n WiFi
Adapter
DA - 13055
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (draft 2.0)
North America — Version 3 — August 22, 2008
Page 30
QuickSpecs
HP Compaq 6735b Notebook PC
Technical Specifications
Interoperability
Frequency Band
Data Rates
Frequency Support
Modulation
Security1
Wi-Fi certified (802.11abg only)
Cisco Compatible Extensions Program compliant (802.11abg only) with
Microsoft Windows Vista and XP (details at:
http://www.hp.com/go/notebooks/WLAN)
Tested with wireless access points from several major manufacturers
(details at: http://www.hp.com/go/notebooks/WLAN/draft-n)
2.4 GHz and 5 GHz
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (draft): 6, 6.5, 9, 12, 13, 13.5, 18, 19.5, 24, 26, 27, 36, 39,
40.5, 48, 52, 54, 58.5, 65, 78, 81, 104, 108, 117, 121.5, 130, 135,
162, 216, 243, 270, 300 Mbps
20 MHz: 2.4 GHz and 5 GHz bands
40 MHz: 2.4 GHz and 5 GHz band
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,
802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAPMSCHAPv2, LEAP, EAP-FAST.
Support for Cisco Security Features (proven compatibility with Cisco Aironet
infrastructure products through the Cisco Compatible Extensions Program
Version 4) with Microsoft Windows Vista and XP only.
Sub-channels
Multinational support with frequency bands and channels compliant to local
regulations.
Media Access Protocol
CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Ad-hoc (Peer to Peer)
Models
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
2
Output Power (for CCK) 17 dBm
Output Power (for OFDM; 15 dBm
power varies by data
rate)2
Idle associated: 250 mW
Power Consumption
Idle unassociated: 150 mW
Transmit/Receive 20 MHz channel: 2.0 W (max)
Transmit/Receive 40 MHz channel: 2.0 W (max)
ACPI compliant power management
Power Management
802.11 compliant power saving mode
3
270 Mbps: -66dBm, 162 Mbps: -72 dBm, 54 Mbps: -72 dBm, 11 Mbps: Receiver Sensitivity
85 dBm , 1 Mbps: -94 dBm
High efficiency dual band antenna with spatial diversity, mounted in the
Antenna type
display enclosure
802.11 a – Typical
600 feet – Outdoor Open Area
Range
(@6 Mbps)
150 feet – Indoor, Office environment
802.11 b – Typical
1200 feet – Outdoor Open Area
(@1 Mbps)
300 feet – Indoor, Office environment
DA - 13055
North America — Version 3 — August 22, 2008
Page 31
QuickSpecs
HP Compaq 6735b Notebook PC
Technical Specifications
802.11 g – Typical
1200 feet – Outdoor Open Area
(@1 Mbps)
300 feet – Indoor, Office environment
PCI-Express MiniCard
0.026 lb (12 g)
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
3.3v +/- 10%
Operating
14° to 149° F (–10° to 65° C)
Non-operating
–40° to 176° F (–40° to 80° C)
Operating
10% to 90% (non-condensing)
Non-operating
5% to 95% (non-condensing)
Operating
0 to 10,000 ft (3,048 m)
Non-operating
0 to 50,000 ft (15,240 m)
Microsoft Windows XP
Choice of Configuration Utility:
Form Factor
Weight
Dimensions
Operating Voltage
Temperature
Humidity
Altitude
Configuration Utility4
Microsoft Windows XP Wireless Network Connection Manager
Broadcom Wireless Configuration Utility (required for Cisco
Compatible Extensions support)
Microsoft Windows Vista
Microsoft Windows Vista Wireless Network Connection Manager
Broadcom IHV extensions for Windows Vista available to support
Cisco Compatible Extensions.
LED Activity
LED Off – Radio OFF; Solid LED On – Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
4. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN
supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows
Vista.
HP Integrated Module
with Bluetooth Wireless
Technology
Bluetooth Specification
Dimensions
Frequency Band
Number of Available
Channels
Data Rates and
Throughput
Transmit Power
Receiver Sensitivity
DA - 13055
2.0 Compliant
1.02 x 0.55 x 0.22 in (26 x 14 x 5.7 mm)
2402 to 2480 MHz
79 (1 MHz) available channels
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or
1306.9 kbps symmetric
-6 dBm to 4 dBm (Bluetooth Class II)
Better than -80 dBM at 0.1 % raw bit error rate
North America — Version 3 — August 22, 2008
Page 32
QuickSpecs
HP Compaq 6735b Notebook PC
Technical Specifications
Power Consumption
Antenna
Range
Electrical Interface
OS Support
Bluetooth Software
Supported
Link Topology
Security
Power Management
Certifications
Temperature
Humidity
Altitude
Bluetooth Profiles
Supported
DA - 13055
Peak (Tx) 264 mW
Peak (Rx) 231 mW
Sleep <1 mW
Internally integrated within module
Up 33 ft (10 m)
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
Microsoft Windows XP Professional and Home
Microsoft Windows 2000
Broadcom Bluetooth for Windows
Microsoft Windows XP Bluetooth Software
Point to Point, Multipoint Pico Nets up to 7 slaves
Full support of Bluetooth Security Provisions
Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Operating
–4° to 158° F (–20° to 70° C)
Non-operating
–40° to 176° F (–40° to 80° C)
Operating
10% to 90%
Non-operating
5% to 95%
Operating
15,000 ft (4,572 m)
Non-operating
40,000 ft (12,192 m)
(with Bluetooth for Windows 4.0 software)
Serial Port Profile (SPP)*
Dial-Up Networking (DUN)*
Generic Object Exchange Profile (GOEP)
Object Push Profile (OPP)*
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)*
Personal Area Networking Profile (PAN)*
Human Interface Device Profile (HID)*
FAX Profile (FAX)
Basic Imaging Profile (BIP)
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
North America — Version 3 — August 22, 2008
Page 33
QuickSpecs
HP Compaq 6735b Notebook PC
Technical Specifications
* indicates the profile is also supported by Microsoft Windows XP SP2
Eco Data
Eco-Label Certifications
This product has received or is in the process of being certified to the
following approvals and may be labeled with one or more of these marks:
System Configuration
The configuration used for the Energy Consumption and Declared Noise
Emissions data is based on a “Typically Configured Notebook”
Copyright © 2008 Hewlett-Packard Development Company, L.P.
All rights reserved. Microsoft, Windows, Windows Vista and Windows XP are registered trademarks or trademarks of Microsoft
Corporation in the U.S. and/or other countries. Turion and Sempron are registered trademarks or trademarks of AMD Corporation in
the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S. and other countries. All other
product names mentioned herein may be trademarks of their respective companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
DA - 13055
North America — Version 3 — August 22, 2008
Page 34
Download PDF

advertising
