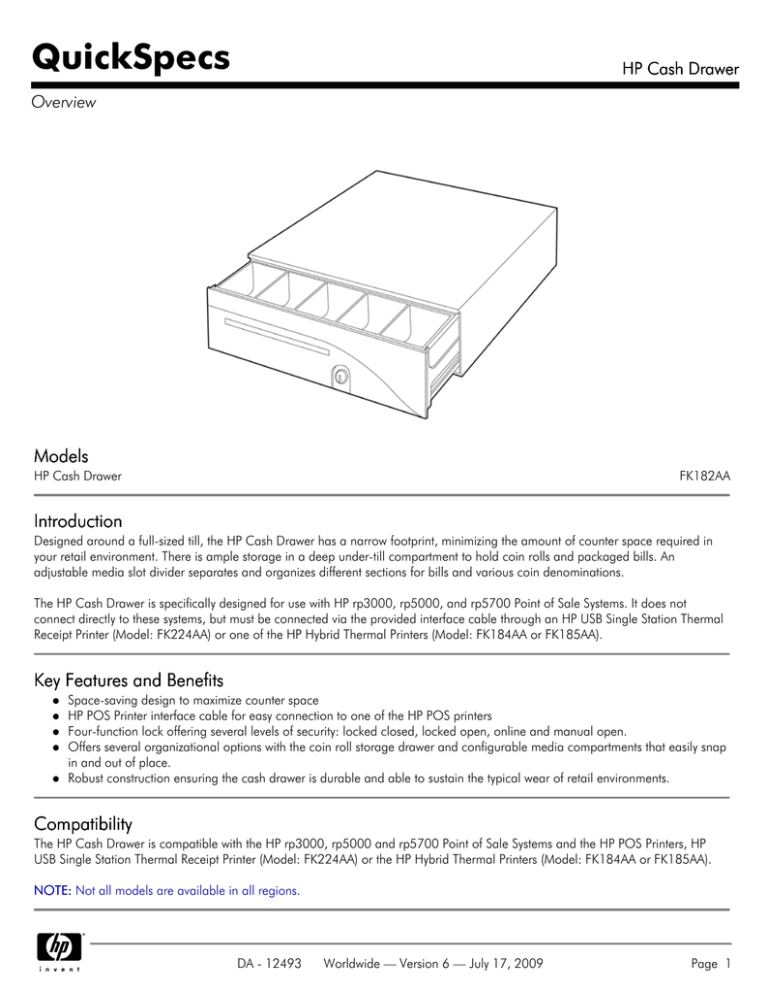

HP Cash Drawer
HP Cash Drawer
Designed around a full-sized till, the HP Cash Drawer has a narrow footprint, minimizing the amount of counter space required in
your retail environment. There is ample storage in a deep under-till compartment to hold coin rolls and packaged bills. An
adjustable media slot divider separates and organizes different sections for bills and various coin denominations.
The HP Cash Drawer is specifically designed for use with HP rp3000, rp5000, and rp5700 Point of Sale Systems. It does not
connect directly to these systems, but must be connected via the provided interface cable through an HP USB Single Station Thermal
Receipt Printer (Model: FK224AA) or one of the HP Hybrid Thermal Printers (Model: FK184AA or FK185AA).
Key Features and Benefits
Space-saving design to maximize counter space
HP POS Printer interface cable for easy connection to one of the HP POS printers
Four-function lock offering several levels of security: locked closed, locked open, online and manual open.
Offers several organizational options with the coin roll storage drawer and configurable media compartments that easily snap
in and out of place.
Robust construction ensuring the cash drawer is durable and able to sustain the typical wear of retail environments.
The HP Cash Drawer is compatible with the HP rp3000, rp5000 and rp5700 Point of Sale Systems and the HP POS Printers, HP
USB Single Station Thermal Receipt Printer (Model: FK224AA) or the HP Hybrid Thermal Printers (Model: FK184AA or FK185AA).
NOTE: Not all models are available in all regions.
DA - 12493
Worldwide — Version 6 — July 17, 2009
Page 1
HP Cash Drawer
Service and Support
Your HP branded Peripheral Limited Warranty is a three (3) year (HP Option Limited Warranty Period) parts replacement warranty.
DA - 12493
Worldwide — Version 6 — July 17, 2009
Page 2
HP Cash Drawer
Technical Specifications
Media Storage
Key Lock
Till Insert
Dimensions (LxWxH)
11.06 x 15.3 x 2.32
Till Dimensions
19 lbs ( 8.62 kg)
5 ft (1.52 m)
Cable Length
+0 C - +40 C (32 F - +104 F)
Operating Range
HP Carbonite
RJ45 from drawer to RJ12 (HP POS Printers)
Solenoid only
Genuine Windows Vista® Business 32*
Genuine Windows XP Professional
Genuine Windows Embedded for Point of Service (WEPOS)
Genuine Windows Embedded POSReady
Operating Systems
(compatible with)
Adjustable media slots/tills (depending on localizations)
Keyed alike, A9
Tills available to support US, Canadian, UK, Asia-Pac, Japanese, Euro,
Middle East & African currencies (localization required):
4 Bills 6 Coins
4 Bills 8 Coins
5 Bills 5 Coins
5 Bills 6 Coins
5 Bills 8 Coins
7 Bills 8 Coins Inclined
16.8 x 16 x 4.9 in (12.5 x 40.6 x 42.4 cm)
* Certain Windows Vista product features require advanced or additional hardware. Windows Vista
Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To
download the tool, visit: http://www.windowsvista.com/upgradeadvisor. For Windows Vista system
requirements, visit: http://www.windowsvista.com/systemrequirements
Agency Certifications
Option kit contents
Over 4,000,000 opening and closing cycles
HP Cash Drawer, localized Coin and bill tray with inner drawer dividers, set of 2 keys, interface cable to
the HP USB Receipt Printer, Point of Sale System Software and Documentation CD and the Options
Warranty Manual.
© Copyright 2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without
notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products
and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or
editorial errors or omissions contained herein.
Microsoft, Windows and Windows Vista are registered trademarks of the Microsoft group of companies.
DA - 12493
Worldwide — Version 6 — July 17, 2009
Page 3
