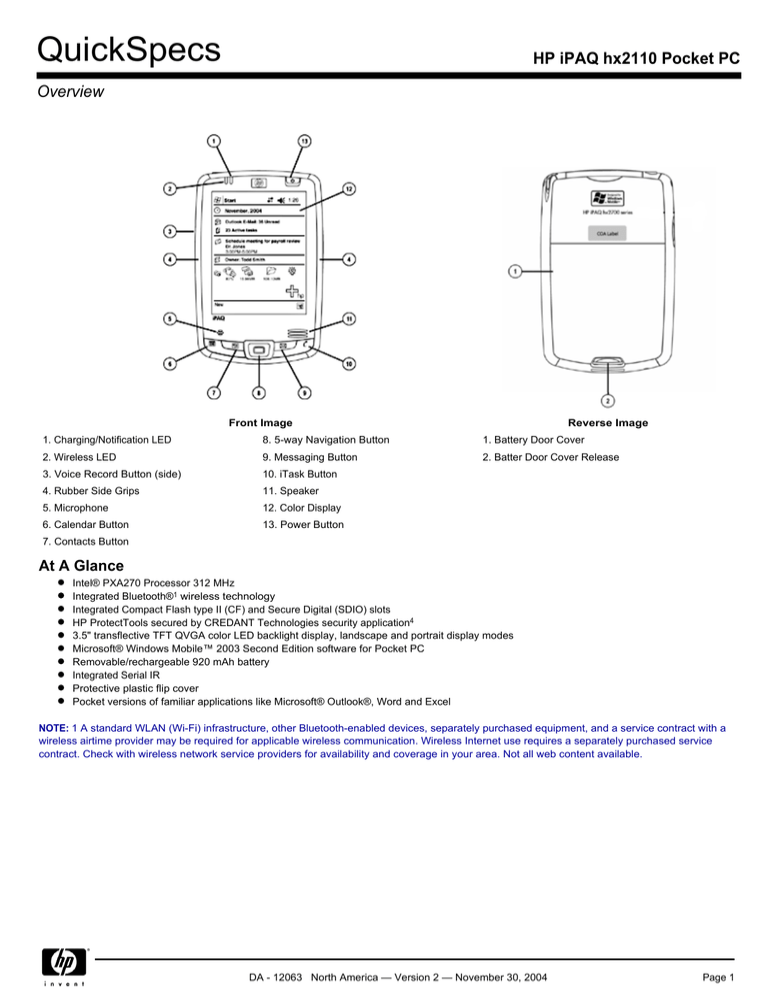

QuickSpecs
HP iPAQ hx2110 Pocket PC
Overview
Front Image
Reverse Image
1. Charging/Notification LED
8. 5-way Navigation Button
1. Battery Door Cover
2. Wireless LED
9. Messaging Button
2. Batter Door Cover Release
3. Voice Record Button (side)
10. iTask Button
4. Rubber Side Grips
11. Speaker
5. Microphone
12. Color Display
6. Calendar Button
13. Power Button
7. Contacts Button
At A Glance
Intel® PXA270 Processor 312 MHz
Integrated Bluetooth®1 wireless technology
Integrated Compact Flash type II (CF) and Secure Digital (SDIO) slots
HP ProtectTools secured by CREDANT Technologies security application4
3.5" transflective TFT QVGA color LED backlight display, landscape and portrait display modes
Microsoft® Windows Mobile™ 2003 Second Edition software for Pocket PC
Removable/rechargeable 920 mAh battery
Integrated Serial IR
Protective plastic flip cover
Pocket versions of familiar applications like Microsoft® Outlook®, Word and Excel
NOTE: 1 A standard WLAN (Wi-Fi) infrastructure, other Bluetooth-enabled devices, separately purchased equipment, and a service contract with a
wireless airtime provider may be required for applicable wireless communication. Wireless Internet use requires a separately purchased service
contract. Check with wireless network service providers for availability and coverage in your area. Not all web content available.
DA - 12063 North America — Version 2 — November 30, 2004
Page 1
QuickSpecs
HP iPAQ hx2110 Pocket PC
Overview
Top Image
Bottom Image
1. Headphone/Headset Jack
1. Reset Button
2. Compact Flash (CD) Expansion Slot
2. Charging ActiveSync Connector
3. Stylus
4. Serial IR (Infrared) Port
5. Secure Digital (SDIO) Expansion Slot
DA - 12063 North America — Version 2 — November 30, 2004
Page 2
QuickSpecs
HP iPAQ hx2110 Pocket PC
Standard Features
Models
iPAQ Pocket PC hx2110 – 64 MB ROM, 64 MB SDRAM, Bluetooth and Serial IR
FA296A#ABA – US Commercial, English
iPAQ Pocket PC hx2115 - 64 MB ROM, 64 MB SDRAM, Bluetooth and Serial IR
FA297A#ABA - US Retail, English
Processor
Intel® PXA270 Processor 312 MHz
NOTE: Intel's processor numbering is not a measurement of higher performance.
Memory
User Available Memory
128 MB total memory (64 MB ROM and 64 MB SDRAM)
Up to 65 MB user available memory that includes 20 MB iPAQ File Store
Display
Type
Transflective TFT QVGA color with LED backlight with power save mode
Modes
Portrait and landscape
Number of Colors
64K color (65,536 colors) 16-bit
Touch Screen
Yes
Resolution (W x H)
240 x 320 pixels
Dot Pitch
0.24 mm
Viewable Image Size
3.5 in (89 mm)
Hardware Buttons/
Reset Buttons
Power, soft reset, 5-way navigation, voice record, calendar, contacts, messaging, and iTask buttons. (The last 5
buttons are re-programmable.)
Stylus
One – Included in the box
Audio
Integrated microphone, speaker and one 3.5 mm stereo headphone jack, MP3 stereo (through headphone jack)
Indicators
LED 1 – Power
Solid amber LED – battery in unit fully charged
Flashing amber LED – battery in unit charging
Flashing green LED – event alarm/notification
Cradle Interfaces
Other interfaces
LED 2 – Wireless
Flashing blue LED – wireless Radio enabled
Connector
1 – 22 pin
DC Power jack connector
for AC/DC Adapter
connection
1
IrDA (SIR)
USB 1.1 Client – Supported via HP standard 22-pin cradle interface
Serial RS232 – Supported via HP standard 22-pin cable interface (cable must be purchased separately)
NOTE: Some HP authorized options may not be supported. See http://www.hp.com/go/ipaqaccessories.
DA - 12063 North America — Version 2 — November 30, 2004
Page 3
QuickSpecs
HP iPAQ hx2110 Pocket PC
Standard Features
SD Slot
Support 1-bit SDIO and 4-bit SD/MMC type memory standard
CF Slot
1 Type II
Power Supply
Battery
Removable/rechargeable 920 mAh Lithium-lon (user changeable)
Optional extended 1440 mAh Lithium-lon battery available for purchase separately
(http://www.hp.com/go/ipaqaccessories).
AC Power
AC Input: 100~240 Vac, 50/60 Hz, AC Input current: 0.3 Aac max
Output Voltage: 5Vdc (typical), Output Current: 2A (typical)
NOTE: Battery run time varies based on the usage pattern of an individual user and the configuration of the handheld.
Use of internal wireless capabilities and backlight will significantly decrease battery run time.
AC Adapter
System Unit
Dimensions (H x W x D)
3 x 1.9 x 1.8 in (76 x 48 x 44 mm – including prongs), (may vary by model)
Cord Length (approx.)
6 ft (1.83 m)
Power Supply Ratings
Voltage Range
100 to 240 V Switching
Input Current
0.3 Aac
Input Frequency
50 to 60 Hz
Output Voltage
5 VDC
Output Current
2 Amp
Dimensions (H x W x D)
4.71 x 3.01 x .65 in (119.4 x 76.6 x 16.3 mm)
Weight
5.8 oz (164.4 g)
Operating Temperature
32° to 104° F (0° to 40° C)
Storage Temperature
-4° to 140° F (-20° to 60° C)
Operating Humidity
90% RH
Regulatory Marks
Electrical
FCC Class B, UL or CSA NRTL
Safety
C-UL, NOM
Design Features
4 programmable application quick-launch buttons, 5-way navigation button, touch-sensitive display for stylus or
fingertip, voice record button, microphone and speaker, rubber side for a comfortable grip
Operating System
Microsoft® Windows Mobile™ 2003 Second Edition software for Pocket PC
Pocket versions of Microsoft software are included (Outlook, Word, Excel and Internet Explorer for Pocket PC)
Operating System
Applications
Powered by Microsoft® Windows Mobile™ 2003 Second Edition for Pocket PC
Calendar, Contacts, Tasks, Voice Recorder, Notes, Pocket Word (with Spellchecker), Pocket Excel, Pocket Internet
Explorer, Windows Media Player 9 (MP3, audio and video streaming), Calculator, Solitaire, Jawbreaker, Inbox (with
Spell Checker for email), File Explorer, Pictures, Terminal Services Client, VPN Client, Infrared Beaming, Clock, Align
Screen, Memory, Volume control
In the box
HP iPAQ hx2100 series Pocket PC, lithium-Ion 920 mAh removable/rechargeable battery, AC adapter, charger
adapter, USB desktop synchronization cable, stylus, protective plastic flip cover, Getting Started Guide, How Do I…?
Guide, and HP iPAQ Pocket PC Companion CD.
DA - 12063 North America — Version 2 — November 30, 2004
Page 4
QuickSpecs
HP iPAQ hx2110 Pocket PC
Standard Features
Additional Software and
links
Outlook 2002, Microsoft ActiveSync 3.7.1 (Desktop device synchronization), Microsoft Reader eBooks, and links to
Microsoft websites for additional downloadable applications.
(NOTE: some programs may require purchase of additional desktop software to utilize Pocket PC versions).
Service and Support
One-year parts and labor in most regions; 90 days technical support for software in most regions. Additional offers
may vary by region.
HP Exclusive Applications
HP ProtectTools secured by CREDANT Technologies: secure your device and your data
Bluetooth Phone Manager: connect to a Bluetooth enabled phone and browse the internet1,2,3
iPAQ Wireless: manage your wireless connections
HP Profiles: set and name profiles to be used at different times for different functions, such as ring type,
volume, brightness and wireless settings
HP Mobile Printing: print to network and Bluetooth printers without any additional software
Bluetooth Manager: manage your Bluetooth connections and settings
iPAQ File Store: non-volatile storage in flash ROM
iPAQ Backup: backup and restore your data to main memory, memory card or iPAQ file store
iTask: launch and switch between tasks and applications
HP Image Zone for Pocket PC: view images and create slide shows
Utilities: Self Test, iPAQ Audio, Power Status
How Do I…? Guide
Companion CD from HP
Full Versions
Trial Versions
Applications
ActiveSync
Adobe Reader for PC
ClearVUE Suite (Word and Excel)
ClearVUE Suite (PPT and PDF)
Outlook 2002 Desktop
WorldMate (NA Retail only)
Media Player Desktop
Altiris Express
Afaria Management
File Explorer 2003
Margi Presenter-to-go
Pocket Informant 5.0
CD Links
Audible Player
AvantGo
Handango
iPAQ Backup upgrade
LANDesk
Vindigo 2.0
Microsoft Games
Additional Documentation
Safety and Comfort Guide on PDF, and User Guide on PDF
NOTE: Programs may vary based on model. Some programs are accessed through CD links to download web sites.
Bluetooth®
Specifications1
Technology
High-speed, low-power, short-range wireless communication with other Bluetooth
devices
Bluetooth specification
1.2 compliant (2.4-GHz Industrial Scientific Medical Band)
System interface
High-speed UART processor interface
User Interface
Bluetooth Manager
Device type
Class II device; up to 4 dBm transmit, typical 10 meter range
Power
3.3V 5% Peak current
Receiver sensitivity
-83 dBm
Regulatory standards
R&TT#-EN 300 328 and EN 300 826, UL 1950, CB Safety Scheme inclusive of EN
60950 and IEC 950, FCC Part 15 subpart C, Canadian, CE
Profile Support
General Access Profile
Service Discovery Application Profile
– typical TX current at approximately 30 mA
– typical RX current at approximately 50 mA
DA - 12063 North America — Version 2 — November 30, 2004
Page 5
QuickSpecs
HP iPAQ hx2110 Pocket PC
Standard Features
Serial Port Profile
Generic Object Exchange Profile
File Transfer Profile
Dial-Up Networking Profile
LAN Access Profile
Object Push Profile
Personal Area Networking Profile
Basic Printing Profile
Hard Copy Replacement Profile (printing)
Headset Profile
Usage Models
Service Discovery
Determine what Bluetooth devices are within range and support authorization
File Transfer
File and directory browsing and navigation on another Bluetooth device.
File copying
Object manipulation – including add, delete, create new folders etc.
Serial Port
Synchronization between PDAs and PCs
Dial Up Networking
Wireless link to WAN thru Bluetooth enabled cell phone1,2,3
Agnostic to WAN technology
Send/receive SMS messages
LAN Access
Wireless link to Corporate LAN using Bluetooth and appropriate Bluetooth access
point1
Corporate email, network neighborhood, access to LAN applications, file transfer, ftp,
Internet browsing, etc, using TCP/IP1
Access the Internet by connecting to your desktop or notebook over Bluetooth and
using its network connection1
Generic Object Exchange and Object Push
Exchange business cards, tasks, documents, appointments and more1
Personal Area Networking
Collaborate, chat, play games, exchange data1
Adhoc peer to peer networking1
Basic Printing and Hard Copy Replacement Profiles
Print to any HP Bluetooth enabled printer without the need for cables or specific print
drivers
Certifications
All necessary regulatory approvals for countries supported including:
Bluetooth logo (FCC (47 CFR) Part 15C, Section 15.247&15.249 ETS 300 328, ETS 301
489-1/17 Low Voltage Directive IEC950 UL and CE Mark)
NOTE:
1 A standard Wi-Fi infrastructure, other Bluetooth-enabled devices, separately purchased equipment, and a service
contract with a wireless airtime provider may be required for applicable wireless communication. Wireless Internet
use requires a separately purchased service contract. Check with wireless network service providers for
availability and coverage in your area. Not all web content available.
DA - 12063 North America — Version 2 — November 30, 2004
Page 6
QuickSpecs
HP iPAQ hx2110 Pocket PC
Options
NOTE: Optional accessories are available at additional cost.
Memory/Storage
Power
Synchronization
Input Devices
128 MB SD Memory Card
FA135A#AC3
256 MB SD Memory Card
FA136A#AC3
512 MB SD Memory Card
FA184A#AC3
1 GB SD Memory Card
FA283A#AC3
1440 mAh Lithium Ion Standard Battery
FA285A#AC3
2880 mAh Lithium Ion Extended Battery
FA286A#AC3
Automobile Adapter
FA125A#AC3
Charger Adapter
FA133A#AC3
AC Adapter
FA130A#ABA
Desktop Cradle
FA260A#AC3
AutoSync Cable (USB and Serial)
FA122A#AC3
Stylus Three-pack
FA261A#AC3
Foldable Keyboard
FA118A#ABA
Wireless Bluetooth folding keyboard
FA287A#AC3
Thumb Keyboard
FA302A#AC3
SDIO Camera (Photosmart Mobile Camera)
FA185A#ABA
Navigation
iPAQ Navigation System – (U.S. only)
FA196A#ABA
Headphones
Bluetooth Stereo Headphones
FA303A#AC3
Cases
iPAQ Rugged Case
FA288A#AC3
Nylon slim Case
FA161A#AC3
Leather Belt Case
FA160A#AC3
Premier Leather Belt Case
FA350A#AC3
Custom Cases: to view and order go to: http://www.casesonline.com
NOTES:
1 A standard WI-FI infrastructure, other Bluetooth-enabled devices, separately purchased equipment, and a service contract with a wireless airtime
provider may be required for applicable wireless communication. Wireless Internet use requires a separately purchased service contract. Check
with service provider for availability and coverage in your area. Not all web content available.
2 Requires Bluetooth enabled mobile, separately purchased wireless carrier/Internet service plan(s) and supporting IT infrastructure.
3 Telephone service requires separately purchased contract with a telephone service provider with coverage in your service area.
4 User must have HP Protect Tools features enabled.
HP iPAQ Pocket PC features Windows Mobile™ software
For more information on HP iPAQ Pocket PC, visit our website at http://www.hp.com/go/iPAQ
©Copyright 2004 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only
warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing
herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained
herein. Microsoft, Windows, the Windows Logo and ActiveSync are registered trademarks or trademarks of Microsoft Corporation in the United
States and/or other countries. Intel is a registered trademark of Intel Corporation in the U.S. and/or other countries.
DA - 12063 North America — Version 2 — November 30, 2004
Page 7
Download PDF

advertising
