QuickSpecs
HP iPAQ rw6800 Multimedia Messenger Series (AP Only)

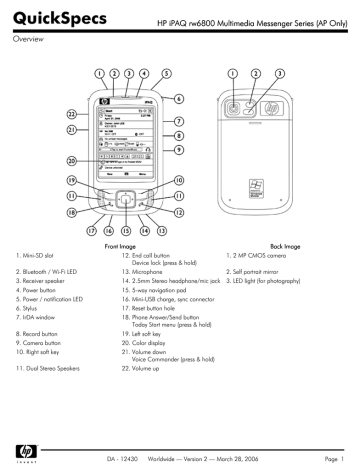

Overview
1. Mini-SD slot
2. Bluetooth / Wi-Fi LED
3. Receiver speaker
4. Power button
5. Power / notification LED
6. Stylus
7. IrDA window
8. Record button
9. Camera button
10. Right soft key
11. Dual Stereo Speakers
Front Image
Back Image
12. End call button
1. 2 MP CMOS camera
Device lock (press & hold)
13. Microphone
2. Self portrait mirror
14. 2.5mm Stereo headphone/mic jack 3. LED light (for photography)
15. 5-way navigation pad
16. Mini-USB charge, sync connector
17. Reset button hole
18. Phone Answer/Send button
Today Start menu (press & hold)
19. Left soft key
20. Color display
21. Volume down
Voice Commander (press & hold)
22. Volume up
DA - 12430
Worldwide — Version 2 — March 28, 2006
Page 1
QuickSpecs
HP iPAQ rw6800 Multimedia Messenger Series (AP Only)
Overview
At A Glance
Integrated Wireless Radio Antennas
Integrated Tri- band GSM/GPRS/EDGE wireless radio with automatic band transition1,2,3,4
Integrated Wi-Fi (IEEE802.11b) on selected models only
Integrated Bluetooth® v1.2 wireless technology
Intel® PXA272 Processor 416 MHz
Integrated HP Photosmart 2 MP Camera
FM Tuner
Dual Stereo Speakers
Integrated mini-SD slot(storage memory expansion only)
Integrated mini-USB slot
Integrated SIR IrDA
Removable/rechargeable 1,530 mAh Li-Pol battery
2.7" transmissive QVGA (240x320 pixels) TFT LCD with 18-bit (262,144) color, LED backlight and power save mode.
Microsoft Windows Mobile® 5.0 for Pocket PC, Phone Edition with Messaging and Security Feature Pack
Mobile versions of Microsoft Office software include (Word®, Excel®, PowerPoint® and Internet Explorer®)
Microsoft® Outlook™ 2002 for Pocket PC
NOTES:
NOTES
1 A standard GSM/GPRS infrastructure, other Bluetooth-enabled devices, separately purchased equipment, and a service contract
with a wireless airtime provider may be required for applicable wireless communication. GSM/GPRS Wireless Internet access
requires separately purchased Internet service contract. Check with service provider for availability and coverage in your area. Not
all web content available. GPRS may not be available in all networks. GPRS data transmission speeds may vary based upon network
capabilities and other conditions. Establishment and continuation of a GPRS connection depends on network availability, provider
support and signal strength.
2 EDGE (Enhanced Data for Global Evolution) is a global standard for wireless wide-area data communication being rapidly
deployed by GSM carriers worldwide. Actual download speeds may vary. Coverage is subject to transmission limitations and terrain,
system, capacity and other limitations. Not all features and service options are available in all areas.
3 Telephone service requires separately purchased contract with a telephone service provider with coverage in your service area.
Additional fees may apply for some features, check with your service provider.
4 Normal GSM Data Calls (CSD) are not basic GSM data services. These services may not be available via all operators, and may
require separate subscription. Maximum connection speed is used in defining maximum speed. The GSM Operator may change the
speed of connection and reduce time slots at its discretion if the network is congested. These actions may cause lower total data rate
than the requested data rate.
DA - 12430
Worldwide — Version 2 — March 28, 2006
Page 2
QuickSpecs
HP iPAQ rw6800 Multimedia Messenger Series (AP Only)
Standard Features
Models
HP iPAQ rw6818 Multimedia Messenger – GSM/GPRS/EDGE, Bluetooth, Camera
FA760AA#UUF – AP English
FA760AA#ABG – Generic Aust/NZ English
FA760AA#ARE – Malaysia English
FA760AA#AB0 – T-Chinese (Taiwan, Hong Kong)
FA760AA#AB2 – S-Chinese (China)
HP iPAQ rw6828 Multimedia Messenger – GSM/GPRS/EDGE, Wi-Fi, Bluetooth, Camera
FA761AA#UUF – AP English
FA761AA#ABG – Generic Aust/NZ English
FA761AA#ARE – Malaysia English
FA761AA#AB0 – T-Chinese (Taiwan, Hong Kong)
Processor
Intel® PXA272 Processor 416 MHz
NOTE: Intel's processor numbering is not a measurement of higher performance.
Memory
Total Memory Size
128 MB flash ROM for persistent storage
64 MB SDRAM main memory for running applications
Display
Type
Number of Colors
Transmissive QVGA color TFT LCD with LED backlight & power save mode
18-bit (262,144) colors
NOTE: OS supports up to 16-bit (65,536) colors only
Yes
240 x 320 pixels
0.057(H) x 0.171(V) mm
2.7 in (68 mm) diagonal
Touch Screen
Resolution (W x H)
Dot Pitch
Viewable Image Size
System Unit
Dimensions (H x W x D)
Weight
Operating Temperature
Storage Temperature
Operating Humidity
Regulatory Marks
DA - 12430
4.02 x 2.28 x 0.77 in (102 x 58 x 19.5 mm)
NOTE: Not including an LCD-protective flip cover
4.94 oz (140 g)
32° to 104° F (0° to 40° C)
-4° to 140° F (-20° to 60° C)
90% RH
Environmental: Wee logo
All required regulatory marks for the intended markets
Worldwide — Version 2 — March 28, 2006
Page 3
QuickSpecs
HP iPAQ rw6800 Multimedia Messenger Series (AP Only)
Standard Features
HP Photosmart Camera
Resolution
Image Quality
File Format Supported
UXVGA/SXGA/CIF, 2 Mega pixels CMOS with LED light
1,600 x 1,200 pixels
Still image formats – JPEG:
SXGA – 800 x 600
VGA – 640 x 480
QVGA – 320 x 240
QQVGA – 160 x 120
Video formats – 3GP (H.263)
CIF – 352 x 288
QCIF – 176 x 144
SQCIF – 128 x 96
High Quality F/2.8 Lens, with focus set to 1.8M
LED light
Self-portrait mirror
Hardware Buttons/
Reset Buttons
1 power button, 1 reset button, 2 soft key buttons, 1 voice record button, 1 camera/video button (dual
function), 1 up and 1 down volume control button, 1 phone answer/send button with green phone icon,
1 end call button with red phone icon, 1 4-way navigation button and 1 select button
Stylus
1 included in the system box
Audio
Input
Indicators
LED 1 – Charge and
Notify
Voice recording and voice commander using built-in speakerphone,
microphone on the bottom of unit, or microphone input jack (combined with
headphone jack)
Output
Dual stereo Speakers on the front of unit, 2.5mm handset earpiece
audio/microphone jack with stereo sound
3D widening/bass boost/treble adjustment LifeVibes™ Concert Sound EX
The audio driver supports 8.0, 11.025, 16, 22.05 and 44.1 KHz playback sample rates.
Audio codecs: WMA, MP3, Simple MIDI, AMR-NB, polyphonic MIDI
LED 2 – Bluetooth
Phone Notification
External Interfaces
Connector
DA - 12430
Flashing Green LED – within GSM coverage area
Flashing Amber LED – event notification / alarm
Solid Amber LED – battery charging (Charger connected)
Solid Green LED – battery fully charged (Charger connected)
Flashing Blue LED – Bluetooth ON
Flashing Blue LED – WLAN ON
Vibrate
Audible
Visual message on the display
1 mini-USB connector for synchronization and charging
Worldwide — Version 2 — March 28, 2006
Page 4
QuickSpecs
HP iPAQ rw6800 Multimedia Messenger Series (AP Only)
Standard Features
Other Interfaces
IrDA (SIR)
NOTE: Some HP authorized options may not be supported. See
http://www.hp.com/go/ipaqaccessories.
Mini SD Slot
Supports 4-bit mini-SD memory standard
Power
Battery
AC Adapter
Dimensions (H x W x D)
Removable and rechargeable 1,530 mAh Lithium-Polymer battery
Additional batteries available for purchase
(http://www.hp.com/go/ipaqaccessories).
Battery Performance
Continuous talking time: approximately 5.5 hours
Continuous standby time: approximately 280 hours
NOTE: Talking, standby, and usage times are approximate and depend on the network configurations,
usage patterns of an individual user and handheld device configurations. Use of internal wireless
capabilities, GPS and backlight will significantly decrease battery run time.
Cord Length (approx.)
Power Supply Ratings
2.96 x 1.81 x 1.24 in (75.32 x 45.96 x 31.67 mm – including prongs),
(may vary by model)
3.94 ft (1.2 m) USB cable length only
Voltage Range
100 to 240 Vac
Input Current
0.15A (RMS) 120VAC at Max. load.
0.08A (RMS) 230VAC at Max. load.
Input Frequency
50 to 60 Hz
Output Voltage
5.0 VDC (typical)
Output Current
1.0 Amp (typical)
Operating System
Microsoft Windows Mobile® 5.0 software for Pocket PC, Phone Edition with Messaging and Security
Feature Pack
Mobile versions of Microsoft Office software include (Word®, Excel®, PowerPoint® and Internet
Explorer)
Microsoft® Outlook™ 2002 for Pocket PC
Operating System
Applications for Phone
Edition
Powered by Microsoft Windows Mobile® 5.0 – Phone Edition: Calendar, Contacts, Tasks, Voice
Recorder, Notes, Word Mobile, Excel Mobile, PowerPoint Mobile, Internet Explorer Mobile, Windows
Media Player 10 Mobile, Calculator, Solitaire, Bubble Breaker, Wireless Manager, Device Lock,
Messaging, Pocket MSN, File Explorer, Terminal Services Client, SIM Contacts, Settings
In the box
HP iPAQ rw6818 (rw6828 for WLAN SKUs) Multimedia Messenger, 1,530mAh Lithium-Polymer
removable and rechargeable battery, free-voltage AC adapter, wired stereo headphones, 2 LCDprotective flip covers (grey and green for rw6818 SKUs, and grey and blue for rw6828 SKUs), mini-USB
synchronization cable, stylus, leather holster, product information guide, warranty card, HP & Microsoft
EULA card, Getting Started CD
DA - 12430
Worldwide — Version 2 — March 28, 2006
Page 5
QuickSpecs
HP iPAQ rw6800 Multimedia Messenger Series (AP Only)
Standard Features
Additional Software and
Links
Microsoft Outlook 2002, Microsoft ActiveSync 4.1 (Desktop device synchronization) and links to
Microsoft websites for additional downloadable applications
NOTE: Some programs may require purchase of additional desktop software to utilize Pocket PC
versions.
Service and Support
One-year Limited Warranty on parts and labor with Carry-In service; 90 days technical support for
software in Asia-Pacific regions. Additional offers may vary by country.
HP Exclusive Applications
Getting Started CD
applications from HP
HP Photosmart Camera – capture digital photos and video with the built-in 2 MP camera.
HP Photosmart Mobile – view, organize and share photos, videos.
Today Panel Lite – one touch access from Today Screen to device status: battery, memory, and
backlight settings.
HP Help and Support – one location for help, warranty, and support information.
Modem Link – use the HP iPAQ as a modem to wirelessly connect a notebook PC to the Internet.
PocketMind PocketMusic – MP3, OGG, WMA, WAV music player
FM Radio – FM radio tuner
Esmertec Java Virtual Machine (VM) – run Java applications on the Pocket PC
Auto Configurator – GSM network detection and settings
Download Agent – downloaded content management
TestSuite – system self-testing tool
Cyberon Voice Commander – voice recognition and application launch software
Wi-Fi Utility – Wi-Fi status and settings information tool
Arcsoft MMS Composer – multimedia messaging service client
Philips Lifevibes™ Concert Sound EX – 3D widening, bass boot, treble enhancement
Applications
CD Links
Full Versions
Microsoft Outlook 2002 for PC
ActiveSync 4.1 for PC
HP Photosmart Premier for PC
HP Image Transfer for PC and Pocket PC
Real Player 10.5 for PC
Windows Media Player 10 Desktop for PC
Adobe Reader for PC application for PC
PocketMind CD to Mobile for PC
PDAMill GameBox Classic for Pocket PC
PDAMill GameBox Gems for Pocket PC
DIOTEK PowerDic Electronic Dic. for Pocket PC (for selected models only)
HP Web Registration
HP Handheld Software Store
HP Mobility Solution Evaluation Center
HP iPAQ Accessories
HP iPAQ Products
HP Help and Support
HP Worldwide Support Telephone Numbers
Microsoft Web Site for Windows Mobile-based Pocket PC
Additional Documentation
HP iPAQ Additional Product Information
HP Important Safety Information
"How Do I" Help Information
The Modem Link Software and Driver
DA - 12430
Worldwide — Version 2 — March 28, 2006
Page 6
QuickSpecs
HP iPAQ rw6800 Multimedia Messenger Series (AP Only)
Standard Features
NOTE: Programs may vary based on model. Some programs are accessed through CD links to
download web sites.
Regulatory Compliance
Certifications
Regulatory
Wi-Fi Certification
CCC, RTA, NAL, NZ DoC, NTC, IDA, DGT, SIRIM, PTA, GOST, SASO,
SABS, PTD, JTB, WPC, DGPT, CIT, MoC, ICASA, Etisalat, etc.
GCF 3.16
PTCRB 3.2.1
RoHS or WEE compliance
Bluetooth logo (FCC (47 CFR) Part 15C, Section 15.247&15.249 to EN
300 328, EN 301 489-1/17 Low Voltage Directive IEC 60950 UL and CE
Mark)
Compliant with ETSI GSM Phase 2+ standard
Wi-Fi logo certification including WPA/TLS
USB Compliance
USB 1.1 client (2.0 full speed)
Bluetooth
GSM/GPRS/EDGE
Specifications1,2,3,4
GPRS/GSM/EDGE Quad ENS, NACC, and Extended uplink TBF support
band
Global voice and data wireless network
Simultaneous operation with Wi-Fi & Bluetooth
Technology
EDGE (Enhanced Data for Global Evolution)
Global voice and data wireless network
GSM (Global System for Mobile Communications)
GPRS (General Packet Radio Services)
Tri-band GSM/GPRS / EDGE (GSM 900/1,800/1,900 MHz)
Operation
Class 4 (2W @ 900 MHz)
Power class
Class 1 (1W @ 1800/1900 MHz)
GSM 1900 8-PSK Class E2
GSM 900 8-PSK Class E2
GSM 1800 8-PSK Class
EGPRS Class B
EDGE features
Multi slot Class 10
PBCCH
Support for E-GPRS coding schemes MCS1 to MCS9 in both the uplink and
downlink
Coding Schemes: CS1 to CS4
GPRS data features
Network Mode 1-4
Half Rate, Full Rate, Enhanced Full Rate and Adaptive Multi-Rate
GSM voice features
(HR,FR/EFR/AMR)
Echo cancellation and noise reduction
Full duplex hands free
Normal Single Slot GSM Circuit Switched Data @ 9.6 Kbps Transparent and
Circuit switched data5
Non-Transparent Data
Call forwarding, Call barring, Multiparty, Calling Line Identity
Supplementary services
supported
Call Waiting and Call Holding
USSD Phase 2 (MO & MT)
Unstructured
supplementary service
data
GEA1
Encryption
DA - 12430
Worldwide — Version 2 — March 28, 2006
Page 7
QuickSpecs
HP iPAQ rw6800 Multimedia Messenger Series (AP Only)
Standard Features
Authentication
Messaging services
SIM
Ring Tones file formats
Bluetooth®
Bluetooth
Specifications1
Technology
Password Authentication Protocol (PAP) or
Challenge Authentication Protocol (CHAP)
SMS (Short Message Service) for GSM, both mobile-originated and mobileterminated SMS
MMS (Multimedia Message Service)
Cell Broadcast
3V SIM operation
Security: Pin 1 & 2 Control
SIM standards, Phase 1, 2, 2+, CPHS
SIM Toolkit Release 96+
Simple MIDI Type 0, WMA, WAV, MP3, polyphonic MIDI
High-speed, low-power, short-range wireless communication with other
Bluetooth devices
ALPS solution
UART/PCM interface, 4dBm Max. transmit
Class 2 support
Compliance with Bluetooth Specification Version 1.2
Adaptive Frequency Hopping including master and slave classification
Faster connection
Extended SCO-all new packet types
Synchronization
LMP improvements
Quality OF Service improvements
Bluetooth transmit inactive (FAA requirement)
Bluetooth® specifications High-speed, low-power, short-range wireless communication with other
Bluetooth devices.
1.2 compliant (2.4-GHz Industrial Scientific Medical Band)
System interface
High-speed UART processor interface
Device type
Class II device; up to 4 dBm transmit, typical 10 meter range
1.8V supply voltage
– typical TX current at approximately 38 mA
Power
– typical RX current at approximately 38 mA
Profile Support
General Access Profile
Service Discovery Application Profile
Serial Port Profile
Generic Object Exchange Profile
Dial-Up Networking Server Profile
Object Push Profile
Personal Area Networking Profile
Headset Profile
Handsfree Profile
Advanced Audio Distribution Profile
Audio/Visual Remote Control Profile
DA - 12430
Worldwide — Version 2 — March 28, 2006
Page 8
QuickSpecs
HP iPAQ rw6800 Multimedia Messenger Series (AP Only)
Standard Features
Usage Models
Service Discovery
Determine what Bluetooth devices are within range and support
authorization
Serial Port
Synchronization between PDAs and PCs using ActiveSync
Generic Object Exchange and Object Push
Exchange business cards, tasks, documents, appointments and more 1
NOTE:
1 A standard GSM/GPRS infrastructure, other Bluetooth-enabled devices, separately purchased
equipment, and a service contract with a wireless airtime provider may be required for applicable
wireless communication. GSM/GPRS Wireless Internet access requires separately purchased Internet
service contract. Check with service provider for availability and coverage in your area. Not all web
content available. GPRS may not be available in all networks. GPRS data transmission speeds may vary
based upon network capabilities and other conditions. Establishment and continuation of a GPRS
connection depends on network availability, provider support and signal strength.
DA - 12430
Worldwide — Version 2 — March 28, 2006
Page 9
QuickSpecs
HP iPAQ rw6800 Multimedia Messenger Series (AP Only)
Options
Memory/Storage
NOTE: Optional accessories are available at additional cost.
128 MB mini SD Memory Card
256 MB mini SD Memory Card
512 MB mini SD Memory Card
FA602A#AC3
FA603A#AC3
FA604A#AC3
Power
1,530 mAh Li-Pol Standard Battery
Automobile Adapter
AC Adapter
Travel Kit
FA764AA#AC3
FA765AA#AC3
FA762AA#AC3
FA804AA#AC3
Synchronization
Mini-USB Sync Cable
FA801AA#AC3
Input Options
HP iPAQ Stylus Kit – rw6800
iPAQ Bluetooth Foldable Keyboard
FA763AA#AC3
FA287A#AC3
Navigation Options
iPAQ Navigation System, APJ Only
FA256A#UUF
Headphones
BT Stereo Headphones
BT Stereo Headphones – EU
BT Stereo Headphones – US
BT Stereo Headphones – UK
BT Stereo Headphones – AU
BT Stereo Headphones – KOR
FA303A#AC3
FA303A#ABB
FA303A#ABA
FA303A#ABU
FA303A#ABG
FA303A#AB1
Other
Pack of 3 LCD-protective flip covers
Custom Cases: to view and order go to: http://www.casesonline.com.
FA806PA#AC3
NOTES:
1 A standard GSM/GPRS infrastructure, other Bluetooth-enabled devices, separately purchased equipment, and a service contract
with a wireless airtime provider may be required for applicable wireless communication. GSM/GPRS Wireless Internet access
requires separately purchased Internet service contract. Check with service provider for availability and coverage in your area. Not
all web content available. GPRS may not be available in all networks. GPRS data transmission speeds may vary based upon network
capabilities and other conditions. Establishment and continuation of a GPRS connection depends on network availability, provider
support and signal strength.
2 EDGE (Enhanced Data for Global Evolution) is a global standard for wireless wide-area data communication being rapidly
deployed by GSM carriers worldwide. Actual download speeds may vary. Coverage is subject to transmission limitations and terrain,
system, capacity and other limitations. Not all features and service options are available in all areas.
3 Telephone service requires separately purchased contract with a telephone service provider with coverage in your service area.
Additional fees may apply for some features, check with your service provider.
4 Normal GSM Data Calls (CSD) are not basic GSM data services. These services may not be available via all operators, and may
require separate subscription. Maximum connection speed is used in defining maximum speed. The GSM Operator may change the
speed of the connection and reduce time slots at its discretion if the network is congested. These actions may cause lower total data
rate than the requested data rate.
DA - 12430
Worldwide — Version 2 — March 28, 2006
Page 10
QuickSpecs
HP iPAQ rw6800 Multimedia Messenger Series (AP Only)
Options
HP iPAQ Mobile Messenger is a Windows Mobile®-based Pocket PC
For more information on the HP iPAQ Mobile Messenger series, visit our website at http://www.hp.com/go/iPAQ.
©Copyright 2006 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without
notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for
technical or editorial errors or omissions contained herein. Microsoft, Windows, and the Windows Logo are U.S. registered
trademarks of Microsoft Corporation. Intel and the Intel inside logo are trademarks or registered trademarks of Intel Corporation or
its subsidiaries in the U.S. and other countries. Java and all Java-based trademarks and logos are trademarks or registered
trademarks of Sun Microsystems, Inc. in the U.S. and other countries.
DA - 12430
Worldwide — Version 2 — March 28, 2006
Page 11
Download PDF

advertising
