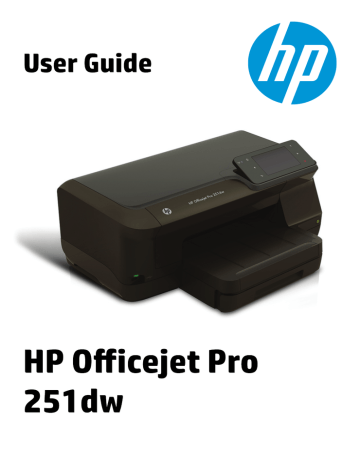

HP Officejet Pro 251dw
Printer
User Guide
Copyright information
© 2013 Copyright Hewlett-Packard
Development Company, L.P.
Edition 1, 3/2013
Hewlett-Packard Company
notices
The information contained in this
document is subject to change without
notice.
All rights reserved. Reproduction,
adaptation, or translation of this
material is prohibited without prior
written permission of Hewlett-Packard,
except as allowed under copyright laws.
The only warranties for HP products
and services are set forth in the express
warranty statements accompanying
such products and services. Nothing
herein should be construed as
constituting an additional warranty. HP
shall not be liable for technical or
editorial errors or omissions contained
herein.
Acknowledgements
Windows, Windows XP, and Windows
Vista are U.S. registered trademarks of
Microsoft Corporation.
ENERGY STAR and the ENERGY
STAR mark are registered U.S. marks.
Safety information
Always follow basic safety precautions
when using this product to reduce risk
of injury from fire or electric shock.
1. Read and understand all instructions
in the documentation that comes with
the printer.
2. Observe all warnings and
instructions marked on the product.
3. Unplug this product from wall outlets
before cleaning.
4. Do not install or use this product near
water, or when you are wet.
5. Install the product securely on
a stable surface.
6. Install the product in a protected
location where no one can step on or
trip over the line cord, and the line cord
cannot be damaged.
7. If the product does not operate
normally, see Solve a problem.
8. There are no user-serviceable parts
inside. Refer servicing to qualified
service personnel.
Contents
1
Get started
Accessibility................................................................................................................................7
HP EcoSolutions (HP and the Environment)..............................................................................8
Understand the printer parts.......................................................................................................9
Front view.............................................................................................................................9
Printing supplies area.........................................................................................................10
Back view............................................................................................................................10
Use the printer control panel....................................................................................................11
Overview of buttons and lights...........................................................................................11
Control panel display icons.................................................................................................12
Change printer settings......................................................................................................13
Select the mode............................................................................................................13
Change printer settings................................................................................................14
Select paper.............................................................................................................................14
Recommended papers for printing.....................................................................................14
Recommended papers for photo printing...........................................................................15
Tips for selecting and using paper......................................................................................16
Load paper...............................................................................................................................16
Load standard-size paper...................................................................................................16
Load envelopes..................................................................................................................17
Load cards and photo paper...............................................................................................18
Load custom-size paper.....................................................................................................19
Insert a memory device............................................................................................................20
Install the accessories..............................................................................................................21
Install the automatic two-sided printing accessory (duplexer)............................................21
Install Tray 2.......................................................................................................................22
Configure trays...................................................................................................................23
Turn on accessories in the printer driver............................................................................24
To turn on accessories (Windows)...............................................................................24
To turn on accessories (Mac OS X)..............................................................................24
Maintain the printer...................................................................................................................25
Clean the exterior ..............................................................................................................25
Update the printer.....................................................................................................................25
Update the printer using the embedded web server...........................................................25
Update the printer using the printer control panel..............................................................25
Open the printer software (Windows).......................................................................................26
Turn the printer off....................................................................................................................26
Restore factory defaults............................................................................................................26
2
Print
Print documents........................................................................................................................27
Print documents (Windows)................................................................................................27
Print documents (Mac OS X)..............................................................................................28
1
Print brochures.........................................................................................................................28
Print brochures (Windows).................................................................................................29
Print brochures (Mac OS X)................................................................................................29
Print on envelopes....................................................................................................................30
Print on envelopes (Windows)............................................................................................30
Print on envelopes (Mac OS X)..........................................................................................31
Print photos..............................................................................................................................31
Print photos on photo paper (Windows).............................................................................31
Print photos on photo paper (Mac OS X)...........................................................................32
Print photos from a memory device ...................................................................................32
Print on special and custom-size paper....................................................................................33
Print on special or custom-size paper (Windows)..............................................................33
Print on special or custom-size paper (Mac OS X).............................................................34
Set up custom sizes (Mac OS X)........................................................................................34
HP ePrint..................................................................................................................................35
HP Wireless Direct....................................................................................................................35
Turn on HP wireless direct printing.....................................................................................36
Print from a wireless-capable mobile device......................................................................36
Print from a wireless-capable computer.............................................................................36
Print from a wireless-capable computer (Windows).....................................................37
Print from a wireless-capable computer (Mac OS X)....................................................37
Print on both sides (duplexing).................................................................................................37
View Print Resolutions..............................................................................................................39
3
Web Services
What are Web Services?..........................................................................................................40
HP ePrint............................................................................................................................40
Printer Apps........................................................................................................................40
Set up Web Services................................................................................................................41
Set up Web Services using the HP printer software...........................................................41
Set up Web Services using the printer’s control panel.......................................................41
Set up Web Services using the embedded web server......................................................42
Use Web Services....................................................................................................................42
HP ePrint............................................................................................................................42
Print using HP ePrint....................................................................................................43
Find the printer's email address....................................................................................43
Turn off HP ePrint.........................................................................................................43
Printer Apps........................................................................................................................43
Use Printer Apps...........................................................................................................43
Manage Printer Apps....................................................................................................44
Turn off Printer Apps.....................................................................................................44
Remove Web Services.............................................................................................................44
4
Work with ink cartridges
Information on ink cartridges and the printhead.......................................................................45
Check the estimated ink levels.................................................................................................46
Print when one or more ink cartridges are depleted.................................................................46
Replace the ink cartridges........................................................................................................47
Store printing supplies..............................................................................................................48
Anonymous Usage Information Storage...................................................................................48
2
Contents
5
Solve a problem
HP support................................................................................................................................50
Obtain electronic support....................................................................................................51
HP support by phone..........................................................................................................51
Before you call..............................................................................................................51
Phone support period...................................................................................................52
After the phone support period.....................................................................................52
General troubleshooting tips and resources.............................................................................52
Solve printer problems..............................................................................................................53
The printer shuts down unexpectedly.................................................................................53
Alignment fails....................................................................................................................53
The printer is not responding (nothing prints).....................................................................53
The printer prints slowly......................................................................................................54
The printer is making some unexpected noises.................................................................55
Blank or partial page printed...............................................................................................56
Something on the page is missing or incorrect...................................................................56
Placement of the text or graphics is wrong.........................................................................57
Print quality troubleshooting.....................................................................................................57
Solve paper-feed problems......................................................................................................62
Solve problems using Web Services and HP websites............................................................63
Solve problems using Web Services..................................................................................64
Solve problems using HP websites....................................................................................65
Solve memory device problems...............................................................................................65
The printer cannot read the memory device.......................................................................65
The printer cannot read photos on the memory device......................................................65
Solve Ethernet network problems.............................................................................................66
General network troubleshooting........................................................................................66
Solve wireless problems...........................................................................................................66
Basic wireless troubleshooting...........................................................................................66
Step 1 - Make sure the wireless (802.11) light is turned on.........................................67
Step 2 - Restart components of the wireless network..................................................67
Step 3 - Run the Print Wireless Network Test..............................................................67
Advanced wireless troubleshooting....................................................................................67
Step 1 - Make sure your computer is connected to your network................................68
Step 2 - Make sure that the printer is connected to your network................................69
Step 3 - Make sure your computer is not connected to your network over a Virtual
Private Network (VPN)..................................................................................................70
Step 4 - Make sure the printer is online and ready.......................................................70
Step 5 - Make sure the wireless version of the printer is set as the default printer
driver (Windows only)...................................................................................................71
Step 6 - Check to see if the firewall software is blocking communication....................71
After resolving the problems...............................................................................................72
Configure your firewall software to work with the printer..........................................................72
Solve printer management problems........................................................................................73
Embedded web server cannot be opened..........................................................................73
Troubleshoot installation issues...............................................................................................74
Hardware installation suggestions......................................................................................74
HP software installation suggestions..................................................................................75
Solve network problems...........................................................................................................75
Understand the Printer Status Report......................................................................................76
3
Printhead maintenance.............................................................................................................78
Clean the printhead............................................................................................................78
Calibrate the linefeed..........................................................................................................79
Align the printhead..............................................................................................................79
Reinstall the printhead........................................................................................................80
Understand the network configuration page.............................................................................82
Clear jams.................................................................................................................................84
Clear paper jams................................................................................................................84
Avoid paper jams................................................................................................................86
A Technical information
Warranty information................................................................................................................87
Hewlett-Packard limited warranty statement......................................................................88
Ink cartridge warranty information......................................................................................89
Printer specifications................................................................................................................90
Physical specifications........................................................................................................90
Product features and capacities.........................................................................................90
Processor and memory specifications................................................................................91
System requirements..........................................................................................................91
Network protocol specifications..........................................................................................91
Embedded web server specifications.................................................................................91
Paper specifications...........................................................................................................92
Understand specifications for supported paper............................................................92
Set minimum margins...................................................................................................95
Guidelines for printing on both sides of a page............................................................95
Print specifications..............................................................................................................96
Web Services specifications...............................................................................................96
HP ePrint......................................................................................................................96
Printer Apps..................................................................................................................96
HP website specifications...................................................................................................96
Environmental specifications..............................................................................................96
Electrical specifications.......................................................................................................97
Acoustic emission specifications........................................................................................97
Memory device specifications.............................................................................................97
Memory card specifications..........................................................................................97
USB flash drives...........................................................................................................97
4
Contents
Regulatory information.............................................................................................................99
FCC statement....................................................................................................................99
Notice to users in Korea...................................................................................................100
VCCI (Class B) compliance statement for users in Japan................................................100
Notice to users in Japan about the power cord................................................................100
Noise emission statement for Germany...........................................................................100
European Union Regulatory Notice..................................................................................100
GS Declaration (Germany)...............................................................................................102
Regulatory information for wireless products...................................................................102
Exposure to radio frequency radiation........................................................................102
Notice to users in Brazil..............................................................................................102
Notice to users in Canada..........................................................................................103
Notice to users in Taiwan...........................................................................................103
Notice to users in Mexico............................................................................................104
Notice to users in Japan.............................................................................................104
Regulatory model number................................................................................................104
Environmental product stewardship program.........................................................................105
Paper use.........................................................................................................................105
Plastics.............................................................................................................................105
Material safety data sheets...............................................................................................105
Recycling program............................................................................................................105
HP inkjet supplies recycling program...............................................................................105
Disposal of waste equipment by users in private households in the European
Union................................................................................................................................106
Power consumption..........................................................................................................107
Chemical Substances.......................................................................................................107
Battery information...........................................................................................................107
Battery disposal in the Netherlands............................................................................107
Battery disposal in Taiwan..........................................................................................107
California Perchlorate Material Notice........................................................................108
RoHS notices (China only)...............................................................................................108
Restriction of hazardous substance (Ukraine)..................................................................108
Third-party licenses................................................................................................................109
B HP supplies and accessories
Order printing supplies online.................................................................................................118
Supplies..................................................................................................................................118
Ink cartridges and printheads...........................................................................................118
HP paper...........................................................................................................................119
C Network setup
Change basic network settings...............................................................................................120
View and print network settings........................................................................................120
Turn the wireless radio on and off....................................................................................120
Change advanced network settings.......................................................................................120
Set link speed...................................................................................................................121
View IP settings................................................................................................................121
Change IP settings...........................................................................................................121
Configure the printer’s firewall settings.............................................................................121
Creating and using firewall rules................................................................................121
Reset network settings.....................................................................................................123
5
Set up the printer for wireless communication........................................................................123
Before you begin..............................................................................................................123
Set up the printer on your wireless network.....................................................................124
Set up the printer using the HP printer software.........................................................124
Set up the printer using the Wireless Setup Wizard...................................................124
Set up the printer using WiFi Protected Setup (WPS)................................................125
Set up the printer using the embedded web server (EWS)........................................125
Change the connection type.............................................................................................126
Test the wireless connection............................................................................................127
Guidelines for ensuring wireless network security............................................................127
Overview of security settings......................................................................................127
Add hardware addresses to a wireless router (MAC filtering)....................................127
Other wireless security guidelines..............................................................................128
Guidelines for reducing interference on a wireless network ............................................128
Uninstall and reinstall the HP software...................................................................................128
Windows...........................................................................................................................129
Mac OS X.........................................................................................................................129
D Printer management tools
Toolbox (Windows).................................................................................................................130
HP Utility (Mac OS X).............................................................................................................130
Embedded web server............................................................................................................130
About cookies...................................................................................................................131
To open the embedded web server..................................................................................131
Embedded web server features........................................................................................131
Product security features........................................................................................................133
Assign an administrator password in the embedded web server.....................................133
Control panel lock.............................................................................................................133
Disable unused protocols and services............................................................................133
Administrator settings.......................................................................................................134
Color access control.........................................................................................................134
Protected protocols – HTTPS...........................................................................................134
Firewall.............................................................................................................................134
Syslog...............................................................................................................................134
Certificates........................................................................................................................134
Signed firmware................................................................................................................134
Wireless authentication....................................................................................................135
Index............................................................................................................................................142
6
1
Get started
This guide provides details about how to use the printer and how to resolve problems.
•
•
•
•
•
•
•
•
•
•
•
•
•
Accessibility
HP EcoSolutions (HP and the Environment)
Understand the printer parts
Use the printer control panel
Select paper
Load paper
Insert a memory device
Install the accessories
Maintain the printer
Update the printer
Open the printer software (Windows)
Turn the printer off
Restore factory defaults
NOTE: If you are using the printer with a computer running Windows XP Starter
Edition, Windows Vista Starter Edition, Windows 7 Starter Edition, or Windows 8
Starter Edition, some features might not be available. For more information, see
System requirements.
Accessibility
The printer provides a number of features that make it accessible for people with
disabilities.
Visual
The HP software provided with the printer is accessible for users with visual impairments
or low vision by using your operating system's accessibility options and features. The
software also supports most assistive technology such as screen readers, Braille readers,
and voice-to-text applications. For users who are color blind, colored buttons and tabs
used in the HP software and on the printer control panel have simple text or icon labels
that convey the appropriate action.
Mobility
For users with mobility impairments, the HP software functions can be executed through
keyboard commands. The HP software also supports Windows accessibility options such
as StickyKeys, ToggleKeys, FilterKeys, and MouseKeys. The printer doors, buttons,
paper trays, and paper guides can be operated by users with limited strength and reach.
Support
For more details about the accessibility of this printer and HP's commitment to product
accessibility, visit HP's website at www.hp.com/accessibility.
For accessibility information for Mac OS X, visit the Apple website at www.apple.com/
accessibility.
Get started
7
Chapter 1
HP EcoSolutions (HP and the Environment)
HP is committed to helping you optimize your environmental footprint and empowering
you to print responsibly—at home or in the office.
For more detailed information about environmental guidelines HP follows during the
manufacturing process, see Environmental product stewardship program. For more
information about HP's environmental initiatives, visit www.hp.com/ecosolutions.
Manage power
To conserve electricity, try the following:
•
•
•
Turn on the printer's Sleep Mode feature, and then select the option for the shortest
time. After the printer has been inactive for this period of time, the printer will go into
low-power mode. To configure this feature, touch
(eco button) on the printer’s
control panel display, touch Sleep, and then touch the desired option.
Use the printer's Schedule On and Off feature, and then select the days and time you
want the printer to turn on and turn off automatically. For example, you can schedule
the printer to turn on at 8am and turn off at 8pm from Monday to Friday. In this way,
you will save energy during the night and weekends. To configure this feature, touch
(eco button) on the printer's control panel display, touch Schedule On and
Off, and then set the time to turn on and off the printer.
Adjust the screen brightness to a dimmer setting. To configure this feature, touch
(eco button) on the printer's control panel display, touch Screen
Brightness, and then set the desired option.
NOTE: The printer's Sleep Mode and Schedule On and Off features are temporarily
not available if one or more of the ink cartridges are missing. After the cartridge is
reinstalled, these features resume.
CAUTION: HP recommends that you replace any missing cartridges as soon as
possible to avoid print quality issues and possible extra ink usage or damage to the
ink system. Never turn off the printer when ink cartridges are missing.
Optimize printing supplies
To optimize printing supplies such as ink and paper, try the following:
•
•
•
•
•
8
Recycle used original HP ink cartridges through HP Planet Partners. For more
information, visit www.hp.com/recycle.
Optimize paper usage by printing on both sides of the paper. If the printer has an HP
automatic two-sided printing accessory (duplexer), see Print on both sides
(duplexing).
Save ink and paper when printing web content with HP Smart Print. For more
information, visit www.hp.com/go/smartprint.
Change the print mode to a draft setting. The draft setting uses less ink.
Do not clean the printhead unnecessarily. This wastes ink and shortens the life of the
cartridges.
Get started
Understand the printer parts
This section contains the following topics:
•
•
•
Front view
Printing supplies area
Back view
Front view
1
Ink cartridge access door
2
Front universal serial bus (USB) port
3
Output tray
4
Tray 1
5
Output tray extension
6
(Power button)
7
Control panel
Understand the printer parts
9
Chapter 1
Printing supplies area
1
Ink cartridge access door
2
Ink cartridges
3
Printhead
4
Printhead latch
Back view
10
1
Ethernet network port
2
Rear universal serial bus (USB) port
3
Power input
4
Automatic two-sided printing accessory (duplexer)
Get started
Use the printer control panel
This section contains the following topics:
•
•
•
Overview of buttons and lights
Control panel display icons
Change printer settings
Overview of buttons and lights
The following diagrams and related tables provide a quick reference to the printer control
panel features for each printer model.
Label
Name and Description
1
Wireless icon: The light next to the icon is lit when the 802.11 wireless feature is on, and the
printer is connected to a network. If the light is blinking the wireless feature is on, but the printer
is not connected to a network. If the light is off, the wireless feature is turned off.
2
Home button: Returns to the home screen from any other screen.
3
Control panel display: Touch the screen to select menu options. For information about the
icons that appear on the display, see Control panel display icons.
4
Help button: Opens the Help menu.
5
Cancel button: Stops a job, exits a menu, or exits settings.
6
Right arrow button: Navigates through settings in the menus.
7
Left arrow button: Navigates through settings in the menus.
8
Back button: Returns to the previous menu.
Use the printer control panel
11
Chapter 1
Control panel display icons
Icon
Purpose
Shows that an Ethernet network connection exists.
Shows that a wireless network connection exists, and provides access to the
wireless status and settings. The signal strength is indicated by the number of curved
lines. This is for infrastructure mode. For more information, see Set up the printer
for wireless communication.
Shows that HP ePrint is turned on. For more information, see HP ePrint.
Displays a screen where you can use HP Apps. For more information, see Printer
Apps.
Displays a screen where you can adjust photo printing options.
Displays the Setup screen for generating reports, changing maintenance settings,
and accessing the Help screen.
12
Get started
(continued)
Icon
Purpose
Displays the Network screen for selecting options.
Provides more information about the printer's features.
Displays a screen where you can see information about the ink cartridges, including
fill levels. This icon has a red border when an ink cartridge needs attention.
NOTE: Ink level warnings and indicators provide estimates for planning purposes
only. When you receive a low-ink warning message, consider having a replacement
cartridge available to avoid possible printing delays. You do not need to replace
cartridges until prompted to do so.
Displays a screen where you can learn about printer features that can help conserve
natural resources and reduce the impact of your printing choices.
TIP: You can configure settings for some features from this screen.
Change printer settings
Use the control panel to change the printer’s mode and settings, print reports, or get help
for the printer.
TIP: If the printer is connected to a computer, you can also change the printer
settings using HP software tools available on your computer, such as the HP printer
software, HP Utility (Mac OS X), or the EWS. For more information about these tools,
see Printer management tools.
This section contains the following topics:
•
•
Select the mode
Change printer settings
Select the mode
The main menu of the control panel display shows the available modes for the printer.
NOTE: To select a mode, touch the (left arrow) or the (right arrow) to see the
available modes, and then touch the icon to select the desired mode. Follow the
prompts on the control panel display to complete the job. The control panel display
returns to the main menu when the job is finished.
Use the printer control panel
13
Chapter 1
To select a different mode
Touch
(Back button) to return to the main menu. Touch (left arrow) or (right arrow)
to scroll through the available modes, and then touch the icon to select the desired mode.
To change settings for a mode
1. After selecting a mode, touch the arrow buttons to scroll through the available
settings, and then touch the setting you want to change.
2. Follow the prompts on the display to change the settings, and then touch Done.
NOTE: Touch
(Back button) to return to the previous menu.
Change printer settings
To change the printer settings or print reports, use the options available in the Setup
menu:
1. Touch (right arrow), and then touch Setup.
2. Touch the arrow buttons to scroll through the menus.
3. Touch the menu items to select menus or options.
NOTE: Touch
(Back button) to return to the previous menu.
Select paper
The printer is designed to work well with most types of office media. It is best to test
a variety of print media types before buying large quantities. Use HP media for optimum
print quality. For more information about HP media, visit the HP website at
www.hp.com.
HP recommends plain papers with the ColorLok logo for printing
of everyday documents. All papers with the ColorLok logo are
independently tested to meet high standards of reliability and print
quality, and produce documents with crisp, vivid color, bolder
blacks and dry faster than ordinary plain papers. Look for papers
with the ColorLok logo in a variety of weights and sizes from major
paper manufacturers.
This section contains the following topics:
•
•
•
Recommended papers for printing
Recommended papers for photo printing
Tips for selecting and using paper
Recommended papers for printing
If you want the best print quality, HP recommends using HP papers that are specifically
designed for the type of project you are printing.
14
Get started
Depending on your country/region, some of these papers might not be available.
HP Brochure Paper
HP Professional Paper
HP Premium
Presentation Paper
HP Professional Paper
These papers are glossy-coated or matte-coated on both sides for twosided use. They are the perfect choice for producing professional
quality marketing materials such as brochures and mailers, as well as
business graphics for report covers and calendars.
These papers are heavy two-sided matte papers perfect for
presentation, proposals, reports, and newsletters. They are
heavyweight for an impressive look and feel.
HP Bright White Inkjet
Paper
HP Bright White Inkjet Paper delivers high-contrast colors and sharp
text. It is opaque enough for two-sided color usage with no
showthrough, which makes it ideal for newsletters, reports, and flyers.
It features ColorLok Technology for less smearing, bolder blacks, and
vivid colors.
HP Printing Paper
HP Printing Paper is a high-quality multifunction paper. It produces
documents that look and feel more substantial than documents printed
on standard multipurpose or copy paper. It features ColorLok
Technology for less smearing, bolder blacks, and vivid colors.
HP Office Paper
HP Office Paper is a high-quality multifunction paper. It is suitable for
copies, drafts, memos and other everyday documents. It features
ColorLok Technology for less smearing, bolder blacks, and vivid colors.
HP Office Recycled
Paper
HP Office Recycled Paper is a high-quality multifunction paper made
with 30% recycled fiber. It features ColorLok Technology for less
smearing, bolder blacks and vivid colors.
To order HP papers and other supplies, go to www.hp.com. Go to Shop for Products
and Services, and select Ink, toner and paper .
NOTE: At this time, some portions of the HP website are available in English only.
Recommended papers for photo printing
For the best print quality, HP recommends using HP papers that are specifically designed
for the type of project you are printing. Depending on your country/region, some of these
papers might not be available.
Depending on your country/region, some of these papers might not be available.
HP Premium Plus
Photo Paper
HP’s best photo paper is heavyweight for producing professional quality
photos. Features an instant-dry finish for easy handling without
smudging. It resists water, smears, fingerprints, and humidity. It is
available in several sizes, including A4, 8.5 x 11 inch, 10 x 15 cm (4 x
6 inch), 13 x 18 cm (5 x 7 inch), and two finishes – glossy or soft-gloss
(satin matte). It is acid-free for longer lasting documents.
HP Advanced Photo
Paper
This thick photo paper features an instant-dry finish for easy handling
without smudging. It resists water, smears, fingerprints, and humidity.
Your prints have a look and feel comparable to a store processed photo.
It is available in several sizes, including A4, 8.5 x 11 inch, 10 x 15 cm
(4 x 6 inch), 13x18 cm (5 x 7 inch), and two finishes – glossy or soft
gloss (satin matte). It is acid-free for longer lasting documents.
HP Everyday Photo
Paper
Print colorful, everyday snapshots at a low cost, using paper designed
for casual photo printing. This affordable, photo paper dries quickly for
Select paper
15
Chapter 1
(continued)
easy handling. Get sharp, crisp images when you use this paper with
any inkjet printer. Available in semi-gloss finish in 8.5 x 11 inch, A4, 4
x 6 inch, and 10 x 15 cm. It is acid-free for longer lasting documents.
To order HP papers and other supplies, go to www.hp.com. Go to Shop for Products
and Services and select Ink, toner and paper.
NOTE: At this time, some portions of the HP website are available in English only.
Tips for selecting and using paper
For the best results, observe the following guidelines.
•
•
•
•
Always use media that conforms to the printer specifications. For more information,
see Paper specifications.
Load only one type of media at a time into a tray or automatic document feeder (ADF).
When loading the trays, make sure the media is loaded correctly. For more
information, see Load paper.
Do not overload the tray. For more information, see Load paper.
Load paper
This section provides instructions for loading media into the printer, and contains the
following topics:
•
•
•
•
Load standard-size paper
Load envelopes
Load cards and photo paper
Load custom-size paper
Load standard-size paper
Use these instructions to load standard paper.
1. Pull out Tray 1.
16
Get started
2. Insert the media print-side down in the center of the tray. Make sure the stack of media
aligns with the line on the width guide, and is not higher than the paper stack line on
the guide.
NOTE: Do not load paper while the printer is printing.
3. Slide the paper guides in the tray to adjust them for the media size that you have
loaded, and then reinsert the tray.
NOTE: To load legal-size paper, press the blue latch at the bottom left of the
input tray and fully extend the tray.
4. Pull out the extension on the output tray.
Load envelopes
Use these instructions to load an envelope.
1. Pull out Tray 1.
Load paper
17
Chapter 1
2. Insert the envelopes print-side down and load according to the graphic. Make sure
the stack of envelopes does not exceed the line marking in the tray.
NOTE: Do not load paper while the printer is printing.
3. Slide the paper guides in the tray to adjust them for the media size that you have
loaded, and then reinsert the tray.
4. Pull out the extension on the output tray.
Load cards and photo paper
Use these instructions to load cards or photo paper.
1. Pull out Tray 1.
18
Get started
2. Insert the media print-side down in the center of the tray. Make sure the stack of media
aligns with the line on the width guide, and is not higher than the paper stack line on
the guide.
NOTE: Do not load paper while the printer is printing.
3. Slide the paper guides in the tray to adjust them for the media size that you have
loaded, and then reinsert the tray.
4. Pull out the extension on the output tray.
Load custom-size paper
Use these instructions to load custom-size paper.
CAUTION: Use only custom-size paper that is supported by the printer. For more
information, see Paper specifications.
NOTE: Load only plain paper in Tray 2.
1. Pull out Tray 1.
2. Insert the media print-side down in the center of the tray. Make sure the stack of media
aligns with the line on the width guide, and is not higher than the paper stack line on
the guide.
NOTE: Do not load paper while the printer is printing.
Load paper
19
Chapter 1
3. Slide the paper guides in the tray to adjust them for the media size that you have
loaded, and then reinsert the tray.
4. Pull out the extension on the output tray.
Insert a memory device
If your digital camera uses a memory card to store photos, you can connect the camera
to the printer to print your photos.
CAUTION: Attempting to remove a memory card while it is being accessed can
damage files on the card. You can safely remove a card only when the photo light is
not blinking. Also, never insert more than one memory card at a time as this can also
damage files on the memory cards.
NOTE: The printer does not support encrypted memory cards.
20
Get started
For more information on the supported memory cards, see Memory device
specifications.
To connect a storage device
1. If you are connecting a digital camera, change the USB mode of the camera to storage
mode, and then connect one end of the USB cable to the camera.
NOTE: Different cameras use different terms to describe the storage mode. For
instance, some cameras have a digital camera setting and a disk drive setting. In
this instance, the disk drive setting is the storage mode setting. If storage mode
does not work on your camera, you might need to upgrade the camera firmware.
For more information, see the documentation that came with the camera.
2. Insert the USB storage device or the other end of the camera’s USB cable to the USB
port on the front of the printer.
NOTE: If your USB device does not fit into this port due to size limitations, or if the
connector on the device is shorter than 11 mm (0.43 in), you will need to purchase
a USB extension cable in order to use your device with this port. For more information
on supported USB devices, see Memory card specifications.
Install the accessories
This section contains the following topics:
•
•
•
•
Install the automatic two-sided printing accessory (duplexer)
Install Tray 2
Configure trays
Turn on accessories in the printer driver
Install the automatic two-sided printing accessory (duplexer)
You can print on both sides of a sheet of paper automatically. For information on using
the duplexer, see Print on both sides (duplexing).
To install the duplexer:
Slide the duplexer into the back of the printer until the unit locks into place. Do not press
the buttons on either side of the duplexer when installing the unit; use them only for
removing the unit from the printer.
Install the accessories
21
Chapter 1
Install Tray 2
Tray 2 can hold up to 250 sheets of plain paper. For ordering information, see HP supplies
and accessories.
To install Tray 2
1. Unpack the tray, remove the packing tapes and materials, and move the tray to the
prepared location. The surface must be sturdy and level.
2. Turn off the printer, and disconnect the power cord.
3. Set the printer on top of the tray.
CAUTION: Be careful to keep your fingers and hands clear of the bottom of the
printer.
4. Connect the power cord and turn on the printer.
5. Enable Tray 2 in the printer driver. For more information, see Turn on accessories in
the printer driver.
To load Tray 2
1. Pull the tray out of the printer by grasping under the front of the tray.
2. Insert the paper print-side down in the center of the tray. Make sure the stack of paper
aligns with the line on the width guide, and does not exceed the line marking on the
guide.
NOTE: Tray 2 can be loaded only with plain paper.
22
Get started
3. Slide the paper guides in the tray to adjust them for the size that you have loaded.
4. Gently reinsert the tray.
5. Pull out the extension on the output tray.
Configure trays
NOTE: Tray 2 is an optional accessory. For ordering information, see Order printing
supplies online.
To configure the trays, you must have Tray 2 installed and turned on.
By default, the printer draws media from Tray 1. If Tray 1 is empty, the printer draws media
from Tray 2 (if it is installed and loaded with media). You can change this default behavior
by using the following features:
•
•
Tray Lock: Use this feature to protect special media such as letterhead or preprinted
media from accidental use. If the printer runs out of media while printing a document,
it will not use media from a locked tray to complete the print job.
Default Tray: Use this feature to determine the first tray from which the printer draws
media.
NOTE: To use the tray lock and default tray settings, you must select the automatic
tray selection option in the printer software. Also, if the printer is on a network and
you set a default tray, the setting will affect all users of the printer.
Tray 2 is designed to hold only plain paper.
Install the accessories
23
Chapter 1
The following table lists possible ways you can use the tray settings to meet your printing
needs.
I want to...
Follow these steps
Load both trays with the same media, and have
the printer pick media from one tray if the other
one is empty.
•
Have both special media (such as
transparencies or letterhead) and plain paper
loaded in the trays.
•
Load media in both trays but have the printer
pick media from a specific tray first.
•
•
•
•
•
Load media in Tray 1 and Tray 2. For more
information, see Load paper.
Make sure tray lock is disabled.
Load special media in Tray 1 and plain
paper in Tray 2.
Make sure the default tray is set to Tray 2.
Make sure tray lock is set to Tray 1.
Load media in Tray 1 and Tray 2.
Make sure default tray is set to the
appropriate tray.
To configure the trays
1. Make sure the printer is turned on.
2. Touch (right arrow), touch Setup, touch Preferences, and then select Default
Tray or Tray Lock.
3. Click OK or Apply after changing the desired tray settings.
Turn on accessories in the printer driver
•
•
To turn on accessories (Windows)
To turn on accessories (Mac OS X)
To turn on accessories (Windows)
1. Click Start, and then click Printers or Printers and Faxes or Devices and
Printers.
- Or Click Start, click Control Panel, and then double-click Printers.
2. Right-click the printer icon, and then click Properties.
3. Select the Device Settings tab. Click the accessory that you want to turn on, click
Installed from the drop-down menu, and then click OK.
To turn on accessories (Mac OS X)
Mac OS X automatically turns on all accessories in the printer driver when you install the
printer software. If you add a new accessory later, follow these steps:
1.
2.
3.
4.
24
Open the System Preferences and then select Print & Fax or Print & Scan.
Select the printer from list of printers, and then click Options & Supplies.
Click the Driver tab.
Select the options you want to install, and then click OK.
Get started
Maintain the printer
This section provides instructions for keeping the printer in top working condition. Perform
these maintenance procedures as necessary.
•
Clean the exterior
Clean the exterior
WARNING! Before cleaning the printer, turn the printer off by pressing the
button) and unplug the power cord from the electrical socket.
(Power
Use a soft, damp, lint-free cloth to wipe dust, smudges, and stains off of the case. Keep
fluids away from the interior of the printer, as well as from the printer control panel.
Update the printer
HP is always working to improve the performance of its printers and bring you the latest
features. If the printer is connected to a network and Web Services has been enabled,
you can check for and install printer updates.
To update the printer, use one of the following methods:
•
•
Update the printer using the embedded web server
Update the printer using the printer control panel
Update the printer using the embedded web server
1. Open the EWS. For more information, see Embedded web server.
2. Click the Web Services tab.
3. In the Web Services Settings section, click Product Update, click Check Now, and
follow the on-screen instructions.
4. If the product update option is not available, follow these instructions:
a. In the Web Services Settings section, click Setup, click Continue, and follow
the on-screen instructions.
b. If prompted, choose to allow the printer to check for and install printer updates.
NOTE: If a printer update is available, the printer downloads and installs the
update, and then restarts.
NOTE: If prompted for proxy settings and if your network uses proxy settings,
follow the on-screen instructions to set up a proxy server. If you do not have the
details, contact your network administrator or the person who set up the network.
Update the printer using the printer control panel
1.
On the printer control panel, touch
(HP ePrint), touch Settings, and then touch
Printer Update.
2. Touch Check for Update Now, and then follow the on-screen instructions.
Update the printer
25
Chapter 1
To enable the printer to automatically check for updates:
1. Touch Settings, and then touch Printer Update.
2. Touch Auto Update, and then touch On.
Open the printer software (Windows)
•
•
Windows XP, Windows Vista, and Windows 7: From the computer desktop, click
Start, select Programs or All Programs, click HP, click the folder for your printer,
and then select the icon with your printer's name.
Windows 8: On the Start screen, do one of the following.
◦ Right-click the Start screen, click All Apps on the App bar, and then click the
icon with your printer's name.
◦ Click Desktop, and then click the icon with your printer's name.
◦ Click the icon with your printer's name.
Turn the printer off
Turn the printer off by pressing the
(Power button) located on the printer. Wait until
the power light turns off before unplugging the power cord or turning off a power strip.
CAUTION: If you incorrectly turn the printer off, the print carriage might not return
to the correct position causing problems with the ink cartridges and print quality
issues.
CAUTION: HP recommends that you replace any missing cartridges as soon as
possible to avoid print quality issues and possible extra ink usage or damage to the
ink system. Never turn off the printer when ink cartridges are missing.
Restore factory defaults
To restore the the printer to factory defaults, complete the following steps:
1. Touch (right arrow), and then touch Setup.
2. Touch Tools.
3. Touch Restore Factory Defaults.
26
Get started
2
Print
Most print settings are automatically handled by the software application. Change the
settings manually only when you want to change print quality, print on specific types of
paper, or use special features. For more information about selecting the best print media
for your documents, see Select paper.
Choose a print job to continue:
Print documents
Print brochures
Print on envelopes
Print photos
Print on special and custom-size paper
Print documents
Follow the instructions for your operating system.
•
•
Print documents (Windows)
Print documents (Mac OS X)
NOTE: This printer includes HP ePrint, a free service from HP that allows you to
print documents on your HP ePrint-enabled printer anytime, from any location, and
without any additional software or printer drivers. For more information, see HP
ePrint.
Print documents (Windows)
1. Load paper in the tray. For more information, see Load paper.
2. On the File menu in your software application, click Print.
3. Make sure the printer you want to use is selected.
Print
27
Chapter 2
4. To change settings, click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Change the paper orientation on the Finishing tab, and paper source, paper type,
paper size, and quality settings on the Paper/Quality tab. To print in black and white,
click the Color tab, and then select the Print in Grayscale option.
6. Click OK.
7. Click Print or OK to begin printing.
Print documents (Mac OS X)
1. Load paper in the tray. For more information, see Load paper.
2. Depending on your application use one of the following procedures to select a paper
size:
From Page Setup
a. From the File menu in your software application, click Page Setup.
NOTE: If you do not see a Page Setup menu item, go to step 3.
b. Make sure the printer you want to use is selected in the Format For pop-up menu.
c. Select the paper size from the Paper Size pop-up menu, and then click OK.
-ORFrom Print
a. From the File menu in your software application, click Print.
b. Make sure the printer you want to use is selected.
c. Select the paper size from the Paper Size pop-up menu (if available).
3. On the Print dialog change the print settings for the option provided in the pop-up
menus, as appropriate for your project.
NOTE: If you do not see any options, click the disclosure triangle next to the
Printer pop-up menu or click Show Details.
4. Click Print to begin printing.
Print brochures
Follow the instructions for your operating system, including edge-to-edge brochures.
•
•
Print brochures (Windows)
Print brochures (Mac OS X)
NOTE: This printer includes HP ePrint, a free service from HP that allows you to
print documents on your HP ePrint-enabled printer anytime, from any location, and
without any additional software or printer drivers. For more information, see HP
ePrint.
28
Print
Print brochures (Windows)
NOTE: To set print settings for all print jobs, make the changes in the HP software
provided with the printer. For more information on the HP software, see Printer
management tools.
1.
2.
3.
4.
Load paper in the tray. For more information, see Load paper.
On the File menu in your software application, click Print.
Make sure the printer you want to use is selected.
To change settings, click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Change the paper orientation on the Finishing tab, and paper source, paper type,
paper size, and quality settings on the Paper/Quality tab.
▲ To print in black and white, click the Color tab, and then select the Print in
Grayscale option.
▲ To print an edge-to-edge brochure select one of the Edge-to-Edge paper sizes,
and from the Paper type drop-down box, select one of the supported brochure
papers.
6. Click OK.
7. Click Print or OK to begin printing.
Print brochures (Mac OS X)
1. Load paper in the tray. For more information, see Load paper.
2. Depending on your application use one of the following procedures to select a paper
size:
From Page Setup
a. From the File menu in your software application, click Page Setup.
NOTE: If you do not see a Page Setup menu item, go to step 3.
b. Make sure the printer you want to use is selected in the Format For pop-up menu.
c. Select the paper size from the Paper Size pop-up menu, and then click OK.
-ORFrom Print
a. From the File menu in your software application, click Print.
b. Make sure the printer you want to use is selected.
c. Select the paper size from the Paper Size pop-up menu (if available).
3. From the File menu in your software application, click Print.
Print brochures
29
Chapter 2
4. On the Print dialog click Color/Quality Option from the pop-up menu, and then select
the following settings:
• Media Type: The appropriate brochure paper type
• Print Quality: Draft, Normal, or Best
NOTE: If you do not see these options, click the disclosure triangle next to the
Printer pop-up menu or click Show Details.
5. Select any other print settings that you want, and then click Print to begin printing.
Print on envelopes
Avoid envelopes with the following characteristics:
•
•
•
•
Very slick finish
Self-stick adhesives, clasps, or windows
Thick, irregular, or curled edges
Areas that are wrinkled, torn, or otherwise damaged
Make sure the folds of envelopes you load in the printer are sharply creased.
NOTE: For more information about printing on envelopes, see the documentation
available with the software program you are using.
Follow the instructions for your operating system.
•
•
Print on envelopes (Windows)
Print on envelopes (Mac OS X)
Print on envelopes (Windows)
1.
2.
3.
4.
Load envelopes print-side down in the tray. For more information, see Load paper.
On the File menu in your software application, click Print.
Make sure the printer you want to use is selected.
To change settings, click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. On the Layout tab, change the orientation to Landscape.
6. Click Paper/Quality, and then select the appropriate envelope type from the Paper
Size drop-down list.
TIP: You can change more options for the print job by using the features
available on the other tabs in the dialog box.
7. Click OK, and then click Print or OK to begin printing.
30
Print
Print on envelopes (Mac OS X)
1. Load envelopes in the tray. For more information, see Load paper.
2. Depending on your application use one of the following procedures to select a paper
size:
From Page Setup
a. From the File menu in your software application, click Page Setup.
NOTE: If you do not see a Page Setup menu item, go to step 3.
b. Make sure the printer you want to use is selected in the Format For pop-up menu.
c. Select the paper size from the Paper Size pop-up menu, and then click OK.
-ORFrom Print
a. From the File menu in your software application, click Print.
b. Make sure the printer you want to use is selected.
c. Select the appropriate envelope size in the Paper Size pop-up menu (if available).
3. On the Print dialog select the Orientation option.
NOTE: If you do not see these options, click the disclosure triangle next to the
Printer pop-up menu or click Show Details.
4. Select any other print settings that you want, and then click Print to begin printing.
Print photos
Do not leave unused photo paper in the input tray. The paper might start to curl, which
could impair the quality of your printout. Photo paper should be flat before printing.
Follow the instructions for your operating system.
•
•
•
Print photos on photo paper (Windows)
Print photos on photo paper (Mac OS X)
Print photos from a memory device
NOTE: This printer includes HP ePrint, a free service from HP that allows you to
print documents on your HP ePrint-enabled printer anytime, from any location, and
without any additional software or printer drivers. For more information, see HP
ePrint.
Print photos on photo paper (Windows)
1.
2.
3.
4.
Load paper in the tray. For more information, see Load paper.
On the File menu in your software application, click Print.
Make sure the printer you want to use is selected.
To change settings, click the option that opens the printer Properties dialog box.
Depending on your software application, this option might be called Properties,
Options, Printer Setup, Printer, or Preferences.
Print photos
31
Chapter 2
5. On the Paper/Quality tab, select the appropriate photo paper type from the Paper
type drop-down menu.
6. On the Paper/Quality tab, select Best from the Print Quality drop-down menu.
7. To print in black and white, click the Color tab, and then select the Print in
Grayscale option.
8. Click OK, and then click Print or OK to begin printing.
Print photos on photo paper (Mac OS X)
1. Load paper in the tray. For more information, see Load paper.
2. Depending on your application use one of the following procedures to select a paper
size:
From Page Setup
a. From the File menu in your software application, click Page Setup.
NOTE: If you do not see a Page Setup menu item, go to step 3.
b. Make sure the printer you want to use is selected in the Format For pop-up menu.
c. Select the paper size from the Paper Size pop-up menu, and then click OK.
-ORFrom Print
a. From the File menu in your software application, click Print.
b. Make sure the printer you want to use is selected.
c. Select the paper size from the Paper Size pop-up menu (if available).
3. On the Print dialog click Color/Quality Option from the pop-up menu, and then select
the following settings:
• Media Type: The appropriate photo paper type
• Print Quality: Draft, Normal, or Best
NOTE: If you do not see these options, click the disclosure triangle next to the
Printer pop-up menu or click Show Details.
4. To print the photo in black and white, click Grayscale from the Print Color as
Gray pop-up menu, and then select one of the following options:
• Off: Turns printing in grayscale off.
• Black Ink Only: Uses black ink to print your photo in grayscale. The gray shading
is created by varying patterns of black dots, which might result in a grainy image.
• High Ink Only: Uses all the available colors to print your photo in grayscale. This
creates smooth and natural shades of gray.
5. Select any other print settings that you want, and then click Print to begin printing.
Print photos from a memory device
You can connect a USB storage device (such as a keychain drive) to the USB port on
the front of the printer.
32
Print
For more information about using memory devices, see Insert a memory device.
CAUTION: Attempting to remove a memory device while it is being accessed can
damage files on the memory device. You can safely remove a memory card only when
the status light is not blinking.
To print selected photos
NOTE: This function is only available if the memory device does not contain Digital
Print Order Format (DPOF) content.
1. Connect your memory device to the USB port on the front of the printer. The Select
Option screen appears on the control panel display.
2. Touch Photo. The Photo Menu screen appears.
3. Touch View & Print. The photos are displayed.
4. Follow the instructions on the control panel display to select, edit, or print the photos.
Print on special and custom-size paper
If your application supports custom-size paper, set the size in the application before
printing the document. If not, set the size in the printer driver. You might need to reformat
existing documents to print them correctly on custom-size paper.
Use only custom-size paper that is supported by the printer. For more information, see
Paper specifications.
NOTE: Defining custom-size paper sizes is only available in the HP printing software
in Mac OS X.
Follow the instructions for your operating system.
•
•
•
Print on special or custom-size paper (Windows)
Print on special or custom-size paper (Mac OS X)
Set up custom sizes (Mac OS X)
Print on special or custom-size paper (Windows)
1.
2.
3.
4.
Load the appropriate paper in the tray. For more information, see Load paper.
On the File menu in your software application, click Print.
Make sure the printer you want to use is selected.
To change settings, click the button that opens the Properties dialog box.
Depending on your software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. On the Paper/Quality tab, click the Custom... button.
6. Name the custom size and define the size of the paper on the Custom Paper Size
screen.
NOTE: The custome paper size you just defined will not be available until you
exit, and re-enter the Printing Preferences/Properties.
Print on special and custom-size paper
33
Chapter 2
7. Click the Paper/Quality tab, and select the custom paper size from the Paper
sizes: drop-down box.
8. Click OK.
9. Click Print or OK to begin printing.
Print on special or custom-size paper (Mac OS X)
NOTE: Before you can print on custom-size paper, you must set up the custom size
in the HP software provided with the printer. For instructions, see Set up custom sizes
(Mac OS X).
1. Load the appropriate paper in the tray. For more information, see Load paper.
2. Depending on your application use one of the following procedures to select a paper
size:
From Page Setup
a. From the File menu in your software application, click Page Setup.
NOTE: If you do not see a Page Setup menu item, go to step 3.
b. Make sure the printer you want to use is selected in the Format For pop-up menu.
c. Select the paper size from the Paper Size pop-up menu, and then click OK.
-ORFrom Print
a. From the File menu in your software application, click Print.
b. Make sure the printer you want to use is selected.
c. Select the paper size from the Paper Size pop-up menu (if available).
3. Click Paper Handling from the pop-up menu.
4. Above Destination Paper Size, click Scale to fit paper size, and then select the
custom size.
5. Select any other print settings that you want, and then click Print to begin printing.
Set up custom sizes (Mac OS X)
1. Load paper in the tray. For more information, see Load paper.
2. From the File menu in your software application, click Page Setup, and then make
sure the printer you want to use is selected in the Format For pop-up menu.
- OR From the File menu in your software application, click Print, and then make sure the
printer you want to use is selected.
3. Select Manage Custom Sizes in the Paper Size pop-up menu.
NOTE: If you do not see these options in the Print dialog, click the disclosure
triangle next to the Printer pop-up menu or click Show Details.
4. Click the + on the left side of the screen, double-click Untitled, and type a name for
the new, custom size.
34
Print
5. In the Width and Height boxes, type the dimensions, and then set the margins, if you
want to customize them.
6. Click OK.
HP ePrint
With HP ePrint, you can print from email connected mobile phones, netbooks, other
mobile devices, or traditional desktop email clients—anywhere, anytime. Using your
mobile device service and the printer’s Web Services, you can print documents to a printer
that could be sitting next to you or sitting thousands of miles away.
To use the HP ePrint service, you need to have the following components:
•
•
An HP ePrint-enabled printer that is connected to the Internet (either using an
Ethernet cable or wireless connection)
A device that has a functioning email capability
Follow the instructions on the printer’s control panel to enable and set up the printer’s
Web Services. For more information, see www.hpconnected.com.
HP Wireless Direct
With HP wireless direct printing, you can print wirelessly from a computer, smart phone,
tablet, or other wireless-capable device—without connecting to an existing wireless
network.
When using HP wireless direct printing, note the following guidelines:
•
•
•
•
•
•
Make sure your computer or mobile device has the necessary software:
If you are using a computer, make sure you have installed the HP printer software
provided with the printer.
If you are using a mobile device, make sure you have installed a compatible printing
app. For more information about mobile printing, visit www.hp.com/global/us/en/
eprint/mobile_printing_apps.html.
Make sure HP wireless direct printing is turned on in the printer and, if necessary,
security is enabled. For more information, see Turn on HP wireless direct printing.
Up to five computers and mobile devices can use the same HP wireless direct printing
connection.
HP wireless direct printing can be used while the printer is also connected to a
computer using USB cable or to a network (using a wireless or Ethernet connection).
HP wireless direct printing cannot be used to connect a computer, mobile device, or
printer to the Internet.
Click here to go online for more information.
For more information about wireless printing, see Set up the printer for wireless
communication.
NOTE: At this time, these websites might not be available in all languages.
HP Wireless Direct
35
Chapter 2
This section contains the following topics:
•
•
•
Turn on HP wireless direct printing
Print from a wireless-capable mobile device
Print from a wireless-capable computer
Turn on HP wireless direct printing
1. From the printer control panel, touch
(Wireless), and then touch Settings.
2. Touch Wireless Direct, and then touch On.
TIP: If you would like to use HP wireless direct printing with greater security and
if the computer or mobile device supports WPA2 encryption, select the option that
will enable security. With security enabled, only users with the password can
connect wirelessly to the printer. Without enabling security, anyone with a wireless
device within the wireless range of the printer can connect to the printer.
3. Touch Wireless Direct Name to display the wireless direct name.
4. If you have enabled security, touch Security Passcode to display the wireless direct
password.
TIP: You can also turn on HP wireless direct printing from the embedded web server
(EWS). For more information about using the EWS, see Embedded web server.
Print from a wireless-capable mobile device
Make sure you have installed a compatible printing app on your mobile device. For more
information, visit www.hp.com/global/us/en/eprint/mobile_printing_apps.html.
1. Make sure you have turned on HP wireless direct printing on the printer. For more
information, see Turn on HP wireless direct printing.
2. Turn on the wireless connection in your mobile device. For more information, see the
documentation provided with the mobile device.
3. From the mobile device, search for and connect to the HP wireless direct printing
name, such as HP-Setup-XX-Officejet Pro 251dw (where ** are the unique
characters to identify your printer).
If HP wireless direct is turned on with security, enter the password when prompted.
4. From your mobile device’s print app, confirm your HP printer is the default printer,
and then print your document.
Print from a wireless-capable computer
Follow the instructions for your operating system.
•
•
36
Print
Print from a wireless-capable computer (Windows)
Print from a wireless-capable computer (Mac OS X)
Print from a wireless-capable computer (Windows)
1. Make sure you have turned on HP wireless direct printing on the printer. For more
information, see Turn on HP wireless direct printing.
2. Turn on the wireless connection in your computer. For more information, see the
documentation provided with the computer.
3. From the computer, click the wireless icon on your task tray, select the HP wireless
direct printing name, such as HP-Setup-XX-Officejet Pro 251dw (where ** are the
unique characters to identify your printer).
If HP wireless direct is turned on with security, enter the password when prompted.
4. If the printer has been installed and connected to your computer with a USB cable,
enable HP wireless direct printing in the HP printer software. Proceed to step 5 if the
printer has been installed and connected to the computer over a network (Ethernet
or wireless).
a. From the computer desktop, click Start, select Programs or All Programs, click
HP, click the folder for the printer, and then select Printer Setup & Software.
- Or On the Start screen, right-click an empty area on the screen, click All Apps on
the app bar, and then click the icon with the printer’s name.
b. Select Connect New Printer.
c. When the Connection Options software screen appears, select Wireless.
Select the printer from the list of detected printers, such as HP-Setup-XXOfficejet Pro 251dw (where ** are the unique characters to identify your printer).
d. Follow the on-screen instructions.
5. Print your document.
Print from a wireless-capable computer (Mac OS X)
1. Make sure you have turned on HP wireless direct printing on the printer. For more
information, see Turn on HP wireless direct printing.
2. Turn on AirPort. For more information, see the documentation provided by Apple.
3. Click the AirPort icon and select the HP wireless direct printing name, such as HPSetup-XX-Officejet Pro 251dw (where ** are the unique characters to identify your
printer).
If HP wireless direct is turned on with security, enter the password when prompted.
4. Add the printer.
a. In System Preferences, select Print & Fax or Print & Scan, depending on your
operating system.
b. Click + below the list of printers at the left.
c. Select the printer from the list of detected printers (the word “Bonjour” is listed the
right column beside the printer name), and click Add.
5. Print your document.
Print on both sides (duplexing)
You can print on both sides of a sheet of media automatically by using the automatic twosided printing accessory (duplexer).
Print on both sides (duplexing)
37
Chapter 2
NOTE: Two-sided printing requires an automatic two-sided printing accessory
(duplexer) to be installed on the printer.
To print on both sides (Windows)
1. Load the appropriate media. For more information, see Guidelines for printing on both
sides of a page and Load paper.
2. Make sure the duplexer is installed correctly. For more information, see Install the
automatic two-sided printing accessory (duplexer).
3. With a document open, click Print on the File menu, and then select Print on both
sides options on the Finishing tab. Select Flip pages up if desired.
4. Change any other settings, and then click OK.
5. Print your document.
To print on both sides (Mac OS X)
1. Load the appropriate media. For more information, see Guidelines for printing on both
sides of a page and Load paper.
2. Make sure the duplexer is installed correctly. For more information, see Install the
automatic two-sided printing accessory (duplexer).
3. Depending on your application use one of the following procedures to select a paper
size:
From Page Setup
a. From the File menu in your software application, click Page Setup.
NOTE: If you do not see a Page Setup menu item, go to step 3.
b. Make sure the printer you want to use is selected in the Format For pop-up menu.
c. Select the paper size from the Paper Size pop-up menu, and then click OK.
-ORFrom Print
a. From the File menu in your software application, click Print.
b. Make sure the printer you want to use is selected.
4. On the Print dialog select the paper size from the Paper Size pop-up menu (if
available).
NOTE: You might need to select the paper-size option labeled Two-Sided
margins.
38
Print
5. Check the Two-Sided checkbox, and then click the appropriate binding options for
the document.
- OR Click the Layout pop-up menu, and then select the appropriate binding options for
the document from the Two-Sided pop-up menu.
NOTE: If you do not see any options, click the disclosure triangle next to the
Printer pop-up menu or click Show Details.
6. Select any other print settings that you want, and then click Print.
View Print Resolutions
1. In printer driver, click the Paper/Quality tab, and then click the Advanced button.
2. Click the Resolution button to view the print resolution.
View Print Resolutions
39
3
Web Services
The printer offers innovative, web-enabled solutions that can help you quickly access the
Internet, obtain documents, and print them faster—and all without using a computer.
NOTE: To use these web features, the printer must be connected to the Internet
(either using an Ethernet cable or wireless connection). You cannot use these web
features if the printer is connected using a USB cable.
This section contains the following topics:
•
•
•
•
What are Web Services?
Set up Web Services
Use Web Services
Remove Web Services
What are Web Services?
The printer includes the following Web Services:
•
•
HP ePrint
Printer Apps
HP ePrint
HP ePrint is a free service from HP that allows you to print to your HP ePrint-enabled
printer anytime, from any location. It’s as simple as sending an email to the email address
assigned to your printer when you enable Web Services on the printer. No special drivers
or software are needed. If you can send an email, you can print from anywhere, using
HP ePrint.
Once you have signed up for an account on HP Connected, you can:
•
•
•
•
Sign in to view your HP ePrint job status
Manage your HP ePrint printer queue
Control who can use your printer’s HP ePrint email address to print
Get help for HP ePrint
Printer Apps
Printer Apps allow you to easily locate and print preformatted web content, directly from
your printer.
Printer Apps provide a wide range of content, from store coupons to family activities,
news, travel, sports, cooking, photos, and many more. You can even view and print your
online images from popular photo sites.
Certain Printer Apps also allow you to schedule the delivery of app content to your printer.
Preformatted content designed specifically for your printer means no cut-off text and
pictures, and no extra pages with only one line of text. On some printers, you can also
choose paper and print quality settings on the print preview screen.
40
Web Services
Set up Web Services
To set up Web Services, complete the following steps.
NOTE: Before you set up Web Services, make sure you are connected to the
Internet.
•
•
•
Set up Web Services using the HP printer software
Set up Web Services using the printer’s control panel
Set up Web Services using the embedded web server
Set up Web Services using the HP printer software
In addition to enabling key printer features, you can use the HP printer software that came
with your printer to set up Web Services. If you didn’t set up Web Services when you
installed the HP software on your computer, you can still use the software to set up Web
Services.
To set up Web Services, complete the following steps for your operating system:
Set up Web Services (Windows)
1. From the computer desktop, click Start, select Programs or All Programs, click
HP, click the folder for your printer, and then select the icon with your printer’s name.
2. Double-click on the Printer Home Page under the Print section in the Print tab.
The printer’s embedded web server opens.
3. On the Web Services tab, click Setup in the Web Services Settings section.
4. Click Accept Terms of Use and Enable Web Services, and then click Next.
5. Click Yes to allow the printer to automatically check for and install product updates.
6. If your network uses proxy settings when connecting to the Internet, enter these
settings.
7. Follow the instructions on the Web Services information sheet to finish the setup.
Set up Web Services (Mac OS X)
▲ To set up and manage Web Services in Mac OS X, you can use the printer’s
embedded web server (EWS). For more information, see Set up Web Services using
the embedded web server.
Set up Web Services using the printer’s control panel
The printer’s control panel provides an easy way to set up and manage Web Services.
To set up Web Services, complete the following steps:
1. Make sure the printer is connected to the Internet.
2.
On the printer control panel, touch
(Apps) or
(HP ePrint).
3. Touch Accept to accept the Web Services terms of use and enable Web Services.
4. In the Auto Update screen, touch Yes to allow the printer to automatically check for
and install product updates.
Set up Web Services
41
Chapter 3
5. If your network uses proxy settings when connecting to the Internet, enter these
settings:
a. Touch Enter Proxy.
b. Enter the proxy server settings, and then touch Done.
6. Follow the instructions on the Web Services information sheet to finish the setup.
Set up Web Services using the embedded web server
You can use the printer’s embedded web server (EWS) to set up and manage Web
Services.
To set up Web Services, complete the following steps:
1. Open the EWS. For more information, see Embedded web server.
2. On the Web Services tab, click Setup in the Web Services Settings section.
3. Click the Continue button, select Accept Terms of Use and Enable Web
Services, Enable Web Services, and Update Apps checkboxes, and then click
Next.
4. Click Yes to allow the printer to automatically check for and install product updates.
5. If your network uses proxy settings when connecting to the Internet, enter these
settings.
6. Follow the instructions on the Web Services information sheet to finish the setup.
Use Web Services
The following section describes how to use and configure Web Services.
•
•
HP ePrint
Printer Apps
HP ePrint
HP ePrint allows you to print to your HP ePrint-enabled printer anytime, from any location.
To use HP ePrint, make sure to have the following:
•
•
An Internet- and email-capable computer or mobile device
An HP ePrint-capable printer on which Web Services has been enabled
TIP: For more information about managing and configuring HP ePrint settings and
to learn about the latest features, visit HP Connected (www.hpconnected.com).
42
Web Services
Print using HP ePrint
To print documents using HP ePrint, complete the following steps:
1. On your computer or mobile device, open your email application.
NOTE: For information about using the email application on your computer or
mobile device, see the documentation provided with the application.
2. Create a new email message, and then attach the file that you want to print. For a list
of files that can be printed using HP ePrint, as well as guidelines to follow when using
HP ePrint, see HP ePrint.
3. Enter the printer’s email address in the “To” line of the email message, and then select
the option to send the email message.
NOTE: Make sure that the printer’s email address is the only address listed in
the “To” line of the email message. If other email addresses are listed in the “To”
line, the attachments you are sending might not print.
Find the printer's email address
NOTE: Make sure you have created an ePrint account. To sign up for an account
on HP Connected, visit HP Connected at www.hpconnected.com.
From the Home screen, touch
(HP ePrint).
TIP: To print the email address, touch Print Info.
Turn off HP ePrint
To turn off HP ePrint, complete the following steps:
1.
From the Home screen, touch
(HP ePrint), and then touch Settings.
2. Touch ePrint, and then touch Off.
NOTE: To remove all Web Services, see Remove Web Services.
Printer Apps
Printer Apps allow you to easily locate and print pre-formatted web content, directly from
your printer.
Use Printer Apps
To use the Printer Apps on your printer, touch Apps on the printer’s control panel display,
and then touch the Print App you want to use.
For more information about individual Printer Apps, visit (www.hpconnected.com).
Use Web Services
43
Chapter 3
Manage Printer Apps
You can manage your Printer Apps with HP Connected. You can add, configure, or
remove Printer Apps, and set the order in which they appear on your printer’s display.
NOTE: To manage Printer Apps from HP Connected, create an account on HP
Connected and add your printer. For more information, see
(www.hpconnected.com).
Turn off Printer Apps
To turn off Printer Apps, complete the following steps:
1.
From the Home screen, touch
2. Touch Apps, and then touch Off.
(HP ePrint), and then touch Settings.
NOTE: To remove all Web Services, see Remove Web Services.
Remove Web Services
To remove Web Services, complete the following steps:
1.
On the printer’s control panel display, touch
Settings.
2. Touch Remove Web Services.
44
Web Services
(HP ePrint), and then touch
4
Work with ink cartridges
To ensure the best print quality from the printer, you need to perform some simple
maintenance procedures. This section provides guidelines for handling the ink cartridges,
instructions for replacing the ink cartridges, and aligning and cleaning the printhead.
This section contains the following topics:
•
•
•
•
•
•
Information on ink cartridges and the printhead
Check the estimated ink levels
Print when one or more ink cartridges are depleted
Replace the ink cartridges
Store printing supplies
Anonymous Usage Information Storage
Information on ink cartridges and the printhead
The following tips help maintain HP ink cartridges and ensure consistent print quality.
•
The instructions in this user guide are for replacing ink cartridges, and are not
intended for first time installation.
•
CAUTION: HP recommends that you replace any missing cartridges as soon as
possible to avoid print quality issues and possible extra ink usage or damage to
the ink system. Never turn off the printer when ink cartridges are missing.
•
•
Keep all ink cartridges in the original sealed packages until they are needed.
Be sure to turn off the printer properly. For more information, see Turn the printer
off.
Store ink cartridges at room temperature (15-35° C or 59-95° F).
Do not clean the printhead unnecessarily. This wastes ink and shortens the life of the
cartridges.
Handle ink cartridges carefully. Dropping, jarring, or rough handling during installation
can cause temporary printing problems.
If you are transporting the printer, do the following to prevent ink leaking from the
printer or other damage from occurring to the printer:
◦ Make sure you turn off the printer by pressing the
(Power button). Wait until
•
•
•
•
◦
◦
all sounds of internal motion stop before unplugging the printer. For more
information, see Turn the printer off.
Make sure you leave the ink cartridges and printhead installed.
The printer must be transported sitting flat; it should not be placed on its side,
back, front, or top.
Related topics
• Check the estimated ink levels
• Printhead maintenance
Work with ink cartridges
45
Chapter 4
Check the estimated ink levels
You can check the estimated ink levels from the printer software or from the printer control
panel. For information about using these tools, see Printer management tools and Use
the printer control panel. You can also print the Printer Status page to view this information
(see Understand the Printer Status Report).
NOTE: Ink level alerts and indicators provide estimates for planning purposes only.
When you receive a low-ink alert, consider having a replacement cartridge available
to avoid possible printing delays. You do not have to replace the cartridges until you
are prompted to do so.
NOTE: If you have installed a refilled or remanufactured cartridge, or a cartridge that
has been used in another printer, the ink level indicator might be inaccurate or
unavailable.
NOTE: Ink from the cartridges is used in the printing process in a number of different
ways, including in the initialization process, which prepares the printer and cartridges
for printing, and in printhead servicing, which keeps print nozzles clear and ink flowing
smoothly. In addition, some residual ink is left in the cartridge after it is used. For more
information, see www.hp.com/go/inkusage.
Print when one or more ink cartridges are depleted
The printer can still operate when the black ink cartridge or one or more color ink
cartridges are depleted, but it will print more slowly. Also, the quality of printed documents
might be affected.
The printer will not be able to print when both the black cartridge and a color cartridge
are depleted.
•
•
If the black cartridge is depleted, any black color in printed documents is created using
a combination of the remaining colors. As a result, blacks might not appear to be as
dark.
If a color cartridge is depleted, the printer will print in grayscale using the black
cartridge.
When possible, replace any depleted ink cartridges. For information about how to install
new ink cartridges, see Replace the ink cartridges.
CAUTION: While ink cartridges are not damaged when left outside of the printer,
the printhead does need to have all cartridges installed at all times after the printer is
set up and in use. Leaving one or more cartridge slots empty for an extended period
may lead to print quality problems and possibly damage the printhead. If you have
recently left a cartridge out of the printer for an extended period, or if you have had a
recent paper jam, and have noticed poor print quality, clean the printhead. For more
information, see Clean the printhead.
46
Work with ink cartridges
Replace the ink cartridges
NOTE: For information on recycling used ink supplies, see HP inkjet supplies
recycling program
If you do not already have replacement ink cartridges for the printer, see Ink cartridges
and printheads.
NOTE: At this time, some portions of the HP website are available in English only.
NOTE: Not all cartridges are available in all countries/regions.
CAUTION: HP recommends that you replace any missing cartridges as soon as
possible to avoid print quality issues and possible extra ink usage or damage to the
ink system. Never turn off the printer when ink cartridges are missing.
Use these steps to replace the ink cartridges.
To replace the ink cartridges
1. Make sure the printer is turned on.
2. Open the ink cartridge access door.
NOTE: Wait until the print carriage stops moving before proceeding.
3. Press the front of the ink cartridge to release it, and then remove it from the slot.
4. Remove the new ink cartridge from its packaging.
5. Using the color-coded letters for help, slide the ink cartridge into the empty slot until
it is securely installed in the slot.
CAUTION: Do not lift the latch handle on the print carriage to install the ink
cartridges. Doing so could cause the printhead or ink cartridges to be incorrectly
seated, which can cause errors or print quality problems. The latch must remain
down in order to correctly install the ink cartridges.
Replace the ink cartridges
47
Chapter 4
Make sure that you insert the ink cartridge into the slot that has the same colored
letter as the color you are installing.
6. Repeat steps 3 through 5 for each ink cartridge you are replacing.
7. Close the ink cartridge access door.
Related topics
Ink cartridges and printheads
Store printing supplies
Ink cartridges can be left in the printer for extended periods of time. However, to assure
optimal ink cartridge health, be sure to turn off the printer properly. For more information,
see Turn the printer off.
Anonymous Usage Information Storage
The HP cartridges used with this printer contain a memory chip that assists in the
operation of the printer.
In addition, this memory chip stores a limited set of anonymous information about the
usage of the printer, which might include the following: the date when the cartridge was
first installed, the date when the cartridge was last used, the number of pages printed
using the cartridge, the page coverage, frequency of printing, the printing modes used,
any printing errors that might have occurred, and the printer model.
48
Work with ink cartridges
This information helps HP design future printers to meet our customers' printing needs.
The data collected from the cartridge memory chip does not contain information that can
be used to identify a customer or user of the cartridge or their printer.
HP collects a sampling of the memory chips from cartridges returned to HP's free return
and recycling program (HP Planet Partners: www.hp.com/hpinfo/globalcitizenship/
environment/recycle). The memory chips from this sampling are read and studied in order
to improve future HP printers. HP partners who assist in recycling this cartridge might
have access to this data, as well.
Any third party possessing the cartridge might have access to the anonymous information
on the memory chip. If you prefer to not allow access to this information, you can render
the chip inoperable. However, after you render the memory chip inoperable, the cartridge
cannot be used in an HP printer.
If you are concerned about providing this anonymous information, you can make this
information inaccessible by turning off the memory chip's ability to collect the printer's
usage information:
To disable the usage information function
1. On the printer control panel, touch (right arrow), and then touch Setup.
2. Select Preferences, and then select Cartridge Chip Information.
3. Touch OK to turn off usage information collection.
NOTE: To re-enable the usage information function, restore the factory defaults.
NOTE: You can continue to use the cartridge in the HP printer if you turn off the
memory chip's ability to collect the printer's usage information.
Anonymous Usage Information Storage
49
5
Solve a problem
The information in this section suggests solutions to common problems. If your printer is
not operating correctly and these suggestions did not solve your problem, try using one
of the following support services to obtain assistance.
This section contains the following topics:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
HP support
General troubleshooting tips and resources
Solve printer problems
Print quality troubleshooting
Solve paper-feed problems
Solve problems using Web Services and HP websites
Solve memory device problems
Solve Ethernet network problems
Solve wireless problems
Configure your firewall software to work with the printer
Solve printer management problems
Troubleshoot installation issues
Solve network problems
Understand the Printer Status Report
Printhead maintenance
Understand the network configuration page
Clear jams
HP support
If you have a problem, follow these steps
1. Check the documentation that came with the printer.
2. Visit the HP online support website at www.hp.com/support. This website provides
information and utilities that can help you correct many common printer problems. HP
online support is available to all HP customers. It is the fastest source for up-to-date
printer information and expert assistance and includes the following features:
• Fast access to qualified online support specialists
• HP software and driver updates for the HP printer
• Valuable troubleshooting information for common problems
• Proactive printer updates, support alerts, and HP newsgrams that are available
when you register the printer
For more information, see Obtain electronic support.
3. Call HP support. Support options and availability vary by printer, country/region, and
language. For more information, see HP support by phone.
50
Solve a problem
Obtain electronic support
To find support and warranty information, go to the HP website at www.hp.com/
support. This website provides information and utilities that can help you correct many
common printer problems. If prompted, select your country/region, and then click Contact
HP for information about calling for technical support.
This website also offers technical support, drivers, supplies, ordering information and
other options such as:
•
•
•
•
Access online support pages.
Send HP an email message for answers to your questions.
Connect with an HP technician by using online chat.
Check for HP software updates.
You can also obtain support from the HP software for Windows or Mac OS X, which
provide easy, step-by-step solutions to common printing problems. For more information,
see Printer management tools.
Support options and availability vary by printer, country/region, and language.
HP support by phone
The phone support numbers and associated costs listed here are those in effect at time
of publication and are applicable only for calls made on a land line. Different rates may
apply for mobile phones.
For the most current HP list of telephone support numbers and call costs information, see
www.hp.com/support. This website provides information and utilities that can help you
correct many common printer problems.
During the warranty period, you may obtain assistance from the HP Customer Care
Center.
NOTE: HP does not provide telephone support for Linux printing. All support is
provided online at the following website: https://launchpad.net/hplip. Click the Ask
a question button to begin the support process.
The HPLIP website does not provide support for Windows or Mac OS X. If you are
using these operating systems, see www.hp.com/support. This website provides
information and utilities that can help you correct many common printer problems.
This section contains the following topics:
•
•
•
Before you call
Phone support period
After the phone support period
Before you call
Call HP support while you are in front of the computer and the printer. Be prepared to
provide the following information:
•
•
Model number
Serial number (located on the back or bottom of the printer)
HP support
51
Chapter 5
•
•
Messages that appear when the situation occurs
Answers to these questions:
◦ Has this situation happened before?
◦ Can you re-create it?
◦ Did you add any new hardware or software to your computer at about the time
that this situation began?
◦ Did anything else occur prior to this situation (such as a thunderstorm or moving
the printer)?
Phone support period
One year of phone support is available in North America, Asia Pacific, and Latin America
(including Mexico).
After the phone support period
After the phone support period, help is available from HP at an additional cost. Help may
also be available at the HP online support website: www.hp.com/support. This website
provides information and utilities that can help you correct many common printer
problems. Contact your HP dealer or call the support phone number for your country/
region to learn more about support options.
General troubleshooting tips and resources
NOTE: Many of the following steps require HP software. If you did not install the HP
software, you can install it using the HP software CD included with the printer, or you
can download the HP software from the HP support website www.hp.com/support.
This website provides information and utilities that can help you correct many common
printer problems.
Check or do the following before you begin troubleshooting:
•
•
•
Try turning the printer off and then on again.
For a paper jam, see Clear jams.
For paper-feed problems, such as the paper skew and paper pick, see Solve paperfeed problems.
•
(Power button) light is on and not blinking. When the printer is turned on for the
first time, it takes approximately 12 minutes to initialize it after the ink cartridges are
installed.
Power cord and other cables are working, and are firmly connected to the printer.
Make sure the printer is connected firmly to a functioning alternating current (AC)
power outlet, and is turned on. For voltage requirements, see Electrical
specifications.
Media is loaded correctly in the input tray and is not jammed in the printer.
All packing tapes and materials are removed.
The printer is set as the current or default printer. For Windows, set it as the default
in the Printers folder. For Mac OS X, set it as the default in the Print & Fax or Print
& Scan section of the System Preferences. See your computer's documentation for
more information.
•
•
•
•
52
Solve a problem
•
•
Pause Printing is not selected if you are using a computer running Windows.
You are not running too many programs when you are performing a task. Close
programs that you are not using or restart the computer before attempting the task
again.
Solve printer problems
TIP: You can visit the HP online support website at www.hp.com/support for
information and utilities that can help you correct many common printer problems.
This section contains the following topics:
•
•
•
•
•
•
•
•
The printer shuts down unexpectedly
Alignment fails
The printer is not responding (nothing prints)
The printer prints slowly
The printer is making some unexpected noises
Blank or partial page printed
Something on the page is missing or incorrect
Placement of the text or graphics is wrong
The printer shuts down unexpectedly
Check the power and power connections
Make sure the printer is connected firmly to a functioning alternating current (AC) power
outlet. For voltage requirements, see Electrical specifications.
Alignment fails
If the alignment process fails, make sure you have loaded unused, plain white paper into
the input tray. If you have colored paper loaded in the input tray when you align the printer,
the alignment fails.
If the alignment process fails repeatedly, you may need to clean the printhead, or you
might have a defective sensor. To clean the printhead, see Clean the printhead.
If cleaning the printhead does not solve the problem, contact HP support. Go to
www.hp.com/support. This website provides information and utilities that can help you
correct many common printer problems. If prompted, select your country/region, and then
click Contact HP for information on calling for technical support.
The printer is not responding (nothing prints)
There are print jobs stuck in the print queue
Open the print queue, cancel all documents, and then reboot the computer. Try to print
after the computer reboots. Refer to the Help system for the operating system for more
information.
Check the printer setup
For more information, see General troubleshooting tips and resources.
Solve printer problems
53
Chapter 5
Check the HP software installation
If the printer is turned off when printing, an alert message should appear on your computer
screen; otherwise, the HP software provided with the printer might not be installed
correctly. To resolve this, uninstall the HP software completely, and then reinstall the HP
software. For more information, see Uninstall and reinstall the HP software.
Check the cable connections
• Make sure both ends of the USB cable or Ethernet cable are secure.
• If the printer is connected to a network, check the following:
◦ Check the Link light on the back of the printer.
◦ Make sure you are not using a phone cord to connect the printer.
Check any personal firewall software installed on the computer
The personal software firewall is a security program that protects a computer from
intrusion. However, the firewall might block communication between the computer and
the printer. If there is a problem communicating with the printer, try temporarily disabling
the firewall. If the problem persists, the firewall is not the source of the communication
problem. Re-enable the firewall.
The printer prints slowly
Try the following solutions if the printer is printing very slowly.
•
•
•
Solution 1: Use a lower print quality setting
Solution 2: Check the ink levels
Solution 3: Contact HP support
Solution 1: Use a lower print quality setting
Solution: Check the print quality setting. Best and Maximum dpi provide the best
quality but are slower than Normal or Draft. Draft provides the fastest print speed.
Cause:
The print quality was set to a high setting.
If this did not solve the issue, try the next solution.
Solution 2: Check the ink levels
Solution:
Check the estimated ink levels in the ink cartridges.
NOTE: Ink level alerts and indicators provide estimates for planning purposes
only. When you receive a low on ink message, consider having a replacement
cartridge available to avoid possible printing delays. You do not need to replace
the ink cartridges until prompted to do so.
54
Solve a problem
NOTE: The printer can operate with one or more depleted cartridges. However,
printing with depleted cartridges slows the printer and affects the quality of printed
documents. If the black cartridge is depleted, blacks are not as dark. If a color
cartridge is depleted, output is in grayscale. When possible, replace the depleted
cartridge. Do not remove the depleted cartridge until you have a new ink cartridge
available. For information about how to install new cartridges, see Replace the
ink cartridges.
CAUTION: While ink cartridges are not damaged when left outside of the printer,
the printhead does need to have all cartridges installed at all times after the printer
is set up and in use. Leaving one or more cartridge slots empty for an extended
period may lead to print quality problems and possibly damage the printhead. If
you have recently left a cartridge out of the printer for an extended period, or if
you have had a recent paper jam, and have noticed poor print quality, clean the
printhead. For more information, see Clean the printhead.
For more information, see:
Check the estimated ink levels
Cause: The ink cartridges might have insufficient ink. Printing with depleted
cartridges slows the printer.
If this did not solve the issue, try the next solution.
Solution 3: Contact HP support
Solution:
Contact HP support for service.
Go to: www.hp.com/support. This website provides information and utilities that can
help you correct many common printer problems.
If prompted, choose your country/region, and then click Contact HP for information
on calling for technical support.
Cause: There was a problem with the printer.
The printer is making some unexpected noises
You might hear some unexpected noises made by the printer. These are the servicing
sounds when the printer performs automatic servicing functions to maintain the health of
the printhead.
NOTE: To prevent any potential damage to your printer:
Do not turn off the printer while the printer is performing any servicing. If you are
turning off the printer, wait for the printer to come to a complete stop before turning it
off using the
(Power button). For more information, see Turn the printer off.
Make sure all ink cartridges are installed. If any of the ink cartridge is missing, the
printer will perform extra servicing to protect the printhead.
Solve printer problems
55
Chapter 5
Blank or partial page printed
Clean the printhead
Complete the printhead cleaning procedure. For more information, see Clean the
printhead. The printhead may need to be cleaned if the printer was turned off incorrectly.
NOTE: Incorrectly turning off the printer can cause print quality problems like blank
or partial pages. Printhead cleaning can solve these problems, but turning off the
printer correctly can prevent them in the first place. Always turn the printer off by
pressing the
(Power button) on the printer. Wait until the
(Power button) light
goes out before unplugging the power cord or turning off a power strip.
Check the media settings
• Make sure you select the correct print quality settings in the printer driver for the media
loaded in the trays.
• Make sure the page settings in the printer driver match the page size of media loaded
in the tray.
More than one page is being picked
For more information, see Solve paper-feed problems.
There is a blank page in the file
Check the file to make sure there is no blank page.
Something on the page is missing or incorrect
Check the Print Quality Diagnostic page
Print a Print Quality Diagnostic page to help you decide whether to run any maintenance
tools to improve the print quality of your printouts. For more information, see Print quality
troubleshooting.
Check the margin settings
Make sure the margin settings for the document do not exceed the printable area of the
printer. For more information, see Set minimum margins.
Check the color print settings
Make sure Print in Grayscale is not selected in the printer driver.
Check the printer location and length of USB cable
High electromagnetic fields (such as those generated by USB cables) can sometimes
cause slight distortions to printouts. Move the printer away from the source of the
electromagnetic fields. Also, it is recommended that you use a USB cable that is less than
3 meters (9.8 feet) long to minimize the effects of these electromagnetic fields.
56
Solve a problem
Placement of the text or graphics is wrong
Check how the media is loaded
Make sure the media width and length guides fit snugly against the edges of the stack of
media, and make sure the tray is not overloaded. For more information, see Load
paper.
Check the media size
• Content on a page might be cut off if the document size is larger than the media that
you are using.
• Make sure the media size selected in the printer driver match the size of media loaded
in the tray.
Check the margin settings
If the text or graphics are cut off at the edges of the page, make sure the margin settings
for the document do not exceed the printable area of your printer. For more information,
see Set minimum margins.
Check the page-orientation setting
Make sure the media size and page orientation selected in the application match the
settings in the printer driver. For more information, see Print.
Check the printer location and length of USB cable
High electromagnetic fields (such as those generated by USB cables) can sometimes
cause slight distortions to printouts. Move the printer away from the source of the
electromagnetic fields. Also, it is recommended that you use a USB cable that is less than
3 meters (9.8 feet) long to minimize the effects of these electromagnetic fields.
If the above solutions do not work, the problem may be caused by the inability of the
application to interpret print settings correctly. See the release notes for known software
conflicts, refer to the application's documentation, or contact the software manufacturer
for specific help.
Print quality troubleshooting
Try the solutions in this section to resolve print quality problems in your printout.
TIP: You can visit the HP online support website at www.hp.com/support for
information and utilities that can help you correct many common printer problems.
•
•
•
•
•
•
•
Solution 1: Make sure you are using genuine HP ink cartridges
Solution 2: Check the ink levels
Solution 3: Check the paper loaded in the input tray
Solution 4: Check the paper type
Solution 5: Check the print settings
Solution 6: Print and evaluate a print quality report
Solution 7: Contact HP support
Print quality troubleshooting
57
Chapter 5
Solution 1: Make sure you are using genuine HP ink cartridges
Solution:
Check to see if your ink cartridges are genuine HP ink cartridges.
HP recommends that you use genuine HP ink cartridges. Genuine HP ink cartridges
are designed and tested with HP printers to help you easily produce great results,
time after time.
NOTE: HP cannot guarantee the quality or reliability of non-HP supplies. Printer
service or repairs required as a result of using a non-HP supply are not covered
under warranty.
If you believe you purchased genuine HP ink cartridges, go to:
www.hp.com/go/anticounterfeit
Cause:
Non-HP ink cartridges were being used.
If this did not solve the issue, try the next solution.
Solution 2: Check the ink levels
Solution:
Check the estimated ink levels in the ink cartridges.
NOTE: Ink level alerts and indicators provide estimates for planning purposes
only. When you receive a low-ink alert, consider having a replacement cartridge
available to avoid possible printing delays. You do not need to replace the ink
cartridges until prompted to do so.
NOTE: The printer can operate with one or more depleted cartridges. However,
printing with depleted cartridges slows the printer and affects the quality of printed
documents. If the black cartridge is depleted, blacks are not as dark. If a color
cartridge is depleted, output is in grayscale. When possible, replace the depleted
cartridge. Do not remove the depleted cartridge until you have a new ink cartridge
available. For information about how to install new cartridges, see Replace the
ink cartridges.
CAUTION: While ink cartridges are not damaged when left outside of the printer,
the printhead does need to have all cartridges installed at all times after the printer
is set up and in use. Leaving one or more cartridge slots empty for an extended
period may lead to print quality problems and possibly damage the printhead. If
you have recently left a cartridge out of the printer for an extended period, or if
you have had a recent paper jam, and have noticed poor print quality, clean the
printhead. For more information, see Clean the printhead.
For more information, see:
Check the estimated ink levels
Cause:
The ink cartridges might have insufficient ink.
If this did not solve the issue, try the next solution.
58
Solve a problem
Solution 3: Check the paper loaded in the input tray
Solution: Make sure the paper is loaded correctly and that it is not wrinkled or too
thick.
• Load paper with the print side facing down. For example, if you are loading glossy
photo paper, load the paper with the glossy side down.
• Make sure the paper lays flat in the input tray and is not wrinkled. If the paper is
too close to the printhead during printing, the ink might be smeared. This can
happen if the paper is raised, wrinkled, or very thick, such as a mailing envelope.
For more information, see:
Load paper.
Cause: The paper was loaded incorrectly, or it was wrinkled or too thick.
If this did not solve the issue, try the next solution.
Solution 4: Check the paper type
Solution: HP recommends that you use HP papers or any other paper type with
ColorLok technology that is appropriate for the printer. All papers with the ColorLok
logo are independently tested to meet high standards of reliability and print quality,
and produce documents with crisp, vivid color, bolder blacks and dry faster than
ordinary plain papers.
Always make sure the paper you are printing on is flat. For best results when printing
images, use HP Advanced Photo Paper.
Store specialty media in its original packaging inside a resealable plastic bag on a
flat surface in a cool, dry place. When you are ready to print, remove only the paper
you plan to use immediately. When you have finished printing, return any unused
photo paper to the plastic bag. This prevents the photo paper from curling.
NOTE: For this issue, there is not a problem with your ink supplies. Therefore,
replacing the ink cartridges is not necessary.
For more information, see:
Select paper
Cause: The wrong kind of paper was loaded in the input tray.
If this did not solve the issue, try the next solution.
Print quality troubleshooting
59
Chapter 5
Solution 5: Check the print settings
Solution: Check the print settings.
• Check the print settings to see if the color settings are incorrect.
For example, check to see if the document is set to print in grayscale. Or, check
to see if advanced color settings such as saturation, brightness, or color tone, are
set to modify the appearance of colors.
• Check the print quality setting and make sure it matches the type of paper loaded
in the printer.
You might need to choose a lower print quality setting if colors are running into
each other. Or, choose a higher setting if you are printing a high-quality photo,
and then make sure photo paper such as HP Advanced Photo Paper is loaded in
the input tray.
NOTE: On some computer screens, colors might appear differently than they do
when printed on paper. In this case, there is nothing wrong with the printer, print
settings, or ink cartridges. No further troubleshooting is required.
For more information, see:
Select paper
Cause:
The print settings were set incorrectly.
If this did not solve the issue, try the next solution.
Solution 6: Print and evaluate a print quality report
Solution:
To print a print quality report
• Control panel: Touch (right arrow), and then touch Setup, select Reports, and
then select Print Quality Report.
• Embedded web server: Click the Tools tab, click Print Quality Toolbox under
Utilities, and then click Print Quality Report button.
• HP Utility (Mac OS X): In the Information And Support section, click Print
Quality Diagnostics, and then click Print.
60
Solve a problem
If defects are seen on the Print Quality Diagnostic report, follow the steps below:
1. If the Print Quality Diagnostic report shows faded, partial, streaked, or missing
color bars or patterns, check for depleted ink cartridges, and replace the ink
cartridge that corresponds to the defective color bar or color pattern. If there is no
depleted ink cartridge, remove and reinstall all ink cartridges to make sure they
are properly installed. Do not remove the depleted cartridge until you have a new
ink cartridge available to replace. For information about how to install new
cartridges, see Replace the ink cartridges.
2. Calibrate the linefeed. For more information, see Calibrate the linefeed.
3. Align the printhead. For more information, see Align the printhead.
4. Clean the printhead. For more information, see Clean the printhead.
5. If none of the previous steps have helped, contact HP support to replace the
printhead. For more information, see HP support.
Cause: Print quality problems can have many causes: software settings, a poor
image file, or the printing system itself. If you are unhappy with the quality of your
prints, a Print Quality Diagnostic page can help you determine if the printing system
is working correctly.
Solution 7: Contact HP support
Solution:
Contact HP support for service.
Print quality troubleshooting
61
Chapter 5
Go to: www.hp.com/support. This website provides information and utilities that can
help you correct many common printer problems.
If prompted, choose your country/region, and then click Contact HP for information
on calling for technical support.
Cause:
There was a problem with the printhead.
Solve paper-feed problems
TIP: You can visit the HP online support website at www.hp.com/support for
information and utilities that can help you correct many common printer problems.
Media is not supported for the printer or tray
Use only media that is supported for the printer and the tray being used. For more
information, see Paper specifications.
Media is not picked up from a tray
• Make sure media is loaded in the tray. For more information, see Load paper. Fan
the media before loading.
• Make sure the paper guides are set to the correct markings in the tray for the media
size you are loading. Also make sure the guides are snug, but not tight, against the
stack.
• Make sure media in the tray is not curled. Uncurl paper by bending it in the opposite
direction of the curl.
Media is not coming out correctly
• Make sure the output tray extension is fully extended; otherwise, printed pages may
fall off the printer.
•
62
Remove excess media from the output tray. There is a limit to the number of sheets
the tray can hold.
Solve a problem
Pages are skewing
• Make sure the media loaded in the trays is aligned to the paper guides. If needed,
pull out the trays from the printer and reload the media correctly, making sure that the
paper guides are aligned correctly.
• Load media into the printer only when it is not printing.
• Remove and replace the automatic two-sided printing accessory (duplexer).
◦ Push the button on either side of the duplexer, and then remove the unit.
◦
Reinsert the duplexer into the printer.
Multiple pages are being picked up
• Fan the media before loading.
• Make sure the paper guides are set to the correct markings in the tray for the media
size you are loading. Also make sure the guides are snug, but not tight, against the
stack.
• Make sure the tray is not overloaded with paper.
• When using thin special media, make sure that the tray is completely loaded. If you
are using special media that is only available in small quantities, try placing the special
media on top of other paper of the same size to help fill the tray. (Some media is
picked up more easily if the tray is full.)
• If you are using thick special media (such as brochure paper), load media so that the
tray is between 1/4 and 3/4 full. If necessary, place the media on top of other paper
of the same size so that the stack height is within this range.
• Use HP media for optimum performance and efficiency.
Solve problems using Web Services and HP websites
This section provides solutions to common problems using Web Services and HP
websites.
•
•
Solve problems using Web Services
Solve problems using HP websites
Solve problems using Web Services and HP websites
63
Chapter 5
Solve problems using Web Services
If you are having problems using Web Services, such as HP ePrint and Printer Apps,
check the following:
•
Make sure the printer is connected to the Internet using an Ethernet or wireless
connection.
NOTE: You cannot use these web features if the printer is connected using a
USB cable.
•
•
•
•
•
•
•
Make sure the latest product updates have been installed on the printer. For more
information, see Update the printer.
Make sure Web Services is enabled on the printer. For more information, see Set up
Web Services using the printer’s control panel.
Make sure the network hub, switch, or router is turned on and working correctly.
If you are connecting the printer using an Ethernet cable, make sure you are not
connecting the printer using a phone cord or a crossover cable to connect the printer
to the network and that the Ethernet cable is securely connected to the printer. For
more information, see Solve Ethernet network problems.
If you are connecting the printer using a wireless connection, make sure the wireless
network is functioning properly. For more information, see Solve wireless problems.
If you are using HP ePrint, check the following:
◦ Make sure the printer’s email address is correct.
◦ Make sure that the printer’s email address is the only address listed in the “To”
line of the email message. If other email addresses are listed in the “To” line, the
attachments you are sending might not print.
◦ Make sure you are sending documents that meet the HP ePrint requirements. For
more information, see Web Services specifications.
If your network uses proxy settings when connecting to the Internet, make sure the
proxy settings you are entering are valid:
◦ Check the settings being used by the Web browser you are using (such as Internet
Explorer, Firefox, or Safari).
◦ Check with the IT administrator or person who set up your firewall.
If the proxy settings used by your firewall have changed, you must update these
settings in either the printer’s control panel. If these settings are not updated, you
will not be able to use Web Services.
For more information, see Set up Web Services using the printer’s control
panel.
TIP: For additional help on setting up and using Web Services, visit HP
Connected (www.hpconnected.com).
64
Solve a problem
Solve problems using HP websites
If you are having problems using HP websites from your computer, check the following:
•
•
•
Make sure the computer that you are using is connected to the Internet.
Make sure the web browser meets the minimum system requirements. For more
information, see HP website specifications.
If your web browser uses any proxy settings to connect to the Internet, try turning off
these settings. For more information, see the documentation provided with your web
browser.
Solve memory device problems
TIP: You can visit the HP online support website at www.hp.com/support for
information and utilities that can help you correct many common printer problems.
NOTE: If you are starting a memory device operation from a computer, see the
software Help for troubleshooting information.
•
•
The printer cannot read the memory device
The printer cannot read photos on the memory device
The printer cannot read the memory device
•
•
Check the memory device
◦ Make sure that the memory device is one of the supported types. For more
information, see Memory device specifications.
◦ Some memory devices have a switch that controls how they can be used. Make
sure that the switch is set so that the memory device can be read.
◦ Inspect the ends of the memory device for dirt or material that closes a hole or
spoils a metal contact. Clean the contacts with a lint-free cloth and small amounts
of isopropyl alcohol.
◦ Make sure that the memory device is working correctly by testing it with other
devices. If the files can be access using a computer, the device may still not work
with the printer.
Check the USB port
◦ Make sure that the USB cable is fully inserted into the port.
◦ Remove the USB cable and shine a flashlight into the empty port. See if there is
any debris in the port. For more information, see HP support. This website
provides information and utilities that can help you correct many common printer
problems.
The printer cannot read photos on the memory device
Check the memory device
The memory device might be corrupt.
Solve memory device problems
65
Chapter 5
Solve Ethernet network problems
TIP: You can visit the HP online support website at www.hp.com/support for
information and utilities that can help you correct many common printer problems.
If you are unable to connect the printer to your Ethernet network, perform one or more of
the following tasks.
NOTE: After correcting any of the following, run the installation program again.
•
General network troubleshooting
General network troubleshooting
If you are unable to install the HP software provided with the printer, verify that:
•
•
•
•
All cable connections to the computer and the printer are secure.
The network is operational and the network hub, switch, or router is turned on.
All applications, including virus protection programs, spyware protection programs,
and firewalls, are closed or disabled for computers running Windows.
The printer is installed on the same subnet as the computers that use the printer.
Solve wireless problems
This section provides information about solving problems you might encounter when
connecting the printer to your wireless network.
Follow these suggestions in order, starting with those listed in the "Basic wireless
troubleshooting" section. If you still encounter problems, follow the suggestions provided
in the "Advanced wireless troubleshooting" section.
This section contains the following topics:
•
•
•
Basic wireless troubleshooting
Advanced wireless troubleshooting
After resolving the problems
TIP: For more information about troubleshooting wireless problems, visit the HP
Wireless Printing Center www.hp.com/go/wirelessprinting.
NOTE: After you resolve the problem, follow the instructions in After resolving the
problems.
Basic wireless troubleshooting
NOTE: If you have not configured the printer for wireless connection, use the HP
software to complete the setup. For more information, see .
Perform the following steps in the order presented.
66
Solve a problem
TIP: If you are using a computer running Windows, use the HP Print and Scan Doctor
to help diagnose and get assistance in installing and using HPprinters on home
network. To use this tool, visit the HP Wireless Printing Center www.hp.com/go/
wirelessprinting.
Step 1 - Make sure the wireless (802.11) light is turned on
The Wireless light in the printer control panel indicates the status of the wireless
capabilities.
To turn on wireless, touch (right arrow), touch Setup, touch Network, touch Wireless
Radio, and then select Yes.
NOTE: If your printer supports Ethernet networking, make sure that an Ethernet
cable has not been connected to the printer. Connecting an Ethernet cable turns off
the printer's wireless capabilities.
Step 2 - Restart components of the wireless network
Turn off the router and the printer, and then turn them back on in this order: router first
and then the printer. If you still are unable to connect, turn off the router, printer, and your
computer. Sometimes, turning off the power and then turning it back on recovers from a
network communication issue.
Step 3 - Run the Print Wireless Network Test
For wireless networking issues, run the Print Wireless Network Test. If a problem is
detected, the printed test report includes recommendations that might help solve the
problem.
TIP: If the Print Wireless Network Test indicates the signal is weak, try moving the
printer closer to the wireless router.
To print a wireless network test page
1. Touch (right arrow), touch Setup, and then touch Network.
2. Touch (down arrow), and then select Print Wireless Test Report.
Advanced wireless troubleshooting
If you have tried the suggestions provided in Basic wireless troubleshooting and are still
unable to connect to your printer to the wireless network, try the following suggestions in
the order presented:
•
•
•
•
•
•
Step 1 - Make sure your computer is connected to your network
Step 2 - Make sure that the printer is connected to your network
Step 3 - Make sure your computer is not connected to your network over a Virtual
Private Network (VPN)
Step 4 - Make sure the printer is online and ready
Step 5 - Make sure the wireless version of the printer is set as the default printer driver
(Windows only)
Step 6 - Check to see if the firewall software is blocking communication
Solve wireless problems
67
Chapter 5
Step 1 - Make sure your computer is connected to your network
Make sure your computer is connected to your network - either your Ethernet network or
your wireless network. If the computer is not connected to the network, you cannot use
the printer over the network.
To check an Ethernet connection
Many computers have indicator lights beside the port where the Ethernet cable connects
to your computer. If the lights are not on, try reconnecting the Ethernet cable to the
computer and the router. If you still do not see lights, there might be a problem with the
router, the Ethernet cable, or your computer.
NOTE: Mac computers do not have indicator lights. To check the Ethernet
connection on a Mac, click System Preferences in the Dock, and then click
Network. If the Ethernet connection is working correctly, Built-in Ethernet appears
in the list of connections, along with the IP address and other status information. If
Built-in Ethernet does not appear in the list, there might be a problem with the router,
the Ethernet cable, or your computer. For more information, click the Help button in
the window.
To check a wireless connection
1. Make sure that your computer's wireless has been turned on. (For more information,
see the documentation that came with your computer.)
2. If you are not using a unique wireless network name (SSID), then it is possible that
your wireless computer could be connected to a nearby network that is not yours.
The following steps can help you determine if your computer is connected to your
network:
Windows
a. Click Start, click Control Panel, point to Network Connections, and then click
View Network Status and Tasks.
- Or Click Start, select Settings, click Control Panel, double-click Network
Connections, click the View menu, and then select Details.
Leave the network dialog box open while you continue to the next step.
b. Disconnect the power cord from the wireless router. The connection status of your
computer should change to Not Connected.
c. Reconnect the power cord to the wireless router. The connection status should
change to Connected.
68
Solve a problem
Mac OS X
▲ Click the AirPort icon in the menu bar at the top of the screen. From the menu
that appears, you can determine if the AirPort is turned on and which wireless
network your computer is connected to.
NOTE: For more detailed information about your AirPort connection, click
System Preferences in the Dock, and then click Network. If the wireless
connection is working correctly, a green dot appears next to AirPort in the list
of connections. For more information, click the Help button in the window.
If you are unable to get your computer connected to your network, contact the person
who set up your network or the router manufacturer as there might be a hardware issue
with either your router or computer.
TIP: If you are able to access the Internet and are using a computer running
Windows, you can also use the HP Network Assistant for help in setting up a network.
To use this tool, visit www.hp.com/sbso/wireless/tools-setup.html?
jumpid=reg_R1002_USEN. (This Web site is only available in English.)
Step 2 - Make sure that the printer is connected to your network
If your printer is not connected to the same network as your computer, you cannot use
the printer over the network. Follow the steps described in this section to find out if your
printer is actively connected to the correct network.
NOTE: If your wireless router or Apple AirPort Base Station is using a hidden SSID,
your printer cannot automatically detect the network.
A: Make sure the printer is on the network
1. If the printer supports Ethernet networking and is connected to an Ethernet network,
make sure an Ethernet cable is not plugged into the back of the printer. If an Ethernet
cable is plugged into the back, then wireless connectivity is disabled.
2. If the printer is connected to a wireless network, print the network configuration page.
For more information, see Understand the network configuration page.
3. After the page has been printed, check the Network Status and URL:
Network Status
•
•
URL
If the Network Status is Ready, the printer
is actively connected to a network.
If the Network Status is Offline, the printer
is not connected to a network. Run the
Print Wireless Network Test (using the
instructions at the beginning of this
section) and follow any
recommendations.
The URL shown here is the network address
assigned to the printer by your router. You
need this to connect to the embedded web
server (EWS).
For information about connecting the printer to a wireless network, see Set up the printer
for wireless communication.
Solve wireless problems
69
Chapter 5
B: Check to see if you can access the EWS
After you establish that the computer and the printer both have active connections to a
network, you can verify if they are on the same network by opening the printer's EWS.
For more information, see Embedded web server.
To access the EWS
1. On your computer, open the EWS. For more information, see Embedded web
server.
NOTE: If you are using a proxy server in your browser, you might need to disable
it to access the EWS.
2. If you can open the EWS, try using the printer over the network (such as to print) to
see if your network setup was successful.
If you cannot open the EWS or are still having problems using the printer over the network,
continue to the next section regarding firewalls.
Step 3 - Make sure your computer is not connected to your network over a Virtual
Private Network (VPN)
A Virtual Private Network (VPN) is a computer network that uses the Internet to provide
a remote, secure connection to an organization’s network. However, most VPN services
do not allow you to access local devices (like your printer) on your local network while
your computer is connected to the VPN.
To connect to the printer, disconnect from the VPN.
TIP: To use the printer while connected to the VPN, you can connect the printer to
your computer with a USB cable. The printer uses its USB and network connections
at the same time.
For more information, contact your network administrator or the person who set up the
wireless network.
Step 4 - Make sure the printer is online and ready
If you have the HP software installed, you can check the printer’s status from your
computer to see if the printer is paused or offline, preventing you from using it.
To check the printer’s status, follow the instructions for your operating system:
Windows
1. Click Start, and then click Printers or Printers and Faxes or Devices and
Printers.
- Or Click Start, click Control Panel, and then double-click Printers.
2. If the printers on your computer are not being displayed in Details view, click the
View menu, and then click Details.
70
Solve a problem
3. Do one of the following, depending on the printer status:
a. If the printer is Offline, right-click the printer, and click Use Printer Online.
b. If the printer is Paused, right-click the printer, and click Resume Printing.
4. Try using the printer over the network.
Mac OS X
1. Click System Preferences in the Dock, and then click Print & Fax or Print &
Scan.
2. Select the printer, and then click Open Print Queue.
3. If the print job is on hold, click Resume.
4. If the printer is paused, click Resume Printer.
If you can use the printer after performing the steps above but find that the symptoms
persist as you continue to use the printer, your firewall might be interfering. For more
information, see Configure your firewall software to work with the printer.
If you still cannot use the printer over the network, continue to the next section for
additional troubleshooting help.
Step 5 - Make sure the wireless version of the printer is set as the default printer
driver (Windows only)
If you install the HP software again, the installer might create a second version of the
printer driver in your Printers or Printers and Faxes or Devices and Printers folder. If
you have difficulties printing or connecting to the printer, make sure the correct version
of the printer driver is set as the default.
1. Click Start, and then click Printers or Printers and Faxes or Devices and
Printers.
- Or Click Start, click Control Panel, and then double-click Printers.
2. Determine if the version of the printer driver in the Printers or Printers and Faxes
or Devices and Printers folder is connected wirelessly:
a. Right-click the printer icon, and then click Properties, Document Defaults, or
Printing Preferences.
b. On the Ports tab, look for a port in the list with a checkmark. The version of the
printer driver that is connected wirelessly has HP network re-discovery port
monitor as the Port description, next to the checkmark.
3. Right-click the printer icon for the version of the printer driver that is connected
wirelessly, and select Set as Default Printer.
NOTE: If there is more than one icon in the folder for the printer, right-click the printer
icon for the version of the printer driver that is connected wirelessly, and select Set
as Default Printer.
Step 6 - Check to see if the firewall software is blocking communication
If you cannot access the EWS and are sure both the computer and printer have active
connections to the same network, the firewall security software might be blocking
communication. Temporarily turn off any firewall security software running on your
Solve wireless problems
71
Chapter 5
computer and then try to open the EWS again. If you can open the EWS, try using the
printer (for printing).
If you are able to open the EWS and use your printer with the firewall turned off, you need
to reconfigure your firewall settings to allow the computer and printer to communicate
with each other over the network. For more information, see Configure your firewall
software to work with the printer.
If you are able to open the EWS, but are still unable to use the printer even with the firewall
turned off, try enabling the firewall software to recognize the printer. For more information,
see the documentation provided with your firewall software.
After resolving the problems
After you resolve any problems and have successfully connected the printer to your
wireless network, complete the following steps for your operating system:
Windows
1. On the computer desktop, click Start, select Programs or All Programs, click HP,
click the name fo the folder, and then click Printer Setup & Software.
- Or On the Start screen, click Printer Setup & Software.
2. Click Connect a new printer, and then select the type of connection you want to use.
Mac OS X
1. Open HP Utility. For more information, see HP Utility (Mac OS X).
2. Click the Applications icon on the HP Utility toolbar, double-click HP Setup
Assistant, and then follow the onscreen instructions.
Configure your firewall software to work with the printer
A personal firewall, which is security software running on your computer, can block
network communication between your printer and your computer.
If you are having problems such as:
•
•
•
Printer not found when installing HP software
Unable to print, print job stuck in queue or printer goes offline
Unable to see printer status on your computer
The firewall might be preventing your printer from notifying computers on your network
where it can be found.
If you are using the HP software on a computer running Windows and cannot find the
printer during installation (and you know the printer is on the network)—or if you have
already successfully installed HP software and experience problems—check the
following:
•
•
72
If you have just installed the HP software, try turning off your computer and the printer,
and then turning them both on again.
Keep your security software up to date. Many security software vendors provide
updates that correct known issues and provide the latest defenses against new
security threats.
Solve a problem
•
•
•
•
•
If your firewall has "High", "Medium", or "Low" security settings, use the "Medium"
setting when your computer is connected to your network.
If you have changed any firewall settings from default, try going back to the default
setting.
If your firewall has a setting called "trusted zone", use this setting when your computer
is connected to your network.
If your firewall has a setting to "not show alert messages", you should disable this.
When installing the HP software and using the HP printer you may see alert messages
from your firewall software that provide options to "allow", "permit" or "unblock". You
should allow any HP software that causes an alert. Also, if the alert has a "remember
this action" or "create a rule for this" selection, select it. This is how the firewall learns
what can be trusted on your network.
Do not have more than one firewall enabled at the same time on your computer. An
example would be having both the Windows firewall provided by the operating system
and a 3rd party firewall enabled at the same time. Having more than one firewall
enabled at the same time will not make your computer any safer and may cause
problems.
For more information about using your printer with personal firewall software, visit
www.hp.com/go/wirelessprinting, and then click Firewall Help in the Need Help
Troubleshooting? section. The Firewall Help section also includes workarounds for
known issues with some firewalls.
NOTE: At this time, some portions of this site are not available in all languages.
Solve printer management problems
TIP: You can visit the HP online support website at www.hp.com/support for
information and utilities that can help you correct many common printer problems.
This section provides solutions to common problems that involve managing the printer.
This section contains the following topic:
•
Embedded web server cannot be opened
NOTE: To use the embedded EWS, the printer must be connected to a network
using either an Ethernet or a wireless connection. You cannot use the embedded web
server if the printer is connected to a computer with a USB cable.
Embedded web server cannot be opened
Check your network setup
• Make sure you are not using a phone cord or a crossover cable to connect the printer
to the network.
• Make sure the network cable is securely connected to the printer.
• Make sure the network hub, switch, or router is turned on and working correctly.
Check the computer
Make sure the computer that you are using is connected to the network.
Solve printer management problems
73
Chapter 5
NOTE: To use the EWS, the printer must be connected to a network using either an
Ethernet or a wireless connection. You cannot use the embedded web server if the
printer is connected to a computer with a USB cable.
Check your web browser
• Make sure the web browser meets the minimum system requirements. For more
information, see Embedded web server specifications.
• If your web browser uses any proxy settings to connect to the Internet, try turning off
these settings. For more information, see the documentation available with your web
browser.
• Make sure JavaScript and cookies are enabled in your web browser. For more
information, see the documentation available with your web browser.
Check the printer IP address
• To check the IP address of the printer, obtain the IP address by printing a network
configuration page. Touch (right arrow), select Setup, select Network, and then
select Print Network Settings.
• Ping the printer using the IP address from the command prompt (Windows) or from
Network Utility (Mac OS X). (Network Utility is located in the Utilities folder in the
Applications folder at the top level of the hard disk.).
For example, if the IP address is 123.123.123.123, type the following at the command
prompt (Windows):
C:\Ping 123.123.123.123
– Or –
In Network Utility (Mac OS X), click the Ping tab, type the 123.123.123.123 in the
box, and then click Ping.
If a reply appears, the IP address is correct. If a time-out response appears, the IP
address is incorrect.
Troubleshoot installation issues
TIP: You can visit the HP online support website at www.hp.com/support for
information and utilities that can help you correct many common printer problems.
•
•
Hardware installation suggestions
HP software installation suggestions
Hardware installation suggestions
Check the printer
• Make sure that all packing tape and material have been removed from outside and
inside the printer.
• Make sure that the printer is loaded with paper.
• Make sure that no lights are on or blinking except the Ready light, which should be
on. If the Attention light is blinking, check for messages on the printer control panel.
74
Solve a problem
Check the hardware connections
• Make sure that any cords and cables that you are using are in good working order.
• Make sure that the power cord is connected securely to both the printer and to
a working power outlet.
Check the printhead and ink cartridges
• Make sure that all of the printhead and ink cartridges are firmly installed in their
correct, color-coded slot. The printer cannot work if they are not all installed.
• Make sure that the printhead latch is closed correctly.
HP software installation suggestions
Check the computer system
• Make sure that your computer is running one of the supported operating systems. For
more information, see System requirements.
• Make sure that the computer meets at least the minimum system requirements. For
more information, see System requirements
• In the Windows Device Manager, make sure that the USB drivers have not been
disabled.
• If you are using a computer running Windows, and the computer cannot detect the
printer, run the Uninstall utility (located in the printer's subfolder within the HP folder)
to perform a complete uninstallation of the printer driver. Restart your computer, and
reinstall the printer driver.
Verify installation preliminaries
• Make sure to use the installation CD that contains the correct HP software for your
operating system.
• Before installing HP software, make sure that all other programs are closed.
• If the computer does not recognize the path to the CD-ROM drive that you type, make
sure that you are specifying the correct drive letter.
• If the computer cannot recognize the installation CD in the CD-ROM drive, inspect
the installation CD for damage. You can download the printer driver from the HP
website (www.hp.com/support).
NOTE: After correcting any problems, run the installation program again.
Solve network problems
General network troubleshooting
• If you are unable to install the HP software, verify that:
◦ All cable connections to the computer and the printer are secure.
◦ The network is operational and the network hub, switch, or router is turned on.
◦ All applications, including virus protection programs, spyware protection
programs, and firewalls, are closed or disabled for computers running Windows.
Solve network problems
75
Chapter 5
◦
•
Make sure the printer is installed on the same subnet as the computers that use
the printer.
◦ If the installation program cannot discover the printer, print the network
configuration page and enter the IP address manually in the installation program.
For more information, see Understand the network configuration page.
If you installed the printer driver using the Add Printer wizard and specified the TCP/
IP port, make sure that the network ports created in the printer driver match the printer
IP address:
◦ Print the printer’s network configuration page. For more information, see
Understand the network configuration page.
◦ Click Start, and then click Printers or Printers and Faxes or Devices and
Printers.
- Or Click Start, click Control Panel, and then double-click Printers.
◦ Right-click the printer icon, click Properties, and then click the Ports tab.
◦ Select the TCP/IP port for the printer, and then click Configure Port.
◦ Compare the IP address listed in the dialog box and make sure it matches the IP
address listed on the network configuration page. If the IP addresses are different,
change the IP address in the dialog box to match the address on the network
configuration page.
◦ Click OK twice to save the settings and close the dialog boxes.
Problems connecting to an Ethernet network
• If the Link light on the network connector does not turn on, make sure that all of the
“General network troubleshooting” conditions are met.
• Though it is not recommended that you assign the printer with a static IP address,
you might resolve some installation problems (such as a conflict with a personal
firewall) by doing so.
To reset the printer's network settings
1. Touch (right arrow), touch Setup, and then touch Network. Touch Restore
Network Defaults, and then select Yes. A message appears stating that the network
defaults have been restored.
2. Touch (right arrow), touch Setup, select Reports, and then select Print Network
Configuration Page to print the network configuration page and verify that the
network settings have been reset.
Understand the Printer Status Report
Use the printer status report to view current printer information and ink cartridge status.
Also use the printer status report to help you troubleshoot problems with the printer.
The printer status report also contains a log of recent events.
76
Solve a problem
If you need to call HP, it is often useful to print the printer status report before calling.
1. Printer Information: Shows printer information (such as the printer name, model
number, serial number, and firmware version number), the accessories that are
installed (such as the automatic two-sided printing accessory or duplexer), and the
number of pages printed from the trays and accessories.
2. Ink Delivery System Information: Shows the estimated ink levels (represented in
graphical form as gauges) and the part numbers and warranty expiration dates for
the ink cartridges.
NOTE: Ink level warnings and indicators provide estimates for planning
purposes only. When you receive a low-ink warning message, consider having
a replacement cartridge available to avoid possible printing delays. You do not
need to replace cartridges until prompted to do so.
3. Additional Assistance: Provides information about where you can go to get more
information about the printer, as well as information about how to set up a Fax Text
and how to run a Print Wireless Network Test.
To print the Printer Status Report
From the Home screen, touch (right arrow), and then select Setup. Touch Reports,
and then select Printer Status Report.
Understand the Printer Status Report
77
Chapter 5
Printhead maintenance
If you are experiencing problems with printing, you might have a problem with the
printhead. You should perform the procedures in the following sections only when
directed to do so for resolving print quality issues.
Performing the aligning and cleaning procedures unnecessarily can waste ink and
shorten the life of the cartridges.
This section contains the following topics:
•
•
•
•
Clean the printhead
Calibrate the linefeed
Align the printhead
Reinstall the printhead
Clean the printhead
If your printed output is streaked or has any incorrect or missing colors, the printhead
might need to be cleaned.
There are three stages of cleaning. Each stage lasts about two minutes, uses one sheet
of paper, and uses an increasing amount of ink. After each stage, review the quality of
the printed page. You should only initiate the next phase of cleaning if the print quality is
poor.
If print quality still seems poor after you complete both stages of cleaning, try aligning the
printer. If print quality problems persist after cleaning and aligning, contact HP support.
For more information, see HP support.
NOTE: Cleaning uses ink, so clean the printhead only when necessary. The cleaning
process takes a few minutes. Some noise might be generated in the process. Before
cleaning the printhead, make sure you load paper. For more information, see Load
paper.
Not turning the printer off correctly can cause print quality problems. For more
information, see Turn the printer off.
To clean the printhead from the control panel
1. Load Letter, A4, or Legal unused plain white paper into the main input tray.
2. Touch (right arrow), and then select Setup.
3. Touch Tools, and then select Clean Printhead.
To clean the printhead from Toolbox (Windows)
1. Open Toolbox. For more information, see Open the Toolbox.
2. From the Device Services tab, click the icon to the left of Clean Printheads.
3. Follow the on-screen instructions.
78
Solve a problem
To clean the printhead from HP Utility (Mac OS X)
1. Open HP Utility. For more information, see HP Utility (Mac OS X).
2. In the Information And Support section, click Clean Printheads.
3. Click Clean, and then follow the on-screen instructions.
To clean the printhead from the embedded web server (EWS)
1. Open the EWS. For more information, see To open the embedded web server.
2. Click the Tools tab, and then click Print Quality Toolbox in the Utilities section.
3. Click Clean Printhead and follow the on-screen instructions.
Calibrate the linefeed
The printer automatically aligns the printhead during the initial setup.
You might want to use this feature when the printer status page shows streaking or white
lines through any of the blocks of color or if you are having print quality issues with your
printouts.
To calibrate the linefeed from the control panel
1. Load Letter, A4, or Legal unused plain white paper into the main input tray.
2. On the printer control panel, touch (right arrow), and then touch Setup.
3. Touch Tools, and then select Calibrate Linefeed.
To calibrate the linefeed from Toolbox (Windows)
1. Open Toolbox. For more information, see Open the Toolbox.
2. From the Device Services tab, click the icon to the left of Linefeed Calibration.
3. Follow the on-screen instructions.
To calibrate the linefeed from the embedded web server (EWS)
1. Open the EWS. For more information, see To open the embedded web server.
2. Click the Tools tab, and then click Print Quality Toolbox in the Utilities section.
3. Click Calibrate Linefeed and follow the on-screen instructions.
Align the printhead
The printer automatically aligns the printhead during the initial setup.
You might want to use this feature when the printer status page shows streaking or white
lines through any of the blocks of color or if you are having print quality issues with your
printouts.
To align the printhead from the control panel
1. Load Letter, A4, or Legal unused plain white paper into the main input tray.
2. On the printer control panel, touch (right arrow), and then touch Setup.
3. Touch Tools, and then select Align Printhead.
Printhead maintenance
79
Chapter 5
To align the printhead from Toolbox (Windows)
1. Open Toolbox. For more information, see Open the Toolbox.
2. From the Device Services tab, click the icon to the left of Align Printheads.
3. Follow the on-screen instructions.
To align the printhead from HP Utility (Mac OS X)
1. Open HP Utility. For more information, see HP Utility (Mac OS X).
2. In the Information And Support section, click Align Printhead.
3. Click Align, and then follow the on-screen instructions.
To align the printhead from the embedded web server (EWS)
1. Open the EWS. For more information, see To open the embedded web server.
2. Click the Tools tab, and then click Print Quality Toolbox in the Utilities section.
3. Click Align Printer and follow the on-screen instructions.
Reinstall the printhead
NOTE: This procedure should only be performed when a Missing or Failed
Printhead message has been seen and the printer has first been turned off and then
back on to try to resolve the message. If the message persists, try this procedure.
To reinstall the printhead
1. Make sure that the printer is turned on.
2. Open the ink cartridge access door.
80
Solve a problem
3. Lift the latch handle on the print carriage.
4. Remove the printhead by lifting it up and then pulling it out of the printer.
5. Make sure the latch handle is raised, and then reinsert the printhead.
Printhead maintenance
81
Chapter 5
6. Carefully lower the latch handle.
NOTE: Make sure you lower the latch handle before reinserting the ink
cartridges. Leaving the latch handle raised can result in incorrectly seated ink
cartridges and problems printing. The latch must remain down in order to correctly
install the ink cartridges.
7. Close the ink cartridge access door.
Understand the network configuration page
If the printer is connected to a network, you can print a network configuration page to
view the network settings for the printer. You can use the network configuration page to
help troubleshoot network connectivity problems. If you need to call HP, it is often useful
to print this page before calling.
82
Solve a problem
1. General Information: Shows information about the current status and active
connection type of the network, and other information, such as the URL of the
embedded web server.
2. 802.3 Wired: Shows information about the active Ethernet network connection, such
as the IP address, subnet mask, default gateway, as well as the hardware address
of the printer.
3. 802.11 Wireless (some models): Shows information about your wireless network
connection, such as the hostname, IP address, subnet mask, default gateway, and
server.
4. Miscellaneous: Shows information about more advanced network settings.
• Port 9100: The printer supports raw IP printing through TCP Port 9100. This HPproprietary TCP/IP port on the printer is the default port for printing. It is accessed
by HP software (for example, the HP Standard Port).
• LPD: Line Printer Daemon (LPD) refers to the protocol and programs associated
with line-printer spooling services that may be installed on various TCP/IP
systems.
NOTE: The LPD functionality can be used with any host implementation of
LPD that complies with the RFC 1179 document. The process for configuring
printer spoolers, however, might differ. See your system documentation for
information about configuring these systems.
•
•
Bonjour: Bonjour services (which use mDNS, or Multicast Domain Name
System) are typically used on small networks for IP address and name resolution
(through UDP port 5353), where a conventional DNS server is not used.
SLP: Service Location Protocol (SLP) is an Internet standard network protocol
that provides a framework to allow networking applications to discover the
existence, location, and configuration of networked services in enterprise
networks. This protocol simplifies discovery and use of network resources such
as printers, web servers, fax machines, video cameras, files systems, backup
devices (tape drives), databases, directories, mail servers, calendars.
Understand the network configuration page
83
Chapter 5
•
Microsoft Web Services: Enable or disable the Microsoft Web Services Dynamic
Discovery (WS Discovery) protocols or Microsoft Web Services for Devices
(WSD) Print services supported on the printer. Disable unused print services to
prevent access through those services.
NOTE: For more information about WS Discovery and WSD Print, visit
www.microsoft.com.
•
SNMP: SNMP (Simple Network Management Protocol) is used by network
management applications for device management. The printer supports SNMPv1
protocol on IP networks.
• WINS: If you have a Dynamic Host Configuration Protocol (DHCP) server on your
network, the printer automatically obtains its IP address from that server and
registers its name with any RFC 1001 and 1002-compliant dynamic name
services as long as a WINS server IP address has been specified.
5. Connected PC(s): Lists the computers connected to this printer, as well as the last
time these computers accessed the printer.
To print the network configuration page from the printer control panel
From the Home screen, touch (right arrow), and then select Setup. Touch Reports,
and then select Network Configuration Page.
Clear jams
Occasionally, media becomes jammed during a job.
This section contains the following topics:
•
•
Clear paper jams
Avoid paper jams
Clear paper jams
Paper jams can occur either inside the printer or in the automatic document feeder.
CAUTION: To prevent possible damage to the printhead, clear paper jams as soon
as possible.
TIP: If you notice poor print quality, clean the printhead. For more information, see
Clean the printhead.
Use these steps to clear a paper jam.
84
Solve a problem
To clear a jam inside the printer
1. Remove all media from the output tray.
CAUTION: Trying to clear a paper jam from the front of the printer can damage
the print mechanism. Always access and clear paper jams through the automatic
two-sided printing accessory (duplexer).
2. Check the duplexer.
a. Push the button on either side of the duplexer, and then remove the unit.
b. Locate any jammed media inside the printer, grasp it with both hands and then
pull it towards you.
c. If the jam is not there, push the latch on top of the duplexer and lower the cover.
If media is jammed inside, carefully remove it. Close the cover.
d. Reinsert the duplexer into the printer.
3. Open the top cover and remove any debris.
4. If you have not found the jam and have Tray 2 installed, pull out the tray and remove
the jammed media, if possible. If not, do the following:
a. Ensure the printer is turned off and disconnect the power cord.
b. Lift the printer off Tray 2.
c. Remove the jammed media from the bottom of the printer or from Tray 2.
d. Reposition the printer on top of Tray 2.
Clear jams
85
Chapter 5
5. Open the ink cartridge access door. If there is paper remaining inside the printer,
ensure the carriage has moved to the right of the printer, free any paper scraps or
wrinkled media, and pull the media towards you through the top of the printer.
WARNING! Do not reach into the printer when it is on and the carriage is stuck.
When you open the ink cartridge access door, the carriage should return to its
position on the right side of the printer. If it does not move to the right, turn off the
printer before you remove any jam.
6. After clearing the jam, close all covers, turn on the printer (if you turned it off) and
resend the print job.
Avoid paper jams
To help avoid paper jams, follow these guidelines.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
86
Remove printed papers from the output tray frequently.
Make sure that you are printing with media that is not wrinkled, folded, or damaged.
Prevent curled or wrinkled paper by storing all unused paper flat in a resealable bag.
Do not use paper that is too thick or too thin for the printer.
Make sure that the trays are loaded correctly and are not too full. For more
information, see Load paper.
Ensure that paper loaded in the input tray lays flat and the edges are not bent or torn.
Do not place too much paper in the document feeder tray. For information on the
maximum number of sheets allowed in the automatic document feeder, see Paper
specifications.
Do not combine different paper types and paper sizes in the input tray; the entire stack
of paper in the input tray must be the same size and type.
Adjust the paper-width guide in the input tray to fit snugly against all paper. Make sure
the paper-width guide does not bend the paper in the input tray.
Do not force paper too far forward in the input tray.
Use paper types that are recommended for the printer. For more information, see
Paper specifications.
If the printer is about to run out of paper, allow the printer to run out of paper first and
then add paper. Do not try to add paper while the printer is trying to pick up a sheet.
If you are printing on both sides of a page, do not print highly saturated images on
light weight paper.
Make sure that the printer is clean. For more information, see Maintain the printer.
Solve a problem
A
Technical information
This section contains the following topics:
•
•
Warranty information
Printer specifications
•
Regulatory information
•
•
Environmental product stewardship program
Third-party licenses
Warranty information
This section contains the following topics:
Hewlett-Packard limited warranty statement
•
•
Ink cartridge warranty information
Technical information
87
Appendix A
Hewlett-Packard limited warranty statement
88
Technical information
Ink cartridge warranty information
The HP cartridge warranty is applicable when the product is used in its designated HP printer. This
warranty does not cover HP ink products that have been refilled, remanufactured, refurbished,
misused, or tampered with.
During the warranty period the product is covered as long as the HP ink is not depleted and the end
of warranty date has not been reached. The end of warranty date, in YYYY-MM format, may be found
on the product as indicated:
Warranty information
89
Appendix A
Printer specifications
This section contains the following topics:
•
Physical specifications
•
Product features and capacities
•
Processor and memory specifications
•
System requirements
•
Network protocol specifications
•
Embedded web server specifications
•
Paper specifications
•
Print specifications
•
Web Services specifications
•
HP website specifications
•
Environmental specifications
•
Electrical specifications
•
Acoustic emission specifications
•
Memory device specifications
Physical specifications
Printer size (width x height x depth)
•
494 x 238 x 460 mm (19.5 x 9.4 x 18.1 inches)
•
With Tray 2: Adds 82 mm (3.2 inches) to the height of the printer
Printer weight
The printer weight does not include printing supplies or Tray 2.
•
•
8.58 kg (17.9 lb)
With Tray 2: Adds 2.8 kg (6.2 lb)
Product features and capacities
Feature
Capacity
Connectivity
•
•
•
•
•
Print method
Drop-on-demand thermal inkjet printing
Ink cartridges
Four ink cartridges (one each for black, cyan,
magenta, and yellow)
USB 2.0-compliant high speed
USB 3.0-compliant high speed
USB 2.0 high-speed host port
Wireless 802.11b/g/n*
802.3 network (Ethernet)
NOTE: Not all ink cartridges are supported in
all countries/regions.
90
Printheads
One printhead
Supply yields
For more information on estimated ink cartridge
yields, visit www.hp.com/go/
learnaboutsupplies/.
Printer languages
HP PCL 5, HP PCL 6, PS3, and PDF 5.
Technical information
(continued)
Feature
Capacity
Font support
US fonts: CG Times, CG Times Italic, Universe,
Universe Italic, Courier, Courier Italic, Letter
Gothic, Letter Gothic Italic.
Duty cycle
Up to 25,000 pages per month
Printer control panel language support
Arabic, Bulgarian, Croatian, Czech, Danish,
Dutch, English, Finnish, French, German,
Greek, Hebrew, Hungarian, Italian, Japanese,
Korean, Norwegian, Polish, Portuguese,
Romanian, Russian, Simplified Chinese,
Slovak, Slovenian, Spanish, Swedish,
Traditional Chinese, Turkish.
Language availability varies by country/region.
* The printer supports the 802.11n 2.4 GHz frequency band.
Processor and memory specifications
Printer processor
528 MHz processor dual core
Printer memory
512 MB built-in RAM, 128 MB Flash
System requirements
Software and system requirements are located in the Readme file.
NOTE: For the most current information about supported operating systems and system
requirements, visit www.hp.com/support.
Network protocol specifications
Network protocol specifications are located in the Readme file.
NOTE: For the most current information about supported operating systems and system
requirements, visit www.hp.com/support.
Embedded web server specifications
Requirements
•
A TCP/IP-based network (IPX/SPX-based networks are not supported)
•
A web browser (either Microsoft Internet Explorer 7.0 or higher, Mozilla Firefox 3.0 or higher,
Safari 3.0 or higher, or Google Chrome 5.0 or higher)
•
A network connection (you cannot use the embedded web server connected directly to
a computer with a USB cable)
•
An Internet connection (required for some features)
NOTE: You can open the embedded web server without being connected to the Internet.
However, some features are not available.
NOTE: The embedded web server must be on the same side of a firewall as the printer.
Printer specifications
91
Appendix A
Paper specifications
Use these tables to determine the correct media to use with your printer, and determine what features
work with your media.
•
•
Understand specifications for supported paper
Set minimum margins
•
Guidelines for printing on both sides of a page
Understand specifications for supported paper
Use the tables to determine the correct media to use with your printer, and to determine what features
work with your media.
•
Understand supported sizes
•
Understand supported paper types and weights
Understand supported sizes
NOTE: Tray 2 is available as an option.
Media size
Tray 1
Tray 2
Duplexer
Standard media sizes
10x15cm
2L
U.S. Letter (216 x 279 mm; 8.5 x 11
inches)*
8.5 x 13 inches (216 x 330 mm)
U.S. Legal (216 x 356 mm; 8.5 x 14
inches)
A4 (210 x 297 mm; 8.3 x 11.7 inches)
*
U.S. Executive (184 x 267 mm; 7.25
x 10.5 inches)
U.S. Statement (140 x 216 mm; 5.5
x 8.5 inches)
B5 (JIS) (182 x 257 mm; 7.17 x 10.12
inches)
A5 (148 x 210 mm; 5.8 x 8.3 inches)*
6 x 8 inches
Edge-to-Edge A4*
Edge-to-Edge Letter*
Envelopes
92
Technical information
(From Tray 1
only)
(continued)
Media size
Tray 1
Tray 2
Duplexer
U.S. #10 Envelope (105 x 241 mm;
4.12 x 9.5 inches)
Monarch Envelope (98 x 191 mm;
3.88 x 7.5 inches)
Card Envelope (111 x 152 mm; 4.4 x 6
inches)
A2 Envelope (111 x 146 mm; 4.37
x 5.75 inches)
DL Envelope (110 x 220 mm; 4.3 x 8.7
inches)
C5 Envelope (162 x 229 mm; 6.4 x 9
inches)
C6 Envelope (114 x 162 mm; 4.5 x 6.4
inches)
Japanese Envelope Chou #3 (120
x 235 mm; 4.7 x 9.3 inches)
Japanese Envelope Chou #4 (90
x 205 mm; 3.5 x 8.1 inches)
Cards
Index card (76.2 x 127 mm; 3 x 5
inches)
Index card (102 x 152 mm; 4 x 6
inches)
Index card (127 x 203 mm; 5 x 8
inches)
A6 card (105 x 148.5 mm; 4.13 x 5.83
inches)
A4 index card (210 x 297 mm; 8.3
x 11.7 inches)
Hagaki (100 x 148 mm; 3.9 x 5.8
inches) **
Ofuku Hagaki** (200 x 148 mm; 7.8
x 5.8 inches)
Index Card Letter (216 x 279 mm; 8.5
x 11 inches)
Photo media
Photo media (76.2 x 127 mm; 3 x 5
inches)
Photo media (102 x 152 mm; 4 x 6
inches)
Photo media (5 x 7 inches)
Printer specifications
93
Appendix A
(continued)
Media size
Tray 1
Tray 2
Duplexer
Photo media (8 x 10 inches)
Photo media (8.5 x 11 inches)
Photo L (89 x 127 mm; 3.5 x 5 inches)
Photo 2L (127 x 178 mm)
13 x 18 cm
Other media
NOTE: Defining custom-size paper
sizes is only available in the HP
printing software in Mac OS X.
Custom-size paper between 76.2 to
216 mm wide and 127 to 356 mm long
(3 to 8.5 inches wide and 5 to 14
inches long)
* These sizes can be used for edge-to-edge printing.
** The printer is compatible with plain and inkjet hagaki from Japan Post only. It is not compatible
with photo hagaki from Japan Post.
Understand supported paper types and weights
Tray
Type
Weight
Capacity
Tray 1
Paper
60 to 105 g/m2
Up to 250 sheets of plain
paper
(16 to 28 lb bond)
(25 mm or 1 inch
stacked)
Photo media
280 g/m2
Up to 100 sheets
(75 lb bond)
(17 mm or 0.67 inch
stacked)
Labels
Up to 100 sheets
(17 mm or 0.67 inch
stacked)
Envelopes
Cards
75 to 90 g/m2
Up to 30 sheets
(20 to 24 lb bond
envelope)
(17 mm or 0.67 inch
stacked)
Up to 200 g/m2
Up to 80 cards
(110 lb index)
Tray 2
Plain paper only
60 to 105 g/m2
(16 to 28 lb bond)
Up to 250 sheets of plain
paper
(25 mm or 1.0 inch
stacked)
Duplexer
94
Plain and brochure
Technical information
60 to 105 g/m2
Not applicable
(continued)
Tray
Type
Weight
Capacity
(16 to 28 lb bond)
Output tray
All supported media
Up to 150 sheets of plain
paper (text printing)
Set minimum margins
The document margins must match (or exceed) these margin settings in portrait orientation.
Media
(1) Left
margin
(2) Right
margin
(3) Top
margin
(4) Bottom
margin
U.S. Letter
4 mm (0.16
inch)
4 mm (0.16
inch)
4 mm (0.16
inch)
4 mm (0.16
inch)
Windows and
12mm (0.47
inch) Mac and
Linux
4 mm (0.16
inch)
4 mm (0.16
inch)
16.5 mm (0.65
inch)
16.5 mm
(0.65 inch)
U.S. Legal
A4
U.S. Executive
U.S. Statement
8.5 x 13 inch
B5
A5
Cards
Custom-size paper
Photo paper
Envelopes
Guidelines for printing on both sides of a page
•
Always use media that conforms to the printer specifications. For more information, see Paper
specifications.
•
Specify two-sided printing options in your application or in the printer driver.
•
Do not print on both sides of envelopes, photo paper, glossy media, or paper lighter than 16 lb
bond (60 g/m2) or heavier than 28 lb bond (105 g/m2). Jams might occur with these media types.
Printer specifications
95
Appendix A
•
Several kinds of media require a specific orientation when you print on both sides of a page.
These include letterhead, preprinted paper, and paper with watermarks and prepunched holes.
When you print from a computer running Windows, the printer prints the first side of the media
first. Load the media with the print side facing down.
•
For auto-duplexing, when printing finishes on one side of the media, the printer holds the media
and pauses while the ink dries. Once the ink dries, the media is pulled back into the printer and
the second side is printed. When printing is complete, the media is dropped onto the output tray.
Do not grab it before printing is complete.
Print specifications
Black print resolution
1200 x 1200 optimzed dpi on plain paper from 600 x 600 dpi input
Color print resolution
Up to 1200 x 1200 optimized dpi from 600 x 600 input dpi
Web Services specifications
An Internet connection using either a wired (Ethernet) or wireless connection.
HP ePrint
•
Maximum size of email and attachments: 5 MB
•
Maximum number of attachments: 10
NOTE: The printer’s email address must be the only address listed in the “To” line of the email
message.
Supported file types:
◦
PDF
◦
◦
HTML
Standard text file formats
◦
Microsoft Word, PowerPoint
◦
Image files, such as PNG, JPEG, TIFF, GIF, BMP
NOTE: You might be able to use other types of files with HP ePrint. However, HP cannot
guarantee that they correct functionality with the printer because they have not been fully tested.
Printer Apps
To use certain Printer Apps, you might need to set up an account with a partner website. For more
information, visit www.hpconnected.com.
HP website specifications
•
A web browser (either Microsoft Internet Explorer 6.0 or higher, Mozilla Firefox 2.0 or higher,
Safari 3.2.3 or higher, or Google Chrome 3.0) with the Adobe Flash plug-in (version 10 or higher).
•
An Internet connection
Environmental specifications
Operating environment
Operating temperature: 5° to 40° C (41° to 104° F)
Operating humidity: 15 to 80% RH non-condensing
Recommended operating conditions: 15° to 32° C (59° to 90° F)
Recommended relative humidity: 25 to 75% RH non-condensing
96
Technical information
Shipping environment
Maximum shipping temperature: -40° to 60° C (-40° to 140° F)
Maximum shipping humidity: 5 to 90% RH non-condensing
Electrical specifications
Power supply
Universal power adapter (internal)
Power requirements
Input voltage: 100 to 240 VAC, 50/60 Hz
Output voltage: +32V/+12V at 1095 mA/170 mA
Power consumption
34 watts printing (Fast Draft Mode)
Acoustic emission specifications
Print in Draft mode, noise levels per ISO 7779
HP Officejet Pro 251dw
•
Sound pressure (bystander position)
LpAm 60 (dBA) (mono Draft print)
•
Sound power
LwAd 6.7 (BA)
Memory device specifications
This section contains the following topics:
Memory card specifications
•
•
USB flash drives
Memory card specifications
Specifications
•
Maximum recommended number of files on a memory card: 2,000
•
Maximum recommended individual file size: 12 megapixel maximum, 10 MB maximum (TIFF
files, 50 MB maximum)
•
Maximum recommended memory card size: 64 GB (solid state only)
NOTE: Approaching any of the recommended maximums on a memory card might cause
the performance of the printer to be slower than expected.
Supported memory card types
•
Secure Digital (SD), Mini SD, Micro SD, SDXC
•
High Capacity Secure Digital
•
MultiMediaCard (MMC), MMC Plus, MMC (RS-MMC)
USB flash drives
HP has fully tested the following USB flash drives with the printer:
•
Kingston: Data Traveler 100 USB 2.0 flash drive (4 GB, 8 GB, and 16 GB)
•
Lexar JumpDrive Traveller: 1 GB
•
•
Imation: 1 GB USB Swivel
SanDisk: Cruzer Titanium plus USB Flash Drive 4 GB PN
•
HP: 8 GB HI.SPEED USB flash drive v100w
Printer specifications
97
Appendix A
NOTE: You might be able to use other USB flash drives with the printer. However, HP cannot
guarantee that they correct functionality with the printer because they have not been fully tested.
98
Technical information
Regulatory information
The printer meets product requirements from regulatory agencies in your country/region.
This section contains the following topics:
•
•
•
•
•
•
•
•
•
FCC statement
Notice to users in Korea
VCCI (Class B) compliance statement for users in Japan
Notice to users in Japan about the power cord
Noise emission statement for Germany
European Union Regulatory Notice
GS Declaration (Germany)
Regulatory information for wireless products
Regulatory model number
FCC statement
Regulatory information
99
Appendix A
Notice to users in Korea
VCCI (Class B) compliance statement for users in Japan
Notice to users in Japan about the power cord
Noise emission statement for Germany
European Union Regulatory Notice
Products bearing the CE marking comply with the following EU Directives:
100
•
Low Voltage Directive 2006/95/EC
•
•
EMC Directive 2004/108/EC
Ecodesign Directive 2009/125/EC, where applicable
Technical information
CE compliance of this product is valid if powered with the correct CE-marked AC adapter provided
by HP.
If this product has wired and/or wireless telecommunications functionality, it also complies with the
essential requirements of the following EU Directive:
R&TTE Directive 1999/5/EC
Compliance with these directives implies conformity to applicable harmonized European standards
(European Norms) that are listed in the EU Declaration of Conformity issued by HP for this product
or product family and available (in English only) either within the product documentation or at the
following web site: www.hp.com/go/certificates (type the product number in the search field).
The compliance is indicated by one of the following conformity markings placed on the product:
For non-telecommunications products
and for EU harmonized
telecommunications products, such as
Bluetooth® within power class below
10mW.
For EU non-harmonized
telecommunications products (If
applicable, a 4-digit notified body
number is inserted between CE and !).
Please refer to the regulatory label provided on the product.
The telecommunications functionality of this product may be used in the following EU and EFTA
countries: Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg,
Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovak Republic, Slovenia, Spain,
Sweden, Switzerland, and United Kingdom.
The telephone connector (not available for all products) is intended for connection to analogue
telephone networks.
Products with wireless LAN devices
Some countries may have specific obligations or special requirements about the operation of
Wireless LAN networks such as indoor use only or restrictions of the channels available. Please
make sure that the country settings of the wireless network are correct.
France
For 2.4-GHz Wireless LAN operation of this product, certain restrictions apply: This product may be
used indoors for the entire 2400-MHz to 2483.5-MHz frequency band (channels 1 to 13). For outdoor
use, only the 2400-MHz to 2454-MHz frequency band (channels 1 to 7) may be used. For the latest
requirements, see www.arcep.fr.
The point of contact for regulatory matters is:
Hewlett-Packard GmbH, Dept./MS: HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen,
GERMANY
Regulatory information
101
Appendix A
GS Declaration (Germany)
Regulatory information for wireless products
This section contains the following regulatory information pertaining to wireless products:
•
Exposure to radio frequency radiation
•
Notice to users in Brazil
•
Notice to users in Canada
•
Notice to users in Taiwan
•
Notice to users in Mexico
•
Notice to users in Japan
Exposure to radio frequency radiation
Notice to users in Brazil
102
Technical information
Notice to users in Canada
Notice to users in Taiwan
Regulatory information
103
Appendix A
Notice to users in Mexico
Notice to users in Japan
Regulatory model number
For regulatory identification purposes, your product is assigned a Regulatory Model Number. The
Regulatory Model Number for your product is SNPRC-1203-01. This regulatory number should not
be confused with the marketing name (HP Officejet Pro 251dw Printer) or product number.
104
Technical information
Environmental product stewardship program
Hewlett-Packard is committed to providing quality products in an environmentally sustainable
manner:
•
Design for recycling has been incorporated into this product.
•
•
The number of materials has been kept to a minimum while ensuring proper functionality and
reliability.
Dissimilar materials have been designed to separate easily.
•
Fasteners and other connections are easy to locate, access, and remove using common tools.
•
High priority parts have been designed to access quickly for efficient disassembly and repair.
For more information, visit www.hp.com/ecosolutions.
This section contains the following topics:
•
•
Paper use
Plastics
•
Material safety data sheets
•
•
Recycling program
HP inkjet supplies recycling program
•
Disposal of waste equipment by users in private households in the European Union
•
•
Power consumption
Chemical Substances
•
Battery information
•
•
RoHS notices (China only)
Restriction of hazardous substance (Ukraine)
Paper use
This product is suited for the use of recycled paper according to DIN 19309 and EN 12281:2002.
Plastics
Plastic parts over 25 grams are marked according to international standards that enhance the ability
to identify plastics for recycling purposes at the end of product life.
Material safety data sheets
Material safety data sheets (MSDS) can be obtained from the HP Web site at:
www.hp.com/go/msds
Recycling program
HP offers an increasing number of product return and recycling programs in many countries/regions,
and partners with some of the largest electronic recycling centers throughout the world. HP
conserves resources by reselling some of its most popular products. For more information regarding
recycling of HP products, please visit:
www.hp.com/hpinfo/globalcitizenship/environment/recycle/
HP inkjet supplies recycling program
HP is committed to protecting the environment. The HP Inkjet Supplies Recycling Program is
available in many countries/regions, and lets you recycle used print cartridges and ink cartridges
free of charge. For more information, go to the following Web site:
www.hp.com/hpinfo/globalcitizenship/environment/recycle/
Environmental product stewardship program
105
Appendix A
Disposal of waste equipment by users in private households in the European Union
106
Technical information
Power consumption
Hewlett-Packard printing and imaging equipment marked with the ENERGY STAR® logo is qualified
to the U.S. Environmental Protection Agency's ENERGY STAR specifications for imaging
equipment. The following mark appears on ENERGY STAR qualified imaging products:
Additional ENERGY STAR qualified imaging product model information is listed at:
www.hp.com/go/energystar
Chemical Substances
HP is committed to providing our customers with information about the chemical substances in our
products as needed to comply with legal requirements such as REACH (Regulation EC No
1907/2006 of the European Parliament and the Council). A chemical information report for this
product can be found at: www.hp.com/go/reach.
Battery information
This section contains the following topics:
•
Battery disposal in the Netherlands
•
Battery disposal in Taiwan
•
California Perchlorate Material Notice
Battery disposal in the Netherlands
Battery disposal in Taiwan
Environmental product stewardship program
107
Appendix A
California Perchlorate Material Notice
RoHS notices (China only)
Toxic and hazardous substance table
Restriction of hazardous substance (Ukraine)
108
Technical information
Third-party licenses
LICENSE.aes-pubdom--crypto
--------------------/* rijndael-alg-fst.c
*
* @version 3.0 (December 2000)
*
* Optimised ANSI C code for the Rijndael cipher (now AES)
*
* @author Vincent Rijmen <[email protected]>
* @author Antoon Bosselaers <[email protected]>
* @author Paulo Barreto <[email protected]>
*
* This code is hereby placed in the public domain.
*
* THIS SOFTWARE IS PROVIDED BY THE AUTHORS ''AS IS'' AND ANY EXPRESS
* OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
* WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
* ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHORS OR CONTRIBUTORS BE
* LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
* CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
* SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
* BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
* WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
* OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
* EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*/
LICENSE.expat-mit--expat
--------------------Copyright (c) 1998, 1999, 2000 Thai Open Source Software Center Ltd
Permission is hereby granted, free of charge, to any person obtaining
a copy of this software and associated documentation files (the
"Software"), to deal in the Software without restriction, including
without limitation the rights to use, copy, modify, merge, publish,
distribute, sublicense, and/or sell copies of the Software, and to
permit persons to whom the Software is furnished to do so, subject to
the following conditions:
The above copyright notice and this permission notice shall be included
in all copies or substantial portions of the Software.
Third-party licenses
109
Appendix A
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY
CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT,
TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE
SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
LICENSE.hmac-sha2-bsd--nos_crypto
--------------------/* HMAC-SHA-224/256/384/512 implementation
* Last update: 06/15/2005
* Issue date: 06/15/2005
*
* Copyright (C) 2005 Olivier Gay ([email protected])
* All rights reserved.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
* 1. Redistributions of source code must retain the above copyright
* notice, this list of conditions and the following disclaimer.
* 2. Redistributions in binary form must reproduce the above copyright
* notice, this list of conditions and the following disclaimer in the
* documentation and/or other materials provided with the distribution.
* 3. Neither the name of the project nor the names of its contributors
* may be used to endorse or promote products derived from this software
* without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE PROJECT AND CONTRIBUTORS ``AS IS'' AND
* ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
* IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE
* ARE DISCLAIMED. IN NO EVENT SHALL THE PROJECT OR CONTRIBUTORS BE LIABLE
* FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
* DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
* OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
* HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
* HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
* LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
* OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF
* SUCH DAMAGE.
*/
LICENSE.md4-pubdom--jm_share_folder
--------------------LibTomCrypt is public domain. As should all quality software be.
110
Technical information
All of the software was either written by or donated to Tom St Denis for the purposes
of this project. The only exception is the SAFER.C source which has no known
license status (assumed copyrighted) which is why SAFER,C is shipped as disabled.
Tom St Denis
LICENSE.md5-pubdom--jm_share_folder
--------------------LibTomCrypt is public domain. As should all quality software be.
All of the software was either written by or donated to Tom St Denis for the purposes
of this project. The only exception is the SAFER.C source which has no known
license status (assumed copyrighted) which is why SAFER,C is shipped as disabled.
Tom St Denis
LICENSE.open_ssl--open_ssl
--------------------Copyright (C) 1995-1998 Eric Young ([email protected])
All rights reserved.
This package is an SSL implementation written
by Eric Young ([email protected]).
The implementation was written so as to conform with Netscapes SSL.
This library is free for commercial and non-commercial use as long as
the following conditions are aheared to. The following conditions
apply to all code found in this distribution, be it the RC4, RSA,
lhash, DES, etc., code; not just the SSL code. The SSL documentation
included with this distribution is covered by the same copyright terms
except that the holder is Tim Hudson ([email protected]).
Copyright remains Eric Young's, and as such any Copyright notices in
the code are not to be removed.
If this package is used in a product, Eric Young should be given attribution
as the author of the parts of the library used.
This can be in the form of a textual message at program startup or
in documentation (online or textual) provided with the package.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions
are met:
1. Redistributions of source code must retain the copyright
notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright
Third-party licenses
111
Appendix A
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software
must display the following acknowledgement:
"This product includes cryptographic software written by
Eric Young ([email protected])"
The word 'cryptographic' can be left out if the rouines from the library
being used are not cryptographic related :-).
4. If you include any Windows specific code (or a derivative thereof) from
the apps directory (application code) you must include an acknowledgement:
"This product includes software written by Tim Hudson ([email protected])"
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ``AS IS'' AND
ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGE.
The licence and distribution terms for any publically available version or
derivative of this code cannot be changed. i.e. this code cannot simply be
copied and put under another distribution licence
[including the GNU Public Licence.]
====================================================================
Copyright (c) 1998-2001 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions
are met:
1. Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in
the documentation and/or other materials provided with the
distribution.
3. All advertising materials mentioning features or use of this
software must display the following acknowledgment:
112
Technical information
"This product includes software developed by the OpenSSL Project
for use in the OpenSSL Toolkit. (http://www.openssl.org/)"
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to
endorse or promote products derived from this software without
prior written permission. For written permission, please contact
[email protected]
5. Products derived from this software may not be called "OpenSSL"
nor may "OpenSSL" appear in their names without prior written
permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following
acknowledgment:
"This product includes software developed by the OpenSSL Project
for use in the OpenSSL Toolkit (http://www.openssl.org/)"
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS'' AND ANY
EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR
ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED
OF THE POSSIBILITY OF SUCH DAMAGE.
====================================================================
This product includes cryptographic software written by Eric Young
([email protected]). This product includes software written by Tim
Hudson ([email protected]).
====================================================================
Copyright (c) 1998-2006 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions
are met:
1. Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
Third-party licenses
113
Appendix A
2. Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in
the documentation and/or other materials provided with the
distribution.
3. All advertising materials mentioning features or use of this
software must display the following acknowledgment:
"This product includes software developed by the OpenSSL Project
for use in the OpenSSL Toolkit. (http://www.openssl.org/)"
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to
endorse or promote products derived from this software without
prior written permission. For written permission, please contact
[email protected]
5. Products derived from this software may not be called "OpenSSL"
nor may "OpenSSL" appear in their names without prior written
permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following
acknowledgment:
"This product includes software developed by the OpenSSL Project
for use in the OpenSSL Toolkit (http://www.openssl.org/)"
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS'' AND ANY
EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR
ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED
OF THE POSSIBILITY OF SUCH DAMAGE.
====================================================================
This product includes cryptographic software written by Eric Young
([email protected]). This product includes software written by Tim
Hudson ([email protected]).
====================================================================
Copyright 2002 Sun Microsystems, Inc. ALL RIGHTS RESERVED.
ECC cipher suite support in OpenSSL originally developed by
114
Technical information
SUN MICROSYSTEMS, INC., and contributed to the OpenSSL project.
LICENSE.sha2-bsd--nos_crypto
--------------------/* FIPS 180-2 SHA-224/256/384/512 implementation
* Last update: 02/02/2007
* Issue date: 04/30/2005
*
* Copyright (C) 2005, 2007 Olivier Gay <[email protected]>
* All rights reserved.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
* 1. Redistributions of source code must retain the above copyright
* notice, this list of conditions and the following disclaimer.
* 2. Redistributions in binary form must reproduce the above copyright
* notice, this list of conditions and the following disclaimer in the
* documentation and/or other materials provided with the distribution.
* 3. Neither the name of the project nor the names of its contributors
* may be used to endorse or promote products derived from this software
* without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE PROJECT AND CONTRIBUTORS ``AS IS'' AND
* ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
* IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE
* ARE DISCLAIMED. IN NO EVENT SHALL THE PROJECT OR CONTRIBUTORS BE LIABLE
* FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
* DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
* OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
* HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT
* LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
* OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF
* SUCH DAMAGE.
*/
LICENSE.unicode--jm_share_folder
--------------------/*
* Copyright 2001-2004 Unicode, Inc.
*
* Disclaimer
*
* This source code is provided as is by Unicode, Inc. No claims are
Third-party licenses
115
Appendix A
* made as to fitness for any particular purpose. No warranties of any
* kind are expressed or implied. The recipient agrees to determine
* applicability of information provided. If this file has been
* purchased on magnetic or optical media from Unicode, Inc., the
* sole remedy for any claim will be exchange of defective media
* within 90 days of receipt.
*
* Limitations on Rights to Redistribute This Code
*
* Unicode, Inc. hereby grants the right to freely use the information
* supplied in this file in the creation of products supporting the
* Unicode Standard, and to make copies of this file in any form
* for internal or external distribution as long as this notice
* remains attached.
*/
LICENSE.zlib--zlib
--------------------zlib.h -- interface of the 'zlib' general purpose compression library
version 1.2.3, July 18th, 2005
Copyright (C) 1995-2005 Jean-loup Gailly and Mark Adler
This software is provided 'as-is', without any express or implied
warranty. In no event will the authors be held liable for any damages
arising from the use of this software.
Permission is granted to anyone to use this software for any purpose,
including commercial applications, and to alter it and redistribute it
freely, subject to the following restrictions:
1. The origin of this software must not be misrepresented; you must not
claim that you wrote the original software. If you use this software
in a product, an acknowledgment in the product documentation would be
appreciated but is not required.
2. Altered source versions must be plainly marked as such, and must not be
misrepresented as being the original software.
3. This notice may not be removed or altered from any source distribution.
Jean-loup Gailly Mark Adler
[email protected] [email protected]
The data format used by the zlib library is described by RFCs (Request for
Comments) 1950 to 1952 in the files http://www.ietf.org/rfc/rfc1950.txt
(zlib format), rfc1951.txt (deflate format) and rfc1952.txt (gzip format).
116
Technical information
Third-party licenses
117
B
HP supplies and accessories
This section provides information on HP supplies and accessories for the printer. The information is
subject to changes, visit the HP website (www.hpshopping.com) for the latest updates. You may
also make purchases through the website.
NOTE: Not all cartridges are available in all countries/regions.
This section contains the following topics:
•
•
Order printing supplies online
Supplies
Order printing supplies online
To order supplies online or create a printable shopping list, open the HP software that came with
your printer and click Shop. Select Shop for Supplies Online. The HP software uploads, with your
permission, printer information, including model number, serial number, and estimated ink levels.
The HP supplies that work in your printer are pre-selected. You can change quantities, add or remove
items, and then print the list or purchase online at the HP Store or other online retailers (options
differ by country/region). Cartridge information and links to online shopping also appear on ink alert
messages.
You can also order online by visiting www.hp.com/buy/supplies. If prompted, select your country/
region, follow the prompts to select your printer, and then the supplies you need.
NOTE: Ordering cartridges online is not supported in all countries/regions. However, many
countries have information on ordering by telephone, locating a local store and printing
a shopping list. In addition, you can select the 'How to Buy' option at the top of the www.hp.com/
buy/supplies page to obtain information about purchasing HP products in your country.
Supplies
•
Ink cartridges and printheads
•
HP paper
Ink cartridges and printheads
Ordering cartridges online is not supported in all countries/regions. However, many countries have
information on ordering by telephone, locating a local store and printing a shopping list. In addition,
you can select the 'How to Buy' option at the top of the www.hp.com/buy/supplies page to obtain
information about purchasing HP products in your country.
Use only the replacement cartridges that have the same cartridge number as the ink cartridge you
are replacing. You can find the cartridge number in the following places:
•
•
•
In the embedded web server, by clicking the Tools tab, and then, under Product Information
clicking Ink Gauge. For more information, see Embedded web server.
On the printer status report (see Understand the Printer Status Report).
On the label of the ink cartridge you are replacing.
On a sticker inside the printer.
CAUTION: The Setup ink cartridge that comes with the printer is not available for separate
purchase. Check for the correct cartridge number through the EWS, on the printer status
report, or on the sticker inside the printer.
118
HP supplies and accessories
NOTE: Ink level warnings and indicators provide estimates for planning purposes only. When
you receive a low-ink warning message, consider having a replacement cartridge available to
avoid possible printing delays. You do not need to replace cartridges until prompted to do so.
HP paper
To order paper such as HP Premium Paper, go to www.hp.com.
HP recommends plain papers with the ColorLok logo for printing
and copying of everyday documents. All papers with the ColorLok
logo are independently tested to meet high standards of reliability
and print quality, and produce documents with crisp, vivid color,
bolder blacks, and that dry faster than ordinary plain papers. Look
for papers with the ColorLok logo in a variety of weights and sizes
from major paper manufacturers.
Supplies
119
C
Network setup
You can manage network settings for the printer through the printer control panel as described in
the next section. Additional advanced settings are available in the embedded web server,
a configuration and status tool you access from your web browser using an existing network
connection to the printer. For more information, see Embedded web server.
This section contains the following topics:
•
Change basic network settings
•
•
Change advanced network settings
Set up the printer for wireless communication
•
Uninstall and reinstall the HP software
Change basic network settings
The control panel options enable you to set up and manage a wireless connection and to perform
a variety of network management tasks. This includes viewing the network settings, restoring the
network defaults, turning the wireless radio on and off, and changing the network settings.
This section contains the following topics:
•
View and print network settings
•
Turn the wireless radio on and off
View and print network settings
You can display a summary of the network settings on the printer control panel or the HP software
that came with the printer. You can print a more detailed network configuration page, which lists all
of the important network settings such as the IP address, link speed, DNS, and mDNS. For more
information, see Understand the network configuration page.
Turn the wireless radio on and off
The wireless radio is on by default, as indicated by the blue light on the front of the printer. In order
to stay connected to a wireless network, the radio must stay on. However, if your printer is connected
to an Ethernet network or you have a USB connection, the radio is turned off.
1.
Touch
2.
Touch Wireless, and then touch On to turn on the radio, or touch Off to turn off the radio.
(right arrow), touch Setup, and then touch Network.
For information about connecting the printer to a wireless network, see Set up the printer for wireless
communication. If the Wireless Setup Wizard is used to connect the printer to a wireless network
the radio is automatically turned on.
Change advanced network settings
CAUTION: Network settings are provided for your convenience. However, unless you are an
advanced user, you should not change some of these settings (such as the link speed, IP
settings, default gateway, and firewall settings).
This section contains the following topics:
120
•
Set link speed
•
View IP settings
•
Change IP settings
•
Configure the printer’s firewall settings
•
Reset network settings
Network setup
Set link speed
You can change the speed at which data is transmitted over the network. The default is
Automatic.
1.
2.
Touch (right arrow), touch Setup, and then touch Network.
Touch Advanced Setup, then touch Link Speed.
3.
Touch the number next to the link speed that matches your network hardware.
View IP settings
To view the IP address of the printer:
•
Print the network configuration page. For more information, see Understand the network
configuration page.
-Or-
•
Open the HP software (Windows), double-click Estimated Ink Levels, click the Device
Information tab. The IP address is listed in the Network Information section.
Change IP settings
The default IP setting for the IP settings is Automatic, which sets the IP settings automatically.
However, if you are an advanced user, you might want to manually change settings such as the IP
address, subnet mask, or the default gateway.
CAUTION: Be careful when manually assigning an IP address. If you enter an invalid IP
address during the installation, your network components cannot connect with the printer.
1.
Touch
2.
3.
Touch Advanced Setup, and then touch IP Settings.
A message appears warning that changing the IP address removes the printer from the network.
Touch OK to continue.
4.
Automatic is selected by default. To change the settings manually, touch Manual, and then
enter the appropriate information for the following settings:
5.
(right arrow), Setup, and then touch Network.
•
IP Address
•
Subnet Mask
•
Default Gateway
•
DNS Address
Enter your changes, and then touch Done.
Configure the printer’s firewall settings
Firewall features provide network-layer security on both IPv4 and IPv6 networks. The firewall
provides simple control of IP addresses that are allowed access.
NOTE: In addition to firewall protection at the network layer, the printer also supports open
secure sockets layer (SSL) standards at the transport layer for secure client-server applications,
such as client-server authentication or HTTPS web browsing.
For firewall operation on the printer, you must configure a firewall policy to apply to specified IP traffic.
Firewall policy pages are accessed through the EWS and displayed by your web browser.
After a policy is configured, it is not activated until you click Apply in the EWS.
Creating and using firewall rules
Firewall rules allow you to control IP traffic. Use firewall rules to allow or drop IP traffic based on IP
addresses and services.
Enter up to ten rules, each rule specifying the host addresses, services, and the action to take for
those addresses and services.
Change advanced network settings
121
Appendix C
This section contains the following topics:
•
Create a firewall rule
•
Change the priority of firewall rules
•
Change firewall options
•
Reset firewall settings
•
Limitations to rules, templates, and services
Create a firewall rule
To create a firewall rule, complete the following steps:
1. Open the embedded web server. For more information, see Embedded web server.
2.
Click the Settings tab, click Firewall Rules.
3.
Click New, and then follow the onscreen instructions.
NOTE: After clicking OK, the connection to the EWS might be temporarily disrupted for a short
period of time. If the IP address was unchanged, the EWS connection will be enabled again.
However, if the IP address was changed, use the new IP address to open the EWS.
Change the priority of firewall rules
To change the priority in which a firewall rule is used, complete the following steps:
1.
Open the embedded web server. For more information, see Embedded web server.
2.
Click the Settings tab, click Firewall Rules Priority.
3.
Select the priority in which you want the rule to be used from the Rule Precedence list, with 10
having the highest priority and 1 having the lowest priority.
4.
Click Apply.
Change firewall options
To change firewall options for the printer, complete the following steps:
1.
Open the embedded web server. For more information, see Embedded web server.
2.
Click the Settings tab, click Firewall Options.
3.
Change any settings, and then click Apply.
NOTE: After clicking Apply, the connection to the EWS might be temporarily disrupted for a
short period of time. If the IP address was unchanged, the EWS connection will be enabled
again. However, if the IP address was changed, use the new IP address to open the EWS.
Reset firewall settings
To reset the firewall settings to the factory defaults, restore the printer’s network settings. For more
information, see Reset network settings.
Limitations to rules, templates, and services
When creating firewall rules, note the following limitations to rules, templates, and services.
122
Item
Limit
Maximum number of rules.
11 (one default rule)
Maximum number of Address Templates.
12
Maximum number of user-defined address
templates.
5
Maximum number of services you can add to a
user-defined service template.
40
Network setup
(continued)
Item
Limit
NOTE: The predefined All Services template
is not subject to this limitation and includes all
services supported by the print server.
Maximum number of services you can add to
the policy.
40
For a given rule, only one address template and
one service template can be added.
Maximum number of service templates in the
policy.
9
Maximum number of user-defined custom
service templates.
5
Reset network settings
To reset the administrator password and network settings, complete the following steps:
1.
On the printer control panel, touch
2.
Touch Restore Network Defaults, and then select Yes.
A message appears stating that the network defaults have been restored.
(right arrow), touch Setup, and then touch Network.
NOTE: Print the network configuration page and verify that the network settings have been
reset. For more information, see Understand the network configuration page.
NOTE: Resetting the printer’s network settings also resets the printer’s firewall settings. For
more information about configuring the printer’s firewall settings, see Configure the printer’s
firewall settings.
Set up the printer for wireless communication
You can set up the printer for wireless communication.
This section contains the following topics:
•
Before you begin
•
Set up the printer on your wireless network
•
Change the connection type
•
Test the wireless connection
•
Guidelines for ensuring wireless network security
•
Guidelines for reducing interference on a wireless network
NOTE: If you encounter problems connecting the printer, see Solve wireless problems.
TIP: For more information about setting up and using the printer wirelessly, visit the HP
Wireless Printing Center (www.hp.com/go/wirelessprinting).
Before you begin
Before you begin setting up the wireless connection, check the following:
•
The printer is not connected to the network using a network cable.
•
The wireless network is set up and functioning correctly.
•
The printer and the computers that use the printer are on the same network (subnet).
Set up the printer for wireless communication
123
Appendix C
While connecting the printer, you might be prompted to enter the wireless network name (SSID) and
a wireless password:
•
The wireless network name is the name of your wireless network.
•
The wireless password prevents other people from connecting to your wireless network without
your permission. Depending on the level of security required, your wireless network might use
either a WEP key or WPA passphrase.
If you have not changed the network name or the security passkey since setting up your wireless
network, you can sometimes find them on the back or side of the wireless router.
If you cannot find the network name or the security passkey or cannot remember this information,
see the documentation available with your computer or with the wireless router. If you still cannot
find this information, contact your network administrator or the person who set up the wireless
network.
TIP: If you are using a computer running Windows, HP provides a tool called HP Print and
Scan Doctor that can help retrieve this information for some systems. To use this tool, visit the
HP Wireless Printing Center (www.hp.com/go/wirelessprinting). (At this time, this tool might not
be available in all languages.)
Set up the printer on your wireless network
To set up the printer on your wireless network, use one of the following methods:
•
Set up the printer using the HP printer software
•
Set up the printer using the Wireless Setup Wizard
•
Set up the printer using WiFi Protected Setup (WPS)
•
Set up the printer using the embedded web server (EWS)
NOTE: If you have already been using the printer with a different type of connection, such as
a USB connection, follow the instructions in Change the connection type to set up the printer on
your wireless network.
Set up the printer using the HP printer software
In addition to enabling key printer features, you can use the HP printer software that came with your
printer to set up wireless communication.
If you have already been using the printer with a different type of connection, such as a USB
connection, follow the instructions in Change the connection type to set up the printer on your
wireless network.
Set up the printer using the Wireless Setup Wizard
The Wireless Setup Wizard provides an easy way to set up and manage a wireless connection to
your printer from the printer control panel.
1.
Set up the printer hardware. See the getting started guide or the setup poster that came with
your printer.
2.
3.
On the printer control panel, touch (right arrow), touch Setup, and then touch Network.
Touch Wireless Setup Wizard, and then touch OK.
4.
Follow the display instructions to complete the setup.
5.
After the setup has completed, the network printer drivers can be installed by opening the
printer's HP folder in All Programs, clicking Printer Setup and Software , and selecting
Connect a new printer.
NOTE: If you cannot find the wireless network name (SSID) and wireless password (WPA
passphrase, WEP key), see Before you begin.
124
Network setup
Set up the printer using WiFi Protected Setup (WPS)
Wi-Fi Protected Setup (WPS) allows you to quickly set up the printer on your wireless network,
without having to enter the wireless network name (SSID), wireless password (WPA passphrase,
WEP key), or other wireless settings.
NOTE: Only set up wireless using WPS if your wireless network uses WPA data encryption. If
your wireless network uses WEP or is not using any encryption at all, use one of the other
methods provided in this section to set up the printer on your wireless network.
NOTE: To use WPS, make sure your wireless router or wireless access point supports WPS.
Routers that support WPS often have a
(WPS) button or a button labeled "WPS".
You can use one of the following methods to set up the printer using WPS:
•
•
Push Button Method: Use the
(WPS) or WPS button, if available, on your router.
PIN Method: Enter the PIN generated by the printer in the router’s configuration software.
To connect the printer using the Push Button Method
1. On the printer control panel, touch (right arrow), touch Setup, and then touch Network.
2.
Touch Wi-Fi Protected Setup, and then follow the on-screen instructions.
3.
When prompted, touch Push Button.
4.
On the wireless router or wireless access point, press and hold the WPS button for 3 seconds.
Wait for about 2 minutes. If the printer connects successfully, the wireless light stops blinking
but remains lit.
5.
After the setup has completed, the network printer drivers can be installed by opening the
printer's HP folder in All Programs, clicking Printer Setup and Software , and selecting
Connect a new printer.
To connect the printer using the PIN Method
1. On the printer control panel, touch (right arrow), touch Setup, and then touch Network.
A WPS PIN is printed at the bottom of the page.
2.
Touch Wi-Fi Protected Setup, and then follow the on-screen instructions.
3.
When prompted, touch PIN.
The WPS PIN appears on the display.
Open the configuration utility or software for the wireless router or wireless access point, and
then enter the WPS PIN.
4.
NOTE: For more information about using the configuration utility, see the documentation
provided with the router or wireless access point.
Wait for about 2 minutes. If the printer connects successfully, the wireless light stops blinking
but remains lit.
5.
After the setup has completed, the network printer drivers can be installed by opening the
printer's HP folder in All Programs, clicking Printer Setup and Software , and selecting
Connect a new printer.
Set up the printer using the embedded web server (EWS)
If the printer is connected to a network, you can use the printer’s embedded web server (EWS) to
set up wireless communication.
1.
Open the EWS. For more information, see Embedded web server.
2.
On the Home tab, click Wireless Setup Wizard in the Setup box.
Set up the printer for wireless communication
125
Appendix C
3.
Follow the on-screen instructions.
4.
After the setup has completed, the network printer drivers can be installed by opening the
printer's HP folder in All Programs, clicking Printer Setup and Software , and selecting
Connect a new printer.
TIP: You can also set up wireless communication by entering or changing individual wireless
settings. To change these settings, on the Network tab, click Advanced in the Wireless
(802.11) section on the left, change the wireless settings, and then click Apply.
Change the connection type
After you have installed the HP software and connected the printer to your computer or to a network,
you can use the HP software to change the connection type (for example, from a USB connection
to a wireless connection).
NOTE: If you are changing to a wireless connection, make sure that an Ethernet cable has not
been connected to the printer. Connecting an Ethernet cable turns off the printer's wireless
capabilities.
You might be prompted to temporarily connect a USB cable during the setup process.
To change from an Ethernet connection to a wireless connection
1. On the printer control panel, touch (right arrow), touch Setup, and then touch Network.
2.
Touch Wireless, touch Wireless Setup Wizard, and then touch OK.
3.
Follow the display instructions to complete the setup.
NOTE: If you cannot find the wireless network name (SSID) and wireless password (WPA
passphrase, WEP key), see Before you begin.
To change from a USB connection to a wireless connection
Follow the instructions for your operating system.
Windows
1. On the computer desktop, click Start, select Programs or All Programs, click HP, click the
folder for your printer, and then click Printer Setup & Software.
- Or On the Start screen, click Printer Setup & Software.
2.
Click Convert a USB connected printer to wireless.
3.
Follow the display instructions to complete the setup.
Mac OS X
1. Open HP Utility. For more information, see HP Utility (Mac OS X).
2.
Click the Applications icon on the HP Utility toolbar.
3.
Double-click HP Setup Assistant, and then follow the on-screen instructions.
To change from a wireless connection to a USB or Ethernet connection
To change from a wireless connection to a USB or Ethernet connection, connect the USB or Ethernet
cable to the printer.
NOTE: If you are using a computer with Mac OS X, add the printer to the print queue. Click
System Preferences in the Dock, click Print & Fax or Print & Scan in the Hardware section,
click +, and then select the printer.
126
Network setup
Test the wireless connection
Print the wireless test page for information about the printer's wireless connection. The wireless test
page provides information about the printer's status, hardware (MAC) address, and IP address. If
the printer is connected to a network, the test page displays details about the network settings.
To print the wireless test page
1. On the printer control panel, touch
2.
(right arrow), touch Setup, and then touch Network.
Touch Wireless, and then touch Print Wireless Network Test.
Guidelines for ensuring wireless network security
The following information can help you keep your wireless network and wireless printer secure from
unauthorized use.
For more information, visit www.hp.com/go/wirelessprinting.
This section contains the following topics:
•
Overview of security settings
•
•
Add hardware addresses to a wireless router (MAC filtering)
Other wireless security guidelines
Overview of security settings
To help improve the security of the wireless network and prevent unauthorized access, the printer
supports many common types of network authentication, including WEP, WPA, and WPA2.
•
WEP: Provides security by encrypting data sent over radio waves from one wireless device to
another wireless device. Devices on a WEP-enabled network use WEP keys to encode data. If
your network uses WEP, you must know the WEP key(s) it uses.
•
WPA: Increases the level of over-the-air data protection and access control on existing and
future wireless networks. It addresses all known weaknesses of WEP, the original native security
mechanism in the 802.11 standard. WPA uses the Temporal Key Integrity Protocol (TKIP) for
encryption and employs 802.1X authentication with one of the standard Extensible
Authentication Protocol (EAP) types available today.
•
WPA2: Provides enterprise and consumer wireless users with a high level of assurance that
only authorized users can access their wireless networks. WPA2 provides the Advanced
Encryption Standard (AES). AES is defined in counter cipher-block chaining mode (CCM) and
supports the Independent Basic Service Set (IBSS) to enable security between client
workstations operating connected wirelessly without a wireless router (such as a Linksys
wireless router or Apple AirPort Base Station).
Add hardware addresses to a wireless router (MAC filtering)
MAC filtering is a security feature in which a wireless router or wireless access point is configured
with a list of hardware addresses (also called "MAC addresses") of devices that are allowed to gain
access to the network through the router.
If the router filters hardware addresses, then the printer's hardware address must be added to the
router’s list of accepted hardware addresses. If the router does not have the hardware address of a
printer attempting to access the network, the router denies the printer access to the network.
CAUTION: This method is not recommended, however, because your MAC addresses can
easily be read and falsified by unwanted users outside your network.
Set up the printer for wireless communication
127
Appendix C
To add hardware addresses to a wireless router or wireless access point
1. Print the network configuration page, and then locate the printer’s hardware address. For more
information, see Understand the network configuration page.
NOTE: The printer maintains separate hardware addresses for the Ethernet connection
and for wireless connection. Both hardware addresses are listed on the printer’s network
configuration page.
2.
Open the configuration utility for the wireless router or wireless access point, and add the
printer's hardware address to the list of accepted hardware addresses.
NOTE: For more information about using the configuration utility, see the documentation
provided with the router or wireless access point.
Other wireless security guidelines
To keep the wireless network secure, follow these guidelines:
•
Use a wireless password with at least 20 random characters. You can use up to 64 characters
in a WPA wireless password.
•
Avoid any common words or phrases, easy sequences of characters (such as all 1s), and
personally-identifiable information for wireless passwords. Always use random strings
composed of uppercase and lowercase letters, numbers, and if allowed, special characters such
as punctuation.
•
Change the default wireless password provided by the manufacturer for administrator access
to the access point or wireless router. Some routers let you change the administrator name as
well.
•
Turn off administrative access over wireless if possible. If you do this, you need to connect to
the router with an Ethernet connection when you want to make configuration changes.
•
Turn off remote administrative access over the Internet on your router, if possible. You can use
Remote Desktop to make an encrypted connection to a computer running behind your router
and make configuration changes from the local computer you are accessing over the Internet.
•
To avoid accidentally connecting to another party's wireless network, turn off the setting to
automatically connect to non-preferred networks. This is disabled by default in Windows XP.
Guidelines for reducing interference on a wireless network
The following tips will help reduce the chances for interference in a wireless network:
•
Keep the wireless devices away from large metal objects, such as filing cabinets, and other
electromagnetic devices, such as microwaves and cordless telephones, as these objects can
disrupt radio signals.
•
Keep the wireless devices away from large masonry structures and other building structures as
these objects can absorb radio waves and lower signal strength.
•
Position the access point or wireless router in a central location in line of sight with the wireless
devices on the network.
•
Keep all wireless devices on the network within range of one another.
Uninstall and reinstall the HP software
If your installation is incomplete, or if you connected the USB cable to the computer before prompted
by the HP software installation screen, you might need to uninstall and then reinstall the HP software
that came with the printer. Do not simply delete the printer application files from your computer. Make
sure to remove them correctly using the uninstall utility provided when you installed the HP software.
128
•
Windows
•
Mac OS X
Network setup
Windows
To uninstall — method 1
1. Disconnect the printer from your computer. Do not connect it to your computer until after you
have reinstalled the HP software.
2.
On the computer desktop, click Start, select Programs or All Programs, click HP, click the
printer name, and then click Uninstall.
3.
4.
Follow the on-screen instructions.
If you are asked whether you would like to remove shared files, click No.
Other programs that use these files might not work correctly if the files are deleted.
5.
Restart your computer.
6.
To reinstall the HP software, insert the HP software CD into your computer's CD drive, and follow
the on-screen instructions.
7.
8.
Connect the printer when the HP software prompts you to connect it to the computer.
9.
Press the
(Power button) to turn the printer on.
After connecting and turning on the printer, you might have to wait several minutes for all of the
Plug and Play events to complete.
Follow the on-screen instructions.
To uninstall — method 2
NOTE: Use this method if Uninstall is not available in the Windows Start menu.
1.
On the computer desktop, click Start, select Settings, click Control Panel, and then click Add/
Remove Programs.
- Or Click Start, click Control Panel, and then double-click Programs and Features.
2.
Select the printer name, and then click Change/Remove or Uninstall/Change.
Follow the on-screen instructions.
3.
Disconnect the printer from your computer.
4.
Restart your computer.
NOTE: It is important that you disconnect the printer before restarting your computer. Do
not connect the printer to your computer until after you have reinstalled the HP software.
5.
Insert the HP software CD into your computer's CD drive and then start the Setup program.
6.
Follow the on-screen instructions.
Mac OS X
To uninstall from a Mac computer
1. Double-click the HP Uninstaller icon (located in the Hewlett-Packard folder in the
Applications folder at the top level of the hard disk), and then click Continue.
2.
When prompted, type the correct administrator’s name and password, and then click OK.
3.
Follow the on-screen instructions.
4.
When the HP Uninstaller finishes, restart your computer.
Uninstall and reinstall the HP software
129
D
Printer management tools
This section contains the following topics:
•
•
Toolbox (Windows)
HP Utility (Mac OS X)
•
Embedded web server
•
Product security features
Toolbox (Windows)
The Toolbox provides maintenance information about the printer.
NOTE: The Toolbox can be installed from the HP Software CD if the computer meets the
system requirements.
Open the Toolbox
1.
From the computer desktop, click the Start tab, select Programs or All Programs, click HP,
click the folder for your printer, and then select the icon with your printer’s name.
2.
On the Print tab, under the Print section, double-click Maintain Your Printer.
HP Utility (Mac OS X)
HP Utility contains tools to configure print settings, calibrate the printer, order supplies online, and
find website support information.
NOTE: The features available in HP Utility vary depending on the selected printer.
Ink level warnings and indicators provide estimates for planning purposes only. When you
receive a low on ink message, consider having a replacement cartridge available to avoid
possible printing delays. You do not need to replace cartridges until prompted to do so.
Open HP Utility
To open HP Utility
Double-click the HP Utility icon. This icon is located in the Hewlett-Packard folder in the
Applications folder at the top level of the hard disk.
Embedded web server
When the printer is connected to a network, you can use the printer's home page (embedded web
server or EWS) to view status information, change settings, and manage it from your computer.
NOTE: For a list of system requirements for the embedded web server, see Embedded web
server specifications.
To view or change some settings, you might need a password.
You can open and use the embedded web server without being connected to the Internet.
However, some features are not available.
This section contains the following topics:
130
•
About cookies
•
To open the embedded web server
•
Embedded web server features
Printer management tools
About cookies
The embedded web server (EWS) places very small text files (cookies) on your hard drive when you
are browsing. These files let the EWS recognize your computer the next time you visit. For example,
if you have configured the EWS language, a cookie helps remember which language you have
selected so that the next time you access the EWS, the pages are displayed in that language. Though
some cookies are cleared at the end of each session (such as the cookie that stores the selected
language), others (such as the cookie that stores customer-specific preferences) are stored on the
computer until you clear them manually.
NOTE: The cookies that the EWS stores on your computer are only used for saving settings
on your computer or for sharing information between the printer and the computer. These
cookies are not sent to any HP websites.
You can configure your browser to accept all cookies, or you can configure it to alert you every time
a cookie is offered, which allows you to decide which cookies to accept or refuse. You can also use
your browser to remove unwanted cookies.
NOTE: Depending on your printer, if you disable cookies, you also disable one or more of the
following features:
•
Starting where you left the application (especially useful when using setup wizards)
•
Remembering the EWS browser language setting
•
Personalizing the EWS Home page
For information about how to change your privacy and cookie settings and how to view or delete
cookies, see the documentation available with your web browser.
To open the embedded web server
NOTE: The printer must be on a network and must have an IP address. The IP address and
hostname for the printer are listed on the status report. For more information, see Understand
the network configuration page.
In a supported web browser on your computer, type the IP address or hostname assigned to the
printer.
For example, if the IP address is 123.123.123.123, type the following address into the web browser:
http://123.123.123.123
TIP: After opening the embedded web server, you can bookmark it so that you can return to it
quickly.
TIP: If you are using the Safari web browser in Mac OS X, you can also use the Bonjour
bookmark to open the EWS without typing the IP address. To use the Bonjour bookmark, open
Safari, and then from the Safari menu, click Preferences. On the Bookmarks tab, in the
Bookmarks bar section, select Include Bonjour, and then close the window. Click the
Bonjour bookmark, and then select your networked printer to open the EWS.
Embedded web server features
NOTE: Changing network settings in the HP EWS might disable some product or product
software features.
Use the Home tab to customize various views and tasks related to your device. The Home tab
includes the following items:
•
Recently Visited: Displays the five most recently visited embedded HP EWS links.
•
Printer Status: Displays current printer status.
•
Diagnostic: Provide links to diagnostic tasks.
Embedded web server
131
Appendix D
•
ePrint: Displays the status of ePrint connection.
•
Ink Level Status: Displays ink level status.
•
Manage: Useful links for managing the HP EWS.
•
Wireless Network Status: Displays wireless (802.11) status.
•
Wired Network Status: Displays wired (802.3) status.
•
Setup: Displays setup options.
•
Custom Shortcut: Customize quick links to be added as shortcut.
•
Support: Links to Hewlett-Packard's support Web site.
NOTE: Not all of the above items are visible by default. Use the Personalize this page button
to show or hide the items of your choice.
NOTE: Settings for this page are automatically saved in the Web browser's cookies. If the Web
browser's cookies are deleted, these settings are lost.
Use the HP Web Services tab to configure and enable HP Web Services for this product. You must
enable HP Web Services to use the HP ePrint feature.
Use the Network tab to configure and secure network settings for the product when it is connected
to an IP-based network. This tab does not display if the product is connected to other types of
networks.
Tools tab
•
•
•
•
•
Product Information
◦
Printer Information: Find basic device information such as serial number, name and
firmware version.
◦
Ink Gauge: See estimated ink levels, ink cartridge part numbers, and estimated printable
pages remaining for each cartridge.
◦
Ink Settings: Change the threshold at which the printer provides the "Low on Ink"
notification.
Reports
◦
Usage Report: View the number of pages processed for printing, scanning, copying and
faxing.
◦
Printer Reports: Print various reports.
◦
Event Log: View logged events such as firmware errors.
Utilities
◦
Bookmarking: Bookmark pages in the HP EWS.
◦
Print Quality Toolbox: Run maintenance tools to improve the print quality of your printouts.
◦
Asset Tracking: Assign an asset number/location to this device.
Backup and Restore
◦
Backup: Create a password-encrypted file that stores the printer's settings.
◦
Restore: Restore the printer's settings using a backup file created by the HP EWS.
Job Monitor
Job Monitor: Monitor or cancel jobs currently active or pending in the printer.
•
Printer Restart
◦
Power Cycle: Allows you to turn off and restart the printer.
◦
Restore: Restore the printer's settings using a backup file created by the HP EWS.
Use the Settings tab to set and maintain various options on your product including power
management, date and time, security, printing, and paper settings, email alerts, restore factory
defaults and firewall settings.
132
Printer management tools
Product security features
This product supports security standards and protocols that help secure the product, protect
information on your network, and simplify monitoring and maintenance of the product.
For information about HP's secure imaging and printing solutions, visit www.hp.com/go/
Secureprinting. The site provides links to white papers and FAQ documents about security features
and may include information about additional security features that are not contained in this
document.
Assign an administrator password in the embedded web server
The embedded web server allows you to assign an administrator password so that unauthorized
users cannot change product configuration settings in the embedded web server. When the admin
password is assigned and applied, you must enter the password to make any configuration changes
that are done through the embedded web server. If you change an existing password, you must first
enter that password. You can also remove the password by entering the existing password and then
deleting the assigned password.
Control panel lock
The embedded web server allows the ability to lock certain features on the product’s control panel
to prevent unauthorized use. Once the control panel lock is enabled, certain control panel
configuration features cannot be changed from the control panel. The control panel lock setting itself
can also be secured. This is accomplished by setting the embedded web server administrator
password. Once the embedded web server administrator password is set, the admin password must
be entered when accessing the control panel lock enable/disable setting.
Disable unused protocols and services
The embedded web server allows the ability to disable unused protocols and services. These
protocol and services settings can also be protected from being changed by setting the EWS admin
password. These protocols and services include the following:
•
IPv4 and IPv6 disable/enable: To operate properly on a TCP/IP network, the product must be
configured with valid TCP/IP network configuration settings, such as an IP address that is valid
for your network. This product supports two versions of this protocol: version 4 (IPv4) and version
6 (IPv6). IPv4 and IPv6 can be enabled/disable individually or simultaneously enabled.
•
Bonjour disable/enable: Bonjour services are typically used on small networks for IP address
and name resolution where conventional a DNS server is not used. The Bonjour service can be
enabled or disabled.
•
SNMP disable/enable: SNMP (Simple Network Management Protocol) is used by network
management applications for product management. This product supports the SNMPv1 protocol
on IP networks. This product allows the ability to enable/disable SNMPv1.
•
WINS disable/enable: If you have a Dynamic Host Configuration Protocol (DHCP) service on
your network, the product automatically obtains its IP address from that server and registers its
name with any RFC 1001 and 1002-compliant dynamic name services as long as the Windows
Internet Name Service (WINS) server IP address has been specified. The WINS server IP
address configuration can be enable or disabled. If enabled, then the primary and secondary
WINS server can be specified.
•
SLP disable/enable: Service Location Protocol (SLP) is an Internet standard network protocol
that provides a framework to allow network applications to discover the existence, location and
configuration of networked services in enterprise networks. This protocol can be enabled or
disabled.
•
LPD disable/enable: Line Printer Daemon (LPD) refers to the protocol and programs associated
with line-printer spooling services that may be installed on various TCP/IP systems. LPD can
be enabled or disabled.
Product security features
133
Appendix D
•
•
LLMNR disable/enable: Link-Local Multicast Name Resolution (LLMNR) is a protocol based
on the Domain Name System (DNS) packet format that allows both IPv4 and IPv6 hosts to
perform name resolution for hosts on the same local link. LLMNR can be enabled or disabled.
Port 9100 disable/enable: The product supports raw IP printing through TCP Port 9100. This
HP-propriety TCP/IP port on the product is the default port for printing and it is accessed by HP
software. Port 9100 can be enabled or disabled.
•
Web Services disable/enable: The product supports the ability to enable or disable Microsoft
Web Services Dynamic Discovery (WS Discovery) protocols or Microsoft Web Services for
Devices (WSD) Print services supported on the product. These web services can be enabled
or disabled together or WS Discovery can be enabled separately.
•
Internet Printing Protocol (IPP) disable/enable: Internet Printing Protocol (IPP) is an Internetstandard protocol that allows you to print documents and manage jobs over the internet. IPP
can be disabled or enabled.
Administrator settings
The embedded web server allows the ability to enable and disable certain product capabilities. These
include network, Ethernet, wireless, wireless access point (i.e. disables wireless direct capability),
USB, control panel lock, color print from memory devices, all web services, only ePrint, and only
Apps. The product must be turned off, and then turned on again, for settings to take effect.
Color access control
HP’s suite of color access control tools allows you to enable or disable color by individuals users or
groups and applications. For more information see www.hp.com/go/upd. The embedded web server
also allows you to disable color faxing, color copying, and color print from memory devices.
Protected protocols – HTTPS
The embedded web server features the ability to enable encryption of product communication
through the HTTPS redirection feature. When used, HTTPS prevents others from viewing
information between the EWS and the product via encryption – providing a secure communication
method.
Firewall
The embedded web server allows the ability to enable and configure product firewall rules, priorities,
templates, services and policies. The firewall feature provides a network-layer of security on both
IPv4 and IPv6 networks. The firewall configuration capability provides control over IP addresses that
are allowed access the product, and the ability to set permissions and priorities for digital send,
management, discovery, and print services--providing a more secure way of controlling access to
the product.
Syslog
Support of Syslog, a standard protocol for logging status messages to a designated server, can be
used to track the activities and status of devices on the network. The embedded web service provides
the ability to enable Syslog and to specify the server to which the status messages will be sent.
Specifying the priority of those status messages is also supported.
Certificates
The embedded web server provides the ability to install and manage certificates for the
authentication of product, server and network. This includes the ability to create a certificate, install
a certificate, and import and export certificates.
Signed firmware
Support of digitally-signed firmware updates eliminates exposure to malicious software by preventing
the installation of non-approved firmware on the product.
134
Printer management tools
Wireless authentication
The embedded web server provides the ability to configure wireless networking via such 802.1x
wireless enterprise authentication protocols as EAP-TLS, LEAP, and PEAP to support access
control. The HP Embedded Web Server also provides the ability to configure wireless dynamic key
encryption such as WEP encryption and WPA-PSK authentication. In addition, Wireless Direct
Authentication can be enabled or disabled.
Product security features
135
E
136
How do I?
•
Get started
•
•
Print
Work with ink cartridges
•
Solve a problem
How do I?
F
Errors (Windows)
Printer disconnected
The computer cannot communicate with the printer because one of the following events has
occurred:
•
The printer has been turned off.
•
The cable connecting the printer, such as a USB cable or a network (Ethernet) cable, has been
disconnected.
•
If the printer is connected to a wireless network, the wireless connection has been broken.
To solve this problem, try the following solutions:
•
Make sure the printer is turned on and that the
•
Make sure the power cord and other cables are working and are firmly connected to the printer.
•
Make sure the power cord is connected firmly to a functioning, alternating current (AC) power
outlet.
•
If the printer is connected to a network, make sure the network is functioning properly. For more
information, see Solve Ethernet network problems.
•
If the printer is connected to a wireless network, make sure the wireless network is functioning
properly. For more information, see Solve wireless problems.
(Power button) light is on.
Printhead problem
The printhead is missing, not detected, incorrectly installed, or incompatible.
If this error occurs at printer setup, try the following solutions.
Solution 1: Reinstall the printhead.
For instructions, see Reinstall the printhead
CAUTION: The printheads contain electrical contacts that can be damaged easily.
If the problem persists after you reinstall the printhead, contact HP support. For more information,
see HP support.
If this error occurs after the printer has been used for a period of time, try the following
solutions.
Solution 1: Turn the printer off and on.
Turn off the printer, and then turn it on again.
If the problem persists, contact HP support for service or replacement. For more information, see
HP support.
Cartridge Problem
The ink cartridge identified in the message is missing, damaged, incompatible, or inserted into the
wrong slot in the printer.
NOTE: If the cartridge is identified in the message as incompatible, see Order printing supplies
online for information about obtaining cartridges for the printer.
Errors (Windows)
137
Appendix F
To solve this problem, try the following solutions. Solutions are listed in order, with the most likely
solution first. If the first solution does not solve the problem, continue trying the remaining solutions
until the issue is resolved.
•
Solution 1: Turn the printer off and on.
•
Solution 2: Install the ink cartridges correctly.
•
•
Solution 3: Clean the electrical contacts.
Solution 4: Replace the ink cartridge.
Solution 1: Turn the printer off and on
Turn off the printer, and then turn it on again.
If the problem persists, try the next solution.
Solution 2: Install the ink cartridges correctly
Make sure all of the ink cartridges are properly installed:
1. Gently pull open the ink cartridge access door.
2.
Remove the ink cartridge by grasping it and pulling it firmly toward you.
3.
4.
Insert the cartridge into the slot. Press firmly on the cartridge to ensure proper contact.
Close the ink cartridge cover and check if the error message has gone away.
If the problem persists, try the next solution.
Solution 3: Clean the electrical contacts
To clean the electrical contacts in the printer
1. Lightly dampen a clean, lint-free cloth with bottled or distilled water.
2.
3.
Clean the electrical contacts in the printer by wiping with the cloth from top to bottom. Use as
many fresh, clean cloths as necessary. Clean until no ink shows on the cloth.
Wipe the area dry with a dry lint-free cloth before proceeding to the next step.
Solution 4: Replace the ink cartridge
Replace the indicated ink cartridge. For more information, see Replace the ink cartridges.
NOTE: If your cartridge is still under warranty, contact HP support for service or replacement.
For more information about ink cartridge warranty, see Ink cartridge warranty information. If the
problem persists after you replace the cartridge, contact HP support. For more information, see
HP support.
Replace the ink cartridge
Replace the indicated ink cartridge. For more information, see Replace the ink cartridges.
NOTE: If your cartridge is still under warranty, contact HP support for service or replacement.
For more information about ink cartridge warranty, see Ink cartridge warranty information. If the
problem persists after you replace the cartridge, contact HP support. For more information, see
HP support.
Paper Mismatch
The paper size or type selected in the printer driver does not match the paper loaded in the printer.
Make sure that the correct paper is loaded in the printer, and then print the document again. For
more information, see Load paper.
NOTE: If the paper loaded in the printer is the correct size, change the selected paper size in
the printer driver, and then print the document again.
138
Errors (Windows)
The cartridge cradle cannot move
Something is blocking the ink cartridge cradle (the part of the printer that holds the ink cartridges).
To clear the obstruction, press
(Power button) to turn off the printer, and then check the printer
for jams.
For more information, see Clear jams.
Paper Jam
Paper has become jammed in the printer.
Before you try to clear the jam, check the following:
•
Make sure that you have loaded paper that meets specifications and is not wrinkled, folded, or
damaged. For more information, see Paper specifications.
•
Make sure that the printer is clean. For more information, see Maintain the printer.
•
Make sure that the trays are loaded correctly and are not too full. For more information, see
Load paper.
For instructions on clearing jams, as well as more information about how to avoid jams, see Clear
jams.
The printer is out of paper
The default tray is empty.
Load more paper, and then touch OK.
For more information, see Load paper.
Printer failure
There was a problem with the printer. Usually, you can resolve such problems by completing the
following steps:
1.
Press
(Power button) to turn off the printer.
2.
Unplug the power cord, and then plug in the power cord again.
3.
Press
(Power button) to turn on the printer.
If this problem persists, write down the error code provided in the message, and then contact HP
support. For more information about contacting HP support, see HP support.
Door or cover open
Before the printer can print documents, all doors and covers must be closed.
TIP: When completely closed, most doors and covers snap into place.
If the problem persists after you’ve securely closed all doors and covers, contact HP support. For
more information, see HP support.
Ink cartridges depleted
The cartridges listed in the message must be replaced to resume printing. HP recommends that you
do not remove an ink cartridge until a replacement is ready to install.
For more information, see Replace the ink cartridges.
Ink cartridges depleted
139
Appendix F
Ink cartridge failure
The cartridges listed in the message are damaged or have failed.
See Replace the ink cartridges.
Printer supply upgrade problem
The supply upgrade was not successful. The cartridges listed in the message can still be used in
this printer. Replace the Supply Upgrade cartridge. For more information, see Replace the ink
cartridges.
Counterfeit Cartridge Advisory
The installed cartridge is not a new, genuine HP cartridge. Contact the store where this cartridge
was purchased. To report suspected fraud, visit HP at www.hp.com/go/anticounterfeit. To continue
using the cartridge, click Continue.
Use SETUP cartridges
When you first setup the printer, you must install the cartridges that shipped in the box with the
printer. These cartridges are labeled SETUP, and they calibrate your printer before the first print job.
Failure to install the SETUP cartridges during the initial product setup causes an error. If you installed
a set of regular cartridges, remove them and install the SETUP cartridges to complete printer setup.
After printer setup is complete, the printer can use regular cartridges.
if you still receive error messages and the printer cannot complete ink system initialization, contact
HP support. For more information, see HP support.
Click here to go online for more information .
Do not use SETUP cartridges
New SETUP cartridges cannot be installed after the printer has been initialized. Install regular
replacement cartridges. For more information, see Replace the ink cartridges.
Not enough ink at startup
The used cartridges listed in the message might not have enough ink to complete one-time startup
processes.
Solution: Install new cartridges or click OK to use installed cartridges.
If startup cannot complete with installed cartridges, new cartridges will be needed. For information
on how to install new cartridges, see Replace the ink cartridges.
Incompatible ink cartridges
The ink cartridge is not compatible with your printer'.
Solution: Remove this cartridge immediately and replace with a compatible ink cartridge. For
information about how to install new cartridges, see Replace the ink cartridges.
Ink sensor warning
The ink sensor is reporting an unexpected condition. This could be caused by the cartridge, or the
sensor may have failed. If the sensor has failed, it can no longer sense when your cartridges are
very low on ink. Printing with an empty cartridge will cause air to enter the ink system, which causes
poor print quality. Significant amounts of ink will be used up to recover from this condition, which will
deplete much of the ink supply for all cartridges.
140
Errors (Windows)
Solution: Click OK to continue printing or replace the cartridge. For information about how to install
new cartridges, see Replace the ink cartridges.
Problem with printer preparation
The printer clock has failed and ink preparation may not be complete. The estimated Ink Level gauge
might be inaccurate.
Solution: Check the print quality of your print job. If it is not satisfactory, running the printhead
cleaning procedure from the toolbox might improve it.
Ink sensor failure
The ink sensor has failed and the printer can no longer print.
Contact HP support. For more information, see HP support.
Problem with ink system
Please remove the ink cartridges and examine them for any sign of leaks. If any cartridges have
leaks, contact HP. Do not use cartridges that are leaking.
If there are no leaks, re-install cartridges and close the printer cover. Turn the printer off then on
again. If you get this message a second time, contact HP.
Problem with ink system
141
Index
A
accessibility 7
accessories
installation 21
printer status report 77
turn on and off in driver 24
warranty 88
acoustic emissions 97
after the support period 52
align printhead 79
B
blank pages, troubleshoot
print 56
both sides, print on 37
buttons, control panel 11
C
calibrate linefeed 79
cameras
insert memory cards 20
Cancel button 11
capacity
trays 94
cards
sizes supported 93
tray supporting 94
cartridges. See ink cartridges
clean
exterior 25
printhead 78
Configure
firewall 72
connection type
change 126
connectors, locating 10
control panel
buttons 11
lights 11
status icons 12
custom-size paper
Mac OS X 34
print on 33
custom-sized media
sizes supported 94
142
custom-sized paper
Mac OS X 34
Windows X 33
customer support
electronic 51
cut-off pages, troubleshoot 57
D
diagnostic page 60
digital cameras
insert memory cards 20
double-sided printing 37
driver
accessories settings 24
warranty 88
duplexer
clear jams 84
installation 21
media sizes supported 92
paper types and weights
supported 94
turn on and off in driver 24
duty cycle 91
E
electrical specifications 97
embedded web server
about 130
opening 131
troubleshoot, cannot be
opened 73
envelopes
sizes supported 92
tray supporting 94
environmental specifications 96
environmental sustainability
program 105
EWS. See embedded web
server
F
Firewall
configure 72
firewall settings 121
firewalls, troubleshoot 54
fonts supported 91
G
glass, scanner
locating 9
H
head 78
Help 12
Hewlett-Packard Company
notices 3
HP software
uninstall from Windows 129
HP Utility (Mac OS X)
opening 130
humidity specifications 96
I
ink cartridge access door,
locating 10
ink cartridges
check ink levels 46
locating 10
ordering online 118
part numbers 77, 118
replace 47
status 77
supported 90
tips 45
warranty 88
warranty expiration
dates 77
yields 90
ink level icons 13
ink levels, check 46
installation
accessories 21
duplexer 21
hardware installation
suggestions 74
HP software installation
suggestions 75
tray 2 22
troubleshooting issues 74
IP address
checking for printer 74
IP settings 121
Index
J
jams
clear 84
paper 84, 86
L
language, printer 90, 91
lights, control panel 11
linefeed, calibrate 79
link speed, setting 121
load
photo 18
tray 16, 17
tray 2 22
load cards 18
load custom-size paper 19
load envelopes 17
load paper 16
locking trays 23
M
Mac OS
custom-size paper 34
Print photos 32
print settings 28
turn accessories on and off
in driver 24
Mac OS X
HP Utility 130
maintain
printhead 78
maintenance
align printhead 79
calibrate linefeed 79
check ink levels 46
clean printhead 78
diagnostic page 60
print quality report 60
printhead 78
replace ink cartridges 47
margins
setting, specifications 95
media
clear jams 84
duplexing 37
load tray 16
load tray 2 22
locking trays 23
skewed pages 63
supported sizes 92
troubleshoot feeding 62
memory
specifications 91
memory cards
insert 20
specifications 97
memory devices
print files 32
troubleshoot 65
missing or incorrect information,
troubleshoot 56
MMC memory card
insert 20
model number 77
multi-feeds, troubleshoot 63
N
networks
advanced settings 120
connector illustration 10
firewall settings 121
firewalls, troubleshoot 54
IP settings 121
link speed 121
settings, change 120
solve problems 75
view and print settings 120
wireless communication
setup 123
wireless settings 82
noise information 97
O
operating environment
specifications 96
operating systems
supported 91
output tray
locating 9
media supported 95
P
pages per month (duty
cycle) 91
paper
HP, order 119
jams 84, 86
print on custom-size 33
selecting 16
specifications 92
types and weights
supported 94
paper, select 14
paper-feed problems,
troubleshoot 62
PCL 5 support 90
PCL 6 support 90
PDF 5 support 90
phone support 51
phone support period
period for support 52
photo media
sizes supported 93
Photo screen 12
photos
insert memory cards 20
print from memory
devices 32
troubleshoot memory
devices 65
ports, specifications 90
power
specifications 97
troubleshoot 53
power input, locating 10
print
diagnostic page 60
double-sided 37
photos from memory
devices 32
print quality report 60
printer status report 77
troubleshoot 53
Print brochures
print 29
Print envelope 30
Print envelopes
Mac OS X 31
Print photos
Mac OS X 32
Windows 31
print quality report 60
print settings
print quality 57
printer control panel
locating 9
network settings 120
printer driver
accessories settings 24
warranty 88
printer software (Windows)
about 130
opening 26, 130
printer status report
information on 76
print 77
143
printhead
clean 78
printhead latch, locating 10
printhead, align 79
printheads
ordering online 118
supported 90
printing
slow, troubleshoot 54
processor specifications 91
PS3 support 90
R
radio interference
reducing 128
regulatory information 102
radio, turn off 120
rear access panel
clear jams 84
illustration 10
recycle
ink cartridges 105
regulatory information 99, 102
regulatory model number 104
replace ink cartridges 47
report
wireless test 127
reports
diagnostic 60
print quality 60
printhead 78
right navigation button 11
S
scanner glass
locating 9
Secure Digital memory card
insert 20
security
wireless
communication 127
serial number 77
settings
network 120
Setup 12
shipping environment
specifications 97
skew, troubleshoot
print 63
software
accessories settings 24
warranty 88
144
sound pressure 97
specifications
acoustic emissions 97
electrical 97
operating environment 96
paper 92
physical 90
processor and memory 91
shipping environment 97
system requirements 91
status
network configuration
page 82
printer status report 77
status icons 12
storage devices
USB flash drives
supported 97
supplies
ordering online 118
printer status report 77
yields 90
support 50
system requirements 91
T
technical information
memory card
specifications 97
temperature specifications 96
text
troubleshoot 57
tray 1
capacity 94
media sizes supported 92
paper types and weights
supported 94
tray 2
capacity 94
installation 22
load media 22
media sizes supported 92
paper types and weights
supported 94
turn on and off in driver 24
trays
capacities 94
clear jams 84
installation tray 2 22
load paper 16
locating 9
locking 23
media sizes supported 92
paper guides illustration 9
paper types and weights
supported 94
setting default 23
troubleshoot feeding 62
turn on and off in driver 24
troubleshoot
blank pages printed 56
cut-off pages, incorrect text
or graphics placement 57
embedded web server 73
firewalls 54
jams, paper 86
media not picked up from
tray 62
memory devices 65
missing or incorrect
information 56
multiple pages are
picked 63
network configuration
page 82
nothing prints 53
paper-feed problems 62
power 53
print 53
printer status report 76
skewed pages 63
tips 52
troubleshooting
Ethernet network 66
general network
troubleshooting 66
hardware installation
suggestions 74
HP software installation
suggestions 75
installation issues 74
solve network problems 75
wireless problems 66
two-sided printing 37
U
uninstall HP software
Windows 129
USB connection
port, locating 9, 10
specifications 90
USB flash drives 97
Index
V
view
network settings 120
voltage specifications 97
W
warranty 88
websites
accessibility information 7
customer support 51
environmental
programs 105
order supplies and
accessories 118
supply yield data sheet 90
Windows
custom-size paper 33
print brochures 29
Print photos 31
print settings 27
system requirements 91
turn accessories on and off
in driver 24
uninstall HP software 129
wireless communication
advanced wireless
troubleshooting 67
basic wireless
troubleshooting 66
radio, turn off 120
reducing interference 128
regulatory information 102
security 127
set up 123
wireless connection icons 12
wireless test report
print 127
X
xD-Picture memory card
insert 20
145
146
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
